, JMS, 2-12-2011

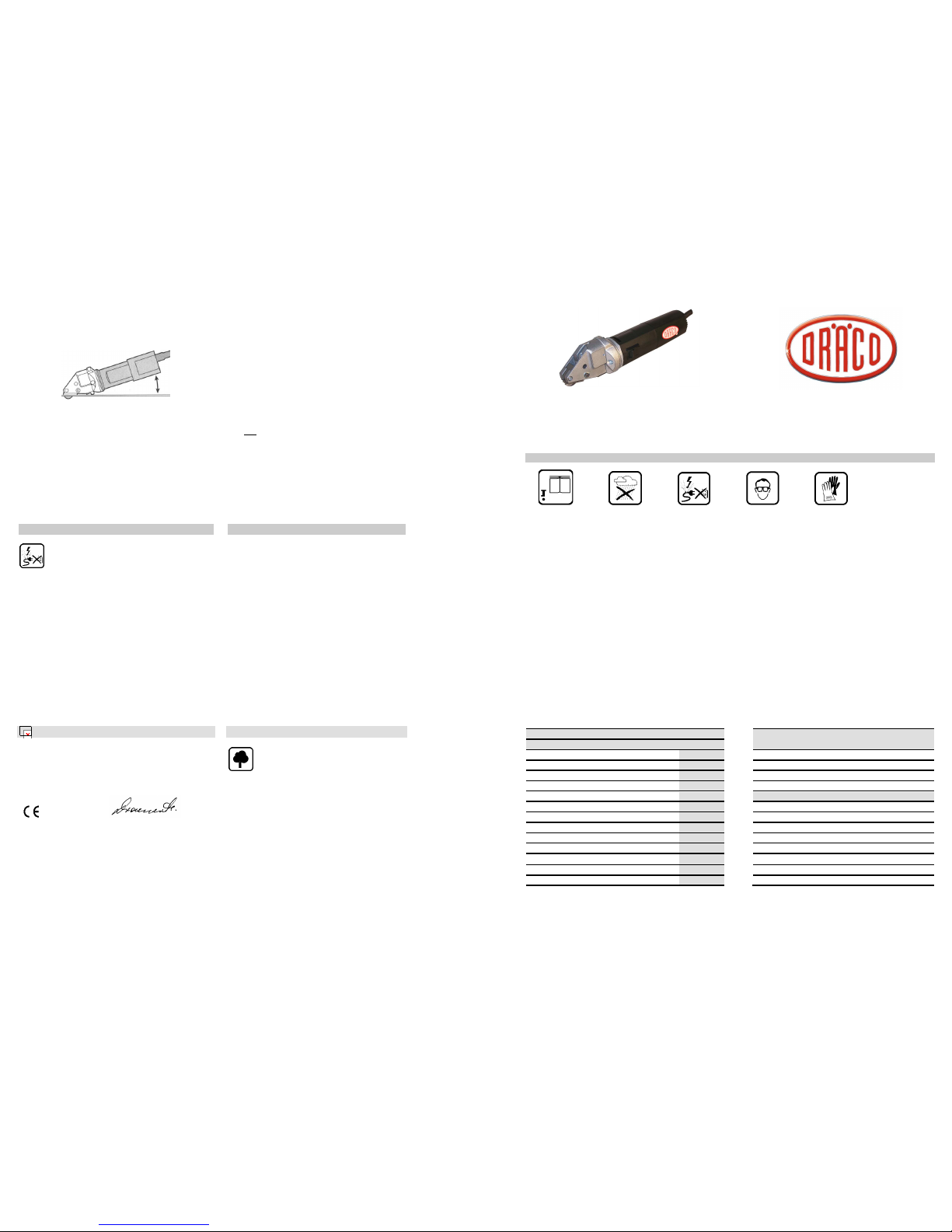

Operating instructions
The shear must always be guided flat and the best
cutting result is achieved, when the jaws pos. 10 are
positioned flat on top of the material, also when
cutting circular cuts.
The material to be cut must always be free of oil or
grease.
Always place the machine flat on the workpiece.
Cut-outs: Drill a starting hole with a 12-14 mm
diameter drill.
Circular cuts: Always cut counter clockwise and
from left to right.
Warning!
Important instructions for connecting a
new 3-pin plug to the 2 wire cable.
The wires in the cable are coloured according to
the following code
live = brown
To be fitted by qualified professional only
neutral = blue
Do not connect the blue or brown wire to the
earth terminal of the plug.
Care and Maintenance
Guarantee
Before working on machine disconnect
from power supply by removing plug from socket.
Always keep the machine and the ventilation slots
clean.
Oil the knife pin 18 at regular intervals.
If the machine should happen to fail despite the
care taken in manufacture and testing, repair
should be carried out by an authorised customer
services agent for Dräco power tools.
Dräco tools carr y a guarantee of 12 months from
date of delivery.
Damage attributable to normal wear and tear,
overload or improper handling will be excluded
from the guarantee.
In case of complaint please send the machine,
undismantled, to your dealer or the Dräco
Service Centre for electric power tools.
Important
If for any reason the plug is cut off of the cable of
this machine, it must de disposed of safely and
not left unattended.
Declaration of conformity
Environmental protection
We declare under our sole responsibility that this product is in
conformity with the following standards.
EG 98/37 EG, EG 73/ 23 EG, EG 89/336 EG, or standardisation
documents EN 292 part I, EN 292 part II, EN 50 144, EN 55 014,
EN 60 555, HD 400, HD 400.3 part II/H
09 Susanne Draenert
Recycling raw materials instead of
waste disposal
Machine, accessories and packaging should be
sorted for environment-friendly recycling.
These instructions are printed on recycling paper
manufactured without chlorine
®

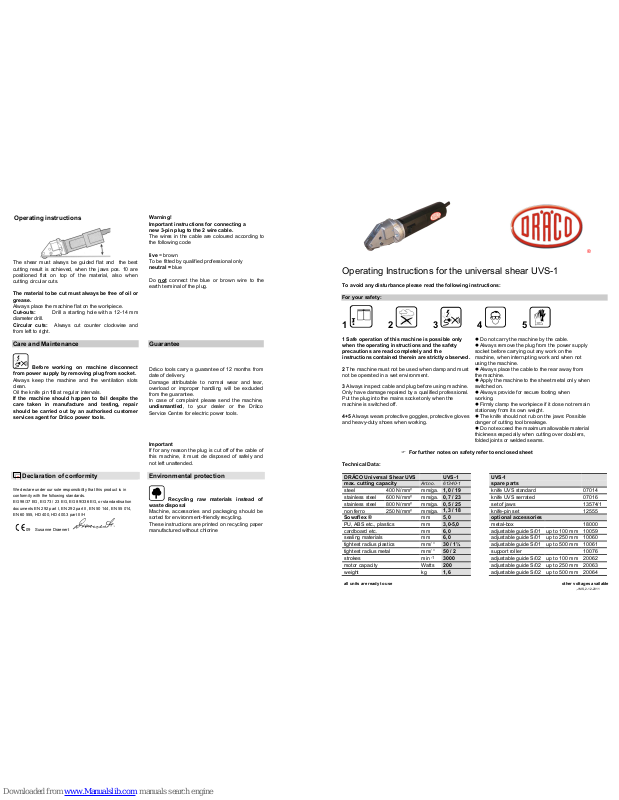

Operating Instructions for the universal shear UVS-1
To avoid any disturbance please read the following instructions:
For your safety:
1 2 3 4 5
1 Safe operation of this machine is possible only
when the operating instructions and the safety
precautions are read completely and the
instructions contained therein are strictly observed.
2 The machine must not be used when damp and must
not be operated in a wet environment.
3 Always inspect cable and plug before using machine.
Only have damage repaired by a qualified professional.
Put the plug into the mains socket only when the
machine is switched off.
4+5 Always wears protective goggles, protective gloves
and heavy-duty shoes when working.
l
Do not carry the machine by the cable.
l
Always remove the plug from the power supply
socket before carrying out any work on the
machine, when interrupting work and when not
using the machine.
l
Always place the cable to the rear away from
the machine.
l
Apply the machine to the sheet metal only when
switched on.
l
Always provide for secure footing when
working.
l
Firmly clamp the workpiece if it dose not remain
stationary from its own weight.
l
The knife should not rub on the jaws: Possible
danger of cutting tool breakage.
l
Do not exceed the maximum allowable material
thickness especially when cutting over doublers,
folded joints or welded seams.
F
For further notes on safety refer to enclosed sheet
Technical Data:
DRÄCO Universal Shear UVS
UVS-1
UVS-1
max. cutting capacity
Art.no.
61340-1
spare parts
steel
400 N/mm²
mm/ga.
1,0 / 19
knife UVS standard
07014
stainless steel
600 N/mm²
mm/ga.
0,7 / 23
knife UVS serrated
07016
stainless steel
800 N/mm²
mm/ga.
0,5 / 25
set of jaws
13574/1
non ferro
250 N/mm²
mm/ga.
1,3 / 18
knife-pin set
12555
Sowaflex ®
mm
5,0
optional accessories
PU, ABS etc., plastics
mm
3,0-5,0
metal-box
18000
cardboard etc.
mm
6,0
adjustable guide S/01
up to 100 mm
10059
sealing materials
mm
6,0
adjustable guide S/01
up to 250 mm
10060
tightest radius plastics
mm/ “
30 / 1¼
adjustable guide S/01
up to 500 mm
10061
tightest radius metal
mm/ “
50 / 2
support roller
10076
strokes
min
-1
3000
adjustable guide S/02
up to 100 mm
20062
motor capacity
Watts
200
adjustable guide S/02
up to 250 mm
20063
weight
kg
1,6
adjustable guide S/02
up to 500 mm
20064
all units are ready to use
other voltages available
, JMS, 2-12-2011
Spareparts for UVS-1
R e pl a ci n g /A d ju s t in g th e Kn i f e
Before working on machine disconnect from power
supply by removing plug from socket.
Wear protective glasses!
Replacing the Knife
Clamp the machine in a vice on the clamping surfaces SV
between aluminium protective jaws.
Before working on machine disconnect from power
supply by removing plug from socket. Ware protective
glasses!
Loosen the screws 21. Remove the support roller 25 (option).
Unscrew the screws 21 and remove the spring plate 20.
Remove the spring 19. Remove the Circlip ring 16 and washer 17.
Push back the knife pin 18.
Do not interchange the spacers 18: the wrong spacing could
ruin the jaws and knife.
Insert a new knife 11 with the old spacers 15. Insert the knife pin 18.
Mount the washer 17 and the Circlip ring 16.
Insert the spring 19. Reassemble spring plate 20 and support roller 25.
Replacing the Jaws
Loosen the screws 8 and remove the jaws 10. Press out the positioning
pins 9. Mount new jaws and positioning pins. Tighten the screws 8.
Adjusting the knife Clearance
For clearance between knife and jaws that is too large, loosen the
fillister head screw 5. Adjust the clearance with the set screw 4.
Retighten the fillister head screw 5.
The knife must not rub on the jaws: Danger of breakage.
Note: If heavy burring is produced while cutting, repeat the adjustment.
Sharpening the knife/Jaws
The knife and the jaws must be sharpened and adjusted at the same
time.
This work should be performed by an authorised DRÄCO customer
service location. Send in the complete machine for this purpose.
Spareparts for UVS-1
Pos.
Order
Quantity
Pos.
Order
Quantity
No.
No.
Description
per Shear
No.
No.
Description
per Shear
1
10500
Head casting
14281249
Securing washer A 4
3
1-52
15557
Shearhead UVS cpl. assembled,
without motor
14381012
Flat fillister head screw M 4 x 20
3
51
81243
Securing washer A 5
2381263
Hex socket screw M 4 x 16
15281181
Hex socket screw M 5 x 20
2481089
Spacing-block set screw M 5 x 10
15310531
Holder for switch
1
5
81272
Flat fillister head screw M 4 x 22
15415531
Screw
1
6
10002
Spacing-block 7,5
1
53-95
10055
Motor cpl. 230 V
1
8
81270
Flat head screw M 4 x 8
46010015
Motor case bottom
1
9
81248
Positioning Pin 3x6
4
60 a
10515
Endcap case bottom
1
61
10016
Platespring
1
11-14
07014
Knife 1014S standard
16210017
Motorcase top
1
07016
Knife 1014S serrated
63
10018
Rubber insulation 8 mm
1
64
10019
Switch lever
11013574/1
Set of Jaws
16510020
Switch pad
16610021
Flat fillister head screw M 3 x 4
11312000
Knife adjusting screw M 6 x 17
16710024
Field 230 Volt
1
13-14
12222
Knife adjusting screw M6x17+lockring
16910027
Condensator
1
14
12100
Knife Lockring M6
17010028
Wire endcap
1
15
12400
Spacing shims
17110029
Carbon brush holder
2
16
81275
Circlip272
10030
Motor protective switch
1
17
81072
Washer A 6,4
27310031
Switch 2-polig
1
16-18
12500
Knife pin 6 Ø
17410032
Fillister head screw M 3 x 5
4
15-18
12555
Knife pin set (Pos. 15-18)
17510033
Connection wire
11912200
Spring176
10036
Armature 230 Volt
1
20
12300
Spring cover
17910038
Ball bearing 608-2 Z
1
21
81271
Flat head screw M 3 x 8
48010039
Rubber ring AS 21, 3x2,4
1
24
17900
Knifepin bushing Ø 10 mm
28310040
Ball bearing 626-2 Z/LZ
1
(24)
17911
Knifepin bushing Ø 11 mm
(2)8410041
Rubber ring BS 18x45
12510076
Support roller in metal (option)
18510042
Spring washer 18,8/9,2 x 0,25
1
32-39
10080
Drive Shaft cpl. assembled
18610043
Motor endcap
1
32
35556
Eccentric drive shaft
18710044
Plastic cord clamp screw M10x11,5
1
33
13555
Ball bearing 6000/28Z
18810045
Rubber-sleeve
1
34
10005
Sleeve 7x10x12 IR
28932046
3 m cable with plug
13510300
Needle bearing HK 1010
29010047
Matal-screw Ø 4 x 16 mm
63610450
Cap for needle bearing
19110048
Filtercap237
10006
Key 12 x 3 x 2
19210049
Round-head screw M 3 x 10
2
38
10007
Gear193
10050
Carbon brush
2
39
10009
Circlip 7 SP220
19410051
Carbon spring
2
40
81239
Tap screw M 4 x 6
29510052
Carbon cap screw
2
41
10010
Gear case
1
Optional assessories
10059
Adjustable guide S/01 100 mm
10060
Adjustable guide S/01 250 mm
10061
Adjustable guide S/01 500 mm
18000
Support roller (metal)
Specifications are subject to change for improvement without prior notice.
