JMS 04.09.09
Operating instructions
1. Intended use. This Power Tool is intended for
industrial applications, for cutting plastics
(maximum capacity is indicated in the
Specifications), for use with cutting jaws and
cutting b lades which are indicated in these
operating instructions or recommended by
DRÄCO.
2. Do NOT cut multi layer sheets, which exceed the
maximum cutting capacity.
3. Switching ON/OFF the power tool. First check
cable and plug for damage. Slide the switch pad
(5) BACKWARD for switching ON the power
tool. Slide the switch pad (5) FORWARD for
switching OFF the power tool.
4. For inside cutting, the shortest curve possible has
a radius of 175 mm (±7”). If cutting a radius with
the right hand, cut from right to left. The outside
radius is unlimited.
5. For cutting out curved or circular inside patterns,
a 14 mm (± 1/2 “) hole, or a punched slot should
be made to insert the centre cutter.
6. If after cutting, a small strip remains this can
easily be trimmed off to the exact measurement,
without distortion of the material. Just one side of
the power tools can be used for cutting also (e.g.
along a marked line). Lift the power tools out of
the shavings while the motor is running. Cut off
longer shavings.
7. Both knife and jaws can be sharpened. After
being sharpened or replaced, the knife at it’s
lowest point should protrude the jaws by
approximately 3 mm. The knife should have
approximately 0,05 mm (0,005”) play on each
side of the jaws, centring the cutter with spacing
shims supplied.
8. Every 200 operating ours have the cutting blade
and cutting jaws sharpened at a specialist
workshop.
9. Ensure that the material to be cut is free of oil
and grease.
Care and Maintenance
Warranty
Before working on machine disconnect from power
supply by removing plug from socket.
Always keep the machine and the ventilation slots
clean.
Oil the knife pin and knife at regular intervals.
If the machine should happen to fail despite the care
taken in manufacture and testing, repair should be
carried out by an authorised customer services agent
for DRÄCO power tools
DRÄCO tools carry a guarantee of 12 months from
date of delivery.
Damage attributable to normal wear and tear,
overload or improper handling will be excluded from
the guarantee. (e.g. blades/knifes and jaws)
In case of complaint please send the machine, undismantled, to your dealer or the DRÄCO Service
Center for electric power tools.
Environmental protection
CE-Declaration of conformity
Recycling raw materials instead of waste
disposal
Machine, accessories and packaging should be sorted
for environment-friendly recycling.
These instructions are printed on recycling paper
manufactured without chlorine
We declare under our sole responsibility that this product is
in conformity with the following standards.
EG 98/37 EG, EG 73/ 23 EG, EG 89/336 EG, or
standardisation documents EN 292 part I, EN 292 part II,
EN 50 144, EN 55 014, EN 60 555, HD 400,
HD 400.3 part II/H
95 Max Draenert

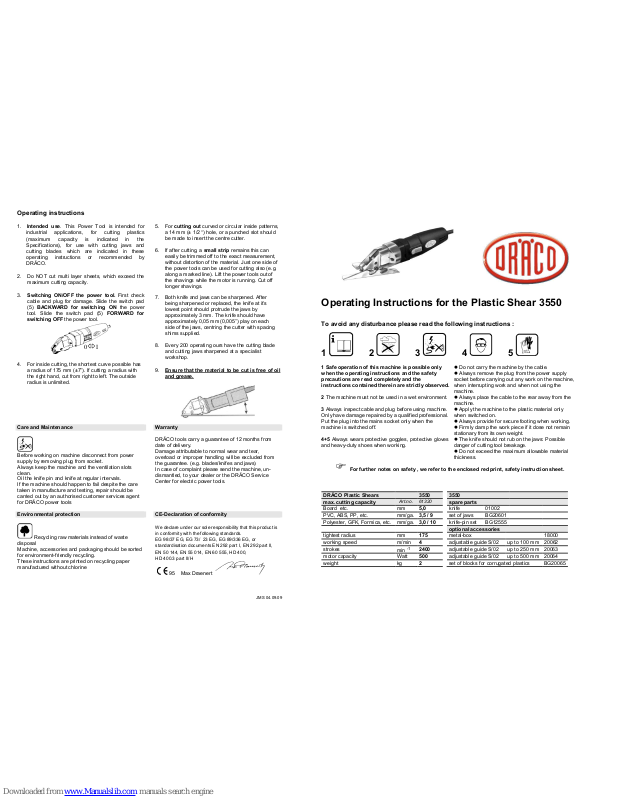

Operating Instructions for the Plastic Shear 3550
To avoid any disturbance please read the following instructions :
1 2 3 4 5
1 Safe operation of this machine is possible only
when the operating instructions and the safety
precautions are read completely and the
instructions contained therein are strictly observed.
2 The machine must not be used in a wet environment.
3 Always inspect cable and plug before using machine.
Only have damage repaired by a qualified professional.
Put the plug into the mains socket only when the
machine is switched off.
4+5 Always wears protective goggles, protective gloves
and heavy-duty shoes when working.
l
Do not carry the machine by the cable.
l
Always remove the plug from the power supply
socket before carrying out any work on the machine,
when interrupting work and when not using the
machine.
l
Always place the cable to the rear away from the
machine.
l
Apply the machine to the plastic material only
when switched on.
l
Always provide for secure footing when working.
l
Firmly clamp the work piece if it dose not remain
stationary from its own weight.
l
The knife should not rub on the jaws: Possible
danger of cutting tool breakage.
l
Do not exceed the maximum allowable material
thickness.
F
For further notes on safety , we refer to the enclosed red print, safety instruction sheet.
DRÄCO Plastic Shears
3550
3550
max. cutting capacity
Art.no.
61320
spare parts
Board etc.
mm
5,0
knife
01002
PVC, ABS, PP, etc.
mm/ga.
3,5 / 9
set of jaws
BG20601
Polyester, GFK, Formica, etc.
mm/ga.
3,0 / 10
knife-pin set
BG12555
optional accessories
tightest radius
mm
175
metal-box
18000
working speed
m/min4adjustable guide S/02
up to 100 mm
20062
strokes
min
-1
2400
adjustable guide S/02
up to 250 mm
20063
motor capacity
Watt
500
adjustable guide S/02
up to 500 mm
20064
weight
kg2set of blocks for corrugated plastics
BG20065
0óI
JMS 04.09.09

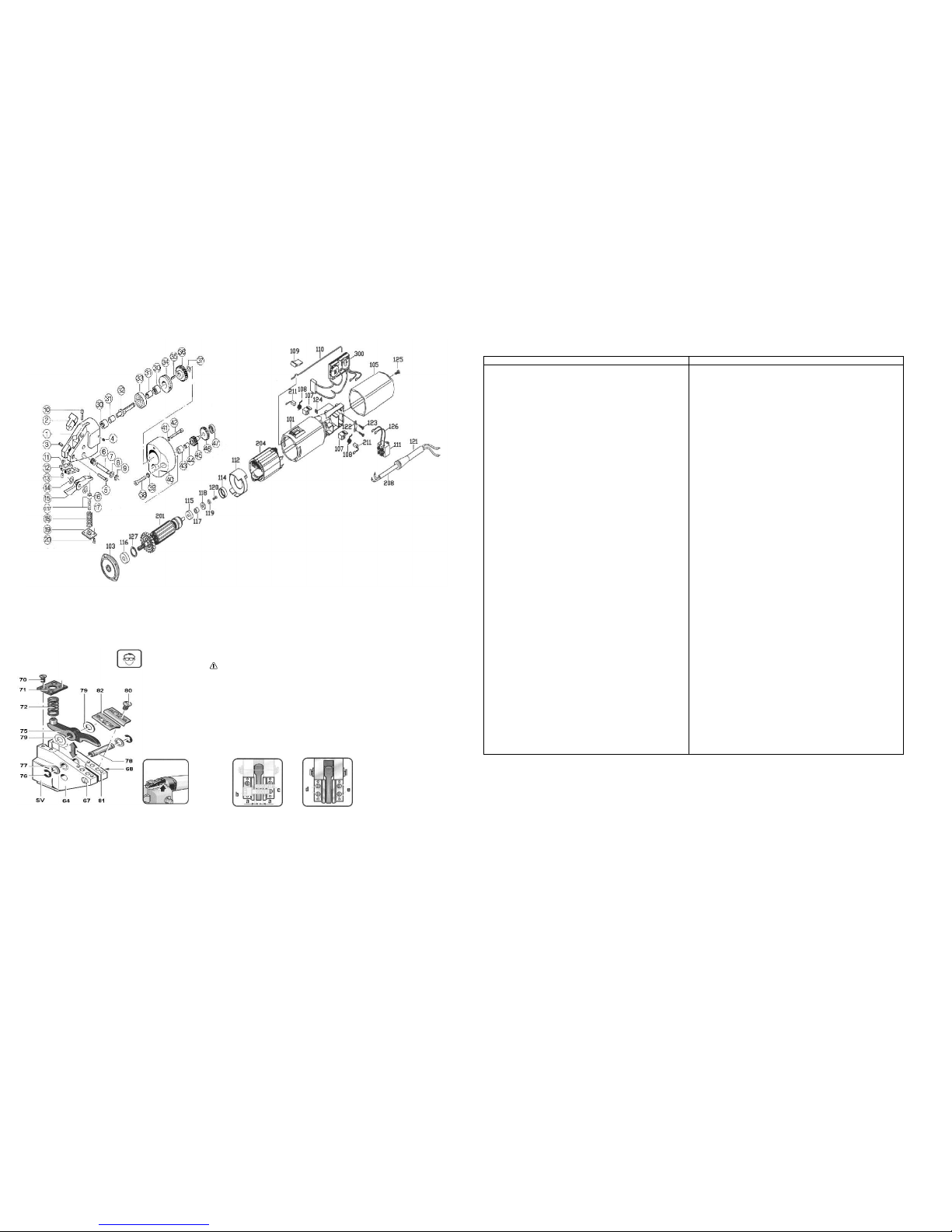

Spareparts for Plastic Shears 3550
S ER VI CE T I PS
Before working on machine disconnect from power
supply by removing plug from socket.
Wear protective glasses!
* O p t io n a l
1 . One drop of oil between knife (11) and head-casting (1) keeps the spacing
shims (15) in place.
2 . Dismantle Spring cover (20) and take spring out (19)
3 . Take circlip (16) and washer (17) off.
4 . Push knife pin (18) out of casting.
5. Take knife out of housing.
6. Attention, do not exchange the spacing shims (15).
7. Place the knife inside the housing feed shims in on one side and push knife pin
(18) into housing up to the middle of the knife.
8. Feed the shims on the other of the knife.
9. Push knife pin in completely, and secure washer (17) and circlip (16) again.
10. Assemble spring (19) and spring cover (20).
11. Between the knife (11) and the jaws (10) should be some distance,
approximately 0,05 mm on each side. Knife (11) must be placed tight in the
head casting.
12. Adjustment for the play between the jaws. (a): 0,1 - 0,15 mm.
13. If knife has contact with the jaws on both sides, adjust with screws in the head
casting.
If a burr is on the material, adjust the space between the knife and the jaws
1 4 . Replace jaws with a new set, loosen 4 screws (8) take jaws (10) and pins (9)
off, assemble again and tighten with the screws.
Spare Parts List for DRÄCO Plastic Shears 3550
Pos.
Description
Qty.
Order-No.
Pos.
Description
Qty.
Order-No.
Shearhead 3550 cpl. without Motor
27302
48
Needle bearing
1
13043
49
Securing Washer
3
81249
54-62
Drive shaft assembled
13277
50
Flat Fillister Head Screw
3
81262
44-47
Pinion with gear cpl. Pos.39,44-47
BG31541
51
Gear Case Cover Seri F
1
BG13046
52
Spring washer
2
81243
Motor cpl. 230 V, 60 Hz
1
32229
53
Hex Socket Screw
2
81031
Motor cpl. 115 V, 60 Hz
1
32129
54
Circlip110009
55
Key110006
1
Motor housing132040
56
Gear 36 teeth113051
2
Housing Cap132047
57
Cap for Needle Bearing
1
10450
3
Switch132050
58
Sleeve 110005
4
Guide Piece132054
59
Needle Bearing
1
10300
5
Switch Pad132056
60
Ball bearing110200
6
Pressure Spring
1
32055
61
Excentric Drive Shaft
1
10004
7
Wire232044
62
Sleeve 110005
8
Carbon Brush Set
2
32042
63
Needle Bearing
1
10300
9
Carbon Brush Holder
2
32041
64
Head Casting 120500
10
Condensator132045
65
Pinbush217900
11
Cable with Plug Europe
1
32046
67
Flat Fillister Head Screw
1
81272
12
Connection Cable
1
32522
68
Spacing setscrew
1
21600
13
Screw 232048
69
Tap Screw with ISK
2
81239
14
Screw 232053
70
Flat Head Screw
4
81271
15
Cable Collar132052
71
Spring Cover112300
16
Field 230 Volt, 60 Hz
1
32039
72
Spring112200
16
Field 115 Volt, 60 Hz
1
32139
73
Knife Lock ring
1
12100
17
Air Deflector Ring
1
32038
73-74
Knife adjusting screw with adjusting screw
1
35566
18
Rubber Sleeve
1
32036
74
Knife adjusting screw
1
35067
19
Ball Bearing 132030
75
Knife 101002
20
Washer132037
76-79
Knife pin set
1
BG12555
21
Armature 230 Volt, 60 Hz
1
32033
76
Circlip281275
21
Armature 115 Volt, 60 Hz
1
32133
77
Washer 281072
23
Bearing Cover132032
78
Spacing Shims
1
12500
24
Ball Bearing110038
79
Spacing Shims Set
1
BG12400
25
Securing Ring132034
80
Spacing Shims
4
81286
27
Bearing End Plate
1
32014
81
Pin481248
28
Screw 432010
82
Set of jaws 120601
29
Pin 181132
95
Aluminium Cover Plate
1
18610
30
Screw 232012
96
Washer 181035
31
Label132057
97
Flat Head Screw
2
81039
39
Washer381059
98
Top Angle Guide
1
13000
44
Ball Bearing 113039
99
Wing Screw 213200
45
Gear 113540
100
Side Angle Guide
1
13100
46
Pinion 113041
47
Sleeve 113042
Max Draenert GmbH & Co.KG Electric - Cordless - Pneumatic Tools - Machines
Germany
Factory I :
Administration
D - 73777 Deizisau
P.O. Box 1120
Phone + 49 (0) 7153-8217-0
Manufacturing Shears
D - 73779 Deizisau
Gutenbergstr. 15-17
Fax + 49 (0) 7153-8217-66
Factory II :
Manufacturing Roofing System
D - 73779 Deizisau
Seewiesenweg 1
INTERNET http://www.dracotools.com
E-mail: draenert@dracotools.com
