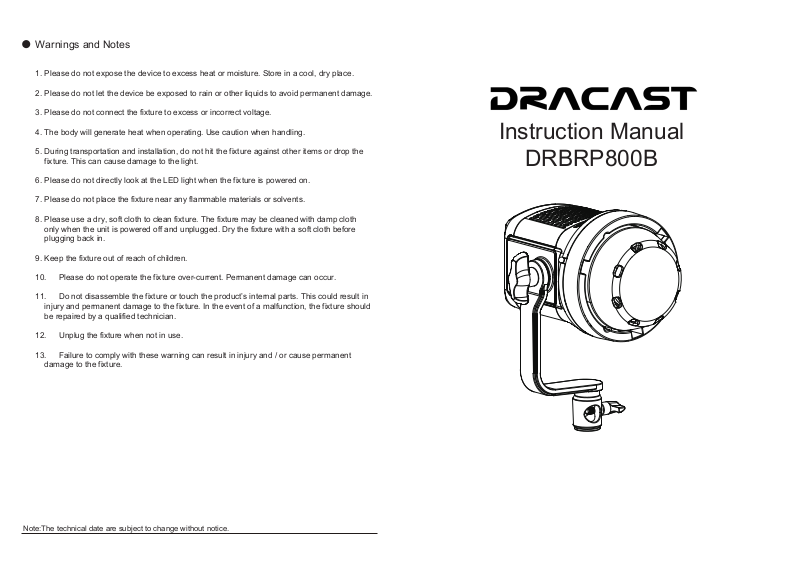

Warnings and Notes
1. Please do not expose the device to excess heat or moisture. Store in a cool, dry place.
2. Please do not let the device be exposed to rain or other liquids to avoid permanent damage.
3. Please do not connect the fixture to excess or incorrect voltage.
4. The body will generate heat when operating. Use caution when handling.
5. During transportation and installation, do not hit the fixture against other items or drop the
fixture. This can cause damage to the light.
6. Please do not directly look at the LED light when the fixture is powered on.
7. Please do not place the fixture near any flammable materials or solvents.
8. Please use a dry, soft cloth to clean fixture. The fixture may be cleaned with damp cloth
only when the unit is powered off and unplugged. Dry the fixture with a soft cloth before
plugging back in.
9. Keep the fixture out of reach of children.
10. Please do not operate the fixture over-current. Permanent damage can occur.
11. Do not disassemble the fixture or touch the product’s internal parts. This could result in
injury and permanent damage to the fixture. In the event of a malfunction, the fixture should
be repaired by a qualified technician.
12. Unplug the fixture when not in use.
13. Failure to comply with these warning can result in injury and / or cause permanent
damage to the fixture.
Instruction Manual
DRBRP800B
Note:The technical date are subject to change without notice.
Page 2
Product Information
Dracast Boltray Series is a high-output, compact light fixture that combines accurate color rendition
with portable design. The result is a light fixture that is perfectly suited for photo and filmmaking
applications. The 5000 model is equipped with a 120W LED COB array with adjutsable color
temperature from 3000K - 6000K

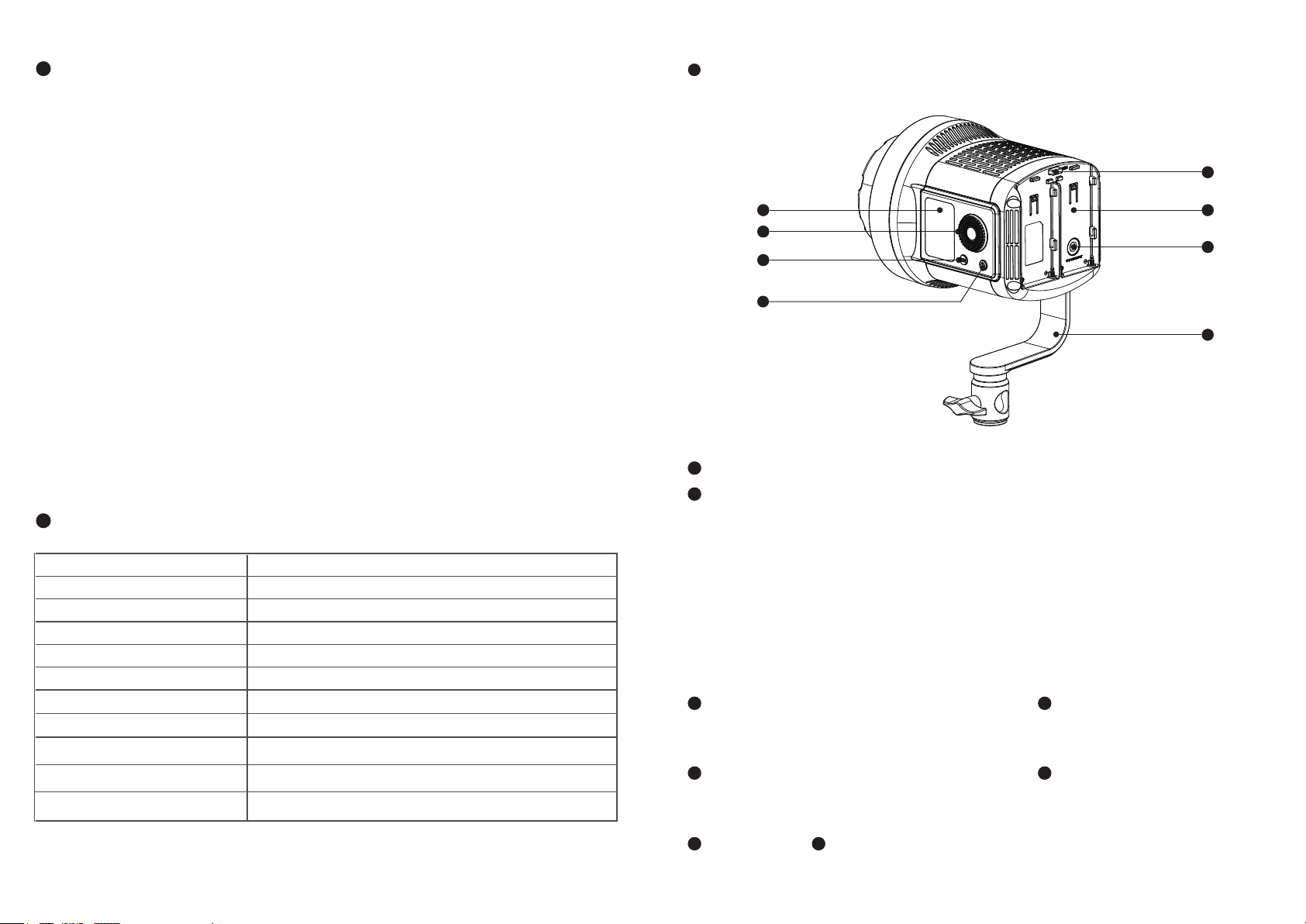

Boltray Figure and Components
5
The Dracast Boltray Series is constructed with an aluminum alloy frame, making the fixture both
durable and lightweight. The fixture is programmed with special effects that include Paparazzi,
Fireworks, Bad Bulb, and Thunder Flash, TV, and SOS providing the user with multiple creative
applications. The fixture can be powered via AC mains power, or via DC battery power through its
on-board v-mount battery plates. The fixture is equipped with overheating protection via on-board
fans for prolonged use. Boltray fixtures are equipped with a built-in 2.4G wireless receiver enabling
it to be controlled via remote
Specifications
Model DRBRP800B
Output Power
Luminous Flux
LED Quantity
Color Temperature
Illuminant
Adjusting Range
Lithium Battery Type
Remote Control
Remote Control Distance
power Input
80W
6800LM
1PC
3000-6500K ± 200K
High-Power LED Module
10%-100%
NP-F960*2
99channel 2.4G wireless remote control
≥30M
AC100-240V 50/60Hz
丨 DC19V4.7A
1
2
3
4
*Latch/release of bowens accessory
Rotate to install the bowens style mounting
accessory until it is locked in place.
Rotate to release the accessory until it is
removed.
LED display
1
Adjustment knob
2
Long press the knob for 3 seconds to switch between continuous lighting and special effects lighting.
In continuous lighting mode, dial the knob to change the dimmer 10%-100%.
In special effects mode, shortly press the knob to change light intensity,
effect mode (dial knob to change F1-F6) and effect frequency ( dial knob to change 1-9).
01- Paparazzi 02- Firework 03- Bad bulbs 04- Thunder flash 05- TV 06- SOS
Shortly press the knob to switch between the modes of intensity cntrol and color temperature
adjustment. Then dial the knob to change light intensity or color temperature.
Channel button
3 4
Short press the CH button and turn the knob to change the
channels from 01-99.
Battery catch / release button
5
Press and hold the PUSH button, push the battery upwards
to remove the battery from the light.
Power switch
Hold the power button for four
seconds to switch on / off the power.
6
Power socket
DC power input 19V 4.74A.
7
6
8
Note:The max output of the light is 80 watts when it is powered with AC adapter. While it is powered with batteries,
the max output of the light will drop to 60 watts due to the capacity limit of the batteries.
7
Battery slot
8
Yoke
