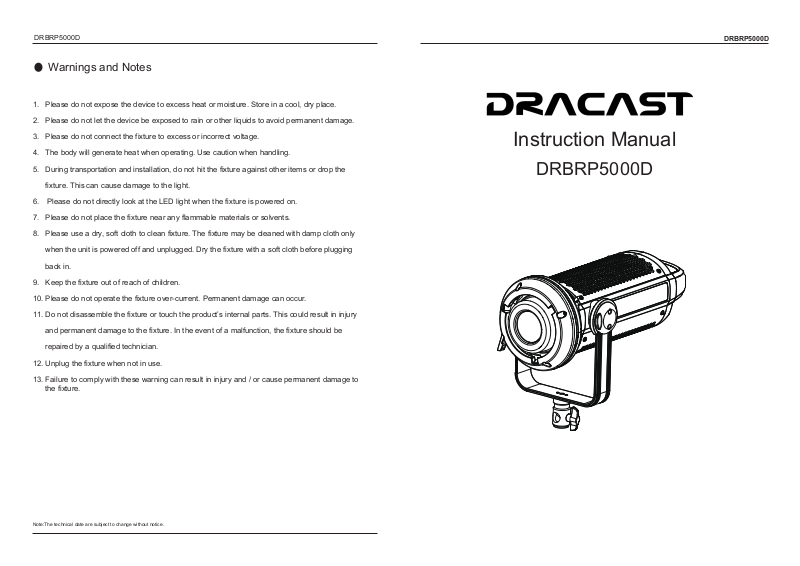

Warnings
1. Please do not expose the device to excess heat or moisture. Store in a cool, dry place.
2. Please do not let the device be exposed to rain or other liquids to avoid permanent damage.
3. Please do not connect the fixture to excess or incorrect voltage.
4. The body will generate heat when operating. Use caution when handling.
5. During transportation and installation, do not hit the fixture against other items or drop the
fixture. This can cause damage to the light.
6. Please do not directly look at the LED light when the fixture is powered on.
7. Please do not place the fixture near any flammable materials or solvents.
8. Please use a dry, soft cloth to clean fixture. The fixture may be cleaned with damp cloth only
when the unit is powered off and unplugged. Dry the fixture
back in.
9. Keep the fixture out of reach of children.
10. Please do not operate the fixture over-current. Permanent damage can occur.
11. Do not disassemble the fixture or touch the product’s internal parts. This could result in injury
and permanent damage to the fixture. In the event of a malfunction, the fixture should be
and Notes
with a soft cloth before plugging
Instruction Manual
DRBRP5000D
repaired by a qualified technician.
12. Unplug the fixture when not in use.
13. Failure to comply with these warning can result in injury and / or cause permanent damage to
the fixture.
Note:The technical date are subject to change without notice.
Page 2
DRBRP5000D
DRBRP5000D
Product Information
Dracast Boltray Series is a high-output, compact light fixture that combines accurate color
rendition with portable design. The result is a light fixture that is perfectly suited for photo and
filmmaking applications. The 5000 model is equipped with a 500W LED COB array in single color
5600K
The Dracast Boltray Series is constructed with an aluminum alloy frame, making the fixture both
durable and lightweight. The lamp head is separated from the power and control assembly giving
the lamp head maximum versatility. The fixture can be powered via AC mains power, or via DC
battery power through its onboard v-mount battery plates. The fixture is equipped with
overheating protection as well as onboard fans for prolonged use. Boltray fixtures are equipped
with a built-in 2.4G wireless receiver enabling it to be controlled via remote.
Specifications
Model DRBRP5000D / DRBRP5000B
Output Power
Color rendering index
Luminous Flux
LED Quantity
Color Temperature
Illuminant
Adjusting Range
Remote Control
Remote Control distance
Lithium Battery Type
DMX512 dimmer
power input
Overheating Protection:
A thermally triggered overheat protection system will automatically shutdown the fixture if internal
temperure exceeds 90°C (194°F). The fixture will emit an audible warning prior to shutdown. Normal
operation may resume upon completed cooldown.
500W
≥95
45000LM
1 PCS
DRBRP5000D 5600K ± 200K
High-Power LED Module
10%-100%
(99channel 2.4G wireless remote control)
≥50M
Sony type V lock battery x 4 pcs, the output power of single
battery ≥180 Watts
YES (RJ45 interface)
AC100-240V 50/60Hz丨DC36V

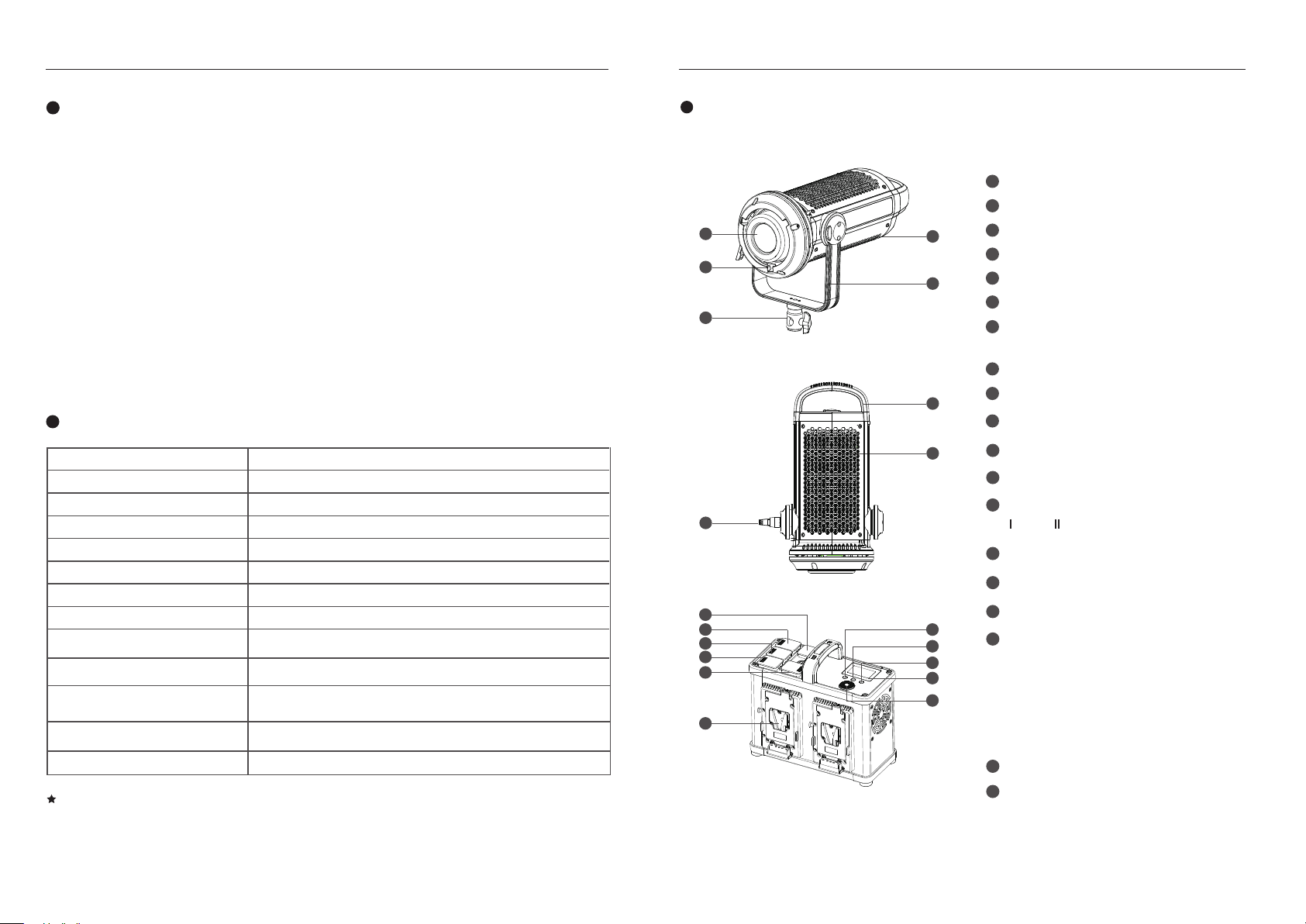

Boltray Figure and Components
1
2
3
8
9
10
11
12
13
14
4
5
6
7
15
16
17
18
19
1
COB LED
2
Bowens mounting
3
Angle adjusting knob
4
Power socket
5
Yoke
6
Handle
7
Silent fan
The fan will be on all the time as the light is on.
8
Angle adjusting knob
9
DMX socket
10
connection line socket
11
DC Power cord socket
12
AC Power cord socket
13
Power switch
: AC : DC
14
Sony type V lock battery
15
Channel keys
16
DMX switch
17
FUNCTION Button – 5 modes switch
F1- Paparazzi F2- Firework F3- Warning
F4 – Thunder F5 – TV
Shortly press the FUN button to enter into
effect. Switch sequentially from F1 to F5 by pressing the button.
Wheel the dimmer to change the brightness intensity from 10%
to 100%.
Pressing the dimmer then, and wheel to change the special effect
from weak to strong (1 ‒ 10 ).
LED display
18
19
Adjustment knob
F1-F5 modes of special
