DR Tow-Behind 13.74 Pro-XL User Manual

DR® LEAF & LAWN VACUUM
SAFETY & OPERATING INSTRUCTIONS
Models:
- Premier
- Pro
- Pro-XL
Pro-XL Model Shown
DR Power Equipment
Serial No.
Order No.
Read and understand this manual and all instructions before operating the DR LEAF and LAWN VACUUM.
Original Language
Toll-free phone: 1-800-DR-OWNER (376-9637) Fax: 1-802-877-1213 Website: www.DRpower.com
CONTACT US AT www.DRpower.com 1
Table of Contents
Chapter 1: General Safety Rules............................................................................................................................................................ 3
Chapter 2: Setting Up The DR LEAF and LAWN VACUUM................................................................................................................. 8
Chapter 3: Operating The DR LEAF AND LAWN VACUUM................................................................................................................ 18
Chapter 4: Maintaining The DR LEAF and LAWN VACUUM............................................................................................................... 23
Chapter 5: Troubleshooting.................................................................................................................................................................. 31
Chapter 6: Parts Lists, Schematic Diagrams And Warranty ................................................................................................................ 34
Conventions used in this manual
This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
This information is important in the proper use of your machine. Failure to follow this instruction could result in damage to your machine or property.
Serial Number and Order Number
A Serial Number is used to identify your machine and is located on the Serial Number Label on your machine. An Order Number is used to check and maintain your order history and is located on the upper left portion of your packing slip. For your convenience and ready reference, enter the Serial Number and Order Number in the space provided on the front cover of this manual.
Additional Information and Potential Changes
DR Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. Equipment described within this manual may be optional. Some illustrations may not be applicable to your machine.
2 DR
®
LEAF and LAWN VACUUM
Chapter 1: General Safety Rules
Read this safety & operating Instructions manual before you use the DR LEAF and LAWN VACUUM. Become familiar with the operation and service recommendations to ensure the best performance from your machine. If you have any questions or need assistance, please contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) and one of our Technical Support Representatives will be happy to help you.
Labels
Your DR LEAF and LAWN VACUUM carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on your machine as you set up and before you operate the unit. Replace damaged or missing safety and information labels immediately.
#188871
#137581
#188861
#280641
CONTACT US AT www.DRpower.com 3
Protecting Yourself and Those Around You
This is a high-powered machine, with moving parts operating with high energy at high speeds. You must use proper clothing and safety gear when operating this machine to prevent or minimize the risk of severe injury. This machine can cut, and sever parts of your body if they become in contact with the moving chipper blades. Always take the following precautions when operating this machine:
Always wear protective goggles or safety glasses with side shields while operating either your tractor lawn deck, vacuum
system, chipper or performing an adjustment on your DR Leaf and Lawn Vacuum to protect your eyes from possible foreign objects thrown from the machine.
Avoid wearing loose clothing or jewelry, which can catch on the machine’s moving parts. We recommend wearing gloves while using the DR Leaf and Lawn Vacuum. Be sure your gloves fit properly and do not have
loose cuffs or drawstrings.
Wear shoes with non-slip treads when using your DR Leaf and Lawn Vacuum. If you have safety shoes, we recommend
wearing them. Do not use the machine while barefoot or wearing open sandals.
Wear long pants while operating the DR Leaf and Lawn Vacuum. Use ear protectors or earplugs rated for at least 20 dba to protect your hearing.
Safety for Children and Pets
Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children and pets are often attracted to the machine and the vacuuming/chipping activity. Always follow these precautions:
Never
assume that children or pets will remain where you last saw them.
Keep children and pets at least 50 feet from the working area and ensure they are under the watchful care of a responsible
adult.
Be alert and always turn off the lawn tractor engine and the DR Leaf and Lawn Vacuum engine if children or pets enter the
work area.
Before and while moving backwards, look behind, and
collector box.
down
for small children and pets. You cannot see directly behind the
Never allow children to operate the Lawn Tractor or Vacuum/Chipper. Never allow children or pets to play in the collector. If they become trapped in the enclosure they may be exposed to
temperatures similar to leaving a child or pet in a car with the windows closed on a sunny day.
Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure your vision.
Safety with Gasoline - Powered Machines
Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily ignited and cause a fire or explosion. Never overlook the hazards of gasoline. Always follow these precautions:
Never run the engine in an enclosed area or without proper ventilation as the exhaust from the engine contains carbon
monoxide, which is an odorless, tasteless, and deadly poisonous gas.
Store all fuel and oil in containers specifically designed and approved for this purpose and keep away from heat and open
flame, and out of the reach of children.
Replace rubber fuel lines and grommets when worn or damaged and after 5 years of use. Fill the gasoline tank outdoors with the engine off and allow the engine to cool completely. Don't handle gasoline if you or
anyone nearby is smoking, or if you're near anything that could cause it to ignite or explode. Reinstall the fuel tank Cap and fuel container cap securely.
4 DR
®
LEAF and LAWN VACUUM
If you spill gasoline, do not attempt to start the engine. Move the machine away from the area of the spill and avoid creating
any source of ignition until the gas vapors have dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly dispose of the waste.
Allow the engine to cool completely and empty the collector box before storing the DR Leaf and Lawn Vacuum in any
enclosure. Remember, decomposing material can generate heat and start a fire. Never store the machine with gas in the tank or a fuel container, near an open flame or spark such as a water heater, space heater, clothes dryer or furnace.
Never make adjustments or repairs with the engine running. Shut down the engine, disconnect the spark plug wire, keeping it
away from the spark plug to prevent accidental starting, wait 5 minutes before making adjustments or repairs.
Never tamper with the engine’s governor setting. The governor controls the maximum safe operation speed and protects the
engine. Over-speeding the engine is dangerous and will cause damage to the engine and to the other moving parts of the machine. If required, see your authorized dealer for engine governor adjustments.
Keep your hands and combustible substances away from the engine when it is hot and clean the engine area after each use. To reduce fire hazard, keep the engine cooling fins and muffler area free of debris build-up such as leaves, grass, oil, grease or
any other combustible material.
Never cover the machine while the muffler is still hot. Do not operate the engine with the air cleaner or the carburetor air intake cover removed, except for adjustment. Removal of
such parts could create a fire hazard.
Do not use flammable solutions to clean the air filter. The muffler and engine become very hot and can cause a severe burn; do not touch. The exhaust area on the engine becomes very hot with use. Allow the engine to cool before doing maintenance or making
adjustments.
Slope Operation
Slopes are a major factor related to tip over accidents, which can result in severe injury. All slopes require caution. If you feel uneasy on a slope, do not vacuum it. Always take the following precautions when using this machine on slopes: ALWAYS:
Vacuum up and down the face of slopes, never across. Exercise extreme caution when changing direction on slopes. Remove objects such as stones, glass and metal objects such as cans. Watch out for holes, ruts, or bumps. tall grass can hide obstacles.
NEVER:
Never vacuum near drop-offs, ditches, or embankments. Your tractor and the vacuum may tip over. Never vacuum on slopes greater than 15 degrees or any excessively steep slopes. Never vacuum on wet slopes. Reduced traction could result in slipping and a possible roll over.
General Safety
This is a high-powered machine, with moving parts operating with high energy at high speeds. You must operate the machine safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the following precautions when using this machine:
Never allow people who are unfamiliar with these instructions to use the DR Leaf and Lawn Vacuum. To be safe, do not operate the machine near small children or pets, and never allow children to operate the vacuum. Stop the
vacuum engine and tractor engine when another person or pet approaches.
Never allow people or pets to ride in the collector box or on the frame.
CONTACT US AT www.DRpower.com 5
Check behind your DR Leaf and Lawn Vacuum before backing up. You cannot see directly behind the collector box. Never attempt to dump a load while the lawn tractor deck is engaged or the DR Leaf and Lawn Vacuum engine is running. Do not operate in sandy areas where you will vacuum large quantities of sand. Sand will erode the vacuum housing. Check
for pin holes after each use and replace the housing when pin holes develop.
Do not attempt to open the collector box when your DR Leaf and Lawn Vacuum engine or your lawn deck engine is operating.
Debris may exit at high velocity as you begin to remove the collector back panel.
Never operate the machine on slopes greater than 15 degrees. Never tow the DR Leaf and Lawn Vacuum faster than 8 mph. Keep your hands out of the chipper hopper and vacuum inlets while the lawn tractor and the DR Leaf and Lawn Vacuum
engines are running. If it becomes necessary to push material into the hopper, use a small diameter stick.
Always shut off the lawn tractor engine and the DR Leaf and Lawn Vacuum engine, allow the engine to cool five (5) minutes
and disconnect the spark plug wire before attempting to clear any obstructions in the hoses or chipper hopper.
Use the DR Leaf and Lawn Vacuum only in daylight. Never straddle or reach over the engine area at any time. Use only your hands to operate the DR Leaf and Lawn Vacuum engine controls. Do not, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the DR Leaf and Lawn
Vacuum. Modifications to your machine could cause personal injuries and will void your warranty.
Do not alter or tamper with safety devices or shields. Make sure they are in their proper position. While using the DR Leaf and Lawn Vacuum, do not hurry or take things for granted. Never leave the DR Leaf and Lawn Vacuum unattended with its engine running. Do not operate the machine when under the influence of alcohol, drugs, or medication.
The DR Leaf and Lawn Vacuum must be operated safely to prevent or minimize the risk of minor or moderate injury. Unsafe operation can create a number of hazards for you. Always take the following precautions when operating this machine:
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and
themselves.
Remove side branches before chipping to prevent jamming the material in the chipper hopper. Do not attempt to chip wood larger than specified in this manual. Never use the DR Leaf and Lawn Vacuum to vacuum anything but yard waste, such as leaves, grass, small twigs and pine
cones.
If the machine starts to make an unusual noise or vibration, immediately shut off the engine, disconnect the spark plug wire,
and allow all moving parts to come to a complete stop and cool. Inspect for clogging or damage. Clean and repair and/or replace damaged parts.
See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by DR
Power Equipment.
Always keep the equipment in a good safe operating condition. Always make certain nuts and bolts are tight and always use
the supplied self-locking hardware; do not substitute.
6 DR
®
LEAF and LAWN VACUUM
A Note to All Users
Under California law, and the laws of some other states, you are not permitted to operate an internal combustion engine using hydrocarbon fuels without an engine spark arrester. This also applies to operation on US Forest Lands. All DR
®
LEAF and LAWN VACUUMS shipped to California, New Mexico and Washington State are provided with spark arresters. Failure of the owner or operator to maintain this equipment in compliance with state regulations is a misdemeanor under California law and may be in violation of other state and/or federal regulations. Contact your State Park Association or the appropriate state organization for specific information in your area.
No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this DR
®
LEAF and LAWN VACUUM in a safe manner. Contact us at www.DRpower.com or
call 1-800-DR-OWNER (376-9637) for assistance.
CONTACT US AT www.DRpower.com 7
Chapter 2: Setting Up The DR LEAF and LAWN VACUUM
(
(
ff
(
ff
ff
l
l
It may be helpful to familiarize yourself with the controls and features of your DR LEAF and LAWN VACUUM as shown in Figure 1 before beginning these procedures.
If you have any questions at all, please feel free to contact us at www.DRpower.com.
DR LEAF and LAWN VACUUM Controls and Features
PRO-XL Engine
electric start only)
Throttle
Choke
Gas Shut-O
Gas Fill
Choke
Gas Shut-O
Starter Recoil Handle
Choke
Starter Recoil Handle
PRO Engine
manual or electric start)
PREMIER Engine
manual or electric start) Gas Fill
Throttle
Gas Fil
Key Switch
Oil Fill
Key Switch
Outlet Hose with Quick Disconnect Cuff
Outlet Duct
Inlet Duct
Dump Lever
Centrifugal Separator
Adjustable Hitch
Battery
Jack (standard on Pro and Pro-XL)
Safety Interlock Switch
Inlet Hose with Quick Disconnect
Oil Gas Shut-O
Starter Recoil Handle
8 DR
®
LEAF and LAWN VACUUM
Fil
Throttle
Cuff
Collector Door
Chipper Hopper (Pro and Pro-XL Models Only)
Collector Side Panels
Pneumatic Tires
Figure 1
Retaining Knob
Specifications
Imp
g
g
g
)
)
)
J
)
)
)
Rig
g
s
PREMIER PRO Engine Refer to the Engine Operator Manual for Engine Specifications
eller Welded Steel Welded Steel RPM 3400 3400 Chipper Knife None D2 Tool Steel, Hardened 52-56 RC D2 Tool Steel, Hardened 52-56 RC Chipper Knife Size None 4.12" x 1.25" x .25"
Weight 16.2 LBS 16.8 LBS Chipping Capacity None 2" Diameter Branches Vacuum 1562 CFM 1562 CFM
Suction 90 MPH 90 MPH Impeller Drive Direct Thru Sure-Flex Couplin Collector Hardshell on Steel Base Frame
Volume 245 Gallons 306 Gallons
Capacity 300 LBS 500 LBS
Base Frame Welded Steel Tubing (1" Sq x .06"
Dump Tilt 50° 50° Frame Welded Steel Welded Steel
Tubular Structure 1.25" Round & SQ Tubing x .12" 1.25" Round & SQ Tubing x .12" 1.25" Round & SQ Tubing x .12" Impeller Housing 3 Piece Design 3 Piece Design Plus Hopper Wheels Tubeless Pneumatic 4.10/3.50-5 Hitch Single Point Single Point
ack Optional (Customer Install Lawn Mower Discharge Right or Left Right or Left Dimensions 90" L x 47.62" W x 57.5" H 90" L x 47.62" W x 65.75" H Weight 310 Lbs 325 Lbs Shipping Dimensions 77.5" L x 49" W x 41" H 77.5" L x 49" W x 41" H Shipping Weight 398 Lbs 413 Lbs
Direct Thru Sure-Flex Couplin Hardshell on Steel Base Frame
Welded Steel Tubing (1" Sq x .06"
Tubeless Pneumatic 4.10/3.50-5
Unique frame mount. (Installed
PRO-XL
Welded Steel 3400
4.12" x 1.25" x .25"
16.8 LBS 2" Diameter Branches 1562 CFM 90 MPH Direct Thru Sure-Flex Couplin Hardshell on Steel Base Frame 306 Gallons 500 LBS Welded Steel Tubing (1" Sq x .06" 50° Welded Steel
3 Piece Design Plus Hopper Tubeless Pneumatic 4.10/3.50-5 Single Point Unique frame mount. (Installed
ht or Left 90" L x 47.62" W x 65.75" H 332 Lbs
77.5" L x 49" W x 41" H 420 Lbs
Unpacking and Assembling the Machine
NOTE: Unpacking the DR Leaf and Lawn Vacuum is a two-person job. We
recommend you have an extra set of hands available before you begin because the DR Leaf and Lawn Vacuums weigh 310 lbs. (Premier), 325 lbs. (Pro) and 332 lbs. (Pro-XL).
Unpacking the Shipping Box
Tools and Supplies Needed:
Gloves Eye Protection Wire Cutters
Stabilize the shipping box on flat terrain before attempting to unpack and
assemble the machine.
Wear eye protection when cutting the Wire Ties and bands. The banding
may have a lot of tension on it and may snap and cut you. Always stand to one side when cuttin
1. Stand to one side and cut the banding.
2. Remove the top of the Box.
3. Lift the Top Cover from the Shipping Container and set aside (Figure 2).
4. Pull open the Box Seams on both sides of the stapled carton and pull the
bottom away from the Pallet as you fold the ends down (Figure 3). The staples are sharp so be careful.
the bands.
Top Cover
Figure 2
Box Seam
Staples Inside
Figure 3
Staples on Bottom
CONTACT US AT www.DRpower.com 9
Box Lip
s
s
s
s
s
s
s
s
Accessory Box
Lift Handle
Corner Bars
Figure 4
Product Package
Collector Panels
Do Not
28" Hose with Cuff
Boot Adapters
Cut this Wire Tie
Impeller Outlet Duct
5. Pull the Box Lips from the Pallet and set the Box Halves aside.
6. Cut the Wire Ties from the Corner Bars and the Impeller Outlet Duct and cut
the Banding from the Collector Panels with the Wire Cutters (Figure 4).
7. Remove the Product Package, Impeller Outlet Duct, 28" Hose with Cuff,
Boot Adapters, Corner Bars, and Accessory Box (if ordered) from the Pallet.
8. Remove the Styrofoam pieces on top of the Panel Assemblies and slide the
Panel Assemblies off the Pallet from the Lift Handle side.
NOTE: If you have the model with a Jack, crank the Jack just until the Frame is lifted from the Pallet Blocking. If you have a model without the Jack, get the Trailer Stand ready to support the Machine when removed from the Pallet.
9. Cut the Wire ties holding the Machine to the Pallet and roll the Machine
from the Pallet (Figure 5).
Compare the contents of the shipping carton and the Part Box with the Parts Supplied list on this page. If there are any questions contact us at www.DRpower.com or call 1-800-DR-OWNER (376-9637). Do not discard the shipping materials until you are fully satisfied with your new DR
®
Leaf and Lawn
Vacuum.
Wire Tie
Figure 5
10 DR
Jack (some models)
Engine Manual
Leaf System Safety and Operating Instructions Manual
®
LEAF and LAWN VACUUM
Pallet Block
Parts supplied:
Left Side Collector Panel Right Side Collector Panel
Wire Tie
Front Collector Panel Rear Collector Door Panel Top Collector Cover Impeller Outlet Duct Frame Assembly Collector Base 7" and 8" Hose Adapter Tow Beam Stand (Premier
models)
Four 5/16-18 x 3/4" Bolt
Four 5/16" Lock Washer Four 5/16" Flat Washer
Two Hand Knobs
Two 5/16" Lock Washer Two
5/16" Flat Washer
Two 5/16" Push Nut
Figure 6
Product Bag containing (Figure 6):
o Operating and Instructions Manual o Engine Manual o Two Clevis Pins o Two Hitch Clips o Small Bag containing:
Two Hand Knobs Two 5/16" Flat Washers Two 5/16" Lock Washers Two 5/16" Push Nuts
o Small Bag containing:
Eight 5/16-18 Locknuts Eight 5/16" Flat Washers
o Small Bag containing:
Four 5/16-18 x 3/4" Bolts Four 5/16" Flat Washers Four 5/16" Lock Washers
o Small Bag containing:
Two 5/16-18 x 3/4" Bolts Two 5/16" Flat Washers Two 5/16" Locknuts
Two 5/16-18 x 3/4" Bolts
5/16" Flat Washers
Two
5/16" Locknuts
Two
Two Clevis Pins
Two Hitch Clips
Eight 5/16-18 Locknut Eight 5/16" Flat Washer
Assembling the Collector, Impeller Outlet Duct and 28" Hose with
l
l
Cuff
Tools Needed:
Two 1/2" Wrenches 3/8" Wrench
1. Position the Collector Base at the rear of the Frame and line up the Collector
Base Pivot Tubes with the Frame Pivot Brackets. Secure the Collector Base to the Frame with two Clevis Pins (heads facing in) and Hitch Clips (Figure
7).
2. Lower the Collector Base down onto the Frame to lock the Lift Handle fully
into the Dump Latch.
NOTE: The Side Panel Assemblies must be installed with the correct edges facing
front and rear (Figure 8).
3. Position a Side Panel (with DR logo right side up and facing out) bottom
groove onto the Lip at the side of the Collector Base.
4. Support the Panel as you slide a Corner Bar into the rectangular opening at
the rear and down into the Collector Base hole at the bottom. You may need to lift the ends of the Side Panel a bit to get the threaded Bar end into the Collector Base hole.
5. Slide another Corner Bar into the rectangular opening at the front of the
Panel and down into the Collector Base hole at the bottom.
NOTE: You may need to tap lightly on the top of the Panels to get the slot to lock
together properly with the Base Lip.
6. Follow steps 3 thru 5 for the other Side Panel.
Clevis Pin
Collector Base
Figure 7
Right Side
Collector Base Pivot Tube
Frame
Front Edge Detai
Bar
Collector Base
Frame Pivot Bracket
Hitch Clip
Lift Handle
Rear Edge Detai
Bar
Left Side
7. Slide the Front Panel (with Labels right side up and facing out) into the
Grooves at the front of both Side Panels and push it down until the groove at the bottom of the Front Panel slides over the Lip in the Collector Base (Figure 9).
8. Place the Top Cover over the Front and Side Panels (Inlet hole in separator
facing forward) and position so the Corner Bar threads protrude through the holes at the corners of the Top Cover.
9. Install a Washer and Low Profile Locknut to the top and bottom of each Bar
only hand tight for now.
Front Lip Position
Figure 8
Separator Inlet Hole
Front Panel
Figure 9
Collector Base Hole
Nut and Washer (both ends)
Top Cover
Bar
Bottom End of Bar
CONTACT US AT www.DRpower.com 11
Hand Knob
Lock Washer
Figure 10
Collector Door Lip
Flat Washer
Push Nut
Panel Grooves
Inner of Collector Door
10. Slide a Lock Washer onto a Hand knob stud first (Figure 10) and then a Flat
Washer. Insert the stud of the Hand Knob through one of the holes in the bottom of the Collector Door (Hand Knob on outside of Door).
11. Install a Push Nut onto the stud and push it up to the Door Lip with the
boxed end of a 3/8" Wrench.
12. Install the other Hand Knob, Lock Washer, Flat Washer and Push Nut into
the other hole in the bottom of the Collector Door.
13. Position the top of the Collector Door (inside Lips) into the grooves at the
back of the Side Panels and Slide the Collector Door top up under the end of the Container Cover (Figure 11). Push the Door in at the bottom until it rests on the end of the Collector Base.
14. Secure the Door by screwing in the two Hand Knobs at the bottom to the
end of the Collector Base (Figure 12).
15. Tighten the Low Profile Locknuts at the bottom of all four Bars first with two
1/2" Wrenches and then tighten the top Low Profile Locknuts only to the point that the Washer will still turn with some resistance.
Adjusting the Inlet Duct for Left Side Discharge Mowers
The Machine is shipped ready to connect to a right side discharge Mower. If your Mower is equipped with a left side discharge you must perform the following adjustment to the Inlet Duct.
Tools Needed:
Figure 11
Side Panel
Figure 12
Collector Door
Collector Base
Hand Knob
Small Philips Head Screwdriver 5/16" Wrench
1. Remove the Hand Knob and slide the Inlet Duct out of the Impeller Flange
(Figure 13).
2. Remove the two sets of Screws and Locknuts from the Inlet Duct with a
Small Philips Head Screwdriver and a 5/16" Wrench and install them into the other holes as indicated for left side mounting.
3. Reinstall the Inlet Duct into the Impeller Flange and secure the Hand Knob.
Hardware Position
Right Side Discharge
Inlet Duct Position
Hand Knob Hand Knob
Hardware Position
Impeller Flange
Left Side Discharge
Figure 13
Inlet Duct Position
12 DR
®
LEAF and LAWN VACUUM
Installing the Impeller Outlet Duct and 28" Hose with Cuff
w
A
r
Tools Needed:
1/2" Wrench
Top Cover
28" Hose with Cuff
Thumb Scre
4. Place the Impeller Outlet Duct over the Impeller Housing (Figure 14). The
Duct goes on tightly and may be easier to install by starting at one corner
5. Install four Bolts, Lock Washers and Flat Washers hand tight to secure the
Impeller Outlet Duct to the Impeller Housing.
6. Screw the Hose end of the 28" Hose with Cuff counter clockwise into the
Top Cover Hole until the Hose connects easily to the Outlet Duct, but does not rest on the corner of the Collector.
7. Loop the Lanyard over the Hose Cuff, slide the Cuff end of the Hose over the
Impeller Outlet Duct and secure by tightening the Thumb Screw of the Hose Cuff Clamp.
8. Tighten the Hardware that attached the Outlet Duct to the Impeller Housing
with two 1/2" Wrenches.
Setting up your Tractor (right side discharge shown)
Hitch Plate Kit Installation (optional)
The DR Leaf and Lawn Vacuum requires a Pin Hitch hole on your Lawn Tractor. DR Power Equipment offers several different Hitch Plate Kits if the existing Hitch on your Tractor is not sufficient (Figure 15). Contact us at www.DRpower.com or call one of our representatives at 1-800-DR-OWNER (376-9637) and they will be happy to assist you.
Bolt, Lock Washer and Flat Washer
Inlet Hose
Figure 14
Hitch Plate
Lanyard
Outlet Duct
Impeller Assembly
Lawn Deck Adapter Installation
Tools Needed:
Two 1/2" Wrenches Drill with 3/8" Bit Saw
NOTE: Optional Accessories: Due the variety of Lawn Tractors, the Hoses supplied
may not fit all tractors. Our Technical Service Dept. can help you adapt your machine.
A Universal Deck Adapter is available for you to fit to your machine if
the tractor manufacturer’s Lawn Deck Adapter is not available.
A Hose Support Kit is available to attach to the DR Power Equipment
Hitch Kit. This will enable you to support a longer Hose if needed. Contact us at www.DRpower.com or call one of our representatives at 1-800­DR-OWNER (376-9637) to order a Universal Deck Adapter Kit or Hose Support Kit.
1. Install your Lawn Deck Adapter (Figure 16) onto your Lawn Tractor (Lawn
Deck Adapter available from the manufacturer of your lawn tractor or from DR Power Equipment).
2. We have supplied both a 7" to 6" and 8" to 6" diameter Hose Adapter.
Determine which best fits your Lawn Deck Adapter. Slip the Hose Adapter over the end of your Lawn Deck Adapter, until they make contact.
Optional Hitch Plate Configurations
Figure 15
Hose Adapter (Do Not Cut)
23"
Max
Lawn Deck
dapte
Deck Adapter Cut-Off Point
Figure 16
CONTACT US AT www.DRpower.com 13
Hose
A
r
Adapter
Figure 17
Jack
Height about 13"
Ground
Figure 18
Bolt, Washers and Locknut (top and bottom)
Lawn Deck
dapte
Adjustment Clevis Pins and Clips
Hitch Pin
Hitch
Clip Adjustable Hitch
Tractor Hitch
3. Check the distance of from the ground to the top center of your Hose
Adapter (Figure 16). If your Adapter is less than 23" from the ground, go to step 6.
4. If the end of the Hose Adapter is taller than 23", mark the spot on the center
of the Hose Adapter that is at 23" from the ground. Measure from this mark to the end of the Hose Adapter and note the distance.
5. Remove the Lawn Deck Adapter from your Mower and cut the amount you
measured off the end of the Lawn Deck Adapter parallel with the end using a Saw.
6. Reinstall the Lawn Deck Adapter to your Mower.
7. Slide the Hose Adapter onto the Lawn Deck Adapter and turn the Hose
Adapter so the predrilled Guide Holes are at the bottom and top positions (Figure 17).
8. Drill a 3/8" hole through the Lawn Deck Adapter at the two predrilled holes
in the Hose Adapter.
9. Secure the Adapter in place with two 5/16" Bolts, Washers and Nuts by
inserting the Bolt through the drilled holes from inside the Adapter.
10. Attach the Washers and Nuts on the outside of the Adapter tube (this will
prevent debris from collecting on the retaining hardware).
11. Tighten the Nuts with two 1/2" Wrenches. Be careful not to over tighten and
damage the Hose Adapter.
12. Re-install the Lawn Deck Adapter to the Mower.
Connecting the DR Leaf and Lawn Vacuum to your Mower
Safety Pin
Figure 19
Jack
Hitch Pin
Hitch Clip
Always raise the Jack prior to towing this equipment. An extended Jack can damage or deform the Jack or Frame if the Jack hits the ground or an object.
1. Position the back Hitch Plate of your Mower next to the adjustable Hitch of
the Leaf and Lawn Vacuum on level ground and remove the Hitch Clip and Hitch Pin (Figure 18).
2. Operate the Jack to move the Frame up or down until the Leaf System is
level. The Frame near the Jack should be about 13" from the ground.
3. Remove the Clips and Clevis pins from the Adjustable Hitch, move the Hitch
up or down to align it with the Tow Bracket on your Mower, and reinstall the Clevis Pins and Clips.
4. Move the Leaf System into position on the Lawn Mower Hitch and install the
Hitch Pin and Hitch Clip to secure the Tongue to the Mower (Figure 19).
5. Raise the Jack up off the ground in the fully up position so the Leaf and Lawn
Vacuum is fully supported by the Lawn Tractor Hitch Plate.
6. Install the Jack Safety Pin to keep the Jack in the raised position.
14 DR
®
LEAF and LAWN VACUUM
Connecting the Inlet Hose to the Hose Adapter
Tools Needed: (Only if Hose needs to be shortened)
Wire Cutters or Hack Saw Knife 5/16" Wrench
1. Connect the Inlet Hose to the Hose Adapter by sliding the Hose Cuff over
the Hose Adapter (Figure 20).
Tip: Position the Thumb Screw Clamp toward the Mower so it will not make contact with objects when mowing.
2. Tighten the Thumb Clamp tightly to secure the Hose to the Hose Adapter.
3. Turn the Tractor all the way to the left, while watching the Hose (Figure 21).
The Hose should not become too taut to twist or damage your Lawn Deck Adapter.
4. To ensure that the Hose will not drag on the ground, turn the Tractor to the
right while watching the Hose. Adjust the White Plastic Cable Tie of the Lanyard on the Hose to keep the Hose off the Ground. If the Lanyard can not be positioned sufficiently on the Hose to prevent it from kinking or dragging on the ground, reduce the length of the Hose by turning the Tractor all the way to the left
To Shorten the Hose (if needed)
as in step 3 and shorten the Hose as follows.
Inlet Hose
Figure 20
Lanyard
Figure 21
Hose Adapter
Inlet Hose
Thumb Screw Clamp
Hose Cuff
Tractor Turned Fully To The Left
Make sure you do not shorten the Hose too much while following these procedures. Follow the steps closely to ensure the machine is not damaged.
NOTE: The Tractor must be turned fully to the left (Figure 21).
a. Loosen the Hose Clamp that secures the inlet Hose to the Inlet Elbow
with a 5/16" Wrench and pull the Hose from the Elbow (Figure 22).
b. Position the Hose beyond the Elbow to where the slack is taken up but
still has a small amount of sag (Figure 23).
c. Cut the Hose to the length required using Wire Cutters to cut the black
plastic spiral and then cut the clear Hose with the razor knife.
NOTE: Make sure you trace the area to cut around the Hose first to ensure you will
cut in the proper direction to end up on either side of the cut spiral.
d. Reinstall the Hose as far as you can
onto the Elbow with the cut end of the
Inlet Hose
spiral on the bottom and tighten the Hose Clamp. If the Tractor can be turned fully to the left, without the Hose becoming too tight (with a slight amount of sag), the Hose is the shortest length possible for your Tractor.
NOTE: DR Power offers a Hose Support
Inlet Duct
bracket as an option to better support the Hose if needed.
Figure 23
Inlet Hose
Inlet Elbow
Figure 22
Knife Cut Line (clear plastic)
Hose Clamp
Wire Cutter Cut Point (black spiral)
CONTACT US AT www.DRpower.com 15
Adding the Engine Oil and Gasoline
You must add oil before starting the engine. This machine is shipped without oil. Traces of oil may be in the reservoir from
factory testing, but you must add oil before starting the engine avoid overfilling.
To get an accurate reading when checking the oil level:
The machine should be on a level surface. The dipstick should The dipstick should not
NOTE: Use only the recommended high detergent oil. Other types of oil could cause problems operating your machine. Please refer to
your Engine Owner’s Manual for detailed oil information.

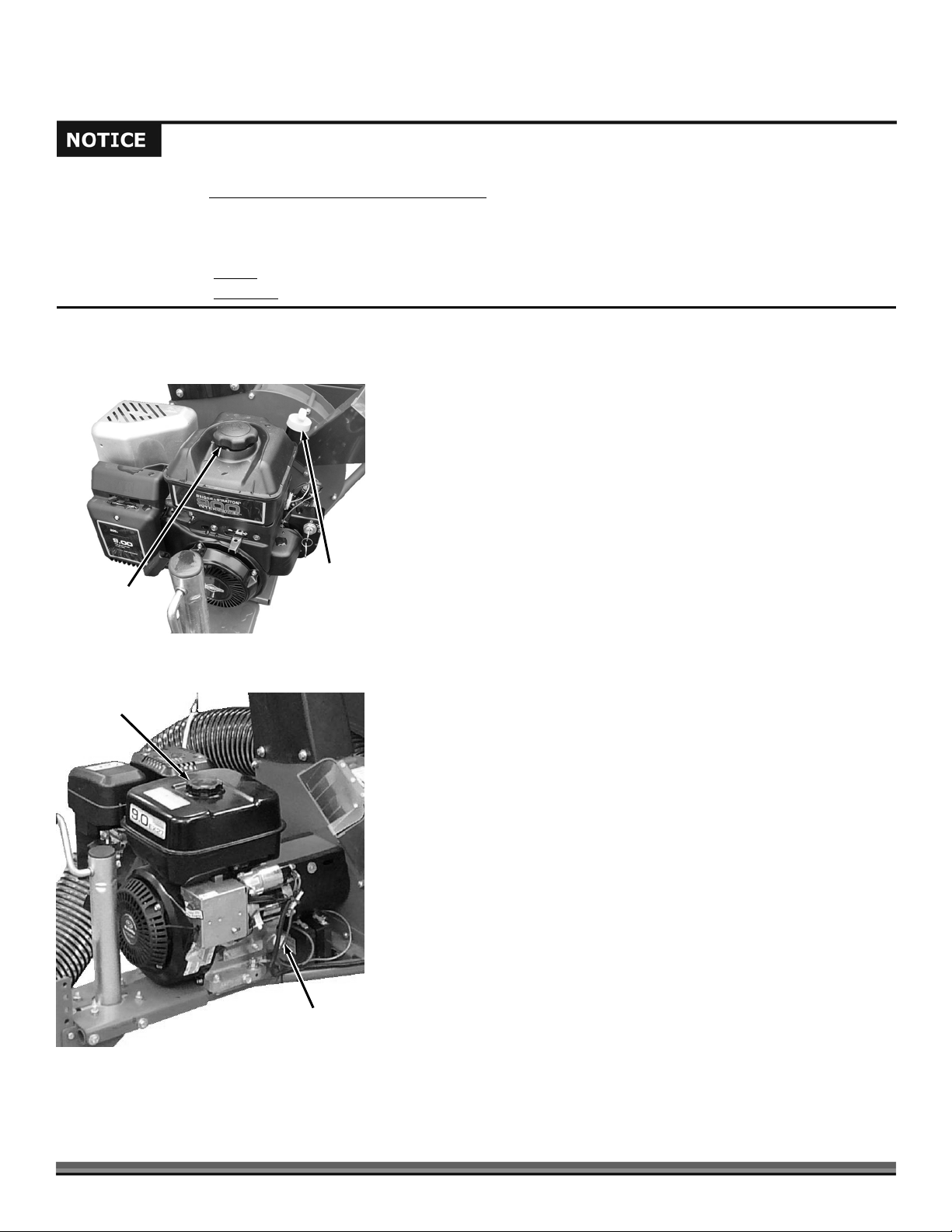

Gas Fill
Briggs
be screwed down on Briggs & Stratton engines.
be screwed down on Subaru engines.
Tip: To avoid confusion, we recommend leaving the caps on the Fuel and Engine oil Fills and only removing one cap each time when you are ready to pour gasoline or oil into the correct Fill (Figure 24).
1. Place the machine on a level surface and add the initial quantity of the oil
recommended by the Engine Manufacturer (refer to your Engine Owner’s Manual for recommended quantities), and wait one minute for the oil to settle.
2. Check the Dipstick and continue adding a few ounces of oil at a time,
Dip Stick/ Oil Fill
rechecking the Dipstick until the oil reaches the fill mark. Be careful not to overfill.
3. Fill the gas tank to within 1-1/2 inches below top of fill neck (to allow for fuel
expansion) with fresh, unleaded gas. See your Engine Owner’s Manual for more information.
. Fill the reservoir slowly checking the dipstick frequently to
Gas Fill
Figure 24
16 DR
Subaru
®
LEAF and LAWN VACUUM
Dip Stick/ Oil Fill
Tire Pressure Check
Tools Needed:
Tire Pressure Gauge Air Compressor
Do not over inflate the tires. Inflate to the manufacturers recommended pressure found on the tires.
Valve Stem with Cap
1. Remove the Valve Stem Protective Cap (Figure 25) and check the tire
pressure with a Tire Pressure Gauge.
2. Check what the manufacturers recommended pressure is that is stamped on
the side of the Tire.
3. If the pressure is too low, add air through the Valve Stem with an air hose.
4. Replace the Valve Stem Protective Cap when finished.
Connecting the Battery Wire (Electric-Starting Models Only)
We ship all Electric-Starting systems with the Negative Battery Terminal Wire disconnected. This prevents the Battery from discharging during shipment. Before using your DR LEAF and LAWN VACUUM, you must connect the Battery Wire.
1. Connect the Negative Wire to the Negative Post on the Battery by sliding the
Terminal onto the Battery Post (Figure 26).
Figure 25
Negative Battery Cable
Figure 26
CONTACT US AT www.DRpower.com 17
Chapter 3: Operating The DR LEAF AND LAWN VACUUM
It may be helpful to better familiarize yourself with the features of your DR LEAF and LAWN VACUUM by reviewing Figure 1 in Chapter 2 before beginning the steps outlined in this chapter.
Before Starting the Engine
Inlet Adapter
Inspect the area where you will be working. The site must be free of potentially hazardous obstacles such as stones, metal, or glass. Pile sticks that you intend to chip separately and away from the vacuum site. Also, make sure there won't be people or animals in the area around the DR Leaf and Lawn Vacuum.
NOTE: For Electric Start models, the Ignition Switch Keys are temporarily located on the Switch Housing by means of a plastic Tie. Cut the Tie to remove the Keys for use.
1. Connect the DR LEAF and LAWN VACUUM to your Lawn Tractor (see page
14), remove the Safety Hitch Pin from the Jack, raise the Jack up and out of the way and replace the Safety Hitch Pin.
2. Check the Engine oil level every time you use the machine (refer to your
Engine Operator’s Manual).
Always refer to the Engine “Operator’s Manual” that came with your
machine for more detailed Engine operation procedures.
The engine will not start without the Inlet Adapter in place to depress the
Safety Switch (Figure 27).
Figure 27
Choke
Starter Cord
Safety Switch
Key Switch (Pro)
Throttle
Briggs (Premier and Pro)
3. Check the Fuel level and make sure the Gas Shut-Off Valve is in the OPEN
Choke
Throttle
Figure 28
Key Switch
Recoil Starter Handle
Subaru (Pro-XL)
position (refer to your Engine Operator’s Manual).
Starting and Stopping the Engine
1. When starting a cold Engine; push the Choke Control lever to the right
(CHOKE) for B&S (left for Subaru) and the Throttle Control lever to the far right for B&S and left for Subaru (Figure 28). If re-starting a warm Engine, leave the Choke in the (OPEN) position.
2. Manual Start - Grasp the Recoil Starter Handle and slowly pull until you feel resistance, then pull the cord with a smooth
accelerating motion to start the engine. One or two pulls usually starts the DR LEAF and LAWN VACUUM. Electric Start - Turn the Key to START until the Engine starts and then release. The Key will snap back when released and the Engine will continue to run.
3. After the Engine starts, slowly push the Choke Control lever back to the (RUN) position. Wait until the Engine runs smoothly
before each Choke adjustment. For best Engine performance, you should operate the Engine with the Throttle in the Fast (Rabbit) position.
4. - To stop the Manual Start Engine
, move the Throttle to the Slow (Turtle) position allowing the Engine to idle, and then move
the lever to STOP (Stop Sign) position.
- To stop the Electric Start Engine
18 DR
®
LEAF and LAWN VACUUM
, move the Throttle to the Slow (Turtle) position, and then turn OFF the Key.
Operating Safety
w
Never put your hands inside the vacuum hose or the chipper hopper to clear debris while the engine is running. Always stop
the engine and disconnect the spark plug wire before clearing the vacuum hose or chipper hopper.
For best results, use a small stick to clear a clogged chipper hopper. The maximum size material that you can feed into the chipper hopper is 2 inches in diameter. Always keep your face and body back from the chipper hopper opening to prevent any material that may bounce back from
striking you.
Do not refuel the engine while it is hot or running.
Use common sense when using the machine. Learn to recognize the change in sounds when overloaded. Stop the engine immediately if the machine becomes jammed to prevent damage to the machine.
The DR LEAF and LAWN VACUUM has an Impeller that spins at 3400 rpm and a chipper feature that will chip wood up to 2 inches in diameter.
Towing the DR LEAF and LAWN VACUUM
1. Make sure you firmly attach the DR LEAF and LAWN VACUUM Hitch to your
Lawn Tractor using the Clevis Pin and Hitch Clip (Figure 27).
2. Remove the Jack Hitch Pin, fully raise the Jack Caster Wheel and re-install
the Jack Hitch Pin.
3. Make sure the Collector Base is secured onto the Frame with the Dump
Lever locked to the Latch on the Collector (Figure 28), the Outlet Hose Cuff is clamped tightly (Figure 29), and the Inlet Hose Cuff is securely attached to the Hose Adapter on your Tractor (Figure 30).
Raise the Jack caster wheel as far as it will go prior to towing this
equipment. An extended Jack caster wheel can be damaged or deformed if it hits the ground or an object.
The DR Leaf and Lawn Vacuum is not equipped for highway use.
Jack Hitch Pin
Figure 27
Figure 28
Jack
Latch
Hitch Pin
Hitch Clip
Dump Lever
Lock Collector
Dump Handle
Outlet Hose Cuff
Inlet Hose
Thumb Screw Clamp
Hose
Hose Adapter
Figure 30
Cuff
Lanyard
Outlet Duct
Figure 29
CONTACT US AT www.DRpower.com 19
Thumb Scre
Towing Safety
Watch out for low branches, overhangs, and guy wires that may catch on top of the collector box. Never allow anyone to ride in or on the DR Leaf and Lawn Vacuum. Obey local, state, and federal regulations when you tow the DR leaf and lawn vacuum across public roads and highways. Use caution when backing up your lawn tractor or trying to make tight turns going forward with the DR Leaf and Lawn
Vacuum attached. Trying to turn too sharply can cause damage to the hitch and/or the lawn tractor if you hit an obstacle. Go slowly in areas where tight turns are necessary. Straighten out the system before attempting to back up.
Slopes and Uneven Terrain
Never operate your machine on slopes greater than 15 degrees (Figure
31). When operating the DR Leaf and Lawn Vacuum over uneven terrain
and slopes, use extreme caution to not tip over the machine. Move slowly, especially with a full load, if the ground has ruts, bumps, and other
15º Max.
Figure 31
depressions.
Do not use the DR Leaf and Lawn Vacuum on slopes greater than 15
degrees. Doing so could result in serious injury or damage to your machine.
On a slope, a heavy load will tend to shift. When using your DR Leaf and
Lawn Vacuum, keep in mind that loads tend to shift to the downhill side of the collector box. The higher and heavier the load, the greater the chance you may tip over the machine.
Travel up and down slopes and avoid going across slopes. This is the
same recommendation for mowing with your lawn tractor alone.
Figure 32
20 DR
Chipper Hopper
®
LEAF and LAWN VACUUM
Operating the Chipper (not available on Premier Machines)
In addition to towing the DR LEAF and LAWN VACUUM with your Lawn Tractor, and using it as a vacuum, the system also allows you to chip sticks and limbs up to 2" in diameter.
To prevent damage to your chipper, feed only wood up to 2" in diameter
into the chipper hopper.
Never use your hand to push the remaining wood stub down into the
chipper hopper or try to remove a lodged piece of wood with the engine running.
1. Start the Engine in accordance with “Starting and Stopping” on page 18.
2. To process branches; feed them into the Chipper Hopper opening (Figure
32).
3. As the chipped branch shortens, finish chipping it by pushing the stub down
the Hopper with the next branch to be chipped.
Tips:
It is best to trim off any side twigs from the main branch being
chipped (Figure 33).
Green branches process quicker and easier than dry branches and
soft wood is easier than hardwood.
Use caution with small diameter green saplings and branches. Chip
these grouped or bundled together to provide support for each other.
Make sure the Chipper finishes chipping material in the Hopper
before shutting the engine off.
Dumping
Figure 33
Always shut off the tractor engine and the vacuum engine and use caution
when dumping the collector box load.
The load may have shifted against the rear panel. Push down on the
dump handle when releasing the dump lever to prevent the Collector Base from suddenly tipping.
Never back up with the trailer in the dump position.
1. Move the Lanyard off the Outlet Hose Cuff and down onto the Outlet Duct
(Figure 34).
2. Disconnect the Outlet Hose from the Outlet Duct by loosening the
Thumbscrew Clamp and pulling the Hose away.
3. Remove the Back Panel of the Collector by unscrewing the two Knobs until
loose (the Knobs remain attached to the Back Panel)(Figure 35). Pull back on the two Back Panel Handles to separate the bottom of the Back Panel and pull down to remove the Back Panel from the Collector.
1. While holding down on the Dump Handle, pull the Dump Lever (Figure 36)
to unlock the Collector Base and then raise the Collector Base using the Dump Handle to dump the Collector.
Outlet Hose
Figure 34
Collector
Lanyard
Back Panel
Outlet Hose Cuff
Outlet Duct
2
Thumb Screw Clamp
Hand Knobs
1
Figure 35
Unlock Collector
Latch
Figure 36
CONTACT US AT www.DRpower.com 21
Dump Lever
Lock Collector
Dump Handle
Tip: Give the Dump Handle a little shake after emptying the Collector to loosen up the remaining material. You can drive forward with the Collector in the dump position to allow more area for the Debris to dump (this should also jar more debris from the Collector)(Figure 37). Clean or wipe away the remaining material and you are ready to reinstall the Rear Panel.
Dump Handle
Figure 37
2. After dumping the load, lower the Collector until the Dump Lever locks into
place onto the Latch (Figure 36), and replace the Back Panel (Figure 35).
3. Re-connect the Collector Hose to the Outlet Duct (Figure 34). Tighten the
Thumbscrew Clamp and slide the Lanyard back into position onto the Cuff of the Outlet Hose.
LEAF and LAWN VACUUM Tips
Pick up stones, metal objects, glass, and sticks before vacuuming.
1. Gather and pile sticks for chipping.
2. Chip the sticks and branches.
3. Dump the load at the desired location.
4. Mow and vacuum leaves.
Tips:
Be careful in corners. Practice in first gear to understand the effects of the machine on your ability to turn sharply.
Drive your DR LEAF and LAWN VACUUM into the corner of your property and back out straight to mow as close to the corner as possible. Do not go through ditches.
The Lawn Deck of your mower may tend to scatter some leaves in front and to the right of the Lawn Deck. Keeping the
discharge side toward the remaining leaves will simplify cleanup by avoiding blowing leaves back onto the areas that you already finished. When you need to vacuum with the discharge side toward the completed area of the lawn, overlap the discharge side of the Lawn Deck at least a foot over the already completed section of the lawn.
To prevent clogging the Lawn Deck Adapter, mow grass that is dry and not more 2" at a time. To keep your grass
healthy, we recommend cutting less than 1/3 the grass height.
Run your Lawn Deck with your Tractor at full throttle all the time to maximize the lift from your Lawn Deck and assist
your DR LEAF and LAWN VACUUM system.
Avoid dragging the Hose over curbs, stonewalls, or piles of cut branches. The Hose is tough, but can puncture on
sharp objects. This could also crack the Mower Deck Adapter.
22 DR
®
LEAF and LAWN VACUUM
Chapter 4: Maintaining The DR LEAF and LAWN VACUUM
P
Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer's owner's manual for maintenance procedures. Service intervals listed in the checklist below supersede those listed in the engine manufacturer's owner's manual.
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
Regular Maintenance Checklist
ROCEDURE BEFORE EACH USE
Check Engine Oil Level Check General Equipment Condition, e.g. tight nuts,
bolts, welds, etc.
Check Tire Pressure Check Hoses for wear, holes, or abraded areas. Clean Engine Exterior & Cooling Fins Check Battery Charge Clean Engine Air Filters Change Engine Oil 1st time 5 hours Lubricate Impeller Bearing Lubricate Wheel Bearings Replace Spark Plug Replace Engine Air Filters Replace the Flex-Shaft Coupling Sleeve
 
EVERY 25 HOURS EVERY 100 HOURS
  
    
Lubrication
Your DR LEAF and LAWN VACUUM was lubricated at the Factory. The operator needs to provide Engine lubrication, lubricate the Wheels periodically, and lubricate the Impeller Bearing.
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
Tools and Supplies Needed:
Grease gun with Multipurpose Automotive Grease
Valve Stem with Cap
1/2" Wrench
LUBRICATE WHEEL BEARINGS:
1. Lubricate each Wheel (Figure 38) with Multipurpose Automotive Grease
using a grease gun on the fitting.
Figure 38
CONTACT US AT www.DRpower.com 23
LUBRICATE IMPELLER BEARING
1. Remove the right Coupling Cover by using a 1/2" Socket to remove the Bolts
and Washers that retain the Cover (Figure 39).
2. Lubricate the Bearing (Figure 40) with Multipurpose Automotive Grease
using a grease gun on the fitting.
3. Reinstall the Coupling Cover.
REMOVING AND REPLACING THE ENGINE OIL
Figure 39
Figure 40
Right Side Coupling Cover
Refer to the Engine Operator Manual for Engine Procedures for removing and replacing the oil.
NOTE: Be sure to use environmentally safe disposal procedures in the disposing of the used oil.
Removing and Replacing the Hoses
OUTL
Bearing
Grease Fitting
Install Hose
Remove Hose
ET HOSE:
1. Slid
2. Disconnect the Outlet Hose from the Outlet Duct by loosening the
3. Remove the Hose from the Top Cover by grasping the Hose and unscrewing
4. Install the new Hose by screwing the Hose counterclockwise into the
5. Clamps are provided on the new Hose. Slide the new Hose Cuff onto the
6. Slide the Lanyard up onto the Cuff to hold it in place.
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire
e
vacuum.
the
of the leaf and lawn
Lan yard off the Hose Cuff and onto the Outlet Duct (Figure 41
Thumbscrew Clamp and pulling the Hose from the Outlet Duct.
it clockwise.
opening of the Top Cover. Turn the Hose in until about 4 or 5 of the hose ribs have entered the opening. That will leave it loose enough so it is easy to attach it to the Outlet Duct without resting on the corner of the Collector.
Outlet Duct and turn the Thumb Screw Clamp until tight.
Outlet Hose
Top Cover
Lanyard
Figure 41
24 DR
®
LEAF and LAWN VACUUM
with Cuff
Thumb Screw Clamp
Outlet Duct
INLET HOSE:
ff
w
Tools Needed:
Wire Cutters Flat Head Screwdriver or 5/16" Nut Driver
1. Separate the Inlet Hose from the Deck Adapter by unscrewing the Thumb
Screw Clamp and pulling the Cuff from the Deck Adapter (Figure 42).
2. Remove the Lanyard by cutting the white Cable Tie and discarding the Tie.
3. Remove the Inlet Duct and Hose from the machine by removing the Hand
Knob and Washers and sliding the Inlet Duct up and out of the metal Housing Flange (Figure 43).
4. Set the Knob and Washers aside.
5. Remove the Hose from the Inlet Duct by unscrewing the Hose Clamp with a
Flat Head Screwdriver or a 5/16" Nut Driver.
6. Attach the new Hose onto the Inlet Duct with the cut end of the spiral
positioned at the bottom of the Inlet Duct. Pull on the spiral to get the Hose as far as you can onto the Duct and tighten the Hose Clamp tightly to secure the Hose.
NOTE: The cut end of the Hose must be positioned at the bottom of the Inlet Duct
to allow the most space to install the Clamp.
Hose Clamp
Lanyard Cable Tie
Figure 42
Inlet Hose
Inlet duct
Thumb Screw Clamp
Inlet Hose
Hose Clamp
Deck Adapter
Hand Knob
7. Install the Inlet Duct and Hose onto the machine by sliding the Inlet Duct
flange down into the metal Housing Flange and install the Hand Knob and Washers to secure it.
8. Reattach the Inlet Hose Cuff to the mower.
9. Attach the Lanyard loosely to the Hose with the Cable Tie and secure the
large loop of the Lanyard to the top of the Outlet Duct and Collector Hose Cuff (you will need to loosen and pull the Cuff from the Outlet Duct to attach the Lanyard)
10. Adjust the position of the Lanyard and Cable Tie on the Hose as needed.
See “Connecting the Inlet Hose to the Hose Adapter” in Chapter 2 for proper Hose adjustment procedures.
Removing and Replacing the Outlet Duct
Tools Needed:
1/2" Wrench
1. Disconnect the Outlet Hose from the Outlet Duct by loosening the
Thumbscrew Clamp on the Cuff (Figure 44) and pulling the Hose (with Lanyard) from the Outlet Duct.
2. Remove the Bolts and Washers that attach the Outlet Duct to the Housing
with a 1/2" Wrench.
Figure 43
Bolt, Lock Washer and Flat Washer
Inlet Duct
Safety Switch
Outlet Hose with Cu
Thumb Scre
Lanyard
Outlet Duct
3. Lift the Outlet Duct from the top of the Impeller Housing and install a new
Outlet Duct in the reverse order.
4. Install the Lanyard over the new Outlet Duct before attaching Outlet Hose.
The Lanyard will be looped over the Hose Cuff to secure it.
Figure 44
CONTACT US AT www.DRpower.com 25
Impeller Assembly
Removing and Replacing the Chipper Blade
g
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum
engines, wait five minutes for all parts to stop and cool and disconnect the spark plug wire of the leaf and lawn vacuum.
Do not attempt to re-sharpen the chipper blade. This will unbalance the impeller and may damage the engine and Impeller.
Always replace a dull or damaged chipper blade with a new blade.
Inspect the elbow for wear if the impeller is worn.
Tools Needed:
Hopper
Impeller Housing
1/2" Wrench 3/16" Allen Wrench Awl or pointed tool
Figure 45
Figure 46
Four Locknuts
Hand Knob
Inlet Duct
Knife Cutting Ed
e
NOTE: Be careful not to drop any parts or hardware down into the Impeller
Housing as you perform the following steps.
1. Remove the four Locknuts from the Hopper with a 1/2" Wrench and remove
the Hopper (
Figure 45).
2. Remove the Inlet Duct from the Impeller Housing by unscrewing the Hand
Knob and sliding the Duct from the Housing Lip (Figure 46).
3. If the Collector is empty you can tip it back to allow better access to the rear
of the Impeller Housing.
4. Carefully rotate the flywheel with a stick until the Knife is at the Hopper
opening (Figure 47).
NOTE: You may need to clean out the hexes of the Knife Screws with an Awl to enable you to get the Allen Wrench fully into the Screw hexes. Carefully observe the orientation of the Chipper Blade edge and mounting holes when removing the Blade.
5. Insert the 1/2" Wrench into the Impeller Inlet Hole to access the Locknuts
on the back side of the Knife.
6. Insert the 3/16" Allen Wrench into the a Knife Screw and hold the Screw as
you turn the Wrench on the back side.
7. Clean the Knife mounting area of the Flywheel so the new Knife will mount
flush to the Flywheel.
8. Position the new Knife with the cutting edge facing out and towards the
opening in the Flywheel. Secure with the new hardware that came with your Knife Kit using the 1/2" Wrench and 3/16" Allen Wrench. Tighten the center Screw and Locknut, then tighten the outer Screw and Locknut, and finally tighten the inner Screw and Locknut. Double-check that all three Locknuts on the Allen Screws are tight.
9. Replace the Hopper and Inlet Duct.
Screws with Locknuts
Figure 47
26 DR
Impeller Opening
®
LEAF and LAWN VACUUM
Replacing the Coupling
r
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
Tools Needed:
Two 1/2" Wrenches Wire Cutters Large Flat Head Screwdriver
1. Disconnect the Battery Positive and Negative Cables by pulling them from
the Terminals (Figure 48).
2. Cut the Cable Ties that secure the Engine Harness to the Frame with Wire
Cutters.
3. Remove the two Bolts, Lock Washers and Flat Washers that secure the
Coupling Guards on both sides of the Engine Brace with a 1/2" Wrench.
4. Remove the two Locknuts that secure the front side of the Engine Brace to
the Impeller Housing with a 1/2" Wrench (Figure 49).
5. Remove four Engine Bolts, Flat Washers and Locknuts with two 1/2"
Wrenches (Figure 50).
6. Carefully slide the Engine away from the Coupling until the Rubber Coupling
can be removed from the machine (Figure 51).
NOTE: If you have the Pro-XL model, you may need to lift and twist on the Engine
to get the required separation to remove the Rubber Coupling.
Bolt, Lock Washer and Flat Washe
Figure 48
Locknuts
Cable Ties
Engine Brace
Coupling Guard
Battery Terminals
Figure 51
Rubber Coupling
Figure 49
Engine Hardware
Figure 50
CONTACT US AT www.DRpower.com 27
NOTE: The new Coupling comes in three pieces; Two rubber halves and one locking ring. Even though the Ring can be centered over the two rubber halves before the Coupling is installed onto the machine, it may be easier to install the ring after the
Rubber Coupling Halves
Engine has been bolted to the Frame. This allows you to take advantage of the prying surface of the Coupling Flanges as described in the following steps.
7. Position the new Coupling, with the Ring positioned loosely over one end of
the Rubber, into the Coupling Flange that is mounted to the Impeller Housing.
Coupling Ring
8. Slide the Engine and Engine Support until the holes in the end of the Engine
Support slide over the Studs in the Impeller Housing.
9. Secure the Engine Support to the Impeller Housing with the two Locknuts
using a 1/2" Wrench.
Figure 52
10. Secure the Engine to the frame with the Bolts, Flat Washers and Locknuts
(Bolts on bottom, Washers and Locknuts on top) using two 1/2" Wrenches.
11. Pry the Ring into position onto the Rubber Coupling halves with a large Flat
Head Screwdriver (Figure 52).
It is very important that the ring is in the groove of the coupling sleeve all the way around to properly hold the coupling together and prevent failure.
12. Replace the two Coupling Guards.
13. Reattach the Harness to the Frame with Cable Ties.
14. Reattach the Battery Terminals.
Replacing the Wheels
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
Tools Needed:
Washer
Cotter Pin
Locking Pliers or Needle Nose Pliers. Jack and Stand
1. Jack up the Frame and support it with Blocks or a Jack Stand so the Wheel is
off the ground.
2. Remove the Cotter Pin with Locking Pliers or Needle Nose Pliers (Figure 53).
3. Remove the Large Washer and Wheel.
4. Install the new Wheel.
5. Install the Large Washer and secure with the Cotter Pin (bend the ends of
the Cotter Pin to lock it onto the Axle.
Figure 53
28 DR
®
LEAF and LAWN VACUUM
Battery Care (For Electric-Starting Models Only)
Proper care can extend the life of a Battery. Follow these recommendations to ensure your Battery’s best performance and long life:
Do not allow the Battery charge to get too low. If the machine is not used, charge the Battery every 4 – 6 weeks. Operate the
engine for at least 45 minutes to maintain proper Battery charge.
Store an unused Battery in a dry area that does not freeze. Do not charge an already charged Battery. In theory, you cannot overcharge our Battery with a trickle charger; however, when a
Battery is fully charged and the charger is still on, it generates heat that could be harmful to the Battery. A fully charged Battery will read 12V-13.2V with a voltmeter.
Do not continue to crank your Engine when the Battery charge is low.
Charging the Battery
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
When you are finished charging the battery, disconnect the charger from the outlet first, then disconnect the battery charger wires from the battery. If you leave the battery charger wires connected to the battery, the battery will discharge itself back into the charger.
Operate the vacuum Engine for at least 45 minutes to maintain proper Battery charge. If the Battery loses its charge, you will need to use a trickle charger (like the DR Battery Charger) to recharge it. The Charger should have an output of 12 volts at no more than 2 amps.
At 1 amp the Battery may need to be charged for as long as 48 hours. At 2 amps, the Battery may need to be charged for as long as 24 hours.
NOTE: Using the Recoil Starter and then running the Engine will not recharge a dead or significantly discharged Battery.
To connect a Battery Charger to your DR LEAF and LAWN VACUUM, follow the steps listed below.
1. Attach the Black (-) alligator clipped wire from the Charger Adapter to the Negative (-) terminal of the Battery, then attach the
Red (+) alligator clipped wire to the Positive (+) Battery terminal.
2. Plug the Charger into a standard wall outlet.
Typically, the Battery takes between 6 and 8 hours to fully charge. The Battery does not have a “memory”; so don’t
worry about overcharging the Battery or charging it too often.
You can charge the Battery many times. The Battery lasts longer if you charge it before it is fully drained. Keep it fully
charged and at room temperature when not using your DR LEAF and LAWN VACUUM.
If the Battery does not hold its charge for very long under normal conditions or it simply won’t hold a charge, then
replace it. You can purchase replacement Batteries directly from us. To install your new Battery, follow the directions below.
CONTACT US AT www.DRpower.com 29
Tools Needed:
Two 7/16" Wrenches
Battery Clamp
Figure 54
Battery Terminals
Bolt and Locknut
1. Disconnect the Battery Terminals (Figure 54).
2. Remove the Bolts and Locknuts that secure the Battery Clamp using two
7/16" Wrenches.
3. Remove the Clamp and the dead Battery.
Tip: Rotating the Battery will aid in removal.
4. Install the new Battery.
5. Install the Battery Clamp and secure with the Bolts and Locknuts using two
7/16" Wrenches.
6. Attach the Battery Terminals. Green Wire to negative black Terminal and
Red Wire to positive red Terminal.
Disposing of the Battery Responsibly (Electric-Start Models)
The Battery is a sealed lead-acid Battery. Recycle or dispose of it in an environmentally sound way.
Do not dispose of a lead-acid Battery in a fire; the Battery may explode or
leak.
Do not dispose of a lead-acid Battery in your regular, household trash. Law in
most areas prohibits incinerating, disposing in a landfill, or mixing a sealed lead-acid Battery with household trash.
Recycling a Used Battery
Please dispose of your used Batteries responsibly by recycling them. Call your local Solid Waste Management District or your local waste handler to locate the collection site nearest you. Some collection sites recycle Batteries year-round; others collect them periodically.
You can also visit the Web site of Earth 911 for more information [www.earth911.org]. Once there, click the Municipal HHW link under Hazardous Household Waste, and enter your zip code. The site lists recycling centers located near you.
For a fee, you can recycle your Batteries with the International Metals Reclamation Company. Visit them at www.inmetco.com and click Services; or contact them at:
INMETCO PO Box 720 245 Portersville Road Ellwood City, PA 16117 (724) 758-2825; fax (724) 758-2845
To learn more about hazardous waste recycling, visit the Web site for Battery Council International [www.batterycouncil.org] or for the Environmental Protection Agency [www.epa.gov].
30 DR
®
LEAF and LAWN VACUUM
Chapter 5: Troubleshooting
Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems, contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) for support.
Before performing any maintenance, repairs or inspection, you must first shut off the Mower and Leaf and Lawn Vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the Spark Plug Wire of the Leaf and Lawn Vacuum.
Troubleshooting Table
SYMPTOM POSSIBLE CAUSE
Engine recoil will not pull out or is difficult to pull.
The Engine won’t start manually.
(Please refer to the Engine Owner’s Manual for engine-specific procedures.)
The Engine won’t start using Electric-Start.
(Please refer to the Engine Owner’s Manual for engine-specific procedures.)
Check for debris in the Chipper Hopper. Check the Engine oil level, the Engine may be seized. See your engine owners manual. There may be an oil compression lock in the cylinder. Take out the Spark Plug; hold a rag over
the Spark Plug hole and pull the Recoil Cord several times to blow out any oil in the cylinder. Wipe off the Spark Plug and reinstall it.
The Recoil may be broken or jammed. visit us at www.DRpower.com or call 1-800-DR-OWNER
(376-9637) for assistance.
Check that the Spark Plug Wire is attached. Check the oil and gas level. See your engine owners manual. You should be using fresh, clean gas. If the gas is old, change it. Use a fuel stabilizer if you keep
gas longer than one month.
Check the Throttle adjustment and travel. See your engine owners manual. The Spark Plug should be clean. If the Spark Plug is dirty or cracked, change it. If it’s oily, leave
it out, hold a rag over the Plug hole and pull the Recoil Cord several times to blow out any oil in the cylinder, then wipe off the Plug and reinstall it.
Check that the Safety Interlock Switch at the bottom of the Inlet Duct is intact. If the Engine still won’t start, visit us at www.DRpower.com or call 1-800-DR-OWNER (376-9637)
for assistance.
Check the previous section (Manual Starting) for possible causes. Check the wire connections—especially the ground connection, the green wire coming from the
Battery, where it connects to the Engine.
The Battery should be charged. Check the voltage yourself or at a gas station. If it’s low, charge
it with a 12-volt, 1 to 2 Amp trickle charger. If you don’t use your machine for at least 45 minutes at a time, the Battery may need to be periodically charged. See the Battery Care section in Chapter 4.
If your Battery is charged and your DR still won’t start, visit us at www.DRpower.com or call 1-
800-DR-OWNER (376-9637) for assistance.
CONTACT US AT www.DRpower.com 31
Troubleshooting Table (Continued)
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
SYMPTOM POSSIBLE CAUSE
The Engine lacks power or is not running smoothly.
(Please refer to the Engine Owner’s Manual for engine-specific procedures.)
Engine smokes.
Wheels tracking left or right while being towed.
Check the Throttle travel. See your engine owners manual. The Choke should be pushed all the way to the left (RUN. See your engine owners manual. Check to see if the Air Filter is clean. If it’s dirty, change it following the procedure in the Engine
Owner’s Manual.
The Spark Plug should be clean. If the Spark Plug is dirty or cracked, change it. If it’s oily, leave
it out, hold a rag over the Plug hole and pull the Recoil Cord several times to blow out any oil in the cylinder, then wipe off the Plug and reinsert it.
You should be using fresh, clean gas. If the gas is old, change it. Use a fuel stabilizer if you keep
gas longer than one month.
Check and make sure the Engine has the right amount of clean oil. If it’s dirty, change it
following the procedure in your engine owners manual.
If your Engine still lacks power, visit us at www.DRpower.com or call 1-800-DR-OWNER (376-
9637) for assistance.
Check the oil level and adjust as needed. You may be operating the machine on too great an incline. See Slopes on page 19. Check the Air Filter and clean or replace if needed. You may be using the wrong oil—too light for the temperature. Refer to your Engine Owner’s
Manual for detailed information.
Clean the Engine cooling fins and the carburetor housing if they are dirty. If the Engine still smokes, visit us at www.DRpower.com or call 1-800-DR-OWNER (376-9637) for
assistance.
Check the tire pressure. Refer to the Tire manufacturers recommended pressure on the side of
the Tire and adjust pressure as needed.
Vibrations higher than normal.
Lawn Deck is not vacuuming well.
32 DR
®
LEAF and LAWN VACUUM
Check for Chipper Blade damage. See page 25.
NOTE: You must not
sharpen the Chipper Blade; you must replace it if damaged.
Be sure the Lawn Deck Blades are engaged and running at full throttle. Be sure the Deck is set at the proper mowing height. Be sure the Leaf and Lawn Vacuum Engine is running at full throttle. Use 1st or 2nd gear on your Lawn Tractor for best results. Turn off the Lawn Tractor Engine and Vacuum Engine, and check the Hose Adapter for clogs. Look for clogs along the Hose. Shake the Hose to loosen and free any clog. Turn off the Lawn Tractor Engine and Leaf and Lawn Vacuum Engine, and disconnect the Leaf
and Lawn Vacuum Engine Spark Plug Wire. Check for clogs in the Impeller Outlet Duct and Inlet Hose.
If your Lawn Deck still is not vacuuming properly, visit us at www.DRpower.com or call 1-800-
DR-OWNER (376-9637) for assistance.
Troubleshooting Table (Continued)
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
SYMPTOM POSSIBLE CAUSE
Leaves or grass come out of the top of the Centrifugal Separator and the Collector is not full.
Check for clogs along the edges of the Centrifugal Separator cone. Check the Collector Hose to be sure it is about 4 to 6 inches inside the Centrifugal Separator
Inlet and approximately level.
Leaves or grass come out of the top of the Collector Panels.
The Engine is running properly, but the Impeller is not turning.
Be sure the Nuts on the top and bottom of the Collector Corner Bars are appropriately tightened.
The Coupling Sleeve is damaged; Replace the Coupling
CONTACT US AT www.DRpower.com 33
Chapter 6: Parts Lists, Schematic Diagrams And Warranty
Parts List – FRAME AND AXLE ASSEMBLY
NOTE: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
01 258051 Frame, Leaf System 02 258301 Bracket, Axle 03 258311 Axle, .75" Dia 04 111521 Bolt, HCS 3/8-16 X 1", Gr 5, ZP 05 110751 Nut, Lock, 3/8-16, Nylon, ZP 06 258321 Wheel, 11.6" Dia 07 180641 Washer, .75" X 1.5", X .11", ZP 08 126851 Pin, Cotter, 3/16" X 1.5" 09 258851 Hitch Plate Assy 10 101471 Bolt, HCS, 5/16-18 X 2.25", Gr 5, ZP 11 112411 Washer, Flat, 5/16", USS, ZP 12 110761 Nut, Lock, 5/16-18, Nylon, ZP 13 123211 Bolt, HCS 5/16-18 X .75", Gr 5, ZP 14 112431 Washer, Lock, 5/16", Split, ZP 15 258861 Hitch, Adjustable 16 279021 Pin, Clevis, 3/8" X 4.0", ZP 17 151921 Pin, Hitch Clip, 5/16"-3/8"
Ref# Part# Description
18 187371 Pin, Clevis, 1/2" X 4.5", ZP 19 189671 Washer, Flat, 1/2", Rubber 20 160031 Pin, Hitch Clip 1/2" 21 284091 Jack W/ Hardware 22 188341 Stand, Tow Beam (Premier) 23 264161 Guard, Tubing 24 112141 Cable Tie, 7.5", Black 25 284971 Handle, Latch, W/ Label 26 110241 Grip, Latch Handle 27 111931 Spring, C, .545" ID X .055" Wire X 2.2"
Long 28 258501 Bracket, Latch Spring 29 114561 Bolt, HCS, 1/4-20 X 2.0", Gr 2, ZP 30 110731 Nut, Lock, 1/4-20, Nylon, ZP 31 119831 Bolt, HCS, 1/4-20 X .75", Gr 2, ZP 32 101811 Washer, Lock, 1/4", Stand, Split, ZP
Not Illustrated
288521 Knife Kit
34 DR
®
LEAF and LAWN VACUUM

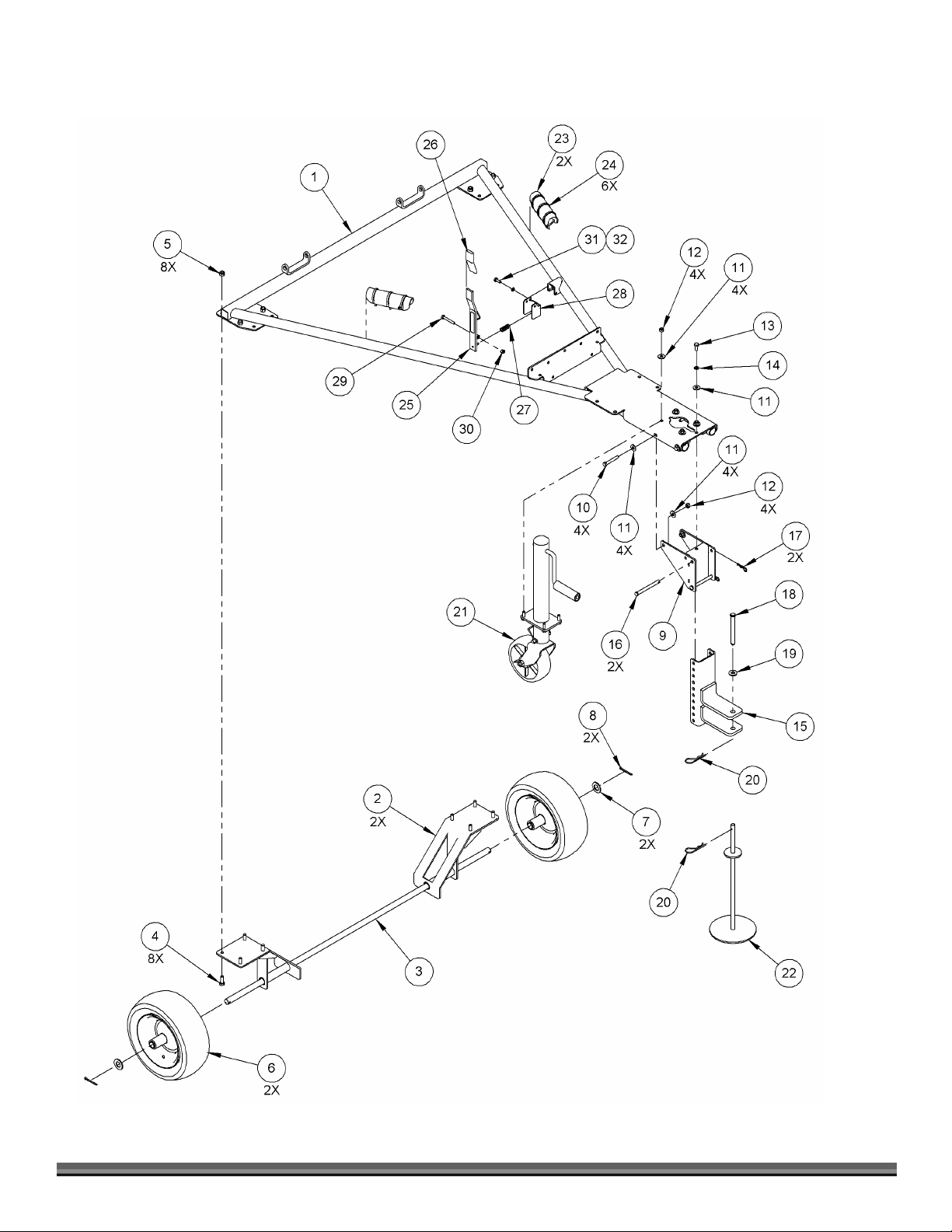

Schematic – FRAME AND AXLE ASSEMBLY
CONTACT US AT www.DRpower.com 35
Parts List – IMPELLER AND DRIVE ASSEMBLY
NOTE: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
01 285011 Engine W/ Label, 8.0 GTQ, B&S M/S,
EMI
285021 Engine W/ Label, 8.0 GTQ, B&S M/S, Ca
EMI
285031 Engine W/ Label, 8.0 GTQ, B&S E/S,
EMI
285041 Engine W/ Label, 8.0 GTQ, B&S E/S, Ca
EMI
285051 Engine W/ Label, 9.0 GTQ, B&S M/S,
EMI
285061 Engine W/ Label, 9.0 GTQ, B&S M/S, Ca
EMI
285071 Engine W/ Label, 9.0 GTQ, B&S E/S,
EMI
285081 Engine W/ Label, 9.0 GTQ, B&S E/S, Ca
EMI
285091 Engine W/ Label, 13.74 GTQ, Subaru
E/S, 50 St 02 134431 Bolt, HCS 5/16-18 X 1.5", Gr 5, ZP 03 112411 Washer, Flat 5/16" Uss, ZP 04 110761 Nut, Lock, 5/16-18, Nylon, ZP 05 150451 Bolt, HCS 5/16-18 X 1.75", Gr 5, ZP 06 112501 Washer, Lock, 5/16", Ext Tooth, ZP 07 110691 Nut, Hex 5/16-18 08 278951 Wire Harness, Safety 09 278961 Wire Extension, Safety, (Pro-XL) 10 112141 Cable Tie, 7.5" Black 11 258061 Mount, Engine Block (Premier & Pro) 12 123211 Bolt, HCS 5/16-18 X .75", Gr 5, ZP 13 112431 Washer, Lock, 5/16", Split, ZP 14 258141 Pulley, Drive, 3.25" OD, A, 1.0" Bore 15 106361 Key, 1/4" Sq X 2.25" Long 16 258681 Coupling Flange, 1" Bore 17 258691 Coupling Sleeve, 3 Piece
Ref# Part# Description
18 279041 Key, 1/4" Sq X 1.75" Long 19 258751 Brace, Engine 20 258071 Spacer, .328" Id X .75" Od X .19", ZP
(Pro-XL) 21 178821 Bolt, HCS 5/16-24 X 1.0", Gr 2, ZP 22 264081 Cover, Coupling 23 258121 Impeller, Balanced, W/ Knife 258651 Impeller, Balanced, No Chipper
(Premier) 24 258081 Housing, Impeller, Chipper 258641 Housing, Impeller, No Chipper
(Premier) 25 258091 Housing, Impeller, Inlet 26 285101 Housing W/ Label, Impeller, Scroll 27 189801 Bolt, HCS 5/16-18 X 4.5", Gr 2, ZP 28 258671 Bearing, Flange 29 279011 Washer, Flat, .385" X 1.25" X .25", ZP 30 110751 Nut, Lock, 3/8-16, Nylon, ZP 31 258111 Hopper, Chipper, Leaf System (Pro &
Pro-XL) 32 258881 Shield, Blowback, (Pro & Pro-XL) 33 258891 Retainer, Shield (Pro & Pro-XL) 34 114781 Screw, Mach, 10-24 X .62", Gr 2, Ph Pan,
ZP 35 118731 Nut, Lock, 10-24, Nylon, ZP 36 258621 Bracket, Battery (Electric Start Models) 37 134471 Battery, 12V, 9aH (Electric Start Models) 38 242301 Strap, Battery, 9aH (Electric Start
Models) 39 119831 Bolt, HCS 1/4-20 X .75", Gr 2, ZP 40 110731 Nut, Lock, 1/4-20, Nylon, ZP 41 258601 Wire, Green, E/S (Electric Start Models) 42 258611 Wire, Red, E/S (Electric Start Models)
36 DR
®
LEAF and LAWN VACUUM
Schematic – IMPELLER AND DRIVE ASSEMBLY
CONTACT US AT www.DRpower.com 37
Parts List – COLLECTOR ASSEMBLY
NOTE: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
01 258331 Frame, Collector Base 02 111081 Plug, 1" X 1" X 16ga Tube 03 112311 Spacer, .327" ID X .50" OD X 1.5" 04 111411 Bolt, HCS 5/16-18 X 3.0" 05 112411 Washer, Flat 5/16" USS, ZP 06 187551 Nut, Lock, 5/16-18, Nylon, LP, ZP 07 187371 Pin, Clevis, 1/2" X 4.5", ZP 08 160031 Pin, Hitch Clip 1/2" 09 258341 Base, Collector 10 111701 Screw, 10-32 X 1/2", Type F, Phil Hex, ZP 11 258371 Cover, Collector 12 258441 Cone, Separator 13 258451 Rod, Cone Mount 14 110761 Nut, Lock, 5/16-18, Nylon, ZP 15 282571 Channel, Cover 16 114781 Screw, Mach, 10-24 X .62", Gr 2, Ph Pan,
ZP 17 112371 Washer, Flat, #10 USS, ZP 18 118731 Nut, Lock, 10-24, Nylon, ZP 19 258421 Bar, 8mm X 10mm X 35.55" 258431 Bar, 8mm X 10mm X 43.89" 20 258351 Panel, Side, 41.58" 21 258511 Panel, Side, 41.58", Trimmed 22 258381 Support, Corner, Front 33.48" (Premier) 258391 Support, Corner, Front 41.82" 23 258401 Support, Corner, Back 33.48" (Premier) 258411 Support, Corner, Back 41.82" 24 279001 Screw, #6 X 1/2", Type A, Phil Pan, ZP
Ref# Part# Description
25 284081 Screw, #6 X .31, Type A, Phil Pan, ZP 26 258361 Panel, Front/Back, 46.50" 27 258491 Panel, Front, 46.50", Trimmed 28 264171 Retainer, Front Panel, 32.02" (Premier) 264181 Retainer, Front Panel, 40.36" 29 264271 Panel, Back, 46.50", Trimmed 30 264191 Stiffener, T, 31.52" (Premier) 264201 Stiffener, T, 39.86" 31 258461 Trim, Back Panel, Side 33.19" LH
(Premier) 264121 Trim, Back Panel, Side 41.53" 32 258471 Trim, Back Panel, Side 33.19" RH
(Premier) 264121 Trim, Back Panel, Side 41.53" 33 278991 Screw, #6 X 1/2", Type A, Flat 100°, ZP 34 258481 Trim, Back Panel, Bottom 35 284171 Knob W/ Hardware, 5/16-18, Gr 8, Stud 36 112431 Washer, Lock, 5/16", Split, ZP 37 279051 Push Nut, 5/16" 38 284981 Panel W/ DR Stripe Label, Side, 41.58 39 284991 Panel W/ Operating Label, Front, 46.50 40 285001 Panel W/ DR Round Label, Back, 46.50
Labels
280641 Label, Operating 280651 Label, Dr Logo & Stripe 192391 Label, Dr Logo, 5.75", Silver
38 DR
®
LEAF and LAWN VACUUM
Schematic – COLLECTOR ASSEMBLY
CONTACT US AT www.DRpower.com 39
Parts List – HOSE AND DUCT ASSEMBLY
NOTE: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
01 258541 Duct, Impeller Outlet, 27.46" High 258551 Duct, Impeller Outlet, 36.46" High 02 284121 Hose and Clamps, 6.00" ID X 28" Long
W/ Cuff 03 186961 Clamp, Hose, 6" 04 258901 Clamp, Hose, 6" Dia, Thumbscrew 05 123211 Bolt, HCS 5/16-18 X .75", Gr 5, ZP 06 112431 Washer, Lock, 5/16", Split, ZP 07 112411 Washer, Flat 5/16" USS, ZP 08 258531 Duct, Impeller Inlet
Ref# Part# Description
09 282561 Screw, Mach, 6-32 X .31", 100°FH, ZP 10 278221 Nut, Lock, 6-32, Nylon, ZP 11 258591 Knob, 1.25" OD, 5/16-18 X .62" Stud 12 284131 Hose and Clamps, 6.00" Id X 90" Long
W/ Cuff 13 188711 Lanyard 14 157031 Cable Tie, 36", White 15 280661 Adapter, Hose, 7" 280671 Adapter, Hose, 8" 16 187551 Nut, Lock, 5/16-18, Nylon, LP, ZP
40 DR
®
LEAF and LAWN VACUUM
Schematic – HOSE AND DUCT ASSEMBLY
CONTACT US AT www.DRpower.com 41
Notes:
42 DR
®
LEAF and LAWN VACUUM
D
R
LEAF and LAWN VACUUM
2-Year Limited Warranty
Terms and Conditions
The DR LEAF and LAWN VACUUM is warranted for two (2) years against defects in materials or workmanship when put to ordinary and normal consumer use; ninety (90) days for any other use.
For the purposes of all the above warranties, “ordinary and normal consumer use” refers to non-commercial residential use and does not include misuse, accidents or damage due to inadequate maintenance.
®
DR Power Equipment certifies that the DR of this type is used. DR Power Equipment however, limits the implied warranties of merchantability and fitness in duration to a period of two (2) years in consumer use, ninety (90) days for any other use.
The 2-Year Limited Warranty on the DR LEAF and LAWN VACUUM starts on the date the machine ships from our factory. The 2-Year Limited Warranty is applicable only to the original owner.
The warranty holder is responsible for the performance of the required maintenance as defined by the manufacturer's owner's manuals. The warranty holder is responsible for replacement of normally wearing parts such as the Chipper Knife, Spark Plug, Air Filters, Coupling Sleeve, and Battery. Accessories to the machine are not covered by this warranty.
LEAF and LAWN VACUUM is fit for ordinary purposes for which a product
During the warranty period, the warranty holder is responsible for the machine transportation charges, if required. During the warranty period, warranty parts will be shipped by standard method at no charge to the warranty holder. Expedited shipping of warranty parts is the responsibility of the warranty holder.
SOME STATES DO NOT ALLOW LIMITATIONS ON THE LENGTH OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
DR Power Equipment shall not be liable under any circumstances for any incidental or consequential damages or expenses of any kind, including, but not limited to, cost of equipment rentals, loss of profit, or cost of hiring services to perform tasks normally performed by the DR
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
LEAF and LAWN VACUUM.
Daily Checklist for the DR LEAF and LAWN VACUUM
To help maintain your DR LEAF and LAWN VACUUM for optimum performance, we recommend you follow this checklist each time you use your Vacuum.
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
[ ] OIL: With the machine on a level surface, remove the Oil Fill Cap and check the oil level. Fill the reservoir according to
the Dipstick with the recommended motor oil.
[ ] GAS: Fill the gas tank with fresh, unleaded gasoline.
[ ] ENGINE: It is very important to keep the Engine clean. Remove dirt and other debris from the Engine cooling fins and
debris guard. A dirty Engine retains heat and can cause damage to internal Engine components.
[ ] HARDWARE: Check all nuts and bolts to be sure that the components are secure.
[ ] FRAME: Check all welds to be sure that the frame is in tact and secure.
[ ] HOSES: Inspect the Hoses for holes, frayed, worn, kinked, or abraded areas. Replace any damaged or worn Hoses.
End of Season and Storage
Before performing any maintenance, repairs or inspection, you must first shut off the mower and leaf and lawn vacuum engines, wait five minutes for all parts to stop and cool, and disconnect the spark plug wire of the leaf and lawn vacuum.
NOTE: Please refer to the Engine Owner’s Manual for engine-specific procedures.
Change the oil. Refer to your Engine Owner’s Manual for detailed information. If your DR LEAF and LAWN VACUUM will be idle for more than 30 days, we recommend using a gas stabilizer. This will
prevent sediment from gumming up the carburetor. If there is dirt or moisture in the gas or tank, remove it by draining the tank. Completely fill the tank with fresh, unleaded gas and add the appropriate amount of stabilizer or gasoline additive. Run the engine for a short time to allow the additive to circulate.
Remove the spark plug and pour about 1 ounce of motor oil into the cylinder hole. Replace the plug and pull the recoil
starter rope until you feel strong resistance. This will coat the piston and seat the valves to prevent moisture buildup.
Clean or replace the air filter. Refer to your Engine Owner’s Manual for detailed information. Clean dirt and debris from the cylinder head cooling fins, Impeller housing, debris screen, and muffler area of the engine. Clean out residual debris from the Hoses and Collector. Store the Battery in a dry area that will not freeze. If you will not use the machine over a long period, charge the Battery
every four to six weeks. See page 28.
If possible, store the DR Leaf and Lawn Vacuum in a dry, protected area. If it is necessary to store the machine outside,
cover it with a protective material (especially the Engine). Contact us at www.DRpower.com or call 1-800-DR-OWNER (376-
9637) to purchase a cover for your DR LEAF and LAWN VACUUM.
75 MEIGS ROAD, P.O. BOX 25, VERGENNES, VERMONT 05491
©2010 Country Home Products, Inc. All rights reserved 279061
Loading...
