DR TLC18-CHP Operating & Assembly Instruction Manual

DR CHIPPER

Operating & Assembly Instruction Manual

Model: 18.0 HP TLC18-CHP

This manual contains information concerning proper and improper operating procedures, warnings, maintenance, troubleshooting, assembly, and tips. Everyone who operates this machine should read these instructions and be thoroughly familiar with them.

P/N 913-0268

12/31/03

SECTION I - SAFETY

This symbol points out important safety instructions, which, if not followed,

could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate your chipper. Failure to comply with these instructions may result in personal injury. When you see this symbol - heed its warning.

THIS MACHINE IS CAPABLE OF INFLICTING SERIOUS INJURY IF

OPERATED IMPROPERLY -- READ ALL WARNINGS & CAUTION LABELS.

INTENDED USE

NEVER USE YOUR CHIPPER FOR ANY OTHER PURPOSE THAN CHIPPING LIMBS IT IS DESIGNED

FOR THIS USE AND ANY OTHER USE MAY CAUSE SERIOUS INJURY.

DANGER: Rotating cutting blade.

Keep hands and feet out of inlet and discharge opening while machine is running.

DANGER: This machine can CRUSH, GRIND, CUT, and SEVER parts of your body if they

DANGER: Your chipper was built to be operated according to the rules for safe operation

in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. If you violate any of these rules, you may

cause serious injury to yourself or others.

enter the inlet or discharge area of your chipper.

WARNING

California to cause cancer, birth def

: The Engine Exhaust from this product contains chemicals known to the state of

ects or other reproductive harm.

MAKE CERTAIN THAT ALL SAFETY LABELS ON THIS EQUIPMENT ARE

KEPT CLEAN AND IN GOOD CONDITION. IF YOU NEED REPLACEMENT

LABELS, ORDER BY PART NUMBER.

080-0967

080-0970

091-0055

091-0057

091-0059

091-0062

091-0088

091-0093

091-0256

091-0378

091-0379

091-0380

091-0381

091-0384

913-0265

SAFE OPERATION PRACTICES

TRAINING

• Read this owner’s manual carefully in its entirety before attempting to assemble this machine. Read, understand, and follow all instructions on the machine before operation. Be completely familiar with the controls and the proper use of the machine before operating it. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

• Never allow children to operate the unit. Never allow adults to operate the equipment without proper instruction. Only responsible individuals who are familiar with these rules of safe operation should be allowed to use your unit.

• Keep the area of operation clear of all persons, particularly small children and pets. Stop the engine when they are in the vicinity of the unit. Keep work area clean and clear of branches or obstacles, which could cause you to stumble or fall.

• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and themselves.

• Your chipper is a powerful tool, not a plaything. Exercise extreme caution at all times. Your unit has been designed to chip. Do not use it for any other purpose.

• If situations occur which are not covered in this manual, use care and good judgment. Contact your place of purchase for additional assistance.

PREPARATION

• Thoroughly inspect the area where the equipment is to be used and remove all foreign objects.

• Do not operate the machine without wearing adequate outer garments and safety goggles. Always wear safety

glasses or goggles during operation and while performing any adjustment or repair, to protect eyes from foreign objects that may be thrown from the machine. Be sure your glasses or goggles fit properly.

• Avoid loose-fitting clothes and use protective footwear that will improve footing on slippery surfaces. Shirt and slacks that cover the arms and legs and steel-toed shoes are recommended. Secure hair above shoulders. Do not wear loose clothes or jewelry that can be caught in moving parts. Never operate a unit in bare feet, sandals or sneakers. Wear gloves when feeding material into the chipper chute. Be sure your gloves fit properly and do not have loose cuffs or drawstring.

• Warning: Fuel is highly flammable and the vapors are explosive. Take the following precautions.

• Store fuel and oil in approved containers.

• Keep away from heat and open flame, and out of the reach of children.

• Refuel outdoors only and do not smoke while refueling.

• Check and add fuel before starting the engine. Never remove gas cap or add fuel while the engine is

running or when the engine is hot. Allow engine to cool before refueling.

• If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and

avoid creating any source of ignition until fuel vapors have disappeared.

• Replace all fuel tank and container caps securely.

• Never store the machine or fuel container inside where there is an open flame or spark, such as a gas hot

water heater, space heater, clothes dryer or furnace.

• To reduce fire hazard, keep engine and muffler free of debris build-up. Clean up fuel and oil spillage.

Allow unit to cool at least five minutes before storing.

• Never attempt to make any adjustments while the engine is running.

OPERATION

• Never place your hands, feet, or any part of your body in the chipper chute, discharge opening, or near or under any moving part while the engine is running. Keep clear of the discharge opening at all times. If it becomes necessary to push material into the chipper chute, use a small diameter stick, NOT YOUR HANDS.

• Keep your face and body back from chipper chute to avoid accidental bounce back of any material.

• The machine should only be operated on a level surface. Never operate your unit on a slippery, wet, muddy, or

icy surface.

• Stay alert for hidden hazards or traffic. Do not carry passengers.

• If the cutting mechanism strikes a foreign object or if your machine should start making an unusual noise or

vibration, immediately stop the engine, remove the spark plug wire(s) and wait for all moving parts to come to a complete stop. After the machine has come to a complete stop proceed as follows:

• Inspect for any damage.

• Repair or replace any damaged parts before restarting and operating the machine.

• Exercise caution to avoid slipping or falling.

• If the machine should start to vibrate abnormally, immediately stop the engine, remove the spark plug wire(s)

and wait for all moving parts to come to a complete stop and inspect for the cause. Vibration is generally a warning sign of trouble.

• Stop the engine when leaving the operating position, and when making any repairs, adjustments and inspections.

• Take all possible precautions as recommended by the manufacturer when leaving the machine unattended. Stop the engine and remove the key if so equipped.

• Before cleaning, repairing, or inspecting, shut off the engine and make certain the flywheel and all moving parts have come to a complete stop. Disconnect the spark plug wire and keep the wire away from spark plug to prevent accidental starting. Do not use flammable solutions to clean air filter.

• Never run this machine in an enclosed area as the exhaust from the engine contains carbon monoxide, which is an odorless, tasteless, and deadly poisonous gas.

• Keep all guards and safety devices in place and operating properly. Do not operate the machine if all safety guards are not in place.

• Do not use the unit with the chipper hopper removed.

• The muffler and engine become hot and can cause a severe burn. Do not touch.

• Keep children and pets away.

• Tragic accidents can occur if the operator is not alert to the presence of small children.

• Keep children out of the work area and under the watchful eye of a responsible adult

other than the operator.

• Be alert and turn the unit off if a child enters the area.

• Never allow children to operate the chipper.

• Do not overload or attempt to chip material beyond manufacturers recommendation. Personal injury or

damage to the machine could result.

• Never operate the machine at high transport speeds or on hard or slippery surfaces.

• Never allow bystanders near the unit while running.

• Only use accessories approved for this machine by the manufacturer. Read, understand, and follow all the

instructions provided with the approved accessory.

• Only operate unit in good daylight. Do not operate unit at night or in dark areas where your vision may be impaired.

• Use extreme caution when reversing or pulling the machine towards you.

• Do not tamper with the engine’s governor setting. The governor controls the maximum safe operation speed

and protects the engine. Over-speeding the engine is dangerous and will cause damage to the engine and to the other moving parts of the machine. See your authorized dealer for engine governor adjustments.

• Start the engine according to the manufacturers instructions. Keep hands and feet away from inlet and discharge areas.

• Never pick up or carry the machine while the engine is running.

• Do not operate while under the use of alcohol, drugs, or medication. A clear mind is essential for safety.

• Do not allow anyone who is not alert to operate this machine.

• When feeding material into this equipment, be extremely careful that pieces of metal, rocks, or other foreign

objects are not included. Personal injury or damage to the machine could result.

• Keep area of discharge clear of people, animals, buildings, glass or anything else that will obstruct clear discharge, cause injury or damage. Wind can also change discharge direction, so be aware.

• Do not allow an accumulation of processed material to build up in the discharge area as this will prevent proper discharge and can result in kick-back from the chipper chute.

• Do not allow any part of the engine, especially around the cooling fans and muffler, to become clogged with processed material, leaves, oil, grease or any other combustible material.

• Do not operate engine if air cleaner or cover over carburetor air-intake is removed, except for adjustment. Removal of such parts could create a fire hazard.

TOWING

• Obey all state and local regulations when towing on public roads and highways.

• Before towing, be certain the chipper is correctly and securely attached to the towing vehicle and the safety

chains are in place. Leave slack in the chains to allow for turning.

• Do not allow anyone to sit or ride on the chipper. This can cause serious injury.

• Stay alert for hidden hazards or traffic. Do not carry passengers.

• Never carry any cargo or wood on your chipper. It may fall off and endanger following vehicles.

• Allow for added length when turning, parking, crossing intersections and in all driving situations.

• Be care when backing up, you. You can easily jackknife your chipper.

• Adjust towing speed for terrain and conditions. Do not exceed 45 MPH when towing.

• Because the is no suspension on the chipper, it will tend to bounce more on rough roads. Be extra cautious

when towing over bumpy or rough terrain including railroad crossings.

MAINTENANCE AND STORAGE

• Keep machine, attachments and accessories in safe working condition.

• Check engine mounting bolts and other hardware at frequent intervals for proper tightness. Never operate your

chipper in poor mechanical condition or when in need of repair. Be sure all safety guards and shields are in proper position. These safety devices are for your protection.

• Never store machine with fuel in the fuel tank inside a building where ignition sources are present, such as hot water and space heaters, clothes dryers and the like. Allow the engine to cool before storing in any enclosure.

• Always refer to the operator’s manual for important details if the machine is to be stored for an extended period.

• If the fuel tank is to be drained, do this outdoors.

• Follow the manufacturer’s recommendations for safe loading, unloading and storage of machine.

• If it is necessary for any reason to unclog the feed intake or discharge openings or to inspect or repair the

machine where a moving part can come in contact with your body or clothing, shut the machine off, allow all moving parts to come to a complete stop, disconnect the spark plug wire(s) and allow the engine to cool before attempting to unclog, inspect or repair.

• Check the knife mounting screws at frequent intervals for proper tightness. Also visually inspect the knife for wear or damage. Replace the knife with parts that meet original equipment specifications.

• Knives should be checked for sharpness and the bolts attaching them to the flywheel for tightness every 8-10 hours of operation.

• Replace the nylock nuts securing the knife every time you replace the knife.

• Check the gap between the knife and wear plate every time you sharpen or replace the knife, or every 8-10

hours of operation.

• Never tamper with safety devices. Check their proper operation regularly.

• Inspect the belt each time you use the unit. Look for damage, worn areas or tears. Do not use the unit if this

condition exists.

• Do not tamper with the engine’s governor setting. The governor controls the maximum safe operation speed and protects the engine. Over-speeding the engine is dangerous and will cause damage to the engine and to the other moving parts of the machine. See your authorized dealer for engine governor adjustments.

• Only operate your chipper from the operator zone.

• Know how to turn your unit off.

• Never move your chipper or leave it unattended with the engine running.

• Do not operate your chipper on concrete or blacktop.

• Follow engine owner’s manual for engine maintenance and repair.

YOUR RESPONSIBILITY

• Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

HAZARD:

engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). arrester working order.

In the State of California, the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your Briggs & Stratton servicing dealer.

This unit is equipped with an internal combustion

If a spark

is used, the operator should maintain it in effective

SECTION II - ASSEMBLY INSTRUCTIONS

PACKAGE CONTENTS

SKID PARTS BOX BOLT BAG

CHIPPER CHIPPER HOPPER 7 EA – 5/16-18 X ¾” CARRIAGE BOLTS DISCHARGE CHUTE SWIVEL TOP 8 EA – 5/16-18 NYLOCK NUT HITCH ARMS DEFLECTOR 4 EA – 5/16 USS FLATWASHER HITCH ASSEMBLY STAND ASSEMBLY 2 EA – ½-13 X 3” HHCS PARTS BOX WIRE HARNESS 4 EA – ½-13 X 1 ¼” HHCS SAFETY GLASSES 2 EA – ½-13 GRIPCO NUT 10 EA – CABLE TIES 1 EA – 3/16 HAIR COTTER PIN OWNER’S MANUAL 2 EA – HITCH ARM MOUNTING PLATES ENGINE MANUAL 2 EA – ENGINE KEY BOLT BAG 2 EA – 5/16-18 X ¾” HHCS KNIFE GAUGE 3 EA – 3/8” USS FLATWASHER 1EA – LOCKING KNOB

TOOLS REQUIRED FOR ASSEMBLY

• ½” REGULAR BOX WRENCH

• ½” SOCKET AND SOCKET DRIVER

STEP I – UNPACKING AND CHECKING CONTENTS

1. Remove all items from the crate.

2. After unpacking the crate, compare the contents with the Package Contents list above.

3. If any parts are missing, contact Country Home Products at 800-376-9637.

4. Assembly should be done on a clean, level surface.

STEP II – ASSEMBLING THE CHIPPER HOPPER

1. Assemble chipper hopper (item #20) to the basic machine using four each 5/16”-18 x 3/4” carriage bolts (item #19), 5/16” flatwashers(item #3), and 5/16”-18 nylock nuts(item #10),. Put head of bolt inside hopper with threads sticking out. Tighten all hardware with a ½” wrench.

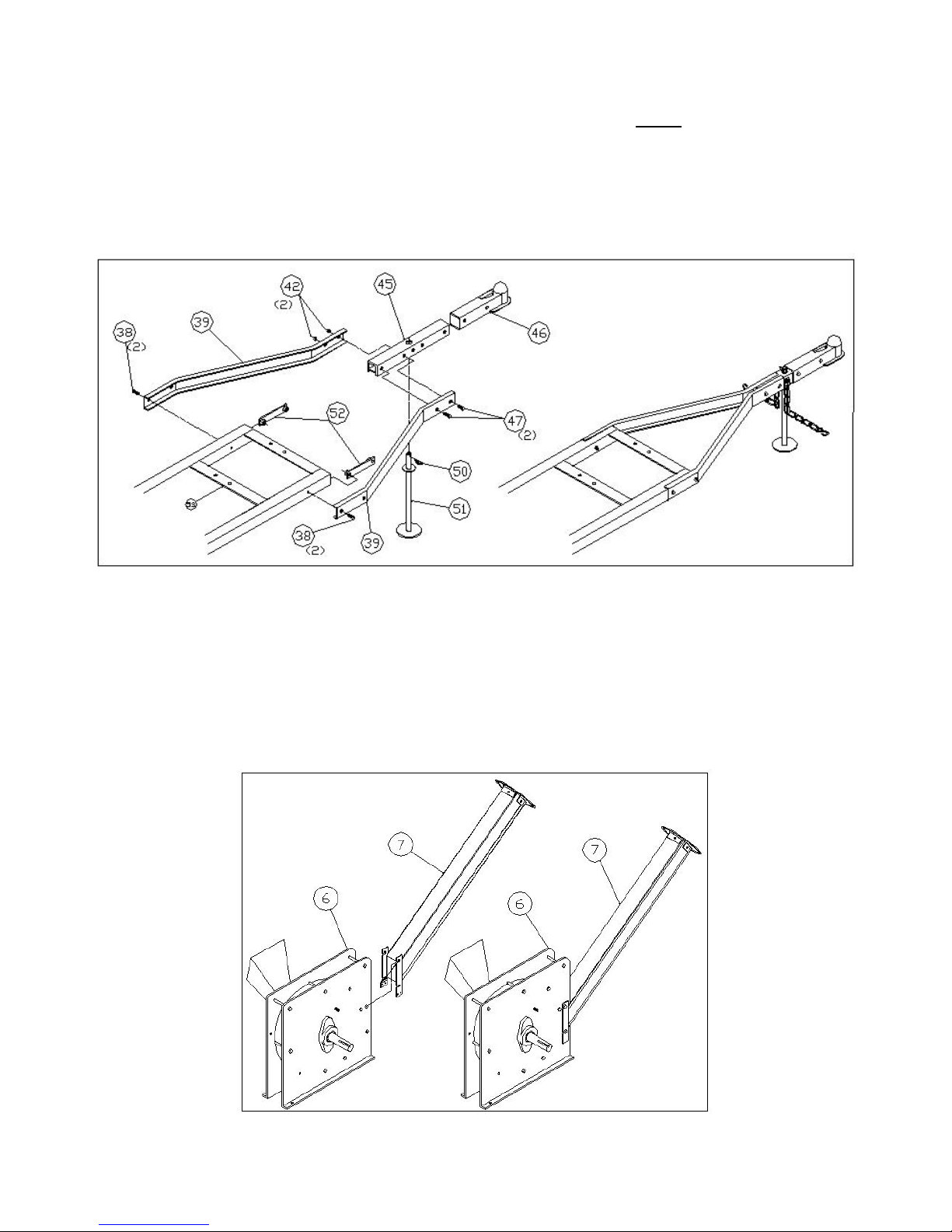

STEP III – ATTACHING THE HITCH ARMS AND TRAILER HITCH ASSEMBLY

1. Attach the hitch arms (item #39, pg. 29) to the trailer frame using the two hitch arm mounting plates (item #52, pg. 29) and four 1/2”-13 x 1-1/4” HHCS (item #38, pg. 29) from the bolt bag. Do not

tighten hardware at this

time.

2. Attach the trailer hitch assembly (item #45 & #46, pg. 30) to the hitch arms as shown in drawing with two 1/2”13 x 3” HHCS (item #47, pg. 30) and two 1/2”-13 gripco lock nuts (item #42, pg. 28) from the bolt bag. Tighten all hardware at this time.

3. Slide the stand (item #51, pg 30) up through the holes in the hitch assembly and secure with the hair cotter pin (item #50, pg. 30).

STEP IV – ATTACHING THE DISCHARGE CHUTE

1. Loosen the two 5/16-18 x 4” bolts on the chipper enough that the mounting plates on the discharge chute (item #7, pg. 29) will slide onto the bolts. You may have to slightly tap the nut side of the bolt to center it before the discharge chute can easily slide into place.

2. Slide the top L shaped slot on first, and then pivot the discharge chute down so that the lower slot slides over the lower bolt as shown.

3. Once the discharge chute is in place, tightly secure the two-nylock nuts.

4. Before proceeding to the next step, inspect the safety switch to ensure that the mount bracket properly depresses it. If not properly depressed, the machine will not start.

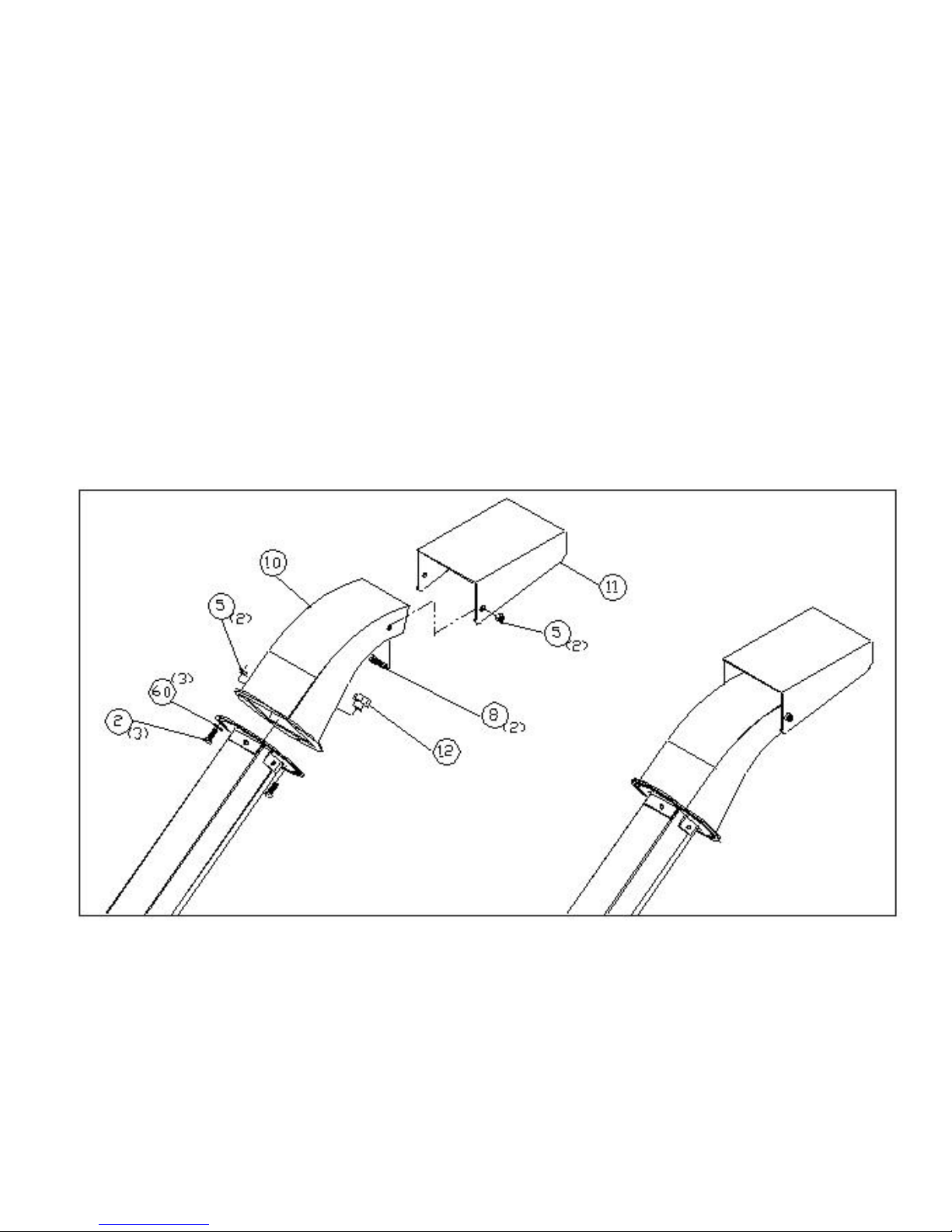

STEP V – ATTACHING THE SWIVEL TOP AND DEFLECTOR

1. Get three 5/16-18 X ¾” carriage bolts (item #2, pg. 29), two 5/16-18 nylock nuts (item #5, pg. 29), three 3/8” flat-washers(item #60, pg. 30), and the locking knob (item #12, pg 29) from the bolt bag.

2. Hold the Swivel Top (item #10, pg. 29) in place and insert two of the 5/16-18 x ¾” bolts through two 3/8” washers and then through both the top two slots of the top plate on the discharge chute (item #7, pg. 29), and the top two holes on the swivel top. Secure snuggly with two 5/16-18 nylock nuts.

3. Insert a 5/16-18 X ¾” carriage bolt through a 3/8” flat-washer and then the lower slot, and hole and secure with the locking knob.

4. DO NOT RUN MACHINE WHILE MAKING THIS ADJUSTMENT, PLEASE DISCONNECT THE SPARK PLUG BEFORE CONTINUING! To change the side-to-side direction of the flow simply loosen the locking knob and rotate to the desired direction.

5. To attach the deflector (item #11, pg. 29), remove two 5/16-18 X ¾” bolts(item #8, pg. 29), and two 5/16-18 nylock nuts(item #5, pg. 29) from the bolt-bag.

6. Hold the deflector in place and insert two of the 5/16-18 x ¾” bolts, from the inside out, through swivel top(item #10, pg. 29), and then through the deflector.

7. Secure snuggly with the two 5/16-18 nylock nuts.

8. DO NOT RUN MACHINE WHILE MAKING THIS ADJUSTMENT, PLEASE DISCONNECT THE SPARK PLUG BEFORE CONTINUING! To change the height, loosen the two 5/16-18 bolts and adjust the deflector up and down to the desired height.

STEP VI – ATTACHING THE WIRE HARNESS

Identify the “road side” and “curb side” of your trailer per the picture below. The mounting brackets have an access hole in them so the wire harness can be attached to the light. On the wire harness the yellow/brown wire is for the road side light and the green/brown wire is for the curb side light. The white wire is a ground wire.

1. To attach the wire harness to the lights and frame proceed as follows.

2. Strip ½” off the ends of the yellow/brown and green/brown wires.

3. On the road side light put the yellow wire through the access hole and into the top left hole on the back of the light. Push the brown wire into the top right hole.

4. On the curb side light put the green wire through the access hole and into the top left hole on the back of the light. Push the brown wire into the top right hole.

5. Once the wires are attached in their correct holes attach the wire harness to the frame with the provided cable ties.

6. Attach the curb side wire to the frame at points 1, 2 and 3 per the drawing.

7. Attach the road side wire to the frame at point 4.

8. Attach both wires together at points 5, 6, 7 and 8.

9. Strip 1” from the end of the ground wire and wrap it around one of the bolts on the trailer hitch. Retighten this bolt.

NOTE: Once the wires are being secured together (point 5), it is recommended that they be wrapped together with electrical tape every twelve inches.

SECTION III - OPERATION

BEFORE STARTING ENGINE, ALWAYS CHECK OIL LEVEL!

Refer to the engine owner’s manual for further details

regarding OPERATION AND MAINTENANCE OF the engine.

NOTE: ENGINE IS SHIPPED WITHOUT OIL! FILL CRANKCASE WITH OIL

BEFORE STARTING ENGINE. BE VERY CAREFUL NOT TO ALLOW DIRT TO ENTER THE ENGINE WHEN CHECKING OR ADDING OIL OR FUEL.

NOTE: IF YOU START THE ENGINE WITHOUT OIL, THE ENGINE WILL BE

DAMAGED BEYOND REPAIR AND WILL NOT BE COVERED UNDER WARRANTY.

BEFORE STARTING: Oil and Gas Fill-Up

Oil Capacity: 1 ½ quarts (48 ounces) Fuel Capacity: 9 quarts

OIL

• Use a high quality detergent oil classified “For Service SF, SG, SH, SJ” or higher.

• Do not use special additives.

• Choose a viscosity according to the following table.

* CAUTION: Air cooled engines run hotter than automotive engines. The use of non-synthetic multi-viscosity oils (5W-30, 10W-30, etc.) in temperatures above 40 deg. F (4 deg. C) will result in higher than normal oil consumption. When using a multi-viscosity oil, check oil level more frequently.

** CAUTION: SAE 30 oil, if used below 40 deg. F (4 deg. C), will result in hard starting and possible engine bore damage due to inadequate lubrication.

CHECKING AND ADDING OIL

• Check oil level before starting the engine.

• Check level daily, or after every eight hours.

• Keep oil level at FULL.

• Do not overfill.

Oil filling procedure: first add 1 quart. Start and run engine at idle for 30 seconds. Shut engine off and wait 30 seconds. Then add more oil slowly to bring level to Full mark on dipstick.

Oil checking procedure: before starting engine, check oil level.

• Place engine level. Clean around oil fill and dipstick.

• Remove dipstick and wipe clean with cloth.

• Push dipstick back in and remove to check oil level.

• Remove oil fill cap. Pour oil slowly.

• Fill to Full line on dipstick – recheck.

• Replace dipstick firmly.

FUEL

• Use clean, fresh, regular unleaded gasoline with a minimum of 85 octane. Fresh fuel

prevents gum from forming in the fuel system or on essential carburetor parts. Purchase fuel in quantity that can be used within 30 days.

• Do not use gasoline which contains Methanol.

• Do not mix oil with gasoline.

CAUTION: Some fuels, called oxygenated or reformulated

gasoline, are gasoline blended with alcohols or ethers. Excessive

amounts of these blends can damage the fuel system or cause performance problems. If any undesirable operating symptoms occur, use gasoline with a lower percentage of alcohol or ether.

ADDING FUEL

• Turn engine OFF and let engine cool at least 2 minutes before removing gas cap.

• Fill tank outdoors or in a well-ventilated area.

• Keep gasoline away from sparks, open flames, pilot lights, heat, and other ignition

sources.

• Remove cap. Fill tank to approximately 1 ½ inches below top of neck to allow for fuel expansion. Be careful not to overfill.

• Replace cap before starting.

• If fuel spills, wait until it evaporates before starting engine.

STARTING AND STOPPING

STARTING AND OPERATING TIPS

• Store and fuel equipment in level position.

• Use fresh fuel.

• Use correct type of oil.

• Remove external equipment/engine loads.

• Periodically remove any debris buildup from the machine.

• After engine has started, let it warm up several seconds to several minutes, depending

on outside temperature.

• For maximum performance and life, operate engine with choke in RUN and throttle in FAST.

TO START ENGINE

• Check oil level.

• Open fuel shut-off valve.

• Move choke control to CHOKE position.

• Move throttle to FAST position. Operate engine with throttle in FAST.

• Insert key and turn to START. CAUTION: to prolong starter life, use short starting

cycles, 5 seconds maximum, then wait one minute.

• Let engine warm up. Slowly adjust choke control toward RUN position. Wait until engine runs smoothly before each choke adjustment.

TO STOP ENGINE

• Move throttle to SLOW.

• Turn key to OFF. Remove key and store out of reach of children.

• Close fuel shut-off valve.

Operation Notes

• At engine start-up, the engine of your chipper operates under no load until approximately 1200-1400 RPM’S at which speed the centrifugal clutch engages and begins driving the rotor.

• Proper rotor speed is 2400 RPM +/- 200 RPM.

• When viewed from the operator zone, the flywheel turns in a clockwise direction. This

rotation pulls branches into the chipper.

• Always wear protective gloves and safety glasses during operation of the chipper.

• If it becomes necessary to push material into the chipper hopper, only use a wood stick,

never your hands or anything steel.

• Never assume you know where the knife is. You don’t know where it is. Always keep hands out of the chipper hopper.

SECTION IV - CHIPPING

THIS CHIPPER WAS DESIGNED FOR CHIPPING LIMBS OR BRANCHES.

NEVER USE THIS MACHINE FOR ANY OTHER PURPOSE AS IT COULD

CAUSE SERIOUS INJURY.

SAFETY FIRST

• Always wear protective gloves and safety glasses during operation of the chipper.

• Never allow your hands or any part of your body or clothing inside the chipper hopper or

discharge area of the chipper.

• Keep all protective guards and warning labels on the machine and in good working condition.

• Always stand clear of the discharge area when the chipper is running.

• Keep your face and body back from the chipper hopper to avoid being struck by any

material that may bounce back.

• Keep proper balance and footing while operating the chipper.

• If it becomes necessary to push material into the chipper hopper, only use a wood stick,

never your hands or anything steel.

• Never assume you know where the chipper knife is. You do not know where it is.

• Keep area of discharge clear of people, animals, buildings, glass or anything else that will

obstruct clear discharge, cause injury or damage. Wind can also change discharge direction, so be aware.

• Always keep hands out of the chipper hopper.

• Never operate the chipper without the chipper hopper in place.

• Do not transport the chipper while the engine is running.

• Do not refuel the engine while it is hot, warm, or running.

• Do not cover the chipper while the muffler is still hot.

PROCESSING LIMBS OR BRANCHES

• Your chipper can process dry or green material.

• Remove side limbs, branches or twigs from main branch.

• Feed branch into chipper hopper.

• Keep branch at same angle as chipper hopper.

• As the branch becomes short and is inside the chipper hopper, finish processing it by

pushing it into the chipper with the next branch.

• If branches are 2” or larger in diameter, feed only one branch at a time into the chipper.

• If branches are smaller than 2”, more than one at a time can be fed into the chipper.

• Green branches process quicker and easier than dry branches.

• Soft wood processes easier than hard wood.

• When chipping branches, sometimes a tail will be left at the end of the branch (usually

green wood) that will increase in length as you chip. To avoid this, rotate or twist the branch as you feed it into the chute.

• Rotating the branch as you feed it into the machine will improve chipping performance.

• USE COMMON SENSE WHEN USING YOUR CHIPPER.

• LEARN TO RECOGNIZE THE CHANGE IN THE SOUND OF YOUR MACHINE

WHEN IT IS OVERLOADED.

• BECOME FAMILIAR WITH SUCCESSFUL OPERATING CONDITIONS AND AVOID THOSE THAT CAN OVERLOAD AND DAMAGE THE MACHINE.

• IF THE MACHINE BECOMES JAMMED BY OVERLOADING OR ANY OTHER CAUSE, STOP THE MACHINE IMMEDIATELY.

• IF YOU JAM THE MACHINE AND DO NOT STOP THE ENGINE, IT CAN:

• BURN THE BELT

• RUIN THE CLUTCH

THIS DAMAGE CAN BE COSTLY AND IT MAY NOT BE COVERED UNDER WARRANTY. FOR THIS REASON, IT IS IMPORTANT THAT YOU IMMEDIATELY SHUT OFF THE MACHINE IF IT BECOMES JAMMED.

• ONLY YOUR OPERATOR EXPERIENCE WILL TELL YOU HOW FAST TO FEED LIMBS.

• CHECK TO SEE THAT THE FLYWHEEL WILL TURN FREELY BEFORE YOU START THE CHIPPER.

• VISUALLY CHECK CHIPPER KNIFE FOR DAMAGE EACH TIME YOU USE YOUR CHIPPER.

• CHECK KNIFE CONDITION, WEAR PLATE CONDITION, GAP SETTING AND THE NUTS AND BOLTS THAT HOLD THE KNIFE IN PLACE FOR TIGHTNESS EVERY 8-10 HOURS OF OPERATION.

• DO NOT ALLOW CHIPS TO BUILD UP WITHIN 3” OF DISCHARGE CHUTE OPENING. MOVE CHIPPER OR PILE AS NEEDED. FAILURE TO DO THIS COULD RESULT IN UNNECESSARY JAMMING OF THE MACHINE.

• TO MOVE PILE OF PROCESSED MATERIAL, USE SPADE, RAKE, OR LONG HANDLE TOOL. NEVER

USE YOUR HANDS OR FEET!

TO FREE A JAMMED FLYWHEEL

• Stop the engine.

• Remove both

spark plug wires and keep away from spark plugs.

• Disconnect battery at negative terminal.

• Remove any material left in the chipper hopper.

• Remove discharge chute weldment.

NOTE: Never pry against the scroll weldment when removing the discharge chute or at any other time. This will cause damage to the machine.

• Check to see if discharge chute is clogged. If it is, clear with a long branch.

• With a wooden stick, loosen and remove any material left in the chipping chamber.

• Reinstall discharge chute weldment. Be sure to install the discharge chute so that it

engages the safety switch properly, allowing the machine to be restarted.

NOTE: The machine will not run without the discharge chute in place. It has been designed this way for your safety. Never attempt to alter this as damage to the machine or injury to yourself or others near by will occur.

• Reconnect battery and spark plug wires.

• Start machine and let material in chipping chamber discharge through chute.

• If chamber doesn’t clear and the flywheel is still jammed, repeat above process.

• Be certain chipping chamber is clear before trying to process more material into the

chipper.

SECTION V - MAINTENANCE AND STORAGE

IMPORTANT: The knife should be checked for sharpness and the nuts and bolts attaching it to the flywheel for tightness every 8-10 hours of operation.

IMPORTANT: Every time you perform maintenance or any kind of service or check on the knife, be sure to check the gap between the knife and wear plate for proper setting.

NOTE: A knife gauge has been provided with your machine. It is 1/16 the correct gap between the knife and wear plate.

If the cutting mechanism strikes any foreign object or if your machine should start making an unusual noise or is vibrating, stop the engine, disconnect both plugs. Allow the engine to cool before you; a. Inspect and examine for obvious damage. b. Check for loose parts, bolts, and nuts.

1. When not in use, your chipper should be stored out of the reach of children. Be sure there are no gasoline fumes in the storage area. For long periods of storage (over winter), refer to the engine owner’s manual.

2. After every 10 hours of operation, lubricate the chipper side and drive side bearings with multi-purpose lithium grease. Also, check the bearing collar set screws regularly to be sure they are tight. If they are loose, reset them with Loctite 243, obtainable at any hardware store.

3. You will find information included referring to operation and maintenance of the chipper engine. Look it over carefully. BE CERTAIN TO SERVICE THE ENGINE BEFORE YOU START IT.

4. When the steel chipping knife (item #11, pg. 33) needs replacing or sharpening, refer to the section on removal, sharpening and re-installation.

5. Care must be exercised when sharpening the knife to maintain the correct bevel and a straight edge. Refer to sharpening directions. When you install a knife, the clearance between the knife and wear plate must be checked and set. This clearance or gap should be set to 1/16” (see figure 1).

6. To adjust this clearance, loosen the three ¼” nuts and bolts (item #16 & #22, pg. 33) holding the wear plate in place. The wear plate can be slid up or down (in or out) to achieve the correct gap setting.

7. Take the knife gauge and slide between the knife and wear plate. If the gap is set correctly, the knife gauge will lightly touch both the knife and wear plate. If the gap is too small, you will not be able to get the gauge between the knife and wear plate. If the gap is too large, there will be excess room between knife gauge, knife and wear plate. Tighten the nuts and bolts when the wear plate is in the correct position. Be certain the flywheel rotates without hitting anything before starting the chipper.

8. If the gap between the wear plate and the knife is not set correctly, you will have excessive vibration when chipping and the blade will seem to be dull. This should be checked every 8-10 hours of operation.

9. If at any time it becomes necessary to disassemble the chipper for repairs, the chipper disk (item #13, pg. 33) must be re-installed in exactly the same position on the rotor shaft.

NOTE: Proper gap setting is critical to the proper operation of your machine.

” thick and should be used to set

spark plug wires from the spark

REMOVAL, SHARPENING AND RE-INSTALLATION OF CHIPPER KNIFE

HOW TO REMOVE THE KNIFE

• Stop the engine.

• Remove both spark plug wires and keep away from spark plugs.

• Disconnect battery at negative terminal.

• Remove both access covers from the chipper basic machine.

• Rotate the chipper disk until the three countersunk screws and nylock nuts attaching the

knife to the flywheel are visible through the access doors.

• Clean out the heads of the allen screws with an awl or sharp tool.

• Insert a 3/16” allen wrench into the heads of the screws.

• Use a ½” socket and ratchet to remove the nylock nuts from the screws.

• Remove all three allen screws and nuts in this manner.

KNIFE SHARPENING

• You should never attempt to sharpen the chipper knife (or knives) freehand.

• It is extremely important that the 45 degree angle be maintained consistently for proper

performance.

• The chipper knife should be taken to a machine shop for proper sharpening.

• Excessive heat generated during the sharpening process will damage knives and weaken

the metal. Be sure the knife is not overheated.

KNIFE INFORMATION

• The chipper knife should be checked routinely for sharpness.

• Using a dull knife will decrease performance and cause excessive vibration that will

cause damage to the chipper.

• How many times a knife can be sharpened is determined by how much material needs to

be taken off to sharpen or to compensate for dents or gouges.

• A new chipper knife has 5/16” measurement between the short side bevel edge and the

knife mounting holes. See figure 2.

Figure 2

• The knife should never be sharpened to the extent that more than 3/32” is taken off this

measurement.

• Once this measurement is below 7/32” (see figure 3) the knife should be replaced.

• If you are unable to remove dents or gouges with these guidelines, replace the knife.

Figure 3

KNIFE INSTALLATION

• Clean chipper disk where knife is going to be attached.

• Visually inspect the chipper disk slot and knife mounting area and be sure they are clean

and that the knife will be able to mount flush against the chipper disk.

• Visually inspect and clean the knife.

• Hand tighten the knife to the chipper disk with bolts and nylock locking nuts. If you are

installing a new knife, use the new hardware that comes with the knife when attaching it to the chipper disk.

• Tighten the center nut and bolt.

• Tighten the outer nut and bolt.

• Tighten the inner nut and bolt.

• Double check all three for tightness one more time.

WEAR PLATE

• The wear plate should have a square, 90-degree edge, and be free of dents or gouges.

• The wear plate can be sharpened by hand, but as with the knife, do not overheat during

the sharpening process. This will change the characteristics of the steel and it should be replaced.

• Check the gap between the knife and wear plate every time any adjustments are done to

either piece, or every 8-10 hours of operation.

AFTER ANY BLADE OR WEAR PLATE MAINTENANCE OR ADJUSTMENT, ROTATE THE CHIPPER DISK BY HAND. WATCH AND LISTEN CAREFULLY FOR ANY UNUSUAL NOISES, CLICKING OR VIBRATION. IF ANY OF THESE ARE DETECTED, INSPECT THE MACHINE FOR DAMAGE, REPAIR OR REPLACE ANY DAMAGED PARTS AND CHECK FOR ANY LOOSE PARTS AND RETIGHTEN.

KNIVES MUST BE CHECKED AND MAINTAINED!

KNIVES MUST BE SHARP!

BE SURE TO REINSTALL THE KNIFE CORRECTLY AND DOUBLE

CHECK FOR TIGHTNESS!

CHANGING OIL

• Your chipper is equipped with an oil drain valve to make changing the oil easy.

• The valve is located on the engine, on the towing side of the machine.

• Place engine level.

• Disconnect spark plug wires and keep it away from spark plugs. Disconnect battery (if

equipped with electric starter) at negative terminal.

• With engine OFF but still warm open oil drain valve and drain oil into appropriate

receptacle.

Note: To open valve, push in and turn counterclockwise.

• Close oil drain valve.

• Remove oil fill cap if equipped).

• Fill to FULL mark on dipstick with new oil. Do not overfill.

Note: Engine holds approximately 1-1/2 quarts (48 ounces) when changing oil and filter.

• Replace oil fill cap and dipstick.

INSTRUCTIONS FOR ADJUSTING OR REPLACING BELT

BELT ADJUSTMENT

The belt on your chipper should deflect 3/8” under three pounds of pressure as shown in figure 1 below. If it doesn’t, adjust per the following directions.

Figure 1

• Remove belt guard.

• Loosen engine bolts.

• Tighten or loosen the nut on the belt tensioner until you have the correct tension as

shown in figure 1.

• Retighten engine bolts.

• Check alignment of the clutch (item #27, pg 29) with the drive pulley (item #21, pg 29) by

placing a straightedge across both faces as shown in figure 2. If adjustment is necessary, correct alignment by moving rotor pulley in or out on the rotor shaft. Do not

make adjustment by moving the clutch on the engine shaft.

• Replace belt guard.

Figure 2

BELT REPLACEMENT

• To replace the belt, follow the above belt adjustment directions.

• After you have loosened the engine bolts, remove the old belt and replace it with a new

one. Always replace both belts as they come in a matched set. This is required for proper operation.

• Set belt tension and alignment per above directions.

NOTE: Check and re-tighten belt after initial break-in period, one hour of use.

SYMPTOM PROBLEM CORRECTION

Clutch overheats.

Belt burns.

Flywheel won’t turn.

Chipping action seems too slow or flywheel stalling.

When chipping, log seems to vibrate excessively & “hammers” hands.

Chipper knife is hitting wear plate.

Engine runs but flywheel doesn’t rotate.

TROUBLESHOOTING

Clutch is slipping or flywheel is jammed or stopped.

Engine speed is too slow. Belts are slipping.

The knife is dull. Gap between knife & wear plate is too great.

The gap between the knife and wear plate is set incorrectly. Inner shoes of clutch worn. Retaining springs weak or broken. Loose drive belt.

• Immediately stop engine.

• Remove spark plug wires.

• Turn flywheel by hand to

be sure it turns freely.

• Check belt tension.

• Clear chipper chamber.

• Run engine at full throttle.

• Check for loose or missing

belt & tighten.

• Remove knife & sharpen be sure to maintain same bevel of 45 degrees.

• Adjust gap as per instructions.

• Adjust gap per directions in the front of this section.

• Replace worn or broken clutch parts.

• Check belt tension.

• Clear chipper chamber.

LUBRICATION AND MAINTENANCE

OPERATION

TIME

BREAK IN

8 HOURS

40 HOURS

100 HOURS

200 HOURS

* Two pumps of a hand grease gun. Do not over-grease as this may damage the bearing seal. ** Lubrication schedule may vary depending on working environment. Overly dirty and dusty situations will require more frequent oil changes to protect the engine.

PROCEDURE COMMENTS

• Change engine oil and filter after first five hours.

• Check belt tension.

• Check all nuts and

bolts for tightness.

• Check engine oil.

• Follow oil

recommendations per the engine & owner’s manual.

• Adjust per directions.

• Tighten if necessary.

• Per recommendations.

Do not overfill.

• Check chipper knife for sharpness.

• Check knife and wear plate gap.

• Clean air filter.

• Grease bearings in

basic chipper. *

• See knife information.

• See gap setting

information.

• Per engine recommendations.

• Use high quality multipurpose lithium grease.

• Change engine oil. **

• Per recommendations.

Do not overfill.

• Check tire pressure.

• Remove and sharpen

or replace chipper knife.

• Sharpen wear plate.

• Add or adjust as

required.

• See knife information.

• See wear plate

information.

• Replace belt.

• Change engine oil.

• Order replacement

belts.

• Per recommendations. Do not overfill.

• Change engine oil filter.

• Per recommendations in engine manual.

• Per recommendations

• Clean and adjust, or

in engine manual.

replace spark plugs.

CENTRIFUGAL CLUTCH INSTALLATION AND SERVICING INSTRUCTIONS

FOR CLUTCH 911-0236

REMOVAL

1. Remove clutch from shaft by removing bolt and washers.

2. Slide clutch off shaft.

3. Remove key from keyway.

INSTALLATION

1. Clean the shaft and remove any burrs.

2. Install spacer onto shaft.

3. Apply anti-seize compound to shaft.

4. Place key in keyway in shaft.

5. Slide clutch onto shaft.

6. Secure clutch with washer and bolt. Be sure to use Loctite 243 on the threads of the bolt.

MAINTENANCE

The centrifugal clutch on this machine is permanently lubricated and does not require oil or grease. Always replace shoes and springs in sets. Whenever shoes are changed, replace all springs.

DISASSEMBLY OF EXISTING CLUTCH

1. Remove retainer ring and press off drum assembly.

2. Release one hook end of spring from shoe pin. Use tape wrapped pliers to avoid nicking spring.

3. Remove shoes from hub.

RE-ASSEMBLY

1. Locate the shoes correctly on the hub for rotation required.

2. Place one end of each spring in hole at end of shoe, stretch spring just enough to clear hole on adjacent shoe. Use tape wrapped pliers to avoid nicking spring. Avoid overstretching spring as this may damage spring. Repeat for all shoes.

3. Re-assemble drum to hub, secure with retaining ring.

4. Re-install clutch on shaft.

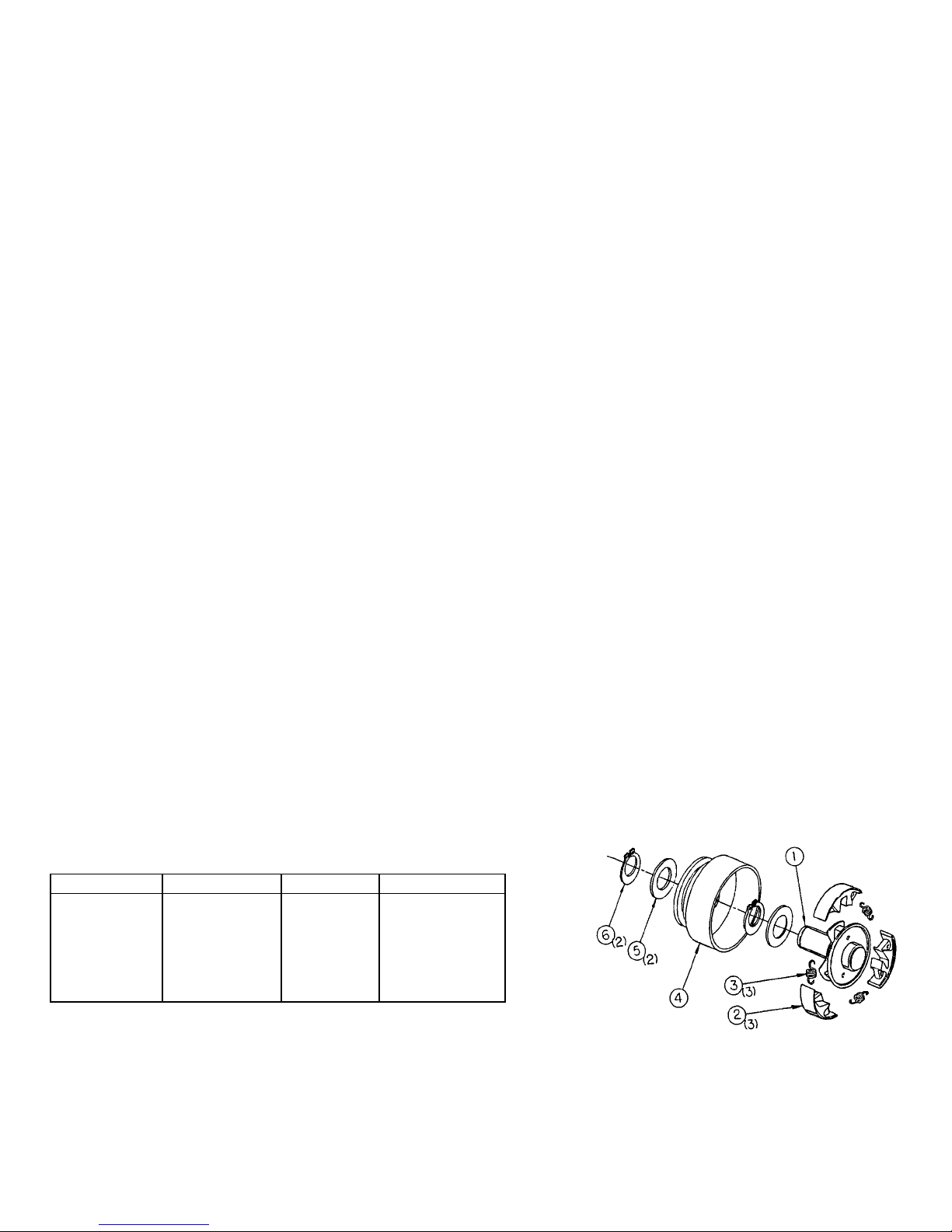

CLUTCH, 911-0236, PARTS LIST

Item No. Part No. Quantity Description

1 2 3 4 6

Not Shown

911-0236-3 911-0236-1 030-0202-5 911-0236-2 030-0164-6 030-0202-1

1 3 3 1 1 2

Hub Assy. Shoe Spring Drum Assy. Retaining Ring Retaining Ring

SECTION VI – PARTS LIST & ASSEMBLY DRAWINGS

TLC18-CHP PARTS LIST

ITEM # PART # QTY DESCRIPTION

1 030-0325 1 18HP B&S VANGUARD ENGINE 2 090-0462 10 5/16-18 X 3/4" CARRIAGE BOLT 3 913-0375 1 CHIPPER HOPPER 4 090-0233 25 5/16 USS FLATWASHER 5 090-0460 37 5/16-18 NYLOCK NUT 6 913-0232 1 CHIPPER BASIC MACHINE 7 913-0284 1 DISCHARGE CHUTE ASSEMBLY 8 090-0066 6 5/16-18 X 3/4" HHCS

9 913-0252 1 SWIVEL BASE 10 913-0253 1 SWIVEL TOP WELDMENT 11 913-0258 1 DEFLECTOR 12 500-0051 1 LOCKING KNOB 13 090-0088 16 5/16-18 X 1" HHCS 14 090-0394 3 5/16 SPLIT LOCK WASHER 15 913-0224 1 BELT GUARD 16 913-0327 1 L BRACKET - BASIC MACHINE 17 090-0438 3 5/16-18 J NUT 18 030-0193 2 BELT 19 703-0424 2 1/4 SQ. X 2" KEY 20 030-0237 1 BUSHING 21 030-0211 1 2 GROOVE SHEAVE 22 913-0328 1 Z BRACKET WLDMNT - BELT GUARD 23 911-0214 1 L BRACKET - BELT GUARD 24 090-0633 1 3/8-24 X 1 1/2" HHCS GR8 25 704-0106 1 CLUTCH WASHER 26 911-0249 1 CLUTCH SPACER 27 911-0236 1 CLUTCH 28 090-0072 4 5/16-18 X 2" 29 704-0119 1 SAFETY SWITCH 30 702-0040 2 WHEEL AND TIRE 31 911-0025 2 FENDER WELDMENT 32 090-0453 4 1/4-20 WHIZ NUT 33 090-0111 4 3/8-16 X 1 1/4" HHCS 34 090-0461 10 3/8-16 NYLOCK NUT 35 911-0212 2 AXLE BRACKET 36 911-0229 4 3/8-16 X 3" U-BOLT 37 913-0217 1 BATTERY HOLD DOWN 38 090-0128 4 1/2-13 X 1 1/4" HHCS 39 911-0219 2 HITCH ARM 40 913-0266 1 POSITIVE BATTERY CABLE 41 913-0086 1 BATTERY 42 090-0050 4 1/2-13 GRIPCO LOCKNUT

TLC18-CHP PARTS LIST

ITEM # PART # QTY DESCRIPTION

43 090-0234 3 3/8 USS FLATWASHER 44 408-0078 2 SAFETY CHAIN 45 911-0220 1 HITCH TUBE WELDMENT 46 913-0218 1 TRAILER HITCH 47 090-0370 4 1/2-13 X 3" HHCS 48 090-0123 1 3/8-16 X 3 1/2" HHCS 49 913-0223 1 NEGATIVE BATTERY CABLE 50 500-0039 1 3/16" COTTER PIN 51 911-0035 1 STAND 52 911-0221 2 HITCH ARM MOUNT PLATE 53 913-0231 1 FRAME 54 911-0070 1 AXLE WELDMENT 55 913-0206 2 TAIL LIGHT MOUNT BRACKET 56 030-0265 1 CURB SIDE LIGHT 57 030-0266 1 ROAD SIDE LIGHT 58 913-0343 1 BELT TIGHTNER 59 030-0267 1 WIRE HARNESS 60 090-0234 3 3/8” USS FLATWASHER 61 090-0672 1 7/16-14 X ¾” HHCS 62 090-0230 1 7/16 LOCK WASHER 63 913-0124 1 BATTERY BOX 64 030-0387 1 OIL DRAIN VALVE

913-0232 CHIPPER BASIC MACHINE

ITEM # PART # QTY DESCRIPTION

1 090-0048 9 5/16-18 GRIPCO LOCKNUT 2 030-0115 2 BEARING 3 090-0233 8 5/16 USS FLATWASHER 4 090-0049 4 3/8-16 GRIPCO LOCKNUT 5 030-0117 1 RETAINING RING 6 090-0024-3 2 SHIM 7 090-0162 8 10-32 X 3/8” SCREW 8 913-0210 2 ACCESS COVER

9 913-0034 1 DRIVE SIDE PLATE WELDMENT 10 090-0460 7 5/16-18 NYLOCK NUT 11 913-0270 1 KNIFE 12 090-0642 3 5/16-18 X 1 ½” FHSHCS 13 913-0271 1 CHIPPER DISK 14 913-0236 1 SCROLL WELDMENT 15 913-0279 1 CHIPPER SIDE PLATE WELDMENT 16 090-0470 3 ¼-20 NYLOCK LOCKNUT 17 090-0245 3 ¼ SAE FLATWASHER 18 090-0077 9 5/16-18 X 4” HHCS 19 090-0462 4 5/16-18 X ¾” CARRIAGE BOLT 20 913-0375 1 CHIPPER HOPPER 21 913-0326 1 WEAR PLATE 22 090-0677 3 ¼-20 X 1” CARRIAGE BOLTS 23 090-0121 4 3/8-16 X 1 ¼” HHCS 24 913-0021 3 SCROLL TUBES 25 913-0334 1 FLYWHEEL SHAFT 26 030-0118 1 TAPERLOCK BUSHING 27 090-0676 2 HEAVY DUTY RETAINING RING 28 913-0376 1 BLOW BACK SHIELD 29 090-0504 3 10-24 X ½” HHCS 30 090-0643 3 10-24 U-CLIP

NOTES

COUNTRY HOME PRODUCTS

Meigs Road, P.O. Box 25, Vergennes, Vermont 05491

1(800) DR-OWNER (376-9637)

12/31/03

DR TLC18-CHP Operating & Assembly Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
