DR
TRIMMER/MOWER™
SAFETY & OPERATING INSTRUCTIONS
Models: SPRINT®, PRO, COMMERCIAL and SELF- PROPELLED
READ AND UNDERSTAND THIS MANUAL AND ALL INSTRUCTIONS
and congratulations on your purchase of a new DR TRIMMER/MOWER!
We have done our utmost to ensure that your DR TRIMMER/MOWER will be one of the most trouble-free
and satisfying pieces of equipment you have ever owned. Please let us know of any questions you may have.
We want to answer or correct them as quickly as possible. When you do call, please have your serial number
and/or order number handy. For technical assistance, please call Toll-Free 1-800-DR-OWNER (376-9637)
and one of our Technical Support Representatives will be happy to help you. We also hope to hear from you
on how much you like your new helper.
In addition, please tell your friends about your new DR TRIMMER/MOWER! Having owners spread the
word about our products and our way of doing business is the best advertising we can have, and the best
way to help us provide even better service in the years to come.
Thanks once again!
for all of us at
OUNTRY HOME PRODUCTS, INC.
C
®
SALES MANAGER
COPYRIGHT
2006 Country Home Products, Inc. All rights reserved.
®
DR
Power Equipment
A division of Country Home Products®
127 Meigs Road
Vergennes, VT 05491
Toll-free phone
Fax
: 1-802-877-1213
Web site:
: 1-800-DR-OWNER (376-9637)
www.dr-owner.com
ii DR® TRIMMER/MOWER
Table of Contents
CHAPTER 1 ................................................................................................................................................ 1
INTRODUCING THE DR TRIMMER/MOWER ................................................................................... 1
Conventions used in this manual ........................................................................................................ 1
CHAPTER 2 ................................................................................................................................................ 3
GENERAL SAFETY RULES.................................................................................................................... 3
Labels .................................................................................................................................................... 3
Protecting Yourself and Those Around You ........................................................................................5
Safety for Children and Pets ................................................................................................................. 6
Safety with Gasoline - Powered Engines .............................................................................................. 6
General Safety ....................................................................................................................................... 7
A Note to All Users ............................................................................................................................... 8
Additional Information and Potential Changes ................................................................................... 8
CHAPTER 3 ................................................................................................................................................ 9
SETTING UP YOUR DR TRIMMER/MOWER...................................................................................... 9
DR TRIMMER/MOWER Controls and Features ................................................................................ 10
Unpacking the DR TRIMMER/MOWER............................................................................................. 11
Adding the Engine Oil and Gasoline.................................................................................................. 12
Connecting the Battery Wire (Electric-Starting Models Only) .......................................................... 13
Adjusting the Handlebar .................................................................................................................... 14
Adjusting the PTA
(Parallel Trimming Action) Lever – SPRINT, PRO and COMMERCIAL......... 15
CHAPTER 4 .............................................................................................................................................. 17
OPERATING YOUR DR TRIMMER/MOWER.................................................................................... 17
Before Starting the Engine.................................................................................................................. 17
Electric-Starting................................................................................................................................... 18
Manual-Starting .................................................................................................................................. 18
Stopping the Engine ........................................................................................................................... 18
Engaging the Trimmer Head.............................................................................................................. 19
Stopping the Cords from Spinning .................................................................................................... 19
Engaging the Wheel Drive - SELF-PROPELLED model ..................................................................... 19
Using the PTA
Engaging the PTA
™
(Parallel Trimming Action) - SPRINT, PRO and COMMERCIAL models only .... 20
™
............................................................................................................................. 21
Returning to Normal Mode ................................................................................................................ 21
The DR TRIMMER/MOWER Cutting Cords ...................................................................................... 22
Installing Cords................................................................................................................................... 23
Cord Tips ............................................................................................................................................. 24
Adjusting the Cutting Height ............................................................................................................. 25
The Mow-Ball™
Support.................................................................................................................... 25
Obstacle Tips ...................................................................................................................................... 26
Heavy Growth ..................................................................................................................................... 27
Wet Conditions ................................................................................................................................... 28
Very Dry Conditions............................................................................................................................ 28
Slopes .................................................................................................................................................. 28
Windrows ........................................................................................................................................... 28
Firebreaks ........................................................................................................................................... 28
Garden Clean-Up ................................................................................................................................ 28
CHAPTER 5 .............................................................................................................................................. 29
MAINTAINING THE DR TRIMMER/MOWER .................................................................................. 29
Regular Maintenance Check List........................................................................................................ 29
Battery Care (Electric-Start Models)................................................................................................... 30
Charging the Battery ........................................................................................................................... 30
CALL TOLL FREE 1-800-DR-OWNER iii
Removing the Mow-Ball™ Support Assembly.................................................................................... 31
Reassembling the Mow-Ball
Removing the Stone Guard Flap - SPRINT
™
Support Assembly.............................................................................. 32
, PRO, and COMMERCIAL .......................................... 33
Removing and Replacing Section:...................................................................................................... 33
Bottom Shield - SPRINT, PRO, and COMMERCIAL .................................................. 33
Bottom Shield - SELF-PROPELLED............................................................................... 34
Trimmer Head Belt – All models .................................................................................. 35
Drive Belt - SELF-PROPELLED ...................................................................................... 36
Brake Arm – All models................................................................................................. 37
Side Shield – All models................................................................................................ 38
Wheels - SPRINT
, PRO and COMMERCIAL............................................................... 38
Wheels - SELF-PROPELLED .......................................................................................... 39
Engine Oil – All models................................................................................................. 40
Engine Oil Filter – COMMERCIAL and SELF-PROPELLED.......................................... 41
Adjusting the Trimmer Head Belt Tension through the Trimmer Control Cable – All models....... 42
Adjusting the Wheel Clutch - SELF-PROPELLED............................................................................... 43
End of Season and Storage................................................................................................................. 44
CHAPTER 6 .............................................................................................................................................. 45
TROUBLESHOOTING........................................................................................................................ 45
Troubleshooting Table........................................................................................................................ 45
CHAPTER 7 .............................................................................................................................................. 50
PARTS LISTS, SCHEMATIC DIAGRAMS AND WARRANTY............................................................. 50
Parts List - Handlebar Assembly - SPRINT
Schematic - Handlebar Assembly - SPRINT
, PRO and COMMERCIAL ........................................... 50
, PRO and COMMERCIAL.......................................... 51
Parts List - Axle Assembly - SPRINT, PRO and COMMERCIAL ...................................................... 52
Schematic - Axle Assembly - SPRINT, PRO and COMMERCIAL .................................................... 53
Parts List - Main Frame Assembly - All Models................................................................................. 54
Schematic - Main Frame Assembly - All Models ............................................................................... 55
Parts List - Handlebar Assembly - SELF- PROPELLED...................................................................... 56
Schematic - Handlebar Assembly - SELF- PROPELLED .................................................................... 57
Parts List - Axle Assembly - SELF-PROPELLED ................................................................................. 58
Schematic - Axle Assembly - SELF-PROPELLED................................................................................ 59
Parts List - Mow Ball
™
Assembly - All Models ................................................................................... 60
Schematic - Mow Ball™ Assembly - All Models.................................................................................. 61
Notes .................................................................................................................................................. 62
Warranty ............................................................................................................................................. 63
iv DR® TRIMMER/MOWER
CHAPTER 1
INTRODUCING THE DR TRIMMER/MOWER
This manual will help you set up and safely operate your new DR TRIMMER/MOWER. Careful adherence to
the safety and operating instructions in this manual will ensure many years of productive use.
Please let us know of any questions you may have. We want to answer them as quickly as possible. When
you do call, please have your serial number and/or order number handy. For technical assistance, please
call Toll-Free 1-800-DR-OWNER (376-9637) and one of our Technical Support Representatives will be happy
to help you.
Conventions used in this manual
THIS INDICATES A HAZARDOUS SITUATION, WHICH, IF NOT AVOIDED,
SERIOUS INJURY
.
COULD RESULT
IN
DEATH OR
THIS INDICATES A HAZARDOUS SITUATION, WHICH, IF NOT AVOIDED,
MODERATE INJURY.
COULD RESULT
IN
MINOR OR
THIS INFORMATION IS IMPORTANT IN THE PROPER USE OF YOUR MACHINE. FAILURE TO FOLLOW THIS
INSTRUCTION COULD RESULT IN DAMAGE TO YOUR MACHINE OR PROPERTY.
This is a helpful hint to guide you in getting the most out of your DR TRIMMER/MOWER.
Tip:
Tools Needed: This indicates you will need a special tool to perform a maintenance function on your
Trimmer/Mower.
NOTE: This information may be helpful to you.
If you are ever unsure about an action you are about to take, don’t do it, contact Country Home Products’
toll-free support at 1-800-DR-OWNER (376-9637) for help or information.
CALL TOLL FREE 1-800-DR-OWNER 1
2 DR® TRIMMER/MOWER
CHAPTER 2
GENERAL SAFETY RULES
READ THIS SAFETY & OPERATING MANUAL BEFORE YOU USE THE DR TRIMMER/MOWER. BECOME
FAMILIAR WITH THE OPERATION AND SERVICE RECOMMENDATIONS TO ENSURE THE BEST
PERFORMANCE FROM YOUR MACHINE.
THOROUGHLY INSPECT THE AREA IN WHICH YOU WILL BE WORKING AND REMOVE ALL FOREIGN
OBJECTS. THE SITE MUST BE FREE OF POTENTIALLY HAZARDOUS OBSTACLES (E.G., STONES, LOGS,
STICKS, ROPE, WIRE, GARDEN TOOLS, GLASS AND METAL OBJECTS SUCH AS CANS). MOWING OVER
THESE OBJECTS COULD DAMAGE THE MACHINE AND CAUSE INJURY.
THIS IS A HIGH-POWERED MACHINE, WITH MOVING PARTS OPERATING WITH HIGH ENERGY AT HIGH
SPEEDS. YOU MUST USE PROPER CLOTHING AND SAFETY GEAR WHEN OPERATING THIS MACHINE TO
PREVENT OR MINIMIZE THE RISK OF SEVERE INJURY. THIS MACHINE CAN CUT; AND SEVER PARTS OF
YOUR BODY IF THEY ENCOUNTER THE SPINNING CORDS.
Labels
Your DR TRIMMER/MOWER carries prominent labels as reminders for its proper and safe use. Shown below are
copies of all the labels that appear on the equipment. Take a moment to study them and make a note of their location
on your DR TRIMMER/MOWER as you assemble and
safety and information labels immediately.
Read the Safety and
Operating Instructions.
before
you operate the unit. Replace damaged or missing
Always wear safety glasses
or goggles while operating
the machine.
Do not operate the
machine near people
or animals.
Keep body parts away from
the trimmer line.
Remove all objects
CALL TOLL FREE 1-800-DR-OWNER 3
that could be thrown
by the Trimmer Cord.
Use caution operating the
machine on slopes.
(#14823)
Make sure you add oil before starting the engine; the unit
shipped without oil. Fill the oil reservoir slowly to make
sure you do not overfill it. (#12781)
PARALLEL TRIMMING ACTION
To avoid injury, keep your hands and feet away from the
spinning cords. (#13649)
This is a warning about the danger inherent in the spinning
cords. (#14822)
In the PTA
trimmer’s wheels stay straight while the trimmer head
tilts, causing the cords to extend beyond the wheelbase.
(#15307)
The bail bar is an important safety feature. Release it to
immediately stop the cords from spinning. (#15308)
(Parallel Trimming Action) mode, the
4 DR® TRIMMER/MOWER
This notice is a handy reminder of your equipment’s name
and how you can contact us. (#14824)
#179401
Protecting Yourself and Those Around You
THIS IS A HIGH-POWERED MACHINE, WITH MOVING PARTS OPERATING WITH HIGH ENERGY AT HIGH
SPEEDS. YOU MUST OPERATE THE MACHINE SAFELY. UNSAFE OPERATION CAN CREATE A NUMBER OF
HAZARDS FOR YOU, AS WELL AS ANYONE ELSE IN THE NEARBY AREA. ALWAYS TAKE THE FOLLOWING
PRECAUTIONS WHEN USING THIS MACHINE:
ALWAYS WEAR PROTECTIVE GOGGLES OR SAFETY GLASSES WITH SIDE SHIELDS WHILE MOWING TO
PROTECT YOUR EYES FROM POSSIBLE THROWN DEBRIS. GOGGLES ARE PROVIDED WITH YOUR DR
TRIMMER/MOWER.
AVOID WEARING LOOSE CLOTHING OR JEWELRY, WHICH CAN CATCH ON THE MOWER’S MOVING
PARTS.
WE RECOMMEND WEARING GLOVES WHILE MOWING. BE SURE YOUR GLOVES FIT PROPERLY AND
DO NOT HAVE LOOSE CUFFS OR DRAWSTRINGS.
WEAR SHOES WITH NON-SLIP TREADS WHEN USING YOUR DR TRIMMER/MOWER. IF YOU HAVE
SAFETY SHOES, WE RECOMMEND WEARING THEM. DO NOT USE THE MACHINE WHILE BAREFOOT
OR WEARING OPEN SANDALS.
WEAR LONG PANTS WHILE OPERATING THE DR TRIMMER/MOWER.
USE EAR PROTECTORS OR EAR PLUGS RATED FOR AT LEAST 20 DBA TO PROTECT YOUR HEARING.
NEVER ALLOW PEOPLE WHO ARE UNFAMILIAR WITH THESE INSTRUCTIONS TO USE THE DR
TRIMMER/MOWER. ALLOW ONLY RESPONSIBLE INDIVIDUALS WHO ARE FAMILIAR WITH THESE
RULES OF SAFE OPERATION TO USE YOUR MACHINE.
NEVER PLACE YOUR HANDS, FEET, OR ANY PART OF YOUR BODY ON OR UNDER THE MOWER DECK
IN THE PATH OF THE SPINNING CORDS, BELT, PULLEYS, OR NEAR THE DISCHARGE OPENING WHILE
THE ENGINE IS RUNNING. KEEP AREA OF DISCHARGE CLEAR OF PEOPLE, ANIMALS, BUILDINGS,
GLASS, OR ANYTHING ELSE THAT WILL OBSTRUCT CLEAR DISCHARGE, CAUSE INJURY, OR DAMAGE.
KEEP BYSTANDERS AT LEAST 50 FEET AWAY FROM YOUR WORK AREA AT ALL TIMES. THE TIPS OF
THE CUTTING CORDS ON THE DR TRIMMER/MOWER CAN THROW STICKS, SMALL STONES, GRAVEL,
AND BITS OF DEBRIS OVER LONG DISTANCES AT GREAT VELOCITY. DO NOT TRAVEL OVER LOOSE
MATERIALS SUCH AS GRAVEL OR MULCH WITH THE TRIMMER HEAD SPINNING. DOING SO COULD
CAUSE PERSONAL INJURY OR PROPERTY DAMAGE FROM THROWN OBJECTS. RELEASE THE BAIL BAR
TO STOP THE SPINNING CORDS AND SHUT OFF THE ENGINE WHEN ANOTHER PERSON OR PET
APPROACHES.
TO BE SAFE, DO NOT OPERATE THE MACHINE NEAR SMALL CHILDREN OR PETS, AND NEVER ALLOW
CHILDREN TO OPERATE THE DR TRIMMER/MOWER.
DO NOT OPERATE THE ENGINE WITH THE AIR CLEANER OR COVER OVER THE CARBURETOR AIR-
INTAKE REMOVED, EXCEPT FOR ADJUSTMENT. REMOVAL OF SUCH PARTS COULD CREATE A FIRE
HAZARD. DO NOT USE FLAMMABLE SOLUTIONS TO CLEAN AIR FILTER.
ALWAYS OPERATE THE MOWER FROM BEHIND THE HANDLEBAR. NEVER PASS OR STAND ON THE
DISCHARGE SIDE OF THE MACHINE WHEN THE ENGINE IS RUNNING OR CUTTING CORDS ARE
SPINNING.
THE MUFFLER AND ENGINE BECOME VERY HOT AND CAN CAUSE A SEVERE BURN; DO NOT TOUCH.
NEVER, UNDER ANY CONDITIONS, REMOVE, BEND, CUT, FIT, WELD, OR OTHERWISE ALTER
STANDARD PARTS ON THE DR TRIMMER/MOWER. THIS INCLUDES ALL SHIELDS AND GUARDS.
MODIFICATIONS TO YOUR MACHINE COULD CAUSE PERSONAL INJURIES AND PROPERTY DAMAGE
AND WILL VOID YOUR WARRANTY.
CALL TOLL FREE 1-800-DR-OWNER 5
Safety for Children and Pets
TRAGIC ACCIDENTS CAN OCCUR IF THE OPERATOR IS NOT ALERT TO THE PRESENCE OF CHILDREN AND
PETS. CHILDREN ARE OFTEN ATTRACTED TO THE MACHINE AND THE MOWING ACTIVITY.
ASSUME THAT CHILDREN WILL REMAIN WHERE YOU LAST SAW THEM. ALWAYS FOLLOW THESE
PRECAUTIONS:
NEVER
KEEP CHILDREN AND PETS OUT OF THE WORKING AREA AND UNDER THE WATCHFUL CARE OF A
RESPONSIBLE ADULT.
BE ALERT AND TURN THE MACHINE OFF IF CHILDREN OR PETS ENTER THE WORK AREA.
NEVER ALLOW CHILDREN TO OPERATE THE DR TRIMMER/MOWER.
Safety with Gasoline - Powered Engines
GASOLINE IS A HIGHLY FLAMMABLE LIQUID. GASOLINE ALSO GIVES OFF FLAMMABLE VAPOR THAT
CAN BE EASILY IGNITED AND CAUSE A FIRE OR EXPLOSION. NEVER OVERLOOK THE HAZARDS OF
GASOLINE. ALWAYS FOLLOW THESE PRECAUTIONS:
NEVER RUN THE ENGINE IN AN ENCLOSED AREA OR WITHOUT PROPER VENTILATION AS THE
EXHAUST FROM THE ENGINE CONTAINS CARBON MONOXIDE, WHICH IS AN ODORLESS,
TASTELESS, AND DEADLY POISONOUS GAS.
STORE ALL FUEL AND OIL IN CONTAINERS SPECIFICALLY DESIGNED AND APPROVED FOR THIS
PURPOSE AND KEEP AWAY FROM HEAT AND OPEN FLAME, AND OUT OF THE REACH OF CHILDREN.
FILL THE GASOLINE TANK OUTDOORS WITH THE ENGINE OFF AND ALLOW THE ENGINE TO COOL
COMPLETELY. DO NOT HANDLE GASOLINE IF YOU OR ANYONE NEARBY IS SMOKING, OR IF YOU
ARE NEAR ANYTHING THAT COULD CAUSE IT TO IGNITE OR EXPLODE. REINSTALL THE FUEL TANK
AND FUEL CONTAINER CAPS SECURELY.
IF YOU SPILL GASOLINE, DO NOT ATTEMPT TO START THE ENGINE. MOVE THE MOWER AWAY
FROM THE AREA OF THE SPILL AND
VAPORS HAVE DISSIPATED. WIPE UP ANY SPILLED FUEL TO PREVENT A FIRE HAZARD AND PROPERLY
DISPOSE OF THE WASTE.
AVOID CREATING ANY SOURCE OF IGNITION UNTIL THE GAS
ALLOW THE ENGINE TO COOL COMPLETELY BEFORE STORING IN ANY ENCLOSURE. NEVER STORE
THE MACHINE WITH GAS IN THE TANK OR A FUEL CONTAINER, NEAR AN OPEN FLAME OR SPARK
SUCH AS A WATER HEATER, SPACE HEATER, CLOTHES DRYER OR FURNACE.
NEVER MAKE ADJUSTMENTS OR REPAIRS WITH THE ENGINE RUNNING. STOP THE ENGINE, WAIT
FIVE (5) MINUTES TO MAKE CERTAIN ALL MOVING PARTS HAVE COME TO A COMPLETE STOP AND
COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE SPARK PLUG TO PREVENT
ACCIDENTAL STARTING.
NEVER TAMPER WITH THE ENGINE’S GOVERNOR SETTING. THE GOVERNOR CONTROLS THE
MAXIMUM SAFE OPERATING SPEED AND PROTECTS THE ENGINE. OVER-SPEEDING THE ENGINE IS
DANGEROUS AND WILL CAUSE DAMAGE TO THE ENGINE AND TO THE OTHER MOVING PARTS OF
THE MACHINE. IF REQUIRED, SEE YOUR AUTHORIZED ENGINE DEALER FOR ENGINE GOVERNOR
ADJUSTMENTS.
TO REDUCE FIRE HAZARD, KEEP THE ENGINE AND MUFFLER FREE OF DEBRIS BUILD-UP.
6 DR® TRIMMER/MOWER
General Safety
YOU MUST SAFELY OPERATE THE DR TRIMMER/MOWER TO PREVENT OR MINIMIZE THE RISK OF
OR SERIOUS INJURY
TAKE THE FOLLOWING PRECAUTIONS WHEN OPERATING THIS MOWER:
. UNSAFE OPERATION CAN CREATE A NUMBER OF HAZARDS FOR YOU. ALWAYS
DEATH
KEEP IN MIND THAT THE OPERATOR OR USER IS RESPONSIBLE FOR ACCIDENTS OR HAZARDS
OCCURRING TO OTHER PEOPLE, THEIR PROPERTY, AND THEMSELVES.
YOUR DR TRIMMER/MOWER IS A POWERFUL TOOL, NOT A PLAYTHING. EXERCISE EXTREME
CAUTION AT ALL TIMES. THE DESIGN OF YOUR MACHINE IS FOR TRIMMING AND MOWING GRASS,
WEEDS, AND OTHER GROWTH AS SPECIFIED IN THIS MANUAL. DO NOT USE IT FOR ANY OTHER
PURPOSE.
KNOW HOW TO STOP THE MOWER QUICKLY; SEE PAGE 18.
NEVER OPERATE YOUR UNIT ON A SLIPPERY, WET, OR MUDDY SURFACE. EXERCISE CAUTION TO
AVOID SLIPPING OR FALLING.
KEEP YOUR FACE AND BODY BACK FROM THE DISCHARGE AREA.
BE CAUTIOUS WHEN USING YOUR DR TRIMMER/MOWER AROUND FENCING, WIRES, ROPES, AND
HOSES. IT IS POSSIBLE THAT THESE AND OTHER DEBRIS CAN BECOME WOUND AROUND THE LINE
PLATES OF THE MACHINE, POTENTIALLY DAMAGING THE BEARINGS OR INJURING YOU.
WHENEVER YOU LEAVE THE OPERATING POSITION TO MAKE ADJUSTMENTS, CHANGE CORDS OR IF
YOU HAVE TO REMOVE GRASS OR DEBRIS FROM THE UNDERSIDE OF THE DECK, ALWAYS SHUT OFF
THE ENGINE AND WAIT FIVE (5) MINUTES TO MAKE CERTAIN ALL MOVING PARTS HAVE COME TO A
COMPLETE STOP AND COOL. REMOVE THE KEY, IF SO EQUIPPED, AND DISCONNECT THE SPARK
PLUG WIRE AND KEEP THE WIRE AWAY FROM THE SPARK PLUG TO PREVENT ACCIDENTAL STARTING.
THE EXHAUST AREA ON THE ENGINE BECOMES VERY HOT WITH USE. ALLOW THE ENGINE TO
COOL BEFORE REFUELING, DOING MAINTENANCE, OR MAKING ADJUSTMENTS.
KEEP COMBUSTIBLE SUBSTANCES AWAY FROM THE ENGINE WHEN IT IS HOT.
NEVER COVER THE MACHINE WHILE THE MUFFLER IS STILL HOT.
SEE MANUFACTURE’S INSTRUCTIONS FOR PROPER OPERATION AND INSTALLATION OF
ACCESSORIES. ONLY USE ACCESSORIES APPROVED BY COUNTRY HOME PRODUCTS, INC.
IF THE CUTTING CORDS STRIKE A FOREIGN OBJECT OR IF YOUR MACHINE SHOULD START MAKING
AN UNUSUAL NOISE OR VIBRATION, STOP THE ENGINE AND WAIT FIVE (5) MINUTES FOR ALL
MOVING PARTS TO COME TO A COMPLETE STOP AND COOL. VIBRATION IS GENERALLY A WARNING
OF TROUBLE. DISCONNECT THE SPARK PLUG WIRE AND INSPECT FOR DAMAGE. CLEAN AND
REPAIR AND/OR REPLACE DAMAGED PARTS.
NEVER TAMPER WITH SAFETY DEVICES. CHECK THEIR PROPER OPERATION REGULARLY.
DO NOT MOW IN THE RAIN. WATER ON THE SPARK PLUG MAY CAUSE THE ENGINE TO STALL.
DO NOT OPERATE THE DR TRIMMER/MOWER ON SLOPES GREATER THAN 20 DEGREES.
WHEN OPERATING OVER UNEVEN TERRAIN AND SLOPES, USE EXTREME CAUTION TO ENSURE
SOLID AND FIRM FOOTING.
CALL TOLL FREE 1-800-DR-OWNER 7
WHILE USING THE DR TRIMMER/MOWER, DO NOT HURRY OR TAKE THINGS FOR GRANTED. WHEN
IN DOUBT ABOUT THE EQUIPMENT OR YOUR SURROUNDINGS, STOP THE MACHINE AND TAKE THE
TIME TO LOOK THINGS OVER. MAKE SURE THAT YOU HAVE 100% CONTROL OF THE MOWER AT ALL
TIMES.
NEVER OPERATE THE MACHINE WHEN UNDER THE INFLUENCE OF ALCOHOL, DRUGS, OR
MEDICATION.
USE THE MACHINE ONLY IN DAYLIGHT.
WATCH FOR TRAFFIC WHEN MOWING NEAR ROADWAYS.
KEEP ALL NUTS AND BOLTS TIGHT AND KEEP THE EQUIPMENT IN GOOD OPERATING CONDITION.
NO LIST OF WARNINGS AND CAUTIONS CAN BE ALL-INCLUSIVE. IF SITUATIONS OCCUR THAT ARE
NOT COVERED BY THIS MANUAL, THE OPERATOR MUST APPLY COMMON SENSE AND OPERATE
THIS MACHINE IN A SAFE MANNER. CALL 1 (800) DR-OWNER (376-9637) FOR ASSISTANCE.
A Note to All Users
Under California law, and the laws of some other states, you are not permitted to operate an internal
combustion engine using hydrocarbon fuels without an engine spark arrester. This also applies to
operation on US Forest Lands. All DR TRIMMER/MOWERS shipped to California and Washington State
are provided with spark arresters. Failure of the owner/operator to maintain this equipment in compliance
with state regulations is a misdemeanor under California law and may be in violation of other state and/or
federal regulations. Contact your local fire marshal or forest service for specific information in your area.
Additional Information and Potential Changes
Country Home Products, Inc. reserves the right to discontinue, change, and improve its products at any
time without notice or obligation to the purchaser. The descriptions and specifications contained in this
manual were in effect at printing. Equipment described within this manual may be optional. Some
illustrations may not be applicable to your machine.
8 DR® TRIMMER/MOWER
CHAPTER 3
SETTING UP YOUR DR TRIMMER/MOWER
This chapter outlines unpacking and a few simple steps you will need to follow to set up your new machine
before you use it. It may be helpful to familiarize yourself with the controls and features on your machine by
reviewing the pictures in the next section before beginning the steps outlined in this chapter. If you have any
questions at all, please feel free to contact our Customer Service Representatives at our toll free number: 1800-DR-OWNER (376-9637).
CALL TOLL FREE 1-800-DR-OWNER 9
DR TRIMMER/MOWER Controls and Features
A
A
NOTE: The models shown in Figure 1 may look slightly different from your machine.
Bail Bar
Bail Bar
Spring
Side Shield
PTA
Bail Bar
Lever
Oil Fill
Primer Bulb
Mow-Ball
Support
SPRINT, PRO & COMMERCIAL Models
Throttle
Recoil Starter
Key
Switch
Handlebar
djuster
Oil Filter
Cutting Cord
Wheel Clutch Lever
Handlebar
djuster
Side Shield
Mow-Ball
Support
10 DR® TRIMMER/MOWER
Key Switch
Oil Fill
Bail Bar
Spring
Recoil Starter
Fuel Fill
Primer Bulb
Oil Filter
Cutting Cord
SELF-PROPELLED Model
Figure 1
Unpacking the DR TRIMMER/MOWER
Country Home Products ships the following items with your new machine. Please check to make sure you
have everything listed below:
Parts Supplied:
(2) Key (for Electric Start models only)
NOTE: The Keys are attached to the Trimmer just below the bail bar spring (Figure 1 on page 10).
(1) Goggles for eye protection
(1) Metal Head Locking Tool
(1) Sample Pack of Trimmer Cord:
- Small (Orange, .130")
- Medium (Green, .155")
- Large (Blue, .175")
1. With the shipping box placed with the arrows up (Trimmer Wheels down) and with help of another
person, open the box and carefully remove your new DR TRIMMER/MOWER from the box and rest
the machine on the wheels and Mow-Ball
Support.
NOTE:
2. Locate the plastic bag with the Product Pack containing the Head Locking Tool, Goggles, and
3. Remove any remaining packing materials from the machine.
4. Compare the contents of the shipping carton and the plastic bag with the Parts Supplied list. If any
NOTE:
5. Add engine oil and gasoline; reference page 12.
Tipping the box onto the end with the wheels will allow you to roll out the machine.
Sample Pack of Cutting Cord.
of the parts are missing, contact 1-800-DR-OWNER (376-9637). Do not discard your packaging
material until you are fully satisfied with your new DR TRIMMER/MOWER.
Remove the plastic shipping caps from the ends of the wheel nuts on your new machine before using it
and save them with your packing materials.
BE SURE TO FILL THE ENGINE WITH OIL AND GAS BEFORE USE
IN THE CRANKCASE, THE ENGINE WILL BE DAMAGED BEYOND REPAIR AND WILL NOT BE COVERED
UNDER THE WARRANTY. SEE THE NEXT PAGE FOR OIL AND FUEL FILL.
.
IF YOU START THE ENGINE WITHOUT OIL
CALL TOLL FREE 1-800-DR-OWNER 11
Adding the Engine Oil and Gasoline
YOU MUST ADD OIL BEFORE STARTING THE ENGINE. THIS MACHINE SHIPPED WITHOUT OIL.
TRACES OF OIL MAY BE IN THE RESERVOIR FROM FACTORY TESTING, BUT YOU MUST ADD OIL
BEFORE STARTING THE ENGINE. FILL THE RESERVOIR SLOWLY, CHECKING THE DIPSTICK
FREQUENTLY TO AVOID OVERFILLING.
TO GET AN ACCURATE READING WHEN CHECKING THE OIL LEVEL:
THE MACHINE SHOULD BE ON A LEVEL SURFACE.
THE DIPSTICK SHOULD BE SCREWED DOWN ON BRIGGS & STRATTON ENGINES.
THE DIPSTICK SHOULD NOT BE SCREWED DOWN ON KAWASAKI ENGINES.
Tip: To avoid confusion, we recommend leaving the caps on the fuel and engine oil fills and only removing
one cap each time when you are ready to pour gasoline or oil into the correct fill.
NOTE: You will need approximately 15 to 22 ounces of SAE 30 high detergent oil depending on engine type. Use
only SAE 30 high detergent oil classified “For Service SF, SG, SH, SJ” or higher. Do not use special
additives. Other types of oil could cause problems operating your machine. Please refer to your Engine
Owner’s Manual for detailed information on oil quantity, and cold temperature oil specifications.
1. Place the machine on a level surface and initially add 1/2 of the SAE 30 high detergent oil recommended
by the engine manufacturer and wait one minute for the oil to settle (Figure 2 on page 13).
2. Check the dipstick and continue adding a few ounces of oil at a time, rechecking the dipstick until the oil
reaches the fill mark. Be careful not to overfill (Figure 2 on page 13).
FILL GAS TANK OUTDOORS OR IN A WELL-VENTILATED AREA, AWAY FROM SPARKS, OPEN FLAMES, PILOT
LIGHTS, HEAT, AND OTHER IGNITION SOURCES.
NOTE: Discard the blue protective-shipping cap provided by some engine manufacturers. You will find this
protective-shipping cap under the Gas Fill screw cap or in the tank Filler Tube. See your Engine
Owner’s Manual for more fuel and oil information.
3. Fill the gas tank with fresh, unleaded gas (with a minimum of 85 Octane), to approximately 1/4"
below the top of the fill neck to allow for fuel expansion. Be careful not to overfill and reinstall the
cap before starting the engine. See your Engine Owner’s Manual for more information.
4. Open the fuel shut-off valve (on top of the Kawasaki gas tank only).
NOTE: To refill the gas tank, turn the engine OFF, and let the engine cool at least two (2) minutes before
removing the gas fill cap.
12 DR® TRIMMER/MOWER
Oil Fill
Gas Fill
Figure 2
Connecting the Battery Wire (Electric-Starting Models Only)
We ship all Electric-Starting Trimmers with the negative battery wire disconnected. This prevents the battery
from discharging during shipment. Before using your Trimmer, you must connect the battery wire.
1. Connect the black wire by pushing the plastic connector onto the negative (–) battery terminal as
shown in Figure 3.
NOTE:
The red wire should already be attached to the positive terminal.
Connect Black Battery Wire
(-) Battery
Terminal
Push on
CALL TOLL FREE 1-800-DR-OWNER 13
Figure 3
Adjusting the Handlebar
A
s
A
It is important to find a Handlebar height that allows the Mow-Ball Support to glide along the ground and
remain balanced so you do not have to push down or pull up on the Handlebar.
At the proper height, your hands should rest at a comfortable level and the front end of the Trimmer should
roll easily on the Mow-Ball
Support as shown in Figure 15 on page 25. You may find you like different
Handlebar heights for different mowing conditions.
There are two ways to adjust the height of the Handlebar outlined in the following steps:
1. Loosen both the Adjustment Knobs and move the Handlebar up or down until the adjustment is
the same on both sides. Use the Notches on the Adjusters (Figure 4a) to measure how many Teeth
you have moved away from the center. When you have found a comfortable height, tighten the
Adjustment Knobs securely.
2. For additional height adjustment options, there are two holes in the upper and lower Handlebars
where the Adjustment Knobs are located (Figure 4b). Most people start with the Handlebars set in
the lower holes of both the upper and lower Handlebar. You can adjust the height up or down by
removing the Adjustment Knob Assembly and repositioning the Handlebars to a higher or lower
hole. Be sure the Notches in the two Adjusters line up when you reassemble them (Figure 4a). You
may need to adjust the PTA
Lower Handlebar
Lever as well. See the next section.
Upper
Handlebar
djustment Knob
Upper
Handlebar
Bolt
Inside Adjuster
14 DR® TRIMMER/MOWER
Notches Lined Up
Figure 4a
Height
djustment
Hole
Outside Adjuster
Lower Handlebar
Figure 4b
Adjusting the PTA (Parallel Trimming Action) Lever - SPRINT, PRO and COMMERCIAL
BEFORE PERFORMING ANY ADJUSTMENT, MAINTENANCE PROCEDURE OR INSPECTION, STOP THE
ENGINE, WAIT FIVE (5) MINUTES TO ALLOW PARTS TO COOL AND DISCONNECT THE SPARK PLUG WIRE,
KEEPING IT AWAY FROM THE SPARK PLUG.
NOTE: This adjustment is not applicable to the SELF-PROPELLED model.
It is easy to adjust the PTA feature. If you have moved the Handlebar up or down, the PTA (Parallel
Trimming Action) Lever may need adjustment. When the PTA
just a little slack in the cable. For more information on PTA
feature is properly engaged, there should be
, please read the section called Using PTA
(Parallel Trimming Action) on page 20.
1. Loosen the Knob on the PTA
Control by turning it counterclockwise (Figure 5).
2. Move the Assembly up the Handlebar to tighten the cable or down the Handlebar to loosen it.
3. Retighten the Knob.
CALL TOLL FREE 1-800-DR-OWNER 15
Figure 5
Loosen Knob
Counterclockwise
Slide Up or Down to adjust
16 DR® TRIMMER/MOWER
CHAPTER 4
OPERATING YOUR DR TRIMMER/MOWER
This chapter covers the procedures for starting and stopping your new DR TRIMMER/ MOWER and
discusses basic operation features. You may find it helpful to review the DR TRIMMER/MOWER Controls
and Features picture (Figure 1 on page 10) before reading this chapter.
THE DESIGN OF YOUR MACHINE IS FOR TRIMMING AND MOWING GRASS, WEEDS, AND OTHER
GROWTH AS SPECIFIED IN THIS MANUAL. DO NOT USE IT FOR ANY OTHER PURPOSE AS IT
COULD CAUSE SERIOUS INJURY.
CONTACT WITH INTERNAL ROTATING PARTS WILL CAUSE SERIOUS PERSONAL INJURY. NEVER
PUT HANDS, FACE, FEET, OR CLOTHING UNDER THE MOWER DECK OR DISCHARGE OPENING AT
ANY TIME.
BEFORE PERFORMING ANY ADJUSTMENT, MAINTENANCE PROCEDURE OR INSPECTION, STOP
THE ENGINE, WAIT FIVE (5) MINUTES TO ALLOW PARTS COOL. DISCONNECT THE SPARK PLUG
WIRE, KEEPING IT AWAY FROM THE SPARK PLUG.
Before Starting the Engine
1. Check the oil level every time you use the DR TRIMMER/MOWER (Figure 2 on page 13).
2. Check the gas level (Figure 2
3. Open the fuel Shut-Off Valve (on top of the Kawasaki gas tank only).
4. Remove any debris buildup from the underside of the machine.
on page 13).
CALL TOLL FREE 1-800-DR-OWNER 17
Electric-Starting
NOTE: Use the following steps with electric-starting models only.
1. Push the Throttle Control Lever on the right side of the Handlebar (Figure 1 on page 10) all the way
forward to the RABBIT (Fast) position.
2. If your model has an Engine Primer, push the Primer Bulb IN (Figure 1 on page 10)
release it, lifting your finger and letting it pop back to its original position. Repeat three to four
times.
NOTE: Priming is usually not necessary when restarting a warm engine. In cool weather, you may need to repeat
the priming operation.
3. Turn the Key (Figure 1 on page 10) to the START position until the engine starts, then release. The
Key will snap back to the RUN position and the engine will continue to run.
NOTE:
Do not engage the Bail Bar (Trimmer Head Control) until after the engine has started.
and completely
Manual-Starting
NOTE: You may use this starting method with both Manual and Electric-Starting models.
1. Push the Throttle Control Lever on the right side of the Handlebar (Figure 1 on page 10) all the way
forward to the RABBIT (Fast) position.
2. If your model has an Engine Primer, push the Primer Bulb IN (Figure 1 on page 10)
release it, lifting your finger and letting it pop back to its original position. Repeat three to four
times.
NOTE: Priming is usually not necessary when restarting a warm engine. In cool weather, you may need to repeat
the priming procedure.
and completely
3. Grasp the Recoil Starter Handle (Figure 1 on page 10) and slowly pull until you feel resistance. Let
the cord retract a little bit, then pull the cord rapidly to start the engine. One or two pulls usually
starts the DR TRIMMER/MOWER. It may be necessary to repeat the priming operation if the
machine does not start within two pulls.
NOTE:
Do not engage the Bail Bar (Trimmer Head Control) until after the engine has started.
Stopping the Engine
1. Move the Throttle Control Lever (Figure 1 on page 10) all the way back past the TURTLE (Slow)
position to the STOP position.
NOTE:
2. Remove the Key for safety. The Key has a pressure lock that prevents it from vibrating loose during
18 DR® TRIMMER/MOWER
If you have an Electric-Starting model, please note that the Key does not stop the engine. You must
follow these instructions to stop the engine for both Electric and Manual-Starting models.
operation. To remove the Key, push it in and then quickly and firmly pull it out. If the key becomes
difficult to remove, spray FLUID FILM
or a similar non-conductive lubricant into the keyhole.
Engaging the Trimmer Head
Bring the Bail Bar toward you and grip it together with the Handlebar (Figure 1 on page10). Keep
holding the Bail Bar to the Handlebar. The Cutting Cords will rotate and will continue to rotate until you
release the Bail Bar.
Stopping the Cords from Spinning
Release the Bail Bar from the Handlebar. The Trimmer Head will stop spinning while the engine continues
to run.
Engaging the Wheel Drive - SELF-PROPELLED model
The SELF-PROPELLED DR TRIMMER/MOWER has a single speed forward transmission.
1. Gently squeeze the Clutch Lever (Figure 1
on page 10) to engage the wheel drive.
2. Release the Clutch Lever to stop the wheel drive.
CALL TOLL FREE 1-800-DR-OWNER 19
Using the PTA
™
(Parallel Trimming Action) - SPRINT, PRO and COMMERCIAL models only
Your DR TRIMMER/MOWER’S PTA feature allows you to move the machine in a straight line while the
Trimmer Head is both pivoted and tilted to the left for better access to fence lines and other obstacles
.
PTA allows you to trim in difficult areas without having to pull the machine back and forth.
The following two sections explain how to use the PTA
operation after using PTA
.
and how to return your Trimmer to Normal
USE CAUTION WHEN EDGING ALONG GRAVEL PATHS AND DRIVEWAYS. FLYING DEBRIS CAN CAUSE
SERIOUS DAMAGE AND INJURY.
WHEN USING PTA, YOU SHOULD INSTALL THE CUTTING CORDS IN ONE OF THE BOTTOM FOUR LINE
PLATES ONLY. USING THE UPPER LINE PLATES MAY CAUSE THE CORDS TO HIT THE WHEEL. FOR MORE
INFORMATION, SEE THE DR TRIMMER/MOWER’S CUTTING CORDS ON PAGE 22.
NOTE: In PTA mode, the Trimmer’s wheels stay straight while the Trimmer Head tilts as shown in Figure 6.
The Cutting Cords extend beyond the wheelbase in the PTA
cut under obstacles. The Trimmer Head and the Cutting Cords also tilt slightly in PTA

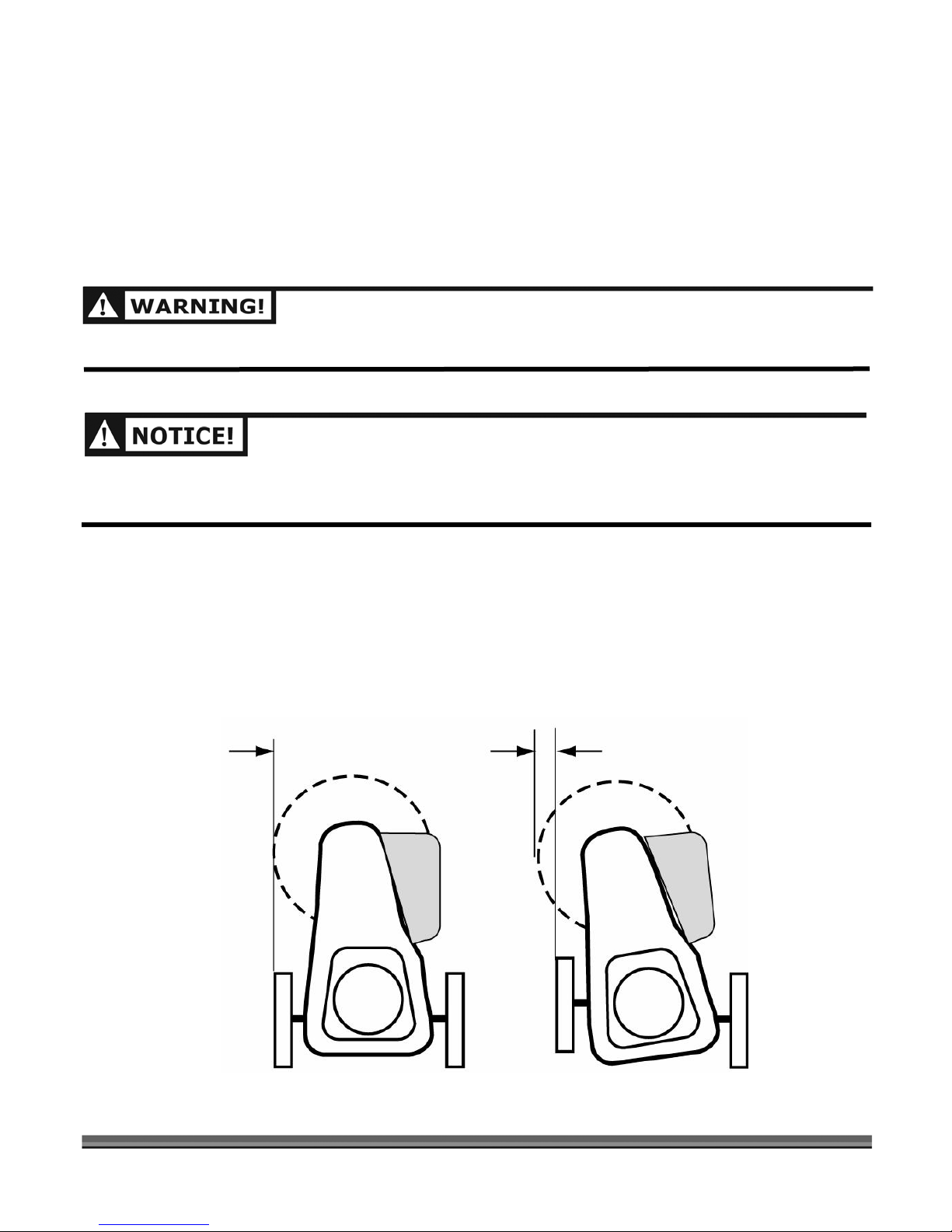

can edge and trim along gardens, paths, and driveways (Figure 6).
When using PTA along garden edges, fences, and buildings, we recommend making your first pass with
the DR
TRIMMER/MOWER in the Normal mowing position, staying 4 to 8 inches from the obstacle;
and then return for another pass with the machine in PTA
Cords Extended
mode (Figure 6), allowing you to easily
mode so you
mode.
20 DR® TRIMMER/MOWER
Normal Mode
PTA Mode
Figure 6

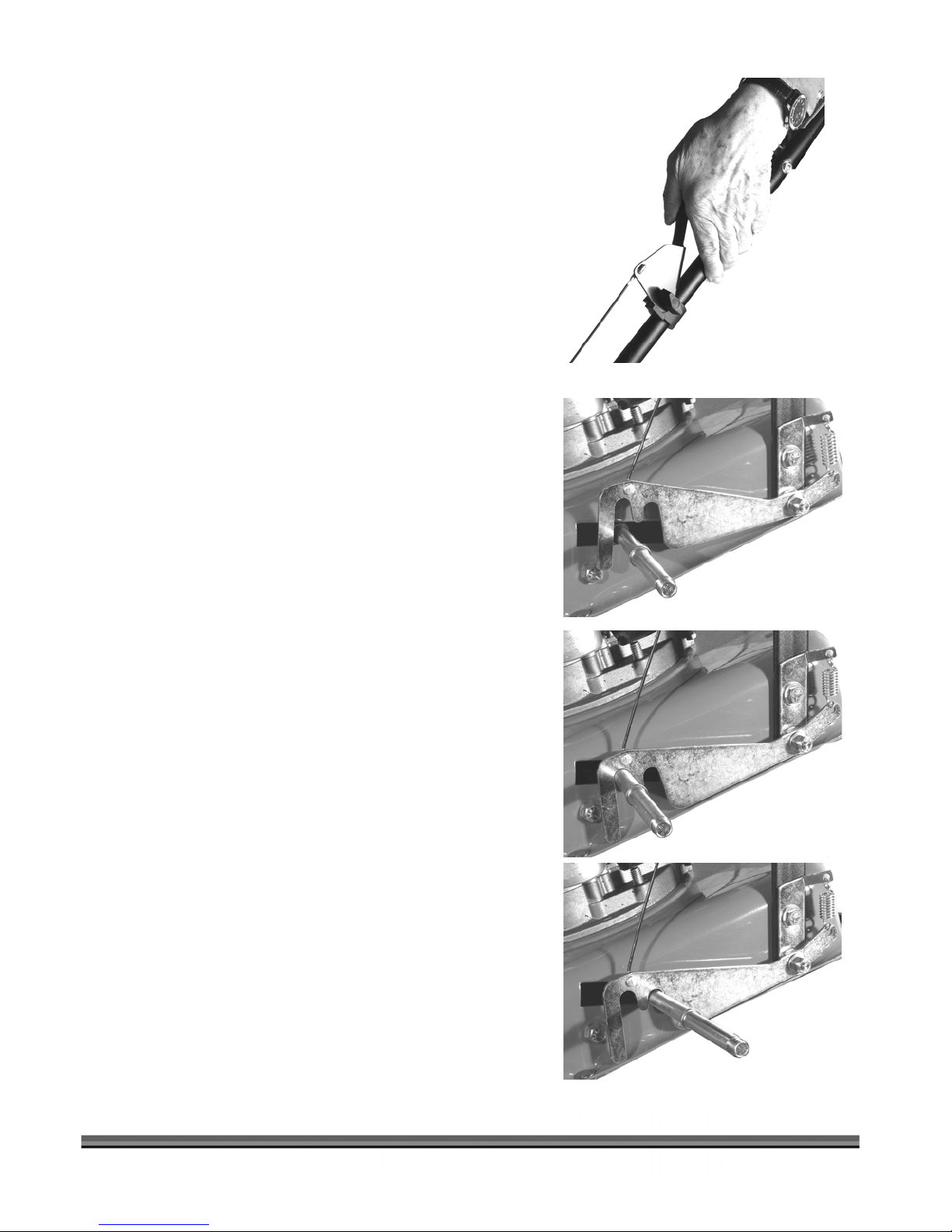

Engaging the PTA
™
1. Stand in the operator’s position.
2. Pull the PTA
Lever (Figure 7) against the
Handlebar and hold it there. This unlocks the
Axle (Figure 8)
.
NOTE: Figure 8 shows the Axle with the wheel
removed for clarity.
3. Push down on the Handlebar to tip the nose of
the machine a few inches off the ground.
Balancing the weight of the machine on the
wheels makes it easier to pivot the front of the
Trimmer to the left.
4. While continuing to hold the PTA
grip the sides of the Handlebar pulling up with
the right hand and pushing down with the left,
swinging the front of the Trimmer to the left.
5. Release the PTA
mode (Figure 8)
PTA
Lever. This will lock the Axle in
.
Figure 7
Lever down,
Returning to Normal Mode
1. Pull the PTA Lever (Figure 7) against the
Handlebar and hold it there.
2. Push down on the Handlebar to tip the nose of
the machine up a few inches off the ground.
3. While continuing to hold the PTA
grip the sides of the Handlebar while pulling up
with the left hand and pushing down with the
right, swinging the front of the Trimmer to the
right, and stopping at center.
4. Release the PTA
Lever. This locks the Axle in the
Normal operation mode (Figure 8).
Lever down,
Figure 8
PTA
Wheel Removed
PTA
Wheel Removed
Wheel Removed
Lever Unlocked
Lever locked in PTA
Lever locked in
PTA
Normal Mode
CALL TOLL FREE 1-800-DR-OWNER 21

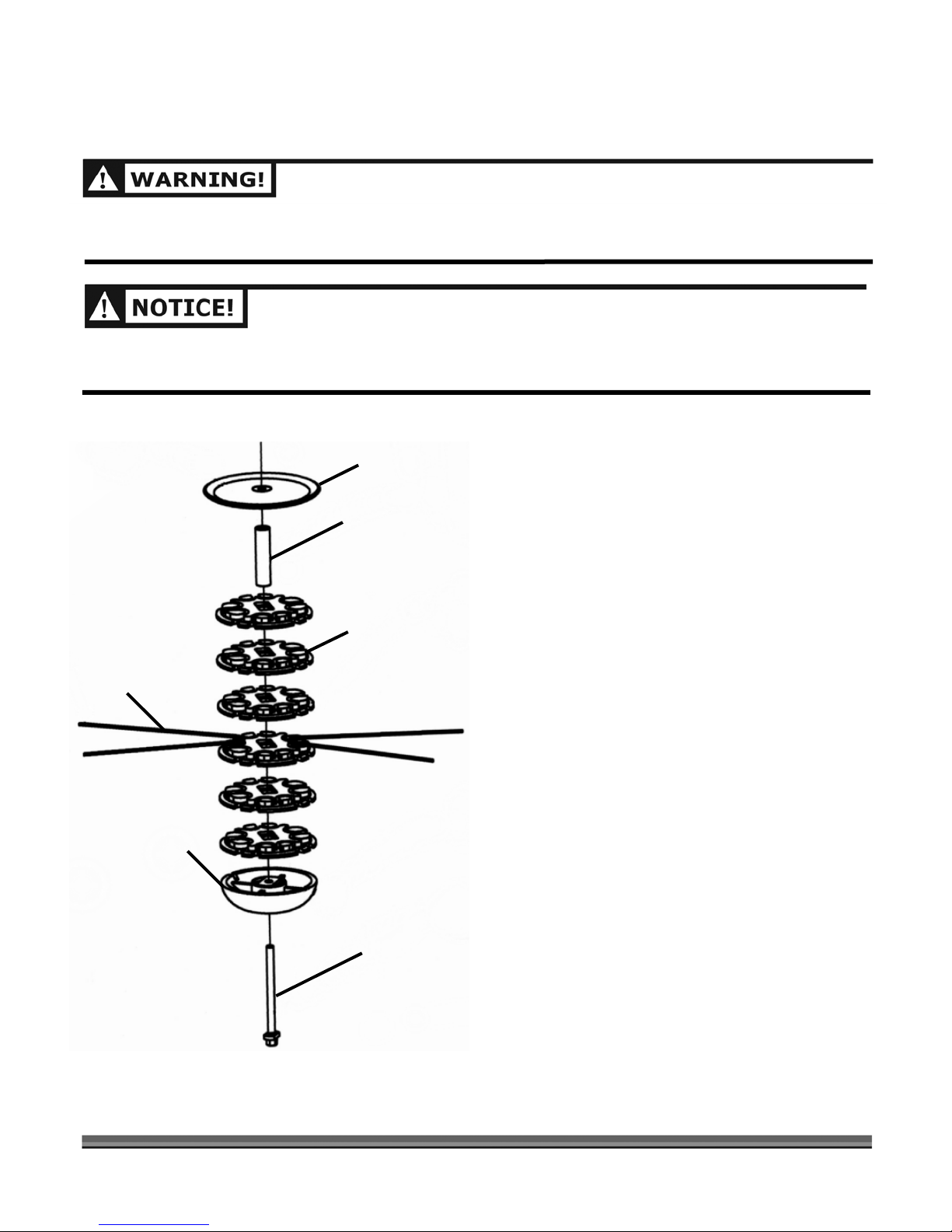

The DR TRIMMER/MOWER Cutting Cords
BEFORE PERFORMING ANY ADJUSTMENT, MAINTENANCE PROCEDURE OR INSPECTION, STOP THE
ENGINE, WAIT FIVE (5) MINUTES TO ALLOW PARTS TO COOL AND DISCONNECT THE SPARK PLUG WIRE,
KEEPING IT AWAY FROM THE SPARK PLUG.
RUNNING THE TRIMMER WITH ONLY ONE CORD INSTALLED, OR CORDS INSTALLED AT OTHER THAN
180 DEGREES APART CAN CAUSE EXCESSIVE VIBRATION AND MAY DAMAGE THE MACHINE.
The following figures (Figures 9 and 10) illustrate the Cords installation on the line plates. These figures
show the Line Plates from a cross section point of view. It may look complicated, but once you have done it
a couple of times, it’s easy. There are two (2) sets of installation points on each Line Plate. Each pair is 180
degrees apart. One (1) set of holes is for larger Cord (Blue, 175 mil, and Green, 155 mil) and is marked with
large arrows. The other set of holes is marked with small arrows and are at 90 degrees to the larger holes
and they accommodate the smaller Cord (Orange, 130 mil). Always install two (2) Cords one opposite the
other.
Figure 9
22 DR® TRIMMER/MOWER
In Here
In Here
Out Here Out Here
Figure 10
Installing Cords
The Cord installation method is shown in Figures 11–13. Your DR TRIMMER/MOWER shipped from the
factory with the Cords installed in this manner.
WHEN USING PTA, INSTALL THE CUTTING CORDS IN ONE OF THE BOTTOM FOUR LINE PLATES.
INSTALLING THE CUTTING CORDS ON THE UPPER LINE PLATES CAN CAUSE THE CORD TO HIT THE
WHEEL. FOR MORE INFORMATION ON USING PTA
NOTE: After you install the Cords, and before
trimming, engage the Cutting Head with
the engine running and spin new Cords for
a few seconds so they pull tight and are set.

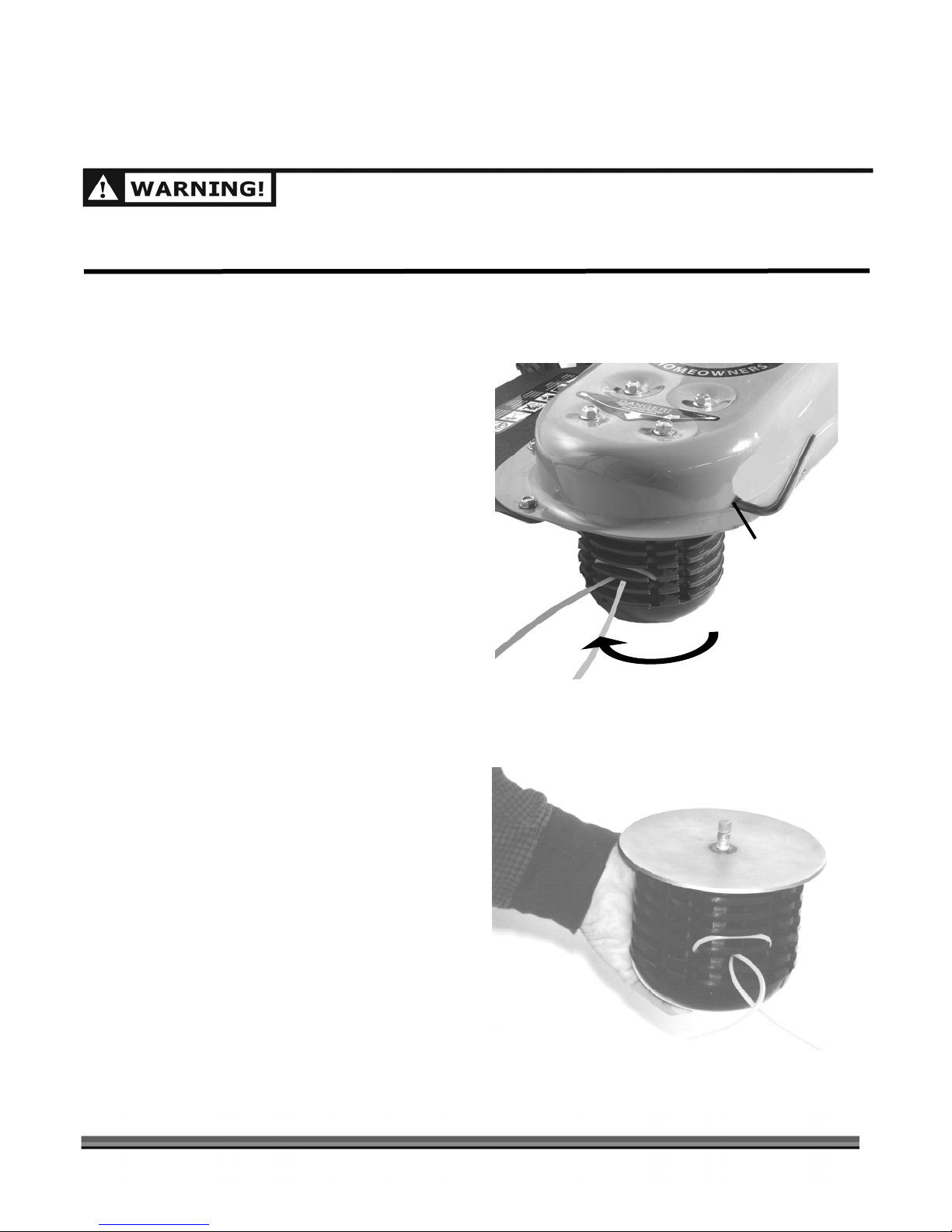

1. Insert the ends of the Cords into the
openings in the Line Plate, as shown in
Figure 11. There are different sized arrows at
the insertion points to indicate what size
Cords fit the holes.
, SEE USING PTA ON PAGE 20.
2. Push the Cord through until it comes out the
center hole in the Line Plate as shown in
Figure 12. You may also reference Figures 9
and 10 for installing the Cords. Adjust the
Cords so the tips are even.
3. Pull the Cords through the loop and push the
loop up into the Line Plate groove above
them, (Figure 13), and then pull the Cords
tight.
Figure 11
Figure 12
CALL TOLL FREE 1-800-DR-OWNER 23
Figure 13
Cord Tips
We ship three (3) thicknesses of Cutting Cord with your DR TRIMMER/MOWER.
The Cords are Blue (175-mil), Green (155-mil) and Orange (130-mil). Because conditions and vegetation
vary so much, you should experiment with Cord weights (diameters) to discover what works best for your
particular mowing and trimming situations. Here are a few things to keep in mind:
If you buy Cutting Cord in rolls, cut it in 23" lengths.
Cord life depends on trimming conditions. Replace Cords when they become broken or frayed.
The smallest diameter Cord capable of cutting the material at hand combined with the fastest engine
speed usually provides the best grass trimming performance. When you need more power for thicker
growth such as berry canes, brambles, thistles, or ragweed, you may want to use the 155-mil or 175-mil
Cord in combination with the highest engine speed.
Ease the ends of the Cord into heavy growth and move slowly through thick growth. If there are woody
weeds in the material you are cutting, the cutting Cords may wrap around the stalks they cannot cut,
and pull away from the trimmer head.
Please note that installing more than two (2) Cords at a time does not improve trimming performance,
in fact, it can lessen it. Adding additional Cords creates drag on the Trimmer Head, robs the engine of
power, and may cause wrapping. Installing two (2) Cords, 180 degrees apart, is the best method for
optimal trimming performance.
When replacing Cords, do it one at a time and use the old Cord to mark the position for the new Cord
that you are replacing.
If the Cord breaks off flush at the Line Plate, use the new Cord to push out the old Cord.
Storing the Cord in a plastic bag with a damp sponge or cloth will help keep it pliable. You can also
soak your Cutting Cord in a bucket of room temperature water for a few days before use to make it
more pliable.
24 DR® TRIMMER/MOWER
Adjusting the Cutting Height
WHEN USING THE PTA FEATURE, INSTALL THE CUTTING CORDS IN ONE OF THE FOUR BOTTOM LINE
PLATES ONLY.
Adjusting the cutting height is easy. Cutting heights range in 1/2-inch increments from 1-1/2 inches when
using the bottom Line Plate, to approximately 4 inches when using the top Line Plate (Figure 14).
Install the Cutting Cords in the Line Plate that gives you the desired cutting height.
Figure 14
The Mow-Ball™ Support
Allow the front end of the machine to rest lightly on the Mow-Ball Support as you are trimming. The
Mow-Ball
Support should glide on the ground as you maneuver the machine. To achieve the best and
smoothest cut, do not lift up on the Handlebar while operating your DR TRIMMER/ MOWER. Lifting
the Handlebar will force weight down on the Mow-Ball
cutting, and produces an unsatisfactory cut. Ideally, the Mow-Ball
Support. This uses more energy, slows the
Support should lightly rest on the
ground while the wheels balance most of the weight of the machine (Figure 15).
CALL TOLL FREE 1-800-DR-OWNER 25
Figure 15
Obstacle Tips
Dealing with obstacles in the terrain is easy with your new DR TRIMMER/MOWER. The following section
explains how to approach most common obstacles.
THE TRIMMER ENGINE'S POWER CAN EASILY THROW STONES, STICKS, AND OTHER DEBRIS AT GREAT
VELOCITY, WHICH COULD CAUSE PERSONAL INJURY OR PROPERTY DAMAGE. DO NOT RUN THE
MACHINE OVER GRAVEL DRIVEWAYS OR OVER LOOSE STONES OR MULCH WITH THE TRIMMER HEAD
SPINNING.
Tip: The DR TRIMMER/MOWER discharges cut material to the right. Always try to cut and trim with the
uncut tall grass or weeds on the left.
Always check your work area before trimming and remove any debris that might tangle or damage the
machine.
If you do run into debris and the trimmer becomes tangled, turn off the engine and disconnect the
spark plug wire before attempting to untangle the machine.
For the neatest appearance, do your trimming first, discharging clippings away from borders and
shrubs, then do your mowing.
Many owners like to mow easy, open areas with their regular riding or walk-behind mower and finish
trimming all the odd and hard-to-reach spots with the DR TRIMMER/MOWER (Figure 16).
26 DR® TRIMMER/MOWER
Figure 16
Heavy Growth
Take your time in heavy growth.
Be sure to keep uncut material to your
left, maintaining a clear discharge area to
your right (Figure 17).
If the machine cannot do it all in one
pass, overlap half of the cutting swath.
If the grass is very thick and heavy, try
raising the Trimmer Head off the ground
a few inches by pushing down on the
Handlebar. Cut the material at this
height, and then make a second pass
with the Mow-Ball
ground.
Ease the DR TRIMMER/MOWER into
denser growth. If the material is too
tough or woody to cut, the Cutting Cords
will wrap around it, wear down, or even
break off.
Support close to the
Sometimes the growth is so heavy, you
cannot mow it in rows. Use a forward
and back “vacuum cleaner” motion in
these cases.
Tips:
Use the “two pass”, one half overlap
method, whenever possible.
SELF-PROPELLED Model Tips:
In heavy growth it is best to make two (2)
passes at 1/2 the cutting width.
If you must go back and forth in the
“vacuum cleaner” motion, be sure to
release the Wheel Clutch Lever when
pulling the Trimmer back.
Figure 17
CALL TOLL FREE 1-800-DR-OWNER 27
MAKE SURE OF YOUR FOOTING WHEN OPERATING IN WET CONDITIONS.
Wet Conditions
Because there is no housing to restrict the flow
of cut material, you can also use your DR
TRIMMER/MOWER to mow wet or heavy
growth. You can use the DR in damp conditions,
after a rain, or in the early morning dew without

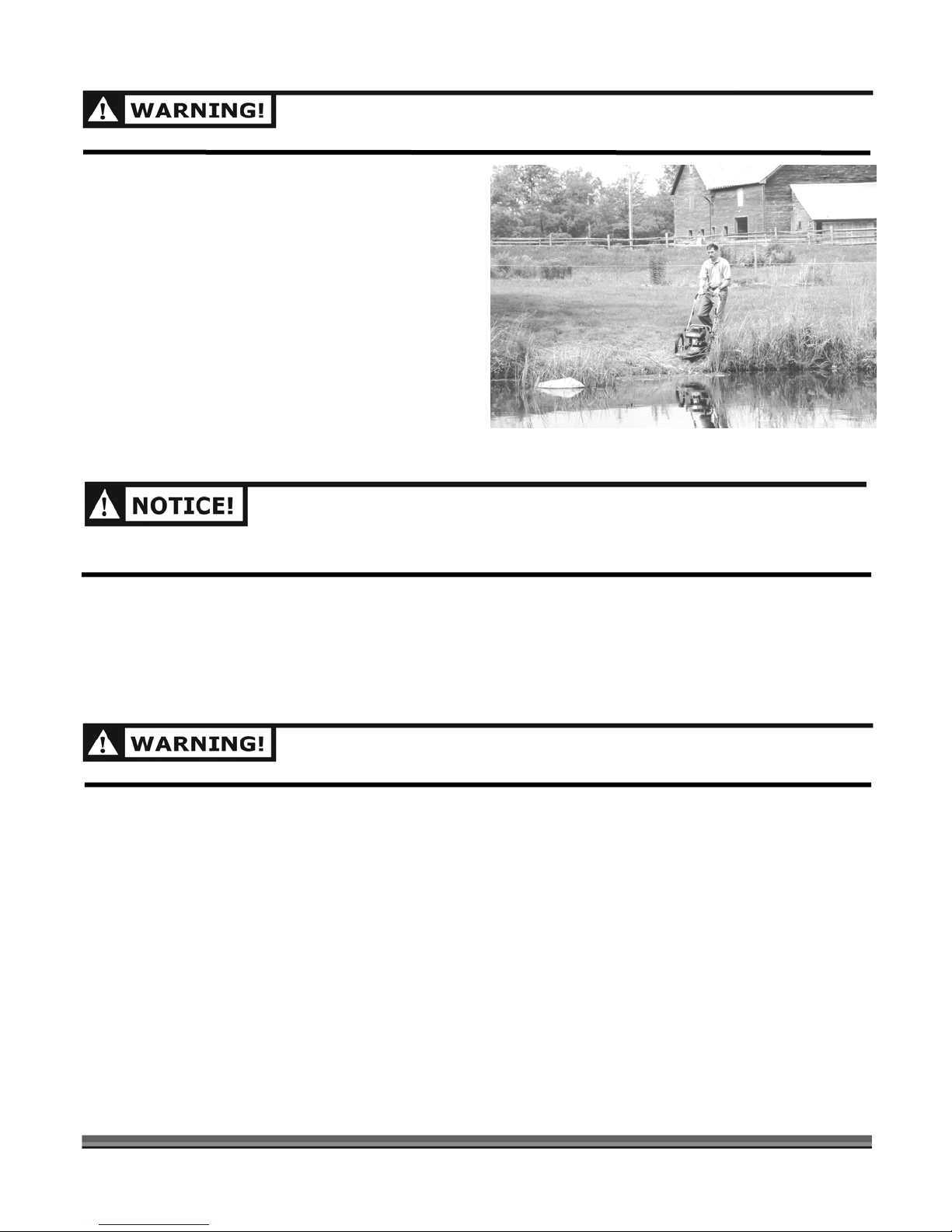

clogging or stalling. You can also mow wet areas
such as ditches and around ponds (Figure 18).
NOTE: NEVER mow in the rain. Water on the
spark plug may cause the engine to stall.
Very Dry Conditions
FREQUENTLY REMOVE DEBRIS FROM THE RECOIL GUARD ON TOP OF THE ENGINE AND THE
COOLING FINS ON THE FRONT OF THE ENGINE TO PREVENT OVERHEATING AND ENGINE DAMAGE.
When trimming and mowing in very dry conditions, be extra cautious of cut grass, chaff, weeds, seeds, etc.,
accumulating on the engine, especially around the recoil-starter housing and engine cooling fins. Please
see the Engine Owner’s Manual for more detailed information on cleaning the air intake, air filter, and
cooling system on the engine.
Figure 18
Slopes
MAKE SURE OF YOUR FOOTING WHEN OPERATING ON SLOPES.
You can trim and mow on slopes up to 20 degrees. Continuous use on slopes steeper than 20 degrees may
deprive the engine of adequate lubrication, and damage components.
Windrows
The DR TRIMMER/MOWER Cutting Cords cut even tall grass in just one pass, so you can collect clippings
and leaves for mulch without raking. The machine ejects cut material to its right side, so you can use it like
a lawn broom to make windrows for easy clean-up.
Firebreaks
Use your Trimmer as a labor saving tool to cut material when creating firebreaks.
Garden Clean-Up
The DR TRIMMER/MOWER is perfect for cutting down dead perennials, annuals, and wildflowers, saving
you hours of hand pruning and deadheading. You can also re-cut downed material a second time to create
mulch for garden beds.
28 DR® TRIMMER/MOWER
CHAPTER 5
MAINTAINING THE DR TRIMMER/MOWER
This chapter covers regular maintenance procedures that will ensure the best performance and long life of
your DR TRIMMER/MOWER. For engine maintenance, please refer to the Engine Owner’s Manual that
came with your Trimmer. Service intervals listed in the checklist below supercede those listed in the Engine
Owner’s Manual.
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM
THE SPARK PLUG.
Regular Maintenance Check List
NOTE: Consider that the service intervals shown are the maximum under normal operating conditions. Increase
Procedure
Check the Engine Oil level.
frequencies under extremely dirty or dusty conditions.
Before Each
Use
▲
Every 25
Hours
Every 100
Hours
Check the general equipment condition, e.g. Nuts, Bolts,
▲
Welds, etc.
Check and clean out the Mow-Ball™ Support.
Replace broken or frayed Cutting Cords.
Check the Mow-Ball™ Support Line Plates for wear.
Clean Engine Exterior, Cooling Fins and remove collected
▲
▲
▲
▲
grass trimmings.
Check the Belt for fraying or stretching.
Lubricate Throttle Cable, Trimmer Control Cable and Idler
Pulley with FLUID FILM
®
or equivalent.
Clean Engine Air Foam Filter
Change the Engine Oil and the Oil Filter* 1
▲
▲
▲
st
time 5 hrs.
Replace the Engine Paper Air Filter Cartridge
Adjust Clutch Cable on the SELF-PROPELLED model.
Remove the Bottom Shield and clean out collected debris.
Replace the Spark Plug
* An Oil Filter is on COMMERCIAL and SELF-PROPELLED models only.
▲
▲
▲
▲
▲
CALL TOLL FREE 1-800-DR-OWNER 29
Battery Care (Electric-Start Models)
Proper care can extend the life of a battery. Follow these recommendations to ensure your battery’s best
performance and long life:
Do not allow the battery charge to get too low. If the machine is not used, charge the battery every 4 – 6
weeks. Operate the engine for at least 45 minutes to maintain proper battery charge.
Store an unused battery in a dry area that does not freeze.
Do not charge an already charged battery. In theory, you cannot overcharge our battery with a trickle
charger; however, when a battery is fully charged and the charger is still on, it generates heat that could
be harmful to the battery. A fully charged battery will read 12V-13.2V with a voltmeter.
Do not continue to crank your engine when the battery charge is low.
Charging the Battery
Operate the Trimmer engine for at least 45 minutes to maintain proper battery charge. If the battery loses
its charge, you will need to use a trickle charger (like the DR Battery Charger) to recharge it. The charger
should have an output of 12 volts at no more than 2 amps.
At 1 amp, the battery may need charging for as long as 48 hours.
At 2 amps, the battery may need charging for as long as 24 hours.
NOTE: Using the recoil starter and then running the engine will not recharge a dead or significantly discharged
battery.
To connect a battery charger to your DR TRIMMER/MOWER, follow the steps listed below.
1. Detach the two battery wires going to the battery on your DR TRIMMER/ MOWER.
2. Attach the black (-) battery charger wire to the battery negative (-) terminal, and attach the red (+)
battery charger wire to the battery positive (+) terminal.
3. Plug the battery charger into an outlet.
WHEN YOU ARE FINISHED CHARGING THE BATTERY, DISCONNECT THE CHARGER FROM THE
OUTLET FIRST
LEAVE THE BATTERY CHARGER WIRES CONNECTED TO THE BATTERY, THE BATTERY WILL DISCHARGE
ITSELF BACK INTO THE CHARGER.
, THEN DISCONNECT THE BATTERY CHARGER WIRES FROM THE BATTERY. IF YOU
30 DR® TRIMMER/MOWER
Removing the Mow-Ball™ Support Assembly
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE (5)
MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE
SPARK PLUG.
Tools Needed: You will need the Head Locking Tool supplied with your DR TRIMMER/MOWER or a #3
Phillips head screwdriver with at least a 6" shank. We recommend wearing Gloves when
tightening or loosening the Mow-Ball
™
Support Assembly.
1. Insert the Head Locking Tool or screwdriver
into the hole in the Frame, then rotate the
Mow-Ball
fits into a second hole in the shaft, locking it
into place (Figure 19).
2. Looking down at the top of the Frame, turn
the Mow-Ball
until it unscrews completely from the bearing
housing (Figure 20). Remove the tool or
screwdriver after you have removed the MowBall
NOTE: If the Mow-Ball
3. To reinstall the Mow-Ball
Assembly, reverse the above instructions.
™
Support Assembly until the tool
™
Support Assembly clockwise
™
Support Assembly.
™
Support Assembly
continues to turn, but does not come off,
check to be sure the Head Locking Tool or
screwdriver is locked into the shaft.
™
Support
Frame
Head Locking Tool
inserted here
Loosen
Figure 19
CALL TOLL FREE 1-800-DR-OWNER 31
Figure 20
Reassembling the Mow-Ball™ Support Assembly
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM
THE SPARK PLUG.
IMPROPER INSTALLATION CAN CAUSE DAMAGE TO THE TRIMMER BEARINGS. FOLLOWING THESE
DIRECTIONS CAREFULLY WILL PROTECT YOUR MACHINE FROM DAMAGE. REASSEMBLE THE
COMPONENTS IN THE ORDER SHOWN IN FIGURE 21.
1. Position the Backup Plate with the lip of the curve
Backup Plate
(curve faces up)
Line Plate Standoff
Line Plate (6)
facing up (Figure 21).
2. Stack the Line Plates on top of one another with the
bumps on the bottom locking into the grooves on
top of each Plate.
3. Insert the Line Plate Standoff onto the center of the
stack (Figure 21).
4. Place the head of the Mow-Ball
™
Support Bolt so it is
sitting in the groove at the bottom of the Mow-Ball
Support.
™
Cutting Cord
Mow-Ball™ Support
Figure 21
Mow-Ball™ Support Bolt
5. Hold the bolt head in place with your finger and turn
™
the Mow-Ball
Support Assembly clockwise until it is
finger tight.
6. Insert the Head Locking Tool or screwdriver as
shown in Figure 19 on page 31 and tighten the
™
assembly securely by turning the Mow-Ball
Support
Assembly counterclockwise.
NOTE: If there is a space between any of the components of
™
the assembled Mow-Ball
procedure.
Support, repeat the stacking
32 DR® TRIMMER/MOWER

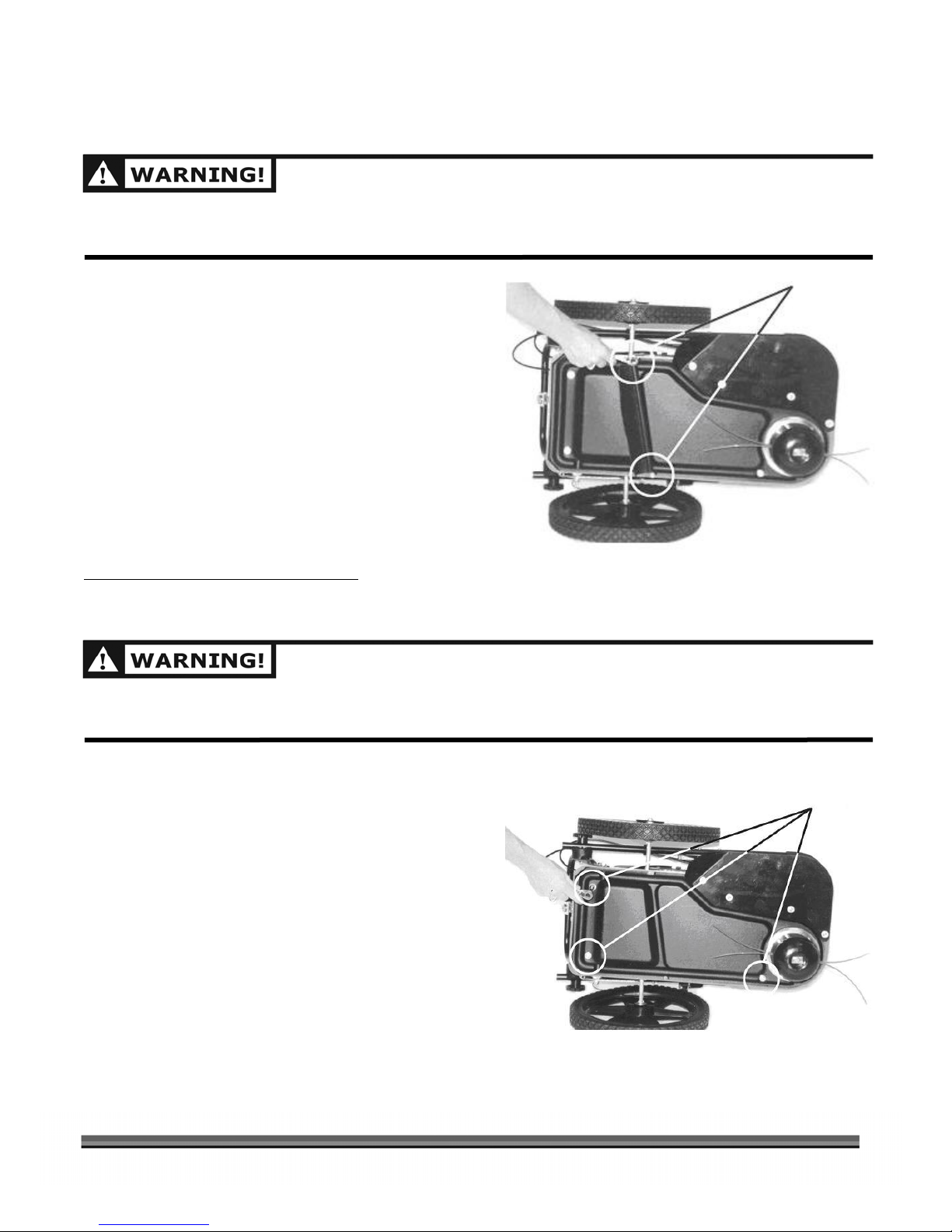

Removing the Stone Guard Flap - SPRINT, PRO, and COMMERCIAL
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM
THE SPARK PLUG.
NOTE: We turned the Trimmer on its side to take the
photos in this section. To do so, we removed
gas and oil from the machine. You can
access the underside of the Trimmer without
having to drain gas and oil by tilting back on
its handlebar.
Tool Needed:
Remove Screws
3/8" Wrench or Socket
Remove the screws on either side of the Stone
Guard and drop it from the Frame (Figure 22).
Tip: Keep the screws together with the stone guard.
Removing and Replacing Section:
Bottom Shield - SPRINT
, PRO, and COMMERCIAL
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM
THE SPARK PLUG.
Figure 22
NOTE: You do not need to remove the side shield or
any of its hardware when removing the
bottom shield.
Remove Screws
Tool Needed:
7/16" Wrench or Socket
1. Remove the Mow-Ball™ Support Assembly.
See “Removing the Mow-Ball™ Support
Assembly” on page 31.
2. Remove the Stone Guard Flap. See “Removing
the Stone Guard Flap” above.
3. Remove the two (2) mounting Bolts and
Washers at the rear of the Frame (Figure 23).
CALL TOLL FREE 1-800-DR-OWNER 33
Figure 23
4. Remove the third mounting Bolt and Washer from the front of the Frame on the outer edge near the
Bearing Housing (Figure 23 on page 33).
5. Slide the Bottom Shield out from under the lip of the Side Shield and remove it.
6. When reinstalling the Bottom Shield, be sure to tuck it under the lip of the Side Shield first, then
finish positioning it and install the mounting hardware.
7. Reinstall the Stone Guard Flap in the reverse order of the steps to remove it on page 33.

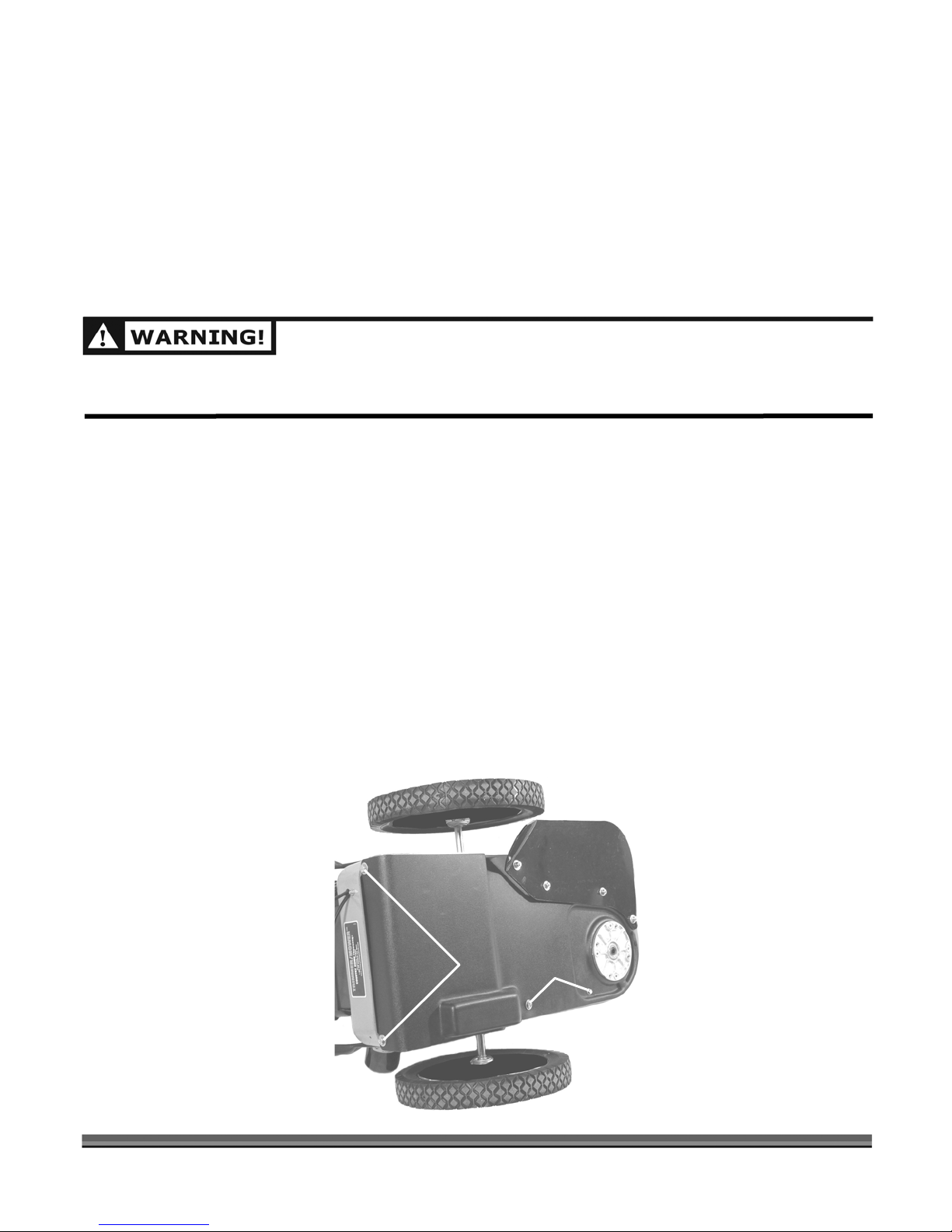

Bottom Shield - SELF-PROPELLED
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE (5)
MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE
SPARK PLUG.
Tools Needed:
7/16" Wrench or Socket
3/8" Wrench or Socket
NOTE: You do not need to remove the Side Shield or any of its hardware when removing the bottom shield.
1. Remove the Mow-Ball™ Support Assembly. See “Removing the Mow-Ball™ Support Assembly” on
page 31.
2. Remove the two (2) mounting Bolts and Washers at the rear of the Frame and the single mounting
Bolt and Washer near the center using a 7/16" Wrench or Socket (Figure 24).
3. Remove the fourth mounting Bolt and Washer from the front of the Frame on the outer edge near
the Bearing Housing (Figure 24) using a 3/8" Wrench or Socket.
4. Remove the Bottom Shield by sliding it out from under the Side Shield and lifting it up and over the
Bearing Housing (Figure 24).
5. Reinstall the Bottom Shield in the reverse order.
Side Shield
Bottom Shield
Bolts to Remove
34 DR® TRIMMER/MOWER
Figure 24

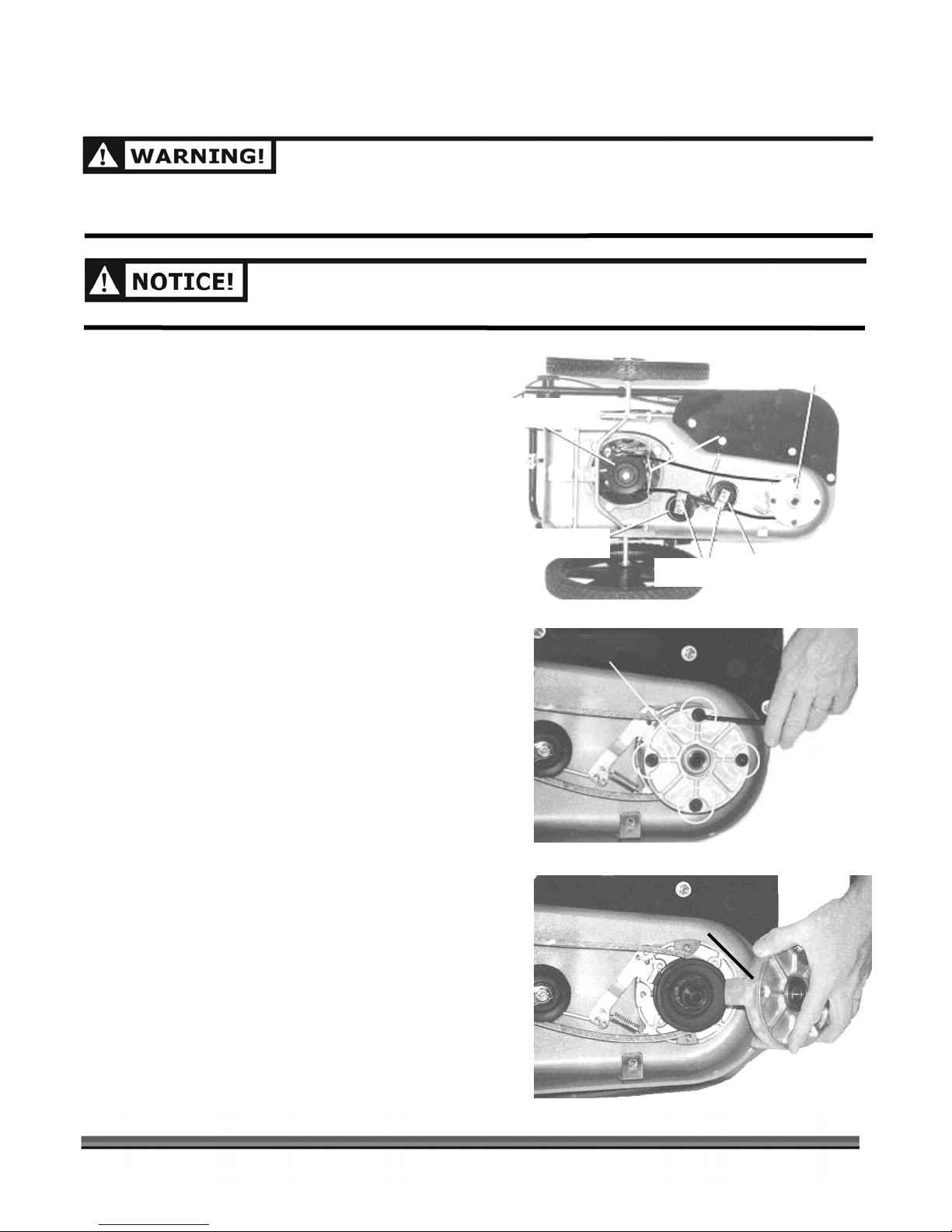

Trimmer Head Belt - All models
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE (5)
MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE
SPARK PLUG.
USE ONLY DR BELTS ON YOUR MACHINE. DO NOT USE HARDWARE STORE VARIETY BELTS.
Tools and Part Needed:
9/16" Wrench or Socket
3/16" Allen Wrench
DR Drive Belt #114431
1. Remove the Mow-Ball™ Support Assembly. See
“Removing the Mow-Ball™ Support Assembly”
on page 31.
2. Remove the Stone Guard Flap. See “Removing
the Stone Guard Flap” on page 33. This step is
not applicable to the Self-Propelled model.
3. Remove the Bottom Shield. See “Bottom Shield”
on page 33 or 34 depending on your model.
4. Remove the four (4) Allen set screws on the
underside of the Lower Bearing Plate
The Lower Bearing should come off with the
Plate (Figure 27).
5. Remove the Belt.
6. Install the new Belt. Be sure the Belt is on the
inside of Idler Pulley #2, the outside of Idler
Pulley #1 and correctly fitted around the Engine
Pulley and in between the Engine Pulley Belt
Guide (Figure 25).
7. Replace the Lower Bearing Plate, being sure to
align the notch with the locking tool hole in the
side of the Trimmer Housing and install the four
(4) set screws in this order: Install one (1) set
screw and make snug, then install and snug the
set screw opposite it. Repeat for the remaining
two (2) set screws.
8. Tighten all four (4) set screws in the same pattern.
Do not over tighten.
9. Reinstall the Bottom Shield and Stone Guard
Flap as applicable.
10. Reinstall the Mow-Ball™ Support Assembly.
(Figure 26).
Engine Pulley
Idler Pulley #2
Figure 25
4 Set Screws
Figure 26
Belt Guides
Lower Bearing Plate
Engine Pulley
Belt Guide
Lower Bearing
Housing Plate
Idler Pulley #1
CALL TOLL FREE 1-800-DR-OWNER 35
Figure 27

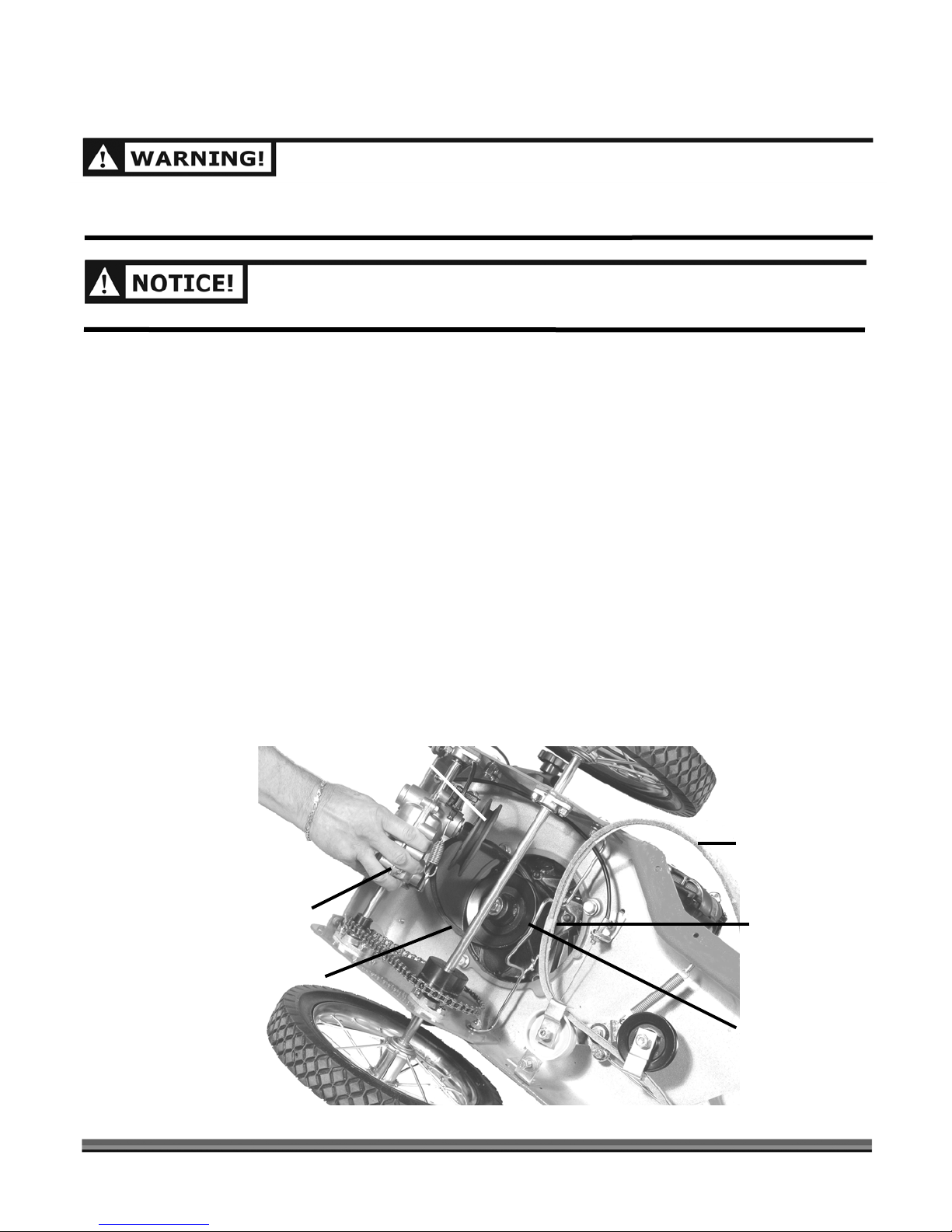

Drive Belt - SELF-PROPELLED
g
y
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE (5)
MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE
SPARK PLUG.
USE ONLY DR BELTS ON YOUR MACHINE. DO NOT USE HARDWARE STORE VARIETY BELTS.
Tools and Part Needed:
7/16" Wrench or Socket
3/8" Wrench or Socket
DR Drive Belt #179581
1. Remove the Mow-Ball™ Support Assembly. See “Removing the Mow-Ball™ Support Assembly” on
page 31.
2. Remove the Bottom Shield. See “Bottom Shield” on page 34.
3. Remove the Trimmer Head Belt from around the Engine Pulley. There is enough slack in the Belt to
just peel the Belt from around the Pulley.
4. Grasp the Transmission Housing and rotate it out to loosen the Drive Belt (Figure 28). You can now
remove the Belt from the Transmission Pulley and upper Engine Pulley. The Transmission Housing
is spring loaded so it will return to its original position when released.
5. Install a new DR Drive Belt around the upper Engine Pulley, rotate the Transmission Housing out,
and slip the Drive Belt around the Transmission Pulley. Allow the Housing to return to its resting
position with the Belt in place.
6. Re-install the Trimmer Head Belt on the Lower Engine Pulley.
7. Re-install the Bottom Shield and the Mow-Ball™ Support Assembly.
Housing Rotated Out
Transmission Drive Belt
36 DR® TRIMMER/MOWER
Transmission Pulley
Figure 28
Trimmer Head Belt
Removed
Upper Engine Pulley
is behind Lower
En
ine Pulle
Lower Engine Pulley
A
(
)
Brake Arm – All models
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM
THE SPARK PLUG.
BEFORE REPLACING THE BRAKE ARM, CHECK THAT THE MOUNTING OF THE BELT IS ON THE CORRECT
SIDE OF THE IDLER PULLEYS (SEE
FIGURE 25
ON PAGE 35), AND NOT FRAYED, WORN OR STRETCHED.
ALSO, SEE ADJUSTING THE TRIMMER HEAD BELT TENSION THROUGH THE TRIMMER CONTROL CABLE
ON PAGE 42.
Tools needed:
3/8" Socket
7/16" Wrench or Socket
1/2" Wrench or Socket
1. Remove the Mow-Ball™ Support Assembly. See
“Removing the Mow-Ball™ Support Assembly” on
page 31.
2. Remove the Stone Guard Flap. See “Removing the
Stone Guard Flap” on page 33. This step is not
applicable to the Self-Propelled model.
ctuator
Rod
Lock Nut
3. Remove the Bottom Shield. See “Bottom Shield”
Figure 29
on page 33 or 34 depending on your model.
4. Using a 3/8" Socket, remove the Lock Nut from
the Brake Actuator Rod and remove the Rod from
the Brake Arm (Figure 29).
Bearing Housing
Mounting Bolt
4PLS
5. Using a 1/2" Wrench, remove the four (4)
Mounting Bolts that retain the Bearing Housing
from topside of the Trimmer Housing (Figure 30).
6. Turn the Bearing Assembly over to expose the
Brake Arm Assembly and unhook the Tension
Figure 30
Spring from the Brake Arm (Figure 31).
7. Remove the Phillips Screw (Figure 31) retaining
the Brake Arm.
Brake Arm
Spring
8. Install the new Brake Arm Assembly in the reverse
order.
NOTE:
When replacing the Brake Actuator Rod, do not
Phillips
Screw
tighten the Nut against the Brake Arm. Leave the
Nut just loose enough to allow the Rod to slide freely
in the Brake Arm slot.
CALL TOLL FREE 1-800-DR-OWNER 37
Figure 31
Side Shield - All models
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE (5)
MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE
SPARK PLUG.
YOU SHOULD NEVER OPERATE THE TRIMMER WITHOUT THE SIDE SHIELD IN PLACE. ALWAYS REPLACE A
DAMAGED SIDE SHIELD IMMEDIATELY.
Tools needed:
Side Shield
Hardware to remove
3/8" Wrench or Socket
7/16" Wrench or Socket
1. Using a 3/8" Wrench or Socket (topside) and a 7/16"
Wrench or Socket (underneath), remove the four (4)
mounting Bolts, Nuts and Washers that retain the Side
Shield and discard the old Shield.
2. Install the new Shield and secure in place with the
mounting hardware.
Bottom Shield
Figure 32
Wheels - SPRINT
, PRO and COMMERCIAL
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE (5)
MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE
SPARK PLUG.
Tool needed:
5/8" wrench or socket
1. Block and stabilize the machine so that the wheels are
off the ground.
2. Loosen and remove the Lock Nut. (Figure 33).
3. Slide the wheel off the axle.
4. Reverse the steps to install the wheel.
Figure 33
38 DR® TRIMMER/MOWER
Wheels - SELF-PROPELLED
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE (5)
MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM THE
SPARK PLUG.
THE DESIGN OF YOUR TRIMMER IS TO POWER THE WHEELS IN THE FORWARD DIRECTION ONLY. READ
AND FOLLOW THESE DIRECTIONS AND NOTES CAREFULLY WHEN INSTALLING A WHEEL.
Tool needed:
5/8" Wrench or Socket
1. Block and stabilize the machine so that the wheels are off the ground.
2. Loosen and remove the lock nut. (Figure 34).
3. Turn the wheel off the axle, clockwise for the right side wheel and counterclockwise for the left side
wheel (left and right are determined from the operator’s position).
NOTE: Remove and discard the red plastic retaining plug in the new wheel hub, just before installing the
wheel.
4. To install a new wheel, place the wheel on the axle and slowly turn the wheel onto the axle (clockwise
for the right side wheel and counterclockwise for the left side wheel from the operator’s position).
NOTE:
5. Install the axle nut and tighten.
NOTE:
If the wheel will not turn onto the axle (locks against the axle) using the direction indicated in Step 4,
simply turn the wheel around and try again. The black shield attached to the wheel should be on the
inside.
The wheel is properly installed when the wheel will lock against the axle when you pull the Trimmer
backward, and freewheels when pushed forward. The wheel bearings are designed to be directional.
Lock Nut
CALL TOLL FREE 1-800-DR-OWNER 39
Figure 34
Engine Oil - All models
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY FROM
THE SPARK PLUG.
IF YOU HAVE THE COMMERCIAL OR SELF-PROPELLED MODEL, ALSO CHANGE THE OIL FILTER AT THIS
TIME. SEE THE NEXT PAGE.
BE CERTAIN TO FILL WITH OIL BEFORE STARTING THE ENGINE. SEE PAGE 12.
Tools and Supplies Recommended:
SAE 30 HD Oil (refer to your Engine Owner’s Manual for quantity required)
Suitable container for used oil
Rags
Wooden pallet or workbench
NOTE: Drain the oil when the engine is warm. Warm oil drains quickly and completely.
1. For convenience, place the machine up on a wooden pallet or workbench.
2. Remove the Oil Filler Cap and position a suitable oil receptacle beside the Oil Fill Tube.
3. Make sure to securely tighten the Gas Fill Cap.
4. Using the handle of the DR TRIMMER/MOWER, tip the machine to the left and drain the oil out through
the Oil Filler Tube into a suitable receptacle (Figure 35).
5. Refill the engine oil using SAE 30 HD oil to the level indicated on the dipstick. See page 12.
6. Reattach the spark plug wire.
NOTE: If you are not reusing the oil, be sure to use environmentally safe disposal procedures in the disposing of the
used oil.
Tightened Fuel Fill Cap
Oil Fill Tube
40 DR® TRIMMER/MOWER
Pallet
Figure 35
Engine Oil Filter - COMMERCIAL and SELF-PROPELLED
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY
FROM THE SPARK PLUG.
BE CERTAIN TO FILL WITH OIL BEFORE STARTING THE ENGINE.
SEE PAGE 12.
Tools and Supplies Recommended:
SAE 30 HD Oil (refer to your Engine Owner’s Manual for quantity required)
Oil Filter Wrench (obtainable from a local auto parts or hardware store)
Suitable container for used oil
Rags
Wooden pallet or workbench
NOTE: Drain the oil when the engine is warm. Warm oil drains
quickly and completely.
1. Remove the engine oil. See Engine Oil on the previous
page.
2. Using an Oil Filter Wrench, or grasping the Oil Filter firmly
with your hand, unscrew the Oil Filter counterclockwise
from the engine (Figure 36). BE SURE THAT THE OLD
FILTER GASKET COMES OFF WITH THE OLD FILTER.
3. Wipe the mounting base for the oil filter with a clean cloth.
4. Apply a thin coat of clean motor oil to the new Oil Filter
Gasket. DO NOT USE GREASE.
5. Line up the threads carefully to avoid cross threading and
screw the new Filter on until the Filter Gasket contacts the
base, then tighten the Oil Filter 3/4 to 1 turn. DO NOT
OVER TIGHTEN.
6. Refill the engine oil using SAE 30 HD oil to the level
indicated on the dipstick. See page 12.
7. Reattach the spark plug wire.
8. Start the engine and check for oil leaks around the Filter
base. Correct any oil leaks by simply tightening the Oil
Filter 1/8 of a turn at a time.
Tighten
Oil Filter
Loosen
Figure 36
NOTE: If you are not reusing the oil, be sure to use
environmentally safe disposal procedures in the disposing
of the used oil and the used oil filter.
CALL TOLL FREE 1-800-DR-OWNER 41
Adjusting the Trimmer Head Belt Tension through the Trimmer Control Cable - All models
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY
FROM THE SPARK PLUG.
BEFORE ADJUSTING THE TRIMMER CONTROL CABLE, CHECK THAT THE BELT MOUNTING IS ON THE
CORRECT SIDE OF THE IDLER PULLEYS (SEE
STRETCHED. ALSO MAKE SURE THE SPRING IS ATTACHED TO THE BAIL BAR (
FIGURE 25 ON PAGE 35), AND NOT FRAYED, WORN OR
FIGURE 37
).
If the Trimmer Head stops spinning with the Bail Bar engaged and
the machine is operating under a heavy load, the Belt may be too
Bail Bar
Spring
loose. In this case, you may need to adjust the Trimmer Control
Cable to put more tension on it. The Adjuster is located on the right
Handlebar, just above the Throttle Control Lever for the SPRINT
,
PRO, and COMMERCIAL models and on the left Handlebar for the
SELF-PROPELLED model.
Upper Nut
Bracket
Lower Nut
Metal Cable End
Figure 37
Measure the Bail Bar released
With Bail Bar engaged, should be 1/4" longer
Tools needed:
(2) 1/2" Open-end or Adjustable Wrench
To increase the tension on the belt:
1. Loosen the upper Control Cable Adjustment Nut, leaving
about 1/8" of space between the Nut and Bracket
2. Gently pull down on the Cable as you tighten the lower Nut
until it is flush and snug against the Bracket (Figure 37).
NOTE: If the Trimmer Head still keeps spinning after releasing the
Bail Bar, the Belt may be too tight or the Brake Arm may
need replacing. See “Brake Arm” on page 37.
To decrease the tension on the belt:
1. Repeat the steps for increasing the tension on the Belt, but
instead, loosen the Lower Nut first and then tighten the
Upper Nut.
NOTE: To check your adjustment, measure the Spring with the Bail
Bar disengaged. Then measure it with the Bail Bar engaged.
There should be a 1/4" extension in the Spring when the Bail
Bar is engaged (Figure 38). Adjust the Nuts on the Bracket
as needed to get the correct measurements.
(Figure 37).
42 DR® TRIMMER/MOWER
Figure 38
Adjusting the Wheel Clutch - SELF-PROPELLED
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY
FROM THE SPARK PLUG.
If the SELF-PROPELLED DR TRIMMER/MOWER will not drive forward when you squeeze the Wheel Clutch
Lever or if the machine moves forward without the operator squeezing the Wheel Clutch Lever (or the
machine “walks”), you will have to adjust the Wheel Clutch Cable.
If the machine will not drive forward:
Grasp the Lower Section of the Cable Adjuster with one hand and hold firmly. Turn the Upper Section of
the Cable Adjuster clockwise so that the Adjuster is lengthening or turning apart. Make one revolution of
the Adjuster at a time until the drive engages and disengages properly (Figure 39).
If the machine creeps ahead or “walks”:
Grasp the Lower Section of the Cable Adjuster with one hand and hold firmly. Turn the Upper Section of
the Cable Adjuster counterclockwise so that the Adjuster is shortening or turning together. Make one
revolution of the Adjuster at a time until the drive engages and disengages properly (Figure 39).
Throttle
Turn In or Out
Wheel Clutch Cable Adjuster
CALL TOLL FREE 1-800-DR-OWNER 43
Hold Firmly
Figure 39
End of Season and Storage
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT
FIVE (5) MINUTES TO ALLOW ALL PARTS TO COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT
AWAY FROM THE SPARK PLUG.
NEVER STORE THE DR TRIMMER/MOWER WITH FUEL IN THE FUEL TANK INSIDE A BUILDING WHERE
IGNITION SOURCES ARE PRESENT, SUCH AS HOT WATER AND SPACE HEATERS, CLOTHES DRYERS
AND THE LIKE. IF YOU ARE GOING TO DRAIN THE FUEL TANK, DO THIS OUTDOORS. ALLOW THE
ENGINE TO COOL BEFORE STORING IN ANY ENCLOSURE.
WHEN NOT IN USE, YOUR DR TRIMMER/MOWER SHOULD BE STORED OUT OF THE REACH OF
CHILDREN AND IN A DRY LOCATION.
NOTE: Please refer to the Engine Owner's Manual for engine-specific procedures.
Check the Drive Belt(s) for wear.
Change the engine oil (and Oil Filter, if applicable). This will help to eliminate sludge and acids in
the engine.
Remove the spark plug and pour about 1 ounce of motor oil into the cylinder hole. Reinstall the
plug and pull the recoil starter rope until you feel strong resistance. This will coat the piston and
seat the valves to prevent moisture buildup.
Clean or replace the engine air filters.
Clean any dirt and debris from the cylinder head cooling fins, carburetor linkage, blower housing,
debris screen, and muffler area of the engine.
Remove any wrapped weeds from the Mow-Ball™ Support, wheel spokes, and axles. Using a stiff
brush, clean grass and debris from the top and underneath the Trimmer Deck.
Remove the Bottom Shield and clean out any debris. See page 33 or 34.
Check to make sure the operator controls are moving freely. Lubricate the Throttle Lever, PTA
Lever (SPRINT
lubricant if necessary.
, PRO and COMMERCIAL models), and Key Switch with FLUID FILM or similar
If your engine has a fuel filter, replace it.
If your DR TRIMMER/MOWER will be idle for more than 30 days, we recommend using a gas
stabilizer. This will prevent sediment from gumming up the carburetor. If there is dirt or moisture
in the gas or tank, remove it by draining the tank. Completely fill the tank with fresh, unleaded gas
and add the appropriate amount of stabilizer or gasoline additive. Run the engine for a short time
to allow the additive to circulate. Close the Fuel Shut-Off Valve (on top of the Kawasaki gas tank
only) to prevent carburetor overflow and leakage.
On Electric-Starting models, remove the battery or store your DR TRIMMER/MOWER in a dry
environment where the temperature is between –10° F (–23° C) and +85° F (+23° C). Make sure the
storage temperatures will never be outside these limits.
44 DR® TRIMMER/MOWER
CHAPTER 6
TROUBLESHOOTING
Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their
solutions. If you continue to experience problems, call Country Home Products, Inc. for support.
Troubleshooting Table
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS TO COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY
FROM THE SPARK PLUG.
SYMPTOM POSSIBLE CAUSE
Recoil will not pull
out or is difficult to
pull.
Check the engine oil level, the engine may be seized.
There may be an oil compression lock in the cylinder. Take out the spark plug; hold
a rag over the spark plug hole and pull the recoil cord several times to blow out any
oil in the cylinder. Wipe off the spark plug and reinstall it.
The recoil may be broken or jammed. Try to turn the engine pulley by hand, with the
spark plug wire off. If it turns, the recoil is broken or jammed.
Call 1(800) DR-OWNER (376-9637) for assistance.
The engine will not
start manually.
(Please refer to the
Engine Owner’s
Manual for enginespecific
procedures.)
CALL TOLL FREE 1-800-DR-OWNER 45
Check for proper attachment of the spark plug wire.
Is the Fuel Shut-Off valve in the ON position (on top of the Kawasaki gas tank only)?
Does the engine have the right amount of clean oil? If the oil is dirty, change it
following the procedure on page 40.
Are you priming the engine? Push the Primer Bulb 3 to 5 times, releasing it
completely each time.
Are you using fresh, clean gas? If the gas is old, change it. Use a fuel stabilizer if
you keep gas longer than one month.
Check the Fuel Filter (if equipped) to see if it is clear. Place a can under the Fuel
Filter and remove the fuel line from the engine side of the Filter. If gas flows freely,
it is OK.
Is the air filter clean? If it is dirty, change it following the procedure in the Engine
Owner’s Manual.
Is the Throttle in the RUN position? Check the Throttle Cable and make sure that it
is attached to the engine and moving freely.
Is the spark plug clean? If the spark plug is dirty or cracked, change it. If it’s oily,
leave it out, hold a rag over the spark plug hole and pull the recoil cord several times
to blow out any oil in the cylinder, then wipe off the spark plug and reinsert it.
If your engine still will not start, call 1(800) DR-OWNER (376-9637) for assistance.
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS TO COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY
FROM THE SPARK PLUG.
SYMPTOM POSSIBLE CAUSE
The engine won’t
start using electricstart.
(Please refer to the
Engine Owner’s
manual for enginespecific
procedures.)
The engine lacks
power or is not
running smoothly.
(Please refer to the
Engine Owner’s
Manual for enginespecific
procedures.)
Have you checked all the items under the section called Electric Starting on page 18
and the previous section on Manual Starting?
Check the wiring behind the Key switch; it may have vibrated off the switch
terminals.
Check the wire connections - especially the ground connection, the large black wire
coming from the battery, where it connects to the engine.
Check the wire connections to the solenoid. Disconnect the black battery ground
wire first to avoid sparks. Check to be sure that all of the connections are clean and
tight. Reconnect the battery ground wire.
Check the ground connection on the solenoid where it is bolted to the frame. Using
a wrench or socket, tighten the bolts to ensure a good connection to the frame.
Is your battery charged? Check the voltage yourself or at a gas station. If it is low,
charge it with a 12-volt, 1 to 2 Amp trickle charger. If you do not use your machine
for at least 45 minutes at a time, the battery may need to be periodically charged.
See the Battery Care section on page 30.
If your battery is charged and your DR TRIMMER/MOWER still won’t start, call
1(800) DR-OWNER (376-9637) for assistance.
Check the Throttle travel. Is the Throttle Lever in the Run position?
Check for debris (hay seed, etc.) clogging the Air Filter Intake and clean out as
required.
Is the blower housing, throttle linkage, and cooling fins free of debris? Clean them
following the instructions in the Engine Owner’s Manual.
Is the air filter clean? If it’s dirty, change it following the procedure in the Engine
Owner’s Manual.
Remove the spark plug wire and dry the connection with a rag.
Is the spark plug clean? If it’s fouled or cracked, change it. If it’s oily, leave it out,
hold a rag over the spark plug hole and pull the recoil cord several times to blow out
any oil in the cylinder, then wipe off the spark plug and reinsert it.
Are you using fresh, clean unleaded gas? If it is old, change it. Use a fuel stabilizer
if you keep gas longer than one month.
Does your engine have the right amount of clean oil? If it is dirty, change it
following the procedure on page 40.
If your engine still lacks power, call 1(800) DR-OWNER (376-9637) for assistance.
46 DR® TRIMMER/MOWER
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS TO COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY
FROM THE SPARK PLUG.
YMPTOM POSSIBLE CAUSE
S
Engine smokes.
The trimmer head
won’t spin or lacks
power.
The Trimmer Head
keeps spinning or
spins when you
release the Bail
Bar.
The cutting Cords
are breaking.
Check the oil level and adjust as needed.
You may be operating the machine on too great an incline. (See SLOPES section on
page 28)
Check the air filter and clean or replace if needed.
You may be using the wrong oil - too light for the temperature. Refer to your Engine
Owner’s Manual for detailed information.
Clean the engine cooling fins and the carburetor housing if they are dirty.
If the engine still smokes, call 1(800) DR-OWNER (376-9637) for assistance.
Is the V-Belt properly aligned? Check it against Figure 25 in the “Trimmer Head
Belt-All Models” on page 35.
Is the Belt worn or frayed? If so, replace it.
If the Trimmer Head still will not spin, follow the procedure for “Adjusting the Belt
Tension through the Trimmer Control Cable” on page 42.
If none of the above helps, call 1(800) DR-OWNER (376-9637) for assistance.
Is the V-Belt properly aligned? Check it against Figure 25 in the “Trimmer Head
Belt-All Models” on page 35.
If the Trimmer Head keeps spinning when you release the Bail Bar, see “Adjusting
the Belt Tension through the Trimmer Control Cable” on page 42.
Check the Brake for excessive wear and replace if necessary. See the “Brake Arm-All
Models” on page 37.
If none of the above helps, call 1(800) DR-OWNER (376-9637) for assistance.
Are the Cords too dry? Store Cords in a plastic bag with a damp sponge or cloth to
make them less prone to breaking or soak them in a bucket of water for a few days.
Try a lighter cord.
Are you trying to do too much too fast? Ease into the material you are cutting; let
the Cord tips do the work. Take small bites of tall or tough vegetation. Cut half a
swath at a time, keeping the cut area to the discharge or right side of the Trimmer.
Go over tall material twice, the first time with the Trimmer Head tilted up and back;
the second time with the Mow-Ball™
Are you hitting the Cords against a stone or a chain-link fence? The Cords won’t last
as long against obstacles as in the open. Work on controlling the cutting pattern.
With practice, you’ll learn to cut closer to obstacles without hitting them.
If none of the above helps, call 1(800) DR-OWNER (376-9637) for assistance.
Support on the ground.
CALL TOLL FREE 1-800-DR-OWNER 47
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE OR INSPECTION, STOP THE ENGINE, WAIT FIVE
(5) MINUTES TO ALLOW ALL PARTS TO COOL. DISCONNECT THE SPARK PLUG WIRE, KEEPING IT AWAY
FROM THE SPARK PLUG.
YMPTOM POSSIBLE CAUSE
S
The cutting Cords
are pulling out.
Are you moving too fast into tough, woody growth? If so, the Cords may wrap on
stalks and pull out. Check the operating tips in the section above on breaking
Cords.
Are you trying to cut material too heavy for the Cord? The design of your Trimmer is
to cut green material up to about the thickness of a pencil. For very heavy material,
you may need the optional BEAVER BLADE
®
attachment.
Are you installing the smaller Cord in the larger Cord slots? Please see page 23.
If none of the above helps, call 1(800) DR-OWNER (376-9637) for assistance.
PTA (Parallel
Trimming Action)
is difficult.
The Mow-Ball
Support is wearing
too quickly.
The Drive Wheels
won’t turn (SELFPROPELLED
model).
The machine
creeps forward
without squeezing
the clutch (SELFPROPELLED
model).
Have you adjusted the Handlebar up or down? If so, you may need to adjust the
lever. See the section “Adjusting the PTA” on page 15.
PTA
If none of the above helps, call 1(800) DR-OWNER (376-9637) for assistance.
Are you pushing the Trimmer Head down into the ground? The DR
TRIMMER/MOWER works best with a light touch, with the Mow-Ball™ Support
resting easily on the ground.
Are you hitting the Mow-Ball™ Support against rocks, concrete driveways or other
hard obstacles? Try approaching them slowly, and from different directions, to
avoid unnecessary wear.
If none of the above helps, call 1(800) DR-OWNER (376-9637) for assistance.
The Transmission Clutch may be out of adjustment. Adjust the Inline Adjuster
located in the Clutch Cable. See “Adjusting the Wheel Clutch” on page 43.
The Drive Chain may have broken or come off the sprockets. Remove the Bottom
Shield to investigate. See page 34.
The Drive Belt may have come off the pulleys, worn out or failed. Remove the
Bottom Shield to investigate. See page 34 and Drive Belt on page 36.
Check to see if the Wheels rotate freely in each direction. They should freewheel in
the forward direction and lock against the axle going backwards. If they freewheel
backwards, the Drive Wheel Clutches may have failed.
Call 1(800) DR-OWNER (376-9637) for assistance.
If none of the above helps, call 1(800) DR-OWNER (376-9637) for assistance.
The Transmission Clutch may be out of adjustment. Adjust the Inline Adjuster
located in the Clutch Cable. See “Adjusting the Wheel Clutch” on page 43.
If the Trimmer still “creeps”, call 1(800) DR-OWNER (376-9637) for assistance.
48 DR® TRIMMER/MOWER
CALL TOLL FREE 1-800-DR-OWNER 49
CHAPTER 7
PARTS LISTS, SCHEMATIC DIAGRAMS AND WARRANTY
Parts List - Handlebar Assembly - SPRINT
NOTE: Part numbers listed are available through Country Home Products, Inc.
, PRO and COMMERCIAL
Ref# Part# Description
03 143971 Cable, Throttle, Reverse Throw, B&S
152481 Cable, Throttle, Normal Throw,
Kawasaki
04 112381 Washer, Flat, 1/4", USS
05 113081 Ignition Switch, Key, E/S, w/805
Hardware
06 174561 Handlebar, Lower, Black
07 144641 Bolt, Carriage, 5/16"-18 x 3", GR 2, ZP
08 110761 Nut, Nylon Locking, 5/16"-18
09 147551 Handlebar, Upper, Black
179191 Handlebar, Upper, Black, w/Grip
10 123361 Bolt, 5/16"-18 x 1-1/4", HCS, GR 5, ZP
11 174531 Bracket, key switch
12 110731 Nut, Nylon Locking, 1/4"-20
13 101451 Bolt, 1/4"-20 x 1-1/2", HHCS, GR 2, ZP
14 112371 Washer, Flat, #10, USS
15 143681 Bracket, Cable, Trimmer Head Engage,
Handlebar
17 143671 Stop, Bail Bar
18 165331 Grip, Handlebar, Foam
19 143931 Spring, C, .720" OD x .063" Wire,
Handlebar Adjuster
20 143661 Knob, Handlebar, 5/16"-18
21 191351 Handlebar Adjuster, Inside
22 143731 Handlebar Adjuster, Outside
22.1 145801 Handlebar Adjuster Assembly
23 112141 Cable Tie, Nylon, Black, 7-1/2"
25 114561 Bolt, 1/4"-20 x 2", HCS, GR 2, ZP
26 143981 Cable, Trimmer Head Engage
109 143651 Bail Bar
Ref# Part# Description
110 143901 Knob, Bracket, PTA
112 143881 Lever, PTA
113 143891 Bracket, PTA
116 144001 Cable, PTA
Lever, Handlebar
Lever
117 118691 Nut, Head Engage Cable
Not Illustrated
188241 Wire Harness, w/adapter, B&S
144741 Wire Battery, Positive only (Kawasaki only)
143911 Wire Harness, complete (Kawasaki only)
50 DR® TRIMMER/MOWER

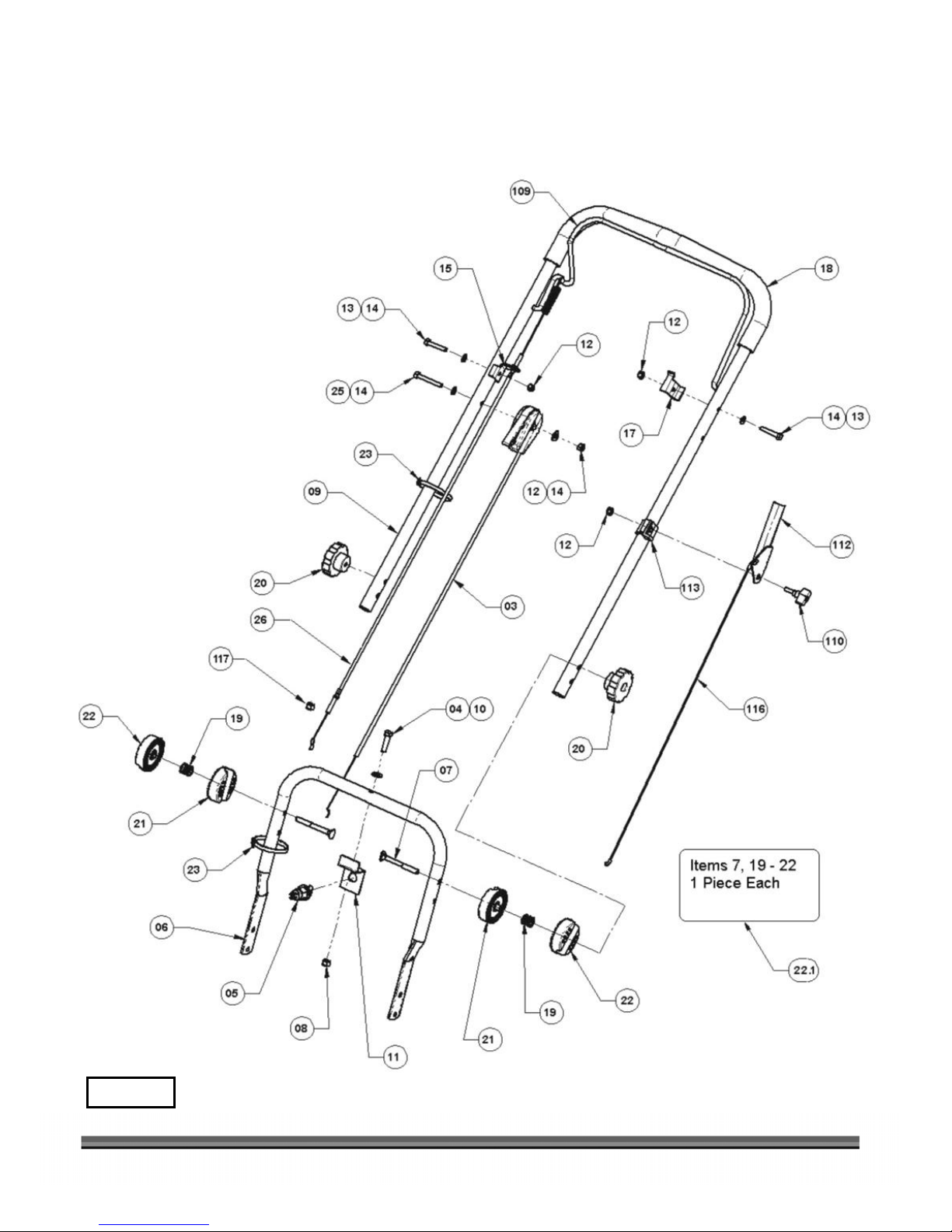

Schematic - Handlebar Assembly - SPRINT, PRO and COMMERCIAL
050919
CALL TOLL FREE 1-800-DR-OWNER 51
Parts List - Axle Assembly - SPRINT, PRO and COMMERCIAL
NOTE: Part numbers listed are available through Country Home Products, Inc.
Ref# Part# Description
04 112381 Washer, Flat, 1/4", ZP
08 110761 Nut, Nylon Locking, 5/16"-18
49 151401 Bolt, 1/4"-20 x 3/4", Tri-Lobe (PRO, COMMERCIAL)
50 111581 Bolt, 5/16"-18 x 1", HHCS, GR 2, ZP
83 152331 Nut, Nylon Locking, 7/16"-20, Low Profile
84 147611 Wheel, 16", Black Nylon (PRO)
147601 Wheel, 16", Chrome, Spoke (COMMERCIAL)
190061 Wheel, 14", Black Resin, 6-Spoke (SPRINT)
101 143621 Arm, PTA
102 143611 Support, PTA
Locking
Spring
103 121521 Washer, Nylon, Axle, 3/4" x 3/8" x .020 Thick
104 144011 Spring, E, .500" OD x .075", wire
105 143841 Stud, Pivot
108 147501 Axle Assembly
111 143761 Pivot Support Assembly w/Rod
52 DR® TRIMMER/MOWER

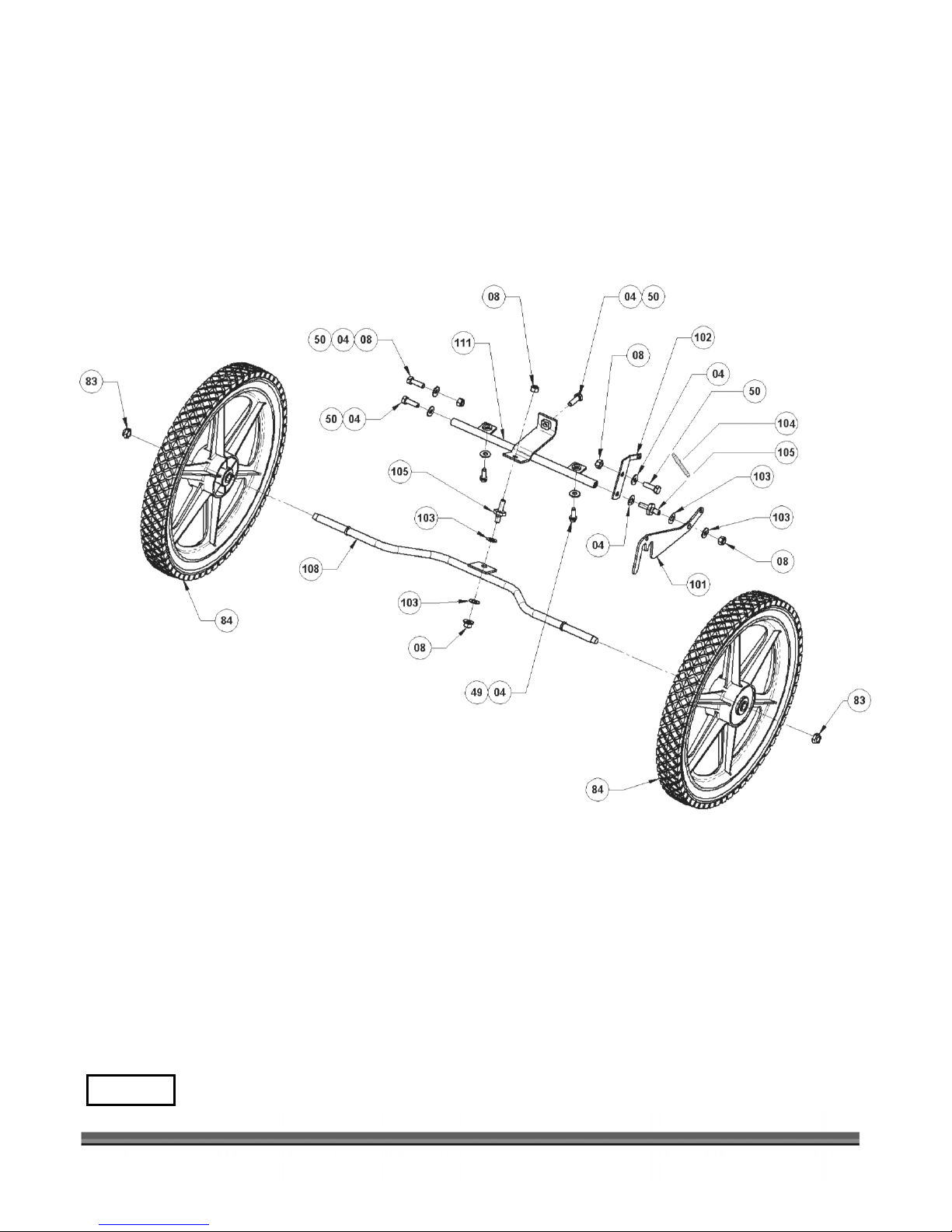

Schematic - Axle Assembly - SPRINT, PRO and COMMERCIAL
050919
CALL TOLL FREE 1-800-DR-OWNER 53
Parts List - Main Frame Assembly - All Models
NOTE: Part numbers listed are available through Country Home Products, Inc.
Ref# Part# Description
04 112381 Washer, Flat, 1/4", USS
08 110761 Nut, Nylon Locking, 5/16"-18
12 110731 Nut, Nylon Locking, 1/4"-20
28 147521 Frame, Drilled, Aluminum, Orange
(PRO, COMMERCIAL)
190071 Frame, Steel, Orange (SPRINT)
180421 Frame, Drilled, Aluminum, Orange
(SELF-PROPELLED)
45 180811 Washer, Lock, 3/8"
47 111551 Bolt, 3/8"-24 x 3/4", HHCS, GR 2, ZP
49 151401 Screw, 1/4"-20 x 3/4", Tri-Lobe, ZP
50 111581 Bolt, 5/16"-18 x 1", HHCS, GR 2, ZP
51 143941 Spring, Ext., .50" OD x .063" Wire
52 114431 V-Belt, 1/2" x 45", 4L450
53 110751 Nut, Nylon Locking, 3/8"-16
54 144091 Pulley, Idler #2, 2-5/8" OD
55 143771 Shield, Outer, Lower
56 119191 Pulley 4", V-Belt
58 145221 Screw, 3/8"-16 x 1-1/2", HHCS
(PRO, COMMERCIAL)
60 146811 Clip, Mounting, Inner Lower Shield,
(PRO, COMMERCIAL, SELF-PROPELLED)
143801 Clip, Mounting, Inner Lower Shield,
(SPRINT)
61 146781 Shield, Inner, Lower, aluminum
(PRO, COMMERCIAL)
143811 Shield, Inner, Lower, steel
(SPRINT)
179511 Shield, Bottom (SELF-PROPELLED)
62 180131 Bolt, 1/4"-20 x 1", Tri-Lobe, ZP
63 143871 Battery, 12 V, 2.9 Ah
64 143861 Pad, Battery, 1.38" x 7.0"
65 143851 Clamp, Battery, Plastic
66 174881 Engine, B&S, 6.0 HP, E/S
(PRO, COMMERCIAL, SELF-PROPELLED)
190261 Engine, B&S, 5.5 HP, E/S (SPRINT)
67 114921 Bracket, Belt Retainer
68 118731 Nut, Nylon Locking, 10-24
Ref# Part# Description
69 143831 Bracket, Clutch, Deck
70 113071 Pulley, Idler #1, 2-1/4" Diameter
71 143521 Rod, Brake Connecting
72 134431 Bolt, 5/16"-18 x 1-1/2" HCS
73 143751 Washer, Nylon, .505" ID x 1" OD
74 143601 Stand-off, Clutch Arm
75 143581 Arm, Clutch
85 146801 Guide, Engine Pulley, Belt
(PRO, COMMERCIAL, SELF-PROPELLED)
143821 Guide, Engine Pulley, Belt (Sprint)
98 152501 Bolt, 1/4"-20 x 3/4" HCS
99 146821 Rod, Debris Guard,
(PRO, COMMERCIAL)
143791 Rod, Debris Guard (SPRINT)
100 147581 Screw, 10-24 x 1/2", Type B
(PRO, COMMERCIAL)
144511 Bolt, Carriage, 10-24 x 5/8"
(SPRINT – used with item 68)
107 143781 Debris Guard (SPRINT, PRO,
COMMERCIAL)
114 152141 Rivet, Ratchet, 1/4" OD
(PRO, COMMERCIAL, SELF-PROPELLED)
115 146791 Wear Strip (PRO, COMMERCIAL)
Not Illustrated:
114681 Bolt, 1/4"-20 x 1-1/4" HCS
100771 E-Clip, Clutch Cable
(PRO, COMMERCIAL, SPRINT)
152361 Tool, head locking
Labels
127811 Warning, Add Oil
136491 Danger
148221 Danger Head Rotation
148231 Safety Icons
148241 Name, TR2
(PRO, COMMERCIAL, SPRINT)
153071 PTA
(PRO, COMMERCIAL, SPRINT)
153081 Bail Bar
193201 Start, Key Bracket
54 DR® TRIMMER/MOWER

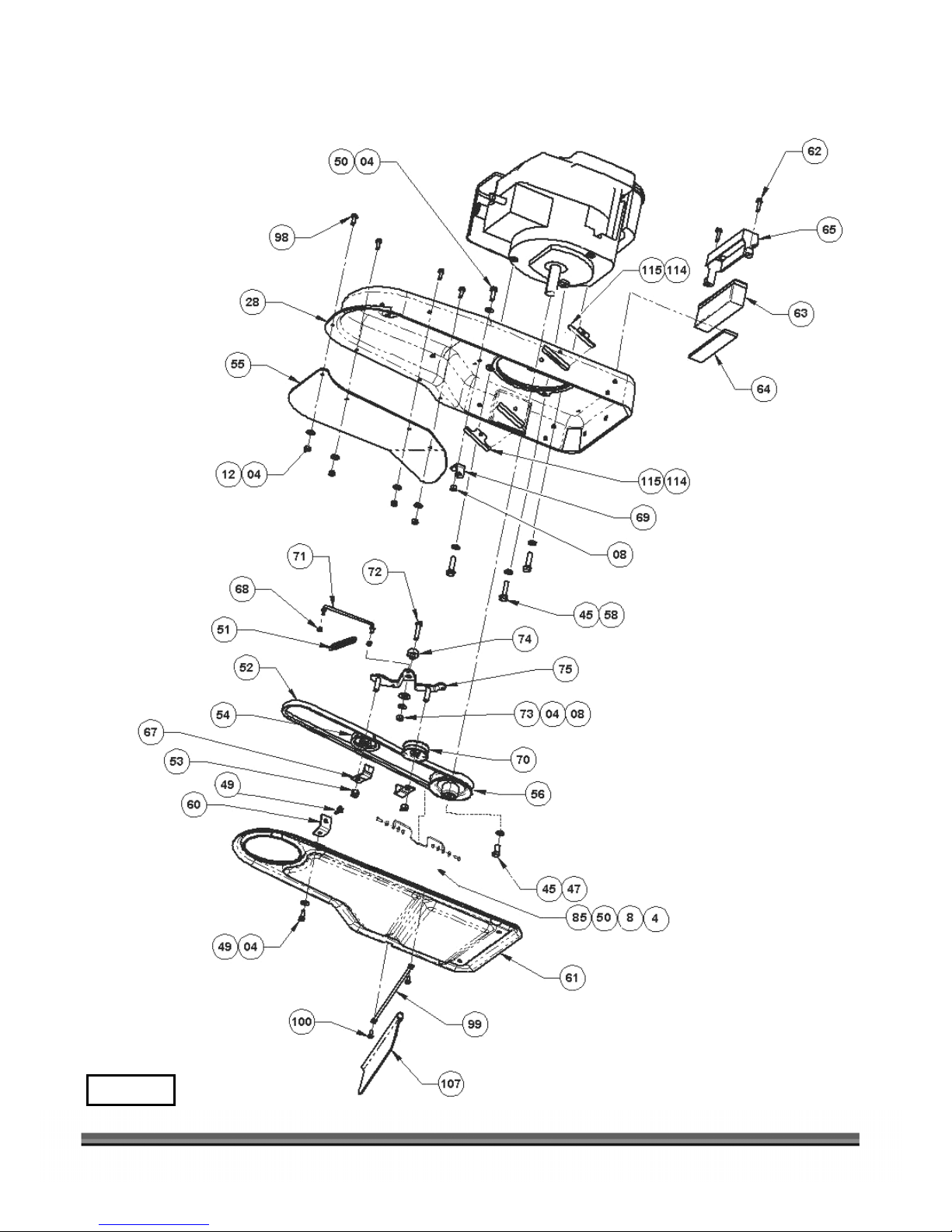

Schematic - Main Frame Assembly - All Models
051010
CALL TOLL FREE 1-800-DR-OWNER 55
Parts List - Handlebar Assembly - SELF- PROPELLED
NOTE: Part numbers listed are available through Country Home Products, Inc.
Ref# Part# Description
03 143971 Cable, Throttle, Reverse Throw, B&S
152481 Cable, Throttle, Reverse Throw, Kawasaki
04 112381 Washer, Flat, 1/4" USS
05 113081 Ignition Switch, Key, E/S, w/805 Hardware
06 174561 Handlebar, Lower, Black
07 144641 Bolt, Carriage, 5/16"-18 x 3", GR 2, ZP
08 110761 Nut, Nylon Lock, 5/16"-18
09 147551 Handlebar, Upper, Black
09.1 191911 Handlebar, Upper, Black, w/Grip
10 123361 Bolt, 5/16"-18 x 1-1/4", HHCS, GR 5, ZP
11 174531 Bracket, Key Switch, E/S
12 110731 Nut, Nylon Lock, 1/4"-20
13 101451 Bolt, 1/4"-20 x 1-1/2", HHCS, GR 2, ZP
14 112371 Washer, Flat, #10, USS
15 143681 Bracket, Cable, Trimmer Head Engage, Handlebar
16 189721 Bail Bar
17 143671 Stop, Bail Bar
18 190471 Grip, Handlebar, Textured Vinyl, 18-3/4" Long
19 143931 Spring, C, .720" OD x .063" Wire, Handlebar Adjuster
20 143661 Knob, Handlebar, 5/16"-18
21 191351 Adjuster, Handlebar, Inside
22 143731 Adjuster, Handlebar, Outside
22.1 145801 Adjuster Assembly, Handlebar
23 112141 Tie, Cable, 7-1/2" Long, Black
24 179641 Cable, Transmission
25 114561 Bolt, 1/4"-20 x 2.0", HCS
26 190011 Cable, Trimmer Head Engage
27 179651 Lever, Transmission Engage
Not Illustrated:
188241 Wire Harness, w/adapter
56 DR® TRIMMER/MOWER
Schematic - Handlebar Assembly - SELF- PROPELLED
050919
CALL TOLL FREE 1-800-DR-OWNER 57
Parts List - Axle Assembly - SELF-PROPELLED
NOTE: Part numbers listed are available through Country Home Products, Inc.
Ref# Part# Description
01 190531 Cover, Inner, Wheel
02 190541 Sleeve, Axle
04 112381 Washer, Flat, 1/4" USS
08 110761 Nut, Nylon Lock, 5/16"-18
12 110731 Nut, Nylon Lock, 1/4"-20
14 112371 Washer, Flat, #10, USS
46 179581 Belt, Transmission Drive, 3/8" x 20"
50 111581 Bolt, 5/16"-18 x 1" HCS
57 175601 Pulley, Transmission Drive, 2-3/4"
68 118731 Nut, Nylon, Lock, 10-24
76 193801 Transmission, 3 Speeds Forward
77 189791 Ring, Retaining, 10mm x 1" Thick
78 112441 Washer, .50" ID x .75" OD x.125" Thick, Nylon
79 179121 Screw, 1/4"-20 x 1/2", Tri-Lobe
80 213101 Ring, Retaining, .5" Shaft
82 179611 Clutch, Wheel
83 152331 Nut, Nylon, Lock, 7/16"-20, Low Profile
84.1 192381 Wheel Kit, Left, Sub Assembly, w/Item 01
84.2 192371 Wheel Kit, Right, Sub Assembly, w/Item 01
86 193811 Sprocket, Transmission, 10 Tooth
87 189591 Spring, Ext., Transmission Tension
88 179631 Bracket, Anti-Rotation
89 179591 Pulley, Transmission, 4"
90 119831 Bolt, 1/4"-20 x 3/4" HCS
91 179551 Bearing, w/Flange
92 175521 Bolt, Eye, 10-24 x 1/2"
93 193791 Axle, w/Woodruff Key
94 193821 Sprocket, Wheel, 40 tooth
95 179681 Plate, Axle, Mounting, Left
96 180841 Plate, Axle, Mounting, Right
97 179621 Chain, #35, 57 Links plus Master Link
99 213181 Key, Woodruff, 1/8" x 1/2"
Not Illustrated
189581 Key, Woodruff, 5/32" x 5/8"
58 DR® TRIMMER/MOWER
Schematic - Axle Assembly - SELF-PROPELLED
Rear
060328
CALL TOLL FREE 1-800-DR-OWNER 59
Front
Parts List - Mow Ball™ Assembly - All Models
NOTE: Part numbers listed are available through Country Home Products, Inc.
Ref# Part# Description
14 112371 Washer, Flat, #10 USS
30 213081 Bolt, Flat Head, 5/16"-18 x 2.75" w/Patch
31 143991 Spring, Ext., .500" OD x .049" Wire, Brake Return
32 143511 Brake Arm Assembly
33 121521 Washer, Axle, .750" OD x .380" ID
34 114781 Screw, Pan Head, 10-24 x 5/8", Slotted, GR 2
35 143501 Plate, Bearing, Lower, w/Bearing and Inserts
35.1 164111 Insert, 1/4"-20, Round
36 143491 Plate, Bearing, Upper
37 143921 Bearing, Ball, w/Snap Ring
38 143531 Pulley, V-Belt, 3-1/2"
39 144631 Bolt, 3/8"-16 x 4-3/4", HHCS, GR 5, ZP
40 144101 Mow Ball™, Nylon
41 143571 Plate, Line Spacer
42 143551 Standoff, Line Spacer Plate, T
43 143541 Plate, Back-Up
44 144701 Bolt, Serrated Flange, 5/16"-18 x 3/4", HHCS, GR 5, ZP
118 147181 Bearing Housing Assembly w/Brake and Belt
119 160321 Head Assembly, Complete
REF 145311 Cord, 23" long, .130ml, Orange
60 DR® TRIMMER/MOWER

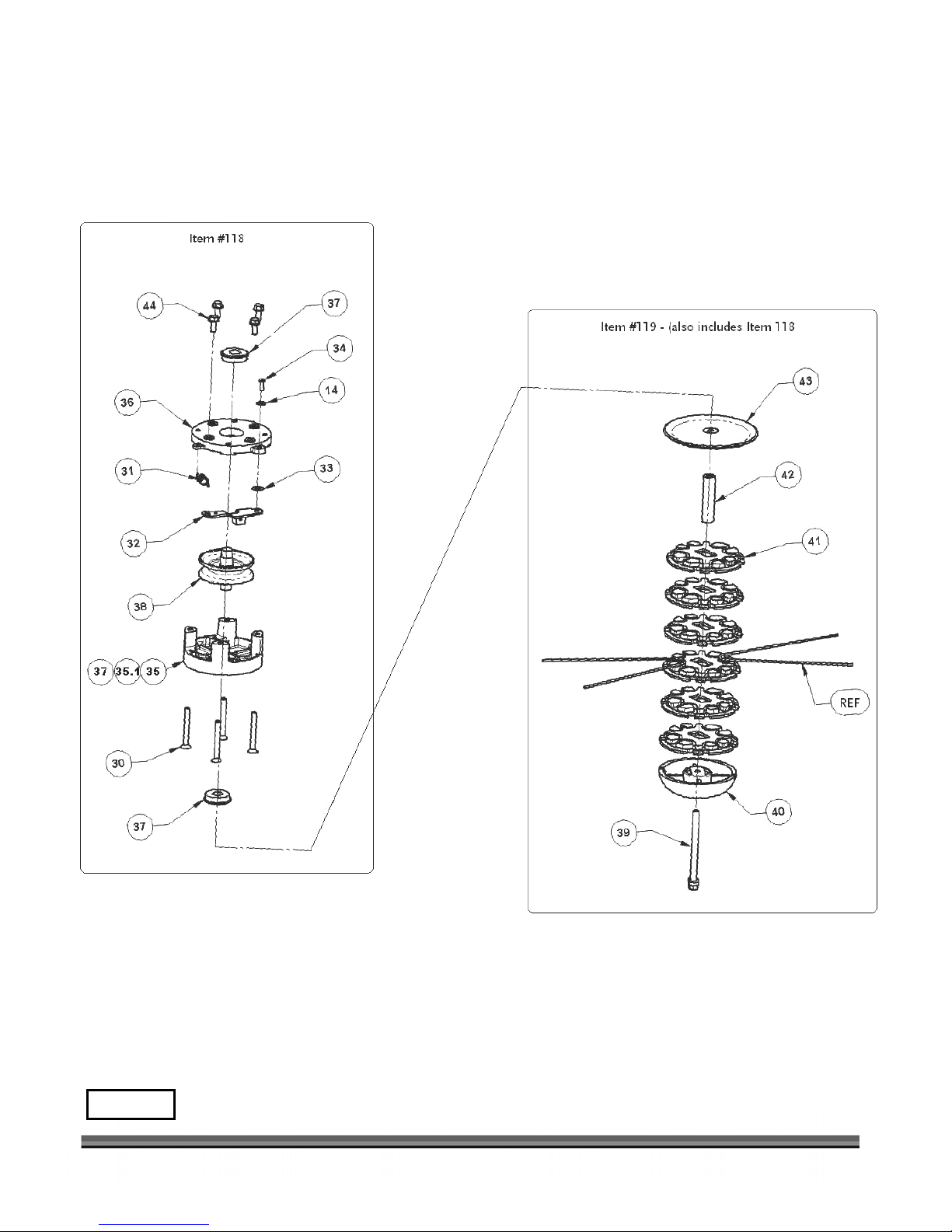

Schematic - Mow Ball™ Assembly - All Models
060327
CALL TOLL FREE 1-800-DR-OWNER 61
Notes
62 DR® TRIMMER/MOWER
DR
TRIMMER/MOWER
Warranty
2-Year Limited Warranty
Terms and Conditions
The DR TRIMMER/MOWER is warranted for two (2) years against defects in materials or workmanship when put to
ordinary and normal consumer use; ninety (90) days for any other use. The engine manufacturer warrants the engine
separately.
For the purposes of all the above warranties, “ordinary and normal consumer use” refers to non-commercial residential use
and does not include misuse, accidents, or damage due to inadequate maintenance.
®
Country Home Products, Inc. (home of DR
purposes for which a product of this type is used. Country Home Products, Inc. however, limits the implied warranties of
merchantability and fitness in duration to a period of two (2) years in consumer use, ninety (90) days for any other use.
The 2-Year Limited Warranty on the DR TRIMMER/MOWER starts on the date the machine ships from our factory. The 2Year Limited Warranty is applicable only to the original owner.
The warranty holder is responsible for the performance of the required maintenance as defined by the manufacturer's owner's
manuals. The warranty holder is responsible for replacement of normally wearing parts such as the Drive Belt(s), Cutting Cords,
Bearings, Mow-Ball™ Support, Battery, and Debris Shield. Attachments and accessories to the machine are not covered by this
warranty.
During the warranty period, the warranty holder is responsible for the machine transportation charges, if required. During the
warranty period, warranty parts will ship by standard method at no charge to the warranty holder. Expedited shipping of warranty
parts is the responsibility of the warranty holder.
SOME STATES DO NOT ALLOW LIMITATIONS ON THE LENGTH OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS
MAY NOT APPLY TO YOU.
Power Equipment) certifies that the DR TRIMMER/MOWER is fit for ordinary
Country Home Products, Inc. shall not be liable under any circumstances for any incidental or consequential damages or
expenses of any kind, including, but not limited to, cost of equipment rentals, loss of profit, or cost of hiring services to
perform tasks normally performed by the DR
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Country Home Products, Inc.’s objective is to have 100% satisfied customers. For that reason, we operate a 6-day-a-week
Technical Service Department for our Owners. You can access a Representative by dialing our TOLL-FREE Hotline at 1-800-
DR-OWNER (376-9637). The sole job of our well-trained and friendly folks is to ensure that you get any help you need in a
timely fashion. They are there to answer all your questions including: (1) inquiries on any of the above warranties, (2)
inquiries about replacement parts, or (3) your questions regarding service, maintenance, and operation.
Our Customer Service Representatives will also be happy to answer any of your questions regarding the separate warranties
on all engines. However, to obtain service, repair, or replacement of any engine within the period covered by the
COUNTRY HOME PRODUCTS, Inc.
manufacturer’s limited warranty, follow the instructions and warranty information specifically pertaining to those items
MEIGS ROAD, P.O. BOX 25, VERGENNES, VERMONT 05491
provided by their separate manufacturers.
1-800-DR-OWNER (376-9637) • www.dr-owner.com ©2002 CHP, Inc. 151751
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO
STATE.
TRIMMER/MOWER.
Customer Service Hotline
Daily Checklist for the DR TRIMMER/MOWER
To help maintain your DR TRIMMER/MOWER for optimum performance, we recommend you follow this
checklist each time you use your machine.
[ ] OIL: With the machine on a level surface, check the engine oil level with the dipstick and add more
if necessary (only add oil to the level indicated on the dipstick - DO NOT OVERFILL). Use
SAE 30 high detergent motor oil.
[ ] GAS: Fill the gas tank with clean, fresh, unleaded gasoline.
[ ] ENGINE AIR COOLING SYSTEM: It is very important to keep the engine clean of debris. Remove
grass and other built-up materials from the air intake screen
before, during, and after you mow. Regularly remove debris
from the blower housing and cooling fins. A dirty engine
retains heat and can cause damage to the internal engine parts.
[ ] CUTTING CORDS: Replace broken or frayed Cords.
[ ] MOW-BALL™ SUPPORT and LINE PLATES: Check the Mow-Ball™ Support and Line Plates for
wear and replace as needed.
[ ] GENERAL CONDITION: Check the general condition of the machine, e.g.; nuts, bolts, welds etc.
COUNTRY HOME PRODUCTS, Inc.
MEIGS ROAD, P.O. BOX 25, VERGENNES, VERMONT 05491
1-800-DR-OWNER (376-9637) • www.dr-owner.com ©2006 CHP, Inc. 214211
Loading...
