ROTO-HOG™ POWER TILLER
OPTIONAL ACCESSORIES
SAFETY & OPERATING INSTRUCTIONS
READ AND UNDERSTAND THIS MANUAL AND ALL INSTRUCTIONS BEFORE USING YOUR NEW
ACCESSORY.
Congratulations on your purchase of a new OPTIONAL ACCESSORY for the DR ROTO-HOG POWER TILLER!
We have done our utmost to ensure that your OPTIONAL ACCESSORY for the DR ROTO-HOG POWER
TILLER will be one of the most trouble-free and satisfying pieces of equipment you have ever owned. Please
let us know of any questions you may have. We want to answer them as quickly as possible. When you do call,
please have your order number handy. For technical assistance, please call Toll-Free 1-800-DR-OWNER (376-
9637) and one of our Technical Support Representatives will be happy to help you. We also hope to hear from
you on how much you like your new helper.
And, please tell your friends about your new OPTIONAL ACCESSORY for the DR ROTO-HOG POWER TILLER!
Having DR Owners spread the word about our products and our way of doing business is the best advertising
we can have, and the best way to help us provide even better service in the years to come.
Thanks once again!
for all of us at
Country Home Products, Inc.
®
Sales Manager
COPYRIGHT
©2007 Country Home Products, Inc. All rights reserved.
®
DR
Power Equipment
A division of Country Home Products
®
127 Meigs Road
Vergennes, VT 05491
Toll-free phone: 1-800-DR-OWNER (376-9637)
Fax: 1-802-877-1213
Web site:
www.dr-owner.com
ii DR® ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Table of Contents
CHAPTER 1 ..........................................................................................................................................1
INTRODUCING THE DR ROTO-HOG POWER TILLER OPTIONAL ACCESSORIES................ 1
Conventions used in this manual.................................................................................................1
DR ROTO-HOG POWER TILLER OPTIONAL ACCESSORIES Specification Sheets..................2
CHAPTER 2 ..........................................................................................................................................3
GENERAL SAFETY RULES ............................................................................................................3
Labels ..........................................................................................................................................4
Additional Information and Potential Changes ...........................................................................4
CHAPTER 3 ..........................................................................................................................................5
SETTING UP YOUR ACCESSORY for the DR ROTO-HOG POWER TILLER..............................5
SETTING UP YOUR DR POWER SPREADER...............................................................................5
Unpacking the DR Power Spreader ..............................................................................................5
Major Components .......................................................................................................................6
Hardware Package Contents.........................................................................................................7
Installing the DR POWER SPREADER..........................................................................................8
Instructions ...................................................................................................................................8
Wiring Instructions .....................................................................................................................11
Mounting the Flow Control Lever Assembly..............................................................................12
SETTING UP YOUR DR CULTI-PACKER....................................................................................13
Unpacking the DR Culti-packer...................................................................................................13
Major Components .....................................................................................................................13
Hardware Package Contents.......................................................................................................14
Assembling the Culti-packer ....................................................................................................... 15
Installing the Culti-packer ...........................................................................................................16
CHAPTER 4 ........................................................................................................................................19
OPERATING YOUR OPTIONAL ACCESSORY...........................................................................19
OPERATING YOUR DR POWER SPREADER.............................................................................19
Setting the Flow Control Lever....................................................................................................19
Starting the DR Power Spreader................................................................................................. 19
Stopping the DR Power Spreader ............................................................................................... 19
Using Your DR Power Spreader.................................................................................................. 19
Removing the DR Power Spreader .............................................................................................20
OPERATING YOUR DR CULTI-PACKER ....................................................................................21
Setting the Culti-packer to Operating Position ..........................................................................21
Operating tips .............................................................................................................................21
CHAPTER 5 ........................................................................................................................................23
MAINTAINING THE OPTIONAL ACCESSORY.........................................................................23
MAINTAINING THE DR POWER SPREADER ...........................................................................23
Regular Maintenance Check List before each use .....................................................................23
Storage ........................................................................................................................................23
CALL TOLL FREE 1-800-DR-OWNER iii
MAINTAINING THE DR CULTI-PACKER...................................................................................24
Regular Maintenance Check List before each use .....................................................................24
Replacing Parts............................................................................................................................24
Cleaning.......................................................................................................................................24
Storage ........................................................................................................................................24
CHAPTER 6 ........................................................................................................................................25
TROUBLESHOOTING YOUR OPTIONAL ACCESSORY...........................................................25
TROUBLESHOOTING YOUR DR POWER SPREADER.............................................................25
Troubleshooting Table ................................................................................................................25
TROUBLESHOOTING YOUR DR CULTI-PACKER ....................................................................26
Troubleshooting Table ................................................................................................................26
Notes ........................................................................................................................................27
CHAPTER 7 ........................................................................................................................................28
PARTS LIST AND SCHEMATIC DIAGRAMS..............................................................................28
Parts List - DR POWER SPREADER............................................................................................ 28
Schematic - DR POWER SPREADER ..........................................................................................29
Parts List - DR CULTI-PACKER ...................................................................................................30
Schematic - DR CULTI-PACKER..................................................................................................31
Daily Checklist for the OPTIONAL ACCESSORY .......................................................................32
DR POWER SPREADER CHECKLIST..........................................................................................32
DR CULTI-PACKER CHECKLIST .................................................................................................32
iv DR® ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
CHAPTER 1
INTRODUCING THE DR ROTO-HOG POWER TILLER
OPTIONAL ACCESSORIES
This manual will help you set up and safely operate your new OPTIONAL ACCESSORY for the DR
ROTO-HOG POWER TILLER. Careful adherence to the safety and operating instructions in this manual
will ensure many years of productive use. Please let us know of any questions you may have. We want to
answer them as quickly as possible. When you do call, please have your order number handy. For
technical assistance, please call Toll-Free 1-800-DR-OWNER (376-9637) and one of our Technical
Support Representatives will be happy to help you.
Conventions used in this manual
THIS INDICATES A HAZARDOUS SITUATION, WHICH, IF NOT FOLLOWED, WILL RESULT IN DEATH
OR SERIOUS INJURY.
THIS INDICATES A HAZARDOUS SITUATION, WHICH, IF NOT AVOIDED,
OR SERIOUS INJURY
THIS INDICATES A HAZARDOUS SITUATION, WHICH, IF NOT AVOIDED,
.
COULD RESULT
COULD RESULT
IN
IN
DEATH
MINOR
OR MODERATE INJURY.
THIS INFORMATION IS IMPORTANT IN THE PROPER USE OF YOUR SPREADER. FAILURE TO FOLLOW
THIS INSTRUCTION COULD RESULT IN DAMAGE TO YOUR SPREADER OR PROPERTY.
Tip: This is a helpful hint to guide you in getting the most out of your OPTIONAL ACCESSORY for the
DR ROTO-HOG POWER TILLER.
Tools Needed: This indicates you will need a special tool to perform an assembly function on your new
OPTIONAL ACCESSORY.
NOTE:
This information may be helpful to you.
If you are ever unsure about an action you are about to take, don’t do it. Contact Country Home Products’ tollfree support at 1-800-DR-OWNER (376-9637) for help or information.
CALL TOLL FREE 1-800-DR-OWNER 1
DR ROTO-HOG POWER TILLER OPTIONAL ACCESSORIES Specification Sheets
DR POWER SPREADER SPECIFICATIONS
Spreader Dimensions 34" X 30" X 32"
Shipping Dimensions 29.78" X 21.38" X 24.25"
Shipping Weight 35 lbs.
Spreader Capacity (Weight) 125 lbs.
Spreader Capacity (Volume) 14 gal.
DR CULTI-PACKER SPECIFICATIONS
Culti-packer Dimensions 20" X 12" X 38"
Shipping Dimensions 18" X 12" X 39"
Shipping Weight Approx. 87 lbs.
2 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
CHAPTER 2
GENERAL SAFETY RULES
ANY POWER EQUIPMENT CAN CAUSE INJURY IF OPERATED IMPROPERLY OR IF THE USER DOES
NOT UNDERSTAND HOW TO OPERATE THE EQUIPMENT. EXERCISE CAUTION AT ALL TIMES
WHEN OPERATING EQUIPMENT.
• READ THIS OWNERS MANUAL BEFORE ATTEMPTING TO ASSEMBLE OR OPERATE THE
ACCESSORY.
• READ THE VEHICLE OWNER’S MANUAL AND KNOW HOW TO OPERATE YOUR VEHICLE,
BEFORE USING THE ACCESSORY.
• DO NOT ALLOW ANYONE TO RIDE ON OR SIT ON SPREADER OR CULTI-PACKER FRAME.
• NEVER ALLOW CHILDREN TO OPERATE THE VEHICLE OR ACCESSORY.
• DO NOT ALLOW ADULTS TO OPERATE THE VEHICLE OR ACCESSORY WITHOUT PROPER
INSTRUCTIONS.
• WE RECOMMEND WEARING SAFETY SHOES WHEN USING THIS MACHINE. WEAR SHOES
WITH NON-SLIP TREADS TO IMPROVE FOOTING ON SLIPPERY SURFACES. DO NOT USE THE
MACHINE WEARING OPEN SANDALS OR WHILE BAREFOOT.
• WEAR EYE AND HAND PROTECTION WHEN HANDLING AND USING LAWN CHEMICALS.
• ALWAYS BEGIN WITH THE VEHICLE TRANSMISSION IN FIRST (LOW) AND GRADUALLY
INCREASE SPEED AS CONDITIONS PERMIT.
• WHEN USING THE ACCESSORY DO NOT DRIVE TOO CLOSE TO A CREEK OR DITCH AND BE
ALERT FOR HOLES AND OTHER HAZARDS WHICH COULD CAUSE YOU TO LOOSE CONTROL
OF THE ACCESSORY AND VEHICLE.
• ALWAYS OPERATE VEHICLE AND ACCESSORY UP AND DOWN A SLOPE, NEVER ACROSS A
SLOPE.
• READ INSTRUCTIONS AND CAUTION NOTES FOR HANDLING AND APPLICATION OF
MATERIALS PURCHASED FOR SPREADING.
• FOLLOW MAINTENANCE AND LUBRICATION INSTRUCTIONS AS OUTLINED IN THIS MANUAL.
CALL TOLL FREE 1-800-DR-OWNER 3
Labels
Your OPTIONAL ACCESSORY for the DR ROTO-HOG POWER TILLER carries prominent labels as
reminders for its proper and safe use. Shown below are copies of all the labels that appear on the
accessories. Take a moment to study them and make a note of their location on your OPTIONAL
ACCESSORY for the DR ROTO-HOG POWER TILLER as you assemble and before you operate the unit.
Replace damaged or missing safety and information labels immediately.

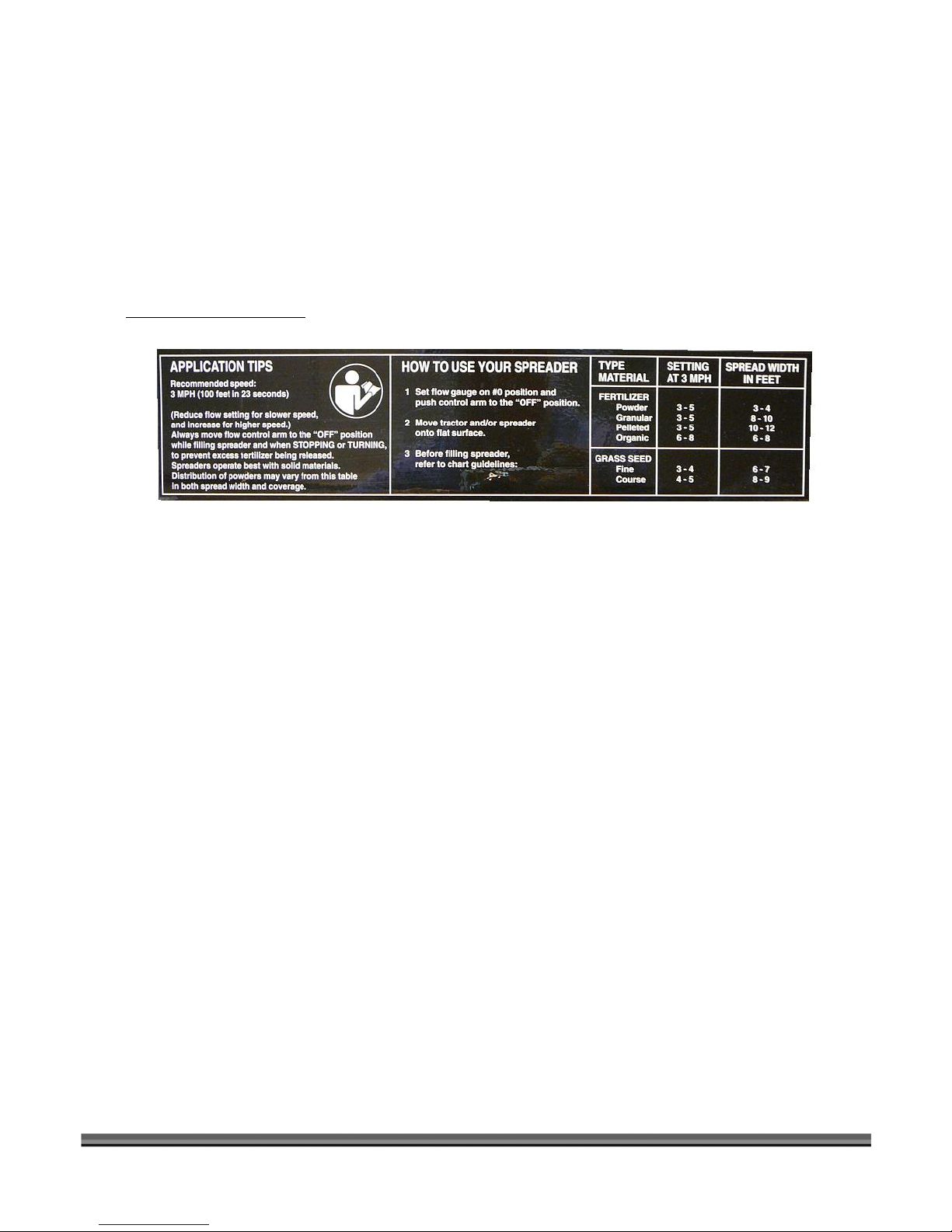

DR Power Spreader:
Additional Information and Potential Changes
Country Home Products, Inc. reserves the right to discontinue, change, and improve its products at any
time without notice or obligation to the purchaser. The descriptions and specifications contained in this
manual were in effect at printing. Equipment described within this manual may be optional. Some
illustrations may not be applicable to your machine.
4 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
CHAPTER 3
A
A
SETTING UP YOUR ACCESSORY for the DR ROTO-HOG
POWER TILLER
This chapter outlines a few simple steps you will need to follow to set up and use your new DR ROTOHOG POWER TILLER OPTIONAL ACCESSORIES. If you have any questions at all, please feel free to
contact our Customer Service Representatives at our toll free number 1-800-DR-OWNER (376-9637).
SETTING UP YOUR DR POWER SPREADER
Unpacking the DR Power Spreader
Parts Supplied:
• Hopper/Frame Assembly
• Screen
• Vinyl Cover
• Hardware Package
• Impeller Shaft
• Deflector
• Mounting Bracket, R.H.
• Mounting Bracket, L.H.
• Impeller
• Motor Mount Assembly
Tools Needed:
• Pliers
1. Open the shipping container by pulling the staples out
with pliers and opening the top flaps (Figure 1).
Hopper/Frame
ssembly
2. Remove the contents to a flat open area (the M
Brackets are located under the bottom box flaps).
Open the cardboard that is wrapped around the Mo
3. tor
Mount Assembly to remove the Motor Mount
Assembly, Vinyl Cover, Impeller Shaft and Hard
Package
4. (Figure 2).
See the unpacked “Major Components”
NOTE: Do not discard your packaging material until you are
fully satisfied with your new DR POWER SPREADER.
ounting
ware
Motor Mount
Figure 1
CALL TOLL FREE 1-800-DR-OWNER 5
ssembly
p
f
ge)
A
y
Major Components
Vin
Impeller
Sha
l Cover
Hopper
Closure
Plate
Im
eller
t
Flow
Control
Lever
ssembly
Hopper/Frame
Assembly
Motor Mount
Assembly
Hardware
Package
(see next
pa
Mounting
Bracket, R.H.
6 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Mounting
Screen
Bracket, L.H.
Deflector
Figure 2
Hardware Package Contents
The item numbers listed below are the same item numbers listed in the parts list and schematic
diagram in the “Parts List and Schematic Diagrams” section of chapter 7. This reference will aid in the
proper location of parts as you assemble the spreader.
Parts not to scale
35
32
37
48
17
33
28
21
6
5
7
46
26
25
39
41
ITEM
QTY. DESCRIPTION ITEM
NO.
35 4 Hex Bolt, 5/16" x 1" 25 1 Hair Pin Agitator
28 2 Hex Bolt, 1/4" x 3/4" 39 3 Cotter Pin, 1/8" x 1-1/4"
21 5 Carriage Bolt, 5/16" x 1-3/4" 37 1 Impeller Coupler
7 2 Nylock Hex Nut, 1/4" 17 5 Wing Knob
26 4 Nylock Hex Nut, 5/16" 33 2 Angle Bracket
6 2 Flat Washer , 1/4" 46 1 Mounting Clamp
32 8 Flat Washer, 5/16" 41 2 Nylon Tie
5 2 Nylon Washer 48 1 Spreader Cable
QTY. DESCRIPTION
NO.
Table 1
CALL TOLL FREE 1-800-DR-OWNER 7
Installing the DR POWER SPREADER
Tools Needed:
• 7/16" Wrench and Socket
• 1/2" Wrench and Socket
Instructions:
Tiller Fender
Hex Head Bolts,
Washers and
Nylock Nuts
Figure 3
Hex Head Bolt,
Washers and
Nylock Nut
Tiller Fender
1. Remove two 5/16-18 X 2-1/4" Hex Head Bolts,
Washers and Nylock Nuts (1/2" Wrench) from the
back face of the ROTO-HOG POWER TILLER Fender
(Figure 3).
2. Position the left hand Mounting Bracket onto the back
face of Tiller Fender (Figure 4), with mounting tabs
facing in, and replace the hardware you removed in
step 1. Install a 5/16-18 X 1” Hex Head Bolt (on top),
Washer and Nylock Nut (1/2" Wrench) to secure the
Bracket to top of the Tiller Fender. Repeat this step to
install the right hand Mounting Bracket.
Mounting
Bracket
Figure 4
Wing Knobs
and Washers
Figure 5
8 DR
Mounting
Tab
3. Use the top and bottom holes of the Mounting Tubes
Carriage
Bolts
on the Hopper/Frame assembly to attach the
assembly to the Spreader Mount Brackets with four
5/16-18 x 1-3/4" Carriage Bolts (1/2" Wrench), four
5/16" Washers and four Wing Knobs (Figure 5). Make
sure that the Carriage Bolt square goes fully into the
square holes of the Spreader Mount Brackets and the
Wing Knobs and Washers are on the Mounting Tube
side.
Hopper
Mounting
Tubes
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Hopper
Assembly
4. Remove two 1/4" Nylock Nuts (7/16" Wrench) from
the Hopper Assembly and position the two Angle
Brackets and secure (hand tight) with the two Nuts
you removed (Figure 6).
5. Position the Rear Deflector onto the Angle Brackets
and secure with two 1/4-20 x 3/4" Bolts, Washers and
Nylock Nuts.
6. Tighten the Nylock Nuts that secure the Angle
Brackets to the Hopper Assembly.
Figure 6
Rear
Deflector
Angle
Bracket
Bolt,
Washer and
Nylock Nut
Nylock
Nut
Hopper
Assembly
7. Position the Impeller Coupler over the Output Shaft of
the Motor Mount Assembly and secure with 1/8" x 11/4" Cotter Pin (Figure 7).
NOTE: The Impeller Shaft has three holes in it. It should be
mounted so that the center hole is furthest away from
the Impeller Coupler.
8. Insert the Impeller Shaft into the Impeller Coupler and
secure with 1/8" x 1-1/4" Cotter Pin.
9. Slide the Impeller Shaft through the hole in Spreader
Screen and insert the Agitator Hairpin thru the center
hole in the Impeller Shaft (Figure 8).
Cotter
Pins
Figure 7
Impeller
Shaft
Impeller
Coupler
Output
Shaft
Motor Mount
Assembly
Impeller
Shaft
Agitator
Hairpin
Spreader
Screen
Figure 8
CALL TOLL FREE 1-800-DR-OWNER 9
Impeller
f
Sha
t
Figure 9
Clip
Motor Mount
Assembly
Spreader
Screen
Hopper
10. Position the Motor Mount assembly with the Spreader
Screen into the Hopper and slide the Impeller Shaft
through the hole in the bottom of the Hopper (Figure
9). Secure the Spreader Screen into the recessed
portion of the Hopper by sliding the edge of the
Screen under the Clips on both sides.
Hopper
Bolt, Washer,
Nylon Washer
and Nylock
Nut
Figure 10
Impeller
Shaft
Motor M
Bracket
Spreader
Impeller
ount
11. Line up the Motor Mount Bracket with holes in
Hopper. Secure Motor Mount Bracket to Hopper with
two 5/16-18 x 1" Hex Bolts, two 5/16" Washers, two
Nylon Washers (against outside of Hopper) and two
5/16" Nylock Nuts (1/2" Wrench) (Figure 10).
12. Slide the Spreader Impeller onto the Impeller Shaft
with the large fins facing up and secure with 1/8" x 11/4" Cotter Pin (Figure 11).
Cotter Pin
Figure 11
10 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Wiring Instructions
”
f
1. Move the "ON-OFF" Switch on the ROTO-HOG
Control Box to the “OFF” position (Figure 12).
ROTOHOG
Control Box
Figure 12
“ON
“OFF”
“ON-OFF”
Switch
2. Attach the Spreader Cable Connector to the Motor
Mount Assembly Connectors (Figure 13).
3. Plug the Green Wire Connector from the Spreader
Cable into the Green Wire Connector from the Tiller
(Figure 14).
4. Remove the Nylock Nut from the Ground Stud on the
Battery Mounting Bracket.
5. Install the Black Wire Terminal from the Spreader
Cable onto the Ground Stud and reinstall the Nylock
Nut.
6. Use the Nylon Ties provided to safely secure the
wiring and Flow Control Cable away from hot engine
parts, rotating parts and pinch points.
Tiller Wire Harness
Connector
Figure 13
Black Wire
from
Spreader
Cable
Green Wire
from Spreader
Cable
Figure 14
Motor Mount
Assembly
Connectors
Flow C
ontrol
Cable
Ground Stud on
Battery Mounting
Bracket
Green Wire
rom Tiller
CALL TOLL FREE 1-800-DR-OWNER 11
Mounting the Flow Control Lever Assembly
Mounting
Clamp
Figure 15
Bracket
Flow Control
Lever
Assembly
1. Find a place on your tow vehicle to mount the Flow
Control Lever Assembly where you can operate while
sitting on the vehicle. If there is not a hole in the area
to mount a 5/16” bolt then you must create one.
2. Using a 5/16" x 1-3/4" Carriage Bolt and Wing Knob
from the Hardware Package, mount the Flow Control
Lever Assembly to your Tow Vehicle (Figure 15).
3. If a different mounting position is required, use the
Mounting Clamp from your Hardware Package to
change the position of the Flow Control Lever
Assembly. You will need to provide the hardware to
mount the Mounting Clamp to the tow vehicle.
12 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
SETTING UP YOUR DR CULTI-PACKER
Unpacking the DR Culti-packer
Parts Supplied:
• Frame and Wheel Assembly
• Hook Assembly
• Hardware Package
Tools Needed:
• Pliers
• Utility Knife
1. Cut the plastic away from the box with a Utility Knife.
2. Open the shipping container by pulling the staples
out with pliers and opening the top flaps (Figure 16).
3. Remove the contents to a flat open area.
Frame and
Wheel
Assembly
Hook
Assembly
Hardware
Package
4. See the unpacked “Major Components” (Figure 17).
NOTE: Do not discard your packaging material until you are
fully satisfied with your new DR CULTI-PACKER.
Major Components
Frame and
Wheel
Assembly
Figure 16
Hook
Assembly
Hardware
Package
Figure 17
CALL TOLL FREE 1-800-DR-OWNER 13
Hardware Package Contents
The item numbers listed below are the same item numbers listed in the parts list and schematic
diagram in the “Parts List and Schematic Diagrams” section of chapter 7. This reference will aid in the
proper location of parts as you assemble and install the Culti-packer.
Parts not to scale
14
10
ITEM
NO.
15
QTY. DESCRIPTION ITEM
NO.
6
5
QTY. DESCRIPTION
14 2 Extension Spring 10 2 Clevis Pin
15 2 “S” Hook 5 1 Hook Axle
6 4 Hairpin Clip
14 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Table 2
Assembling the Culti-packer
A
A
A
A
1. Position the Hook Assembly and line up the holes
with the Frame Assembly (Figure 18).
2. Insert the Hook Axle so it is flush on both sides.
3. Insert two Hairpin Clips into the holes in the Hook
Axle (Figure 19).
Hook
xle
Frame
ssembly
Figure 18
Hook
xle
Hook
ssembly
Hairpin
Clip
4. Install the springs onto the two Eye Bolts on the
Frame Assembly (Figure 20).
Figure 19
Springs
Figure 20
CALL TOLL FREE 1-800-DR-OWNER 15
Eye Bolt
Installing the Culti-packer
r
A
A
Figure 21
Tiller
Set at
approx.
°
ROTO-HOG
Power Tille
Hook
ssembly
1. Rotate the ROTO-HOG Power Tiller Wheels to their
halfway position with the ROTO-HOG Control Box
(Figure 21).
2. Position the Culti-packer at the rear of the Tiller near
the wheel axle (Figure 22).
3. Rotate the Hook Assembly away from the Tiller.
Figure 22
Slot
Lower Wheel
Axle of Tiller
ssembly
Figure 23
16 DR
4. Slide the Slotted Tubes of the Frame Assembly onto
the Lower Wheel Axle of the Tiller until the Axle is
seated into the slot base of both Slotted Tubes (Figure
23).
Slotted Tube/
Culti-packer
Frame Assembly
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
5. t the Clevis Pins into the holes at the ends of the
d
Inser
Slotted Tubes from the top and secure the Clevis Pins
with Hairpin Clips (Figure 24).
6. Use the ROTO-HOG Control Box to Raise the Tiller
Tines to their uppermost position (Figure 25).
Slotted
Tube
Clevis Pin
Hairpin
Clip
Figure 24
approx.
90°
7. Place the “S” Hooks onto the Support Rod on the
Tiller Wheel Frame Assembly (Figure 26).
NOTE: The “S” Hooks have a large and small end. The large
end is for the Support Rod and the small ends are for
the Springs to attach in the next step.
Figure 25
“S” Hooks
Support
Ro
Figure 26
CALL TOLL FREE 1-800-DR-OWNER 17
A
Springs
8. Rotate th
and Hook
e
Culti-packer up towards the Wheel Frame
the Springs onto the “S” Hooks (Figure 27).
Figure 27
Lower
Slot
Hook
ssembly
9. Slowly lower the Culti-packer to the gro
und.
10. Lift the Culti-packer as you rotate the Hook Assembly
forwardcatil the Lower Slots of the Hook Assembly
un
n be hooked over the Support Rod (Figure 28).
11. The Culti-packer is now in transport mode.
Figure 28
18 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
CHAPTER 4
J
”
OPERATING YOUR OPTIONAL
ACCESSORY
OPERATING YOUR DR POWER SPREADER
Setting the Flow Control Lever
1. Slide the Adjustable Stop to the desired setting
(“OFF” is fully closed, “10” is fully open) (Figure 29).
Leave the Flow Control Lever at the “OFF” setting
2.
until you use the spreader.
Starting the DR Power Spreader
1. Toggle the "ON-OFF" switch of the ROTO-HO
Control Box to the “ON” position (Figure 30). Leave
the Flow Control Lever at the “OFF” posi
use the Spreader (Figure 29).
Stopping the DR Power Spreader
1. ove the Flow Control Lever to the "OFF" position
M
(Figure 29). Toggle the “ON-OFF” Switch to the
“OFF” position (Figure 30).
tion until you
G
Figure 29
ROTOHOG
Control Box
Figure 30
Adjustable
Stop
Flow
Control
Lever
“ON
“OFF”
“ON-OFF”
Switch for
Spreader
Motor
“OFF”
WE DO NOT RECOMMEND THE USE OF ANY POWDERED LAWN CHEMICALS, DUE TO DIFFICULTY
IN OBTAINING A SATISFACTORY OR CONSISTENT BROADCAST PATTERN.
APPLICATION RATES SHOWN IN THE CHART (TABLE 3, P. 20) ARE AFFECTED BY HUMIDITY AND BY
THE MOISTURE CONTENT OF THE MATERIAL (GRANULAR AND PELLET). SOME MINOR SETTING
AD
USTMENTS MAY BE NECESSARY TO COMPENSATE FOR THIS CONDITION.
Using Your DR Power Spreader
1. Determine approximate square footage of area to be covered and estimate amount of material
required.
2. Verify that the Spreader Motor turns on and off and that the flow control is operating properly.
3. Make sure the Flow Control Lever is in the “OFF” position.
4. Set the Adjustable Stop to the desired flow rate, keeping the Flow Control Lever in the “OFF”
position. Refer to the application chart (Table 3) and the instructions on the Material Package to
determine the proper flow rate setting. The application chart is calculated for a vehicle speed of 3
mph (100 ft. in 23 seconds). Faster speeds require higher flow rate settings to maintain the same
application rate.
CALL TOLL FREE 1-800-DR-OWNER 19
TYPE
A
MATERIAL
FERTILIZER
Powder
Granular
Pelleted
Organic
GRASS SEED
Fine
Coarse
ATION CHART APPLIC
FLOW SETTING
3 MPH
3-5
3-5
3-5
6-8
3-4
4-5
Table 3
SPREAD
WIDTH
3'-4'
8'-10'
10'-12'
6'-8'
'-7'
6
8'-9'
WHEN SPREADING WEED CONTROL F IZERS, MAKE
ERTIL
SURE THE BROADCAST PATTERN DOES NOT HIT
EVERGREEN TREES, FLOW UBS VEGETAB E
ENS.
GARD
ERS, SHR L
OR
FOLLOW THE INSTRUCTIONS, WARNINGS, ETC. FROM THE
MANUFACTURER OF THE MATERIAL YOU ARE SPREADING
TO ENSURE SAFE OPERATION.
DO NOT EXCEED HE 125L
T BS. WEIGHT LIMIT OF MATERIAL
IN THE HOPPER.
5.
Break up any lumps as you fill the Hopper with the
material to be spread.

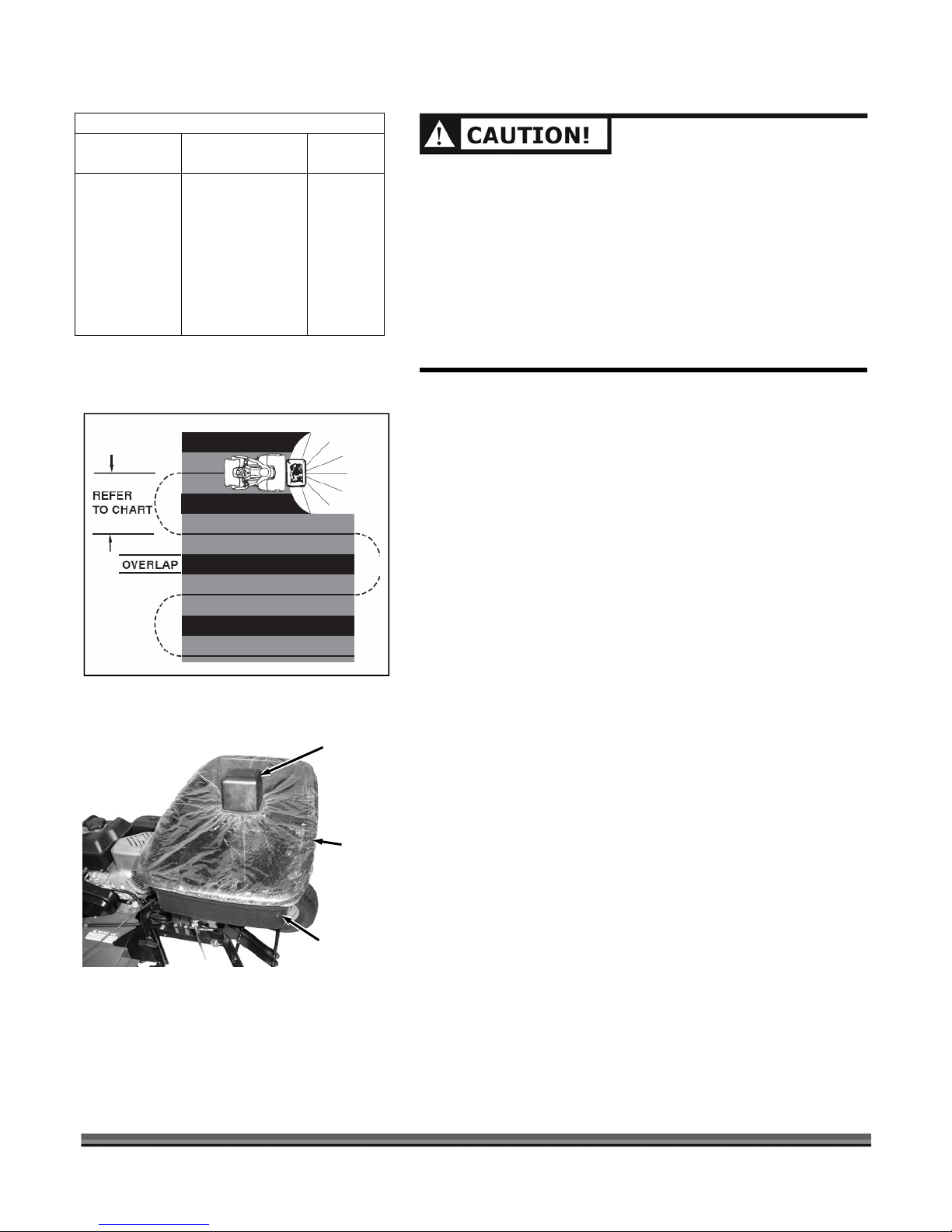

Figure 31
Figure
32
Motor
Mount
ssembly
Vinyl
Cover
Hopper/Frame
Assembly
6. Star
NOTE: Move
t the vehicle in motion and then toggle the ROTOHOG C
Control Le
ontrol Box switch to "ON" and m e Flow
ver up to
lock with the Adjustable Stop.
the Flow Control Lever to off (“OFF”) before turning
or stopping.
7. To insu
the br
fro evious p
re uniform coverage, make each pass so that
oadcast pattern slightly overlaps the pattern
m the pr ass (Figure 31). The approximate
broadcast widths for different materials are shown in
the application chart on this page.
8. Heavy moisture conditions may require a cover over
the hopper to keep contents dry. The Vinyl Cover acts
as a wind and moisture shield, but should not be
as a rain cover (Figure 3
2).
9. If fertilizer is accidentally deposited too heavily in a
area, soak the area thoroughly with a garden hos
sprinkler to prevent burning
of the lawn.
Removing the DR Power Spreader
1. Disconnect the Wire Harness Connector from the
Motor Mount Assembly Connector. Remove the Flow
Control Valve Assembly from the rear of the vehicle if it
is attached there.
2. Support the Sp
Washers and Carriage Bolts from the Spreader B
Tubes.
reader and remove the Wing knobs,
ove th
used
n
e or
racket
20 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
3. Remove the Spreader from the tiller.
OPERA TI-PACKER
A
TING YOUR DR CUL
Setting th -packer peratin sition
e Culti to O g Po
TE: The following procedu mes th
the transport position
Lower the on the T halfw
1. tines iller to
Tiller Co trol Box.
the n
Lift up on ulti-pack ou lift
2. the C er as y
Assembly to isengage the ook Ass
d H embly Slot from
the Tiller Wheel Mount Assembly (Fi
.
e Culti-packer is in NO re assu
ay position with
up on the Hook
gure 33).
NOTE: Holding down on the Hook Assembly Handle will help
to engage the slot when you reach that
point.
e end s
engages with the rod of the Tiller Wheel M n
Assembly.
4. Raise the Tiller Tines to their uppermost posi
the Tiller Control Box.
5. The Culti-packer Wheels are now engaged with the soil
and the Tiller Wheels are lifted off the gro
und.
6. The Culti-packer is now ready to use.
lot 3. Slide the Hook Assembly down until th
ou t
tion with
Hook
ssembly
Upper
Slot
Figure 33
Operating tips
• For best results it may be necessary to pack the
• The Culti-packer can be used to break up
• If desired, the Culti-packer can be left in
soil before seeding and then pack the so
il a
second time after seeding.
clumps
and to give soils a smooth finished appearance.
the
“operating” position when the Tow Veh
icle is
being reversed.
CALL TOLL FREE 1-800-DR-OWNER 21
22 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
CHAPTER 5
OUNT ASS
.
MAINTAINING THE OPTIONAL ACCESSORY
Regular maintenance is the way to ensure the best performance and long life of your OPTIONAL
ACCESSORY. Please refer to this manual for maintenance procedures.
MAINTAINING THE DR POWER SPREADER
WHEN PERFORMING ANY MAINTENANCE ON THE DR SPREADER ATTACHMENT WHEN THE UNIT IS
STILL ATTACHED TO THE TILLER, YOU MUST FIRST MAKE SURE THE SWITCH ON THE TILLER CONTROL
BOX IS IN THE “OFF” POSITION AND THEN DISCONNECT THE WIRE HARNESS OF THE MOTOR
M
Regular Maintenance Check List before each use
CHECK FOR LOOSE FASTENERS
1. Before each use make a thorough visual check of the Spreader for any bolts and nuts which may
EMBLY
have loosened. Retighten any loose bolts and nuts.
CHECK FOR WORN OF DAMAGED PARTS
1. Check for worn or damaged parts before each use.
2. Repair or replace parts if necessary.
FOLLOW ALL WARNINGS, CAUTIONS ETC. FROM THE MATERIAL MANUFACTURERS FOR PROPPER
CLEANING AND DISPOSAL PRACTICES BEFORE CLEANING YOUR EQUIPMENT.
CLEANING
1. Rinse inside of Hopper and exterior of Spreader and dry off before storing (even though the
Spreader Motor is sealed, avoid spraying the Motor and wires if possible).
2. Clean out any build up of material from the Hopper Closure Plate.
3. Clean any build up of material from your ROTO-HOG Tiller.
Storage
1. Rinse inside of Hopper and exterior of Spreader and dry off before storing (even though the
Spreader Motor is sealed, avoid spraying the Motor and wires if possible).
2. Store in a clean, dry area.
CALL TOLL FREE 1-800-DR-OWNER 23
MAINTAININ
s
G THE DR CULTI-PACKER
Regular Maintenance Check List before each use
GREASE BEARINGS
1. There are two grease points on the culti-packer. There is a bearing at each end of the wheel sh
Greasing the bearings at least every 4 hours with all purpose grease
frequent greasing may be necessary in very d
usty conditions.
is recommended. More
CHECK FOR LOOSE FASTENERS
1. Before each use make a thorough visual check of the Culti-packer for any bolts and nuts which may
have loosened. Retighten any loose bolts and nuts.
CHECK FOR WORN OF DAMAGED PARTS
1. Check for worn or damaged parts before each use.
2. Repair or replace parts if necessary.
Replacing Parts
REPLACING BEARINGS
1. Loosen the Bearing Set Screw (Figure 34).
2.
Remove the Bolts and Washers then remove Bearing.
3. Position the new Bearing Over the Axle.
4. Install Bolts and Washers.
5. Tighten the Set Screw.
Culti-packer
Wheel
Bolts and
Washers
Bearing
aft.
Frame
REPLACING WHEELS
1. Loosen both Bearing Set Screws (Figure 34).
2. Slide the Axle from the Bearings, Frame and Wheels.
3. Replace damaged Wheel with new Wheel.
4. Slide Axle through Bearings, Frame and Wheels.
5. Tighten
Clea g
nin
Set Screws.
1. Rinse the Culti-packer and dry off before storing.
2. Clean out any build up of material from the Culti-packer Wheels.
3. Clean any build up of material from your ROTO-HOG Tiller.
Storage
1. Rinse the Culti-packer and dry off before storing.
2. Store in a clean, dry area.
24 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Axle
Set Screw
Figure 34
CHAPTER 6
TROUBLESHOOTING YOUR OPTIONAL ACCESSORY
Most problems are easy to fix. Consult the Troubleshooting Tables below for common problems and
thei
r solutions. If the procedures for fixes are not in your OPTIONAL ACCESSORIES Safety and
Ope please feel free to contact our
rating Instructions or if you continue to experience problems,
Customer Service Representatives at our toll free number 1-800-DR-OWNER (376-9637).
TROUBLESHOOTING YOUR DR POWER SPREADER
WHEN PERFORMING ANY MAINTENANCE ON THE DR SPREADER ATTACHMENT WHEN THE UNIT IS
STILL T FIRST MAKE SURE THE SWITCH IS IN THE OFF POSITION AT ACHED TO THE TILLER, YOU MUST
AND THEN DISCONNECT THE WIRE HARNESS.
Troub
leshooting Table
SYMPTOM POSSIBLE CAUSE
Hopper closure plate
does not open to the
correct position.
Spreader motor
doesn't run.
Motor runs when
switch is shut off.
⇒ Material packed around plate. Clean out around closure plate.
⇒
⇒ Loose battery connection. Tighten battery terminals.
⇒
⇒ Broken spreader wiring. Replace damaged wiring.
⇒ Spreader on-off switch is broke Replace
⇒ Spreader motor is b
⇒ Spreader on-off switch is b
Loose conne
Battery is run down. Recharge the batter
ction in spreader wiring. Check and reconnect.
n. the switch.
roken. Repair or replace motor.
roken. Replace the switch.
y.
CALL TOLL FREE 1-800-DR-OWNER 25
OOTING YOUR DR CULTI-PACKER TROUBLESH
Troubleshooting Table
SYMPTOM POSSIBLE CAUSE
Culti-packer wheels do
not turn when in use.
⇒ Material packed around wheels. Clean out around and between whee
⇒ Bearings not working properly. Grease or replace bearings as
ls
needed.
Culti-packer does not
raise and lower when
the tiller control panel
is operated.
The culti-packer does
not touch the ground
when in operation.
⇒ Check that the culti-packer hand
le assembly is locked in the desired
groove. Lock the handle assembly into the desired groove.
⇒ The culti-packer is in the transport position. Move the culti-packer into
the operating position.
26 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Notes:
CALL TOLL FREE 1-800-DR-OWNER 27
ER 7
CHAPT
PARTS LIST AND SCHEMATIC DIAGRAMS
Parts List - DR POWER SPREADER
NOTE: Part numbers listed are available through Country Home Products.
Ref# Part# Description
01 234851 Hopper
02 234811 Plug, 1/4"
03 234761 Bolt, Hex, 1/4-20" x 2-1/4"
04 234791 Bolt, Hex, 1/4-20" x 2"
05 234911 Washer, Nylon
06 232891 Washer, 1/4 Std .312 X .734
07 233031 Nut, Hex 1/4-20 Nylock
08 234651 Clip
09 234641 Plate, Side
10 234731 Bushing, Hopper
11 234591 Plate, Guide
12 234711 Rivet, Pop, 3/16"
13 234681 Cable Assembly, Control
14 234621 Bracket, Control Mount
15 234751 Bolt, Carriage, 1/4"-20 x 1-3/4"
16 234801 Nut, Hex Sims, 1/4"
17 234701 Knob, Wing
18 234741 Washer, Star
19 234901 Impeller, Spreader
20 234871 Tube, Hopper Mount
21 234721 Bolt, Carriage, 5/16"-18/ x 1-3/4"
22 234891 Screen, Spreader
23 234661 Bracket, Mount RH
24 234671 Bracket, Mount LH
25 234861 Hairpin, Agitator
26 233081 Nut, Hex 5/16-18 Nylock
27 234881 Cover, Vinyl
28 232841 Bolt, Hex 1/4-20 X 3/4 G5
29 234831 Deflector, Rear
30 234821 Cover, Motor
Ref# Part# Description
31 234931 Washer, Lock. #10
32 232871 Washer, 5/16" Std .375 X .875
33 234581 Bracket, Angle
34 232951 Washer, SAE. #10
35 232851 Bolt, Hex 5/16-18 X 1 G5
36 234631 Shaft, Impeller
37 234601 Coupler, Impeller
38 234841 Seal, Motor Lip
39 234691 Pin, Cotter, 1/8" x 1-1/4"
40 234771 Bolt, Pan Slot, #8-32 x 1/2"
41 234921 Tie, Nylon
42 234611 Bracket, Motor Mount
43 234781 Motor, 12 Volt
44 232931 Bolt, Slotted, #10-32 X 5/8"
45 233021 Nut, Nylock, #10-32
46 234571 Bracket, Mounting
47 234971 Label, Spreader Operation
48 233721 Spreader Cable
28 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Schematic - DR POWER SPREADER
48
CALL TOLL FREE 1-800-DR-OWNER 29
Parts List - DR CULTI-PACKER
Parts List - D
Ref# Part# Description
R CULTI-PACKER NOTE: Part numbers listed are available through Country Home Products.
01 234171 Frame Assembly
02 234181 Hook Assembly
03 234301 Axle
04 234791 Wheel
05 234311 Hook, Axle
06 234191 Clip, Hairpin, 1/16" X 1-3/4"
07 234201 Bearing, Flange
08 234211 Bolt, Hex, 7/16" X 1.25"
09 234221 Washer, Lock, 7/16"
10 234231 Pin, Clevis, 3/8" X 2.25"
11 234241 Bolt, Eye, 5/16" X 3"
12 234251 Nut, 5/16"-18
13 234261 Washer, Lock, 5/16"
14 234271 Spring, Extension
15 234281 Hook, “S”
16 234321 Ring, Axle Spacer
30 DR
®
ROTO-HOG™ POWER TILLER - OPTIONAL ACCESSORIES
Schematic - DR CULTI-PACKER
CALL TOLL FREE 1-800-DR-OWNER 31
Daily Checklist for the OPTIONAL ACCESSORY
To help maintain your OPTIONAL ACCESSORY for optimum performance, we recommend you follow
this checklist each time you use your Accessory.
DR POWER SPREADER CHECKLIST
[ ] Before each use make a thorough visual check of the Spreader for any bolts and nuts which may have
loosened. Retighten any loose bolts and nuts.
[ ] Check for worn or damaged parts before each use.
[ ] Repair or replace parts if necessary.
DR CULTI-PACKER CHECKLIST
[ ] Before each use make a thorough visual check of the Culti-packer for any bolts and nuts which may
have loosened. Retighten any loose bolts and nuts.
[ ] Check for worn or damaged parts before each use.
[ ] Repair or replace parts if necessary.
[ ] Check that the Culti-packer wheels are turning freely.
[ ] Grease the bearings with all purpose grease if needed.
COUNTRY HOME PRODUCTS, Inc.
MEIGS ROAD, P.O. BOX 25, VERGENNES, VERMONT 05491
1-800-DR-OWNER (376-9637) • www.dr-owner.com ©2007 CHP, Inc. 234291
Loading...
