Dräger Multi-PID 2 User Manual
Tel:
+44
(0)191 490 1547
Fax:
+44 (0)191 477 5371
Email:
northernsales@thorneandderrick.co.uk
Website: www.heattracing.co.uk
www.thorneanderrick.co.uk
D
Dräger Multi-PID 2
Portable Photoionization Monitor
Instrument User manual
Software Version 3.nn
9/3/2
1.0
0.0
:
TEL
S
2.9
:
PEAK
view
T
IN
PPM
0.1
:
A
TW
0:05
nu
e
m
lear
c
9
0
:
0
1
6
00
ST–2425–2003_en.eps
Contents
For Your Safety ...................................................................................................................................................... 5
Notices and Warnings ......................................................................................................................................... 7
FCC Warning ..................................................................................................................... 8
The Multi-PID 2 Intrinsic Safety (I/S) Notice ........................................................................ 8
ATEX Directive and EMC Directive ................................................................................... 11
WARNING ....................................................................................................................... 12
Introduction ......................................................................................................................................................... 15
About this Manual ............................................................................................................. 16
Warnings and Safety Practices ......................................................................................... 17
Approved Models of the Multi-PID 2 .................................................................................. 17
Excessive Heat and Cold .................................................................................................. 17
Intended Use .................................................................................................................... 18
Multi-PID 2 Overview ........................................................................................................ 18
General Operation ............................................................................................................ 20
Photoionization Detector ................................................................................................... 21
Unpacking Instrument ....................................................................................................... 23
Support Equipment and Consumables .............................................................................. 24
Using the Multi-PID 2 ........................................................................................................................................ 25
Battery Charging .............................................................................................................. 26
Display ............................................................................................................................. 29
Multi-PID 2 User Menu ...................................................................................................... 30
Keys ................................................................................................................................. 32
Beginning Operation ......................................................................................................... 33
Preparing for Field Operation ............................................................................................ 40
Connecting Accessories .................................................................................................................................. 43
Computer ......................................................................................................................... 44
Pre-filter Tube Holder ....................................................................................................... 45
Pre-filters and Sample Collection Tubes ............................................................................ 46
Sample Line ..................................................................................................................... 46
Wrist Strap ....................................................................................................................... 47
DC Power Cord ............................................................................................................... 47
Belt Clip Holster ............................................................................................................... 47
11.7 eV UV Lamp ............................................................................................................. 48
Off-Line Charger .............................................................................................................. 50
2
Menu Functions .................................................................................................................................................. 53
User Interface – Basic Menu ............................................................................................. 54
Operation Modes .............................................................................................................. 54
Unit Setup Menu ............................................................................................................... 55
Memory slots Menu ........................................................................................................... 65
Data Log Options Menu .................................................................................................... 68
Clear values Menu ............................................................................................................. 70
Edit Alarms Menu .............................................................................................................. 70
Humidity Tube Menu ......................................................................................................... 70
Routine Maintenance ........................................................................................................................................ 71
Maintenance Intervals ........................................................................................................ 72
Calibration Technical Description ...................................................................................... 72
Calibration Introduction ..................................................................................................... 73
Calibration Using the Flow-Match Regulator ...................................................................... 76
Battery Charging ............................................................................................................... 78
Maintenance of the UV Lamp ............................................................................................. 80
Replacing the Sample Inlet Filter ....................................................................................... 84
Waste electrical and electronic equipment ......................................................................... 85
Troubleshooting .................................................................................................................................................. 87
General Information ........................................................................................................... 88
Troubleshooting ................................................................................................................ 89
General Questions ............................................................................................................ 91
Appendices .......................................................................................................................................................... 93
Specification ..................................................................................................................... 94
Installing Alternate AC Plug on the Battery Charger ........................................................... 96
Calibration Gas Supplier ................................................................................................... 96
Presets and Response Factors .......................................................................................... 97
Reference ....................................................................................................................... 103
3
Figures
Figure 1 – Multi-PID 2 ......................................................................................................... 18
Figure 2 – Multi-PID 2 Block Diagram ................................................................................. 20
Figure 3 – Photoionization Detector .................................................................................... 22
Figure 4 – Battery Pack Removal and Replacement ............................................................ 27
Figure 5 – Multi-PID 2 Display ............................................................................................ 29
Figure 6 – User Menu, GAS mode ...................................................................................... 30
Figure 7 – User Menu, TVOC mode ................................................................................... 31
Figure 8 – GAS mode Display ............................................................................................ 33
Figure 9 – Logging Off Mode Display ................................................................................. 34
Figure 10 – TAG Mode Display ........................................................................................... 35
Figure 11 – Interval Mode Display ....................................................................................... 35
Figure 12 – Tube Holder ..................................................................................................... 45

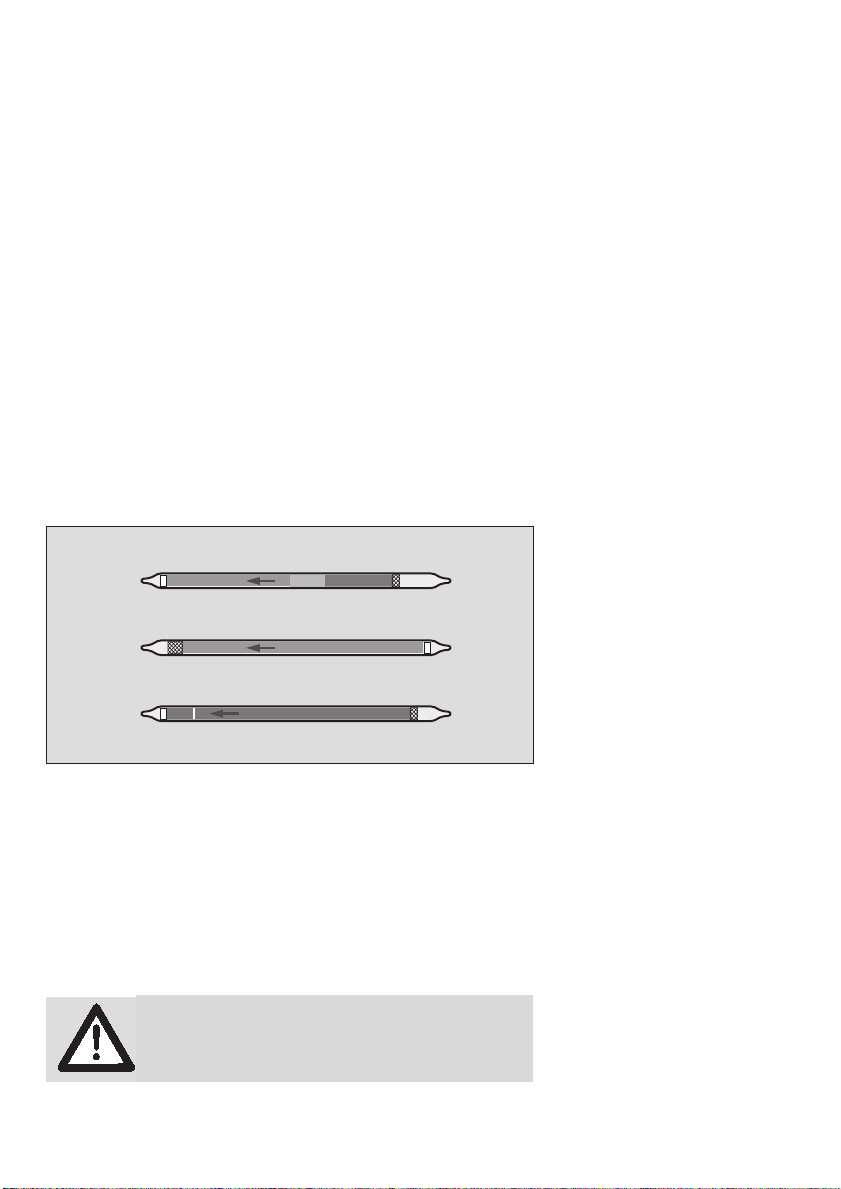

Figure 13 – Dräger Pre-filter Tubes ..................................................................................... 46
Figure 14 – Unit Setup Map ................................................................................................ 56
Figure 15 – Intervall time adjustment ................................................................................... 61
Figure 16 – Setting the Time ............................................................................................... 62
............................................................................................................................................ 66
Figure 17 – Function Memory Slots Settings ....................................................................... 67

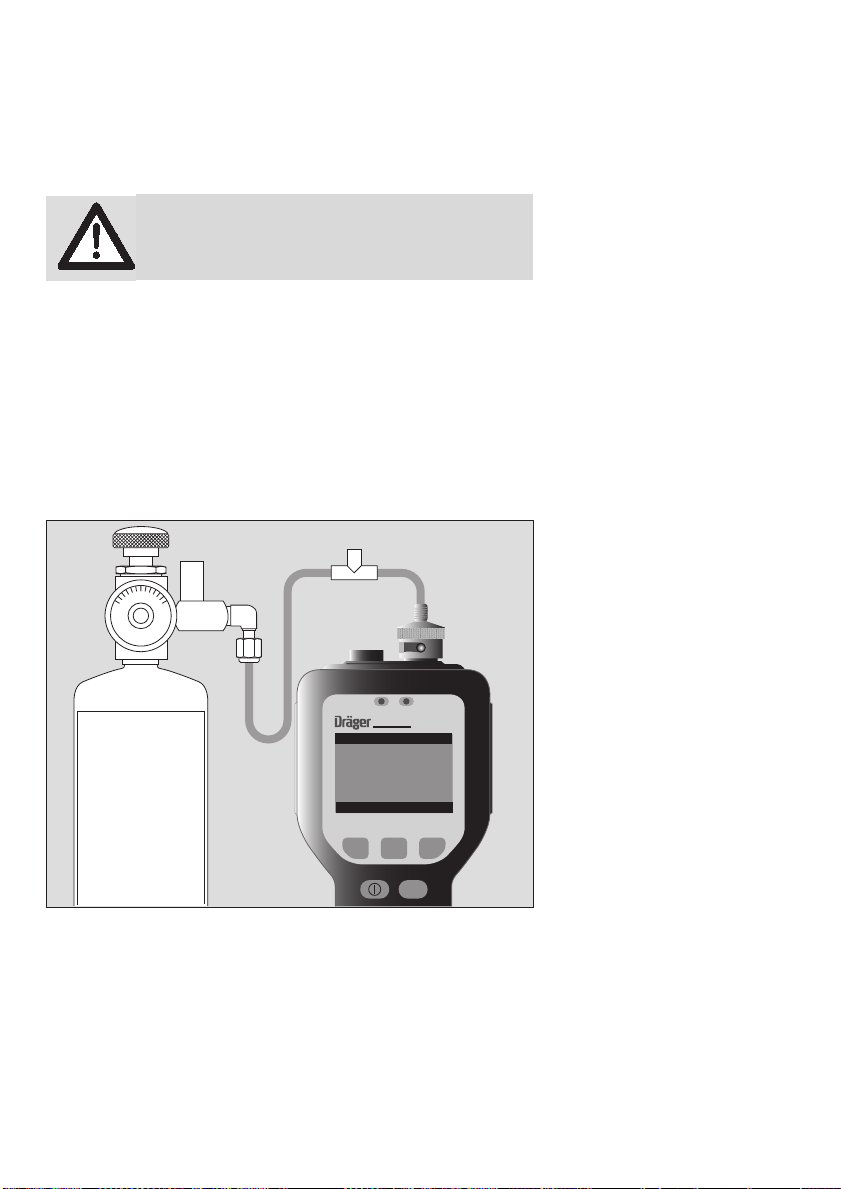

Figure 18 – Calibration with Flow-Math ............................................................................... 76
Figure 19 – Removing the UV Lamp .................................................................................... 81
Figure 20 – Replacing the Inlet Filter ................................................................................... 85
Tables
Table 1 – System Alerts ................................................................................................................................ 37
Table 2 – Check List for Field Items .......................................................................................................... 40
Table 3 – Additional Field Items .................................................................................................................. 40
Table 4 – Averaging Intervals and Period STEL, TWA, and REAL Operation .............................. 61
Table 5 – Response Factors ........................................................................................................................ 97
Table 6 – Library Entries ............................................................................................................................. 100
4
5
For Your Safety
Strictly follow the Instructions for Use
Any use of this instrument requires a full understanding and strict
adherence to these instructions.
This instrument is only to be used for the purposes specified here
(see “Intended Use” on page 18).
Maintenance
The Multi-PID 2 must be inspected and serviced by trained service
personnel at regular intervals.
Repair of the Multi-PID 2 may only be carried out by trained service
personnel.
Only authentic Dräger Safety spare parts may be used for maintenance.
Observe chapter “Maintenance Intervals” on page 72..
We recommend that a service contract be obtained with the service
of Dräger Safety and that all repairs are also carried out by them.
Use in areas subject to explosion hazards
This instrument and its components have been tested and approved
according to the European Directives 94/9/ EC (ATEX Directive) and
2004/108/EC (The electromagnetic Compatibility Directive) and may
be used only under the conditions explicitly specified in the EC Declaration of Conformity, see page 11.
Modifications of components or the use of faulty or incomplete parts
is not permitted. When making repairs to equipment or components
of this type, the relevant national regulations must be adhered to.
For Your Safety
6
For Your Safety
Copyright Information
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this publication may be
reproduced in any form whatsoever or translated into any language
without the prior, written permission of Dräger Safety.
Trademarks
Registered names, trademarks, etc. used in this document, even
when not specifically marked as such, are protected by law.
7
Notices and Warnings
Notices and Warnings
8
Notices and Warnings
FCC Warning
This instrument has been tested and found to comply with the limits
for a Class B Digital Device, pursuant to Subpart B, Class B of Part
15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at their expense.
The Multi-PID 2 Intrinsic Safety (I/S) Notice
The Multi-PID 2 is classified for use in class I, division 1, groups A, B,
C, D hazardous locations. T4 (135
The Multi-PID 2 has been listed by MET Laboratories, Inc., to comply
with Underwriters Laboratories
cally Safe Apparatus and Associated Apparatus for use in Class I,
Division 1, Groups A, B, C, D Hazardous (Classified) Locations, Sixth
Edition when powered by 83 23 622 or 83 17 670 Battery Pack.
The Multi-PID 2 is not intended to detect combustible levels of gases.
The Multi-PID 2 is classified for use in atmospheres containig combustible levels of gases.
®
Inc. UL
o
C) rating.
®
913 Standard for Intrinsi-
9
These optional accessories may be used with the Multi-PID 2 in a
hazardous location:
Name and Discription Part No.
Calibration Regulator 68 10 688
Wrist Strap 83 17 673
Belt-Clip Holster 83 17 677
Carrying Case 83 17 664
User’s Reference Card 90 23 770
Long Sample Probe 64 05 411
Short Sample Probe 64 05 412
Tube Holder 83 19 093
Dräger Tube, Carbon filter CH 24 101
Sampling Tube (Activated Charcoal, Type BIA) 67 33 011
PID Pre-Filter Tube Benzene 81 03 511
Dräger Tube, Humidity filter 81 03 531
NiMH battery pack 83 23 622
Ni/Cd battery pack 83 17 670
Notices and Warnings
WARNING:
Do not use any other accessories with the Multi-PID 2 in a hazardous location, danger of an explosion!
Substitution of components may affect safety rating.
CAUTION:
To reduce the risk of fire or injury to persons, read and follow
these instructions:
1.
All calibration, maintenance and servicing of this device,
including battery charging, must be performed in a safe
area away from hazardous locations. Disconnect all power
before servicing.
2.
There are no operator replaceable parts inside the
Multi-PID 2 except the battery pack, UV lamp and sample
inlet filter.
3.
There are no operator serviceable par ts inside the
Multi-PID 2.
Notices and Warnings
WARNING:
1.
For replacement battery pack use only Par t No. 83 23 622
or 83 17 670.
2.
Do not dispose of the battery pack in a fire. The cells may
explode. The battery pack must be disposed of properly.
Check with local codes for possible special disposal instructions.
3.
Do not open or mutilate the battery pack. If the Multi-PID 2 is
used in a manner not specified, the protection provided by
the Multi-PID 2 may be impaired.
4.
Exercise care in handling battery packs in order not to short
the terminals with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and
cause burns.
5.
Do not defeat proper polarity orientation between the battery pack and battery charger.
6.
Charging the battery is only to be done in a nonhazardous
area.
7.
Charge the battery pack using the AC adapter provided with
or identified for use with this product only in accordance
with the instructions and limitations specified in this manual.
For AC adapter use only Part No. 64 05 428 (115 Volt AC),
Part No. 83 17 661 (220 Volt AC). When using the AC adapter do not block access to AC outlet in use with adapter. AC
adapter is not to be used in a hazardous area.
10
ATEX Directive and EMC Directive
11
Notices and Warnings
Model: Multi-PID 2 Photoionization Monitor
Certified Intrinsically Safe/Securite Intrinséque.
Class I, Division 1, Groups A B C and D.
Maximum surface temperature 135°C T4.
Model: Multi-PID 2
TRL: 03ATEX21031X
EEx ib IIC T4 (Ta = 0°C to +40°C)
Dräger Safety, D23560 Lübeck, Germany
WARNING - Substitution of components may impair
intrinsic safe. Avertissement - La substitution de
composants peut compromettre la securite intrinsique.
To prevent ignition of flammable or combustible
atmospheres, disconnect power before servicing.
CAUTION - To reduce the risk of explosion, only use
AC Adapter and Serial Port or recharge the batteries
outside of the hazardous location. Avertissement - Afin
de prevenir l’inflammation d’atmosphères dangereuses,
ne charger les batteries que dans des emplacements
designes non dangereux. Use only Dräger battery pack
Part No. 8317670 or 8323622 .
0158
II 2G
02423957_02.eps
12
Notices and Warnings
WARNING
1. All calibration, maintenance and servicing of this device, including
battery charging, must be performed in a safe area away from hazardous locations.
2. Disconnect all power before servicing.
3. Do not open UV Lamp Cap when unit is energized.
4. Only use the AC Adapter in a safe area away from hazardous locations
5. Only use the Serial Port in a safe area away from hazardous locations.
CAUTION
To reduce the risk of fire or injury to persons, read and follow these
instructions:
1. There are no operator replaceable parts inside the Multi-PID 2 except the battery pack, UV lamp and sample inlet filter.
2. For replacement battery pack use only Dräger Part No. 83 23 622
or 83 17 670.
3. There are no operator serviceable parts inside the Multi-PID 2.
4. Do not dispose of the battery pack in a fire. The cells may explode.
The battery pack must be disposed of properly. Check with local codes for possible special disposal instructions.
5. Do not open or mutilate the battery pack. If the Multi-PID 2 is used
in a manner not specified, the protection provided by the
Multi-PID 2 may be impaired.
6. Exercise care in handling battery packs in order not to short the terminals with conducting materials such as rings, bracelets and keys.
The battery or conductor may overheat and cause burns.
7. Do not defeat proper polarity orientation between the battery pack
and battery charger.
8. Charge the battery pack using the AC adapter provided with or identified for use with this product only in accordance with the instructions and limitations specified in this manual. For AC adapter use
only Part No. 64 05 428 (115 Volt AC), Part No. 83 17 661
(220 Volt AC)). When using the AC adapter do not block access to
AC outlet in use with adapter. AC adapter is not to be used in a hazardous area.
13
These optional accessories may be used with the Multi-PID 2 in a
hazardous location:
Name and Discription Part No.
Calibration Regulator 68 10 688
Wrist Strap 83 17 673
Belt-Clip Holster 83 17 677
Carrying Case 83 17 664
User’s Reference Card 90 23 770
Long Sample Probe 64 05 411
Short Sample Probe 64 05 412
Tube Holder 83 19 093
Dräger Tube, Carbon filter CH 24 101
Sampling Tube (Activated Charcoal, Type
BIA)
PID Pre-Filter Tube Benzene 81 03 511
Dräger Tube, Humidity filter 81 03 531
NiMH battery pack 83 23 622
Ni/Cd battery pack 83 17 670
67 33 011
Notices and Warnings
Do not use any other accessories with the Multi-PID 2 in a hazardous
location.
Notices and Warnings
14
Introduction
15
Introduction
Introduction
About this Manual
This manual provides detailed instructions for setup, operation and
maintenance of the Multi-PID 2 Portable Photoionization Monitor.
Before unpacking the instrument, please read Warnings and Safety
Practices. This section describes possible hazards that might injure
the user, damage the instrument or compromise its operation. Some
general safety information is also provided.
To help you learn to use the Multi-PID 2 quickly, this manual is organized by tasks beginning with:
— Using the Multi-PID 2 in “Using the Multi-PID 2” on page 25..
— Accessories are covered in “Connecting Accessories” on
page 43..
— Routine maintenance is covered in “Routine Maintenance” on
page 71..
— Troubleshooting techniques are covered in “Troubleshooting” on
page 87..
The Multi-PID 2 manual uses a few conventions for key names on the
keypad and for text that is shown on the display.
16
» Display Text «
Texts shown on the Multi-PID 2 display are written with quotation
marks, e.g.
The names of soft keys are also written with quotation marks, e.g.
" select " .
In the text you will find various warnings and notes.
NOTE:
A note indicates significant information.
» Enter current time « .
WARNING:
A warning indicates an operation that could cause
personal injury if precautions are not followed.
CAUTION:
A caution indicates an operation that could cause
instrument damage if precautions are not followed.
Warnings and Safety Practices
Please read the Notices and Warnings section of this user’s manual
before operating the Multi-PID 2.
Approved Models of the Multi-PID 2
This manual provides operational information for all models of the
Multi-PID 2. The Multi-PID 2 is intrinsically safe and approved for use
in hazardous locations. Refer to the Notices and Warnings section of
this manual for details of each approval.
Throughout the manual, notes are provided to inform you of any limitations of usage for the Multi-PID 2 models.
WARNING:
If the Multi-PID 2 you are using is not specifically
identified as intrinsically safe with a label on the
Multi-PID 2, do not use it in a location where
flammable concentrations of gases and vapors may
exist.
17
Introduction
Excessive Heat and Cold
WARNING:
Do not expose the instrument to intense sunlight for
prolonged periods.
Exposure to excessive heat or cold may result in
erroneous readings.
Introduction
Intended Use
The Multi-PID 2 measures the concentration of airborne gases and
vapors that can be ionized by a photoionization detector.
The Multi-PID 2 automatically displays and can record these concentrations.
In the TVOC mode the Multi-PID 2 does not distinguish between
individual compounds.
The reading displayed represents the total concentration of all photoionizable chemicals present in the sample. The Multi-PID 2 is factory-set to display concentration in units of ppm.
Benzene is selectively measured in GAS mode.
This measurement requires the use of the PID pre-filter tube benzene.
The pre-filter tube adsorbs all substances with the exception of benzene. Only benzene passes into the detector.
Multi-PID 2 Overview
18
Figure 1 – Multi-PID 2
9
ST
P
v
/2006
/3
L
E
K
EA
w
ie
10
1.0
: 0.0
: 2.9
clear m
09
:
T
IN
PPM
.1
: 0
A
TW
5
0
0:
u
en
00523958_01_en.eps
The Multi-PID 2 operates automatically. The Multi-PID 2 display
updates itself once per second. You can read concentrations directly
from the display.
The Multi-PID 2 will perform short-term exposure limit (STEL), timeweighted average (TWA) and REAL calculations when it is in INTERVAL mode. You can view any of these results in INTERVAL mode.
The Multi-PID 2 has two datalogging options, TAG and INTERVAL
mode. TAG mode allows the user to manually tag and store readings
during a walkthrough. Interval mode allows the user to datalog at selectable intervals of 3 seconds to 900 seconds.
In INTERVAL mode, the STEL, REAL and TWA are calculated. If you
select INTERVAL mode, these values are automatically recorded in
the Multi-PID 2’s memory. The Multi-PID 2 can log up to 12,000 entries.
In TAG mode operation, the Multi-PID 2 prompts you to locate a site
and then to record a background and sample readings for the site.
You can record up to 12,000 manual entries. There is no averaging of
data in TAG mode. Tags are set via the PC using the Dräger GasVision software.
19
Introduction
Recorded data can be reviewed on the display or downloaded to a
computer. Data are recorded by date and time.
The Multi-PID 2 has 5 keys for instrument operation. The keys are
used to set up and calibrate the Multi-PID 2. All information entered
with the keys and stored in the Multi-PID 2’s memory is retained when
the instrument is switched off. The clock and calendar continue to
operate and do not need to be reset when the Multi-PID 2 is turned
on.
Introduction
General Operation
The Multi-PID 2 is a microprocessor-controlled air monitor for measuring the presence of photoionizable compounds in air at parts-per-million levels. The block diagram in Figure 2 shows the main
components of the Multi-PID 2.
Sample OutSample In
20
Inlet
Filter
Power
Supply
Photoionization
Detector
Microprocessor
Pump
Display and
I/O Connector
Keypad
Electrocal Connections
Figure 2 – Multi-PID 2 Block Diagram
The microprocessor controls the components of the instrument and
interprets and records the signal generated by the photoionization
detector (PID). Recorded data and setup information entered into the
microprocessor’s memory are retained when the Multi-PID 2 is turned
off.
A pump continuously pulls the air under test through the Multi-PID 2’s
PID. The Multi-PID 2 converts the concentration of photoionizable
compounds in the sample into an electrical signal. The microprocessor subtracts any background from the signal and divides this signal
by a sensitivity obtained by calibrating with a standard gas of known
concentration. This concentration appears on the Multi-PID 2’s display and, depending on the values entered through the Multi-PID 2’s
keypad, an alarm status may be displayed and an audio signal may be
heard.
Gas Connections
00623958_01_en.eps
The Multi-PID 2 can detect thousands of different types of airborne
gases and vapors and its response depends on the characteristics as
well as the concentration of each compound.
The Multi-PID 2 does not distinguish one type of compound from
another, but displays a number indicating the total concentration
of all photoionizable compounds in the sample.
A standard of isobutylene at a known concentration may be used for
setting the sensitivity. If the Multi-PID 2 is calibrated with isobutylene,
it displays concentrations in units equivalent to ppm of isobutylene. If
isobutylene were the only photoionizable chemical in the sample,
then the Multi-PID 2 would display its concentration directly.
The Multi-PID 2 responds more or less readily to other chemicals than
it does to isobutylene. Because it has a medium sensitivity to isobutylene, this gas has been chosen as a reliable means of reporting an
average concentration of total ionizable compounds present.
Gases other than isobutylene can be used to calibrate the MultiPID 2. However, all response factors are based on an isobutylene
calibration.
21
Introduction
Photoionization Detector
The photoionization detector (PID) is shown in Figure 3. The PID measures the concentration of photoionizable chemicals in the gas
stream from the sample inlet and produces an electrical signal for the
microprocessor.
A UV lamp generates photons which ionize specific molecules in the
gas stream. The permanent air gases (argon, carbon dioxide, nitrogen, oxygen, water vapor, etc.) require a relatively high energy for ionization, and are not ionized by the UV photons. Many of the
compounds considered pollutants, including most hydrocarbons, are
ionized.
The gas stream is directed into the PID through a small port at the
center of the UV lamp window and through a series of larger ports
around the perimeter of the lamp window. This arrangement permits a
high sample flow rate and short response time.
Introduction
Sample Out
Lamp Power
Supply
22
Lampholder
UV Lamp
High Voltage
Excitation
+125 Volt
Detector Cell
Sample In
UV Light
Counter Electrode
Figure 3 – Photoionization Detector
Lamp Driver
Circuit
Light Sensor
Amplifier
UV Lamp
M + hn M+ + e
M
M
M
Sample
M
Microprocessor
Measuring Electrode
–
Ionized Molecule
The ionized molecules in the detector cell are subjected to the
electric field between the electrodes. This generates a current which
is proportional to the concentration of the ionized molecules in the
detector cell. An amplifier converts the current to a voltage which is
then fed to the microprocessor.
00723958_01_en.eps
The UV lamp is operated by a high voltage lamp driver circuit which
injects its energy through plates in the lamp holder.
The lamp driver power supply is controlled by the microprocessor
based on a feedback signal from a light sensor on the driver circuit
board.
Unpacking Instrument
Remove the Multi-PID 2 from its shipping box. The following accessories are included with the Multi-PID 2:
1. Sample Probe
2. Instrument Manual
3. Multi-Tool
4. AC Adapter or AC Adapter with AC Line Cord
5. Wrist Strap
6. Replacement Sample Inlet Filters (25 pieces)
7. Reference Card
Ensure that all of these accessories have been included with the
instrument. If any items are missing or damaged, contact Dräger
Safety immediately.
Introduction
23
Introduction
Support Equipment and Consumables
Calibration
For normal operation these items are required:
1. Calibration Gas Regulator (Part No. 68 10 688).
2. Calibration gas containing 100 ppm isobutylene (Part No.
68 10 687). Other concentrations of the calibration gas may be required. This will depend on your application.
3. Zero air (clean dry air without any organic impurities)
There are several alternatives for clean or zero air calibration: you
can use a bottle of clean air (certified as having not more than
0.1 ppm total hydrocarbons) connected directly to the instrument;
the clean air can be transferred to a Tedlar bag which can then be
connected to the instrument; clean, ambient air without detectable
contamination; or, ambient air run first through the charcoal filter
(Part No. CH 24 101).
4. If compound threshold limit values (TLVs) are exceeded, you
should use a gas bag for sampling and calibration.
To determine the TLV of the compounds contained in the calibration gas, refer to the Material Safety Data Sheet (MSDS) supplied
with your calibration gas cylinder.
24
Field Operation
For field operation, the Multi-PID 2 Field Kit (Part No. 83 17 663) is
available.
The field kit includes a cable kit, a carrying case and a calibration
regulator, and a spare battery pack.
Refer to the check list in on page 41 to ensure you have all the necessary accessories and equipment before beginning field operation.
Computer
The Multi-PID 2 may also be connected to a computer. The computer
must be a Windows
Use the cable kit (Part No. 83 17 667) to connect the Multi-PID 2 to
the computer.
Stored datas are evaluated using the Dräger GasVision software
(Part No. 83 14 034).
TM
-based PC.
WARNING:
The Multi-PID 2 is not classified for use in hazardous locations when connected to a computer,
danger of an explosion!.
Using the Multi-PID 2
Using the Multi-PID 2
25
Using the Multi-PID 2
Battery Charging
Before beginning operation of the Multi-PID 2, the battery pack must
be charged.
You can also remove the battery pack and replace it with a fully charged spare battery pack (Part No. 83 23 622 or 83 17 670).
NOTE:
You must use the 220 V battery charger (Part No. 83 17 661) in
order to comply with the requirements of the applicable Council
Directives.
Removing and Replacing the Battery Pack
WARNING:
Do not remove or recharge the battery pack in a
hazardous location. danger of an explosion!
To remove the battery pack:
1. If the Multi-PID 2 has been turned on, turn it off by pressing the
ON/OFF key for five seconds and then releasing it.
NOTE:
If you do not turn the Multi-PID 2 off before removing the battery
pack, you will reset the instrument and you will lose all logged
data and setup parameters.
2. Locate the battery hatch on the back of the instrument.
See Figure 4.
3. Loosen the two Phillips screws in the top of the battery hatch.
4. The battery hatch can now be removed.
5. Lift the battery pack out of the case and carefully disconnect the
battery pack connector from the Multi-PID 2.
6. Attach the connector from the charged battery pack to the
Multi-PID 2.
NOTE:
The connector is polarized. It will only fit one way. Do not force
the connection.
7. Place the battery pack in the Multi-PID 2 case. Ensure the battery
wires are not pinched or strained.
8. Ensure the wrist strap ring is in proper position. This ring holds the
wrist strap in place.
9. Replace the battery hatch and then replace the two screws. Do not
overtighten the screws as you will damage the case.
26
Charging the Battery Pack
NOTE:
Only use the AC adapter specified for use with the Multi-PID 2.
Using another AC adapter will result in damage to the battery
pack, the Multi-PID 2 or the adapter itself.
To charge the battery pack:
1. Plug the AC adapter into the jack located on the bottom of the
Multi-PID 2.
2. Plug the AC adapter into an AC outlet. If you are using the European AC adapter, ensure the correct plug is installed on the line
cord. If it is not correct for the wall outlet in your area, then it must
be replaced.
3. The Charge LED on the Multi-PID 2 indicates the charge state.
Red indicates the battery is being charged. Green indicates the
battery is fully charged and ready for use.
It is normal for a fully charged battery to indicate it is charging (red
light) when first plugged in. The Charge LED will turn green within
a few minutes to indicate the battery is fully charged.
4. When the battery pack is fully charged, remove the AC adapter
first from the wall outlet and then from the Multi-PID 2.
Using the Multi-PID 2
Figure 4 – Battery Pack Removal and Replacement
00823957_01_de.eps
27
Using the Multi-PID 2
Charging a fully discharged battery pack will take approximately
4 hours.
Optionally you can use the off line charger (Part No. 64 05 404) to
charge the battery pack when not installed in the Multi-PID 2.
If you are charging the battery pack in the instrument you can use all
the features of the Multi-PID 2 while the battery pack is being charged.
Leaving the AC adapter connected to the Multi-PID 2 will not harm
the battery or the AC adapter in any way. If the Multi-PID 2 is to be left
unused for an extended period of time, leave it connected to the AC
adapter so that the battery will be fully charged and ready for operation.
On average a fully charged battery pack will provide 8 hours of continuous operation. Battery life is shorter if the instrument is turned off
and then on again repeatedly, or if the backlighting is turned on.
28
Display
The Multi-PID 2 has a graphic display for reporting detected concentration and to guide you through configuration options. All functions
of the Multi-PID 2 will be reported on the display.
Graphic Display
The Multi-PID 2 uses an 8 line graphic display. The display will always
be used for reporting detected concentration. In order to accommodate the range of concentrations the Multi-PID 2 can detect, the
meter reading will be reported using one of two resolutions. A resolution of 0.1 ppm will be used for concentrations below 100 ppm, and a
resolution of 1 ppm will be used for concentrations above 100 ppm .
ALARM CHARGE
Multi-PID 2
9/3/2006 10:09
INT
1.0
: 0.0
STEL
: 2.9
PEAK
view clear menu
TWA
PPM
: 0.1
0:05
Using the Multi-PID 2
Figure 5 – Multi-PID 2 Display
The display reports instantaneous concentration at all times when the
pump is on. In Interval mode, the display will report instantaneous
concentrations as well as REAL, STEL or TWA.
The Multi-PID 2 is designed for ease of use with a logically organized
internal menu structure/user interface.
The Multi-PID 2 User Menu is shown in Figures 6 and 7.
The Multi-PID 2 has three soft keys under the graphic LCD display,
which always show the available functions of the soft keys in any
screen.
01123958_01_en.eps
29
Using the Multi-PID 2
Multi-PID 2 User Menu
menu
Unit Setup
Switch to TVOC mode
Data Log Options
back select
GAS mode
Unit Setup
Switch to TVOC mode
Data Log Options
Clear values
Edit Alarms
Sample Collection
User Mode
Units
Clock
Date format
Backlight
Language
Passcode
Clear data log
Download to PC
menu
Unit Setup
Switch to GAS mode
Memory slots
back select
Logging Off
Sample
PPM
PPB
Enter current time –– Enter current date
MM/DD/YYYY
DD/MM/YYYY
on
off
English
German
Change Passcode
or lock / unlock
instrument
Figure 6 – User Menu, GAS mode
30
SMAX
STEL
ALL
STEL alarm:
REAL alarm:
Enter sample liters
Enter new STEL
Enter new REAL
02823958_01_en.eps
Loading...
