Table of Contents
For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
What is What? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Inserting the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Attaching the Wrist Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Symbols and Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mounting the Mouthpiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching ON and OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Automatic Switch OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Making Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Requirements for the Test Subject . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Automatic Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Errors during Breath Sample Delivery . . . . . . . . . . . . . . . . . . . . . . . 8
Removing the Mouthpiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Replacing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
How to Dispose of the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fault, Cause, Remedy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Order List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3
For Your Safety
Strictly follow the Instructions for Use
Any use of the device requires full understanding and strict observation of these instructions.
The device may only be used for the purposes specified here.
Maintenance
Repair of the device may only be carried out by trained service personnel.
We recommend having Dräger service personnel carried out repair
and maintenance work.
Only Dräger original parts may be used for maintenance.
Observe the "Maintenance Intervals" chapter.
Accessories
Only use accessories mentioned in the order list.
Safety Symbols used in this Manual
While reading this manual, you will come across a number of warnings concerning some of the risks and dangers you may face while
using the device. These warnings contain "signal words" that will alert
you to the degree of hazard you may encounter. These signal words
and the hazard they describe are specified as follows:
® Alcotest is a registered trademark of Dräger.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
could result in physical injury to you, or damage to the product.
It may also be used to alert against unsafe practices.
Notice
Additional information on how to use the device.
4
Intended Use
This device is used to quickly determine the intoxication of individuals
by measuring the breath alcohol concentration. For mobile, self-contained operation.
Preparation
Dräger Alcotest
®
3000 is calibrated before delivery.
If the calibration dates back more than 12 months:
Have an authorised person calibrate the device. We recommend
commissioning Dräger for servicing the device.
The calibration date can be taken from the power up display and/or
the label on the rear of the device.
What is What?
1 Display
2 "ON/OFF" button
3 Socket (for the Dräger
service personnel only!)
4 Lamp red/green
5 Mouthpiece connection
Preparation
Inserting the Batteries
When using the device for the first time or when using an alkaline cell as
power supply and the battery symbol on the display indicates "empty".
• Gently press the lock on the battery
cover and remove the cover.
• When inserting the batteries, ensure
correct polarity!
• Close the battery cover.
Required batteries:
2 x 1.5 V alkaline cells (Mignon, LR6, AA)
00333082_01.eps
Alcotest 3000
1
2
4
5
3
00533082_01.eps
5
Attaching the Wrist Strap
• Push the fixing strap of the wrist strap
through the hole in the housing and
make a loop.
• Pull the bigger loop through the smaller
eyelet.
Symbols and Displays
In the basic setting of the device, the measurement value of the
breath alcohol is indicated in the corresponding unit.
Battery Symbol
Indicates the state of charge of the batteries:
Full battery
Battery capacity 2/3 full
Battery capacity 1/3 full
Low battery
Buttons
"ON/OFF" button
Button to switch the device on/off and to continue the measurement.
CAUTION
The engraved symbols under the lock of the battery cover have the
following meaning: Attention, read the Instructions for Use!
Always observe the Instructions for Use before replacing the batteries. The service socket is not a charging socket. Never apply mains
voltage!
00633082_01.eps
Alcotest 3000
6
Mounting the Mouthpiece
• Open the mouthpiece packaging. For
hygienic reasons, remove the packaging from the mouth contact area only
after the mouthpiece is firmly connected to the device.
• Press the mouthpiece in the mouthpiece connection with the ribbed marking (=pressing surface) face up. The
mouthpiece audibly locks into place.
• Completely remove the packaging.
Switching ON and OFF
Switching ON
• Keep the button pressed for approx.
1 second until the start screen is displayed.
Switching OFF
• Keep the button pressed. The device
switches off after two seconds.
Automatic Switch OFF
The device switches off automatically four
minutes after the last use.
Notice
The mouthpiece can be used with left or right orientation.
Notice
The device switches off automatically when the batteries are empty.
05723757_1.eps
05823757_1.eps
00933082_01.eps
A
3000
01033082_01_en.eps
s s
01133082_01_en.eps
a !"#$
%&'()*+)
3000
7
Making Measurement
Requirements
– Use a new mouthpiece for each test subject.
– Do not expose the sensor to high alcohol concentrations, e.g. by
rinsing the mouth with high-proof alcoholic beverages just before
starting the measurement. This reduces the sensor service life.
– Keep sufficient distance from transmitters and mobile phone an-
tennas.
Requirements for the Test Subject
– Maintain a waiting period of at least 15 minutes after drinking al-
cohol!
– Alcohol residues within the mouth may cause incorrect measure-
ment values. Incorrect measurements can also happen after the
test subject burps or vomits, drinks aromatic beverages (e.g. fruit
juices), uses alcoholic mouth spray, or consumes medical syrup
or drops. Rinsing out the mouth with water or non-alcoholic bev-
erages will not help reduce the waiting period!
Before sampling, the test subject should breathe normally and calmly.
Rapid inhaling and exhaling through the mouth is to be avoided.
The test subject must be able to provide the required minimum respiratory volume of 1.2 L. For this purpose, the breathing flow must be
constant for a certain minimum blowing period.
Automatic Measurement
The sampling is automatically triggered after reaching the minimum
respiratory volume and the minimum blowing period.
Preparation
• Insert a new mouthpiece into the mouth-
piece connection (see page 6).
• Switch on the device (see page 6).
00933082_01.eps
A
est 3000
8

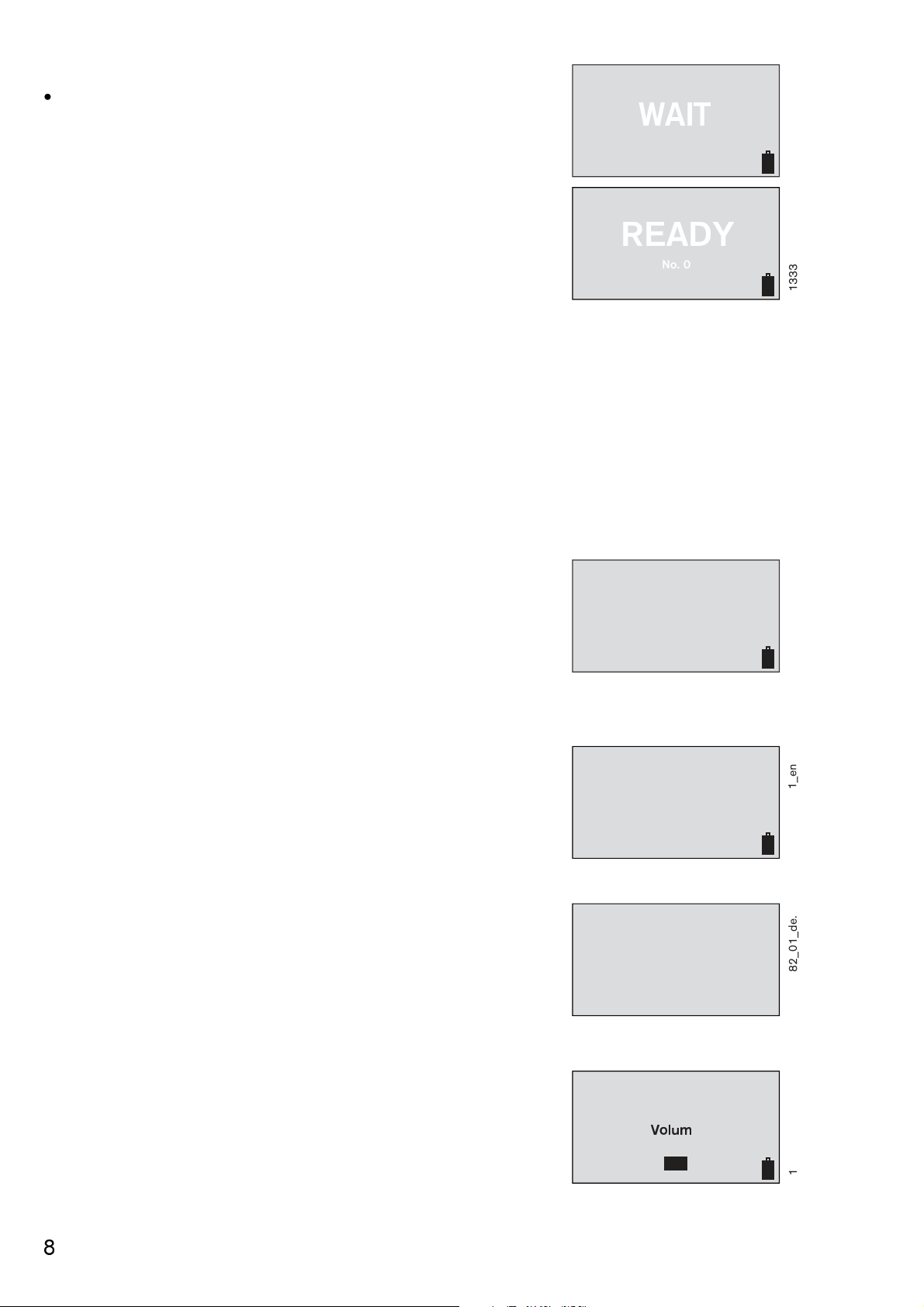

• After two seconds, "WAIT" appears on the
display.
• After six seconds, "READY" appears on
the display and a short acoustic signal
sounds. Simultaneously, the current test
number is displayed. The green lamp
flashes. The device is ready to start the
measurement.
Performing the Measurement
• The test subject must breathe evenly and continuously into the
mouthpiece. A continuous tone sounds and the green lamp flashes
when a sufficient breathing flow volume has been reached.
"Blow" appears on the display while the breath
sample is taken.
After delivering a sufficient breath sample, the
green lamp goes out and the continuous tone
falls silent.
"WAIT Analyzing" appears on the display.
Test Result
After 5 to 25 seconds (depending on the device
temperature and the measured concentration),
the measuring result appears on the display.
Errors during Breath Sample Delivery
If the breath sample volume is insufficient,
"Insufficient Volume" appears on the display.
A horn sounds briefly and the red lamp
flashes.
01233082_01_en.eps
W,-.
01333082_01_en.eps
R/019
Test No. 00140
01433082_01_en.eps
B:;<
01533082_01_en.eps
=>?@CDE>F
WAIT
G
0.00
01633082_01_de.eps
01733082_01_en.eps
OH
VIJKL
e
Insufficient
M
• To repeat the breath sample, press the button.
The device can be used again after approx. four seconds.
When exhaling unsteadily, e.g. by abruptly
stopping to exhale or by sucking towards the
end of the breath sample, "Blow Interruption"
appears on the display.
A horn sounds and the red lamp flashes.
To repeat the breath sample, press the button. The device can
be used again after 4 to 30 seconds.
Further Measurement
• Press the button to prepare a new
measurement. During the recovery period
of the sensor (see "Technical Data" on
page 13), "WAIT" appears on the display
Removing the Mouthpiece
• Push the mouthpiece upwards out of the mouthpiece holder.
• Dispose of the mouthpiece according to the local regulations.
Errors
An error message indicates malfunctions of
the device.
The number below the message is for service
purposes. Contact Dräger if switching the
device off and on several times fails to restore
normal operation.
Notice
Temporarily switching off the device will not reduce the waiting
period!
01833082_01_en.eps
NP
QSTUXXYZT[\S
Blow
01233082_01_en.eps
W,-.
02033082_01_en.eps
] ^ _ `
Syst em
ERRO R
662
bc
Maintenance
Maintenance Intervals
As required:
• Replace the batteries, see page 11.
Annually:
• Have the device calibrated at least once a year, as the measuring
inaccuracy increases gradually due to drift factors.
Only authorised persons may carry out the calibration.
We recommend commissioning Dräger for servicing the device.
Storage
• The device consumes a small amount of current even when
switched off. Therefore, remove the batteries if the device will not
be used for a longer period of time.
Cleaning
• Do not dip the device into liquids and do not allow the connection
sockets to get wet!
For cleaning:
• Wipe the device with a disposable cloth.
• Do not use cleaning agents containing alcohol or solvents.
Notice
If case of long-term storage:
Remove the batteries from the device if it will not be used for more
than six months. This prevents possible damage to the device
caused by leaking battery acid.
bb
Replacing the Batteries
Insert a new battery when using an alkaline cell as power supply and
the battery symbol on the display indicates "empty".
• Gently press the lock on the battery cover and remove the cover.
• Remove the used batteries and insert new ones
– ensure correct polarity!
• Close the battery cover.
Required batteries:
2 x 1.5 V alkaline cells (Mignon, LR6, AA)
.
Dispose of batteries as special waste according to local waste disposal regulations.
Information can be obtained at local environmental protection agencies and town clerk offices as well as at suitable waste disposal companies.
Always have spare batteries at hand to be able to immediately continue use of the device after the first set of batteries is spent.
How to Dispose of the Device
Since August 2005, regulations concerning the disposal of
electrical and electronic devices have come into force in the
entire European Union; these regulations are specified in
the Directive 2002/96/EC of the European Parliament and in
national laws relating to this device.
Special collection and recycling possibilities have been established
for private households.
CAUTION
Danger of explosion!
Do not throw used alkaline cells into open fire, do not recharge
them and do not try to force them open.
b2
Fault, Cause, Remedy
defgh iefjk lkmkno
The device
switches off
automatically.
Batteries are discharged.
Replace the batteries
,
page 11.
The device has been
ready to measure for
more than four minutes.
Switch the device on
again.
Device does not
power up.
Batteries are discharged.
Insert new batteries.
Insufficient volume/sample
invalid.
The test subject is not
breathing continuously or vigourously
enough.
Ask test subject to
breathe continuously
and more vigourously
into the mouthpiece.
pqqrq mkj jetk ru
the display
iefjk lkmkno
The measuring range
is exceeded. Alcohol
residues within the
mouth may cause
incorrect measurement values.
Maintain a waiting
period of at least 15
minutes after drinking
alcohol (see page 7).
To repeat the breath
sample, press the
button.
"Internal System
ERROR"
with error code.
Device Errors Remove the batteries
(for 2 seconds), then
insert them again;
contact Dräger service
personnel if necessary.
b3
Technical Data
Principle of Measurement Electrochemical Sensor
Measuring Range
Breath alcohol concentration 0.00 to 2.5 mg/L
0 to 2500 µg/L
0.000 to 0.500 g/210L
0 to 250 µg/100mL
0 to 250 µg%
Blood alcohol concentration 0.00 to 5.00 ‰
0.000 to 0.500 %
0.00 to 5.00 g/L
0 to 500 mg/100 mL
0 to 500 mg%
0.00 to 5.00 mg/mL
(This data is given using a conversion factor of 2100 between breath
and blood alcohol concentration.)
Range of Indication
The range of indication and the measuring range are identical.
If the measuring result is outside the measuring range, three arrows
"
nnn" will be displayed to indicate over-range.
Ambient Conditions
For operation 0 to 40°C
10 to 90 % rel. hum.
700 to 1200 hPa
For storage -20 to 60°C
b4
Sampling
Minimum blowing time
Minimum volume
2 s
1.2 L
Accuracy
max. repeatability error with an ethanol standard
0 to 1.00 ‰
0 to 0.100 %
0 to 0.50 mg/L
0 to 50 µg/100 mL
0 to 1.00 g/L
±0.05 ‰
±0.005 %
±0.03 mg/L
±3 µg/100 mL
±0.05 g/L
>1.00 ‰
>0.100 %
>0.50 mg/L
>50 µg/100 mL
>1.00 g/l
±5 % of the measurement value
Dimensions 140 mm x 80 mm x 35 mm
(W x H x D)
Weight approx. 195 g
Power Supply
Batteries 2 x 1.5 V alkaline cells
(Mignon, LR6, AA),
approx. 1500 measurements
CE Marks Electromagnetic compatibility
(Directive 89/336/EEC),
for residential, commercial and
light-industrial environments.
b5
Order List
vkjwtuehwru eun vkjxqwyhwru zeqh {r|
Dräger Alcotest®3000
(measuring device, 3 mouthpieces,
2 batteries, wrist strap and pouch)
83 20 470
Accessories
Mouthpieces are hygienically tested
10 pcs.
100 pcs.
250 pcs.
1000 pcs.
68 12 287
68 10 690
68 10 825
68 10 830
Alkaline cell (1) 13 35 804
vq}tkq ~ekho ir| e
Revalstrasse 1
D-23560 Lübeck
Germany
Phone+49 451 882-0
Telefax +49 451 882-20 80
www.draeger.com
90 33 083 - GA 4754.510 en
© Dräger Safety AG & Co. KGaA
2
nd
edition - September 2008
(1st edition - July 2008)
Subject to alteration
Loading...
