DPS Telecom D-PK-216RP User Manual

Download

Remote Power Switch (DC)

USER MANUAL

Visit ou r website at www.dpstelecom.com for the latest PDF manual and FAQs.

No vember 10, 2017

D-UM-216RP-12001 Firmware Version 1.0J.0183

Revision History

November 10, 20 17 A pril 14, 201 7 November 18, 20 15 March 27 , 2014 March 21 , 2014 February 2 6, 201 4 March 19 , 2013 March 12 , 2013 July 24 , 2012 July 6, 2011

May 10, 20 11

A dded sup port fo r expa nsion un it Removed 16-port opt i on Spec update Edited Ping Setti ngs & Control Association A dded Ping Ta rgets, Settings, Rela ys, and Monito ring A dded Silence Feature to Alarms A dded unit d imensions to specifications pa ge A dded con t rol aut omation sett ings A dded 16 po rt version Update d images; added power connection instructions &

power relay sectio n A dded informati on reg arding opti onal alarm, analog, and

control features. September 3, 2010 A pril 21, 201 0

This document contains propri etary information which is protected by copyright. All rights are reserved. No part of this document may be photocopied without pri or w ritten consent of DPS Tel ecom .

All software and manuals are copyri ghted by DPS Tel ecom . Said software and manuals may not be reproduced, copied, transmi tted or used to make a derivative work, by either mechanical, electronic or any other means in whole or in part, without prior wr itten consent from D P S Tel ecom , except as required by United States copyright laws.

Update d shippi ng list.

Initi al Rele ase

Notice

The material in this manual is for inform ation purposes and is subject to change without notice. DPS Tel ecom shall not be liable for errors contained herein or consequential damages in connection wi th the furnishing, performance, or use of this manual.

Contents

Visit our w ebsite at www .dpstelecom.com for the latest PDF manual and FAQs

Remote Powe r S witch (DC) Overview1 1 Specifications2 2 Shippi n g Li st3 4

Optional Acc essories3.1 5

Installation4 5

Tools Needed4.1 5 Mounting4.2 6

Remote Powe r Controll er Back Pa nel5 7

Main Power Connect i on5.1 8 Switc hed Power Input/ Output Connections5.2 9

Power Relays5.2.1 10 LAN Connection5.3 10 (Optional) Alarm, A nalog, and Control Relay Connector5.4 11

Remote Powe r Controll er Switch Front Pa nel6 12

Front Panel LEDs6.1 12 Craft Port6.2 12 Ack Butt on6.3 13

Bypass Password6.3.1 14

Initial Configura tio n: How to Configure the RPS Ethernet Port7 14

... via Craft P ort7.1 14 ... via LAN7.2 17 TTY Interface7.3 18

Advanced Configuration: Using the RPS We b Brow ser8 19

Logging on to the Unit8.1 19

Changing the Default Password8.1.1 20 Edit Menu Field Descriptions8.2 21

System8.2.1 21

User Profiles8.2.2 22

Ethernet8.2.3 23

Serial Port8.2.4 24

Notifications8.2.5 25

Alarms8.2.6 27

8.2.6.1

8.2.6.2

8.2.6.3

8.2.6.4

System Al arms Ping Targets Ping Targets Sett ings Ping Targets Control Assoc iati on

Controls8.2.7 32

8.2.7.1

Control Groups

Sensors8.2.8 34

Analogs8.2.9 35

8.2.9.1

8.2.9.2

Basic Configuration Advanced Configuration

Date and Time8.2.10 39

Timers8.2.11 40

Reboot8.2.12 40

Configuring RPS DC Unit as Expansion9 41 Monitoring Alarm s and Issuing Controls10 43

Monitoring Alarms10.1 43

Ping Targets10.1.1 44 Operating Controls10.2 44 Sensors10.3 45 Monitoring Analogs10.4 45 Viewing the Event Log10.5 45

Firmware Upgra de11 46 SNMP Control of Relays12 47 Reference S ection13 48

Display Mapping13.1 48 System Al arm Map13.2 54

Frequently Asked Questions14 56

General FAQs14.1 56 SNMP FAQs14.2 58

Techni ca l S up port15 59 End User Licen se Agree me nt16 60

If you’ve ever h ad to j ump in y our truck a nd drive ho urs to a site to reboot jammed equipment, you alre ady know exactly why you nee d the Remote Power Switch (DC). With this power switch, you’ll power o n/ of f an d reb oo t a ll y ou r critical d ev i ces - right from yo ur de sk. The Re mote Power Switch (DC)

all ows for eigh t 8-Amp DC separate power inp uts for 8 de dicated outpu t s.

Usin g any PC o n you r network , you can operat e controls, check temperature at the site, an d keep tab s on p ower consumption - all without rolling a sing le truck. T he web b rowser supports HTT PS (via SSL encryp tio n), all owin g you to browse securely .

From the same intuitive i nterfa ce, you’ ll also b e able to monit or and con t rol using t he int egrate d RTU functio ns: 16 discretes, 4 analo gs, 2 cont rol s.

· Switch on/off and reboot equ ipmen t, right from your desk chair

· Drastically cuts down on expensive truck roll s - Quickly pays for i t sel f

Remote Pow er Switch (DC) Overview

Fig. 1 . 1 Deplo y this power switch at critical l ocation s to switch on, o f f , and reboot e quipmen t f rom mile s

away.

(Build option)

· A vai la ble with 8 power inpu ts/out puts

· Build Option: RTU version wi th 16 discretes, 4 analo gs & 2 control s OR only DC switc hing power

· SNM P-compatible - Send SNMP traps to you r SNMP mana ger

· Easily daisy-chain m u l ti p l e power switches

· Enable/dis able remote access to t he un it for on-site trou bleshoo t ing

· Secure web browsing (v ia SSL encryptio n) for securit y-conscious organ izatio ns

· Built-in temperature monitorin g t o track changing envi ronmental conditions

· Automaticall y p o wer-cy cle devices based on ping fail ure

· RoHS 5/6 compliant

Need to con t rol lot s of power at a single location? U se the ex pansion port on t he back of the unit to daisy chain mul t iple units tog ether. And when working on-site, you can mak e sure no o ne back at the CO disrupt s you r trou b l esho o ti ng , yo u can tempora ri l y di sabl e remote access with the pu sh of a bu t to n.

DC Inputs: A vail able wi t h 8 inputs/out puts OR 16 inputs/outputs

Current Draw : 200 mA @ 48 VDC Output Relays: 2.5A max @ 50V continuous Interfaces: 1 DB9 craft port

SNMP: v1 and v 2c Wire Gauge: Minimum: 24

Web interface: HT TP or HTTPS via SSL encryptio n Mounting: 19" or 23" Ra ck mou ntabl e; 1 rack unit (RU)

Specifications

A vai la ble with built-i n RTU function s OR Only DC switching power

Note: RTU buil d option not availab le on t he 16 input / outpu t version

1 - 10 BaseT LAN p ort 4 Pho enix con nectors (8 inputs/output) 4-Pin WA GO connector for uni t power

Optional: 3 3.6 Te l co mod em for backup remote access Optional: 1 RS2 32/485 for serial reach through Optional: External temp j ack / prob e

Max imum: 12

Dimensions: W = 17.026 in.

H = 1 . 720 in. D = 7.646 in.

Firmware Upgrade: U pg rade abl e via LA N or serial TTY Interface: Ye s, th rough f ront DB9 craft p ort (dia lup option al), Telnet on TCP port 2002 Op Temp erature: 32°– 140° F (0 °–60° C) Op Humidity: 0%– 95% non-condensing RoHS: 5 of 6

RTU Build Option I n cludes: Ala rm Terminati o n : V ia 50-pin Amphen ol connector on back panel

Discrete alarms: 16 Analogs: 4 Controls: 2 Ctrl Commands: On, Off and Reset (off-on) Internal Temp: 1

Plea se mak e sure all of the f ollowi ng ite ms are included wi t h you r Re mote Power Switch (DC). If pa rt s are missing, o r if you eve r need t o order new parts, please refer to the part n umbers listed and call DPS Telecom at 1-800-622-3314.

Remote Power Switch (DC) D-PK-216RP

Remote Power Switch (DC) User Manual Remote Power Switch (DC) Resource CD D-UM-216RP-12001

Ship p i n g L i st

6 ft. DB9M-DB9F Down l o ad Cable 14 ft. Eth ernet Cable D-PR-045-10A-04 D-PR-923-1 0A-14

x 2 x 2

19" Ra ck Ear 1/2 Amp GMT Fuse D-CS-325-10A-00 2-741-00500-00

x 2

Two Standa rd Ra ck Screws Four 3/8" Ear Screws 1-000-12500-06 2-000-60375-05

x 2

Two Metric Rack Screws 4-Pin WA GO Connector 2-000-80750-03 2-802-04037-00

x 2

Pads 23" Ra ck Ear 2-015-00030-00

x 4

DC I/O Phoenix Connectors 2-821-00762-08

Optiona l Accessories3.1

RJ45 to RJ45 connection cab le D-PR-1028-10C-1.5

Installation

Tools Need ed4.1

To install th e Remote Powe r Swit ch (DC), y ou'll need t he fol lowing t ools:

Phillip s No. 2 Screwdriver Small Sta n d ard No. 2 Screwdriver

PC with web browser and terminal emulato r, such as Hy p erTermin al

Mounting4.2

The Remote Power Switc h (DC) can be flush or rear-mounted

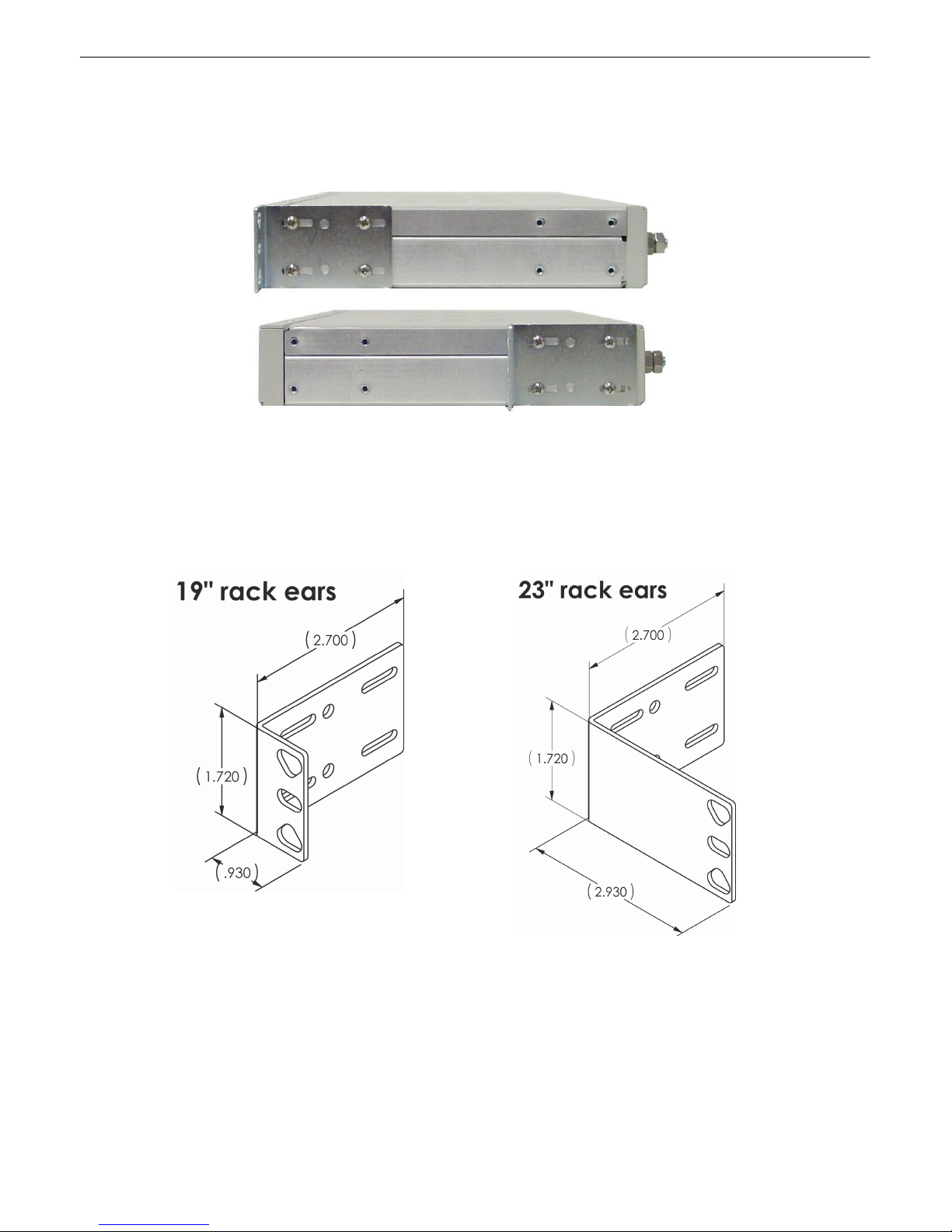

The Re mote Power Switch (DC) mounts in a 19" ra ck or a 23 " rack using t he provide d rack ears for each size. Two ra ck ears locatio ns are provide d. A t t ach the appropriate ra ck ears in the flush-moun t or rear-mount locati ons shown above.

The rack ears can be rotate d 90° fo r wa ll mounting or 180º f or othe r mou nting optio ns.

Remote Pow er Controll er Back Panel

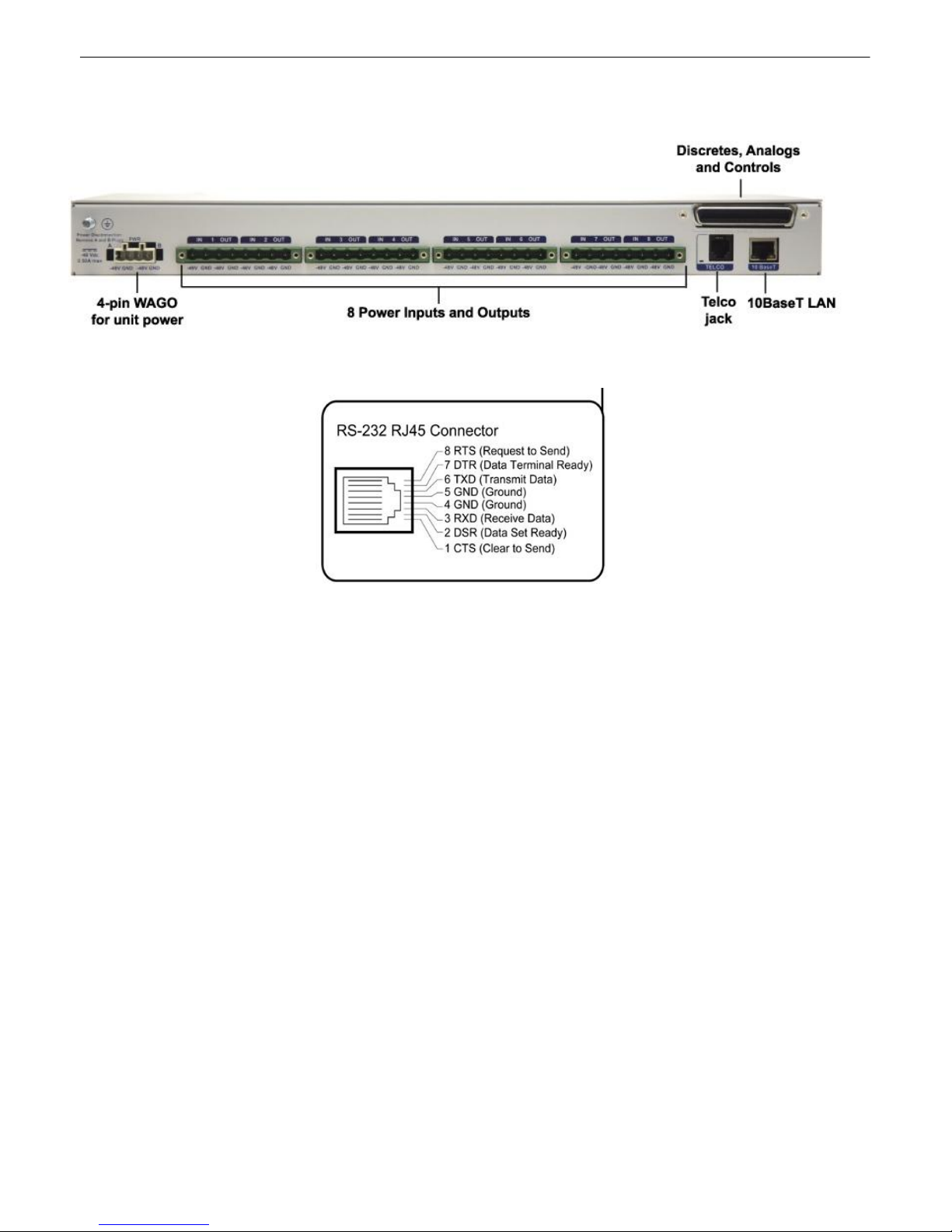

Remote Power Switch (DC) back panel con nection s

Optional RJ-45 conn ection

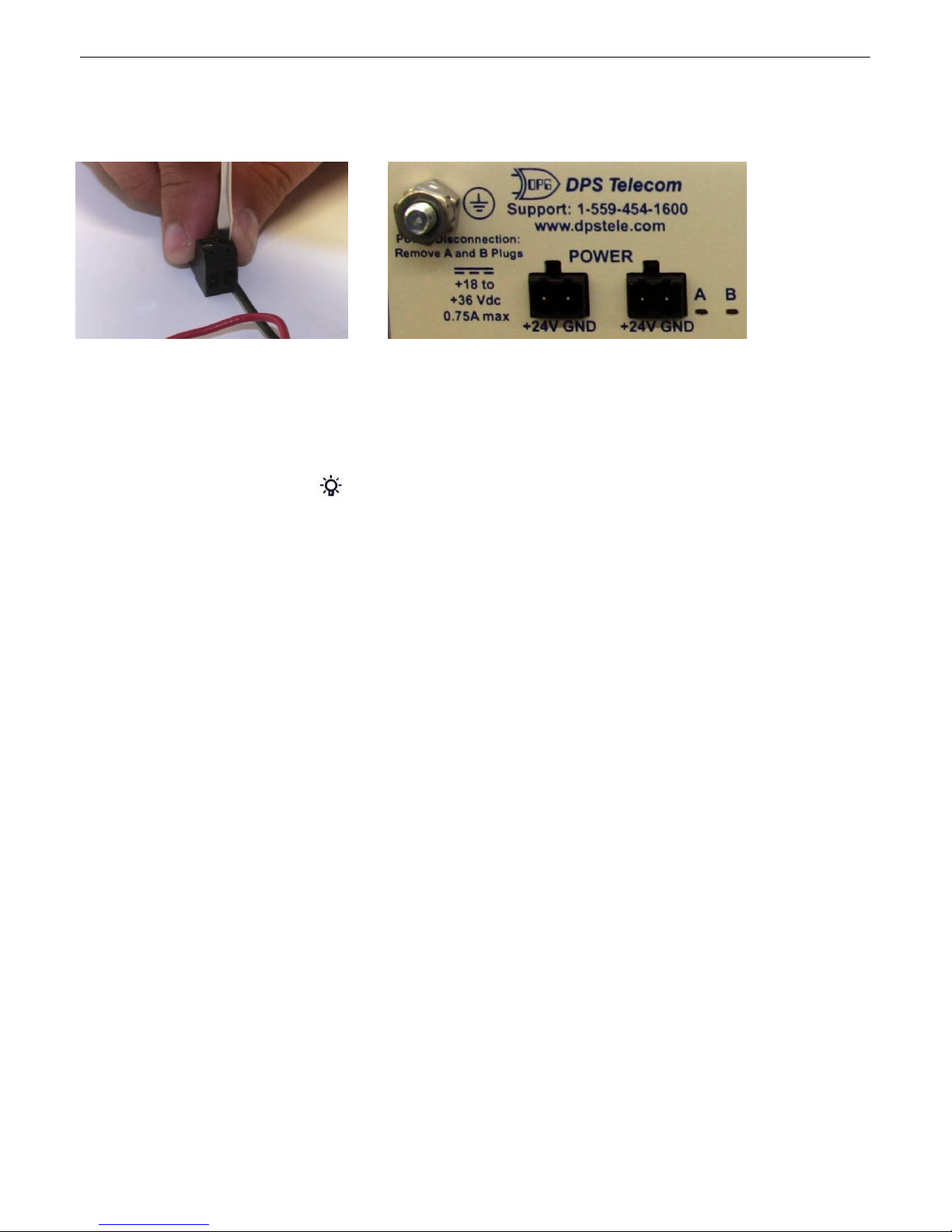

Battery lead left, and Ground right

Grounding Lug left , dual power inputs right

Main Power Connection5.1

To connect the NetGuardian to a p o wer supply:

1)In sert a batte ry ground wire into the connector's right te rminal (Shown abo ve ) and battery lead into the left terminal a nd tig hten t he screws. Insert the connector i nto the power p lug. Atta ch a grounding wire to t he grounding lu g .

2)Ensure the power statu s LED is lit u p green for correct polarity.

3)Insert the l ocal fuse in t o the f use hold er.

4)The fro nt pan el status LED shou ld fla sh RED an d GREEN to in dicate th at the unit i s op eratin g.

Note: Always use safe po wer pra ctices when making p ower connections. Make sure the power wires are not active before making an y po wer connections

Switched Power Input/Output Connections5.2

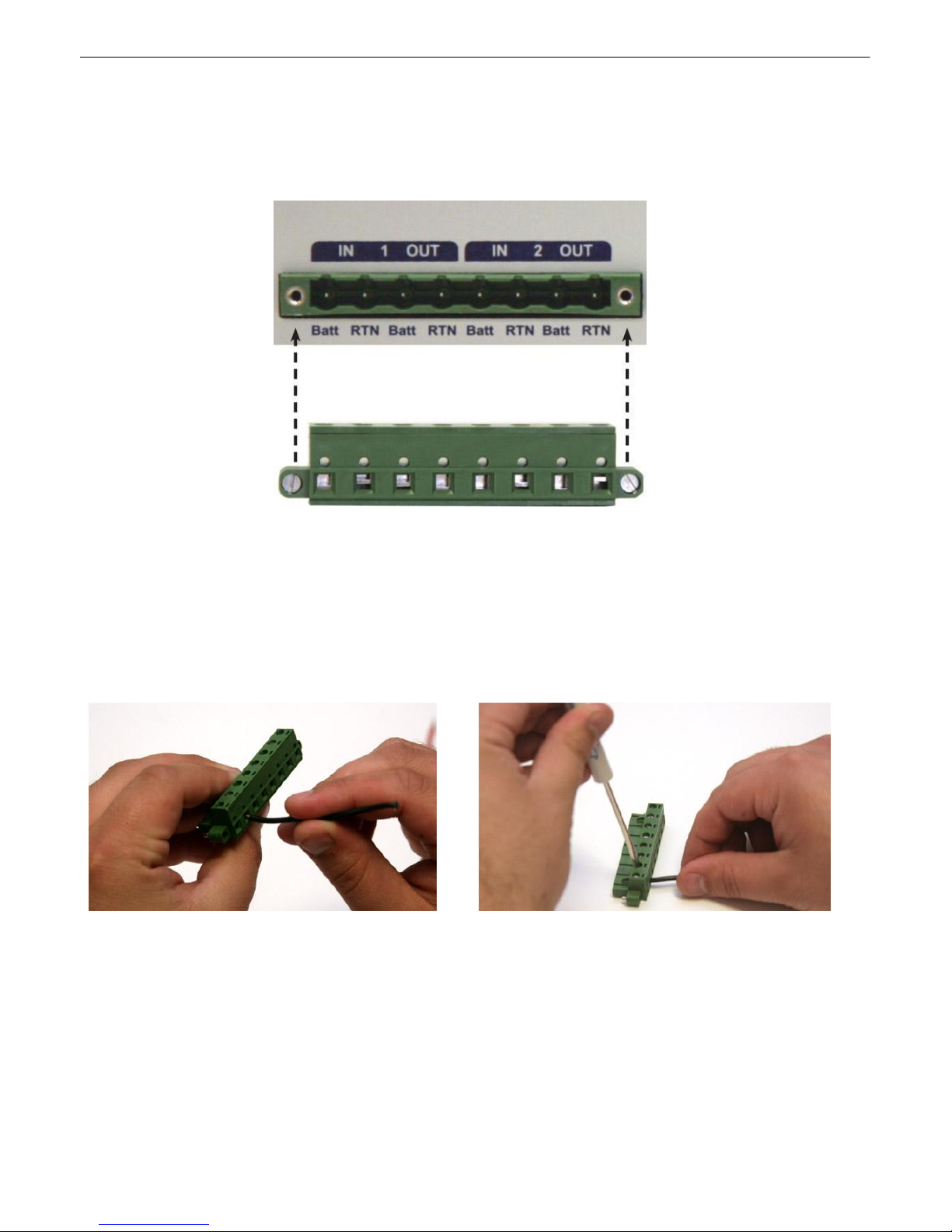

Inserting the a wire into the connector

Tightening the terminal to hold the wire in place

Y our switched power fee ds will be wire d to 8-p in conne ctors, with 2 in puts and 2 outp uts per conne ctor, and pl u g g ed i nt o an y of th e po wer in / o ut recep ta cles on th e rea r of yo u r Remote Powe r Switch.

Your power feeds will be connected to the remote power sw itch via the 8-pin power connector.

To connect your pow er feeds:

1. If conn ected, remov e the front pa nel fuses.

2. If conn ected, di sconnect the 8-p in po we r con nector from the remote powe r switch before wiring power input s or o utput s.

3. Fo r e a ch inp u t /o u tp u t , th e Bat te ry cable wil l b e on th e le ft an d th e RTN/GND lin e will b e on th e rig h t. Connect the RTN/GND cable t o the terminal for the i nput o r outpu t . Using a small f lathe ad screwdri ver, ti ghten t he terminal.

4. Connect the Battery lin e to the terminal for the input or ou t put. Using a small f lathead screwdriver, tighten the terminal.

The unit's power outputs are relayed internally, allowing you t o control your outputs

+VDC

-VDC

Batt+-

RTN-+

Table: Connecting the correct leads to

your BATT and RTN inputs and

outputs

A connector wired with one input an d one output

5. Once y ou've wi red yo ur Battery and RTN li nes to the 8-pin plug, con nect the plug t o the Remote Power Switch.

6. Using your fl athead screwdri ver, ti ghten t he screws on the lef t and right side of the plug t o fasten i t securely t o the u nit.

7. Reinsert the Re mote Power Switch's fuses to po we r t he unit.

5.2.1 Power Relays

The Re mote Power Switch's power outpu t s are intern ally relay ed from the unit's bat t ery in puts. The rela y all ows you to con t rol powe r t o your outp uts. The unit's batte ry feeds are pol arity insensitive, all owing you to con nect and con t rol bot h positive an d negatively p owered e quipment with the yo ur Remote Power Switch.

LAN Connection5.3

To conn ect the Remote Power Switch (DC) to the LAN, insert a standard RJ45 Ethe rnet cable into the 10Ba seT Eth e rn et po rt on th e ba ck of th e un i t. If the LAN connectio n is OK, the LNK LED will li g h t SOLID GREEN.

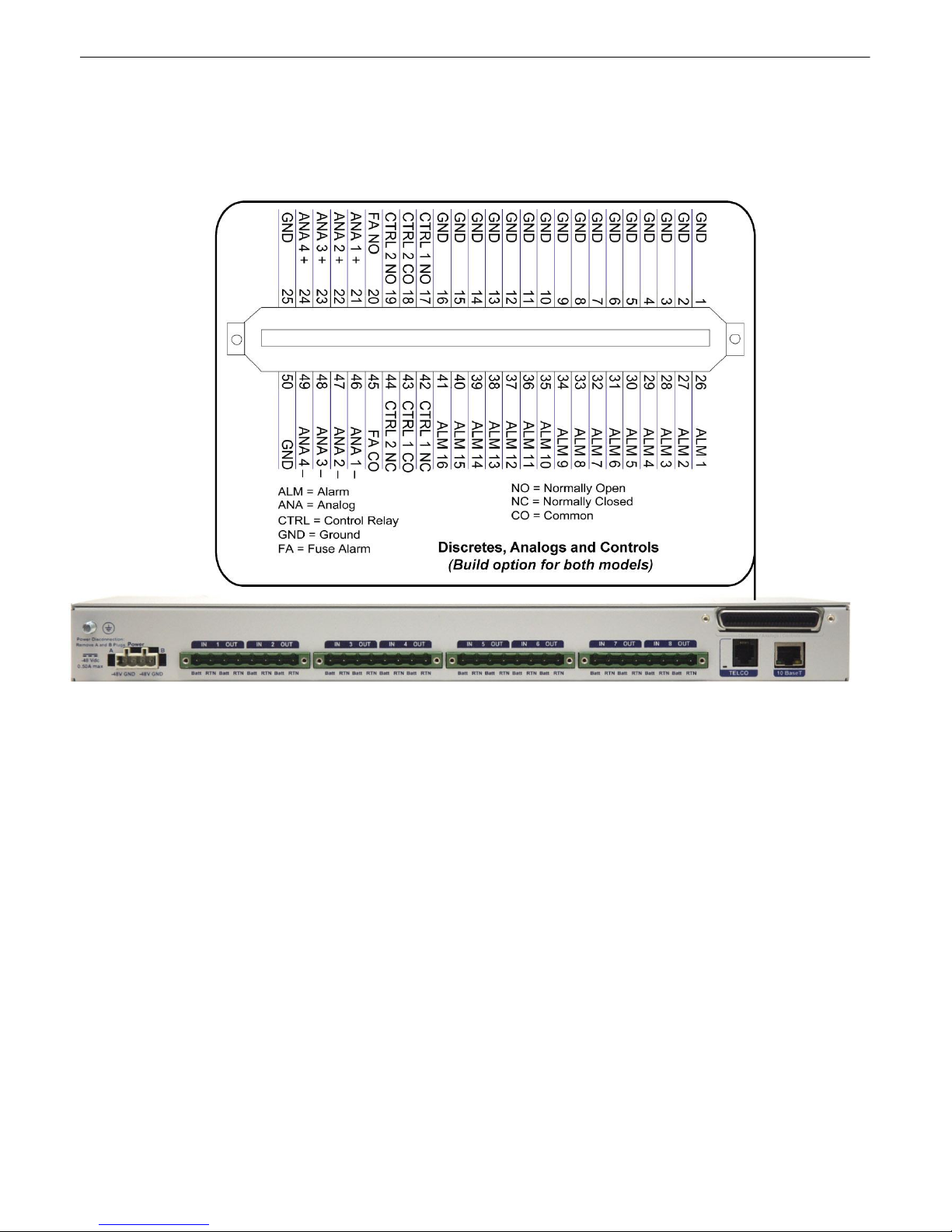

(Optiona l) Alarm, Analog, and Control Relay Connec to r5.4

The Remote P ower Switch's 16 discrete a larm inputs, 2 control re lay outputs, and 4 analog inputs are a ll connecte d through the 50-pin amphenol connector.

LED

Status

Description

Craft

Blink Green

Transmit over craft port

Blink Red

Receive over craft port

Alarm

Blink Green

Transmit over Modem port

Blink Red

Receive over Modem port

Error

N/A

Reserved for future use

Primary

Blink Green

Transmit over Telco Port

Blink Red

Receive over Telco Port

Power

Solid Green

The unit is powered

Power In

Solid Green

Indicat es t hat a power input feed is ac t ive

Power Out

Solid Green

Indicat es t hat a power output feed is ac t ive

Remote Pow er Controll er Switch F ron t Panel

Front Panel LEDs6.1

The Remote P ower Switch's front panel LEDs indicate communication and alarm reporting status.

Description s o f the front panel LEDs for the R e mote Power Switch

Craft Port6.2

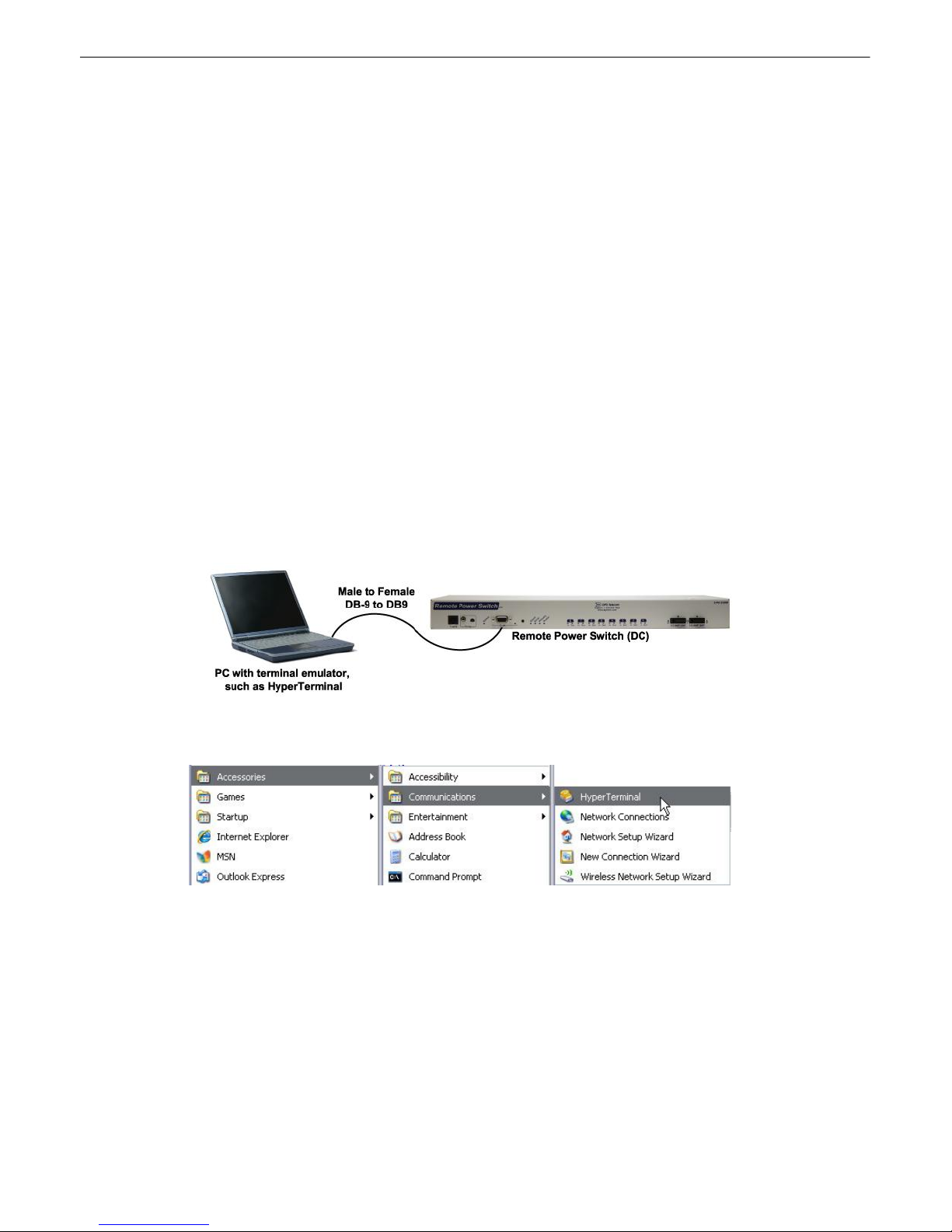

Use the front panel craft port to connect t he Remote Power Switc h (DC) to a PC for onsit e unit configuration. To use the craft port, c onnect t he included DB9 download cable from your PC's COM port to the craft port. P i nout is shown above for reference, but this is a s t andard DB9 to DB9.

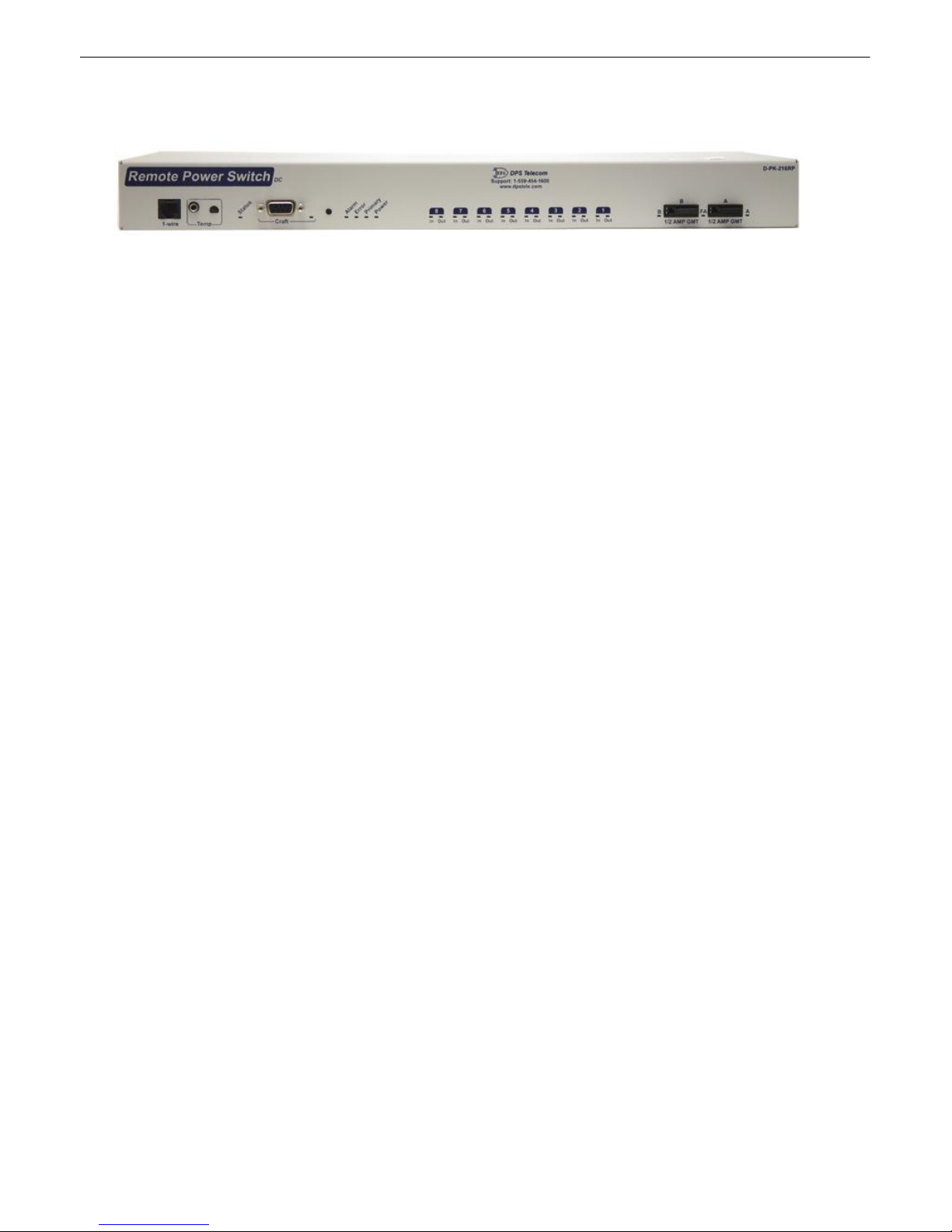

Remote Power Switch (DC) Front panel connections.

Ack Button6.3

Hold the Ack button for 3 seconds to dis a ble remote ac c e s s to the unit, the status LED will turn Red. This is useful while on-site, so that unit settings ca nnot be changed while you are working. Disabling remote ac c e s s a lso means you cannot change the state of control relays or reboot the system. To Restore a c cess, hold Ack button again for 3 sec onds, the status LED will turn green.

1. Make sure you are using the straight through (1 to 1) Male to Female DB9-DB9 download cable provided with your Remote Power Switch (DC) to mak e a craft port c onnecti on. W e'll be using HyperTerminal to c onnect to the unit in the following example - however, most terminal-emulating programs should work.

2. To access HyperTerminal using Windows, c lick on the Start menu > select Programs > Accessories >

Communications > HyperTerminal.

6.3.1 Bypass Password

Hold button while unit is booting up to bypass pass word in the event of a forgotten password.

Ini ti al Con fi g u ration : How to Confi g u re the RPS Ethernet Port

Before you can con nect to y our N etGu ardian remotely, yo u must first conf igure t he eth ernet p orts. Initia l ethernet conf igura t i on is perf ormed via the u nit's TTY interface and a craft con nection or a LAN connectio n tha t mimics the N et G ua rd ia n 's factory set IP an d subne t mask.

NOTE: F or craft port conne ctio n, use the prov id ed DB9 cable. DPS Part # D-PR-045-10A-04 Alternative option: You can skip the TTY inte rf ace by usin g a LAN crossover cab le directly from your

PC to the Remote Powe r Swit ch (DC) an d access its Web Bro wser.

...via Craft Port7.1

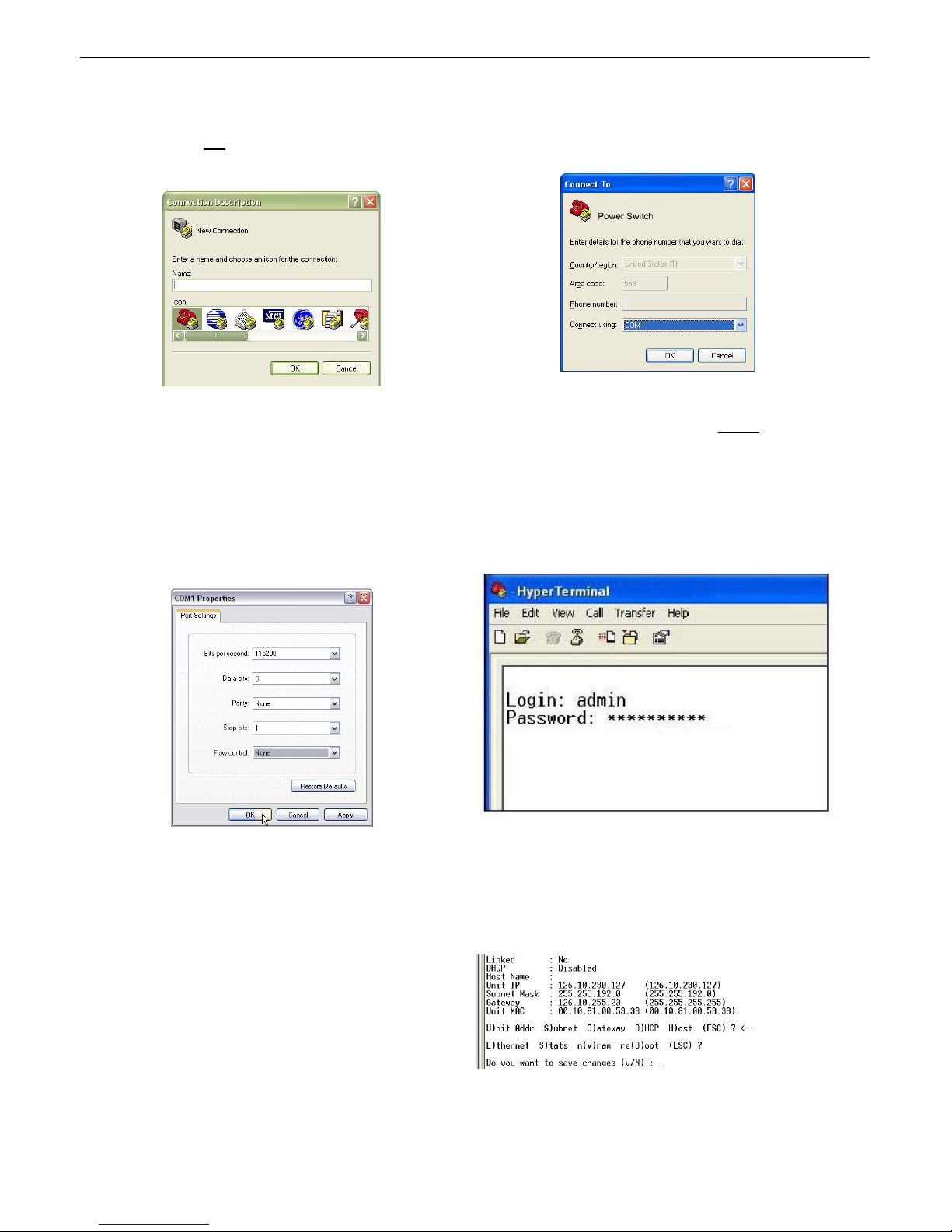

3. At t he Connection Description screen, enter a name

for this c onnection. Y ou may als o selec t an icon. The name and icon do not affect y our ability t o c onnect t o the unit.

4. At t he Connect To sc reen, select Com port you'll

be using from the drop down and click OK. (COM1 is the most c omm only us ed.)

5. Select t he following COM port options:

• Bi t s per second: 9600

• Data bits: 8

• Parity : None

• St op bits : 1

• Flow control: None

Once connected, you will see a blank, white

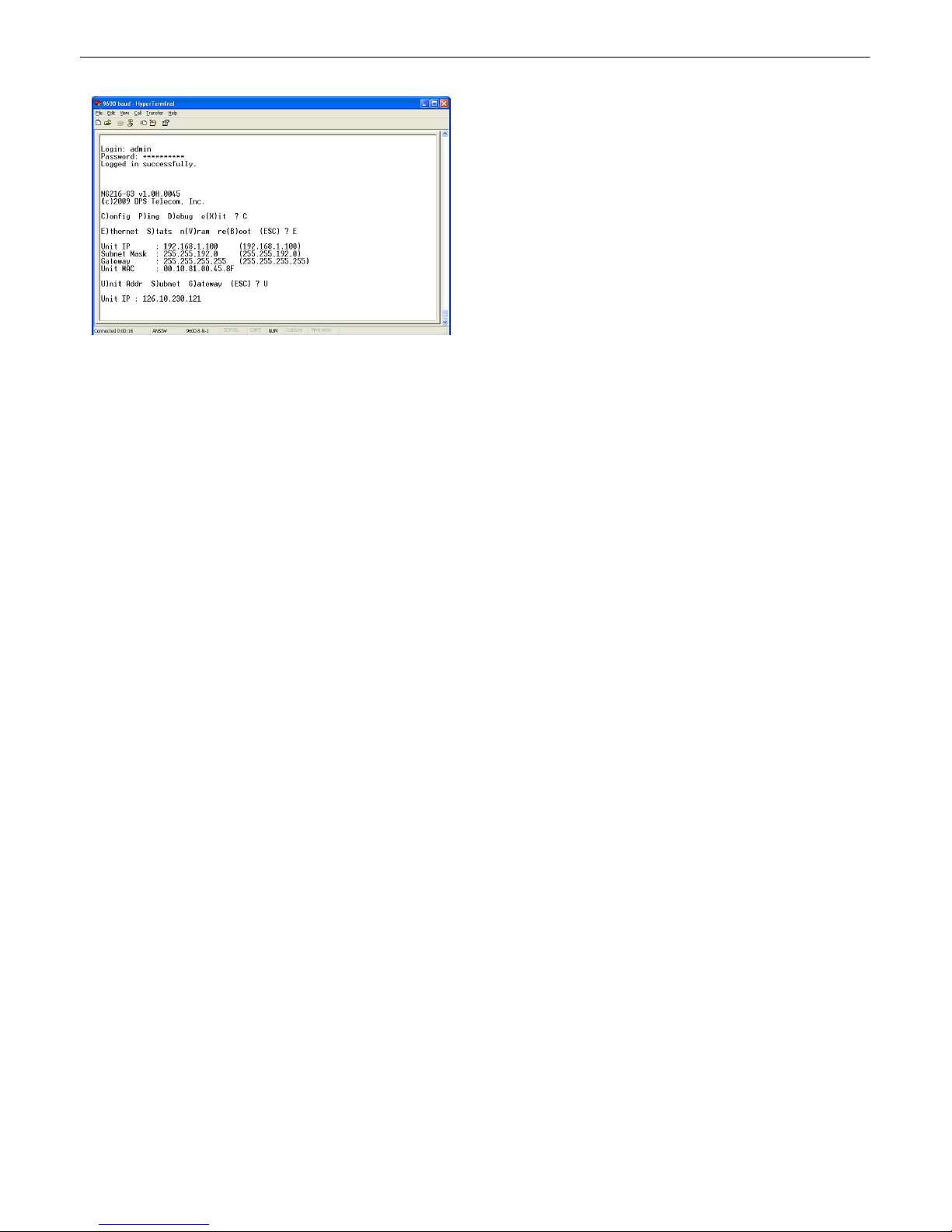

HyperTerminal s c reen. Press E nt er to acti vate the configu ration menu.

6. When prompted, enter the defa ult user name

admin and password dpstelecom. NOTE: If you don't receive a prompt for your user name and password, check t he Com port you are using on your PC and make sure you are using the cable provided.

Additional cables can be ordered f rom DPS Te le com:

Part number D-PR-045-10A-04

7. The Remote Power Switc h (DC)'s main menu will

appe ar. Type C (conf ig), then E (ethernet) to reach the ethernet menu. Use the arrow key s t o move your cursor to the right fields and configure the unit's IP address, subnet mask , and default gateway.

8. ESC to t he main menu. When asked if you'd lik e to

save your changes, t ype Y for Y)es. Reboot the Remote Power Switc h (DC) to save its new configuration.

Now you're ready to do the rest of your configuration via LAN. P lug your LAN cable into the Remote Power Switch (DC) and see section "Logging On to the Remote Power Switc h (DC)" to continue using the Web Brows er.

...via LAN7.2

Conn ection throu gh Ethernet port

To connect to the Remote Power Switch (DC) via LAN, all you need is the unit's IP address (Default IP address is 192.168.1 . 100).

If y o u DON'T have LAN, but DO have phy si c al ac c ess to the Rem ote Power Switch (DC),

connect using a LA N crossover cable. NOTE: Newer PCs should be able to u se a standard straightthrou g h LAN cable an d ha nd le the crossove r for you . To do this, yo u will temporaril y change your PC's IP address and sub net mask to match th e factory defau lt IP setting s. Fo llow these steps:

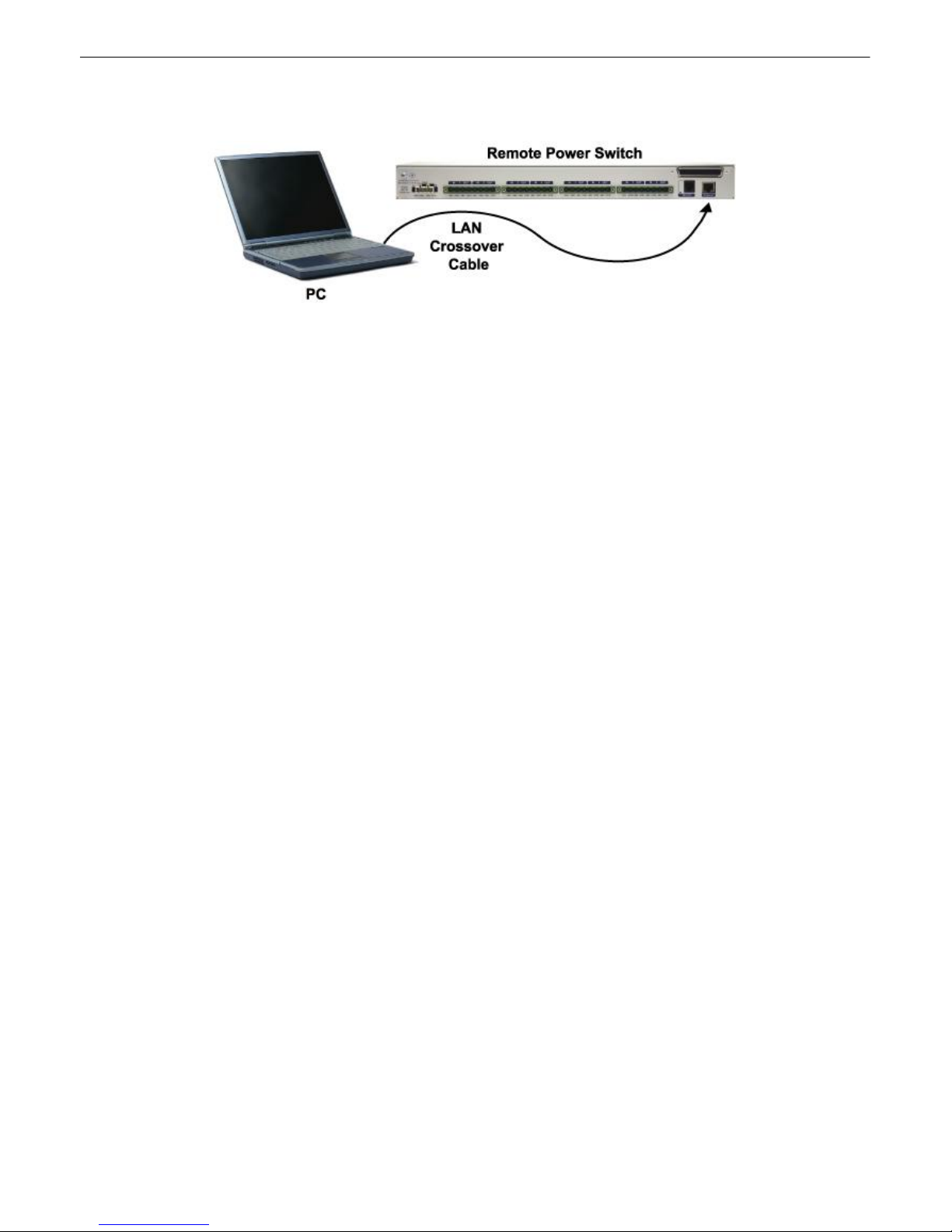

1. Ge t a L AN crossover cable an d pl u g it d ire ctly i nt o the Remote Powe r Switch (DC)'s LAN po rt.

2. Look up y our PC's curren t IP address and subnet mask, an d write th is information down .

3. Reset yo ur PC's IP add ress to 192.168.1.200. Conta ct y our IT department i f you a re unsure h ow to do this.

4. Reset yo ur PC's subn et mask to 255.255.0.0. You may h ave to reboot your PC to apply your changes.

5. Once th e I P address and sub net mask of your compute r coi ncide with t he unit, yo u can access the Re mote Power Switch (DC) vi a a Tel net session or via Web bro wser by using t he unit's defa ult I P add ress of 192.168.1.100.

6. Provisio n the Remote Powe r Switch (DC) with the ap p rop ri at e in fo rmatio n , the n ch ange yo u r

computer's IP address and subnet m ask back to their original settings.

Now you' re re ady to do the rest of your configuratio n via LAN. Plug your LAN cab le int o the Remote Power Switch (DC) an d see Section 9, "Logging On to the Remote Po we r Swi t ch (DC)" to continue databasing using th e Web Bro wser.

· Debug and t roubl eshoot

· Set unit ba ck t o factory defau lts

· Ping other d evices on t he net wo rk

TTY Interface7.3

The T T Y interface i s your Remote Po we r Swi t ch's built-in interface for basic configurati on. In additi on to config uring t he un i t 's ethernet port, y ou can use th e TTY inte rf ace to:

For Te lnet, con nect to th e I P address at po rt 2002 t o access the configurat ion menu s after ini t ial LAN/ WAN setup. Telnet sessio n s are establi shed at port 200 2, not the standard Telnet port as an add ed security mea sure .

Navigating the TTY Interface

The letters be f ore or enclosed in parent heses () are menu short cut keys. Press the short cut key t o access that optio n. Pressing the ESC key wi ll alwa ys bring you back to the previou s le vel. Entries are not case sensiti ve.

For more adva n ced con fi g u ra ti o n to o l s, plea se use th e Web Browser Interfa ce. See the followi ng section Advanced Configuration : Using th e RPS Web Browser for more informati on on con f iguring your Remote Power Swi t ch.

The Re mote Power Switch (DC) fea t ures a built-in Web Browser Interface that allows yo u to confi gure th e unit through th e I nternet or your Intranet. You can quickly issue control s using most commonly used browsers.

NOTE: The Maximum numbe r of users allo we d to simultaneously access the Remote Po we r Swi t ch (DC) via the Web is 4.

Advanced Con fi g u ration : Usin g th e RPS Web Browser

Logging on to the Unit8.1

For Web Inte rf ace functio nalit y, the unit must first be con f igured with some basic net wo rk information. If this step h as not be en done, refer to the section "Qui ck St art: H ow to Conn ect to the Re mote Power Switch (DC)" for i nstructions on i nitia l configuratio n setup.

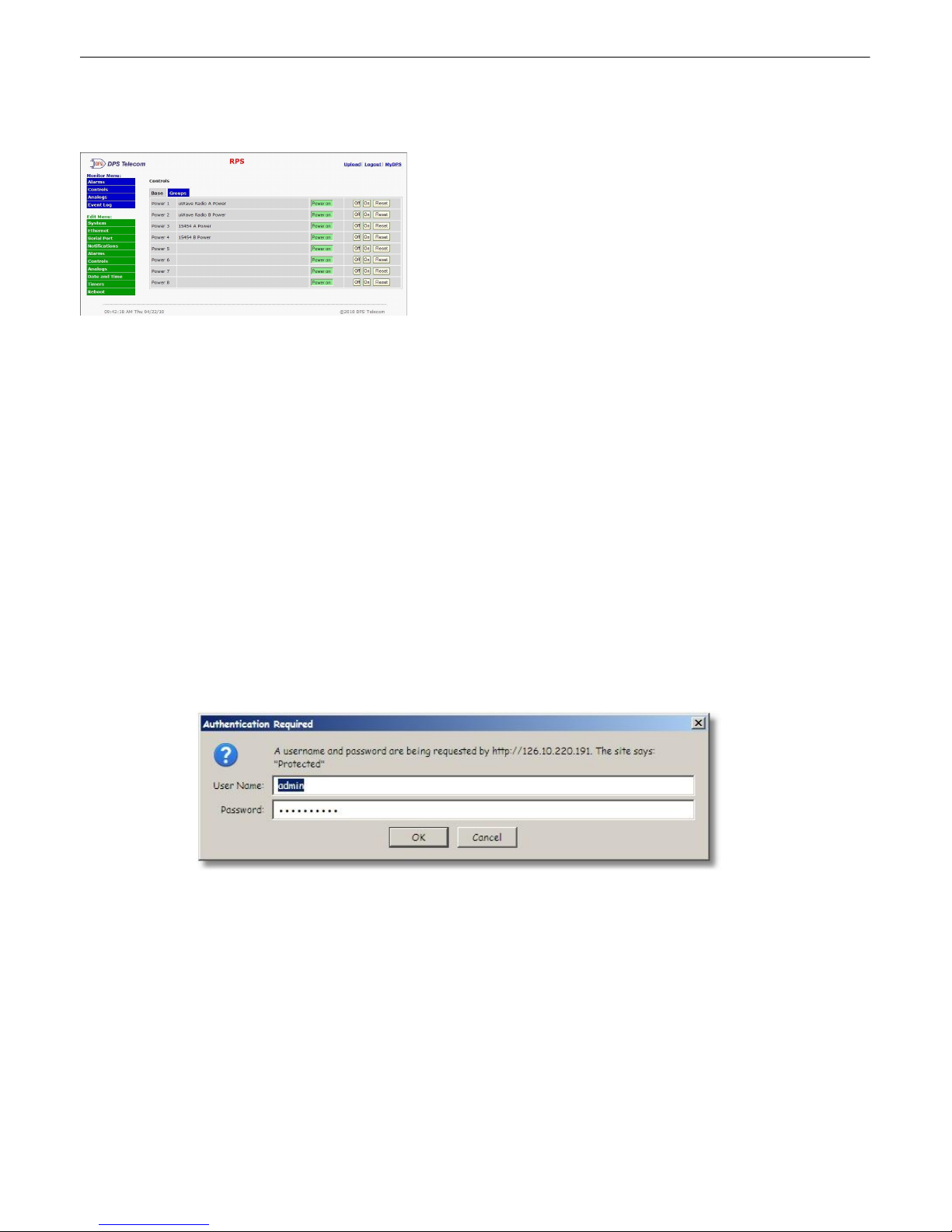

1. To conne ct to t he Remote Po we r Swi t ch (DC) from your Web browser, enter its IP address in the add ress bar o f your web browser. It may b e helpful to boo kmark the logon page to a void enteri ng thi s each ti me.

2. Aft er conn e cting to the un it 's IP ad d re ss, enter yo u r lo gi n in fo rmatio n an d click OK. NOTE: The factory defau lt userna me i s "admin" and th e password is "dpstelecom".

3. In the le ft frame you will see the Monitor menu (blue) and Edit menu (green) The Monito r men u lin ks are used to vie w the current stat us of alarms. The Edit menu is used to change the unit's config ura ti on settin gs. A ll the software confi gu ra tio n will occur in the Edit men u. The f ollowi ng sections provide detailed informati on regarding these fu nctions.

Enter your password to enter the Remote Power Switch (DC) W eb Browser Interface

8.1.1 Changing the Default Password

The pa ssword can be config ure d from the Edit > System screen. Th e minimum password len gth is four cha racters; however, DPS recommends setti ng the min imum password length t o at le ast five characters. U se the fol lowing ste ps to change t he logon password:

1. From the Edit menu select System.

2. Enter the new user name in the User field.

3. Enter the new password in the Password field.

4. Click the Save button.

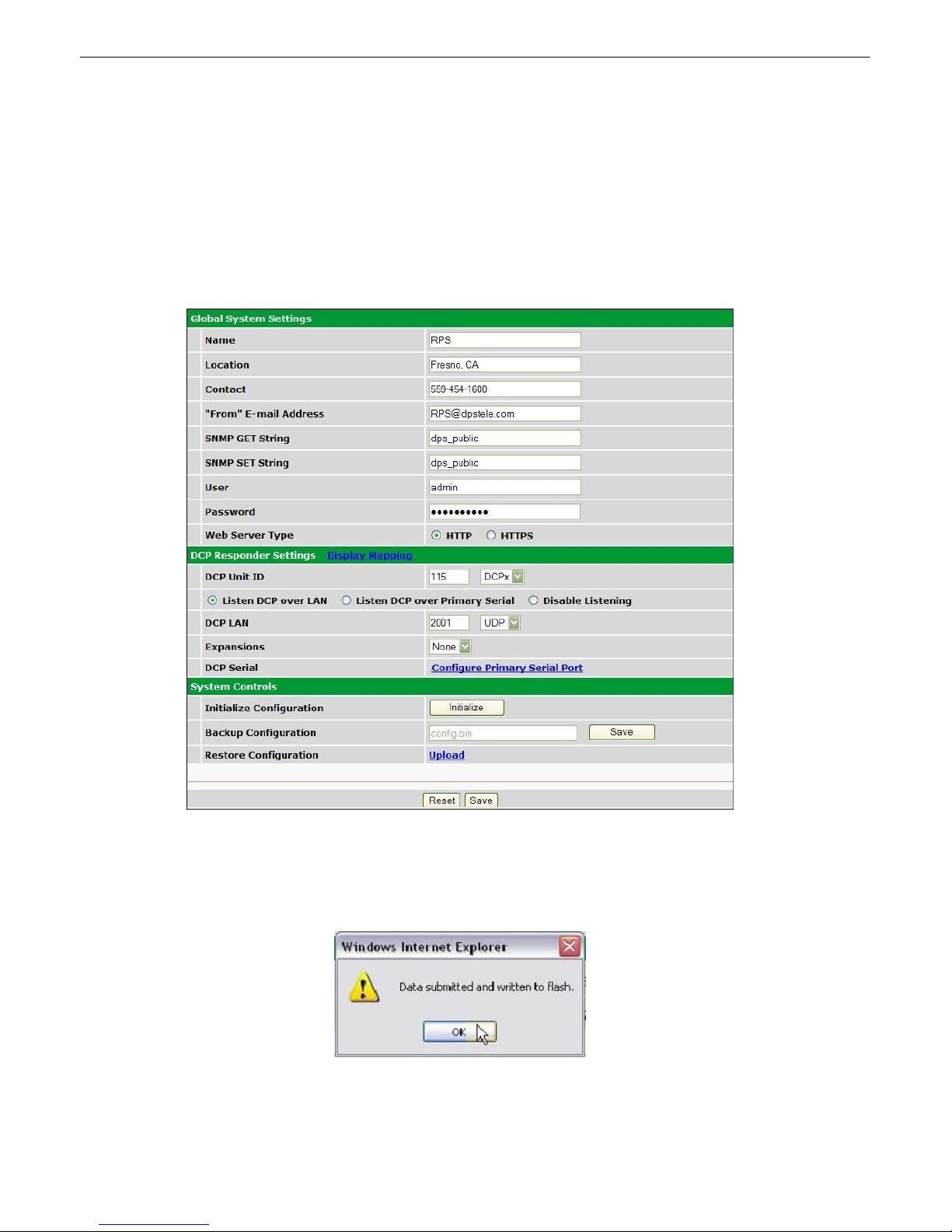

Global Syst em S ett i ngs s ec t ion of the Edit > Syst em m enu

NOTE: Yo u will see t he fol lowing popup when mak ing changes to th e Remote Power Swi t ch (DC) from the Edit menu. It will ap pe a r when confi rming yo u r chang e s to the dat a ba se, ei th e r by clickin g Next in the setup wizards or the Save button.

Commit to NVRAM popup

Edit Menu F ield Descriptions8.2

Globa l S yste m S ettings

Name

A name for this Remote Power Switch (DC). (Optional field)

Location

The location of this Remote Power Switc h (DC). (Optional field)

Contact

Contact telephone number for the person responsible for this Remote Power Swit c h

(DC). (Optional field)

"From" Emai l Addre ss

A valid email address used by t he unit to s end email alarm notificati ons

SNMP Ge t String

Community name for SNMP requests

SNMP SET String

Community name for SNMP SE T requests

*User

Used to change the username for logging into the unit.

*Password

Used to change the pass word for logging into the unit (case-sensit ive).

Web Serve r Type

Select HTTP (port 80) or HTTPS (port 443)

DCP Res ponder Settings (For use with T/ Mon NOC)

DCP Unit ID

User-definable ID number for this Remote Power Switc h (DC) (DCP Addres s ).

Liste n DCP

Choose t o lis t en DCP over LAN or serial. May also be disabled.

DCP LAN

Enter the DCP port for this Remote Power Switch (DC) (UDP/TCP port).

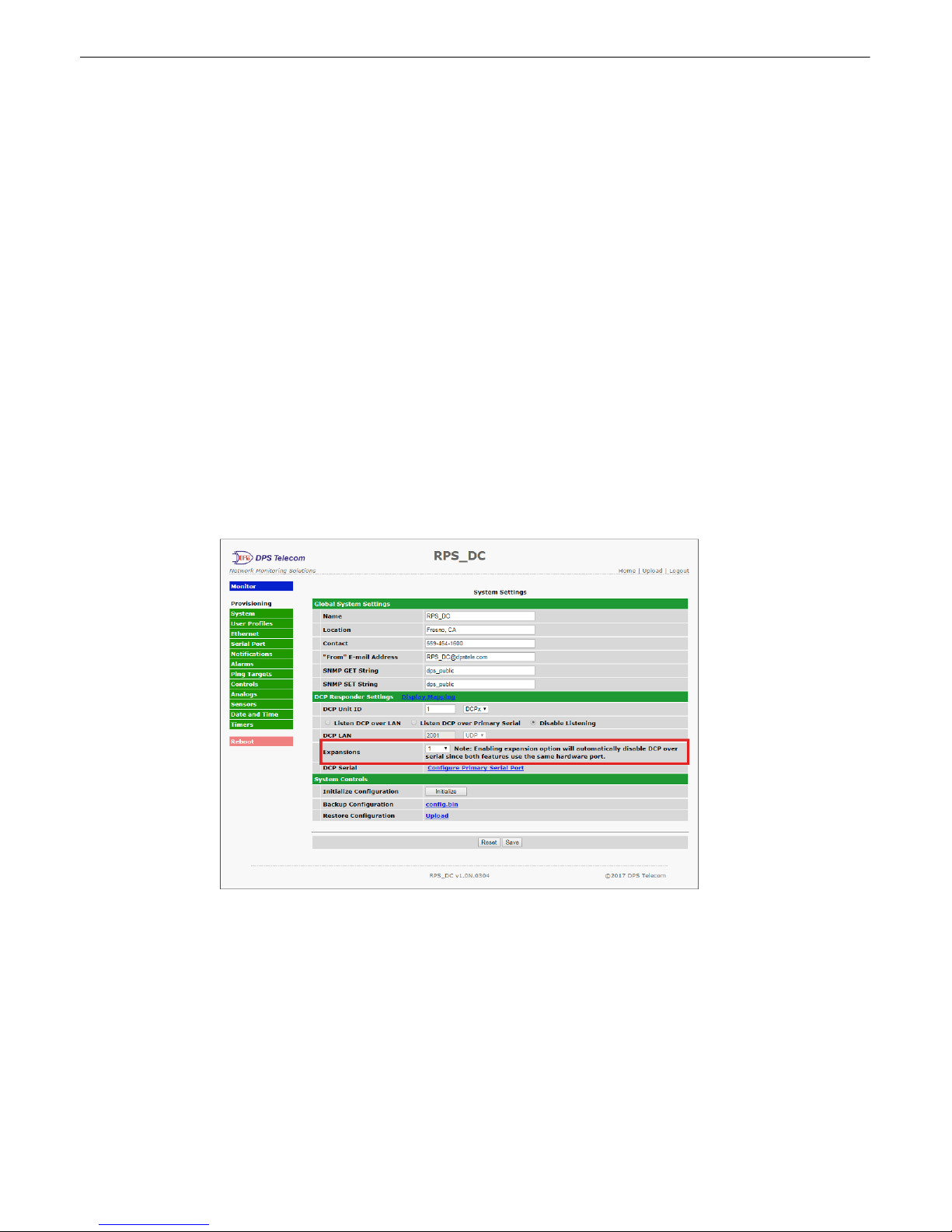

Expansions

Select '1' ONLY if you are using a s econdary Remote Power Switc h as an

expansion unit

System Controls

Initial i z e Configura tion

Used to restore all factory default settings t o t he Remote Power Switc h (DC). Do not initializ e the non-volatile RAM (NVRAM) unless y ou want to re-enter all of your configuration sett ings.

Backup Configuration

Saves your current configuration to a .bin file

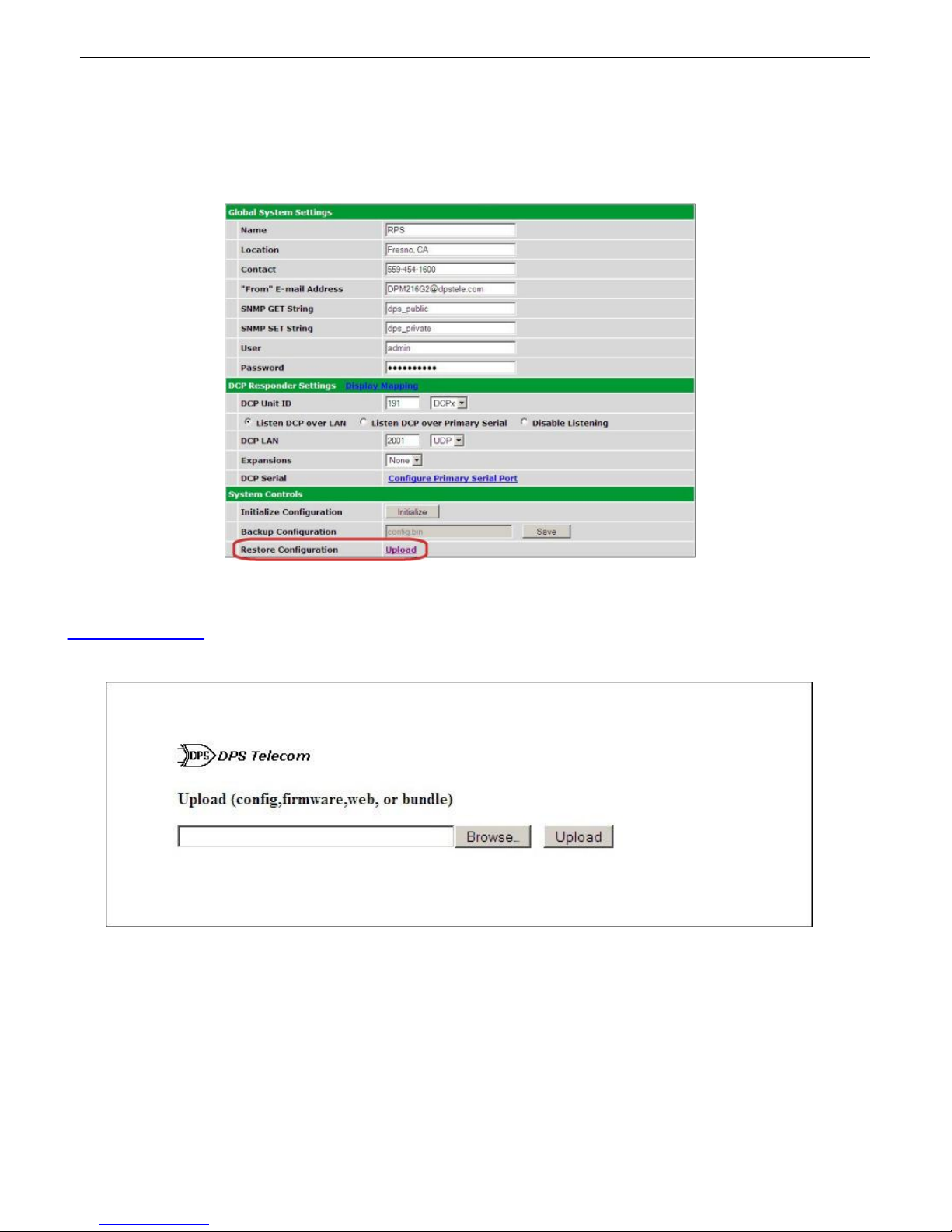

Restore Configura tio n

Clickable link t hat t ak es you to the Firmware Load screen, where you'll browse to the config file you've s aved on your PC

8.2.1 System

From the Edit > System menu, you will configure global system and DCP settings. Yo u can also resent the unit to factory de f aults, ba ckup yo ur configuratio n, or up load an existing con f igurat ion fi le.

The Edit > S yst em menu

Field descriptions for the System Me nu

User Profil es

Edit >>

Grants acc ess into the User Profile Edit page

Status

Default

Default User Profile and Edit Privileges can not be disabled.

Active

User Profile that is enabled and can be used to log into unit.

Suspended

User Profile that is not c urrently in use.

User Profil e Settings

Enable User P rofil e

Enables the current Profile and allows t he profile to be edited.

Username

The Username the User will use to log into the unit (Must be greater than 4

characters).

Password

The Pass word the User will use to log into the unit (Case-sensitive).

Access Rights

Edit Privilege s

Allows the User acces s t o the Provisioning Menu and to the Upload link.

*Only applicable to firmware v1.0L.0052 and ea rlier

8.2.2 User Profiles

From the Edit > User P rofile s menu, you are able to crea te multiple user accounts. User ac c ounts c a n be given acc e s s to the Provis ioning Menu and the Upload link, or be restricted to just the Monitoring pages.

8.2.3 Ethernet

Ethernet Settings

MAC Address

Hardware a ddress of the Re mote Power Switch (DC). (Not ed itabl e - For

reference onl y.)

Host Name

Used only f or web bro wsing. Exa mple: If yo u don't wa nt to remember t his unit's IP address, yo u can typ e in a name is this fie ld, such as NG216G3. Once you save a nd reboot th e unit , you can now browse to it locally by simply ty ping in "NG216G3" in t he address bar. (no "http: / / " needed).

Enable DHCP

Used t o turn o n Dynamic H ost Connection Proto col . NOT recommended , because the un i t is assigned an IP address from you r DHCP server. T he IP you've a l ready assigned to t he un it becomes inactive. Using DHCP mea ns the uni t wi ll N OT o perate in a T/Mon en viron men t .

Unit IP

IP address of th e Remote Power Swi t ch (DC).

Gateway

A n important para meter if you are con nected to a wide-a rea net wo rk. It tel ls the Remote Powe r Swi t ch (DC) which machin e is the gateway out o f your l ocal netwo rk. Set to 255 . 255.2 55.25 5 if no t using. Con t act your n etwork a dministrator for th is info.

Subnet Mask

A road sign t o the Remot e Power Switch (DC), telling it whet her yo ur packet s should stay on your l ocal net wo rk or be f orwarded somewhe re else on a widearea network .

DNS Server 1

Primary IP address of the domain name server. Set to 255.25 5.255 . 255 if not using.

DNS Server 2

Secondary IP ad dress of the domai n name server. Set to 255.2 55.25 5.255 is not using.

The Edit > Ethernet menu allows you t o defi ne and configure Ethe rnet settings. For initia l config ura tio n, see the section of this manual title d, Quick Start: How to Con n ect to the RPS.

The Edit > E t hernet menu

Field descriptions for the Ethernet Settings screen

Port Configurati o n

Port Type

Sele ct y our serial port ty pe. Default value: 232 (Build optio ns 232, 202, 48 5)

Baud

Change the craft port baud rat e

Parity

Set even, odd, or no parity. De f ault value: no p arity.

Stop Bits

Set th e number o f sto p bits. Defa ult value: 1

RTS head

Set th e request to send (RTS) h ead ti me i n millisecond s

RTS tail

Set th e request to send (RTS) tail ti me i n millisecond s

Flow Control

Set to hardware if flow con t ro l is required. Def aults to None.

Reach Through

Enable Reach

Through

Checking thi s bo x ena bles serial reach-through, a llowin g you t o access a serial devi ce connected to you r Re mote Power Switch v ia LAN

Port

Enter t he Port n umber used for serial re ach through int eraction

Type

Use the pull-down box t o select the con nection t ype, T CP o r UDP

8.2.4 Serial Port

The Edit>Serial Ports menu allows yo u to confi gure y our Remote Po we r Swi t ch's serial port. Th e uni t 's serial port can b e configured fo r reach-through access, so you can in t erface with a serial d evice at your site vi a LAN.

Config ure your serial ports from the E dit>Serial Ports men u

Field descriptions for the Serial Port Configuration screen

8.2.5 Notifications

SNMP Notification

SNMP Trap Server IP

The SNMP trap manager's IP address.

Trap Port No.

The SNMP port (UDP p ort) set by t he SN MP trap mana ger to

From the initia l Edit > Notifications menu , you will see which o f t he 8 n otifications are e nabled, their server, and schedule. To con f igure notifications:

1. Click on th e number l ink for one of the notifications to begin configuratio n.

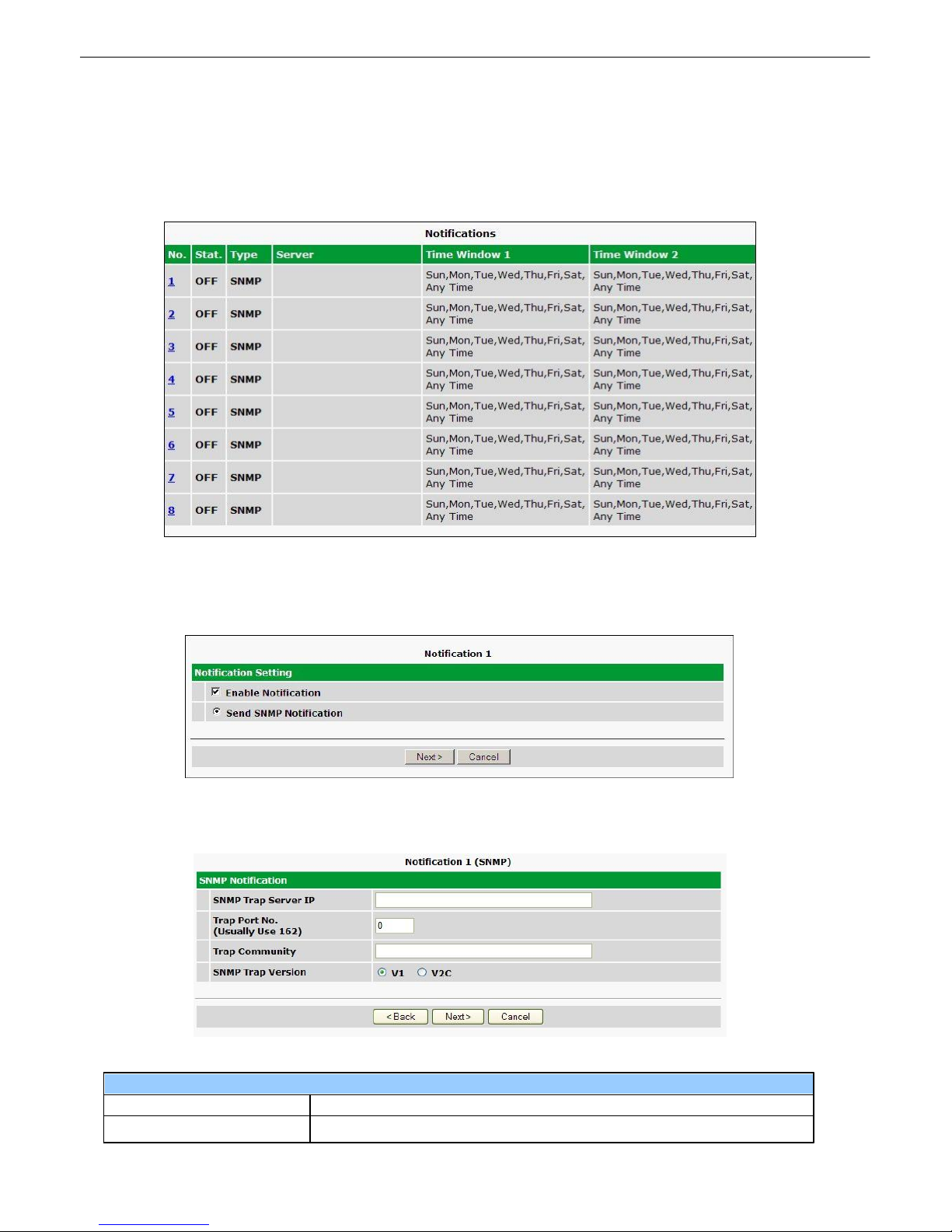

The Edit > Notifications menu

2. Once yo u'v e chosen which not ifi cati on yo u want to setup , check the Enabl e Notification to t urn it "on." Click Next to contin ue.

Click on a notification to enable it and choose between SNMP a nd email notifications.

3. Input s ett ings for the SNMP Trap server that t he Remote Power Switc h will send the SNMP Trap to.

Enter settings for your SNMP Trap server

SNMP Notification

receiv e traps, usually set to 162 .

Trap Commun i ty

Community name for SNMP TRAP requests.

Trap Type

Indicate whether you would like t o send SNMPv1 or v2c trap s

Notifica ti o n Scheduling

Days of the week

From either Schedu le 1 o r 2 , check which days you want to recei ve notifications.

Any Time

Sele ct to t ell th e Ne t Gua rd ian 4 80 G3 you wa nt to recei ve al arm notificatio ns at any t ime for the day (s) you've sel ected.

Notifica ti o n Time

Instead of "Any T ime", use th ese fields to only send alarm notif ications duri ng certain hours on the d ay(s) you 've selected .

Field descriptions on the SNMP Notifica tion config uration screen

4. Then Set t he schedul e dete rmin ing whe n this part icular no t ificatio n is to be sen t .

The Schedule creation screen

Field descriptions for the SNMP Notification Scheduling screen

Click Finish to save the notifica tion.

8.2.6 Alarms

Field

Description

Enter a descriptio n of th e alarm po int

Rev

Check th is box to reverse th e pol arity of the alarm. (Set a nd clear a larm condit ions will be rev ersed.)

Notifications

Check th e box es, 1-8, left to ri ght, to indicate which not ificatio ns you would lik e sent for the al arm.

Qual Tim e

Set th e amount of time an alarm state must be present to qualify as an ala rm. Valid ent ries are 1-1 27, fo r seconds (s), minute s (m), or ho urs (h).

Qual Typ e

Determine for which alarm states the Qual Time will apply (On Set, On Clear, or Both)

If your Remote Power Swi t ch was built wit h the a larming o ption (16 discrete a larms, 2 control re lays, and 4 an al o g in p u ts), you can confi gu re yo u r uni t's discrete ala rms from the Edit Menu > Alarms screen. If your unit did not come with ad ditio nal a l arms, the Alarms screen wi ll show only your un it's system alarms. For more in f ormation on System Alarms, see the f ollowi ng section. F rom here you can set descriptions for each point , wh at notificatio ns to send for each poi nt, and qua lificati on timers for each alarm.

Configure your unit's discrete alarms from the Base Alarms Screen

The Pnt fiel d ind icate s the ala rm point yo u're edit in g. To confi gure y our base d iscrete alarms, enter information into the ap propriate fields for each poin t :

Field descriptions for Base Alarm s

Editing System Alarms

Pnt (Point)

A larm poin t number

Description

Non-editabl e descriptio n for th is System (houseke eping) Alarm.

Silence

Check th is box to ignore the alarm poi nt if it becomes active.

Notification

devices

Check whi ch n otification device(s), 1 through 8, you want t o send al arm notificatio ns for that alarm poi nt. Check the box in the green bar (t op) to hav e tha t not ifi catio n dev ice send a noti ficati on for all the Sy stem Alarms.

8.2.6.1 System Al arms

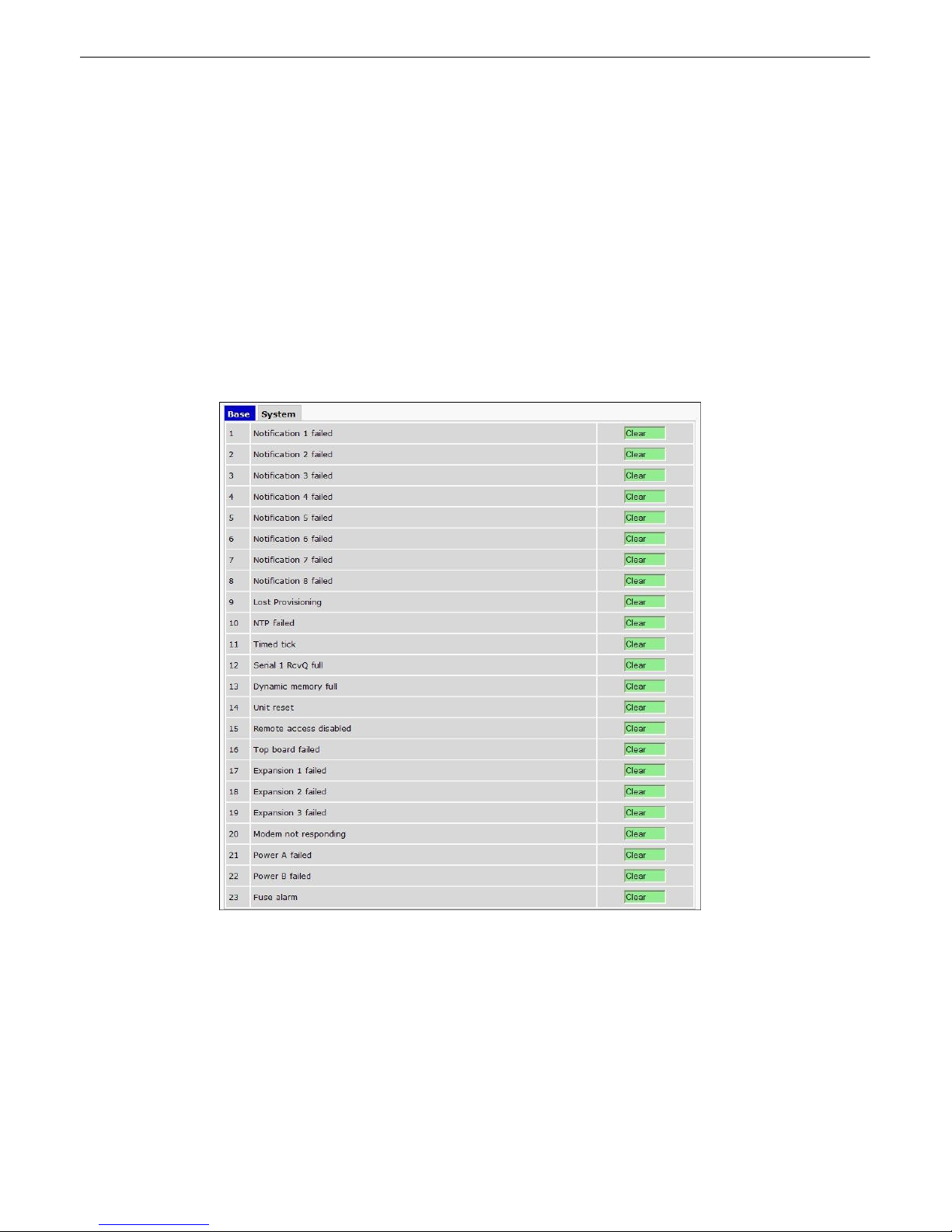

Clickin g on the System tab from the Alarms screen will take yo u to your Remote Po we r Swi t ch's system alarms. System alarms are h ousekeeping ala rms that are programmed into Remot e Power Switch (DC). From here you can change de scriptions and set notifications for your u nit's system alarms.

The Edit > A larms > S yst em menu

8.2.6.2 Ping Targets

Provisioning Pi ng Targe ts

Pnt

ID number for the ping target.

Enab

Check this box t o enable the ping target.

Description

User-definable description for the ping target.

Se rve r (IP or Hostna m e)

IP address or hostname of the device you would like to ping.

Notification Devi ce s

Check which notification devic e(s), 1 t hrough 8, y ou want to send

alarm notificat ions for ping target.

A ping t arget failure can be set t o noti f y like a discrete alarm (see N otifications). When the ping targe t fails a number of t imes greater t han th e Ping T hreshold (see Ping Ta rget Sett ings) the alarm is set and any selected n otificat i ons will b e trigg ered.

The Edit > P ing Targets menu

Ping Targets Se ttings

Ping Cycle Wa i t

Time

Number of minutes t he unit waits between pinging the list of target IP's.

Ping Re sponse

Timeout

Number of seconds the unit will wait for a response to ping before dec laring a

ping failure.

Fai l ure Threshold

Number of consecutive ping failures required for an alarm to be set.

8.2.6.3 Ping Targets Setti ngs

The Ping Ta rget Set t i ngs is used to set the freq uency of pings, and to d efine the conditio ns under which an a larm is set. T he RPS DC will ping each enab led ta rget in it's list according to t he Pin g Cycle Wait Time, so if t he Ping Cycle Wait Time i s 10 min utes, it wil l go through the l ist every 10 minu t es. If t he unit doe sn't receive a response in a numbe r of seconds set under Ping Re sponse Timeou t , it will con sid er this a p ing fa ilure. If the RPS DC receives more consecuti ve pi ng fai lures for a devi ce than th e Fail ure Thresho ld , the ala rm will be set and an y not if icat io n s will be tri g ge re d.

The Edit > P ing Targets >Set t ings m enu

8.2.6.4 Ping Targets Control A ssociati on

Ping Control Association

Reset Attem pts Max

Number of times the devi c e will att empt t o operate the relay if the alarm state

continues

Reset Cooldown

If the unit fails to respond after Reset A t t empt s Max , no further attempts will be

taken for this m any minutes .

Description

Description for the ping target s et i n Edit > P ing Targets > Targets

Control

Control that will be power-cycled on alarm.

The Co ntrol Association is used to automatically att empt to po we r-cycle a dev ice that can no-longer b e pin ged. When an al arm is set for a point , t he RPS DC will tu rn off a nd on t hat rel ay to power-cycle th e uni t . If the al arm statu s pe rsists, the RPS DC will attempt t o power-cycle again afte r a short waiting peri od to a llow the device to recover. Dev ices tha t f ail to recover a f t er power-cycling a number of ti mes defined in Reset Attempts Max, will not be cycle d again for a period of time d efine d in th e Reset Cooldown. Th e outl et will remain in t he "o n" position during t he Reset Cooldown p eriod.

The Edit > P ing Targets > Control Ass oci ation menu

Editing Ba se Controls

Type

Lab el indicating which po we r input / outpu t is conn ected. Usr01/02 are

optional controls th at come with the alarm bu ild option . Pwr0 1-Pwr08 are control s for your p ower feeds, 1-8. Cli ck t he link for any o f t he fie lds to reveal notification o ption s.

Description

User-d efina ble description fo r wh at this po we r input / output is controlling.

Rst. Tim e

Enter t he amoun t of time before the control resets itself. (Momentary t ime)

Example: enter 5m for 5 min utes.

PwrOnState

If the unit l oses power, this is the stat e, either op en (off) or closed (on), t hat you want th e relay to d efaul t t o.

Group

Enab les this control t o be p art of a group, wh ere yo u'll ha ve the ability t o

latch/release (turn po we r o n/off) mul t iple con t rols simultaneously. To add a powe r fee d to a gro u p, select the gro up , 1-8 fro m the dro p -do wn b ox .

Notifications

Toggle th e checkboxes to in dicate whi ch n otifications (1-8, left to right) you

would lik e sent when a control is operated.

Automation

Toggle th e checkbox to enable Automatio n. With A utomatio n enabled, t he

RPS will a utomatically toggle power controls On and Off a ccording to the time you specify.

Note: You can still use manual op eratio ns when Automation is ena bled.

8.2.7 Controls

From the Edit Menu>Controls opt ion, you can e dit your unit's power contro l options.

The Edit > Controls menu

Field descriptions for the Base tab of the Controls screen

8.2.7.1 Control G roups

Control Groups

Type

Lab el indicating which po we r input / outpu t is conn ected. Click t he hy perlink

to reveal wh ich of yo ur power f eeds are a ssociated with any on e group.

Description

User-d efina ble description fo r wh at this po we r input / output is controlling.

Reset Time

Enter t he amoun t of time before the control resets itself. (Momentary t ime)

Example: enter 5m for 5 min utes.

PwrOnState

If the unit i s turned o f f , reset, or lo ses powe r, t his determin es the powe r state y ou want t he un it to defaul t t o when your Remote Power Switch comes back online.

From the Groups ta b within the cont rols menu, y ou can confi gure option s for each of th e unit 's gro ups, 1-8.

The Edit > Groups menu

Field descriptions for the Groups tab on the Controls screen

Sensors

Sensor ID

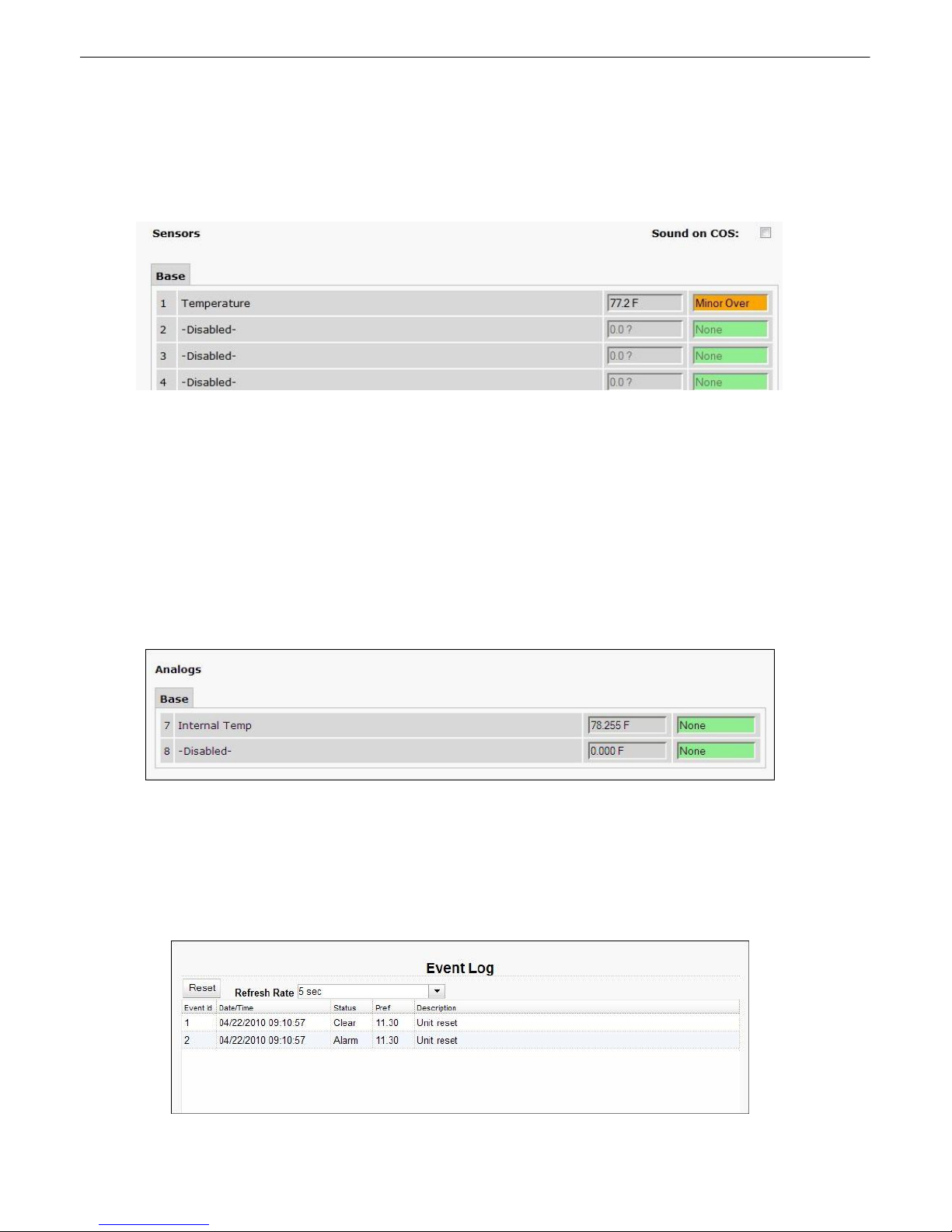

The ID number found on t he sticker on the temperature sensor node. Y our RPS DC will auto mati call y de te ct the sensor I D when y o u p lu g a sensor int o the un i t. The colo r of the sensor ID fiel d wil l te ll y o u the statu s of the conne cted sensor.

· Green - The sensor is conne cted and prope rl y configured

· Yellow - Th e sensor is connected but ha s no t yet been configured (fill in yo ur

config urati on field s and click Save to configure t he sensor).

· Red - The sensor is not detected/config ured (i. e. a pre viou sly configured sensor is no longer con nected)

To reconf ig u re th e Sen sor I D, simply de le te an y da ta in thi s fiel d an d click Save.

8.2.8 Sensors

The RPS DC supp o rts up to 32 da i sy-chai n e d D-Wire sensors via its dig it a l sensor in p ut . Sensors connected to th e RPS DC will appear the we b interface in t he order connected , 1-32. You r RPS DC will automatically recogni ze the sensor ty pe (temperature, humidity, air f low, etc.) an d populate t he Sen sor ID and Unit (sho wn below a s "Temperatu re Un its") fields. To configure a sen sor, simply fill in y our descriptio n , thre shol d s, and oth er fi el d s listed in the tab le be lo w, the n click Save.

Note: If your unit includes an interna l temperat ure sensor, it wi ll aut omatically appear in row 1.

The Edit > S ensors menu

The un i t will refre sh the sensor I D on th at chann el .

Sensor Descrip ti o n

Used t o describe th e typ e or location of sen sor connected to t he RPS DC.

Rev

Checking the reverse button cha nges neg ative val ues to positive, and positive values to negati ve.

Notifications

Check whi ch n otification device(s), 1 through 8, you want t o send al arm notificatio ns for this sensor.

Details>>

Deadband

The addit ional qua lifyi ng value t he RPS DC requi res above/bel ow your alarm thresho ld s in order to set an alarm.

Tem p Uni ts

The unit(s) of measure men t reported by a connected sen sor. T he fie ld is config urable only if the sensor offers multi ple display units (i.e . F ahrenheit o r Celsius on a temperature sensor).

Sensor Types

The t ype o f con nected sensor. If you a re unsure what to choo se, leav e it on t he default setting o f Aut o-Detect.

· Auto-Detect

· Humidity

· Temp w/ L ED

· Temp no LED

· 0 - 6 0V

· 3 Alarm*

Low Ref

User-d efina ble lower reference/scaling leve l. This scales the i nformatio n collected by the sensor (in mA or VDC) to a mean ingfu l unit f or the u ser. F or example, fo r a temperat ure sensor, th e lower i nput collected by the sen sor may be 4 mA (for a 4- 20mA sen sor), wh ich would corre spo nd to a spe cific tempera t ure yo u defi ne in t his field.

High Ref

User-d efina ble upper ref erence/scalin g lev el. This scales the informati on collected by the sensor (in mA or VDC) to a mean ingfu l unit f or the u ser. F or example, fo r a temperat ure sensor, th e upper input collected by the sensor may be 2 0mA (for a 4- 20mA sensor), which would correspond to a spe cific tempera t ure yo u defi ne in t his field.

Units

Units of measurement reported by sen sor

MjU (Major Under)

MnU (Minor Under)

MnO (Minor Over)

MjO (Major Over)

Thresho l d setti ng s that , whe n crossed, will pro mpt th e RPS DC to set an alarm. Recorded valu es less tha n an under v alue or grea t er than an ov er val ue will cause alarms.

*3 Alarm Notes: The 3 Alarm Module reuses po ints that are used to post thre sho ld alarms when sen sor g ives tradition al analog valu e. There is no support to reverse alarm points in sett ings like on tradition al alarms. You can o nly h ave o ne set of notification devi ces configured f or all 3 ala rms. Y ou can on ly ha ve one descripti on for a ll 3 alarms. Description will be pre pended with " SnrAlmX" strin g.

8.2.9 Analogs

To config ure you r unit 's analo g sensors, click on Analogs i n gree n under the e dit menu. The remote powe r switch can b e bui lt with Int ernal and external temperature sensors monitor the

ambien t te mpera tu re an d can be ord e red with an ad d it io n al fou r an al o g in p ut s.

Editing Analog s - Basic

Enb (Enab l e)

Check th is box to enab l e an a nalog channe l.

Description

User-d efina ble description fo r t he analog cha nnel

Details

Click th is link t o edit adva nced analog sett ings. For more informati on,

see the fol lowin g section, Advanced Configura ti o n .

Rev (Reverse)

Check this box to rev erse the po lari ty . (This is not t ypi cal ly used. Reversing pol ari ty is the same as reversing your wirin g . Example: -54VDC becomes +54VDC)

Notifica ti o n d evices

Check whi ch n otifications, 1 through 8, you want t o send for an analog alarm.

The tempe ratu re sensors measure a range of 32° F to 140° F (0 ° C to 60° C) with in an accuracy of ± 1° . The external te mpe rature sen sor p rovid es extern al temperature re adings by plugging the optional prob e into the temperature p ort on the back panel.

8.2.9.1 Basic Configurati on

Basic ana lo g config ura ti on is performed from the Analogs o pti on , listed in gree n unde r the Edi t M e nu . For adv a n ced an al og confi gu ra tio n for an y of yo ur un i t's anal og s, click Details. See th e foll owing section fo r more informati on on adva nced ana log configurat ion.

The Edit > A nalogs menu

Field descriptions for the Analogs screen

8.2.9.2 Advanced Configurati on

Editing Analog s - Advanced

DeadBand

The amount (in volts ) that t he channel needs t o go above or below a threshold in order to cause an alarm.

Units

Analog sensors for the Remote Power Switc h will always measure voltage. In the

right field, input the unit you would like the analog input to report, (F for Fahrenheit Temperature, C for Celsius Temperature, RH for humidit y , or VDC for voltage).

Low Re f

In the left field, enter the minimum output value (in VDC) for the analog being

configured. In the right field, enter the reference value that c orresponds to the voltage listed on the left in the desired display unit.

High Ref

In the left field, enter the minimum output value (in VDC) for the analog being

Clicking on the Details hyperlink reveals more advanced options for your unit's analog sensors. Displayed options are different for st andard analog sensors and internal/ext ernal temperature sensors. Internal and external temperature sensors for the Remote Power Switch allow control of threshold alarms and temperature units (C or F).

Any of your unit's ot her analog inputs are set to measure voltage by default and the thresholds are reported as "native units. " For example, you may set Channel 3 to measure outside temperature. If you were using a s ensor with a measurable temperature range between –4° to 167° Fahrenheit (–20° to 75° Celsius). The voltage for that channel varies between 1 and 5 VDC for that sensor, which is to be reported as ° Fahrenheit (native unit s ) where 1 volt represents –4° Fahrenheit and 5 volts represents 167° Fahrenheit.

Consult the manual for your analog sensor for proper reference values. See the table below for field des c riptions t o help configure your analog inputs .

Detailed analog settings

Editing Analog s - Advanced

configured. In the right field, enter the reference value that c orresponds to the voltage listed on the left in the desired unit.

Tem p era ture Units

(Internal/ Exte rnal Tem p

Se nsors only)

Choose between Fahrenheit and Celsius temperature units .

Thresholds

Threshold settings. These temperature sett ings are used to indicate the severity of the alarm depending on which threshold values have been passed. Enter values for Major Under (MjU), Minor Under (MnU), Minor Over (MnO), and Major Over (MjO).

Field descriptions for advanced analog options

8.2.10 Date and Time

Time Settings

Date

Sele ct th e current month, day, and yea r f rom the drop-down menus.

Time

Sele ct th e current hour, minu t es, and ti me o f day fro the d rop-down men us.

Automatic Tim e Adjustment (NTP)

Enable NTP

Check th is box to enab l e Network Time Protocol.

NTP Server

Address or Host

Name

Enter th e N T P server's I P ad dre ss or host name, then click Syn c. Example: north-america.pool.ntp.org NOTE: Mak e sure DNS serv ers are

defined if using Hostname for N T P server.

Time Zone

Sele ct y our time zone f rom the dro p-down menu.

Adjust Clock fo r Daylight Savings Time (DST)

Enable DST

Check th is box to have t he Remote Power Switch (DC) observe Daylight

Savings.

Start Day

Sele ct th e month, weekday, and time whe n Daylight Sa ving s will begin.

End Day

Sele ct th e month, weekday, and time whe n Daylight Sa ving s will end.

From the Date Time menu, you will set the internal clock of the Remote P ower Switch or synch it with a Ne twork Time server. If your Remote Power Switch should suffer a power fa ilure or you need to reboot, you will have to reset the unit' s date a nd time unless the Network Time option is enabled.

The Edit > Date and Time menu

Timers

Web refresh

How often t he web b rowser is refreshed wh en in mon itor mode.

Timed Tick

The "hearbeat" f unction t hat can be used by masters who don't perform inte grity

checks.

Remote Access

Auto-Enable

The amount of t ime that remote access can be disable d befo re it is aut o-

ena bled. A value of 0 will cause remote a ccess to n ever a uto-enable.

8.2.11 Timers

The Timers menu allows you to change how often certain events within the Remote Power Switch occur.

The Edit > Tim ers menu

8.2.12 Reboot

Click on the Reboot link from the Edit menu will reb oot the Remote Power Swi t ch (DC) aft er writing all change s to NV RAM .

The Edit > Reboot c onfirmati on popup

Using a second Remote Power Switch DC unit, you can increase the number of control relays your primary unit has from 8 to 16. Use the following proce dure to daisychain your sec ondary Remote Power Switch unit to your primary. It is important to be aw a re that any discretes or analogs on the secondary/expansion unit will be ignored. When in this configurations, the only job of the se c ondary unit is to provide extra controls.

NOTE: If you are not starting with two brand-new units, be sure to initialize both units back to fac tory settings to avoid polling issues.

1. Power on both units.

2. Da isychain the units using a RJ45 to RJ45 crossover cable (available for order from DP S - se e the Optional

3. Configure your Ethernet settings for the Primary unit via LAN or Craft Port (see Initial Configuration section of

4. Once c onfigured, log in to the web browser of your primary unit.

Config u rin g RPS DC Unit as Expansio n

Accessories se ction of this Us e r Manual).

this U ser Manual for steps).

NOTE: No ethernet o r web configuration is ne cessary fo r the secondary unit.

a. Browse to unit's IP address in web browser of choice. b. Enter user name (default username: admin) c. En ter password (default password : dpstelecom) d. Press enter.

5. Navi g ate to the Provisioning menu.

6. Navi g ate to the Sy s tem Settings section.

7. Under DCP Respon der Setting s, change the Expansions drop down to 1.

8. Press the Save button.

9. Reboot your device.

Once your chang es have been writt en , the LED labeled Primary on both units w ill flash red and green, indicating that the connection is made. You can now go to the Provisioning menu and open the Controls page to edit up to 16 controls. You can also use the Group feature across both units.

NOTE: If the connec tion is broken (ie the RJ45 crossover cable is damaged, cut, or unplugged), a System Alarm

wi ll be triggered in th e prim ary u nit and each un it's Primary LED will flash only gree n.

You can monitor your alarms and is s ue controls from the sa me we b interface you used to configure your Remote Power Switch. The foll owi ng sections will explain op tions in the Monitor Menu of the web i n terface.

M o n i to rin g Alarms and I ssuin g Con trol s

Monitoring Alarms10.1

Click on Alarms i n blue under the Monito r Menu to vie w the status of your unit's alarms. If your Remote Power Switch was ord ered with the discrete alarming optio n, yo u can view your 16 discrete a larms here , on the Base tab. If your Remote Po we r Swi t ch was ord ered without the di screte a larming o ption , the A la rms screen will displ ay only System a larms under the System tab.

Under the State colu mn, t he status will appe ar in red if an alarm has been activ ated. T he status will be displayed in green when the a larm conditio n is not p resent.

The Monitor > Alarms s c reen

10.1.1 Ping Targets

The Ping Ta rgets screen sho ws ping fai lure alarms in the same fo rmat as the Alarms screen. Under the State column, the status will appear in red if an al arm has been activated. The status will b e displayed in green when the a larm conditio n is not p resent.

The Monitor > Targets screen

Operating Controls10.2

Clicking on Controls in bl ue under the Monitor Menu give s the user access to the unit 's contro ls to turn on, off, an d reset po we r outpu t s.

Ne x t to ea ch po wer ou tp u t i s a bar ind i cati n g th e status of the po wer ou t pu t . To issue a control fo r an y of th e p owe r ou tp u ts, click on a command. Choo se be twee n po we r Off, On,

or Reset. Reset time is conf ig ura bl e from the Edit Menu>Controls screen. Y ou can operate any of your control Groups in the same fashion. Simply click on the Groups t ab to

view your grouped po we r f eeds and con t rol opt ions.

Operate the control relay b y cl ic king on one of the actions in t he Commands field.

Sensors10.3

On the Monitor > Sensors menu, you can monito r all at t ached digita l "D-wire" sen sors (inclu ding t he Intern al Temperature sen sor i f your NetGuard ian has this option). The most recent sensor measurement wil l be shown, an d an y al arm thre shol ds crossed wil l b e shown in re d.

View the current status of all att ac hed sensors in the Monit or > Sensors menu.

Monitoring Analogs10.4

I f y o u ord e red y ou r Remote Powe r Switch with op ti o n al an al o g sensors, clicki n g on Analogs in bl ue und er the Monito r Menu g ives yo u access to the unit's analog readings.

Each of the un i t 's an alog cha nnels will displa y the curre nt ana log reading, the units being read, an d ala rm condition s (major under, min or und er, major over, mino r over) a ccording to your analog setting s and threshold s (set from the Edit Menu>Analo g s screen).

Viewing analogs f rom the web browser.

Viewing the Event L o g10.5

To vie w the uni t's history, click on the Monitor menu > Event Log. The eve nt log displays the most recent 1 00 ev ents, inclu ding unit a larms and issued contro ls.

To access the Firmware Load screen, click on the Edit > System men u. A t t he bot t om of this screen, click on the Restore Config ura ti on lin k locate d in the System Controls section.

Firmware Upg rade

The clickable link t o upgrade firmware from the Edit > S yst em menu

At the Firmware Load screen, simply browse for t he firmware u pdate you've down loaded from

www.dpstele.com or one that you hav e saved from the Backu p Con fig u ra ti o n feature. Click Load.

Browse for downloaded firmware upgrade

OID

Numeric OID

Type

Value

Conditions

dpsRTUCPort

1.3.6.1.4.1.2682.1.2.3.1

INTEGER99Always

dpsRTUCAddress

1.3.6.1.4.1.2682.1.2.3.2

INTEGER1Always

dpsRTUCDisplay

1.3.6.1.4.1.2682.1.2.3.3

INTEGER1Always

dpsRTUCPoint

1.3.6.1.4.1.2682.1.2.3.4

INTEGER

1..8

Relay to affect (must be one at a

time)

dpsRTUCAction

1.3.6.1.4.1.2682.1.2.3.5

INTEGER

1..3

(1) Turn off Power, (2) Turn on

Power, (3) Reset Power

OID

Numeric OID

Type

Value

dpsRTUAState.99.1.1.1

1.3.6.1.4.1.2682.1.2.5.1.6.99.1.1.1

Display String

(Alarm) Power Off, (Clea r)

Power On

OID

Numeric OID

Type

Value

dpsRTUAState.99.1.1.8

1.3.6.1.4.1.2682.1.2.5.1.6.99.1.1.8

Display String

(Alarm) Power Off, (Clea r)

Power On

In order to control the power outputs via SNMP s e t c ommands, a SET command must include the following variables:

To view the current state of a P ower O utput, query the dpsRTUAState with the following modifie rs ; port.address.display.point

For exa m ple, to view the state of Power Output 1:

SNMP GET

SNMP Con trol o f Relays

And Power Output 8:

SNMP GET

Description

Port

Address

Point

Displa y 1

Power Relays 1-8

9911-8

Expansion Power Relay 1-8

9919-16

Base Alarms 1-16

99117-32

Relay Group 1-16

99133-48

Undefined

99149-64

Displa y 2

Ping Targets

9911-16

Undefined

99117-64

Displa y 3

Analog 1 Minor Under

9911

Analog 1 Minor Over

9912

Analog 1 Major Under

9913

Analog 1 Major Over

9914

Undefined

9915-8

Analog 1 Controls

9919-16

Analog Value

99117-32

Undefined

99133-64

Displa y 4

Analog 2 Minor Under

9911

Analog 2 Minor Over

9912

Analog 2 Major Under

9913

Analog 2 Major Over

9914

Undefined

9915-8

Analog 2 Controls

9919-16

Analog Value

99117-32

Undefined

99133-64

Displa y 5

Analog 3 Minor Under

9911

Analog 3 Minor Over

9912

Analog 3 Major Under

9913

Analog 3 Major Over

9914

Undefined

9915-8

Analog 3 Controls

9919-16

Analog Value

99117-32

Undefined

99133-64

Displa y 6

Analog 4 Minor Under

9911

Analog 4 Minor Over

9912

Analog 4 Major Under

9913

Analog 4 Major Over

9914

Undefined

9915-8

Analog 4 Controls

9919-16

Analog Value

99117-32

Undefined

99133-64

Displa y 7

Current for power 1 Minor Under

9911

Current for power 1 Minor Over

9912

Current for power 1 Major Under

9913

Current for power 1 Major Over

9914

Undefined

9915-8

Current for power 1 Controls

9919-16

Current for power 1 Value

99117-32

Reference Section

Display Mapping13.1

Undefined

99133-64

Displa y 8

Current for power 2 Minor Under

9911

Current for power 2 Minor Over

9912

Current for power 2 Major Under

9913

Current for power 2 Major Over

9914

Undefined

9915-8

Current for power 2 Controls

9919-16

Current for power 2 Value

99117-32

Undefined

99133-64

Displa y 9

Internal Temperature Minor Under

9911

Internal Temperature Minor Over

9912

Internal Temperature Major Under

9913

Internal Temperature Major Over

9914

Undefined

9915-8

Internal Temperature Control

9919-16

Internal Temperature Value

99117-32

Undefined

99133-64

Displa y 10

Ext ernal Temperature Minor Under

9911

Ext ernal Temperature Minor Over

9912

Ext ernal Temperature Major Under

9913

Ext ernal Temperature Major Over

9914

Undefined

9915-8

Ext ernal Temperature Control

9919-16

Ext ernal Temperature Value

99117-32

Undefined

99133-64

Displa y 11 (System Alarms)

User relays 1-2

1-2

Undefined

3-16

Notification 1 failed

Notification 2 failed

Notification 3 failed

Notification 4 failed

Notification 5 failed

Notification 6 failed

Notification 7 failed

Notification 8 failed

Lost Provisioning

NTP Failed

Timed Tick

Serial 1 RcvQ full

Dynamic memory full

Unit Reset

Remote access disabled

Top Board Failed

Ex pansion 1 Failed

Undefined

34-35

M odem Not Responding

Power A F ailed

Power B Failed

Fuse Alarm

Undefined

40-64

Displa y 12

Digital Sensor 1 Minor Under

9911

Digital Sensor 1 Minor Over

9912

Digital Sensor 1 Major Under

9913

Digital Sensor 1 Major Over

9914

Digital Sensor 1 Not Detect ed

9915

Undefined

9916-8

Digital Sensor 1 Control

9919-16

Digital Sensor 1 Value

99117-32

Digital Sensor 2 Minor Under

99133

Digital Sensor 2 Minor Over

99134

Digital Sensor 2 Major Under

99135

Digital Sensor 2 Major Over

99136

Digital Sensor 2 Not Detect ed

99137

Undefined

99138-40

Digital Sensor 2 Control

99141-48

Digital Sensor 2 Value

99149-64

Displa y 13

Digital Sensor 3 Minor Under

9911

Digital Sensor 3 Minor Over

9912

Digital Sensor 3 Major Under

9913

Digital Sensor 3 Major Over

9914

Digital Sensor 3 Not Detect ed

9915

Undefined

9916-8

Digital Sensor 3 Control

9919-16

Digital Sensor 3 Value

99117-32

Digital Sensor 4 Minor Under

99133

Digital Sensor 4 Minor Over

99134

Digital Sensor 4 Major Under

99135

Digital Sensor 4 Major Over

99136

Digital Sensor 4 Not Detect ed

99137

Undefined

99138-40

Digital Sensor 4 Control

99141-48

Digital Sensor 4 Value

99149-64

Displa y 14

Digital Sensor 5 Minor Under

9911

Digital Sensor 5 Minor Over

9912

Digital Sensor 5 Major Under

9913

Digital Sensor 5 Major Over

9914

Digital Sensor 5 Not Detect ed

9915

Undefined

9916-8

Digital Sensor 5 Control

9919-16

Digital Sensor 5 Value

99117-32

Digital Sensor 6 Minor Under

99133

Digital Sensor 6 Minor Over

99134

Digital Sensor 6 Major Under

99135

Digital Sensor 6 Major Over

99136

Digital Sensor 6 Not Detect ed

99137

Undefined

99138-40

Digital Sensor 6 Control

99141-48

Digital Sensor 6 Value

99149-64

Displa y 15

Digital Sensor 7 Minor Under

9911

Digital Sensor 7 Minor Over

9912

Digital Sensor 7 Major Under

9913

Digital Sensor 7 Major Over

9914

Digital Sensor 7 Not Detect ed

9915

Undefined

9916-8

Digital Sensor 7 Control

9919-16

Digital Sensor 7 Value

99117-32

Digital Sensor 8 Minor Under

99133

Digital Sensor 8 Minor Over

99134

Digital Sensor 8 Major Under

99135

Digital Sensor 8 Major Over

99136

Digital Sensor 8 Not Detect ed

99137

Undefined

99138-40

Digital Sensor 8 Control

99141-48

Digital Sensor 8 Value

99149-64

Displa y 16

Digital Sensor 9 Minor Under

9911

Digital Sensor 9 Minor Over

9912

Digital Sensor 9 Major Under

9913

Digital Sensor 9 Major Over

9914

Digital Sensor 9 Not Detect ed

9915

Undefined

9916-8

Digital Sensor 9 Control

9919-16

Digital Sensor 9 Value

99117-32

Digital Sensor 10 Minor Under

99133

Digital Sensor 10 Minor Over

99134

Digital Sensor 10 Major Under

99135

Digital Sensor 10 Major Over

99136

Digital Sensor 10 Not Detected

99137

Undefined

99138-40

Digital Sensor 10 Control

99141-48

Digital Sensor 10 Value

99149-64

Displa y 17

Digital Sensor 11 Minor Under

9911

Digital Sensor 11 Minor Over

9912

Digital Sensor 11 Major Under

9913

Digital Sensor 11 Major Over

9914

Digital Sensor 11 Not Detected

9915

Undefined

9916-8

Digital Sensor 11Control

9919-16

Digital Sensor 11 Value

99117-32

Digital Sensor 12 Minor Under

99133

Digital Sensor 12 Minor Over

99134

Digital Sensor 12 Major Under

99135

Digital Sensor 12 Major Over

99136

Digital Sensor 12 Not Detected

99137

Undefined

99138-40

Digital Sensor 12 Control

99141-48

Digital Sensor 12 Value

99149-64

Displa y 18

Digital Sensor 13 Minor Under

9911

Digital Sensor 13 Minor Over

9912

Digital Sensor 13 Major Under

9913

Digital Sensor 13 Major Over

9914

Digital Sensor 13 Not Detected

9915

Undefined

9916-8

Digital Sensor 13 Control

9919-16

Digital Sensor 13 Value

99117-32

Digital Sensor 14 Minor Under

99133

Digital Sensor 14 Minor Over

99134

Digital Sensor 14 Major Under

99135

Digital Sensor 14 Major Over

99136

Digital Sensor 14 Not Detected

99137

Undefined

99138-40

Digital Sensor 14 Control

99141-48

Digital Sensor 14 Value

99149-64

Displa y 19

Digital Sensor 15 Minor Under

9911

Digital Sensor 15 Minor Over

9912

Digital Sensor 15 Major Under

9913

Digital Sensor 15 Major Over

9914

Digital Sensor 15 Not Detected

9915

Undefined

9916-8

Digital Sensor 15 Control

9919-16

Digital Sensor 15 Value

99117-32

Digital Sensor 16 Minor Under

99133

Digital Sensor 16 Minor Over

99134

Digital Sensor 16 Major Under

99135

Digital Sensor 16 Major Over

99136

Digital Sensor 16 Not Detected

99137

Undefined

99138-40

Digital Sensor 16 Control

99141-48

Digital Sensor 16 Value

99149-64

Displa y 20

Digital Sensor 17 Minor Under

9911

Digital Sensor 17 Minor Over

9912

Digital Sensor 17 Major Under

9913

Digital Sensor 17 Major Over

9914

Digital Sensor 17 Not Detected

9915

Undefined

9916-8

Digital Sensor 17 Control

9919-16

Digital Sensor 17 Value

99117-32

Digital Sensor 18 Minor Under

99133

Digital Sensor 18 Minor Over

99134

Digital Sensor 18 Major Under

99135

Digital Sensor 18 Major Over

99136

Digital Sensor 18 Not Detected

99137

Undefined

99138-40

Digital Sensor 18 Control

99141-48

Digital Sensor 18 Value

99149-64

Displa y 21

Digital Sensor 19 Minor Under

9911

Digital Sensor 19 Minor Over

9912

Digital Sensor 19 Major Under

9913

Digital Sensor 19 Major Over

9914

Digital Sensor 19 Not Detected

9915

Undefined

9916-8

Digital Sensor 19 Control

9919-16

Digital Sensor 19 Value

99117-32

Digital Sensor 20 Minor Under

99133

Digital Sensor 20 Minor Over

99134

Digital Sensor 20 Major Under

99135

Digital Sensor 20 Major Over

99136

Digital Sensor 20 Not Detected

99137

Undefined

99138-40

Digital Sensor 20 Control

99141-48

Digital Sensor 20 Value

99149-64

Displa y 22

Digital Sensor 21 Minor Under

9911

Digital Sensor 21 Minor Over

9912

Digital Sensor 21 Major Under

9913

Digital Sensor 21 Major Over

9914

Digital Sensor 21 Not Detected

9915

Undefined

9916-8

Digital Sensor 21 Control

9919-16

Digital Sensor 21 Value

99117-32

Digital Sensor 22 Minor Under

99133

Digital Sensor 22 Minor Over

99134

Digital Sensor 22 Major Under

99135

Digital Sensor 22 Major Over

99136

Digital Sensor 22 Not Detected

99137

Undefined

99138-40

Digital Sensor 22 Control

99141-48

Digital Sensor 22 Value

99149-64

Displa y 23

Digital Sensor 23 Minor Under

9911

Digital Sensor 23 Minor Over

9912

Digital Sensor 23 Major Under

9913

Digital Sensor 23 Major Over

9914

Digital Sensor 23 Not Detected

9915

Undefined

9916-8

Digital Sensor 23 Control

9919-16

Digital Sensor 23 Value

99117-32

Digital Sensor 24 Minor Under

99133

Digital Sensor 24 Minor Over

99134

Digital Sensor 24 Major Under

99135

Digital Sensor 24 Major Over

99136

Digital Sensor 24 Not Detected

99137

Undefined

99138-40

Digital Sensor 24 Control

99141-48

Digital Sensor 24 Value

99149-64

Displa y 24

Digital Sensor 25 Minor Under

9911

Digital Sensor 25 Minor Over

9912

Digital Sensor 25 Major Under

9913

Digital Sensor 25 Major Over

9914

Digital Sensor 25 Not Detected

9915

Undefined

9916-8

Digital Sensor 25 Control

9919-16

Digital Sensor 25 Value

99117-32

Digital Sensor 26 Minor Under

99133

Digital Sensor 26 Minor Over

99134

Digital Sensor 26 Major Under

99135

Digital Sensor 26 Major Over

99136

Digital Sensor 26 Not Detected

99137

Undefined

99138-40

Digital Sensor 26 Control

99141-48

Digital Sensor 26 Value

99149-64

Displa y 25

Digital Sensor 27 Minor Under

9911

Digital Sensor 27 Minor Over

9912

Digital Sensor 27 Major Under

9913

Digital Sensor 27 Major Over

9914

Digital Sensor 27 Not Detected

9915

Undefined

9916-8

Digital Sensor 27 Control

9919-16

Digital Sensor 27 Value

99117-32

Digital Sensor 28 Minor Under

99133

Digital Sensor 28 Minor Over

99134

Digital Sensor 28 Major Under

99135

Digital Sensor 28 Major Over

99136

Digital Sensor 28 Not Detected

99137

Undefined

99138-40

Digital Sensor 28 Control

99141-48

Digital Sensor 28 Value

99149-64

Displa y 26

Digital Sensor 29 Minor Under

9911

Digital Sensor 29 Minor Over

9912

Digital Sensor 29 Major Under

9913

Digital Sensor 29 Major Over

9914

Digital Sensor 29 Not Detected

9915

Undefined

9916-8

Digital Sensor 29 Control

9919-16

Digital Sensor 29 Value

99117-32

Digital Sensor 30 Minor Under

99133

Digital Sensor 30 Minor Over

99134

Digital Sensor 30 Major Under

99135

Digital Sensor 30 Major Over

99136

Digital Sensor 30 Not Detected

99137

Undefined

99138-40

Digital Sensor 30 Control

99141-48

Digital Sensor 30 Value

99149-64

Displa y 27

Digital Sensor 31 Minor Under

9911

Digital Sensor 31 Minor Over

9912

Digital Sensor 31 Major Under

9913

Digital Sensor 31 Major Over

9914

Digital Sensor 31 Not Detected

9915

Undefined

9916-8

Digital Sensor 31 Control

9919-16

Digital Sensor 31 Value

99117-32

Digital Sensor 32 Minor Under

99133

Digital Sensor 32 Minor Over

99134

Digital Sensor 32 Major Under

99135

Digital Sensor 32 Major Over

99136

Digital Sensor 32 Not Detected

99137

Undefined

99138-40

Digital Sensor 32 Control

99141-48

Digital Sensor 32 Value

99149-64

Display

Points

Al arm Point

Description

Solution

1-2

User relays 1-2

3-16

Undefined

Notification 1

failed

A notification 1 event, such as a page or email, was unsuccessful.

Use RPT filter debug to help diagnose notification problems.

Notification 2

failed

A notification 2 event, such as a page or email, was unsuccessful.

Use RPT filter debug to help diagnose notification problems.

Notification 3

failed

A notification 3 event, such as a page or email, was unsuccessful.

Use RPT filter debug to help diagnose notification problems.

Notification 4

A notification 4 event, such as a page or

Use RPT filter debug to help diagnose

System Alarm Map13.2

Display

Points

Al arm Point

Description

Solution

failed

email, was unsuccessful.

notification problems.

Notification 5

failed

A notification 5 event, such as a page or email, was unsuccessful.

Use RPT filter debug to help diagnose notification problems.

Notification 6

failed

A notification 6 event, such as a page or email, was unsuccessful.

Use RPT filter debug to help diagnose notification problems.

Notification 7

failed

A notification 7 event, such as a page or email, was unsuccessful.

Use RPT filter debug to help diagnose notification problems.

Notification 8

failed

A notification 8 event, such as a page or email, was unsuccessful.

Use RPT filter debug to help diagnose notification problems.

Lost

Provisioning

The internal NVRAM may be damaged. The unit is usi ng default c onfiguration settings.

Use Web or latest version of NGEditG5 to configure unit. Power cyc le t o see if alarm goes away. May require RMA.

NTP Failed

Communication with Network Time Server has failed.

Try pinging the Network Time Server’s IP A ddress as it is configured. If t he ping test is successful, then check the port setting and v erify the port is not being blocked on y our network.

Timed Tick

Toggles state at constant rate as configured by t he Timed Tick timer v ariable. Useful in testing integrity of SNMP t rap alarm reporting.

To turn the feature off, set the Timed Tick timer to 0.

Serial 1 RcvQ

full

Serial port 1 (or appropriate serial port number) receiv er filled with 8 K of data (4 K if BA C activ e)

Check proxy connection. The serial port data may not be getting collected as expected.

Dynamic

memory full

Not expected to occur.

Call DPS Tech Support (559) 454-1600

Unit Reset

Remote access

disabled

Top Board

Failed

The top board is not responding.

Call DPS Tech Support (559) 454-1600

Ex pansion 1

Failed

34-35

Undefined

M odem Not

Responding

A n error has been detected during modem initialization. The modem did not respond to the initialization string.

Remov e configured modem initializ ation string, then power cy cle the unit. If alarm persists, try resetting the M odem port from the TTYinterface, or contact DPS for possible RM A.

Power A F ailed

Terminal A is no longer receiving power.

Check the power source attached to terminal A.

Power B Failed

Terminal B is no longer receiving power.

Check the power source attached to terminal B.

Fuse Alarm

One of the fuses has failed.

Check and replace fuses as needed.

40-64

Undefined

Here are answers to some common questions from Remote Powe r Swi t ch (DC) users. The latest FA Qs can be fo un d on the Remote Powe r Switch (DC) supp ort web pa g e, http://www.dpstele.com.

I f yo u ha v e a qu estio n ab o ut the Remote Power Switch (DC), ple a se call us at (559) 454-1600 or e-mail us at support@dpstele.com

Frequently Asked Questions

General FAQs14.1

Q. How d o I telnet to the Rem o te Pow er Switch (DC)? A. You must use Port 2002 to con nect to the Remote Powe r Swi t ch (DC). Con f i gure your Te lnet client

to conn ect using TCP/IP (not " T elne t , " or any other port op t ions). For connection informati on, en t er the IP address of the Remote Power Swi t ch (DC) an d Port 20 02. For example, to conn ect to the Remote Powe r Swi t ch (DC) using the stan dard Windows Tel net client, click Sta rt, cli ck Ru n, and typ e "tel net <Remote Po we r Swi t ch (DC) IP address> 200 2."

Q. How d o I connect my Remote Power Switc h (DC) to the LAN? A. To conne ct y our Remote Po we r Swi t ch (DC) to your L AN, yo u nee d to confi gure th e unit IP address,

the sub net mask an d the d efaul t gateway. A sample configurati on could look like t his:

Unit Address: 192.168.1.100 subnet mask: 255.255.255.0 Default Gateway: 192.168.1.1

Save you r cha nges by writ ing to NVRAM and reboot . Any change to the unit 's IP configurati on requ ires a rebo ot.

Q. When I conn ect to the Remote Pow er Switch (DC) through the craft port on th e front pan el it

either doesn't work righ t o r it d o esn't w o rk at all. Wha t's go i n g o n ?

A. Make sure your using the right COM port settings. Your COM port settings should read:

Bits per second: 9600 (960 0 baud) Data bits: 8 Parity: None Stop bits : 1 Flow control: None Important! Flow control must b e set to none. Flow contro l normall y defaults to h ardware i n most

termina l programs, and this will not work corre ctly with the Remote Po we r Swi t ch (DC).

Q. The LAN link LED is green on m y Remote Power Switch (DC), but I can't poll it from my T/

Mon.

A. Some routers will not fo rwa rd packet s to an IP add ress until the MAC address of the destinat ion

device has been reg istered on the ro uter's Ad dress Resolu t ion Prot ocol (A RP) table. Enter the I P add ress of y our gat eway and yo ur T/Mon system to t he ARP tabl e.

Q. What characteristic s of an al arm p o i n t can be configu red through softwa re? For ins tance,

can p o i n t 4 be used to sense an a ctive-low signal, o r po i n t 5 to sense a level or an edge?

A. The uni t's standard confi gu ra ti on is for all al a rm poin ts to be le v e l-sen sed. You cannot use

config uratio n software to convert alarm poi nts to TTL (e dge-sensed) operat ion. TT L alarm po ints are a hardware optio n that must be spe cified whe n you order y our Remote Po we r Swi t ch (DC). Orderin g TTL points for your Remote Power Switch (DC) does not add to the cost of the u nit What you can do wit h the con f igurat ion software is cha nge any al arm point f rom "Normal " to "Reversed"

ope ration . Swi t chi ng to Reversed o perati on has di f f erent e f f ects, de pending on the kind of inp ut connected to th e alarm po int:

· If the alarm inpu t g enerates an active-high sig n al, switching t o Reversed operat ion mean s the Re mote Power Switch (DC) will declare a n ala rm in t he ab sen ce o f t he activ e-high signal , creatin g the p ractical equiva lent o f an activ e-low al arm.

· If the alarm input generates an active-low signa l, switching to Reversed operation mean s the Remote Powe r Swi t ch (DC) will declare an alarm in the absence of t he activ e-low signal, creati ng the practical eq uiva lent of an a ctive-hi gh alarm.

· If the alarm input is norm al ly open, switching t o Reve rsed operat ion converts it to a normall y closed al arm point.

· If the alarm input is norm al ly closed, switching to Re versed operati on converts it to a normally ope n alarm po int.

Q. I'm unsure if the voltag e of my power supply is within the specified range. How to I test the

voltage?

A. Connect the black common le ad of a voltmeter to the ground terminal of the ba t t ery. Con nect the re d

lea d of the vol t meter to th e batter's VCD terminal. The voltmeter should read between +12 and +30VDC.

SNMP FAQs14.2

Q. Whic h version of SNMP is supp o rted by the SNMP agent on thi s unit? A. SNMP v1.

Q. How d o I configure the Remo te Pow er Switch (DC) to send traps to a n SNMP mana g er? Is

there a separate MIB for the Remote Power Switch (DC)? How many SNMP m anagers can the agent send traps to? And how d o I set the IP address of the SNMP manager and the communi ty string to be used when sending trap s?

A. The Remote Power Switch (DC) begins sending t ra ps as soon as the SN MP manage rs are defin ed.

The Re mote Power Switch (DC) MIB is included o n the Remote Power Switch (DC) Resource CD. The MIB sho uld be compiled on your SN MP manager. (Note: MIB versions may cha nge in the futu re.) The unit sup ports 2 SN MP managers, which are config ured by entering its IP a ddress in the Trap Address field o f Et hernet P ort Setup. To configure t he community strings, choose SNMP from the Edit menu, and e nter ap propriate values in t he Get, Set, and Tra p fiel ds.

Q. Does the Rem o te Pow er Swi tch (DC) support MIB-2 and/ o r a n y other stan d ard MIBs? A. The Remote Power Switch (DC) supports the bulk of MIB-2.

Q. Does the Rem o te Pow er Swi tch (DC) SNMP agent suppo rt bo th Remote Power Switch (DC)

and T/MonXM variables?

A. The Remote Power Switch (DC) SNMP agent man ages an e mbe dded MIB t hat supports only t he

Remote Powe r Swi t ch (DC)'s RTU v ariables. The T / MonXM va ri able s are include d in th e distributed MIB onl y to provid e SNMP managers with a sin gle MIB fo r all DPS Telecom products.

Q. How many traps a re triggered wh en a s i n g l e point i s set or cleared? The MIB defines traps

like "major a l arm set/cleared," "RTU point set," and a l o t o f g ra n u l ar traps, which c o u l d i mply that more than one trap is sent when a chan g e of sta te occ u rs o n o n e point.

A. Gene rally , a single change of state generat es a single t rap. Q. What d o es "po i n t map" mean?

A. A po int map i s a single MIB leaf that present s the current statu s of a 64-alarm-poin t display in a n

A SCII-rea dable form, where a "." re presents a clea r and an "x" represents an alarm.

Q. The Remote Power Swi tch (DC) manual talks a b o u t control relay outputs . How do I c o n trol

these from my SNMP m anager?

A. The contro l relays are ope rated b y issuing the appropriate set commands, which are con t ained in

the DPS Tele com MI B.

Q. How can I associate descriptive information with a po i n t fo r the RTU granular traps? A. The Remote Power Switch (DC) alarm po int de scripti ons are in divi dually de f ined using the Web

Browser.

Q. My SNMP traps aren't getting through. What should I try? A. Try these three step s:

1. Mak e sure that t he Trap Address (IP address of the SNMP mana ger) is defined. (If you changed the T rap Address, make sure you sav ed the cha nge to NVRAM and re boote d.)

2. Mak e sure all alarm poi nts are configured t o send SNMP traps.

3. Mak e sure the Re mote Power Switch (DC) an d the SNMP manager are both o n the n etwork. Use the unit's ping command to ping the SNMP manager.

DPS Tele com products are backed by our courteous, frien dly Technical Support re presentat ives, who will give you the best in fast and accurat e customer serv ice. To he lp us hel p you bette r, please take the following steps before cal l ing Technical Support:

1. Check the DPS Telecom website.

Technical Sup p o rt

Y o u wil l fi n d a nswers to many common q ue stio n s on the DPS Tele com website, at http://

www.dpstele.com/support/. Look here f irst for a fast solu t ion to you r problem.

2. Prepare relevant informati o n .

Havin g important information about your DPS Te lecom product in hand when you call wi ll greatly redu ce the time it t akes to answer you r questions. If you d o not h ave a ll of the inf ormation wh en yo u call, o ur Technical Suppo rt represent atives can assist you in gatheri ng it. Please write t he inf ormation down f or easy access. Please ha ve your user manual and hardwa re serial n umber read y.

3. Have access to troubl ed equipment.

Plea se b e at or n ear your equipment wh en yo u call DPS Tel ecom Technical Sup port. Th is will help us solve your p roblem more ef f iciently.

4. Call d u rin g Customer Support hours.

Customer support hours are Monda y through Fri day, f rom 7 A.M. to 6 P.M., Pacific time. The DPS Tele com Techni cal Suppo rt phon e number is (559) 45 4-160 0.

Em ergency A ssistance: Emergency assistance i s available 24 hours a day, 7 days a week. For emergency assistance after hours, allow the phone to ring until it is answered with a paging message. You will be asked to e nter your p hone number. An on-call technical supp ort repre sen t ative will return your call a s soon as possible.

All Software and firmware used in, for, or in connect i on with the Product, parts, s ubsy stems , or derivati ves t hereof, in whatever form, inc luding, without limit ati on, s ource code, object c ode and microcode, including any computer programs and any documentation relating to or describing such Software is furnished to the End User only under a non-exclusive perpetual license solely for End User's use with the Product.

The Software may not be copied or modified, in whole or in part, for any purpose whats oever. The Software may not be reverse engineered, compiled, or disassembled. No title to or ownership of the Software or any of its parts is transferred to the End User. Title to all patents, c opyrights , t rade secrets, and any other applicable rights s hall remain with the DPS Telecom.

DPS Telecom's warranty and limit ati on on its li ability for the Software is as described in the warranty information provided to End User in the Product M anual.

End User shall indemnify DPS Telecom and hold it harmless for and against any and all claims, damages, los s es , cost s , ex penses, obligations, li abiliti es, fees and costs and all amounts paid in settlement of any claim, act i on or suit which may be ass erted agains t DPS Telecom which arise out of or are related to the non-fulfillment of any covenant or obligati on of End User in connection with this Agreement.

This A greement shall be construed and enforced in accordance with the laws of the State of California, wit hout regard to choice of law principles and excluding the provisions of the UN Convention on Contracts for the International Sale of Goods. Any dis pute arising out of the Agreement shall be commenced and maintained only in Fresno County, California. In the event s uit i s brought or an attorney is retained by any party to this A greement to seek interpretation or construction of any t erm or provision of this Agreement, to enforce the terms of this Agreement, t o c ollec t any money due, or to obtain any m oney damages or equitable relief for breach, the prevailing party shall be entitled to recover, in addition to any other available remedy, reimbursement for reasonable attorneys' fees, c ourt c ost s, c os t s of investigation, and other related expenses.

End User License Agreement

Warranty

DPS Telecom warrants , t o t he original purchaser only, that it s product s a) substantially c onform to DPS' published specificati ons and b) are substantially free from defects in material and workmanship. This warranty ex pires two years from t he date of product delivery with respect t o hardware and ninety days from the date of product delivery with respect to s oftware. If the purchaser discovers within these periods a failure of the product t o s ubst antially conform to t he specificat ions or that the product is not s ubst antially free from defects i n material and workmanship, the purchaser mus t promply notify DPS. Wit hin reasonable tim e after notificati on, DPS will endeavor to c orrect any subst antial non-conformance with the specifications or substantial defects i n material and workmanship, with new or used replacement parts. A ll warranty s ervice will be performed at the c ompany's office in Fresno, California, at no charge to the purchaser, other than the cost of shipping to and from DPS, which shall be the responsiblity of the purchaser. If DPS is unable to repair the product t o c onform to t he warranty, DPS will provide at it s option one of the following: a replacement product or a refund of the purchase price for the non-conforming product. These remedies are the purchaser's only remedies for breach of warranty . P rior to initial use t he purchaser shall have determined the suitabilit y of the product for its int ended use. DPS does not warrant a) any product, c omponents or parts not manufactured by DPS, b) defect s caused by the purchaser's failure to provide a suitable installation environment for the product , c ) damage caused by use of the product for purposes other than those for which it was designed, d) damage caus ed by disas t ers s uc h as fire, flood, wind or lightning unless and to the extent t hat the product specificati on provides for resistance to a defined disast er, e) damage caus ed by unauthoriz ed attac hments or modifications, f) damage during shipment from the purchaser to DPS, or g) any abuse or misus e by t he purchaser.

THE FOREGOING W ARRANTIES ARE IN LIEU OF ALL OTHER WA RRANTIES, EXPRES S OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS F OR A PARTICULAR PURPOSE.

In no event will DPS be liable for any s pecial, inc idental, or consequential damages bas ed on breach of warranty , breach of contract, negligence, st rict t ort, or any other legal theory. Damages that DPS will not be responsible for include but are not limit ed to, l oss of profits; los s of savings or revenue; loss of use of the product or any ass oc iat ed equipment; c os t of capital; c os t of any substit ut e equipment, facilities or services ; downtime; cl aims of third parties including customers; and injury to property.

The purchaser shall fill out the reques t ed information on the Product Warranty Card and mail the c ard to DPS. This card provides information that helps DPS m ake product improvements and develop new product s .

For an additional fee DPS may, at i t s option, mak e available by writ t en agreement only an extended warranty providing an additional period of time for the applicability of the standard warranty .

Technical Support

If a purchaser believes that a product is not operating in substantial conform ance with DPS' published specifications or there appear to be defects in material and workmanship, the purchaser should contact our technical support representatives. If the problem cannot be corrected over the telephone and the product and problem ar e covered by the warranty, the technical support representative wil l authori ze the return of the product for service and provide shipping inform ation. If the product is out of warranty, repair charges will be quoted. All non-warranty repairs receive a 90- day warranty.

Free Tech Support is Onl y a Click Away

Need help with your a l arm monitoring? DPS Informat i on Servi ces are ready to serv e you … in your emai l or over t he Web!

www.DpsTele.com

Free Tech Support i n Y our Email : The Protocol A l arm Monit ori ng Ezine

The Protocol Alarm Monitori ng Ezine i s your free email tech support ale rt , delivered directly to y our in-box every two weeks. Every issue has ne ws yo u can use righ t away:

Expert tips on using your al arm monit oring

•

equ ipment — advanced techni ques that wi ll save you hours of wo rk

Educati onal White Pape rs de live r f ast informal

•

tuto rials on SNMP, ASCII processing, TL1 and other alarm monit oring t echnologies

New produ ct and up grade announcements kee p

•

you up to date wit h the latest techn ology Exclusiv e access to special offers for DPS

•

Telecom Factory Trai ning, produ ct upgrade offers and discounts

To get your free subscription to The Protocol register online at

www.TheProtocol.com/register

Free Tech Support on the Web: MyDPS

MyDPS is your person alized, membe rs-on l y onl ine re sou rce. Registering fo r MyDPS is fast, free , and g i ves you exclusive access to:

• Firmware and software downl oads and upgrades

• Prod uct manu als

• Prod uct datasheets

• Exclu sive user forms

www.DpsTele.com/register

(800) 622-3314 • www.DpsTele com . com • 4955 E. Yale Avenue, F re sno, Cal i fornia 93727

DPS Telecom D-PK-216RP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
