Features of the NetGuardian 16

- Accepts 16 alarm inputs

- 18 control relay Outputs

- 1 reach through serial port

- Dual +12VDC power feed

- Firmware downloadable via LAN

Effective, easy-to-install, light-capacity alarm monitoring

The NetGuardian 16 is a compact, LAN-based, light-capacity remote telemetry unit. The NetGuardian 16 is designed for easy installation at small remote sites, making it cost-effective to deploy alarm monitoring throughout your entire telecom network.

Powerful monitoring for smaller sites

This telco-grade remote is housed in a durable aluminum case that can be rack-mounted. This SNMP remote is scaled to the needs of small sites, such as remote huts, collocation racks, and enclosed cabinets - perfect for any site where a large capacity RTU would be more than you need.

NetGuardian 16 Overview

Fig. 1.1 Compact, easy-to-install, right-size capacity - the NetGuardian 16 offers a low-cost way of effectively

monitoring smaller sites.

16 Discrete Alarm Inputs 0 to 8 Analog Alarm Inputs (Build option) 18 Control Relay Outputs 1 Reach-through serial port (terminal server)

Reach-through serial port gives LAN access to on-site equipment

The NetGuardian 16 also features a reach-through serial port. This port provides remote users with LAN-based Telnet access to a variety of on-site telecom equipment, including switches, radios, PBXs and many other devices.

SNMP or T/Mon NOC/LNX

The NetGuardian 16 can report alarms to any SNMP manager or to the DPS Telecom T/Mon Remote Alarm Monitoring System. The NetGuardian 16 can also report via SNMP and DCPx concurrently to the T/Mon NOC/LNX.

Easy Alerts via Email or SNMP

Email notification reports alarm events to the e-mail addresses of specified personnel and creates a supplemental record of alarm events in addition to your master via SNMP traps.

Upgraded Web Browser

The overhauled web interface that boasts several time-saving new tools, including new analog gauges. You'll also notice the impressive speed boost. Menus load very quickly, and the alarm status updates automatically without requiring a page refresh.

Discrete Alarm Inputs: 16 Temperature Sensors: 1 Integrated Analog Sensor

Analog Alarm Inputs: 8

Control Relays: 18 Protocols: SNMPv1, SNMPv2c, DCPx, TELNET, HTTP, Email Dimensions: 1.720" H x 17.026" W x 6.636" D

Weight: 3 lb. 5 oz. Mounting: 19" or 23" rack or wall mount Power Input: +12 VDC (+11 V to +18 VDC)

Specifications

Support for 1 External Analog Sensor

Temperature Thresholds: 4

Analog Input Range: –90 to 90 VDC or 4 to 20 mA Analog Thresholds: 4

(4.369 cm x 43.246 cm x 16.855 cm)

(Optional)-48VDC (-36 V to -72 VDC) (Optional)-24VDC (-18 V to -36 VDC)

Current Draw: 550 mA @ +12VDC(MAX) Fuse: 3/4 Amp GMT Fuse Interfaces: 1 RJ45 10BaseT Ethernet port

1 DB9 front-panel craft port 1 - 1/8'' Stereo connector for external temperature probe 1 Push button switch Serial port options: RS232, RS485, or 202

Visual Interface: 6 Front Panel LEDs

5 Back Panel LEDs

Operating Temperature: 32°–140° F (0°–60° C) Operating Humidity: 0%–95% non-condensing RoHS: 5/6

Please make sure all of the following items are included with your NetGuardian 16. If parts are missing, or if you ever need to order new parts, please refer to the part numbers listed and call DPS Telecom at 1-800-622-3314.

NetGuardian 16 D-PK-C16VS

NetGuardian 16 User Manual D-UM-C16VS

Shipping List

6 ft. DB9M-DB9F Download Cable 14 ft. Ethernet Cable D-PR-045-10A-04 D-PR-923-10A-14

X 2 X 2

19" Rack Ear 23" Rack Ears D-CS-325-10A-00 D-CS-325-10A-01

x 3 x 4 Two 3/4-Amp GMT Fuses Two Standard Rack Screws 2-741-00750-00 1-000-12500-06

x 8 x 4 3/8" Ear Screws Two Metric Rack Screws 2-000-60375-05 2-000-80750-03

x 2 Pads Two Lg. Power Connectors 2-015-00030-00 2-820-00862-02

Optional Shipping Items - Available by Request3.1

External temp sensor D-PR-998-10A-07

Optional NetGuardian Accessories3.2

If you would like to order any of these accessories, or if you would like more information about them, call DPS Telecom at (800) 622-3314.

Pluggable Back Panel D-PK-16PAN

The NetGuardian 16's pluggable back panel allows for screw-in barrier plug connections for the NetGuardian's alarms and control relays.

Fig. 4.2

Fig. 4.3

Installation

Tools Needed4.1

To install the NetGuardian, you'll need the following tools:

Phillips No. 2 Screwdriver Small Standard No. 2 Screwdriver

PC with terminal emulator, such as HyperTerminal

Mounting4.2

Fig. 4.1 The NetGuardian 16 can be flush or rear-mounted

The NetGuardian 16 mounts in a 19" or 23" rack and can be mounted in the flush-mount or rear mount locations, as shown in Fig. 4.1.

The rack ears can be rotated 90° for wall mounting or 180º for other mounting options.

NetGuardian 16 Back Panel

Fig. 5.1 NetGuardian 16 back panel connections

Power Connection5.1

The NetGuardian 16 is powered by two barrier plug power connectors.

Fig. 5.2 Barrier plugs

To connect the NetGuardian to a power supply:

Always use safe power practices when making power connections. Be sure to remove fuses from the fuse distribution panel, as well as the back of the NetGuardian, before making your power connections.

Use the grounding lug to connect the unit to earth ground. The grounding lug is next to the symbol . Insert the eyelet of the earth ground cable between the two bolts on the grounding lug (Ground cable not included).

Insert a battery ground into the power connector plug's right terminal; then insert a battery line to the plug's left terminal.

Insert a fuse into the fuse distribution panel and measure voltage. The voltmeter should read between +11 and +18 (for +12VDC build option), –40 and –70VDC (for -48VDC build option) or -18 and -36VDC (-24VDC build option).

The power plug can be inserted into the power connector only one way to ensure the correct polarity. Note that the negative voltage terminal is on the left and the GND terminal is on the right.

Insert fuse into the Power A fuse slot. The power LED should be lit green. If the LED is red, the power connection is reversed. To confirm that power is correctly connected, the front panel LEDs will flash RED and GREEN, indicating that the firmware is booting up.

Repeat steps 1 -6 for Power B connector.

LAN Connection5.2

Hot Tip!

If you are unsure of the serial port type on your NetGuardian, login to MyDPS and click on the Product Information Search link. Type in the full part number of your unit and click the Submit button to access the specifications.

To connect the NetGuardian 16 to the LAN, insert a standard RJ45 Ethernet cable into the 10BaseT Ethernet port on the back of the unit. If the LAN connection is OK, the LNK LED will light SOLID GREEN.

Serial Connection5.3

The NetGuardian 16 has 4 build options for it's serial / dialup port. You can order your port as a Yost RS-232, RS485, 4-wire 202 RJ45, or with a dial-up modem. The serial port is located on the back panel, where it is labeled

"Primary."

Fig. 5.3 Serial Port Pinout

The serial port can be used for three different functions:

Reach-through proxy connection for LAN-based Telnet access to switches, radios, PBXs and other equipment. Alarm reporting to the T/Mon Remote Alarm Monitoring System over an RS-232, 485, 202, or dial-up modem. Dial-up notifications via your cell phone and alphanumeric pager.

Note: If the serial port is configured for alarm reporting to T/Mon, the port is not available for use as a reach-through proxy port.

The pinouts are shown in Fig. 5.3 .

50-Pin Alarm and Control Relay Connector5.4

The primary connectors for discrete alarms, analog alarms and control relays are the 50-pin connectors on the NetGuardian 16's back panel.

Optional 66 Block Connector5.5

The NetGuardian 16 is also available with an optional 66 Block Connector for connecting discrete alarms, analog alarms and control relays. Pinout and wire color coding are shown.

Fig. 5.4 Optional 66 block connector pinout

Fig. 5.5 Optional 66 block connector pinout for controls

Discrete Alarms5.6

Dry Contact

NetGuardian case

GND

Alarm

– Batt.

Fig. 5.6 Discrete alarm points can connect as a dry contact or a contact to ground

The NetGuardian 16 features 16 discrete alarm inputs - also called digital inputs or contact closures. Discrete alarms are either active or inactive, so they're typically used to monitor on/off conditions like power outages, equipment failures, door alarms and so on.

The NetGuardian's discrete alarm points are single-lead signals referenced to ground. The ground side of each alarm point is internally wired to ground, so alarm points can connect either as a dry contact or a contact to ground.

Contact to Ground

NetGuardian case

GND

Alarm

– Batt.

Note: Make sure that grounds have a common referencethis is usually done by tying grounds together.

In a dry contact alarm: The alarm lead brings a contact to the ground lead, activating the alarm.

In a contact to ground alarm: A single wire brings a contact to an external ground, activating the alarm.

You can reverse the polarity of each individual discrete alarm point, so that the alarm is activated when the contact is open. This is done with a software configuration change.

Analog Alarms5.7

Analog #

Connection

ANA 1

User-definable; connects to the 50-pin amphenol.

ANA 2

User-definable; connects to the 50-pin amphenol.

ANA 3

User-definable; connects to the 50-pin amphenol.

ANA 4

User-definable; connects to the 50-pin amphenol.

ANA 5

Pre-configured to monitor Battery A.

ANA 6

Pre-configured to monitor Battery B.

ANA 7

Pre-configured to monitor Internal Temperature. Located in the

center or edge of PCB.

ANA 8

Pre-configured to monitor External Temperature via jack to

external temperature probe.

The NetGuardian 16's 8 analog alarm inputs measure continuous ranges of voltage or current. Analog alarms are typically used to monitor battery voltage, charging current, temperature, humidity, wind speed, or other continuously changing conditions. The measurement range of the analog channels is – 90 to +90 VDC or 4 to 20 mA. To configure the analogs for current sensing (4 - 20mA) please review the next section for jumper position.

You can use analogs 1 through 4 to monitor whatever you like. Analogs 5 through 8 are pre-configured to monitor Battery A and B, Internal Temperature, and External Temperature. Read the following table to see where to connect the analogs.

By default, the analog inputs are configured to measure voltage. You can switch the analog inputs to measure current by resetting jumpers on the NetGuardian 16 circuit board.

5.7.1 Switching Analog Alarms to Current Operation

Fig. 5.7. Adjustable jumpers on the NetGuardian 16 circuit board

By default, the analog inputs are configured to measure voltage. You can switch the analog inputs to measure current by resetting jumpers on the NetGuardian 16's circuit board.

To test the analog alarm voltage/current jumpers, follow these steps:

1. Make sure the NetGuardian 16 is depowered and disconnected from all network connections.

Current

Voltage

Jumper installed for current

Jumper removed for voltage

Unjumpered/Open Position: Voltage Operation (default)

Jumpered/Closed Position: Current Operation

4 to 20 mA

Current Source

Transducer

Voltage Source

Transducer

Analog

Channel

Input

Analog

Channel

Input

250 Ohm

Shunt

Jumper

Analog

J20

ANA 1

J21

ANA 2

J22

ANA 3

J23

ANA 4

2. Remove the screws from the sides of the NetGuardian 16 case.

3. Slide the top cover of the case off to expose the circuit board.

4. The adjustable jumpers are shown in Fig. 5.7. All alarm inputs can be individually configured for current or voltage operation. Remember that the default jumper position is OPEN for measuring voltage. Note: Each jumper inserts a 250-ohm shunt resistor across the input. This must be taken into account when defining the analog input reference scale.

Fig. 5.8. Jumper settings for analog alarms inputs.

5. Slide the top cover of the case back into position and replace the screws.

6. Reconnect and power up the NetGuardian 16.

NetGuardian 16 Front Panel

Fig. 6.1. NetGuardian 16 Front panel connections

Craft Port6.1

1. The simplest way to connect to the NetGuardian 16 is over a physical cable connection between your PC's COM port and the unit's craft port. Note: You must be connected via craft port or Telnet to use the TTY interface. Make sure you are using the straight through (1 to 1) Male to Female DB9-DB9 download cable provided with your NetGuardian 16 to make a craft port connection. We'll be using HyperTerminal to connect to the unit in the following example - however, most terminal-emulating programs should work.

To access HyperTerminal using Windows:

2. Click on the Start menu > select Programs > Accessories > Communications > HyperTerminal.

Use the front panel craft port to connect the NetGuardian 16 to a PC for onsite unit configuration. To use the craft port, connect the included DB9 download cable from your PC's COM port to the craft port. Pinout is shown above for reference, but this is a standard DB9 to DB9.

Fig. 6.1 Craft port pinout

Most NetGuardian users find it easiest to give the unit an IP address, subnet and gateway through the front craft port (TTY interface) to start. Once these settings are saved and you reboot the unit, you can access it over LAN to do the rest of your databasing via the Web Browser interface.

Alternative option: You can skip the TTY interface by using a LAN crossover cable directly from your PC to the NetGuardian 16 and access its Web Browser. See Section 7.2.

Quick Start: How to Connect to the NetGuardian 16

...via Craft Port (using TTY Interface)7.1

3. At the Connection Description screen, enter a name

for this connection. You may also select an icon. The name and icon do not affect your ability to connect to the unit.

4. At the Connect To screen, select Com port you'll

be using from the drop down and click OK. (COM1 is the most commonly used.)

5. Select the following COM port options:

• Bits per second: 9600

• Data bits: 8

• Parity: None

• Stop bits: 1

• Flow control: None

Once connected, you will see a blank, white

HyperTerminal screen. Press Enter to activate the configuration menu.

6. When prompted, enter the default user name

admin and password dpstelecom. NOTE: If you don't receive a prompt for your user name and password, check the Com port you are using on your PC and make sure you are using the cable provided.

Additional cables can be ordered from DPS

Telecom: Part number D-PR-045-10A-04

7. The NetGuardian 16's main menu will appear. Type C

for C)onfig, then E for E)thernet. Configure the unit's IP address, subnet mask, and default gateway.

8. ESC to the main menu. When asked if you'd like

to save your changes, type Y for Y)es. Reboot the NetGuardian 16 to save its new configuration.

Be sure to change the IP of your computer back to one that operates on your network. Now you're ready to do the rest of your configuration via LAN. Plug your LAN cable into the NetGuardian 16 and see Section 9, "Logging On to the NetGuardian 16" to continue databasing using the Web Browser.

...via LAN7.2

Connection through Ethernet port

To connect to the NetGuardian 16 via LAN, all you need is the unit's IP address (Default IP address is

192.168.1.100).

If you DON'T have LAN, but DO have physical access to the NetGuardian 16, connect using a LAN crossover

cable. NOTE: Newer PCs should be able to use a standard straight-through LAN cable and handle the crossover for you. To do this, you will temporarily change your PC's IP address and subnet mask to match the NetGuardian's factory default IP settings. Follow these steps:

1. Get a LAN crossover cable and plug it directly into the NetGuardian 16's LAN port.

2. Look up your PC's current IP address and subnet mask, and write this information down.

3. Reset your PC's IP address to 192.168.1.200. Contact your IT department if you are unsure how to do this.

4. Reset your PC's subnet mask to 255.255.0.0. You may have to reboot your PC to apply your changes.

5. Once the IP address and subnet mask of your computer coincide with the unit, you can access the NetGuardian 16 via a Telnet session or via Web browser by using the unit's default IP address of

Edit the IPA, subnet, and gateway

Set DCP info for T/Mon polling

Tune the 202 modem

Ping other devices on the network

Set unit back to factory defaults

Debug and troubleshoot

Configure primary port

192.168.1.100.

6. Provision the NetGuardian 16 with the appropriate information, then change your computer's IP address

and subnet mask back to their original settings.

Now you're ready to do the rest of your configuration via LAN. Plug your LAN cable into the NetGuardian 16 and see Section 9, "Logging On to the NetGuardian 16" to continue databasing using the Web Browser.

The TTY interface is the NetGuardian's built-in interface for basic configuration. From the TTY interface, you can:

For Telnet, connect to the IP address at port 2002 to access the configuration menus after initial LAN/WAN setup.

Telnet sessions are established at port 2002, not the standard Telnet port as an added security measure.

Menu Shortcut Keys

The letters before or enclosed in parentheses () are menu shortcut keys. Press the shortcut key to access that option. Pressing the ESC key will always bring you back to the previous level. Entries are not case sensitive.

TTY Interface

For more advanced configuration tools, please use the Web Browser Interface.

Configure Serial Port via TTY8.1

Fig. 8.1 - Serial port configuration

To enter configuration setting for the Serial Port, login to the TTY interface and press C)onfig > pr(I)maryPort.

Press the hot keys to toggle through the following options. (* Indicates default settings:)

NOTE: Default settings may not reflect the primary interface that shipped in the unit.

Port Type: 232*, 485, 202 Baud: 115200*, 57600, 19200, 9600, 4800, 2400, 1200 Parity: None*, even, odd Flow control: None*, hardware Stop bits: 1*, 2

Set the RTS head / tail is using 202. (Carrier time) Suggested settings are: head=60; tail=40; 0,0 if using RS232.

Tune 202 Modem (Set Transmit Level)8.2

Fig. 8.2 - Tuning the 202 modem.

Press the hot keys to turn on, then mark or space. Set the desired level (factory default is -13dBm)

Set DCP Parameters8.3

Fig. 8.3 - Setting DCP Parameters

Set the DCP Address (Unit ID).

Set the DCP listening type (toggle through the options). Choose over serial, over LAN*, or disabled.

Note: If not using DCP to communicate with a DPS master, set the address to 0 and disable listening.

The NetGuardian 16 features a built-in Web Browser Interface that allows you to manage alarms and configure the unit through the Internet or your Intranet. You can quickly set up alarm point descriptions, view alarm status, issue controls, and configure paging information, and more using most commonly used browsers.

NOTE: Max # of users allowed to simultaneously access the NetGuardian 16 via the Web is 4.

NetGuardian 16 Web Browser

Logging on to the NetGuardian 169.1

For Web Interface functionality, the unit must first be configured with some basic network information. If this step has not been done, refer to the section "Quick Start: How to Connect to the NetGuardian 16" for instructions on initial configuration setup.

1. To connect to the NetGuardian 16 from your Web browser, enter its IP address in the address bar of your web browser. It may be helpful to bookmark the logon page to avoid entering this each time.

2. After connecting to the unit's IP address, enter your login information and click OK. NOTE: The factory default username is "admin" and the password is "dpstelecom".

3. In the left frame you will see the Monitor menu (blue) and Edit menu (green) The Monitor menu links are used to view the current status of alarms. The Edit menu is used to change the unit's configuration settings. All the software configuration will occur in the Edit menu. The following sections provide detailed information regarding these functions.

Fig. 9.1. Enter your password to enter the NetGuardian 16 Web Browser Interface

9.1.1 Changing the Default Password

The password can be configured from the Edit > System screen. The minimum password length is four characters; however, DPS recommends setting the minimum password length to at least five characters.

Use the following steps to change the logon password:

1. From the Edit menu select System.

2. Enter the new user name in the User field.

3. Enter the new password in the Password field.

4. Click the Save button.

Fig. 9.2 - Global System Settings section of the Edit > System menu

NOTE: You will see the following popup when making changes to the NetGuardian 16 from the Edit menu. It will appear when confirming your changes to the database, either by clicking Next in the setup wizards or the Save button.

Fig. 9.3 - Commit to NVRAM popup

The next 4 sections of this manual will walk you through some of the most common tasks for using the NetGuardian

16. You will learn how to send email notifications, and send SNMP traps to your alarm master- all using the Web

browser. For details on entering your settings into each Web browser menu, the section "Edit Menu Field Descriptions."

NetGuardian 16 - Quick Turn Up

Edit Base Alarms10.1

The NetGuardian 16's discrete base alarms are configured from the Edit > Base Alarms menu. Descriptions for the alarm points, polarity (normal or reversed) and notification type(s) are defined from this menu. You also have the option to use a Basic or Advanced configuration methods, explained the the following 2 sections.

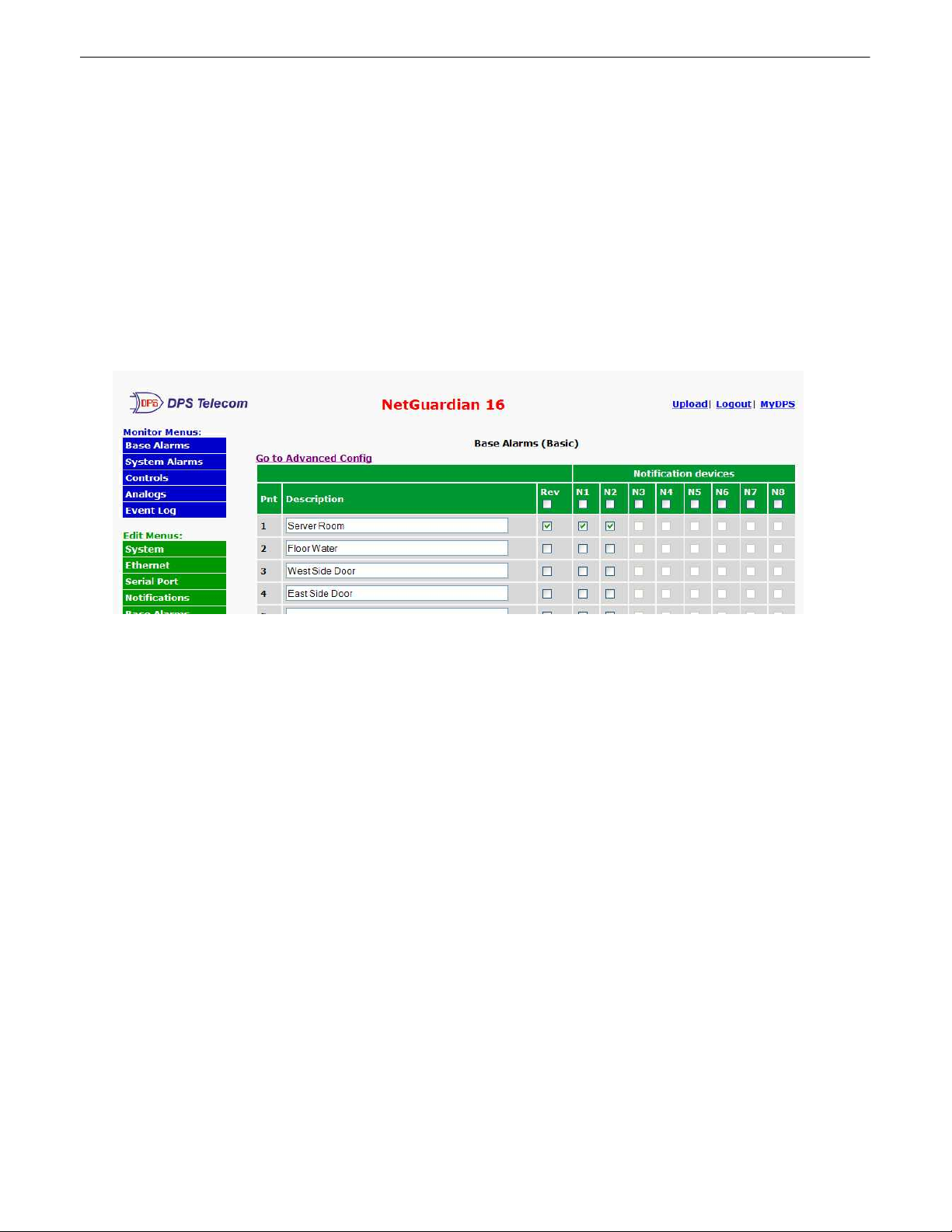

Fig. 10.1 - The Advanced Config button on the Edit > Base Alarms screen

Editing Base Alarms - Basic

Pnt (Point)

Alarm point number.

Description

User-definable description for the discrete alarm input.

Rev (Reverse)

Reverse: Check this box to reverse the polarity of the alarm point. Left un-checked, this means a normally-open contact closure is a clear condition. When polarity is reversed, a normally-closed alarm point is clear when closed.

Example: Door with a magnetic door sensor. When the door is closed, the magnetic sensor acts like a closed relay. However, you know this should not trigger an alarm condition. This means you'd want the door alarm reversed in the NetGuardian because we are looking for a normally closed condition.

Notification devices

Check which notification device(s), 1 through 8, you want to send alarm notifications for that alarm point. These notification devices correlate to one of the 8 devices you setup for notification (email, SNMP trap, etc.) Check the box in the green bar (top) to have a notification device send an alarm for all alarm points.

10.1.1 Basic Configuration

Fig.10.2- The Edit > Base Alarms menu

10.1.2 Advanced Configuration

Editing Base Alarms - Advanced

Pnt (Point)

Alarm point number.

Description

User-definable description for the discrete alarm input.

On Set

User-definable description (condition) that will appear for the discrete alarm input on Set.

Example: "Alarm"

On Clear

User-definable description (condition) that will appear for the discrete alarm input on Clear.

Example: "Clear"

Qual. Time

(Qualification Time)

The length of time that must pass, without interruption, in order for the condition to be

considered an Alarm or a Clear.

Example: If you have a loose door contact and you receive a false alarm every time the

wind blows, you might want to set a 3-second qualification time. This means the door would have to be in the Alarm state for at least 3 seconds before the alarm is triggered and a notification is sent.

Qual. Type

(Qualification Type)

Allows you to choose whether you want to apply the Qualification Time to the alarm Set,

Clear, or Both. (Most people use only Set.)

Fig. 10.3 - The Advanced Base Alarms Config screen

Monitoring Base Alarms10.2

This selection provides the status of the base alarms by indicating if an alarm has been triggered. Under the State column, the status will appear in red if an alarm has been activated. The status will be displayed in green when the alarm condition is not present.

Fig 10.4 Click on Base Alarms in the Monitor menu to see if any base alarms have been triggered.

How to Send Email Notifications10.3

1. Click on the System button in the Edit menu and enter a valid email address in the "From" Email Address

field. (You may need to check with your IT department to have one created for the unit.) This is the address that will appear in your email as the sender.

Fig. 10.5

2. Click on the Notifications button in the Edit menu. You can setup as many as 8 different notifications. Begin the

setup "wizard" by clicking on a notification number. In this example, we'll setup Notification 1 to send emails.

Fig. 10.6

3. At the Notification Setting screen, check the Enable Notification box to turn "on" Notification 1. Now, select

the Send Email Notification button and click Next.

Fig. 10.7

4. At the Email Notification screen, you'll enter your email server settings. Enter the IP address or Host Name of

your email server. Enter the Port Number (usually 25) and the "To" Email Address of the technician that will receive these emails. Click Next.

Fig. 10.8

5. At the Schedule screen, you'll select the exact days and times you want to receive email notifications. You can

set 2 schedules per notification. For example, you may want to receive notifications at certain times during the week, and at different hours on the weekend. Use the check boxes to select the days of the week, and select the time from the drop down menus. Click Finish. To try a test notification, click the Test button (See next step.)

Fig. 10.9

6. If you chose to test the email notification you've just setup, you will see a popup. Click OK to send a test email

alarm notification. Confirm all your settings by checking your email to see if you've received it. NOTE: This test only means that your notification settings are correct, but you still need to assign the notification to an alarm point. See the next step.

Fig. 10.10

7. Now you will associate this notification to an alarm (system, base, analog, etc.) You have 8 notification devices

available to use. In the image below, you might assign Notification Device 1 to Base Alarm 1. This means that you would receive an email notification when an alarm for SERVER ROOM occurs. Remember that Notification #1 in the Notifications menu is the same as N1 on the alarms page.

Fig. 10.11

This section explains how to setup a user-definable analog alarm. The table in Section 5.8 shows which analog alarms on the NetGuardian 16 are user-definable and which are pre-defined.

The following example shows how to setup analog # 1 as a temperature alarm in a Server Closet.

Major Under Temp:

45º F

Minor Under Temp:

55º F

Minor Over Temp:

78º F

Major Over Temp:

85º F

How to Setup Analog Alarms10.4

Login to the NetGuardian web browser and click the Edit > Analogs menu. Click the Enable checkbox next to the analog number to turn the analog alarm ON.

Fig. 10.12

Next, give this analog alarm a Description, then click the Save button at the bottom of the page.

Click the Advanced link at the top of the Edit > Analogs menu to edit more specific information. Start by selecting thresholds. The threshold values in this example will be temperatures values. These thresholds tell the NetGuardian that I want be notified of when the temperature rises above or drops below these set levels. In this example, we are selecting:

On Set and Clear: Here there are fields labeled “On Set” and “On Clear”. These allow you to customize the description of an alarm fail and clear. For example, if you’re monitoring a Propane tank, it might make more sense to see the word “Empty” instead of “Alarm”.

QTime: Stands for Qualification time. Here, the qualification time is set for 1 minute. By clicking this link, the help text will explain that 1S=1 second, 1M=1 Minute, and 1H=1hour. Typically, when an analog sensor crosses a threshold, it does not stay there – It usually waivers across the threshold value. This may cause many alarms, and possible many nuisance emails. Here, we will set the qualification time for I minute, meaning we will only see this alarm if the value is across the threshold for 1 minute or longer. The same is true for the clear condition – We

only want to know it has cleared if it stays clear for longer than 1 minute.

Fig. 10.20

Example, this temperature sensor is a current loop sensor that outputs 4-20mA. The NetGuardian uses a 250 Ohm resistor to convert current to voltage measurement. Ohms

law says:

4mA X 250 Ohms = (0.004 X 250) = 1VDC

AND

20mA X 250 Ohms = (0.020 X 250) = 5VDC

The documentation that came with this sensor explains how 4 - 20 mA translates temperature. In this case:

4mA (or 1VDC) = 32º F

AND

20mA (or 5VDC) = 131º F

Therefore, my reference values are 1 = 32 and 5 = 131.

Display Units: This is the 3 unit value the NetGuardian will display as the label for the units you want to measure. This field is only used for readability - It does not affect how the NetGuardian works with your analog sensor. For this example, we want to show “F” for Fahrenheit. Other entries you might want to use for analog measurements are “%H” for Percent Humidity, “Knt” for Knots (wind speed), “LBS” pounds of pressure, etc.

High/Low Reference: The Low and High Reference values are how the NetGuardian will determine the temperature based off the input voltage. You will find these values in the documentation that came with the sensor you are using. The NetGuardian is trying to build a linear equation to give you the most accurate results. For example, if you are measuring battery voltage, you’d want the NetGuardian to display -54VDC when the input voltage is in fact -54VDC. However, if you’re measuring temperature instead, this relationship won’t always be a 1:1 ratio.

Lastly, pick an analog gauge that best fits this sensor. Before you save, review the Threshold Values you entered earlier. These might have been recalculated based off the newly entered reference points. Reboot the

NetGuardian to save your changes.

10.

Log back into the unit and click Analogs from the (blue) Monitor menu. Now you should be able to view your

Fig. 10.13

new analog gauge and its current value.

Fig. 10.14

11.

Click the Classic View link at the top of the page to switch from Gauge View. Classic view shows just the raw values of your analog sensor.

Global System Settings

Name

A name for this NetGuardian 16. (Optional field)

Location

The location of this NetGuardian 16. (Optional field)

Contact

Contact telephone number for the person responsible for this NetGuardian 16.

(Optional field)

"From" Email Address

A valid email address used by the NetGuardian 16 for sending email alarm

notifications.

SNMP GET String

Community name for SNMP requests. (case-sensitive).

SNMP SET String

Community name for SNMP SET requests. (case-sensitive).

User

Used to change the username for logging into the unit.

Password

Used to change the password for logging into the unit (case-sensitive).

DCP Responder Settings (For use with T/Mon)

DCP Unit ID

User-definable ID number for this NetGuardian 16 (DCP Address).

Listen DCP

Choose to listen DCP over LAN or serial. May also be disabled.

DCP LAN

Enter the DCP port for this NetGuardian 16 (UDP/TCP port).

DCP Serial

Clickable link to configure serial port settings.

System Controls

Initialize Configuration

Used to restore all factory default settings to the NetGuardian 16. Do not initialize the non-volatile RAM (NVRAM) unless you want to re-enter all of your configuration settings again.

Backup Configuration

Save the NetGuardian 16's configuration as a .BIN file to your local PC.

Restore Configuration

Click the Upload link and select a .BIN configuration file that you saved previously to your local PC. This will restore the saved configuration.

Edit Menu Field Descriptions

System11.1

From the Edit > System menu, you will configure and edit the global system, T/Mon and control settings for the NetGuardian 16.

Fig. 11.1 - The Edit > System menu

Ethernet Settings

Unit MAC

Hardware address of the NetGuardian 16. (Not editable - For reference only.)

Host Name

Used only for web browsing. Example: If you don't want to remember this NetGuardian's IP address, you can type in a name is this field, such as NG216G3. Once you save and reboot the unit, you can now browse to it locally by simply typing in "NG216G3" in the address bar. (no "http://" needed).

Enable DHCP

Used to turn on Dynamic Host Connection Protocol. NOT recommended, because the unit is assigned an IP address from your DHCP server. The IP you've already assigned to the unit becomes inactive. Using DHCP means the unit will NOT operate in a T/Mon environment.

Unit IP

IP address of the NetGuardian 16.

Subnet Mask

A road sign to the NetGuardian 16, telling it whether your packets should stay on your

local network or be forwarded somewhere else on a wide-area network.

Gateway

An important parameter if you are connected to a wide-area network. It tells the

NetGuardian which machine is the gateway out of your local network. Set to

255.255.255.255 if not using. Contact your network administrator for this info.

Ethernet Settings

DNS Server 1

Primary IP address of the domain name server. Set to 255.255.255.255 if not using.

DNS Server 2

Secondary IP address of the domain name server. Set to 255.255.255.255 is not using.

Ethernet11.2

The Edit > Ethernet menu allows you to define and configure Ethernet settings.

Fig. 11.2 - The Edit > Ethernet menu

Serial Ports11.3

Location

A reminder that your primary serial port is located on the back of the NetGuardian 16 chassis.

Port Configuration

Port Type

Select the serial port for your build of the NetGuardian. Choose from 202, 232, 485...

Baud, Parity, Stop Bits,

and Flow Control

Select the appropriate settings from the drop-down menu.

RTS Head

Only used if your NetGuardian was built with a 202 modem. The most commonly used value is 30.

RTS Tail

Only used if your NetGuardian was built with a 202 modem. The most commonly used value is 10.

Flow Control

Reach-Through

Enable Reach-through

Checking this box enables the port to be used as a terminal server. Most commonly used to Telnet through the port over LAN to a hub, switch, or router. From a command prompt, type the following (note the spaces between each entry):

telnet [IP address] [port]

Example: telnet 192.168.1.100 3000

Port

Port number used for reach-through to a serial device.

Type

Select TCP or UDP traffic to be passed through to a serial

device.

The Edit > Serial Port menu allows you to change settings depending on the port type of your NetGuardian. From this menu, you can select a mode of operation, tune the 202 modem, and enable reach-through serial port functionality.

Fig. 11.3 - The Edit > Serial Ports menu

Notifications11.4

From the initial Edit > Notifications menu, you can enable or disable your NetGuardian's alarm notifications and alter schedules during which each notification is active. Click any of the No. links to begin configuring notifications.

Fig. 11.4 - The Edit > Notifications menu

Once you've chosen which notification you want to setup, check the Enable Notification to turn it "on." Then choose a notification method: Email or SNMP (traps).

Fig. 11.5- The Notification Setting menu

11.4.1 Notification Settings

To configure alarm notifications, simply fill in all fields for the chosen notification type. See the tables in the following sections for information on available fields for each notification type.

11.4.1.1 Email Notifications

Email Notification

SMTP Server IP or

Host Name

The IP address of your email server.

Port Number

The port used by your email server to receive emails (usually port 25).

"From" E-mail Address

Displays the email address (defined in the Edit menu > System) that the

NetGuardian 16 will send email from. Not editable from this menu.

"To" E-mail Address

The email address of the person who will receive email alarm notifications.

Mobile Format

If this box is checked the message will be received in the following order

"Description" "Status" "Date" "Time" (Example: Alarm 1 Clear YYYY-MM-DD HH:MM:SS)

SNMP Notification

SNMP Trap Server IP

The SNMP trap manager's IP address.

Trap Port No.

The SNMP port (UDP port) set by the SNMP trap manager to receive

traps, usually set to 162.

Trap Community

Community name for SNMP TRAP requests.

11.4.1.2 SNMP Traps

Fig. 11.6 - Editing Email Notification Settings

Fig. 11.7 - Editing SNMP notification settings

Editing System Alarms

Pnt (Point)

Alarm point number

Description

Non-editable description for this System (housekeeping) Alarm.

Rpt (Report)

Check this box to choose to report this alarm.Check the box in the green bar

(top) to have all System Alarms reported. Leave unchecked to ignore.

Notification devices

Check which notification device(s), 1 through 8, you want to send alarm notifications for that alarm point. Check the box in the green bar (top) to have that notification device send a notification for all the System Alarms.

Systerm Alarms11.5

Fig. 11.8 - The Edit > System Alarms menu

Controls11.6

The NetGuardian 16's relays can be configured in the Edit > Controls menu. You can enter your own description for these relays and designate them to a notification device(s).

Fig. 11.9 - The Edit > Controls menu

Editing Control Relays

Description

User-definable description for the NetGuardian 16's control.

Mom. Time

Stands for "Momentary Time," which is the time (in milli-seconds) when you quick-

latch the relay from Monitor Mode, T/Mon or other SNMP manager.

Notification devices

Check which notification device(s), 1 through 8, you want to send alarm notifications for the control.

Analogs11.7

Editing Analogs - Basic

Enab (Enable)

Checking the box in the Enab column enables monitoring of the analog

channel. Analog channels that are not enabled will not show in the Monitor

Menus > Analogs screen.

Description

User-definable description for the analog channel

Rev (Reverse)

Check this box to reverse the polarity. (This is not typically used. Reversing polarity is the same as reversing your wiring. Example: -54VDC becomes +54VDC)

Notification devices

Check which notification device(s), 1 through 8, you want to send alarm notifications for that analog alarm. Check the box in the green bar (top) to have a notification device send an alarm for all analog channels.

MjU (Major Under)

Threshold settings. These user-defined value are used to indicate the severity of

Each of the NetGuardian 16's analog channels may be individually configured to monitor analog changes in your environment. The analog inputs natively measures voltage on a range of -90 to +90 VDC. By removing the lid of the unit, you can move a jumper to set the point to monitor 4 - 20mA.

Internal and external temperature sensors monitor the ambient temperature. Both sensors measure a range of 32° F to 140° F (0° C to 60° C) within an accuracy of ± 1°. The external temperature sensor provides external temperature readings by plugging the optional probe into the temperature port on the NetGuardian 16's back panel.

11.7.1 Basic Configuration

Basic configuration for the NetGuardian 16's analog channels can be accomplished from the Edit > Analogs menu. From this screen, you enable or disable the analog channels, select notification devices, and set thresholds.

Fig. 11.10- The basic Edit > Analogs menu

MnU (Minor Under)

MnO (Minor Over)

MjO (Major Over)

the alarm by indicating when the threshold values you've set have been passed.

Editing Analogs - Advanced

On set

User-definable description (condition) that will appear for the alarm on Set.

Example: "Alarm"

On clear

User-definable description (condition) that will appear for the alarm Clear.

Example: "Clear"

QTime

(Qualification Time)

The length of time that must pass, without interruption, in order for the

condition to be considered an Alarm or a Clear.

QType

(Qualification Type)

Allows you to choose whether you want to apply the Qualification Time to the

alarm Set, Clear, or Both.

Display Units

User-definable display units or optional choice between Fahrenheit and

Celsius temperatures. The most common are:

VDC = Voltage

%H = Humidity

F = Fahrenheit

C = Celsius

Low Reference *

User-definable lower threshold settings

High Reference *

User-definable upper threshold settings

Analog Gauge Type

Select the color-coded gauge that best represents your data.

Associate enable/disable

to base alarm #

Check this box to tie the analog channel to the base discrete point of the same number (i.e. channel 1 with alarm 1). Checking this box disables the analog channel until NetGuardian reports an alarm on the associated discrete point. When the alarm sets, the NetGuardian will automatically re-enable and monitor the analog channel.

11.7.2 Advanced Configuration

To access the Advanced configuration screen, click the Advanced Config link near the Description. From the Advanced configuration screen, you can now select which analog gauges you want to represent the changing

values.

Fig. 11.11- The Advanced Edit > Analogs menu

* These values are gathered from your sensor. Keep in mind that the NetGuardian is trying to build a linear equation

to give the most accurate results. See examples below.

Time Settings

Date

Select the current month, day, and year from the drop-down menus.

Time

Select the current hour, minutes, and time of day fro the drop-down menus.

Automatic Time Adjustment (NTP)

Enable NTP

Check this box to enable Network Time Protocol.

NTP Server Address or

Host Name

Enter the NTP server's IP address or host name, then click Sync. Example: north-america.pool.ntp.org

Time Zone

Select your time zone from the drop-down menu.

Adjust Clock for Daylight Savings Time (DST)

Enable DST

Check this box to have the NetGuardian 16 observe Daylight Savings.

Start Day

Select the month, weekday, and time when Daylight Savings will begin.

End Day

Select the month, weekday, and time when Daylight Savings will end.

Example 1: If you are measuring battery voltage, we want the NetGuardian to show that the input is -54.2 VDC if -

54.2 VDC is really being measured. However, if you are measuring temperature, the values are typically not a 1 : 1 ratio.

Example 2: Your X-Type sensor outputs 4 - 20mA. (We use a 250 ohm resistor to convert current to voltage measurement. Ohms Law tells us that 4mA x 250 ohms = 5 VDC. The sensor should tell us what the output current references. In this example, 4mA = 23º F and 20mA = 131º F OR 1V = 23º F and 5V = 131º F.

Date and Time11.8

Fig. 11.12 - The Edit > Date and Time menu

Timers11.9

Fig. 11.13- The Edit > Timers menu

Reboot11.10

Click on the Reboot link from the Edit menu will reboot the NetGuardian 16 after writing all changes to NVRAM.

Fig. 11.14- The Edit > Reboot confirmation popup

Monitoring via the Web Browser

Monitoring System Alarms12.1

System alarms are not-editable, housekeeping alarms that are programmed into NetGuardian 16. The Monitor > System Alarms screen provides the status of the system alarms by indicating if an alarm has been triggered. Under

the State column, the status will appear in red if an alarm has been activated. The status will be displayed in green when the alarm condition is not present.

See "Display Mapping" in the Reference Section for a complete description of system alarms.

Fig. 12.1 View the status of System Alarms from the Monitor > System Alarms menu.

Operating Controls12.2

Use the following rules to operate the NetGuardian 16's control:

1. Select Controls from the Monitor menu.

2. Under the State field, you can see the current condition of the control.

3. To issue the control, click on a command (Opr - operate, Rls - release, or Mom - momentary)

Fig. 12.2 Operate the control relay by clicking on one of the actions in the Commands field.

Monitoring Analogs12.3

This selection provides the status of the system's analog channels by indicating if an alarm has been triggered. The Monitor menu > Analogs screen provides a description of each analog channel, the current reading, the units being read, and alarm conditions (major under, minor under, major over, minor over) according to your temperature settings.

Classic View

Watch the Reading column to see your analog values changes as the information is updated, all without a page refresh. Red Xs indicate when a threshold has been crossed.

Fig. 12.3 - Monitoring analogs in Classic View allows you to see live unit readings, and see which ones have

crossed your thresholds..

Gauge View

The gauge types you chose appear on this screen, along with the changing analog values. The circles under each of the gauges flash when thresholds have been crossed.

Note: Only enabled analog channels (analogs for which the Enab box is checked on the Monitor Menus > Analogs screen) will display in gauge view. Enabled analogs will display in numerical order in rows of 2 (ex.

Channel's 1, 3, and 4 are enabled but 2 is not. Channels 1 and 3 will be displayed next to each other, and 4 will begin a new row).

Fig. 12.4 - Monitoring analogs in Gauge View offers you a visual representation of where all your analogs stand.

Viewing the Event Log12.4

The NetGuardian 16 now features an internal Event Log, which displays the last 100 even since the unit was powered up. NOTE: This information is stored in "first in, first out" order in the NetGuardian's volatile memory. Events will reset when the unit has been rebooted.

To view the Event Log, click on the Monitor menu > Event Log.

Fig. 12.5 - Viewing the Event Log from the web browser.

To access the Firmware Load screen, click on the Edit > System menu. At the bottom of this screen, click the firmware link located in the System Controls section.

Firmware Upgrade

Fig. 13.1 - The clickable link to upgrade firmware from the Edit > System menu

At the Firmware Load screen, simply browse for the firmware update you've downloaded from www.dpstele.com and click Load.

Fig. 13.2 - Browse for downloaded firmware upgrade

LED

Status

Description

Alarm

Flashing Red

New alarm

Solid Red

Standing alarm acknowledged

Error

No Function: Reserved for future use

Primary

Flashing Green

Data transmitted on PRI Serial

Flashing Red

Data recieved on PRI Serial

Power

Solid Green

Power supply OK

Off

No voltage or +12V and GND leads reversed

Craft

Flashing Green

NG 16 data transmit over craft port

Flashing Red

NG 16 data receive over craft port

Status

Flashing Green

Application is running

Flashing Red

Boot Loader is running

LED

Status

Description

PWR

A/B

Solid Green

Power supply OK

Off

No voltage or +12V and GND leads reversed

LNK

Solid Green

LAN Connected

LAN

Flashing Yellow

LAN Activity

Solid Red

Blown Fuse

Front and Back Panel LED

Fig. 12.1. Front panel LEDs

Fig. 14.1 Front Panel LED Descriptions

Fig. 14.2 Back Panel LED Descriptions

Description

Port

Address

Point

Display 1

Discrete Alarms

9911-16

System Alarms

99125-45

Display 2

Controls 1-18

9911-18

Display 3

Analog 1 Minor Under

Analog 1 Minor Over

Analog 1 Major Under

Analog 1 Major Over

Analog 1 Control

9-16

Analog 1 Value

99117-32

Display 4

Analog 2 Minor Under

9911

Analog 2 Minor Over

Analog 2 Major Under

Analog 2 Major Over

Analog 2 Control

9-16

Analog 2 Value

99117-32

Display 5

Analog 3 Minor Under

Analog 3 Minor Over

Analog 3 Major Under

Analog 3 Major Over

Analog 3 Control

9-16

Analog 3 Value

99117-32

Display 6

Analog 4 Minor Under

9911

Analog 4 Minor Over

Analog 4 Major Under

Analog 4 Major Over

Analog 4 Control

9-16

Analog 4 Value

99117-32

Display 7

Monitor Power A Minor Under

Monitor Power A Minor Over

Monitor Power A Major Under

Monitor Power A Major Over

Monitor Power A Control

9-16

Monitor Power A Value

99117-32

Display 8

Monitor Power B Minor Under

9911

Monitor Power B Minor Over

Monitor Power B Major Under

Monitor Power B Major Over

Monitor Power B Control

9-16

Monitor Power B Value

99117-32

Display 9

Internal Temp Minor Under

Internal Temp Minor Over

Internal Temp Major Under

Internal Temp Major Over

Internal Temp Control

9-16

Internal Temp Value

99117-32

Reference Section

Display Mapping15.1

Table 15.1

Display 10

External Temp Minor Under

9911

External Temp Minor Over

External Temp Major Under

External Temp Major Over

External Temp Control

9-16

External Temp Value

99117-32

Display

Points

Alarm Point

Description

Solution

Default

configuration

The internal NVRAM may be damaged. The unit is using default configuration settings.

DCP Poller

Inactive

The NetGuardian is configured to listen for DCP polls but has not received a poll in over 5 minutes

Check if unit can ping TMON or disable if not in use.

MAC Address

not set

The MAC Address is not set.

Call DPS Tech Support: (559) 454-1600

IP Address not

set

The IP is not set.

See Section "Quick Start: How to Connect to the NetGuardian 16 via Craft Port." If not using the NetGuardian over LAN, set the IP address to

255.255.255.255

LAN hardware

error

The unit does not have a solid LAN link to the hub, switch, or router.

If connecting to a hub you might require a LAN crossover cable.

SNMP

processing

error

SNMP trap address is not defined and an SNMP trap event occurred.

Define the IP Address where you would like to send SNMP trap events, or configure the event not to trap.

SNMP

community

error

Community string does not match your SNMP master's community string.

Verify both community strings to make sure they match.

LAN TX packet

drop

An error occurred transmitting data over LAN.

Verify that you can ping both devices.

Notification 1

failed

A notification 1 event, such as a page or email, was unsuccessful.
