Page 1
2011C
40
10
0

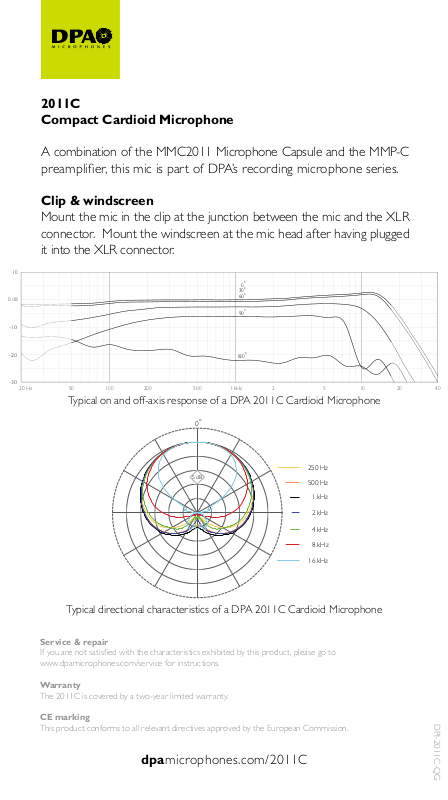

Compact Cardioid Microphone
A combination of the MMC2011 Microphone Capsule and the MMP-C
preamplifier, this mic is part of DPA’s recording microphone series.
Clip & windscreen
Mount the mic in the clip at the junction between the mic and the XLR
connector. Mount the windscreen at the mic head after having plugged
it into the XLR connector.
°
0
°
30
°
dB
-10
-20
-30
20 Hz 50 100 200
Typical on and o-axis response of a DPA 2011C Cardioid Microphone
60
°
90
°
180
500
1 kHz 2510 20
º
0
5
dB
Typical directional characteristics of a DPA 2011C Cardioid Microphone
Service & repair
If you are not satisfied with the characteristics exhibited by this product, please go to
www.dpamicrophones.com/service for instructions.
Warranty
The 2011C is covered by a two-year limited warranty.
CE marking
This product conforms to all relevant directives approved by the European Commission.
dpamicrophones.com/2011C
250 Hz
500 Hz
16 kHz
1 kHz
2 kHz
4 kHz
8 kHz
DPI-2011C-QG
Page 2
Specifications
Directional pattern
Cardioid
Principle of operation
Pressure gradient with interference tube
Capsule type
Pre-polarized condenser, Twin Diaphragm Capsule
Frequency response
20 Hz – 20 kHz
Eective frequency range, ±2 dB, at 30 cm (11.8 in)
50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz
10 mV/Pa; -40 dB re 1 V/Pa
Equivalent noise level, A-weighted
Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Rated output impedance
< 100 Ω
Output balance principle
Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR)
> 50 dB
Power supply (for full performance)
P48 (Phantom Power)
Current consumption
2.8 mA
Polarity
+V at Pin 2 for positive sound pressure
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Operating temperature range
-40 to 45°C (-40 to 113°F)
Relative humidity
Up to 90%
