DPA d:dicate MMC2006 Datasheet

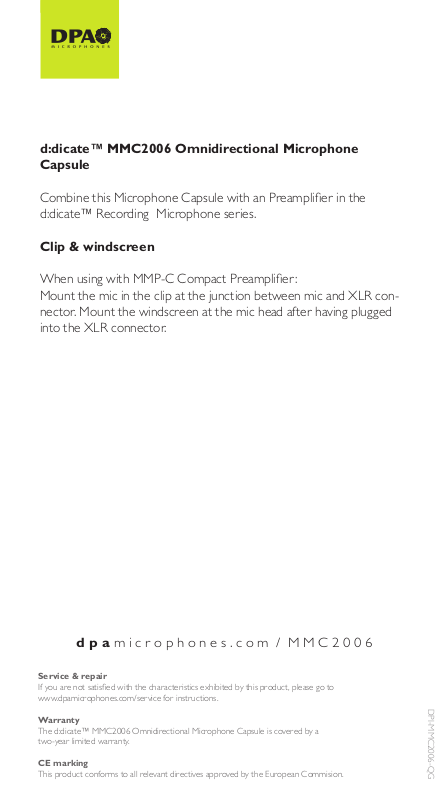

d:dicate™ MMC2006 Omnidirectional Microphone
Capsule

Combine this Microphone Capsule with an Preamplifier in the
d:dicate™ Recording Microphone series.

Clip & windscreen

When using with MMP-C Compact Preamplifier:
Mount the mic in the clip at the junction between mic and XLR con­nector. Mount the windscreen at the mic head after having plugged
into the XLR connector.

d p a m i c r o p h o n e s . c o m / M M C 2 0 0 6

Service & repair

If you are not satisfied with the characteristics exhibited by this product, please go to
www.dpamicrophones.com/service for instructions.

Warranty

The d:dicate™ MMC2006 Omnidirectional Microphone Capsule is covered by a
two-year limited warranty.

CE marking

This product conforms to all relevant directives approved by the European Commision.

DPI-MMC2006-QG

MMC2006

All specifications measured with the MMP-A Preamplifier

Directional pattern

Omnidirectional

Principle of operation

Pressure

Cartridge type

Pre-polarized condenser, Twin Diaphragm Capsule

Frequency range

20 Hz - 20 kHz

Frequency range, ±2 dB

50 Hz - 20 kHz with typ. 2 dB soft boost at 14 kHz

Sensitivity, nominal, ±2 dB at 1 kHz

40 mV/Pa; -28 dB re. 1 V/Pa

Epuivalent noise level, A-weighted

Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))

Weight

20 g (0.7 oz)

Operating temperature range

-40 to 45°C (-40 to 113°F)

Relative humidity

Up to 90%
