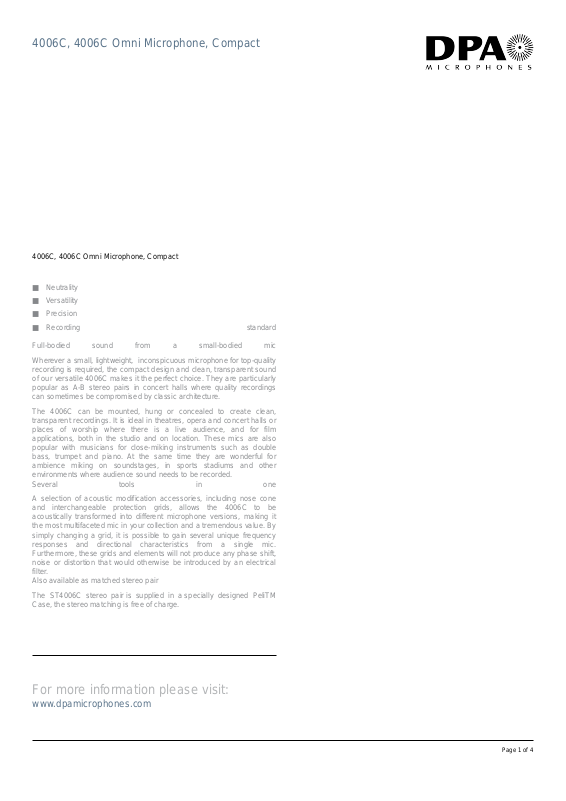

4006C, 4006C Omni Microphone, Compact
4006C, 4006C Omni Microphone, Compact
Neutrality
■
Versatility
■
Precision
■
Recording standard
■
Full-bodied sound from a small-bodied mic
Wherever a small, lightweight, inconspicuous microphone for top-quality
recording is required, the compact design and clean, transparent sound
of our versatile 4006C makes it the perfect choice. They are particularly
popular as A-B stereo pairs in concert halls where quality recordings
can sometimes be compromised by classic architecture.
The 4006C can be mounted, hung or concealed to create clean,
transparent recordings. It is ideal in theatres, opera and concert halls or
places of worship where there is a live audience, and for film
applications, both in the studio and on location. These mics are also
popular with musicians for close-miking instruments such as double
bass, trumpet and piano. At the same time they are wonderful for
ambience miking on soundstages, in sports stadiums and other
environments where audience sound needs to be recorded.
Several tools in one
A selection of acoustic modification accessories, including nose cone
and interchangeable protection grids, allows the 4006C to be
acoustically transformed into different microphone versions, making it
the most multifaceted mic in your collection and a tremendous value. By
simply changing a grid, it is possible to gain several unique frequency
responses and directional characteristics from a single mic.
Furthermore, these grids and elements will not produce any phase shift,
noise or distortion that would otherwise be introduced by an electrical
filter.
Also availableas matched stereo pair
The ST4006C stereo pair is supplied in a specially designed PeliTM
Case, the stereo matching is free of charge.
For more information please visit:
www.dpamicrophones.com
Page 1 of 4
Page 2
4006C, 4006C Omni Microphone, Compact
Directional characteristics:
Omnidirectional
Principle of operation:
Pressure
Catridge type:
Pre-polarized condenser
Frequency range:
10 Hz to 20 kHz
Frequency range, ± 2 dB:
20 Hz to 20 kHz
Sensitivity, nominal ±2 dB at 1 kHz:
40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted:
Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4:
Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94
dB SPL):
Typ. 79 dB(A)
Total Harmonic Distortion (THD):
< 1 % up to 134 dB SPL peak
Dynamic range:
Typ. 119 dB
Max. SPL, peak before clipping:
140 dB
Minimum load impedance:
2 kohm
Output impedance:
< 200 ohm
Cable drive capability:
100 m (328 ft)
Output balance principle:
Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR):
> 50 dB
Powersupply (for full specifications):
48 V Phantom power (± 4 V)
Current consumption:
2.8 mA
Connector:
XLR-3M. Pin 1: shield, Pin 2: signal + phase,
Pin 3: - phase
Color:
Matte black
Weight:
63 g (2.2 oz)
Diameter:
16 to 19 mm (0.63 to 0.75 in)
Capsule diameter:
16 mm (0.63 in)
Length:
64 mm (2.5 in)
Output voltage, RMS:
> 4 V
Polarity:
+V at Pin 2 for positive sound pressure
Temperature range:
-40 °C to 45 °C (14 °F to 113 °F)
Relative Humidity (RH):
Up to 90%
Matching tolerance:
± 0,5 dB
Phase deviation for kit:
< 5°
Diagrams
4006C, 4006C Omni Microphone, Compact
On-axis and diffuse-field responses of DPA 4006C with the
pre-mounted, silver Near-field Grid DD0251 fitted
On-axis and diffuse-field responses of DPA 4006C with the pre-mounted, silver Near-field
Grid DD0251 fitted
On-axis and diffuse-field responses of DPA 4006C with the black
Diffuse-field Grid DD0297 fitted
On-axis and diffuse-field responses of DPA 4006C with the black Diffuse-field Grid DD0297
fitted
Page 2 of 4
Page 3
On-axis response of DPA4006C with the silver trapezoid
Close-miking Grid DD0254
On-axis response of DPA 4006C with the silver trapezoid Close-miking Grid DD0254
Directional characteristics of DPA 4006C fitted with the black
Diffuse-field Grid DD0297 (normalized)
Directional characteristics of DPA 4006C with the pre-mounted,
silver Free-field Grid DD0251 fitted (normalized)
Directional characteristics of DPA 4006C with the pre-mounted, silver Free-field Grid
DD0251 fitted (normalized)
Directional characteristics of DPA 4006C with the silver trapezoid
Close-miking Grid DD0254
Directional characteristics of DPA 4006C fitted with the black Diffuse-field Grid DD0297
(normalized)
Directional characteristics of DPA 4006C with the silver trapezoid Close-miking Grid
DD0254
Page 3 of 4
Page 4
On-axis phase response of DPA 4006C plotted using a linear
frequency axis for evaluation of the phase response
On-axis phase response of DPA4006C plotted using a linear frequency axis for evaluation
of the phase response
