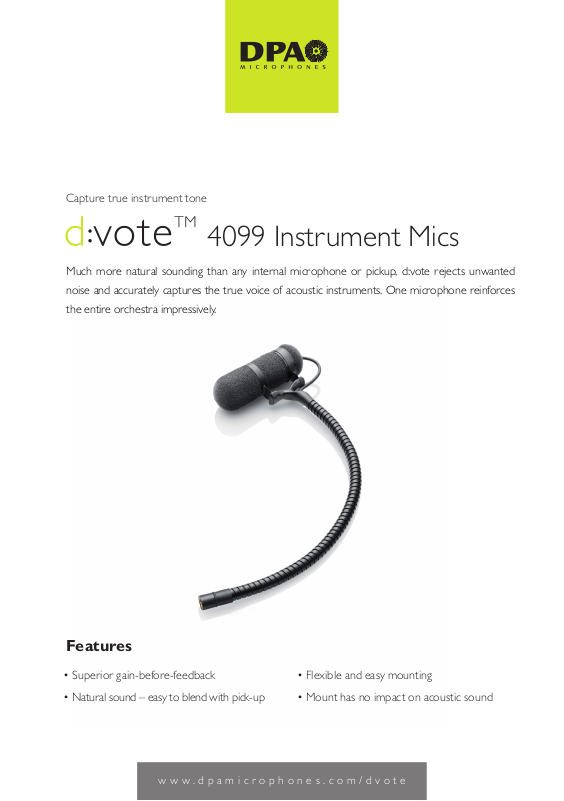

4099 Instrument Mics

Much more natural sounding than any internal microphone or pickup, d:vote rejects unwanted

noise and accurately captures the true voice of acoustic instruments. One microphone reinforces

the entire orchestra impressively.

Features

• Superior gain-before-feedback

• Natural sound – easy to blend with pick-up

www.dpamicrophones.com/dvote

• Flexible and easy mounting

• Mount has no impact on acoustic sound

Specifications

10

04

dpi-dvote-f

4099 Instrument Microphone

Directional characteristics

Supercardioid

Principle of operation

Pressure gradient

Cartridge type

Pre-polarized condenser

Frequency range

20 Hz to 20 kHz

Frequency range, ± 2 dB, 20 cm (7.9 in) distance

80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz

Sensitivity, nominal ± 3 dB at 1 kHz

6 mV/Pa; -44,5 dB re. 1 V/Pa
(High SPL: 2 mV/Pa; -54 dB re. 1 V/Pa)

Equivalent noise level, A-weighted

Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) (d:vote High SPL:
Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A))

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

71 dB (High SPL: 66 dB(A))

Total Harmonic Distortion (THD)

<1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine
(High SPL: <1 % up to 123 dB SPL peak; <1 % up to
120 dB SPL RMS sine)

Dynamic range

100 dB (High SPL: 95 dB)

Max. SPL, peak before clipping

142 dB (High SPL: 152 dB

Output impedance

From MicroDot: 30 to 40 ohm; from XLR adapter: 100 ohm

Cable drive capability

Up to 300 m (984 ft) with XLR adapter

Output balance principle

Signal balanced with XLR adapter

Common Mode Rejection Ratio (CMRR)

> 60 dB from 50 Hz to 15 kHz with XLR adapter

Power supply (for full performance)

Min. 5 V to max. 50 V through DPA adapter for wireless
systems, 48 V phantom power +/- 4 V with XLR adapter

Current consumption

Typ. 1.5 mA (microphone). 3.5 mA with XLR adapter

Connector

MicroDot

Color

Black

Dimensions

Microphone weight: 46 g (1.62 oz)
Capsule diameter: 5.4 mm (0.2 in)
Microphone length: 45 mm (1.8 in)
Cable length: 1.8 m (6 ft)

Polarity

Positively increasing sound pressure produces positive-going
voltage at MicroDot pin (and pin 2 on XLR adapter)

Temperature range

-40 °C to 45 °C (-40 °F to 113 °F)

Relative Humidity (RH)

Up to 90%

Gooseneck length

140 mm (5.5 in)

Sensitivity selection tolerance (at 1 kHz)

± 1 dB

Frequency Response

dB

0˚

0

30˚

180˚

60˚

-10

-20

20 Hz 50 100 200 500 1 kHz2 5102

Measured at 20 (7.9 in)

90˚

Polar Pattern

5 dB

0

8 kHz

250 Hz

500 Hz

4 kHz

2 kHz

16 kHz

1 kHz
