DPA CORE 4097 Specifications

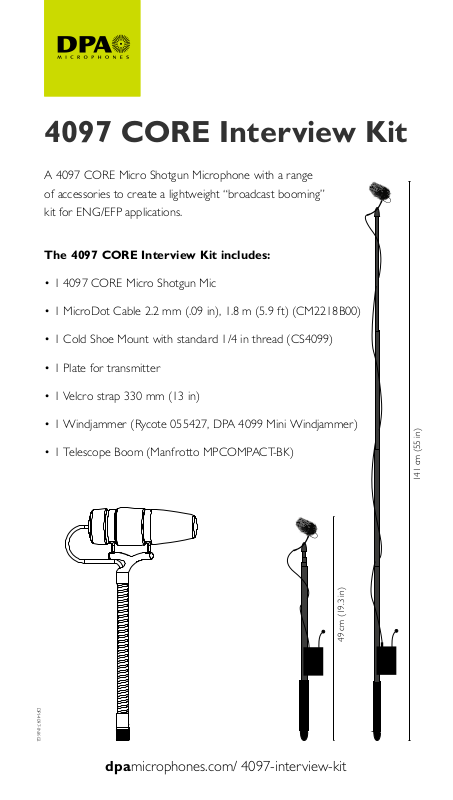

4097 CORE Interview Kit

A 4097 CORE Micro Shotgun Microphone with a range

of accessories to create a lightweight “broadcast booming”

kit for ENG/EFP applications.

The 4097 CORE Interview Kit includes:

• 1 4097 CORE Micro Shotgun Mic

• 1 MicroDot Cable 2.2 mm (.09 in), 1.8 m (5.9 ft) (CM2218B00)

• 1 Cold Shoe Mount with standard 1/4 in thread (CS4099)

• 1 Plate for transmitter

• 1 Velcro strap 330 mm (13 in)

• 1 Windjammer (Rycote 055427, DPA 4099 Mini Windjammer)

• 1 Telescope Boom (Manfrotto MPCOMPACT-BK)

141 cm (55 in)

DPI-4097-INK-02

49 cm (19.3 in)

dpamicrophones.com/ 4097-interview-kit

A flexible solution

Clip your existing transmitter into the holder at the bottom of the pole,

connect it via a wireless DPA adapter (not included) and you are ready to

go. For larger transmitters or extra security, a Velcro strap is included.

You can move the transmitter plate to the end of the handle, if preferred.

For XLR connections, you can use the DAD6001-BC Adapter for

MicroDot to 3-pin XLR with Belt Clip (not included).

dpamicrophones.com/ 4097-interview-kit
