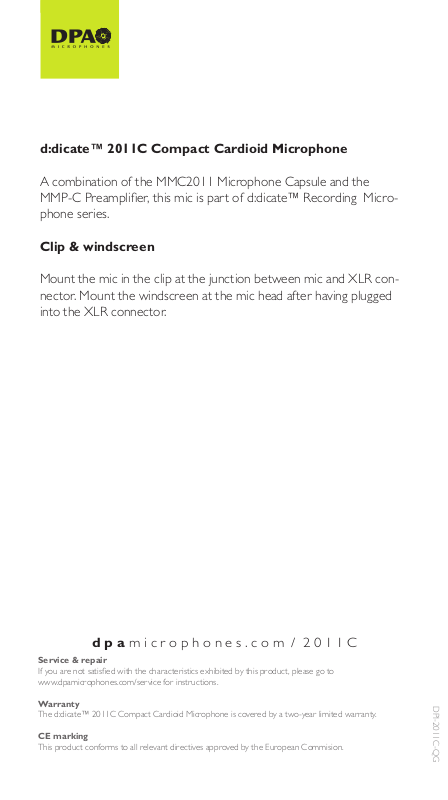

d:dicate™ 2011C Compact Cardioid Microphone
A combination of the MMC2011 Microphone Capsule and the
MMP-C Preamplifier, this mic is part of d:dicate™ Recording Microphone series.
Clip & windscreen
Mount the mic in the clip at the junction between mic and XLR connector. Mount the windscreen at the mic head after having plugged
into the XLR connector.
d p a m i c r o p h o n e s . c o m / 2 0 1 1 C
Service & repair
If you are not satisfied with the characteristics exhibited by this product, please go to
www.dpamicrophones.com/service for instructions.
Warranty
The d:dicate™ 2011C Compact Cardioid Microphone is covered by a two-year limited warranty.
CE marking
This product conforms to all relevant directives approved by the European Commision.
DPI-2011C-QG
Page 2
Specifications
Directional pattern
Cardioid
Principle of operation
Pressure gradient, with interference tube
Cartridge type
Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range
20 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz
10 mV/Pa; -40 dB re. 1 V/Pa
Output impedance
< 200 Ω
Output balance principle
Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR)
> 50 dB
Power supply
48 V Phantom power (±4 V for full specifications)
Current consumption
2.8 mA
Polarity
+V at Pin 2 for positive sound pressure
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Operating temperature range
-40 to 45°C (-40 to 113°F)
Relative humidity
Up to 90%
