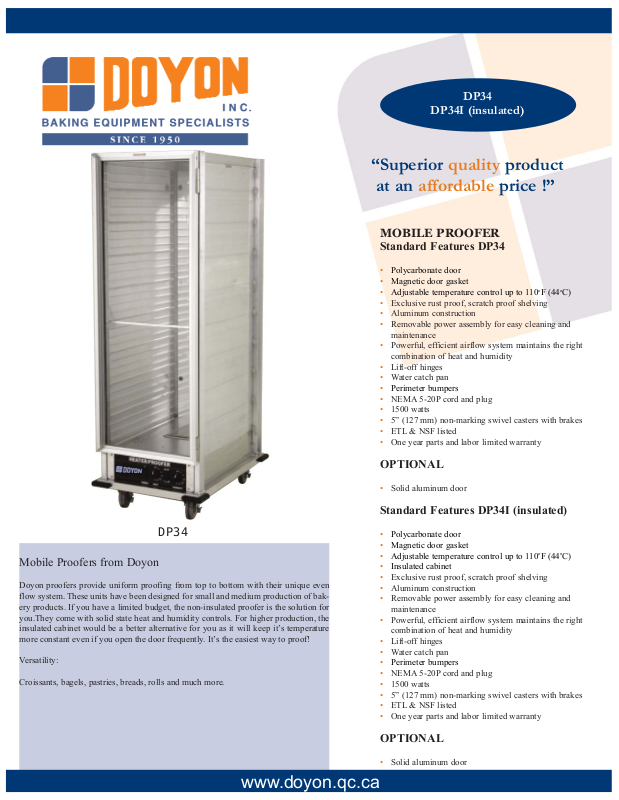

Doyon DP34 User Manual

DP34

DP34I (insulated)

DP34

Mobile Proofers from Doyon

Doyon proofers provide uniform proofing from top to bottom with their unique even
flow system. These units have been designed for small and medium production of bak­ery products. If you have a limited budget, the non-insulated proofer is the solution for
you.They come with solid state heat and humidity controls. For higher production, the
insulated cabinet would be a better alternative for you as it will keep it’s temperature
more constant even if you open the door frequently. It’s the easiest way to proof!

Versatility:

Croissants, bagels, pastries, breads, rolls and much more.

MOBILE PROOFER

Standard Features DP34

• Polycarbonate door

• Magnetic door gasket

• Adjustable temperature control up to 110oF (44oC)

• Exclusive rust proof, scratch proof shelving

• Aluminum construction

• Removable power assembly for easy cleaning and

maintenance

• Powerful, efficient airflow system maintains the right

combination of heat and humidity

• Lift-off hinges

• Water catch pan

• Perimeter bumpers

• NEMA 5-20P cord and plug

• 1500 watts

• 5” (127 mm) non-marking swivel casters with brakes

• ETL & NSF listed

• One year parts and labor limited warranty

OPTIONAL

• Solid aluminum door

Standard Features DP34I (insulated)

• Polycarbonate door

• Magnetic door gasket

• Adjustable temperature control up to 110oF (44oC)

• Insulated cabinet

• Exclusive rust proof, scratch proof shelving

• Aluminum construction

• Removable power assembly for easy cleaning and

maintenance

• Powerful, efficient airflow system maintains the right

combination of heat and humidity

• Lift-off hinges

• Water catch pan

• Perimeter bumpers

• NEMA 5-20P cord and plug

• 1500 watts

• 5” (127 mm) non-marking swivel casters with brakes

• ETL & NSF listed

• One year parts and labor limited warranty

OPTIONAL

• Solid aluminum door

“Superior quality product

at an affordable price !”

www.doyon.qc.ca

www.doyon.qc.ca

OVERALL DIMENSIONS
DP34 22 13/16” W X 33 5/16” DX 66 7/16’’ H

(584 mm X 838 mm X 1689 mm)

DP34I 23 5/16” W X 33 7/8’’ D X 67 9/16” H

(590 mm X 842 mm X 1714 mm)

PROOFER INTERIOR DIMENSIONS
DP34 18 1/8” W X 27 1/2” D X 51 3/4” H

(460 mm X 699 mm X 1314 mm)

DP34I 18 1/8” W X 27 1/2” D X 51 3/4” H

(460 mm X 699 mm X 1314 mm)

ELECTRICAL SYSTEM
DP34 120V- 12.5A
DP34I 120V- 12.5A

CAPACITY
Standard sheet pans 18” X 26” (457 mm X 660 mm): 34 pans
Half size sheet pans 18’’ X 13’’ (457 mm X 330 mm): 68 pans

Shelf spacing 1 1/2” (38 mm)

FINISH
Aluminum

SHIPPING WEIGHT
DP34 100 lb (45 kg) approximately
DP34I 100 lb (45 kg) approximately

Electrical service connection and water inlet are located at the back
of the unit.

Specifications and design subject to change without notice.

1255, rue Principal e
LiniŁre, Beauce, QuØbec, Canada G0M 1J0

Tel: [phone] Fax: [phone]
Canada : [phone] U.S.: [phone]
E-Mail : [e-mail] Internet:

Y our local distributor:

Printed in Canada Rev: 02102010A

33 7/8’’’’

23 5/16’’’’

69 9/16’’
