CA6G, CA12G, CAOP6G & CAOP12G

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

SECTION « A » DESCRIPTION PAGE

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1

Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2

Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2

Installation warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3

Distances to respect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A5

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A6

Operation / instruction for oven and proofer. . . . . . . . . . . . . . . . . . . . . . . . A8

Operation for proofer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A11

Oven maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A14

For more information, please call our office: . . . . . . . . . . . . . . . . . . . . . . . A15

Optional auto steam injection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A16

Optional watlow control operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A17

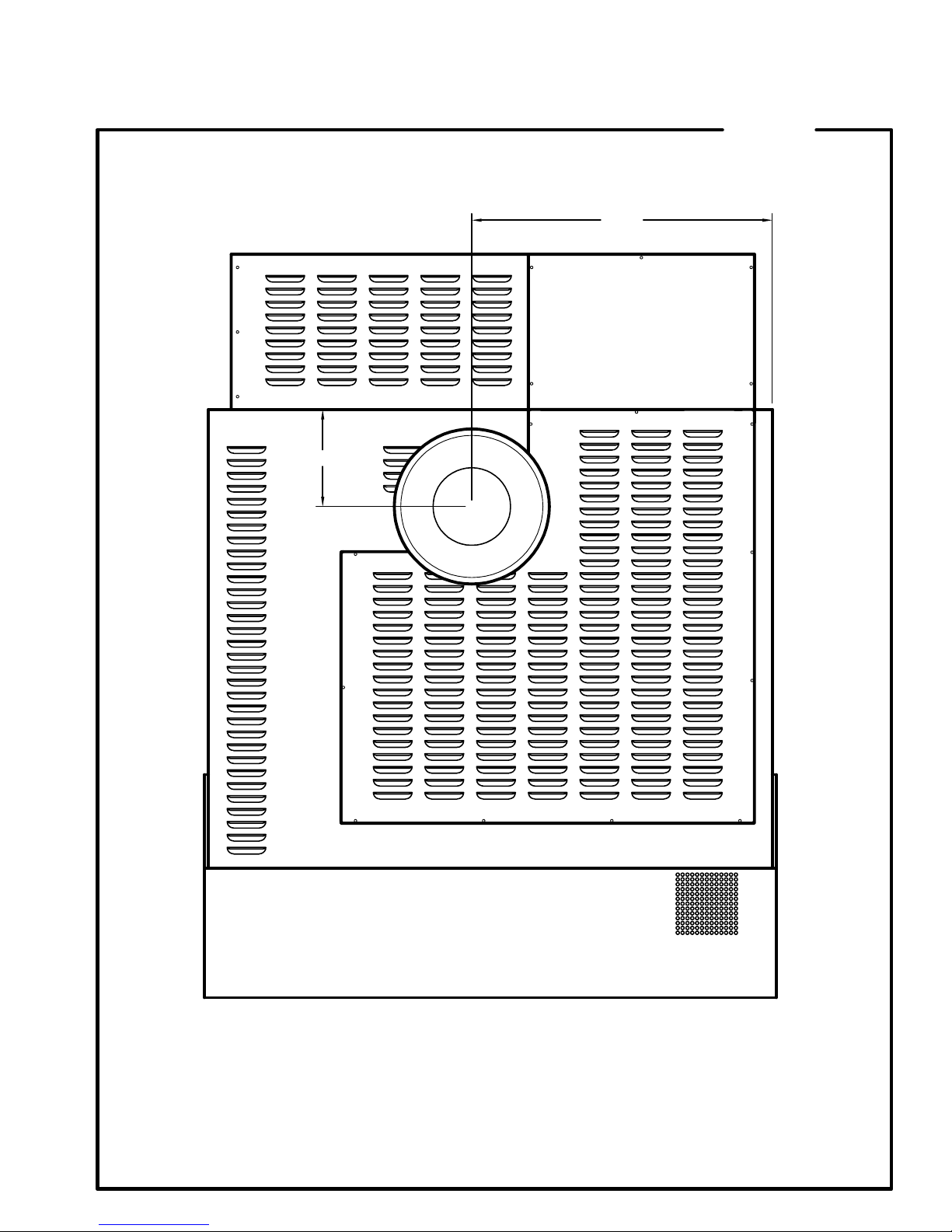

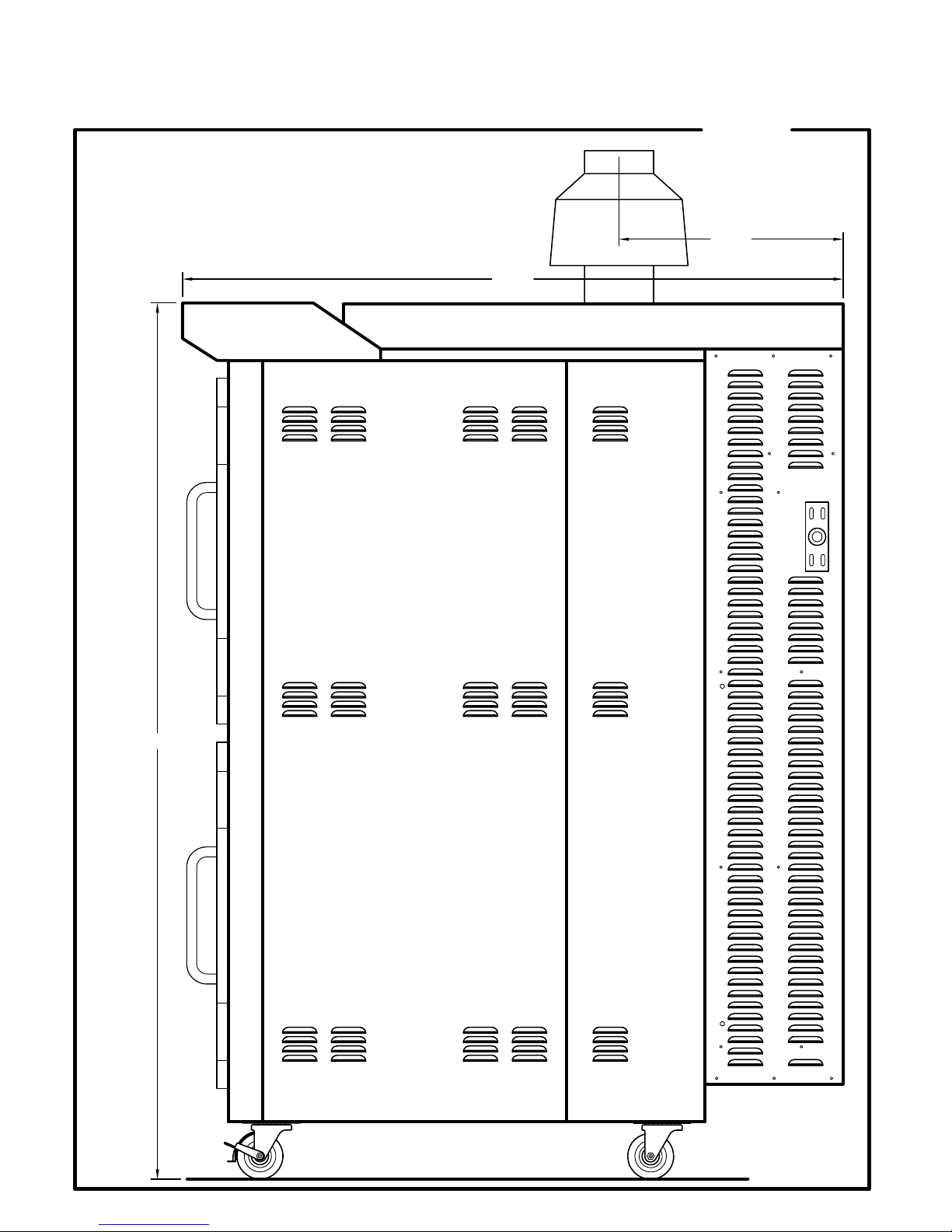

SECTION « B » DIMENSIONS

CA6G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B1

CA12G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B5

CAOP6G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B9

CAOP12G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B13

SECTION « C » BURNER ADJUSTMENTS

NATURAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C1

PROPANE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C2

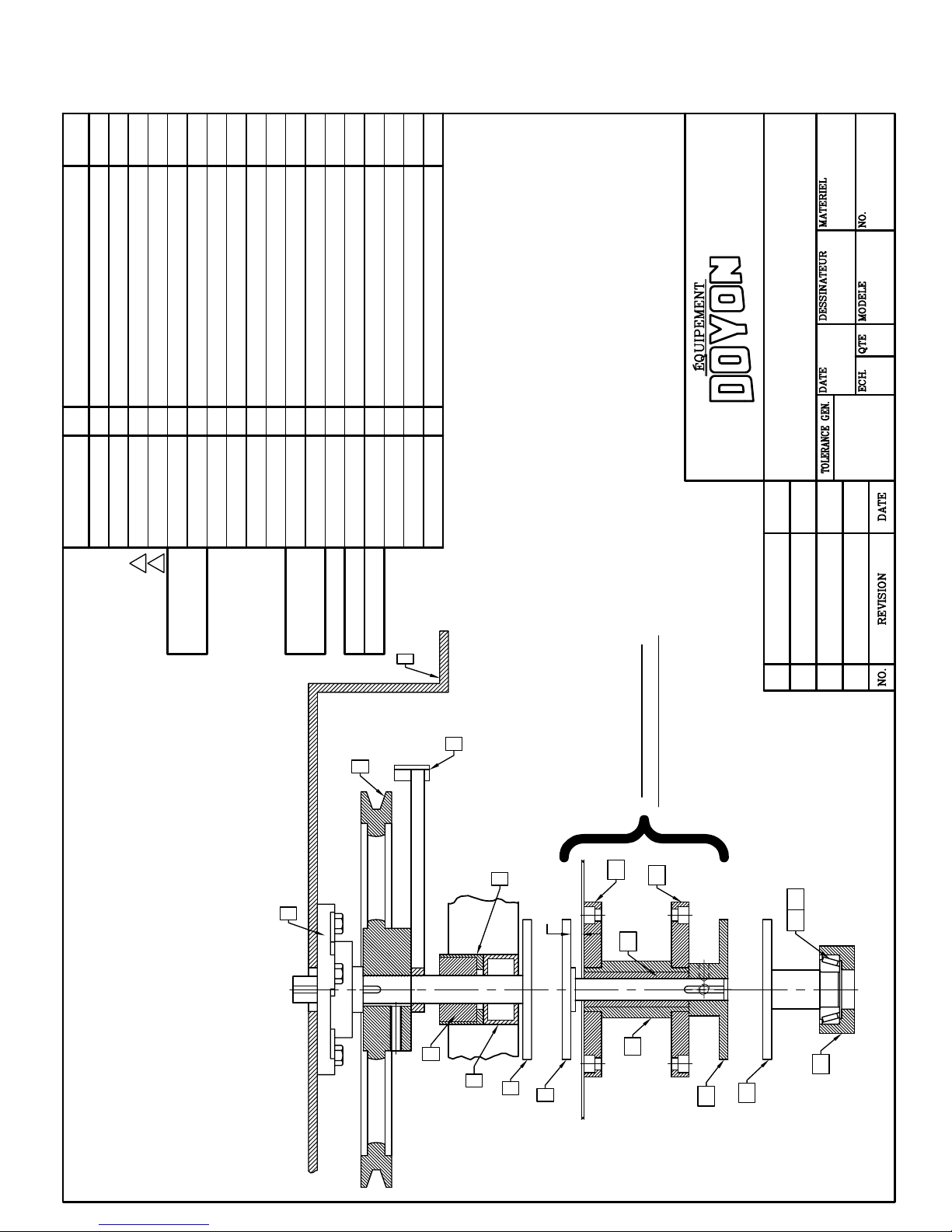

SECTION « E » COMPONENT PARTS

Component parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E1

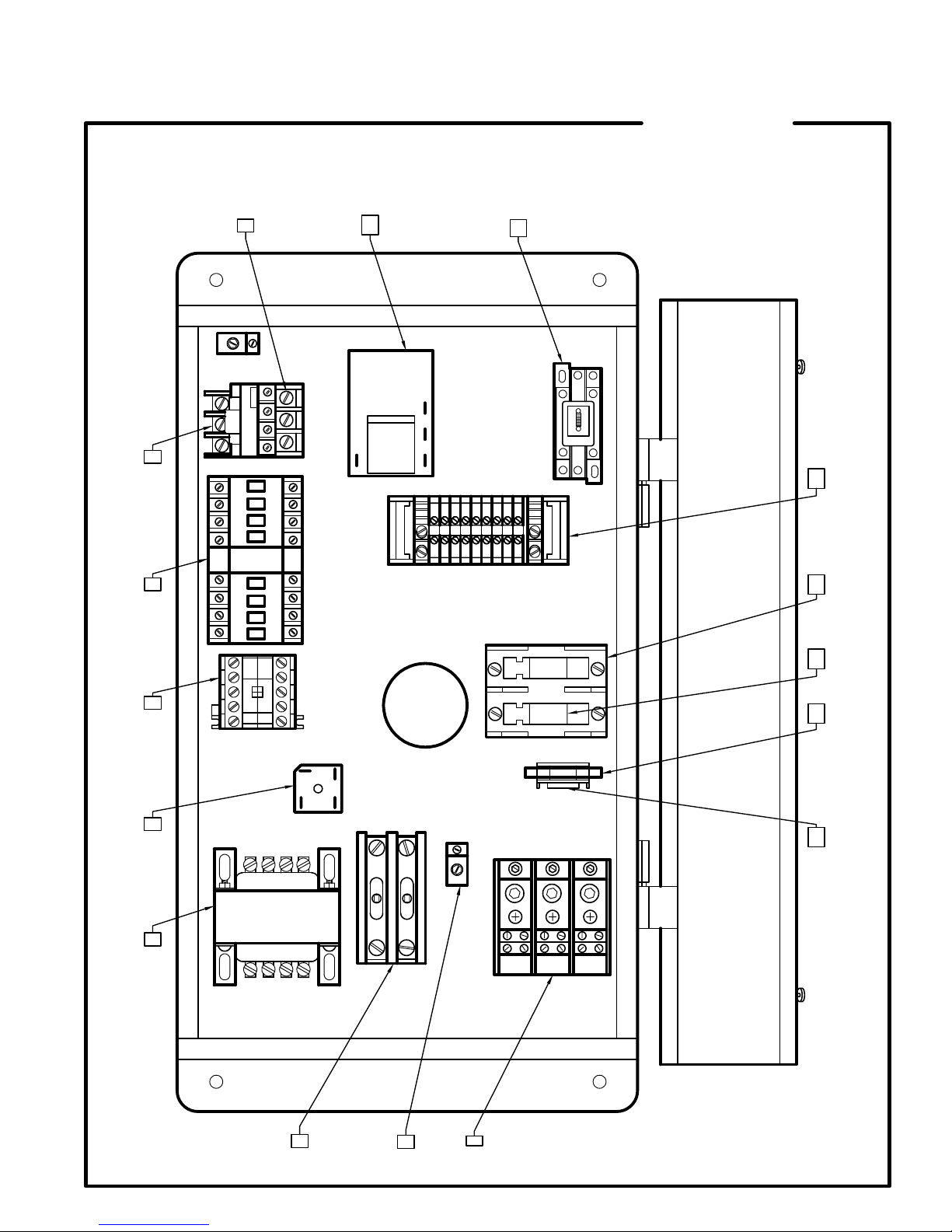

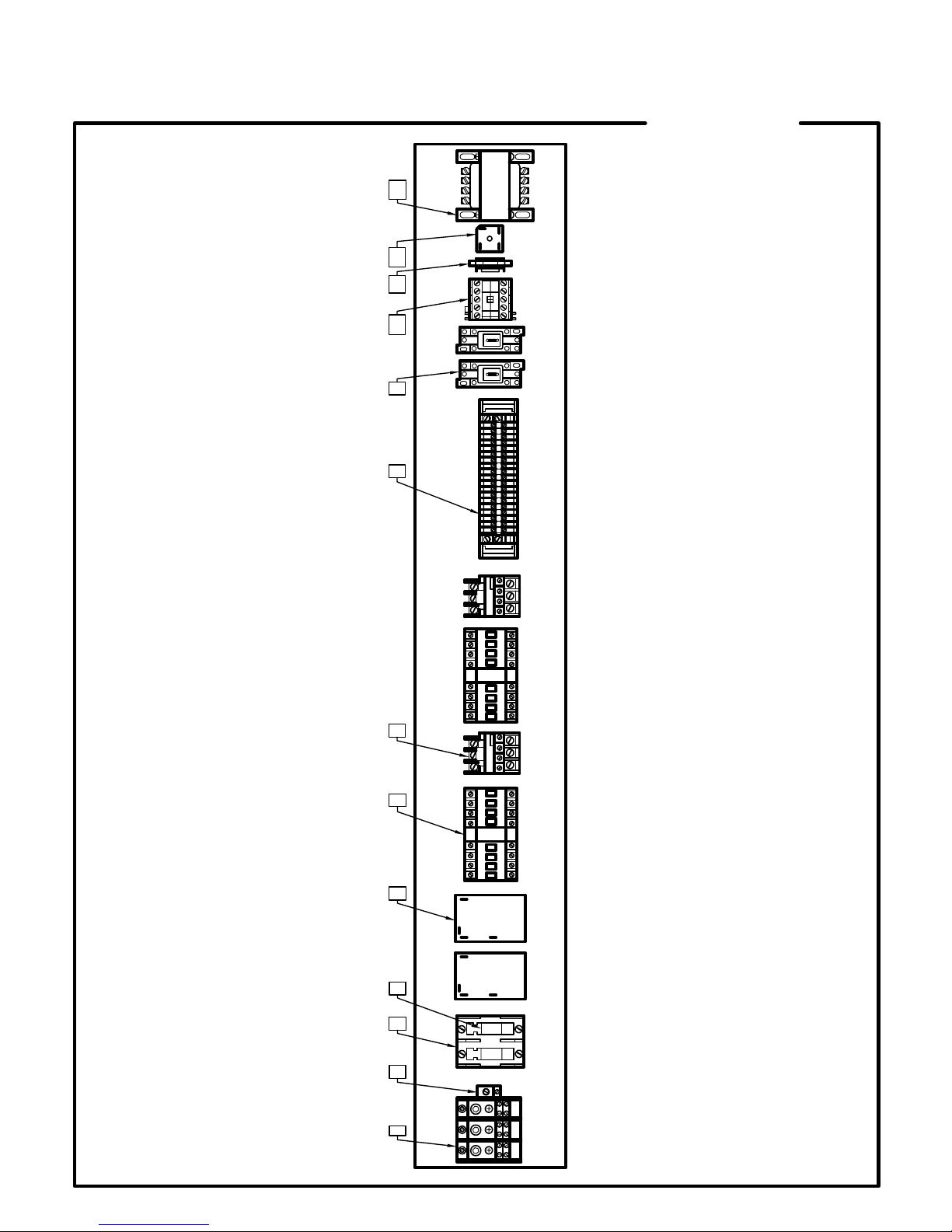

SECTION « F » CONTROL PANELS

Control panel 120V/208V/1PH & 120V/240V/1PH (CA12G) . . . . . . . . . F1

Control panel 120V/208V/3PH & 120V/240V/3PH (CA12G) . . . . . . . . . F3

Control panel 120V/208V/1PH & 120V/240V/1PH Watlow (CA12G) . . F5

Control panel 120V/208V/1PH & 120V/240V/1PH (CAOP6G) . . . . . . . F7

Control panel 120V/208V/3PH & 120V/240V/3PH (CAOP6G) . . . . . . . F9

Control panel 120V/208V/1PH & 120V/240V/1PH (CAOP12G) . . . . . . F11

Control panel 120V/208V/3PH & 120V/240V/3PH (CAOP12G) . . . . . . F13

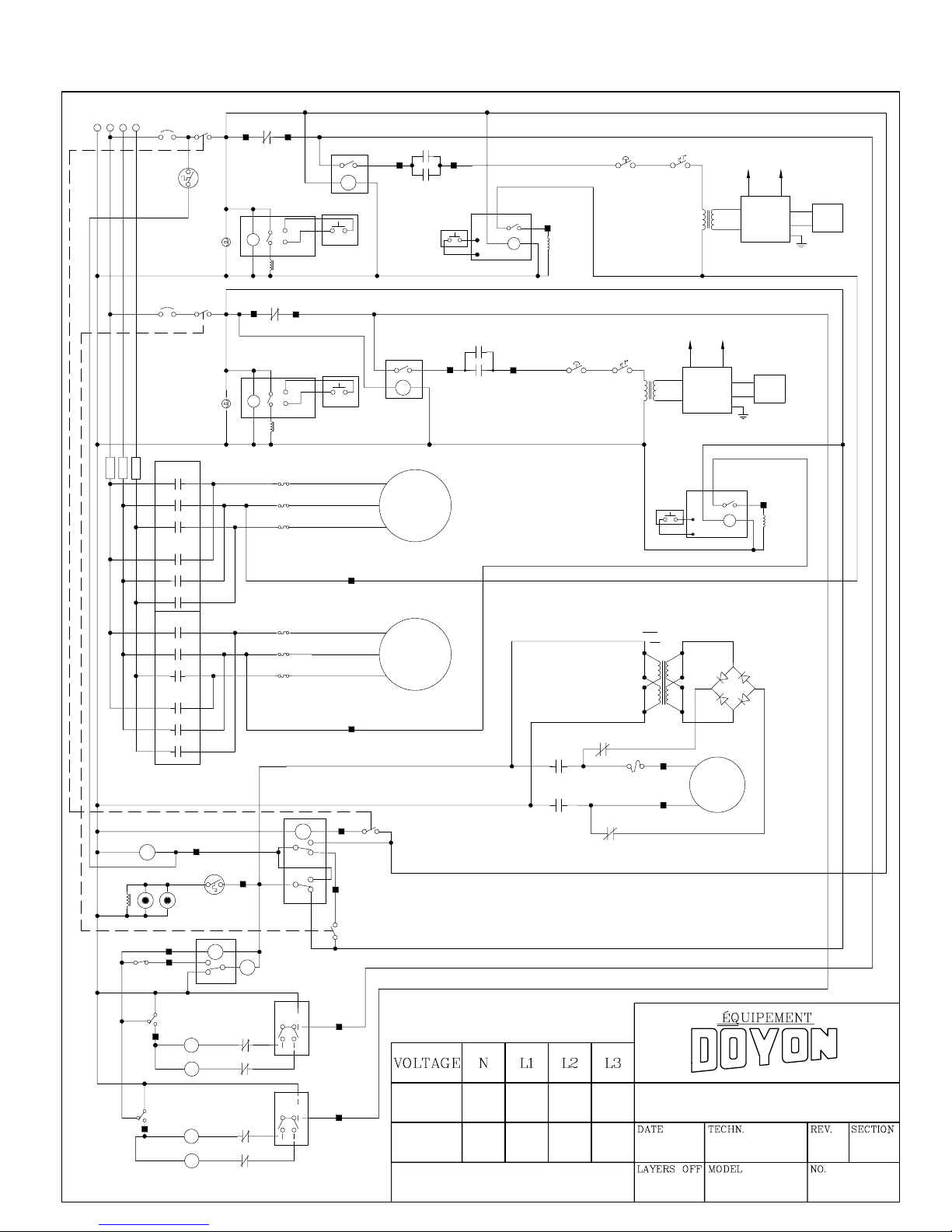

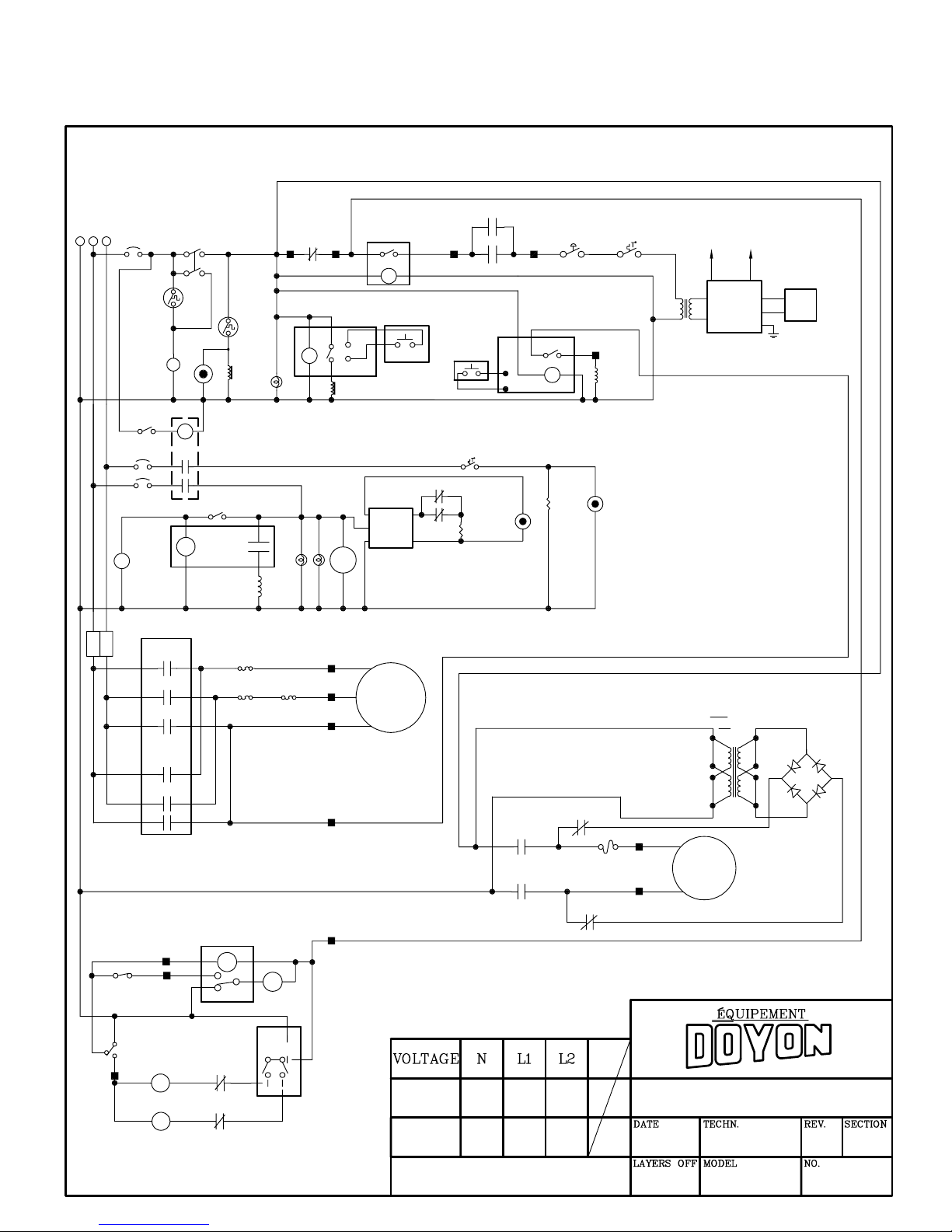

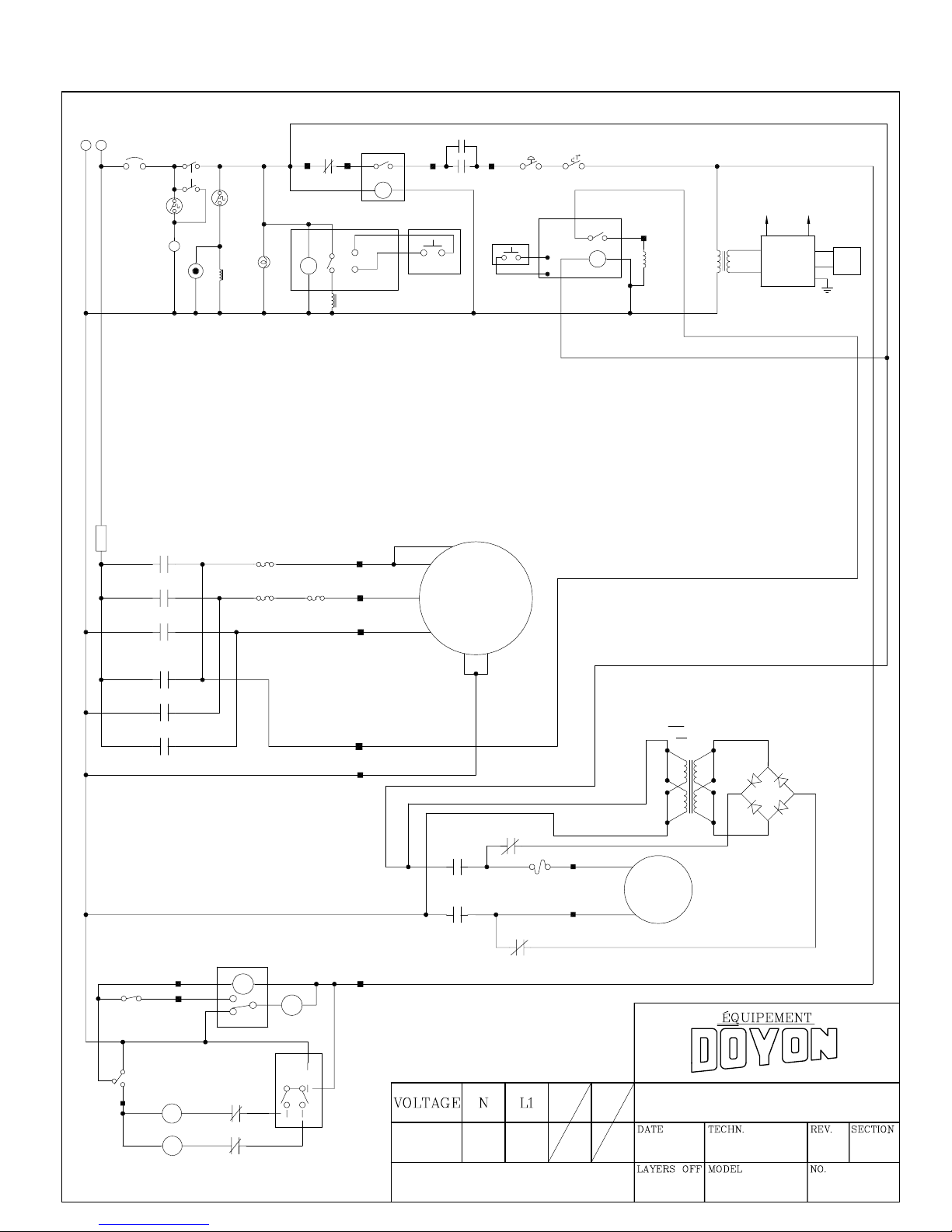

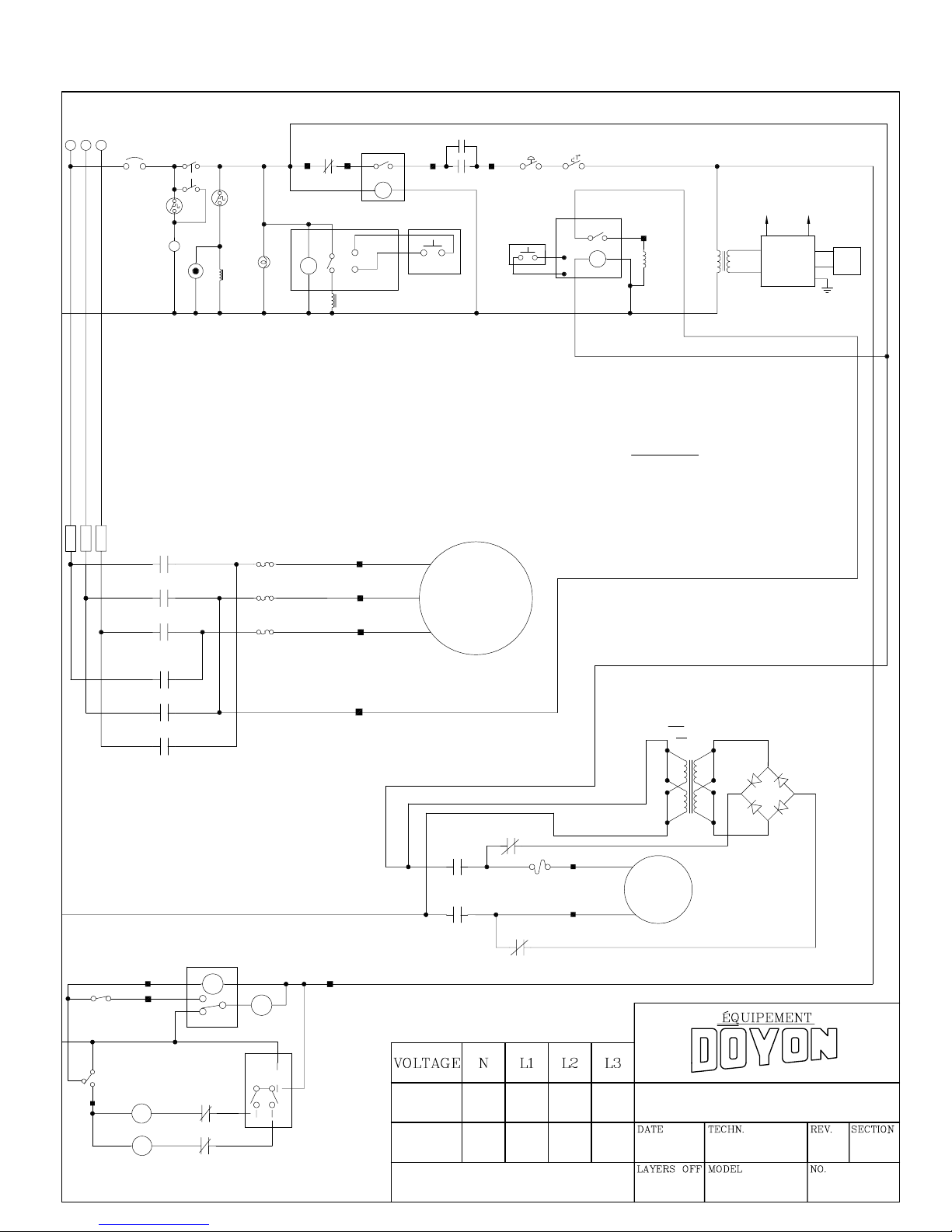

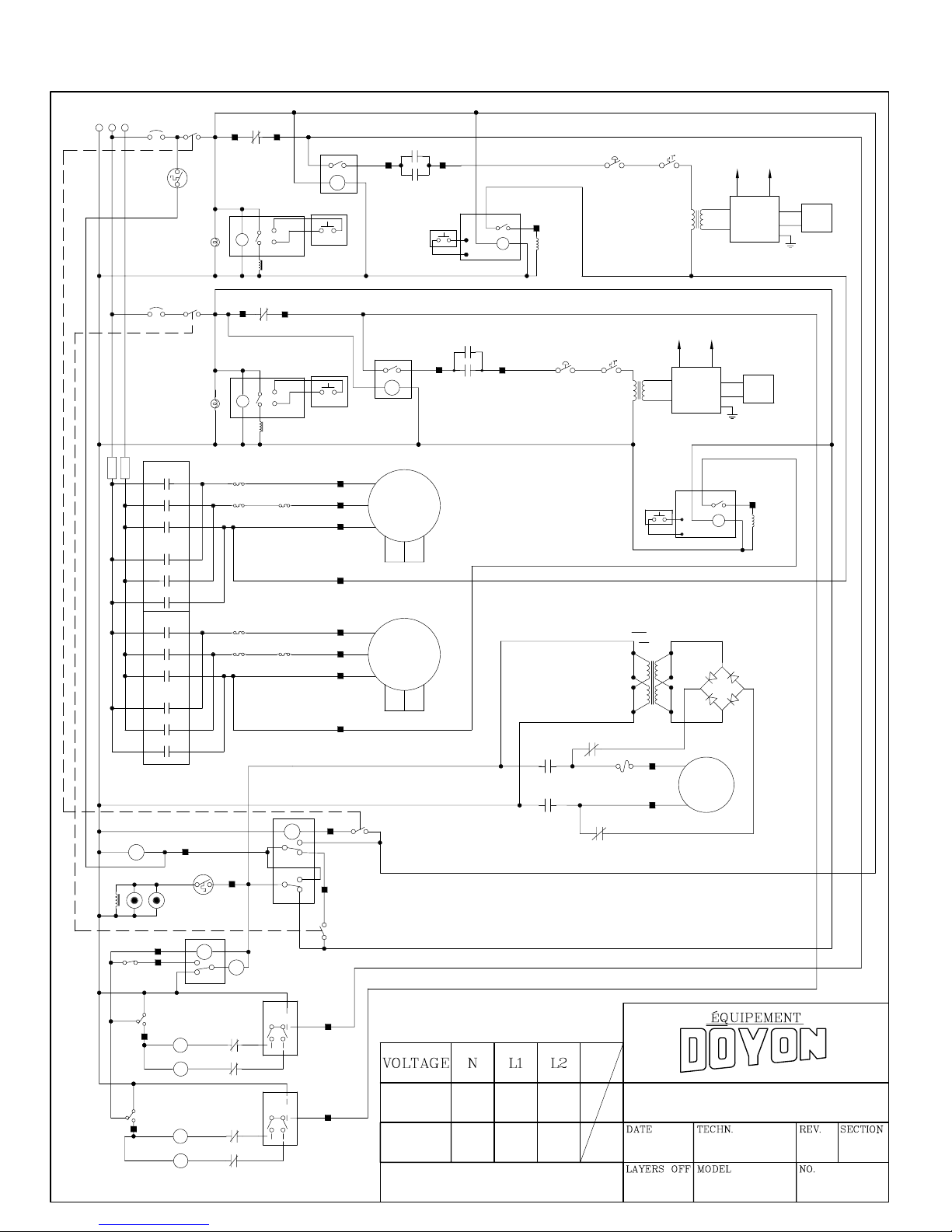

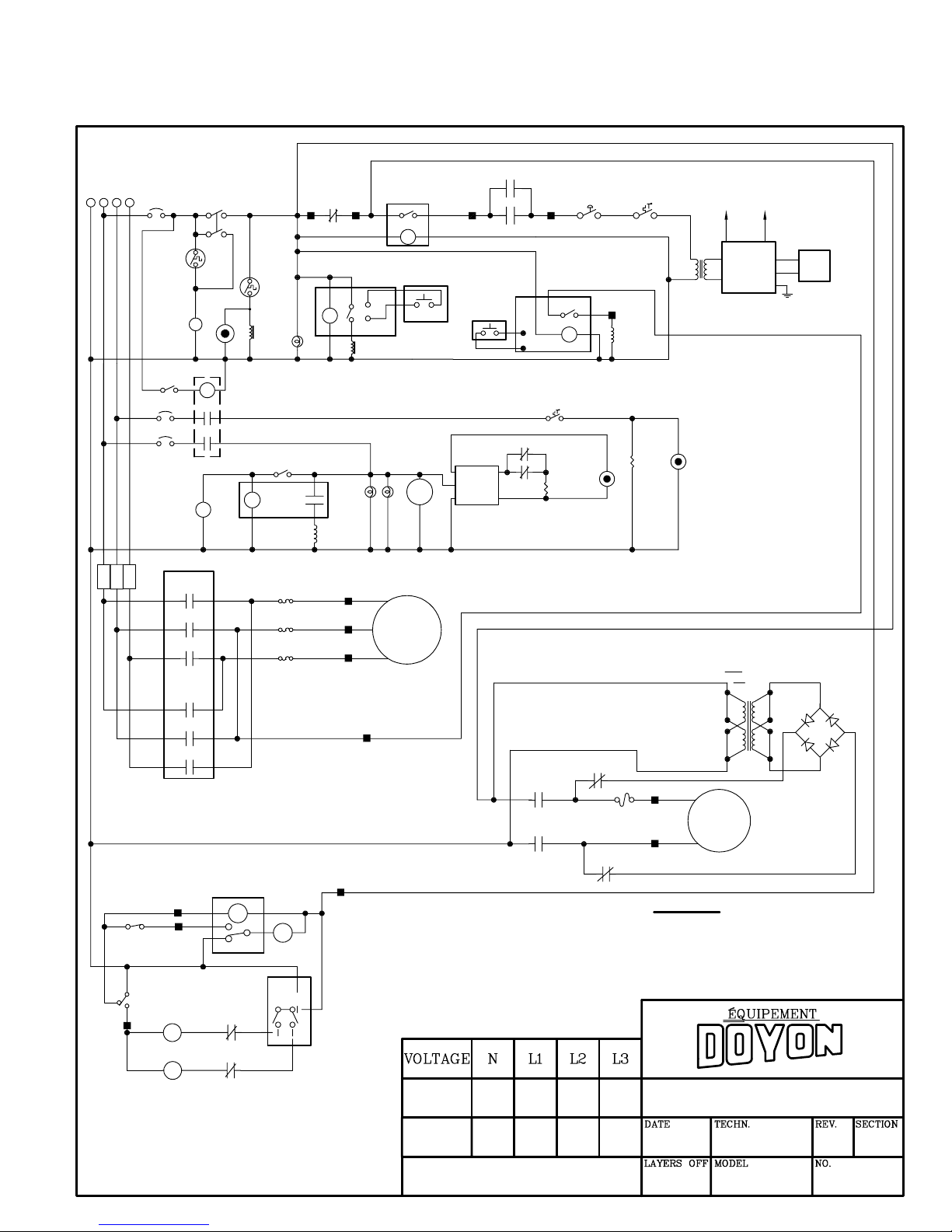

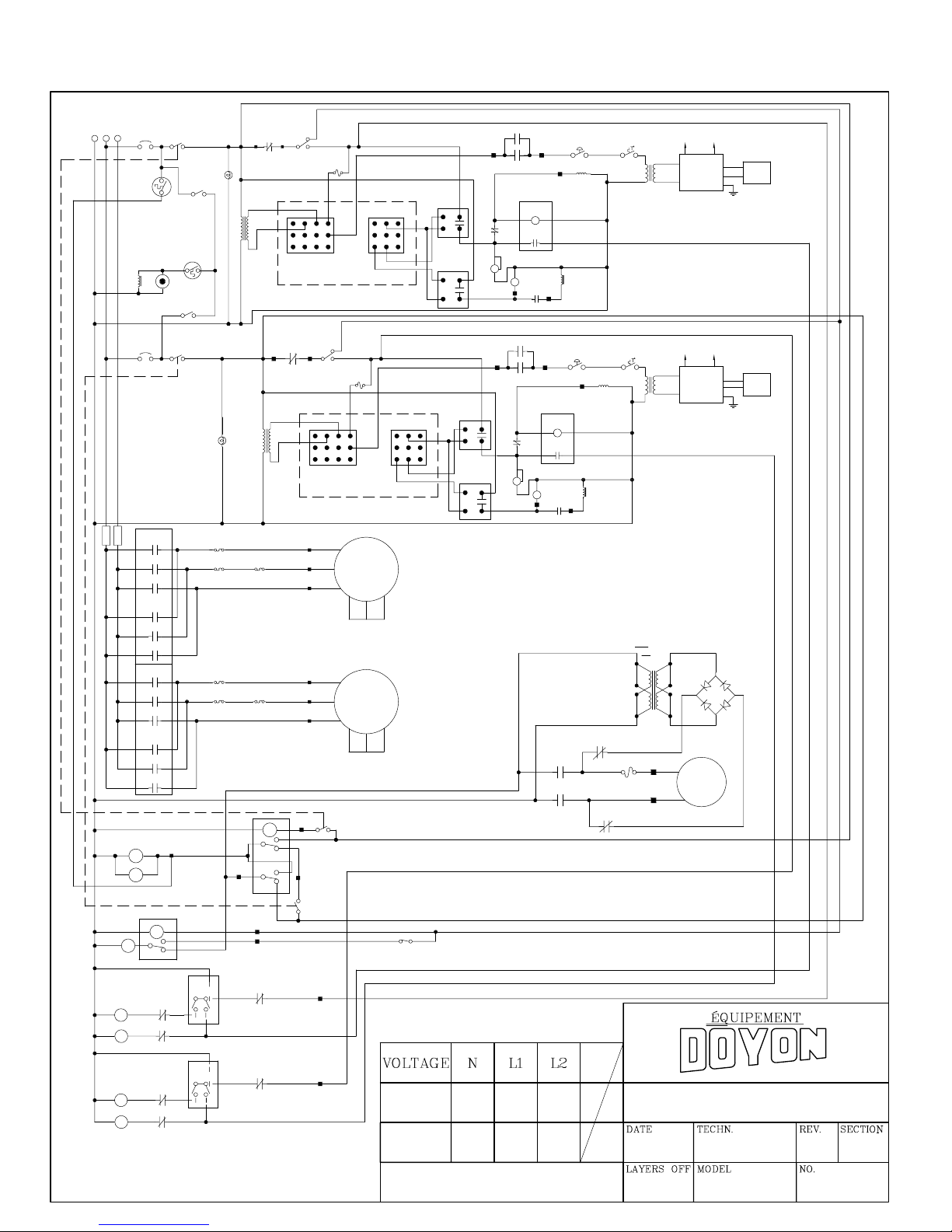

SECTION « G » ELECTRIC SCHEMATICS

CA6G 120V/1PH/60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G1

CA6G 120V/208V/1PH & 120V/240V/1PH . . . . . . . . . . . . . . . . . . . . G2

CA6G 120V/208V/3PH & 120V/240V/3PH . . . . . . . . . . . . . . . . . . . . G3

CA12G 120V/208V/1PH & 120V/240V/1PH . . . . . . . . . . . . . . . . . . . G4

CA12G 120V/208V/3PH & 120V/240V/3PH . . . . . . . . . . . . . . . . . . . G5

CAOP6G 120V/208V/1PH & 120V/240V/1PH . . . . . . . . . . . . . . . . . G6

CAOP6G 120V/208V/3PH & 120V/240V/3PH . . . . . . . . . . . . . . . . . . G7

CAOP12G 120V/208V/1PH & 120V/240V/1PH . . . . . . . . . . . . . . . . . G8

CAOP12G 120V/208V/3PH & 120V/240V/3PH . . . . . . . . . . . . . . . . . G9

CA12G 120V/208V/1PH & 120V/240V/1PH WATLOW . . . . . . . . G10

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CAUTION

In case of strong gas odors, shut off the gas input valve

and contact a specialised gas technician

FAMCAGWA.DOC Rev. 29-05-2003

A1

INTRODUCTION

The manufacturer suggests to read this manual carefully.

This Jet Air gas fired oven is manufactured with first quality material by experienced technicians. Proper installation and maintenance will guarantee a reliable service for years to come.

A nameplate fixed to the front or right side of the oven specifies the model number, type of combustible, BTU rating, operating pressures, serial number, voltage and amperage.

Drawings, electrical diagrams and replacement parts numbers are included in this manual. The electrical diagram is affixed in the control panel at the back of the oven.

ATTENTION

DOYON is not responsible for damages to the property or the equipment caused by personnel who is not certified by known organisations. The customer is responsible for finding qualified technicians in gas, electricity and plumbing for the installation of the oven.

A2

CONSTRUCTION

You just bought the most advanced gas fired oven in the world, "DOYON" technology at its best. This gas fired oven is manufactured using the highest quality components and material.

The oven gives a perfect uniform baking with its unique Jet Air convection system. The DOYON gas fired oven is designed with parts that are easy to find.

SHIPPING

For your safety, this equipment has been verified by qualified technicians and carefully crated before shipment. The freight company assumes full responsibility concerning the delivery in good condition of the equipment in accepting to transport it.

IMPORTANT

RECEPTION OF THE MERCHANDISE

Take care to verify that the received equipment is not damaged before signing the delivery receipt. If a damage or a lost part is noticed, write it clearly on the receipt. If it is noticed after the carrier has left, contact immediately the freight company in order that they do their inspection.

We do not assume the responsibility for damages or losses that may occur during transportation.

A3

INSTALLATION WARNINGS

The DOYON gas fired ovens are designed to be used with the gas specified on the descriptive nameplate. Refer to National Fuel Gas Code, ANSI-Z223.1-XX and CAN/CGA-B149-XX. Refer to last edition year for XX. Copies of these are available at:

American Gas Association, 1515 Wilson Boulevard, Arlington, Virginia, 22209. Association canadienne du gaz, 55 rue Scarsdale, Don Mills, Ontario, Canada, M3B 2R3.

POWER FAILURE WARNING

WHEN YOU HAVE A POWER FAILURE, SHUT OFF THE OVEN POWER SWITCH TO

PROTECT THE ELECTRONIC COMPONENTS WHEN THE POWER COMES BACK.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS

AND LIQUIDS IN THE VICINITY OF THIS OR ANY APPLIANCE.

INSTALLATION AND SERVICE

WARNING

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR

MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.

READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS

THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.

Installation and service must be done by specialised technicians. Contact a certified gas technician, electrician and plumber for set up.

The oven must be connected to the utility and electrically grounded in conformity to the effective local regulations. If these are not established, the oven must be connected according to the Canadian Electrical Code (CSA-C22.1-XX) or National Electrical Code (NFPA 70-XX). Refer to last edition year for XX. Installation must also allow proper access for service (24 inches each side and back).

The ovens must be installed with a proper ventilation like:

• under a vent hood

• or an exhaust pipe connected directly to the oven chimney flue using the draft hood provided with

the oven.

A4

A type B gas vent approved for use with gas appliances must be utilized.

Make sure that provision for adequate air supply is provided for the operation of the oven.

CAUTION

Make sure that the adjustments mentioned in the "Installation" section are correctly done prior to firing the oven or converting to a new gas.

A5

DISTANCES TO RESPECT

A) Back and sides of the oven: 1 inch.

B) Top of the oven: a clearance of 12 inches to the ceiling must exist to permit adequate venting

of the exhaust pipe and hot parts and to give proper access to a technician. The draft hood must have a clearance of 2 inches minimum all around.

C) Floor: 4 inches minimum.

D) Sides of the oven: do not install other than easily removable equipment for service and

maintenance (not closer than 1 inch).

E) It is recommended to have a certain length of water pipe, electric cable and gas pipe between

oven and wall to help gain access for service.

A6

INSTALLATION

IN GENERAL

Take off the packaging material with care. Take off all the material used for packing and accessories. Install the draft hood on the chimney of the oven.

Each unit is set up to be used with the type of gas and electrical supply specified on the nameplate fixed on the oven.

The installation must be conform with the National fuel gas code ANSI Z223.1-XX and CAN/CGAB149-XX Gas Installation Code and local Codes where applicable. Refer to last edition year for XX.

The oven's combustion system consists of a very safe gas burner certified in accordance to the American Gas Association Standard in USA and with the Canadian Gas Association in Canada.

1. To the certified gas technician

The burner installed on DOYON gas fired ovens is set up and adjusted at the plant for a first class operation. It is nevertheless necessary to verify on site the pressure at the burner input. The following table indicates the pressures that must be set up to remain conform to the A.G.A. standards or C.G.A.

GAS TYPE ALTITUDE

(FT)

INPUT

(BTU) EACH OVEN

SECTION

REGULATOR

INPUT

PRESSURE

(Water column

inches)

BURNER

INPUT

PRESSURE

(Water column

inches)

BURNER

ORIFICE SIZE

(DMS)

Propane 0-2000 78,500 11,0 8,0 37 Propane 2000-4500 78,500 11,0 8,0 37 Natural 0-2000 78,500 7.0 3,5 20 Natural 2000-4500 78,500 7.0 3,5 20

The burner used is adjusted to be used with the gas indicated on the nameplate. It is nevertheless possible to convert the burner to another gas by doing the modifications indicated in the CONVERSION PROCEDURE provided with the oven. These modifications must be done carefully and completely under the company's instruction to remain conform to A.G.A. or C.G.A standards. Refer to Doyon Equipment to get the right

CONVERSION KIT.

A7

The installation must be made with a connector that meets with the standard for connectors movable gas appliances ANSI Z21.69-XX and a Quick-disconnect device that complies with the standard for Quick-disconnect devices for use with gas fuel ANSI Z21.41-XX and addenda Z21.41a-XX and Z21.41b-XX. Refer to last edition year for XX. It must also be installed with restraining device (chain comes with the oven) to guard against transmission of strain to the gas supply and connectors. The pipe fittings compound must be certified for gas.

The customer must install a manual shut off valve at the end of the gas supply pipe near the burner which is approved by the American Gas Association Standard in the United States and with the Canadian Gas Association in Canada.

Exhaust: A draft hood is provided with the unit and it must be used when the chimney is directly connected to a gas vent pipe. The exhaust pipe must be certified for use of gases.

Clean the air contained in the gas supply pipe at the installation to insure a successful firing on the first try. The gas pipe sealing compound tightness must be verified using a solution of water and soap prior to firing the unit.

WARNING

Make sure not to obstruct the overpressure opening on the gas regulator.

NOTE: If there's any modification done to the system or change of the type of gas used,

make sure that the regulator pressure of the burner is adjusted as recommended in this manual.

2. To the electrician

Electrical supply installation must be in accordance with the electrical rating on the nameplate.

WARNING

The electrician must make sure that the supply cable does not come in contact with the oven top which becomes hot.

3. To the plumber

This equipment is to be installed to comply with the applicable federal, state or local plumbing codes.

Connect the steam system (1/4 NPT) to the cold water distribution network. We highly recommend a water softener to eliminate minerals in the water. We suggest you to use CUNO # CFS6135 (Doyon part number PLF240).

Do not adjust the needle valves, it has been done at the factory.

WARNING

A8

OPERATION OF THE OVEN

1. Turn the switch to the " ON " position.

• The light inside the oven must light up.

2. Adjust the thermostat at the desired setting (see THERMOSTAT INSTRUCTIONS below).

N.B. The red light must be "ON" (If not, press the breaker on the front).

3. Heat the unit until you reach the baking temperature.

When the desired temperature is reached, the red light goes out and turns green. If the light is still "ON" and the oven does not produce heat, call for service.

4. Load the oven as fast as possible to avoid letting out too much heat.

5. Set the timer to the desired value and start it. (see "TIMER" adjustment on next page).

NOTE: The timer does not shut the oven off at the end of its cycle. It simply activates the buzzer.

6. Wait until the product is ready. Do not open the doors until the product is done.

VERY IMPORTANT

This oven has an overheat warning alarm to protect the electrical components against overheating. If

the red pilot light (OVERHEAT WARNING) is lit and you hear a buzzer, see troubleshooting.

THERMOSTAT INSTRUCTIONS

To obtain a very good thermal stability, we use a digital temperature controller with thermocouple. The Omron E5CS thermostat controls the heat of every element at the SP (set point).

The temperature of the oven is always shown on the display of the thermostat and an arrow indicates if the temperature is over or below the SP. When the green light is lit, it indicates that the temperature is at the SP ± 1 %.

To adjust the SP (set point) value, you just have to press the key on the left and use the up and down keys to set the temperature. Press the left key to return to run mode.

A9

INSTRUCTIONS FOR OVEN

BAKING

350oF (Croissants, Sweet doughs, Small rolls) 375oF (Baguette bread, round loaf, 16 oz. bread and more) 375oF (If the oven is filled to its capacity)

Place product in the oven only when the pilot light has gone out.

OPENING AND CLOSING OF THE DOORS

To open the doors: Open one of the doors up to 2" and wait 2 seconds to let the fan reduce its spinning before opening completely. To close the doors: Close the first door completely and the second door down to 2" and wait 2 seconds before closing completely and then hold the door closed for 2 seconds.

P.S. Open the doors as little as possible. This will affect the baking.

COOKING TIMER H5CL

Set the baking time required with the small push button on the timer. The green display is the setting time and the red display is the countdown time (Ex: 25 minutes = set 2500 on green display).

After setting: Push the START / STOP button then, when the time expires, the buzzer will ring. Push the START / STOP button again to stop the buzzer. If you want to restart the time in the middle of the countdown, press on the yellow RST button on the timer.

P.S. The timer is simply a reminder for the approximate duration of the baking time.

STEAM TIMER H5CL

Set the steam injection time required with the small push button on the timer. The green display is the setting time and the red display is the countdown steam time (Ex: 25 seconds = set 2500 on green display).

To inject steam in the oven, press and release the START steam timer button (while the fan is running) to have your setting time steam injection. If you want to restart the time in the middle of the countdown, press on the START button again or on the yellow RST button on the timer.

P.S. Do not inject steam more than once each time you bake. Wait at least 10 minutes before re-

timing the steam injection system.

A10

OPERATION OF THE PROOFER

1. Switch "ON".

2. Set the thermostat control at 100o F.

3. Set the humidity control at approximately : 4 or 5 for CAOP6 and CAOP12.

4. If there is too much fog and water drips from the glass doors, adjust humidity control to a lower

number.

5. When the temperature is stabilised, put the products in the proofer.

(Leave them inside until they are ready to bake.)

6. IMPORTANT : When proofing cycle is completed, turn the humidity switch to "OFF" and

let the motor blower and air heat element run for 10-15 minutes to let dry the proofer. Then, turn the main switch off, and leave the door ajar to prevent moulding.

When the proofer is not in operation, open the doors to let out the humidity and to prevent mould.

P.S. The doors should not be opened unnecessarily to conserve the heat and humidity in the

proofer.

Every day cleaning of the water pan under the proofer's doors should be exercised.

A11

TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

ANSWERS TO MOST FREQUENT QUESTIONS

Always cut off the main power before replacing any parts. Take care of water and gas piping system when pulling the oven.

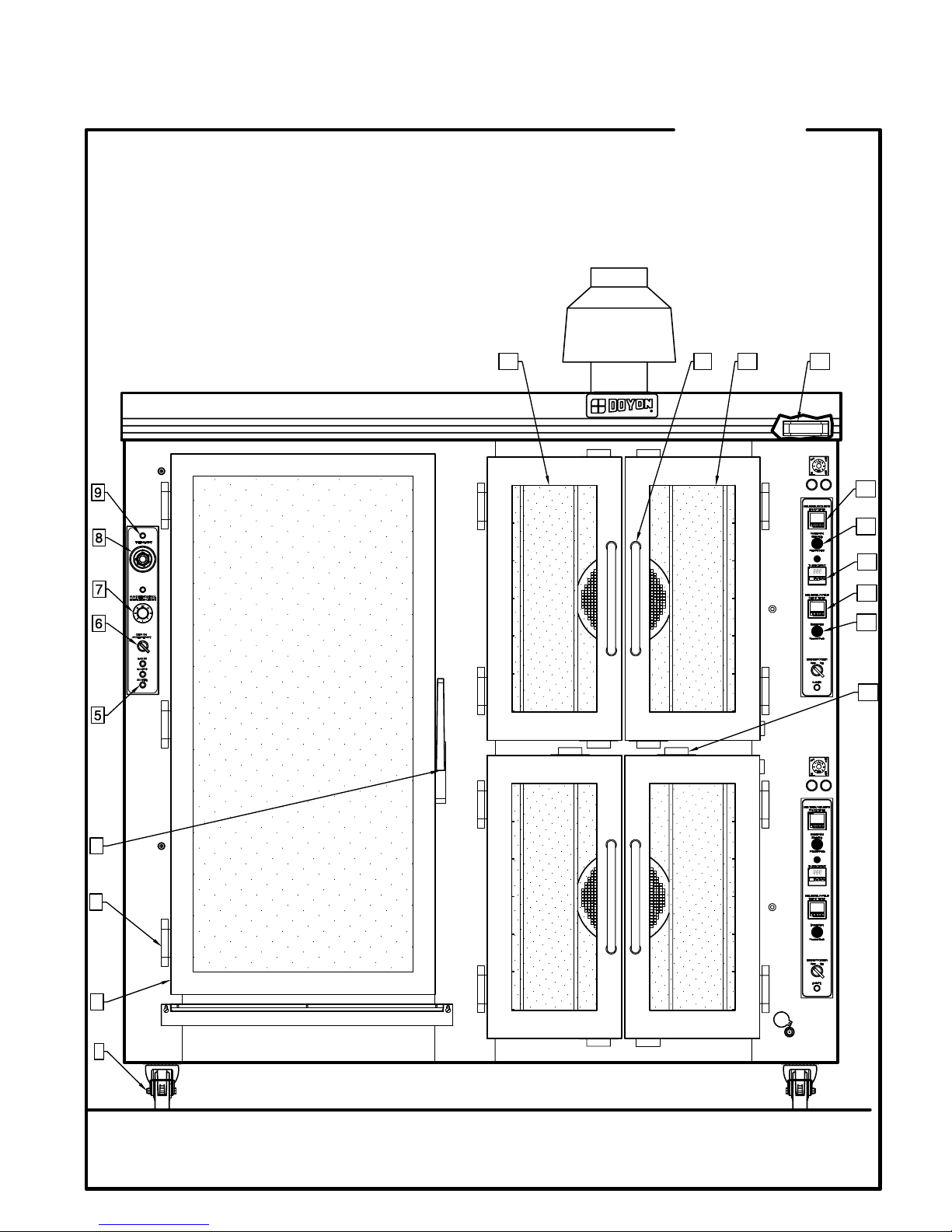

Control parts on the front and proofer control:

Gas and motor system on the back of the oven:

Questions Solutions

The oven does not turn on.

The oven does not produce heat.

Remove the side panels of the oven and the proofer by screwing out the screws.

Pull the oven and screw out of the panels.

Check the breakers on the front panel. Check the breakers of the building. Check if the doors are tightly closed. Check the motor fuses and the overload relays located in the electrical control panel.

• Make sure: the thermostat is adjusted to a temperature high enough to turn on the pilot light.

1. If the oven blowers are not on, check the overload relays located in the control compartment. If anyone of these is disengaged, call for a qualified technician.

2. If the oven blowers are on:

• Check that the manual shut-off valve is open correctly.

To start it over, simply put the thermostat to the "OFF" position, wait at least 10 seconds, then reset it at the desired temperature. The burner will start up and you can see the flame through the hole near the gas input. You can repeat this operation three times. If it does not start up again, contact our company or a certified gas technician.

A12

• The burner goes to lock-out because of:

a) Flame failure:

b) The spark is irregular or not present:

c) The air pressure switch does not close its contact. Uneven baking.

The burner is equipped with multiple interlocked safety devices. In the event of a failure of the flame or any blockage of the combustion air supply, the burner will "lock out" in the safety condition.

• Air has not been bled from the gas line

• Porcelain insulators cracked (very little

crack is enough).

• Spark probe grounded.

• It may be disconnected, incorrectly set or

defective or maybe the blower is not running.

Make sure that the grills do not obstruct the air flow. Do not use foil on the grills.

Verify the temperature of the oven by using an oven thermometer and make sure that it is even with the thermostat setting.

The steam works in the oven but the light inside the steam button does not lite. If steam device of the oven does not work properly.

If the oven is baking too much on the sides, it is possible that the fan is not cycling properly. Verify if the motor turns 2.5 minutes in a direction, stops 30 seconds and starts for 2.5 minutes in the opposite direction. Replace the inside button bulb light.

The oven must have been heating for at least half an hour before you use the steam system. If not, water will appear at the bottom of the oven.

Check if the water supply valve (of the building) is open. Check if the water needle valve (of the oven) is open one eighth of a turn. Just close it and open it one eighth of a turn maximum. Check the solenoid valve. Check the preset steam timer in the back control box. Be sure to inject steam while the fan running. The steam button light should lite during the steam injection.

A13

If the OVERHEAT WARNING light is on, and you hear the warning buzzer.

OPTIONAL Manual fill water pan. The warning red light in the front control panel stays on when the water pan is full.

If there is no light in the proofer.

If there is no heat in the proofer.

If there is no humidity in the proofer.

Check if the cooling fan airflow is not obstructed. Check the cooling fan if it is running. If not, call a qualified technician to replace it. (Electrical components may be damaged if it is not repaired immediately.) You have no more water in the principal water pan. Check if the water line is not in air lock condition. Disconnect the water line at the inlet of the green solenoid valve and clean the strainer filter. Also clean the principal water pan and the float switch.

1.Verify every breaker in front of the proofer.

2.Verify the main proofer switch and the main

proofer contactor.

1.Verify every breaker in front of the proofer.

2.Verify whether the pilot light will function by

raising the thermostat to a higher setting. If yes, verify element. If not, verify pilot light, thermostat or contactors. Verify whether the pilot light works when you increase the humidity to the position high. If yes, verify if water comes in the reservoir and check the water level switch box and the float switch. Verify if limestone obstructs the waterflow. If the float switch is working fine, verify the contactor P1 and the immersion element. If the pilot light does not lite, verify the pilot light and the infinite switch.

Do not allow any obstruction to free the airflow of the burner.

Never try to modify the burner controls. This must be done only by a qualified technician and under the company's instructions.

CAUTION

A14

OVEN MAINTENANCE AND CLEANING

MAINTENANCE OF THE BURNER

• Once a year, you should ask a certified technician to make a tune up. Make sure everything works properly, verify and clean especially :

1. The gas mixer air inlet.

2. The spark rod and porcelain insulators.

3. The flame detection rod.

4. Verify the burner input pressure.

5. Verify every adjustments.

6. Clean every moving pieces.

MAINTENANCE OF THE OVEN

• Grease the bottom bearing monthly and the top flange bearing yearly, (see the dimension section).

• Check the tension of the belt yearly.

• It is recommended to use a water filter and to clean or replace it regularly to avoid

accumulation of minerals inside the unit.

• Once a year or as needed, clean the reservoir of the proofer (see parts description for localization).

Step by step Recommendations

Clean the inside of the oven and the proofer with water and soap.

Take out the grills (the grills of the oven could be cleaned with "Easy-Off"). After cleaning the inside of the oven, apply a silicone base oven protector. It avoids food from sticking to the metal.

Clean the oven windows with products like Brasso or equivalents. They are copper cleaners but good for this use.

Clean the oven exterior with a stainless steel cleaner.

We recommend and sell: Dirt Buster III : Action foam cleaner CHEMCO Part number : NEB201

We recommend and sell: 316 Silicone base protector and lubricant for oven Dow Corning Part number : EXS400 We recommend and sell: Wright's: Cream copper cleaner J.A. Wright & Co. Part number : EXC300 We recommend and sell: Stainless steel cleaner SANY or CURTIS (comestible) Part number : NES201

A15

FOR MORE INFORMATION,

PLEASE CONTACT OUR OFFICE:

DOYON EQUIPMENT INC.

1255, rue Principale

Linière, Qc, Canada G0M 1J0

Tel. : 1 (418) 685-3431

Canada : 1 (800) 463-1636

U.S. : 1 (800) 463-4273

FAX : 1 (418) 685-3948

Internet: http://www.doyon.qc.ca

E-Mail : doyon@doyon.qc.ca

A16

AUTOMATIC STEAM OPTION

INTERVALS TIMES SETTING (GREEN) INJECTION TIMES SETTING (RED)

INTERVALS MULTIPLICATOR SETTING

STEAM INJECTION MULTIPLICATOR SETTING

SCALE ADJUSTMENT

By pushing the GREEN button, the button will light up and the automatic system injection will start. The injection will be done as per the pre-adjustment time on the automatic steam timer. The standard steam timer (white light) will light up during the steam injection. Push the RED button to stop the automatic steam injection and then, the GREEN button will turn off.

Timer adjustments

EXAMPLE : For 5 seconds of steam injection every 10 minutes : Set the interval multiplicator screw (OFF) at MIN and the GREEN needle at 10. Set the injection multiplicator screw (ON) at SEC and the RED needle at 5.

EXAMPLE : For 2 seconds of steam injection every 25 seconds : Set the interval multiplicator screw (OFF) at SEC and the GREEN needle at 25. Set the injection multiplicator screw (ON) at SEC and the RED needle at 2.

A17

WATLOW CONTROL OPERATION

1. Turn the switch to the " ON " position. (See next paragraph for the factory-preset program on your watlow control).

• The light inside the oven must light up.

2. Adjust the WATLOW control at the desired setting (see watlow programming procedure next page).

Digital display must light up, if not, verify the breaker on the front panel.

3. Let the oven heat until the set temperature is reached, the LOAD1 red light on the watlow control will go off when the temperature is stabilized.

4. Load the oven as fast as possible to avoid letting out too much heat.

5. Wait until the product is ready before opening doors.

FACTORY PRESET BAKING PROGRAM

MENU # 1 PREHEAT 400°F. MENU # 2 375°F STEAM 15 SEC., COOKING TIMES 22 MINUTES WITH BUZZER. MENU # 3 350°F STEAM 15 SEC., COOKING TIMES 25 MINUTES WITH BUZZER. MENU # 4 325°F NO STEAM, COOKING TIMES 25 MINUTES WITH BUZZER.

325°F (Muffins) 350°F (Croissants, Sweet Doughs, Small rolls) 375oF (Baguette bread, round loaf, 16 oz. bread and more)

o

F (If the oven is filled to its capacity)

375

OPENING AND CLOSING OF THE DOORS

To open the doors: Open one of the doors up to 2" and wait 2 seconds to let the fan reduce its spinning before opening completely. To close the doors: Close the first door completely and the second door down to 2" and wait 2 seconds before closing completely and then hold the door closed for 2 seconds.

P.S. Open the doors as little as possible. This will affect the baking.

When the power comes back, the oven will start automatically on the menu #1. Then it is recommended to turn off the oven to avoid that it starts without supervision.

POWER FAILURE

A18

WATLOW PROGRAMMING

The Watlow temperature control can record 12 different menus. It must be programmed before use. It will save its programs in case of power failure.

Each menu includes 3 "STEPS" and each step includes :

Symbol

• temperature SP

• time t

• "EVENT" E (steam 0001, auto steam 0100, buzzer 0010 or

no event 0000)

To access the programming mode :

• Press both arrows simultaneously for 5 seconds. Both lights light up to show that the programming mode is working.

• Unlock the read only mode (if necessary), press 12 and "CLOCK", LOC appears. Use the arrows to get 0 and press "CLOCK" again. (To put back on read only mode, you have to have 1 before pressing on "CLOCK".)

EXAMPLE 1 (preheat program)

- For menu #1, we will program it so that we have a preheat time of 20 minutes at 400°F followed

by a 15 seconds buzzer.

Step #1

• Press both arrows simultaneously for 5 seconds. Both lights light up to show that the programming mode is working.

• Select the program number (Ex : #1)

Suggested values

SP1 appears. Use the arrows to adjust to the desired temperature (400°F) Press on the number of the menu to confirm (ex. # 1)

t1 appears Use the arrows to select the desired timing (20:00) Press on the number of the menu to confirm (ex. # 1)

E1 appears Use the arrows to select the appropriate code (0000 for no event) Press on the number of the menu to confirm (ex. # 1)

Step #2 Suggested values

A19

SP2 appears. Use the arrows to adjust to the desired temperature (400°F) Press on the number of the menu to confirm (ex. # 1)

t2 appears Use the arrows to select the desired timing (00:15) Press on the number of the menu to confirm (ex. # 1)

E2 appears Use the arrows to select the appropriate code (0010 for buzzer) Press on the number of the menu to confirm (ex. # 1)

Step #3 Suggested values

SP3 appears. Use the arrows to adjust to the desired temperature (400°F) Press on the number of the menu to confirm (ex. # 1)

t3 appears Use the arrows to select the desired timing (00:01) Press on the number of the menu to confirm (ex. # 1)

E3 appears Use the arrows to select the desired code (0000 for no event) Press on the number of the menu to confirm (ex. # 1)

To get out of the programming mode, press #12 and then press "CLOCK" twice (#12, CLOCK, CLOCK). The screen will show 00:00.

Note: You should always use menu #1 for preheating because the controls starts automatically with

this menu.

WARNING

Never use program #1 for a steam cycle because it will start automatically when the oven is

turned on.

A20

EXAMPLE 2 (Cooking program with steam cycle)

-For menu #2, we will program it so that we have a steam injection of 20 seconds, a cooking time of

20 minutes at 375°F followed by a 15 seconds buzzer.

To access the programming mode:

• Press both arrows simultaneously for 5 seconds. Both lights light up to show that the programming mode is working.

• Select the menu number (Ex. #2)

Step #1 Suggested values

SP1 appears. Use the arrows to adjust to the desired temperature (375°F) Press on the number of the menu to confirm (ex. # 2)

t1 appears Use the arrows to select the desired timing (00:20) Press on the number of the menu to confirm (ex. # 2)

E1 appears Use the arrows to select the appropriate code (0001 for the steam) Press on the number of the menu to confirm (ex. # 2)

Step #2 Suggested values

SP2 appears. Use the arrows to adjust to the desired temperature (375°F) Press on the number of the menu to confirm (ex. # 2)

t2 appears Use the arrows to select the desired timing (20:00) Press on the number of the menu to confirm (ex. # 2)

E2 appears Use the arrows to select the appropriate code (0000 for no event) Press on the number of the menu to confirm (ex. # 2)

A21

Step #3 Suggested values

SP3 appears Use the arrows to adjust to the desired temperature (375°F) Press on the number of the menu to confirm (ex. # 2)

t3 appears Use the arrows to select the desired timing (00:15) Press on the number of the menu to confirm (ex. # 2)

E3 appears Use the arrows to select the desired code (0010 for the buzzer) Press on the number of the menu to confirm (ex. # 2)

To get out of the programming mode, press #12 and then press "CLOCK" twice (#12, CLOCK, CLOCK). The screen will show 00:00.

After fulfillment of this program:

• The oven will continue to heat because there was a temperature included in step 3. If the temperature at that step would have been of 0°F, the oven would have stopped at the end of the program.

• In this example, the inside buzzer will work 15 seconds while the outside buzzer will start and will not stop until another program is selected.

• If you want to end a program already running, press the button corresponding to that menu and then choose a pause menu. If you stop a program that was running without choosing another menu, it will be paused in the conditions in which it was stopped. Ex: If there is an interruption during a steam cycle, it will keep running until you choose another menu. However, there is a 45 seconds limit time for the steam, independent from the Watlow controller.

SECTION

B

DIMENSIONS

B1

44 1/4

CA6G & BASE

TIMER

3 2 1

RS

4

T

OMRON H5CL

ON

CC

AL

38

OMRON E5CS

TIMER

1234

RST

OMRON H5CL

CA6G

LUBRIFICATION ROUL. À BILLES

(MENSUELLEMENT)

BEARING LUBRICATION (MONTLY)

OVEN

INTERIOR DIMENSIONS

HEIGHT

WIDTH

DEPTH

28 1/2"

27" TO 35"

33 1/2"

38

B2

CA6G & BASE

20

57 1/2

CA6G

41 1/4

ENTRÉE DE GAZ 1/2"

GAS INLET 1/2"

B3

CA6G & BASE

ENTRÉE ÉLECTRIQUE ELETRICAL INLET

CA6G

55 3/4

ENTRÉE D’EAU 1/4"

WATER INLET 1/4"

43 1/2

66 1/4

47 1/4

B4

CA6G & BASE

22 5/8

8

CA6G

44 1/4

B5

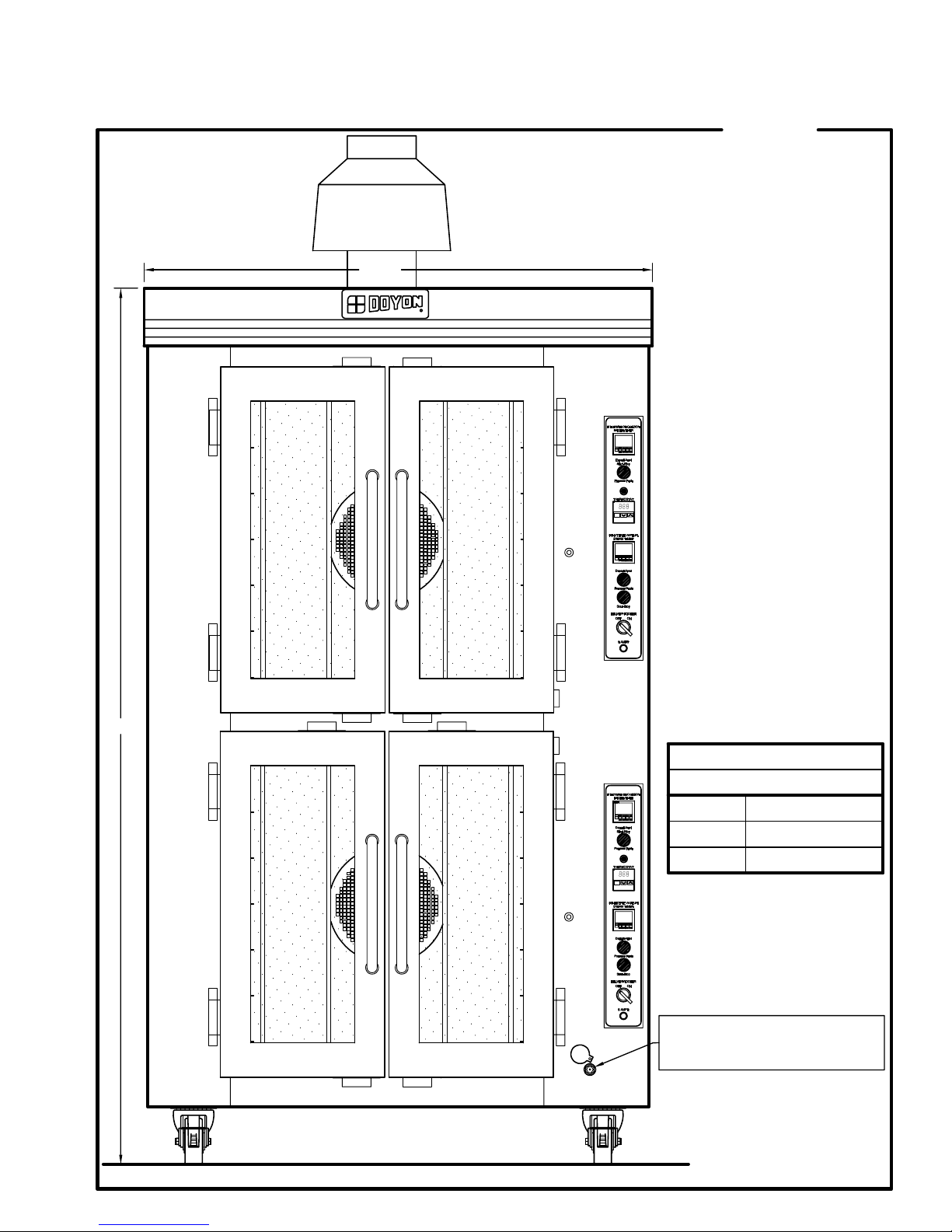

CA12G

TIMER

3 2 1

RST

4

O

MR

ON

H5CL

CC

ON

AL

OMRON E5CS

TIMER

1234

RST

OMRON H5CL

76 1/4

OVEN

INTERIOR DIMENSIONS

123

HEIGHT

4

RST

OMRON H5CL

WIDTH

DEPTH

ON

CC

AL

OMRON E5CS

TIMER

RST

4 3 2 1

OMRON H5CL

LUBRIFICATION ROUL. À BILLES (MENSUELLEMENT) BEARING LUBRICATION (MONTLY)

28 1/2"

27" TO 35"

33 1/2"

CA12G

B6

CA12G

19 1/2

57 1/2

CA12G

76 1/4

ENTRÉE DE GAZ 1/2"

GAS INLET 1/2"

B7

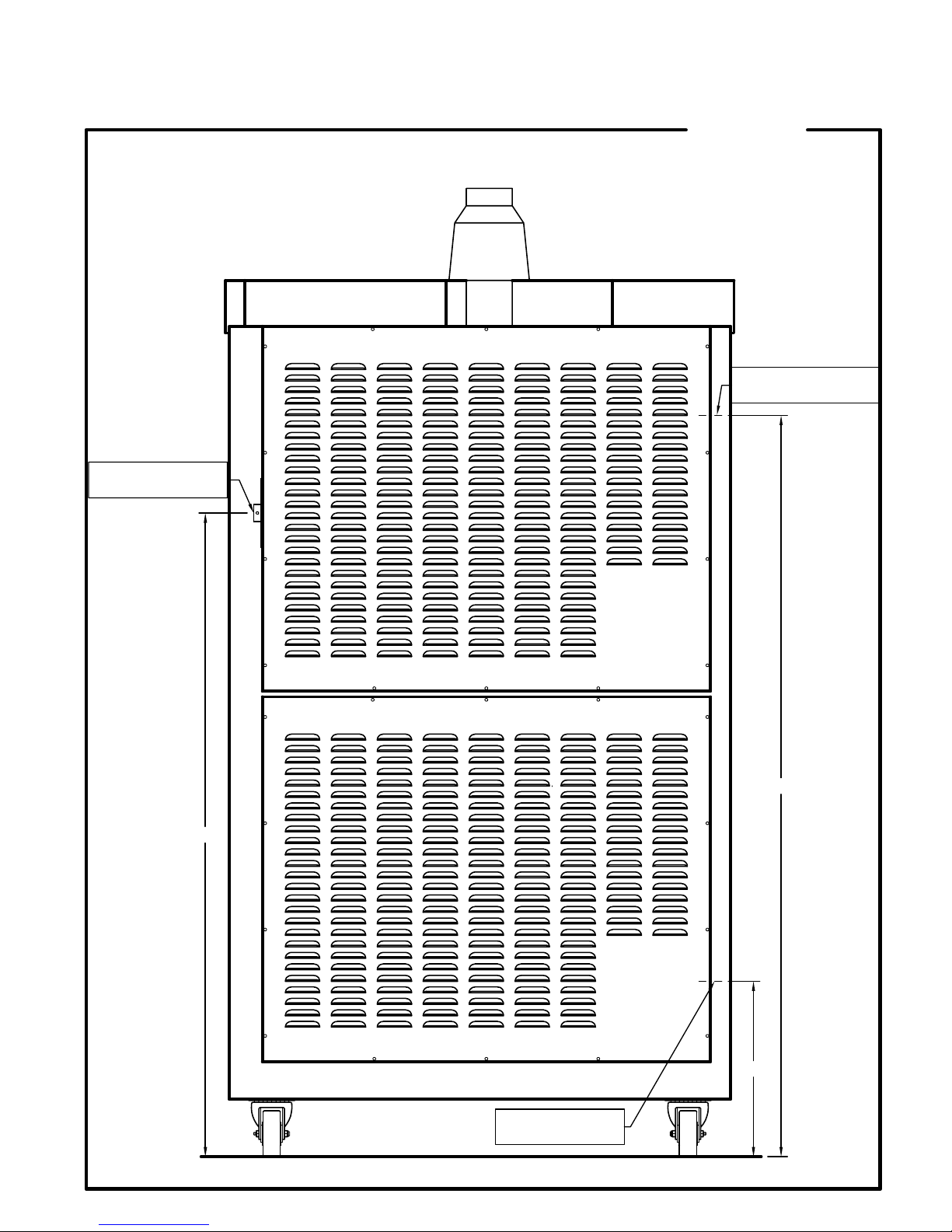

CA12G

ENTRÉE ÉLECTRIQUE ELETRICAL INLET

56

CA12G

64 1/2

15 1/4

ENTRÉE D’EAU 1/4"

WATER INLET 1/4"

7 1/2

B8

CA12G

23 1/4

CA12G

44 1/4

B9

CAOP6G

TIMER

3 2 1

RST

4

OMRON H

5C

L

CC

ON

AL

OMRON E5CS

TIMER

1234

RST

OMRON H5CL

76 1/4

THERMOSTAT

OFF / ON

ARRET/DEPART

20 AMPS

LUBRIFICATION ROUL. À BILLES (MENSUELLEMENT) BEARING LUBRICATION (MONTLY)

OVEN

INTERIOR DIMENSIONS

HEIGHT

WIDTH

DEPTH

28 1/2"

27" TO 35"

33 1/2"

PROOFER

INTERIOR DIMENSIONS

HEIGHT

WIDTH

DEPTH

26 1/2" 27 1/4" 36 1/2"

CAOP6G

B10

CAOP6G

20

57 1/2

76 1/4

CAOP6G

ENTRÉE DE GAZ 1/2"

GAS INLET 1/2"

B11

CAOP6G

ENTRÉE ÉLECTRIQUE ELETRICAL INLET

56

CAOP6G

64 1/2

15 1/4

ENTRÉE D’EAU 1/4"

WATER INLET 1/4"

B12

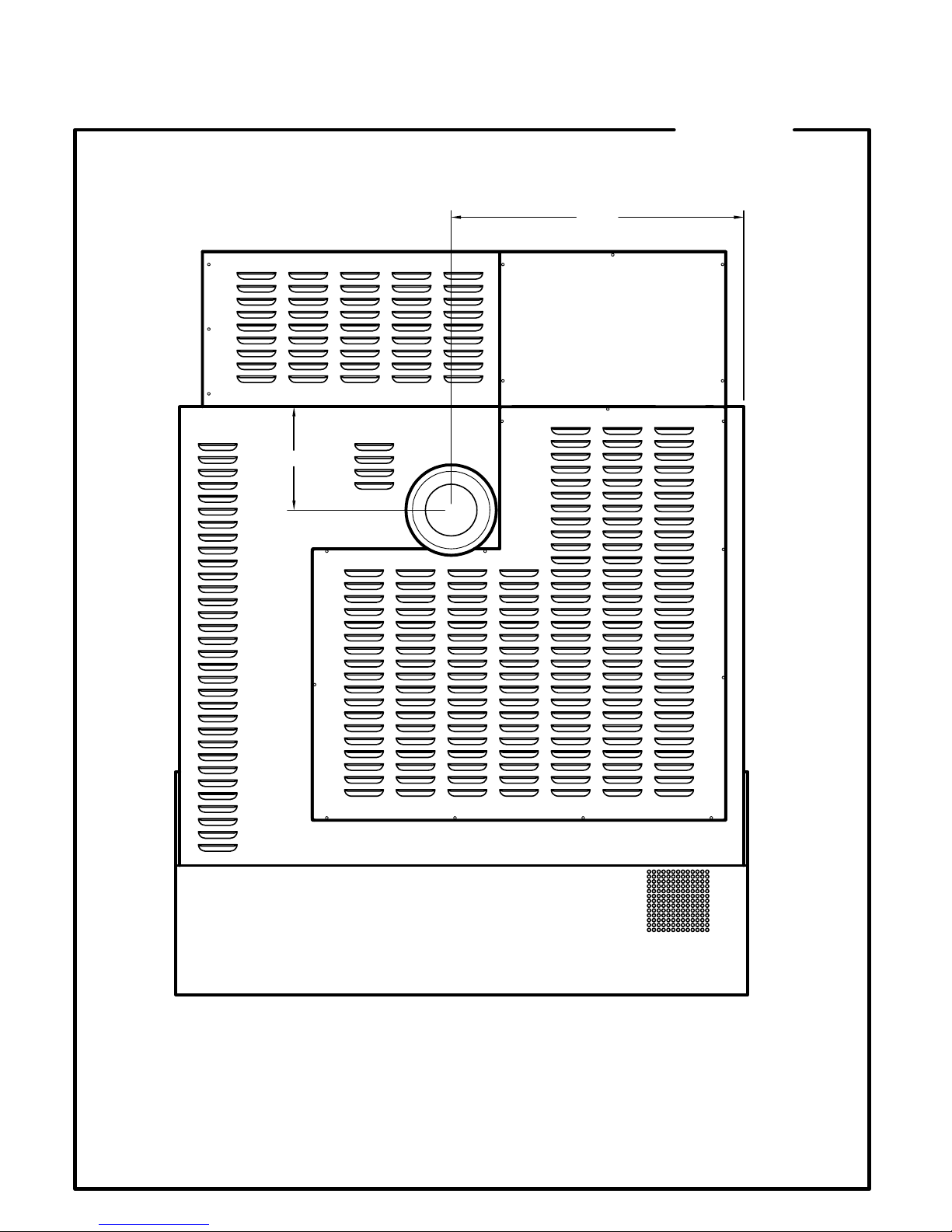

CAOP6G

22 5/8

8

CAOP6G

B13

CAOP12G

PROOFER

INTERIOR DIMENSIONS

HEIGHT

WIDTH

28 1/2"

27"

33 1/2"

OVEN

INTERIOR DIMENSIONS

HEIGHT

WIDTH

DEPTHDEPTH

28 1/2"

27" TO 35"

33 1/2"

76 1/2

TIMER

3 2 1

RST

4

OMRON H5CL

ON

CC

AL

OMRON E5CS

TIMER

1234

RST

OMRON H5CL

76 1/4

CAOP12G

LUBRIFICATION ROUL. À BILLES

(MENSUELLEMENT)

BEARING LUBRICATION (MONTLY)

4

RST

123

OMRON H

5CL

ON

CC

AL

OMRON E5CS

TIMER

RST

4 3 2 1

OMRON H5CL

B14

57 1/2

CAOP12G

ENTRÉE DE GAZ 1/2" GAS INLET 1/2"

19 1/2

76 1/4

56

CAOP12G

19 1/2

B15

CAOP12G

57 1/2

40 1/4

15 1/4

ENTRÉE D’EAU 1/4"

WATER INLET 1/4"

76 1/4

ENTRÉE ÉLECTRIQUE ELECTRICAL INLET

CAOP12G

B16

CAOP12G

23 1/4

B17

CAOP12G

7 1/2

CAOP12G

SECTION

C

BURNER ADJUSTMENTS

C1

PIECE #2

THICKNESS 1/8 (3.2mm)

ADJUSTMENT BURNER

CA & CAOPG NATURAL GAS

2 9/16

[65.09]

ON %%1 5/8 [Ø41.28]

4 HOLES Ø7/16 [Ø11.10]

ON %%1 5/8 [Ø41.28]

4 HOLES Ø5/16 [Ø7.94]

NOZZLE

COMBUSTION−CHAMBER

PIECE #1

THICKNESS 3/32 (2.4mm)

SPACER

1

#29 (3.5mm)

2

INSULATION

COMBUSTION−CHAMBER

1 1/2

[38.15]

2 3/8

5/32

[3.97]

[60.33]

[3.98]

1 1/2

[38.10]

GROUND PLATE

MINERAL WOOL

PROTECTOR FOR

CA−N

(4.1mm)

NOZZLE #20

SUPPLY PRESSURE: 7" W.C. (20/25 Mbar)

MANIFOLD PRESSURE: 3.5" W.C. (8.75 Mbar)

DETECTION WIRE: 18"

IGNITION WIRE: 15"

THERMOSTAT: OMRON E5CS−X

HIGH LIMIT: 700° F

LOCKED: 600° F

BTU: 78 500 / 157 000

C2

PIECE #2

THICKNESS 1/8 (3.2mm)

ADJUSTMENT BURNER

CA & CAOPG PROPAN GAS

2 9/16

[65.09]

ON Ø1 5/8 [Ø41.27]

4 HOLES Ø7/16 [Ø11.10]

ON Ø1 5/8 [Ø41.27]

4 HOLES Ø5/16 [Ø7.94]

NOZZLE

COMBUSTION−CHAMBER

PIECE #1

THICKNESS 3/32 (2.4mm)

SPACER

1

#29 (3.5mm)

2

INSULATION

COMBUSTION−CHAMBER

1 1/2

[38.15]

2 3/8

5/32

[3.97]

[60.33]

[3.98]

1 1/2

[38.10]

GROUND PLATE

MINERAL WOOL

PROTECTOR FOR

CA−P

(2.6mm)

NOZZLE #37

SUPPLY PRESSURE: 11" W.C. (28/50 Mbar)

MANIFOLD PRESSURE: 8" W.C. (20.00 Mbar)

DETECTION WIRE: 18"

IGNITION WIRE: 15"

THERMOSTAT: OMRON E5CS−X

HIGH LIMIT: 700° F

LOCKED: 600° F

BTU: 78 500 / 157 000

SECTION

E

COMPONENT PARTS

E1

CAOP12G

10

11

12 13

TIMER

RST

4

OMRON H5CL

CC

OMRON E5CS

TIMER

RST

OMRON H5CL

14

3 2 1

15

16

ON

AL

17

1234

18

19

4

3

2

1

CAOP12G

4

RST

123

OMR

ON

H5CL

ON

CC

AL

OMRON E5CS

TIMER

RST

4 3 2 1

OMRON H5CL

E2

Item Part Number Description Quantity 1 PAR800 SWIVEL CASTER 2 AND PAR850 SWIVEL CASTER WITH BRAKE 2 2 P2857E PROOFER DOOR 28" X 57 1/4" 1 AND QUE500 DOOR GASKET(15`) 1 3 QUP320 DOOR HINGE 11 4 QUP520 MAGNETIC HANDLE 1 5 ELB096 5A BREAKER 3 AND ELB097 20A BREAKER 2 6 ELI550 MAIN SWITCH (SELECTOR) 3 AND ELI555 CONTACT BLOCK 1NO 3 7 ELI220 INFINITY SWITCH 120V (HUMIDITY CONT.) 1 AND ELI240 INFINITY SWITCH KNOB 1 AND ELI230 INFINITY SWITCH 240V (HUMIDITY CONT.) 1 8 ELT627 THERMOSTAT 110°F 1 AND ELT628 THERMOSTAT KNOB 110°F 1 AND ELT620 THERMOSTAT BEZEL 1 9 ELL650 RED PILOT LIGHT 4 10 P1430FG LEFT DOOR FOR OVEN 14 1/4" X 30 1/4" 2 AND QUE500 DOOR GASKET(10`) 2 11 QUP465 DOOR HANDLE STAINLESS TUBING 4 OR QUP460 DOOR HANDLE (BLACK) 4 12 P1430FD RIGHT DOOR FOR OVEN 14 1/4" X 30 1/4" 2 13 ELM760 COOLING FAN 120VOLTS 1 14 ELM616 ELECTRONIC TIMER OMRON H5CX-L8 2 AND ELM629 ELECTRONIC TIMER 8 PIN SOCKET 2 AND ELM726 PANEL MOUNTING 2 15 ELP994 PUSH-BUTTON (BLACK) 2 AND ELI554 MECHANICAL HOLD (ON-OFF) CONTACT 2 AND ELI555 CONTACT BLOCK 1NO 2 16 ELT515 ELECTRONIC THERMOSTAT 2 AND ELT522 THERMOCOUPLE J TYPE 2 17 ELM616 ELECTRONIC TIMER OMRON H5CX-L8 2 AND ELM629 ELECTRONIC TIMER 8 PIN SOCKET 2 AND ELM726 PANEL MOUNTING 2 18 ELP994 PUSH-BUTTON (BLACK) 2 AND ELI555 CONTACT BLOCK 1NO 2 19 QUA200 DOOR MAGNET 8

Model : CAOP12G View : FRONT

E3

CAOP12G

4

3

2

1

CAOP12G

E4

Item Part Number Description Quantity

1 ELD050 INCANDESCENT LIGHT SOCKET 2

AND ELA350 HALOGEN BULB 100 WATTS 120V 2

2 ELS950 BUZZER 120V 3 3 ELM570 DOOR SWITCH 2

4 ELT503 HIGH LIMIT SWITCH 140°F 1 AND ELT507 HIGH TEMPERATURE LIMIT SWITCH 110°F 1 AND ELT507 HIGH LIMIT TEMPERATURE 110°F 1

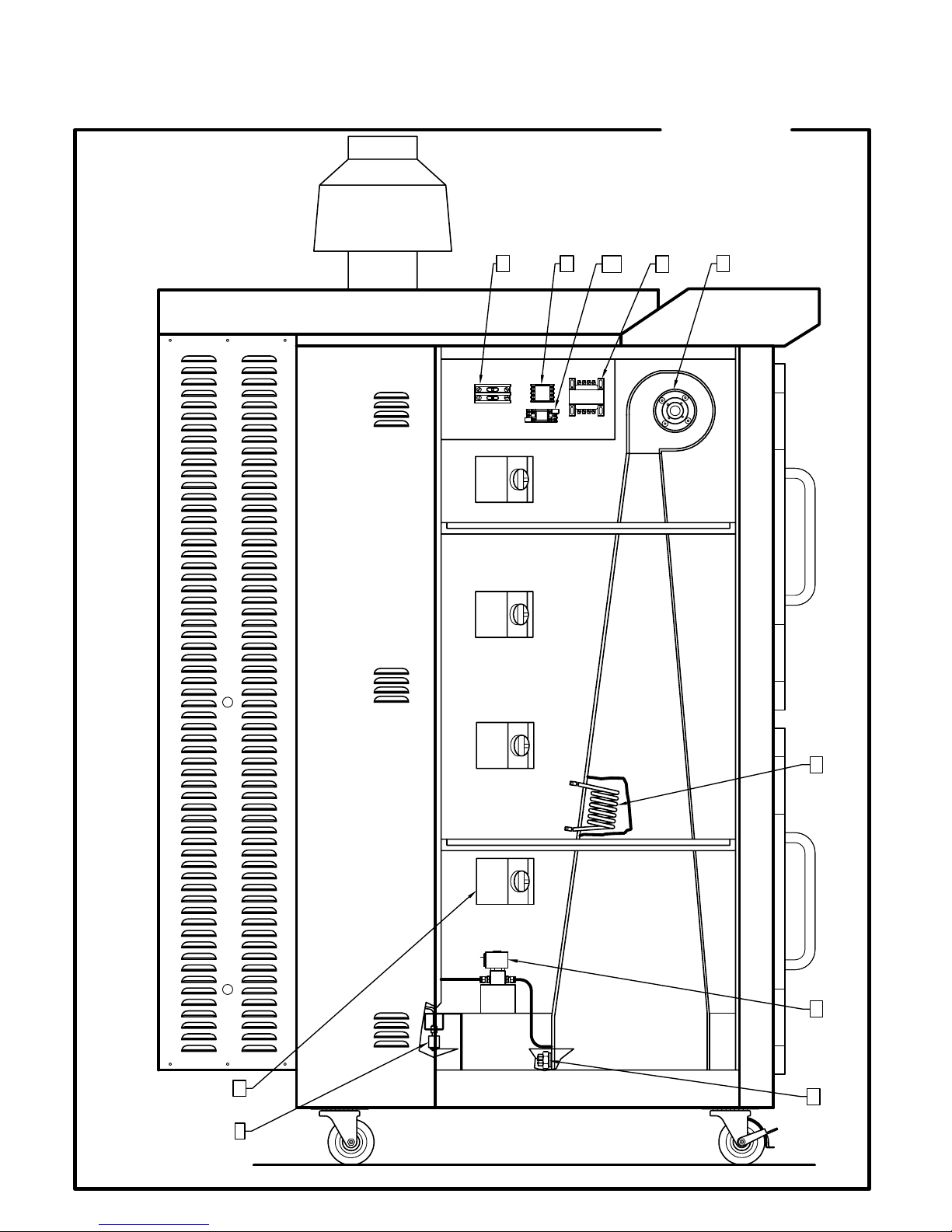

Model : CAOP12G View : RIGHT SIDE

E5

CAOP12G

3

4

10

X2X4 X3 X1

H3H1 H2 H4

9

5

CAOP12G

6

7

2

1

8

E6

Item Part Number Description Quantity 1 QUF350 ELECTRIC FLOAT 1 2 ELD050 INCANDESCENT LIGHT SOCKET 4 AND ELA275 BULB 60W 130V 4 3 ELC860 CONTACTOR 2P 30A 110V 1 4 ELC615 RELAY 10A 2P COIL 110V 1 AND ELC617 BASE 1 5 ELM730 PROOFER FAN BLOWER 1 6 ELE130 COIL ELEMENT 120V 1500W 1 OR ELE131 COIL ELEMENT 208V 1500W 1 OR ELE132 COIL ELEMENT 240V 1500W 1 7 ELS880 SOLENOID VALVE 110/120V 50/60Hz 1 8 ELE165 IMMERSION ELEMENT 120V 1500W 1 OR ELE166 IMMERSION ELEMENT 208V 1500W 1 OR ELE167 IMMERSION ELEMENT 240V 1500W 1 9 ELT712 TRANSFORMER 240/120 50VA 1 10 ELC630 CONTROL RELAY 12A COIL 120V 1 AND ELC640 CONTROL RELAY BASE 1

Model : CAOP12G View : LEFT SIDE

E7

CAOP12G

9 10

8

7

6

11

12

13

2

1

5

4

3

CAOP12G

E8

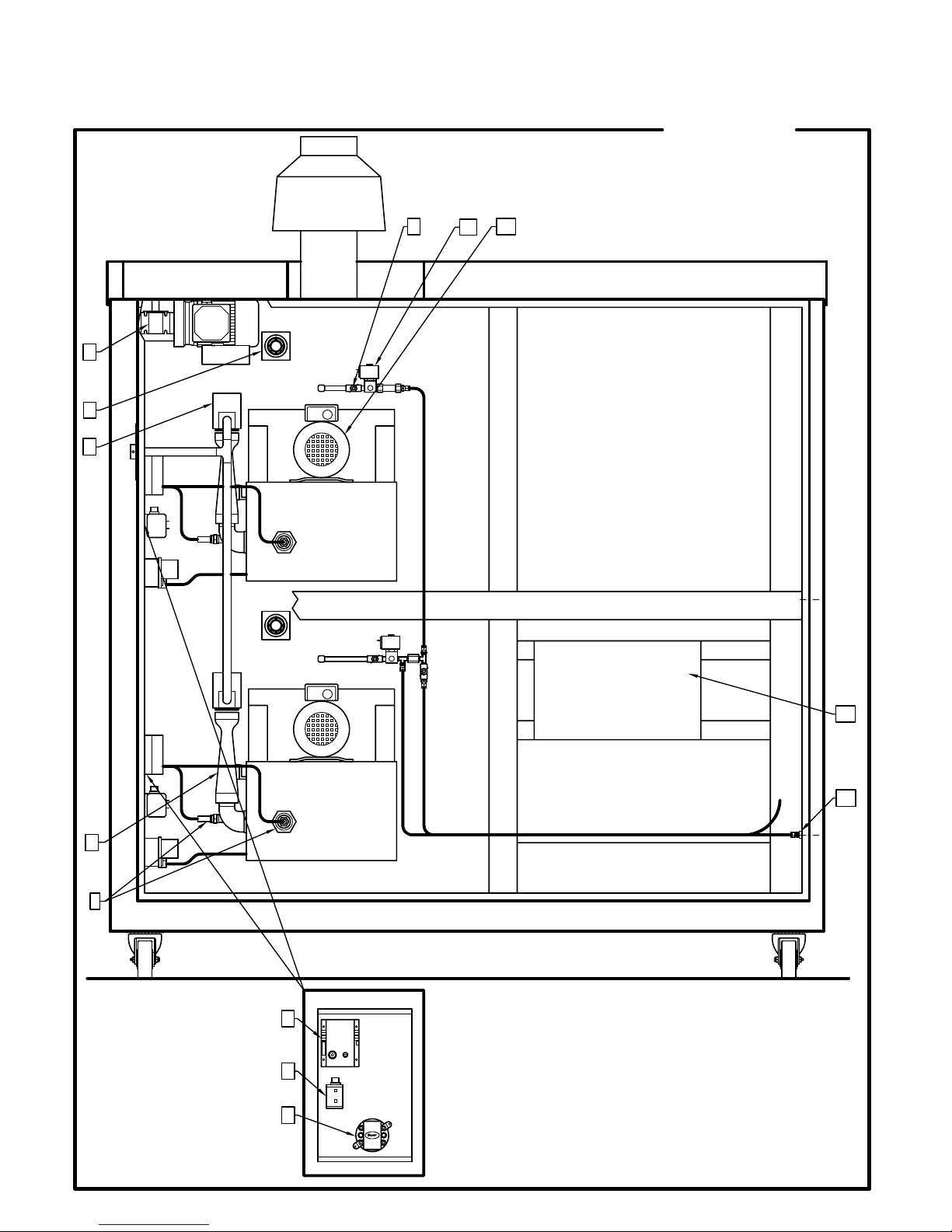

Item Part Number Description Quantity

1 GAD200 FLAME DETECTION ROD#11ZK3F2127 2 AND GAD190 IGNITION ROD 2

2 GAM200 ATMOSPHERIC MIXER 2

3 GAP300 PRESSURE SWITCH 2

4 GAT100 TRANSFORMER 120/25V 20VA. 2

5 GAB500 ELECTRONIC CONTROL WITH ALARM CONTACT 2

6 GAC230 HONEYWELL GAS VALVE #VR8205A2008BNATURAL) 2

7 ELT680 THERMOSTAT 700°F 2 AND ELT681 THERMOSTAT KNOB 700°F 2 AND ELT620 THERMOSTAT BEZEL 2

8 ELM765 GEARBOX MOTOR 1/8HP 1PH 115V 1

9 ELV590 NEEDLE VALVE 3

10 ELM800ML MOTOR 1 PH. 3/4 HP.MAGNETEK WITH 6 1/4 INCHES SHAFT. 2

OR ELM820ML MOTOR 3 PH. 3/4 HP. MAGNETEK WITH 6 1/4 INCHES SHAFT. 2

11 ELS880 SOLENOID VALVE 110/120V 50/60Hz 2 12 CONTROL PANEL 208V 3PH DOUBLE) 1

OR CONTROL PANEL 240V 1PH DOUBLE) 1

13 PLF100 WATER FILTER 1

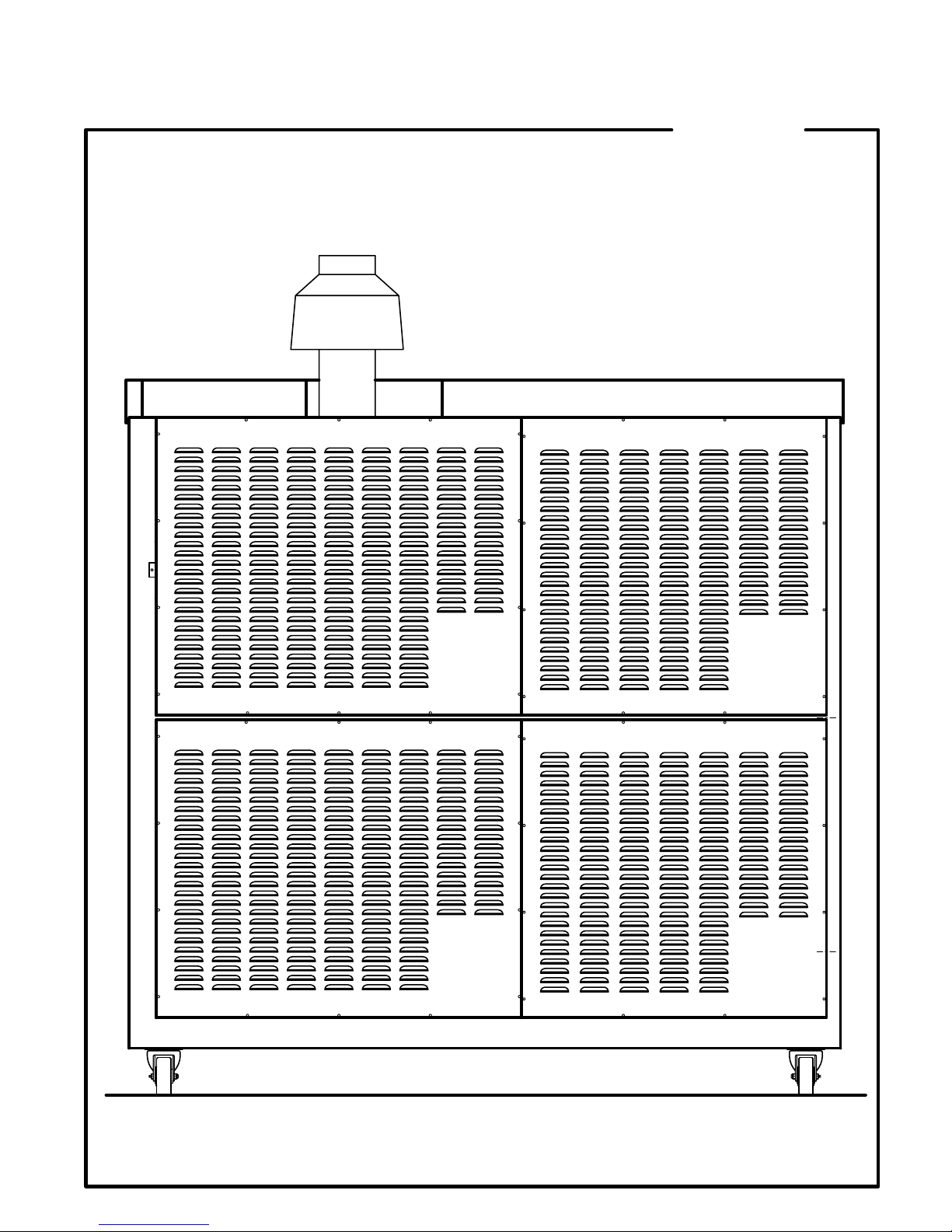

Model : CAOP12G View : BACK

E9

CAOP12G

1

2

3

LUBRIFICATION DU ROULEMENT À BILLES (ANNUELLEMENT)

BEARING LUBRICATION (YEARLY)

CAOP12G

E10

Item Part Number Description Quantity

1 QUC615 #4L86 86" BELT 1

2 QURB100 FLANGE BEARING 1 AND QURB20 BEARING #KL44610 1 AND QURB40 BEARING #KL44643 1

3 ELM400 ROLLER LEVER SWITCH 1

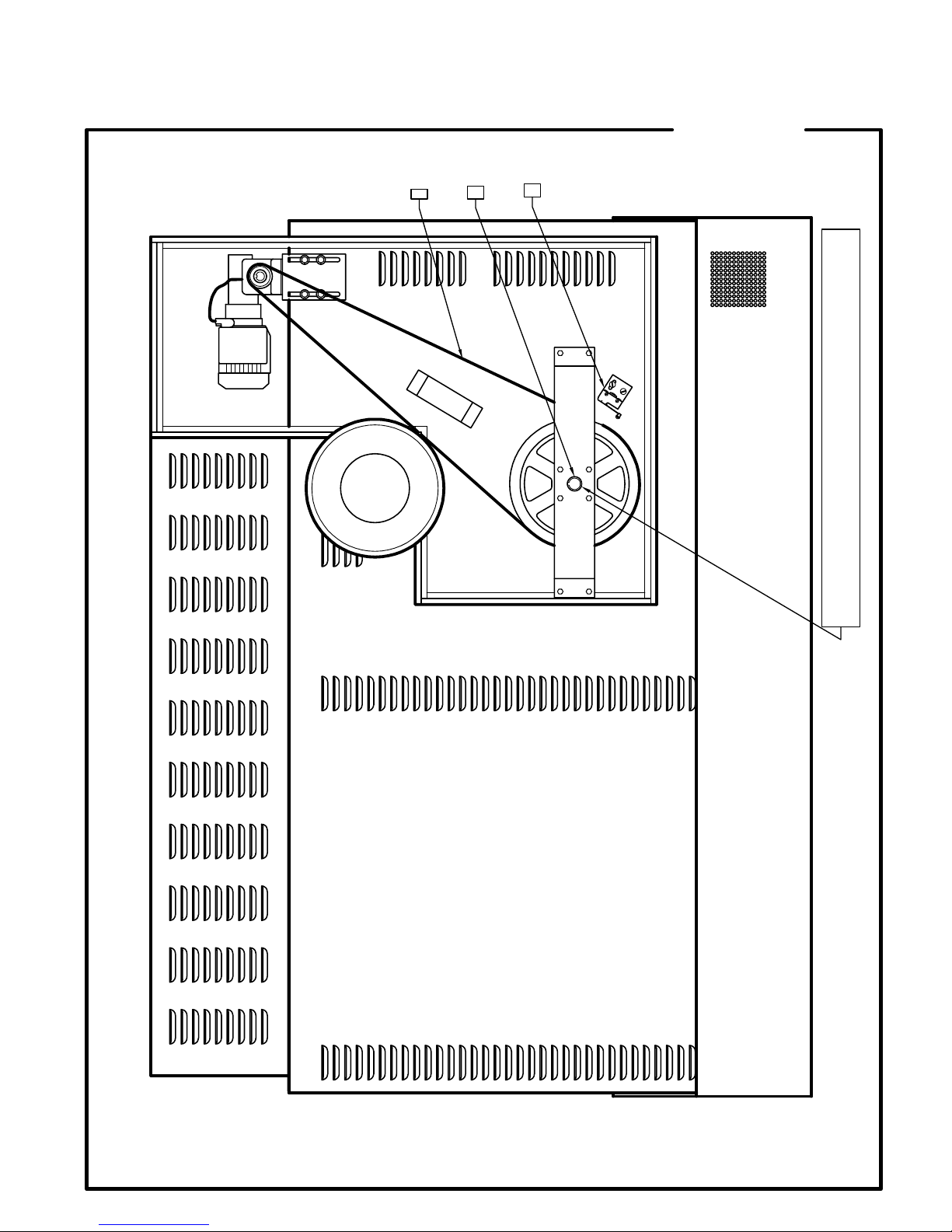

Model : CAOP12G View : TOP

E11

CAOP12G

WATLOW

10

11 12 13

WATLOW

ARRET/MARCHE

5 AMPS

WATLOW

14

15

4

3

2

1

CAOP12WG

ARRET/MARCHE

5 AMPS

E12

Item Part Number Description Quantity 1 PAR800 SWIVEL CASTER 2 AND PAR850 SWIVEL CASTER WITH BRAKE 2 2 P2857E PROOFER DOOR 28" X 57 1/4" 1 AND QUE500 DOOR GASKET(15`) 1 3 QUP320 DOOR HINGE 11 4 QUP520 MAGNETIC HANDLE 1 5 ELB096 5A BREAKER 3 AND ELB097 20A BREAKER 2 6 ELI550 MAIN SWITCH (SELECTOR) 3 AND ELI555 CONTACT BLOCK 1NO 3 7 ELI220 INFINITY SWITCH 120V (HUMIDITY CONT.) 1 AND ELI240 INFINITY SWITCH KNOB 1 AND ELI230 INFINITY SWITCH 240V (HUMIDITY CONT.) 1 8 ELT627 THERMOSTAT 110F 1 AND ELT628 THERMOSTAT KNOB 110F 1 AND ELT620 THERMOSTAT BEZEL 1 9 ELL650 PILOT LIGHT 3 10 P1430FG LEFT DOOR FOR OVEN 14 1/4" X 30 1/4" 2 AND QUE500 DOOR GASKET(10`) 2 11 QUP465 DOOR HANDLE STAINLESS TUBING 4 OR QUP460 DOOR HANDLE (BLACK) 4 12 P1430FD RIGHT DOOR FOR OVEN 14 1/4" X 30 1/4" 2 13 ELM760 MOTOR BLOWER 1 14 ELT535 BAKING CONTROL WATLOW 2 15 QUA200 DOOR MAGNET 8

Model : CAOP12G WATLOW View : FRONT

E13

CAOP12G

WATLOW

4

5

6

7

3

2

1

CAOP12WG

E14

Item Part Number Description Quantity 1 ELD050 INCANDESCENT LIGHT SOCKET 2 AND ELA350 HALOGEN BULB 100 WATTS 120V 2 2 ELS950 BUZZER 120V 3 3 ELM570 DOOR SWITCH 2 4 ELT503 HIGH LIMIT SWITCH 140°F 1 AND ELT507 HIGH TEMPERATURE LIMIT SWITCH 110°F 1 5 ELC800 SOLID STATE RELAY (S.S.R.) 1 6 ELF960 LITTLE-FUSE HOLDER 30A 300V 1 AND ELF855 LITTLE-FUSE 1A 250V 1 7 GAT100 TRANSFORMER 120/25V 20VA. 1

Model : CAOP12G WATLOW View : RIGHT SIDE

1

QTÉ

DESCRIPTIONNOCODE

CA_0055 1 PL. 27 X 3 1/2 X 1/4 1

QURB100 2 FLANGE BEARING

1

7 TUBE 2 X 1 X 1/8 X 39 1/4 1

STB200 4 MICROSWITCH ARM

QUP110 3 PULLEY 11" 1

50099022 5 BUSHING 1

50099021 6 UPPER SUPPORT

1

2

1

50099020 8 UPPER SHAFT

50099001 9 CENTER SHAFT 1

50099004 10 CENTER SUPPORT

50099006 11 CENTER BUSHING GUIDE 1

50099007 12 CENTER BUSHING

1

QURB20 15 KL44610 (SEAT) 1

50099002 13 BOTTOM CENTER SHAFT 1

50099032 14A BOTTOM SHAF (SHORT) 1

QURB40 16 KL44643 (BEARING)

50099033 14B BOTTOM SHAFT (LONG)

50099030 17 BOTTOM SUPPORT 1

E15

50099050

10/11/94 B. GILBERT

1 : 3 1 CA

ROTATING RACK SYSTEM

±0.002

±0.005

±0.01

X.X

X.XXX

X.XX

X/X ±1/64"

06/05/2

17/08/00

17/10/96

1

{

3

50099023

{

50099003

CA6 & CAOP6

CA12 & CAOP12

1

ÉLIMINER

ÉTAIT 50099040

ÉTAIT QUE120

DEVIENT STB200

CACHE POUSSIÈRE

2

3

1

4

3

THIS SECTION IS ONLY

USED ON CA12 & CAOP12

6

2

5/16

10

15 16

12

5

7

8

9

11

13

17

14

SECTION

F

CONTROL PANELS

13

11 12

8 9 10

F1

240 VOLTS

1 PHASE

X2X4 X3 X1

H3H1 H2 H4

DOUBLE GAS

P240DCAG

7

5 6

4

3

1 2

F2

Item Part Number Description Quantity

1 ELB072 TERMINAL BLOCK 3P 175A 1 2 ELL050 GROUND LUG 2 3 ELF970 FUSE HOLDER 30A 250V 2P 1 4 ELF840 FUSE 20A 250V 2 5 ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON 2 6 ELC515 MOTOR REVERSING CONTACTOR 2HP 2 7 ELO215 OVERLOAD RELAY SIMPLE PHASE 2 TO 7 AMPS. 2

AND ELO220 OVERLOAD RELAY BASE 2

8 ELB073 TERMINAL BLOCK 30A 19 9 ELC630 CONTROL RELAY 12A COIL 120V 2

AND ELC640 CONTROL RELAY BASE 2

10 ELC660 RELAY 10A 120V, 2NO-2NF 1 11 ELF960 LITTLE-FUSE HOLDER 30A 300V 1

AND ELF862 LITTLE-FUSE 3A 1

12 ELD060 BRIDGE RECTIFIER 1000V, 35A 1 13 ELT705 TRANSFORMER 120/240 A 12/24, 100VA 1

Model : 208V ou/or 240 1PH DOUBLE CA-G (P240CAG) View : INSIDE (See OVEN BACK)

F3

208 VOLTS

3 PHASES

DOUBLE GAS

X2X4 X3 X1

H3H1 H2 H4

13

12711

P208DCAG

5 6 8 9 10

4

3

1 2

F4

Item Part Number Description Quantity

1 ELB071 TERMINAL BLOCK 2P 175A 2

2 ELL050 GROUND LUG 1

3 ELF995 FUSEHOLDER 30A 250V 3P 1

4 ELF830 FUSE 15A 250V 3

5 ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON 2

6 ELC515 MOTOR REVERSING CONTACTOR 2HP 2

7 ELO225 OVERLOAD RELAY THREE PHASES 1,6 TO 5 AMPS. 2

8 ELB073 TERMINAL BLOCK 30A 13

9 ELC630 CONTROL RELAY 12A COIL 120V 2 AND ELC640 CONTROL RELAY BASE 2

10 ELC660 RELAY 10A 120V, 2NO-2NF 1 11 ELF960 LITTLE-FUSE HOLDER 30A 300V 1

AND ELF862 LITTLE-FUSE 3A 1

12 ELD060 BRIDGE RECTIFIER 1000V, 35A 1 13 ELT705 TRANSFORMER 120/240 A 12/24, 100VA 1

Model : 208V 3PH DOUBLE CA-G (P208DCAG) View : INSIDE

(See OVEN BACK)

F5

120 / 208 VOLTS

8 9 10

X2X4 X3 X1

H3H1 H2 H4

13

120 / 240 VOLTS

1 PHASE

CA12 GAS WATLOW

121114

P240CAGW

7

5 6

4

3

1 2

F6

Item Part Number Description Quantity 1 ELB072 TERMINAL BLOCK 3P 175A 1 2 ELL050 GROUND LUG 2 3 ELF970 FUSE HOLDER 30A 250V 2P 1 4 ELF840 FUSE 20A 250V 2 5 ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON 2 6 ELC515 MOTOR REVERSING CONTACTOR 2HP 2 7 ELO215 OVERLOAD RELAY SINGLE PHASE 2 TO 7 AMPS. 2 AND ELO220 OVERLOAD RELAY BASE 2 8 ELB073 TERMINAL BLOCK 30A 19 9 ELC630 CONTROL RELAY 12A COIL 120V 6 AND ELC640 CONTROL RELAY BASE 6 10 ELC660 RELAY 10A 120V, 2NO-2NF 1 11 ELF960 LITTLE-FUSE HOLDER 30A 300V 1 AND ELF862 LITTLE-FUSE 3A 1 12 ELD060 BRIDGE RECTIFIER 1000V, 35A 1 13 ELT705 TRANSFORMER 120/240 A 12/24, 100VA 1 14 ELM720 OMRON CONTROL TIMER (11 PIN) H3CR 2 AND ELM729 11 PIN BASE 2

Model : P240CAG WATLOW View : INSIDE (See OVEN BACK)

F7

240 VOLTS

1 PHASE

SIMPLE CAOP6G

9

8

7

10

11

12

13

14

1516

5 6

X2X4 X3 X1

4

H3H1 H2 H4

3

2

1

P240SC6G

F8

Item Part Number Description Quantity 1 ELB072 TERMINAL BLOCK 3P 175A 1 2 ELL050 GROUND LUG 2 3 ELC860 CONTACTOR 2P 30A 110V 1 4 ELT705 TRANSFORMER 120/240 A 12/24, 100VA 1 5 ELD060 BRIDGE RECTIFIER 1000V, 35A 1 6 ELC660 RELAY 10A 120V, 2NO-2NF 1 7 ELC495 MOTOR REVERSING CONTACTOR 2HP 1

ELC505B CONTACTOR COIL (ONLY) 8 ELO125 OVERLOAD BASE RELAY TÉLÉMÉCANIQUE 1 9 ELO098 OVERLOAD TELEMECANIQUE 2.5 TO 4 AMPS 1 10 ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON 1 11 ELC630 CONTROL RELAY 12A COIL 120V 1 AND ELC640 CONTROL RELAY BASE 1 12 ELB073 TERMINAL BLOCK 30A 9 13 ELF970 FUSE HOLDER 30A 250V 2P 1 14 ELF820 FUSE 8A 250V 2 15 ELF960 LITTLE-FUSE HOLDER 30A 300V 1 16 ELF862 LITTLE-FUSE 3A 1

Model : P240SC6G View : INSIDE (See OVEN BACK)

F9

208 VOLTS

3 PHASES

SIMPLE CAOP6

7

6

5

8

9

10

1112

4

3

13

X2X4 X3 X1

H3H1 H2 H4

2

P208SC6G

14

1

F10

Item Part Number Description Quantity 1 ELB071 TERMINAL BLOCK 2P 175A 2 2 ELT705 TRANSFORMER 120/240 A 12/24, 100VA 1 3 ELD060 BRIDGE RECTIFIER 1000V, 35A 1 4 ELC660 RELAY 10A 120V, 2NO-2NF 1 5 ELC495 MOTOR REVERSING CONTACTOR 2HP 1

ELC505B CONTACTOR COIL (ONLY) 6 ELL050 GROUND LUG 1 7 ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON 1 8 ELC630 CONTROL RELAY 12A COIL 120V 1 AND ELC640 CONTROL RELAY BASE 1 9 ELO098 OVERLOAD TELEMECANIQUE 2.5 TO 4 AMPS 1 10 ELB073 TERMINAL BLOCK 30A 6 11 ELF995 FUSEHOLDER 30A 250V 3P 1 12 ELF820 FUSE 8A 250V 3 13 ELF960 LITTLE-FUSE HOLDER 30A 300V 1 AND ELF862 LITTLE-FUSE 3A 1 14 ELC860 CONTACTOR 2P 30A 110V 1

Model : P208SC6G View : INSIDE (See OVEN BACK)

F11

208 OR 240 VOLTS

1 PHASE

DOUBLE

5

4

6

7

8

910

3

2

X2X4 X3 X1

H3H1 H2 H4

13

P240CPG

12

11

1

F12

Item Part Number Description Quantity 1 ELB072 TERMINAL BLOCK 3P 175A 1 2 ELT705 TRANSFORMER 120/240 A 12/24, 100VA 1 3 ELO098 OVERLOAD TELEMECANIQUE 2.5 TO 4 AMPS 2 AND ELO125 OVERLOAD BASE RELAY TÉLÉMÉCANIQUE 2 4 ELC495 MOTOR REVERSING CONTACTOR 2HP 2

ELC505B CONTACTOR COIL (ONLY) 5 ELL050 GROUND LUG 2 6 ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON 2 7 ELC630 CONTROL RELAY 12A COIL 120V 2 AND ELC640 CONTROL RELAY BASE 2 8 ELB073 TERMINAL BLOCK 30A 18 9 ELF970 FUSE HOLDER 30A 250V 2P 1 10 ELF840 FUSE 20A 250V 2 11 ELF960 LITTLE-FUSE HOLDER 30A 300V 1 AND ELF862 LITTLE-FUSE 3A 1 12 ELC660 RELAY 10A 120V, 2NO-2NF 1 13 ELD060 BRIDGE RECTIFIER 1000V, 35A 1

Model : P240CPG View : INSIDE (See OVEN BACK)

F13

208 VOLTS

3 PHASES

DOUBLE CA12

5

3 4

6

7

89

10

14

2 13

P208CPG

1112

X2X4 X3 X1

H3H1 H2 H4

1

F14

Item Part Number Description Quantity

1 ELB071 TERMINAL BLOCK 2P 175A 2 2 ELD060 BRIDGE RECTIFIER 1000V, 35A 1 3 ELC495 MOTOR REVERSING CONTACTOR 2HP 2

ELC505B CONTACTOR COIL (ONLY) 4 ELL050 GROUND LUG 2 5 ELM715 PRESET TIMER 25SEC. OFF - 150SEC. ON 2 6 ELC640 CONTROL RELAY BASE 2 7 ELC630 CONTROL RELAY 12A COIL 120V 2 8 ELB073 TERMINAL BLOCK 30A 9 9 ELO098 OVERLOAD TELEMECANIQUE 2.5 TO 4 AMPS 2 10 ELF830 FUSE 15A 250V 3 11 ELF995 FUSEHOLDER 30A 250V 3P 1 12 ELF960 LITTLE-FUSE HOLDER 30A 300V 1

AND ELF862 LITTLE-FUSE 3A 1

13 ELT705 TRANSFORMER 120/240 A 12/24, 100VA 1 14 ELC660 RELAY 10A 120V, 2NO-2NF 1

Model : P208CPG View : INSIDE (See OVEN BACK)

SECTION

G

ELECTRIC SCHEMATICS

L1N

5 A.

HIGH LIMIT

110°

COOLING

FAN

OVEN

SWITCH

P.L.

HIGH LIMIT

140°

(ALARM)

BUZZER

BULB

95 96

7

2

OL1

8

6

BUZZER

THERMOSTAT

7 8

9 10

COOKING TIMER

H5CX (MODE A−1)

1

4

M1−A

COOKING

SWITCH

G1

AV−M1

AR−M1

M

PRESSURE

M1−B

STEAM

SWITCH

HIGH LIMIT

4 1

STEAM TIMER

H5CX (MODE D)

8

7

VL1

6

2

OVEN

VALVE

SPARKING

ELECTRODE

120/24V

24V

VALVE VALVE

24V

IGNITION

CONTROL

DETECTION FLAME ROD

VALVE

GND

BURNER

OL1−95

ST

GAS

TH

TR

VA

F1

SWITCH

RACK

M1

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

R1−4

R1−7

OL1

L1 T1

L2 T2

L3 T3

T1

T5

T3

T1

3/4HP

MOTOR

T8

T4T2

TR

100 VA

1/8HP

MOTOR

120−240V>

12−24V

X1H1

H3

X3

X2

H2

X4

H4

ROTATING RACK

+

(GEAR BOX)

D1

−

VA

T2

M2

32 31

M2

13 14

M2

43 44

7

8

R1

4

6

2

M2

ST

M2

22 21

3 A.

RR

M2−44

SWITCH

DOOR

A2

A1

AV

A1 A2

AR

ELECTRONIC

TIMER

AR

21 22

AV

21 22

1

2

3

N1

2

1

43

120 10A 10A

TOTAL POWER: 10.4 Kw 60 Hz

CA6 GAS 1 PHASE 60 Hz

12/07/04 M. FAUCHER 1

7 & 8

STANDARD

CA6G120

1 / 1

G2

GAS

VALVE

TH TR

BURNER

OL1−95

ST

VA

N

L2L1

5 A.

COOLING

F2

F1

HIGH LIMIT

110°

FAN

L1 T1

M1

OVEN

SWITCH

P.L.

HIGH LIMIT

140°

(ALARM)

BUZZER

BULB

OL1

L1 T1

95 96

7

2

OL1

8

6

BUZZER

THERMOSTAT

7 8

9 10

COOKING TIMER

H5CX (MODE A−1)

1

4

T1

M1−A

COOKING

SWITCH

AV−M1

AR−M1

M

PRESSURE

M1−B

SWITCH

STEAM

HIGH LIMIT

STEAM TIMER

H5CX (MODE D)

8

4

7

1

SPARKING

ELECTRODE

VL1

6

2

OVEN

VALVE

120/24V

24V

VALVE VALVE

24V

IGNITION

CONTROL

DETECTION FLAME ROD

GND

RACK

SWITCH

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

R1−4

R1−7

L2 T2

L3 T3

T4

3/4HP

MOTOR

T5

T3T2

T8

TR

100 VA

1/8HP

MOTOR

120−240V>

12−24V

X1H1

H3

X3

H2

X2

X4

H4

ROTATING RACK

+

(GEAR BOX)

D1

−

VA

M2

32 31

M2

13 14

M2

43 44

7

8

R1

4

6

2

M2

ST

M2

22 21

3 A.

RR

M2−44

SWITCH

DOOR

A2

A1

AV

A1 A2

AR

ELECTRONIC

TIMER

AR

21 22

AV

21 22

1

2

3

N1

2

1

43

120 / 208 0.75A 4.5A 4.25A

120 / 240 0.75A 4.5A 4.25A

TOTAL POWER: 1.0 Kw 60 Hz

CA6 GAS 1 PHASE 60 Hz

12/07/04 M. FAUCHER 5

7 & 8

STANDARD

1 / 1

CA6G11

G3

L2L1

F2

F1L2F3

5 A.

HIGH LIMIT

110°

COOLING

FAN

L1 T1

M1

OVEN

SWITCH

P.L.

HIGH LIMIT

140°

(ALARM)

BUZZER

BULB

OL1

L1 T1

95 96

7

2

OL1

8

6

BUZZER

THERMOSTAT

7 8

9 10

COOKING TIMER

H5CX (MODE A−1)

1

4

T1

M1−A

COOKING

SWITCH

AV−M1

AR−M1

M

PRESSURE

M1−B

SWITCH

STEAM

SWITCH

HIGH LIMIT

STEAM TIMER

H5CX (MODE D)

8

4

7

1

SPARKING

ELECTRODE

VL1

6

2

OVEN

VALVE

120/24V

WARNING

FOR SUPPLY SYSTEMS CONSISTING OF A DELTA SECONDARY TRANSFORMER, MAKE SURE THAT THE PHASE FEEDER WITH THE HIGHEST VOLTAGE (HIGH LEG) IS CONNECTED TO L3 IN THE SUPPLY BOX OF THIS OVEN (120 / 240V. 3 PH. SYSTEMS).

24V

VALVE VALVE

24V

IGNITION

CONTROL

DETECTION FLAME ROD

VALVE

GND

BURNER

OL1−95

ST

GAS

TH TR

VA

RACK

SWITCH

L2 T2

L3 T3

L1 T1

L2 T2

L3 T3

R1−7

R1−4

AR

L2 T2

T2

3/4HP

MOTOR

L3 T3

7

8

R1

4

6

2

M2

T3

VA

M2

32 31

M2

13 14

M2

43 44

ST

M2

22 21

3 A.

RR

M2−44

1/8HP

MOTOR

TR

100 VA

120−240V>

12−24V

X1H1

H3

X3

X2

H2

X4

H4

ROTATING RACK

+

(GEAR BOX)

D1

−

SWITCH

DOOR

A1

AV

A1 A2

AR

ELECTRONIC

TIMER

21 22

A2

21 22

AR

AV

1

2

3

N1

2

1

43

120 / 208 0.5A 3.5A 3.5A 3.0A

120 / 240 0.5A 3.5A 3.5A 3.0A

TOTAL POWER: 1.0 Kw 60 Hz

CA6 GAS 3 PHASES 60 Hz

12/07/04 M. FAUCHER 4

8

STANDARD

CA6G13

1 / 1

G4

L2L1N

5 A.

HIGH LIMIT 110°F

5 A.

F2

F1

M1

M2

COOLING FAN

ALARM

R2−7

R2−4

RACK

SWITCH

1

2

3

N1

SWITCH

1

2

3

N2

(OVEN 1)

SW 1.1

(OVEN 2)

SW 2.1

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

R1−5

P.L.

M1

A1

AV

M1

A1

AR

DOOR

M2

A1

AV

M2

A1

AR

BULB

HIGH LIMIT

140°F

7

8

R2

4

6

2

ELECTRONIC

TIMER 1

A2

ELECTRONIC

TIMER 2

A2

7

2

7

2

OL1

L1 T1

L2 T2

OL2

L1 T1

L2 T2

R1−6

M3

AR

21 22

AV

21 22

AR

21 22

AV

21 22

OL1

95 96

8

6

OL2

95 96

8

6

COOKING TIMER

H5CX (MODE A−1)

1

4

COOKING

BUZZER

COOKING TIMER

H5CX (MODE A−1)

1

4

COOKING

BUZZER

L3 T3

8

7

R1

3

5

1

4

6

2

2 1

43

2 1

43

THERMOSTAT

7 8

9 10

M

SWITCH

M

SWITCH

T1

T4

T5

VA1

T1

T4

T5

VA2

R1−8

SW 1.2

R1−1

SW 2.2

ST1

ST2

AV−M1

M1−BM1−A

AR−M1

THERMOSTAT

7 8

9 10

STEAM

SWITCH

M2−A

AV−M2

AR−M2

4 1

STEAM TIMER

H5CX (MODE D)

6

8 7

2

M2−B

VL1

OVEN

VALVE

PRESSURE

SWITCH

M1

3/4HP

MOTOR

T2

T8

T3

M2

3/4HP

MOTOR

T8T2

T3

M3

13 14

M3

43 44

OL1−95

OL2−95

120 / 208 1.5A 9.0A 8.5A

120 / 240 1.5A 9.0A 8.5A

TOTAL POWER: 2.1 Kw 60 Hz

PRESSURE

SWITCH

HIGH LIMIT

M3

32 31

M3

22 21

DETECTION FLAME ROD

24V

VALVE VALVE

24V

GND

IGNITION

CONTROL

GAS

VALVE

TH TR

BURNER

STEAM TIMER

H5CX (MODE D)

VL2

68

2

VALVE

D1

−

OL2−95

VA2

OVEN

120−240V>

H3

H2

3 A.

HIGH LIMIT

SPARKING

ELECTRODE

120/24V

24V

CONTROL

STEAM

SWITCH

TR

100 VA

12−24V

X1H1

X3

X2

X4

H4

RR

M3−44

ROTATING RACK

SPARKING

ELECTRODE

120/24V

DETECTION FLAME ROD

VALVE VALVE

GND

IGNITION

4 1

M3

1/8HP

GEAR BOX

7

+

CA12 GAS 1 PHASE 60 Hz

12/07/04 M. FAUCHER 11

2

STEAM

GAS

VALVE

TH TR

BURNER

OL2−95

ST2

CA12G11

OL1−95

ST1

VA1

1 / 1

G5

L3

L2L1N

5 A.

HIGH LIMIT

110°F

5 A.

F2

F1

F3

M1

M2

COOLING FAN

ALARM

R2−7

R2−4

RACK

SWITCH

1

2

3

N1

SWITCH

1

2

3

N2

(OVEN 1)

(OVEN 2)

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

R1−5

P.L.

M1

A1

AV

M1

A1

AR

DOOR

M2

A1

AV

M2

A1

AR

SW 1.1

BULB

SW 2.1

BULB

HIGH LIMIT 140°F

7

R2

4

2

ELECTRONIC

A2

ELECTRONIC

A2

8 6

TIMER 1

21 22

TIMER 2

21 22

R1−6

AR

AV

AR

AV

95 96

7

2

7

2

M3

OL1

8

6

OL2

95 96

8

6

L1 T1

L2 T2

L3 T3

L1 T1

L2 T2

L3 T3

BUZZER

OL1

OL2

THERMOSTAT

7 8

9 10

COOKING TIMER

H5CX (MODE A−1)

1

4

COOKING

SWITCH

COOKING TIMER

H5CX (MODE A−1)

1

4

COOKING

SWITCH

VA2

R1−8

8

7

R1

3

5

1

4

6

2

ST1

1

43

2

ST2

1

43

M

VA1

R1−1

SW 2.2

AV−M1

M1−BM1−A

AR−M1

THERMOSTAT

7 8

9 10

STEAM

SWITCH

M2−A

AV−M2

AR−M2

4 1

STEAM TIMER

H5CX (MODE D)

6

8 7

2

M2−B

M1

3/4HP

MOTOR

M2

3/4HP

MOTOR

SW 1.2

OL1−95

OL2−95

120 / 208 1.0A 6.5A 6.5A 5.5A

120 / 240 1.0A 6.5A 6.5A 5.5A

TOTAL POWER: 2.1 Kw 60 Hz

VL1

OVEN

VALVE

PRESSURE

SWITCH

M3

13 14

M3

43 44

PRESSURE

SWITCH

M3

32 31

M3

22 21

SPARKING

ELECTRODE

HIGH LIMIT

120/24V

24V

CONTROL

HIGH LIMIT

120/24V

120−240V>

H3

H2

H4

3 A.

SPARKING

ELECTRODE

STEAM

SWITCH

TR

100 VA

12−24V

RR

M3−44

24V

VALVE VALVE

24V

IGNITION

CONTROL

4 1

X1H1

X3

X2

X4

1/8HP

GEAR BOX

ROTATING RACK

DETECTION

FLAME ROD

GND

BURNER

STEAM TIMER

H5CX (MODE D)

68

7

2

+

M3

CA12 GAS 3 PHASE 60 Hz

12/07/04 M. FAUCHER 9

NONE

STEAM

DETECTION FLAME ROD

VALVE VALVE

GND

IGNITION

GAS

VALVE

TH TR

VL2

OVEN

VALVE

D1

−

BURNER

OL2−95

VA2

OL1−95

ST1

GAS

VALVE

TH TR

VA1

ST2

CA12G13

1 / 1

L2L1N

PROOFER

5 A.

HIGH LIMIT

110°

SWITCH

20 A.

OVEN

SWITCH

FAN

COOLING

P.L.

C2

(ALARM)

HIGH LIMIT

140°

BULB

BUZZER

OL1

95 96

7

2

8

6

THERMOSTAT

7 8

9 10

COOKING TIMER

H5CX (MODE A−1)

1

4

COOKING

BUZZER

SWITCH

M

G6

STEAM

SWITCH

AV−M1

AR−M1

PRESSURE

SWITCH

M1−BM1−A

STEAM TIMER H5CX

8

1 4

6 2

7

VL1

HIGH LIMIT

OVEN

VALVE

SPARKING

ELECTRODE

120/24V

DETECTION FLAME ROD

24V

VALVE VALVE

24V

GND

IGNITION

CONTROL

ELECT.

GAS VALVE

TH

TR

BURNER

OL1−95

ST

VA

7

P1

2

F2F1

RACK

SWITCH

1

2

3

N1

AV

L1 T1

L2 T2

L3 T3

M1

AR

L1 T1

L2 T2 L3 T3

R1−7

R1−4

DOOR

M1

A1

AV

M1

A1 A2

AR

LIQUID

LEVEL

8

R2

7

PROOFER

VALVE

L1 T1

L2 T2

7

R1

4

2

ELECTRONIC

TIMER 1

AR

A2

21 22

AV

21 22

R2

OL1

INFINIT

FAN

SWITCH

P L1

L2

3/4HP

MOTOR

BULB

5

3

T1

L3 T3

8

6

M2

43

T4

T5

VA

ST1

2 1

P1

H2

H1

1 4

8 5

1.5KW

HUMIDITY

13 14

43 44

M2

P.L.

1.5KW HEAT

32 31

120 / 208 15.0A 21.0A 20.0A

120 / 240 15.0A 18.5A 16.0A

M2

22 21

P.L.

100 VA

120−240V>

12−24V

H3

H2

H4

3 A.

RR

M2−44

0.125HP

CAOP6 GAS 1 PHASE 60 Hz

17/11/05 M. FAUCHER 4

TR

X1H1

X3

+

X2

X4

ROTATING RACK

(GEAR BOX)

D1

−

1 / 1

TOTAL POWER: 4.4 Kw 60 Hz

5

STANDARD

CAOP6G_1

L2L1N

L3

PROOFER

5 A.

HIGH

LIMIT

110°

SWITCH

20 A.

OVEN

SWITCH

FAN

COOLING

P.L.

C2

7

P1

2

(ALARM)

HIGH LIMIT

140°

BULB

BUZZER

LIQUID LEVEL

8

R2

7

PROOFER

VALVE

R2

95 96

5

3

OL1

COOKING TIMER

H5CX (MODE A−1)

8

7

6

2

BUZZER

THERMOSTAT

7 8

9 10

1

4

COOKING

SWITCH

BULB

FAN

M

G7

STEAM

SWITCH

INFINIT

SWITCH

P L1

L2

H1

H2

AV−M1

AR−M1

1 4

8 5

PRESSURE

SWITCH

M1−BM1−A

STEAM TIMER H5CX

8

1 4

P1

6

2

7

1.5KW

HUMIDITY

VL1

OVEN

VALVE

P.L.

HIGH

LIMIT

1.5KW HEAT

SPARKING

ELECTRODE

120/24V

P.L.

DETECTION FLAME ROD

24V

VALVE

24V

GND

IGNITION CONTROL

ELECT.

GAS VALVE

TH TR

BURNER

OL1−95

ST

VA

F3

F2F1

RACK

SWITCH

1

2

3

N1

M1

R1−7

R1−4

SWITCH

DOOR

M1

A1

AV

M1

A1 A2

AR

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

ELECTRONIC

TIMER 1

A2

21 22

OL1

L1 T1

L2 T2

L3 T3

7

8

R1

4

6

2

M2

T1

T2

T3

ST1

VA

3/4HP

MOTOR

TR

100 VA

120−240V>

12−24V

H3

H2

M2

13 14

M2

43 44

M2

32 31

M2

22 21

3 A.

RR

M2−44

H4

0.125HP

WARNING

FOR SUPPLY SYSTEMS CONSISTING OF A DELTA SECONDARY TRANSFORMER, MAKE SURE THAT THE PHASE FEEDER WITH THE HIGHEST VOLTAGE

X1H1

X3

+

X2

X4

ROTATING RACK

(GEAR BOX)

D1

−

(HIGH LEG) IS CONNECTED TO L3 IN THE SUPPLY BOX OF THIS OVEN (120 / 240V. 3 PH. SYSTEMS).

AR

AV

2 1

43

120 / 208 15.0A 17.0A 15.0A 6.0A

120 / 240 15.0A 17.0A 15.0A 6.0A

TOTAL POWER: 4.4 Kw 60 Hz

CAOP6 GAS 3 PHASES 60 Hz

17/11/05 M. FAUCHER 4

5

STANDARD

CAOP6G_3

1 / 1

G8

O

GAS

VALVE

TH TR

ST2

L1−95

ST1

VA1

(OVEN 1)

L2L1N

5 A.

SW 1.1

HIGH LIMIT 110°F

BULB

(OVEN 2)

5 A.

SW 2.1

BULB

PROOFER

5 A.

SWITCH

20 A.

7

P1

2

OL1

95 96

8

7

6

2

OL2

95 96

8

7

6

2

C2 C2

LIQUID LEVEL

8

R3

7

PROOFER

VALVE

COOKING TIMER

H5CX (MODE A−1)

1

4

BUZZER

COOKING TIMER

H5CX (MODE A−1)

1

4

BUZZER

5

R3

3

THERMOSTAT

7 8

9 10

M

COOKING

SWITCH

M

COOKING

SWITCH

BULB

THERMOSTAT

7 8

9 10

FAN

AV−M1

AR−M1

INFINIT

SWITCH

P L1 L2

M1−BM1−A

STEAM

SWITCH

M2−A

H1

H2

AV−M2

AR−M2

P1

1 4

8 5

4 1

STEAM TIMER

H5CX (MODE D)

8

6

7

2

M2−B

1.5KW

HUMIDITY

VL1

OVEN

VALVE

PRESSURE

SWITCH

1.5KW

P.L.

HEAT

PRESSURE

SWITCH

HIGH LIMIT

P.L.

HIGH LIMIT

SPARKING

ELECTRODE

120/24V

STEAM

SWITCH

ELECTRODE

120/24V

DETECTION FLAME ROD

24V

VALVE VALVE

24V

IGNITION

CONTROL

4 1

SPARKING

GND

BURNER

STEAM TIMER

H5CX (MODE D)

68

2

7

DETECTION FLAME ROD

24V

VALVE VALVE

24V

IGNITION

CONTROL

GAS

VALVE

TH TR

GND

VL2

OVEN

VALVE

BURNER

OL2−95

VA2

F2

F1

M1

M2

COOLING FAN

ALARM

R2−7

R2−4

RACK

SWITCH

1

2

3 N1

SWITCH

1

2

3

N2

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2 L3 T3

P.L.

A1

DOOR

A1

M1

AV

M1

AR

M2

AV

M2

AR

R1−5

140°F

7

4

2

A2

L1 T1

L2 T2

L1 T1

L2 T2

R1−6 HIGH LIMIT

8

R2

6

ELECTRONIC

TIMER 1

AR

21 22

ELECTRONIC

TIMER 2

21 22

AV

AR

AV

OL1

OL2

M3

L3 T3

7

5

6

43

T1

T4

T5

VA1

T1

T4

T5

VA2

R1−8

8

R1

2 1

SW 1.2

3

1

4

R1−1

2

SW 2.2

ST1

ST2

M1

3/4HP

MOTOR

T2

T3

M2

3/4HP

MOTOR

T3

OL1−95

OL2−95

T8

T8T2

13 14

43 44

M3

32 31

M3

22 21

120 / 208 14.0A 22.5A 21.0A

120 / 240 14.0A 22.5A 21.0A

TOTAL POWER: 5.4 Kw 60 Hz

TR

100 VA

120−240V>

12−24V

X1H1

H3

X3

X2

H2

X4

H4

3 A.

RR

GEAR BOX

M3−44

M3

ROTATING RACK

M3

1/8HP

D1

−

+

CAOP12 GAS 1 PHASE 60 Hz

17/11/05 M. FAUCHER 11

NONE

STEAM

CAP12G11

1 / 1

G9

VALVE

TH

OL2−95

ST2

OL1−95

ST1

GAS

TR

VA1

(OVEN 1)

L3

L2L1N

5 A.

SW 1.1

HIGH LIMIT 110°F

BULB

(OVEN 2)

5 A.

SW 2.1

BULB

PROOFER

5 A.

SWITCH

20 A.

7

P1

2

C2 C2

8

R3

7

PROOFER

7

2

7

2

LIQUID LEVEL

VALVE

OL1

95 96

8

6

OL2

95 96

8

6

R3

5

3

COOKING TIMER H5CX (MODE A−1)

1

4

BUZZER

COOKING TIMER

H5CX (MODE A−1)

1

4

BUZZER

THERMOSTAT

7 8

9 10

M

COOKING

SWITCH

M

COOKING

SWITCH

BULB

FAN

AV−M1

AR−M1

THERMOSTAT

7 8

9 10

INFINIT

SWITCH

P

H1

L1

H2

L2

M1−BM1−A

STEAM

SWITCH

M2−A

P1

1 4

8 5

4 1

AV−M2

AR−M2

HUMIDITY

1.5KW

STEAM TIMER

H5CX (MODE D)

8

6

7

2

M2−B

P.L.

VL1

OVEN

VALVE

PRESSURE

SWITCH

1.5KW HEAT

PRESSURE

SWITCH

HIGH

LIMIT

P.L.

HIGH LIMIT

SPARKING

ELECTRODE

120/24V

STEAM

SWITCH

ELECTRODE

120/24V

DETECTION FLAME ROD

24V

VALVE VALVE

24V

IGNITION

CONTROL

4 1

SPARKING

24V

GND

BURNER

STEAM TIMER

H5CX (MODE D)

68

2

7

DETECTION FLAME ROD

VALVE VALVE

GND

IGNITION

CONTROL

GAS

VALVE

TH TR

VL2

OVEN

VALVE

BURNER

OL2−95

VA2

F2

F1

F3

M1

M2

COOLING FAN

ALARM

R2−7

R2−4

RACK

SWITCH

1

2

3

N1

SWITCH

1

2

3

N2

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

P.L.

A1

DOOR

A1

M1

AV

M1

AR

M2

AV

M2

AR

R1−5

7 4

2

HIGH LIMIT 140°F

8

R2

6

ELECTRONIC

TIMER 1

A2

21 22

A2

21 22

ELECTRONIC

TIMER 2

21 22

A2

21 22

A2

R1−6

AR

OL1

L1 T1

L2 T2

L3 T3

VA1

OL2

L1 T1

L2 T2

L3 T3

VA2

R1−8

7

8

R1

5

6

M3

2 1

43

AV

2

AR

AV

1

43

SW 1.2

3

1

4

R1−1

2

SW 2.2

ST1

ST2

M1

3/4HP

MOTOR

M2

3/4HP

MOTOR

M3

32 31

M3

13 14

M3

43 44

M3

22 21

OL1−95

OL2−95

120 / 208 14.0A 19.5A 18.5A 6.0A

120 / 240 14.0A 19.5A 18.5A 6.0A

TOTAL POWER: 5.3 Kw 60 Hz

TR

100 VA

120−240V>

12−24V

3 A.

H3

H2

H4

RR

M3−44

X1H1

X3

X2

X4

GEAR BOX

ROTATING RACK

M3

1/8HP

D1

−

+

CAOP12 GAS 3 PHASES 60 Hz

17/11/05 M. FAUCHER 11

NONE

STEAM

1 / 1

CAP12G13

L2L1N

HIGH LIMIT

110°F

F2

F1

M2

COOLING FAN

M3

ELECTRONIC

TIMER 1

M1

A2

A1

AV

M1

A2

A1

AR

ELECTRONIC

TIMER 2

M2

A1

A2

AV

M2

A2

A1

AR

(OVEN 1)

5 A.

ALARM

5 A.

AV

L1 T1

L2 T2

L3 T3

M1

AR

L1 T1

L2 T2

L3 T3

AV

L1 T1

L2 T2

L3 T3

AR

L1 T1

L2 T2

L3 T3

7

R6

6

21 22

AR

AV

AR

AV

SW1.1

P.L.

SW2.3

SW2.1

R1−5

8 4

2

BULB

SW1.3

HIGH LIMIT 140°F

(OVEN 2)

BULB

L1 T1

L2 T2

L1 T1

L2 T2

43

R2−4

43

R4−4

OL1

OL2

2 1

R1−6

120/24V

L3 T3

7 5

6

R6−8

R6−4

R2

5 1

R4

5 1

OL1

95 96

120/24V

R1

DOOR

SWITCH

2

3

1

1 A

3

6

9

TEMPERATURE & TIMER

PROGRAMABLE CONTROL

OL2

95 96

8 3

1

4

2

DOOR

SWITCH

2

3

1

1 A

3

6

9

TEMPERATURE & TIMER

PROGRAMABLE CONTROL

T1

T4

T5

T1

T4

T5

SW 1.2

R1−8

R1−1

SW 2.2

ST1

R2−4

ST2

R4−4

MOTOR

T2

MOTOR

OL1−95

2

M1

3/4HP

M2

3/4HP

OL2−95

G10

AV−M1

AR−M1

SSR

3−32V DC

STEAM1

_

1

4

8

21

EVENT

T3

12

EVENT

T8

T8T2

RACK

SWITCH

3−32V DC

BUZZER 1

8

120 / 208 1.5A 9.0A 8.5A

120 / 240 1.5A 9.0A 8.5A

3

+

SSR

_

4

3

+

SSR

3−32V DC

STEAM1

2

T1

1

2

_

4 3

+

SSR 3−32V DC BUZZER 1

_

4

3

+

4 1

10

M2−A

1

2

1

2

T1

6

2

AV−M2

AR−M2

4 1

T1

10

OL1−95

R6−8

ST1

R2−4

OL2−95

R6−8 ST2

24V

IGNITION

CONTROL

24V

IGNITION

CONTROL

X1H1

X3

X2

X4

1/8HP

GEAR BOX

ROTATING RACK

DETECTION

FLAME ROD

VALVE VALVE

GND

DETECTION FLAME ROD

VALVE VALVE

GND

+

M3

BURNER

D1

−

GAS

VALVE

TH TR

GAS

VALVE

TH TR

R4−4

SPARKING

VL1

OVEN

VALVE

BUZZER BAKING

ALARM

M3

32 31

M3

22 21

HIGH LIMIT

3 A.

ELECTRODE

120/24V

SPARKING

ELECTRODE

120/24V

TR

100 VA

120−240V>

12−24V

H3

H2

H4

RR

M3−44

PRESSURE

SWITCH

M1−BM1−A

VL1

OVEN

VALVE

R2

8

7

R2

6 4

7 R3 8

2

BUZZER BAKING

ALARM

R3

6 4

PRESSURE

SWITCH

M2−B

R2

8

7

T1

R2

6 4

6

7 R3

R3

8

6 4

M3

13 14

M3

43 44

CA12 GAS 1 PHASE 60 Hz

13/07/04 M. FAUCHER 0

1 / 1

TOTAL POWER: 2.1 Kw 60 Hz

NONE

WATLOW

CA12G1W

LIMITED WARRANTY

(Continental United States Of America And Canada Only)

Doyon Equipment Inc. guarantees to the original purchaser only that its product are free of defects in material and workmanship, under normal use.

This warranty does not cover any light bulbs, thermostat calibration or defects due to or resulting from handling, abuse, misuse, nor shall it extend to any unit from which the serial number has been removed or altered, or modifications made by unauthorized service personnel or damage by flood, fire or other acts of God. Nor will this warranty apply as regards to the immersion element damaged by hard water.

The extent of the manufacturer’s obligation under this warranty shall be limited to the replacement or repair of defective parts within the warranty period. The decision of the acceptance of the warranty will be made by Doyon Equipment service department, which decision will be final.

The purchaser is responsible for having the equipment properly installed, operated under normal conditions with proper supervision and to perform periodic preventive maintenance.

If any parts are proven defective during the period of one year from date of purchase, Doyon Equipment Inc. hereby guarantees to replace, without charge, F.O.B. Linière, Quebec, Canada, such part or parts.

Doyon Equipment Inc will pay the reasonable labor charges in connection with the replacement parts occurring within one year from purchase date. Travel over 50 miles, holiday or overtime charges are not covered. After one year from purchase date, all labor and transportation charges in connection with replacement parts will be the purchaser’s responsibility.

Doyon Equipment Inc. does hereby exclude and shall not be liable to purchaser for any consequential or incidental damages including, but not limited to, damages to property, damages for loss of use, loss of time, loss of profits or income, resulting from any breach or warranty.

In no case, shall this warranty apply outside Canada and continental United States unless the purchaser has a written agreement from Doyon Equipment Inc.
