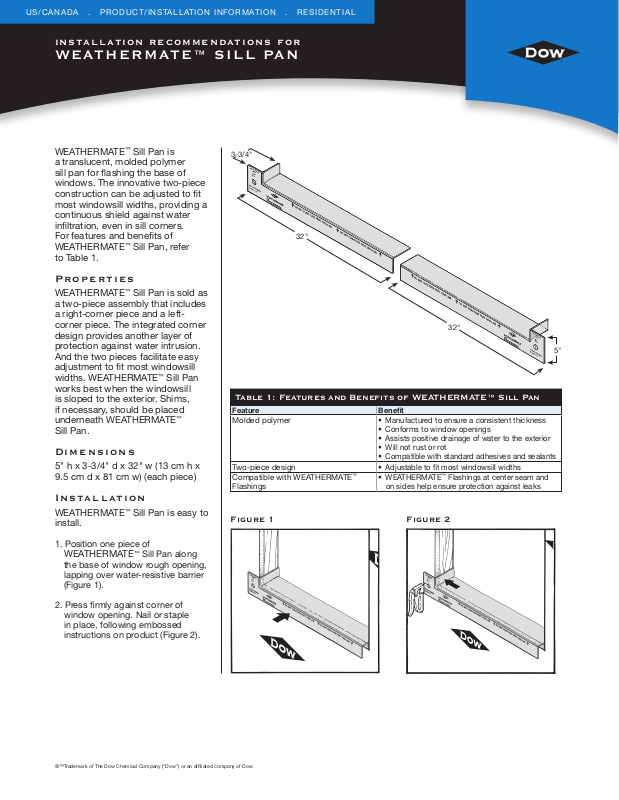

Dow SILL PAN User Manual

US/CANADA . PRODUCT/INSTALLATION INFORMATION . RESIDENTIAL

installation recommendations for

WEATHERMATE™ SILL PAN

WEATHERMATE™ Sill Pan is a translucent, molded polymer sill pan for ﬂ ashing the base of windows. The innovative two-piece construction can be adjusted to ﬁ t most windowsill widths, providing a continuous shield against water inﬁ ltration, even in sill corners. For features and beneﬁ ts of WEATHERMATE

™

Sill Pan, refer

to Table 1.

Properties

WEATHERMATE™ Sill Pan is sold as a two-piece assembly that includes a right-corner piece and a leftcorner piece. The integrated corner design provides another layer of protection against water intrusion. And the two pieces facilitate easy adjustment to ﬁ t most windowsill widths. WEATHERMATE

™

Sill Pan works best when the windowsill is sloped to the exterior. Shims, if necessary, should be placed underneath WEATHERMATE

™

Sill Pan.

Dimensions

5" h x 3-3/4" d x 32" w (13 cm h x

9.5 cm d x 81 cm w) (each piece)

Installation

WEATHERMATE™ Sill Pan is easy to install.

3-3/4"

32"

Table 1: Features and Beneﬁ ts of WEATHERMATE™ Sill Pan

Feature Beneﬁ t

Molded polymer

Two-piece design Compatible with WEATHERMATE™

Flashings

• Manufactured to ensure a consistent thickness

• Conforms to window openings

• Assists positive drainage of water to the exterior

• Will not rust or rot

• Compatible with standard adhesives and sealants

• Adjustable to ﬁ t most windowsill widths

• WEATHERMATE™ Flashings at center seam and

on sides help ensure protection against leaks

Figure 1 Figure 2

1. Position one piece of

WEATHERMATE

™

Sill Pan along the base of window rough opening, lapping over water-resistive barrier (Figure 1).

2. Press ﬁ rmly against corner of window opening. Nail or staple in place, following embossed instructions on product (Figure 2).

®™Trademark of The Dow Chemical Company (“Dow”) or an afﬁ liated company of Dow

3. Position second piece, overlapping ﬁ rst piece by a minimum of 2" (51 mm). Press second piece ﬁ rmly into corner of window opening. Nail or staple in place, following embossed instructions on product (Figure 3).

Figure 3

For window openings wider than 5' (1.5 m), install WEATHERMATE Pan in corners, then cut the corner off a third piece. Center this straight length over the two corner pieces, overlapping each side a minimum of 2" (51 mm).

™

Sill

4. Seal overlap seam and top edge of corner pieces with

WEATHERMATE (Figure 4).

Figure 4

5. Install and ﬂ ash window according to manufacturer instructions.

™

Flashing

6. Air seal windows around entire interior perimeter with GREAT STUFF PRO

™

Window & Door

Insulating Foam Sealant (Figure 5).*

Figure 5

GREAT STUFF PRO™ Window & Door Insulating Foam Sealant features a minimal-expanding, pliable formulation that won’t deform windows and doors, when applied properly.

*Consult the label and Material Safety Data Sheet carefully before use.
