PV8/PV15 LSH

Saniﬂ o™ Series METAL Pumps

Refine your process

EOM

Engineering Operation & Maintenance

TT4454/TT4267 EOM-PV8/PV15M LSH 10/04

Page 2

TABLE OF CONTENTS

SECTION 1 CAUTIONS—READ FIRST! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

SECTION 2 WILDEN PUMP DESIGNATION SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

SECTION 3 HOW IT WORKS—PUMP & AIR DISTRIBUTION SYSTEM . . . . . . . . . . . . . . . . 3

SECTION 4 DIMENSIONAL DRAWINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

SECTION 5 PERFORMANCE

A. PV8 Performance Curves

Rubber-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

TPE-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Teflon®-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Ultra-Flex™-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

PV15 Performance Curves

Rubber-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

TPE-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Teflon®-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Ultra-Flex™-Fitted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

B. Suction Lift Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

SECTION 6 SUGGESTED INSTALLATION, OPERATION & TROUBLESHOOTING . . . . . . . 13

SECTION 7 ASSEMBLY / DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

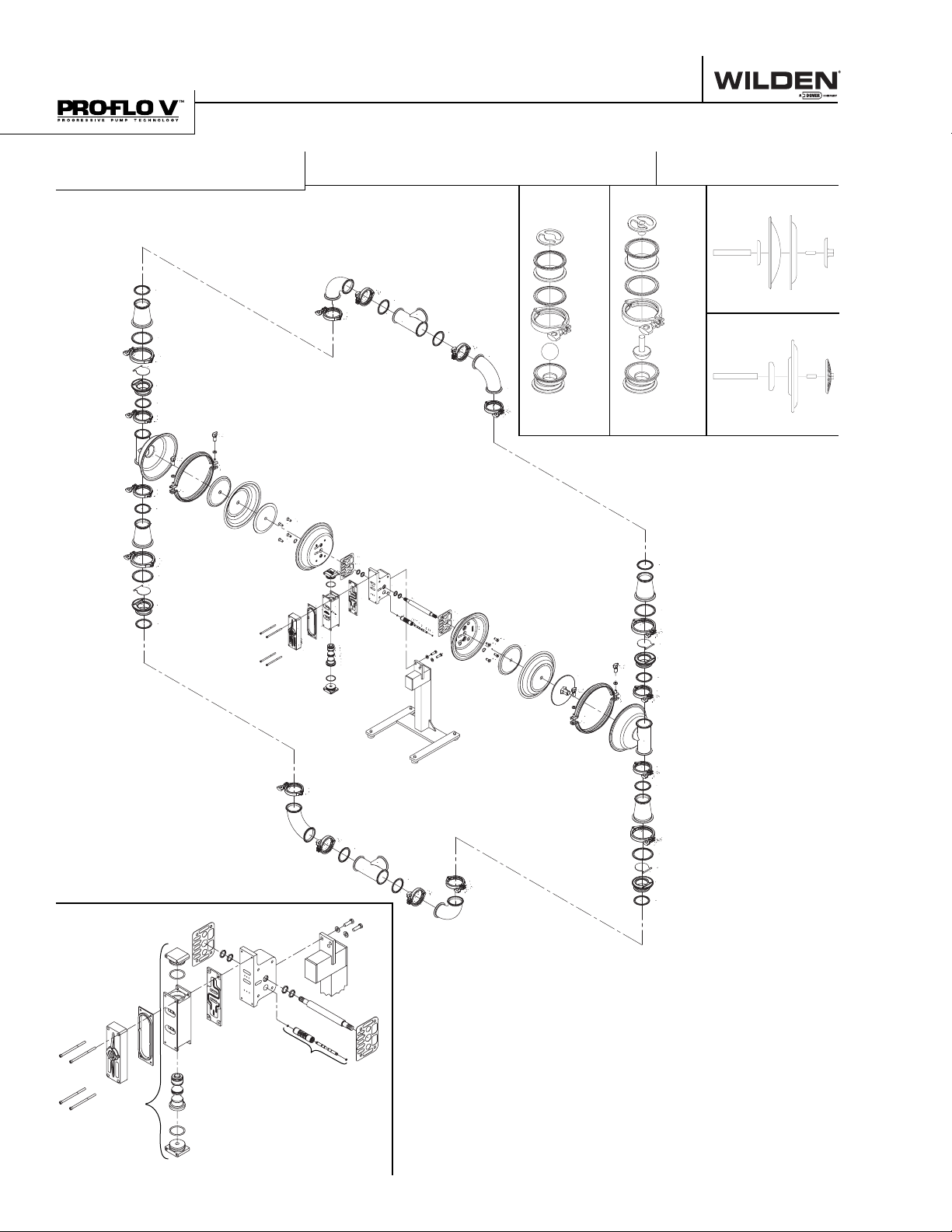

SECTION 8 EXPLODED VIEW & PARTS LISTING

PV8 Vertically Mounted Side Ported Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

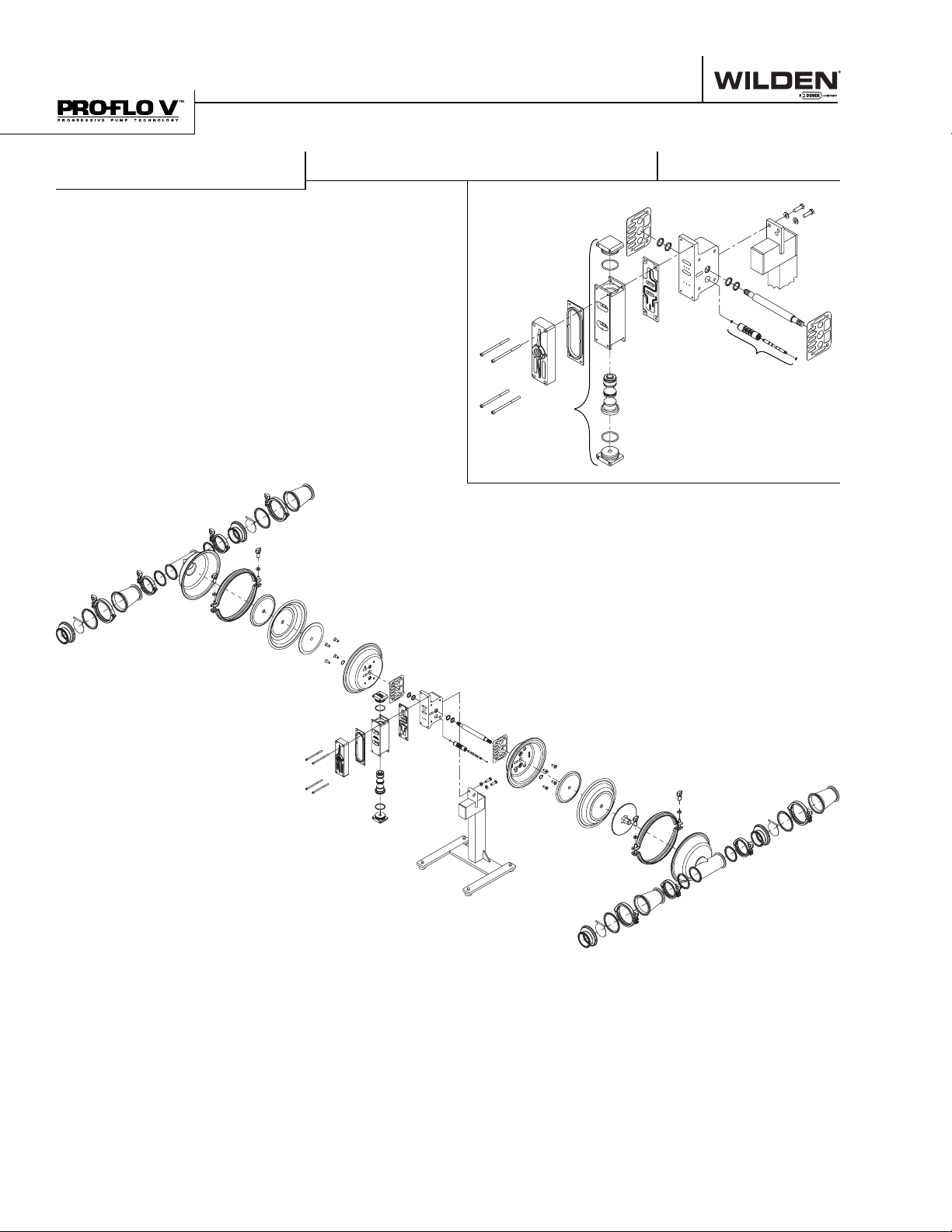

PV15 Horizontally Mounted No Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

PV15 Vertically Mounted Center Ported Manifolds . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

PV15 Vertically Mounted Side Ported Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

SECTION 9 ELASTOMER OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Page 3

Section 1

CAUTIONS—READ FIRST!

CAUTION: Do not apply compressed air to the

exhaust port — pump will not function.

CAUTION: Do not over-lubricate air supply —

excess lubrication will reduce pump performance. Pump is pre-lubed.

TEMPERATURE LIMITS:

Neoprene –17.7°C to 93.3°C 0°F to 200°F Buna-N –12.2°C to 82.2°C 10°F to 180°F Nordel Viton® –40°C to 176.7°C –40°F to 350°F Saniﬂ ex™ –28.9°C to 104.4°C –20°F to 220°F Polytetraﬂ uoroethylene (PTFE)

4.4°C to 104.4°C 40°F to 220°F Polyurethane –12.2°C to 65.6°C 10°F to 150°F Tetra - F l ex™ PTFE w/ N e oprene Backed

4.4°C to 107.2°C 40°F to 225°F Tetra - F l ex™ PTFE w/ N ordel® Backed

-10°C to 137°C 14°F to 280°F

NOTE: Not all materials are available for all models. Refer to Section 2 for material options for your pump.

CAUTION: When choosing pump materials, be

sure to check the temperature limits for all wetted components. Example: Viton® has a maximum limit of 176.7°C (350°F) but polypropylene has a maximum limit of only 79°C (175°F).

CAUTION: Maximum temperature limits are

based upon mechanical stress only. Certain chemicals will signiﬁ cantly reduce maximum safe operating temperatures. Consult Chemical Resistance Guide (E4) for chemical compatibility and temperature limits.

WARNING : Prevention of static sparking — If

static sparking occurs, ﬁ re or explosion could result. Pump, valves, and containers must be grounded to a proper grounding point when handling ﬂ ammable ﬂ uids and whenever discharge of static electricity is a hazard.

CAUTION: Do not exceed 8.6 bar (125 psig) air

supply pressure.

CAUTION: The process ﬂ uid and cleaning ﬂ uids

must be chemically compatible with all wetted pump components. Consult Chemical Resistance Guide (E4).

–51.1°C to 137.8°C –60°F to 280°F

CAUTION: Do not exceed 82°C (180°F) air inlet

temperature for Pro-Flo V™ models.

CAUTION: Pumps should be thoroughly ﬂ ushed

before installing into process lines. FDA and USDA approved pumps should be cleaned and/ or sanitized before being used.

CAUTION: Always wear safety glasses when

operating pump. If diaphragm rupture occurs, material being pumped may be forced out air exhaust.

CAUTION: Before any maintenance or repair is

attempted, the compressed air line to the pump should be disconnected and all air pressure allowed to bleed from pump. Disconnect all intake, discharge and air lines. Drain the pump by turning it upside down and allowing any ﬂ uid to ﬂ ow into a suitable container.

CAUTION: Blow out air line for 10 to 20 seconds

before attaching to pump to make sure all pipeline debris is clear. Use an in-line air ﬁ lter. A 5µ (micron) air ﬁ lter is recommended.

NOTE: When installing Teﬂ on® diaphragms, it is

important to tighten outer pistons simultaneously (t urning in opposite dir ections) to e nsure tight ﬁ t. (See torque speciﬁ cations in Section 7.)

NOTE: Cast Iron Teﬂ on®-ﬁ tted pumps come

standard from the factory with expanded Teﬂ on gaskets installed in the diaphragm bead of the liquid chamber. Teﬂ on® gaskets cannot be reused. Consult PS-TG for installation instructions during reassembly.

NOTE: Before starting disassembly, mark a line

fro m each liquid cha mber t o its c orrespo ndin g air chamber. This line will assist in proper alignment during reassembly.

CAUTION: Pro-Flo® pumps cannot be used in

submersible applications. Pro-Flo V™ is available in both submersible and non-submersible options. Do not use non-submersible Pro-Flo V™ models in submersible applications. Turbo-Flo® pumps can also be used in submersible applications.

CAUTION: Tighten all hardware prior to installation.

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 1 WILDEN PUMP & ENGINEERING, LLC

Page 4

Section 2

WILDEN PUMP DESIGNATION SYSTEM

PV8/PV15 METAL SANIFLO LSH

51 mm & 76 mm (2" & 3") Pump Maximum Flow Rate: 931 LPM (246 GPM)

LEGEND

MATERIAL CODES

MODEL

PV8 = 51 mm (2") PV15 = 76 mm (3")

WETTED PARTS

S = 316L STAINLESS STEEL

AIR CHAMBERS

N = NICKEL PLATED ALUMINUM

CENTER BLOCK

N = NICKEL PLATED ALUMINUM

AIR VALVE

N = NICKEL PLATED ALUMINUM

PVXX / XXXX / XX / XX / XX / XXX

MODEL

FLANGE

CHECK VALVES DIAPHRAGMS AIR VALVE CENTER BLOCK AIR CHAMBERS WETTED PARTS

DIAPHRAGMS

FB = FDA BUNA-N (2 Red Dots) FE = FDA NORDEL® (2 Blue Dots) FG = SANIFLEX™ [Hytrel® (Cream)] FW = FDA WIL-FLEX™ [Santoprene® (Off-white Dot)] TF = TEFLON® PTFE (White) UB = ULTRA-FLEX™

BUNA-N (Red Dot)

UE = ULTRA-FLEX™

NORDEL® (Blue Dot)

CHECK VALVES

FB = FDA BUNA-N BALL FE = FDA NORDEL® BALL FG = SANIFLEX™ BALL FV = FDA VITON® BALL FW = FDA WIL-FLEX™ (Santoprene®) BALL TF = TEFLON® PTFE BALL TM = TEFLON® PTFE MUSHROOM SF = 316L STAINLESS STEEL FLAP

(W15 LSH ONLY)

2F = 316L STAINLESS STEEL 2"

FLAP (W8 LSH ONLY)

GASKETS

SPECIALTY CODE

(IF APPLICABLE)

FLANGE GASKETS

FB = FOOD-GRADE BUNA-N FE = FOOD-GRADE NORDEL TF = TEFLON® PTFE

SPECIALTY CODES

083 Saniflo™ LSH, no manifolds (W15 LSH ONLY) 084 Saniflo™ LSH, center ported (W15 LSH ONLY) 087 Saniflo™ LSH, Side Ported

NOTE: MOST ELASTOMERIC MATERIALS USE COLORED DOTS FOR IDENTIFICATION.

Nordel® and Viton® are registered trademarks of DuPont Dow Elastomers. Tef lon® is a registered trademark of DuPont.

Halar

is a registered trademark of Solvay. Hytrel® is a registered trademark of DuPont Dow Elastomers. Santoprene® is a registered trademark of Monsanto Company, licensed to Advanced Elastomer Systems, L.P.

WILDEN PUMP & ENGINEERING, LLC 2 TT44 54 EOM-PV8 /PV15M 8/04 TT4411 6/ 04

Page 5

Section 3 How It Works—Pump & Air

Section 3

HOW IT WORKS—PUMP

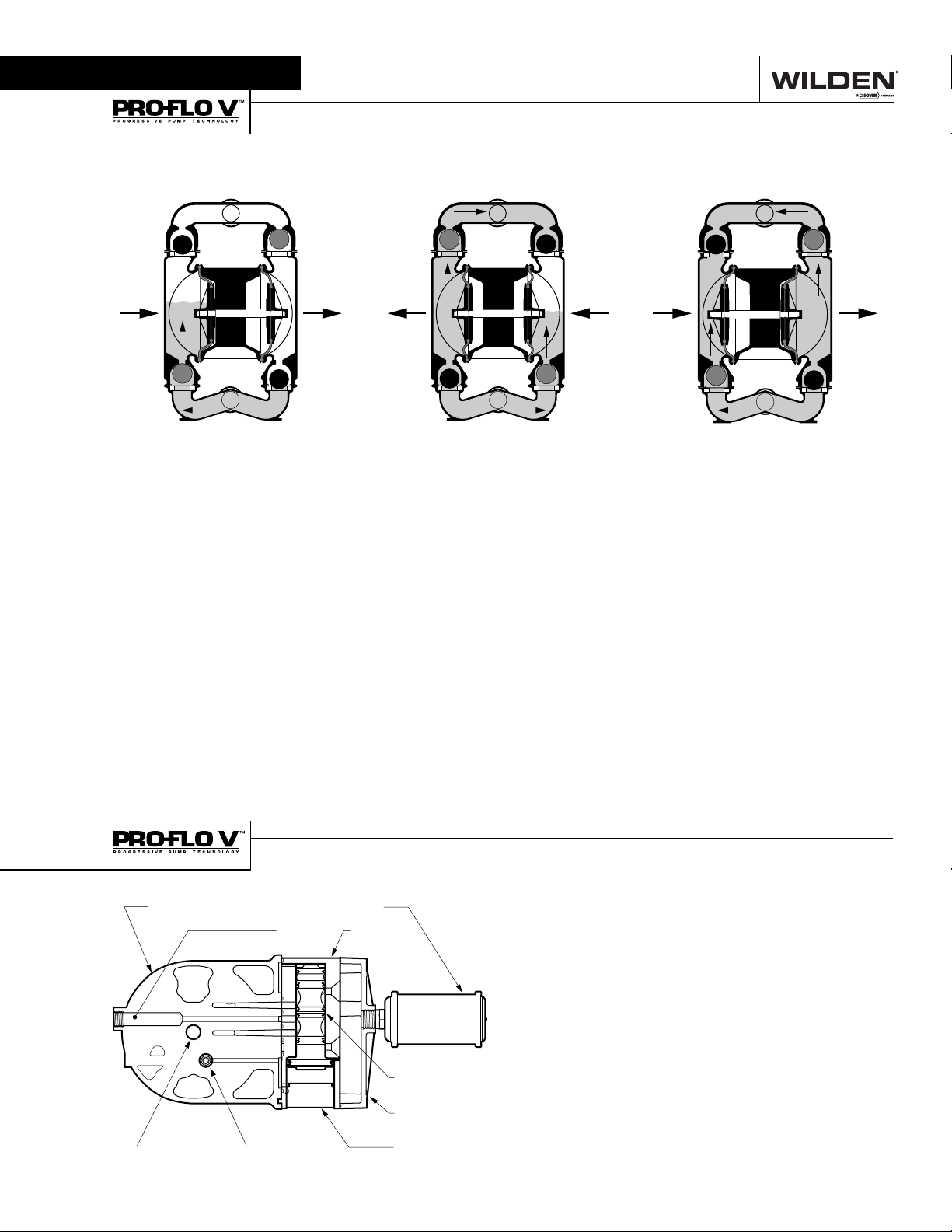

The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show ﬂ ow pattern through the pump upon its initial stroke. It is assumed the pump has no ﬂ uid in it prior to its initial stroke.

#,/3%$

/54,%4

/0%.

FIGURE 1 The air valve dir ects pre ssurized air to the back side of diaphragm A. The compressed air is applied directly to the liquid column separated by elastomeric diaphragms. The diaphragm acts as a separation membrane between the compressed air and liquid, balancing the load and removing mechanical stress from the diaphragm. The compressed air moves the diaphragm away from the center of the pump. The opposite diaphragm is pulled in by the shaft connected to the pressurized diaphragm. Diaphragm B is on its suction stroke; air behind the diaphragm has been forced out to atmosphere through the exhaust port of the pump. The movement of diaphragm B toward the center of the pump creates a vacuum within chamber B. Atmospheric pressure forces ﬂ uid into the inlet manifold forcing the inlet valve ball off its seat. Liquid is free to move past the inlet valve ball and ﬁ ll the liquid chamber (see shaded area).

).,%4

#,/3%$

FIGURE 2 When the pressurized diaphragm, diaphr agm A, re ache s the limit of i ts dis charge stroke, the air valve redirects pressurized air to the back side of diaphragm B. The pressurized air forces diaphragm B away from the center while pulling diaphragm A to the center. Diaphragm B is now on its discharge stroke. Diaphragm B forces the inlet valve ball onto its seat due to the hydraulic forces developed in the liquid chamber and manifold of the pump. These same hydraulic forces lift the discharge valve ball off its seat, while the opposite discharge valve ball is forced onto its seat, forcing ﬂ uid to ﬂ ow through the pump discharge. The movement of diaphragm A toward the center of the pump creates a vacuum within liquid chamber A. Atmospheric pressure forces ﬂ uid into the inlet manifold of the pump. The inlet valve ball is f or ce d of f its s ea t a llowi ng the ﬂ uid being pumped to ﬁ ll the liquid chamber.

/0%.

/54,%4

#,/3%$

).,%4

/0%.

#,/3%$ /0%.

/0%.

FIGURE 3 At completion of the stroke, the air valve again redirects air to the back side of diaphragm A, which starts diaphragm B on its exhaust stroke. As the pump reaches its original starting point, each diaphragm has gone through one exhaust and one discharge stroke. This constitutes one complete pumping cycle. The pump may take several cycles to completely prime depending on the conditions of the application.

/54,%4

).,%4

#,/3%$

HOW IT WORKS—AIR DISTRIBUTION SYSTEM

-5&&,%2#%.4%23%#4)/.

!)2).,%4 !)26!,6%

!)26!,6%30//,

-5&&,%20,!4%

-!).3(!&4

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 3 WILDEN PUMP & ENGINEERING, LLC

0),/430//,

%.$#!0

The Pro -Flo V moving parts : the air valve spool and the pilot spool. The hear t of the system is the air valve. This valve design incorporates an unbalanced spool. The smaller end of the spool is pressurized continuously, while the large end is alternately pressurized, then exhausted, to move the spool. The air valve spool directs pressurized air to one air chamber while exhausting the other. The air causes the main shaf t/diaphragm assembly to shift to one side — discharging liquid on that side and pulling liquid in on the other side. When the shaft reaches the end of its stroke, the inner piston actuates the pilot spool, which pressurizes and exhausts the large end of the air valve spool. The repositioning of the air valve spool routes the air to the other air chamber.

™

p at e n te d ai r di s tr ib u ti o n s y s te m in c o rp o ra t e s t w o

Page 6

Section 4

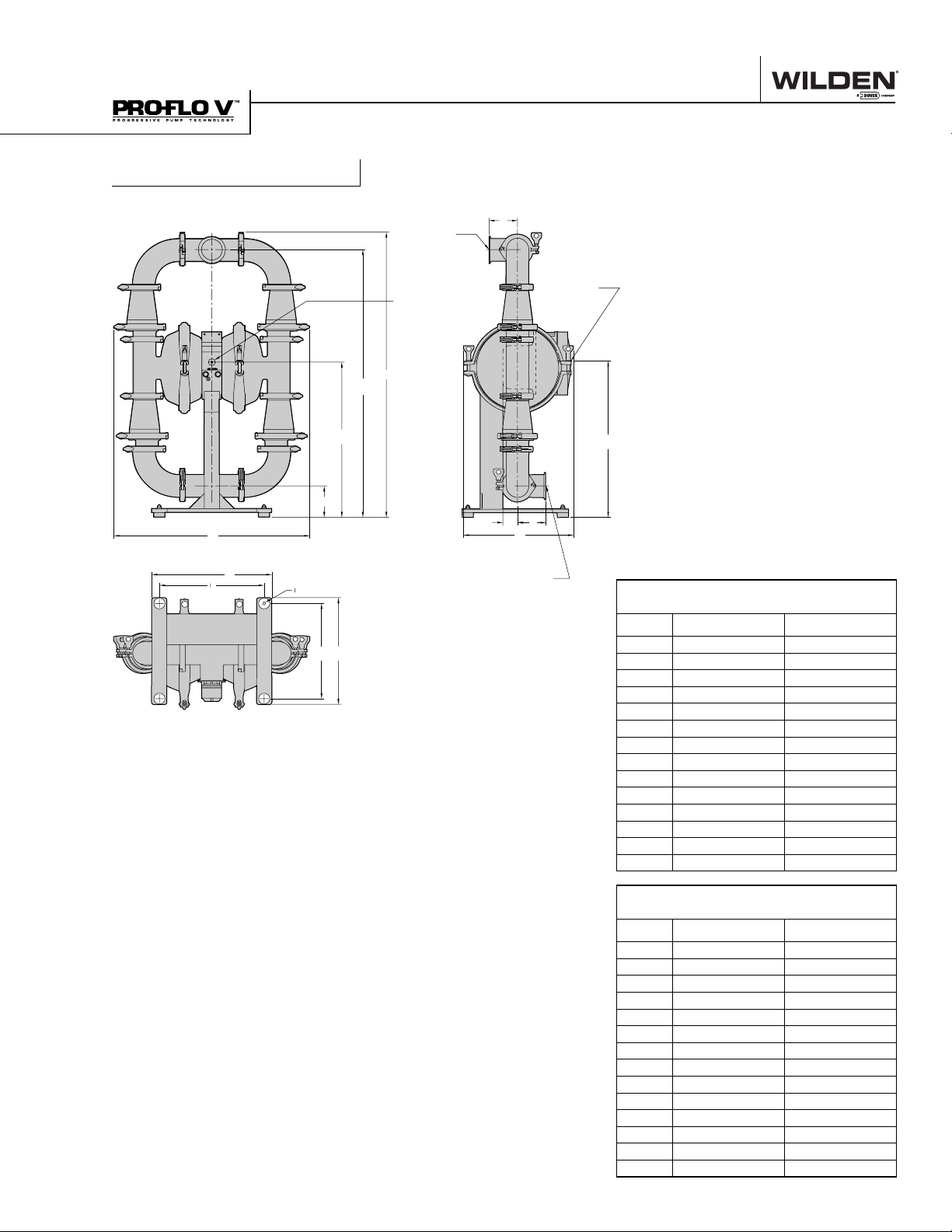

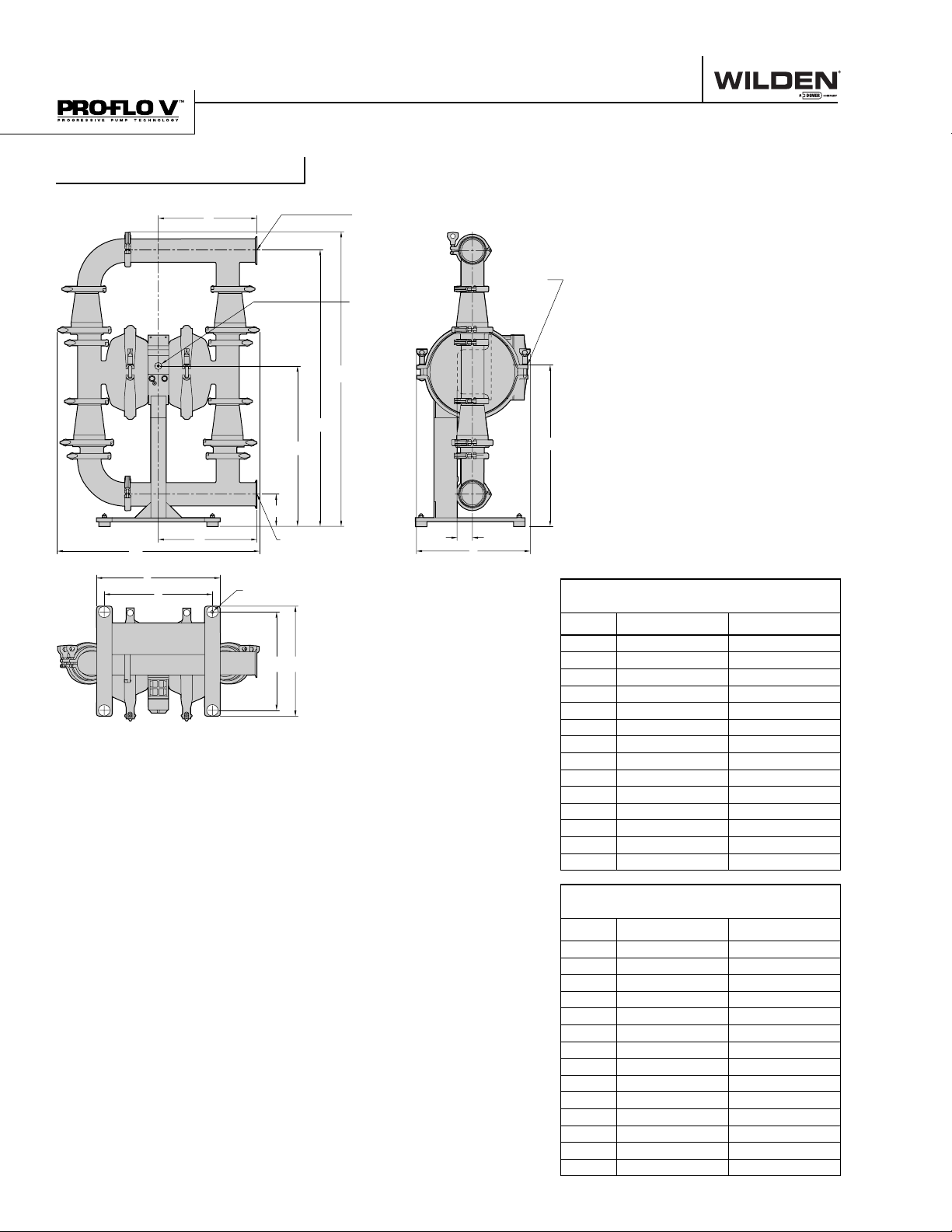

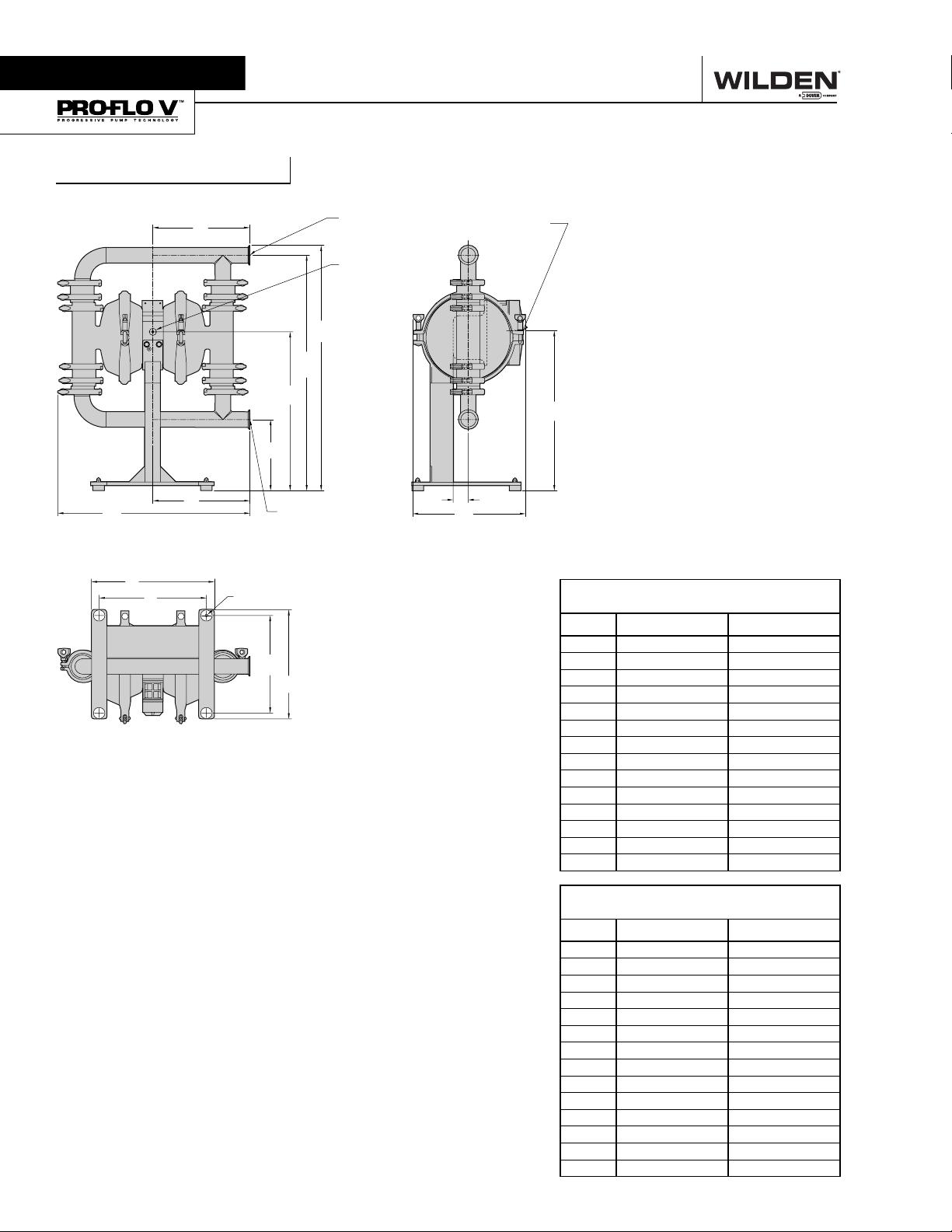

DIMENSIONAL DRAWINGS

PV8 Saniflo™ LSH

MM

42)#,!-0

MM

42)#,!-0$)3#(!2'%

MM &.04!)2).,%4

).,%4

MM &.04!)2 %8(!534

(

DIMENSIONS

PV8 Saniﬂ o™ LSH Vertically Mounted - Side Ported With Ball/Mushroom Valve (Shown)

ITEM METRIC (mm) STANDARD (inch)

A 625 24.6 B 318 12.5 C 231 9.1 D 518 20.4 E 767 30.2

F 800 31.5 G 368 14.5 H 520 20.5 J401 15.8 K 351 13.8

L 318 12.5

M 356 14.0 N ⭋10 ⭋0.4

P 48 1.9

PV8 Saniﬂ o™ LSH Vertically Mounted Side Ported With Flap Valve

ITEM METRIC (mm) STANDARD (inch)

A 625 24.6 B 318 12.5 C 201 7.9 D 518 20.4 E 800 31.5

F 831 32.7 G 368 14.5 H 520 20.5 J401 15.8 K 351 13.8

L 318 12.5

M 356 14.0 N ⭋10 ⭋0.4

P 48 1.9

WILDEN PUMP & ENGINEERING, LLC 4 TT4276 EOM-P8/PV8M 5/04 TT4267 5/04

Page 7

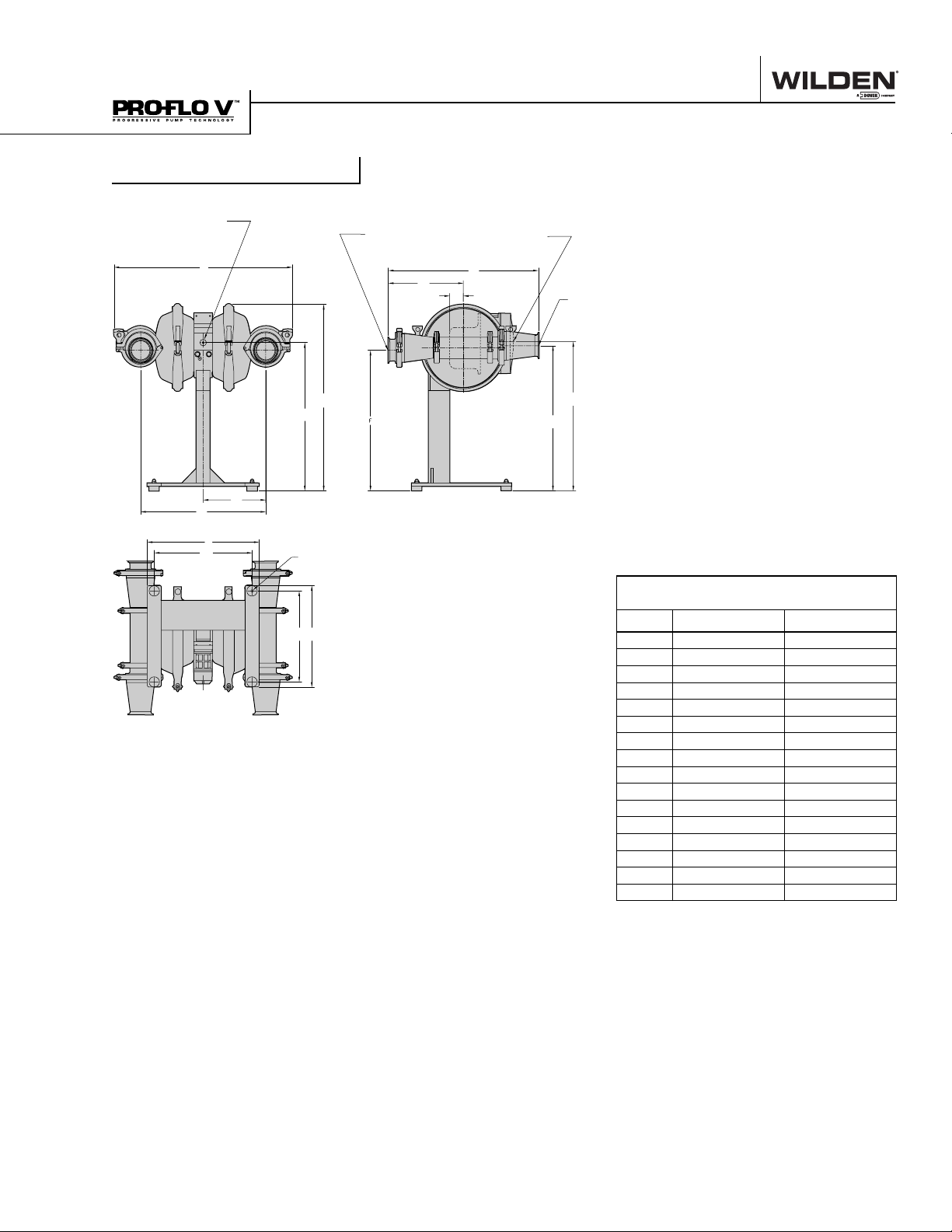

DIMENSIONAL DRAWINGS

PV15 Saniflo™ LSH

MM

42)#,!-0 $)3#(!2'%

MM &.04!)2).,%4

MM &.04!)2 %8(!534

(

MM

42)#,!-0 ).,%4

DIMENSIONS

PV15 Saniﬂ o™ LSH Vertically Mounted - Center Ported With Ball/Mushroom Valve

ITEM METRIC (mm) STANDARD (inch)

A 610 24.0 B 198 7.8 C 518 20.4 D 803 31.6 E 861 33.9

F 97 3.8 G 520 20.5 H 368 14.5 J401 15.8 K 351 13.8

L 318 12.5

M 356 14.0 N ⭋10 ⭋0.4

P 48 1.9

PV15 Saniﬂ o™ LSH Vertically Mounted Center Ported With Flap Valve (Shown)

ITEM METRIC (mm) STANDARD (inch)

A 640 25.2 B 102 4.0 C 518 20.4 D 894 35.2 E 940 37.0

F 97 3.8 G 520 20.5 H 368 14.5 J401 15.8 K 351 13.8

L 318 12.5

M 356 14.0 N ⭋10 ⭋0.4

P 48 1.9

TT4276 EOM-P8/PV8M 5/04 TT4267 5/04 5 WILDEN PUMP & ENGINEERING, LLC

Page 8

DIMENSIONAL DRAWINGS

PV15 Saniflo™ LSH

76 mm (3") TRI-CLAMP DISCHARGE

19 mm (3/4") FNPT AIR INLET

25 mm (1") FNPT AIR EXHAUST

DIMENSIONS

PV15 Saniﬂ o™ LSH Vertically Mounted - Side Ported With Ball/mushroom Valve

ITEM METRIC (mm) STANDARD (inch)

A 638 25.1 B 325 12.8 C 196 7.7 D 518 20.4

E 805 31.7

F 864 34.0 G 368 14.5 H 520 20.5

J401 15.8 K 351 13.8

L 318 12.5

M 356 14.0

N ⭋10 ⭋0.4 P 48 1.9

76 mm (3") TRI-CLAMP INLET

PV15 Saniﬂ o™ LSH Vertically Mounted Side Ported With Flap Valve (Shown)

ITEM METRIC (mm) STANDARD (inch)

A 640 25.2 B 325 12.8 C 102 4.0 D 518 20.4

E 892 35.1

F 953 37.5 G 368 14.5 H 520 20.5

J401 15.8 K 351 13.8

L 318 12.5

M 356 14.0

N ⭋10 ⭋0.4 P 48 1.9

WILDEN PUMP & ENGINEERING, LLC 6 TT4276 EOM-P8/PV8M 5/04 TT4267 5/04

Page 9

DIMENSIONAL DRAWINGS

PV15 Saniflo™ LSH

MM

&.04!)2).,%4

(

MM

&.04!)2 %8(!534

MM

42)#,!-0 $)3#(!2'%

DIMENSIONS

PV15 Saniﬂ o™ LSH Horizontal Mounted With Flap Valve

ITEM METRIC (mm) STANDARD (inch)

A 452 17.8 B 226 8.9 C 518 20.4 D650 25.6 E 632 24.9

F 493 19.4 G 267 10.5 H 536 21.1 J 508 20.0 K 521 20.5

L401 15.8

M 351 13.8 N 318 12.5

P 356 14.0 R ⭋10 ⭋0.4 S 48 1.9

MM

42)#,!-0).,%4

TT4276 EOM-P8/PV8M 5/04 TT4267 5/04 7 WILDEN PUMP & ENGINEERING, LLC

Page 10

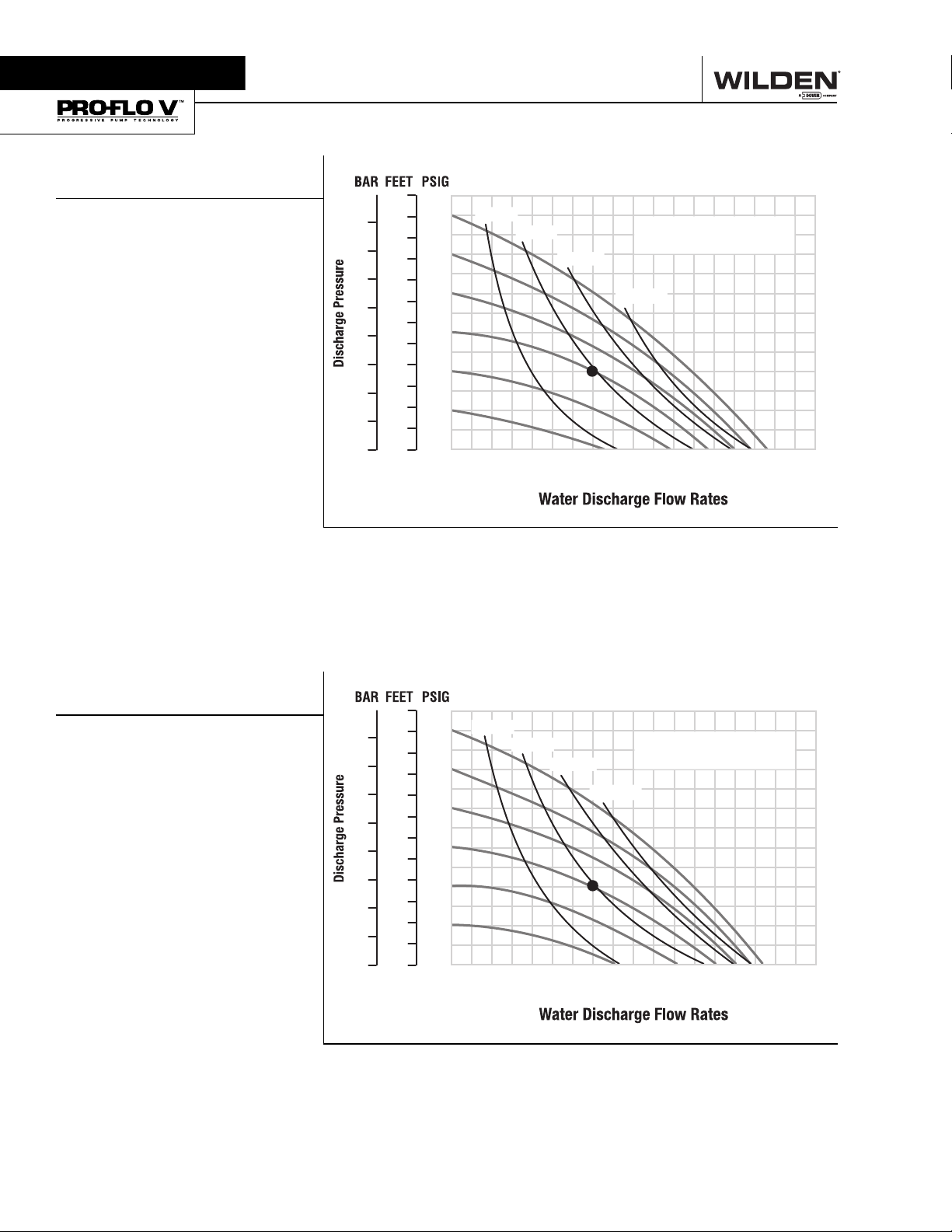

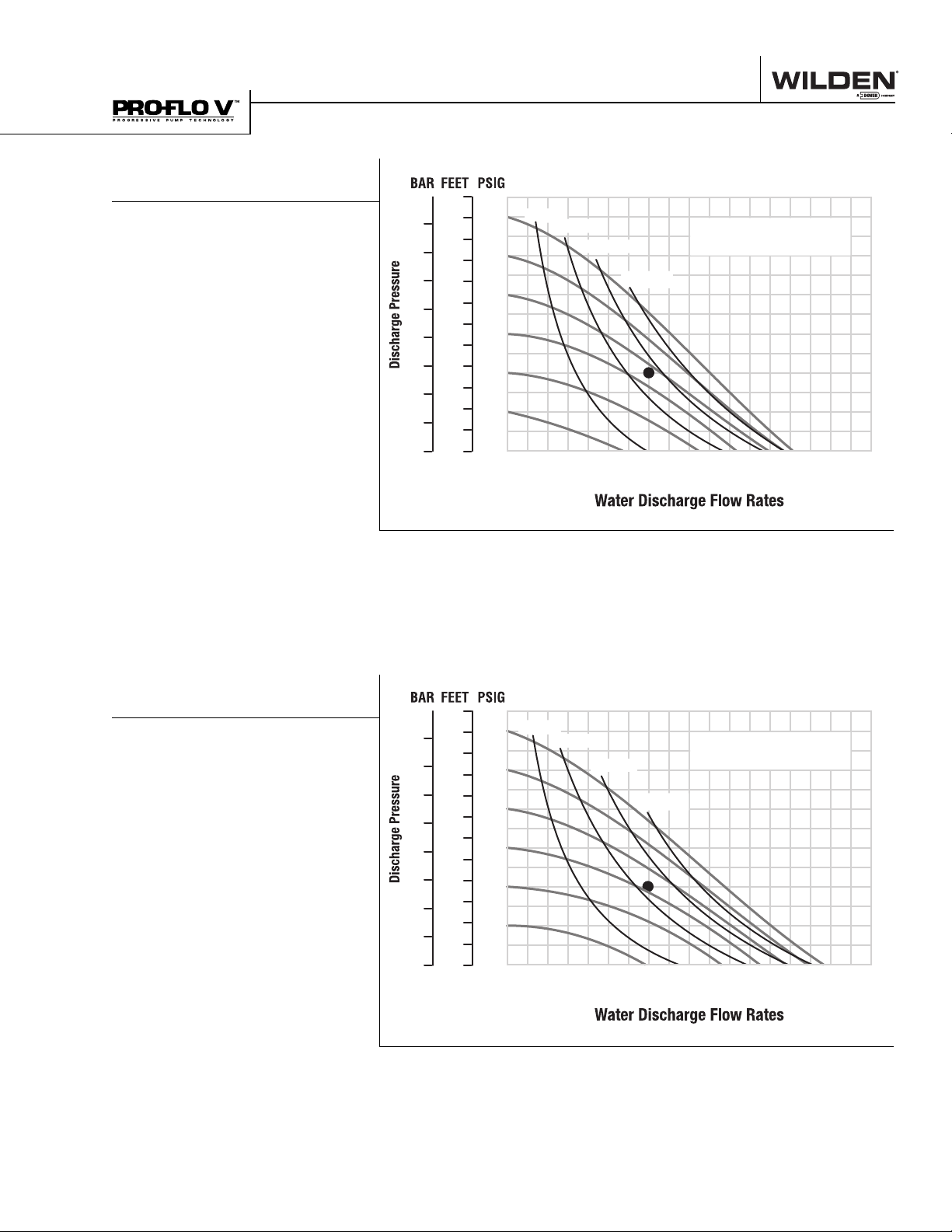

Section 5A

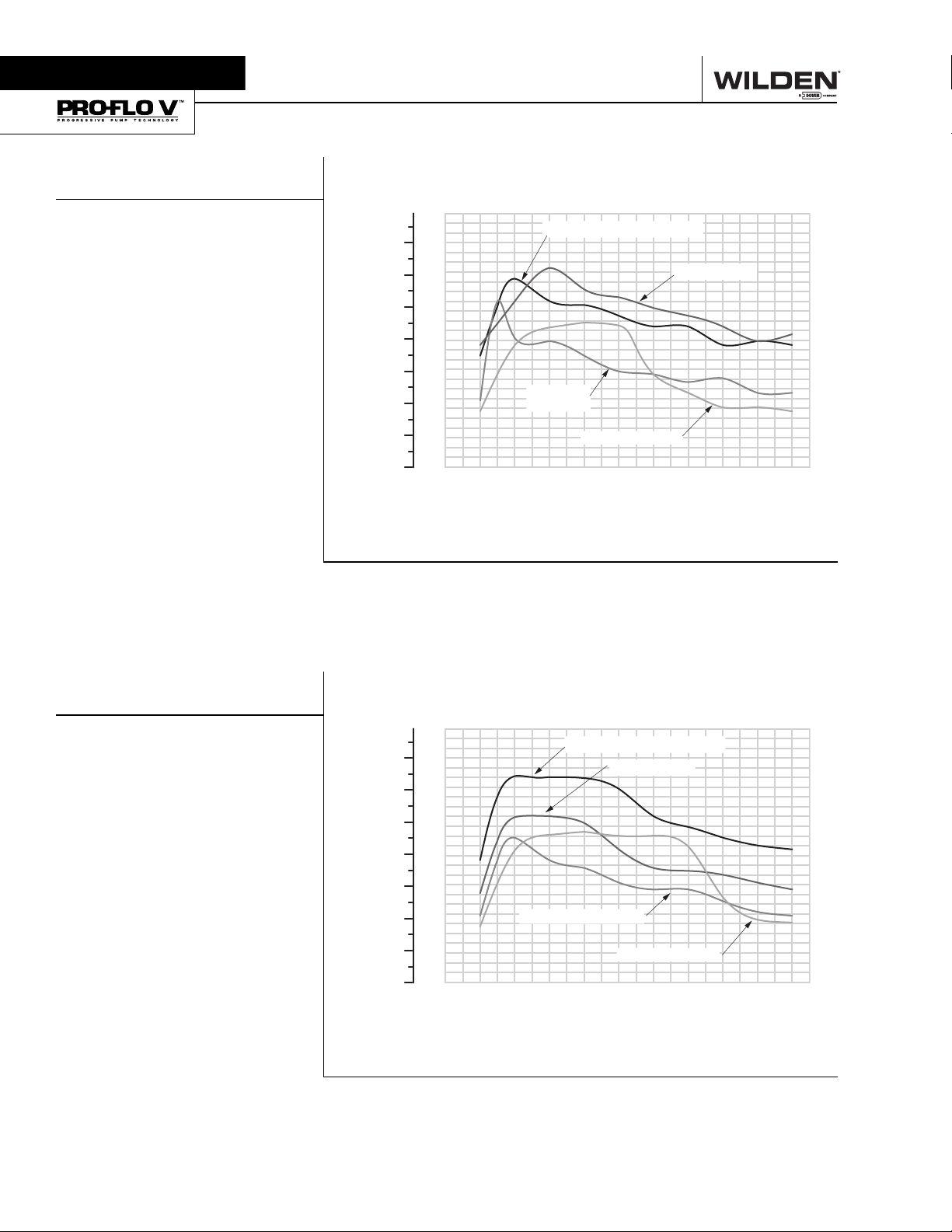

PV8 Performance Curves

PV8 SANIFLO™ LSH

RUBBER-FITTED

Height ..................................800 mm (31.5")

Width .................................. 625 mm (24.6")

Depth .................................. 368 mm (14.5")

Est. Ship Weight ................. 67 Kg (147 lbs.)

Air Inlet ....................................19 mm (3/4")

Inlet ......................................... 51 mm (2.0")

Outlet ...................................... 51 mm (2.0")

Suction Lift ....................... 5.9 m Dry (19.3')

9.3 m Wet (30.6')

Displacement/Stroke ..........2.88 L (.76 gal.)

Max. Flow Rate ............ 592 lpm (157 gpm)

Max. Size Solids (compressible)

Mushroom Valve .......... 7.9 mm (0.3")

Ball Valve ................... 12.7 mm (0.5")

Flap Valve ...................... 51 mm (2.0")

Displacement per stroke was calculated at

4.8 bar (70 psig) air inlet pressure against a 2 bar (30 psig) head pressure.

Example: To pump 265 lpm (70 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 4.1 bar (60 psig) and 83 Nm3/h (49 scfm) air consumption.

Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

PERFORMANCE

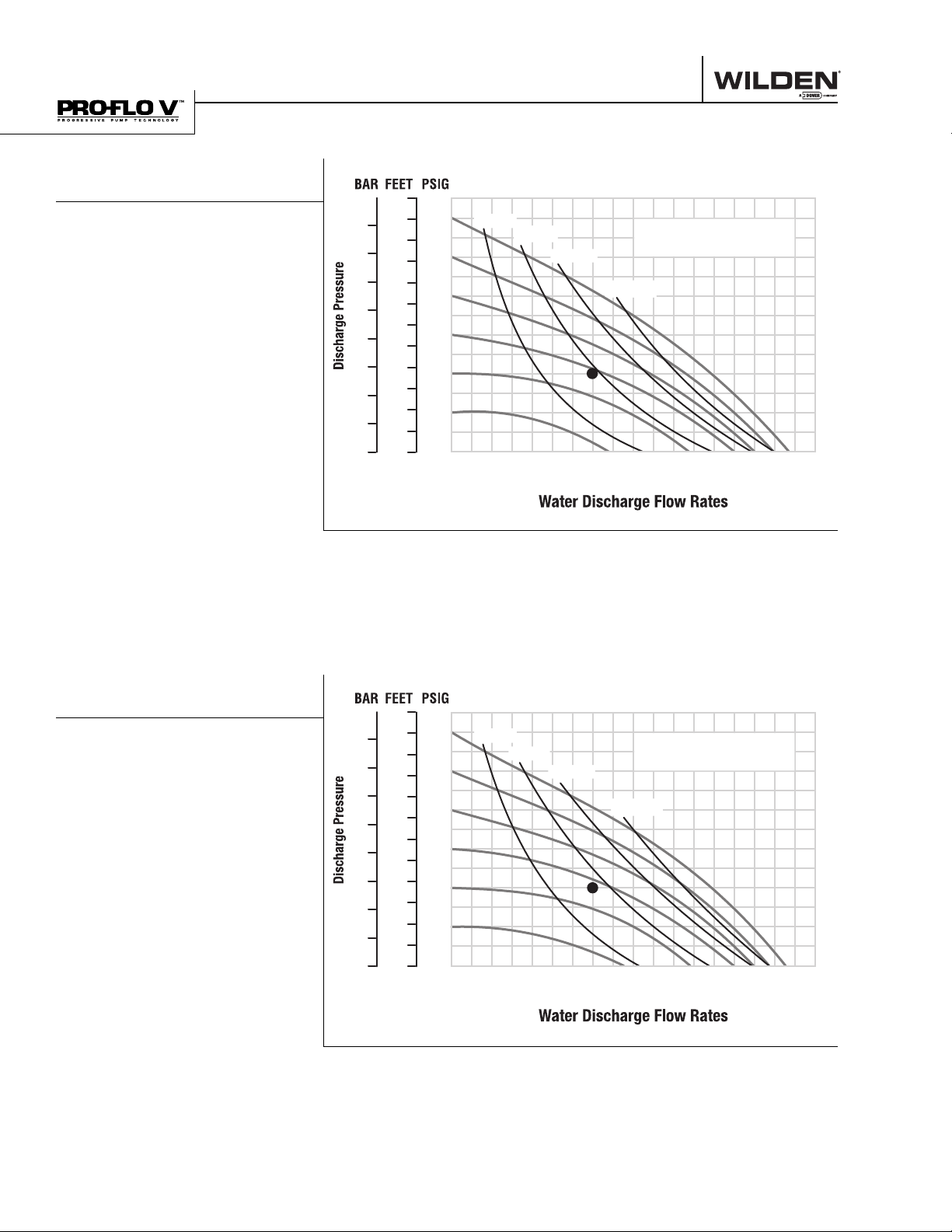

Flow rates indicated on chart were determined by pumping water with a vertically mounted, side ported ball check conﬁ guration. When alternate check valve options are used, multiply ﬂ ow rate by appropriate factor. Mushroom check valve = 93%, ﬂ ap check valve = 143%. For optimum life and performance, pumps should be speciﬁ ed so that daily operation parameters will fall in the center of the pump performance curve.

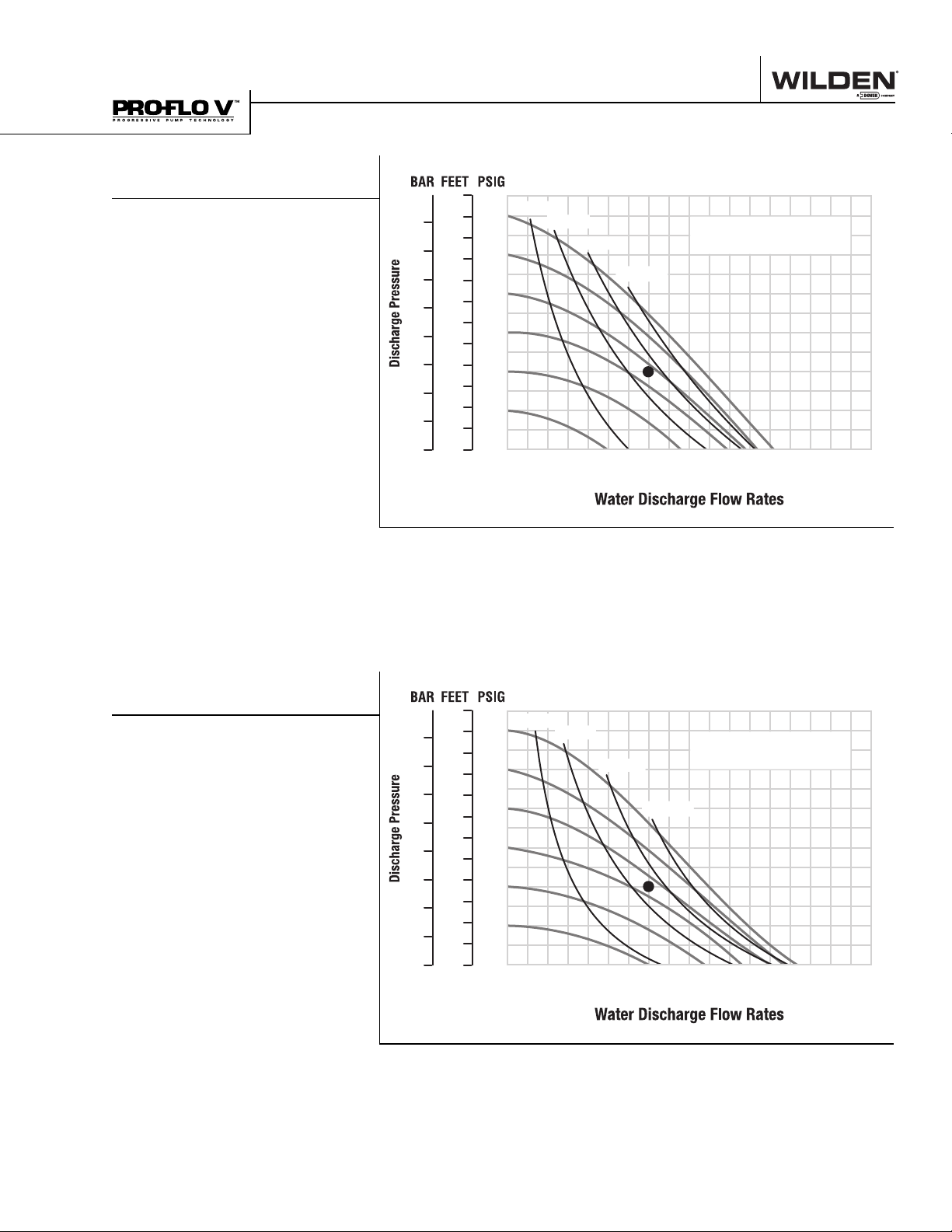

300 275 250 225 200 175 150 125 100

(25) [42]

120

100

(50) [85]

(75) [127]

AIR CONSUMPTION

(SCFM) [Nm

(100) [170]

/h]

75 50

20 40 60 80 100 120 140 160 180

GPM

[76] [151] [227] [303] [379] [454] [530] [606] [681]

[LPM]

PV8 SANIFLO™ LSH

TPE-FITTED

Height ..................................800 mm (31.5")

Width .................................. 625 mm (24.6")

Depth .................................. 368 mm (14.5")

Est. Ship Weight ................. 67 Kg (147 lbs.)

Air Inlet ....................................19 mm (3/4")

Inlet ......................................... 51 mm (2.0")

Outlet ...................................... 51 mm (2.0")

Suction Lift ....................... 6.2 m Dry (20.4')

9.3 m Wet (30.6')

Displacement/Stroke ......... 2.99 L (.79 gal.)

Max. Flow Rate ............ 582 lpm (154 gpm)

Max. Size Solids (compressible)

Mushroom Valve .......... 7.9 mm (0.3")

Ball Valve ................... 12.7 mm (0.5")

Flap Valve ...................... 51 mm (2.0")

Displacement per stroke was calculated at

4.8 bar (70 psig) air inlet pressure against a 2 bar (30 psig) head pressure.

Example: To pump 265 lpm (70 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 4.2 bar (61 psig) and 83 Nm3/h (49 scfm) air consumption.

Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

300

(25) [42]

120

275

250

225 200 175 150 125 100

100

75 50

20 40 60 80 100 120 140 160 180

GPM

[76] [151] [227] [303] [379] [454] [530] [606] [681]

[LPM]

(50) [85]

(75) [127]

(100) [170]

AIR CONSUMPTION

(SCFM) [Nm

/h]

WILDEN PUMP & ENGINEERING, LLC 8 TT4276 EOM-P8/PV8M 5/04 TT4267 5/04

Page 11

PERFORMANCE

PV8 SANIFLO™ LSH

TEFLON

Height ..................................800 mm (31.5")

Width .................................. 625 mm (24.6")

Depth .................................. 368 mm (14.5")

Est. Ship Weight ................. 67 Kg (147 lbs.)

Air Inlet ....................................19 mm (3/4")

Inlet ......................................... 51 mm (2.0")

Outlet ...................................... 51 mm (2.0")

Suction Lift ....................... 4.5 m Dry (14.8')

9.0 m Wet (29.5')

Displacement/Stroke ..........1.78 L (.47 gal.)

Max. Flow Rate ............ 532 lpm (132 gpm)

Max. Size Solids compressible)

Mushroom Valve .......... 7.9 mm (0.3")

Ball Valve ................... 12.7 mm (0.5")

Flap Valve ...................... 51 mm (2.0")

Displacement per stroke was calculated at

4.8 bar (70 psig) air inlet pressure against a 2 bar (30 psig) head pressure.

Example: To pump 265 lpm (70 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 5.2 bar (75 psig) and 110 Nm3/h (65 scfm) air consumption.

Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

-FITTED

300 275

250

225

200 175

150

125 100

Flow rates indicated on chart were determined by pumping water with a vertically mounted, side ported ball check conﬁ guration. When alternate check valve options are used, multiply ﬂ ow rate by appropriate factor. Mushroom check valve = 88%. For optimum life and performance, pumps should be speciﬁ ed so that daily operation parameters will fall in the center of the pump performance curve.

(25) [42]

120

100

(50) [85]

(75) [127]

(100) [170]

AIR CONSUMPTION

(SCFM) [Nm

/h]

20 40 60 80 100 120 140 160 180

GPM

[76] [151] [227] [303] [379] [454] [530] [606] [681]

[LPM]

PV8 SANIFLO™ LSH

ULTRA-FLEX™-FITTED

Height ..................................800 mm (31.5")

Width .................................. 625 mm (24.6")

Depth .................................. 368 mm (14.5")

Est. Ship Weight ................. 67 Kg (147 lbs.)

Air Inlet ....................................19 mm (3/4")

Inlet ......................................... 51 mm (2.0")

Outlet ...................................... 51 mm (2.0")

Suction Lift ........................ 5.2 m Dry (17.0')

9.3 m Wet (30.6')

Displacement/Stroke ......... 2.00 L (.53 gal.)

Max. Flow Rate ............ 541 lpm (143 gpm)

Max. Size Solids (compressible)

Mushroom Valve .......... 7.9 mm (0.3")

Ball Valve ................... 12.7 mm (0.5")

Flap Valve ...................... 51 mm (2.0")

Displacement per stroke was calculated at

4.8 bar (70 psig) air inlet pressure against a 2 bar (30 psig) head pressure.

Example: To pump 265 lpm (70 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 5.0 bar (72 psig) and 107 Nm3/h (63 scfm) air consumption.

Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

300 275

250

225

200 175

150

125 100

Flow rates indicated on chart were determined by pumping water with a vertically mounted, side ported ball check conﬁ guration. When alternate check valve options are used, multiply ﬂ ow rate by appropriate factor. Mushroom check valve = 97%. For optimum life and performance, pumps should be speciﬁ ed so that daily operation parameters will fall in the center of the pump performance curve.

(25) [42]

120

100

(50) [85]

(75) [127]

(100) [170]

AIR CONSUMPTION

(SCFM) [Nm

/h]

20 40 60 80 100 120 140 160 180

GPM

[76] [151] [227] [303] [379] [454] [530] [606] [681]

[LPM]

TT4276 EOM-P8/PV8M 5/04 TT4267 5/04 9 WILDEN PUMP & ENGINEERING, LLC

Page 12

PV15 Performance Curves

PV15 SANIFLO™ LSH

RUBBER-FITTED

Height ................................. 864 mm (34.0")

Width .................................. 638 mm (25.1")

Depth .................................. 368 mm (14.5")

Est. Ship Weight ................. 71 Kg (156 lbs.)

Air Inlet ....................................19 mm (3/4")

Inlet ..........................................76 mm (3.0")

Outlet .......................................76 mm (3.0")

Suction Lift ........................6.4 m Dry (21.1')

9.3 m Wet (30.6')

Displacement/Stroke ......... 2.84 L (.75 gal.)

Max. Flow Rate ............ 632 lpm (167 gpm)

Max. Size Solids (compressible)

Mushroom Valve .......... 7.9 mm (0.3")

Ball Valve ................... 12.7 mm (0.5")

Flap Valve .......................76 mm (3.0")

Displacement per stroke was calculated at

4.8 bar (70 psig) air inlet pressure against a 2 bar (30 psig) head pressure.

Example: To pump 265 lpm (70 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 4.0 bar (58 psig) and 80 Nm3/h (47 scfm) air consumption.

Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

PERFORMANCE

Flow rates indicated on chart were determined by pumping water with a vertically mounted, side ported ball check conﬁ guration. When alternate check valve options are used, multiply ﬂ ow rate by appropriate factor. Mushroom check valve = 114%, ﬂ ap check valve = 150%. For optimum life and performance, pumps should be speciﬁ ed so that daily operation parameters will fall in the center of the pump performance curve.

300 275 250 225 200 175 150 125 100

(25) [42]

120

100

(50) [85]

(75) [127]

AIR CONSUMPTION

(SCFM) [Nm

(100) [170]

/h]

75 50

20 40 60 80 100 120 140 160 180

GPM

[76] [151] [227] [303] [379] [454] [530] [606] [681]

[LPM]

PV15 SANIFLO™ LSH

TPE-FITTED

Height ................................. 864 mm (34.0")

Width .................................. 638 mm (25.1")

Depth .................................. 368 mm (14.5")

Est. Ship Weight .......................71 (156 lbs.)

Air Inlet ....................................19 mm (3/4")

Inlet ..........................................76 mm (3.0")

Outlet .......................................76 mm (3.0")

Suction Lift ........................ 5.2 m Dry (17.0')

9.3 m Wet (30.6')

Displacement/Stroke ......... 2.95 L (.78 gal.)

Max. Flow Rate ............ 624 lpm (165 gpm)

Max. Size Solids (compressible)

Mushroom Valve .......... 7.9 mm (0.3")

Ball Valve ................... 12.7 mm (0.5")

Flap Valve .......................76 mm (3.0")

Displacement per stroke was calculated at

4.8 bar (70 psig) air inlet pressure against a 2 bar (30 psig) head pressure.

Example: To pump 265 lpm (70 gpm) against a discharge pressure head of

2.8 bar (40 psig) requires 3.8 bar (55 psig) and 73 Nm3/h (43 scfm) air consumption. .

Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

300

120

100

(25) [42]

(50) [85]

(75) [127]

AIR CONSUMPTION

(SCFM) [Nm

(100) [170]

/h]

20 40 60 80 100 120 140 160 180

[76] [151] [227] [303] [379] [454] [530] [606] [681]

275

250

225

200 175

150

125 100

GPM

[LPM]

Flow rates indicated on chart were determined by pumping water with a vertically mounted, side ported ball check conﬁ guration. When alternate check valve options are used, multiply ﬂ ow rate by appropriate factor. Mushroom check valve = 98%, ﬂ ap check valve = 150%. For optimum life and performance, pumps should be speciﬁ ed so that daily operation parameters will fall in the center of the pump performance curve.

WILDEN PUMP & ENGINEERING, LLC 10 TT4276 EOM-P8/PV8M 5/04 TT4267 5/04

Page 13

PERFORMANCE

PV15 SANIFLO™ LSH

TEFLON

Height ................................. 864 mm (34.0")

Width .................................. 638 mm (25.1")

Depth .................................. 368 mm (14.5")

Est. Ship Weight .......................71 (156 lbs.)

Air Inlet ....................................19 mm (3/4")

Inlet .........................................76 mm (3.0")

Outlet, .....................................76 mm (3.0")

Suction Lift ....................... 4.7 m Dry (15.4')

9.0 m Wet (29.5')

Displacement/Stroke ..........1.82 L (.48 gal.)

Max. Flow Rate ............ 532 lpm (141 gpm)

Max. Size Solids (compressible)

Mushroom Valve .......... 7.9 mm (0.3")

Ball Valve ................... 12.7 mm (0.5")

Flap Valve .......................76 mm (3.0")

Displacement per stroke was calculated at

4.8 bar (70 psig) air inlet pressure against a 2 bar (30 psig) head pressure.

Example: To pump 265 lpm (70 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 5.0 bar (73 psig) and 110 Nm3/h (65 scfm) air consumption.

Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

-FITTED

300

(25) [42]

120

275

250

Flow rates indicated on chart were determined by pumping water with a vertically mounted, side ported ball check conﬁ guration. When alternate check valve options are used, multiply ﬂ ow rate by appropriate factor. Mushroom check valve = 86%. For optimum life and performance, pumps should be speciﬁ ed so that daily operation parameters will fall in the center of the pump performance curve.

225 200 175 150 125 100

100

75 50

20 40 60 80 100 120 140 160 180

GPM

[76] [151] [227] [303] [379] [454] [530] [606] [681]

[LPM]

(50) [85]

(75) [127]

(100) [170]

AIR CONSUMPTION

(SCFM) [Nm

/h]

PV15 SANIFLO™ LSH

ULTRA-FLEX

Height ................................. 864 mm (34.0")

Width .................................. 638 mm (25.1")

Depth .................................. 368 mm (14.5")

Est. Ship Weight .......................71 (156 lbs.)

Air Inlet ....................................19 mm (3/4")

Inlet .........................................76 mm (3.0")

Outlet, .....................................76 mm (3.0")

Suction Lift ....................... 4.5 m Dry (14.8')

9.3 m Wet (30.6')

Displacement/Stroke ......... 2.00 L (.53 gal.)

Max. Flow Rate ............ 594 lpm (157 gpm)

Max. Size Solids (compressible)

Mushroom Valve .......... 7.9 mm (0.3")

Ball Valve ................... 12.7 mm (0.5")

Flap Valve .......................76 mm (3.0")

Displacement per stroke was calculated at

4.8 bar (70 psig) air inlet pressure against a 2 bar (30 psig) head pressure.

Example: To pump 265 lpm (70 gpm) against a discharge pressure head of 2.8 bar (40 psig) requires 4.4 bar (64 psig) and 97 Nm3/h (57 scfm) air consumption.

Caution: Do not exceed 8.6 bar (125 psig) air supply pressure.

™

-FITTED

300

(25) [42]

120

275

250

225 200 175 150 125 100

100

75 50

GPM

[LPM]

Flow rates indicated on chart were determined by pumping water with a vertically mounted, side ported ball check conﬁ guration. When alternate check valve options are used, multiply ﬂ ow rate by appropriate factor. Mushroom check valve = 93%. For optimum life and performance, pumps should be speciﬁ ed so that daily operation parameters will fall in the center of the pump performance curve.

(50) [85]

(75) [127]

(100) [170]

AIR CONSUMPTION

(SCFM) [Nm

/h]

20 40 60 80 100 120 140 160 180

[76] [151] [227] [303] [379] [454] [530] [606] [681]

TT4276 EOM-P8/PV8M 5/04 TT4267 5/04 11 WILDEN PUMP & ENGINEERING, LLC

Page 14

Section 5B

SUCTION LIFT CURVES

PV8 SANIFLO™ LSH SUCTION LIFT CAPABILITY

METER FT H20

Dry Vacuum

26 24

22 20

16 14

12 10

PSIG

[BAR]

Traditional Rubber Diaphragms

TPE Diaphragms

8 6 4 2 0

0 10 20 30 40 50 60 70 80 90 100

[0.7] [1.4] [2.0] [2.7] [3.4] [4.1] [4.8] [5.5] [6.2] [6.9]

Ultra-Flex™ Diaphragms

Tef lo n

Diaphragms

Inlet Air Pressure

PV15 SANIFLO™ LSH SUCTION LIFT CAPABILITY

Suction lif t curves are calibrated for pumps operating at 305 m (1,000') above sea level. This chart is meant to be a guide only. There are many variables which can affect your pump’s operating characteristics. The

WILDEN PUMP & ENGINEERING, LLC 12 TT4276 EOM-P 8/ PV8 M 5/ 04 T T4267 5/04

METER FT H20

Dry Vacuum

26 24

22 20

16 14

12 10

PSIG

[BAR]

Traditional Rubber Diaphragms

TPE Diaphragms

8 6 4 2 0

0 10 20 30 40 50 60 70 80 90 100

[0.7] [1.4] [2.0] [2.7] [3.4] [4.1] [4.8] [5.5] [6.2] [6.9]

Ultra-Flex™ Diaphragms

Tef lo n

Diaphragms

Inlet Air Pressure

number of intake and discharge elbows, viscosity of pumping ﬂ uid, elevation (atmospheric pressure) and pipe friction loss all af fect the amount of suction lift your pump will attain.

Page 15

Section 6 Suggested

Section 6

SUGGESTED INSTALLATION

Wilden pumps are designed to meet the performance requirements of even the most demanding pumping applications. They have been designed and manufactured to the highest standards and are available in a variety of liquid path materials to meet your chemical resistance needs. Refer to the performance section of this manual for an in-depth analysis of the performance characteristics of your pump. Wilden offers the widest variety of elastomer options in the industry to satisfy temperature, chemical compatibility, abrasion resistance and ﬂ ex concerns.

The suction pipe size should be equivalent or larger than the diameter of the suction inlet on your Wilden pump. The suction hose must be non-collapsible, reinforced type as these pumps are capable of pulling a high vacuum. Discharge piping should also be equivalent or larger than the diameter of the pump discharge to minimize friction losses. It is critical that all ﬁ ttings and connections are airtight or a reduction or loss of pump suction capability will result.

INSTALLATION: Months of careful planning, study, and selection efforts can result in unsatisfactory pump performance if installation details are left to chance.

Premature failure and long term dissatisfaction can be avoided if reasonable care is exercised throughout the installation process.

LOCATION: Noise, safety, and other logistical factors usually dictate where equipment will be situated on the production ﬂ oor. Multiple installations with conﬂ icting requirements can result in congestion of utility areas, leaving few choices for additional pumps.

Within the framework of these and other existing conditions, every pump should be located in such a way that six key factors are balanced against each other to maximum advantage.

ACCESS: First of all, the location should be accessible. If it’s easy to reach the pump, maintenance personnel will have an easier time carrying out routine inspections and adjustments. Should major repairs become necessary, ease of access can play a key role in speeding the repair process and reducing total downtime.

AIR SUPPLY: Every pump location should have an air line large enough to supply the volume of air necessary to achieve the desired pumping rate. Do not exceed the maximum rated air pressure.

For best results, the pumps should use a 5µ (micron) air ﬁ lter, needle valve and regulator. The use of an air ﬁ lter before the pump will ensure that the majority of any pipeline contaminants will be eliminated.

SOLENOID OPERATION: When operation is controlled by a solenoid valve in the air line, three-way valves should be used. This valve allows trapped air between the valve and the pump to bleed off which improves pump performance.

MUFFLER: Sound levels are reduced below OSHA speciﬁ cations using the standard Wilden mufﬂ er. Other mufﬂ ers can be used to further reduce sound levels, but they usually reduce pump performance.

ELEVATION: Selecting a site that is well within the pump’s dynamic lift capability will assure that loss-of-prime issues will be eliminated. In addition, pump efﬁ ciency can be adversely affected if proper attention is not given to site location.

PIPING: Final determination of the pump site should not be made until the piping challenges of each possible location have been evaluated. The impact of current and future installations should be considered ahead of time to make sure that inadvertent restrictions are not created for any remaining sites.

The best choice possible will be a site involving the shortest and straightest hook-up of suction and discharge piping. Unnecessary elbows, bends, and ﬁ ttings should be avoided. Pipe sizes should be selected to keep friction losses within practical limits. All piping should be supported independently of the pump. In addition, the piping should be aligned to avoid placing stress on the pump ﬁ ttings.

Flexible hose can be installed to aid in absorbing the forces created by the natural reciprocating action of the pump. If the pump is to be bolted down to a solid location, a mounting pad placed between the pump and the foundation will assist in minimizing pump vibration. Flexible connections between the pump and rigid piping will also assist in minimizing pump vibration. If quick-closing valves are installed at any point in the discharge system, or if pulsation within a system becomes a problem, a surge suppressor (SD Equalizer should be installed to protect the pump, piping and gauges from surges and water hammer.

If the pump is to be used in a self-priming application, make sure that all connections are airtight and that the suction lift is within the model’s ability. Note: Materials of construction and elastomer material have an effect on suction lift parameters. Please refer to the performance section for speciﬁ cs.

When pumps are installed in applications involving ﬂ ooded suction or suction head pressures, a gate valve should be installed in the suction line to permit closing of the line for pump service.

Pumps in service with a positive suction head are most efﬁ cient when inlet pressure is limited to 0.5–0.7 bar (7–10 psig). Premature diaphragm failure may occur if positive suction is 0.7 bar (10 psig) and higher.

SUBMERSIBLE APPLICATIONS: Pro-Flo V™ pumps can be used for submersible applications, when using the Pro-Flo V™ submersible option. Turbo-Flo™ pumps can also be used for submersible applications. Pro-Flo pumps are not submersible.

ALL WILDEN PUMPS ARE CAPABLE OF PASSING SOLIDS. A STRAINER SHOULD BE USED ON THE PUMP INTAKE TO ENSURE THAT THE PUMP´S RATED SOLIDS CAPACITY IS NOT EXCEEDED.

and Accu-Flo™

)

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 13 WILDEN PUMP & ENGINEERING, LLC

Page 16

SUGGESTED INSTALLATION

AIR SHUT OFF VALVE

AIR SUPPLY

AIR INLET

COMBINATION FILTER AND REGULATOR

NEEDLE VALVE

PRESSURE GAUGE

FLEXIBLE CONNECTION

FLUID OUTLET

PRESSURE OR

VACUUM GAUGE

FLUID INLET

SHUT OFF VALVE

PUMP DISCHARGE SHUT OFF VALVE

DISCHARGE

DISCHARGE LINE

SHUT OFF VALVE

PUMP INTAKE SHUT OFF VALVE

SUCTION LINE

FLEXIBLE CONNECTION

NOTE: In the event of a power failure, the shut off valve should be closed, if restarting of the pump is not desirable once power is regained.

AIR OPERATED PUMPS: To stop the pump from operating in an emergency situation, simply close the shut off valve (user supplied) installed in the air supply line. A properly functioning valve will stop the air supply to the pump, therefore stopping output. This shut off valve should be located far enough away from the pumping equipment such that it can be reached safely in an emergency situation.

WILDEN PUMP & ENGINEERING, LLC 14 TT445 4 EOM-PV8 /PV15M 8/ 04 T T4267 5/04

Page 17

SUGGESTED OPERATION & MAINTENANCE

OPERATION: The Pro-Flo® and Pro-Flo V™ pumps are pre-lubricated, and do not require in-line lubrication. Additional lubrication will not damage the pump, however if the pump is heavily lubricated by an external source, the pump’s internal lubrication may be washed away. If the pump is then moved to a nonlubricated location, it may need to be disassembled and re-lubricated as described in the ASSEMBLY/ DISASSEMBLY INSTRUCTIONS.

Pump discharge rate can be controlled by limiting the volume and/or pressure of the air supply to the pump. An air regulator is used to regulate air pressure. A needle valve is used to regulate volume. Pump discharge rate can also be controlled by throttling the pump discharge by partially closing a valve in the discharge line of the pump. This action increases friction loss which reduces ﬂ ow rate. (See Section 5.) This is useful when the need exists to control the pump from a remote location. When the pump discharge pressure equals or exceeds the air supply pressure, the pump will stop; no bypass or pressure relief valve is needed, and pump damage will not occur. The pump has reached a “deadhead”

TROUBLESHOOTING

situation and can be restarted by reducing the ﬂ uid discharge pressure or increasing the air inlet pressure. The Wilden Pro-Flo on compressed air and do not generate heat, therefore your process ﬂ uid temperature will not be affected.

MAINTENANCE AND INSPECTIONS: Since each application is unique, maintenance schedules may be different for every pump. Frequency of use, line pressure, viscosity and abrasiveness of process ﬂ uid all affect the parts life of a Wilden pump. Periodic inspections have been found to offer the best means for preventing unscheduled pump downtime. Personnel familiar with the pump’s construction and service should be informed of any abnormalities that are detected during operation.

RECORDS: When service is required, a record should be made of all necessary repairs and replacements. Over a period of time, such records can become a valuable tool for predicting and preventing future maintenance problems and unscheduled downtime. In addition, accurate records make it possible to identify pumps that are poorly suited to their applications.

and Pro-Flo V™ pumps run solely

Pump will not run or runs slowly.

1. Ensure that the air inlet pressure is at least 0.4 bar (5 psig) above startup pressure and that the differential pressure (the difference between air inlet and liquid discharge pressures) is not less than 0.7 bar (10 psig).

2. Check air inlet ﬁ lter for debris (see recommended installation).

3. Check for extreme air leakage (blow by) which would indicate worn seals/bores in the air valve, pilot spool, main shaft.

4. Disassemble pump and check for obstructions in the air passageways or objects which would obstruct the movement of internal parts.

5. Check mating surfaces of ﬂ ap valve assembly.

6. Check for sticking ball check valves. If material being pumped is not compatible with pump elastomers, swelling may occur. Replace ball check valves and seats with proper elastomers. Also, as the check valve balls wear out, they become smaller and can become stuck in the seats. In this case, replace balls and seats.

7. Check for broken inner piston which will cause the air valve spool to be unable to shif t.

8. Remove plug from pilot spool exhaust.

2. Verify that vacuum required to lift liquid is not greater than the vapor pressure of the material being pumped (cavitation).

3. Check for sticking ball check valves. If material being pumped is not compatible with pump elastomers, swelling may occur. Replace ball check valves and seats with proper elastomers. Also, as the check valve balls wear out, they become smaller and can become stuck in the seats. In this case, replace balls and seats.

Pump air valve freezes.

1. Check for excessive moisture in compressed air. Either install a dryer or hot air generator for compressed air. Alternatively, a coalescing ﬁ lter may be used to remove the water from the compressed air in some applications.

Air bubbles in pump discharge.

1. Check for ruptured diaphragm.

2. Check tightness of outer pistons (refer to Section 7).

3. Check tightness of fasteners and integrity of o-rings and seals, especially at intake manifold.

4. Ensure pipe connections are airtight.

Pump runs but little or no product ﬂ ows.

1. Check for pump cavitation; slow pump speed down to allow thick material to ﬂ ow into liquid chambers.

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 15 WILDEN PUMP & ENGINEERING, LLC

Product comes out air exhaust.

1. Check for diaphragm rupture.

2. Check tightness of outer pistons to shaft.

Page 18

Section 7 Assembly / Disassembly

Section 7

PUMP DISASSEMBLY

Tools Required :

• Adjustable Wrench

• Vise equipped with soft jaws (such as plywood, plastic or other suitable material)

CAUTION: Before any maintenanc e or repair is attempted, the compressed air line to the pump should be disconnected and all air pressure allowed to bleed from the pump. Disconnect all intake, discharge, and air lines. Drain the pump by turning it upside down and allowing any ﬂ uid to ﬂ ow into a suitable container. Be aware of any hazardous effects of contact with your process ﬂ uid.

NOTE: The model photographed for these instructions incorporates Teﬂ on diaphragms.

Step 1

Prior to disassembly, alignment marks should be placed on the liquid chambers and air chambers to assist with proper alignment during reassembly.

WILDEN PUMP & ENGINEERING, LLC 16 TT4545 EOM-PV8/PV15M 8/04 TT4267 5/04

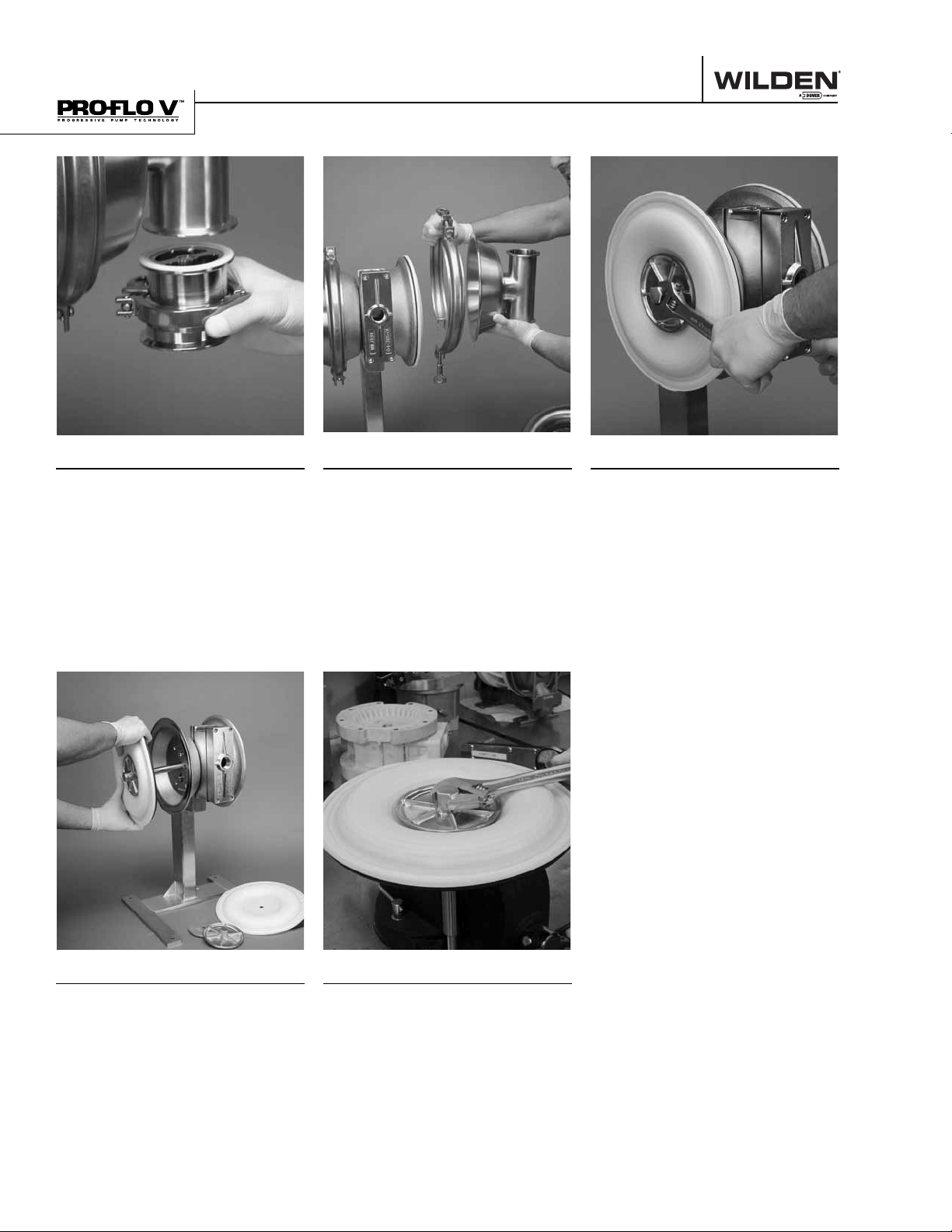

Step 2

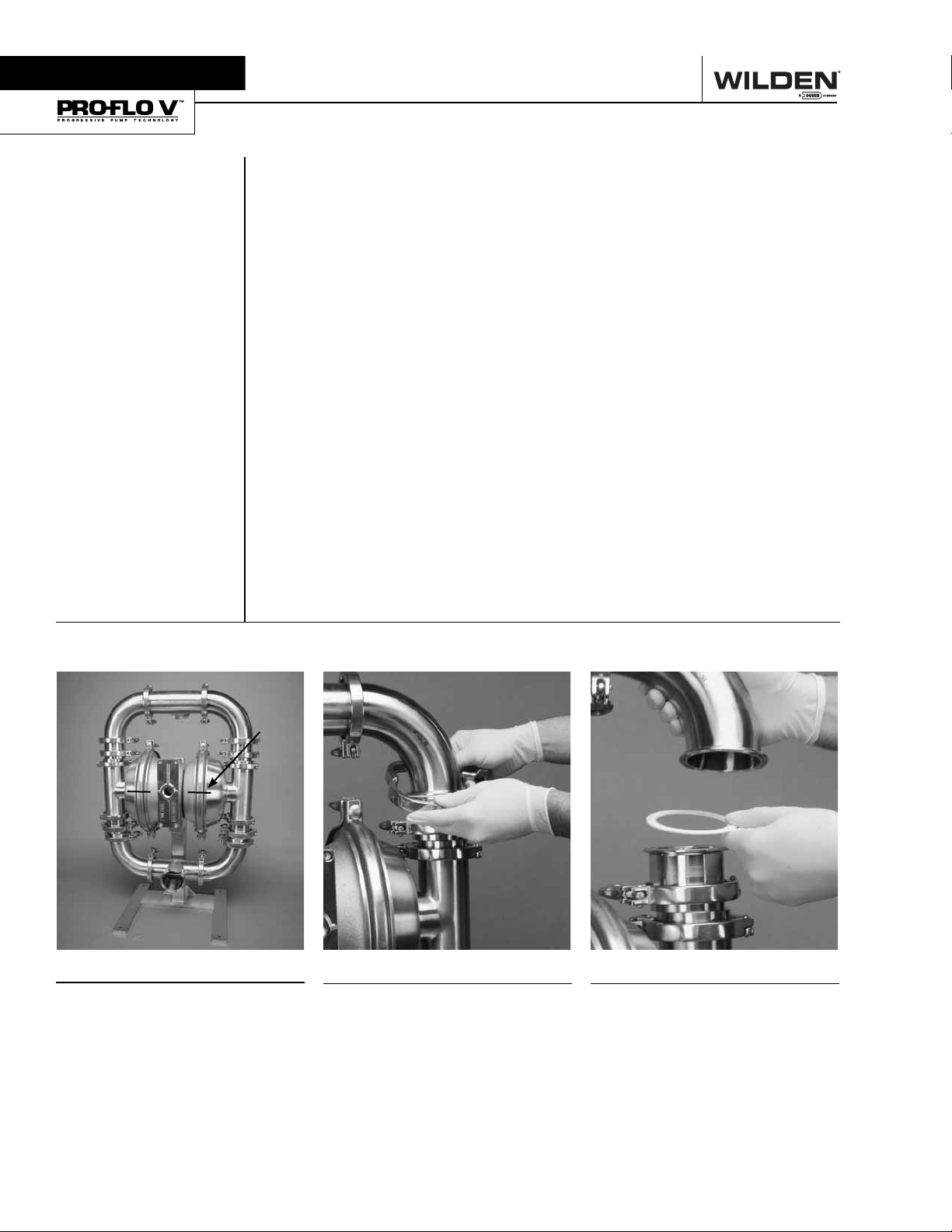

Loosen the wing nut and remove both discharge manifold clamp bands.

Step 3

Remove the discharge manifold, manifold gaskets, and the top portion of the valve housing.

Page 19

PUMP DISASSEMBLY

Step 4A

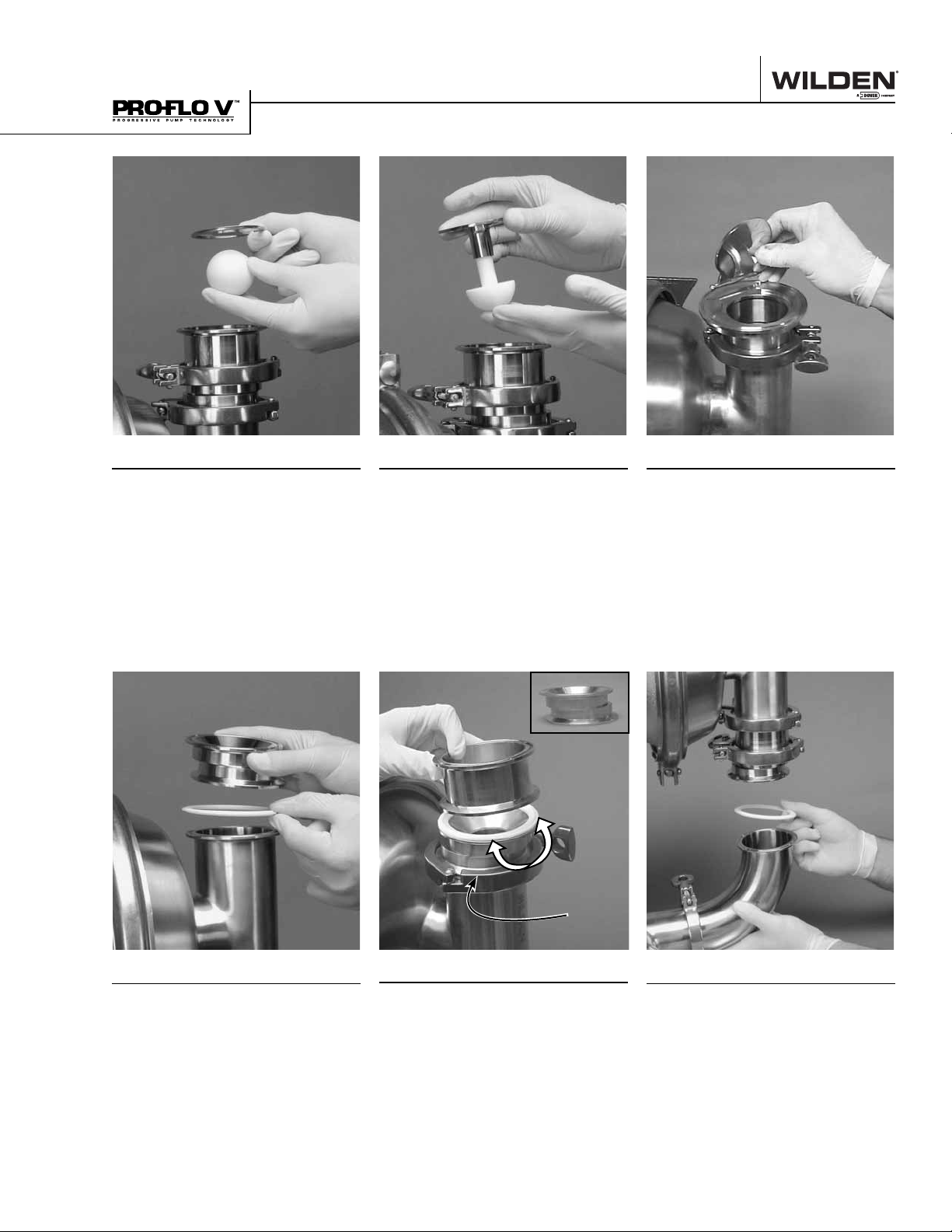

On both sides of the pump, remove the valve ball retainer and valve ball. Repeat process for the inlet valve assemblies as well. Inspect parts for nicks, gouges, chemical attack or abrasive wear. Replace worn parts with genuine Wilden parts for reliable performance.

Step 4B

On both sides of the pump, remove the mushroom retainer/guide and mushroom valve. Repeat process for the inlet valve assemblies as well. Inspect parts for nicks, gouges, chemical attack or abrasive wear.

Off-Set

Valve

Housing

Step 4C

On both sides of the pump, remove the upper ﬂ ap from the ﬂ ap valve housing. Repeat process for the inlet valve assemblies as well. Inspect parts for nicks, gouges, chemical attack or abrasive wear.

Step 5

On both sides of the pump, remove the remaining clamp bands, valve housing and gaskets. Inspect parts for nicks, gouges, chemical attack or abrasive wear.

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 17 WILDEN PUMP & ENGINEERING, LLC

Note:

To ensure proper alignment during reassembly of manifold/liquid chamber interface, turn off-set portion of valve housing to the left or to the right. This procedure works for the inlet manifold and discharge manifold connections.

Step 6

On both sides of the pump, remove both inlet manifold clamp bands. Remove the inlet manifold and manifold gaskets. Inspect parts for nicks, gouges, chemical attack or abrasive wear.

Page 20

AIR VALVE / CENTER SECTION DISASSEMBLY

Step 7

Remove inlet valve assembly from pump. Inspect parts for nicks, gouges, chemical attack or abrasive wear.

Step 8

On both side of the pump, remove the large clamp band and the liquid chamber.

Step 9

Using two adjustable wrenches, turning in opposite directions, loosen and remove one of the two outer pistons/diaphragm assemblies.

Step 10

After loosening and removing one outer piston/diaphragm assembly can be removed from the center section.

WILDEN PUMP & ENGINEERING, LLC 18 TT4545 EOM-PV8/PV15M 8/04 TT4267 5/04

Step 11

To remove the remaining diaphragm assembly from the shaft, secure shaft with soft jaws (a vise ﬁ tted with plywood or other suitable material) to ensure shaft is not nicked, scratched, or gouges. Using an adjustable wrench, remove diaphragm assembly from shaft.

Page 21

AIR VALVE / CENTER SECTION DISASSEMBLY

Tools Required :

Tools Required:

• 3/16" Hex Head Wrench

• 1/4" Hex Head Wrench

• Snap Ring Pliers

• O-Ring Pick

CAUTION: Before any maintenance or repair is attempted, the compressed air line to the pump should be disconnected and all air pressure allowed to bleed from the pump. Disconnect all intake, discharge, and air lines. Drain the pump by turning it upside down and allowing any ﬂ uid to ﬂ ow into a suitable container. Be aware of hazardous effects of contact with your process ﬂ uid.

The Wilden PV8 and PV15 metal pumps use a revolutionary Pro-Flo V™ air distribution system. Proprietary composite seals reduce the co efﬁ cient of friction and allow lube-free operation. Constructed of aluminum, the Pro-Flo V™ air distribution system is designed to perform in on/off, non-freezing, non-stalling, tough duty applications.

Step 1

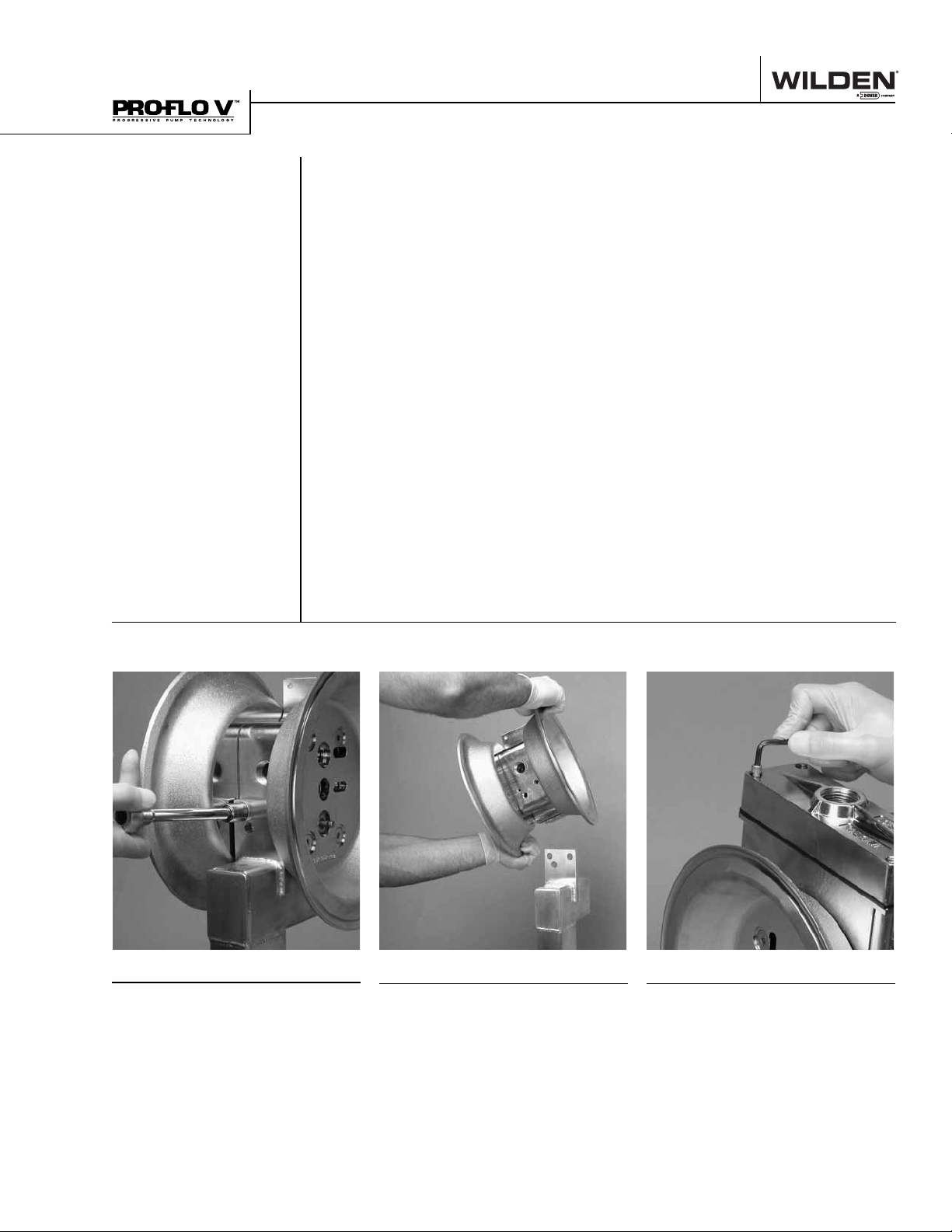

Using a 9/16” wrench, loosen the bolts that connect the center section to the stand. CAUTION: With bolts removed, the center section is no longer attached to the stand and must be supported so that it does not fall from the stand.

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 19 WILDEN PUMP & ENGINEERING, LLC

Step 2

Remove the center section from the stand.

Step 3

Using a 3/16” hex wrench, loosen air valve bolts.

Page 22

AIR VALVE / CENTER SECTION DISASSEMBLY

Air Valve Gasket

Mufﬂ er Gasket

Step 4

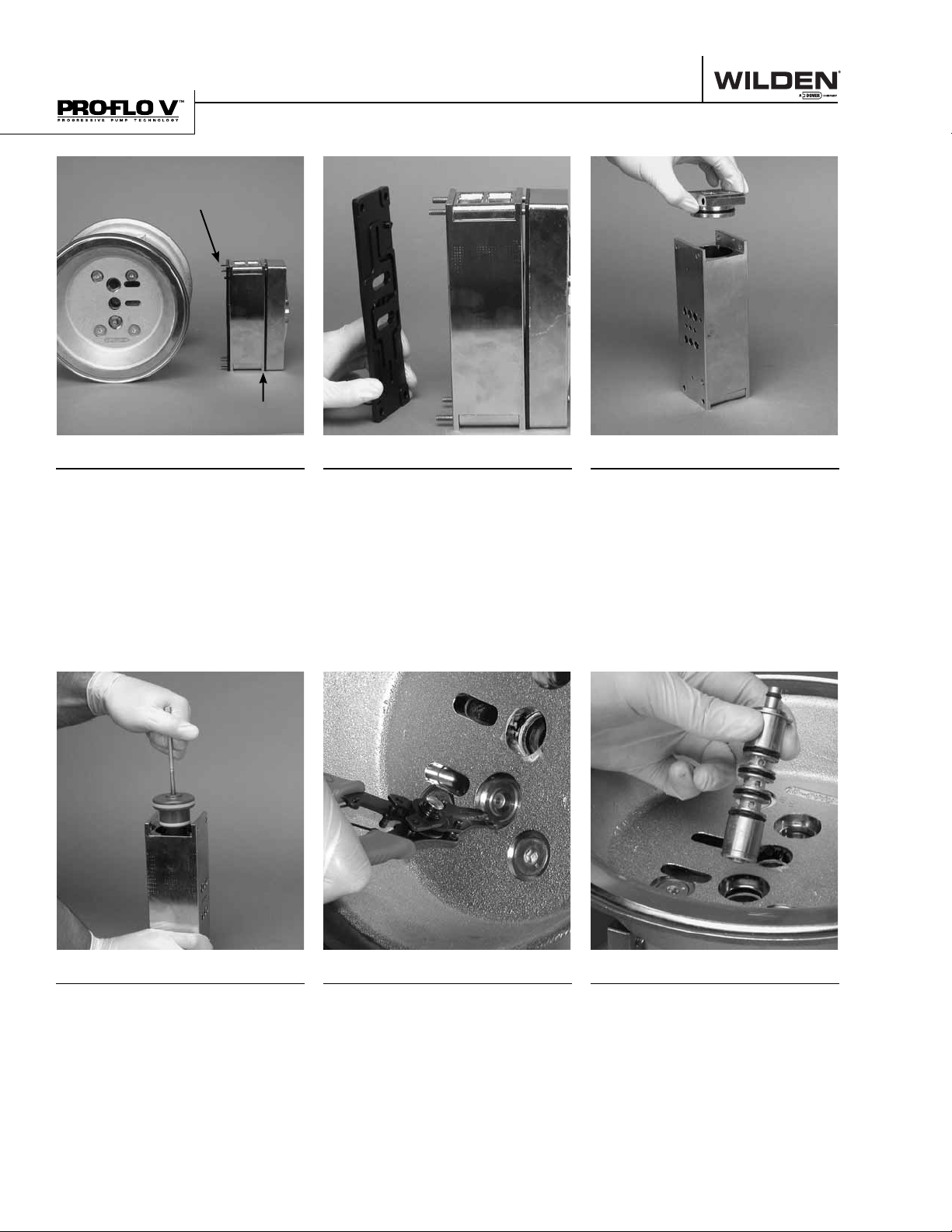

Remove mufﬂ er plate and air valve bolts from air valve assembly exposing mufﬂ er gasket for inspection. Replace if necessary.

Step 5

Lift away air valve assembly and remove air valve gasket for inspection. Replace if necessary.

Step 6

Remove air valve end cap to expose air valve spool by simply lifting up on end cap once air valve bolts are removed. Note: Pro-Flo V™ air valve incorporates an end cap at both ends of the air valve.

Step 7

Remove the air valve spool from the air valve body by threading one air valve bolt into the end of the air valve spool and gently sliding the spool out of the air valve body. Inspect seals for signs of wear and replace entire assembly if necessary. Use caution when handling air valve spool to prevent damaging seals. Note: seals should not be removed from assembly. Seals are not sold separately.

WILDEN PUMP & ENGINEERING, LLC 20 TT4545 EOM-PV8/PV15M 8/04 TT4267 5/04

Step 8

Remove pilot sleeve retaining snap ring on both sides of center section with snap ring pliers.

Step 9

Remove pilot spool sleeve from center section.

Page 23

AIR VALVE / CENTER SECTION DISASSEMBLY

Notched End

Step 10

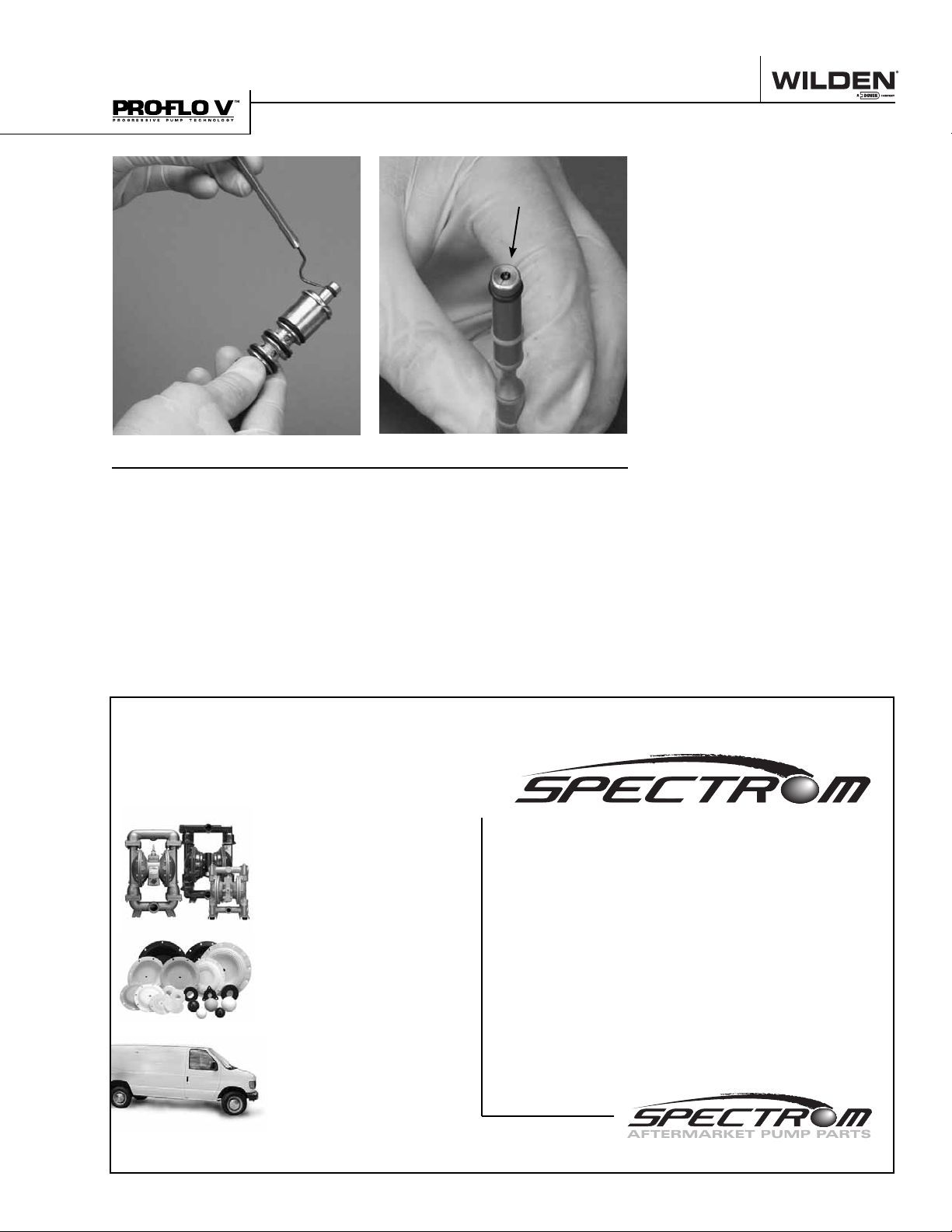

Using an o-ring pick, gently remove the o-ring from the opposite side of the “notched end” on one side of the pilot spool. Gently remove the pilot spool from pilot spool sleeve and inspect for nicks, gouges and wear. Replace pilot sleeve or outer sleeve o-rings if necessary. During re-assembly, never insert the pilot spool into the sleeve with the “notched end” ﬁ rst, this end incorporates the urethane o-ring and will be damaged as it slides over the ports cut in the sleeve. Note: seals should not be removed from pilot spool. Seals are not sold separately.

Finding spares a nightmare? Sleep easier with

PRODUCTS: AODDP

(Air Operated Double Diaphragm Pumps)

• Warren-Rupp

• ARO

• Other

PUMP PARTS

(Low Cost)

• Diaphragms

• Valve balls

• Valve seats

KNOWLEDGE & SERVICE

• Competitive pricing

• Delivery

• Service

• Inventory

These parts may exhibit

WARNING:

better life than OEM parts.

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 21 WILDEN PUMP & ENGINEERING, LLC

Spectrom is not your typical after market part supplier. We do not simply sell pump parts; we provide value added procurement solutions.

Our unique network enables us to purchase effectively, resulting in low cost solutions. We also know that low purchase price is not enough

- quality, integrity and inventory are also important. Spectrom is structured to provide Pre and Post sales support, giving our customers value added application and pump knowledge.

Contact us to have a procurement solution developed for you. We don’t just fit you into a generic system, we develop specific solutions that achieve results.

Spectrom will ship your order from our facility within 3 working days!

1-909-512-1261 www.spectromparts.com

Page 24

REASSEMBLY HINTS & TIPS

ASSEMBLY:

Upon performing applicable maintenance to the air distrib ution system, th e pump can now be reas sembled. Please refer to the disassembly instructions for photos and parts placement. To reassemble the pump, follow the disassembly instructions in reverse order. The air distribution system needs to be assembled ﬁ rst, then the diaphragms and ﬁ nally the wetted path. The following tips will assist in the assembly process.

• Lubricate air valve bore, center section shaft and pilot spool bore with NLGI grade 2 white EP bearing grease or equivalent.

• Clean the inside of the center section shaft bore to ensure no damage is done to new shaft seals.

• A small amoun t NLGI grade 2 white EP bearing grease can be applied to the mufﬂ er and air valve gaskets to locate gaskets during assembly.

• Make sure that the exhaust port on the mufﬂ er plate is centered between the two exhaust ports on the center section.

• Stainless bolts should be lubed to reduce the possibility of seizing during tightening.

• Use a mallet to tamp lightly on the large clamp bands to seat the diaphragm before tightening.

TORQUE SPECIFICATIONS

Description of Part Maximum Torque

Air Valve [13.6 N•m] 120 in.-lbs

Air Chamber Bolts [27.1 N•m] 20 ft.-lbs

Outer Pistons, Rubber [105.7 N•m] 78 ft.-lbs

Outer Pistons, (Teﬂ on

Outer Piston, (Ultra-Flex™) [78.6 N•m] 58 ft.-lbs

-Fitted) [105.7 N•m] 78 ft.-lbs

NOTE: To ensur e proper alignment during reassembly of manifold/liquid chamber interface, turn off-set portion of valve housing to the left or to the right. This procedure works for the inlet mani-

Off-Set

Valve

fold and discharge manifold connections.

Housing

SHAFT SEAL INSTALLATION:

PRE-INSTALLATION

• Once all of the old seals have been removed, the inside of the bushing should be cleaned to ensure no debris is left that may cause premature damage to the new seals.

INSTALLATION

The following tools can be used to aid in the installation of the new seals:

Needle Nose Pliers Phillips Screwdriver Electrical Tape

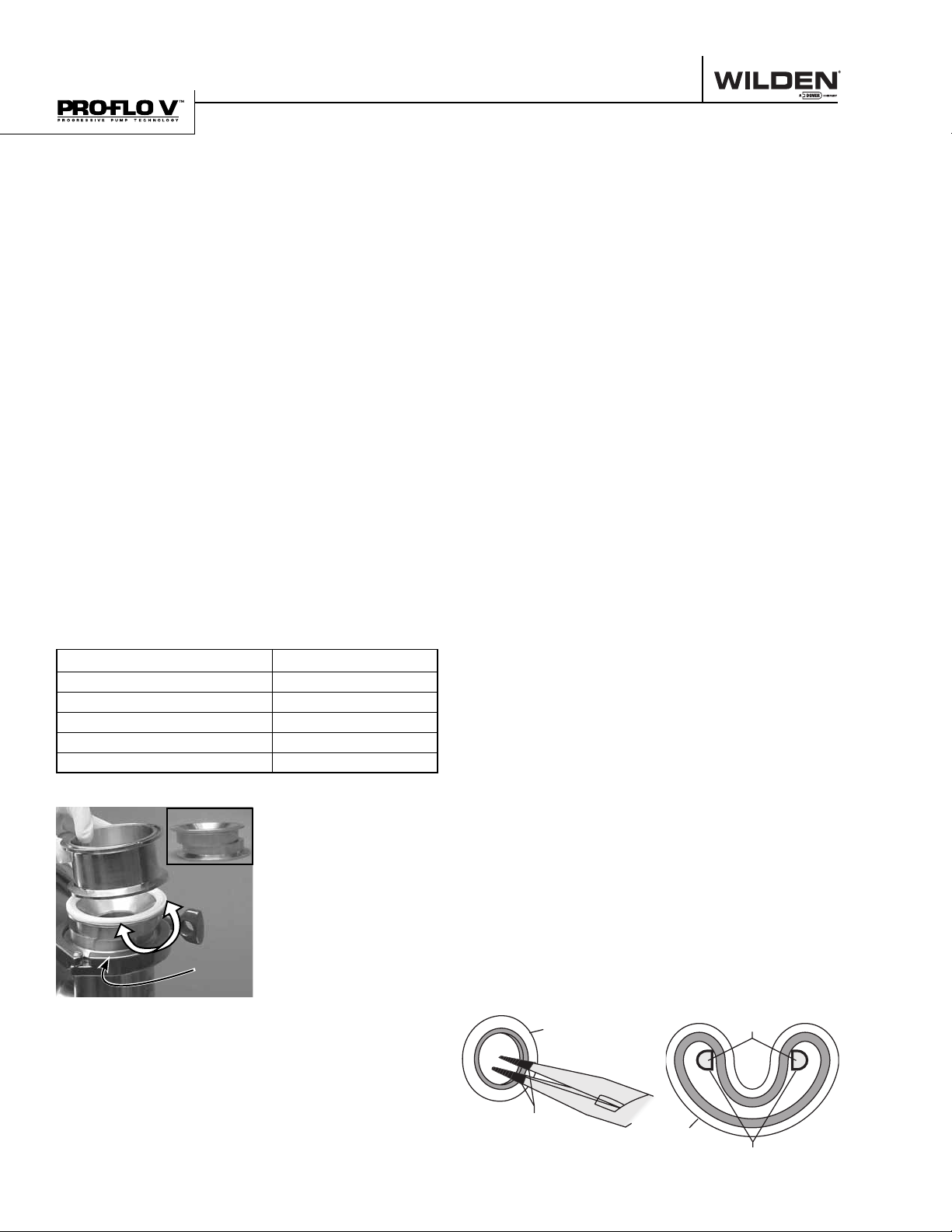

• Wrap electrical tape around each leg of the needle nose pliers (heat shrink tubing may also be used). This is done to prevent damaging the inside surface of the new seal.

• With a new seal in hand, place the two legs of the needle nose pliers inside the seal ring. (See Figure A.)

• Open the pliers as wide as the seal diameter will allow, then with two ﬁ ngers pull down on the top portion of the seal to form kidney bean shape. (See Figure B.)

• Lightly clamp the pliers together to hold the seal into the kidney shape. Be sure to pull the seal into as tight of a kidney shape as possible, this will allow the seal to travel down the bushing bore easier.

• With the seal clamped in the pliers, insert the seal into the bushing bore and position the bottom of the seal into the correct groove. Once the bottom of the seal is seated in the groove, release the clamp pressure on the pliers. This will allow the seal to partially snap back to its original shape.

• After the pliers are removed, you will notice a slight bump in the seal shape. Before the seal can be properly resized, the bump in the seal should be removed as much as possible. This can be done with either the Phillips screwdriver or your ﬁ nger. With either the side of the screwdriver or your ﬁ nger, apply light pressure to the peak of the bump. This pressure will cause the bump to be almost completely eliminated.

• Lubricate the edge of the shaft with white EP bearing grease.

• Slowly insert the center shaf t with a rotating motion. This will complete the resizing of the seal.

• Perform these steps for the remaining seals.

Figure A

SHAFT SEAL

Figure B

NLGI grade 2

NEEDLE NOSE

PLIERS

TAPE

WILDEN PUMP & ENGINEERING, LLC 22 TT4545 EOM-PV8/PV15M 8/04 TT4267 5/04

SHAFT SEAL

TAPE

Page 25

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 23 WILDEN PUMP & ENGINEERING, LLC

Page 26

Section 8

EXPLODED VIEW & PARTS LISTING

PV8 SANIFLO™ LSH

— 25 — 26

Vertically Mounted Side Ported Manifold EXPLODED VIEW

TEFLON

— 39

— 37

— 36

— 32

— 33

— 35

— 34

BALL MUSHROOM ULTRA-FLEX™

— 36

— 32

— 33

— 38

— 34

— 22

12 —

— 2

— 3

— 7

— 36

— 32

— 31

— 30 — 29

WILDEN PUMP & ENGINEERING, LLC 24 T T445 4 EOM- PV8 /P V15M 8/ 04 T T4267 5/04

Page 27

EXPLODED VIEW & PARTS LISTING

PV8 SANIFLO™ LSH

Rubber/TPE/

Ultra-Flex™ Fitted Teﬂ on® Fitted

PV8/SNNN/087

No. Part Description Qty.

1 Air Valve, Pro-Flo V™, Nickel Plated

1 04-2030-06 04-2030-06

P/N

2 O-Ring, End Cap (-225) Buna 2 04-2390-52-700 04-2390-52-700 3 End Cap, Pro-Flo V™, Nickel Plated 2 04-2340-06 04-2340-06 4 Screw, SHC, 1/4"-20 X 4.5" 4 01-6000-03 01-6000-03 5 Muffler Plate, Pro-Flo V™, Nickel Plated 1 04-3185-06 04-3185-06

6 Gasket, Muffler Plate 1 04-3502-52 04-3502-52 7 Gasket, Air Valve 1 04-2620-52 04-2620-52

8 Center Block, Pro-Flo V™, LSH Nickel Plated 1 08-3120-06 08-3120-06 9 Removable Pilot Sleeve Assembly 1 04-3880-99 04-3880-99

10 Pilot Spool Retaining O-Ring 2 04-2650-49-700 04-2650-49-700

11 Shaft Seal 4 08-3210-55-225 08-3210-55-225 12 Gasket, Center Block, PV4-PV15 2 04-3529-52 04-3529-52

13 Air Chamber, Pro-Flo V™, Nickel Plated 2 08-3660-06 08-3660-06 14 Screw, HSFHS, 3/8"-16 x 1" 8 71-6250-08 71-6250-08 15 Retaining Ring 2 04-3890-03 04-3890-03 16 Shaft, Pro-Flo

1 08-3810-03-83 08-3840-09

Shaft, Pro-Flo®, Ultra-Flex™ 1 08-3841-03 N/A

17 Shaft Stud 2 N/A 08-6152-08

Shaft Stud, Ultra-Flex™ 2 08-6150-08 N/A

18 Inner Piston 2 08-3700-01 08-3750-01

Inner Piston, Ultra-Flex™ 2 08-3761-01 N/A

19 Diaphragm 2 * 08-1010-55 20 Backup Diaphragm 2 N/A 08-1060-51

21 Outer Piston 2 08-4550-10-72 08-4600-10-72

Outer Piston, Ultra-Flex™ 2 08-4560-10-83 N/A 22 Liquid Chamber 2 15-5000-10-83 15-5000-10-83 23 2" Manifold, Side Discharge 2 08-5056-10-83 08-5056-10-83 24 12" Clamp Band Assembly

2 08-7300-03-83 08-7300-03-83 25 12" Clamp Band Wing Nut 4 08-6671-10 08-6671-10 26 12" Clamp Band Washer, 3/8" 4 04-6741-03 04-6741-03 27 Pump Stand Assembly 1 15-7651-10-83 15-7651-10-83 28 Sanitary Mufﬂ er (Not Shown) 1 15-3510-06R 15-3510-06R

Flap Valve Configuration

29 2" Flap Valve Body 4 08-5280-10-83 N/A 30 2" Flap Valve 4 08-1180-10-83 N/A

31 Flap Valve Spacer 4 08-5285-10-83 N/A

32 3" Manifold Gasket 12 * N/A

33 3" Clamp Band Assembly 12 15-7102-03 N/A

Valve Ball and Mushroom Valve Configuration

34 Seat, Valve, Lsh 4 08-1127-10-83 08-1127-10-83 35 Ball, Valve 4 * 04-1080-55

36 Ball Housing 4 08-5461-10-83 08-5461-10-83 37 Retainer, Ball 4 08-5430-10-83 08-5430-10-83

38 Mushroom Valve 4 15-1095-55 15-1095-55

39 Mushroom Valve Guide 4 08-5431-10-83 08-5431-10-83

32 3" Manifold Gasket 12 * 15-1375-55

33 3" Clamp Band Assembly 12 15-7102-03 15-7102-03

* Refer to Elastomer Chart

Air Valve assembly includes items 2 & 3.

Clamp band assembly (P/N 08-7300-03-83) includes items 25 & 26.

Teﬂ on® PTFE and Ultra-Flex™ diaphragms not available with ﬂ ap valve conﬁ guration.

All bold face items are primar y wear parts.

PV8/SNNN/087

P/N

PARTS LISTING

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 25 WILDEN PUMP & ENGINEERING, LLC

Page 28

EXPLODED VIEW & PARTS LISTING

PV15 SANIFLO™ LSH

— 31 — 32

Horizontally Mounted No Manifold EXPLODED VIEW

5 —

— 4

6 —

12 —

— 2

— 3

— 7

WILDEN PUMP & ENGINEERING, LLC 26 TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04

Page 29

EXPLODED VIEW & PARTS LISTING

PV15 SANIFLO™ LSH

Rubber/TPE Fitted

Qty per

No. Part Description

1 Air Valve, Pro-Flo V™, Nickel Plated

Pump

2 O-Ring, End Cap (-225) Buna 2 04-2390-52-700 3 End Cap, Pro-Flo V™, Nickel Plated 2 04-2340-06 4 Screw, SHC, 1/4"-20 X 4.5" 4 01-6000-03 5 Muffler Plate, Pro-Flo V™, Nickel Plated 1 04-3185-06

6 Gasket, Muffler Plate 1 04-3502-52 7 Gasket, Air Valve 1 04-2620-52

8 Center Block, Pro-Flo V™, LSH Nickel Plated 1 08-3120-06 9 Removable Pilot Sleeve Assembly 1 04-3880-99

10 Pilot Spool Retaining O-Ring 2 04-2650-49-700

11 Shaft Seal 4 08-3210-55-225 12 Gasket, Center Block, PV4-PV15 2 04-3529-52

13 Air Chamber, Pro-Flo V™, Nickel Plated 2 08-3660-06 14 Screw, HSFHS, 3/8"-16 x 1" 8 71-6250-08 15 Retaining Ring 2 04-3890-03 16 Shaft 1 08-3810-03-83 17 Air Chamber 2 08-3652-06 18 Air Chamber Screw, HSFH, 3/8-16 X 1 6 71-6250-08 19 Inner Piston 2 08-3700-01

20 Diaphragm 2 *

21 Outer Piston 2 08-4550-10-72 22 Liquid Chamber 2 15-5000-10-83

23 Flap Valve Body 4 15-5280-10-83 24 Flap Valve

25 4" to 3" Reducer 4 15-5290-10-83

26 3" Manifold Gasket 4 * 27 4" Manifold Gasket 4 *

28 3" Clamp Band Assembly 4 15-7102-03 29 4" Clamp Band Assembly 4 15-7202-03 30 12" Clamp band Assembly

31 12" Clamp Band Wing Nut 4 08-6671-10 32 12" Clamp Band Washer, 3/8" 4 04-6740-03 33 Pump Stand Assembly 1 15-7651-10-83 34 Sanitary Muffler (Not Shown) 1 15-3510-06R

* Refer to Elastomer Chart

Air Valve assembly includes items 2 & 3.

Clamp band assembly (P/N 08-7300-03-83) includes items 31 & 32.

Teﬂ on® PTFE and Ultra-Flex™ diaphragms not available with ﬂ ap valve conﬁ guration.

All boldface items are primary wear parts.

PV15/SNNN/083

P/N

1 04-2030-06

4 15-1180-10-83

2 08-7300-03-83

PARTS LISTING

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 27 WILDEN PUMP & ENGINEERING, LLC

Page 30

EXPLODED VIEW & PARTS LISTING

PV15 SANIFLO™ LSH

— 26 — 27

Vertically Mounted Center Ported Manifolds EXPLODED VIEW

— 42

— 40

— 39

— 33

— 35

— 38

— 32

BALL MUSHROOM ULTRA-FLEX™

— 39

— 33

— 35

— 41

— 37

TEFLON

— 22

— 23

— 7

— 2

— 3

\ 10

— 35

— 32

— 36 — 34

— 31 — 30 — 33

WILDEN PUMP & ENGINEERING, LLC 28 T T445 4 EOM-PV8 /PV15M 8/ 04 T T4267 5/04

Page 31

EXPLODED VIEW & PARTS LISTING

PV15 SANIFLO™ LSH

Rubber/TPE/

Ultra-Flex™ Fitted Teﬂ on® Fitted

Qty per

No. Part Description

1 Air Valve, Pro-Flo V™, Nickel Plated

Pump

6 Gasket, Muffler Plate 1 04-3502-52 04-3502-52 7 Gasket, Air Valve 1 04-2620-52 04-2620-52

8 Center Block, Pro-Flo V™, LSH Nickel Plated 1 08-3120-06 08-3120-06 9 Removable Pilot Sleeve Assembly 1 04-3880-99 04-3880-99

10 Pilot Spool Retaining O-Ring 2 04-2650-49-700 04-2650-49-700

11 Shaft Seal 4 08-3210-55-225 08-3210-55-225 12 Gasket, Center Block, PV4-PV15 2 04-3529-52 04-3529-52

13 Air Chamber, Pro-Flo V™, Nickel Plated 2 08-3660-06 08-3660-06 14 Screw, HSFHS, 3/8"-16 x 1" 8 71-6250-08 71-6250-08 15 Retaining Ring 2 04-3890-03 04-3890-03 16 Shaft, Pro-Flo

Shaft, Pro-Flo®, Ultra-Flex™ 1 08-3841-03 N/A

17 Shaft Stud 2 N/A 08-6152-08

Shaft Stud, Ultra-Flex™ 2 08-6150-08 N/A

18 Inner Piston 2 08-3700-01 08-3750-01

Inner Piston, Ultra-Flex™ 2 08-3761-01 N/A

19 Diaphragm 2 * 08-1010-55 20 Backup Diaphragm 2 N/A 08-1060-51

21 Outer Piston 2 08-4550-10-72 08-4600-10-72

Outer Piston, Ultra-Flex™ 2 08-4560-10-83 N/A 22 Liquid Chamber 2 15-5000-10-83 15-5000-10-83 23 3" Elbow 4 15-5240-10-83 15-5240-10-83 24 3" T-Section, Center Ported 2 15-5160-10-83 15-5160-10-83 25 12" Clamp band Assembly 2 08-7300-03-83 08-7300-03-83 26 12" Clamp Band Wing Nut 4 08-6671-10 08-6671-10 27 12" Clamp Band Washer, 3/8" 4 04-6740-03 04-6740-03 28 Pump Stand Assembly 1 15-7651-10-83 15-7651-10-83 29 Sanitary Muffler (Not Shown) 1 15-3510-06R 15-3510-06R

Flap Valve Conﬁ guration

30 Flap Valve Body 4 15-5280-10-83 N/A 31 Flap Valve 4 15-1180-10-83 N/A

32 4" to 3" Reducer 4 15-5290-10-83 N/A

33 3" Manifold Gasket 12 * N/A 34 4" Manifold Gasket 4 * N/A

35 3" Clamp Band Assembly 12 15-7102-03 N/A 36 4" Clamp Band Assembly 4 15-7202-03 N/A

Valve Ball and Mushroom Valve Conﬁ guration

37 Valve Seat 4 08-1127-10-83 08-1127-10-83 38 Valve Ball 4 * 04-1080-55

39 Valve Housing 4 08-5461-10-83 08-5461-10-83 40 Ball Retainer 4 08-5430-10-83 08-5430-10-83

41 Mushroom Valve 4 15-1095-55 15-1095-55

42 Mushroom Valve Guide 4 08-5431-10-83 08-5431-10-83

33 3" Manifold Gasket 16 * 15-1375-55

35 3" Clamp Band Assembly 16 15-7102-03 15-7102-03

* Refer to Elastomer Chart

Air Valve assembly includes items 2 & 3.

Clamp band assembly (P/N 08-7300-03-83) includes items 27 & 28.

Teﬂ on® PTFE and Ultra-Flex® diaphragms not available with ﬂ ap alve conﬁ guration.

All boldface items are primary wear parts.

PV15/SNNN/084

P/N

PV15/SNNN/084

P/N

1 04-2030-06 04-2030-06

1 08-3810-03-83 08-3840-09

PARTS LISTING

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 29 WILDEN PUMP & ENGINEERING, LLC

Page 32

EXPLODED VIEW & PARTS LISTING

PV15 SANIFLO™ LSH

— 26 — 27

Vertically Mounted Side Ported Manifold EXPLODED VIEW

— 39

— 37

— 36

— 32

— 33

— 35

— 34

BALL MUSHROOM ULTRA-FLEX™

— 36

— 32

— 33

— 38

— 34

TEFLON

— 22

— 24

12 —

— 7

— 35

— 33

— 32

— 36

— 34 — 31

— 30

WILDEN PUMP & ENGINEERING, LLC 30 TT4454 EOM-PV8/ PV15M 8 /04 TT426 7 5/ 04

Page 33

EXPLODED VIEW & PARTS LISTING

PV15 SANIFLO™ LSH

Rubber/TPE/Ultra-

Flex™ Fitted Teﬂ on® Fitted

PV15/SNNN/087

Item Description Qty.

1 Air Valve, Pro-Flo V™, Nickel Plated

1 04-2030-06 04-2030-06

P/N

6 Gasket, Muffler Plate 1 04-3502-52 04-3502-52 7 Gasket, Air Valve 1 04-2620-52 04-2620-52

8 Center Block, Pro-Flo V™, LSH Nickel Plated 1 08-3120-06 08-3120-06 9 Removable Pilot Sleeve Assembly 1 04-3880-99 04-3880-99

10 Pilot Spool Retaining O-Ring 2 04-2650-49-700 04-2650-49-700

11 Shaft Seal 4 08-3210-55-225 08-3210-55-225 12 Gasket, Center Block, PV4-PV15 2 04-3529-52 04-3529-52

13 Air Chamber, Pro-Flo V™, Nickel Plated 2 08-3660-06 08-3660-06 14 Screw, HSFHS, 3/8"-16 x 1" 8 71-6250-08 71-6250-08 15 Retaining Ring 2 04-3890-03 04-3890-03 16 Shaft, Pro-Flo

1 08-3810-03-83 08-3840-09

Shaft, Pro-Flo®, Ultra-Flex™ 1 08-3841-03 N/A 17 Shaft Stud 2 N/A 08-6152-08

Shaft Stud, Ultra-Flex™ 2 08-6150-08 N/A 18 Inner Piston 2 08-3700-01 08-3750-01

Inner Piston, Ultra-Flex™ 2 08-3761-01 N/A

19 Diaphragm 2 * 08-1010-55 20 Backup Diaphragm 2 N/A 08-1060-51

21 Outer Piston 2 08-4550-10-72 08-4600-10-72

Outer Piston, Ultra-Flex™ 2 08-4560-10-83 N/A 22 Liquid Chamber 2 15-5000-10-83 15-5000-10-83 23 3" Elbow 2 15-5240-10-83 15-5240-10-83 24 3" T-Section, Side Ported 2 15-5170-10-83 15-5170-10-83 25 12" Clamp band Assembly 2 08-7300-03-83 08-7300-03-83 26 12" Clamp Band Wing Nut 4 08-6671-10 08-6671-10 27 12" Clamp Band Washer, 3/8" 4 04-6740-03 04-6740-03 28 Pump Stand Assembly 1 15-7651-10-83 15-7651-10-83 29 Sanitary Muffler (Not Shown) 1 15-3510-06R 15-3510-06R

Flap Valve Configuration

30 Flap Valve Body 4 15-5280-10-83 N/A 31 Flap Valve 4 15-1180-10-83 N/A

32 4" to 3" Reducer 4 15-5290-10-83 N/A

33 3" Manifold Gasket 10 * N/A 34 4" Manifold Gasket 4 * N/A

35 3" Clamp Band Assembly 10 15-7102-03 N/A 36 4" Clamp Band Assembly 4 15-7202-03 N/A

Valve Ball and Mushroom Valve Configuration

37 Valve Seat 4 08-1127-10-83 08-1127-10-83 38 Valve Ball 4 * 04-1080-55

39 Valve Housing 4 08-5461-10-83 08-5461-10-83 40 Ball Retainer 4 08-5430-10-83 08-5430-10-83

41 Mushroom Valve 4 15-1095-55 15-1095-55

42 Mushroom Valve Guide 4 08-5431-10-83 08-5431-10-83

33 3" Manifold Gasket 14 * 15-1375-55

35 3" Clamp Band Assembly 14 15-7102-03 15-7102-03

* Refer to Elastomer Chart

Air Valve assembly includes items 2 & 3.

Clamp band assembly (P/N 08-7300-03-83) includes items 27 & 28.

Teﬂ on® PTFE and Ultra-Flex™ diaphragms not available with ﬂ ap alve conﬁ guration.

All boldface items are primary wear parts.

PV15/SNNN/087

P/N

PARTS LISTING

TT44 54 EOM-PV8 /PV15M 8/04 TT4267 5 /04 31 WILDEN PUMP & ENGINEERING, LLC

Page 34

Section 9

ELASTOMER OPTIONS

PV8 and PV15 SANIFLO™ LSH

ULTRA-FLEX

MATERIAL DIAPHRAGMS

FDA Buna-N 08-1010-69 (2 red dots) 08-1020-52 (red dot) 04-1080-69 (yellow dot) 15-1375-69 (yellow dot) 15-1215-69 (yellow dot) FDA EPDM 08-1010-74 (2 blue dots) 08-1020-54 (blue dot) 04-1080-74 (orange dot) 15-1375-74 (orange dot) 15-1215-74 (orange dot) Saniﬂ ex™ 08-1010-56 (cream) N/A 04-1080-56 (cream) N/A N/A

Teﬂ o n

PTFE 08-1010-55 (white) N/A 04-1080-55 (white) 15-1375-55 (white) 15-1215-55 (white)

FDA Wil-Flex™ 08-1010-57 (off-white) N/A 04-1080-57 (off-white) N/A N/A

Note: Teﬂ on

PTFE and Ultra-Flex™ diaphragms not available with stainless steel ﬂ ap valves.

(color code) (color code) (color code) (color code) (color code)

DIAPHRAGMS VALVE BALL 3” FLANGE GASKET 4” FLANGE GASKET

WILDEN PUMP & ENGINEERING, LLC 32 T T445 4 EOM-PV8 /PV15M 8/ 04 T T4267 5/04

Page 35

WARRANTY

Each and every product manufactured by Wilden Pump and Engineering, LLC is built to meet the highest standards of quality. Every pump is functionally tested to insure integrity of operation.

Wilden Pump and Engineering, LLC warrants that pumps, accessories and parts manufactured or supplied by it to be free from defects in material and workmanship for a period of ﬁ ve years from date of installation or 6 years from date of manufacture, whichever comes ﬁ rst. Failure due to normal wear, misapplication, or abuse is, of course, excluded from this warranty.

Since the use of Wilden pumps and parts is beyond our control, we cannot guarantee the suitability of any pump or part for a particular application and Wilden Pump and Engineering, LLC shall not be liable for any consequential damage or expense arising from the use or misuse of its products on any application. Responsibility is limited solely to replacement or repair of defective Wilden pumps and parts.

All decisions as to the cause of failure are the sole determination of Wilden Pump and Engineering, LLC.

Prior approval must be obtained from Wilden for return of any items for warranty consideration and must be accompanied by the appropriate MSDS for the product(s) involved. A Return Goods Tag, obtained from an authorized Wilden distributor, must be included with the items which must be shipped freight prepaid.

The foregoing warranty is exclusive and in lieu of all other warranties expressed or implied (whether written or oral) including all implied warranties of merchantability and ﬁ tness for any particular purpose. No distributor or other pe rson is authoriz ed to assume a ny liabilit y or obligat ion for Wilden Pump an d Engineering, LLC other than expres sly provided herein.

PLEASE PRINT OR TYPE AND FAX TO WILDEN

PUMP INFORMATION

Item # Serial #

Company Where Purchased

YOUR INFOR MATI ON

Company Name

Industry

Name Title

Street Address

City State Postal Code Country

Telephone Fax E-mail Web Address

Number of pumps in facility? Number of Wilden pumps?

Types of pumps in facility (check all that apply):

Media being pumped?

Other

Diaphragm

Centrifugal

Gear

Submersible

Lobe

How did you hear of Wilden Pump?

Other

NOTE: WARRANTY VOID IF PAGE IS NOT FAXED TO WILDEN

Trad e Jo urna l

Trad e Sh ow

ONCE COMPLETE, FAX TO (909) 783-3440

WILDEN PUMP & ENGINEERING, LLC

Internet/E-mail

Distributor
