Easydeck
Modular System
Easydeck is a modular performance system, perfectly suited for use in smaller
venues. Designed to provide temporary staging. It is a ‘no fuss’ system which is
simplicity itself to install and requires no special tools to assemble.
The Deck Panels are phenol coated birch ply and feature a
smooth surface and a non slip surface on opposing sides.
Easydeck conforms to the following standards, DIN 53799, BS6566:1 1985
IMPORTANT NOTE: Responsibility lies with the user to undertake their own risk assessment
following installation, to ensure the oor plan is set-out such that injuries resulting from falling
objects, e.g. furniture falling from staging, are either eliminated or reduced to an acceptable level.
www.doughty-engineering.co.uk
Version 03/13
Page 2
Parts & Features

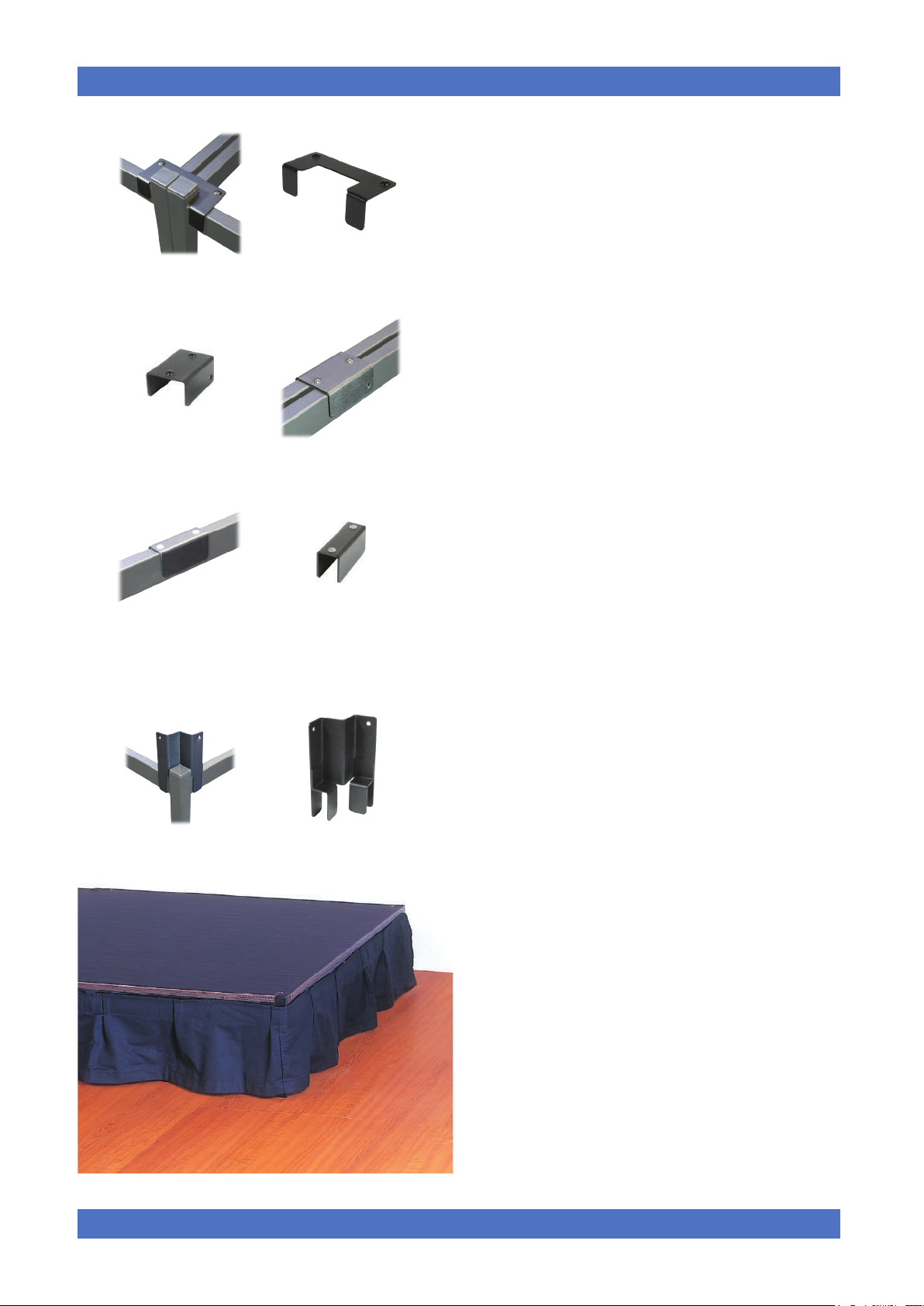

T77500 - Joint Clip - Easydeck Joint Clips are
used to secure runways and step units.
T77600 - Joint Channel - Joint Channels are
used to create a secure joint between two
adjacent frames.
T77650 - Support Channel - Support Channels
are used to match the height of the Joint
Channels and Joint Clips, ensuring a level
platform for the deck panels is achieved.
T77200 - Riser Bracket - Riser Brackets are
designed to be used when two units are tiered on
top of each other. The Riser Brackets are tted to
each corner ensuring the tiered unit is extremely
safe and secure. These must be used in sets of 4.
Easydeck “Bolton Twill” Valance
1000mm series
T77950 250mm x 6.0m
T77960 500mm x 6.0m
T77970 750mm x 6.0m
750mm series
T80950 250mm x 4.5m
T80960 500mm x 4.5m
T80970 750mm x 4.5m
www.doughty-engineering.co.uk
Page 3
Parts & Features
Easydeck Square Frames
EASYDECK FRAMES ARE SUPPLIED WITHOUT DECK PANELS
1000mm Series
T76000 Square Frame 1000 x 1000 x 250mm SWL 500 Kg
T76100 Square Frame 1000 x 1000 x 500mm SWL 500 Kg
T76200 Square Frame 1000 x 1000 x 750mm SWL 500 Kg
T76600 Reversible Deck Panel 1000 x 1000 x 18mm
750mm Series
T78500 Square Frame 750 x 750 x 250mm SWL 375 Kg
T78600 Square Frame 750 x 750 x 500mm SWL 375 Kg
T78700 Square Frame 750 x 750 x 750mm SWL 375 Kg
T79400 Reversible Deck Panel 750 x 750 x 18mm

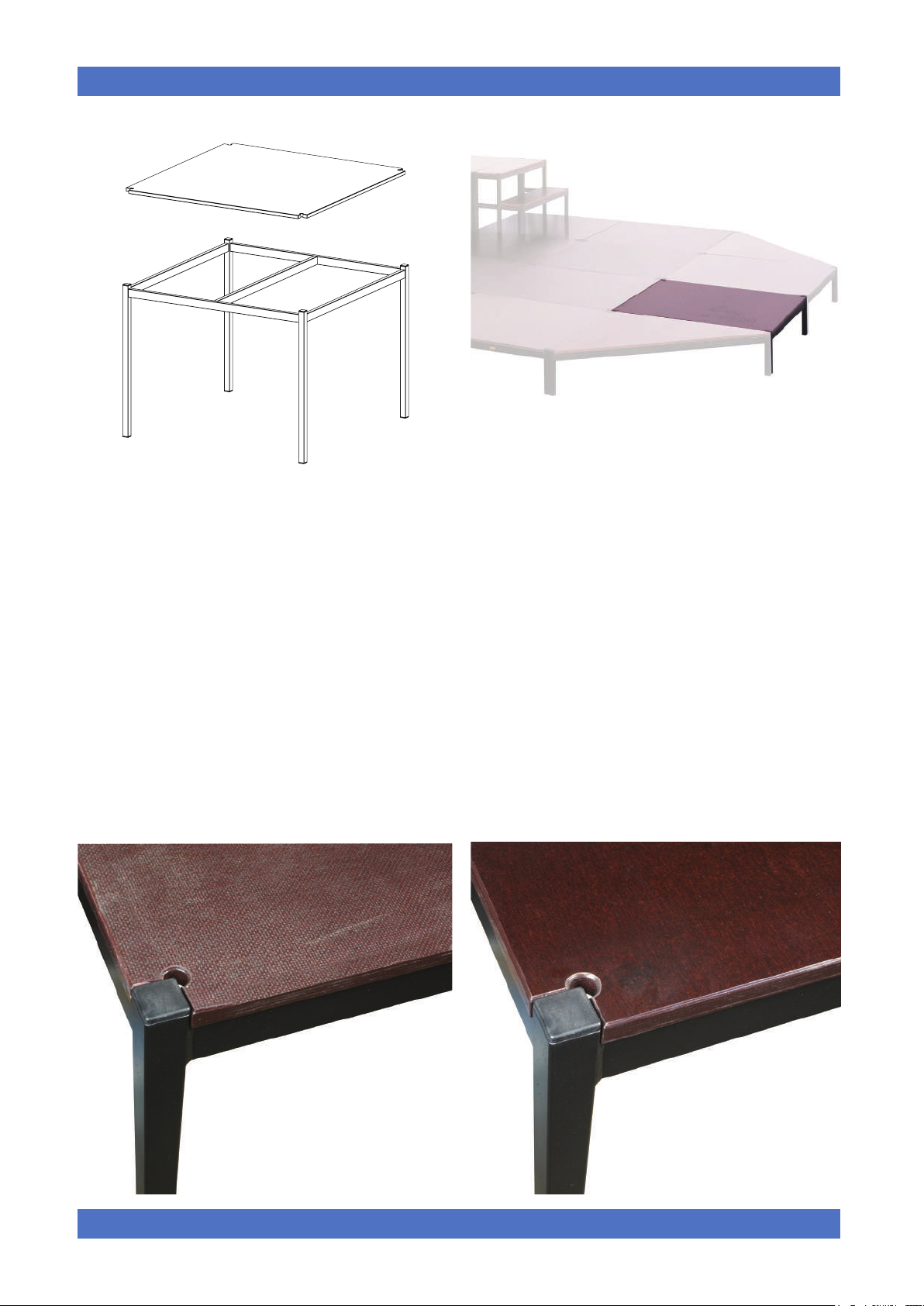

Reversible Deck Panels
Non Slip Surface
Smooth Surface
www.doughty-engineering.co.uk
Page 4
Parts & Features

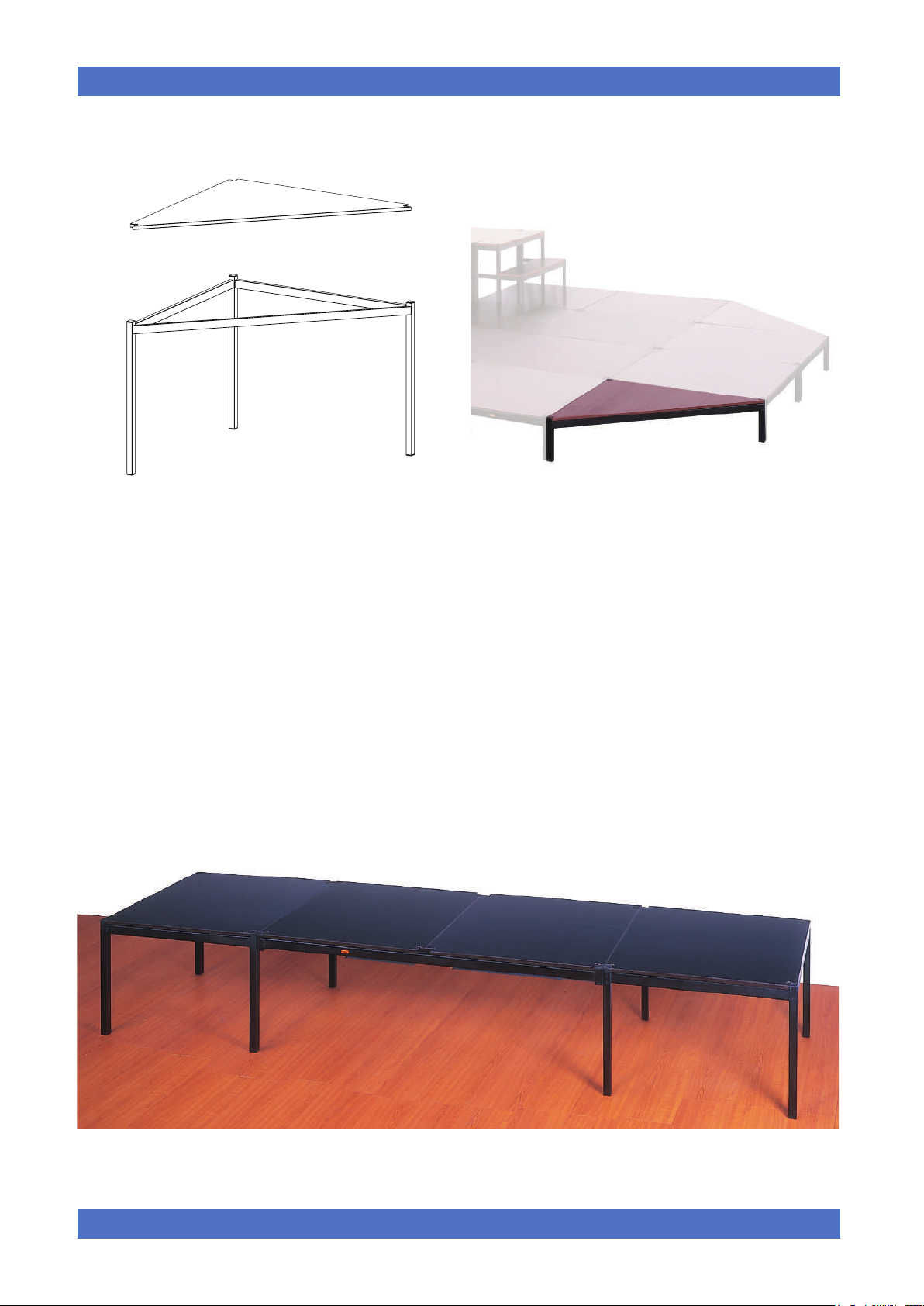

Easydeck Triangular Frames
EASYDECK FRAMES ARE SUPPLIED WITHOUT DECK PANELS
1000mm Series
T76300 Triangular Frame 1000 x 1000 x 250mm SWL 250 Kg
T76400 Triangular Frame 1000 x 1000 x 500mm SWL 250 Kg
T76500 Triangular Frame 1000 x 1000 x 750mm SWL 250 Kg
T76700 Reversible Deck Panel 1000 x 1000 x 18mm
750mm Series
T78900 Triangular Frame 750 x 750 x 250mm SWL 187 Kg
T79000 Triangular Frame 750 x 750 x 500mm SWL 187 Kg
T79100 Triangular Frame 750 x 750 x 750mm SWL 187 Kg
T79500 Reversible Deck Panel 750 x 750 x 18mm
Easydeck Bridging Unit - 750mm Series
T80600 Single Bridging Unit 750 x 750mm
T80700 Double Bridging Unit 1500 x 750mm
www.doughty-engineering.co.uk
Page 5
Parts & Features

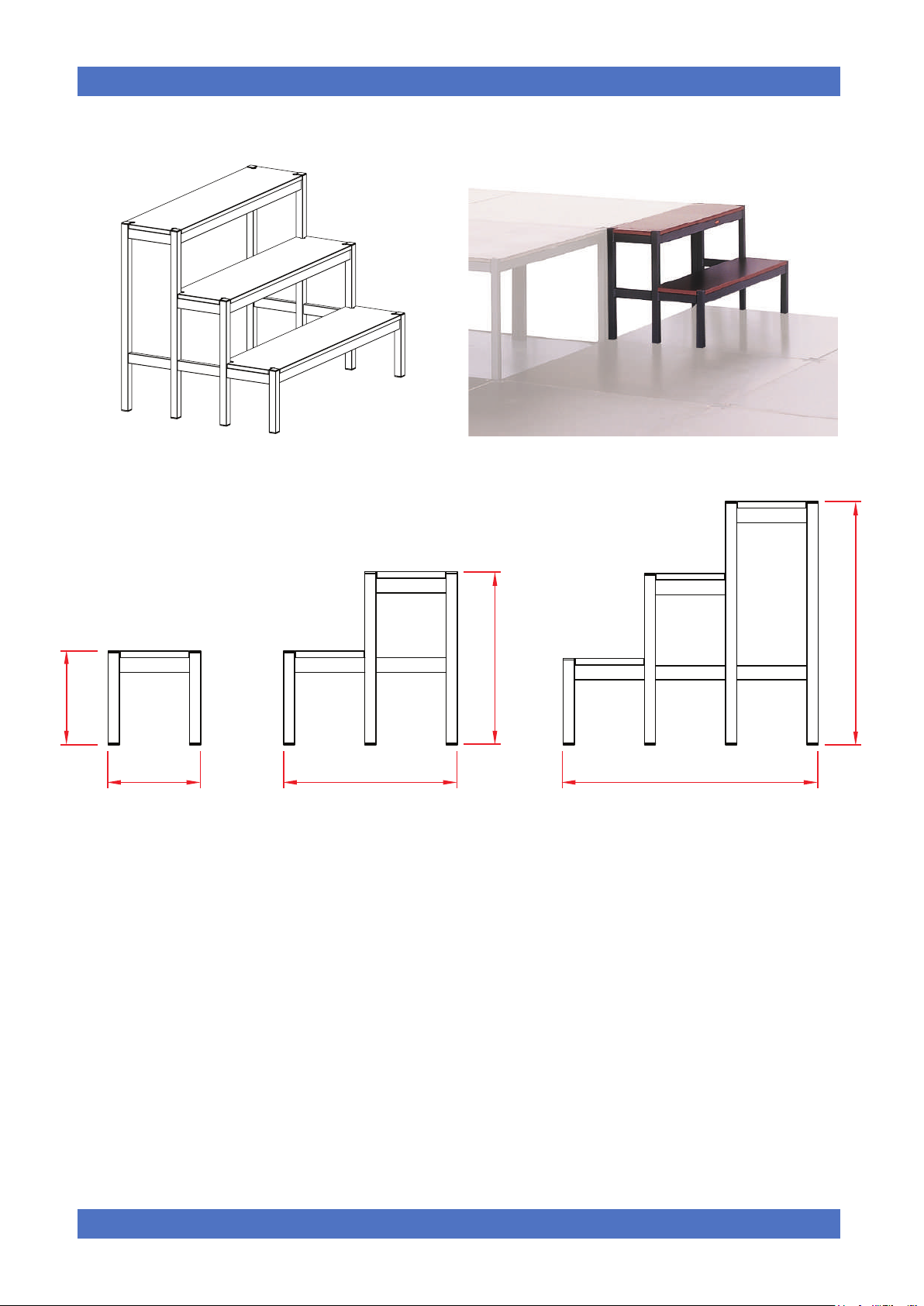

Easydeck Step Units
EASYDECK STEP FRAMES ARE SUPPLIED WITHOUT STEP DECK PANELS
250mm
500mm
470mm250mm
690mm
Triple StepDouble StepSingle Step
1000mm Series
T76505 Single Step Unit 1000 x 250 x 250mm
T76506 Double Step Unit 1000 x 470 x 500mm
T76507 Triple Step Unit 1000 x 690 x 750mm
T76800 Step Deck Panel 1000 x 250mm
750mm Series
T79300 Single Step Unit 750 x 250 x 250mm
T76305 Double Step Unit 750 x 470 x 500mm
T76310 Triple Step Unit 750 x 690 x 750mm
T79600 Step Deck Panel 750 x 250mm
750mm
www.doughty-engineering.co.uk
Page 6
Parts & Features

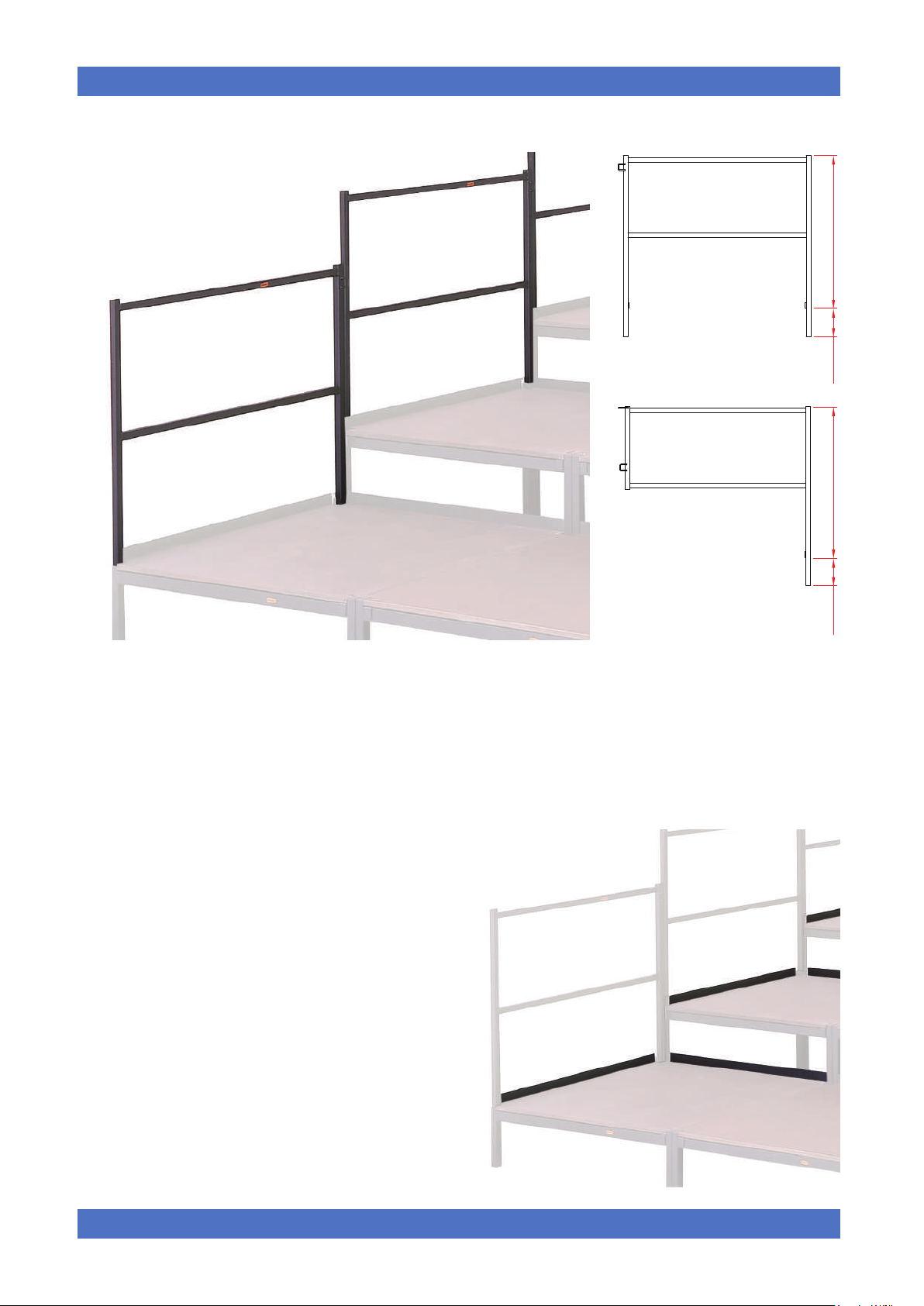

Easydeck Handrail
Standard Handrail
Section
810mm150mm
810mm150mm
Easydeck Handrail
1000mm Series 750mm Series
T76900 Standard Section
T77000 Corner Section
T77100 Ramp Section
T77110 Primary Ramp Handrail
Easydeck Chair Stops
Chair Stops create a raised edging to eliminate
the chance of a chair leg slipping off the stage.
Corner Handrail
Section
T79700 Standard Section
T79800 Corner Section
T79900 Ramp Section
T79910 Primary Ramp Handrail
T77300 1000mm Series Chair Stop
T80100 750mm Series Chair Stop
www.doughty-engineering.co.uk
Page 7
Parts & Features
Ramp System 3
500 - 750mm
750mm series = 2250mm
1000mm series = 3000mm
Ramp System 2
250 - 500mm
750mm series = 2250mm
1000mm series = 3000mm
Ramp System 1
0 - 250mm
750mm series = 2000mm
1000mm series = 2720mm

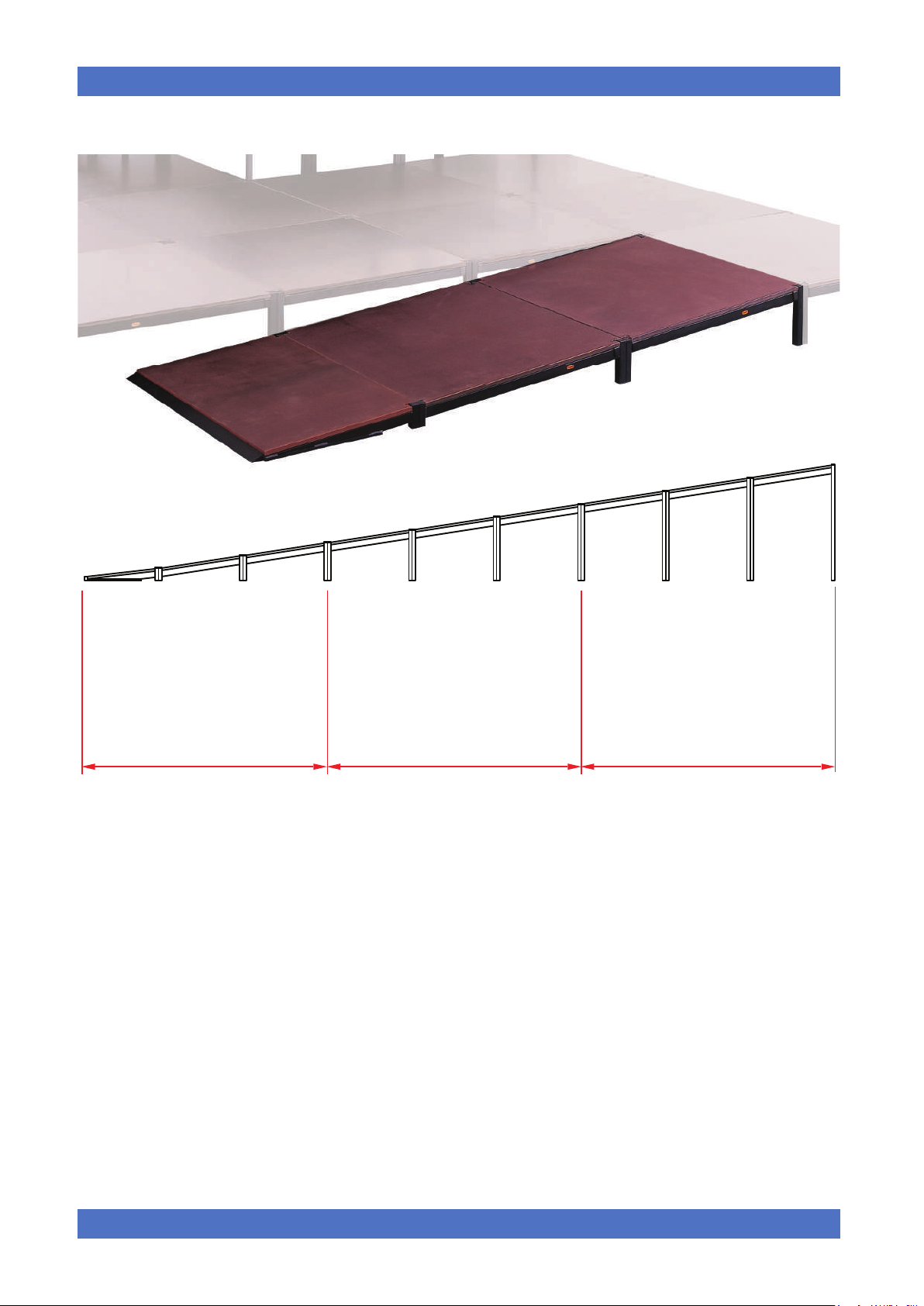

Easydeck Ramp System
ALL EASYDECK RAMP SYSTEMS ARE SUPPLIED WITH DECK PANELS
T77900 Ramp System 1 1000 x 1000 x 250mm SWL 250 Kg
T76400 Ramp System 2 1000 x 1000 x 500mm SWL 250 Kg
T76500 Ramp System 3 1000 x 1000 x 750mm SWL 250 Kg
T76700 Reversible Deck Panel 1000 x 1000 x 18mm
T78900 Ramp System 1 750 x 750 x 250mm SWL 187 Kg
T79000 Ramp System 2 750 x 750 x 500mm SWL 187 Kg
T79100 Ramp System 3 750 x 750 x 750mm SWL 187 Kg
T79500 Reversible Deck Panel 750 x 750 x 18mm
www.doughty-engineering.co.uk
1000mm Series
750mm Series
Page 8
Usage
Purpose
Easydeck is designed as a modular performance system for use as staging in small venues.
Safety Inspection
Never exceed the Safe Working Load (SWL) as shown in the below table.
Type Size SWL
Square Frame 1000 x 1000 500 Kg
Square Frame 750 x 750 375 Kg
Triangular Frame 1000 x 1000 250 Kg
Triangular Frame 750 x 750 187 Kg
Ramp System 1000 x 1000 500 Kg
Ramp System 750 x 750 500 Kg
All units and parts should be visually inspected before use. In the event of any damage the
parts should be taken out of service and returned to an ‘Approved Doughty Service Agent’
for inspection. (see our dealer locator on our web site for a comprehensive list of Authorised
Service Agents)
WHEN WORKING WITH EASYDECK, CARE MUST BE TAKEN TO AVOID THE FOLLOWING:
• Manual Handling injuries: Persons assembling the units should be trained in manual
handling techniques, especially when removing frame units that have been stacked for
storage purposes.
• Entrapment/Crushing: Keep ngers clear when lowering the oor panels into the frame
modules.
• Slips: Assemble the oor panels, ensuring the ‘top-side’ is suitable for the intended
purpose.
NB: Floor panels are reversible – one face ‘smooth’ and one ‘non-slip’.
• Trips: When assembled, the entire oor area must be level, stable and devoid of any
‘ramps’ between adjoining modules that may present a trip hazard.
• Modular separation: Modules must be rmly secured to one another using the proprietary
Joint Channels and Joint Clips provided.
• Collapse: Modules that are stacked must be positioned and secured using proprietary
Riser Brackets.
• Falls: Handrails should be tted where there is a risk of injury from falling.
www.doughty-engineering.co.uk
Page 9
Assembly

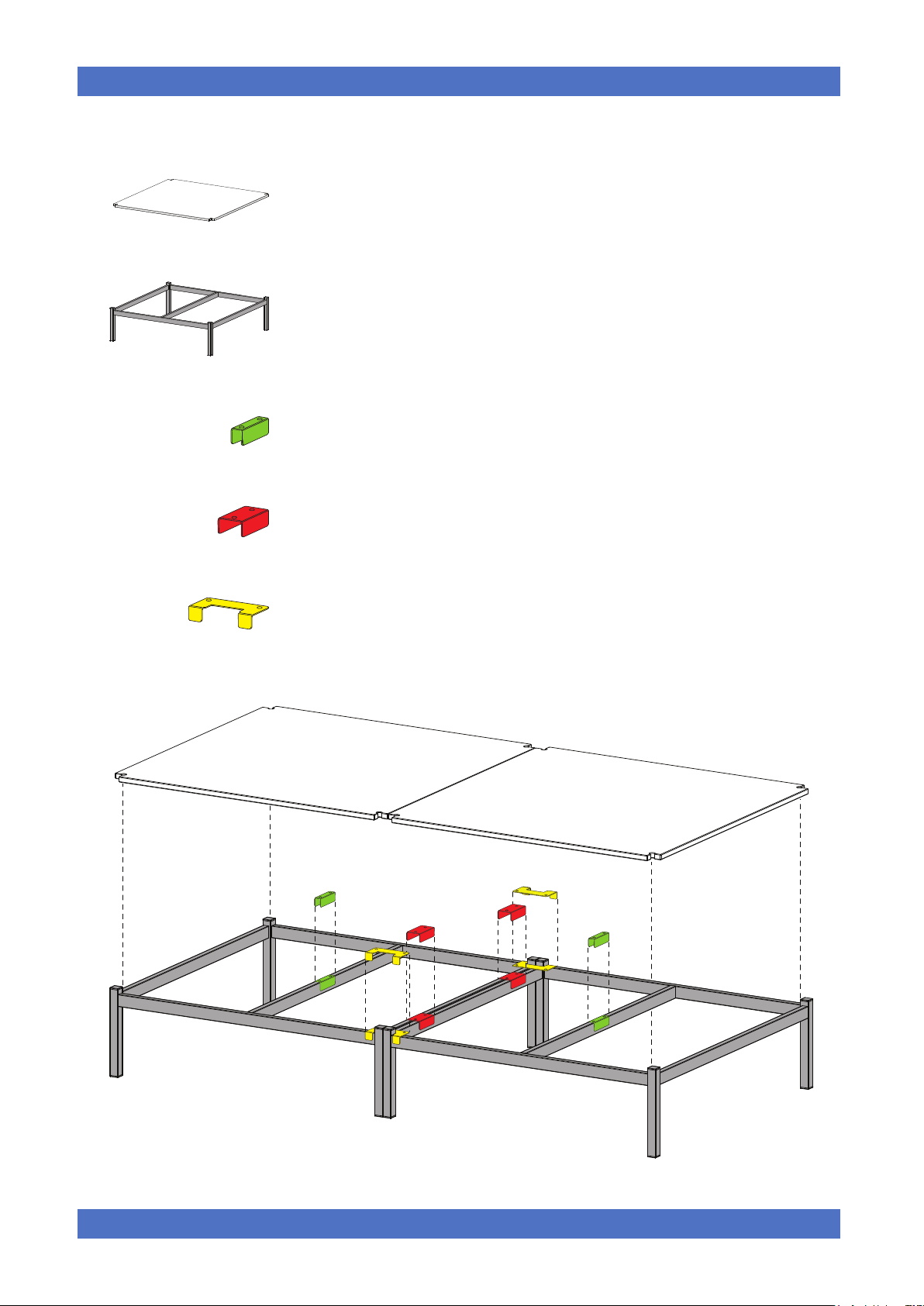

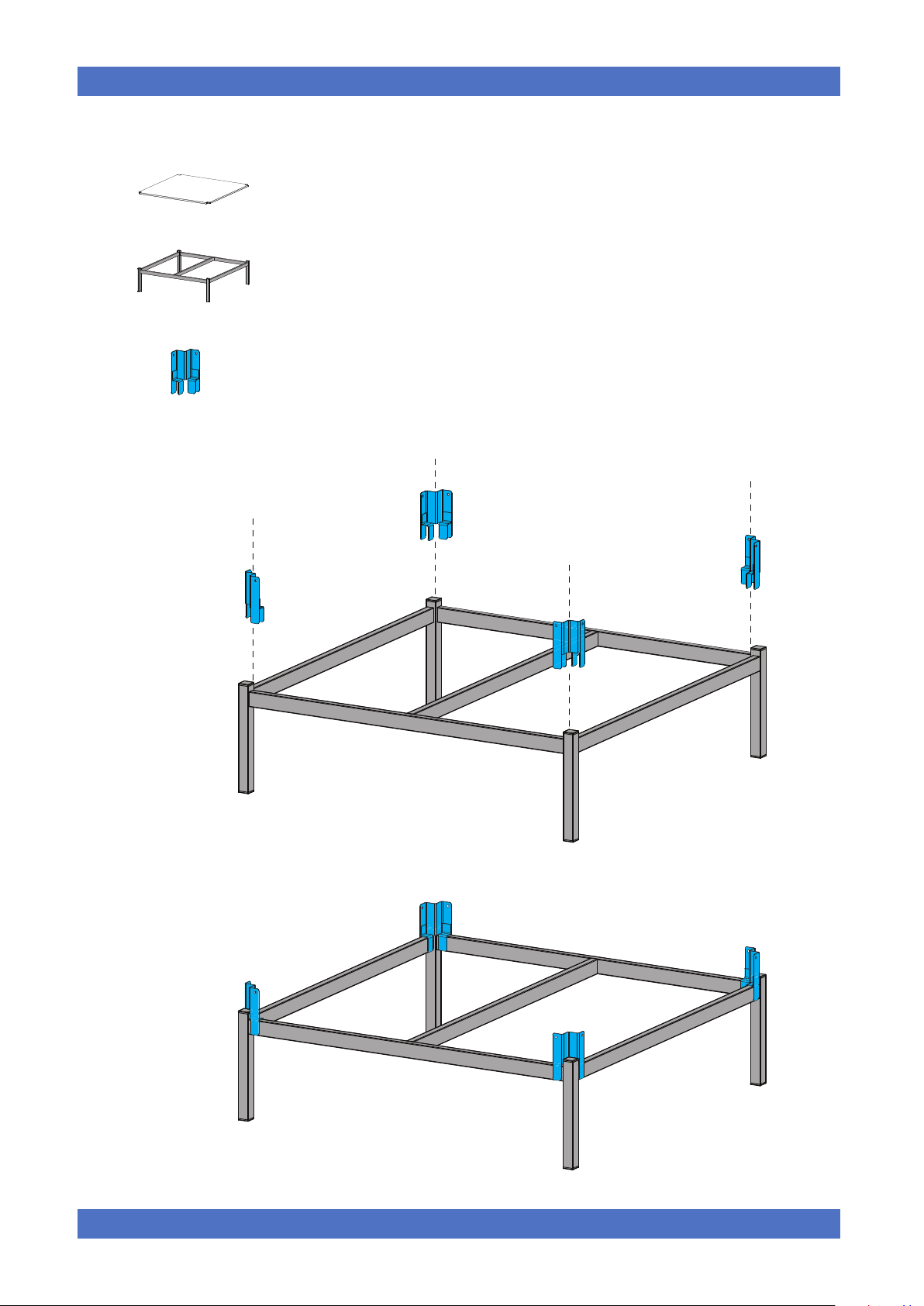

Assembling 2 Easydeck Square Frames with Panels
2 x Reversible Square Deck Panel
2 x Square Frame
2 x Support Channel
2 x Joint Channels
2 x Joint Clips
www.doughty-engineering.co.uk
Page 10
Assembly

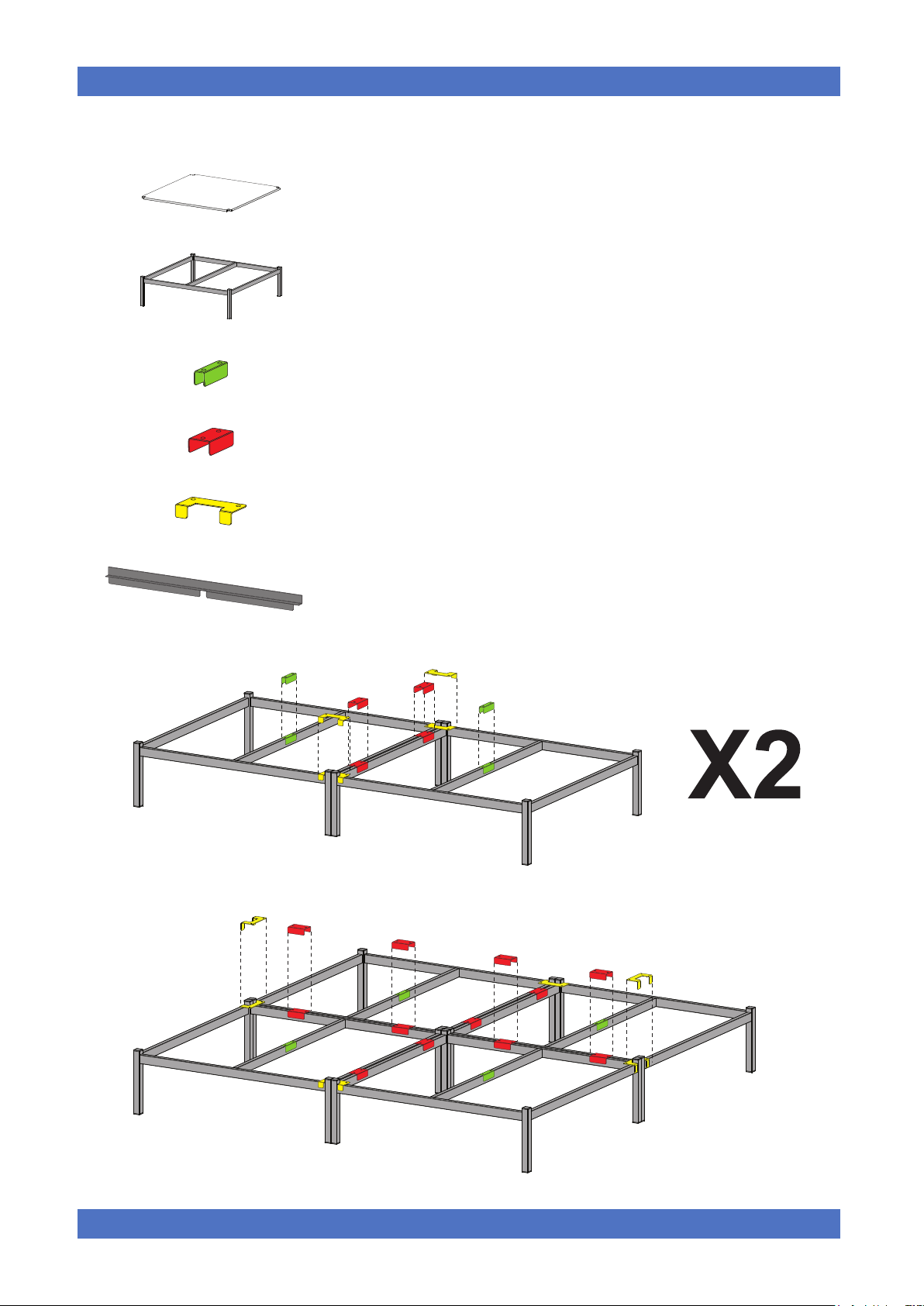

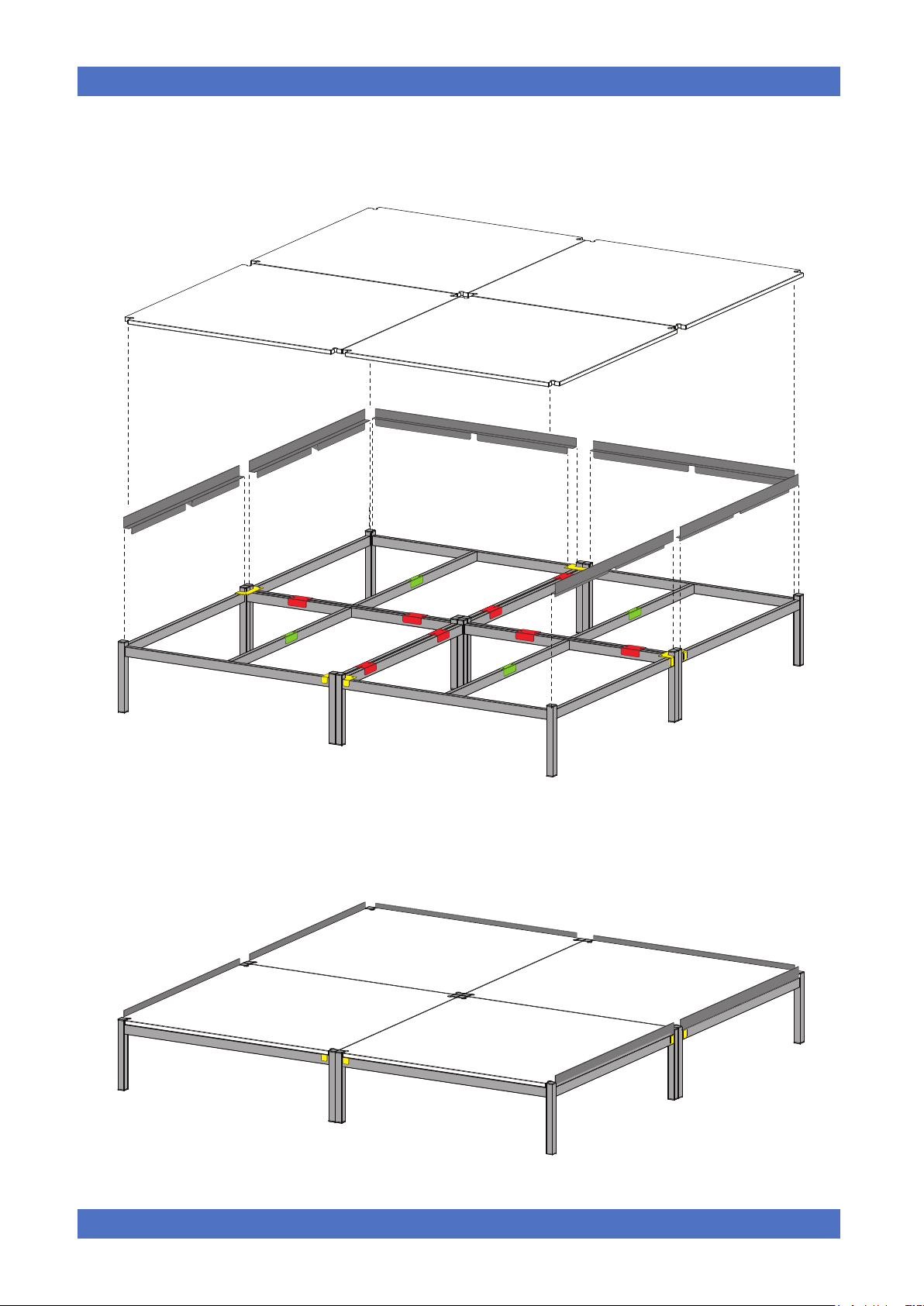

Assembling 4 Easydeck Square Frames with Panels and Chair Stops
4 x Reversible Square Deck Panel
4 x Square Frame
4 x Support Channels
8 x Joint Channels
4 x Joint Clips
6 x Chair Stops
www.doughty-engineering.co.uk
Page 11
Assembly
Assembling 4 Easydeck Square Frames with Panels and Chair Stops cont...
www.doughty-engineering.co.uk
Page 12
Assembly

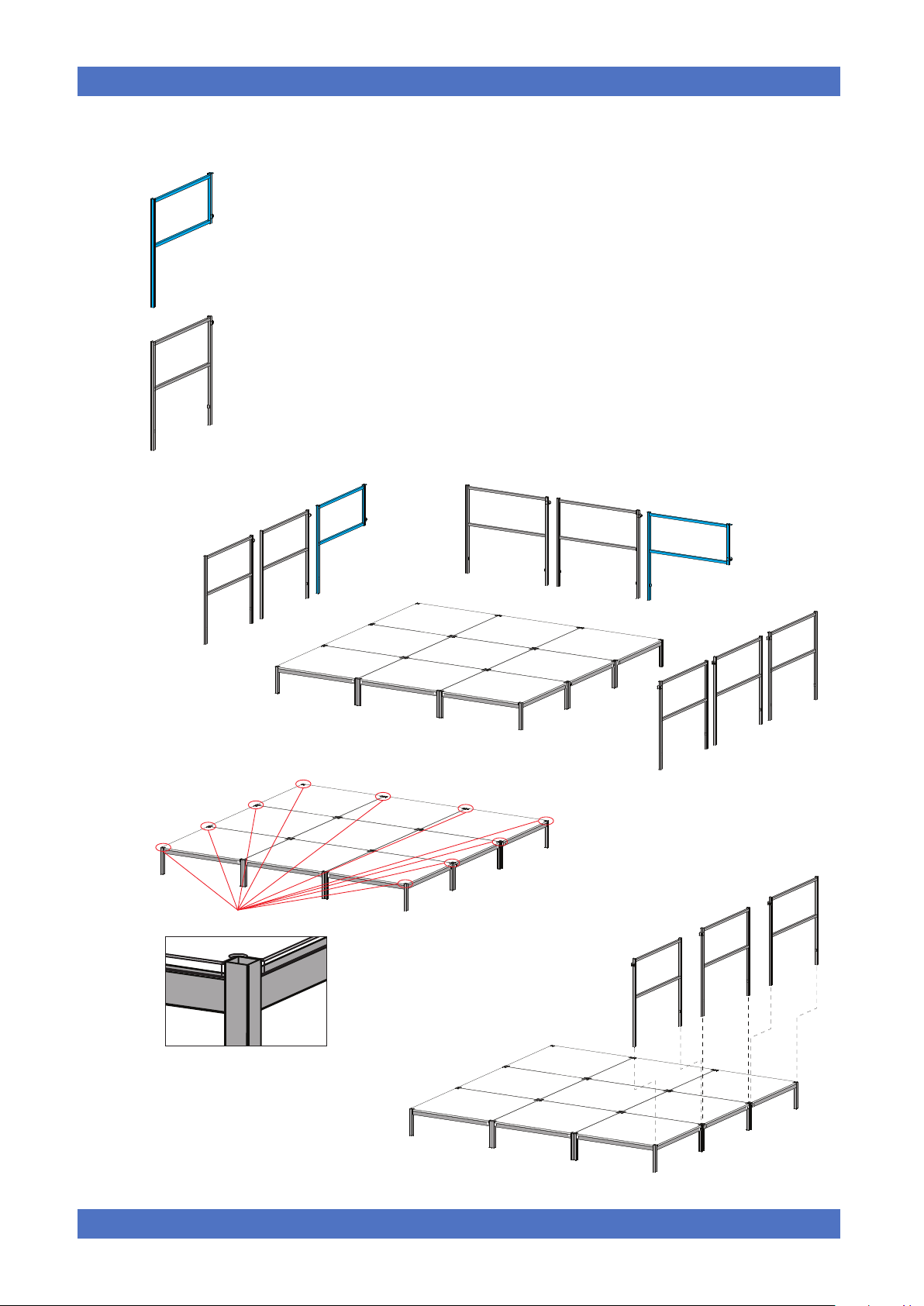

Assembling Easydeck Handrails on 3x3 base
2 x Handrail Corner Section
7 x Handrail Standard Section
Before installing Handrail ensure all top
caps are removed where necessary
www.doughty-engineering.co.uk
Page 13
Assembly

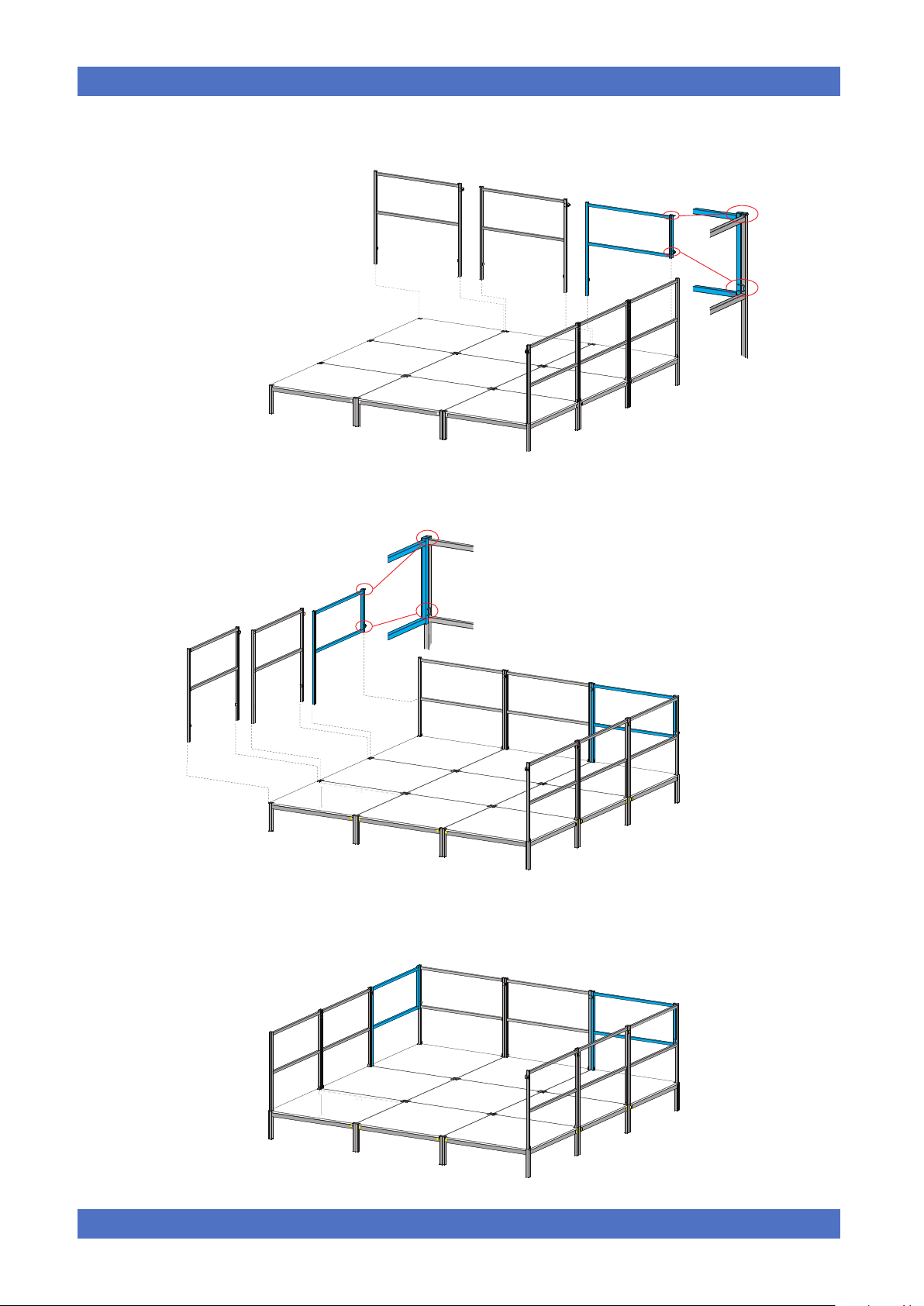

Assembling Easydeck Handrails on 3x3 base cont...
www.doughty-engineering.co.uk
Page 14
Assembly

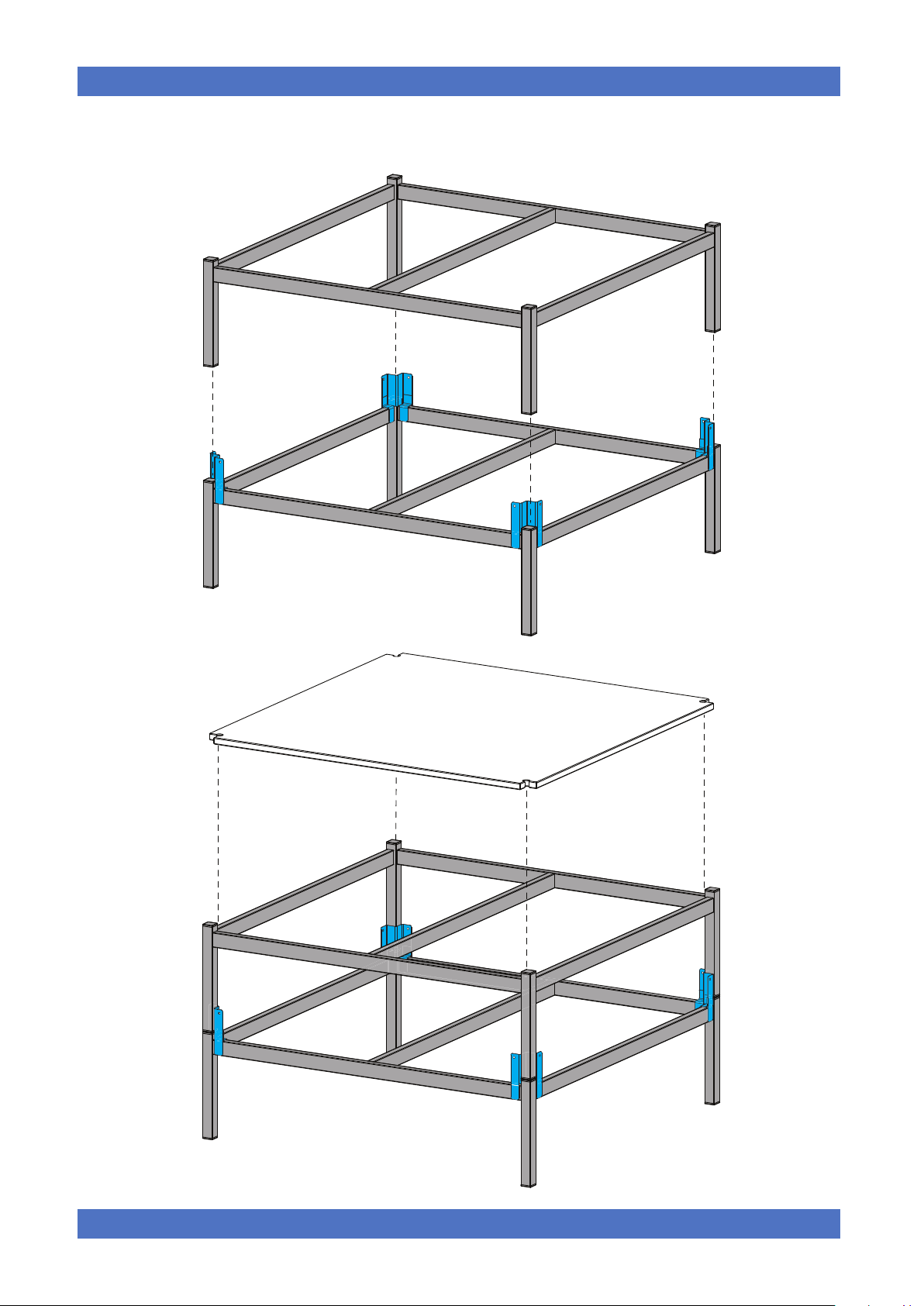

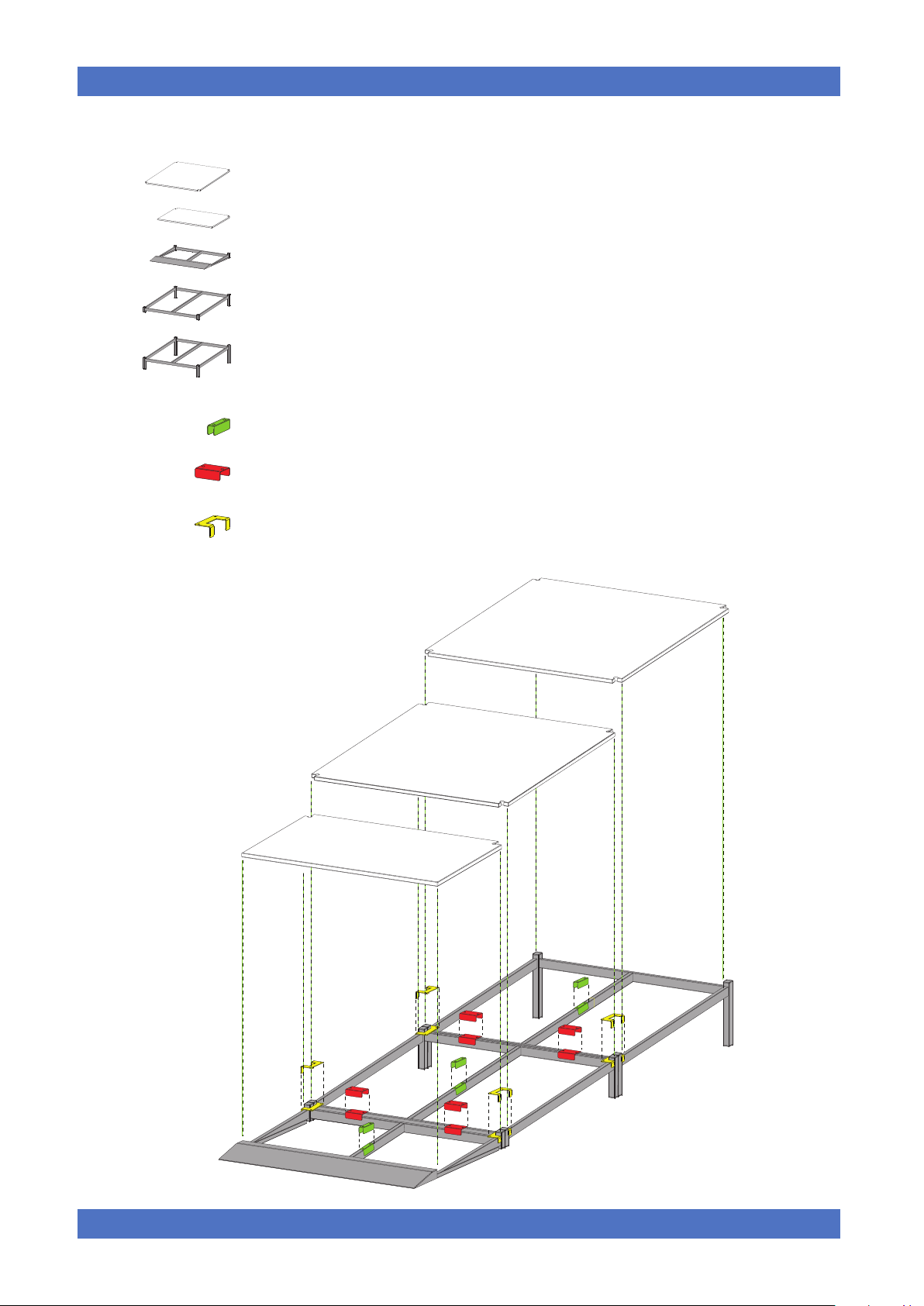

Assembling Easydeck Risers between 2 Square Frames

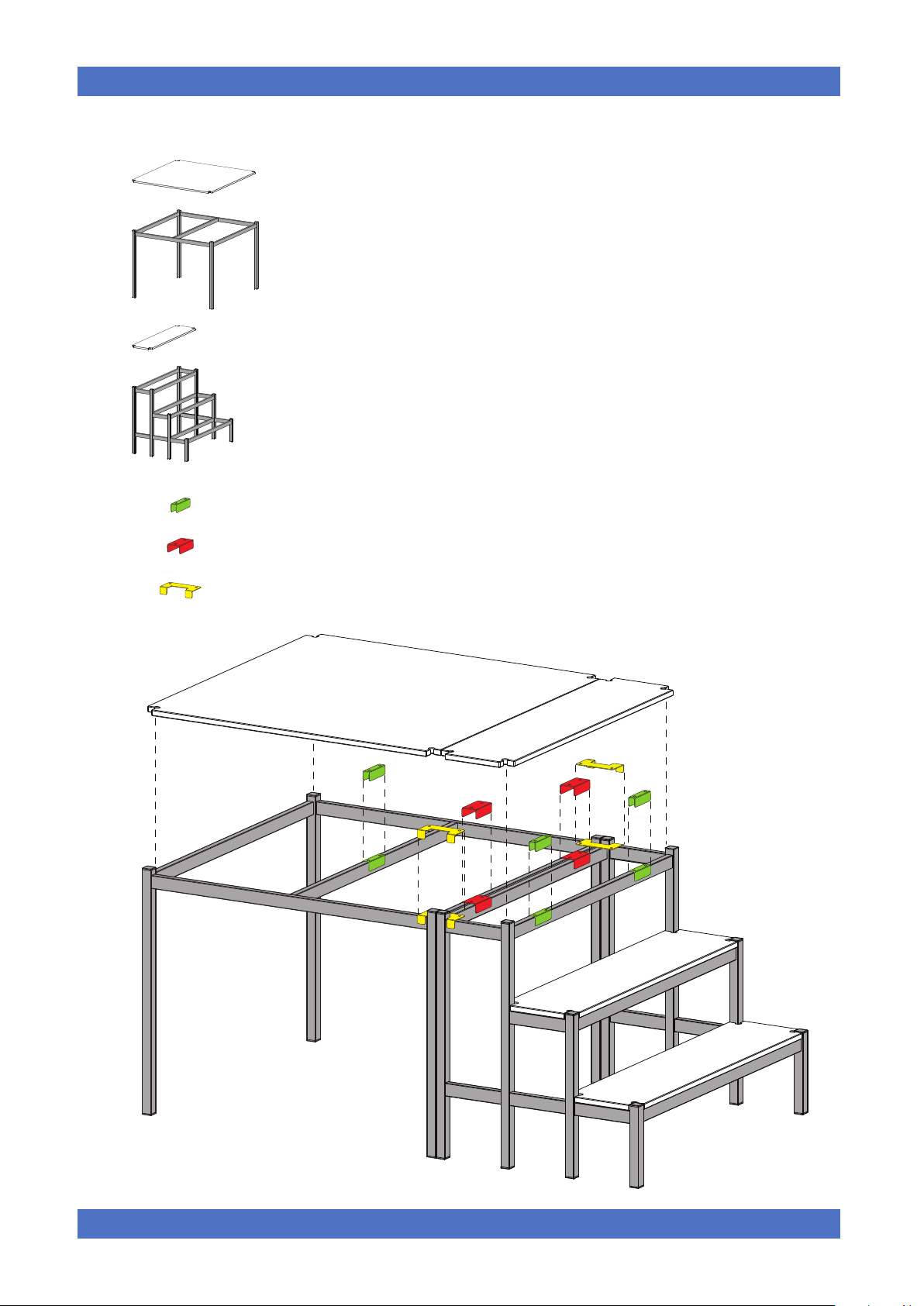

Assembling Easydeck Risers between 2 Square Frames
1 x Reversible Square Deck Panel
2 x Square Frame
4 x Riser Bracket
www.doughty-engineering.co.uk
Page 15
Assembly
Assembling Easydeck Risers between 2 Square Frames cont...
Assembling Easydeck Risers between 2 Square Frames cont...
www.doughty-engineering.co.uk
Page 16
Assembly
Assembling Easydeck Risers between 2 Square Frames
1 x Reversible Square Deck Panel
1 x Square Frame
3 x Step Deck Panel
1 x Triple Step Unit
3 x Support Channel
2 x Joint Clip
2 x Joint Channel
www.doughty-engineering.co.uk
Page 17
Assembly
Assembling Easydeck Risers between 2 Square Frames cont...
2 x Ramp System 2nd & 3rd Panel
1 x Ramp System 1st Panel
1 x Ramp System 1 1st Section
1 x Ramp System 1 2nd Section
1 x Ramp System 1 3rd Section
3 x Support Channel
4 x Joint Clip
4 x Joint Channel
www.doughty-engineering.co.uk
Page 18

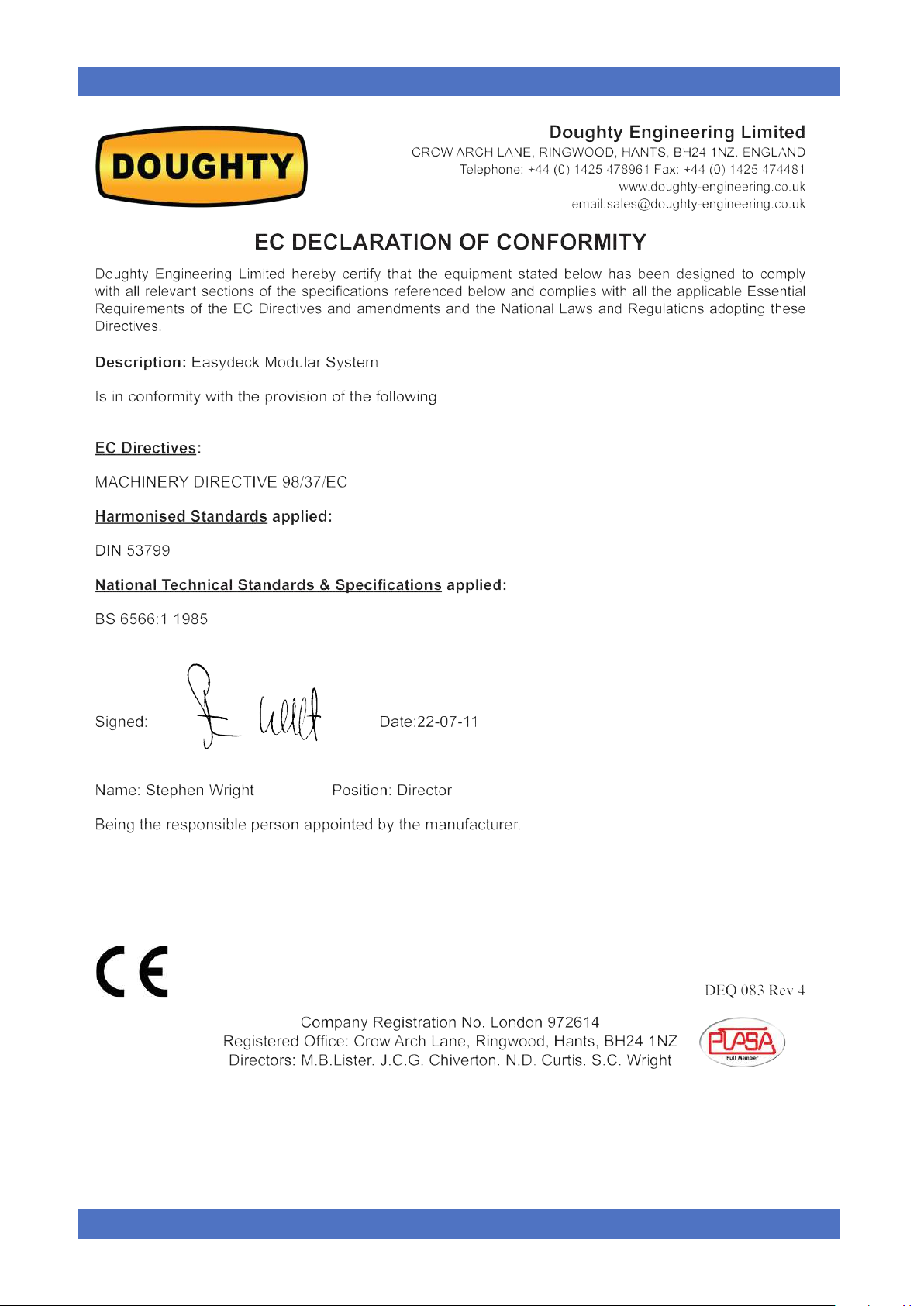

Declaration of Conformity
www.doughty-engineering.co.uk
Page 19
Contact
Doughty Engineering Ltd
Crow Arch Lane
Ringwood, Hampshire, BH24 1NZ
Tel: +44 (0) 1425 478961 Fax: +44 (0) 1425 474481
email: [email protected]
Web: www.doughty-engineering.co.uk
Note: Whilst every effort has been made to ensure that the information contained within this manual is correct,
Doughty Engineering does not accept any liability for errors or omissions. Specifications and technical data are
intended for guidance purposes only and may vary.
