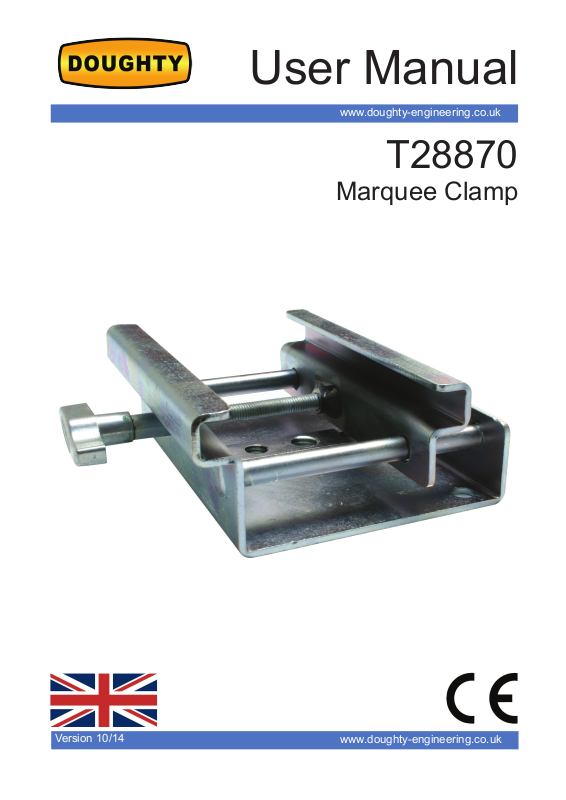

Page 1
User Manual
www.doughty-engineering.co.uk
T28870
Marquee Clamp
Version 10/14
www.doughty-engineering.co.uk
Page 2

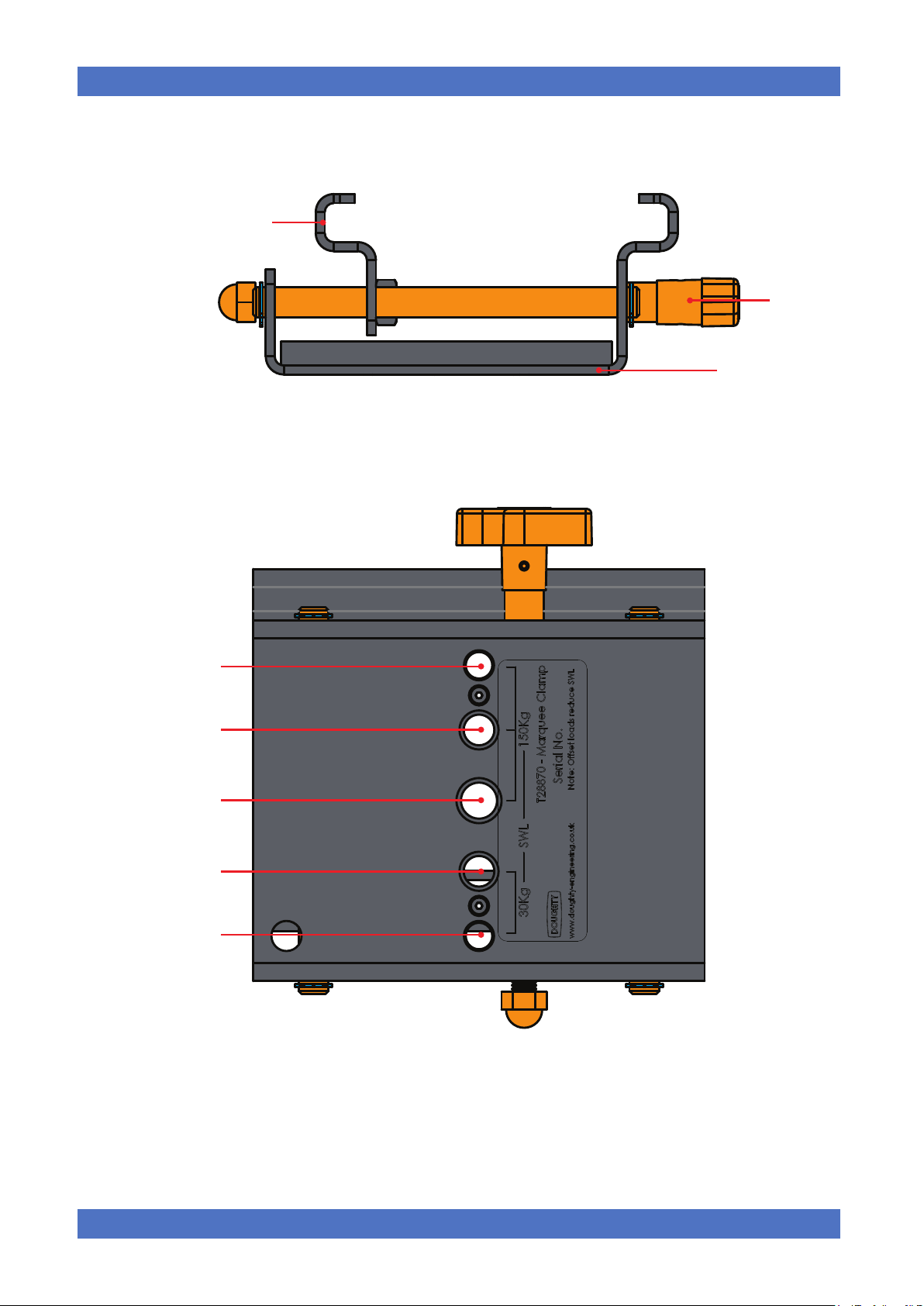

Parts & Features
Clamp
Knob
Base
M10 - 150 Kg
M12 - 150 Kg
M14 - 150 Kg
M12 - 30 Kg
M10 - 30 Kg
www.doughty-engineering.co.uk
Page 3

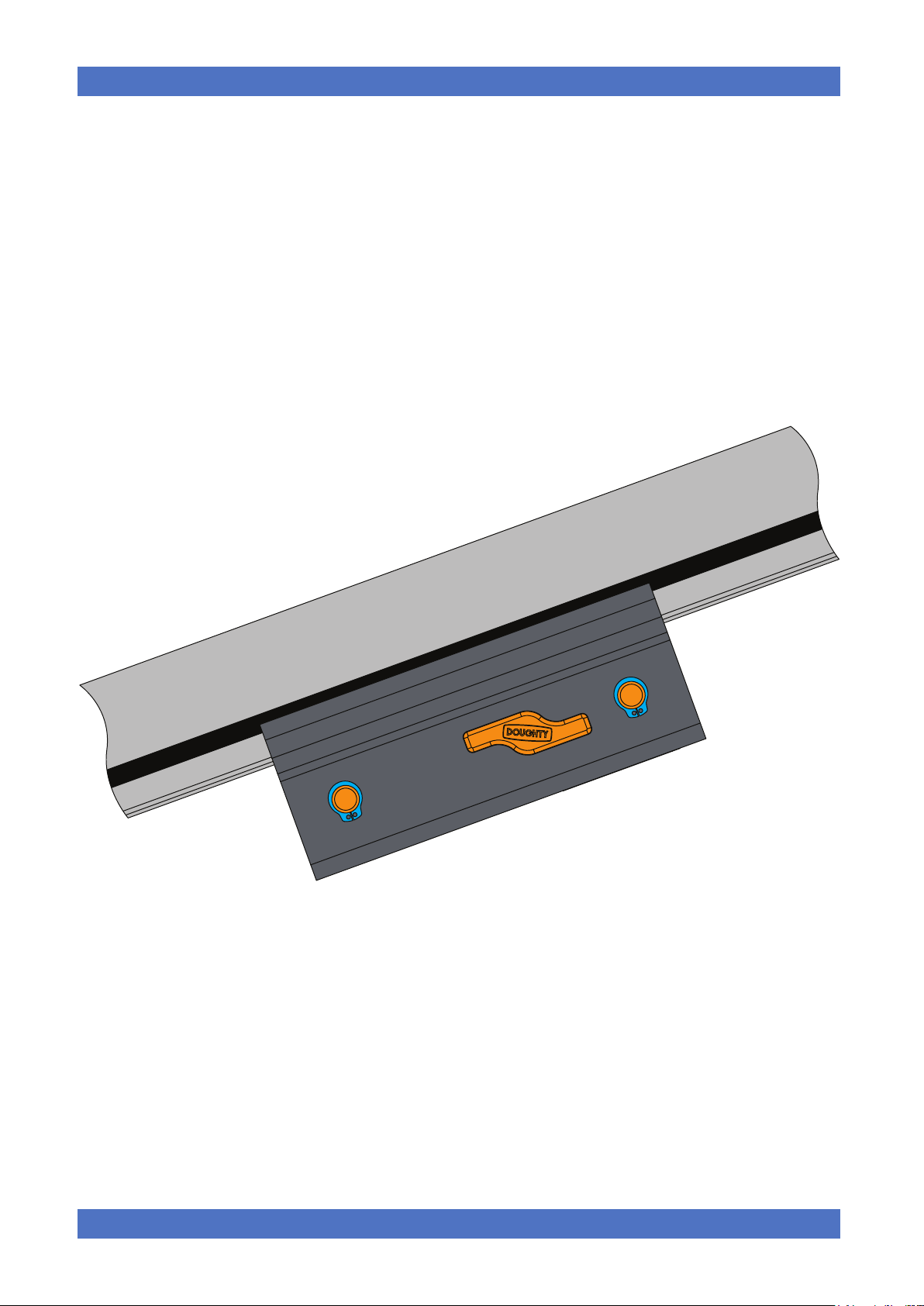

Usage
1. Never exceed the Safe Working Load (SWL) shown on the clamp. (See previous page)
2. Only use the clamp within its designed parameters. (Clear Span Marquee Prole)
3. All clamps should be visually inspected before use. In the event of any damage the
clamp should be taken out of service and returned to an ‘Approved Doughty Service
Agent’ for inspection. (see our dealer locator on our web site for a comprehensive list of
Authorised Service Agents)
4. When used in conjunction with other accessories, care must be taken to ensure that the
minimum SWL of any component is not exceeded.
www.doughty-engineering.co.uk
Page 4

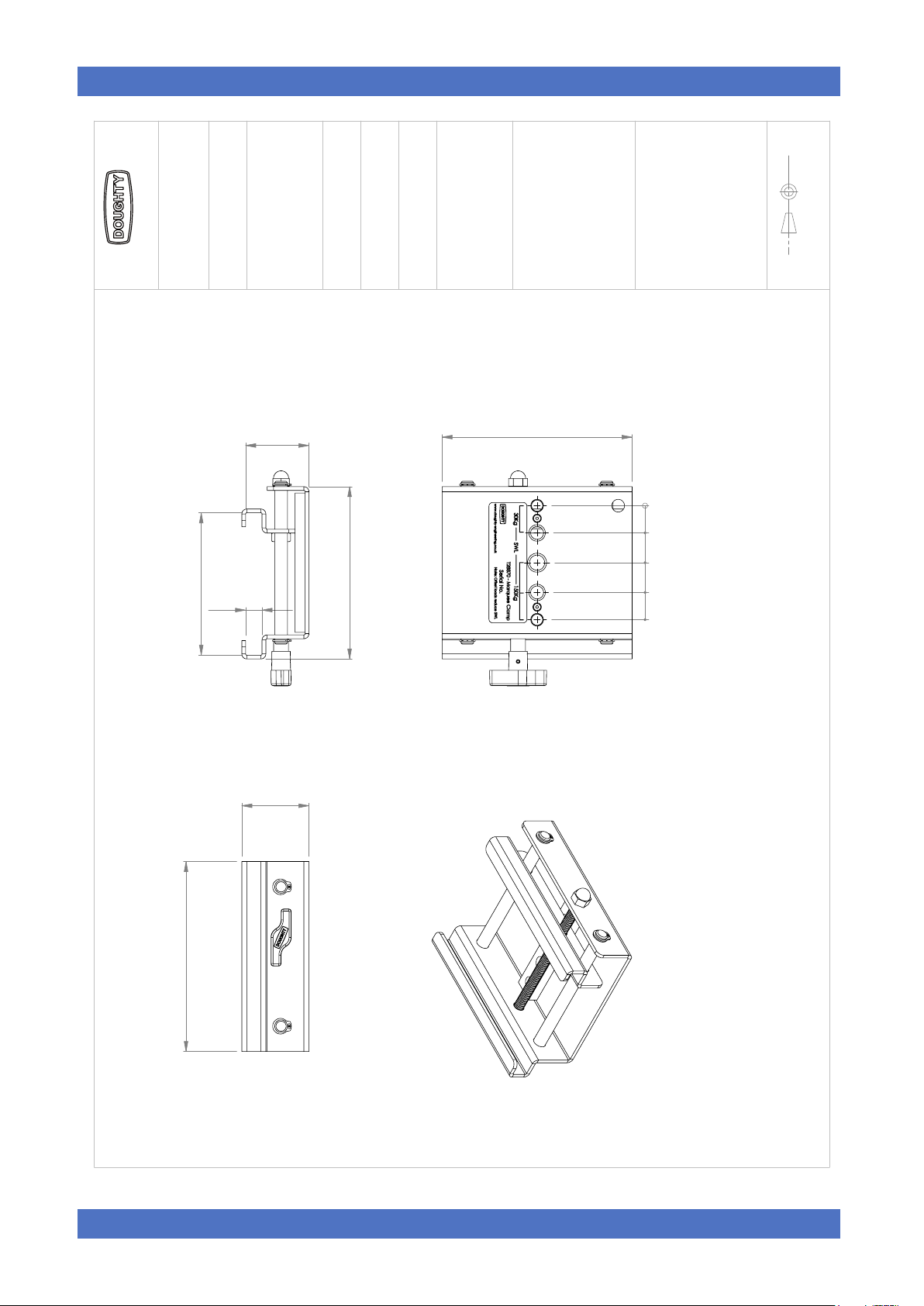

Data Sheet
STEEL
1.30 KG
MARQUEE CLAMP
DATA SHEET
DOUGHTY ENGINEERING LTD
TITLE:
PART NOS:
:
T28870 - SILVER
MATERIAL
WEIGHT:
SEE DWG
SWL:
ZINC PLATED
FINISH:
NOTES:
FOR
STRICTLY
PURPOSES
REFERENCE
ONLY
THIRD ANGLE PROJECTION
13.0
UP TO 110MM
50.0
53.0
136.0
150.0
M10 SWL 30Kg
M12 SWL 30Kg
M14 SWL 150Kg
M12 SWL 150Kg
M10 SWL 150Kg
150.0
www.doughty-engineering.co.uk
Page 5
Declaration of Conformity
Doughty Engineering Limited
CROW ARCH LANE, RINGWOOD, HANTS, BH24 1NZ. ENGLAND
Telephone: +44 (0) 1425 478961 Fax: +44 (0) 1425 474481
www.doughty-engineering.co.uk
email:[email protected]
EC DECLARATION OF CONFORMITY
Doughty Engineering Limited hereby certify that the equipment stated below has been designed to comply
with all relevant sections of the specications referenced below and complies with all the applicable Essential
Requirements of the EC Directives and amendments and the National Laws and Regulations adopting these
Directives.
Description: Marquee Clamp
Model/s: Part No. T28870
SWL: 30 Kg - 150 Kg Factor: 5:1
are in conformity with the provision of the following EC Directives:
MACHINERY DIRECTIVE 98/37/EC
Harmonised Standards applied:
EN 292-1-2:1991
BS EN ISO 9001:1994
National Technical Standards & Specications applied:
BS 7905-1:2001
Signed: Date:11-08-11
Name: Stephen Wright Position: Director
Being the responsible person appointed by the manufacturer.
DEQ 083 Rev 4
Company Registration No. London 972614
Registered Ofce: Crow Arch Lane, Ringwood, Hants, BH24 1NZ
Directors: M.B.Lister. J.C.G. Chiverton. N.D. Curtis. S.C. Wright
www.doughty-engineering.co.uk
Page 6
Contact
Doughty Engineering Ltd
Crow Arch Lane
Ringwood, Hampshire, BH24 1NZ
Tel: +44 (0) 1425 478961 Fax: +44 (0) 1425 474481
email: [email protected]
Web: www.doughty-engineering.co.uk
Note: Whilst every effort has been made to ensure that the information contained within this manual is correct,
Doughty Engineering does not accept any liability for errors or omissions. Specifications and technical data are
intended for guidance purposes only and may vary.
