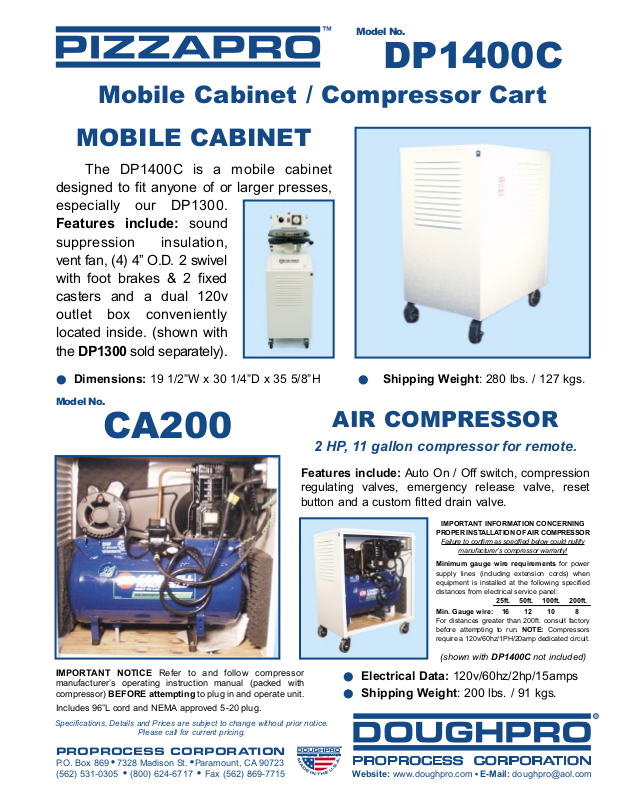

Doughpro CA200 User Manual

Mobile Cabinet / Compressor Cart

MOBILE CABINET

The DP1400C is a mobile cabinet
designed to fit anyone of or larger presses,
especially our DP1300.
Features include: sound
suppression insulation,
vent fan, (4) 4” O.D. 2 swivel
with foot brakes & 2 fixed
casters and a dual 120v
outlet box conveniently

Model No.

DP1400C

located inside. (shown with
the DP1300 sold separately).

● Dimensions: 19 1/2”W x 30 1/4”D x 35 5/8”H ● Shipping Weight: 280 lbs. / 127 kgs.

Model No.

AIR COMPRESSOR

CA200

2 HP, 11 gallon compressor for remote.

Features include: Auto On / Off switch, compression
regulating valves, emergency release valve, reset
button and a custom fitted drain valve.

IMPORTANT INFORMATION CONCERNING

PROPER INSTALLATION OF AIR COMPRESSOR

Failure to confirm as specified below could nullify

manufacturer’s compressor warranty!

Minimum gauge wire requirements for power
supply lines (including extension cords) when
equipment is installed at the following specified
distances from electrical service panel:

25ft. 50ft. 100f

Min. Gauge wire: 16 12 10 8

For distances greater than 200ft. consult factory
before attempting to run. NOTE: Compressors
require a 120v/60hz/1PH/20amp dedicated circuit.

t. 200ft.

IMPORTANT NOTICE Refer to and follow compressor

manufacturer’s operating instruction manual (packed with
compressor) BEFORE attempting to plug in and operate unit.

Includes 96”L cord and NEMA approved 5-20 plug.

Specifications, Details and Prices are subject to change without prior notice.

PROPROCESS CORPORATION

P.O. Box 869●7328 Madison St.●Paramount, CA 90723
[phone]

Please call for current pricing.

●

[phone]●Fax [phone]

(shown with DP1400C not included)

● Electrical Data: 120v/60hz/2hp/15amps

● Shipping Weight: 200 lbs. / 91 kgs.

Website: www.doughpro.com●E-Mail: [e-mail]
