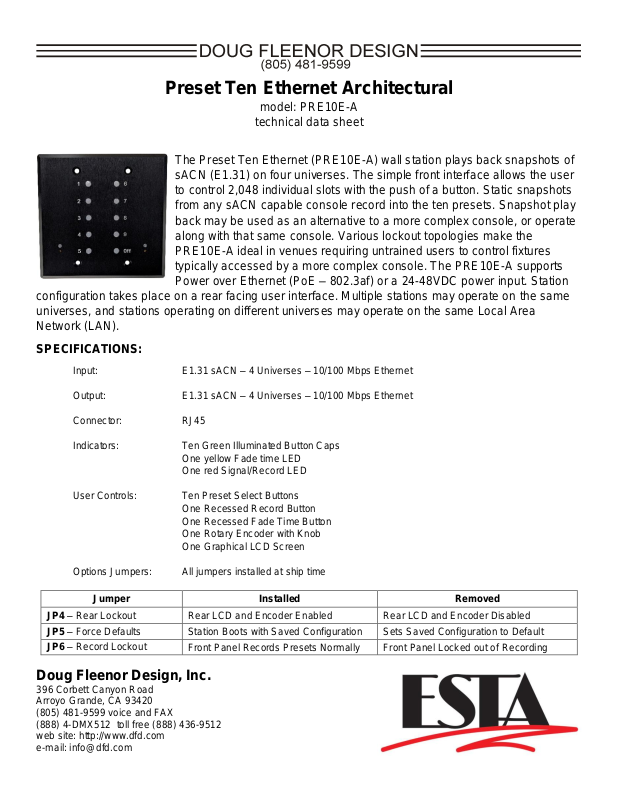

Doug Fleenor Designs PRE10E-A Data Sheet

Preset Ten Ethernet Architectural

Jumper

Installed

Removed

JP4 – Rear Lockout

Rear LCD and Encoder Enabled

Rear LCD and Encoder Disabled

JP5 – Force Defaults

Station Boots with Saved Configuration

Sets Saved Configuration to Default

JP6 – Record Lockout

Front Panel Records Presets Normally

Front Panel Locked out of Recording

model: PRE10E-A

technical data sheet

The Preset Ten Ethernet (PRE10E-A) wall station plays back snapshots of
sACN (E1.31) on four universes. The simple front interface allows the user
to control 2,048 individual slots with the push of a button. Static snapshots
from any sACN capable console record into the ten presets. Snapshot play
back may be used as an alternative to a more complex console, or operate
along with that same console. Various lockout topologies make the
PRE10E-A ideal in venues requiring untrained users to control fixtures
typically accessed by a more complex console. The PRE10E-A supports

Power over Ethernet (PoE – 802.3af) or a 24-48VDC power input. Station
configuration takes place on a rear facing user interface. Multiple stations may operate on the same
universes, and stations operating on different universes may operate on the same Local Area
Network (LAN).

SPECIFICATIONS:

Input: E1.31 sACN – 4 Universes – 10/100 Mbps Ethernet

Output: E1.31 sACN – 4 Universes – 10/100 Mbps Ethernet

Connector: RJ45

Indicators: Ten Green Illuminated Button Caps
One yellow Fade time LED
One red Signal/Record LED

User Controls: Ten Preset Select Buttons

One Recessed Record Button
One Recessed Fade Time Button
One Rotary Encoder with Knob
One Graphical LCD Screen

Options Jumpers: All jumpers installed at ship time

Doug Fleenor Design, Inc.

396 Corbett Canyon Road
Arroyo Grande, CA 93420
[phone] voice and FAX
(888) 4-DMX512 toll free [phone]
web site: http://www.dfd.com
e-mail: [e-mail]

Power Input: 802.3af Power over Ethernet or Auxiliary 24-48 VDC 150mA

Color: Black anodized with silver engraved nomenclature

Size: Faceplate: 4.5”h X 4.6”w X 0.2”d
Faceplate rear inset: 4.15”h X 4.25”w X 0.1”d
Electrical box minimum inside dimensions: 3.6”h X 2.9”w X 1.4”d
