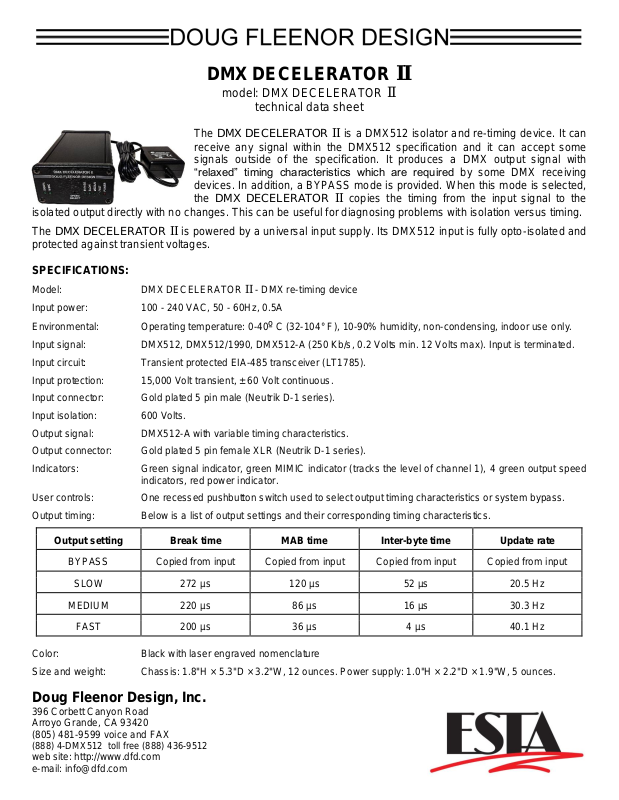

Doug Fleenor Designs DMX-DECELERATORII-5 Data Sheet

DMX DECELERATOR II

Output setting

Break time

MAB time

Inter-byte time

Update rate

BYPASS

Copied from input

Copied from input

Copied from input

Copied from input

SLOW

272 µs

120 µs

52 µs

20.5 Hz

MEDIUM

220 µs

86 µs

16 µs

30.3 Hz

FAST

200 µs

36 µs

4 µs

40.1 Hz

model: DMX DECELERATOR II

technical data sheet

The DMX DECELERATOR II is a DMX512 isolator and re-timing device. It can
receive any signal within the DMX512 specification and it can accept some
signals outside of the specification. It produces a DMX output signal with
“relaxed” timing characteristics which are required by some DMX receiving
devices. In addition, a BYPASS mode is provided. When this mode is selected,
the DMX DECELERATOR II copies the timing from the input signal to the

isolated output directly with no changes. This can be useful for diagnosing problems with isolation versus timing.
The DMX DECELERATOR II is powered by a universal input supply. Its DMX512 input is fully opto-isolated and

protected against transient voltages.

SPECIFICATIONS:

Model: DMX DECELERATOR II - DMX re-timing device
Input power: 100 - 240 VAC, 50 - 60Hz, 0.5A

Environmental: Operating temperature: 0-40º C (32-104° F), 10-90% humidity, non-condensing, indoor use only.
Input signal: DMX512, DMX512/1990, DMX512-A (250 Kb/s, 0.2 Volts min. 12 Volts max). Input is terminated.
Input circuit: Transient protected EIA-485 transceiver (LT1785).
Input protection: 15,000 Volt transient, ± 60 Volt continuous.
Input connector: Gold plated 5 pin male (Neutrik D-1 series).
Input isolation: 600 Volts.
Output signal: DMX512-A with variable timing characteristics.
Output connector: Gold plated 5 pin female XLR (Neutrik D-1 series).
Indicators: Green signal indicator, green MIMIC indicator (tracks the level of channel 1), 4 green output speed

indicators, red power indicator.
User controls: One recessed pushbutton switch used to select output timing characteristics or system bypass.
Output timing: Below is a list of output settings and their corresponding timing characteristics.

Color: Black with laser engraved nomenclature
Size and weight: Chassis: 1.8"H × 5.3"D × 3.2"W, 12 ounces. Power supply: 1.0"H × 2.2"D × 1.9"W, 5 ounces.

Doug Fleenor Design, Inc.

396 Corbett Canyon Road
Arroyo Grande, CA 93420
[phone] voice and FAX

(888) 4-DMX512 toll free [phone]

web site: http://www.dfd.com
e-mail: [e-mail]

Limited Manufacturer's Warranty

Products manufactured by Doug Fleenor Design (DFD) carry a five-year parts and labor warranty against
manufacturing defects. It is the customer's responsibility to return the product to DFD at the customer's expense.
If covered under warranty, DFD will repair the unit and pay for return ground shipping. If a trip is necessary to the
customer's site to solve a problem, the expenses of the trip must be paid by the customer.

This warranty covers manufacturing defects. It does not cover damage due to abuse, misuse, negligence,
accident, alteration, or repair by other than by Doug Fleenor Design.

Most non-warranty repairs are made for a fixed $50.00 fee, plus shipping.
