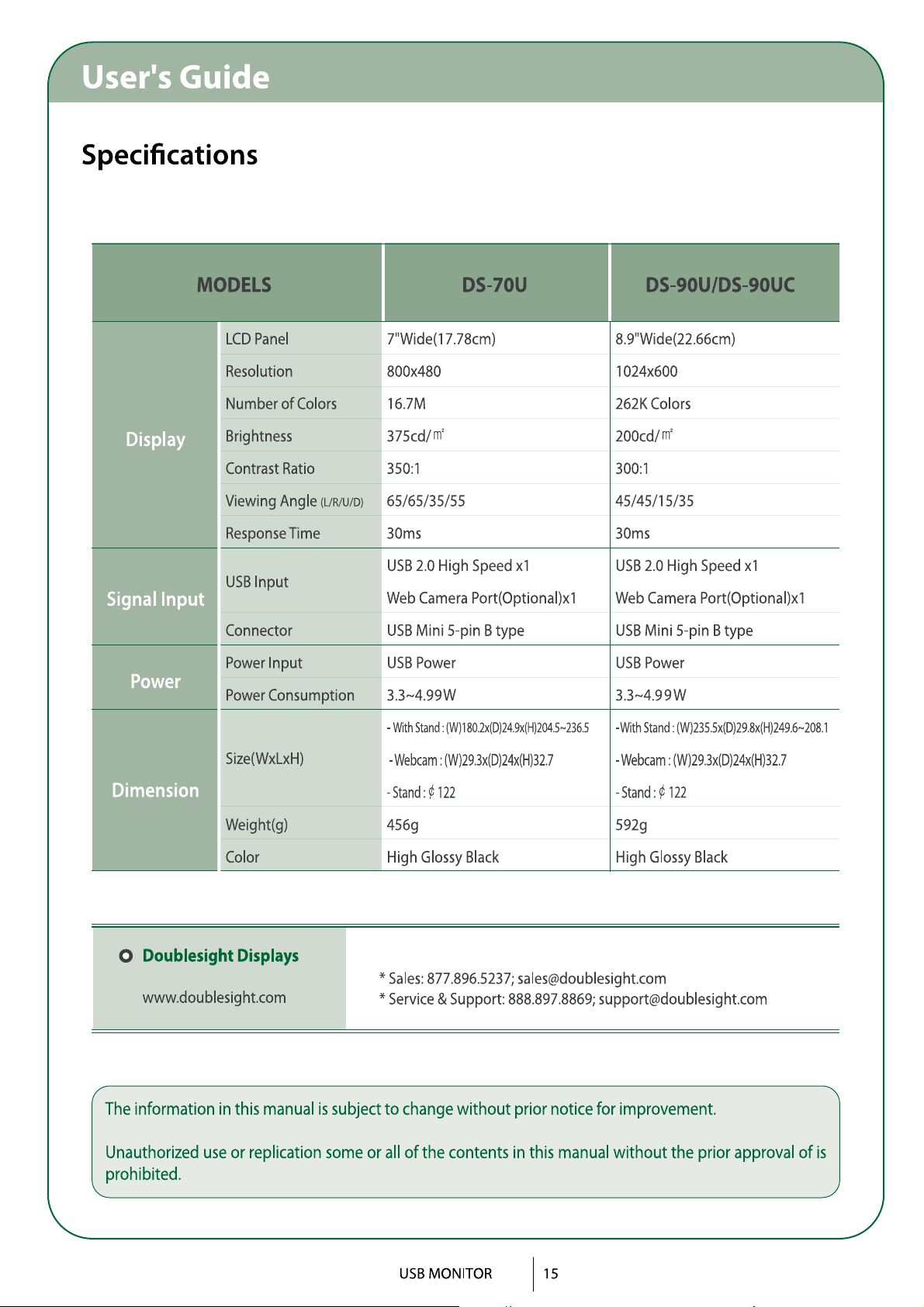

DS-70 & DS-90U Series
DS-70 & DS-90U
S
V
0
Version 1.0
ersion 1.
· Monitor Driver
· User’s Manual

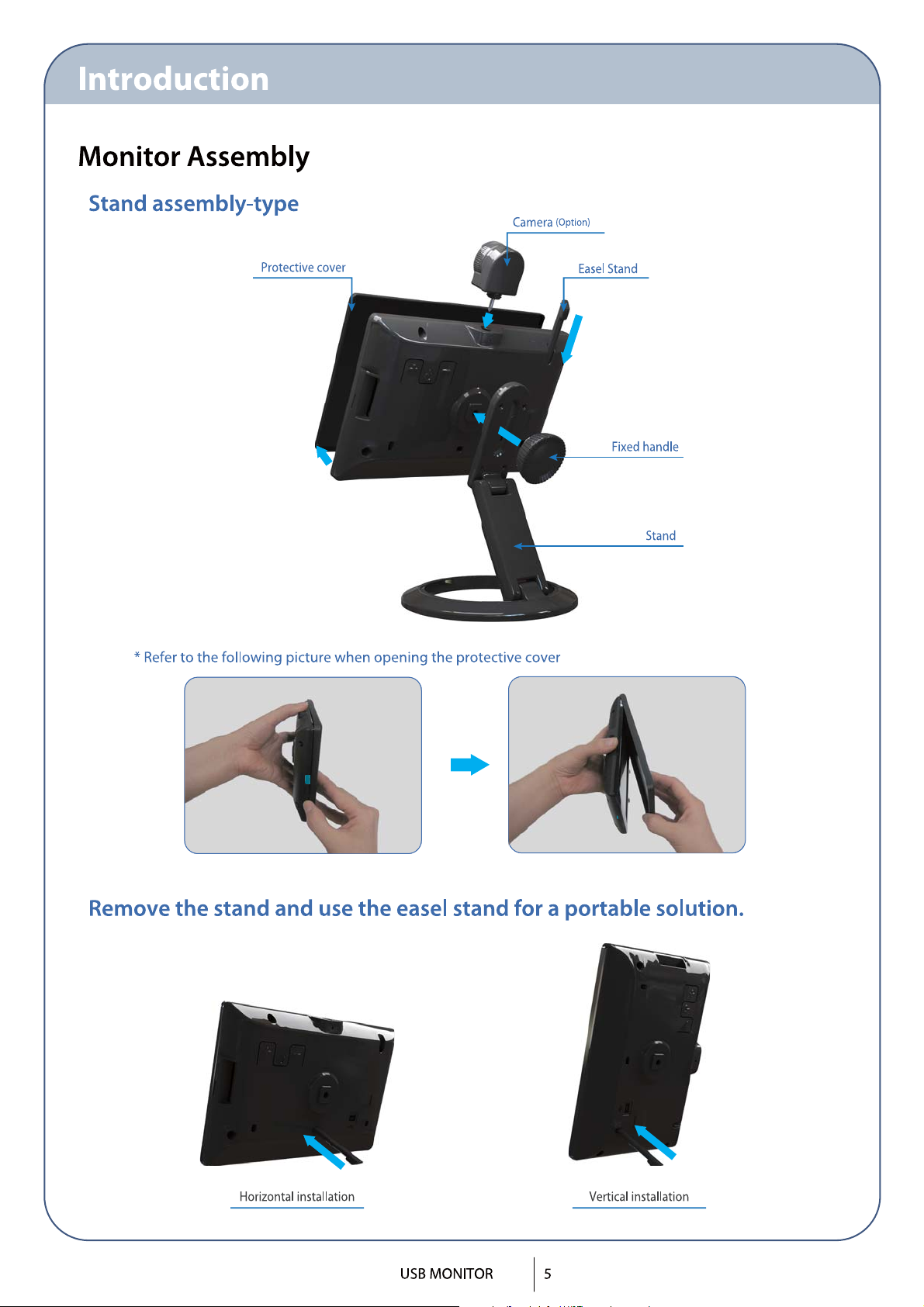

(USB port location of 8.9” model)
(USB port location of 7” model)

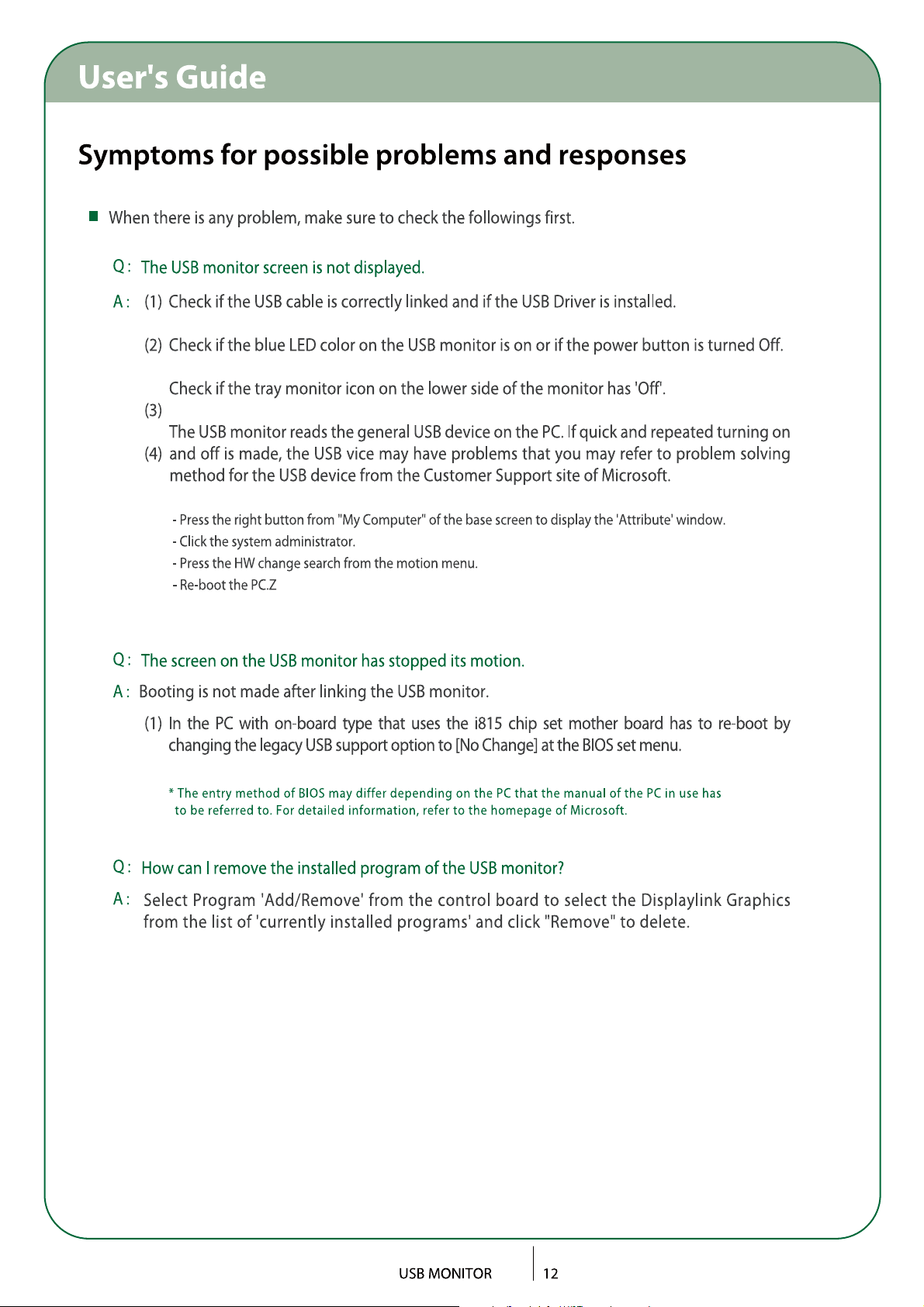

Caution : Only use the provided USB cable to Power your USB Monitor. Alternate cables may not provide the
same power transfer and Monitor may not operate properly.
Note: A single USB connection will provide enough power from most computers.
A second USB connection to the PC may be required for computers with older USB specifications.
Caution : If the Web Cam is inserted when the power is turned on, it may not operate property.
Caution : This Monitor is designed to work with a DoubleSight Web Cam only. Use of another Web Cam
(or another Device) may result in damage to your Monitor.

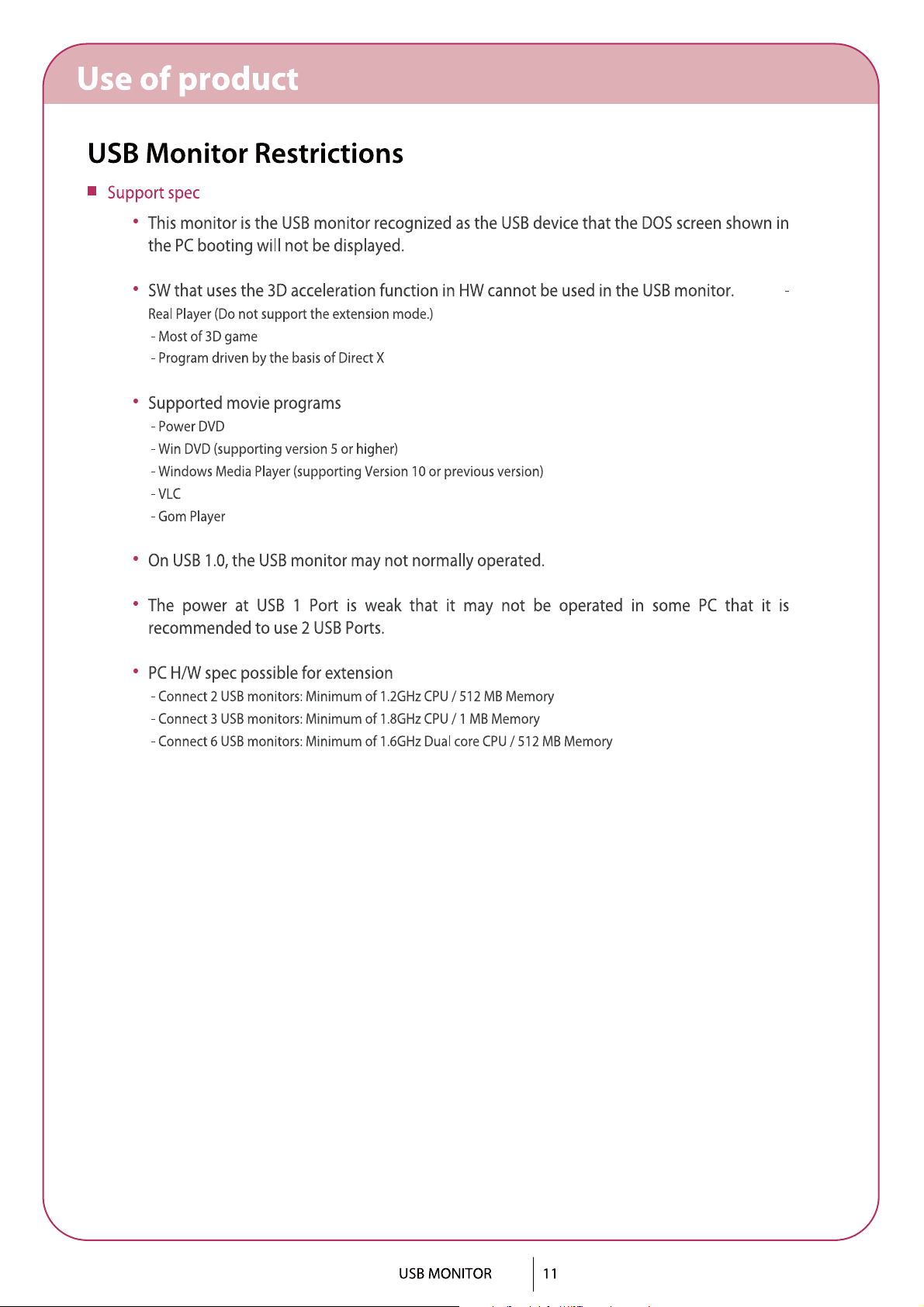

Supporting OS
Double Click “Supporting OS” menu bar
to check OS compatibility.
Note: If your PC has an OS which is not
supported, you will not be able to
complete the installation. `

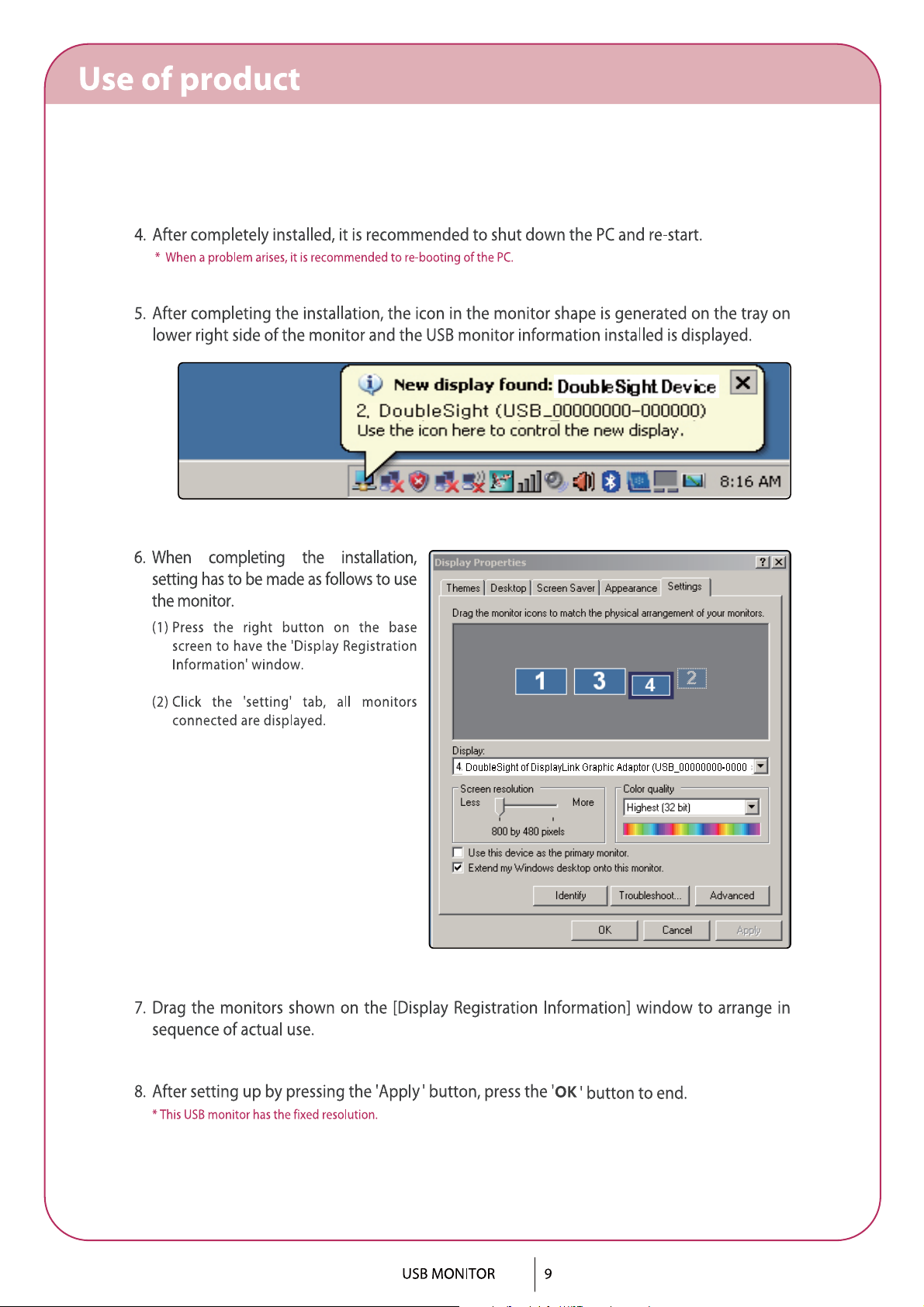

USB Monitor Display Information setting
1. When the USB monitor and PC are
connected with the USB cable and the
driver installation is completed, the
system tray on the right side of the
screen generates the icon of the
monitor shape.
2. Click the monitor-shaped icon to press
the right mouse button to display the
set menu.
Screen Resolution (R)
(1)
This is to display the current USB monitor resolution.
(However, this product 7" 800*480, 8.9" is the fixed resolution of 1024*600.)
Color quality (Q)
(2)
16-bit and 32-bit may be set up.
Screen Rotation (T)
(3)
The screen direction may be set when pivoting the product.
* The initial set status is 0 degree.
Extend To (X)
(4)
When extending the screen, it may set the USB monitor extension
location.
Extend (E)
(5)
The USB monitor may be used with the screen extension mode of the main monitor.
* The initial set status is the 'Extend' mode.
Mirror (M)
(6)
The USB monitor may be used with the same screen mode of the main monitor.
* For the mirror mode, the screen is modified with the recommended resolution of the two screens.
(Changing of the main monitor to lower resolution is not a defect.)
(7)
Off (O)
The USB monitor screen is turned OFF. Under the Off condition, it still maintains the turning off
condition while the PC is turned off that select "E" or "M" to have the screen back on the USB monitor.
(8)

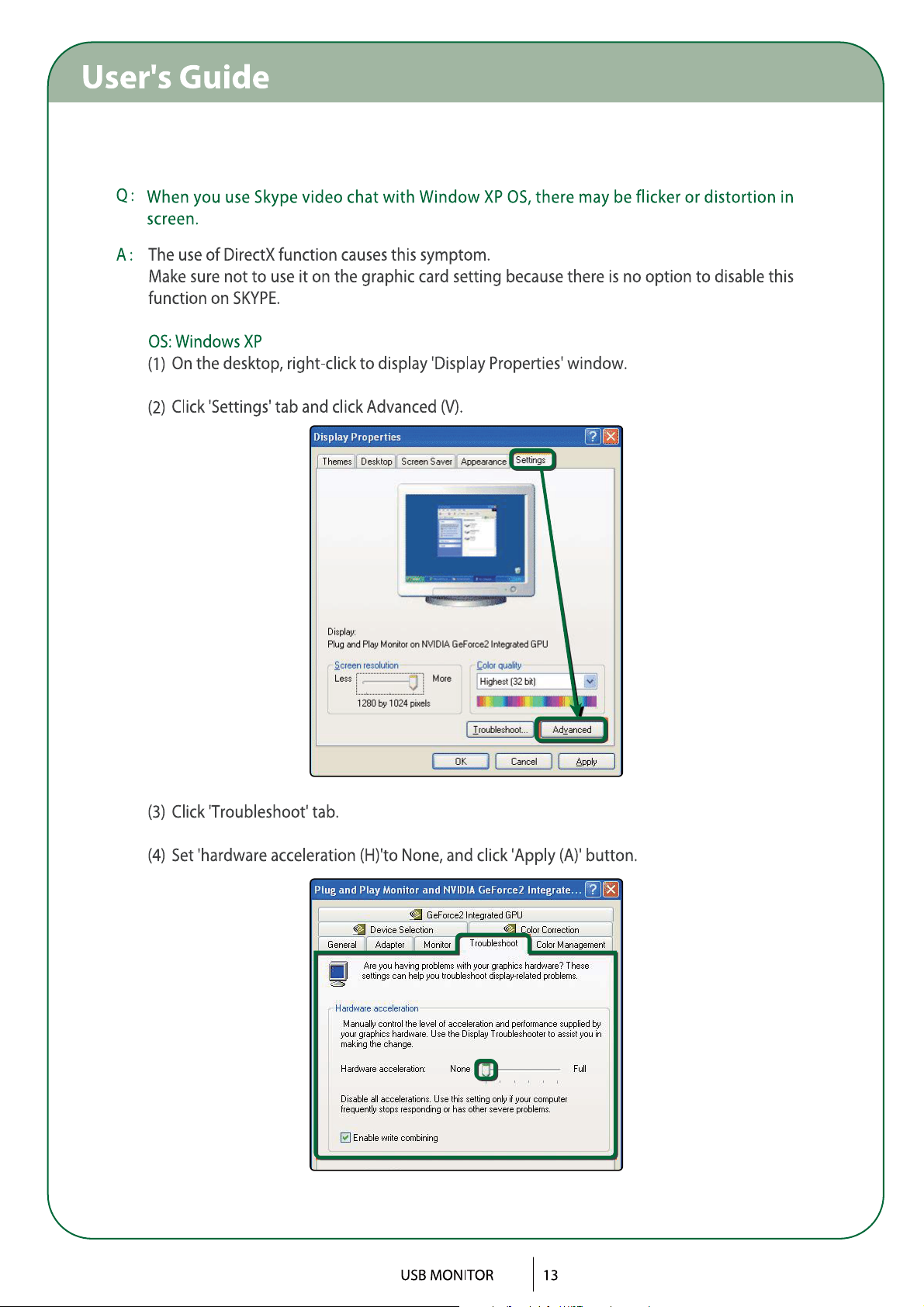

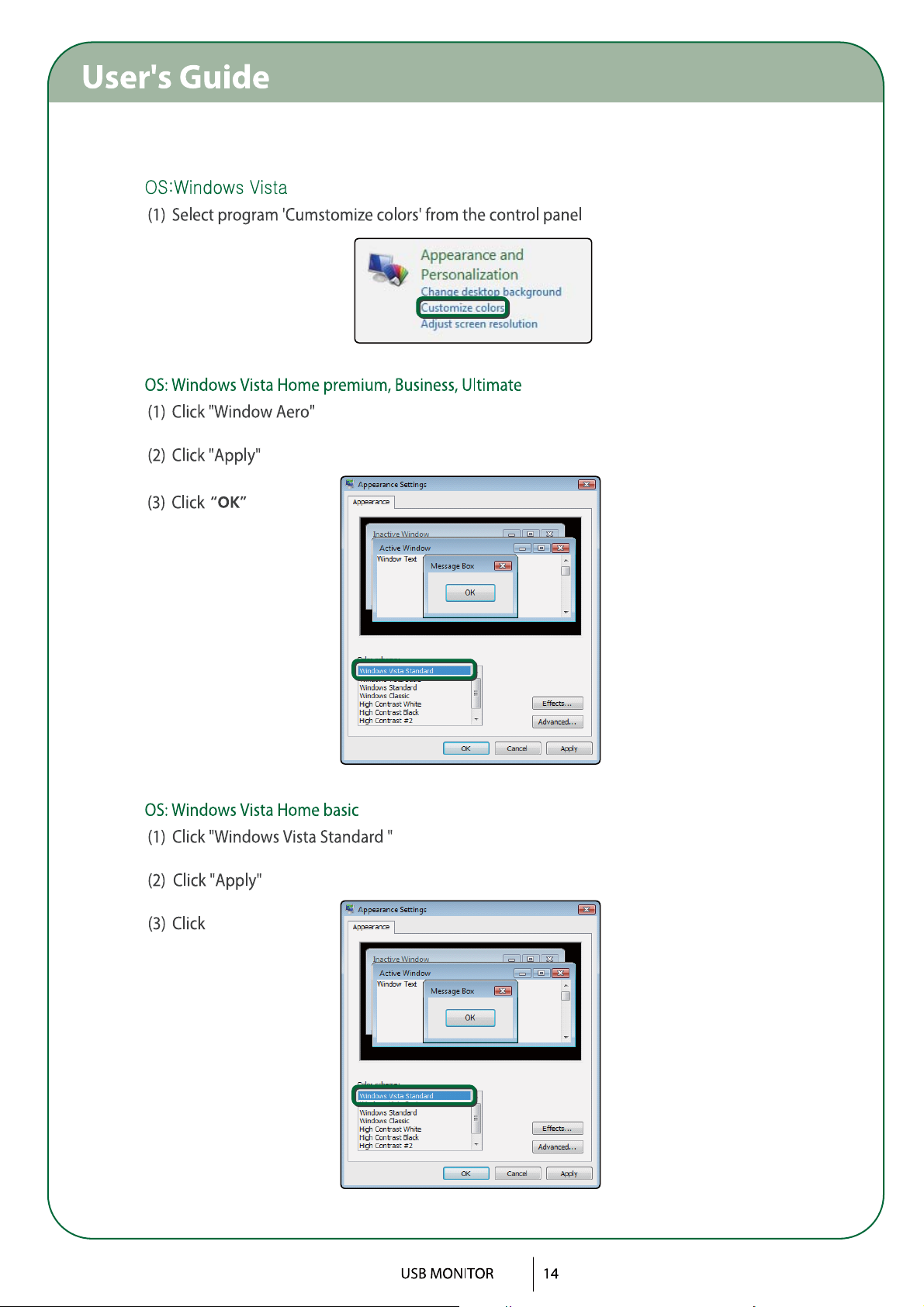

Advanced... (A)
It moves to the display set mode.
“OK”
