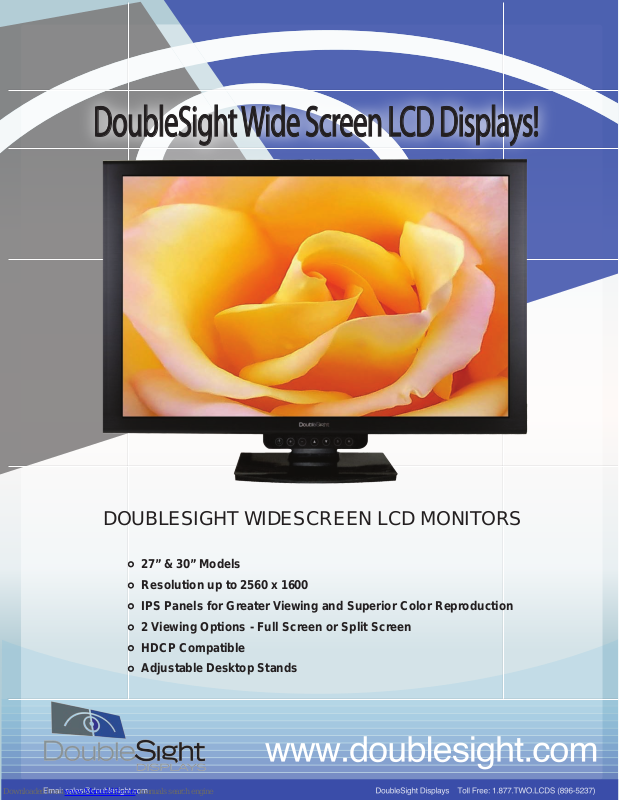

DoubleSight Wide Screen LCD Displays!
DOUBLESIGHT WIDESCREEN LCD MONITORS
○ 27” & 30” Models
○
Resolution up to 2560 x 1600
○
IPS Panels for Greater Viewing and Superior Color Reproduction
○
2 Viewing Options - Full Screen or Split Screen
○
HDCP Compatible
Adjustable Desktop Stands
○
Page 2
11
FULL SCREEN SPLIT SCREEN
2
Features and Specs
LCD
Monitor
Stand
Interface
Panel Type
Visible Screen Area
Pixel Pitch
Max. Visible Angle
Displayed Color
Response Time
Brightness
Aspect Ratio
Contrast Ratio
Recommended Resolution
Adjustable Monitor Stand
Height Adjustment
Base Dimensions
Interface
Interface Type
DS-277W DS-307W
S-IPS
27”
0.2331mm x 0.2331mm
178° / 178°
1.07 Billion Colors (10 bit)
6 msec (GTG)
350cd/m²
16:9
1000:1
2560 x 1440
Height, Tilt & Swivel
5” up/down
10.75” W x 8.5” D
Digital, Analog
Dual Link DVI-D. (2) VGA, HDMI, Component
S-IPS
30”
0.2505mm x 0.2505mm
178° / 178°
1.07 Billion Colors (10 bit)
7 msec (GTG)
370cd/m²
16:10
1000:1
2560 x 1600
Height, Tilt & Swivel
5” up/down
10.75” W x 8.5” D
Digital, Analog
Dual Link DVI-D. (2) VGA, HDMI, Component
Power
Characteris
tics
Package Contents
Email: [email protected]
Toll Free: 1.877.TWO.LCDS (896-5237)
AC (Adapter)
Power Consumption
Operating Temperature 0~50°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 10 ~ 50% RH
Controls Graphic OSD, Auto Adjustment
Color Black
Audio 2W per Channel
Dimensions 25.75”W x 22.5”H x 8.5”D
Weight 25 lbs Monitor and Stand; 19 lbs (monitor only)
Certifications FCC
Warranty 3 year limited warranty, parts and labor
100~240V, 50~60Hz DC
120W max, 2W Power Save Mode
27” LCD Monitor & Stand, Dual Link DVI-D Cable,
(2)VGA Cables, AC Adaptor & Power Cord,
QIG, Users Manual CD
100~240V, 50~60Hz DC
120W max, 2W Power Save Mode
0~50°C
-20°C ~ 60°C
10 ~ 50% RH
Graphic OSD, Auto Adjustment
Black
2W per Channel
27.75”W x 25”H x 8.5”D
28 lbs Monitor and Stand; 22 lbs (monitor only)
FCC
3 year limited warranty, parts and labor
30” LCD Monitor & Stand, Dual Link DVI-D Cable,
(2)VGA Cables, AC Adaptor & Power Cord,
QIG, Users Manual CD
