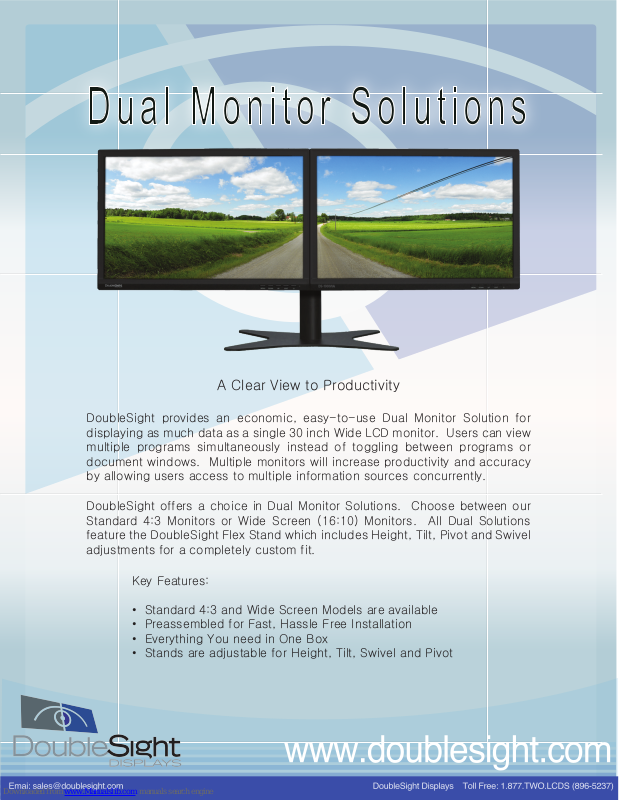

Dual Monitor Solutions
A Clear View to Productivity
DoubleSight provides an economic, easy-to-use Dual Monitor Solution for
displaying as much data as a single 30 inch Wide LCD monitor. Users can view
multiple programs simultaneously instead of toggling between programs or
document windows. Multiple monitors will increase productivity and accuracy
by allowing users access to multiple information sources concurrently.
DoubleSight offers a choice in Dual Monitor Solutions. Choose between our
Standard 4:3 Monitors or Wide Screen (16:10) Monitors. All Dual Solutions
feature the DoubleSight Flex Stand which includes Height, Tilt, Pivot and Swivel
adjustments for a completely custom fit.
Key Features:
• Standard 4:3 and Wide Screen Models are available
• Preassembled for Fast, Hassle Free Installation
• Everything You need in One Box
• Stands are adjustable for Height, Tilt, Swivel and Pivot
Page 2
Dual Monitors Adjustable View
Swivel Pivot 90�
Height Tilt 180�
LCD
MONITOR
STAND
VIDEO SIGNAL
POWER
OTHER
CONTENTS
Panel Type Dual 19”TFT LCD (4:3) Dual 19” TFT Wide LCD (16:10)
Visible Screen Area 19” each monitor 19” each monitor
Pixel Pitch 0.294 (H) x 0.294 (W) 0.2835 (H) x 0.2835 (W)
Max. Visible Angle 135° / 150° 160° / 160°
Displayed Color 16.7M 16.7M(True 8-bit Colors)
Response Time 8 msec 5ms
Brightness 300 cd/m² 300 cd/m²
Contrast Ratio 700:1 1000:1
Recommended Resolution 1280 x 1024 (60Hz) 1440 x 900
Dual Monitor Stand Adjustable Height, Tilt, Pivot & Swivel
Horizontal Frequency 31 KHz ~ 81 KHz 30 KHz ~ 80 KHz
Vertical Frequency 56 KHz ~ 75 KHz 56 KHz ~ 75 KHz
AC (Adapter) 110V ~ 240D, 50Hz 110V ~ 240D, 50Hz ~ 60Hz
DC (Monitor) (12V, 3.5A) x 2
Power Consumption Max. 70W, Power Save Mode 3W Max. 80W, Power Save Mode 3W
Characteristics Graphic OSD, Auto Adjustment Graphic OSD, Auto Adjustment
Dimensions (W x H x D) 33”(W) x 19”(H) x 10”(D) 35”(W) x 19”(H) x 14”(D)
Weight 30 lbs (Monitors & Stand) 32 lbs
Certification FCC, UL FCC, UL
Warranty 3 year limited warranty, parts & labor 3 year limited warranty, parts & labor
(2) 19” LCD Displays (4:3)
(1) Dual Monitor StandPACKAGE
(2) RGB Monitor Cables
(2) DVI Monitor Cables
(2) Power Supplies
Quick Installation Guide
User’s Manual
Adjustable Height, Tilt, Pivot & Swivel
(2) 19” LCD Displays (16:10)
(1) Dual Monitor Stand
(2) RGB Monitor Cables
(2) DVI Monitor Cables
(2) Power Cables
Quick Installation Guide
User’s Manual
Dual 22” TFT Wide LCD (16:9)
21.5” each monitor
0.248mm
170° / 160°
16.7M
5ms
250 cd/m²
10000:1
1920 x 1080
Adjustable Height, Tilt, Pivot & Swivel
30 KHz ~ 80 KHz
55 KHz ~ 75 KHz
110V ~ 240D, 50Hz ~ 60Hz
≤50W
Graphic OSD, Auto Adjustment
40”(W) x 22”(H) x 14”(D)
28 lbs
FCC, UL
3 year limited warranty, parts & labor
(1) 22” LCD Displays (16:9)
(1) Single Monitor Stand
(2) DVI Monitor Cables
(2) DVI to VGA Monitor Cables
(2) Power Cables
Quick Installation Guide
User’s Manual
Email: [email protected] Toll Free: 1.877.TWO.LCDS(896-5237)
