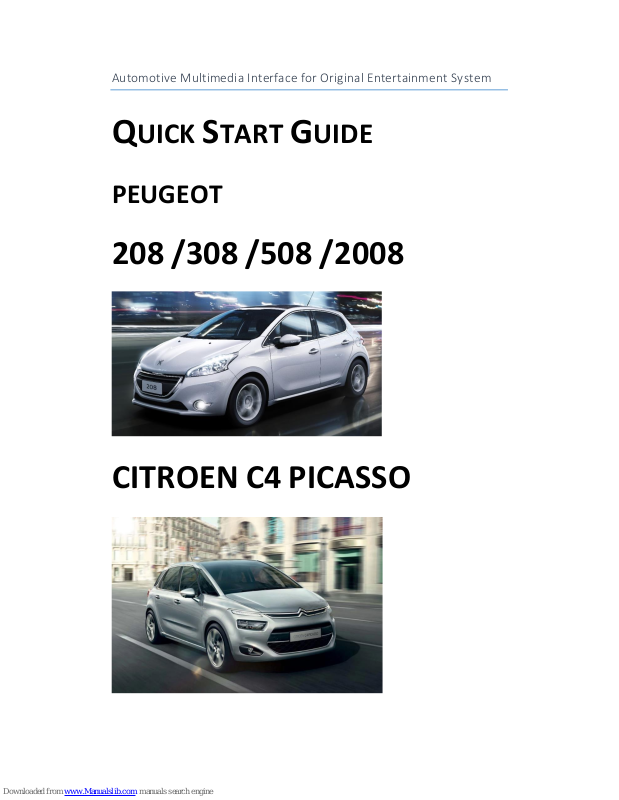

Automotive Multimedia Interface for Original Entertainment System
QUICK START GUIDE
PEUGEOT
208 /308 /508 /2008
CITROEN C4 PICASSO
Page 2
2
Installation
1. Operation
1.1 Features---------------------------------------------------------------3
1.2 Package---------------------------------------------------------------5
1.3 Cable PIN definition---------------------------------------------------9
2. Settings
2.1 DIP switch------------------------------------------------------------11
2.2 NAVI------------------------------------------------------------------16
2.3 TV---------------------------------------------------------------------17
2.4 DVD-------------------------------------------------------------------18
2.5 DVR-------------------------------------------------------------------19
2.6 Camera---------------------------------------------------------------20
2.7 Original---------------------------------------------------------------22
2.8 Setting -------------------------------------------------------------23
2.8.1 Touch----------------------------------------------------------
2.8.2 NAVI------------------------------------------------------------
2.8.3 AV---------------------------------------------------------------
2.8.4 Front camera--------------------------------------------------
2.8.5 Rear camera---------------------------------------------------
Page 3
3
Features
Support PSA208/2008/308/508/C4 series
DVD, DTV, NAVI BOX, DVR control via touching screen (optional) or
Peugeot / Citroen’s LIST button and monitor button
Integrate reverse triggered back-up camera into factory screen
User-Friendly UI control
Flexible UI control, either by monitor icon
Auto-AUX
Quick installation with PLUG/PLAY (LVDS cable offered)
Active parking guidelines
PDC function (Park Distance Control)
Support front CCD
Auto/manual gear auto detect CAN or +12V trigger for reverse
Show original car information to interface
Page 4
4

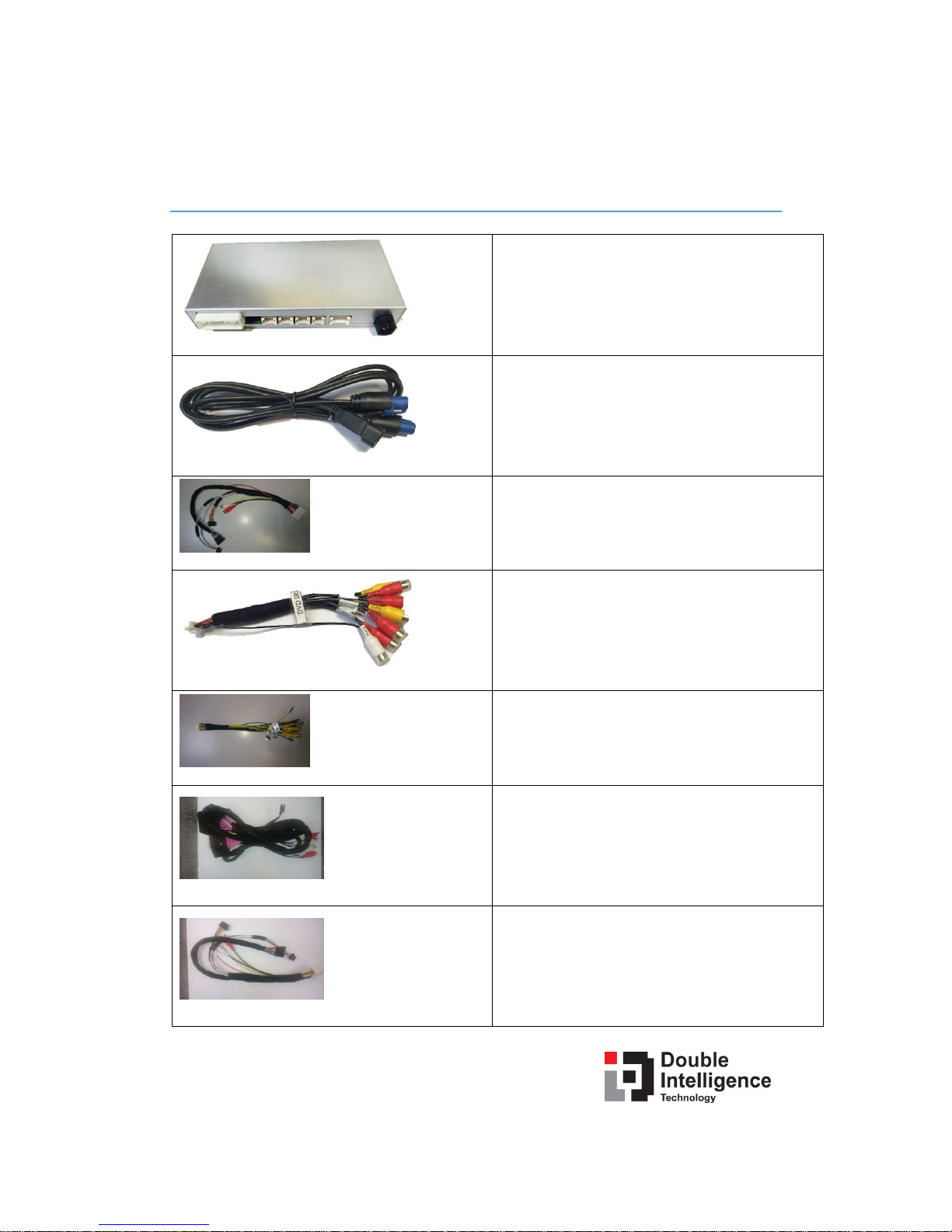

Package
PSA / C4 multimedia interface
LVDS cable
26pins Power cable
AV cable
CCD in and CCD power cable
Radio cable
Navi and audio switch cable
Page 5
5

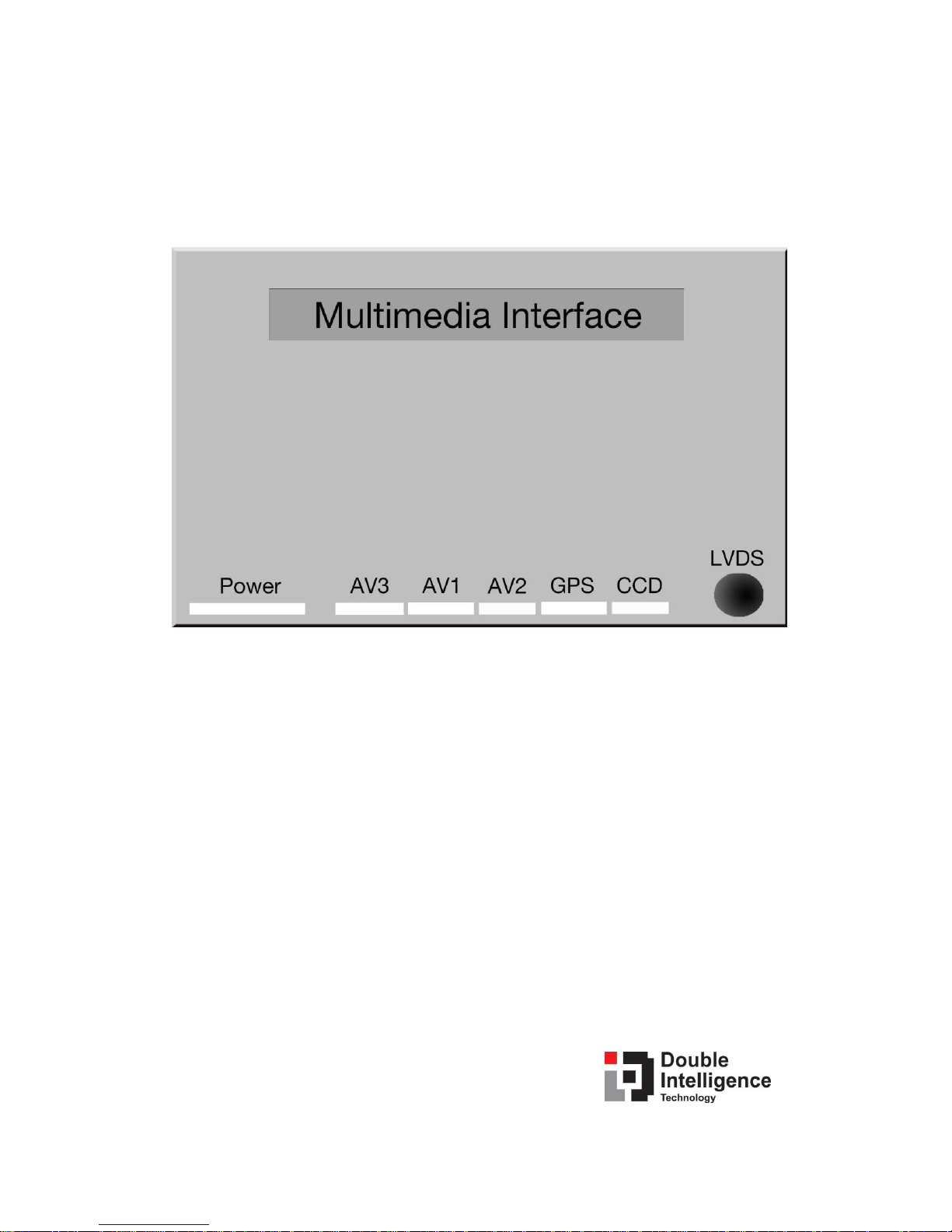

Interface
Page 6
6

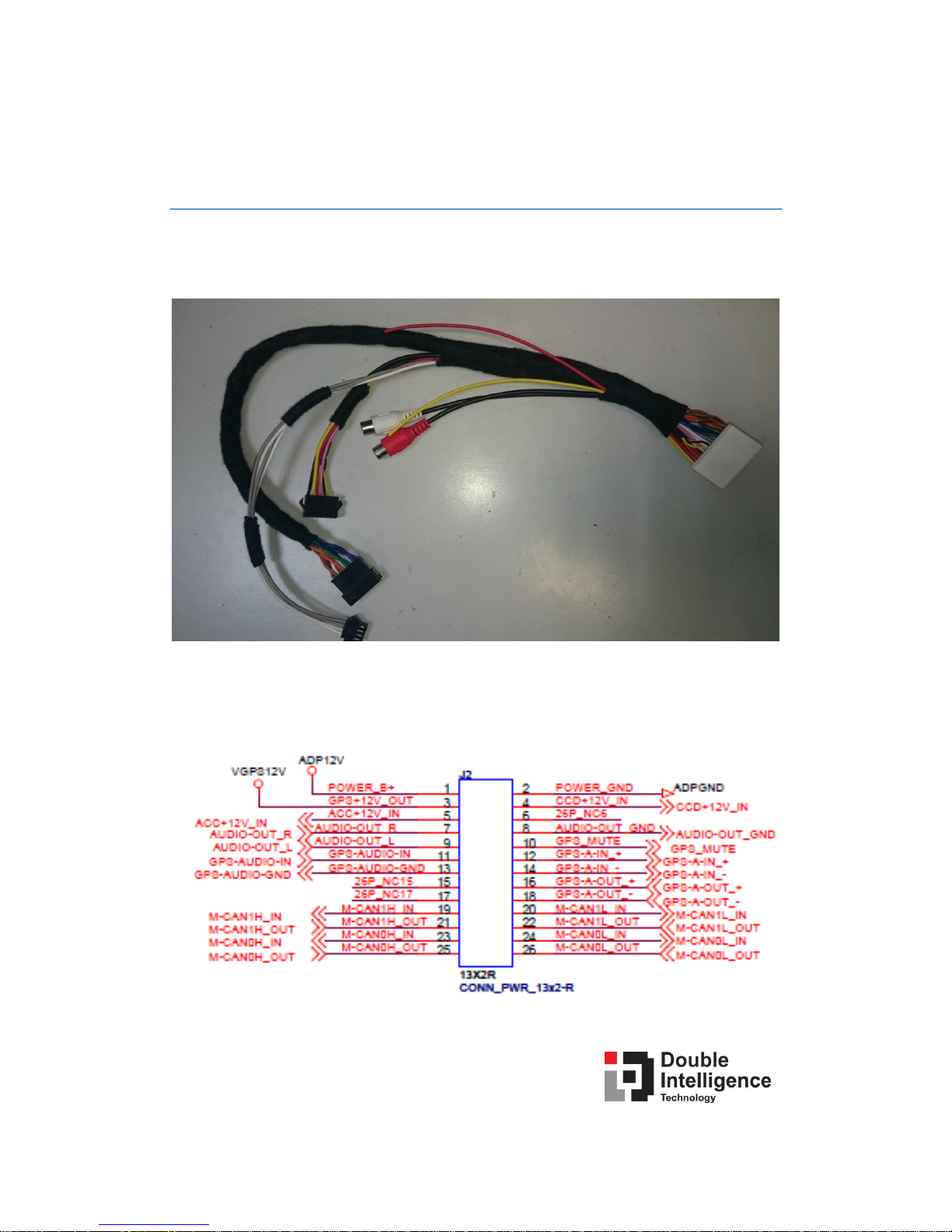

Cable PIN Definition
26-PINs cable
Page 7
7
DIP Switch
ON = DOWN ↓
OFF = UP ↑
FRONT DIP#
DIP DIFINITION
4 OFF
Enable CCD active parking line
4 ON
Disable CCD active parking line
5 OFF
Enable LIST button
5 ON
Enable SRC button
Navi setup
Default:
WP9320CE resolution PSA208 800x480 ext touching
Androida resolution PSA208 800x480 ext touching
Different navi box need to customize.
N
O
4
1 2
3 5 6
Page 8
8
Setting

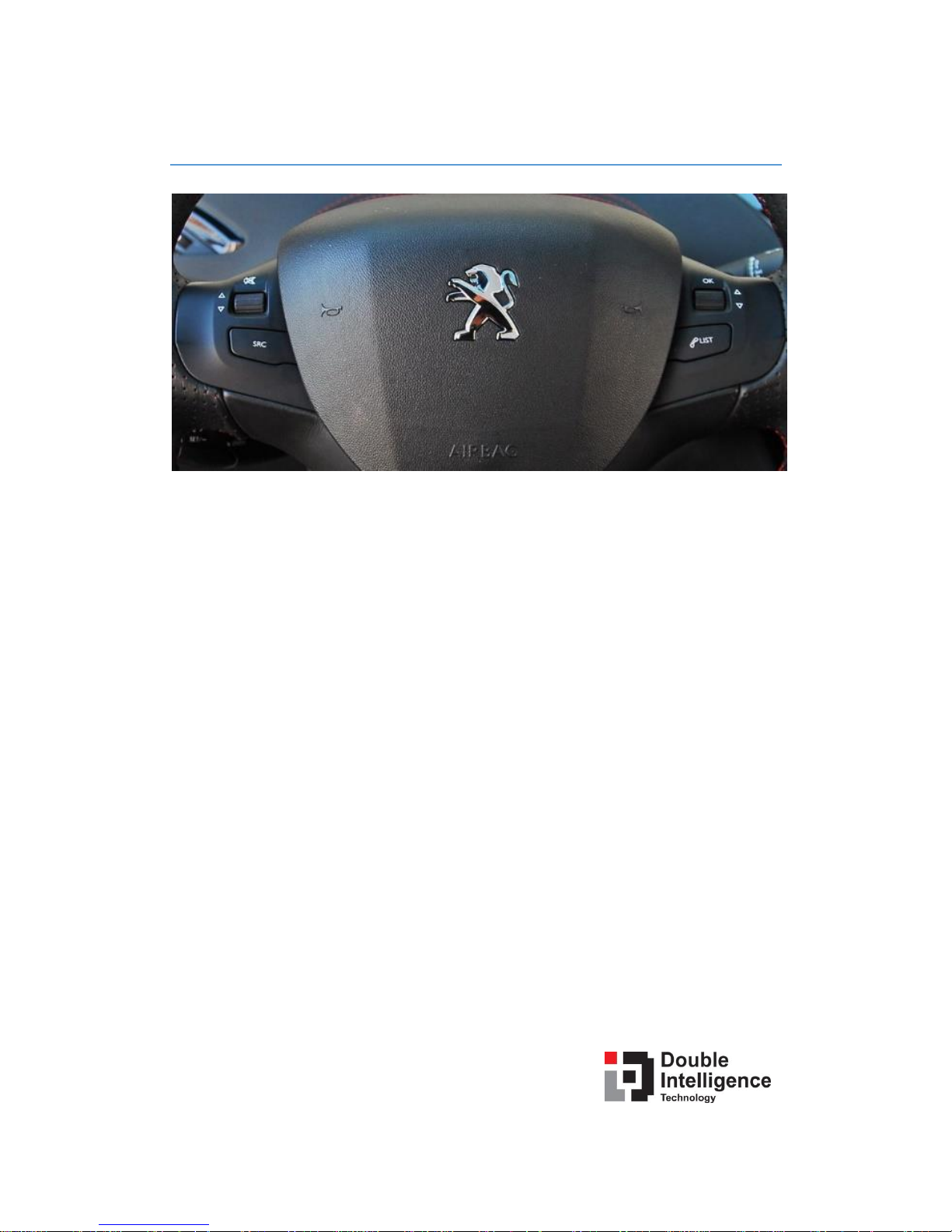

List Button – Press List button for 2 seconds to switch back and forth
from NAVI-TUNER and original mode
Page 9
9

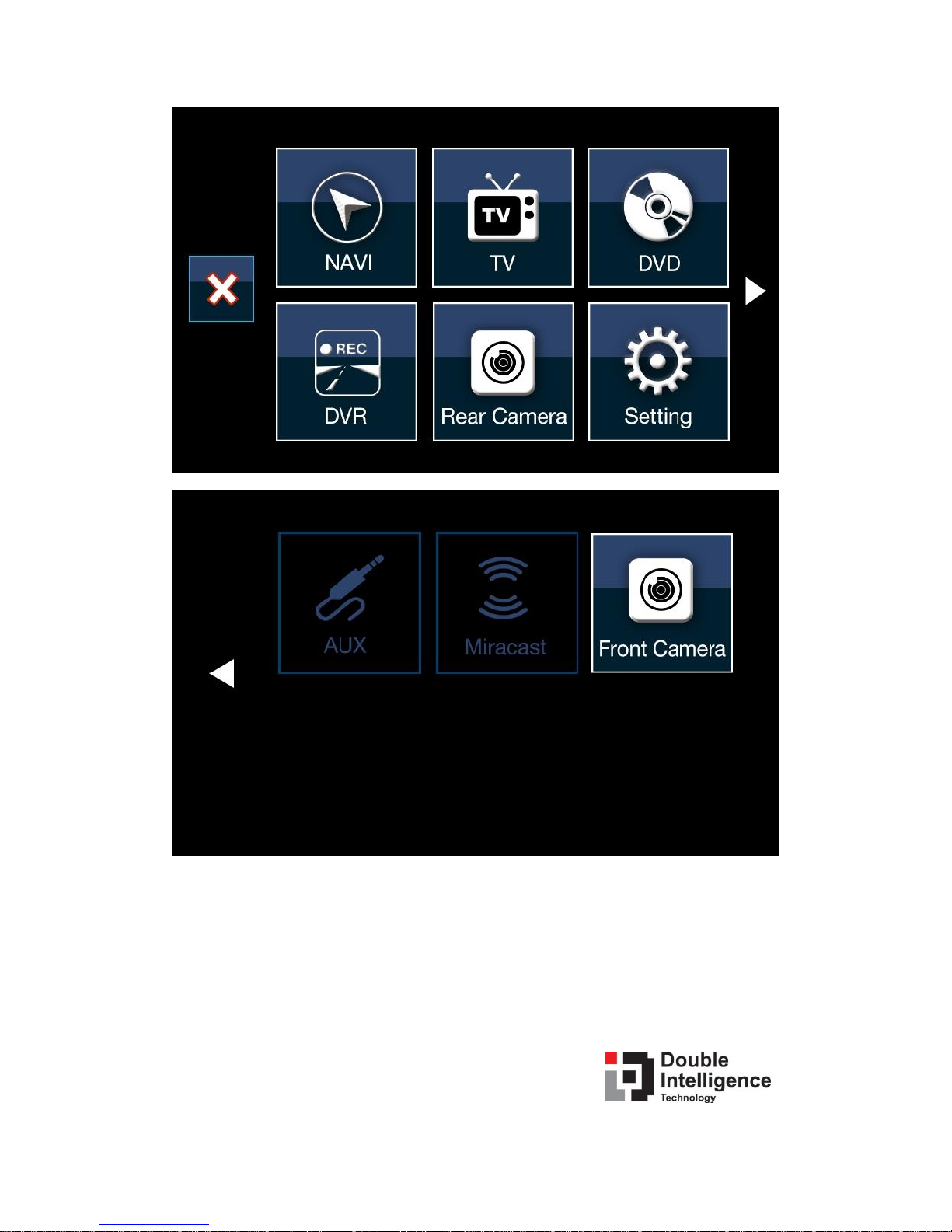

NAVI-TUNER mode
NAVI / TV / DVD / DVR / CAMERA / ORIGINAL function, user can
check the image by selecting.
Page 10
10

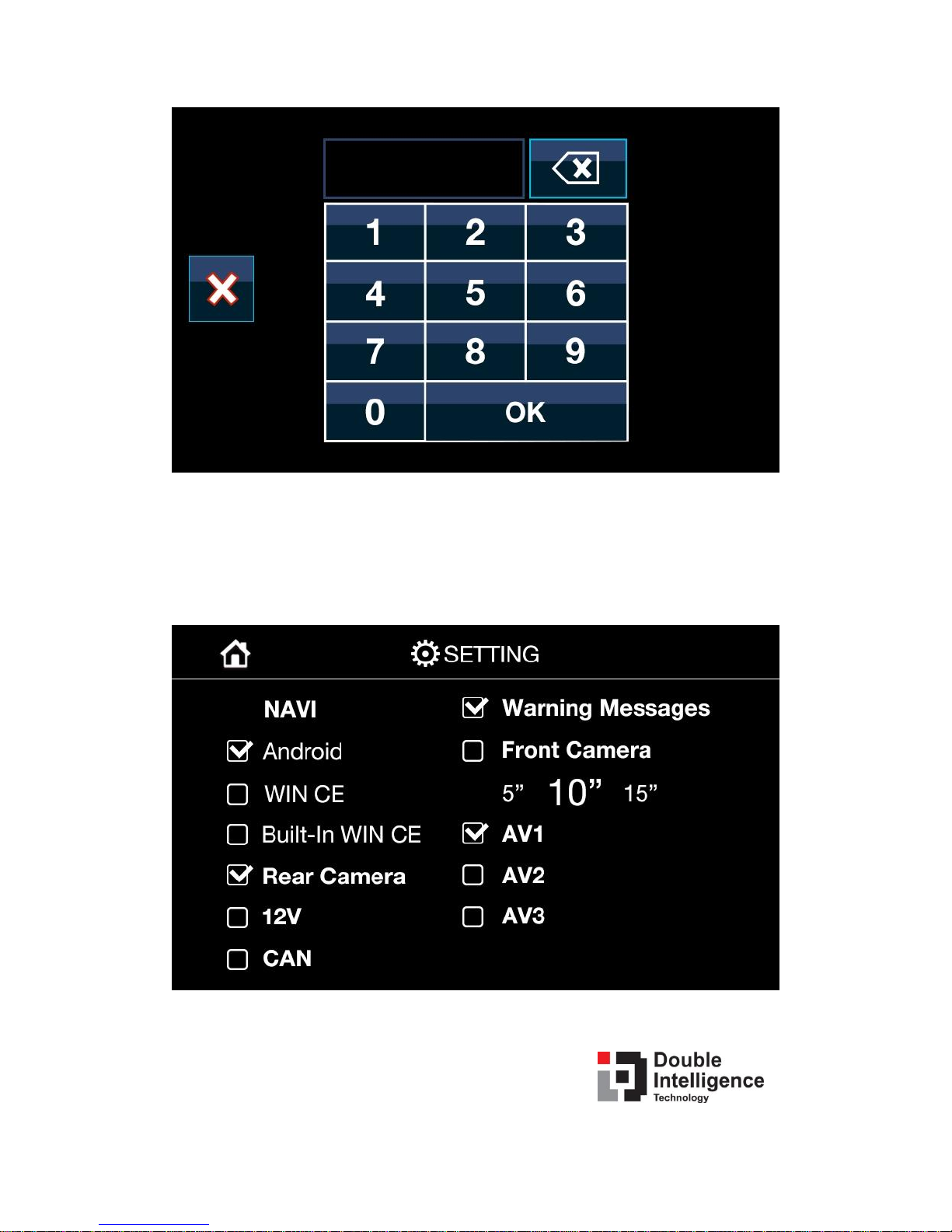

To enter the settings page, please press password “8888”.
Page 11
11
Touch – Enable touch function
NAVI – Select the system of navi box 1. Android 2. WIN CE
AV1/AV2/AV3 – Enable channel image
AV1 = TV
AV2 = DVD
AV3 = DVR
Font camera – Enable front camera image when reversing
5” = switch to front camera, after 5” seconds back to NAVI-TUNER mode
10” = switch to front camera, after 10” seconds back to NAVI-TUNER
mode
20” = switch to front camera, after 20” seconds back to NAVI-TUNER
mode
Rear camera
1. Select camera
2. Check if the camera is triggered by 12V or CAN
Page 12
12

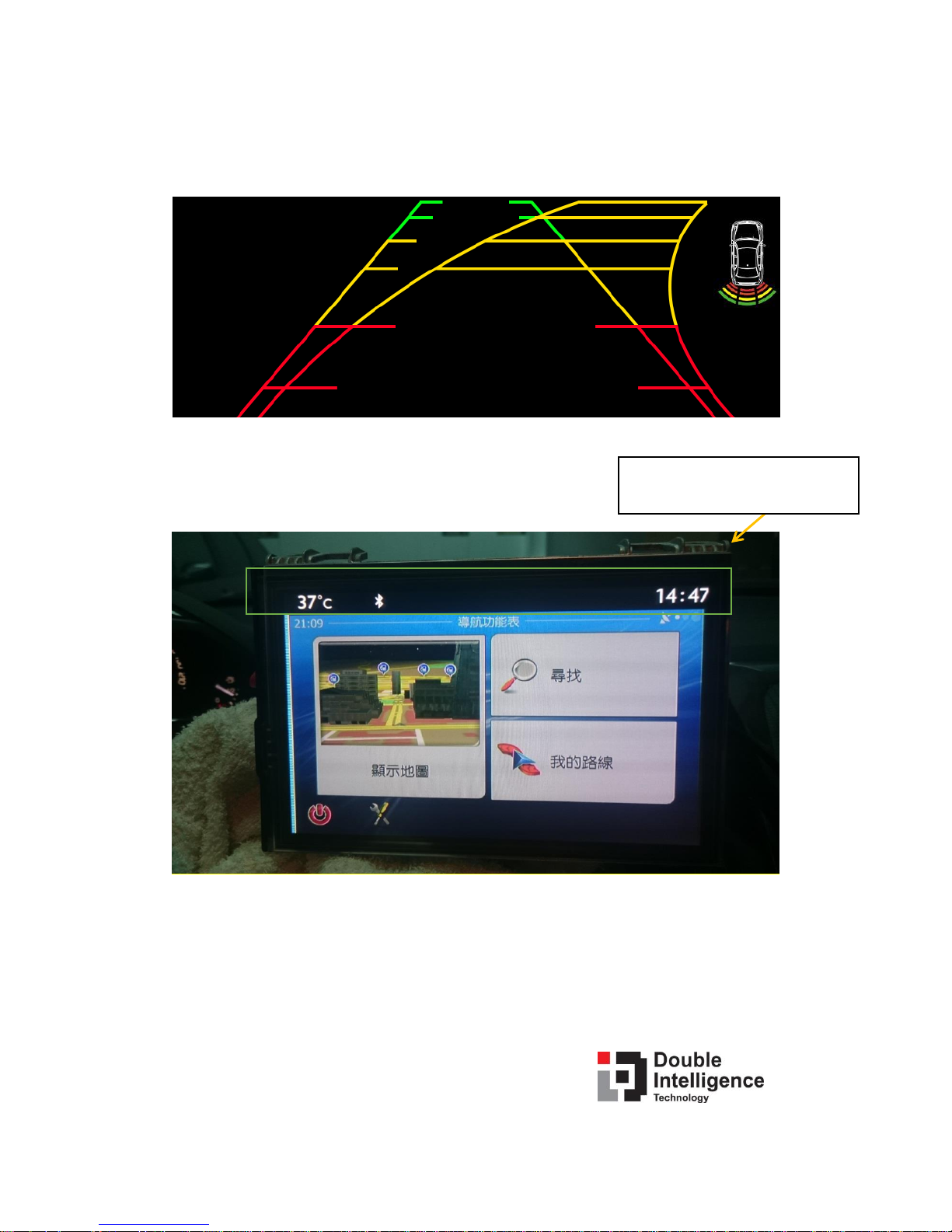

CCD for rear camera active parking line and PDC
Show car information on interface
Show Original information
