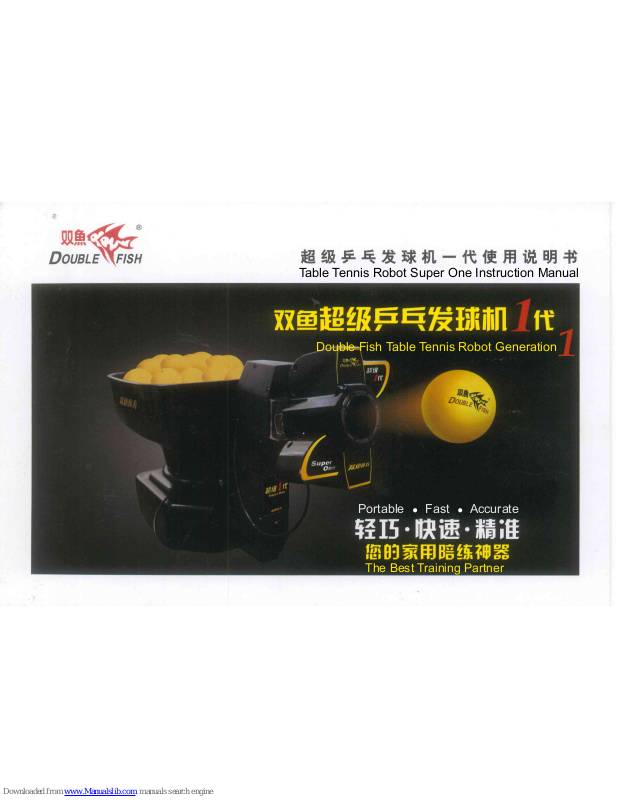

Table Tennis Robot Super One Instruction Manual
Double Fish Table Tennis Robot Generation
1
The Best Training Partner
Portable Fast Accurate
Parts & Specification

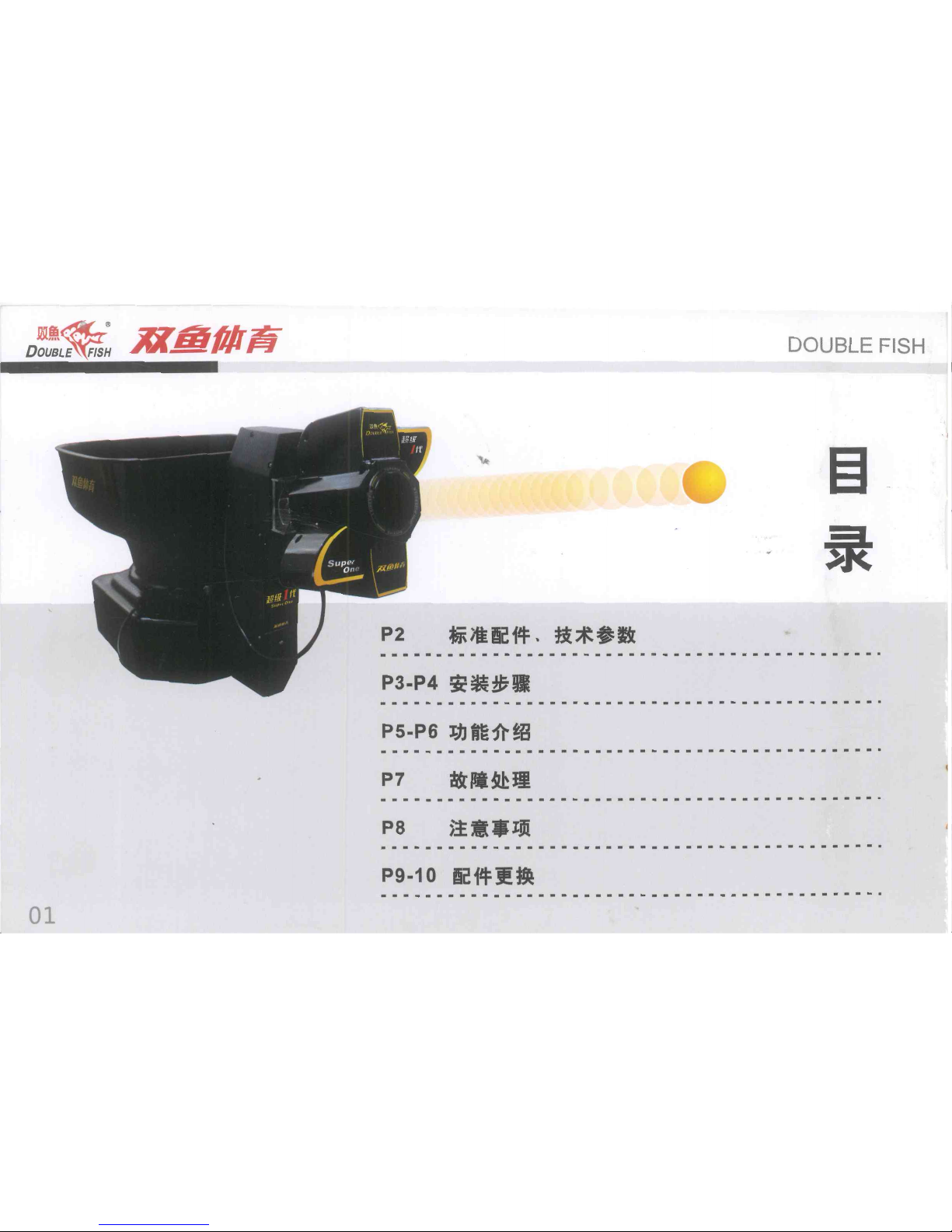

Contents
Assembly Instructions
Functions
Troubleshooting Tips
Warnings
Technical Specification
Spin:
Topspin, Backspin, Knuckle ball, Sidespin
Shoot frequency: 40-70/m
Shoot Speed: 4-40m/s
Maximum Balls Storage QTY: 120 balls
Minimum Balls Storage QTY: 10 balls
Gross Weight: 4KG
Net Weight: 3.5KG
Package Dimension:
41cm(L)*36cm(W)*32cm(H)
Rated Voltage: 100-240V
Rated Power: 36W
Up to 9 different spins and one Knuckle ball
Adjustable Shooting Angles
Parts List
A. Main Engine
B. Shooting Head
C. Balls Storage Tank
D. Power Supply
E. Fixed Mount
F. Ball Size Measurer
G. Instruction
Assembly Instructions
1. Remove contents from the box
and check them with the parts list
2. Attach the shooting head to the
main engine and covered with lid.
screw on it properly.
3. Plug USB cable in the port
on the main engine
4. Install the balls storage tank
to the main engine, and rotate
it till tight
5. Install the fixed mount onto the
standard table tennis table
6. Fix the table tennis robot onto the
fixed mount with screw, plug power supply in all the way
A. On/Off Control and Shooting Frequency Control
B. Oscillation Frequency Control
C. Topspin Control
D. Backspin Control
Spin and control settings
A. Shooting Frequency Control
The higher of the control’s value,
the faster of the shooting frequency
B. Oscillation Frequency Control
The higher of the control’s value,
the faster of the swing frequency
of the shooting head
C. Topspin Control
The higher of the control’s value,
the faster of the top wheel spinning
D. Backspin Control
The higher of the control’s value,
the faster of the bottom wheel spinning
Topspin balls: Top wheel spinning faster creates topspin
Topspin control between 3 and 5, Backspin control between 1 and 3
Backspin balls: Bottom wheel spinning faster creates backspin
Topspin control between 1 and 3, Backspin control between 3 and 5
Swing Range
Tips:
1. When the swing frequency of the shooting head is 0,
it will serve to a fixed point/direction
2. Adjust the frequency of the shooting head coordinate with the
adjusting rob to serve to unfixed points/all-direction
Position of the control box
Shooting range
sketch map
Indirectly Serve: Suitable for excising various kinds of serve and returning
serve by adjust suitable shooting speed and spin. Ideal for beginners.
Directly Serve: Higher shooting speed and spin than indirectly serve, can
serve with loop, drive and overhead. Ideal for regular training.
Directly Serve
Indirectly Serve
Brass Knob
Loose the brass knob before adjusting
the height of the shooting head
Do not adjust it when the shooting head is still swinging
Functions
Serve Bouncing Sketch Map
The rotating of the training robot was achieved by
adjusting the speed of up wheels and down wheels,
and adjusting the direction of the shooting heads
leftwards and rightwards. Different combination of
both adjusting will serve differently. Up to 9 different
spin and one Knuckle ball it could serve.
The shooting head could rotate any directly
horizontally from 0~180 degree scope zone.
Position 1: Turn on the up wheel to activate topspin;
Turn on the down wheel to activate backspin.
Adjust both up and down wheels to the same speed to activate the Knuckle ball.
Position 2: Turn on the up wheel to activate left sidespin;
Turn on the down wheel to activate right sidespin.
Adjust both up and down wheels to the same speed to activate the Knuckle ball.
Position 3: Turn on the up wheel to activate right sidespin;
Turn on the down wheel to activate left sidespin.
Adjust both up and down wheels to the same speed to activate the Knuckle ball.
Any position in between 1-2 or 1-3 coordinate with two wheels
and rotating speeds to serve different spins.
Troubleshooting Tips
Issues Reasons Solutions
Turn on the machine with
no response
Change power supply
Cables are plugged in
all the way
Power supply failure
Cables are connected
improperly

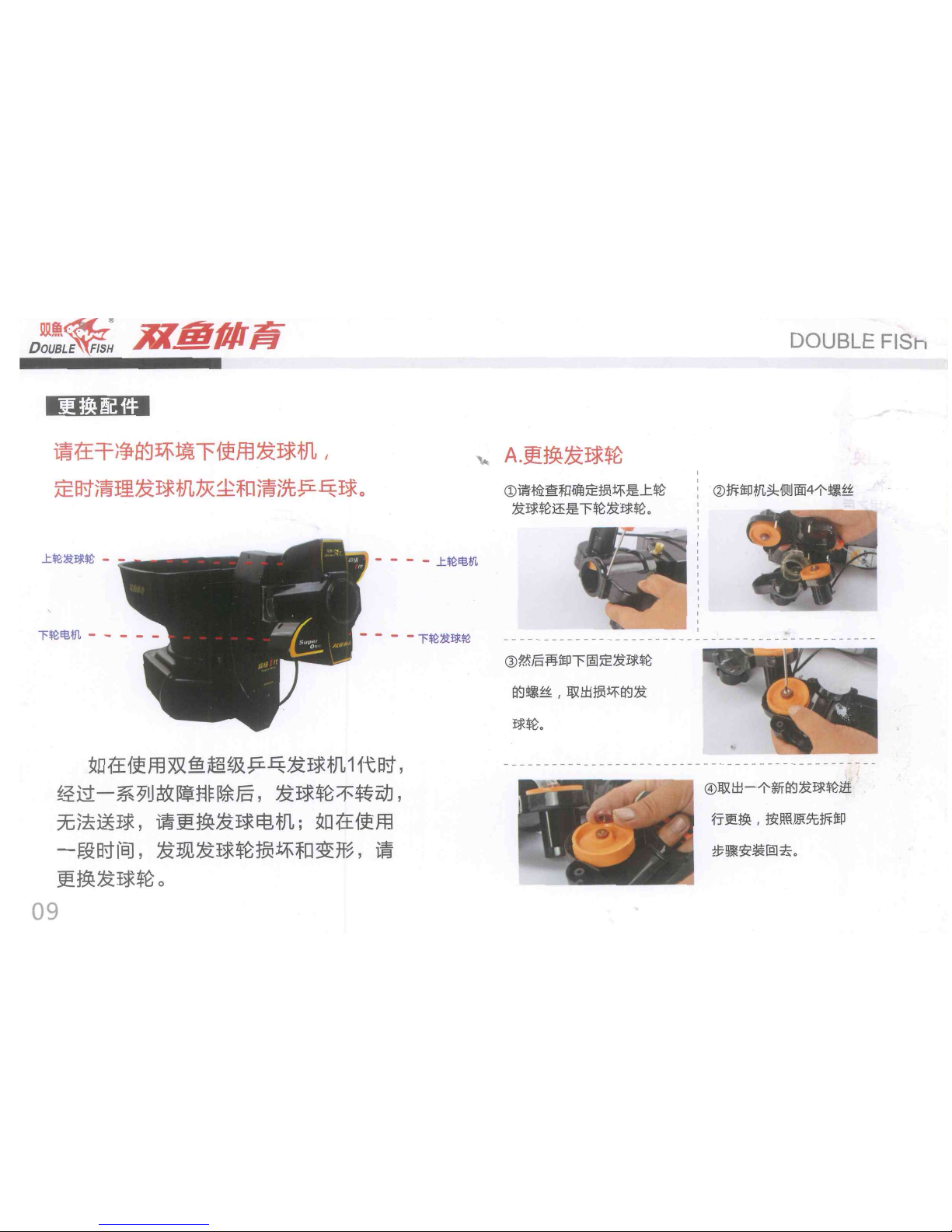

1. Disassemble the shooting head,
clean up inside of the head and balls
2. use the correct size balls
3. Ball supply machine errors
4. Bally supply gearbox errors
Balls not coming out
Balls falling out hole,
not shooting

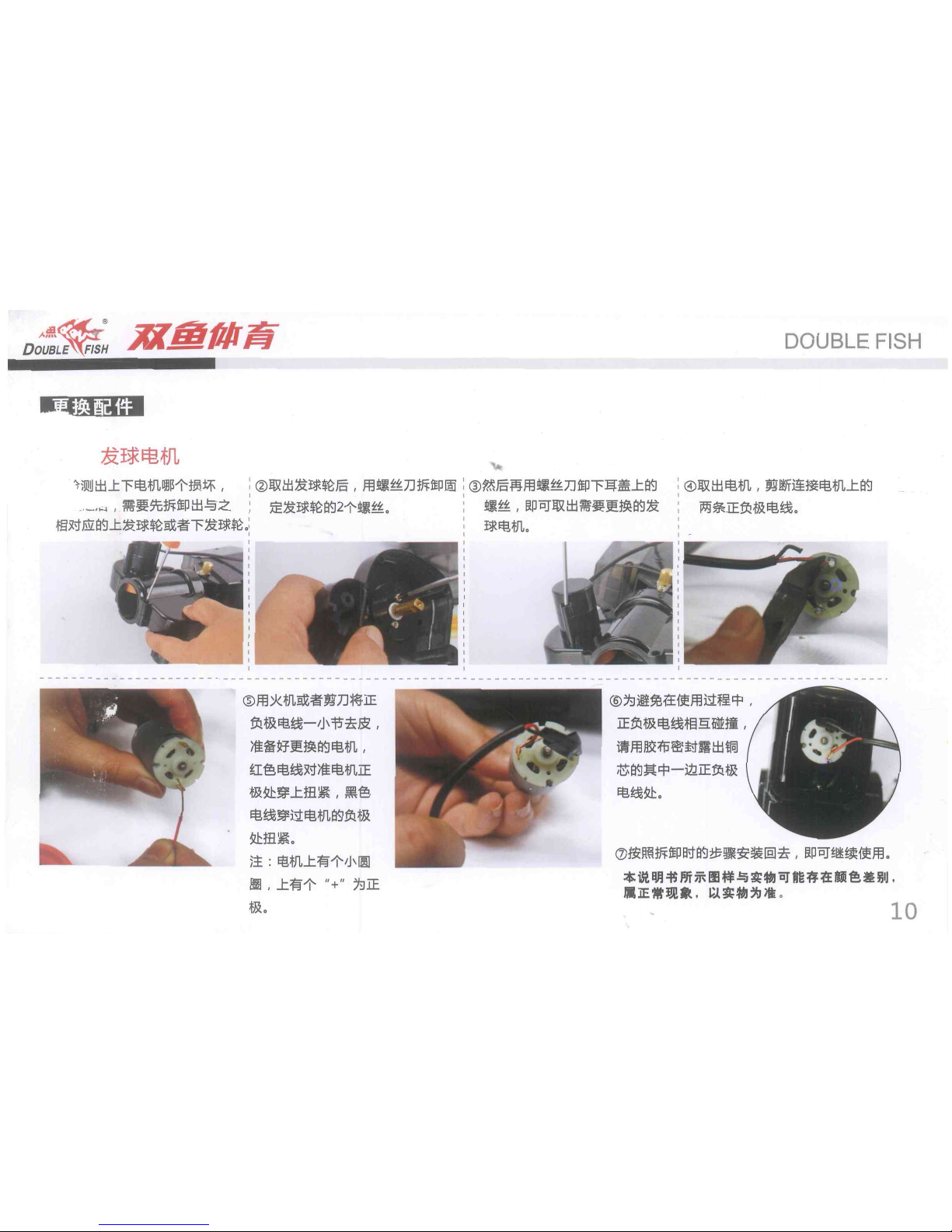

1. Shooting machine errors
2. Check that all cables are plugged
in all the way
3. Check that power supply is
plugged in all the way
Shooting head not swing
1. Swing machine errors
2. Swing gearbox errors
3. Check that all cables are plugged
in all the way
4. Check that power supply is
plugged in all the way
A narrow range of swing
Reset the control screw
Warnings:
This robot should only be used with 40mm table tennis balls. Irregular or low-quality balls could
cause increasing of the possibility of jamming.
Please clean the robot and pack it in bag for long-term storage.
Please feel free to contact us if any problems.
Please don’t put balls into the ball storage area when the robot is running, which will cause jamming.
New table tennis balls should be rinsed in water or detergent and air dry before using. Regularly cleaning up
inside of the robot and balls could reduce the possibility of jamming.
The robot should be used by children under the adults' instruction.
