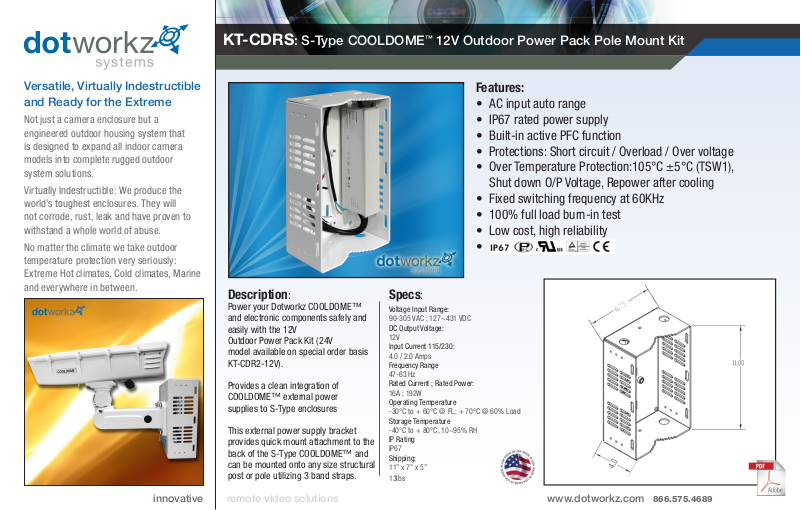

KT-CDRS: S-Type COOLDOME
™
12V Outdoor Power Pack Pole Mount Kit
Versatile, Virtually Indestructible
and Ready for the Extreme
Not just a camera enclosure but a
engineered outdoor housing system that
is designed to expand all indoor camera
models into complete rugged outdoor
system solutions.
Virtually Indestructible : We produce the
world’s toughest enclosures. They will
not corrode, rust, leak and have proven to
withstand a whole world of abuse.
No matter the climate we take outdoor
temperature protection very seriously:
Extreme Hot climates, Cold climates, Marine
and everywhere in between.
Description:
Power your Dotworkz COOLDOME™
and electronic components safely and
easily with the 12V
Outdoor Power Pack Kit (24V
model available on special order basis
KT-CDR2-12V).
Provides a clean integration of
COOLDOME™ external power
supplies to S-Type enclosures
This external power supply bracket
provides quick mount attachment to the
back of the S-Type COOLDOME™ and
can be mounted onto any size structural
post or pole utilizing 3 band straps.
Features:
• AC input auto range
• IP67 rated power supply
• Built-in active PFC function
• Protections: Short circuit / Overload / Over voltage
• Over Temperature Protection:105°C ±5°C (TSW1),
Shut down O/P Voltage, Repower after cooling
• Fixed switching frequency at 60KHz
• 100% full load burn-in test
• Low cost, high reliability
•
Specs:
Voltage Input Range:
90-305 VAC ; 127~431 VDC
DC Output Voltage:
12V
Input Current 115/230:
4.0 / 2.0 Amps
Frequency Range
47-63 Hz
Rated Current ; Rated Power:
16A ;
192W
Operating Temperature
-30°C to + 60°C @ FL; + 70°C @ 60% Load
Storage Temperature
-40°C to + 80°C, 10~95% RH
IP Rating
IP67
Shipping:
11” x 7” x 5”
13lbs
