Dotworkz KT-AXPH Specsheet

Quick Sheet for:

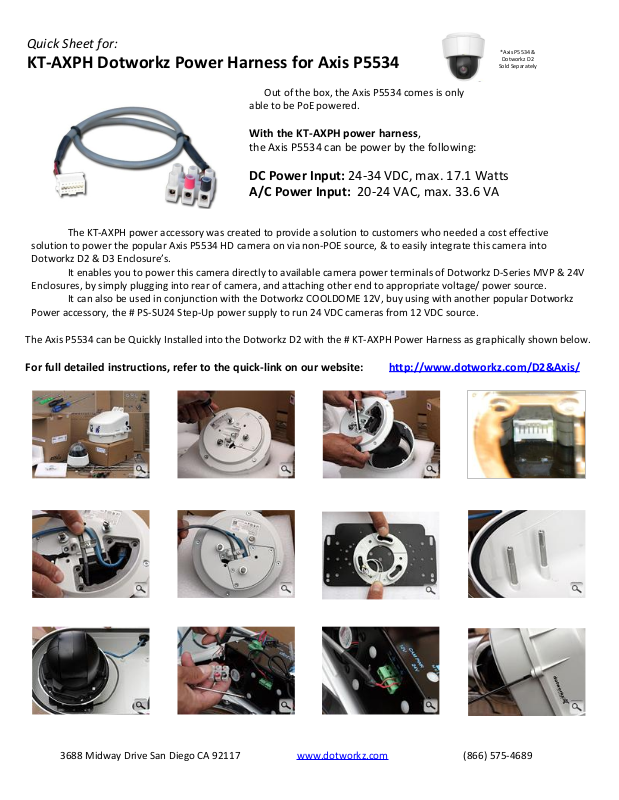

KT-AXPH Dotworkz Power Harness for Axis P5534

Out of the box, the Axis P5534 comes is only
able to be PoE powered.

*Axis P5534 &

Dotworkz D2

Sold Separately

With the KT-AXPH power harness,
the Axis P5534 can be power by the following:

DC Power Input: 24-34 VDC, max. 17.1 Watts
A/C Power Input: 20-24 VAC, max. 33.6 VA

The KT-AXPH power accessory was created to provide a solution to customers who needed a cost effective
solution to power the popular Axis P5534 HD camera on via non-POE source, & to easily integrate this camera into
Dotworkz D2 & D3 Enclosure’s.

It enables you to power this camera directly to available camera power terminals of Dotworkz D-Series MVP & 24V
Enclosures, by simply plugging into rear of camera, and attaching other end to appropriate voltage/ power source.

It can also be used in conjunction with the Dotworkz COOLDOME 12V, buy using with another popular Dotworkz
Power accessory, the # PS-SU24 Step-Up power supply to run 24 VDC cameras from 12 VDC source.

The Axis P5534 can be Quickly Installed into the Dotworkz D2 with the # KT-AXPH Power Harness as graphically shown below.

For full detailed instructions, refer to the quick-link on our website: http://www.dotworkz.com/D2&Axis/
