Page 1

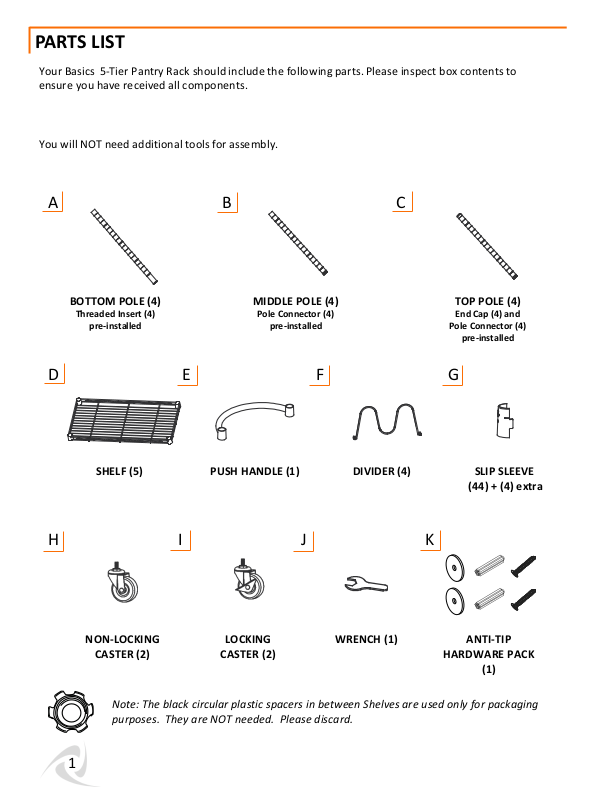

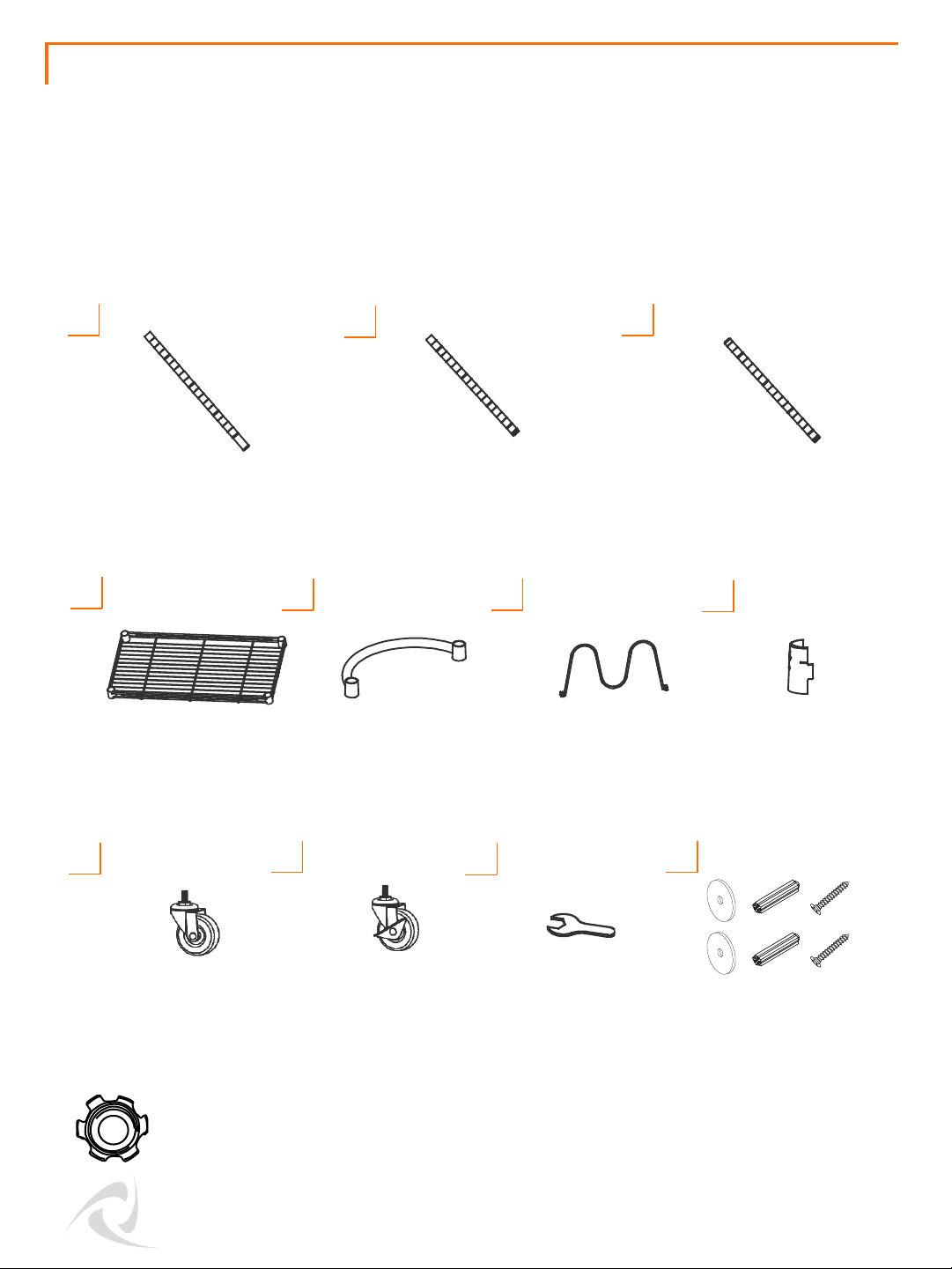

PARTS LIST
Your Basics 5-Tier Pantry Rack should include the following parts. Please inspect box contents to
ensure you have received all components.
You will NOT need additional tools for assembly.
A B
BOTTOM POLE (4)
Threaded Insert (4)
pre-installed
D F
SHELF (5)
E
PUSH HANDLE (1) SLIP SLEEVE
MIDDLE POLE (4)
Pole Connector (4)
pre-installed
C
TOP POLE (4)
End Cap (4) and
Pole Connector (4)
pre-installed
G
DIVIDER (4)
(44) + (4) extra
H I J K
1
LOCKING
CASTER (2)
Note: The black circular plastic spacers in between Shelves are used only for packaging
purposes. They are NOT needed. Please discard.
CASTER (2)
WRENCH (1)NON-LOCKING
ANTI-TIP
HARDWARE PACK
(1)
Page 2
ASSEMBLY INSTRUCTIONS

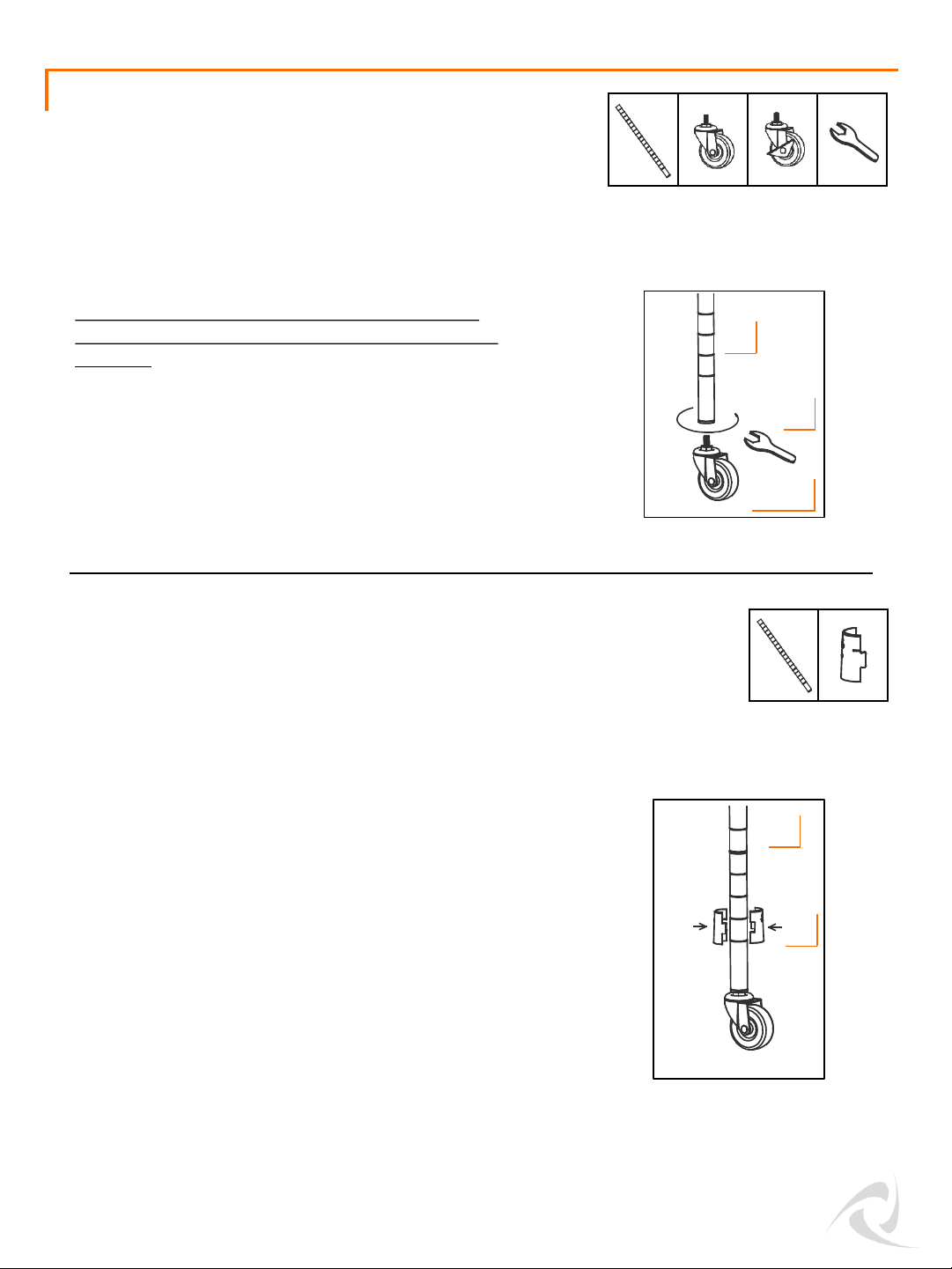

STEP 1
Screw each CASTER (H) and (I) into each BOTTOM POLE
(A). Turn clockwise to screw in place. Make sure locking
casters are on same side.
Use provided caster wrench to tighten completely.
Failure to do as instructed could result in caster stem
breaking.
STEP 2
For easiest assembly, do NOT attach TOP POLES (C), MIDDLE
POLES (B) and BOTTOM POLES (A) until instructed. Once
connected, these will be posts for the rack.
A (4) I (2) J (1)
H (2)
A
J
H & I
A (4) G (8)
Note that POLES (A+B+C) have slight horizontal line indentations
at 1” intervals. Each SLIP SLEEVE (G) has raised horizontal lines
inside designed to lock them in place on POLES (A+B+C).
On BOTTOM POLE (A), place one pair of SLIP SLEEVES (G) at
desired height no higher than 3rd indentation from bottom.
Please make sure arrow faces up and word “TOP” is right side up.
Slide pair of SLIP SLEEVES (G) until you hear a click to confirm pair
is locked onto BOTTOM POLE (A). Do this for each BOTTOM POLE
(A) and make sure height is identical for each BOTTOM POLE (A).
Do NOT place more than one pair on each pole at a time.
Note: There will be a very small gap in-between two locked SLIP SLEEVES (G)—this is normal.
A
G
2
Page 3
ASSEMBLY INSTRUCTIONS

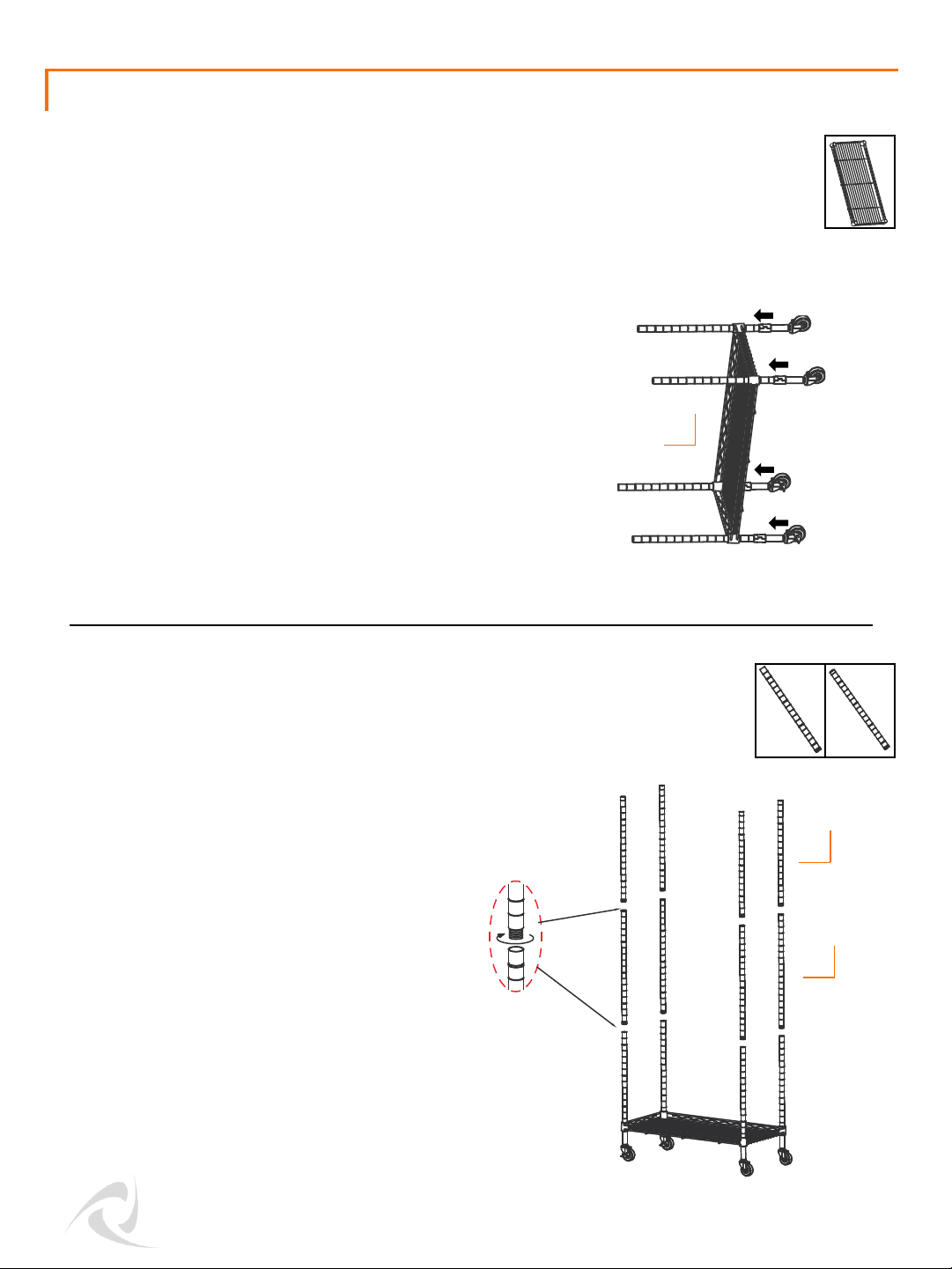

STEP 3
Place SHELF (D) on its side and slide each BOTTOM POLE (A)
through each corner cylinder on SHELF (D). Make sure
SHELF (D) corner cylinders are positioned over SLIP SLEEVES
(G).
Stand unit upright.
Note:
• Use a rubber mallet, if needed, to secure SHELF (D).
• For convenience, place BOTTOM POLES (A) with Locking
Casters on shorter side of shelf.
D (1)
D
STEP 4
Screw MIDDLE POLE (B) into BOTTOM POLE
(A). Repeat for each remaining MIDDLE
POLE (B).
Screw TOP POLE (C) into MIDDLE POLE (B).
Repeat for each remaining TOP POLE (C).
Note: Top of each TOP POLE (C) is indicated
by a BLACK END CAP.
B (4)
C (4)
C
B
3
Page 4
ASSEMBLY INSTRUCTIONS

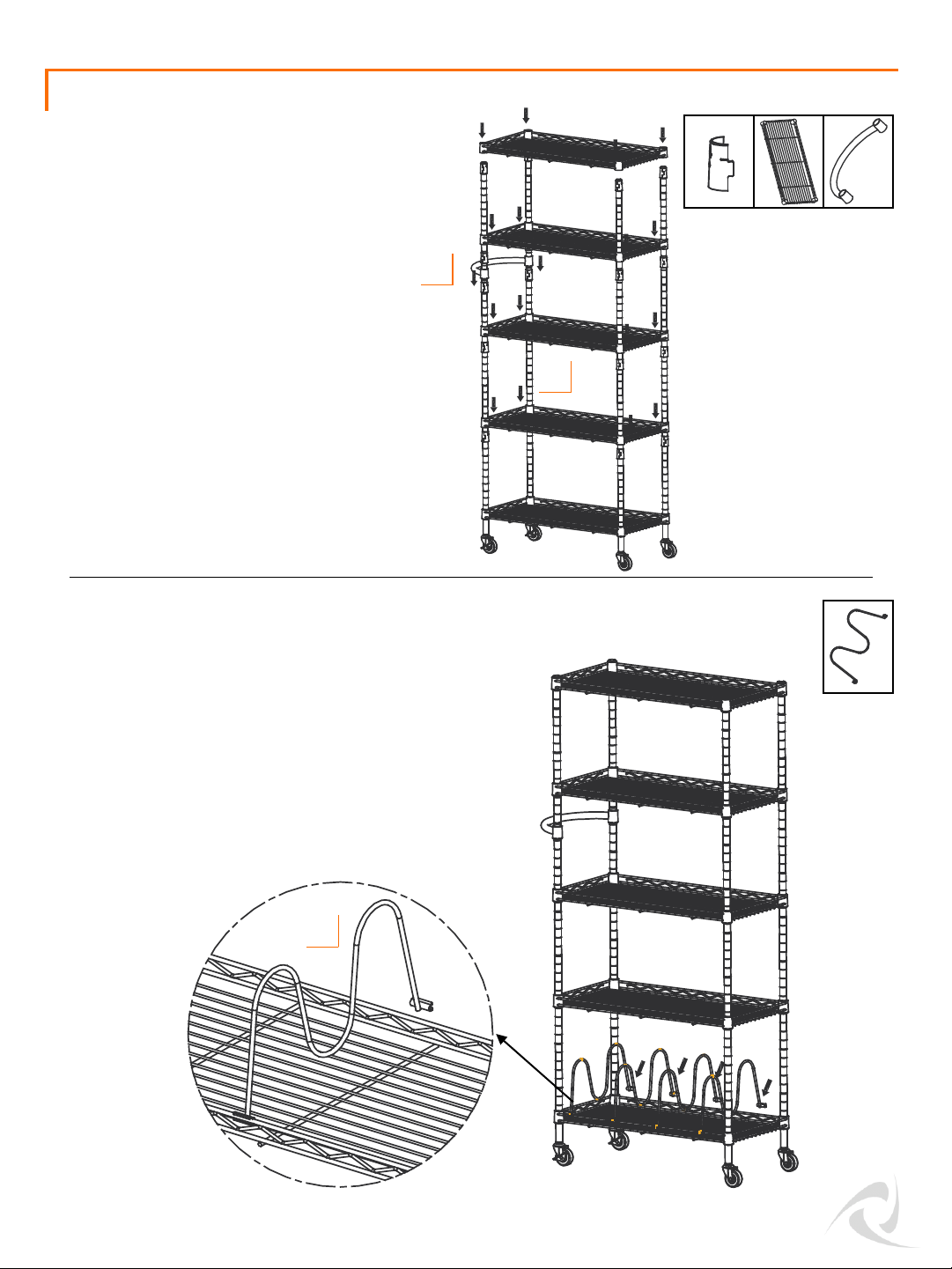

STEP 5
In the same way as indicated in STEP 2 & 3,
install 2 SHELVES (D) and then PUSH
HANDLE (E).
Then install another 2 SHELVES (D) above
PUSH HANDLE (E).
Note:
• PUSH HANDLE (E) height needs to be pre-
determined and assembled in right order.
• Shelves are adjustable in 1” increments
and can be placed as needed to best fit
storage needs.
• Use a rubber mallet, if needed, to secure
SHELVES (D) and PUSH HANDLE (E).
STEP 6
Clip one end of DIVIDER (F) onto straight wire of
SHELF (D) frame as shown, then squeeze other end
of DIVIDER (F) to clip onto other side of SHELF (D)
frame.
D (4) G (36) E (1)
E
D
F (4)
Install other DIVIDERS (F) on SHELVES (D) as desired.
F
4
Page 5
ASSEMBLY INSTRUCTIONS

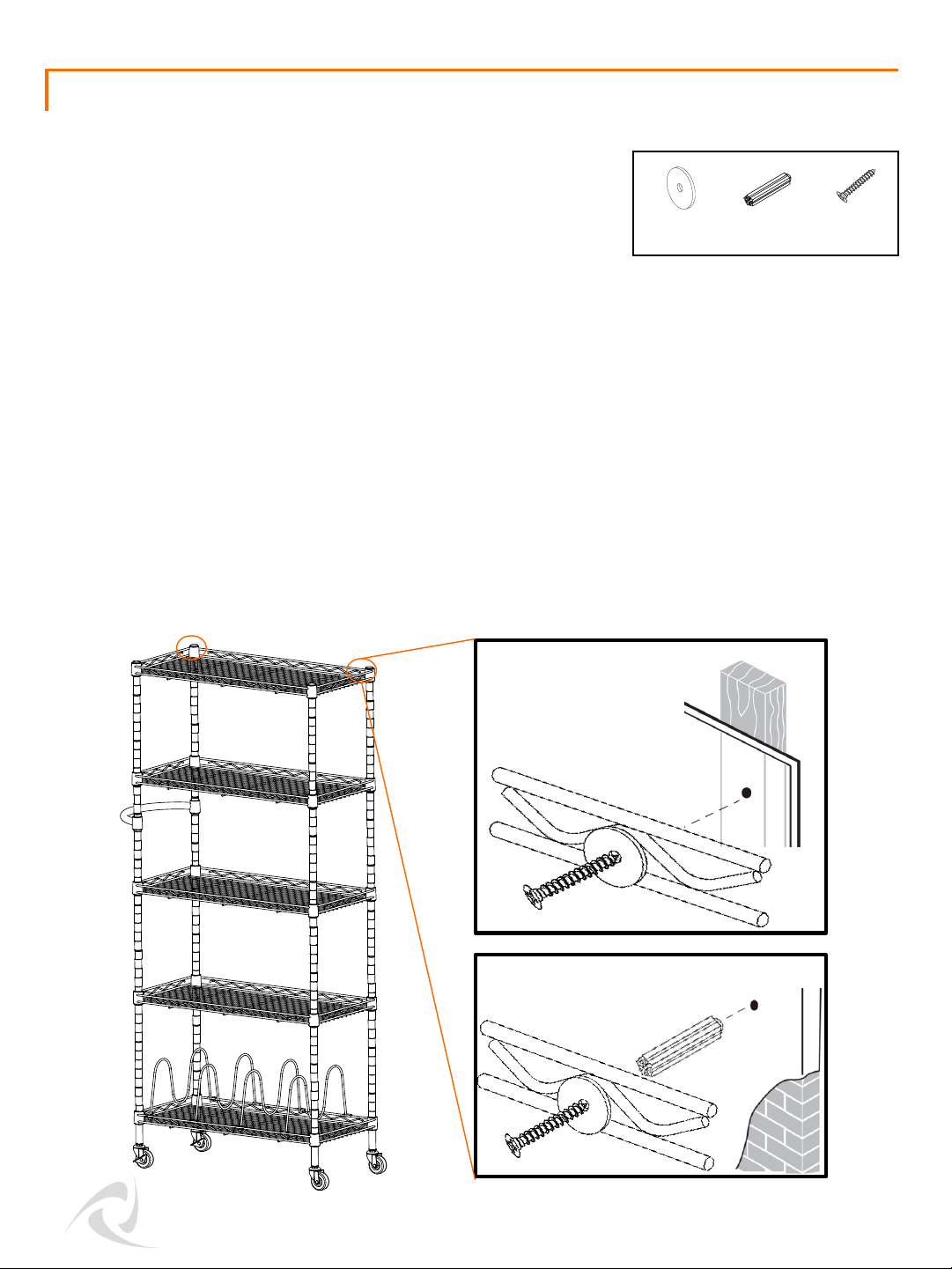

Anti-tip Hardware Installation
ANTI-TIP HARDWARE PACK (K) is used to protect against accidental
tipping – especially due to curious children. Note that installing
ANTI-TIP HARDWARE PACK (K) will no longer allow your rack to be
mobile.
On Wood Stud
Determine wood stud location and mark it on wall, level with topmost shelf. Do this on two different
studs along top shelf.
Place Shelving Rack into position.
Insert Screw through Washer and backside frame of top shelf as shown. Fasten Screw tightly into stud.
Do this for each stud that was marked out.
On Brick/Concrete
Mark out two separate locations on wall, level with topmost shelf.
With a 1/4” drill bit, drill a hole 1-1/4” deep at each marked location. Push Anchors flush into each hole.
Place Shelving Rack into position.
Insert Screw through Washer and backside frame of top shelf as shown. Fasten Screw tightly into
Anchor. Do this on both Anchors that were placed in wall.
Washer (2) Anchor (2) Screw (2)
K (1)
5
Page 6

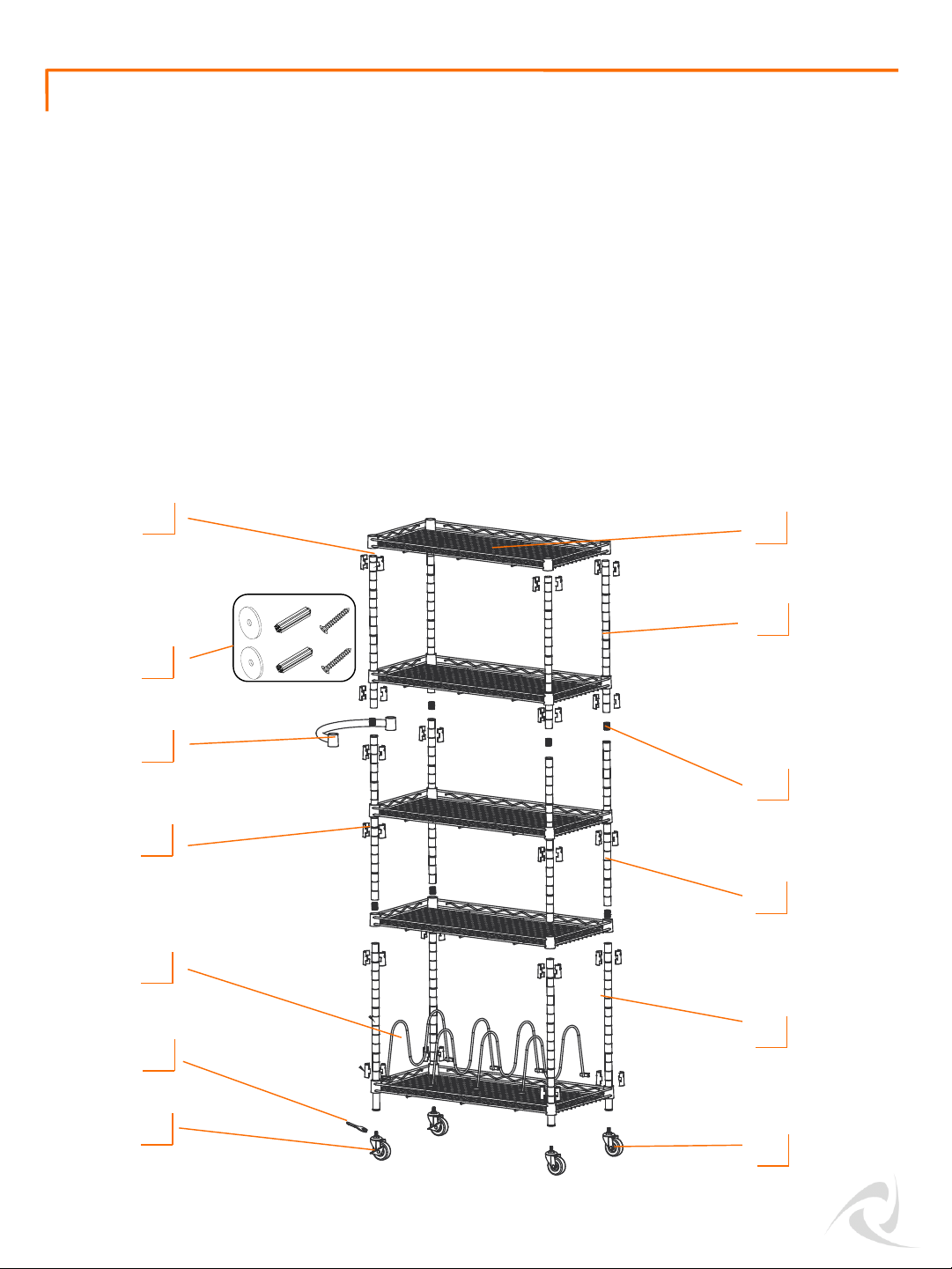

SERVICE PARTS LIST
Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1) ZSV-03-079-2412 Shelf 8) XXX-97-002-0005 Wrench
2) ZSV-04-047-1650 Top Pole 9) ZSV-02-012-0003 Divider
3) ZSV-01-029-1922 Pole Connector 10) XBK-01-011-1936 Slip Sleeve
4) ZSV-04-048-1800 Middle Pole 11) ZSV-05-028-1200 Handle
5) ZSV-04-049-1825 Bottom Pole 12) ZSV-02-011-0001 Anti-tip Hardware Pack
6) ZSV-99-007-2008 Non-locking Caster 13) XBK-23-004-1911 End Cap
7) ZSV-99-008-2008 Locking Caster
13
12
11
10
9
1
2
3
4
5
8
7
6
6
