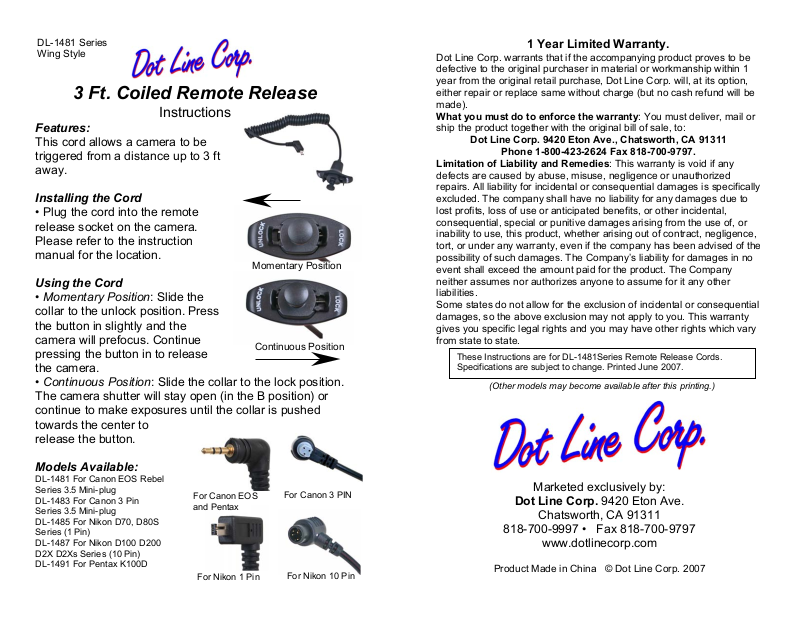

Dot Line DL-1485 User manual

3 Ft. Coiled Remote Release

Instructions

Features:

This cord allows a camera to be
triggered from a distance up to 3 ft
away.

Installing the Cord

• Plug the cord into the remote
release socket on the camera.
Please refer to the instruction
manual for the location.

Using the Cord

• Momentary Position: Slide the
collar to the unlock position. Press
the button in slightly and the
camera will prefocus. Continue
pressing the button in to release
the camera.

• Continuous Position: Slide the collar to the lock position.
The camera shutter will stay open (in the B position) or
continue to make exposures until the collar is pushed
towards the center to
release the button.

Models Available:

DL-1481 For Canon EOS Rebel
Series 3.5 Mini-plug
DL-1483 For Canon 3 Pin
Series 3.5 Mini-plug
DL-1485 For Nikon D70, D80S
Series (1 Pin)
DL-1487 For Nikon D100 D200
D2X D2Xs Series (10 Pin)
DL-1491 For Pentax K100D

DL-1481 Series
Wing Style

1 Year Limited Warranty.

Dot Line Corp. warrants that if the accompanying product proves to be
defective to the original purchaser in material or workmanship within 1
year from the original retail purchase, Dot Line Corp. will, at its option,
either repair or replace same without charge (but no cash refund will be
made).
What you must do to enforce the warranty: You must deliver, mail or
ship the product together with the original bill of sale, to:

Dot Line Corp. 9420 Eton Ave., Chatsworth, CA 91311

Phone [phone] Fax [phone].

Limitation of Liability and Remedies: This warranty is void if any

defects are caused by abuse, misuse, negligence or unauthorized
repairs. All liability for incidental or consequential damages is specifically
excluded. The company shall have no liability for any damages due to
lost profits, loss of use or anticipated benefits, or other incidental,
consequential, special or punitive damages arising from the use of, or
inability to use, this product, whether arising out of contract, negligence,
tort, or under any warranty, even if the company has been advised of the
possibility of such damages. The Company’s liability for damages in no
event shall exceed the amount paid for the product. The Company
neither assumes nor authorizes anyone to assume for it any other
liabilities.
Some states do not allow for the exclusion of incidental or consequential
damages, so the above exclusion may not apply to you. This warranty
gives you specific legal rights and you may have other rights which vary
from state to state.

Marketed exclusively by:

Dot Line Corp. 9420 Eton Ave.

Chatsworth, CA 91311

818-700-9997 • Fax [phone]

www.dotlinecorp.com

Product Made in China © Dot Line Corp. 2007

These Instructions are for DL-1481Series Remote Release Cords.
Specifications are subject to change. Printed June 2007.

Momentary Position

Continuous Position

For Canon EOS
and Pentax

For Canon 3 PIN

For Nikon 1 Pin

For Nikon 10 Pin

(Other models may become available after this printing.)
