Leading the way: next-generation performance and flexibility.
Built in Redundancy
•
RAID 0, 1, 3, 5, 6, 10, 50
• Redundant, hot swap components
• AssuredSnap™ - Built-in snapshot capability
• AssuredCopy™ - Additional data protection with
full volume copies
• Built-in schedule capability
Scalability and Performance
Dual or single RAID controller or JBOD
•
• Data rates up to 4Gb/sec (Fibre Channel)
• 1.7TB base capacity that scales to 112TB
(utilizing 2TB SATA drives)
• OS Support - Windows, Linux, SuSE, Solaris
• Modular design protects your investment
• Enterprise-class features and functionality without
the enterprise price
Environmentally Responsible / Lower TCO
EcoStor™ - Economically and environmentally
•
sound technologies
- SimulCache™ - Low latency cache mirroring
- Battery-free cache backup
- DC power option
- 1 terabyte energy-saving drives
• RoHS-5 and WEEE compliant
2 7 3 0

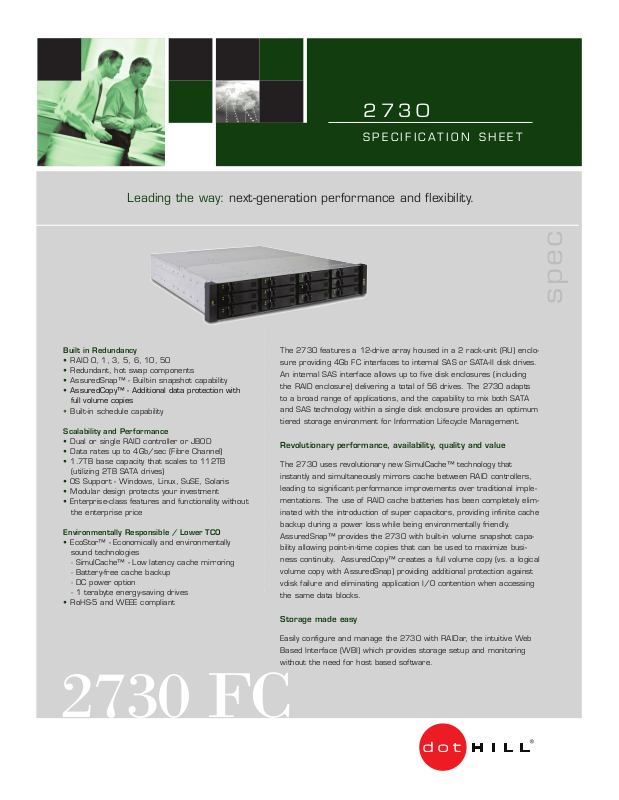

S P E C I F I C A T I O N S H E E T
•
•
•
•
•
•
•

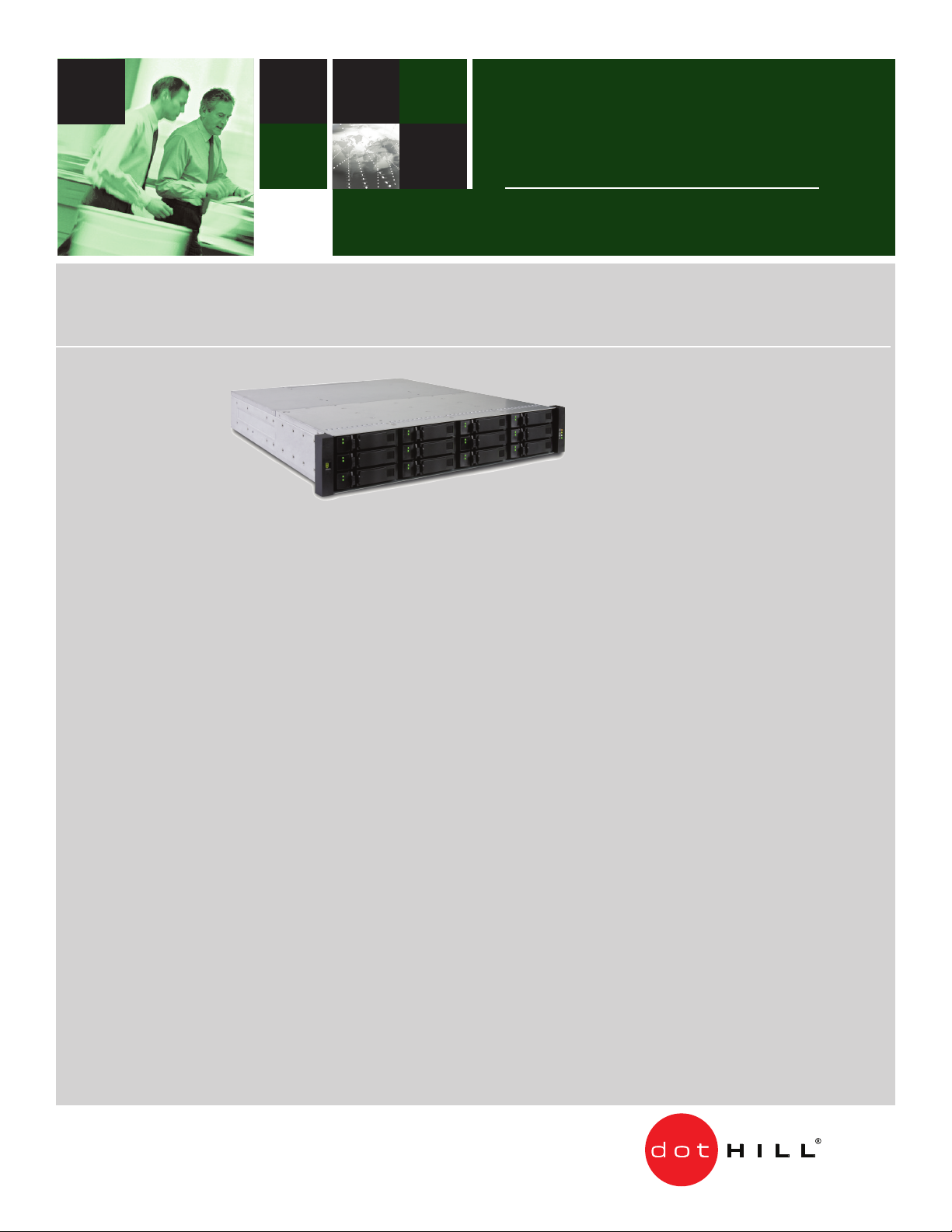

The 2730 features a 12-drive array housed in a 2 rack-unit (RU) enclo-
•
•
•
•
sure providing 4Gb FC interfaces to internal SAS or SATA-II disk drives.
•
•
•
•
An internal SAS interface allows up to five disk enclosures (including
•
•
•
•
the RAID enclosure) delivering a total of 56 drives. The 2730 adapts
•
•
•
•
to a broad range of applications, and the capability to mix both SATA
•
•
•
•
and SAS technology within a single disk enclosure provides an optimum
•
•
•
•
tiered storage environment for Information Lifecycle Management.
•
•
•
•
•
•
•
•
Revolutionary performance, availability, quality and value
•
•
•
•
•
•
The 2730 uses revolutionary new SimulCache™ technology that
•
•
•
•
instantly and simultaneously mirrors cache between RAID controllers,
•
•
•
•
leading to significant performance improvements over traditional imple-
•
•
•
•
mentations. The use of RAID cache batteries has been completely elim-
•
•
•
•
inated with the introduction of super capacitors, providing infinite cache
•
•
•
•
backup during a power loss while being environmentally friendly.
•
•
•
AssuredSnap™ provides the 2730 with built-in volume snapshot capa-
•
•
•
•
bility allowing point-in-time copies that can be used to maximize busi-
•
•
•
•
ness continuity. AssuredCopy™ creates a full volume copy (vs. a logical
•
•
•
•
volume copy with AssuredSnap) providing additional protection against
•
•
•
•
vdisk failure and eliminating application I/O contention when accessing
•
•
ª
•
the same data blocks.
Storage made easy
spec
Easily configure and manage the 2730 with RAIDar, the intuitive Web
Based Interface (WBI) which provides storage setup and monitoring
without the need for host based software.
2730 FC
Page 2
2730 Specifications
GE NE RAL
Product Family
Product Type
Chassis Configuration
Disk Architecture
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
2000 Ser ies
RAID, JBOD
2U
3Gb SAS/ 3Gb SATA-II
Max Drives per Chassis 12 drives
Total Capacity
Total Disks
Mounting Options
Max Number of Chassis
Max Capacity per Chassis
Data Management Services (DMS)
MO DE LS
Model Numbers
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
1.7TB/56TB (with expansio n trays)
56
19” Rack , Telco Ra ck, Rack tray
5 (1 RAID and 4 JBOD)
24TB (2T B SATA-II drives)
AssuredSnap, Assu redCopy
2730 - 4Gb FC Inte rface
2730T - High performanc e 4Gb FC I nter face
HO ST S
Supported Hosts
d i r e • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
• • •
Up to 4 di rect con nected hosts, 2 or 4Gb
Fibre Ch annel
Interface Type
External Ports
DR IV ES
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Max Number of Drives
Drive Options
FCP
2/4 Dual Controller
56
3GB SAS 146GB 15K RPM
3GB SAS 300GB 15K RPM
3Gb SAS 450GB 15K RPM
3GB SATA-II 500GB 7200 RPM
3GB SATA-II 750GB 7200 RPM
3GB SATA-II 1TB 7200 R PM
3Gb SATA-II 1TB 5400 R PM
3Gb SATA-II 2TB 5400 R PM
RA ID
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Levels Supported
RAID Type
Cache Memory
Cache Backup
Virtual disks per System
Volumes per virtual disk
Volumes per System
Mirrored Cache
Super Capacitor Cache Backup
Flash Cache Backup
MA NA GEM EN T
Interface Types
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Protocols Supported
Management Consoles
Management Software
PO WE R REQU IR EME NT S - AC
Input Power Requirements
Max Input Power
Heat Dissipation
PO WE R REQU IR EME NT S - DC
Non-RAID, 0.1,3,5 ,6,10, a nd 50
Hardware
Up to 1GB per cont roller
Battery-free pro tection with sup er capacitors
32
128
256
Yes - SimulCache
™
Yes
Yes - Non-volatile
Mini DB9 RS232, 10/100 Ethe rnet
SNMP, SSL, SSH, SMTP
WEB GUI, CLI
RAIDar
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
100–240VAC, 50/60 Hz, 4.5- 1.9A
475W max imum continuous
1622 BTU /hour
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Voltage -39 to -72VDC, -48/-60V nominal
Max Input Power 500W maximum continuous
Heat Dissipation 1706 BTU/hour
TE MP ERAT UR E AND H UM IDI TY RA NGE S .. .. ..... .. ..... .. ...
Operating Temperature
41°F to 104°F (5°C to 40°C)
Shipping Tempera ture -40°F to 158°F (-40°C to 70°C)
Note: De rate 2°C for every km, up to 3000
meters
Operating
Humidity
10% to 90% RH @ 104°F (40°C),
non-condensing
Non-Operating Hum idity Up to 93% RH @ 104°F (40°C)
non-condensing
DE CL ARE D A CO UST IC NO ISE LE VE LS .... .. ... .. .. ... .. ..... .. ..
Sound Po wer <6.03B S ound Power
Sound Pr essure <55dBA S ound Pressure
SH OC K AND V IB RATI ON ..... .. ... .. .. ... ..
Shock, Operational
Shock, Non-Operational
Vibration, Operational
5.0G, 10 ms, half sine
15G 11ms , half sine
0.21Grms Random 5Hz to 500Hz
• • • • • • • • • • • • • • • • • • • • • • • • •
flat spectrum/feed forward
Vibration, Non-Operational
0.5G 1 octave/minute 5Hz to 500Hz to
5 Hz sine sweep
0.5Grms Random 20Hz to-1000Hz flat
spectrum
HI GH -AVA IL ABILI TY FEAT UR ES
Redundant Hot-Swap Controllers
Redundant Hot-Swap Disk
Redundant Hot-Swap Fans
Redundant Hot-Swap Power
Dual Power Cords
Hot Standby Spare
Automatic Failover
Multi-Path Support
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Snapshot w/Assure dSnap Yes
Volume Cop y w/Assu redCopy Yes
RE GU LATO RY
Safety
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
UL 60950 -1:2003 (USA)
CAN/CSA-C22.2 No. 60950-1-03 (Canada)
EN 60950 -1 :2001 + A11 (European Union)
IEC 6095 0-1 :2001 (International)
Electromagnetic Compatibility
CFR 47 Par t 15 Subpar t B (U.S.A ., Class A)
ICES-003 Issue 4 (Canada, C lass A)
EN 55022 :98 +A1 + A2 (European Union,
Class A)
EN61000-3-2:2000+A1,+A2 ,+A14
(Harmonics)
EN 61000 -3-3 :2001 (Flicker)
EN 55024 :1998 +A1 (Europea n Union,
Immunity)
CISPR 22 :2005 (International, Class A)
CISPR 24 :97 (International, Immunity)
RoHS and WEEE RoHS-5 C ompliance , China R oHS, WEE E
Country Approval s Aust ralia/New Zealand , Canada , China (PRC),
European Union, Germany (GS Mark), Japan,
South Ko rea, Taiwan, United States
SU PP ORT
Software Warranty
Standard Hardware Warranty
Environmental Monitoring
Phone-home Capability
Remote Diagnostics
Non-disruptive Updates
Non-disruptive Volume Expansion
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
•
90 days
3 Years
SNMP, CLI, RAIDar, SMTP
Yes
Yes
Yes
Yes for primary volumes
and snap shot volumes
PH YS ICA L
Height
Depth (excluding cables)
Width
Chassis Weight
Chassis (w/250GB drives) Weight
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
3.5 Inch es / 8.9cm
23.7 Inc hes / 60.2cm
17.6 Inc hes / 44.7cm
44lbs. / 19.96kg
65lbs. / 29.48kg
