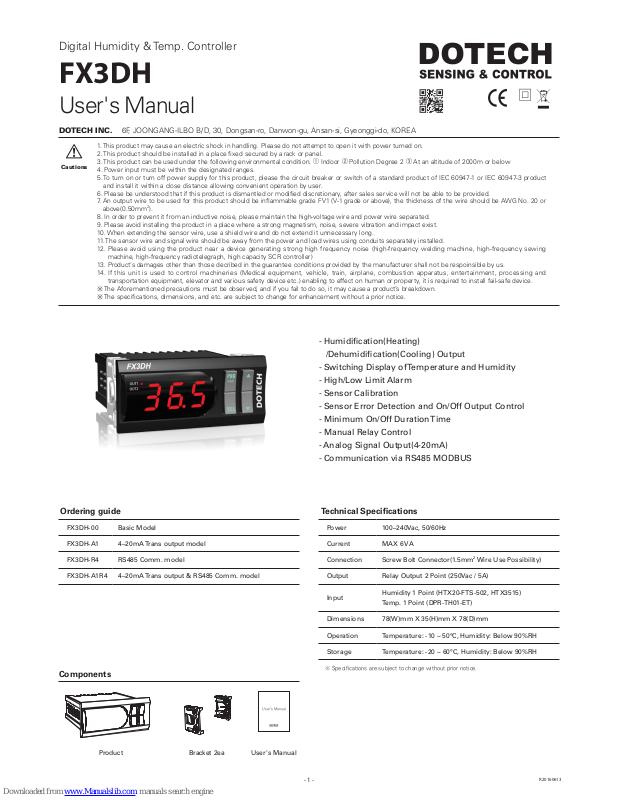

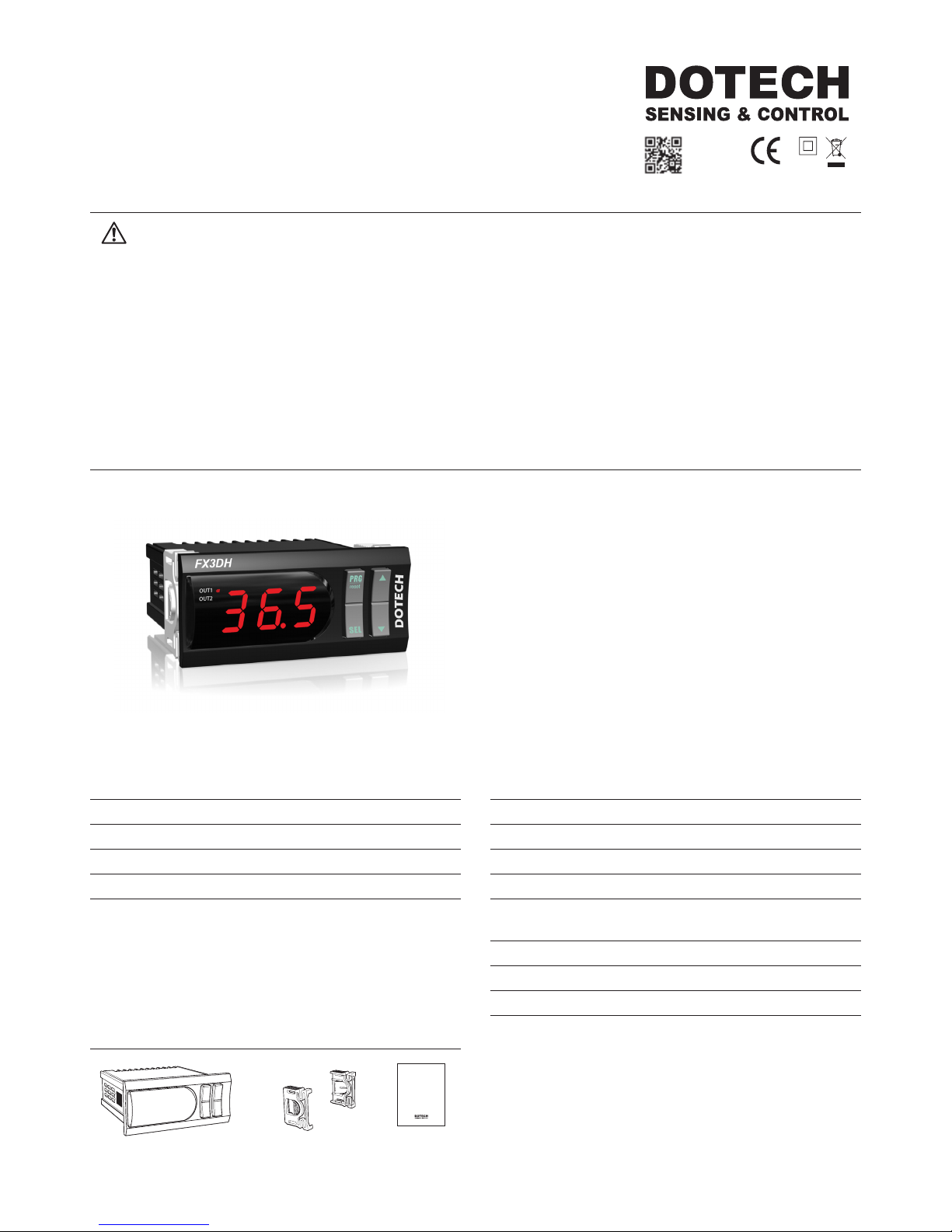

DOTECH FX3DH User Manual

Download

Page 1

- 1 -

R20160613

Product Bracket 2ea User's Manual

Technical Specications

Power 100–240Vac, 50/60Hz

Current MAX 6 VA

Connection Screw Bolt Connector(1.5mm2 Wire Use Possibility)

Output Relay Output 2 Point (250Vac / 5A)

Input

Humidity 1 Point (HTX20-FTS-502, HTX3515) Temp. 1 Point (DPR-TH01-ET)

Dimensions 78(W)mm X 35(H)mm X 78(D)mm

Operation Temperature: -10 ~ 50°C, Humidity: Below 90%RH

Storage Temperature: -20 ~ 60°C, Humidity: Below 90%RH

Ordering guide

FX3DH-00 Basic Model

FX3DH-A1 4~20mA Trans output model

FX3DH-R4 RS485 Comm. model

FX3DH-A1R4 4~20mA Trans output & RS485 Comm. model

※ Specifications are subject to change without prior notice.

Components

User’s Manual

Digital Humidity & Temp. Controller

User's Manual

FX3DH

DOTECH INC. 6F, JOONGANG-ILBO B/D, 30, Dongsan-ro, Danwon-gu, Ansan-si, Gyeonggi-do, KOREA

Cautions

1. This product may cause an electric shock in handling. Please do not attempt to open it with power turned on.

2. This product should be installed in a place xed secured by a rack or panel.

3. This product can be used under the following environmental condition. ① Indoor ② Pollution Degree 2 ③ At an altitude of 2000m or below

4. Power input must be within the designated ranges.

5. To turn on or turn off power supply for this product, please the circuit breaker or switch of a standard product of IEC 60947-1 or IEC 60947-3 product and install it within a close distance allowing convenient operation by user.

6. Please be understood that if this product is dismantled or modied discretionary, after sales service will not be able to be provided.

7. An output wire to be used for this product should be inammable grade FV1 (V-1 grade or above), the thickness of the wire should be AWG No. 20 or

above(0.50mm2).

8. In order to prevent it from an inductive noise, please maintain the high-voltage wire and power wire separated.

9. Please avoid installing the product in a place where a strong magnetism, noise, severe vibration and impact exist.

10. When extending the sensor wire, use a shield wire and do not extend it unnecessary long.

11. The sensor wire and signal wire should be away from the power and load wires using conduits separately installed.

12. Please avoid using the product near a device generating strong high frequency noise (high-frequency welding machine, high-frequency sewing

machine, high-frequency radiotelegraph, high capacity SCR controller)

13. Product’s damages other than those decribed in the guarantee conditions provided by the manufacturer shall not be respoinsible by us.

14. If this unit is used to control machineries (Medical equipment, vehicle, train, airplane, combustion apparatus, entertainment, processing and

transportation equipment, elevator and various safety device etc.) enabling to effect on human or property, it is required to install fail-safe device.

※

The Aforementioned precautions must be observed, and if you fail to do so, it may cause a product’s breakdown.

※

The specications, dimensions, and etc. are subject to change for enhancement without a prior notice.

- Humidication(Heating) /Dehumidication(Cooling) Output

- Switching Display of Temperature and Humidity

- High/Low Limit Alarm

- Sensor Calibration

- Sensor Error Detection and On/Off Output Control

- Minimum On/Off Duration Time

- Manual Relay Control

- Analog Signal Output(4-20mA)

- Communication via RS485 MODBUS

Page 2

- 2 -

R20160613

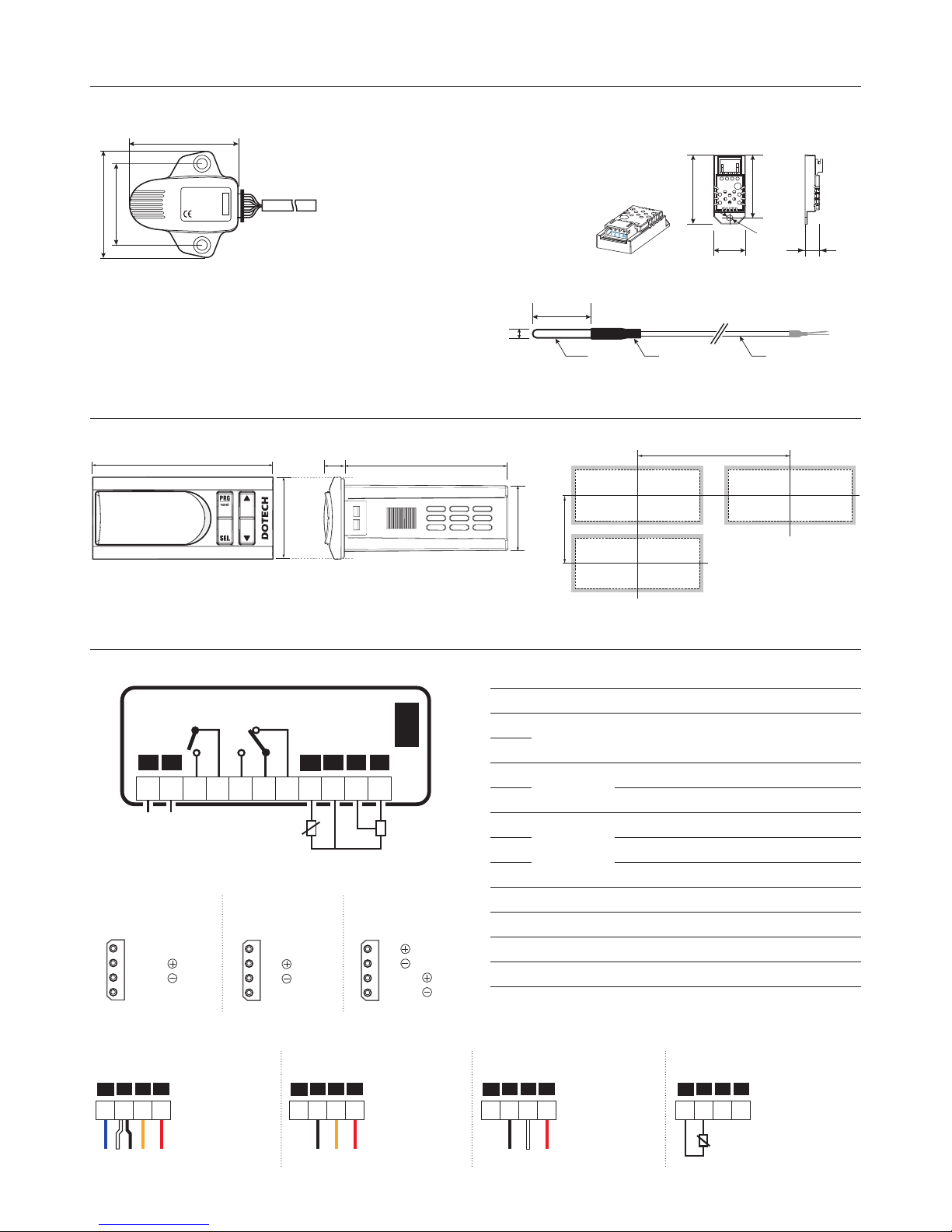

UNIT : mm

(Panel Cut-Out : 71mm X 29mm)

Dimensions and Panel Cut-Out Form

Wiring

L2L1

100-240Vac, 50/60H z

1 2 3 4 5 6 7 8 9 10 11

COM

OUT1 OUT2

+5VNTC

FX3DH

OPTION

MODULE

Vin

5A, 250Vac

POWER SUPPLY

Humidity

TEMP

W(Y)

COM +5VNTC Vin

8 9 10 11

YELLOWBLUE WHITE

BLACK

RED

HTX20-FTS-502

Temp. & Humidity sensor

COM +5VNTC Vin

8 9 10 11

YELLOWBLACK RED

HTX20-FTS-502

Humidity sensor

COM +5VNTC Vin

8 9 10 11

WHITEBLACK RED

HTX3515

Humidity sensor

8 9 10 11

COM +5VNTC Vin

NTC

DPR-TH01-ET

Temp. sensor

※ Set sensor input setting(IN)

of setting 2 group to HT.

※ Set sensor input setting(IN)

of setting 2 group to H.

※ Set sensor input setting(IN)

of setting 2 group to H.

※ Set sensor input setting(IN)

of setting 2 group to T.

4~20mA

RED

WHITE

BLACK

-A1 Model

4~20mA Output

TRX

RED

WHITE

BLACK

-R4 Model

RS485 COMM.

TRX

TRX RED

BLUE

WHITE

BLACK4~20mA

4~20mA

-A1R4 Model

4~20mA Output & RS485 COMM.

Sensor connection

Option Module connection

NO Connection Description

POWER 100-240Vac, 50/60Hz

OUT1

Relay output OUT1 when closed

4 Common signal

OUT2

Relay output OUT2 when closed

6 Common signal

7 Relay output OUT2 when open

8 NTC Temp. sensor input

9 COM Common signal

10 Vin Humidity sensor input

11 +5V Humidity sensor power (5Vdc)

Accessories

HTX20-FTS-502

DOTECH INC.

RH : 10~95%RH, 1.2~3.5V T : NTC5K

RH & Temp Sensor

GND

Red : Humidity sensor power +5V Yellow : Humidity measurement signal output Black : Humidity sensor power 0V white : Temperature sensor(NTC5K) Blue : Temperature sensor(NTC5K)

Cable length

Humidity range: 10 ~ 95%RH Temp. range: 0 ~ 60℃ Humidity output :1.2~3.5V Temp. output: NTC5K

HTX20-FTS-502

DOTECH INC.

RH : 10~95%RH, 1.2~3.5V T : NTC5K

RH & Temp Sensor

GND

Red : Humidity sensor power +5V Yellow : Humidity measurement signal output Black : Humidity sensor power 0V white : Temperature sensor(NTC5K) Blue : Temperature sensor(NTC5K)

Cable length

Humidity range: 10 ~ 95%RH Temp. range: 0 ~ 60℃ Humidity output :1.2~3.5V Temp. output: NTC5K

27 25

2.5pie

6.7

Humidity range: 0~100%RH Humidity output: 1.0~3.6Vdc Connection Cable length 3M 1: Black : Humidity sensor power 0V 2: Red : Humidity sensor power+5V 4: White : Humidity measurement signal output

Ø5

SUS PIPE SHRINK TUBE LEAD WIRE

HTX20-FTS-502 : Temp.& Humidity sensor HTX3515 : Humidity sensor

DPR-TH01-ET : Temperature sensor

Page 3

- 3 -

R20160613

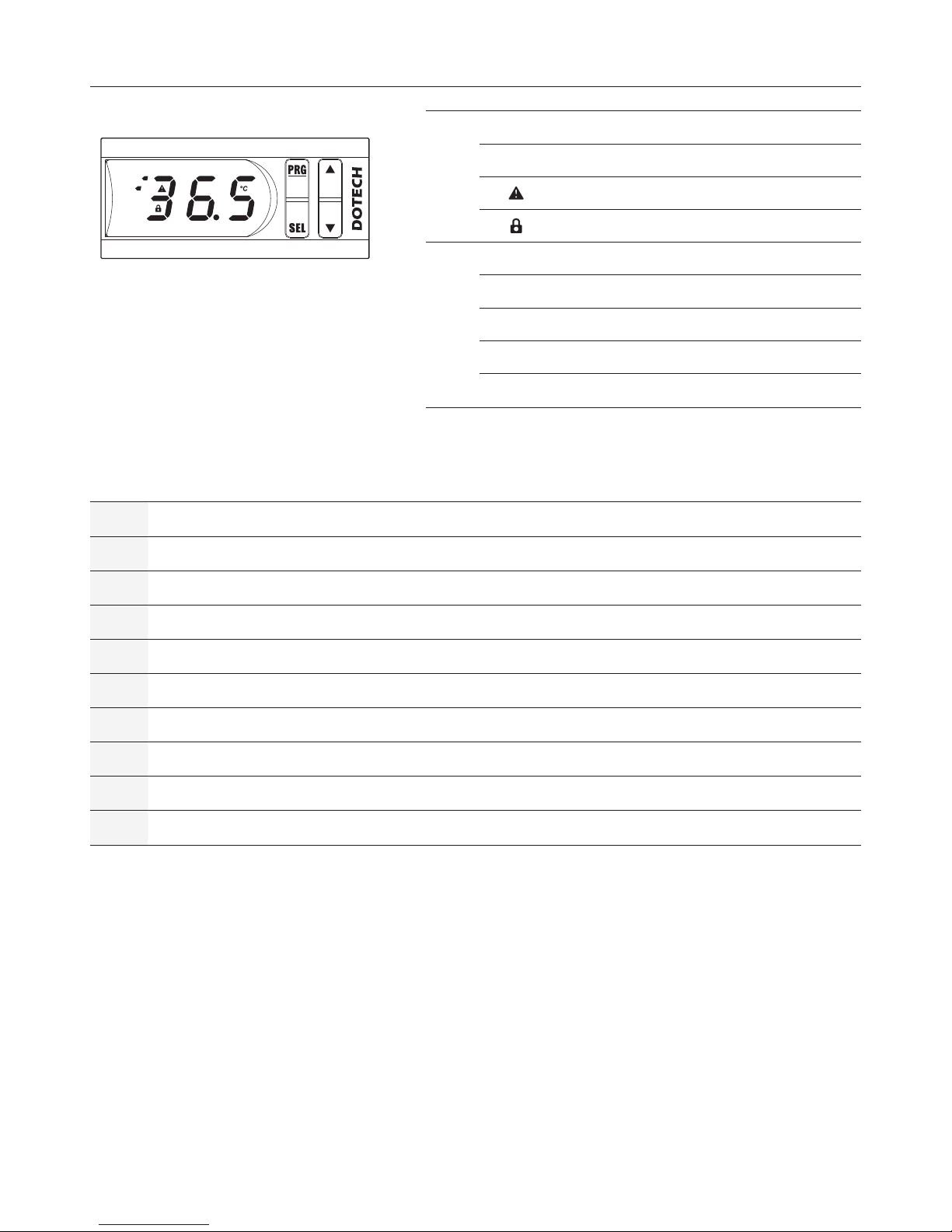

Code Menu Description / Instructions

Response at

Detection

Reset Type

5 Y 5

Internal Parameter Error In Case of change of set value by an unknown case. Immediate Stop Automatic Reset

H O P

Humidy Sensor Open In case of Input sensor open wire(Normal operation after sensor connecting)

Immediate Stop Automatic Reset

H S T

Humidy Sensor Short In case of Input sensor short circuit Immediate Stop Automatic Reset

H L L

Humidy Lower Input Lower sensor input than measuring range Immediate Stop Automatic Reset

H H H

Humidy Higher Input

Higher sensor input than measuring range

Immediate Stop Automatic Reset

T O P

Temp. Lower Low Limit Lower Low Limit Alarm than Low Limit Alarm Value Immediate Stop Automatic Reset

T S T

Temp. Higher High Limit Higher High Limit Alarm than High Limit Alarm Value Immediate Stop Automatic Reset

T L L

Temp. Lower Input

Lower sensor input than measuring range

Immediate Stop Automatic Reset

T H H

Temp. Higher Input Higher sensor input than measuring range Immediate Stop Automatic Reset

Trip / Alarm Messages

※

Reboot or push PRG button in 2 successive time when alarm output is removed.

FX3DH

OUT1 OUT2

reset

Constitution

(Function of Display Lamp and Button)

LED

OUT1 Turn on when output #1 is ON (Flickering at standby)

OUT2 Turn on when output #2 is ON (Flickering at standby)

ON at trip, Flickering at alarm

Parameter set up locked

BUTTON

PRG

Use at program setup

SEL

Execute selected menu or Input setup value

▲

Move between menus & Increase setup value

▼

Move between menus & Decrease setup value

PRG

▼

If pushing for 10 sec. at the same time , setup value is initialized

Page 4

- 4 -

R20160613

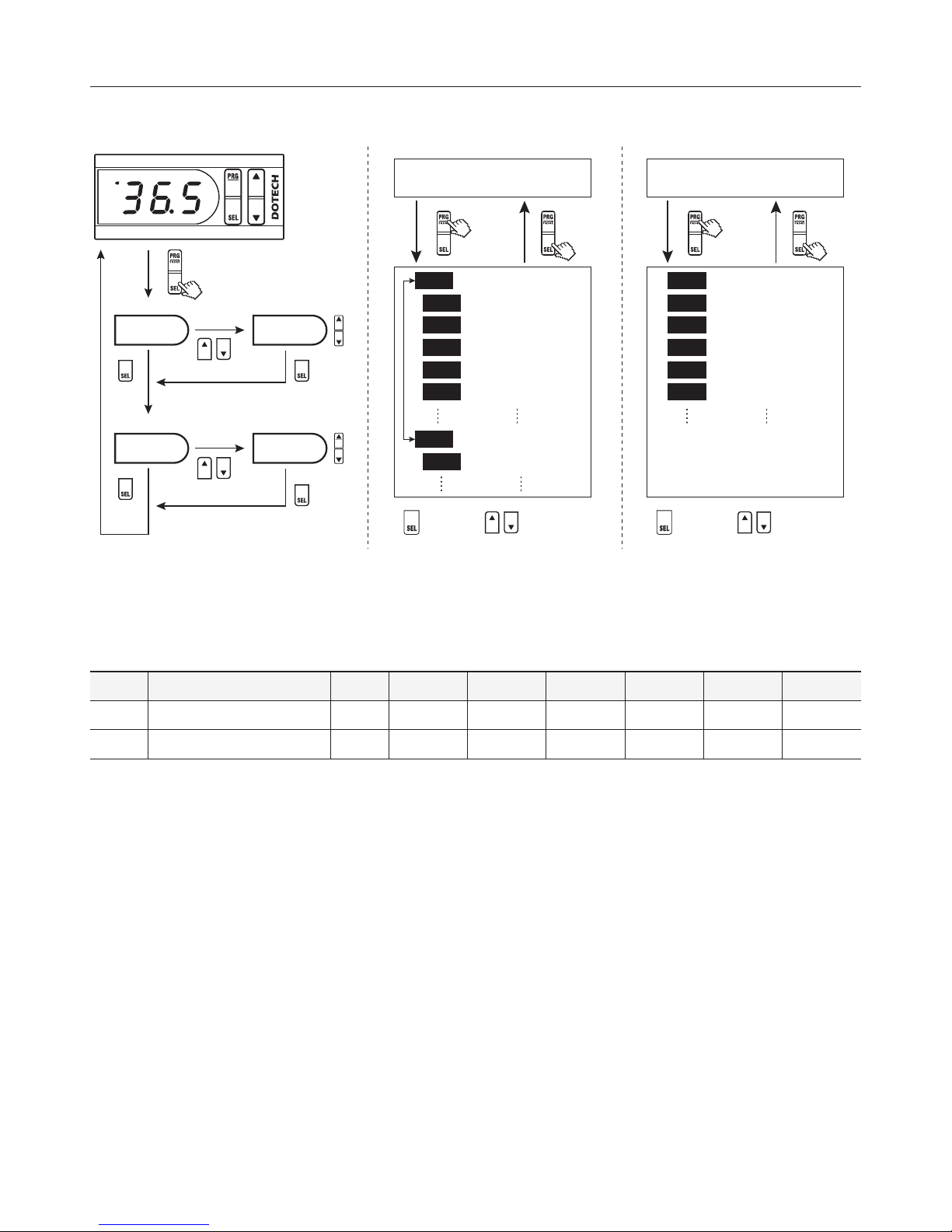

Parameter

Push for 3 sec.

ST 1 50.0

FX3DH

OUT1

OUT2

Run Mode

Select Control Type #1

Function of control output #1

Control Deviation Value #1

Select deviation type #1

ON Delay Time #1

Minimum OFF Time #1

E V 1

T Y 1

Select Control Type #2

Control Deviation Value #2

E V 2

T Y 2

D F 1 T P 1 D T 1 N T 1

Output #1 setup value

ST 2

50.0

Output #2 setup value

Push for 3 sec.

Menu move Setup value

Run Mode

Select Lock Function

Select Sensor Type

Correct PV (Temperature value)

Decimal Point Display

Correct PV (Present value)

Sensor Input Filter

L O C I N T C R D P C O R S F T

Menu move Setup value

reset

Push for 5 sec.

Push for 3 sec.

Humidity & Temp. Setting Group

(SEL Button Push for 3 Sec.)

No Menu Code Unit Step Min Max Default Custom Setup

4 0001 Output #1 setup value

ST1

%, °C 0.1

UL1

UH1

50.0

4 0002 Output #2 setup value

ST2

%, °C 0.1

UL2 UH2 50.0

※

If the set value of the IN is set to control the humidity

HT ST1, ST2

are used as temperature control.

Setting 1 Group Setting 2 Group

Page 5

- 5 -

R20160613

※

1) ON delay time : It outputs after setting delay time in spite of output condition. During ON delay time, output lamp is turned on with output after flickering in fast cycle

※

2) Min OFF Time : It lets output not occur within min. OFF time after it is turned off. During min. OFF time, output lamp is turned on with output after it flickers every 1 second intervals

※

3) Min ON Time : It is for avoiding frequent ON/OFF of control output and maintains ON condition in spite of OFF condition during Min ON Time after being turned on.

(In case of sensor error, OFF at once)

※

4) Output at Sensor Error : In case of sensor error such as open wire/short, it sets ON/OFF status of the related output.

※

5) Manual Output Mode : OFF : Output by PV / ON : Output by

MVI,MV2

(-R4 model)

※

6) Manual Output Value Setup : It outputs continuously regardless of PV. if manual output value is ON when manual output mode is ON. (-R4 model)

Setting 1 Group

(PRG Button Push for 3 Sec.)

No Menu Code Unit Step Min Max Default Custom Setup

4 0 016

E V 1

Output

Select Control Type

TY1

OFF

(0) : Display C (1) : Cooling mode H (2) : Heating mode

AL I

(3) : Deviation high limit alarm

AL2

(4) : Deviation low limit alarm

AL3

(5) : Deviation high, low limit alarm

AL4

(6) : Deviation high, low limit reverse alarm

AL5

(7) : Absolute value high limit alarm

AL6

(8) : Absolute value low limit alarm

SBA

(9) : Sensor open wire alarm

(1)

4 0 017 Control Deviation Value

DF 1

K 0.1 0.1 99.9

2.0

4 0 018 Select Deviation Value

TP 1 P

(0) : Deviation PN (1): ± Deviation

(0)

4 0020 ON Delay Time (※1)

DT 1

Sec 1 0 999

4 0021 Minimum OFF Time (※2)

FT 1

Sec 1 0 999

4 0022 Minimum ON Time (※3)

NT 1

Sec 1 0 999

4 0023 Output at Sensor Error (※4)

SF 1 OFF

(0)

(1)

OFF

(0)

4 0024 Alarm Deviation Value

H Y 1

K 0.1 0.0 99.9

1. 0

4 0025 Alarm Option

A P 1

ALA

(0): General alarm,

ALB

(1): Maintain alarm,

ALC

(2): Standby alarm,

ALD

(3): Maintain & standby alarm

ALA

(0)

4 0026 High limit by user setup

U H 1

%, °C 1

U L 1 10 5 10 0

4 0027 Low limit by user setup

U L 1

%, °C 1

-50 U H 1 0

4 0028 Manual Output Mode Output (※5)

M D 1

OFF

(0) : Output by PV

(Present Value)

(1) :

Output by

MV2

(-R4 model)

OFF

(0)

4 0029 Manual Output Value Output (※6)

M V 1 OFF

(0) : Always output OFF

(1) : Always output ON

OFF

(0)

4 0031

E V 2

Output

Select Control Type

TY2

OFF

(0) : Display C (1) : Cooling mode H (2) : Heating mode

AL I

(3) : Deviation high limit alarm

AL2

(4) : Deviation low limit alarm

AL3

(5) : Deviation high, low limit alarm

AL4

(6) : Deviation high, low limit reverse alarm

AL5

(7) : Absolute value high limit alarm

AL6

(8) : Absolute value low limit alarm

SBA

(9) : Sensor open wire alarm

(2)

4 0032 Control Deviation Value

DF 2

K 0.1 0.1 99.9

2.0

4 0033 Select Deviation Value

TP 2 P

(0) : Deviation PN (1): ± Deviation

(0)

4 0035 ON Delay Time (※1)

DT 2

Sec 1 0 999

4 0036 Minimum OFF Time (※2)

FT 2

Sec 1 0 999

4 0037 Minimum ON Time (※3)

NT 2

Sec 1 0 999

4 0038 Output at Sensor Error (※4)

SF 2 OFF

(0)

(1)

OFF

(0)

4 0039 Alarm Deviation Value

H Y 2

K 0.1 0.0 99.9

1. 0

4 0040 Alarm Option

A P 2

ALA

(0): General alarm,

ALB

(1): Maintain alarm,

ALC

(2): Standby alarm,

ALD

(3): Maintain & standby alarm

ALA

(0)

4 0041 High limit by user setup

U H 2

%, °C 1

U L2 10 5 10 0

4 0042 Low limit by user setup

U L 2

%, °C 1

-50 U H 2 0

4 0043 Manual Output Mode Output (※5)

M D 2

OFF

(0) : Output by PV

(Present Value)

(1) :

Output by

MV2

(-R4 model)

OFF

(0)

4 0044 Manual Output Value Output (※6)

M V 2 OFF

(0) : Always output OFF

(1) : Always output ON

OFF

(0)

Page 6

- 6 -

R20160613

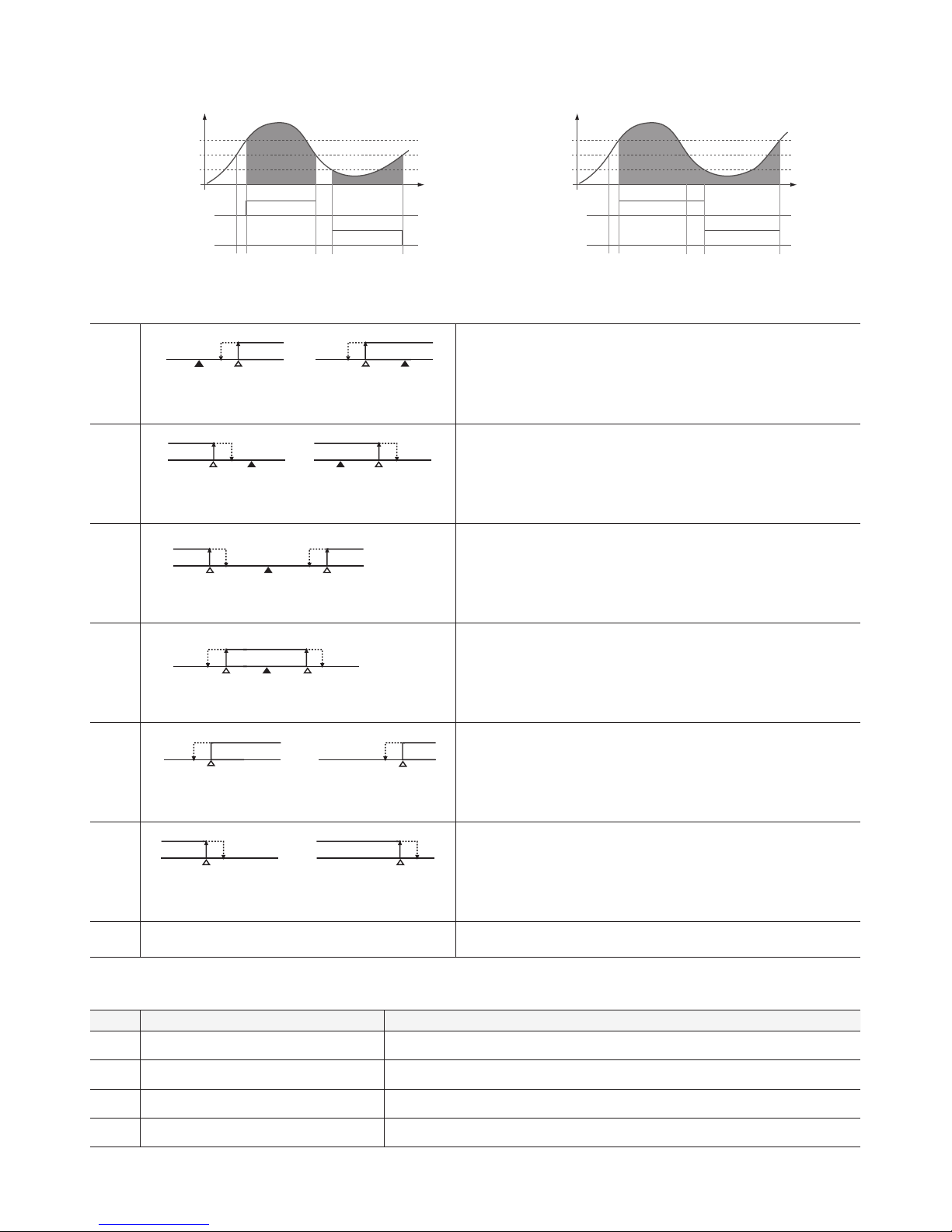

Alarm Operation Group

TY1, TY2

(* SV :

ST1~ ST2

* DF :

DF1~ DF2

* HY :

HY1~ HY2

)

A L 1

OFF

SV PV

80 90

OFF

PV SV

70 80

※setDFto-10

※setDFto10

Deviation High Limit Alarm

Output is ON when the deviation between PV value and SV value is higher than setup value of control deviation

A L 2

OFF

SVPV 80

OFF

PVSV

※setDFto10 ※setDFto-10

Deviation Low Limit Alarm

Output is ON when the deviation between PV value and SV value is lower than setup value of control deviation.

A L 3

PV 90

SV 80

OFF

NONO

YHYH

※setDFto10

Deviation High & Low Limit Alarm

Output is ON when the deviation between PV value and SV value is higher or lower than setup value of control deviation . Control deviation is set up at DF in setting 1 group. If DF value ≤ 0, it is always OFF.

A L 4

PV 70

HYHY

※setDFto10

OFF OFF

Deviation High & Low Limit Reverse Alarm

Output is OFF when the deviation between PV value and SV value is higher or lower than setup value of control deviation . Control deviation is set up at DF in setting 1 group. If DF value ≤ 0, it is always OFF.

A L 5

OFF

※setDFto70 ※setDFto90

Absolute Value High Limit Alarm

Output is ON when PV value is higher than or equal as control deviation setup value. Alarm temperature is set up at DF in setting 1 group. It works regardless of SV(Set value).

A L 6

OFF

PV 90

OFFON

※setDFto70 ※setDFto90

Absolute Value Low Limit Alarm

Output is ON when PV value is lower than or equal as control deviation setup value. Alarm temperature is set up at DF in setting 1 group. It works regardless of SV(set value).

SBA

Sensor Open Wire Alarm Output is ON when sensor wire is opened.

Alarm Operation Group

A P 1, A P 2

CODE OPERATION TITLE DESCRIPTION FOR ALARM OPTION OPERATION

ALA

General alarm Standard alarm operation without option

ALB

Maintain alarm Maintain output ON after alarm occurs

ALC

Standby alarm No output at initial operation (until achieve the 1st setup value)

ALD

Maintain & standby alarm Execute both

ALB

ALC

at the same time

※ Reboot or push PRG button in 2 successive time when alarm output is removed.

Deviation Control

dF/2

Dehumidification (Cooling)Control

OUTPUT ON

when TP mode is P when TP mode is PN

OUTPUT ON

Humidification (Heating)Control

Dehumidification (Cooling)Control

Humidification (Heating)Control

OUTPUT ON

Page 7

- 7 -

R20160613

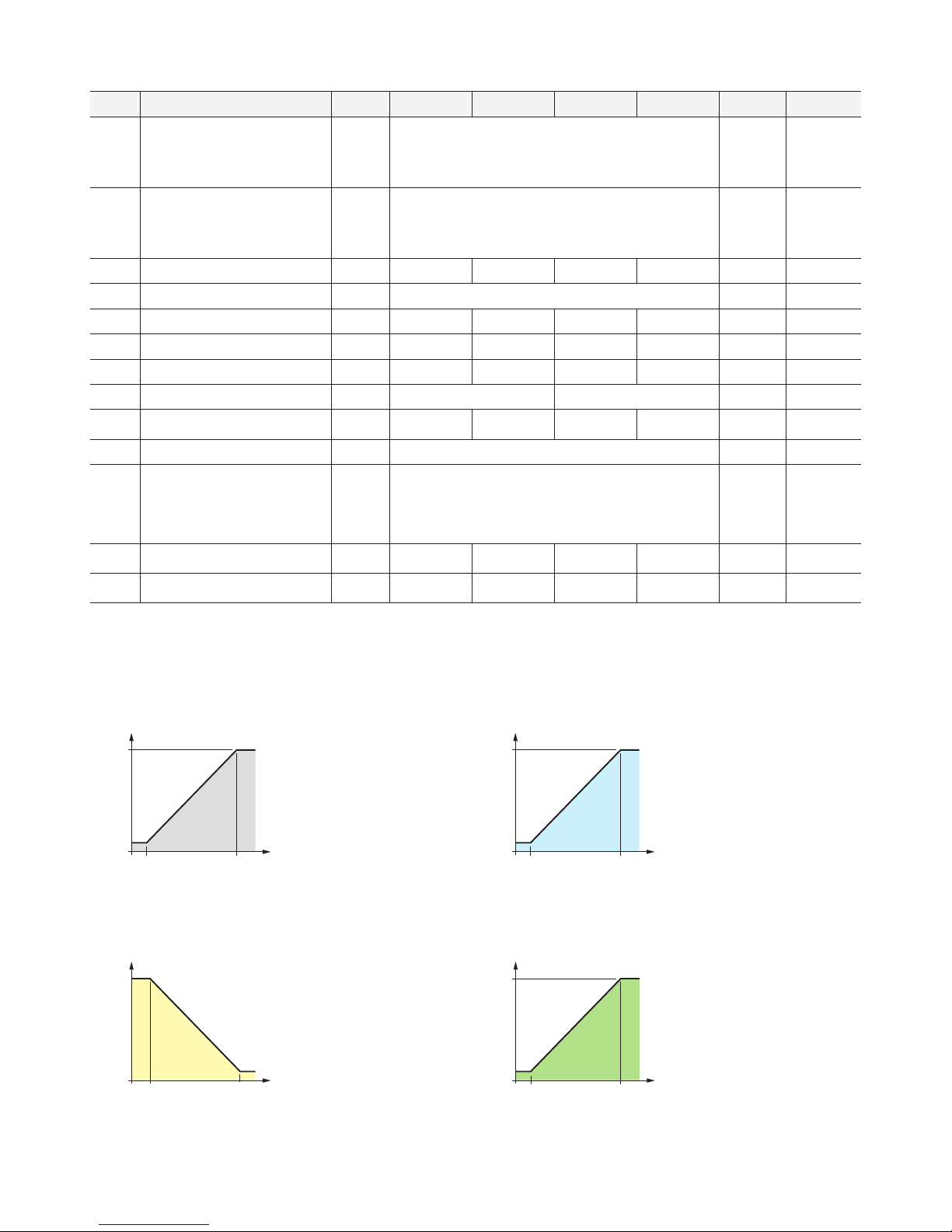

Setting 2 Group

(PRG Button Push for 5 Sec.)

No Menu Code Unit Step Min Max Default Custom Setup

4 0076 Lock Function

L O C

OFF

(0) : Lock cancel

1 (1) : Setting 2 group lock

LC2

(2) : Setting 1,2 group lock

LC3

(3) : Setting 1, 2 group, Humidity & Temp. setup lock

OFF

(0)

4 0077 Sensor Type

I N

(0) : Use for humidity control only

(1) : Use for temp. control only

(2) : Use for humidity and temperature control

HTD

(3) : Use for humidity control and temperature display

(0)

4 0080 Correction of temperature sensor (※1)

T C R

°C 0.1

-19.9 99.9 0.0

4 0081 Decimal Point(PV) Display (※2)

D P 0. 1

(0) : Decimal point display 1(1) : Do not display decimals

0. 1

(0)

4 0082 Correction of PV

C O R

K 0.1

-19.9 19.9 0.0

4 0083 Sensor Input Filter (※3)

S F T

Sec 0.1

0.1 5.0 2.0

4 0084 Sensor Value Display Cycle

S D T

Sec 0.1

0 5.0 0.5

4 0085 Set Value(SV) Unication Mode

S T O OFF

: Individual SV mode

ON :

Unifying SV mode

OFF

(0)

4 0086 Communication Address

(-R4 model)

A D R

1 1

1 12 8 1

4 0087 Communication Speed

(-R4 model)

B D R 48

: 4800BPS 96 : 9600BPS

19 2

: 19200BPS

384

: 38400BPS

4 0088

Analogue Trans. Output (4~20mA) Mode

(-A1 model)

A O M

(0) : PV Trans.

DIR

(1) : Humidication(Heating) proportional Control

ReV

(2) : Dehumidication(Cooling) proportional Control

ST 1

(3) : SV1(Set value) Trans.

ST2

(4) : SV2(Set value) Trans.

4 0089

Analogue Trans. Output (20mA)

(-A1 model)

R T H

- `

-199 999 10 0

4 0090

Analogue Trans. Output (4mA)

(-A1 model)

R T L

-199 999 0

※1) Correction of temperature sensor : It is displayed when sensor input mode(IN) set to Temp. & Humidity control mode or humidity control and temp. display mode. ※2) PV Decimal Point Display : In case of setting as ‘1’, it displays the current value with cutting the decimal place.

※3) Sensor Input Filter Value : It avoids hunting by giving temperature measuring delay.

20mA

4mA

RTL RTH

Output

Current value (PV) trans. output

RTL RTH

Input PV at 4mA output. Input PV at 20mA output.

set AOM to PV (Current value)

20mA

4mA

ST1 ST1+DF1

Output

Dehumidication(Cooling) proportional Control

ST1 DF1

Input SV at 4mA output. Input DF at 20mA output.

set AOM to ReV (Dehumidication (Cooling) proportional Control)

20mA

4mA

ST1-DF1 ST1

Output

Humidication(Heating) proportional Control

ST1 DF1

Input SV at 4mA output. Input DF at 20mA output.

set AOM to DIR (Humidication (Heating) proportional Control)

20mA

4mA

RTL RTH

Output

St1~2 (SV)

Set value(St) trans. output

RTL RTH

Input SV at 4mA output. Input SV at 20mA output.

set AOM to ST1-2 (set value)

Page 8

- 8 -

R20160613

Communication Table

No Menu Unit Type Size (Word) FX MMI Scale

4 0101 Product status codes Digital INT 16 Refer to bit status below

Bit 0 Output 1 ON / OFF status Digital Bit 0 : OFF 1 : ON

Bit 1

Output 2 ON / OFF status

Digital

Bit

0 : OFF 1 : ON

Bit 13 Temp. Sensor (disconnection, short-circuit) Alarm

Digital Bit 0 : Normal 1 : Alarm

Bit 14

Humidity Sensor (disconnection, short-circuit) Alarm

Digital

Bit

0 : Normal 1 : Alarm

Bit 15 EEPROM alarm Digital Bit 0 : Normal 1 : Alarm

4 0107 Current humidity value (PV) % Analog INT 16 0 ~ 100 0 ~ 1000 1/10

4 0108 Current temp. value (PV) °C Analog INT 16 -50 ~ 105 -500 ~ 1050 1/10

Transmission line connection Multiple line

Communications method RS485 (2-wire, half-duplex)

BPS BPS default 9600 BPS

Parity, Data, Stop bit None, 8 Data, 1 Stop

Protocol Type Modbus RTU Mode

Function Code Read HOLD REGISTERS (0x03) / Preset Single Register (0x06)

Poll interval 10 0msec

Communication
