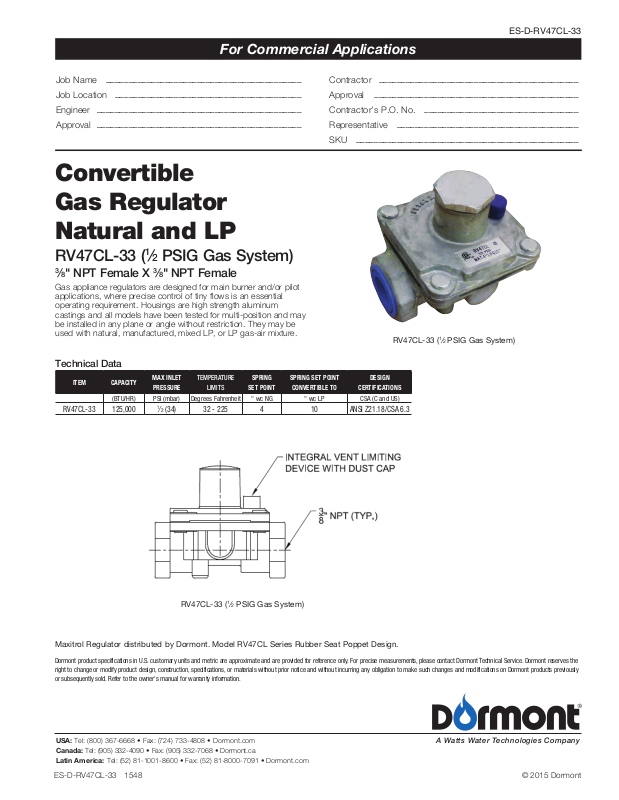

Dormont RV47CL-33 User Manual

For Commercial Applications

ES-D-RV47CL-33

Job Name

Job Location

Engineer

Approval

–––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––

Contractor

Approval

Contractor’s P.O. No.

Representative

SKU

––––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––

––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––––––––––

––––––––––––––––––––––––––––––––––

Convertible
Gas Regulator
Natural and LP

RV47CL-33 (1⁄2 PSIG Gas System)

3

⁄8" NPT Female X 3⁄8" NPT Female

Gas appliance regulators are designed for main burner and/or pilot
applications, where precise control of tiny flows is an essential
operating requirement. Housings are high strength aluminum
castings and all models have been tested for multi-position and may
be installed in any plane or angle without restriction. They may be
used with natural, manufactured, mixed LP, or LP gas-air mixture.

Technical Data

Item CapaCIty

(BTU/HR) PSI (mbar) Degrees Fahrenheit " wc NG " wc LP CSA (C and US)

RV47CL-33 125,000

max Inlet
pressure

1

⁄2 (34) 32 - 225 4 10 ANSI Z21.18/CSA 6.3

TemperaTure

LimiTs

sprIng

set poInt

sprIng set poInt

ConvertIble to

CertIfICatIons

RV47CL-33 (1⁄2 PSIG Gas System)

DesIgn

1

RV47CL-33 (

Maxitrol Regulator distributed by Dormont. Model RV47CL Series Rubber Seat Poppet Design.

Dormont product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements, please contact Dormont Technical Service. Dormont reserves the
right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Dormont products previously
or subsequently sold. Refer to the owner's manual for warranty information.

USA: Tel: [phone] • Fax: [phone] • Dormont.com
Canada: Tel: [phone] • Fax: [phone] • Dormont.ca
Latin America: Tel: [phone] • Fax: [phone] • Dormont.com

ES-D-RV47CL-33 1548 © 2015 Dormont

⁄2 PSIG Gas System)
