Dorme Baby IPC100 User Manual

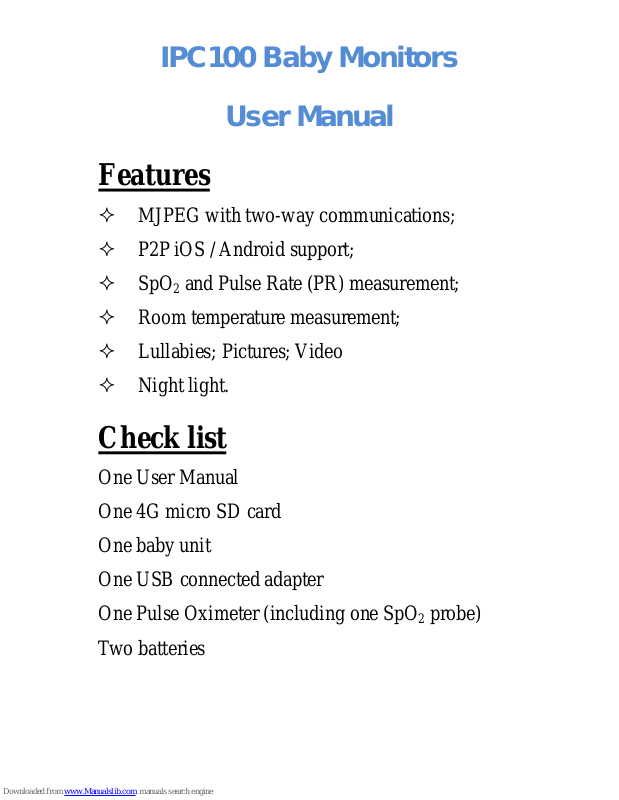

IPC100 Baby Monitors

User Manual

Features

 MJPEG with two-way communications;
 P2P iOS / Android support;
 SpO2 and Pulse Rate (PR) measurement;
 Room temperature measurement;
 Lullabies; Pictures; Video
 Night light.

Check list

One User Manual
One 4G micro SD card
One baby unit
One USB connected adapter
One Pulse Oximeter (including one SpO2 probe)
Two batteries

Overview of front side

Overview of back side

Camera

Infrared light

Microphone

Night light

Pedestal

Night light button

1. Power switch 2. Micro SD card socket

3. USB interfaces 4. Sarus light

5. Power light 6. Speaker

7. Temperature sensing antenna
Photoresistor: Senses light automatically switching
from day to night.

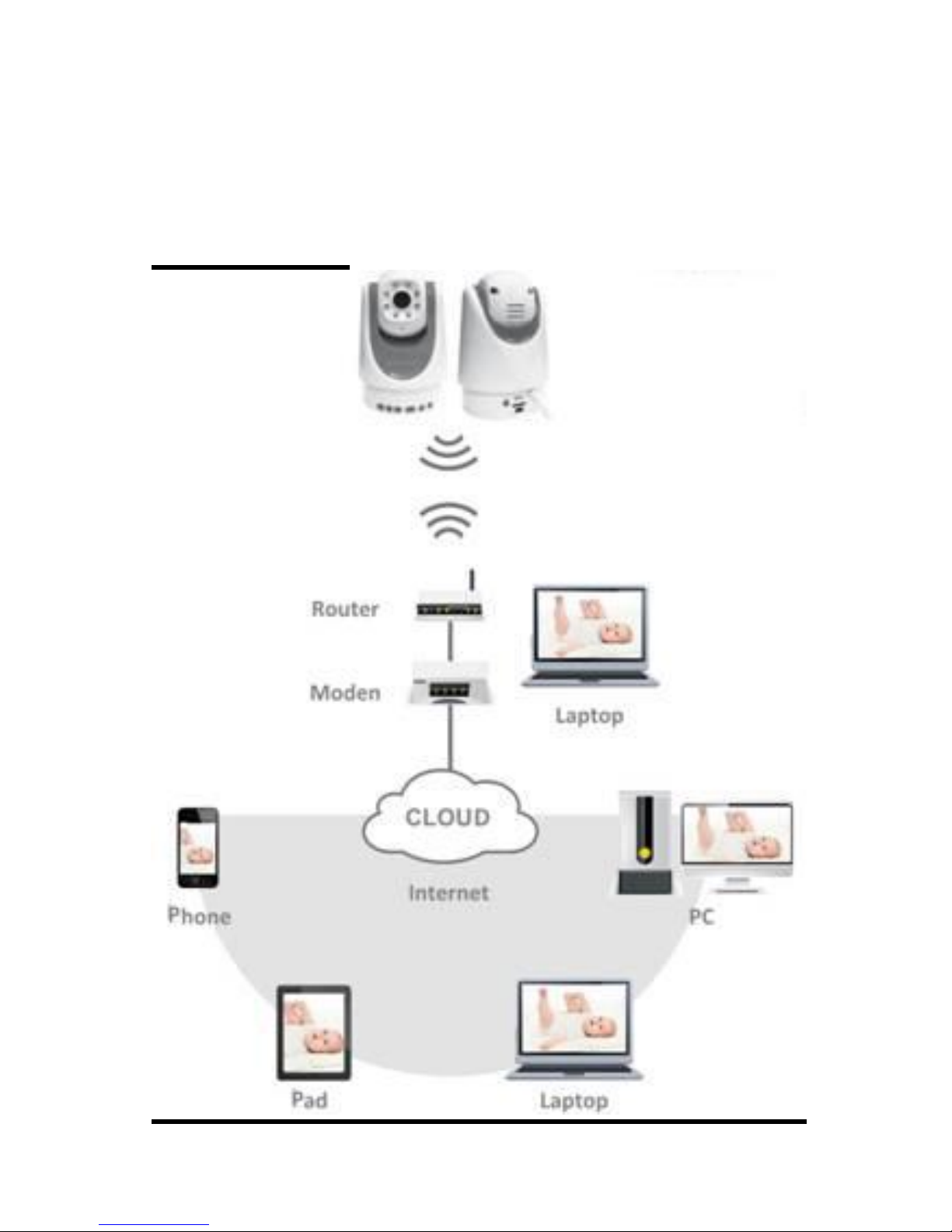

Connection to internet

 Operation procedures:
Step 1: Install the software IPC100, boot up the

software and tap "new camera"→ tap "add wireless

wizard"→ tap "next"→ tap "WIFI settings" and will

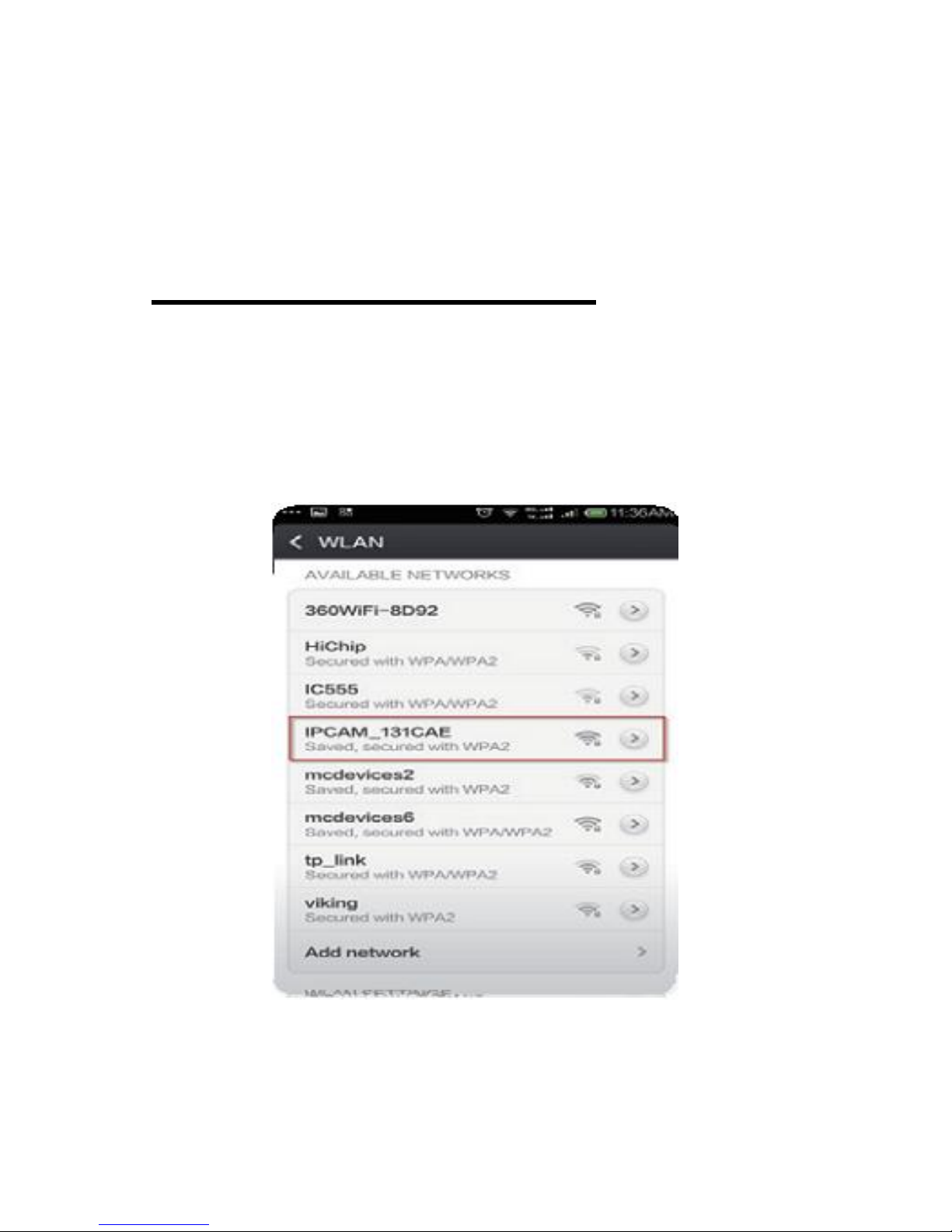

search WIFI as shown in below figure:

NOTE:
User name: IPCAM_XXXXXX;
Password: 88888888
Please go back to operating page when this step
finished.

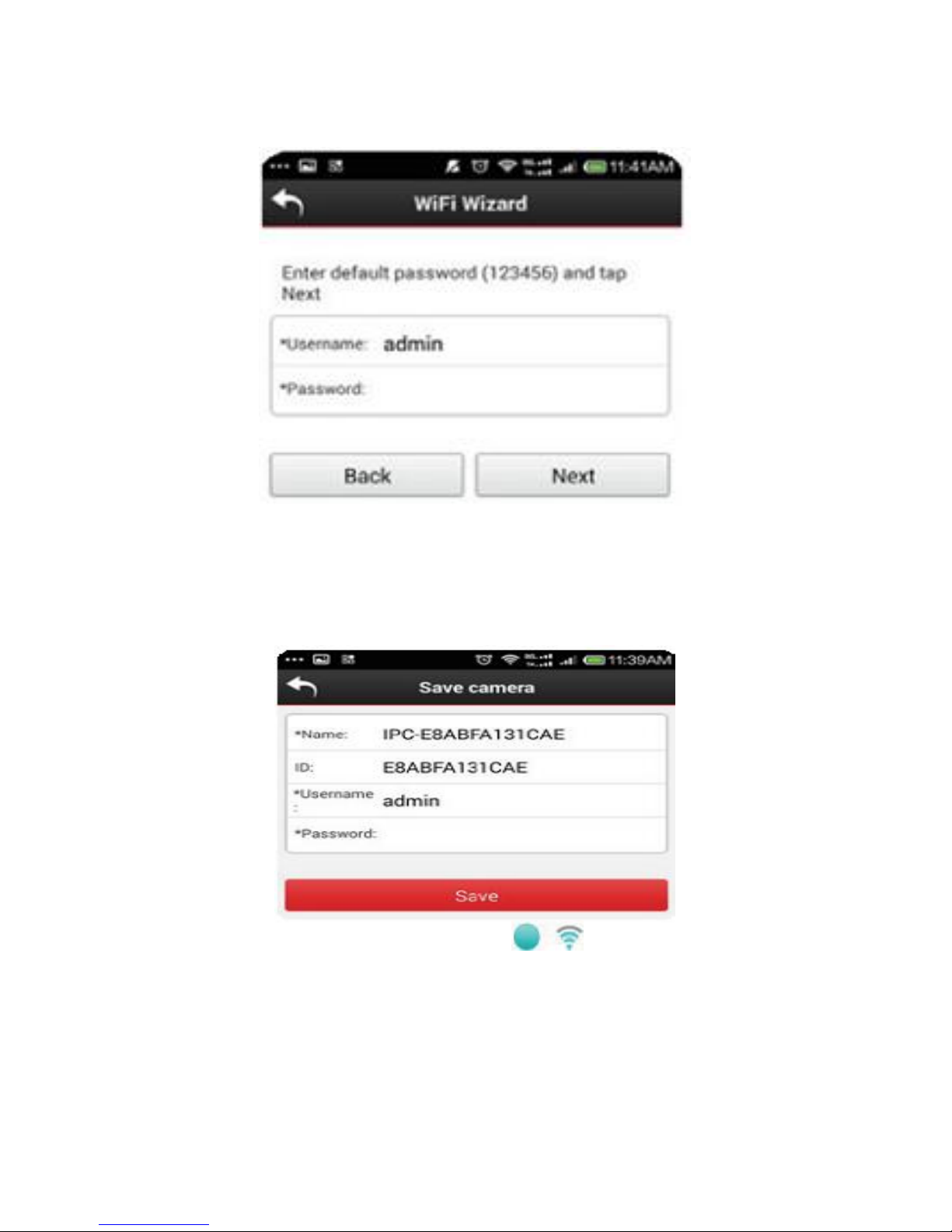

Step 2: Click "Next"→ "Next" as shown in below
figure.
The password is default and tap next.

Step 3: Select user's wireless router and enter the

password and tap "Next"→ "Next" searching network

(connect the mobile phone to the WIFI), and appears the
figure as below figure:

Tap "Save", the signal icons " " in blue indicate
well connected to the WIFI, as shown in below
figure:

You can operate the IPC100 and remote control the
pan tilt.

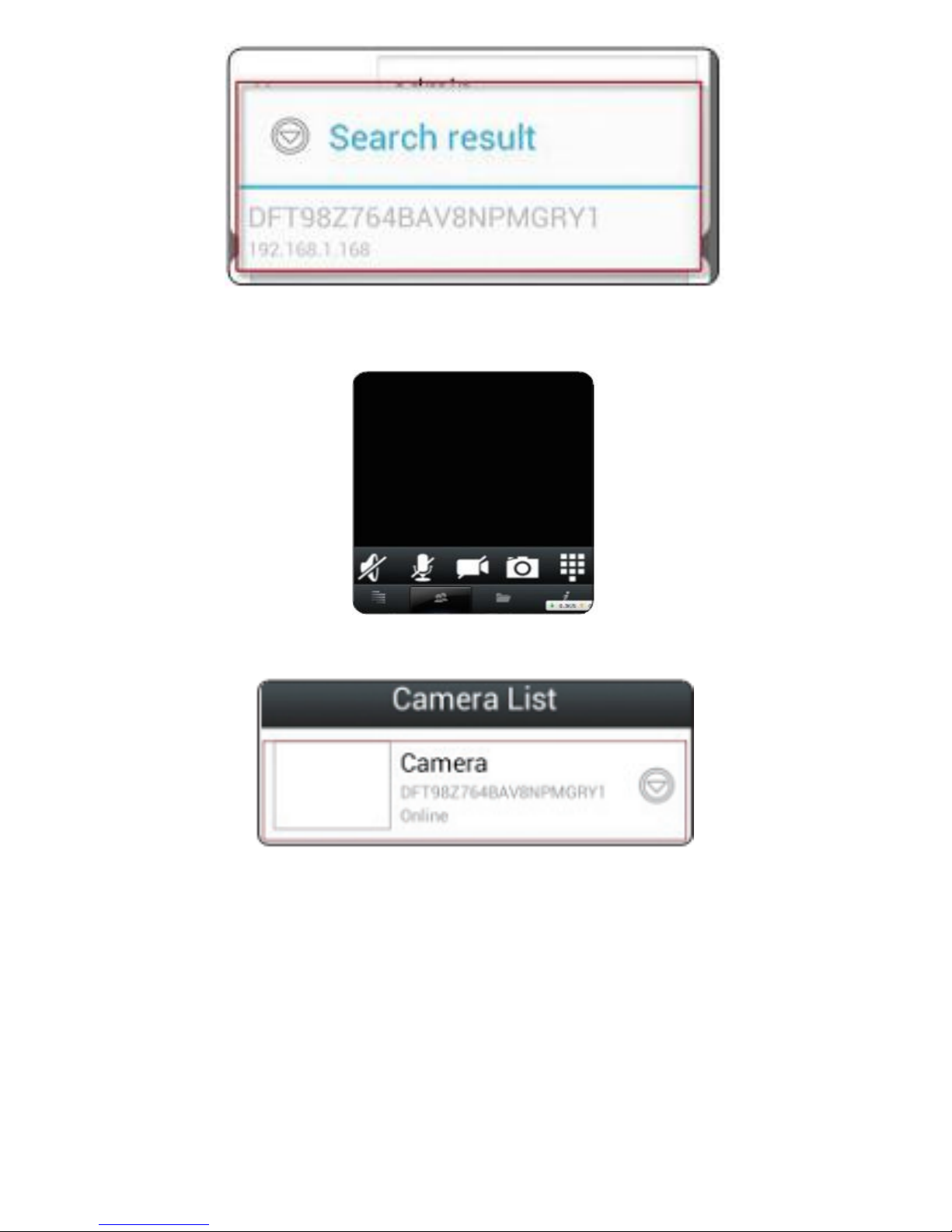

Step 4: While the IPC100 connected to WIFI or
another mobile phone adds IPC100. Open the software
of IPC100, to tap "add new camera"→ "LAN
searching" (make sure no camera in the camera list),
as shown in below figure:

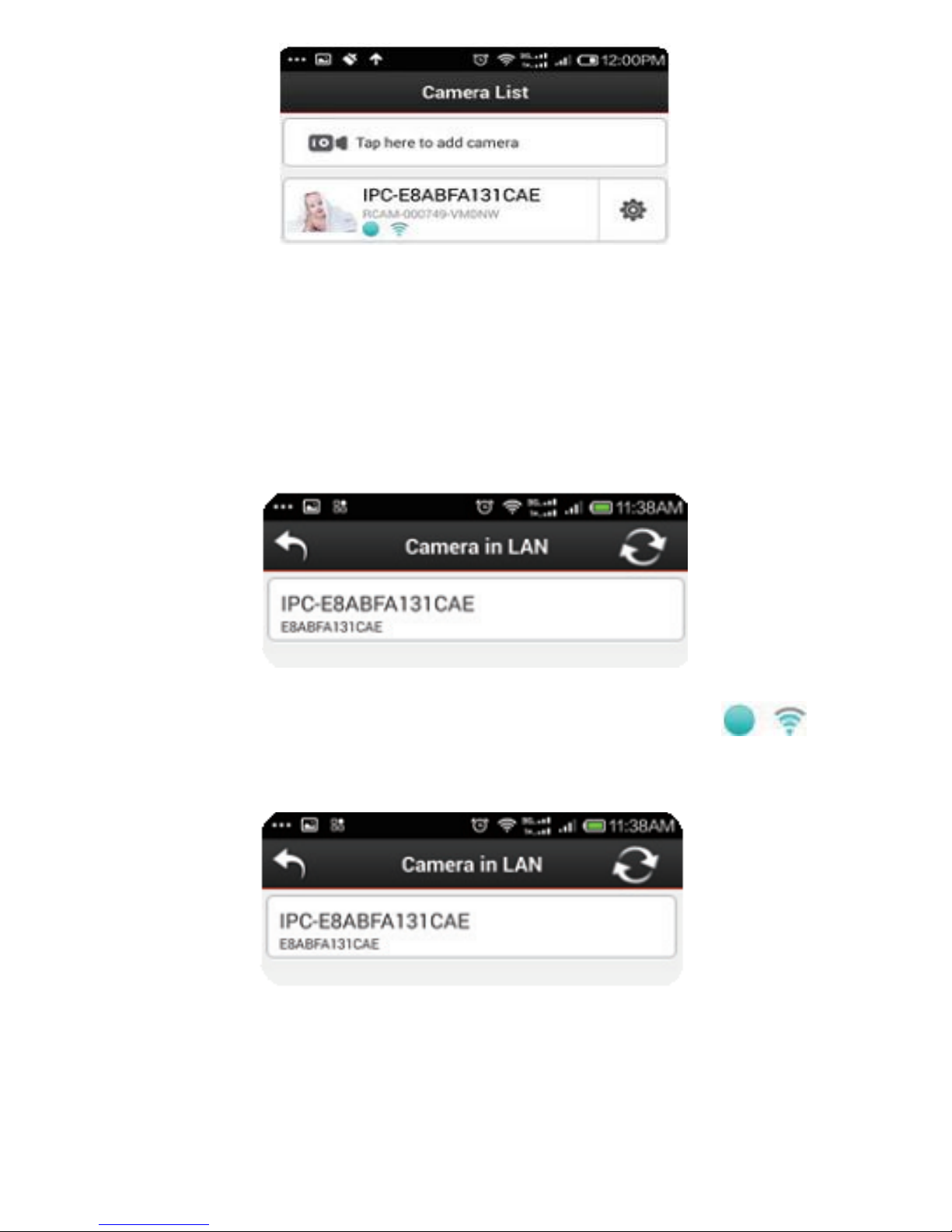

Tap "IPC-E8ABFXXXX" and then "Save", the
password is default blank. The signal icons " "

in blue indicate well connected to the WIFI, as shown
in below figure:

You can operate the IPC100 and remote control the
pan tilt.
(Notice: If the baby monitor needs to connect a new
wireless router, please reset the baby monitor: Long
press the reset button at the bottom of baby monitor

till the night light on)

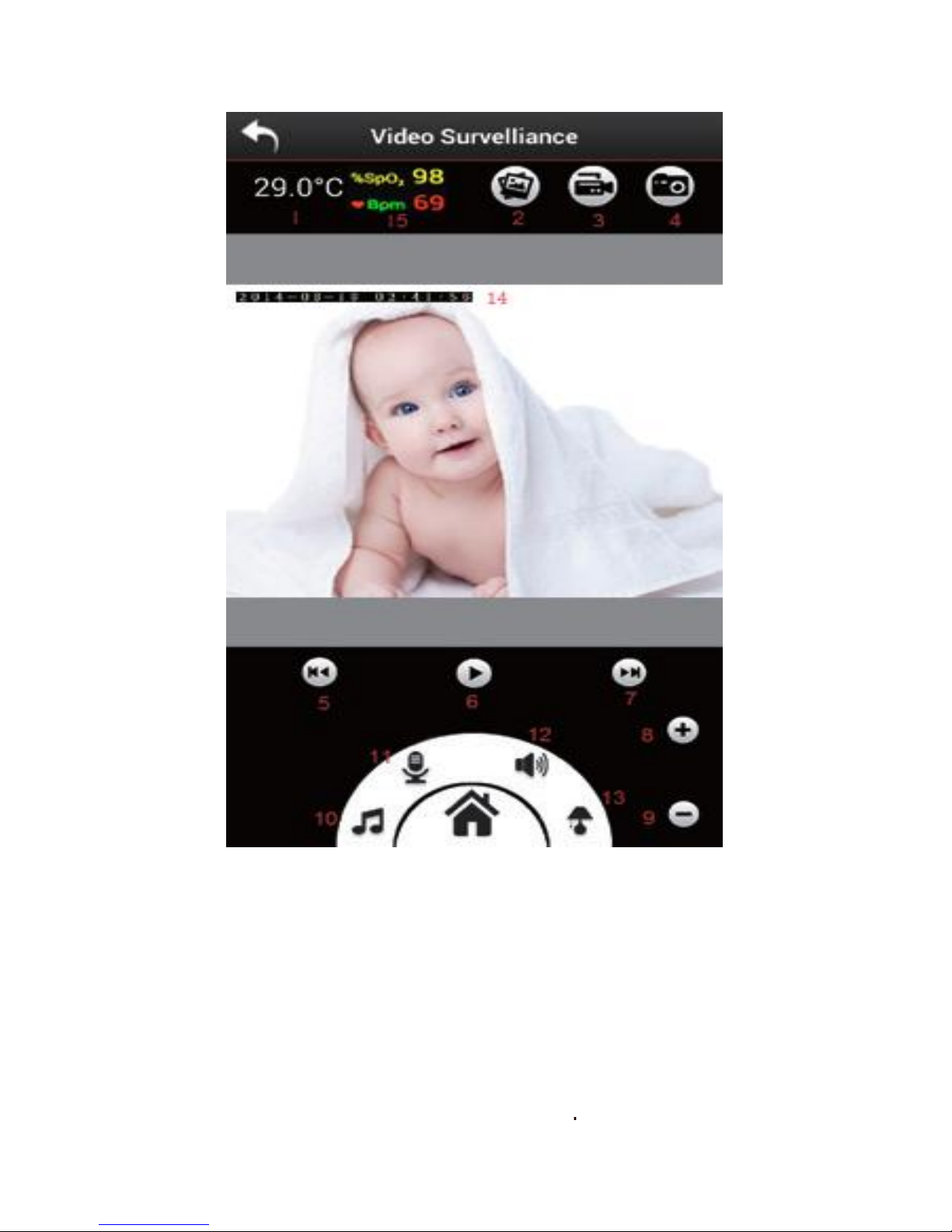

1. Temperature: tap the temperature value to change the

unit Centigrade and Fahrenheit.

2. Photos 3. Video recording 4. Photograph

5. Previous song 6. Play & pause 7. Next song

8. Volume up 9. Volume down 10. MP3

11. Talkback 12. Monitor 13. Nightlight

14. Time 15.SpO2 & PR

Warning:

To prevent strangulation with the power cord, always
keep the baby unit and the power cord out of baby's
reach, at least 1metre/3.5 feet away. Do not use
extension cords.

Diagram

 Install mobile phone software
Step 1: Connect the mobile phone to WIFI.

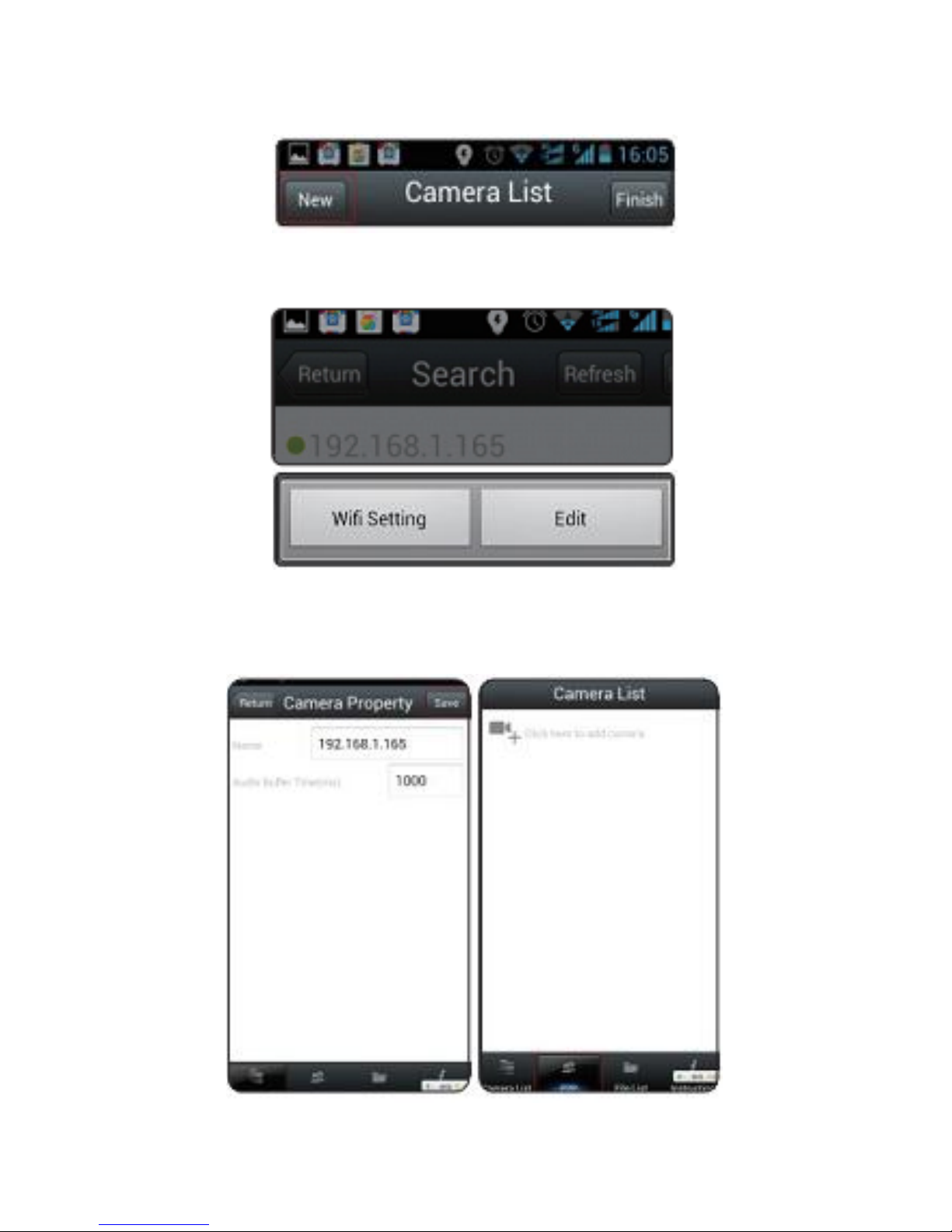

Step 2: Set the regional Network: open the software

--Refresh--Searched IP --Edit.

Step 3: Preview--Save--save
Step 4: Set the P2P network: P2P-please click here to

add the camera.

Step 5: Click "LAN search", if the mobile phone ID
is not within the LAN, ID input should be:

Step 6: Click the red square → input the password
(888888)→ save.

Step 7: Click the camera

Step 8: The available settings for camera are audio

frequency, talkback, video recording, and resolution
value, with the function of photographing, cruise,
mirror and flip. You can switch among the camera
list, video list and instruction at the bottom of the
screen.
Remark: the video from camera list is connected to
the regional network and P2P is connected the outside
network.

Technical parameters

Model

IPC100

Description

IP camera for baby monitoring

Modulation

MJPEG with 2 way audio

Frames per second

15~25/s

SpO2 Range

35% - 100%

SpO2 Alarm

Low limit 90%

Pulse Rate Range

30bpm – 240bpm

Pulse Rate Alarm

High limit 160bpm

Low limit 70bpm

APP / APK

Android/iOS

Infrared night view

Yes

AC adapter

6V 500mA

Walkie-talkie function

Yes

Night light function

Yes

Temperature detect

Yes

Monitor with motor

Yes

Other functions

 Smart size, nice appearance, easy installation,

long time monitoring.

 Multiple clients on mobile and computer, easy

and convenient.

 Real-time audio and video monitoring and clear

transmission.

 Alarm function: when the measured SpO2 or

Pulse Rate value exceeds the preset alarm limit,
then the smart phone will activate the audible and
visual alarm indications.

 Infrared night vision function, you can see your

baby even he/she is in the darkness.

 Pleasing nightlight and lullaby to comfort baby.
 Especially suitable for infant care, elder care,

monitoring, etc., it can also be used for general
real time security monitoring.

Cautions:

 This product is intended as an aid. It is not a

substitute for responsible and proper audit
supervision and not intended for use as a medical
monitor.

 Please do not use other power adapters that may

not fit this product configuration.

 Please do not expose the baby monitor to extreme

cold, heat, wet or direct sunlight.

 Make sure the baby unit and the adapter cord are

always out of reach of the baby, at least 3
feet/1meter away from the baby or crib, to avoid
a possible strangulation hazard.

 Never cover the baby unit or parent unit with

anything such as a towel or a blanket. Turn off
unit prior to cleaning.

Troubleshooting

 Problem: Power indicator light not working.

Possible cause: Does not switch on; Power is not

getting to the unit; Low batteries.
Solution: Turn on the units; Make sure the units are
connected to the power supply; Replace the
batteries.

 Problem: Power indicator flashing.

Possible cause: Not connected well with adapter;

Low batteries.
Solution: Make sure well connected; Replace the
batteries.

 Problem: Parent unit makes loud noises.

Possible cause: Units are too close together; Volume

dial on parent unit may be too high.
Solution: Move the parent unit at least 3 feet/1meter
away from the baby unit; Turn down the volume on
the parent unit.

 Problem: Weak sound may be coming from parent

unit.
Possible cause: Volume on parent unit or set too low
or muted.
Solution: Turn up the units or move closer to each
other.

 Problem: Units may be too far from each other.

Possible cause: No signals between units.
Solution: Move the units closer to each other.

Supplementary Operation

Instruction for Pulse Oximeter

Instructions for Connection

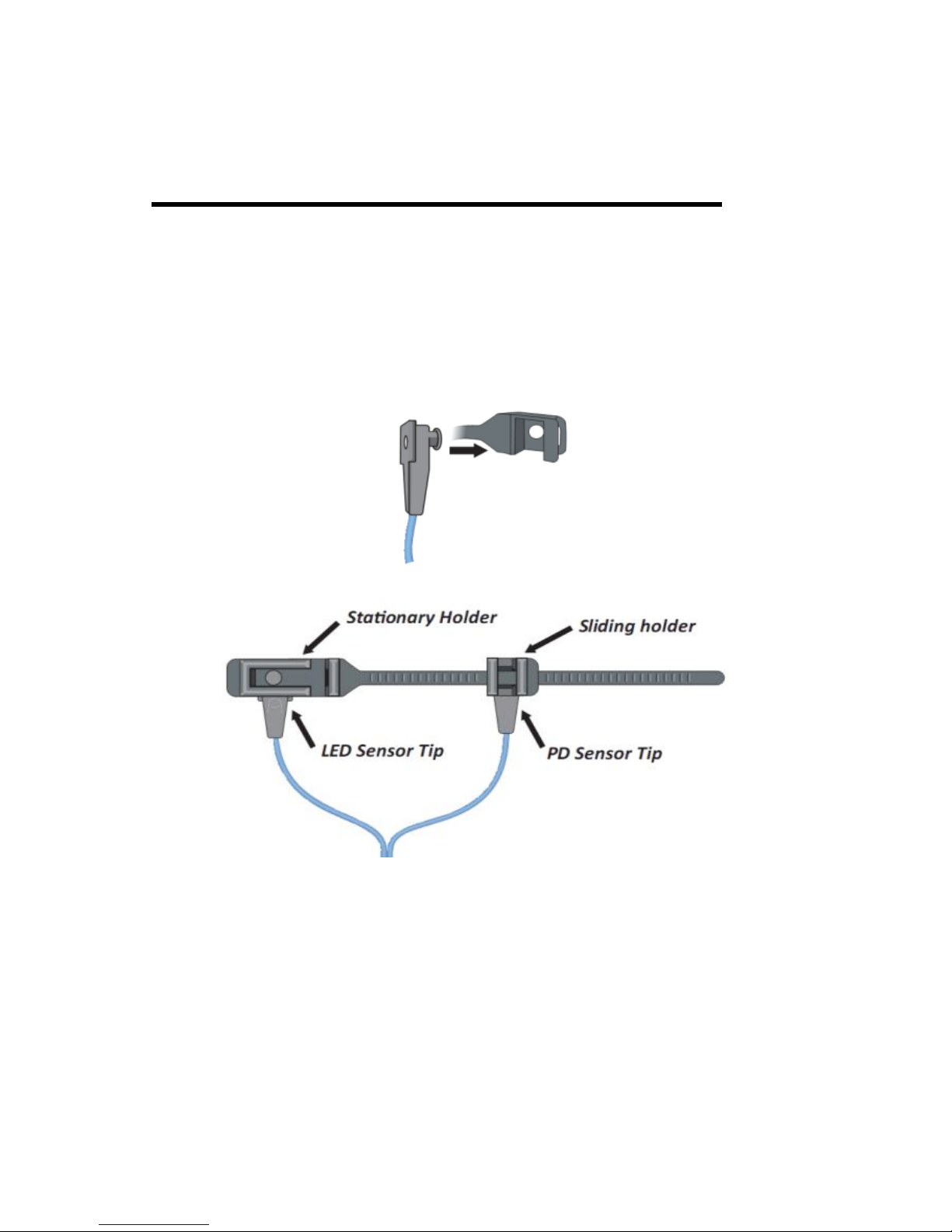

Insert the sensor tips into the slots on the probe

holders. Place the sensor tip labeled “LED” into the

stationary probe holder on the silicone wrap belt, and

place the sensor tip labeled “PD” into the sliding

probe holder, as illustrated in Figure 1 and Figure 2.

Figure 1 Probe tip and holder

Figure 2 Y-type SpO2 Sensor with Rubber Wrap
NOTE: Make sure that the silicone button seats fully
into the hole in the back of the probe holder.

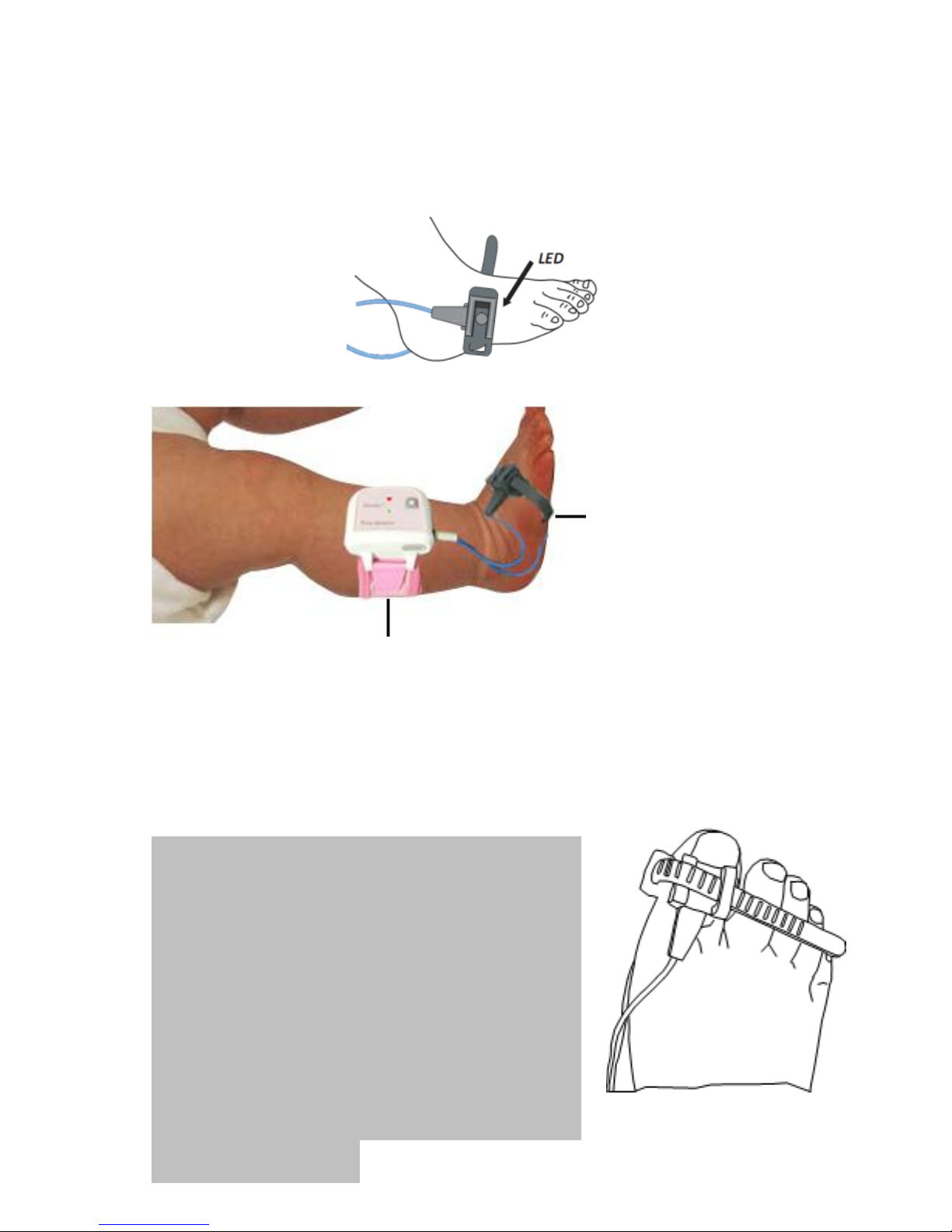

Wrap the oximeter on the leg near ankle with its
belts and position the front panel to a proper place
for convenient operation, as shown in Figure 4.
Wrap up the Y-type sensor onto the baby’s foot by
the rubber wrapper, as illustrated in Figure 3. Make
sure the alignment of the light-emitting tip (LED)

and the photo- detecting tip (PD) are aiming at each
other, then thread the end of wrap belt through the
outside slots on the probe holders and tighten the
rubber belt with proper force. The final placement is
shown in Figure 4.

Figure 3 Sensor wrapping up

Figure 4 Placement of the Oximeter and the Sensor

It's recommended that wrapping up the sensor onto
the baby's first toe if the foot is too thick to be
tighten, as shown in figure 5.

IMPORTANT: The sensor
connection is critical for the signal
strength and quality. Position LED
and PD facing each other on
opposite sides, so that the light
beam is transmitted as vertically as
possible and the light path is as

short as possible.

Pulse Oximeter

Y-type SpO2
Sensor with
Rubber
Wrapper

Figure 5

Instructions for Operation

After all connection have been completed, press the
Power Button ( ) for 3 seconds to power on the

oximeter, referring to below figure. When the
oximeter is powered up, the Power Indicator (yellow
lamp ) will light constantly. If the heart beat is

detected, the Heartbeat Indicator (red lamp )
flashes according with the heart rate. At the same
time the oximeter sends the measured data (SpO2
and PR) to Baby Monitor in a given time interval via
wireless communication, and the SpO2 and PR value
will be displayed on the terminal side of Baby
Monitor.

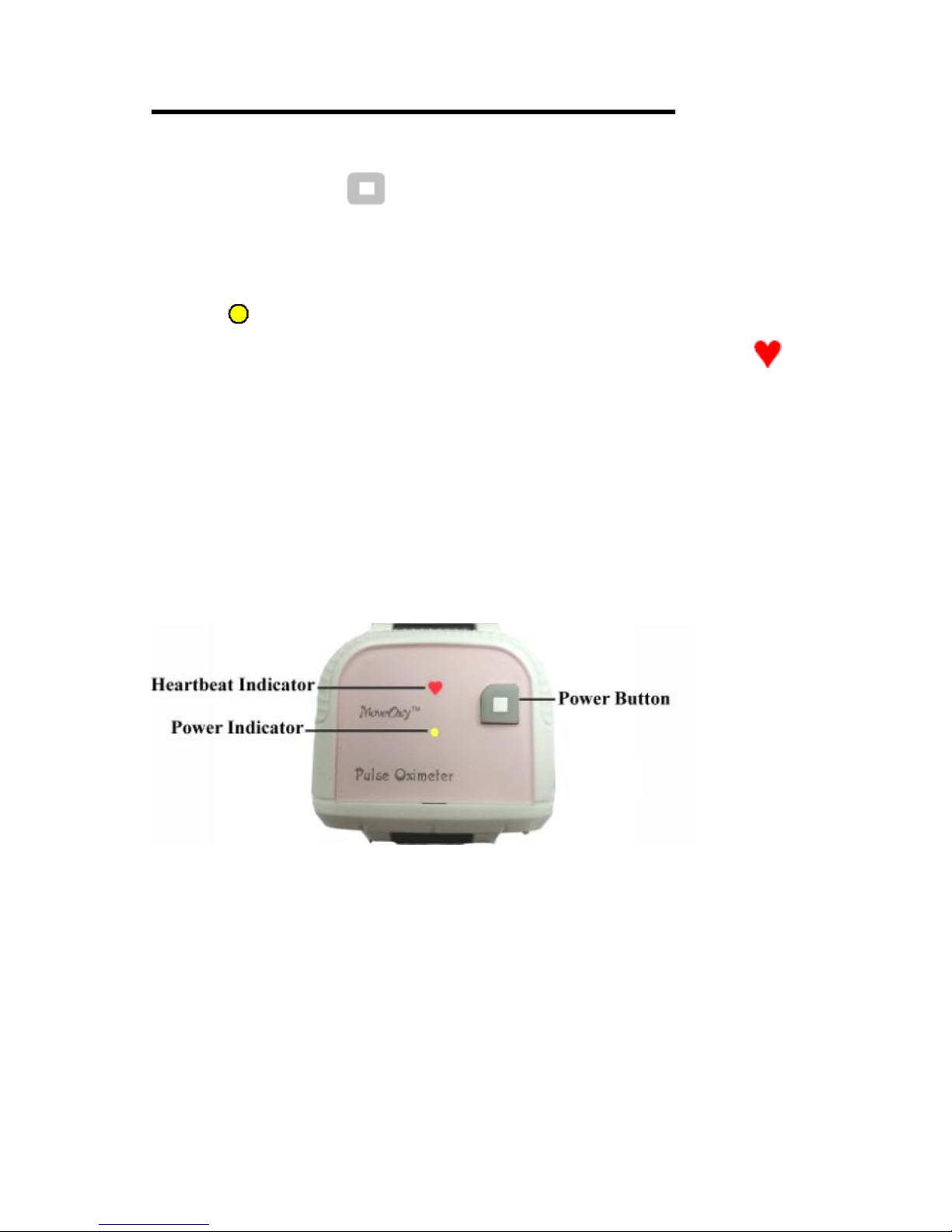

Appearance of the Pulse Oximeter

NOTES:

1. The oximeter has no automatic power-off function.

Press the Power Button for 3 seconds to turn it off
after the end of use each time.

2. If the Power Indicator flashes it means the battery

voltage is low for the oximeter, please replace the
batteries.

Distributed by:

eH4H LLC

1200 Abernathy Road, Suite 1700, Atlanta,

GA 30328

Website: www.Dormebaby.com

Tel: [phone] ext. 2
Fax: [phone]

For mobile phone with Android system, please go to
Google Play and search "Dorme Baby" to download
and install the responding application;

For mobile phone with iOS system, please go to APP
Store and search "Dorme Baby" to download and
install the responding application.
