Langley Crib
Model No:
DA5673DR (Walnut)
DA5673W (White)
UPC CODE:
DA5673DR 0−65857−16303−2
DA5673W 0−65857−16314−8
Lot number:
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1−800−295−1980
E−Mail: das@dorel.com
Fax #: 514−353−7819
WARNING
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service representative first!
CALL 1−800−295−1980
You can also order parts by writing to the address listed below. Please include the product model number, color and a
detailed description of the part.
Customer Service Department No. 413
12345 Albert−Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1
E−MAIL: das@dorel.com
*
Failure to follow these warnings and assembly instructions could result in serious injury or death.
*
Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE.
*
Check this product for damaged hardware, loose joints, loose bolts or other fasteners, missing parts or sharp
edges before assembly and frequently during use. Securely tighten loose bolts and other fasteners. DO NOT
use crib if any parts are missing, damaged or broken. Contact a customer service representative at 1−800−
295−1980 for replacement parts and instructional literature if needed. DO NOT substitute parts.
*
Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding
under an infant.
*
Stop using the crib when child begins to climb out or reaches the height of 35 inches (89 cm).
*
To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep,
unless otherwise advised by your physician.
*
DO NOT place crib near window where cords from blinds or drapes may strangle a child.
*
Strings can cause strangulation! DO NOT place items with a string around a child’s neck, such as hood
strings or pacifier cords. DO NOT suspend strings over a crib or attach strings to toys.
*
To help prevent strangulation tighten all fasteners. A child can trap parts of the body or clothing on loose
fasteners.
*
If refinishing, use a non−toxic finish specified for children’s products.
*
When child is able to pull to standing position, set mattress to lowest position and remove bumper pads,
large toys and other objects that could serve as steps for climbing out.
*
Never use plastic shipping bags or other plastic film as mattress covers because they can cause
suffocation.
*
Replace teething rail if damaged or loose (if teething rail is provided for this model).
*
CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27−1/4 INCHES BY 51−5/8
INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM).
*
Infants can suffocate in gaps between crib sides and a mattress that is too small.
*
The TODDLER BED or DAY BED is not intended for children under 15 months of age or over 50 pounds
(22.7kgs).
*
If guardrails are used as the mattress containment means, guardrail(s) provided must be used to avoid the
formation of a gap between the mattress and the bed that could cause an entrapment (when product is
used as a TODDLER BED or DAY BED).
*
CAUTION: ENTRAPMENT HAZARD. To avoid dangerous gaps, any mattress used on this bed shall be a
full−size crib mattress at least 51−5/8 inches (1310 mm) in length, 27−1/4 inches (690 mm) in width, and a
max thickness of 6 inches (150 mm).
*
Follow warnings on all products in a crib.
NOTES
Ensure all parts and components are present before beginning assembly.
*
Assemble on a soft, smooth surface to prevent damage to product finish.
*
Phillips head screw driver is not included.
*
DO NOT use power tools.
*
CAUTIONS: Adult assembly required.
*
Assembly will require two people.
*
Estimated assembly time: 30 minutes.
*
CARE AND CLEANING
Dust regularly with a soft, lint−free cloth to prevent soil build−up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage finish.
Excessive exposure to sunlight and extreme changes in temperature and moisture can damage wood
furniture.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
DOREL ASIA warrants its product to be free from defects in material and workmanship and agrees to
remedy any such defect. This warranty covers 1 year from the date of original purchase. This
warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair or
replacement of defective furniture components and no assembly labor is included. This warranty does
not apply to any product which has been improperly assembled, subjected to misuse or abuse or
which has been altered or repaired in any way. This warranty gives you specific legal rights and you
may also have other rights which vary from State to State.
WARNING: Should this product become
damaged, and/or components are broken or missing,
DO NOT USE.
Langley Crib
Ø
DA5673DR / DA5673W
16
Ø 8mm x 13mm x 1.5mm
Langley Crib
DA5673DR / DA5673W
STEP 1:
Insert the wood dowels (1) into the back panel (C).
Attach the left and right posts (A & B) to the back panel (C) with hex socket head bolts (2)
and spring washers (6) as shown. First put the spring washers (6) in the hole, second
insert the hex socket head bolts (2) then tighten the bolts with allen key (4).
Langley Crib
DA5673DR / DA5673W
STEP 2:
Insert wood dowels (1) into the left side panel (D).
Attach the left side panel (D) to the left post (A) with hex socket head bolts (2) and spring
washers (6) as shown. First put the spring washers (6) in the hole, second insert the hex
socket head bolts (2) then tighten the bolts with allen key (4).
Repeat this step to attach the right side panel (E) to right post (B) as shown.
STEP 3:
Langley Crib
DA5673DR / DA5673W

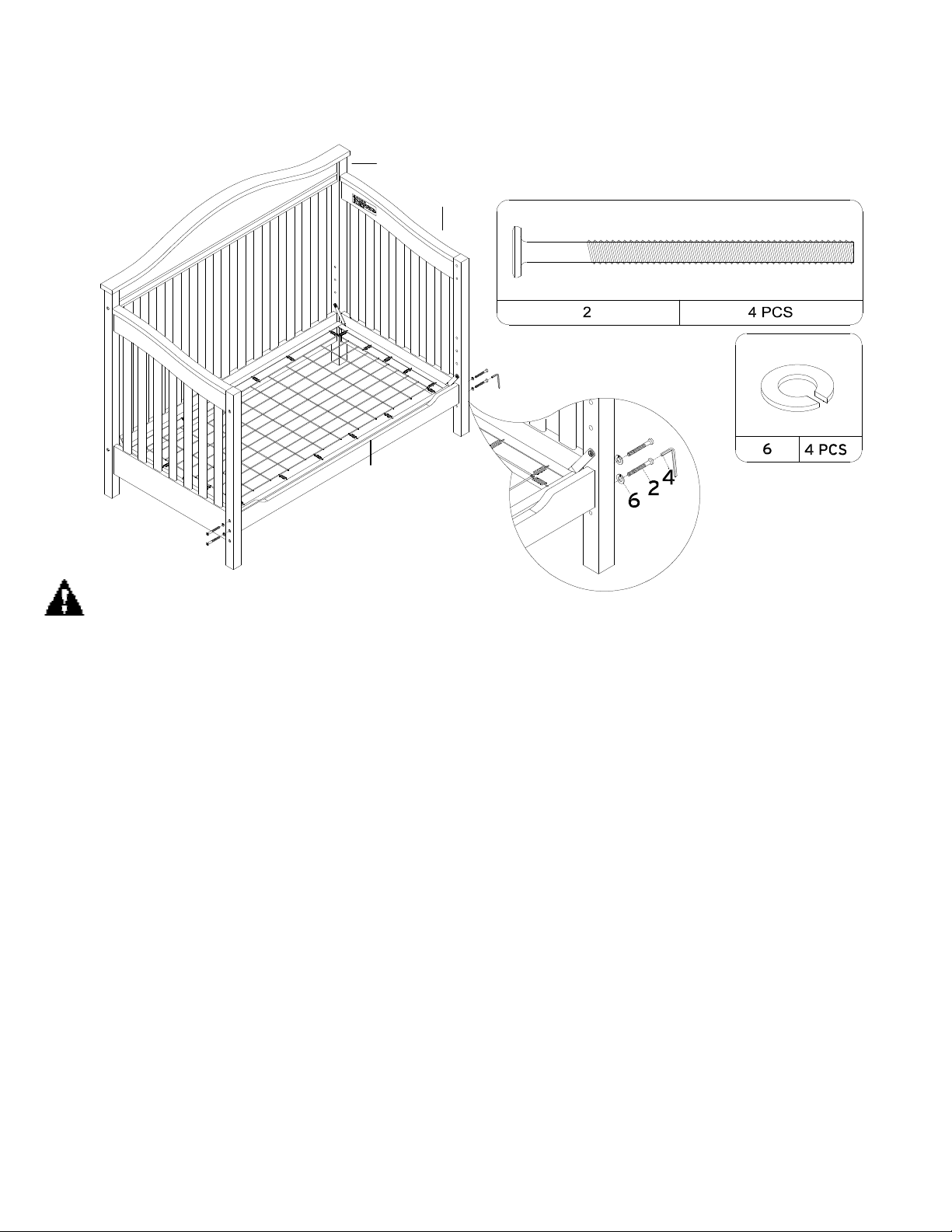

Attach the mattress support (H) to the left and right side panels (D & E) and the posts (A & B) with
mattress support bolts (3) and spring washers (5). Use Allen key (4) to tighten the bolts.
INCORRECT−
Raised edge
should face
down −this
photo shows
mattress
support is
upside down.
INCORRECT−
Tabs on
corners of
mattress
support should
point up.
CORRECT
*Tabs to point UP.
* Flat surface of mattress support to
face up − mattress must sit on flat
NOTE: The above photos and drawings showing how to properly attach the mattress support
are for reference only. Crib styles and colors will vary.
Langley Crib
DA5673DR / DA5673W
STEP 4:
Attach the front rail (G) to the front panel (F) with wood dowels (1) as shown.
Note: The curved edge of front rail (G) must face towards the ground.
Langley Crib
DA5673DR / DA5673W
STEP 5:
Attach the assembled front panel (done in step 4) to left and right side panels (D & E) with
wood dowels (1), hex socket head bolts (2) and spring washers (6) as shown. First put the
spring washers (6) in the hole, second insert the hex socket head bolts (2) then tighten the
bolts with allen key (4).
NOTE: When the child is able to stand on his/her own, place the mattress support at
its lowest position.
Langley Crib
WARNINGS:
DAY BED ASSEMBLY INSTRUCTION
A
B
C
D
E
DA5673DR / DA5673W
G
* the curved edge
should face up
* Any mattress used in this crib must be at least 27−1/4 inches by 51−5/8 inches (69cm by
131cm) with a thickness not exceeding 6 inches (15cm).
* The day bed is not intended for children under 15 months of age or over 50 pounds
(22.7 kgs).
NOTE: When inserting bolts, turn clockwise until tighten. Then loosen 1/2−3/4 of a turn.
After crib is completely assembled, return to each bolt and tighten. Use wax or
soap on all bolts to facilitate assembly.
DAY BED ASSEMBLY INSTRUCTION: STARTING FROM CRIB
STEP 1: Detach the assembled front panel (F & G) from the side panels (D & E) with Allen Key (4).
STEP 2: Move the mattress support (H) to the lowest position by unscrewing bolts (3) with
Allen Key (4).
STEP 3: Attach the front rail (G) (the curved edge should face up) to the side panels (D & E) with
bolts (2), spring washers (6) and Allen Key (4). First put the spring washers (6) in the hole,
second insert the hex socket head bolts (2) then tighten the bolts with allen key (4).
DAY BED ASSEMBLY INSTRUCTION: STARTING FROM SCRATCH
STEP 1: Follow steps 1 to 3 of the crib assembly instruction.
STEP 2: Follow steps 2 to 3 for the day bed assembly instruction located above (starting
from crib).
Langley Crib
FULL SIZE BED ASSEMBLY INSTRUCTION
(HEADBOARD ONLY)
DIAGRAM 2
DIAGRAM 1
A
A
B
B
DA5673DR / DA5673W
FULL SIZE CONVERSION RAILS AND LEGS ARE NOT INCLUDED. DIAGRAMS ARE
FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION.
BACK PANEL (C)
STEP 1: Attach the full size conversion
rails (not included) to the left and right
back posts (A & B) of the headboard.
BACK PANEL (C)
STEP 2: Fasten the bolts with washers
and nuts (not included).
IMPORTANT: Store unused parts of "crib", "day bed" or "full size bed" for future use.
ALWAYS STORE THE ASSEMBLY INSTRUCTIONS IN THE POUCH ATTACHED TO THE
MATTRESS SUPPORT (H).
Langley Crib
That’s it ! You’ve finished assembling your Langley Crib.
DA5673DR / DA5673W
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
ANY MATTRESS USED IN
THIS CRIB MUST BE AT
LEAST 27−1/4 INCHES BY 51−
5/8 INCHES (69CM BY 131CM)
WITH A THICKNESS NOT
EXCEEDING 6 INCHES
(15CM).
Stop using crib when child begins
to climb out or reaches the height
of 35.4 in. (90 cm).
Maximum weight not to exceed
50 pounds when used as a crib.
The DAY BED is not intended for
children under 15 months of age
or over 50 pounds.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Dorel Asia is an authorized licensee of Eddie Bauer Licensing Services LLC. Eddie Bauer® and the Eddie Bauer
logos are the registered trademarks of Eddie Bauer Licensing Services LLC.
Tel #: 1−800−295−1980
E−Mail: das@dorel.com
Fax #: 514−353−7819
MODEL #: DA5673DR / DA5673W
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
Customer Service
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Customer Service Phone Number 1−800−295−1980
Customer Service Fax Number 514−353−7819
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Email: das@dorel.com
Part(s) description and quantity (Please be sure to list model number or SKN number):
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert−Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
