PUSHBACK RECLINER
Model No:
DL7204
UPC CODE:
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
___________________
INSTRUCTION MANUAL
0-65857-17819-7
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
E-Mail: [email protected]
Fax #: 514-353-7819
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
Page 2
DO NOT leave children unattended on or beside the recliner.
DO NOT use your recliner as a step stool.
* Ensure that all parts and components are located before beginning assemble.
* Assemble on soft surfaces to prevent damage to the product finish.
* Read all instructions before use of the recliner.
* Do not use the unit if it is damaged or broken.
* Caution: Adult assembly required.
* Assembly will require 2 people.
* Estimated assembly time: 15 minutes.
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT USE.
CARE AND CLEANING
Dust regularly with a soft, dry cloth to prevent soil build up. Keep away from heat to avoid glazing,
melting or scorching. Use a professional cleaning service to clean the fabric.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy
any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid
only upon presentation of proof of purchase. This is solely limited to the repair or replacement of
defective furniture components and no assembly labor is included. This warranty does not apply to any
product which has been improperly assembled, subjected to misuse or abuse or which has been altered
or repaired in any way. The warranty does not cover the wearing, tearing or fading of the fabric. This
warranty gives you specific legal rights and you may also have other rights which vary from State to
State.
Montreal, Quebec
Canada H1G 3L1
E-MAIL: [email protected]
WARNING
DO NOT sit on the edge of the seat, armrests or on the backrest as this could make the recliner tip over.
NOTES
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model
number, color and a detailed description of the part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Page 3
PARTS LIST
A B C
D E F
1 PC
PLASTIC WASHER
4 PCS
PUSHBACK RECLINER
DL7204
1 PC
4 PCS
1 PC
1 PC
RIGHT WING
FOOT
CHAIR BODY
CHAIR BACK
LEFT WING
Page 4
STEP 1:

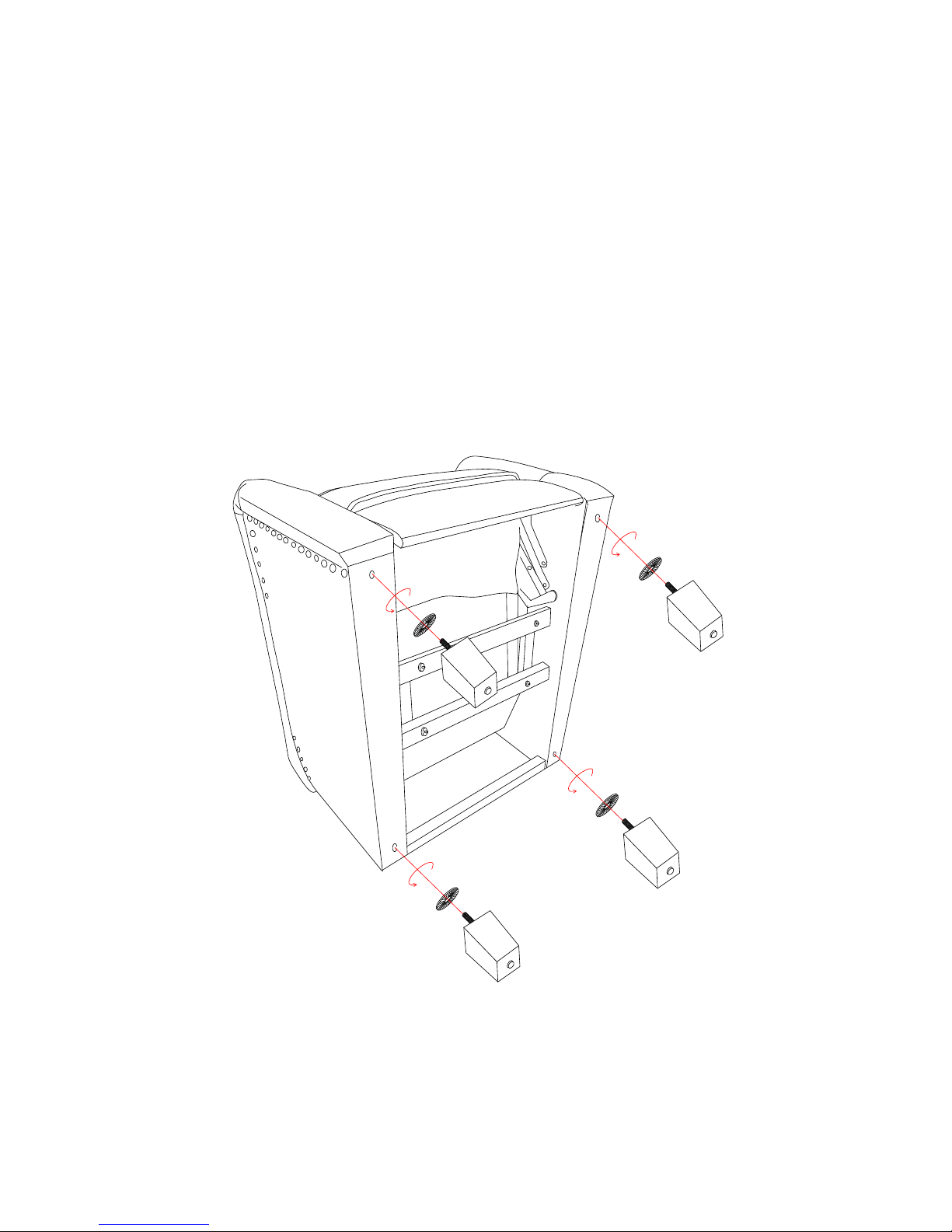

On a clean smooth surface, gently turn the chair body (A) on its side.
Screw feet (E) and plastic washers (F) to chair body (A) by turning clockwise.
PUSHBACK RECLINER
DL7204
A
F
E
Page 5
STEP 2:

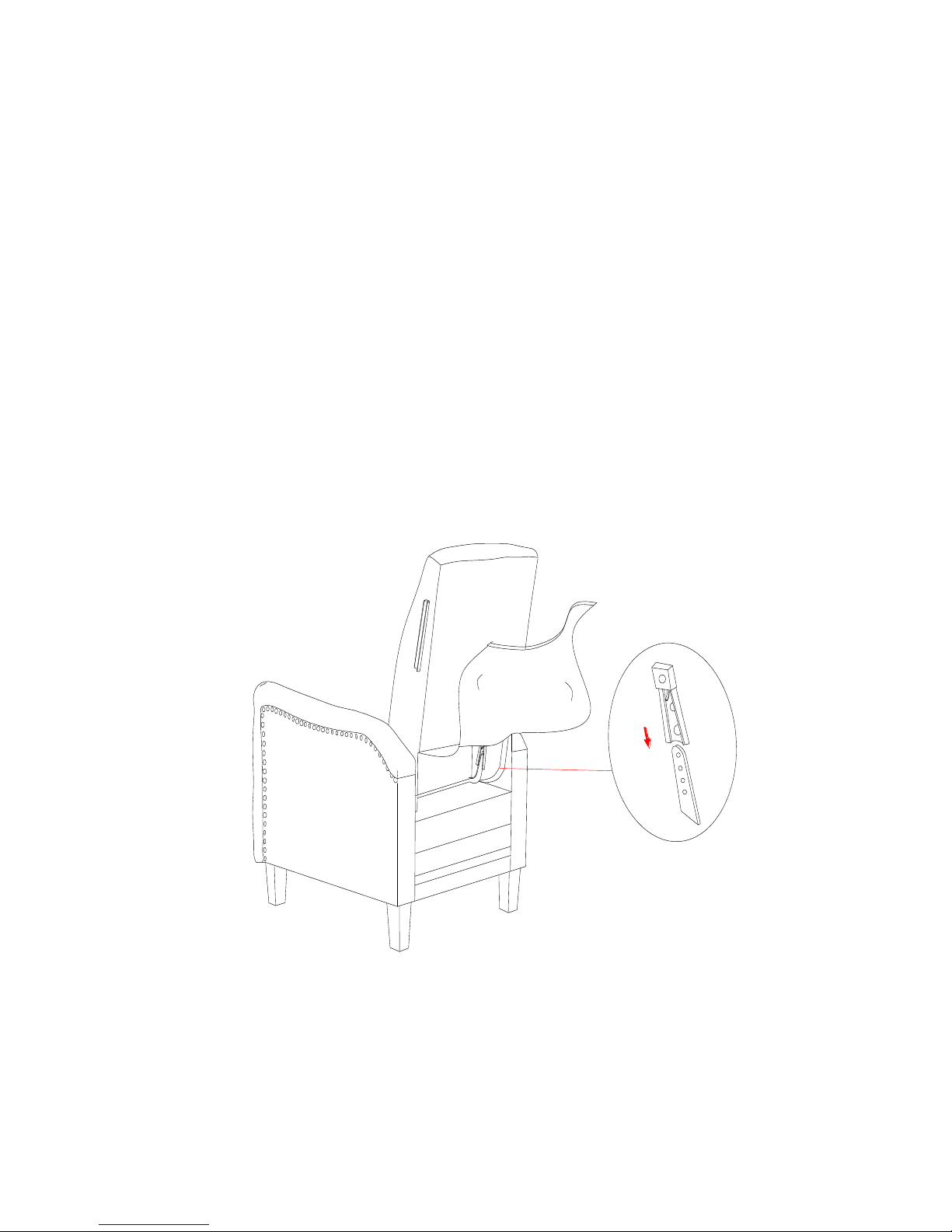

Attach chair back (B) to chair body (A) by sliding the brackets on the chair back (B) into the
glides on chair body (A) as shown.
PUSHBACK RECLINER
DL7204
NOTE: Both sides must be inserted in the base at the same time. This step is best
performed with 2 people.
B
A
Page 6
STEP 3:

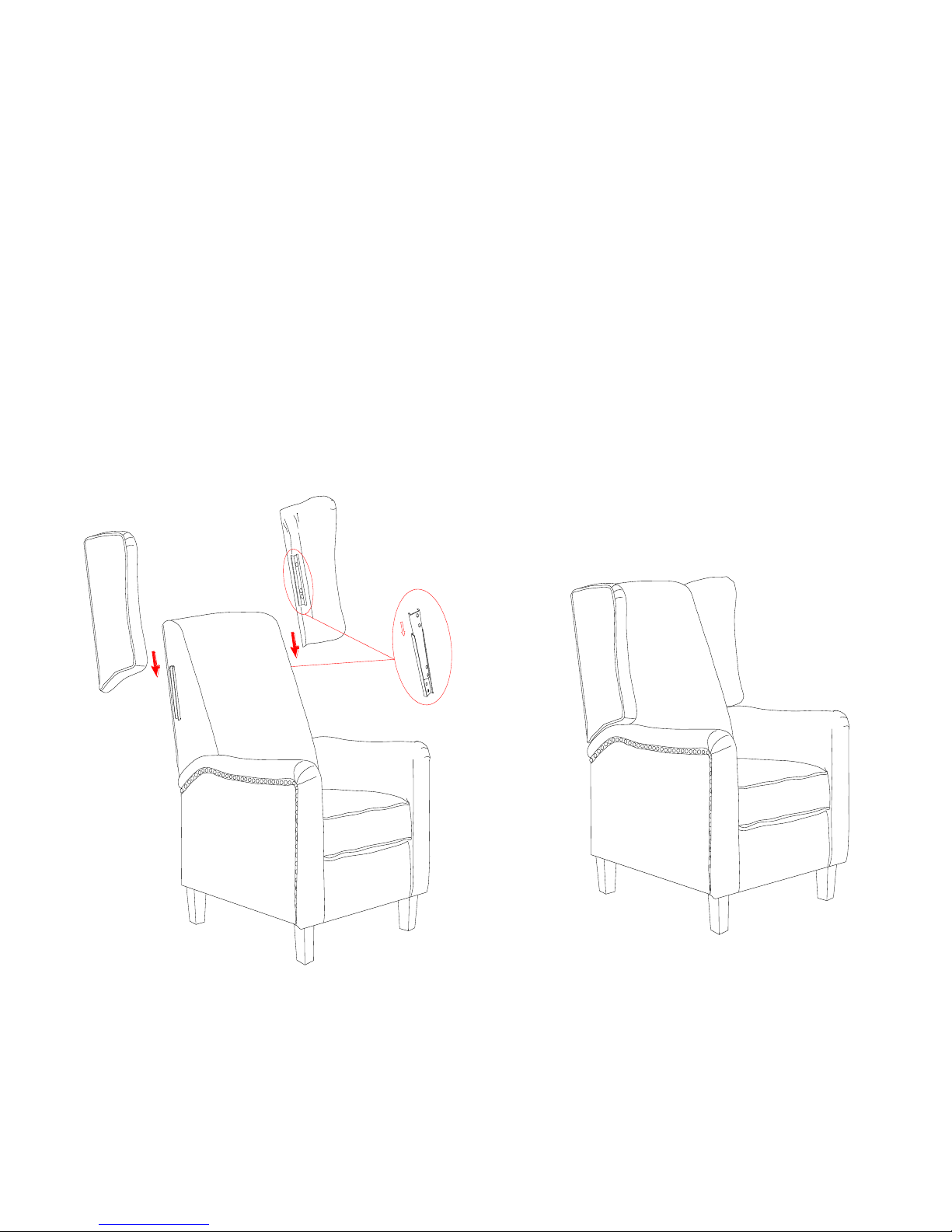

Attach wings (C & D) to chair back (B) by sliding the brackets on the wings (C & D) into the
glides on chair back (B) as shown.
PUSHBACK RECLINER
DL7204
C
B
A
D
Page 7
STEP 4:

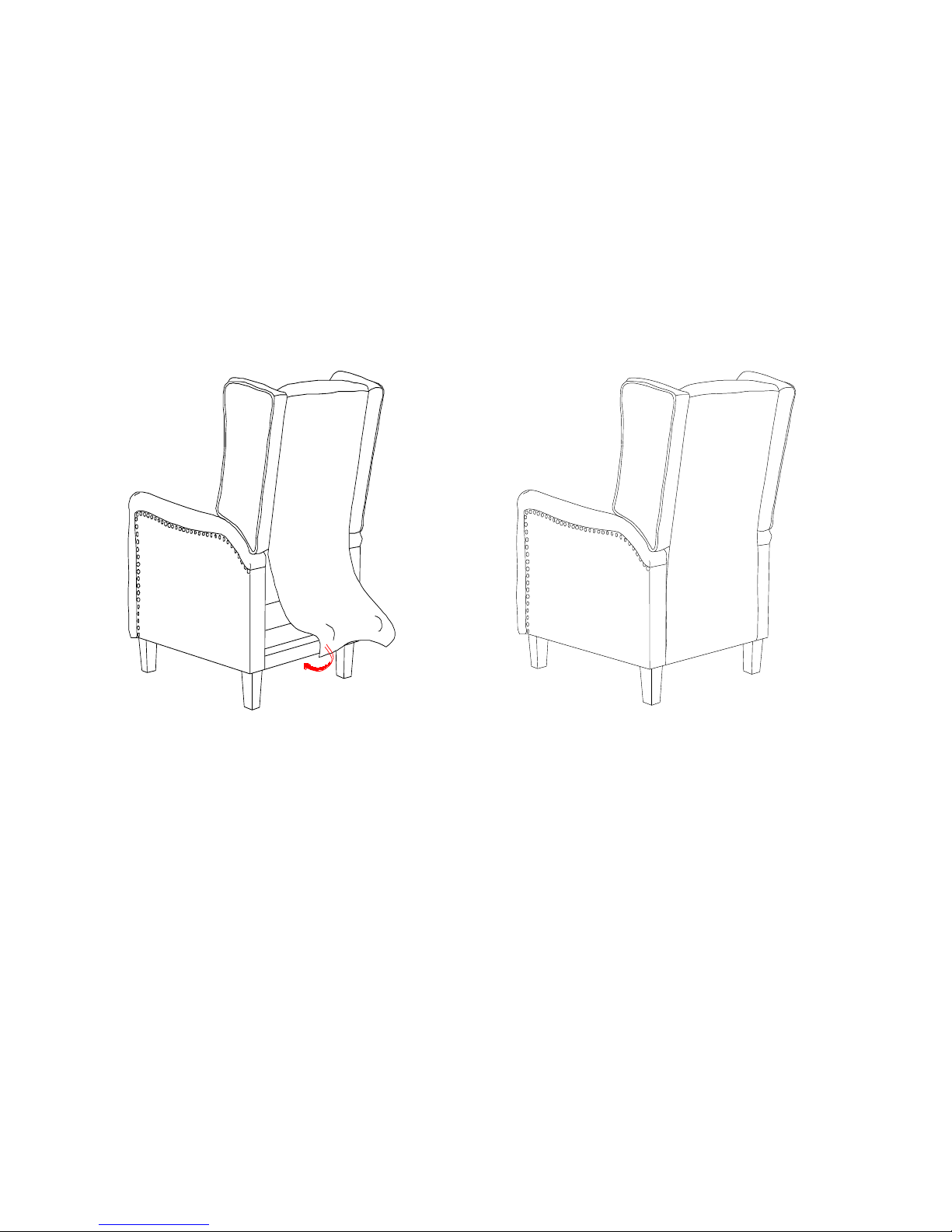

Place the flap into position using the Velcro strips as shown.
PUSHBACK RECLINER
DL7204
Page 8
PUSHBACK RECLINER
DL7204

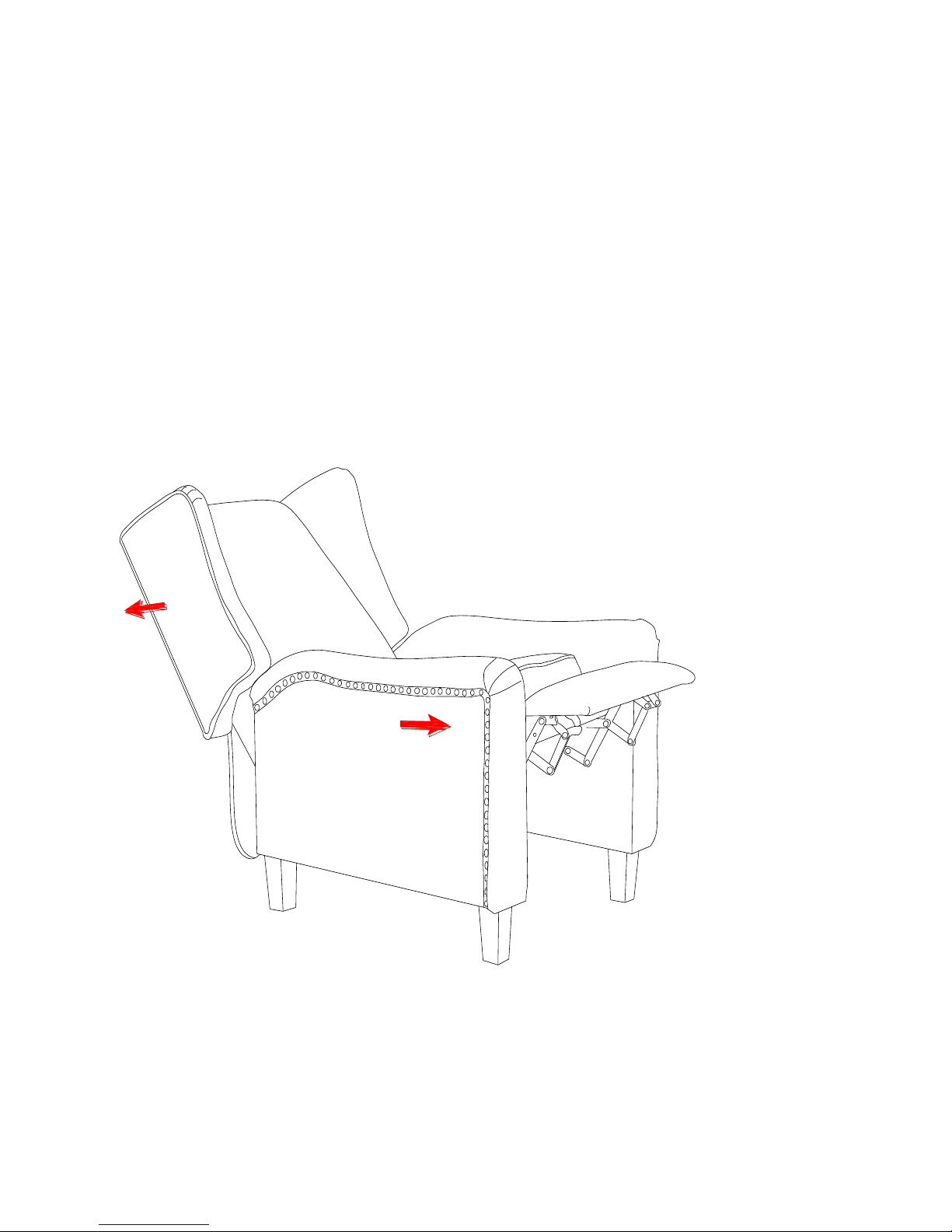

While holding on to the armrests, push back on the back rest to operate
the reclining function.
NOTE:
Page 9
That's it! You've finished assembling your Pushback Recliner.
PUSHBACK RECLINER
DL7204
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
Dust regularly with a
soft, dry cloth to
prevent soil build up.
Keep away from heat
to avoid glazing,
melting or scorching.
Use a professional
cleaning service to
clean the fabric.
