Page 1
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
_______ / _______ / _______
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
Lot number:
CONTAINS IMPORTANT SAFETY
UPC CODE:
0-65857-16831-0
NOTE:

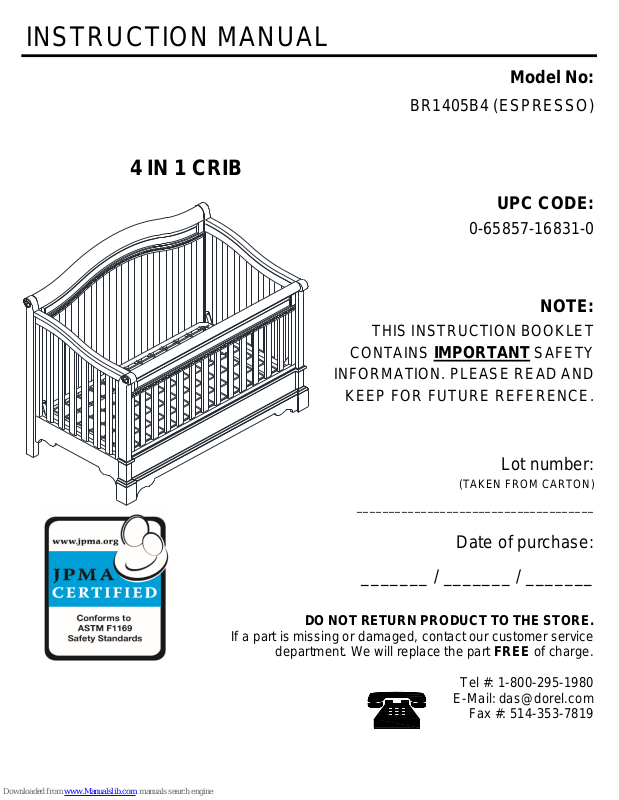

4 IN 1 CRIB
INSTRUCTION MANUAL
Model No:
BR1405B4 (ESPRESSO)
THIS INSTRUCTION BOOKLET
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
E-Mail: [email protected]
Fax #: 514-353-7819
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
Page 2
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
NEVER use bed with children under 15 months or over 50 lbs.
*
ALWAYS follow assembly instructions.
*
*
NEVER suspend strings over a bed.
*
*
CAUTION
Montreal, Quebec
Canada, H1G 3L1
DO NOT place crib near window where cords from blinds or drapes may strangle a child.
Strings can cause strangulation! DO NOT place items with a string around a child's neck, such as hood strings or
pacifier cords. DO NOT suspend strings over a crib or attach strings to toys.
Failure to follow these warnings and assembly instructions could result in serious injury or death.
Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the
part.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT. Openings in and between bed parts can entrap
head and neck of a small child.
STRANGULATION HAZARD. NEVER place bed near windows where cords from blinds or drapes may strangle a child.
E-MAIL: [email protected]
WARNING
Replace teething rail if damaged or loose (if teething rail is provided for this model).
CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES (69CM
BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM).
Check this product for damaged hardware, loose joints, loose bolts or other fasteners, missing parts or sharp edges
before assembly and frequently during use. Securely tighten loose bolts and other fasteners. DO NOT use crib if any
parts are missing, damaged or broken. Contact a customer service representative at 1-800-295-1980 for replacement
parts and instructional literature if needed. DO NOT substitute parts.
Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant.
Stop using the crib when child begins to climb out or reaches the height of 35 inches (89 cm).
To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise
advised by your physician.
To help prevent strangulation tighten all fasteners. A child can trap parts of the body or clothing on loose fasteners.
If refinishing, use a non-toxic finish specified for children's products.
When child is able to pull to standing position, set mattress to lowest position and remove bumper pads, large toys and
other objects that could serve as steps for climbing out.
Never use plastic shipping bags or other plastic film as mattress covers because they can cause suffocation.
Infants can suffocate in gaps between crib sides and a mattress that is too small.
Follow warnings on all products in a crib.
NEVER place items with a string, cord, or ribbon around a child's neck, such as hood strings or pacifier cords. These
items can catch on bed parts.
ENTRAPMENT HAZARD. To avoid dangerous gaps, any mattress used on this bed shall be a full-size crib mattress at
least 51-5/8 inches (1310 mm) in length, 27-1/4 inches (690 mm) in width, and a max thickness of 6 inches (150 mm).
Page 3
*
*
*
*
*
*
*
Assemble on a soft, smooth surface to prevent damage to product finish.
Phillips head screw driver is not included.
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such
defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon
presentation of proof of purchase. This is solely limited to the repair or replacement of defective furniture
components and no assembly labor is included. This warranty does not apply to any product which has been
improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way. This
warranty gives you specific legal rights and you may also have other rights which vary from State to State.
DO NOT use power tools.
CAUTIONS: Adult assembly required.
NOTES
Ensure all parts and components are present before beginning assembly.
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT USE.
Assembly will require two people.
Estimated assembly time: 30 minutes.
CARE AND CLEANING
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used occasionally to clean
surface. Dry immediately. Do not use any abrasives that may damage finish. Excessive exposure to sunlight and
extreme changes in temperature and moisture can damage wood furniture.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
Page 4
HARDWARE LIST
1 2
3 4
5 6
7 8 9
4 IN 1 CRIB
BR1405B4
Ø1/4" X 15mm X 38mm
Ø1/4" X 15mm X 45mm
BOLT
8 PCS
BOLT
6 PCS
ALLEN KEY
1 PC
WOOD DOWEL
11 PCS
Ø1/4" X 11 X 1.2mmT
SPRING WASHER
16 PCS
Ø5/16" X 13 X 1.5mmT
SPRING WASHER
20 PCS
20 X 10 X 7.5mmT
Ø1/4" X 15mm X 15mm
Ø1/4" X 15mm X 60mm
CURVED NUT
2 PCS
MATTRESS SUPPORT BOLT
16 PCS
BOLT
6 PCS
Ø8mm X 30mm
Page 5
PARTS LIST
A B C
D E F
G H I
FRONT RAIL
1 PC
MATTRESS SUPPORT
1 PC
CAP
2 PCS
LEFT SIDE PANEL
1 PC
RIGHT SIDE PANEL
1 PC
FRONT PANEL
1 PC
LEFT FRONT POST
1 PC
RIGHT FRONT POST
1 PC
HEADBOARD
1 PC
4 IN 1 CRIB
BR1405B4
Page 6
NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2 - 3/4 of a
turn. After crib is completely assembled, return to each bolt and tighten. Use
wax or soap on all bolts to facilitate assembly.
4 IN 1 CRIB
BR1405B4
CRIB ASSEMBLY INSTRUCTION
Page 7

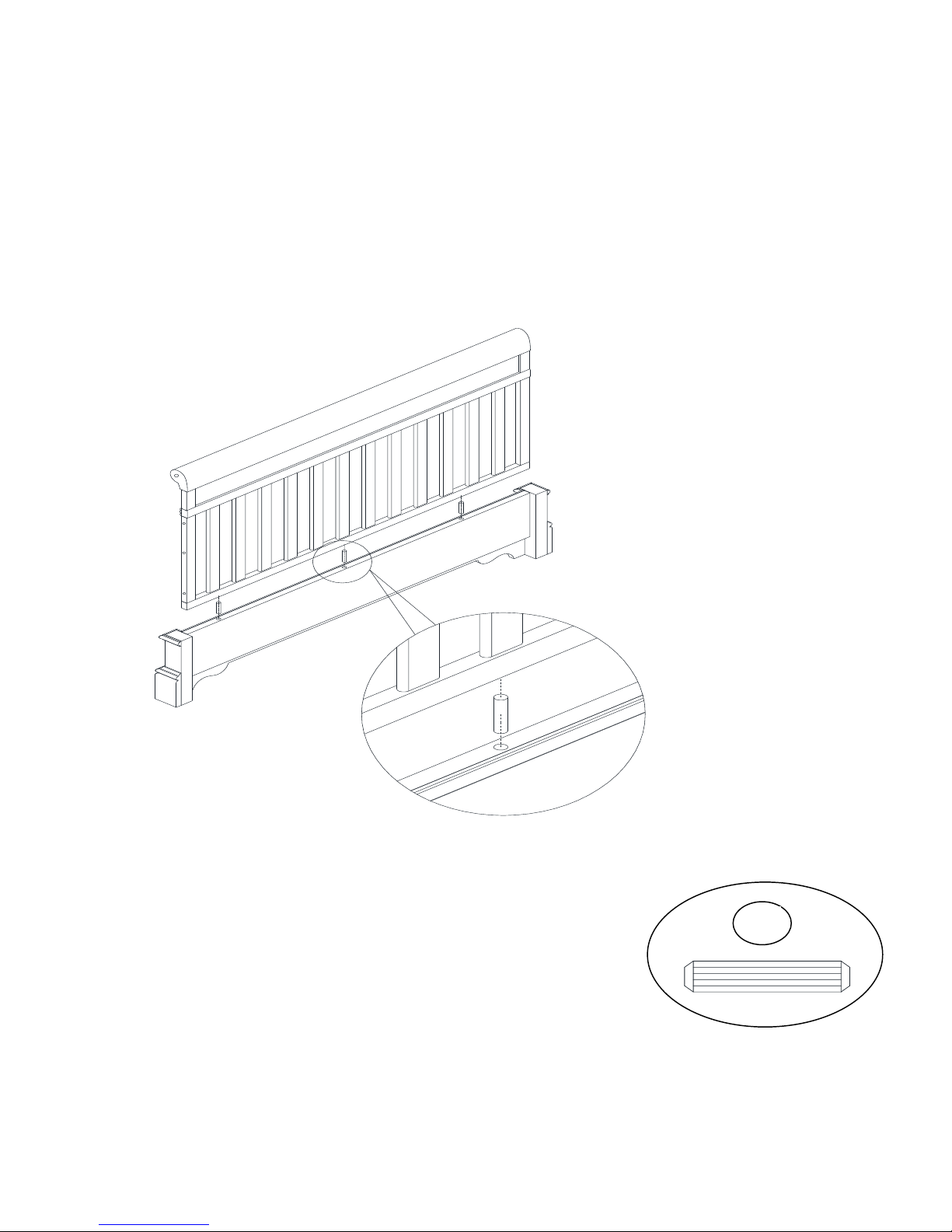

STEP 1
4 IN 1 CRIB
Attach the front rail (G) to the front panel (F) with wood dowels (6) as shown.
BR1405B4
6
F
G
6
Page 8

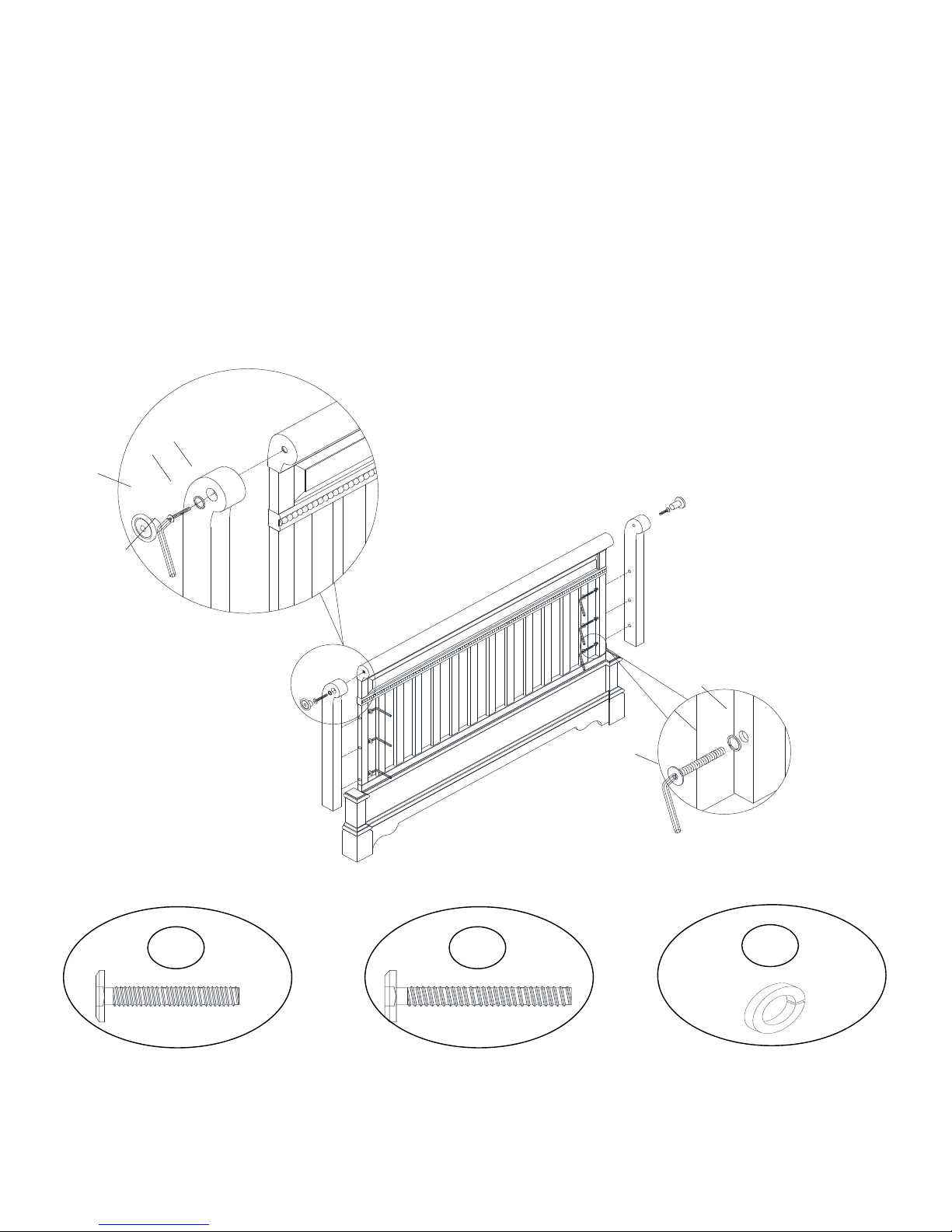

STEP 2
4 IN 1 CRIB
Attach left and right front posts (A & B) to front panel (F) with bolts (1) and spring washers
(8).
Secure left and right front posts (A & B) to front panel (F) with bolts (2) and spring washers
(8).
Use Allen key (5) to tighten all bolts (1) and (2).
Insert caps (I) into left and right front posts (A & B).
BR1405B4
8
1
I
5
A
F
B
A
G
8
2
5
Page 9

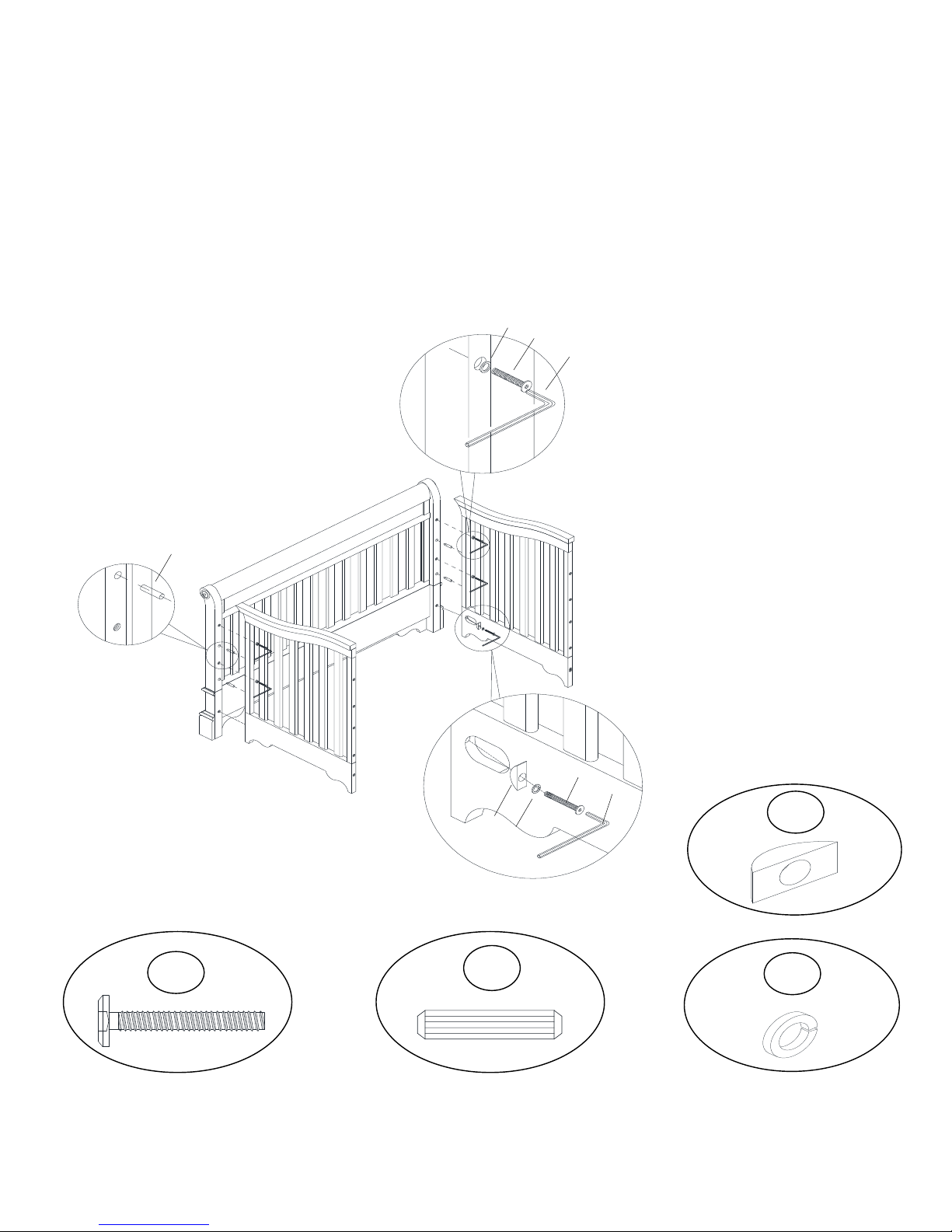

STEP 3
4 IN 1 CRIB
Insert wood dowels (6) into the left post (A).
Attach the left side panel (D) to the left post (A) and front rail (G) with bolts (1), curved nuts
(9) and spring washers (8) as shown.
Use Allen key (5) to tighten all bolts (1).
Repeat this step to attach right side panel (E) to the right post (B) and front rail (G).
BR1405B4
C
6
8
9
1
8
5
6FG
B
A
D
E
9
8
1
5
Page 10

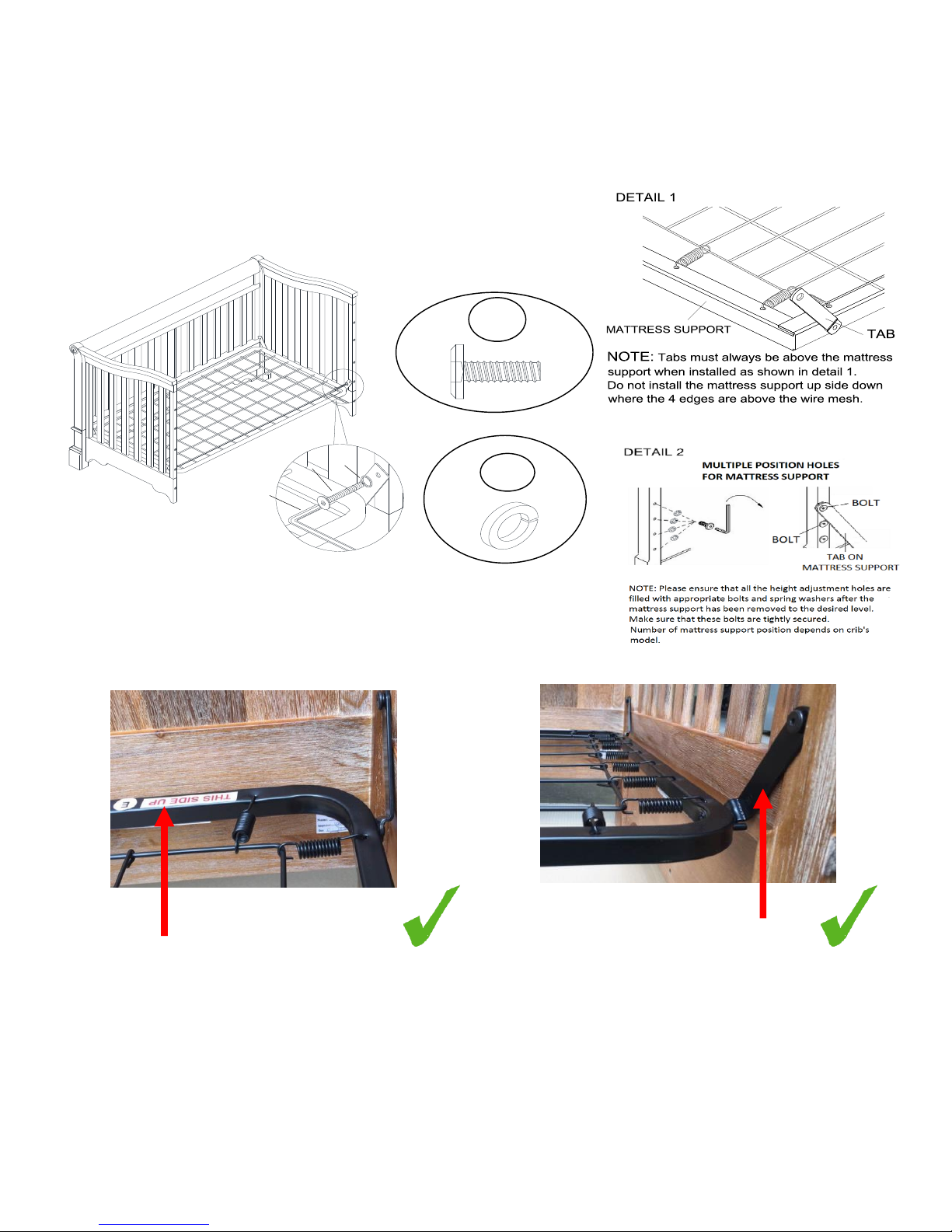

STEP 4
4 IN 1 CRIB
Attach mattress support (H) to the posts (A&B) and side panels (D&E) with mattress support
bolts (3) and spring washers (7).
Use Allen key (5) to tighten the bolts (3).
BR1405B4
3
NOTE: The above photos and drawings showing how to properly attach the mattress support
are for reference only. Crib styles and colors will vary.
`
F
A
B
D
E
735
H
CORRECT
"THIS SIDE UP" label
shows which side to face
upward.
CORRECT
* Tabs on corners of
mattress support should
Page 11

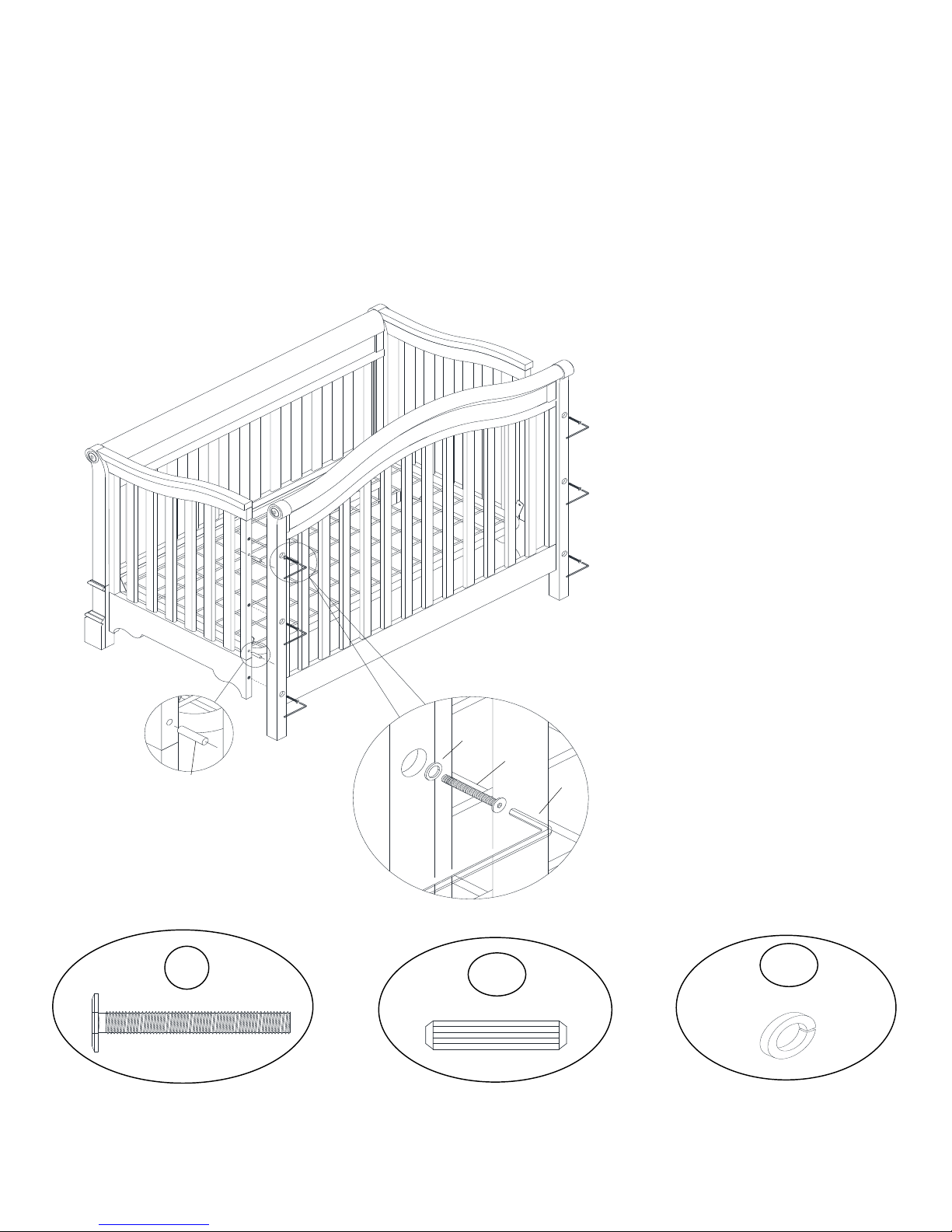

STEP 5
4 IN 1 CRIB
Insert wood dowels (6) into the side panels (D & E).
Attach headboard (C) to the left and right side panels (D) & (E) with bolts (4) and spring
washers (8) as shown.
Use Allen key (5) to tighten bolts (4).
BR1405B4
4
8
6
F
B
A
D
C
E
6
8
4
5
Page 12

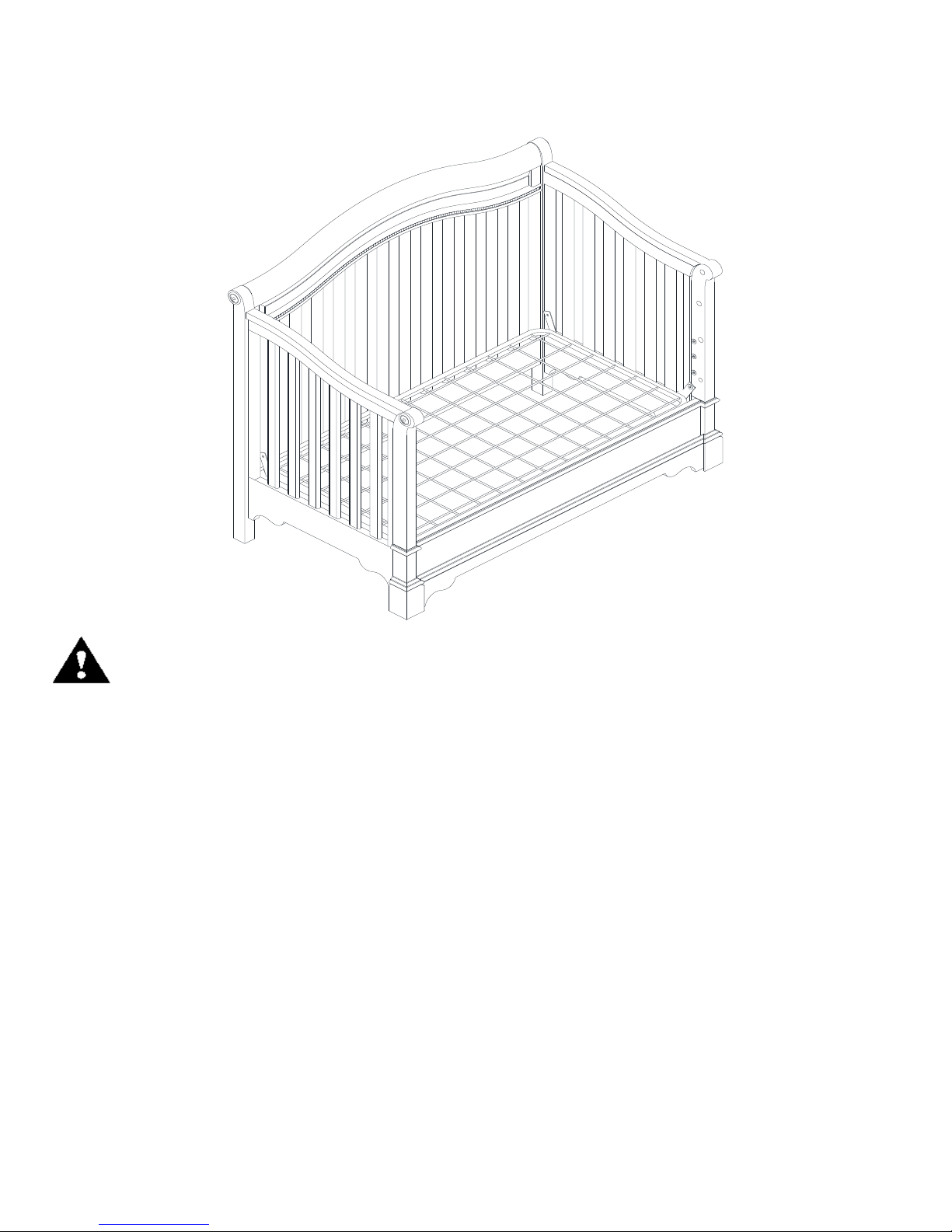

WARNINGS:
*
ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY
*
The toddler bed or day bed is not intended for children under 15 months of age or over
50 lbs (22.7 kgs).
STEP 1: Detach the front panel (F) from the posts (A & B) and front rail (G) with Allen Key (5).
STEP 2: If mattress support (H) is not in the lowest position, unscrew bolts (3) from left & right
front posts (A & B) and side panels (D & E) and move to the lowest position.
STEP 3: Ensure all bolts are tightly secured.
STEP 1: Follow step 3 to 5 of the crib assembly instructions but ignore front panel (F) in step 3.
4 IN 1 CRIB
TODDLER BED & DAY BED ASSEMBLY: STARTING FROM CRIB
TODDLER BED & DAY BED ASSEMBLY: STARTING FROM SCRATCH
BR1405B4
51-5/8 INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES
(15CM).
C
E
BHG
A
D
Page 13
4 IN 1 CRIB
FULL SIZE BED ASSEMBLY INSTRUCTION
(HEADBOARD ONLY)
BR1405B4
NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE FOR
REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION.
IMPORTANT: STORE ALL EXTRA PARTS THAT YOU ARE NOT USING FOR POSSIBLE FUTURE
USE AS YOU MAY WISH TO CONVERT AGAIN. ALWAYS STORE THE ASSEMBLY INSTRUCTIONS
IN THE POUCH ATTACHED TO THE MATTRESS SUPPORT (H).

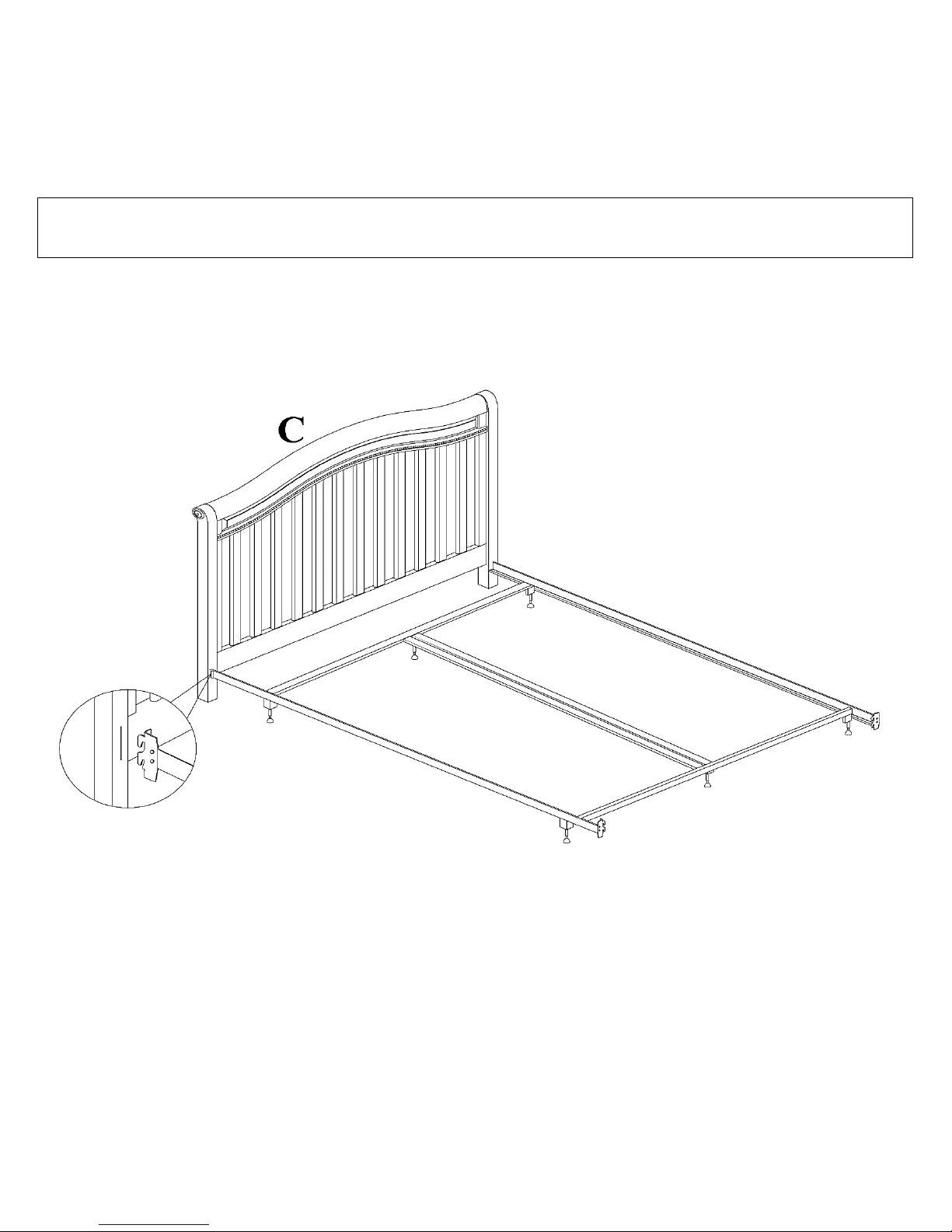

STEP 1
Attach a metal bedframe (not included) to the headboard (C) to convert your crib into a full
size bed using the headboard only.
Page 14
4 IN 1 CRIB
FULL SIZE BED ASSEMBLY INSTRUCTION
(HEADBOARD AND FOOTBOARD)
BR1405B4
NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE FOR
REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION.
IMPORTANT: STORE ALL EXTRA PARTS THAT YOU ARE NOT USING FOR POSSIBLE FUTURE
USE AS YOU MAY WISH TO CONVERT AGAIN. ALWAYS STORE THE ASSEMBLY INSTRUCTIONS
IN THE POUCH ATTACHED TO THE MATTRESS SUPPORT (H).

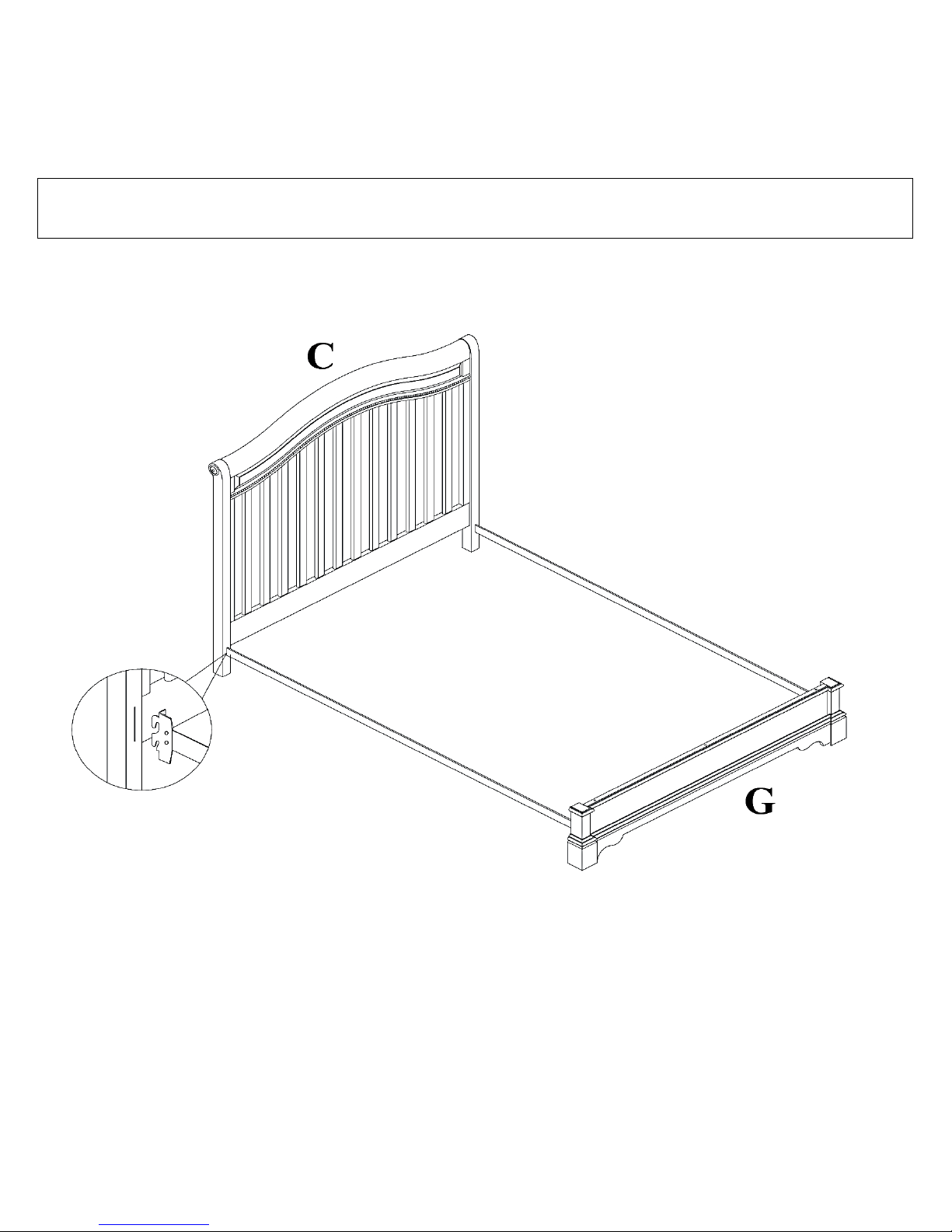

STEP 1
Attach standard size metal bedrails (not included) to headboard (C) and front rail (G) to
convert your crib into a full size bed.
NOTE: Purchase the matching
Castlebrook Wooden Bedrails
for a coordinated look. See
next page for details!
Page 15
4 IN 1 CRIB

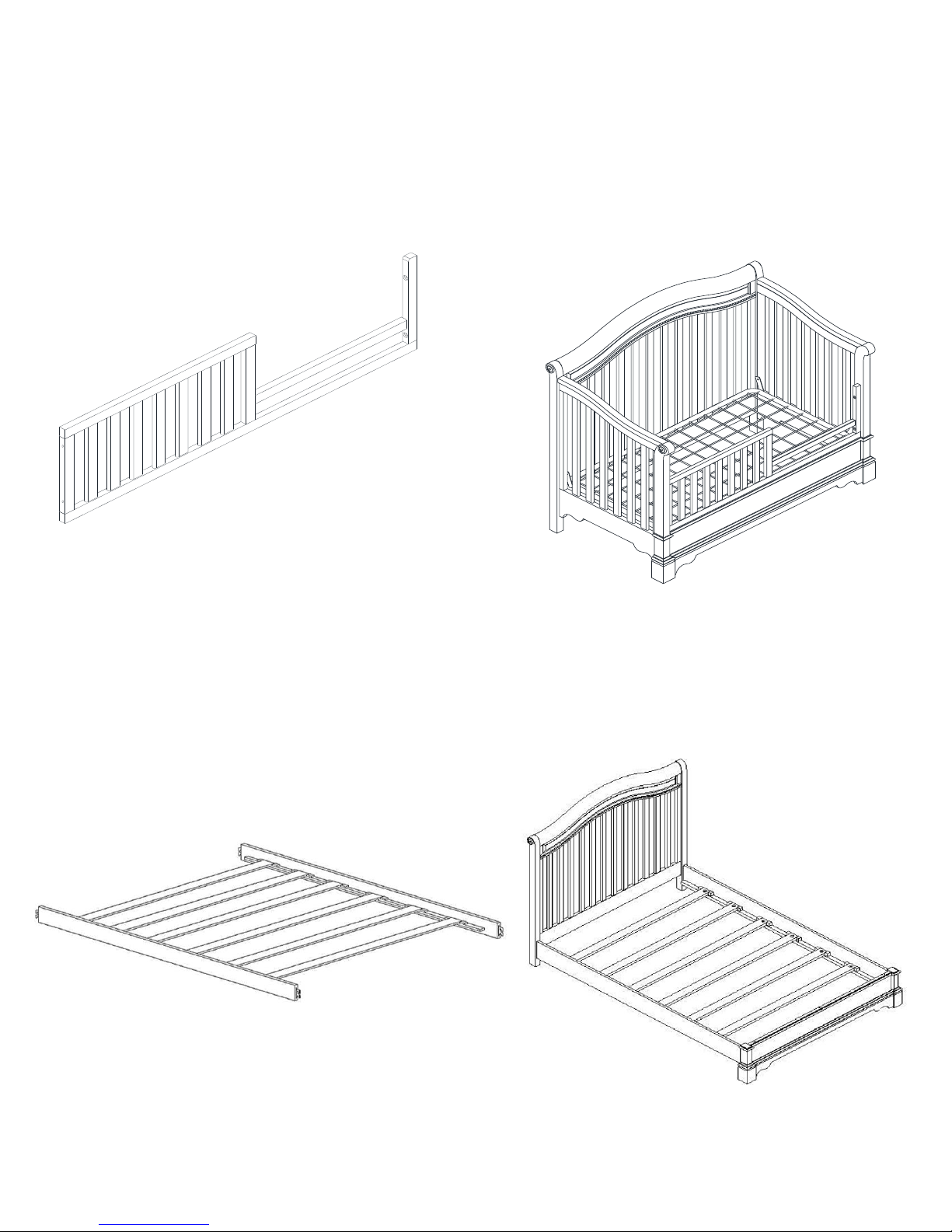

Convert your crib into a toddler bed with the Toddler Bed Conversion kit
(model number BR1405-5) sold separately.
BR1405B4
Convert your crib into a full size platform bed with the Wooden Bedrails
(model number BR1405-8) sold separately.
Page 16

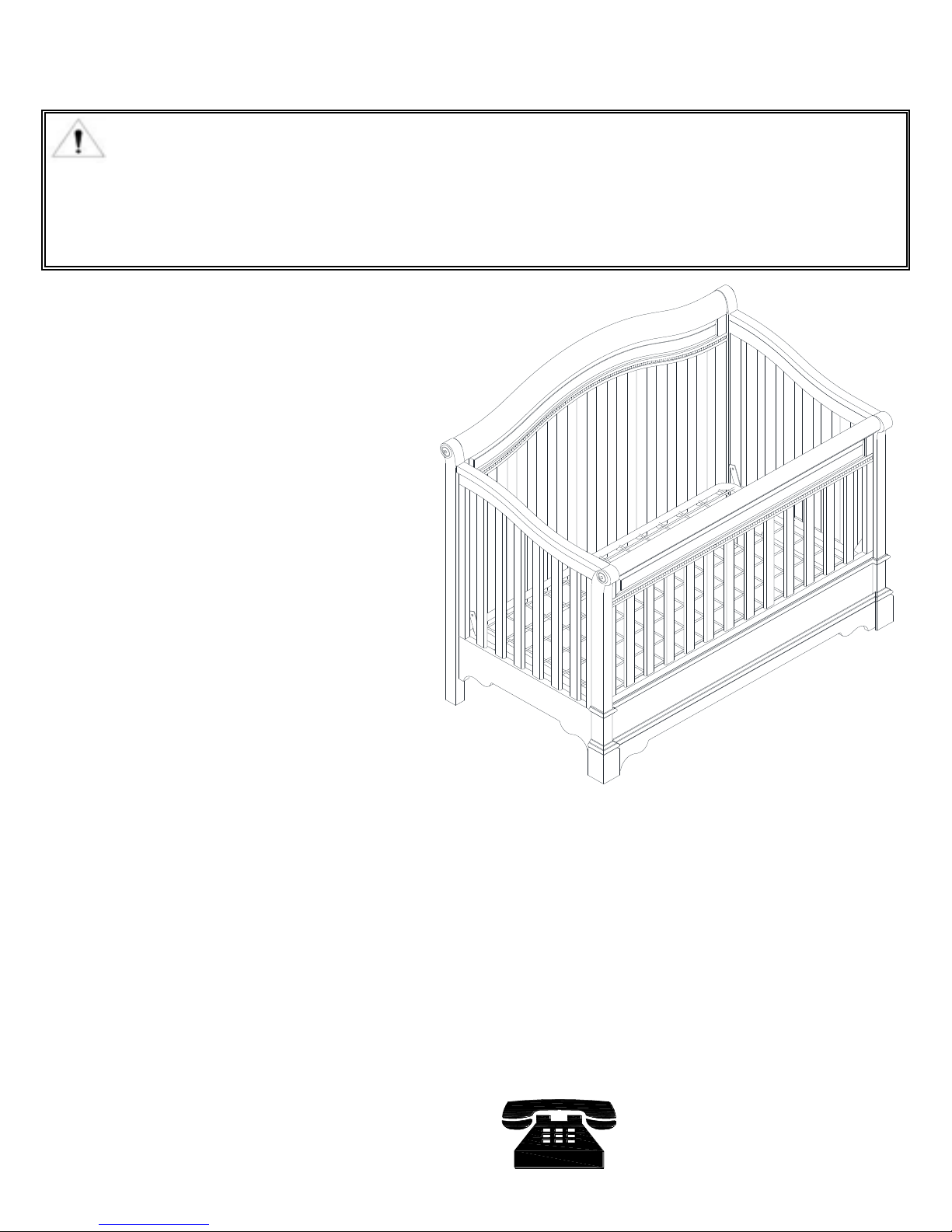

That's it ! You've finished assembling your 4 in 1 convertible crib!
4 IN 1 CRIB
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
BR1405B4
Stop using crib when child begins to
climb out or reaches the height of
35 inches (89 cm).
Maximum weight not to exceed 50
pounds when used as a crib.
The TODDLER BED or DAY BED is
not intended for children under 15
months of age or over 50 pounds
(22.7 kgs).
ANY MATTRESS USED IN THIS CRIB
MUST BE AT LEAST 27-1/4 INCHES
BY 51-5/8 INCHES (69CM BY 131CM)
WITH A THICKNESS NOT EXCEEDING
6 INCHES (15CM).
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
E-Mail: [email protected]
Fax #: 514-353-7819
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
Page 17
MODEL #: BR1405B4
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity: (Please be sure to list model number or SKN number)
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Customer Service
Customer Service Phone Number 1-800-295-1980
Email: [email protected]
Customer Service Fax Number 514-353-7819
