Page 1
DA6921
INSTRUCTION MANUAL
Model No:
UPC CODE:
0-65857-16532-6
3-PC COUNTER
HEIGHT DINING SET
Lot number:
_____________________________________
Date of purchase:
_______ / _______ / _______
THIS INSTRUCTION BOOKLET
NOTE:
(TAKEN FROM CARTON)
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Tel #: 1-800-295-1980
E-Mail: [email protected]
Fax #: 514-353-7819
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
Page 2
*
*
*
*
*
*
*
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service
representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model
number, color and a detailed description of the part.
E-MAIL: [email protected]
NOTES:
Ensure all parts and components are present before beginning assembly.
Assemble on a soft, smooth surface to prevent damage to product finish.
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada H1G 3L1
Estimated assembly time: 45 minutes.
CARE AND CLEANING
Phillips head screw driver is not included.
DO NOT use power tools.
CAUTION: Adult assembly required.
Assembly will require two people.
Dust table regularly with a soft, dry cloth to prevent soil build up. A dampened cloth may be used
occasionally to clean the surface. Dry immediately and buff lightly, following the grain. Avoid
using harsh cleaners and abrasive products.
Use coasters to prevent the formation of moisture rings and trivets to protect from hot items. Cover
extension leaves (if applicable) with a soft protective fabric before storing. Do not slide objects
across the surface - always lift them.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to
remedy any such defect. This warranty covers 1 year from the date of original purchase. This
warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair or
replacement of defective furniture components and no assembly labor is included. This warranty
does not apply to any product which has been improperly assembled, subjected to misuse or abuse
or which has been altered or repaired in any way. This warranty gives you specific legal rights and
you may also have other rights which vary from State to State.
Page 3
ALLEN WRENCH
1 PC
Ø4mm x 1-1/2"
BOLT
10 PCS
WOOD SCREW
18 PCS
9
10
Ø1/4" x 1-1/2"
7
8
DA6921
3-PC COUNTER HEIGHT DINING SET
Ø5/16" x 12MM
Ø5/16" x 12MM

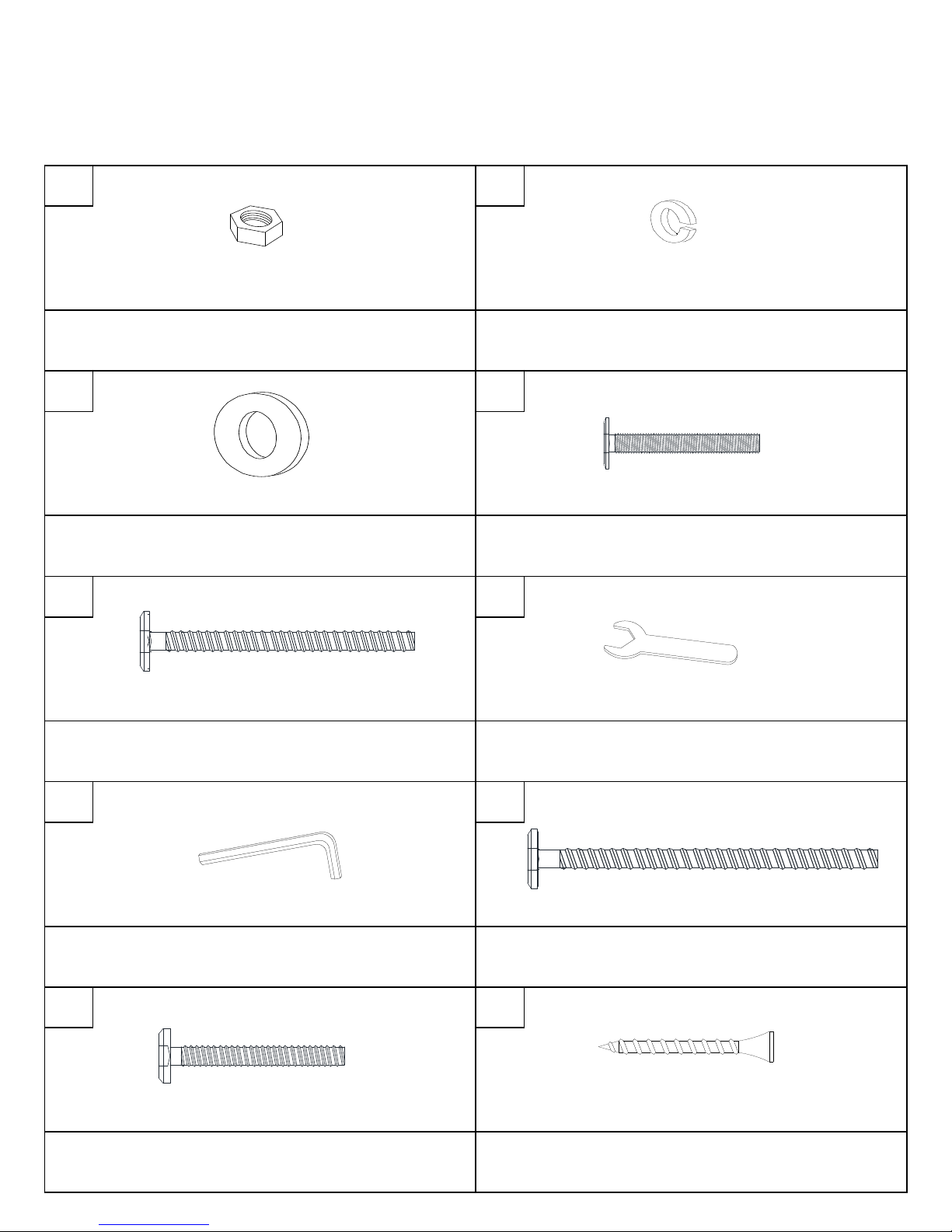

HARDWARE LIST
1
2
NUT
8 PCS
SPRING WASHER
38 PCS
3
4
Ø5/16" x 19MM
Ø5/16" x 1-1/4"
FLAT WASHER
38 PCS
BOLT
4 PCS
5
6
Ø1/4" x 3"
ALLEN KEY
1 PC
BOLT
8 PCS
Ø1/4" x 2-1/4"
BOLT
8 PCS
Page 4
SEAT BOARD
2 PCS
J
L
RIGHT SIDE STRETCHER
2 PCS
SEAT FRAME
2 PCS
FRONT STRETCHER
2 PCS
K
DA6921
3-PC COUNTER HEIGHT DINING SET

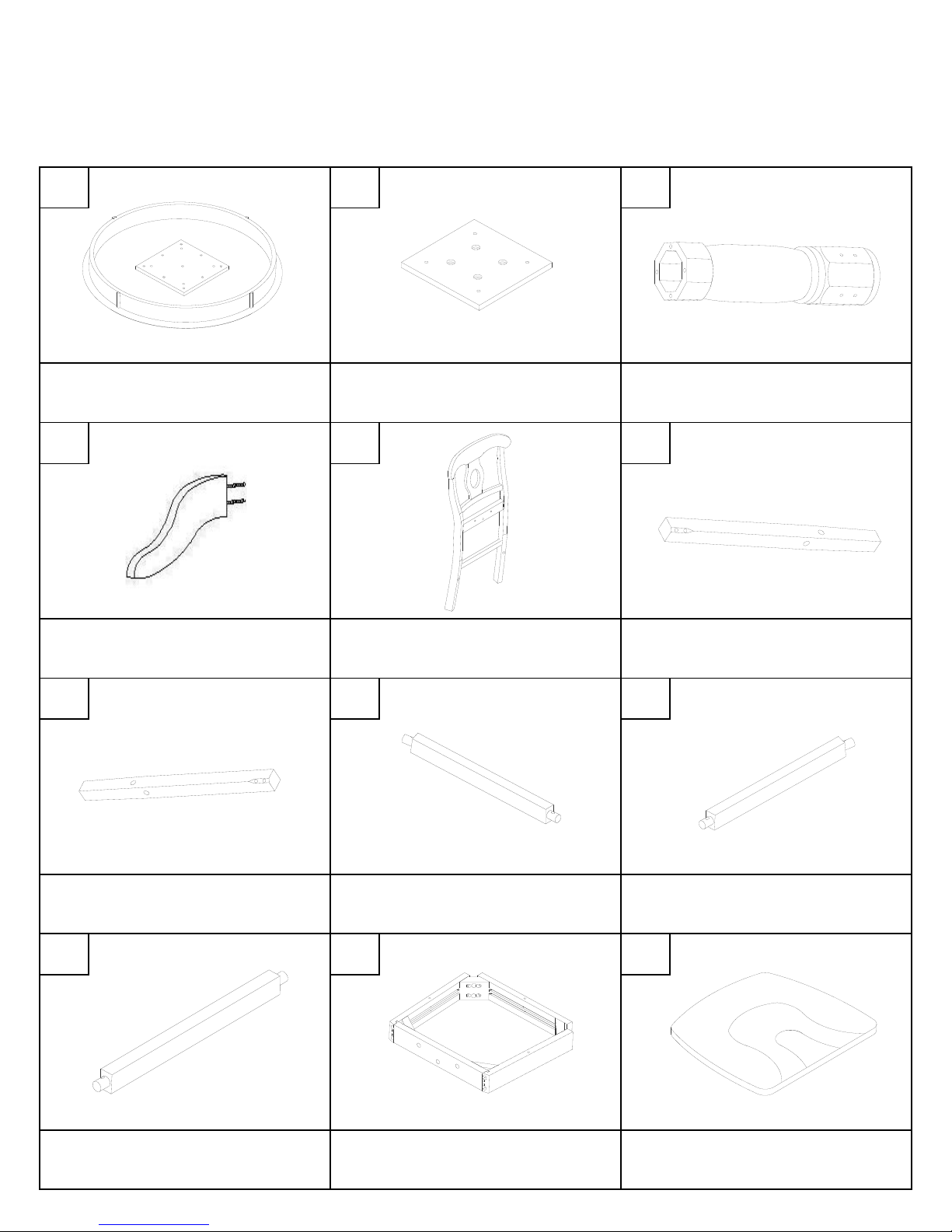

PARTS LIST
ACB
TABLE TOP
1 PC
TABLE BASE PANEL
1 PC
CENTER POST
1 PC
DFEGI
LEFT FRONT LEG
2 PCS
RIGHT FRONT LEG
2 PCS
LEFT SIDE STRETCHER
2 PCS
H
LEG
4 PCS
CHAIR BACK FRAME
2 PCS
Page 5
DA6921
3-PC COUNTER HEIGHT DINING SET

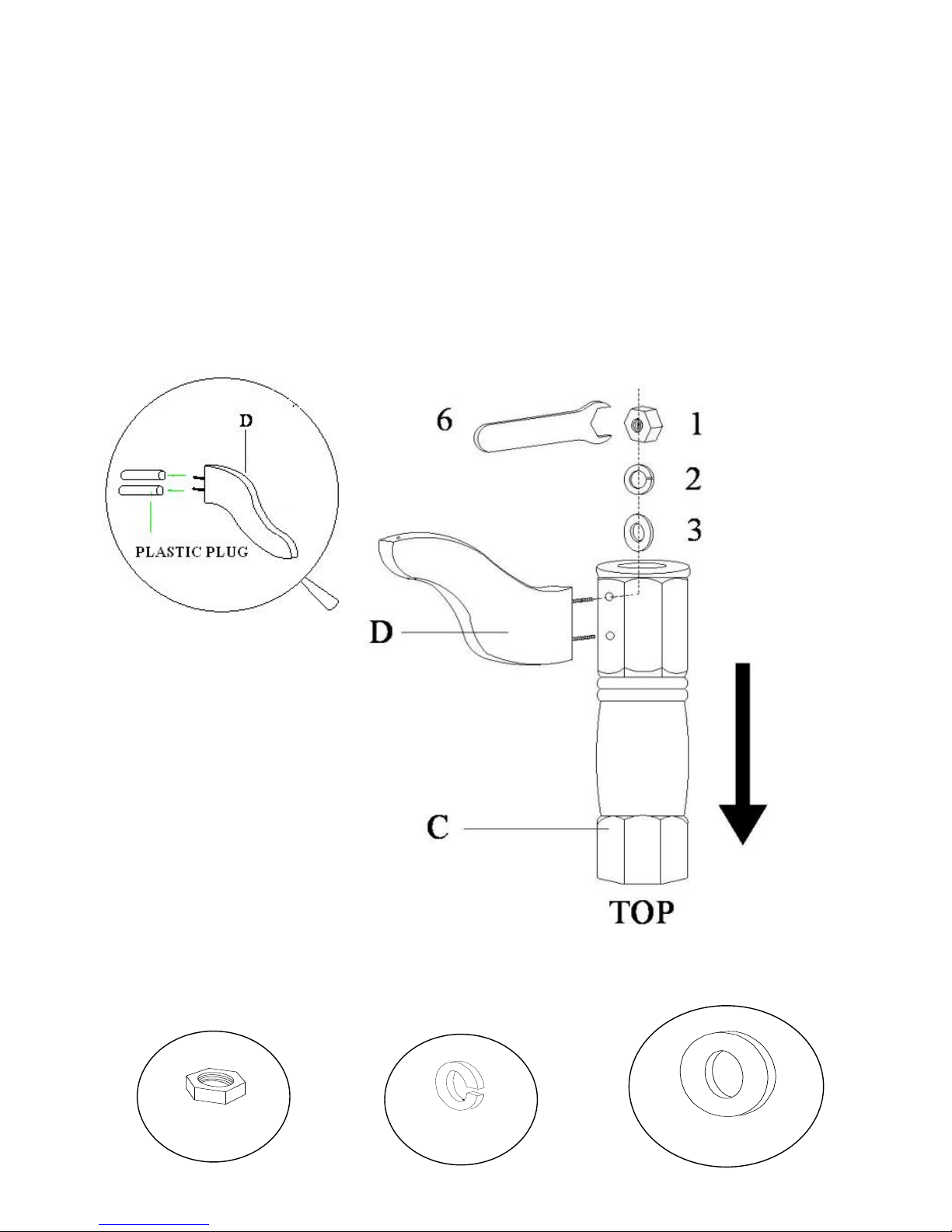

STEP 1
Place center post (C) upside down on a clean smooth surface.
Remove the plastic plugs from the legs (D).
Attach legs (D) to the center post (C) using nuts (1), spring washers (2) and flat washers (3).
Fully tighten the nuts (1) with Allen wrench (6).
①
②
③
Page 6
DA6921
3-PC COUNTER HEIGHT DINING SET

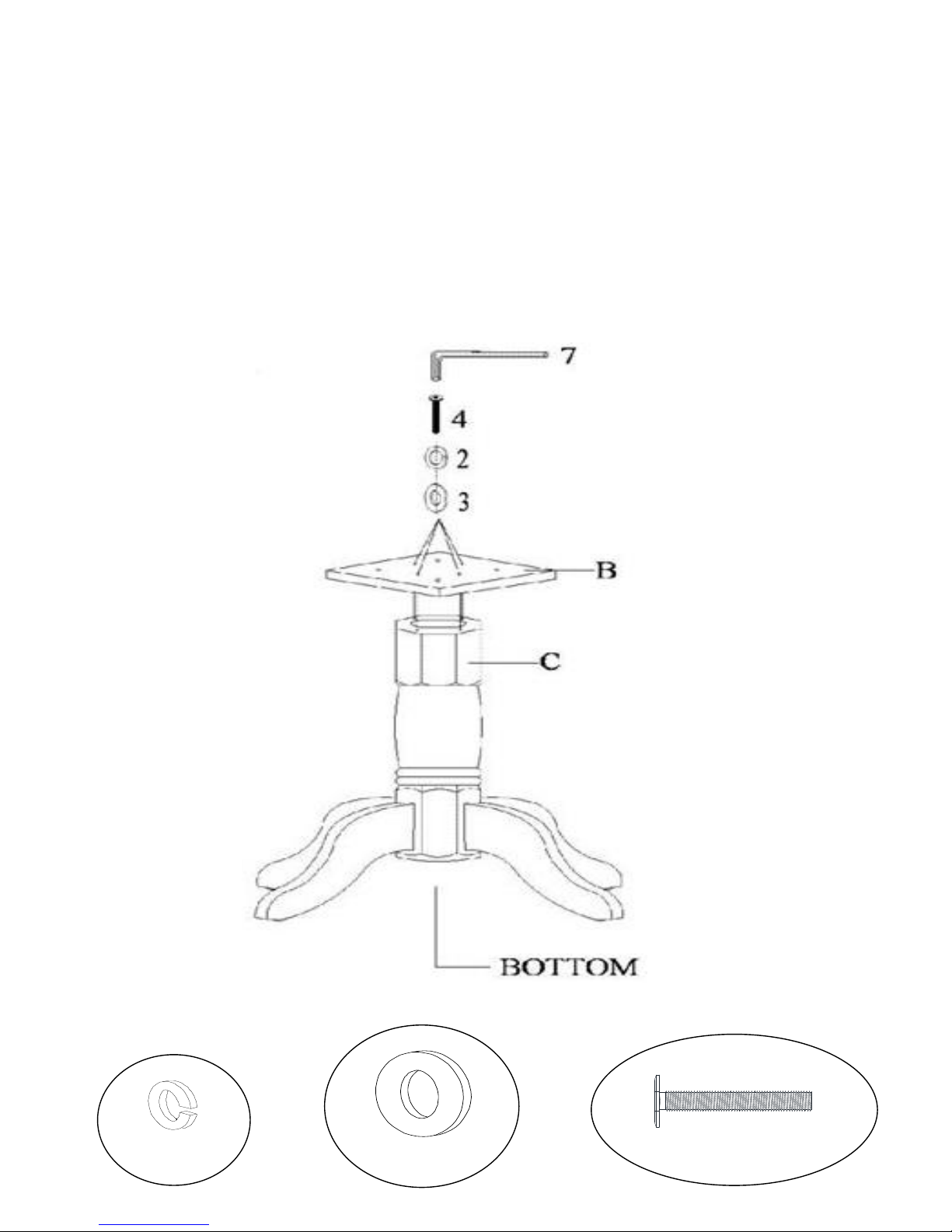

STEP 2
Turn the assembled pedestal upright.
Attach the table base panel (B) to the center post (C) with spring washers (2), flat washers (3) and
bolts (4) as shown.
Fully tighten the bolts (4) using Allen key (7).
②
③
④
Page 7
DA6921
3-PC COUNTER HEIGHT DINING SET

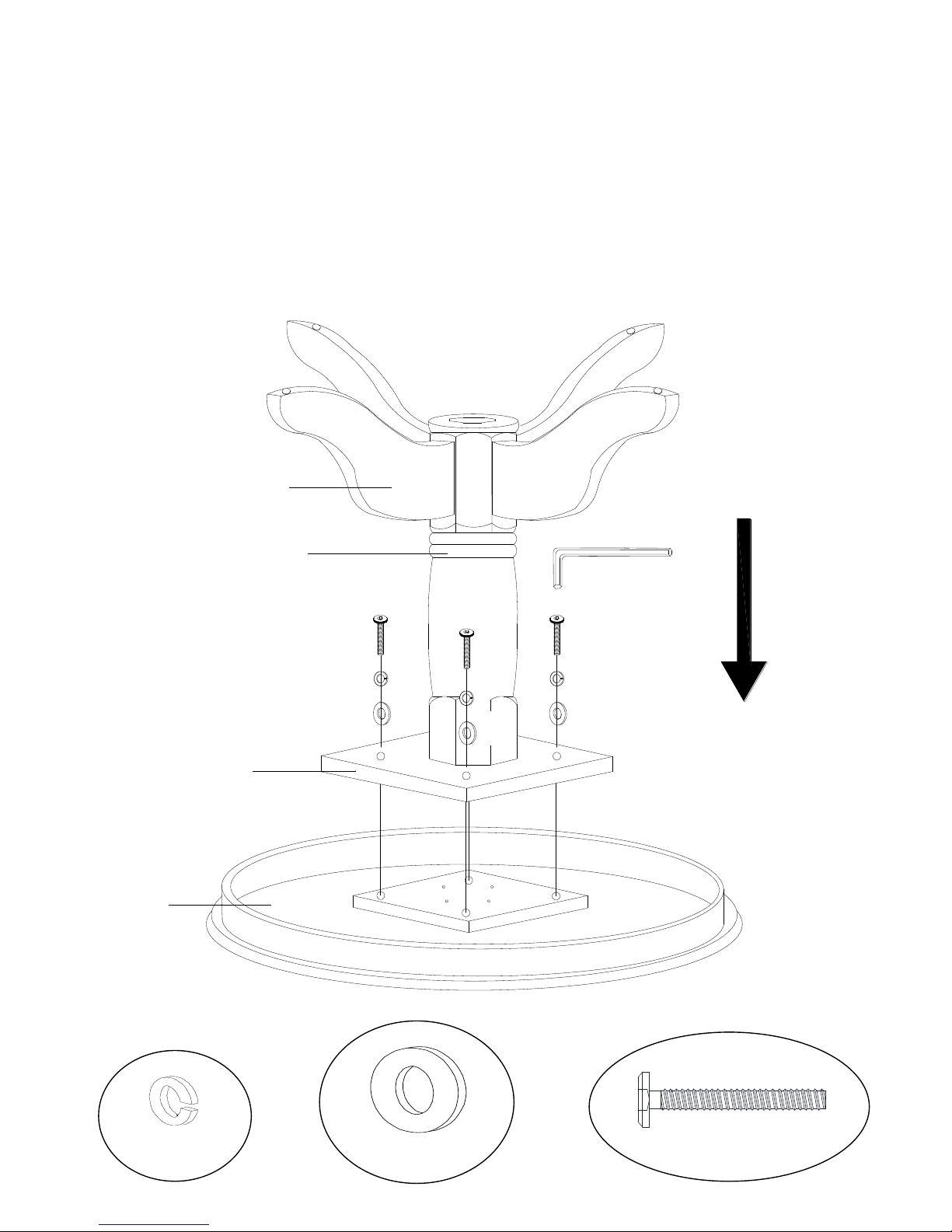

STEP 3
Place the table top (A) upside down on a clean, smooth surface.
Attach the table pedestal (assembled in the previous step) to the table top (A) using spring
washers (2), flat washers (3) and bolts (9) as shown.
Fully tighten the bolts (9) using Allen key (7).
A
TOP
C
D
B
7
9
9
9
2
2
2
3
3
3
②
③
⑨
Page 8
DA6921
3-PC COUNTER HEIGHT DINING SET
STEP 4
Turn the table upright.
Adjust the levelers underneath each leg to ensure that the table level with the floor both vertically
and horizontally.

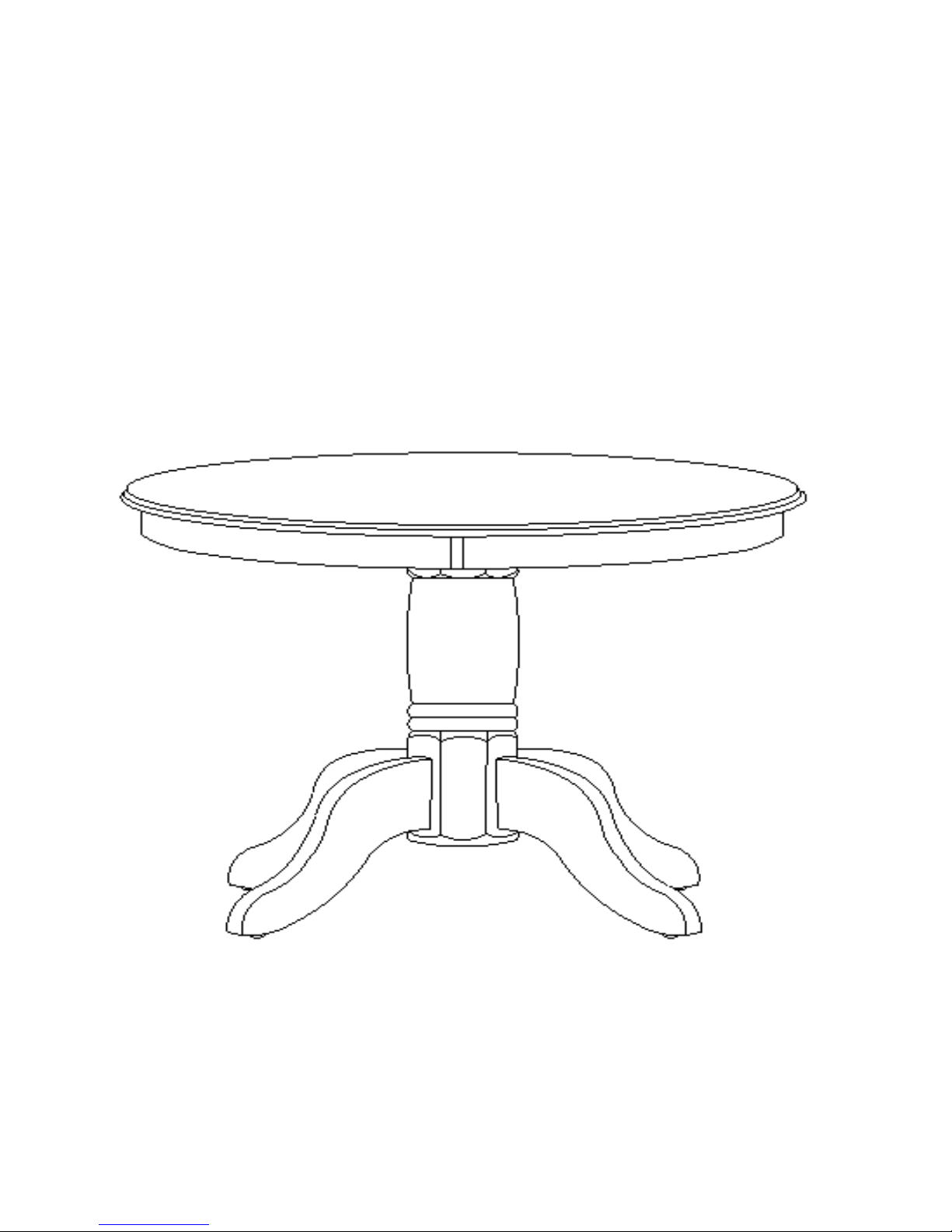

You've finished assembling the dining table.
Page 9
DA6921
3-PC COUNTER HEIGHT DINING SET

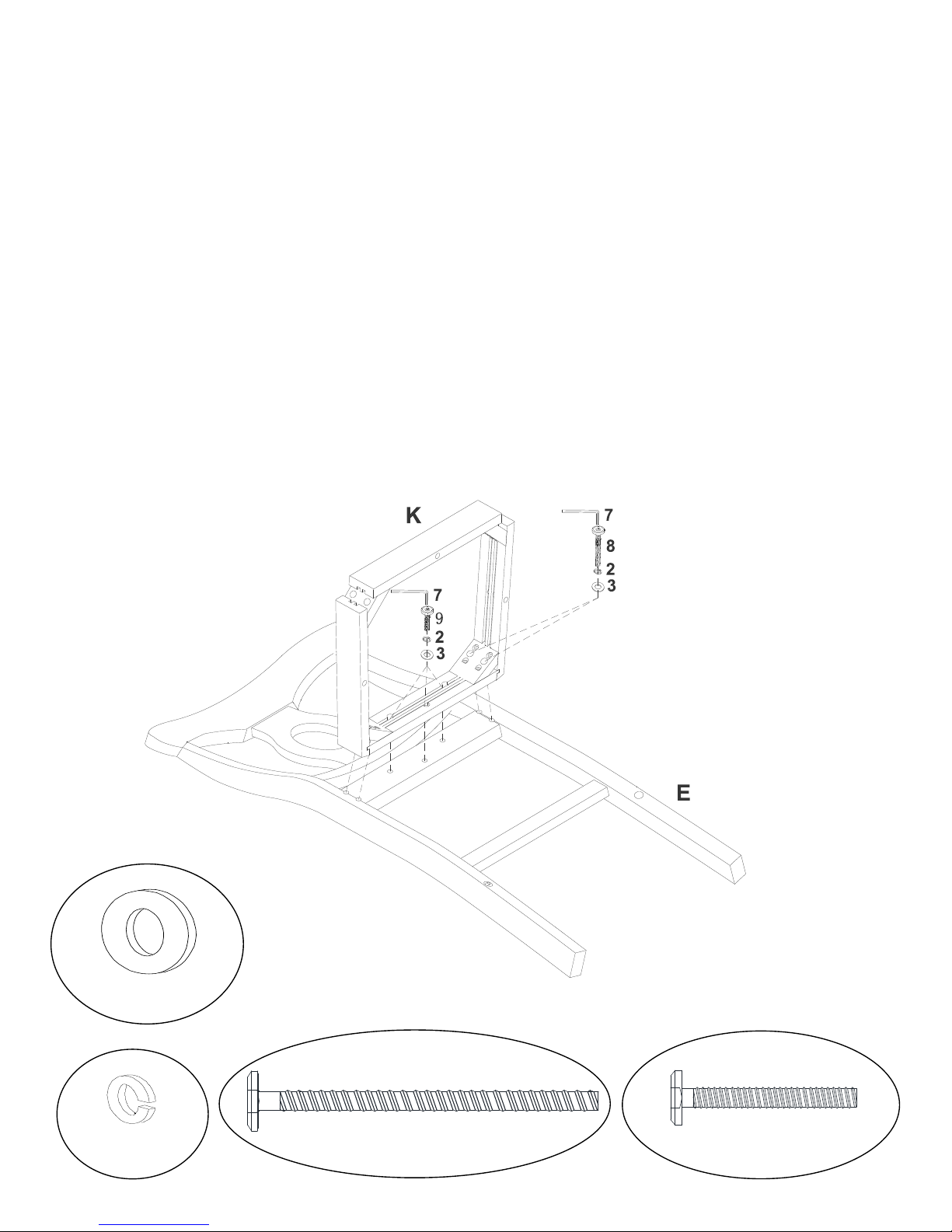

STEP 5
Attach the seat frame (K) to the chair back frame (E) using bolts (8), spring washers (2) and flat
washers (3) through the corners of the seat frame (K).
Secure the seat frame (K) to the chair back frame (E) using bolts (9), spring washers (2) and flat
washers (3) through the center of the seat frame (K). as shown below.
Use Allen Key (7) to tighten the bolts (8 & 9).
NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following steps.
②
③
⑨
⑧
Page 10
DA6921
3-PC COUNTER HEIGHT DINING SET

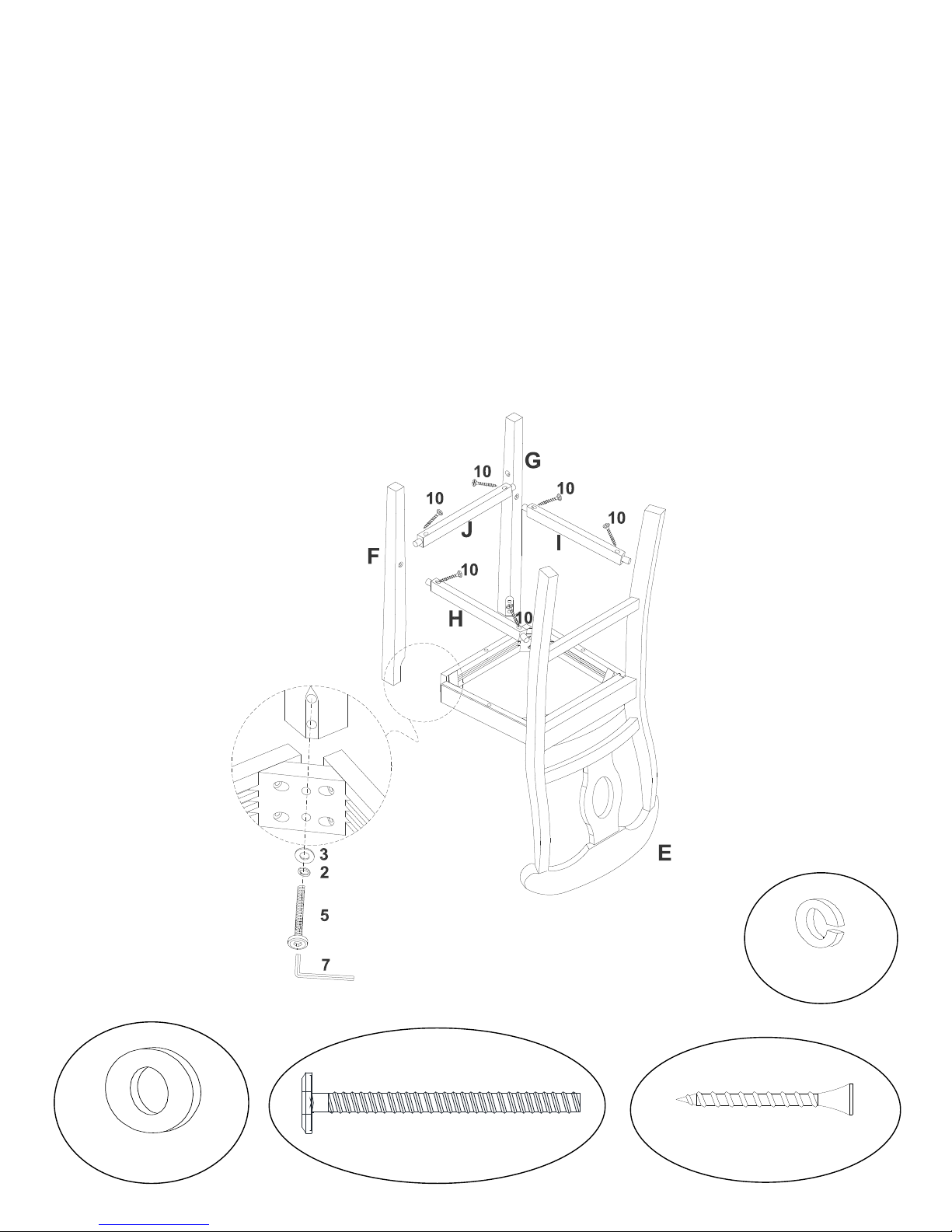

STEP 6
Attach the left front leg (F) and the right front leg (G) to the seat frame (K) with bolts (5), spring
washers (2) and flat washers (3). Use Allen key (7) to install the bolts (5). Do not fully tighten the
bolts.
Connect front stretcher (J) to legs (F & G) with wood screws (10).
Connect side stretchers (H & I) to legs (F & G) and back frame (E) as shown below with wood
screws (10) using a Phillips head screw driver (not included).
Fully tighten all bolts previously installed.
②
K
③
⑤
⑩
Page 11
DA6921
3-PC COUNTER HEIGHT DINING SET

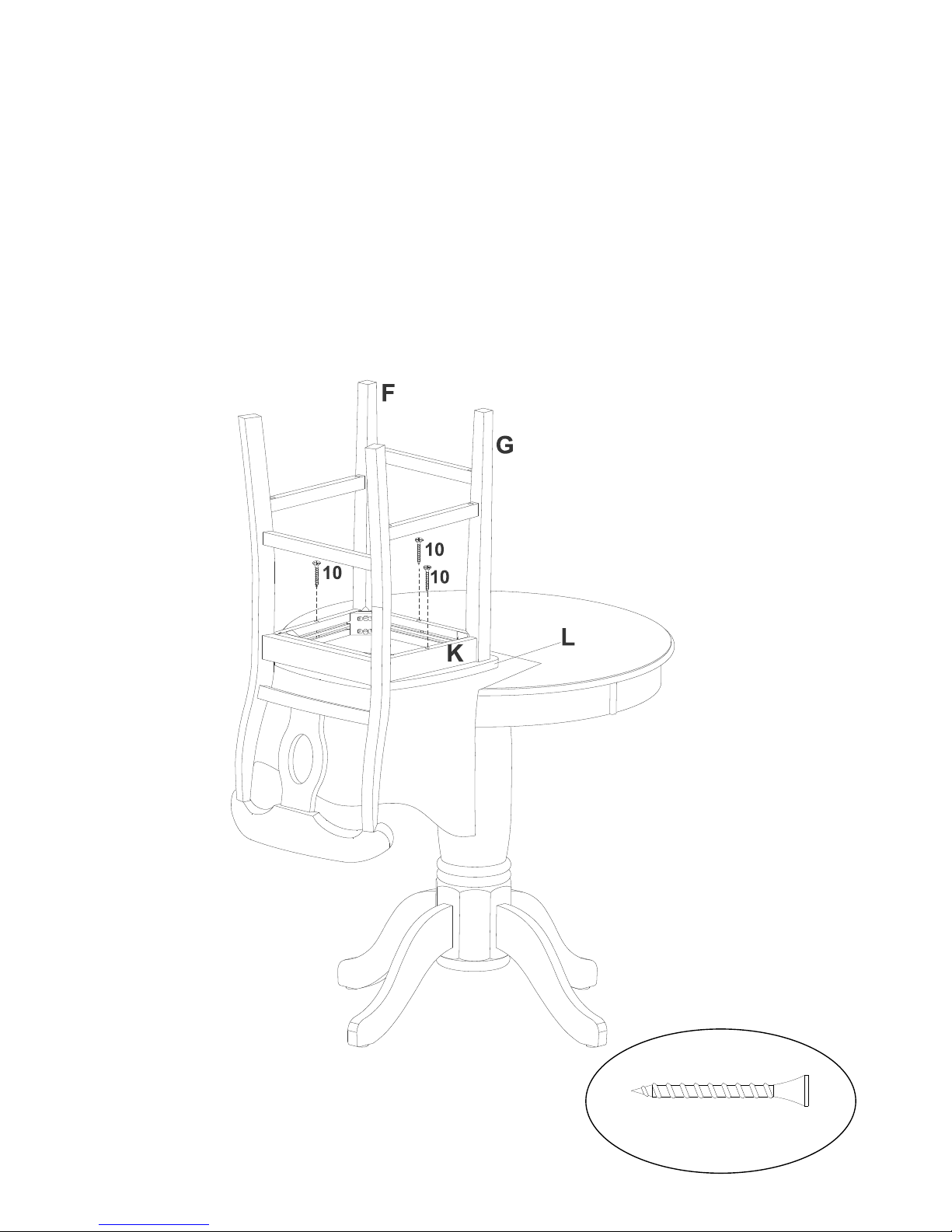

STEP 7
Attach the seat board (L) to the chair frame with wood screws (10) using a Phillips head screw driver
(not included).
To facilitate the attachment of the seat board (L) to the assembled seat frame, place seat board
(L) on the table surface as shown. Protect the smooth table surface and seat board (L) by laying
a towel between the seat board (L) and the table.
⑩
Page 12
DA6921
3-PC COUNTER HEIGHT DINING SET
STEP 8

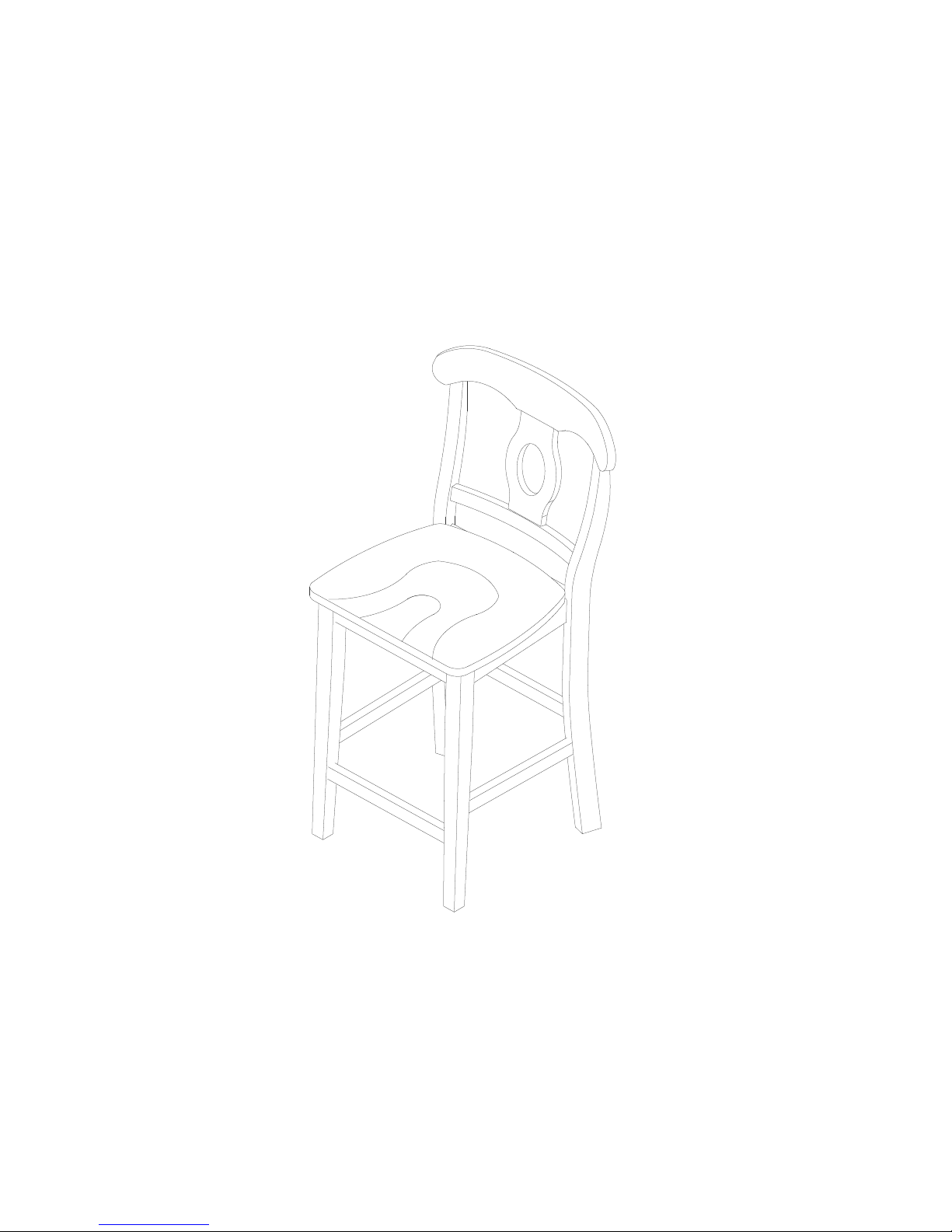

Turn the chair upright.
Repeat steps 5-7 to assemble the remaining chair.
Page 13
That's it ! You've finished assembling your dining set.
DA6921
3-PC COUNTER HEIGHT DINING SET
CAUTION: This unit is intended for use only with the products
and/or maximum weights indicated. Use with other products and/or
products heavier than the maximum weights indicated may result in
instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
E-Mail: [email protected]
Fax #: 514-353-7819
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
The Intended
Maximum Weight
is 100 LBS
Page 14
MODEL #: DA6921
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity (Please be sure to list model number or SKN number):
Customer Service
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Email: [email protected]
Customer Service Phone Number 1-800-295-1980
Customer Service Fax Number 514-353-7819
Customer Service Representative Mailing Address:
