Page 1
Model No:
DA3759 (ESPRESSO)
DA3759-BK (BLACK)
UPC CODE:
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
___________________
Date of purchase:
_______ / _______ / _______
DOREL ASIA
0-65857-16560-9 (ESPRESSO)
0-65857-16561-6 (BLACK)
PARSONS CHAIR
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
E-Mail: [email protected]
Fax #: 514-353-7819
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
Page 2
*
*
*
*
*
*
Estimated assembly time: 10 minutes.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service
representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model
number, color and a detailed description of the part.
E-MAIL: [email protected]
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada H1G 3L1
NOTES
Ensure all parts and components are present before beginning assembly.
Assemble on a soft, smooth surface to prevent damage to product finish.
DO NOT use power tools.
CAUTION: Adult assembly required.
Assembly and handling will require two people.
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT USE.
Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to
remedy any such defect. This warranty covers 1 year from the date of original purchase. This
warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair
or replacement of defective furniture components and no assembly labor is included. This
warranty does not apply to any product which has been improperly assembled, subjected to
misuse or abuse or which has been altered or repaired in any way. Any wearing, tearing, fading or
splitting of the leather is not covered under the warranty. This warranty gives you specific legal
rights and you may also have other rights which vary from State to State.
CARE AND CLEANING
Dust regularly with a clean, dry cloth to avoid soil build-up. A damp cloth may be used
occasionally to clean surface. Buff dry. Keep leather soft and supple by applying a leather care
product occasionally. Avoid contact with oil, furniture polish and varnish.
MAINTENANCE
Page 3
HARDWARE LIST
1 2 3
4 5
6
PARTS LIST
A B C
1 PC
BACK FRAME
1 PC
SEAT FRAME
1 PC
FRONT LEG
2 PCS
HEX SOCKET HEAD BOLT
HEX SOCKET HEAD BOLT
4 PCS
4 PCS
M5 X 64mm
ALLEN KEY
Ø5/16" X 3-1/4"
Ø5/16" X 2-1/4"
10 PCS
Ø16 X 1.2mm
SPRING WASHER
10 PCS
PARSONS CHAIR
DA3579 / DA3759-BK
HEX SOCKET HEAD BOLT
2 PCS
FLAT WASHER
Ø5/16" X 1-3/4"
Ø22 X 1.8mm
Page 4
PARSONS CHAIR
DA3759 / DA3759-BK
NOTE: Do not fully tighten the bolts.
STEP 1
Place back frame (A) on a clean, smooth surface.
Remove the fabric lining underneath seat frame (B).
Attach the seat frame (B) to back frame (A) with flat washers (2), spring washers (3) and
hex socket head bolts (1) through the center of the seat frame (B).
Use Allen Key (6) to tighten the bolts.
A
B
1
2
3
6
2 3 1
Page 5
PARSONS CHAIR
DA3759 / DA3759-BK
STEP 2

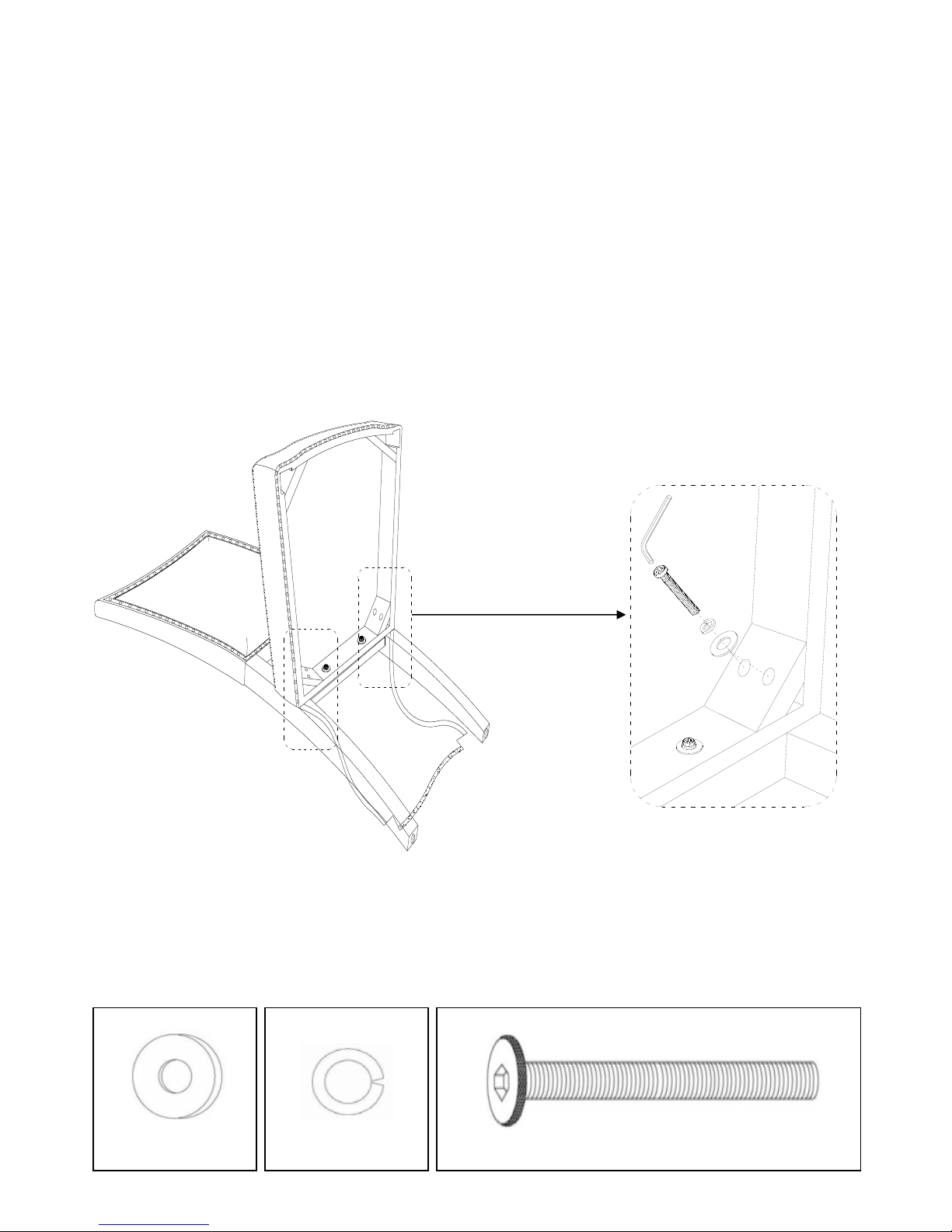

Secure seat frame (B) to back frame (A) with flat washers (2), spring washers (3) and hex
socket head bolts (4).
Use Allen Key (6) to tighten the bolts.
NOTE: Do not fully tighten the bolts.
2
A
B
6
4
3
2
4
3
Page 6
PARSONS CHAIR
DA3759 / DA3759-BK
STEP 3

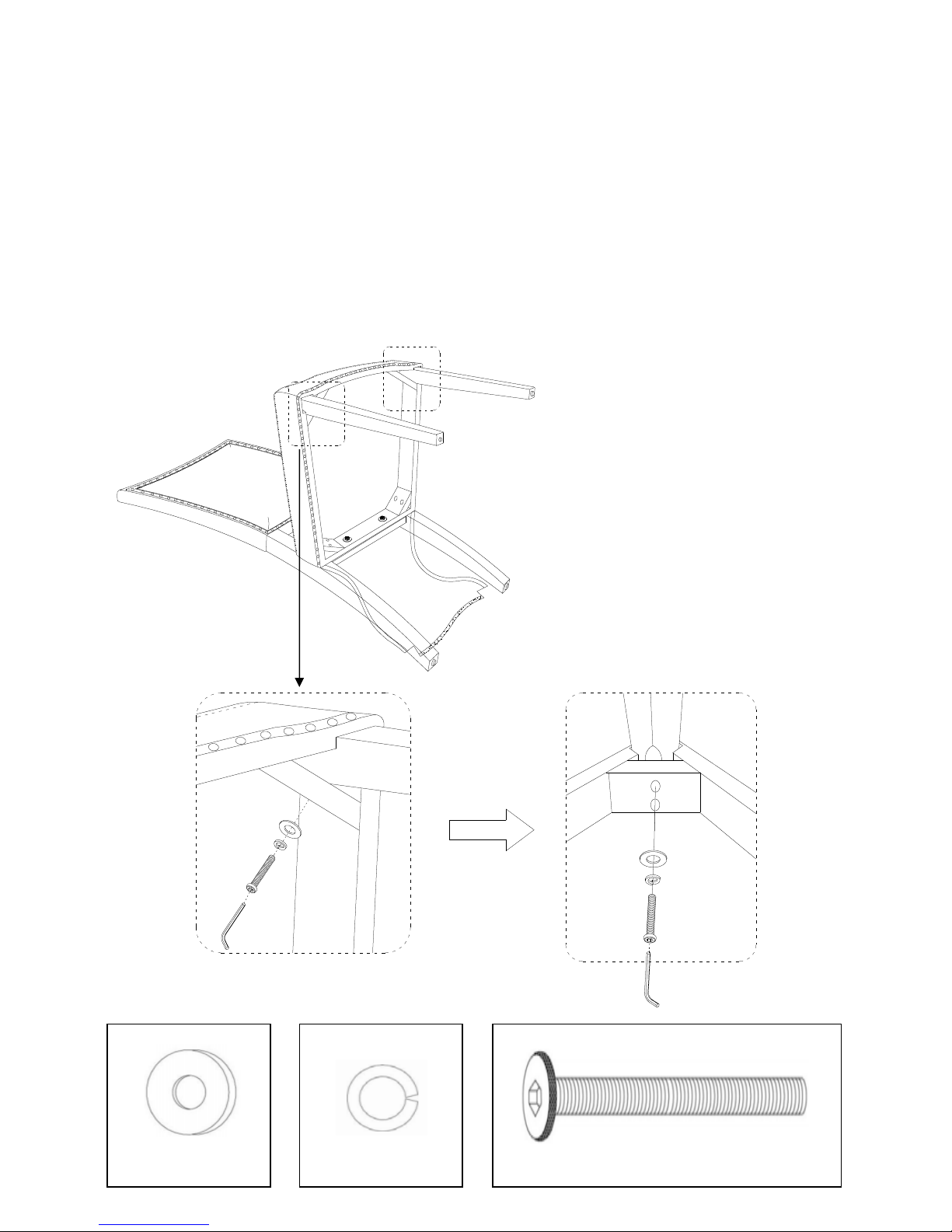

Attach front legs (C) to seat frame (B) with flat washers (2), spring washers (3) and hex
socket head bolts (5). Use Allen Key (6) to tighten the bolts.
Place the fabric lining back into place.
Note: Tighten all bolts previously installed.
2
3
C
C
B
A
6
5
3
2
5
Page 7
PARSONS CHAIR
DA3759 / DA3759-BK
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
That's it ! You've finished assembling your chair.
Maximum Weight = 225lbs
Dust regularly with a clean, dry
cloth to avoid soil build-up. A
damp cloth may be used
occasionally to clean surface.
Buff dry. Keep leather soft and
supple by applying a leather
care product occasionally.
Avoid contact with oil,
furniture polish and varnish.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
E-Mail: [email protected]
Fax #: 514-353-7819
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
Page 8
MODEL #: DA3759 / DA3759-BK
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity (Please be sure to list model number or SKN number):
Customer Service
Customer Service Phone Number 1-800-295-1980
Customer Service Fax Number 514-353-7819
Customer Service Representative Mailing Address:
Email: [email protected]
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
