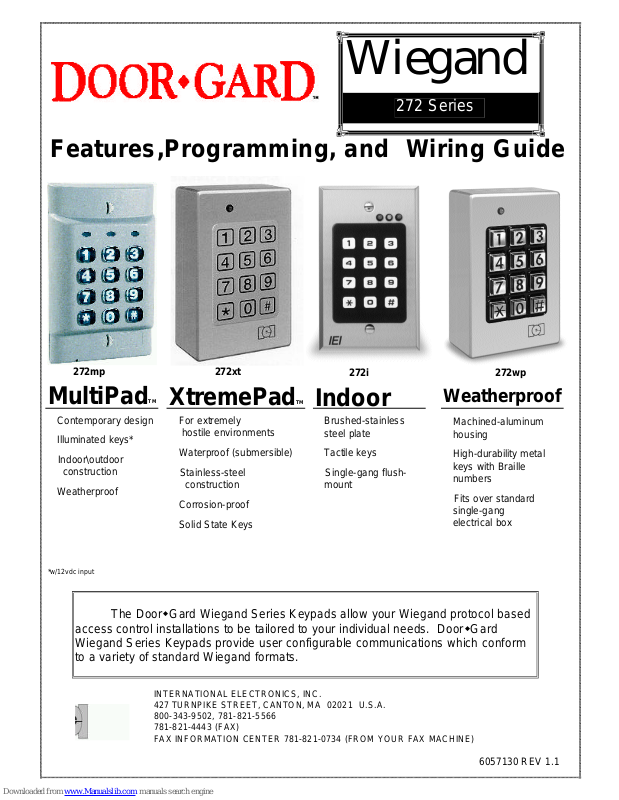

l l Contemporary design
l l Illuminated keys*
ll Indoor\outdoor
construction
l l Weatherproof
*w/12vdc input
TM
XtremePad
l l For extremely
hostile environments
l l Waterproof (submersible)
ll Stainless-steel
construction
l l Corrosion-proof
l l Solid State Keys
TM
Indoor
l l Brushed-stainless
l l Tactile keys
ll Single-gang flush-
272i272wp
Weatherproof
l l Machined-aluminum
steel plate
mount
housing
l l High-durability metal
keys with Braille
numbers
ll Fits over standard
single-gang
electrical box
The DoorwGard Wiegand Series Keypads allow your Wiegand protocol based
access control installations to be tailored to your individual needs. DoorwGard
Wiegand Series Keypads provide user configurable communications which conform
to a variety of standard Wiegand formats.
INTERNATIONAL ELECTRONICS, INC.
427TURNPIKE STREET, CANTON,MA 02021 U.S.A.
800-343-9502, 781-821-5566
781-821-4443 (FAX)
FAX INFORMATION CENTER 781-821-0734 (FROM YOUR FAX MACHINE)
6057130 REV 1.1
1
2
TESTING THE KEYPAD
1. Connect the positive (=) lead of your 5 or 12VDC
power supply from the control panel to the terminal
(TS1) =V input.
2. Connect the negative (-) lead of your 5 or 12VDC
power supply from the control panel to the terminal strip
(TS1) -V input.
3. Turn on power supply.
4. Enter Self Test Mode: Press 7890#123456*. The
leds will light sequentially, and the sounder will beep 3
times. This tests all 12 keys on the keypad, and verifies proper circuit functioning.
NOTE:
The keypad may be programmed in your shop or at the
installation site. Programmed information is stored in
non-volatile so it will not be lost.
WIEGAND SERIES
DEFAULTS
The DoorwGard Wiegand Series keypads are
designed for easy installation in a minimum amount of
time. The following defaults have been factory programmed.
Yellow LED feedback on keypress:ON
Red LED :Enabled
Red LED activates when line is pulled: Low
Green LED:Enabled
Green LED activates when line is pulled: High
Wiegand format:26 bit
If defaults must be changed or additional functions are
desired, please refer to the PROGRAMMINGOPTIONSchart after you are familiar with the
PROGRAMMINGsection.
2. To change master code
Press 1 # (new master code) *Flashes fast
Press (new master code)
3. Exit programming mode
Press
NOTES:
•1The Wiegand series DoorwGards are factory pro-
grammed with a master code of 1234
•2Some DoorwGard products contain a sounder in
place of the yellow LED. In these products the
flashing is replaced by a beeping.
• 3 The master code is always user 1.
•The master code allows access to the
programming mode.
•All codes must be followed by the
•Master code may be from 1-6 digits in length,
and digits may be repeated.
•If the master code is forgotten or does not
seem to be working, momentarily push SW1
to enter programming mode and begin at step 2
above (see wiring diagram for location).
•If the yellow LED lights solid while in program
ming mode an error has occurred. Press *to clear
(yellow LED should flash) and start over from
step 2 or 3 above.
•Access code programming is done at the control
panel
•If LED does not change states, a “ pull-up “
resistor may be required. Using a 10kΩ ¼w
resistor, connect one end to V+ @ the control
panel and to Led @ the control panel.
•All Wiegand control panels are not the same,
Contact IEI for an updated list of qualified Wiegand
panels that have been tested and are known to be
compatible with IEI’s Wiegand 272 series keypads.
*
3
Flashes slowly
*
Out
*.
*.
6057130 REV 1.1
PROGRAMMING OPTIONS CHART
3
If the pre-programmed default values must be changed
or additional functions are desired, the following options may be programmed.
1. Enter programming mode Press99 # (master code)
2.Auto entry on (no * required)Press30 # 2 # 1 # * *
Green LED activates when line is pulled lowPress31 # 4 # 0 # * *
Green LED activates when line is pulled highPress31 # 4 # 1 # * *
Red LED activates when line is pulled lowPress31 # 2 # 0 # * *
Red LED activates when line is pulled highPress31 # 2 # 1 # * *
Green LED enablePress31 # 3 # 1 # * *
Green LED disabledPress31 # 3 # 0 # * *
Red LED enablePress31 # 1 # 1 # * *
Red LED disabledPress31 # 1 # 0 # * *
Yellow LED feedback on keypress enabledPress31 # 0 # 1 # * *
Yellow LED feedback on keypress disabledPress31 # 0 # 0 # * *
11.Set Group IDPress65 # 0 # (group id number) # * *
12.Exit Program ModePress
The Wiegand format, group ID, and site number is specified by the host access control system and should be deter-
mined prior to programming your DoorwGard Wiegand keypad.
There are 8 different wiegand formats supported by the DoorwGard Wiegand Series keypads. The wiegand format is
set through command 63 and must be selected prior to programming the Site Number or Group ID. The user can set up
the Site Number through command 64. The exact range for a valid Site Number is determined by the Wiegand format
which is why it must be selected first.
*
*
Some of the Wiegand formats have a Group ID embedded in their frames. Command 65 is used to set up the Group
IDs. As with the Site Numbers, the valid ranges for Group ID entries are based on the Wiegand format. If the yellow led
glows steady after entering this command, there are two possible problems. Either the current format does not support
Group IDs or the ID entered is invalid. A table showing the valid ranges for Site Numbers and Group IDs based on the
various formats is presented below.
Current Draw
@ 5VDC - 13.2ma MAX
@12VDC- 38.2ma MAX
BASIC WIEGAND CONTROL PANEL
272i
+ - DA0 DA1 LD1 LD2
SW1
P1
To
Control
Panel
SW1
272MP- No backlighting if
Weigand panel power outputs 5v to Weigand reader. A separate (12vdc)
supply will be needed with
a common ground
between keypad and
Weigand panel.
P1- On = Backlit enabled
(12vdc only)
Off = Backlit disabled
Current Draw
@ 5VDC - 4.6ma MAX
@12VDC- 11.4ma MAX
r
red LED
b
r
green LED
b
r
yellow LED
b
+ DA0 DA1 LED
272xt
red
black
white\yellow
black\white
P1
P2
SW1
+ DA0 DA1 LED
To
Control
Panel
272wp
Bi-color
LED
+ - DA0 DA1 LD1 LD2
red
black
+ - DA0 DA1 LD1 LD2
To
Control
Panel
SOUNDER
SW1
To
Control
Panel
red
black
Current Draw
@ 5VDC - 9.9ma MAX
@12VDC- 16.9ma MAX
If LED does not change states, a “ pull-up “
resistor may be required. Using a 10kΩ Ω ¼w
resistor, connect one end to V+ and the other end
to Led @ the control panel.
If this product does not seem to operate properly, please call
our Technical Department toll free at 1-800-343- 9502 (781-821-5566)
Monday -Friday 8:00 am-7:00 pm EST.
We understand your time is valuble, and we know that calling
our Technical Support Department will ensure that you’ll make the most
profit possible with your IEI product. Thank you for your purchase. We
appreciate your business.
