INSTALLATION AND OPERATING INSTRUCTIONS
HDEE
HDEEM
d
o
m
u
s
a
d
o
m
u
s
a
ER-0170/1996ER-0170/1996
CGM-04/392
Thank you for choosing a DOMUSA TEKNIK electric boiler. From the
range of DOMUSA TEKNIK's products you have chosen the HDEE
model. With a suitable hydraulic installation, this boiler will provide the
ideal level of comfort for your home.
This manual forms an essential part of the product and it must be
given to the user. Read the warnings and recommendations in the
manual carefully, as they contain important information on the safety,
use and maintenance of the installation.
These boilers are to be installed by qualified personnel only, following
the manufacturer’s instructions.
Only DOMUSA TEKNIK’s Authorised Technical Assistance Services are
authorised to start up these boilers and carry out any maintenance
operations.
The manufacturer will hold no liability in case of damage to people,
animals or property caused by incorrect installation of these boilers.
1
CONTENTS Page
1 LIST OF COMPONENTS.....................................................................................................................................................................2
2 CONTROL COMPONENTS................................................................................................................................................................ 3
3 IMPORTANT INFORMATION............................................................................................................................................................4
3.1 WHO THIS BOOKLET IS FOR.................................................................................................................................................................. 4
3.2 RECOMMENDATIONS ...........................................................................................................................................................................4
3.3 APPLICABLE LEGISLATION....................................................................................................................................................................4
3.4 WARNINGS............................................................................................................................................................................................ 4
4 INSTALLATION INSTRUCTIONS......................................................................................................................................................5
4.1 HYDRAULIC INSTALLATION ..................................................................................................................................................................6
4.2 ELECTRICAL INSTALLATION..................................................................................................................................................................6
5 FIRST START-UP...................................................................................................................................................................................7
5.1 FILLING THE INSTALLATION .................................................................................................................................................................7
5.2 CHECKING THE CIRCULATING PUMP FUNCTIONING...........................................................................................................................7
5.3 BLEED THE AIR FROM THE INSTALLATION...........................................................................................................................................7
6 INSTALLATION DELIVERY.................................................................................................................................................................7
6.1 OBSERVATIONS..................................................................................................................................................................................... 7
7 OPERATION...........................................................................................................................................................................................7
7.1 POWER SETTING SELECTION.................................................................................................................................................................7
7.2 TEMPERATURE SELECTION...................................................................................................................................................................7
8 FUNCTIONING WITH TIMER (OPTIONAL)...................................................................................................................................8
9 SWITCHING OFF THE BOILER.......................................................................................................................................................... 8
10 BOILER MAINTENANCE.................................................................................................................................................................. 8
10.1 SAFETY DEVICE MAINTENANCE......................................................................................................................................................... 8
10.2 RECOMMENDATIONS.........................................................................................................................................................................8
11 DIAGRAMS AND MEASUREMENTS.............................................................................................................................................9
12 CIRCULATING PUMP FLOW CURVES.......................................................................................................................................10
13 TECHNICAL CHARACTERISTICS.................................................................................................................................................11
14 ELECTRICAL DIAGRAM.................................................................................................................................................................12
14.1 CONTROL DIAGRAM.........................................................................................................................................................................12
14.2 POWER DIAGRAM.............................................................................................................................................................................14
14.3 POWER CABLE DIMENSIONS............................................................................................................................................................16
14.4 CHANGING THE VOLTAGE................................................................................................................................................................16
14.5 CHANGING THE BOILER POWER.......................................................................................................................................................16
15 ELECTRICAL CHARACTERISTICS................................................................................................................................................17
16 SPARE PARTS LIST..........................................................................................................................................................................20
16.1 HDEE 45/90, 10/15, 180............................................................................................................................................................20
16.2 HDEE 210.......................................................................................................................................................................................21
16.3 HDEEM 45/90, 10/15, 180.........................................................................................................................................................22
16.4 HDEEM 210...................................................................................................................................................................................23
16.5 MAIN BOARD....................................................................................................................................................................................24
17 BOILER SECURITY SYSTEMS........................................................................................................................................................25
17.1 BOILER TEMPERATURE SAFETY LOCKING........................................................................................................................................25
17.2 LOW PRESSURE LOCKING.................................................................................................................................................................25
18 GENERAL WARRANTY CONDITIONS........................................................................................................................................25
HDEE / HDEEM
2
1 LIST OF COMPONENTS
HDEE
1
4
5
2
3
7
6
7
3
2
5
4
1
6
HDEEM
1
2
3
4
5
6
7
3
4
5
7
6
1
2
1. Modular control.
2. Expansion vessel.
3. Automatic air vent.
4. Pressure switch.
5. Heating Element.
6. Heating pump.
7. Pressure relief valve.
3
2 CONTROL COMPONENTS
12 3 456
1. Safety thermostat “E”:
This is a cut-out mechanism to ensure the
boiler temperature does not exceed 110 ºC.
2. Timer (Optional) “q”:
This is an optional element. It can time either
weeks or days and it enables selection of the
heating switch-on and switch-off cycles.
3. Thermohydrometer:
This indicates the temperature and pressure
of the heating circuit.
4. Boiler control thermostat:
Allows to select the desired boiler set point
temperature to be selected, deactivating the
element when the set point temperature is
reached or keeping it functioning until this is
the case.
5. Main switch “i”:
This is for switching the boiler on and off.
6. Power selectors "I", "II":
These enable the desired heating power
stage to be selected. Each stage corresponds
to half power. Maximum power is obtained
when both switches are on.
HDEE / HDEEM
4
3 IMPORTANT INFORMATION
3.1 Who this booklet is for
This instruction booklet is for use by the boiler user and installer.
3.2 Recommendations
The installation must be made by a qualified technician.
The installation must be made in accordance with applicable law.
Failure to comply with these operating and control procedure instructions may give rise to personal
injury and risk of environmental pollution.
It is recommended to have a qualified technician carry out yearly maintenance of the boiler.
In case of anomaly, please contact the installer.
Before carrying out boiler maintenance, it is essential to cut off the electricity supply.
Users must not access internal boiler components or control components.
3.3 Applicable legislation
It is essential to observe the laws in force regarding electric boiler installation.
3.4 Warnings
This manual forms an integral part of the appliance it refers to and must be given back to the user.
Boiler installation and maintenance must be carried out by qualified technicians, in accordance
with applicable legislation.
DOMUSA TEKNIK shall hold no liability for any damages caused by incorrect installation or incorrect
use of the appliance or accessories.
- DOMUSA TEKNIK reserves the right to modify the technical characteristics and components
of its products without prior notice.
- The availability of certain models and their accessories may vary according to the market.
5
5
0
0
5
0
0
5
0
0
4
0
0
2
0
0
4 INSTALLATION INSTRUCTIONS
Fitting measurements
HDEEM HDEE
Wall mounting system (for HDEEM)
300±15 mm
HDEE / HDEEM
6
4.1 Hydraulic installation
Choose a location complying with the conditions required by applicable law.
If the boiler is located on a lower level than any of the heating water pipes, it is recommended to fit
shut-off valves to the flow and return pipes, to avoid having to drain the installation when
maintenance work is carried out on the boiler.
Before connecting the boiler hydraulically, thoroughly clean the pipes.
Remember to provide for a fill valve connected to the flow or return heating circuit.
4.2 Electrical installation
Ensure the voltage in the home is the same as that indicated for the boiler. Make the electrical
connections in accordance with the electrical diagrams shown in this manual.
We recommend installing a main switch on the power lines enabling all supply phases to the boiler
to be cut off. A neutral phase is required to connect the boiler at 400 V 3N~ .
The boiler must be installed by a qualified technician, observing the applicable legislation. It must
be connected to a heating circuit or domestic hot water network in accordance with its features
and power.
HDEE HDEEM
Main supply
g
land
Thermostat
gland
Thermostat
gland
Main supply
g
land
7
5 FIRST START-UP
5.1 Filling the installation
Use a filling valve to fill the installation slowly until the pressure shown on the thermohydrometer is
between 1 - 1.5 bar.
5.2 Checking the circulating pump functioning
Unscrew the circulating pump cap so that the rotation shaft is visible. Connect the boiler main
switch and check if the pump shaft is turning. Screw the cap back on.
If the shaft is not turning, switch off the boiler main switch and use a suitable screwdriver to turn
the pump shaft in both directions to unblock it. Turn on the main switch again and check the shaft
is turning. Screw the cap back on.
5.3 Bleed the air from the installation
Connect the boiler main switch and drain the air from the installation and the boiler using the air
vent valves provided in the installation and on the boiler.
6 INSTALLATION DELIVERY
The installer will explain how the boiler functions to the user, making all necessary observations such
as how to fill, bleed and drain the boiler.
6.1 Observations
If the boiler does not start up when you have checked that the power is reaching it, the installation
is filled with water at the correct pressure, the circulating pump is turning and the boiler has not
been cut out by the safety circuit breaker, turn off the main switch and contact the installer.
7 OPERATION
7.1 Power setting selection
The total power to the boiler may be reduced by half, using the half-power switches on the control
panel. When both switches are connected, the boiler will function at maximum power.
7.2 Temperature selection
This is done using the control thermostat command on the control panel. Turn it clockwise for a
higher temperature, or anticlockwise for a lower temperature. When the selected temperature is
reached, it will automatically be kept constant by the thermostat.
To regulate the room temperature you will need to install a room thermostat. This thermostat
switches off the boiler when the selected temperature is reached, and starts it up again when the
temperature drops.
The boiler is pre-wired for connection of a room thermostat. To do this, remove the bridge from the
connector block and connect the room thermostat.
HDEE / HDEEM
8
8 FUNCTIONING WITH TIMER (OPTIONAL)
The boiler may optionally be supplied with a timer, which can be fitted to the main control panel. Both
the boiler and the timer are equipped with a quick fixing system using the 12-way connector
(X12)
shown on the electrical diagram. The procedure for this is described in the installation and operating
instructions enclosed with the timer.
9 SWITCHING OFF THE BOILER
To totally switch off the boiler, turn the main switch to “O”.
10 BOILER MAINTENANCE
10.1 Safety device maintenance
Check the thermostats and safety devices are working correctly.
Check the heating circuit pressure relief valves, and the domestic hot water circuit if applicable.
10.2 Recommendations
Boiler maintenance is recommended at least once a year.
Maintenance must be carried out by qualified technicians.
To keep the boiler in perfect working order, a yearly overhaul must be performed by DOMUSA
TEKNIK’s authorised personnel.
- It is recommendable to exhaustively check the boiler once a year.
- The installation pressure should be kept at 1 - 1.5 bar.
9
11 DIAGRAMS AND MEASUREMENTS
HDEE
120
100
540
1501655085330450
180
760
IC
V
SRC
V
HDEEM
300330450
175
640
IC
V
SRC
155 40
V
S
RC
40IC120
IC: Heating Output, HDEEM 1" F, HDEE 3/4" M.
RC: Heating Return, HDEEM 3/4" M, HDEE 1" F.
VS: Pressure relief valve, 1/2" F.
V: Drain valve, 1/2" M.
HDEE / HDEEM
10

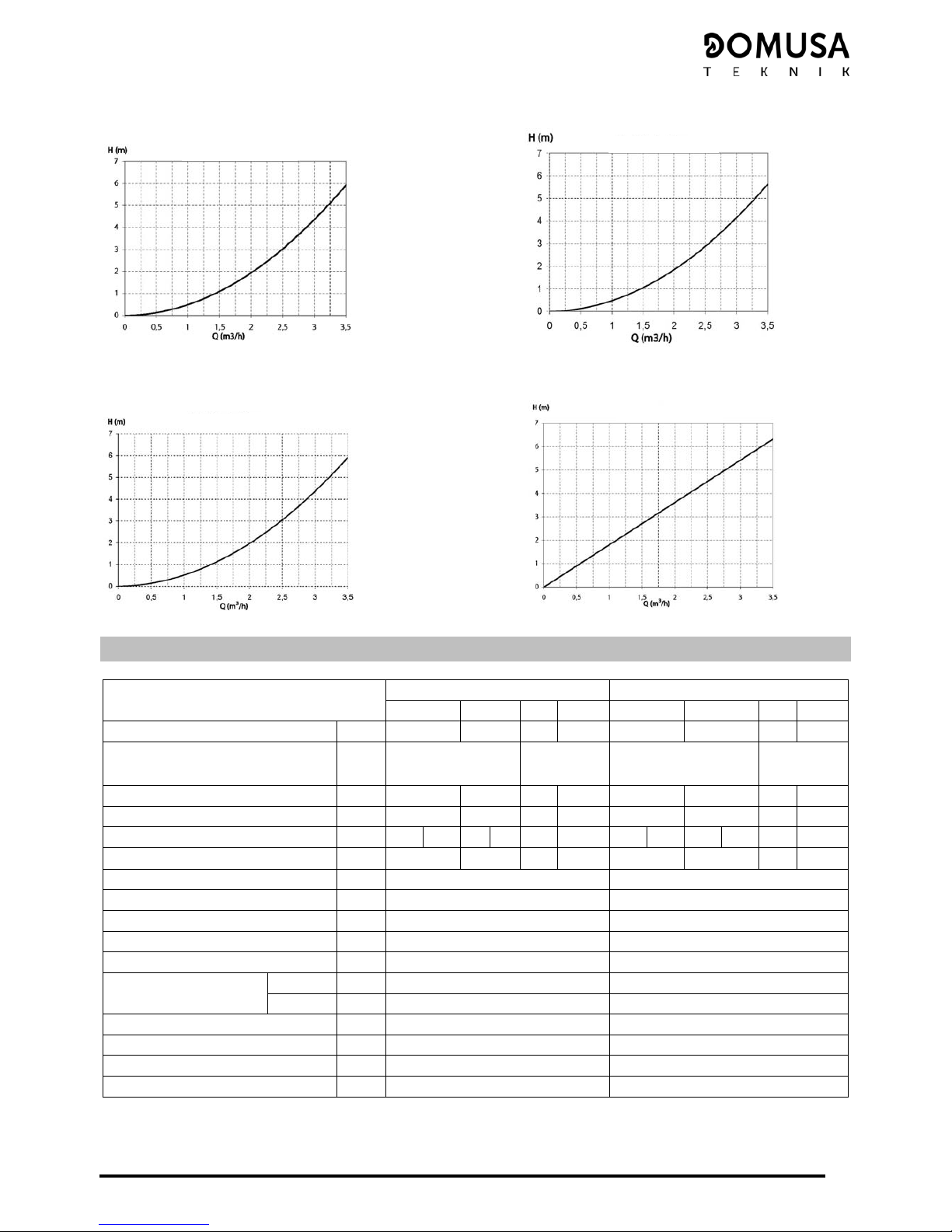

12 CIRCULATING PUMP FLOW CURVES
The graphs below can be used to obtain the hydromotive pressure available in the installation at the
boiler output, taking the boiler pressure drop and pump functioning curves into account. These
graphs show three curves, corresponding to the three speeds of the circulating pumps and the boiler
pressure drop.
1-Constant speed I, II, III (traditional mode):
The pump operates at a constant, pre-set speed.
I
II
III
Min.
2-Variable differential pressure (∆p-v):
The setpoint value of the differential pressure H increases in a straight line between ½H and H
within the permitted flow margin. The differential pressure generated by the pump is
adjusted to the appropriate setpoint value of differential pressure.
Min.
11
HDEE 45/90 - 10/15 - 180: HDEE
Pressure Drop
Pressure Drop
HDEEM 45/90 - 10/15 - 180: HDEEM 210:
Pressure Drop
Pressure Drop
13 TECHNICAL CHARACTERISTICS
HDEE HDEEM
MODEL
45/90 10/15 180 210 45/90 10/15 180 210
Power kW 4.5-9 10.5-15 18 21 4.5-9 10.5-15 18 21
Main supply voltage V
230 V~
230 V 3~
400 V 3N~
400 V 3N~
230 V~
230 V 3~
400 V 3N~
400 V 3N~
Element type kW 6x1.5 6x2.5 6x3 6x1.75 6x1.5 6x2.5 6x3 6x1.75
Number of elements - 1 1 1 2 1 1 1 2
Water pressure drop mH2O 0.02 0.08 0.1 0.2 0.30 0.38 0.02 0.08 0,11 0,22 0,31 0,46
Resistance value of heating element
Ω
35.2 21.1 17.6 30.2 35.2 21.1 17.6 30.2
Expansion vessel volume Litres 7.5 7.5
Maximum operating pressure bar 3 3
Minimum operating pressure bar 0.6 0.6
Maximum operating temperature ºC 90 90
Maximum safety temperature ºC 110 110
Output 3/4" M 1" F
Heating connection
Return 1" F 3/4" M
Height mm 760 640
Width mm 450 450
Depth mm 330 330
Weight Kg 51 43
HDEE / HDEEM
12

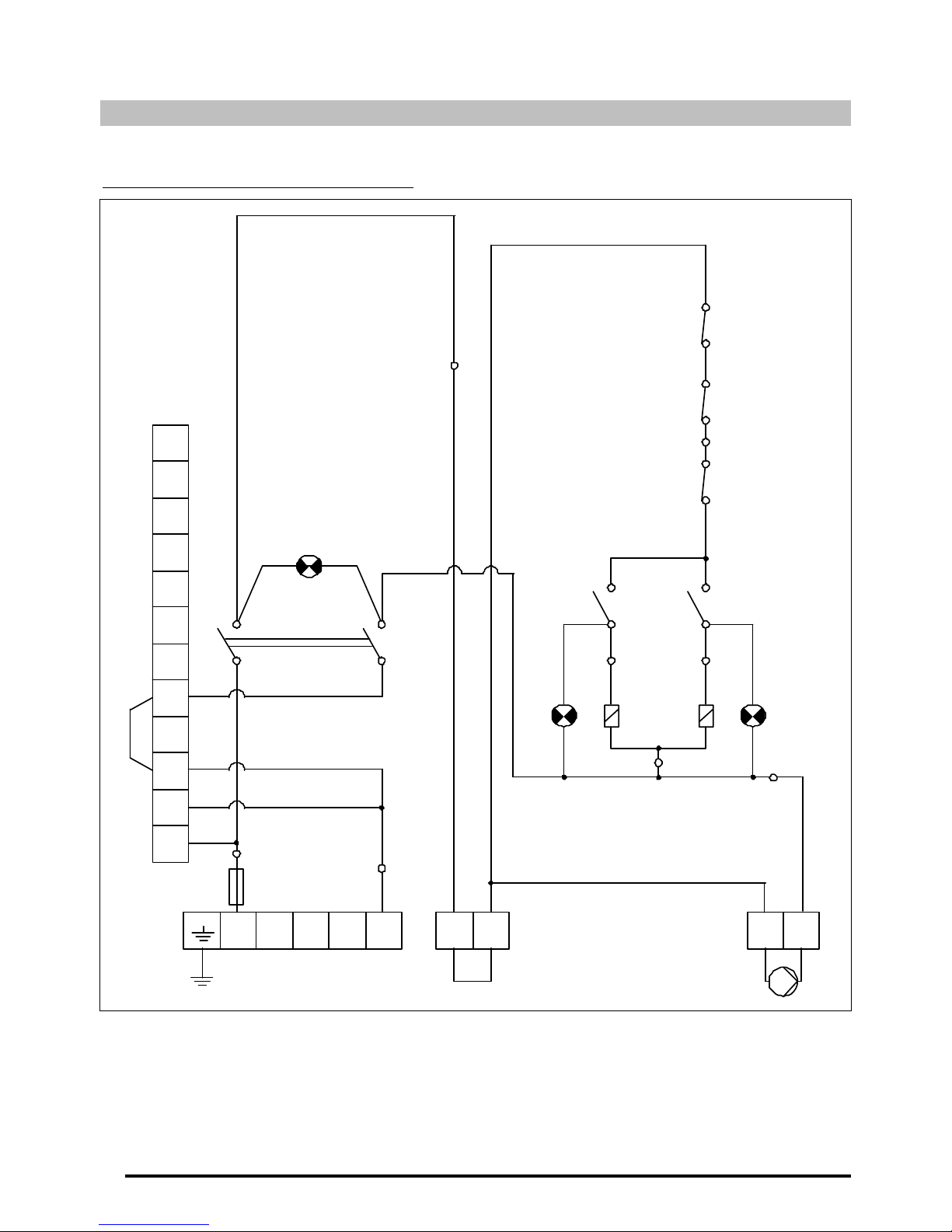

14 ELECTRICAL DIAGRAM
14.1 Control diagram
HDEE-HDEEM 45/90, HDEE-HDEEM 10/15
0 1 L1 L2 L
3
O O
TA
P
1/ 2
C1 C
2
P
1/2
TC
C
1
TS
C
2
P
C
2
F
4
7
6
2
3
I
G
P
ON
I
1/2
I
1/ 2
1
5
9 10 11 12 5 6 7 8 1 2 3 4
X12
O O
B
C
9
BC: Heating pump.
TA: Room thermostat.
F: Fuse.
X12: 12-way connector for timer (Optional).
I
G
: Main switch.
I
1/2
: Half-power switch.
P
ON
: On pilot light.
P
1/2
: ½ power pilot light.
TC: Heating control thermostat.
TS: Heating safety thermostat.
P: Pressure switch.
C1, C2: Heating contactors.
13
HDEE-HDEEM 180, HDEE-HDEEM 210
0 1 L1 L2 L
3
O O
TA
P
1/ 2
C1 C
2
P
1/2
TC
C
1
TS
C
2
P
C
2
F
4
7
6
2
3
I
G
P
ON
I
1/2
I
1/ 2
1
5
9 10 11 12 5 6 7 8 1 2 3 4
X12
O O
B
C
9
BC: Heating pump.
TA: Room thermostat.
F: Fuse.
X12: 12-way connector for timer
(Optional).
I
G
: Main switch.
I
1/2
: Half-power switch.
P
ON
: On pilot light.
P
1/2
: ½ power pilot light.
TC: Heating control thermostat.
TS: Heating safety thermostat.
P: Pressure switch.
C1, C2: Heating contactors.
HDEE / HDEEM
14
14.2 Power diagram
HDEE-HDEEM 45/90, HDEE-HDEEM 10/15
O 1 L1 L2 L
3
a b
R1
R3
R5
R
2
R
4
R
6
B
C
A
C1 C
2
P1 P
2
C1, C2: Heating contactors.
P1, P2: Heating element units.
A, B, C: Bridges for heating power selection.
15
HDEE-HDEEM 180, HDEE-HDEEM 210
N
L1 L2 L
3
R1
R3
R5
R
2
R
4
R
6
C1 C
2
P1 P
2
C1, C2: Heating contactors.
P1, P2: Heating element units.
HDEE / HDEEM
16
14.3 Power cable dimensions
The size of the power cables should correspond to the type and calibre of the fuse, which should be
chosen according to the boiler’s nominal current. The installation must comply with applicable
legislation in all cases.
The permissible current for the electric cabling depends on the room temperature, the diameter,
length and insulation of the conductors, the type of conduit and the conduit fitting and
environment. The table below shows the approximate values for a room temperature of 30 ºC and a
maximum length of 5 metres. The installation must comply with applicable legislation in all cases.
Nominal section (mm) Nominal circuit breaker current (A)
1.5 16
2.5 25
4 32
6 40
10 63
16 80
14.4 Changing the voltage
If the main supply voltage is different from the voltage the boiler is designed for, the boiler must be
adapted to the new voltage. To do this, before connecting the boiler to the main supply, change
the position of the terminal strip bridges as shown in the figures below (models HDEE-HDEEM
45/90 and HDEE-HDEEM 10/15 only).
To remove a bridge, loosen the screws holding it in place and then pull it out of its housing. Repeat
the above procedure in reverse order to replace it.
When the bridges are correctly positioned, connect the electrical supply to the boiler as shown in
the corresponding figure. Remember to make an earth connection.
O 1 L
1
L2L
3
N L1 L2L
3
400 V 3N~
O 1 L
1
L2L
3
L
2
L
1
L
3
230 V
O 1 L
1
L2L
3
N L
230 V~
14.5 Changing the boiler power
HDEE-HDEEM 45/90 and HDEE-HDEEM 10/15 boilers allow the maximum boiler heating power to
be altered to suit your requirements. To do this, simply remove some of the heat exchanger
element bridges as shown in the table below.
Total power according to
model (kW)
45/90 10/15
Bridges
9 15 Leave in place
7.5 12.5 Remove A
6 10 Remove A and B
4.5 - Remove A, B and C
17
15 ELECTRICAL CHARACTERISTICS
HDEE/HDEEM 45/90
Stage 1 Stage 2 Total Terminal strip Power selection
Single phase 230 V~, 9 kW
Terminal L3
L (A)
19.5 19.5 39.1
Terminal 0
N (A)
19.5 19.5 39.1
Power
kW
4.5 4.5 9
O 1 L1 L2 L3
N L
C
B
A
Single phase 230 V~, 7.5 kW
Terminal L3
L (A)
19.5 13 32.5
Terminal 0
N (A)
19.5 13 32.5
Power
kW
4.5 3 7.5
O 1 L1 L2 L3
N L
C
B
Single phase 230 V~, 6 kW
Terminal L3
L (A)
13 13 26
Terminal 0
N (A)
13 13 26
Power
kW
3 3 6
O 1 L1 L2 L3
N L
C
Single phase 230 V~, 4.5 kW
Terminal L3
L (A)
13 6.5 19.5
Terminal 0
N (A)
13 6.5 19.5
Power
kW
3 1.5 4.5
O 1 L1 L2 L3
N L
Three-phase 400 V 3N~, 9 kW
Terminal L1
L1 (A)
6.5 6.5 13
Terminal L2
L2 (A)
6.5 6.5 13
Terminal L3
L3 (A)
6.5 6.5 13
Terminal 0
N (A)
0 0 0
Power
kW
4.5 4.5 9
O 1 L1 L2 L3
N L1 L2 L3
C
B
A
Three-phase 400 V 3N~, 7.5 kW
Terminal L1
L1 (A)
6.5 6.5 13
Terminal L2
L2 (A)
6.5 6.5 13
Terminal L3
L3 (A)
6.5 0 6.5
Terminal 0
N (A)
0 6.5 6.5
Power
kW
4.5 3 7.5
O 1 L1 L2 L3
N L1 L2 L3
C
B
Three-phase 400 V 3N~, 6 kW
Terminal L1
L1 (A)
0 6.5 6.5
Terminal L2
L2 (A)
6.5 6.5 13
Terminal L3
L3 (A)
6.5 0 6.5
Terminal 0 N (A) 6.5 6.5 6.5
Power
kW
3 3 6
O 1 L1 L2 L3
N L1 L2 L3
C
Three-phase 400 V 3N~, 4.5 kW
Terminal L1
L1 (A)
0 6.5 6.5
Terminal L2
L2 (A)
6.5 0 6.5
Terminal L3
L3 (A)
6.5 0 6.5
Terminal 0
N (A)
6.5 6.5 0
Power
kW
3 1.5 4.5
O 1 L1 L2 L3
N L1 L2 L3
HDEE / HDEEM
18
HDEE/HDEEM 10/15
Stage 1 Stage 2 Total Terminal strip Power selection
Single phase 230 V~, 15 kW
Terminal L3
L (A)
32.6 32.6 65.2
Terminal 0
N (A)
32.6 32.6 65.2
Power
kW
7.5 7.5 15
O 1 L1 L2 L3
N L
C
B
A
Single phase 230 V~, 12.5 kW
Terminal L3
L (A)
32.6 21.7 54.3
Terminal 0
N (A)
32.6 21.7 54.3
Power
kW
7.5 5 12.5
O 1 L1 L2 L3
N L
C
B
Single phase 230 V~, 10 kW
Terminal L3
L (A)
21.7 21.7 43.4
Terminal 0
N (A)
21.7 21.7 43.4
Power
kW
5 5 10
O 1 L1 L2 L3
N L
C
Three-phase 400 V 3N~, 15 kW
Terminal L1
L1 (A)
10.85 10.85 21.7
Terminal L2
L2 (A)
10.85 10.85 21.7
Terminal L3
L3 (A)
10.85 10.85 21.7
Terminal 0
N (A)
0 0 0
Power
kW
7,5 7,5 15
O 1 L1 L2 L3
N L1 L2 L3
C
B
A
Three-phase 400 V 3N~, 12.5 kW
Terminal L1
L1 (A)
10.85 10.85 21.7
Terminal L2
L2 (A)
10.85 10.85 21.7
Terminal L3
L3 (A)
10.85 0 10.85
Terminal 0
N (A)
0 10.85 10.85
Power
kW
7.5 5 12.5
O 1 L1 L2 L3
N L1 L2 L3
C
B
Three-phase 400 V 3N~, 10 kW
Terminal L1
L1 (A)
0 10.85 10.85
Terminal L2
L2 (A)
10.85 10.85 21.7
Terminal L3
L3 (A)
10.85 0 10.85
Terminal 0 N (A) 10.85 10.85 10.85
Power
kW
5 5 10
O 1 L1 L2 L3
N L1 L2 L3
C
19
HDEE/HDEEM 180
Stage 1 Stage 2 Total Terminal strip
Three-phase 400 V 3N~, 18 kW
Terminal L1
L1 (A)
13 13 26
Terminal L2
L2 (A)
13 13 26
Terminal L3
L3 (A)
13 13 26
Terminal 0
N (A)
0 0 0
Power
kW
9 9 18
O 1 L1 L2 L3
N L1 L2 L3
HDEE/HDEEM 210
Stage 1 Stage 2 Total Terminal strip
Three-phase 400 V 3N~, 21 kW
Terminal L1
L1 (A)
15.2 15.2 30.4
Terminal L2
L2 (A)
15.2 15.2 30.4
Terminal L3
L3 (A)
15.2 15.2 30.4
Terminal 0
N (A)
0 0 0
Power
kW
10.5 10.5 21
O 1 L1 L2 L3
N L1 L2 L3
HDEE / HDEEM
20
16 SPARE PARTS LIST
16.1 HDEE 45/90, 10/15, 180
3
44
1
5
6
7
8
9
10
11 121314 15
1
2
Pos. Code Designation Pos. Code Designation
SEPO000361
Right side cover
CRES000004
9 kW element (45/90)
1
SEPO000360
Left side cover
CRES000008
15 kW element (10/15)
2
SEPO000362
Back cover
10
CRES000009
18 kW element (180)
3
SEPO000026
Top cover
11
CFOV000032
Expansion vessel
4
CFER000048
Spring closure
12
CFOV000145
Heating pump
5
SELEDEE000
Electrical board
13
SCON000043
Heat exchanger
6
SEPO000027
Door
14
CELC000078
Pressure switch
7
CFER000026
Lock
GMANDEE100
Modular control (45/90)
8
GFOV000002
Automatic air vent
GMANDEE102
Modular control (10/15)
9
CVAL000004
Pressure relief valve
15
GMANDEE005
Modular control(180)
21
16.2 HDEE 210
1
5
6
7
1313
1010
44
3
8
9
14
12
11
1
2
15
Pos. Code Designation Pos. Code Designation
SEPO000361 Right side cover
8
GFOV000002 Automatic air vent valve
1
SEPO000360 Left side cover
9
CVAL000004 Pressure relief valve
2
SEPO000362 Back cover
10
CRES000005 10.5 kW element (210)
3
SEPO000026 Top cover
11
CFOV000032 Expansion vessel
4
CFER000048 Spring closure
12
CFOV000145 Heating pump
5
SELEDEE000 Electrical board
13
SCON000045 Heat exchanger
6
SEPO000027 Door
14
CELC000078 Pressure switch
7
CFER000026 Lock
15
GMANDEE07 Modular control (210)
HDEE / HDEEM
22
16.3 HDEEM 45/90, 10/15, 180
1
2
1
3
13
14
5
15
12
11
10
9
8
7
6
Pos. Code Designation Pos. Code Designation
SEPO000353 Right side cover
9
CFER000026 Lock
1
SEPO000354 Left side cover CRES000004 9 kW element (45/90)
2
SEPO000355 Back cover
CRES000008 15 kW element (10/15)
3
SEPO000032 Top cover
10
CRES000009 18 kW element (180)
GMANDEE100 Modular control (45/90)
11
CFOV000145 Heating pump
GMANDEE102 Modular control (10/15)
12
CFOV000032 Expansion vessel
5
GMANDEE005 Modular control (180)
13
GFOV000002 Automatic air vent valve
6
SEPO000031 Door
14
SCON000044 Heat exchanger
7
SELEDEE000 Electrical board
15
CELC000078 Pressure switch
8
SEPO000030 Lower front cover
23
16.4 HDEEM 210
3
1
5
6
7
8
44
1313
2
1
12
11
10
15
1414
Pos. Code Designation Pos. Code Designation
SEPO000353 Right side cover
8
SEPO000030 Lower front cover
1
SEPO000354 Left side cover
9
CFER000026 Lock
2
SEPO000355 Back cover
10
CRES000005 10.5 kW element (210)
3
SEPO000032 Top cover
11
CFOV000145 Heating pump
4
CFER000048 Spring closure
12
CFOV000032 Expansion vessel
5
GMANDEE007 Modular control board (210)
13
GFOV000002 Automatic air vent valve
6
SEPO000031 Door
14
SCON000046 Heat exchanger
7
SELEDEE000 Electrical board
15
CELC000078 Pressure switch
HDEE / HDEEM
24
16.5 Main board
3
4
5
6
7
8
1
2
Pos. Code Designation
1
CELC000022 Safety thermostat 110 ºC 1m
2
CELC000007 Control thermostat 1m
3
CELC000177 Extension without timer
4
CELC000002 Thermohydrometer 1m
5
CELC000097 Knob
6
CELC000011 Main switch
7
CELC000079 Power selection switch
8
CEXT000439 Front panel
25
17 BOILER SECURITY SYSTEMS
The boiler has two types of safety blockings:
17.1 Boiler temperature safety locking
This locking is activated when the temperature in the boiler increases over 110 ºC. To release it,
press the safety thermostat button after first removing its cap.
17.2 Low pressure locking
This locking occurs when the installation pressure drops below 0.6 bar, preventing the boiler from
functioning when there is not water in the installation, due to either leakage or maintenance
operations. To release boiler functioning, fill the installation again until a pressure of 1 - 1.5 bar is
shown on the manometer
(3)
.
NOTE: If any of the locks was repetitive, call your nearest official Technical Assistance Service.
18 GENERAL WARRANTY CONDITIONS
DOMUSA TEKNIK guarantees the normal operation of its products in accordance with the following
conditions and periods of time, as from the date of their START-UP.
1 YEAR for electric and hydraulic elements, pumps, valves, etc.
5 YEARS for boiler shells.
5 YEARS for Hot Water Tank.
This warranty does not include those failures produced by misuse or inappropriate installation,
unsuitable energy or fuel, failures generated by feeding waters with physical-chemical characteristics
such as to produce deposits or corrosion, mishandling of the equipment and, as a general rule,
anything beyond DOMUSA TEKNIK’s control.
The warranty will be considered null and void in the following cases:
1. The boiler has been installed without meeting the laws and regulations in force regarding
the subject matter.
2. The boiler has been started up by personnel other than those authorized by DOMUSA
TEKNIK.
UK ADDRESS HEADQUARTERS & FACTORY
Unit D4 Stanlaw Abbey Business Centre, Bº San Esteban s/n
Ellesmere Port, CH65 9BF
20737 ERREZIL (Gipuzkoa)
Tel: 0151 909 6222 Tel: (+34) 943 813 899
www.domusateknik.com
DOMUSA TEKNIK reserves the right to make modifications of any kind to its product
characteristics without prior notice.
*CDOC001230*
CDOC001230 09/16
Loading...
