Doms PSS 5000 Technical Manual

Download

PSS 5000

Technical Manual

Date Document number

Doms ApS Formervangen 28

October 31, 2014 PSS5000/TEMA/803046/14

DK-2600 Glostrup

Tel. Fax.

+45 4329 9400 +45 4343 1012

info@doms.dk

www@doms.com

PSS 5000 – Technical Manual

Preface

Legal Notices

Your right to use this documentation is subject to the limitations and restrictions imposed by applicable licenses and copyright laws. Unauthorized reproduction, modification, distribution, display or other use of this documentation may result in criminal and civil penalties.

About This Documentation

Purpose This documentation provides a general description of the PSS 5000 system

components and service facilities. It describes the functions available with the PSS 5000 and contains procedures, which de scribe how to use the various functions.

For documentation about specific system details, please see the documents listed in the Software Release Document for the actual application or, alternatively, look at ‘D.3 Referenced Documents’ on page 143.

Audience The content of this documentation is designed for technicians who need to

configure or service systems using PSS 5000. It is assumed that the reader has a basic knowledge of standard PC technolo-

gies, such as Windows and Internet browsers, and has attended a foundation course that introduces the workings of the PSS 5000.

2 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

Contents

Legal Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

About This Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Part I: Getting to Know the PSS 5000 . . . . . . . . . . . . . . . . . . . . . . . .7

1 Architectural Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

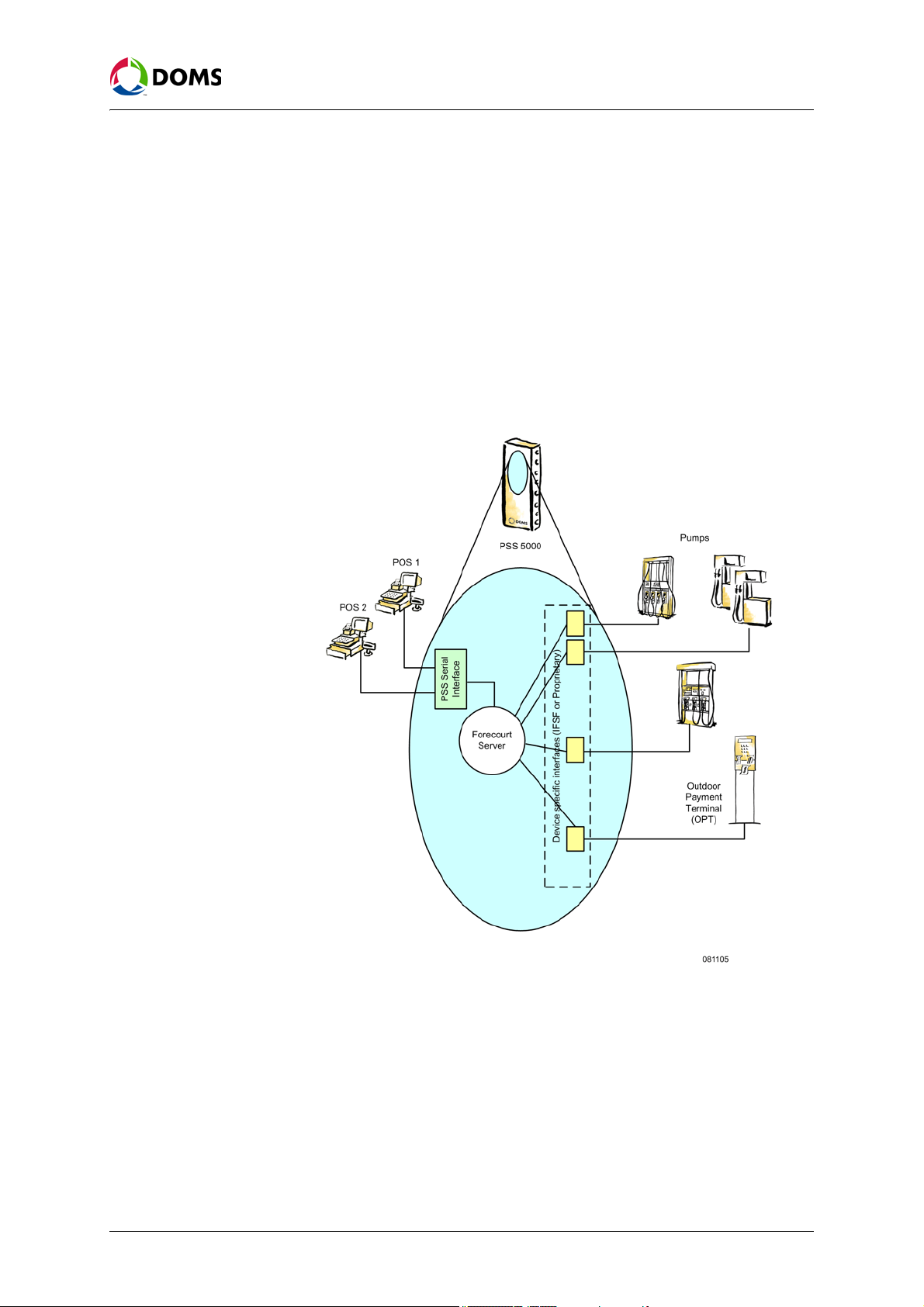

1.1 PSS 5000 Without a Network Connection . . . . . . . . . . . . . . . . . . . . . . . 8

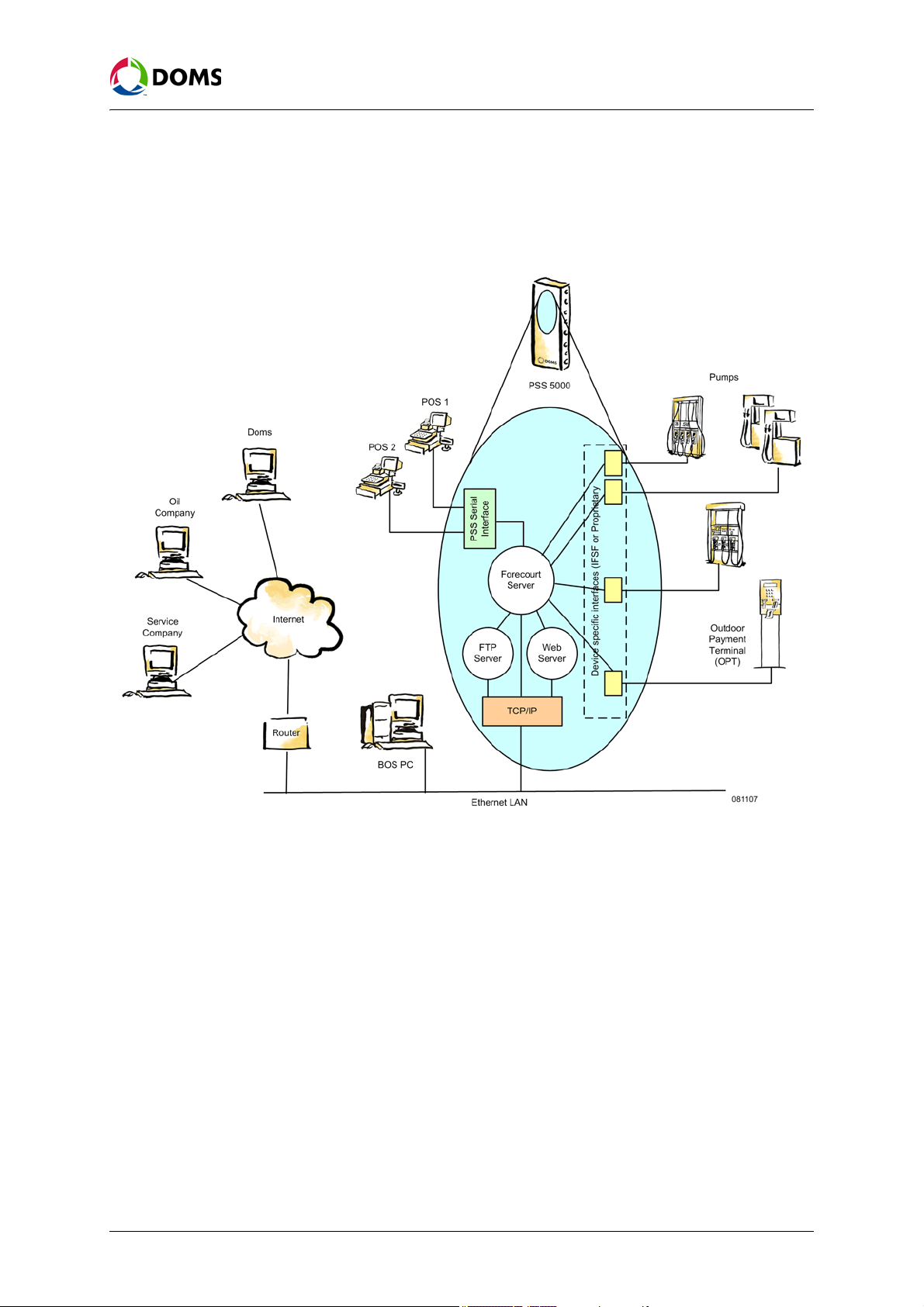

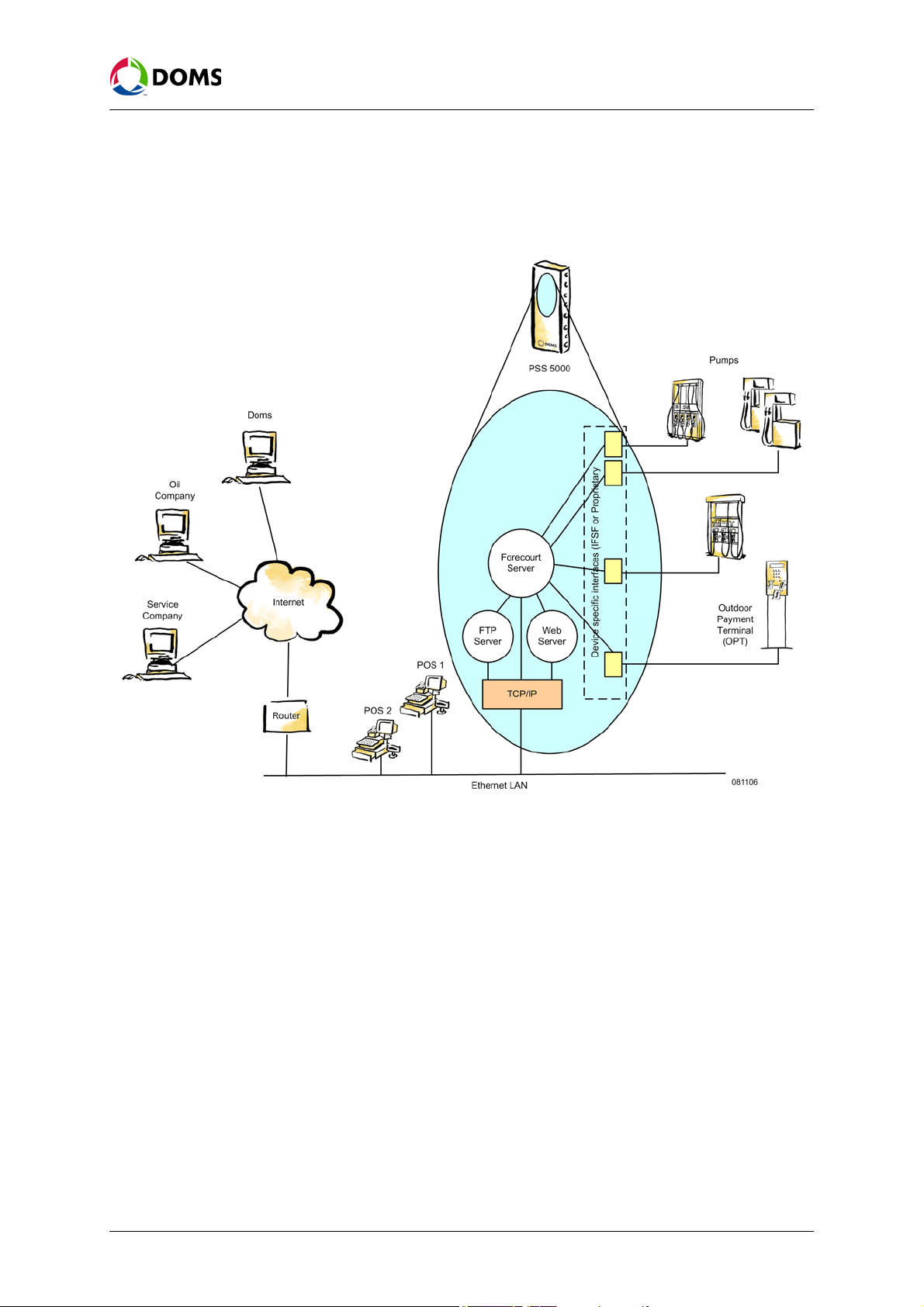

1.2 PSS 5000 With a Network Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.3 PSS 5000 in a Mixed Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2 System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1 PSS 5000 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

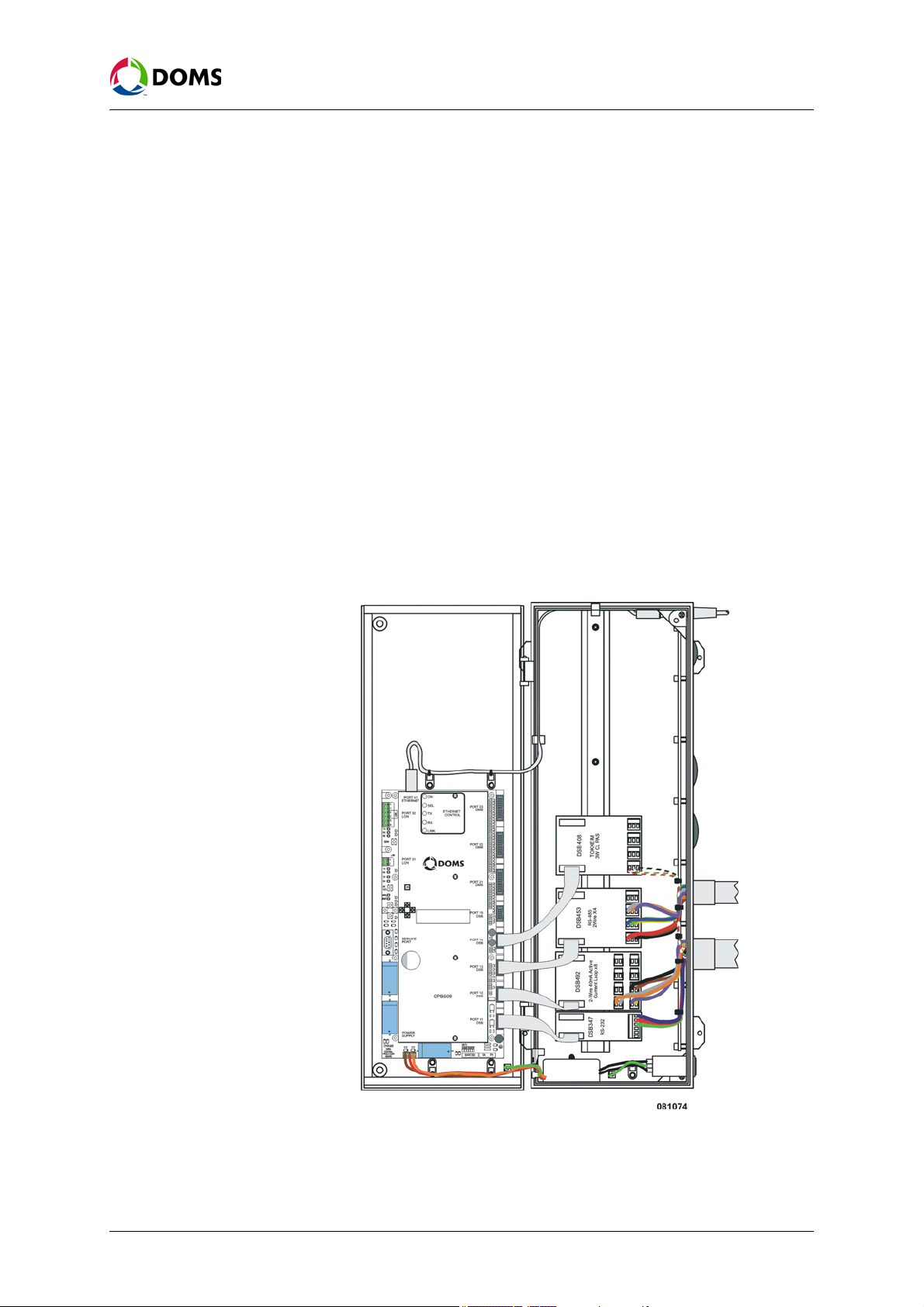

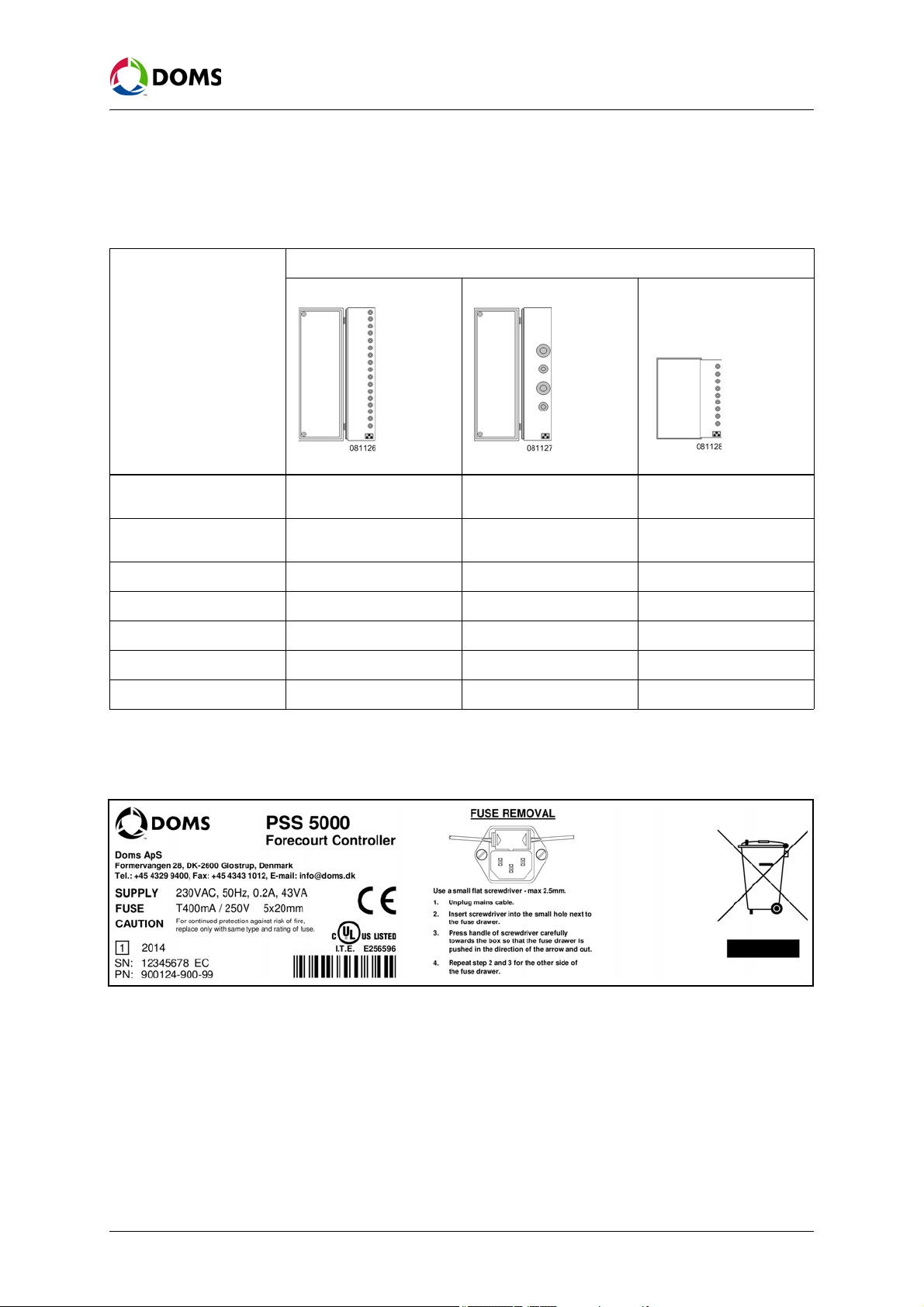

2.1.1 PSS 5000 Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.2 PSS 5000 Computer Processor Boards . . . . . . . . . . . . . . . . . 13

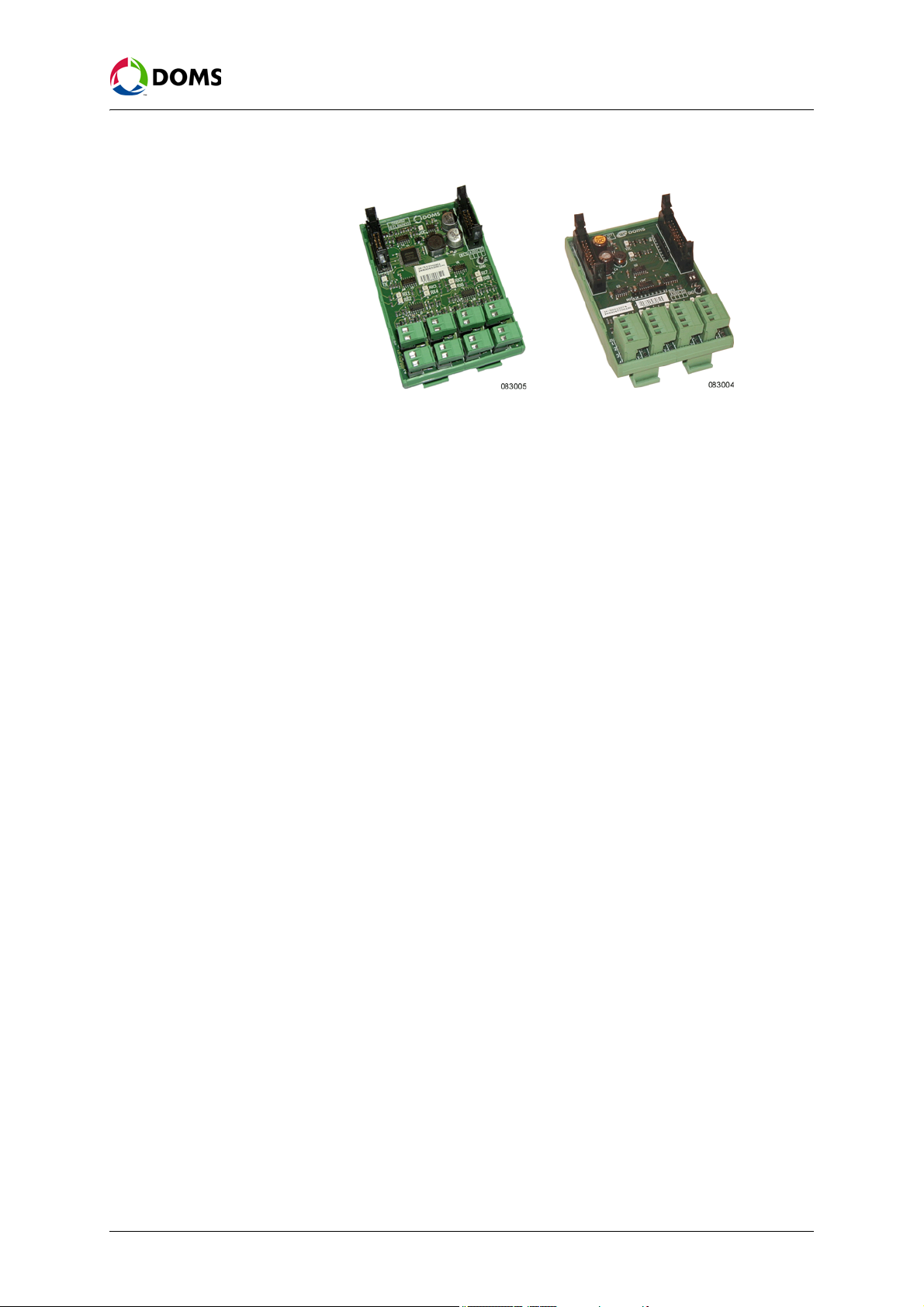

2.1.3 Hardware Interface Modules . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.1.4 Service and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.2 PSS 5000 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.2.1 Virtual File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

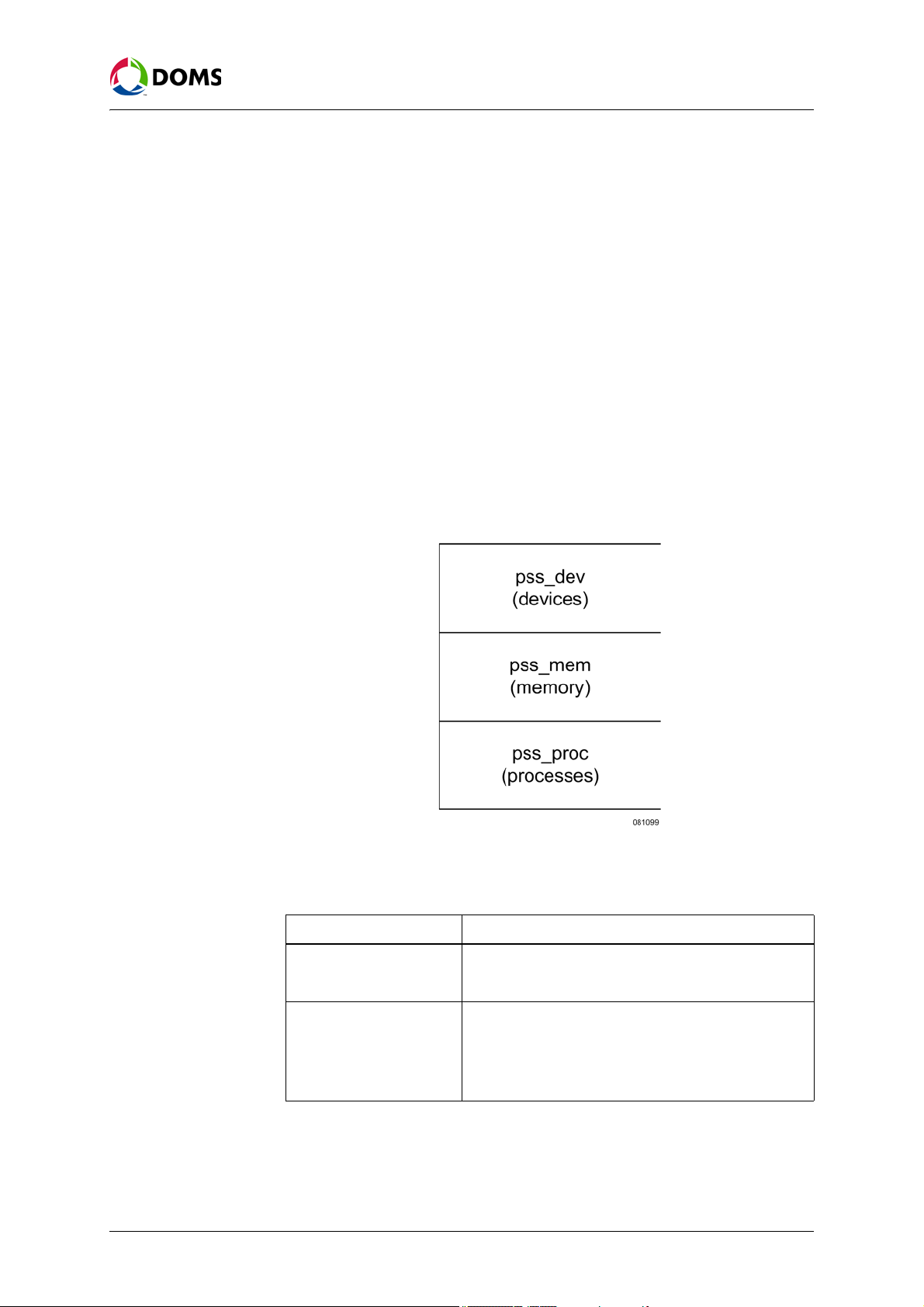

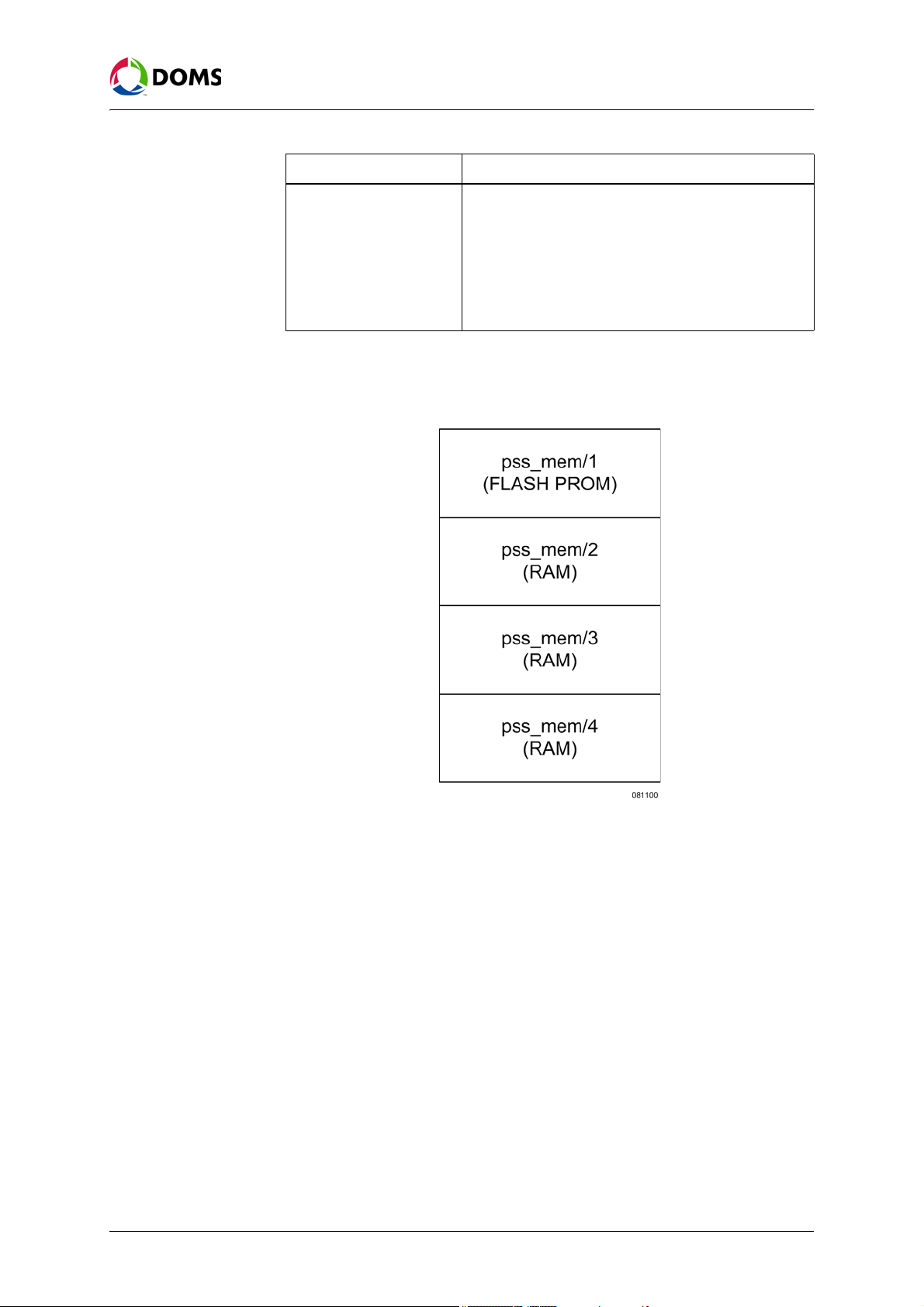

2.2.2 Memory Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.2.3 The Software Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.2.4 Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

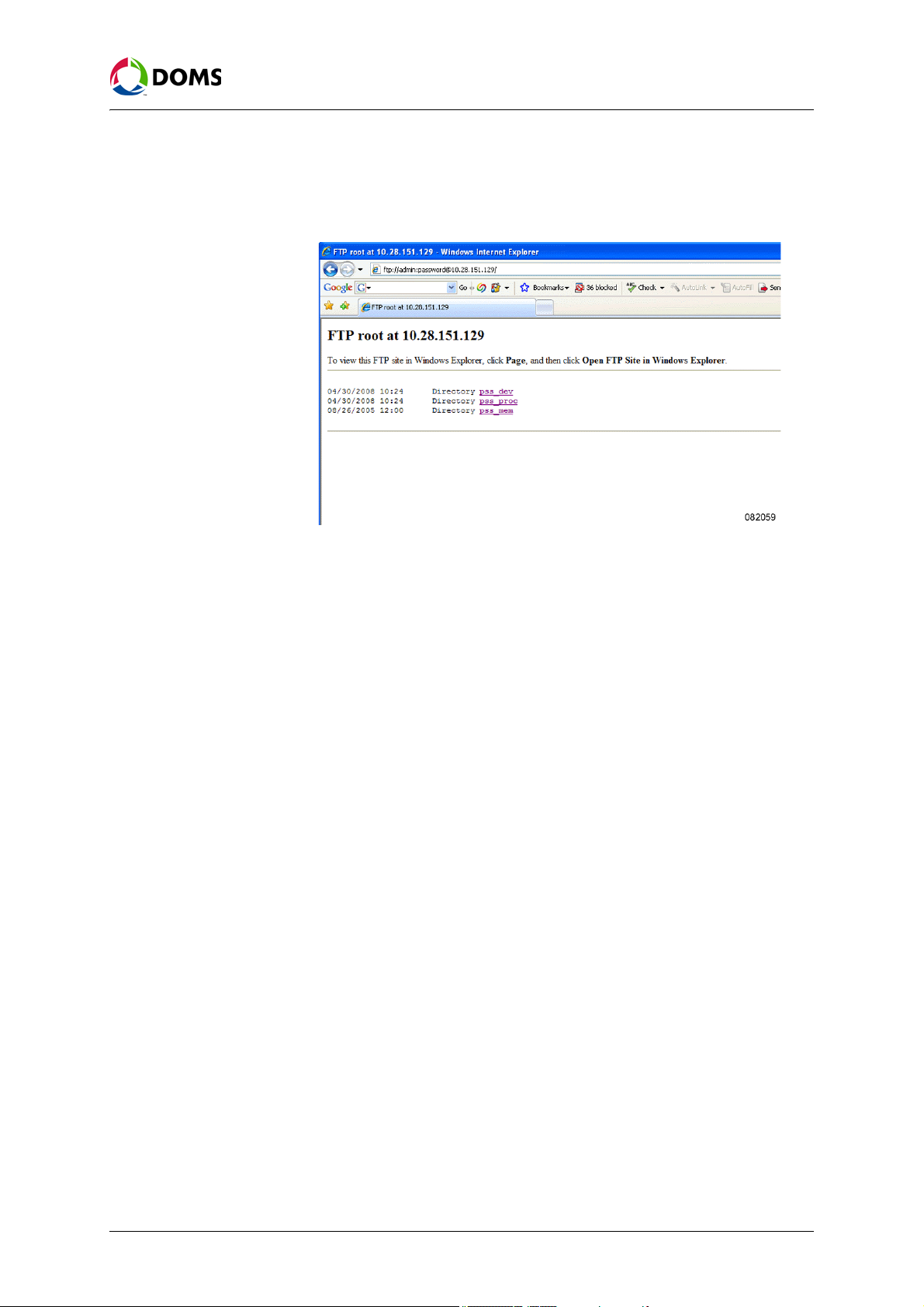

2.2.5 FTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.2.6 Serial Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.2.7 Network Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3 Configuration and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.1 Configuration and Service Menus Access . . . . . . . . . . . . . . . . . . . . . . 21

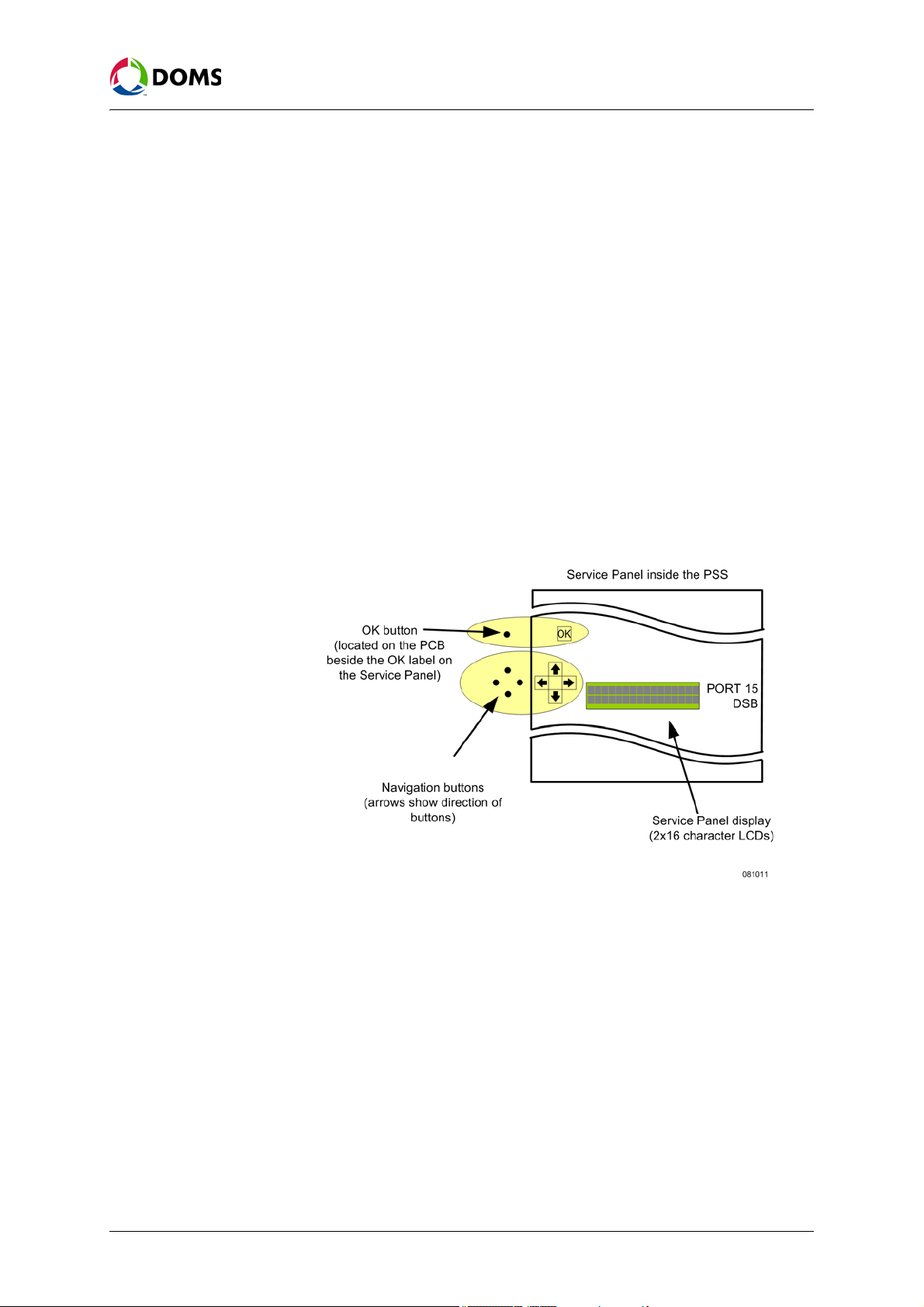

3.1.1 Local Service Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

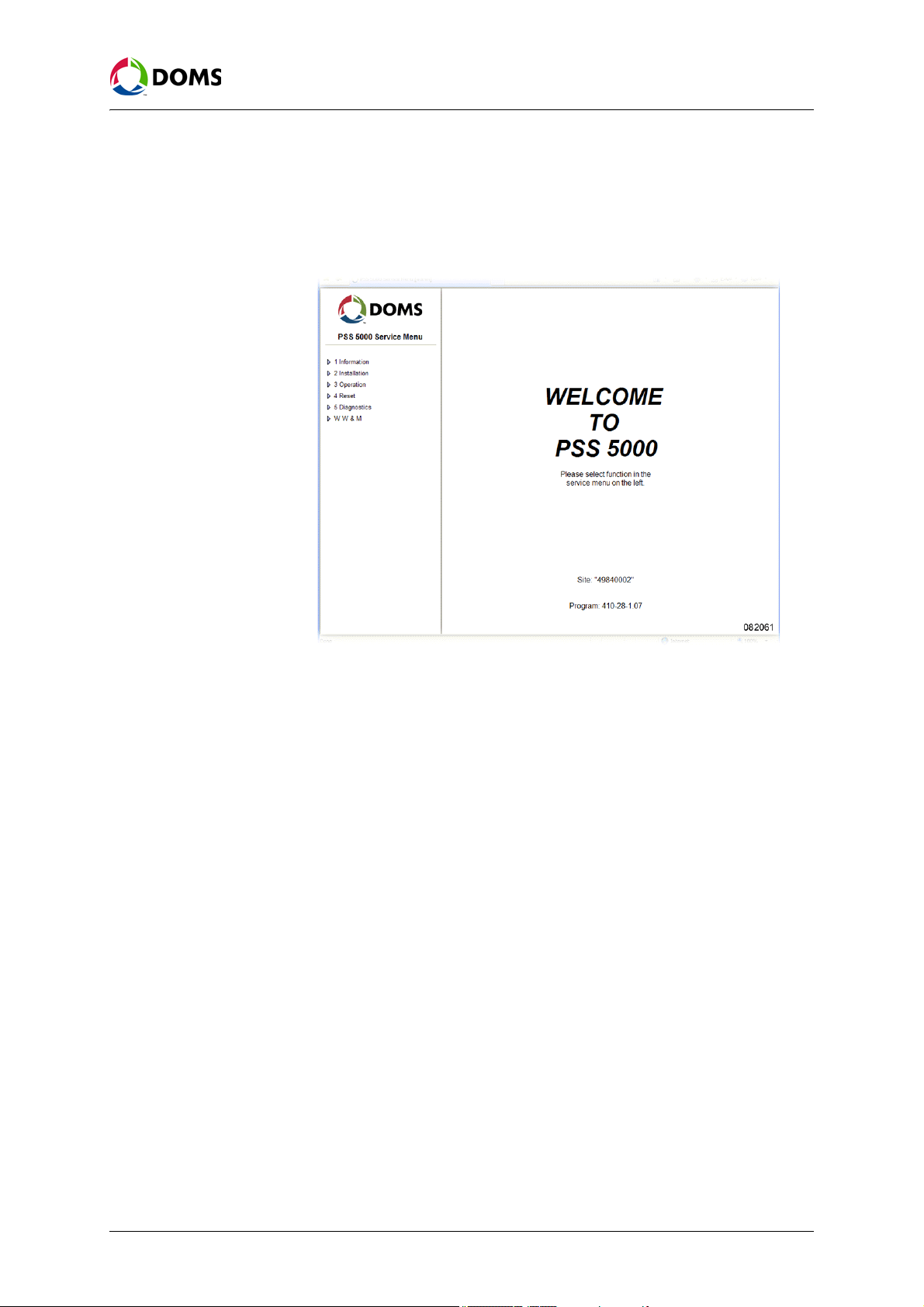

3.1.2 Web Service Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

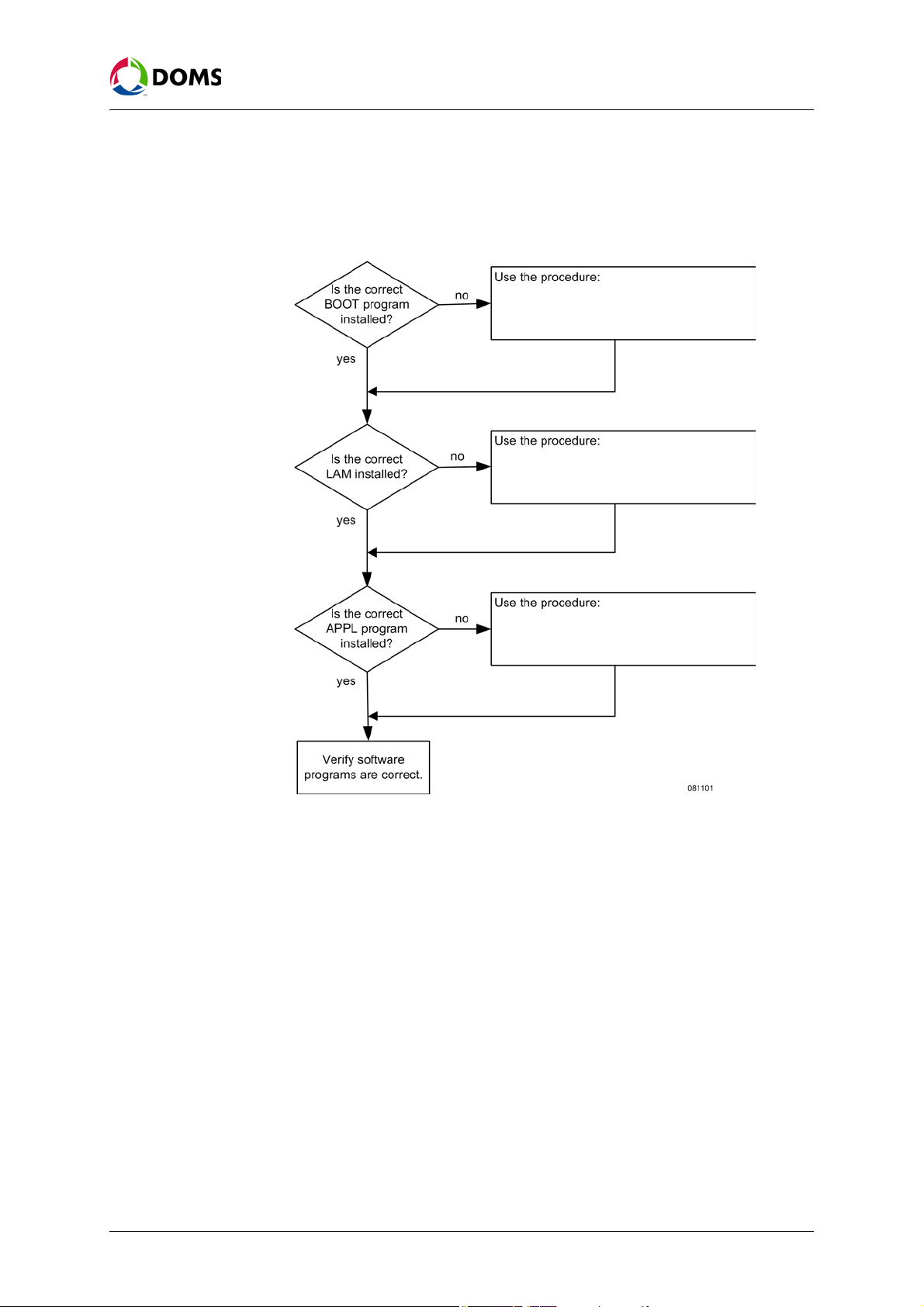

3.2 Software Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Part II: Using the Service Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . .28

4 Information (Menu 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

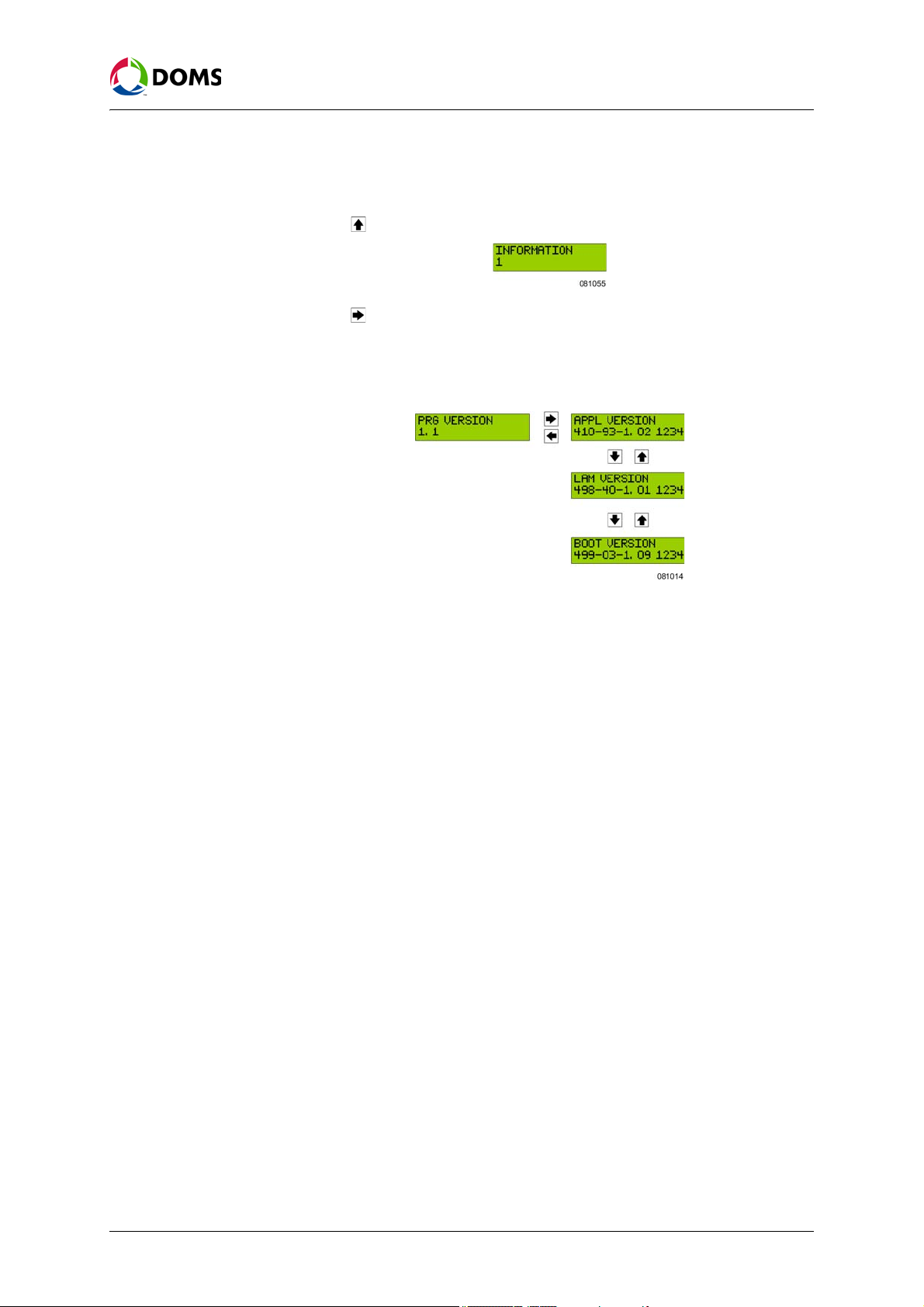

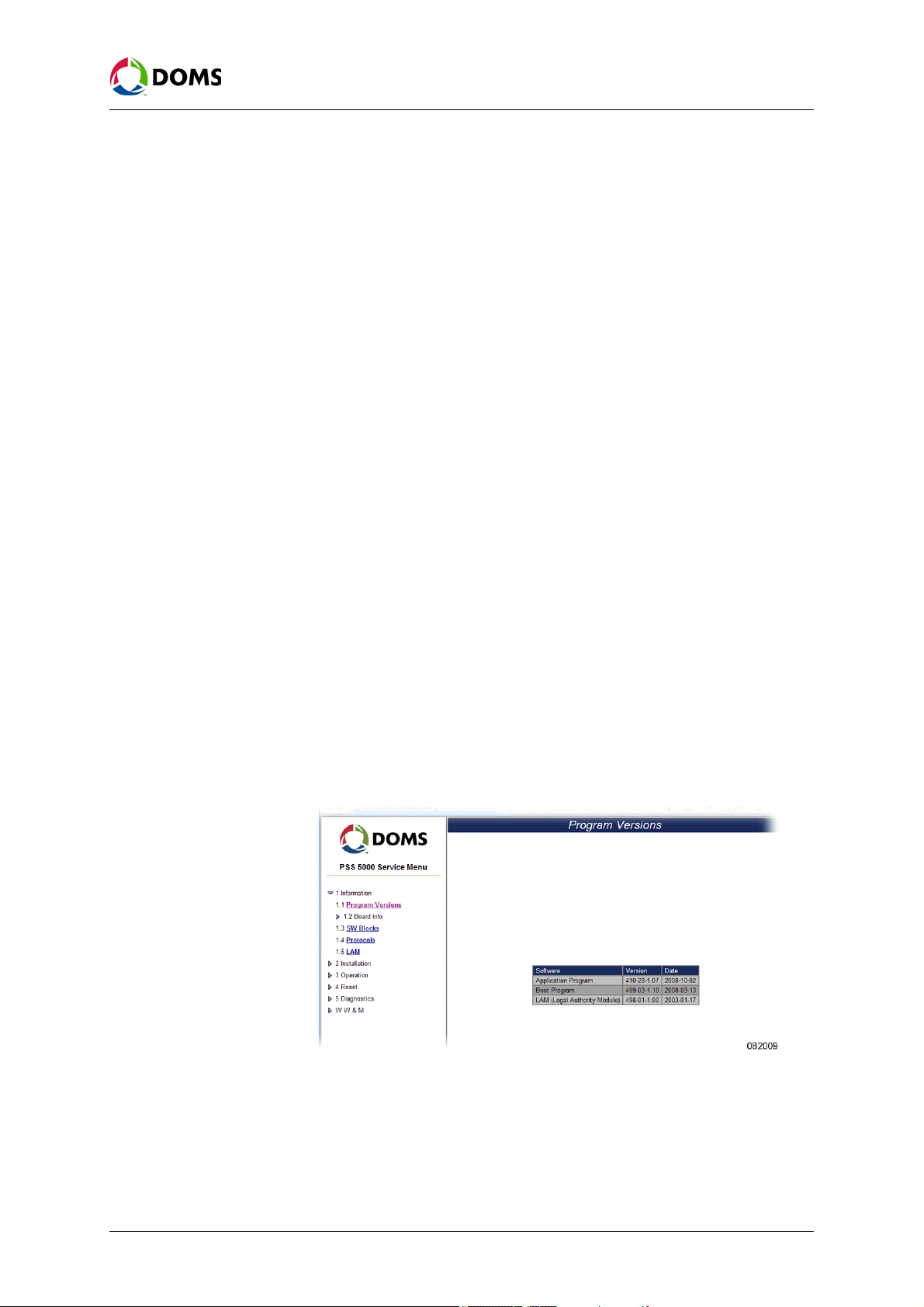

4.1 Program Versions (Menu 1.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.2 Board Info (Menu 1.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

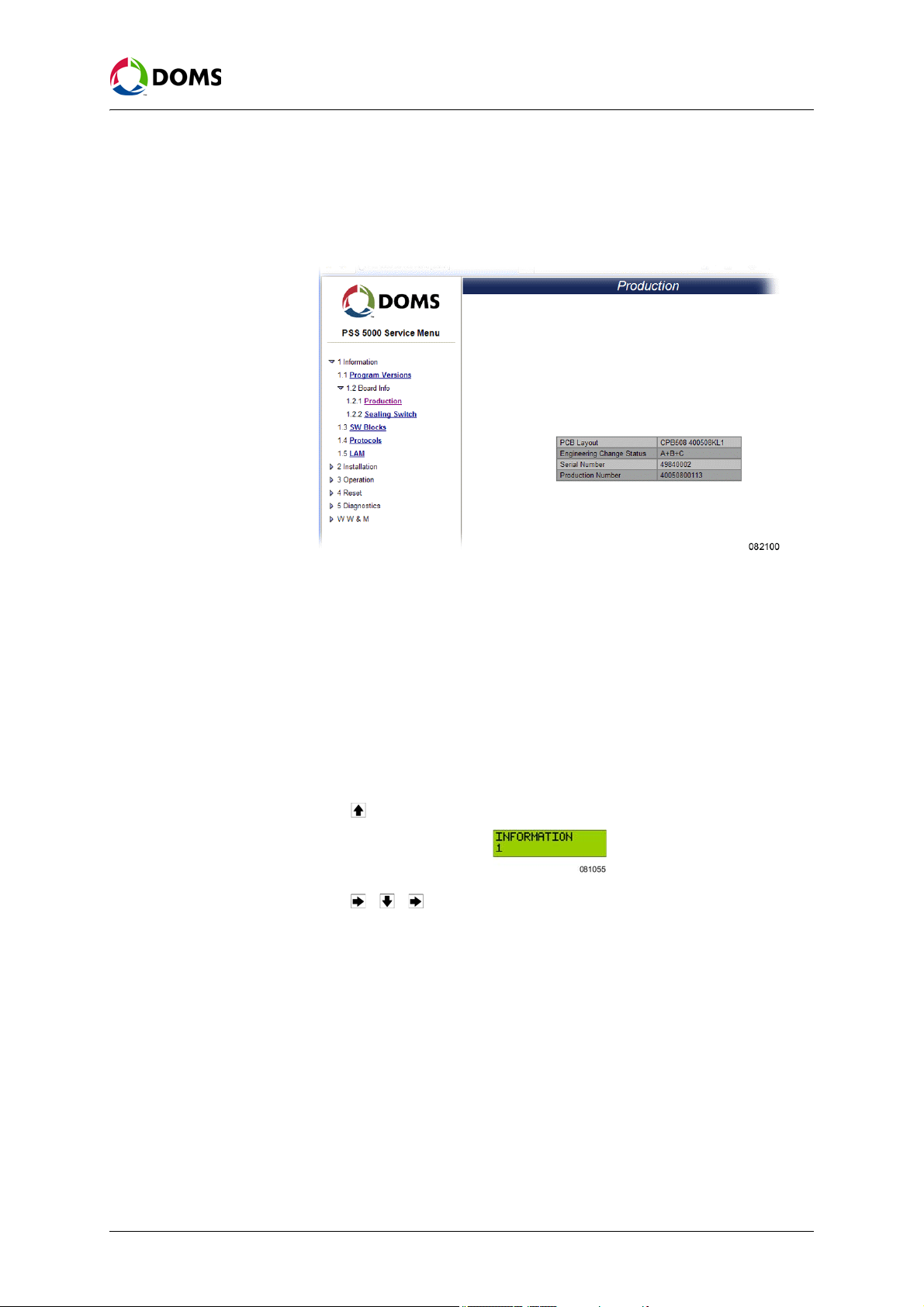

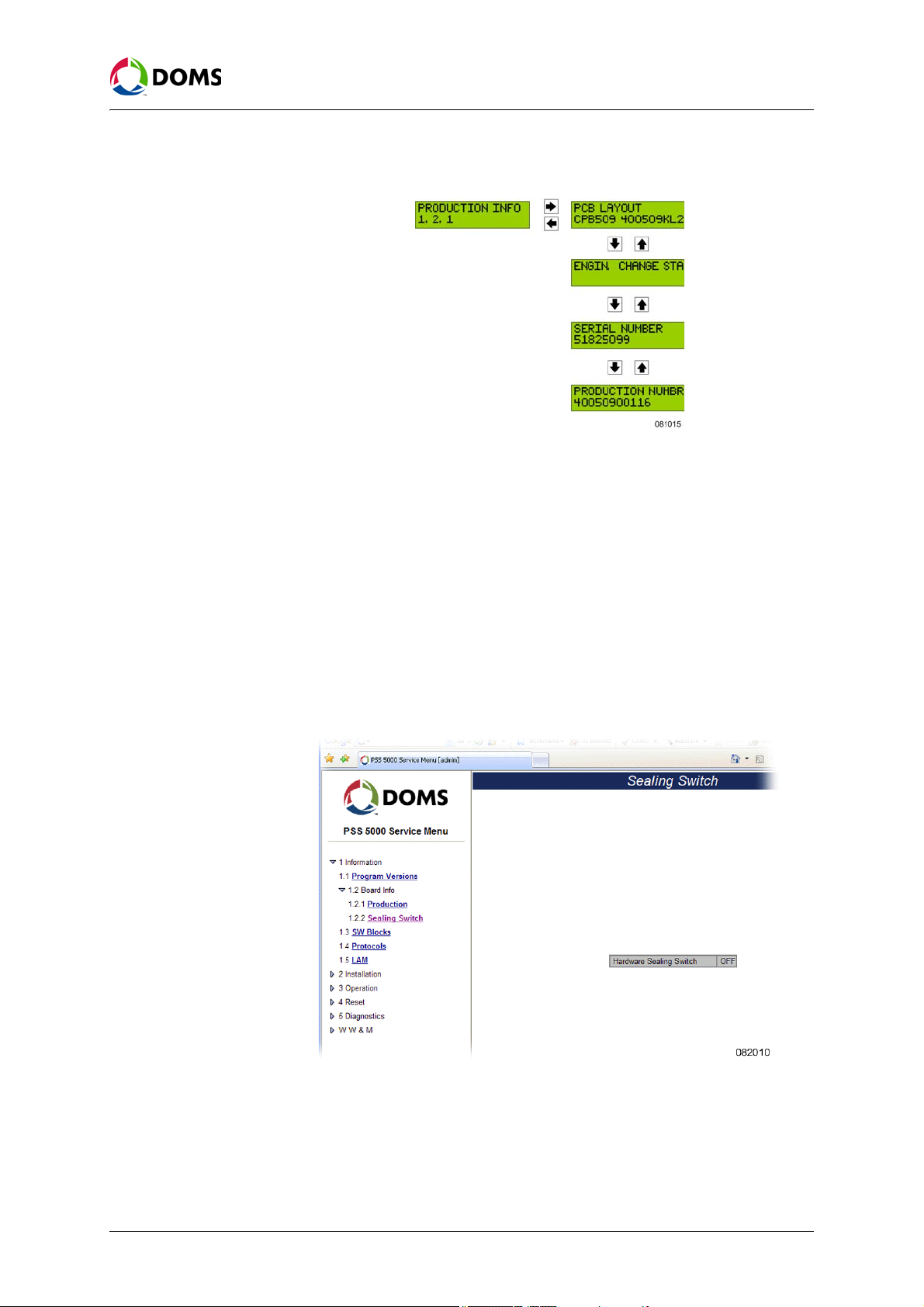

4.2.1 Production (Menu 1.2.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

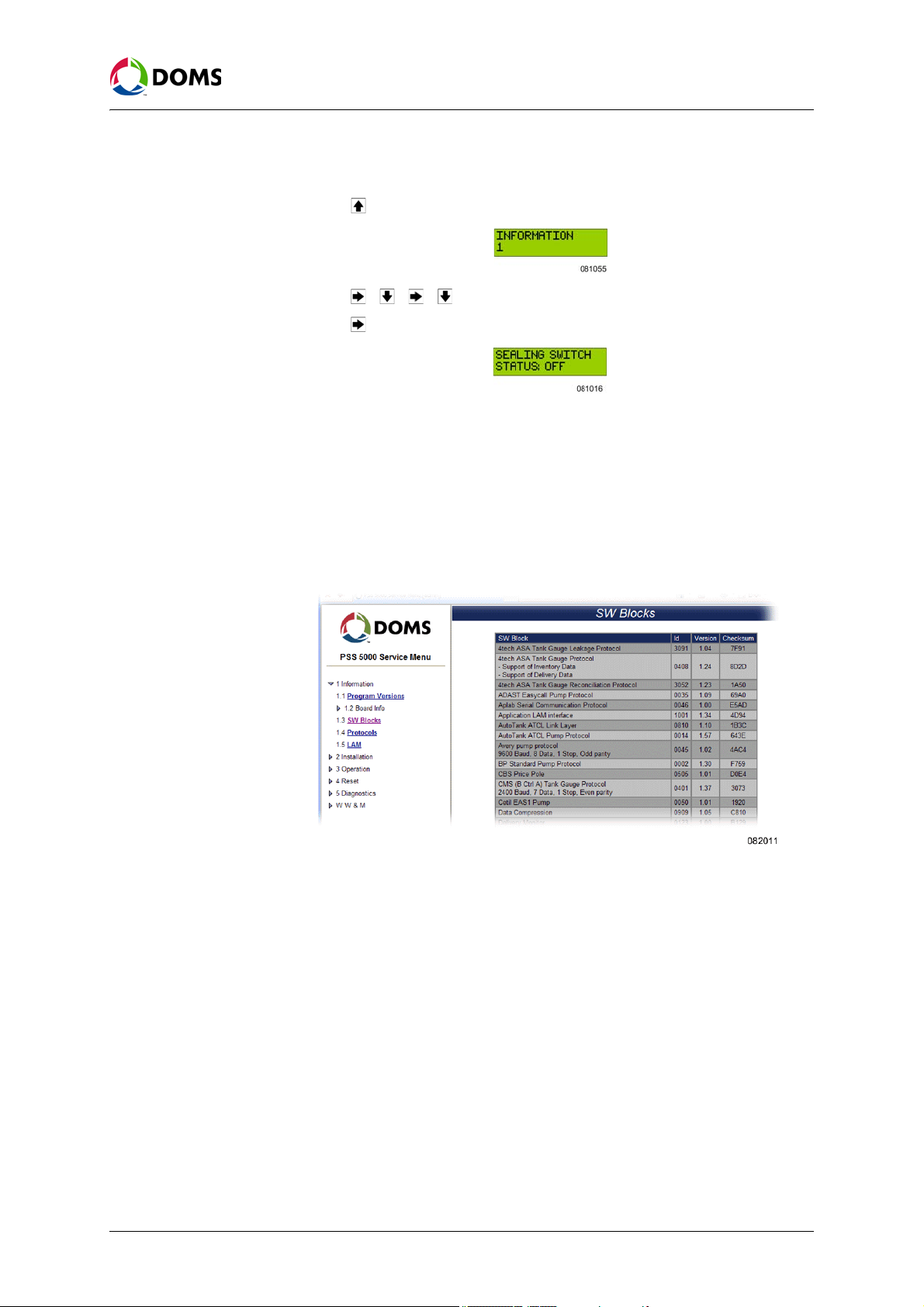

4.2.2 Sealing Switch (Menu 1.2.2) . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.3 SW Blocks (Menu 1.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

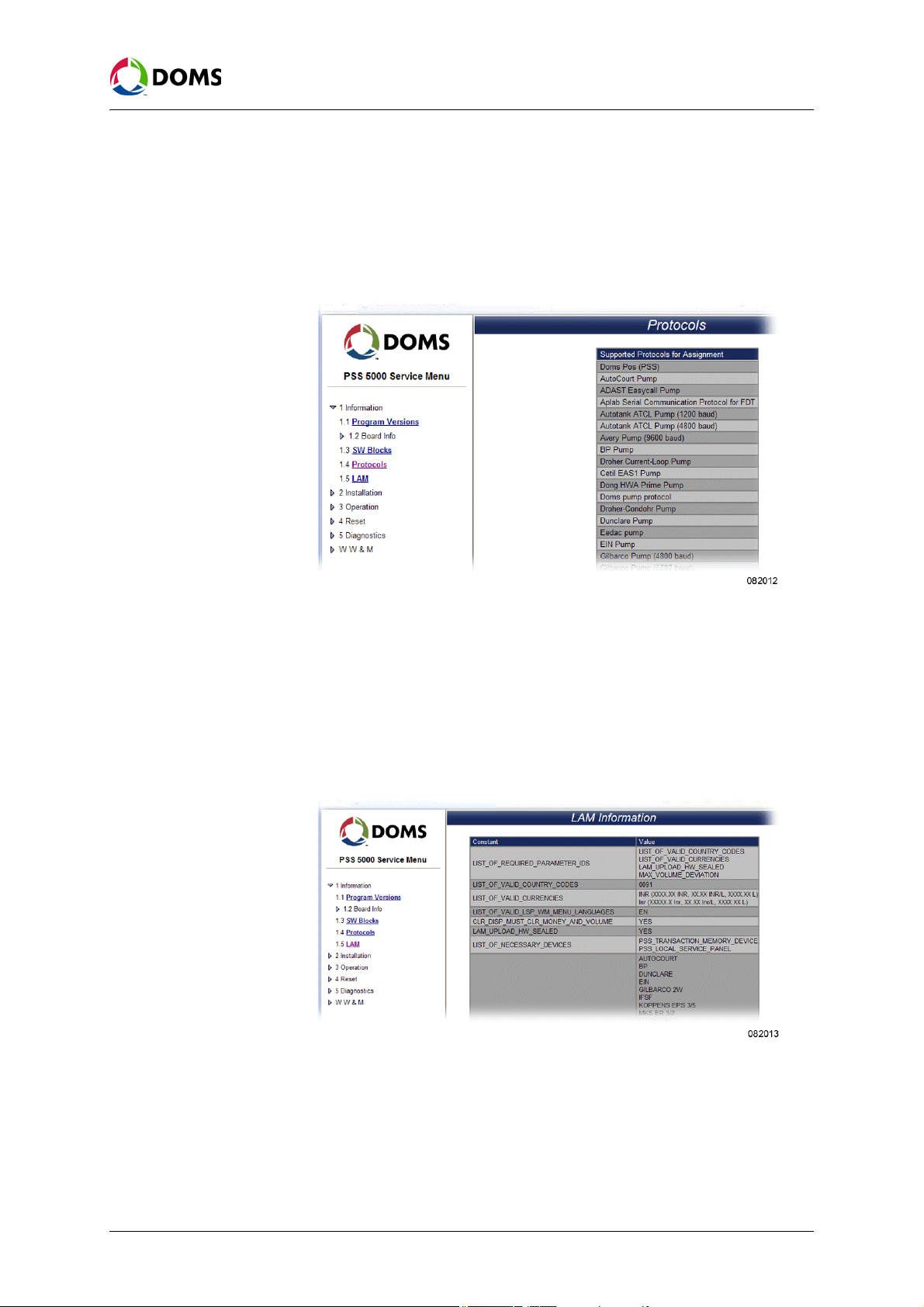

4.4 Protocols (Menu 1.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.5 LAM (Menu 1.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5 Installation (Menu 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

PSS5000/TEMA/803046/14 3 of 155

PSS 5000 – Technical Manual

Contents

5.1 Protocol to Port Assignment (Menu 2.1) . . . . . . . . . . . . . . . . . . . . . . . 35

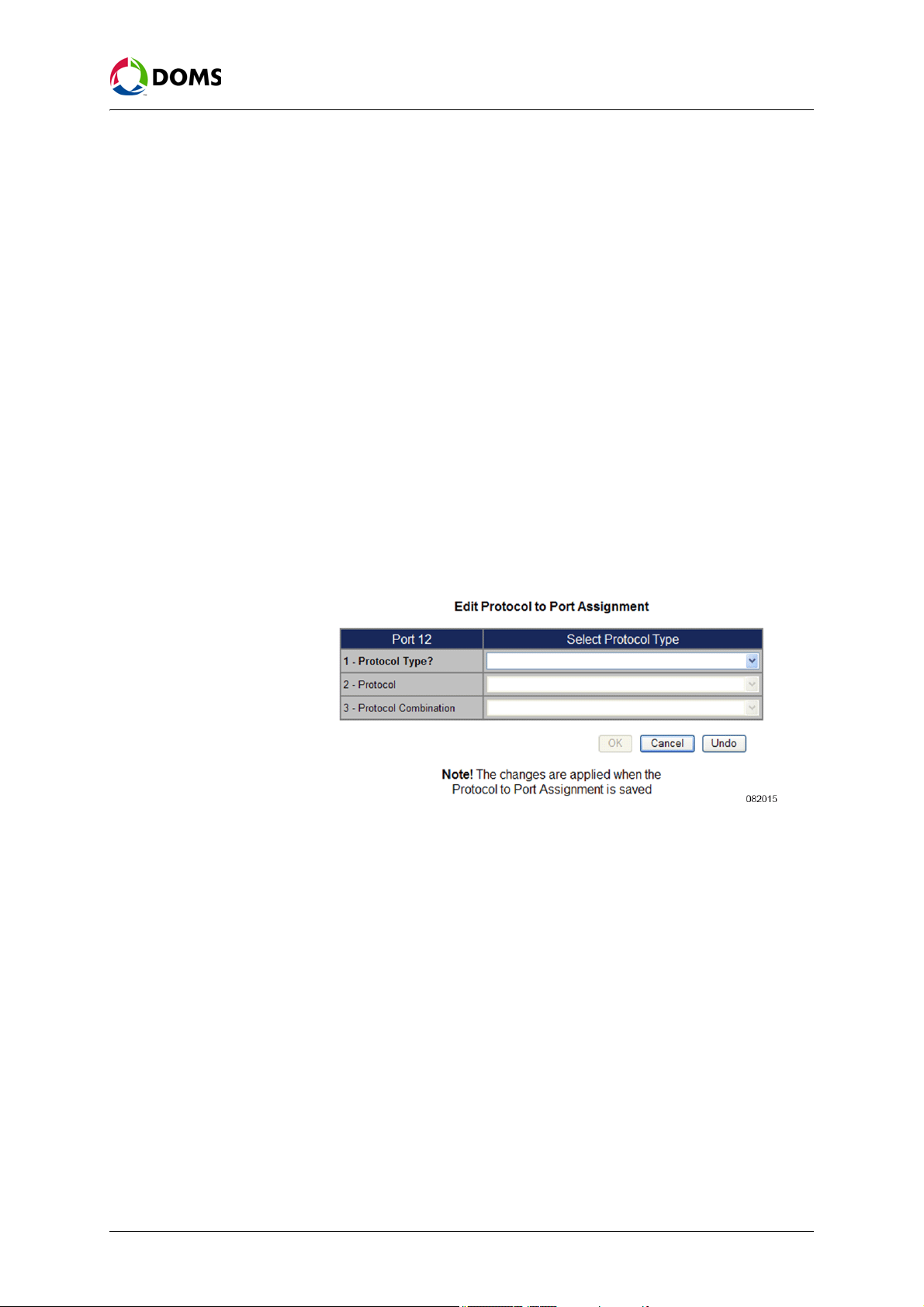

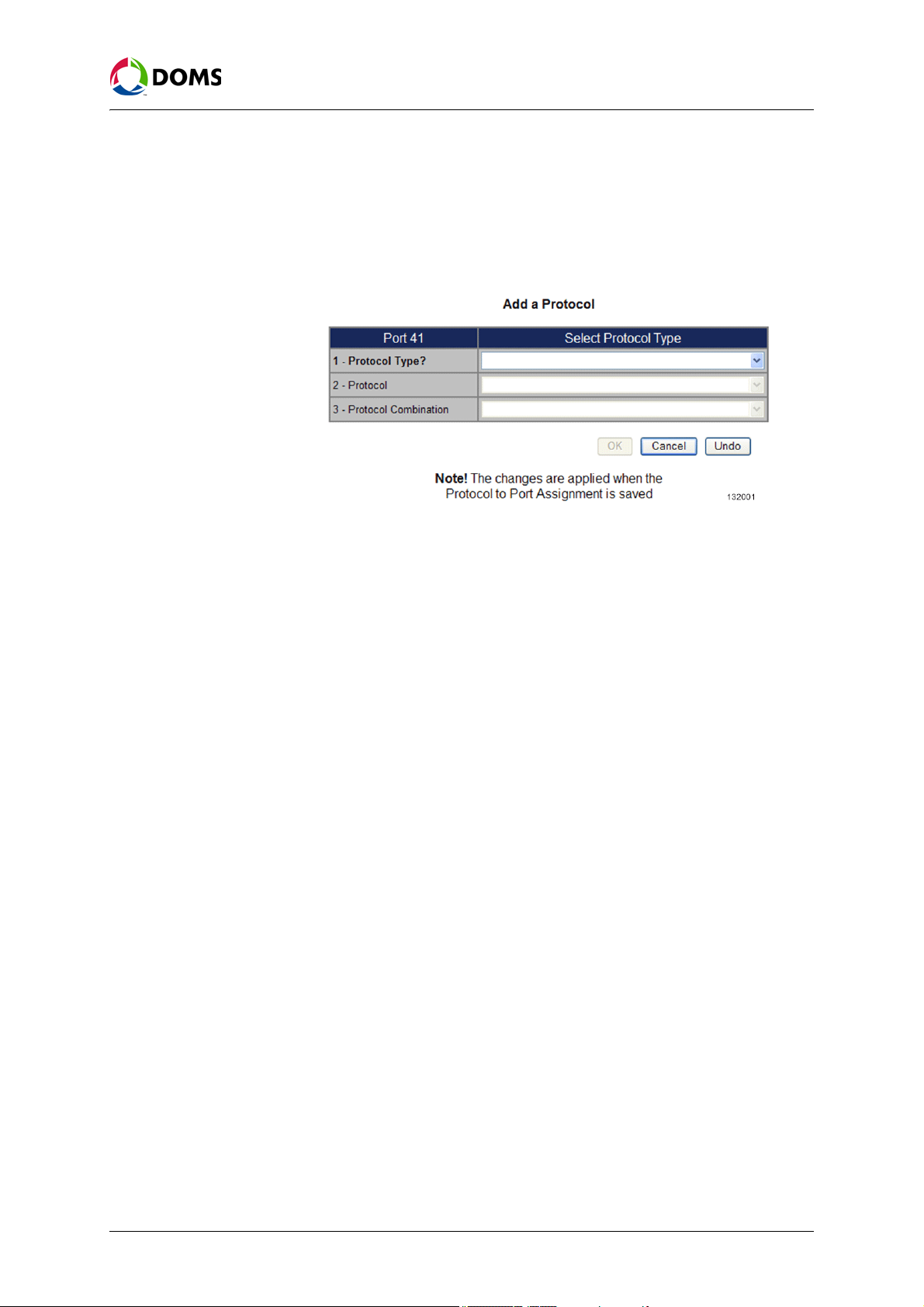

5.1.1 Changing Protocol to Port Assignments . . . . . . . . . . . . . . . . . 36

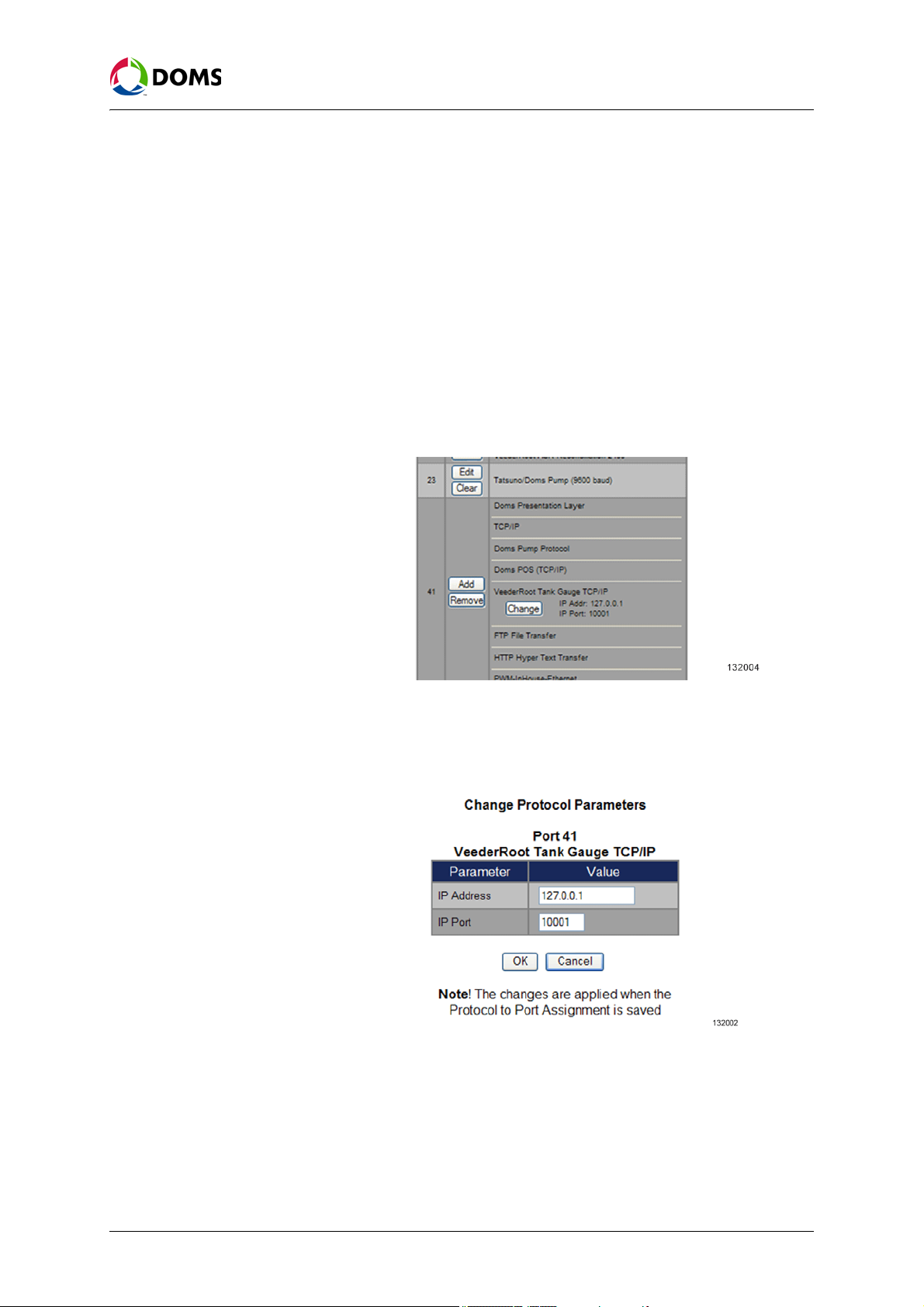

5.1.2 Setting the Protocol Parameter Values . . . . . . . . . . . . . . . . . . 39

5.1.3 Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

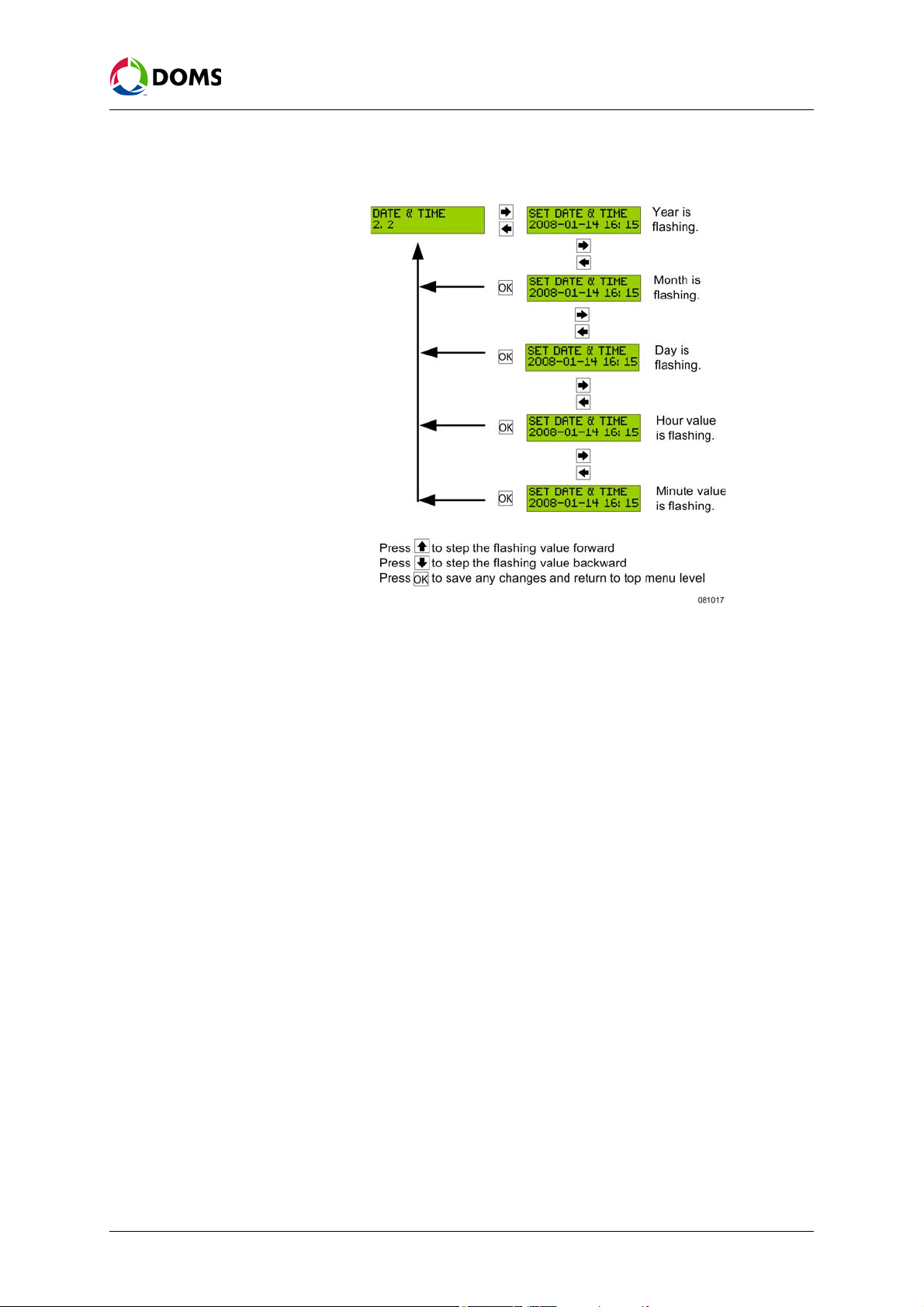

5.2 Date and Time (Menu 2.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

5.3 Communication Setup (Menu 2.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

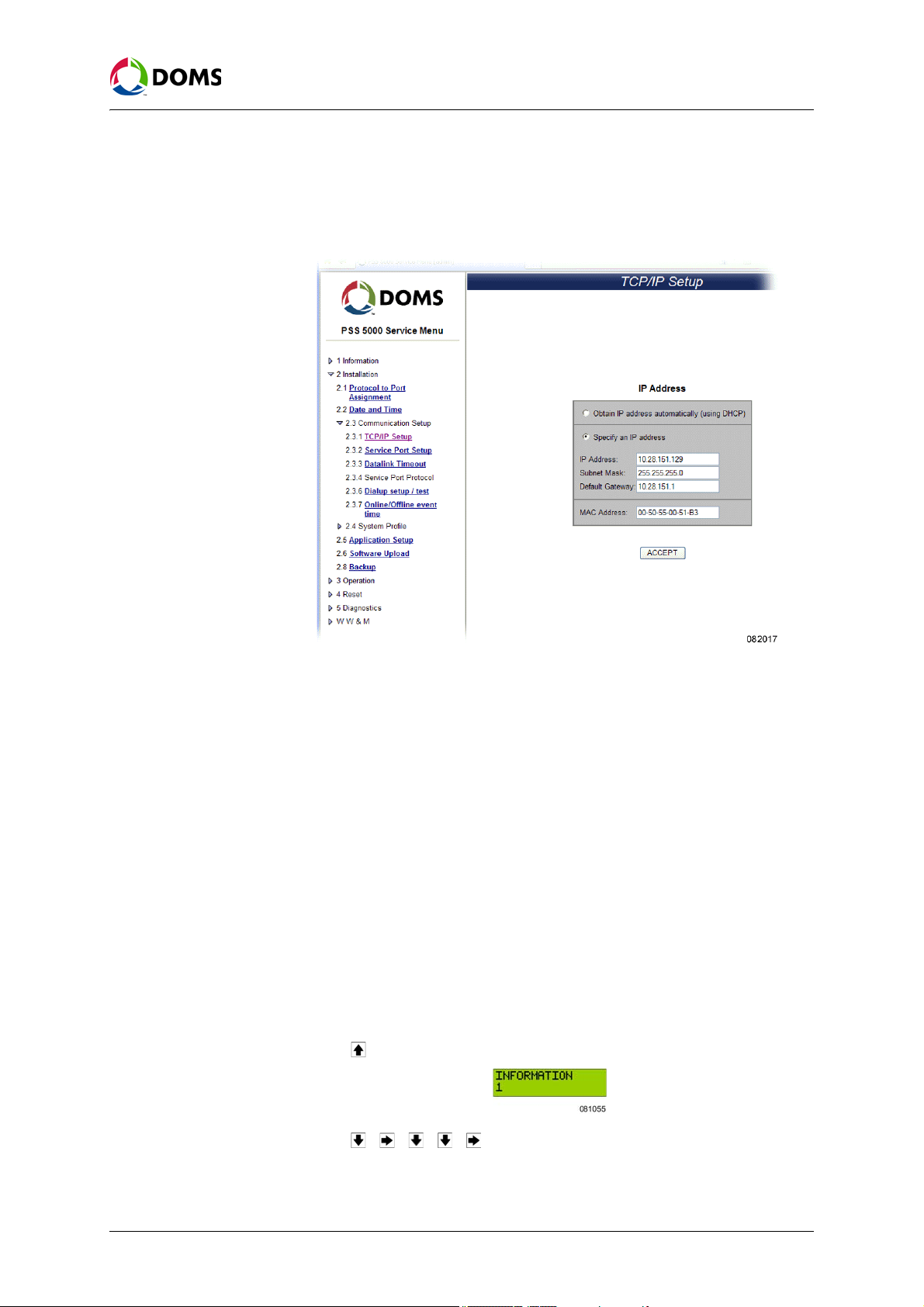

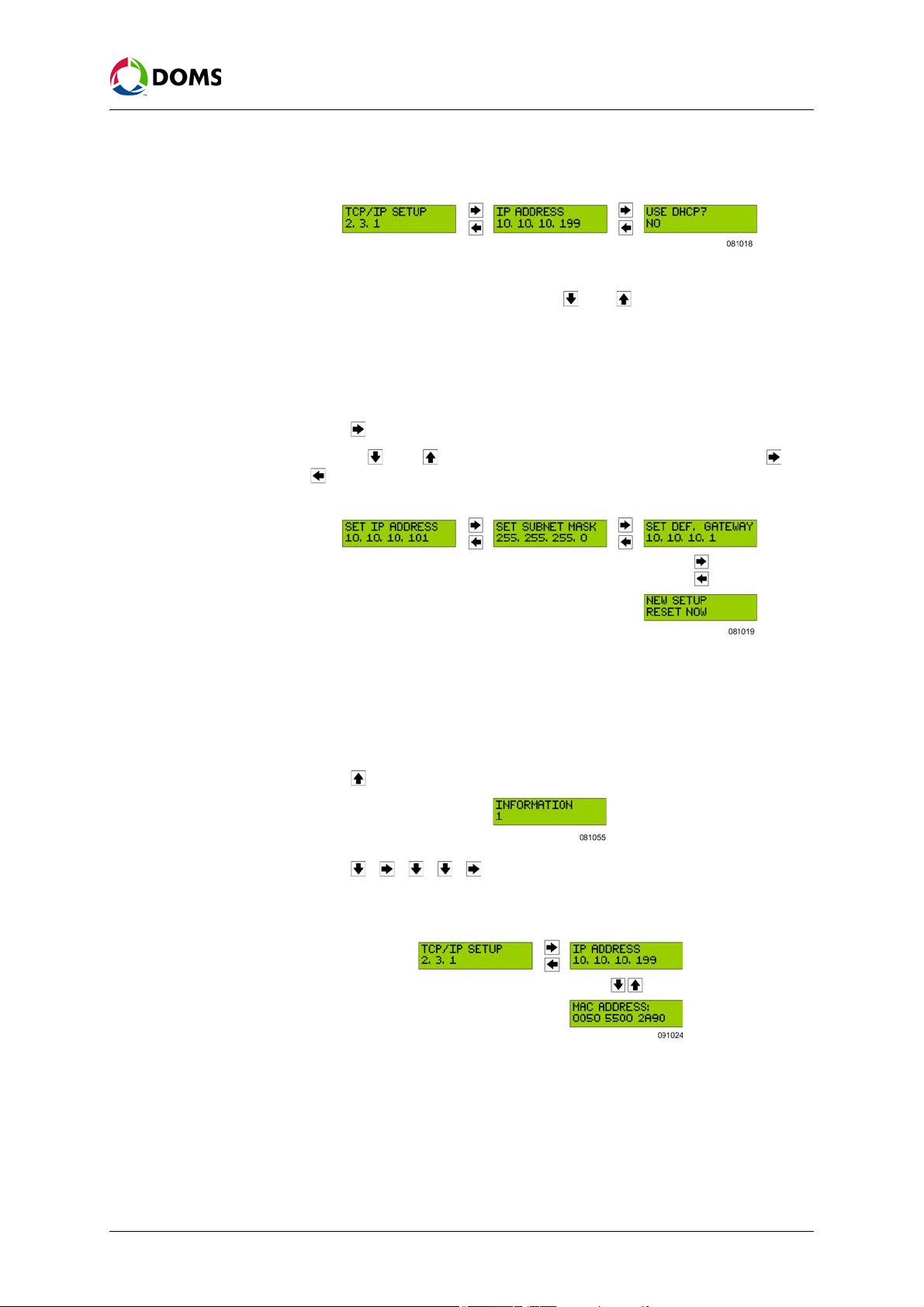

5.3.1 TCP/IP Setup (Menu 2.3.1) . . . . . . . . . . . . . . . . . . . . . . . . . . 43

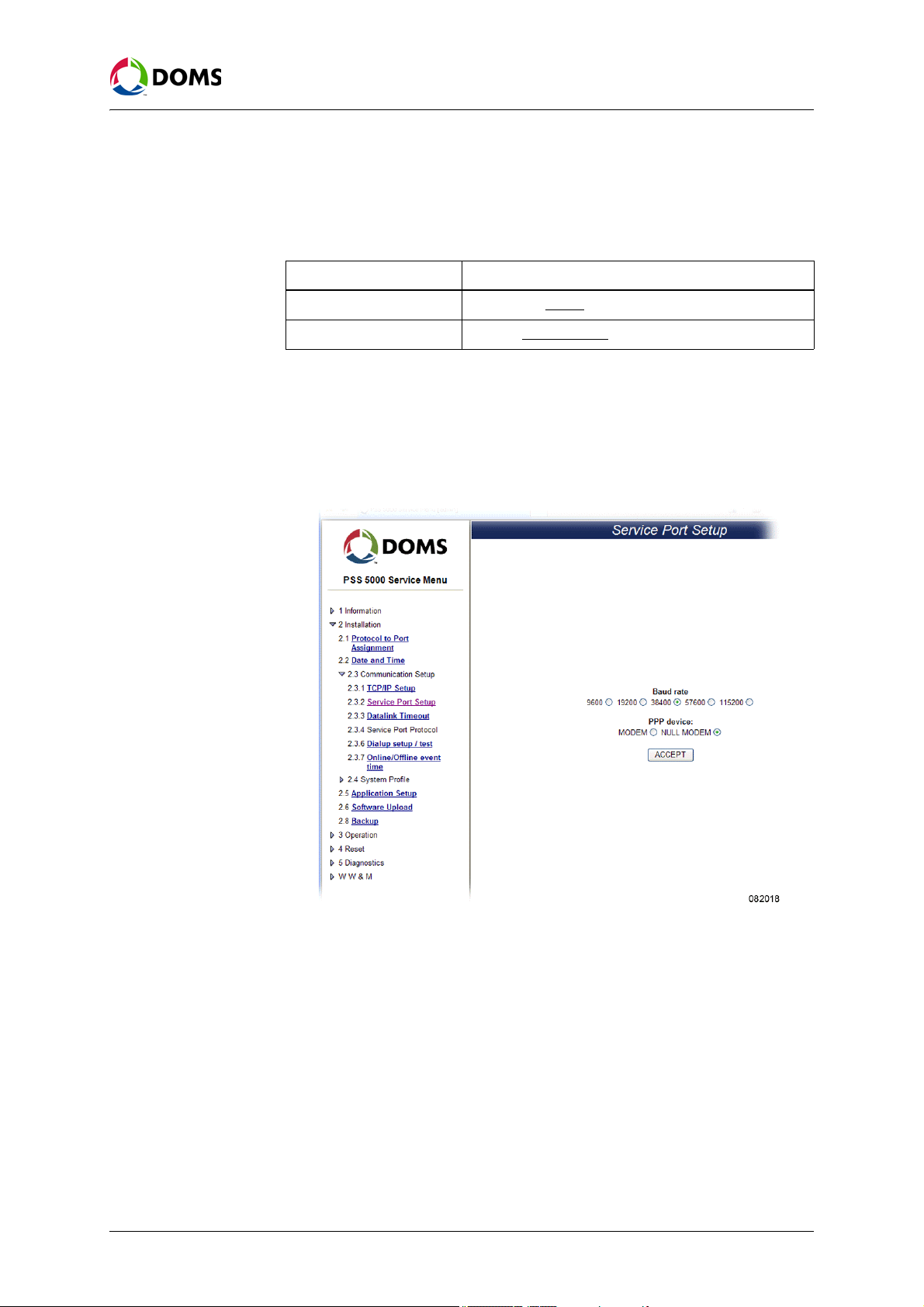

5.3.2 Service Port Setup (Menu 2.3.2) . . . . . . . . . . . . . . . . . . . . . . 46

5.3.3 Datalink Timeout for Serial Driver (Menu 2.3.3) . . . . . . . . . . . 47

5.3.4 Service Port Protocol (Menu 2.3.4) . . . . . . . . . . . . . . . . . . . . . 48

5.3.5 Menu 2.3.5 – Reserved for Future Use . . . . . . . . . . . . . . . . . 49

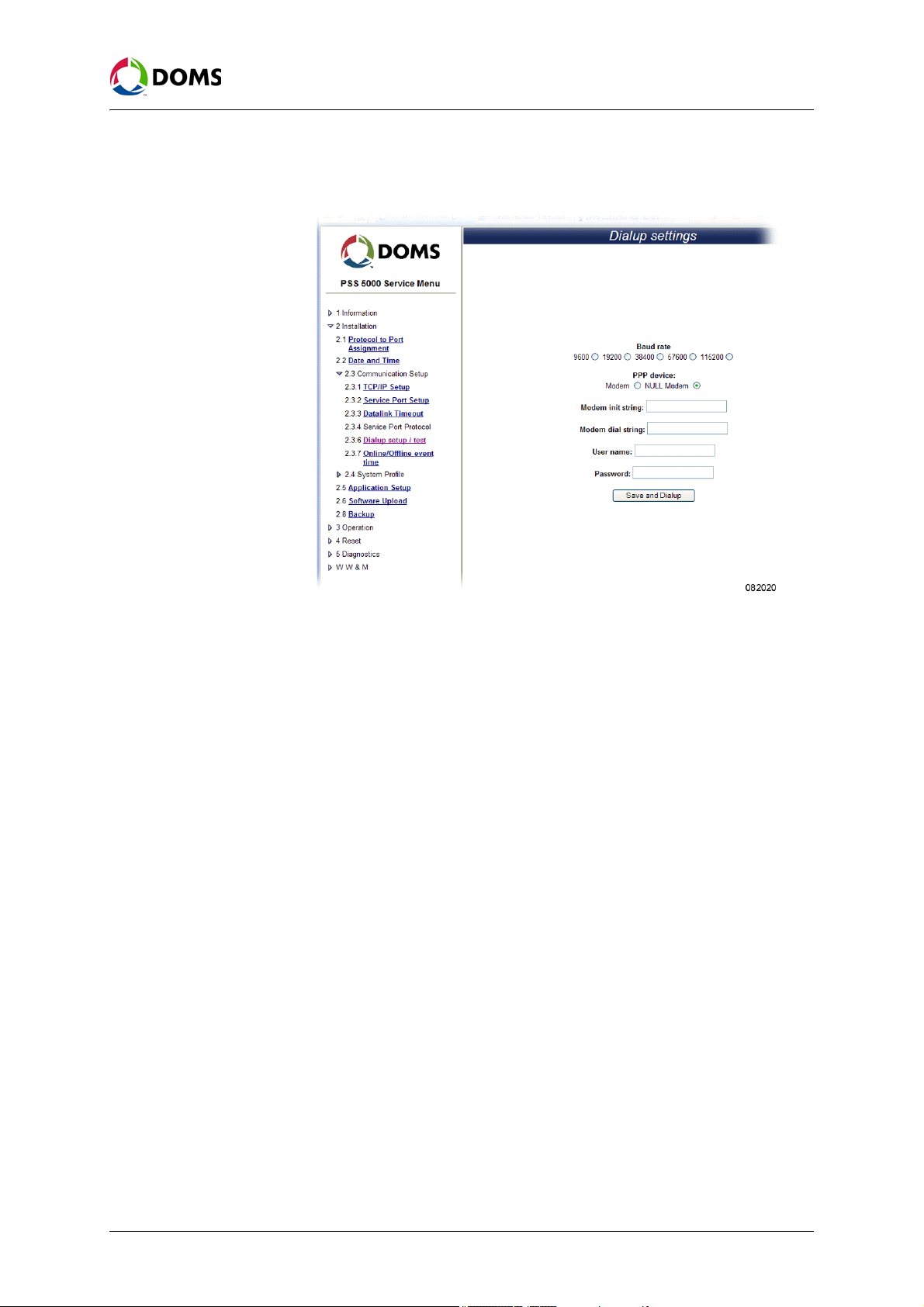

5.3.6 Dialup Setup/Test (Menu 2.3.6) . . . . . . . . . . . . . . . . . . . . . . . 49

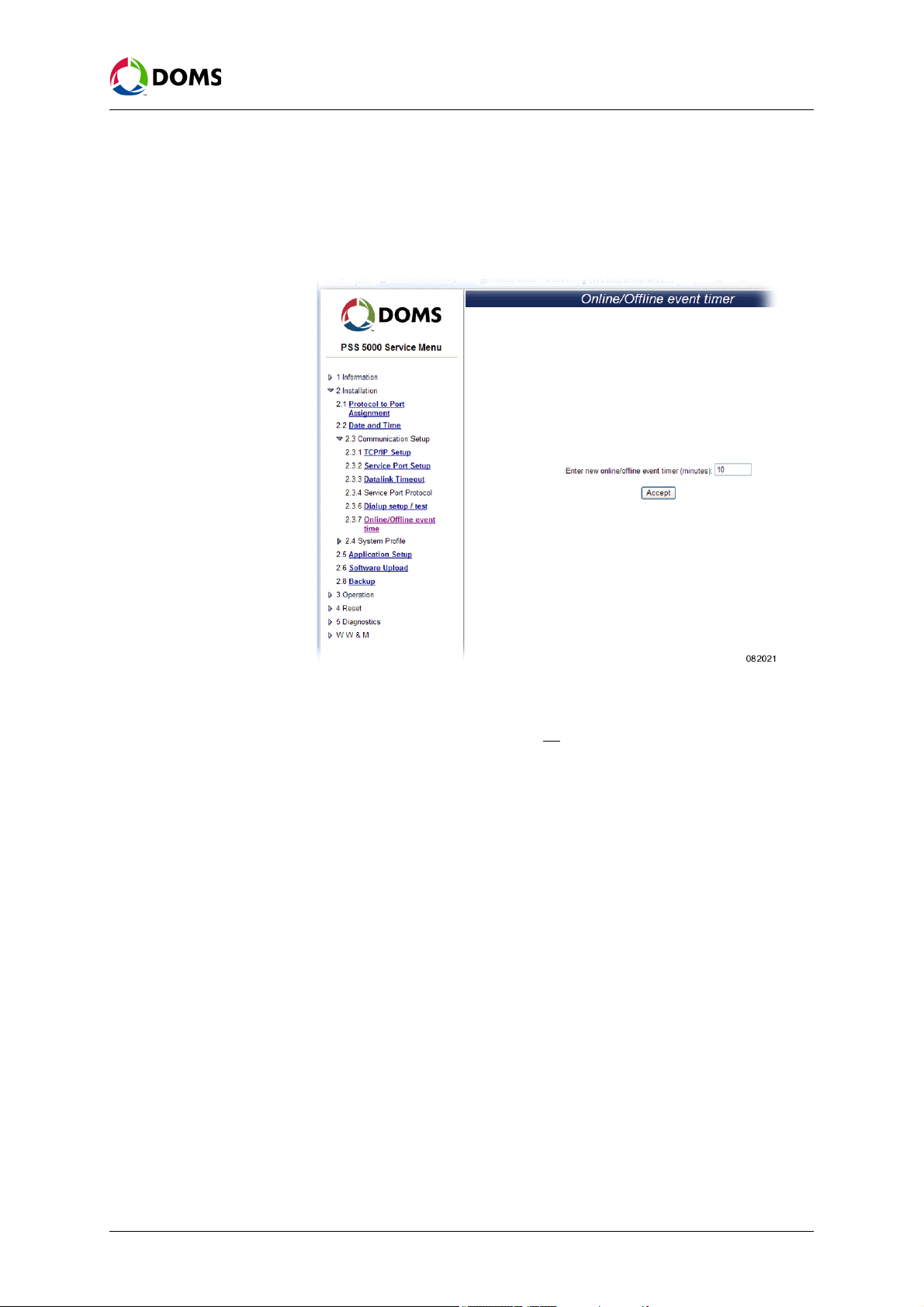

5.3.7 Online/Offline Event Time (Menu 2.3.7) . . . . . . . . . . . . . . . . . 50

5.4 System Profile (Menu 2.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

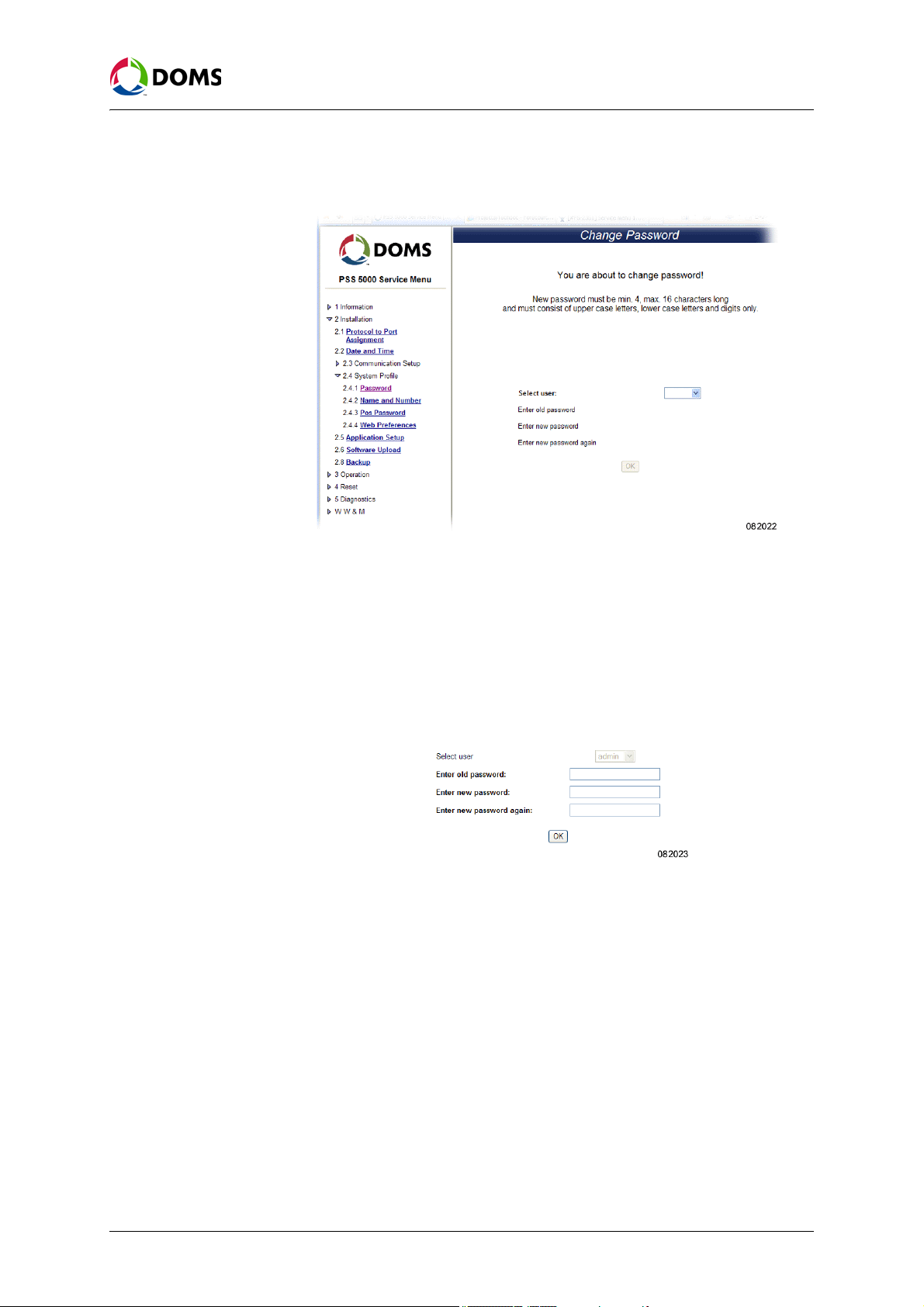

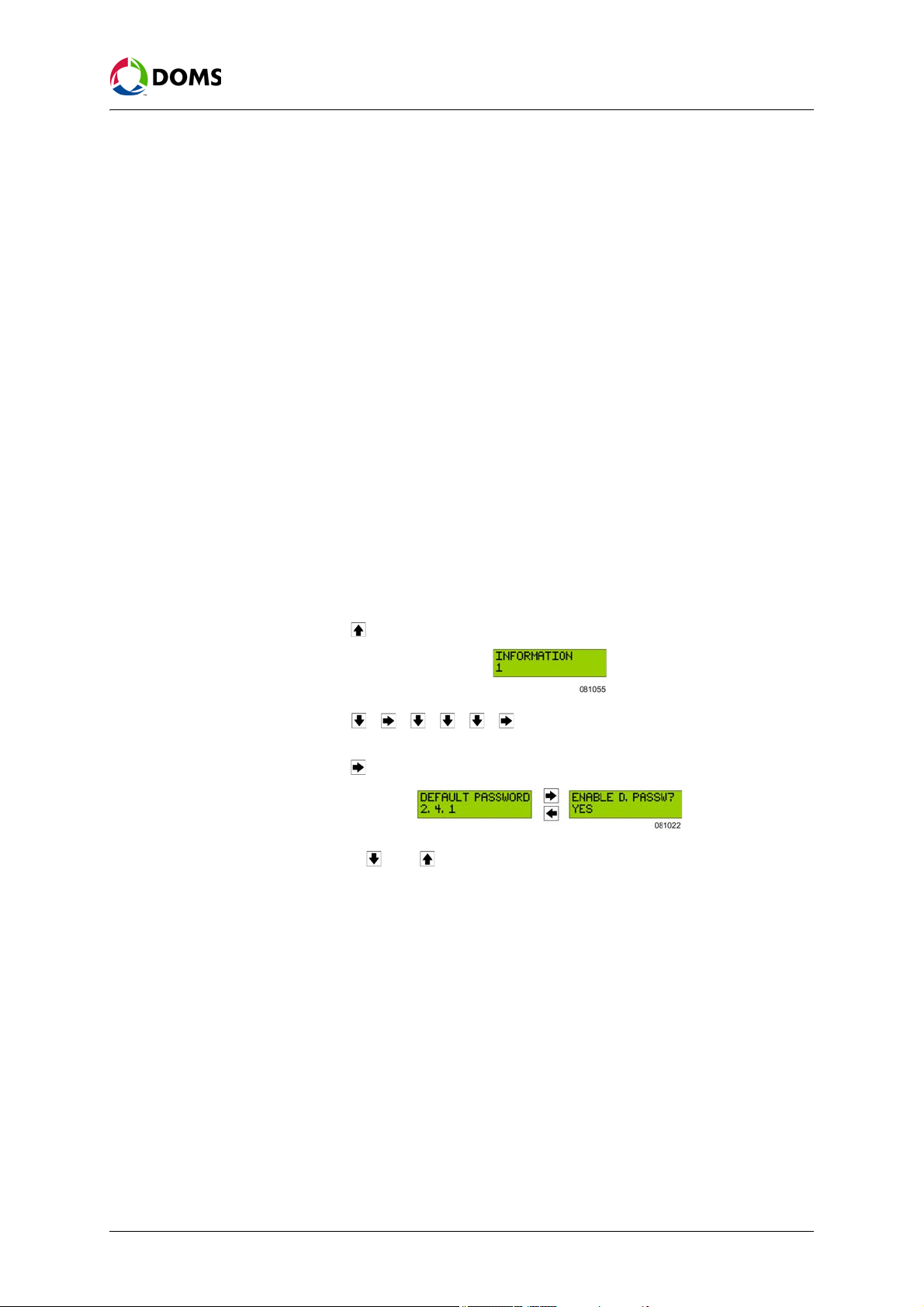

5.4.1 Password (Menu 2.4.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

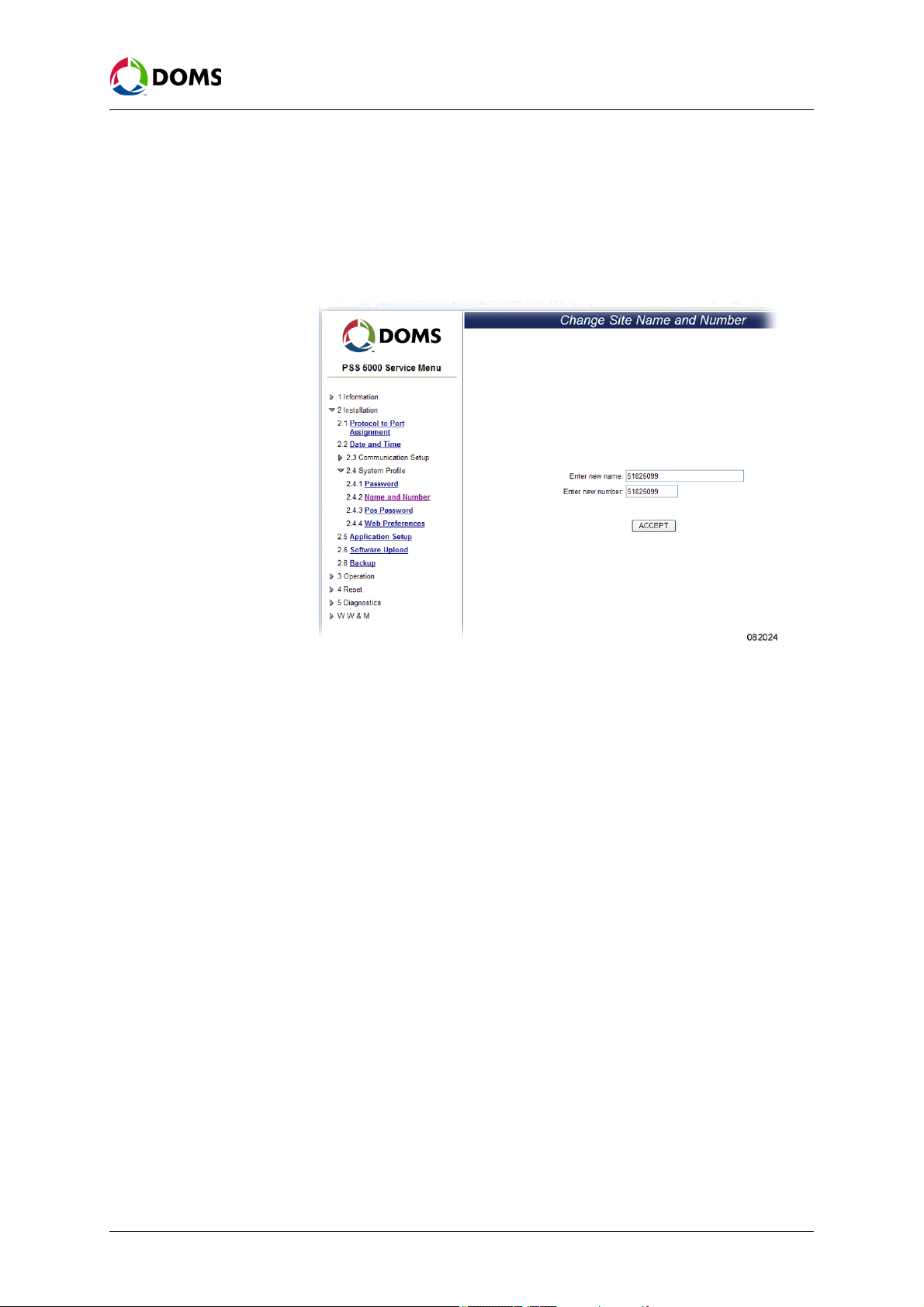

5.4.2 Name and Number (Menu 2.4.2) . . . . . . . . . . . . . . . . . . . . . . 55

5.4.3 POS Password (Menu 2.4.3) . . . . . . . . . . . . . . . . . . . . . . . . . 55

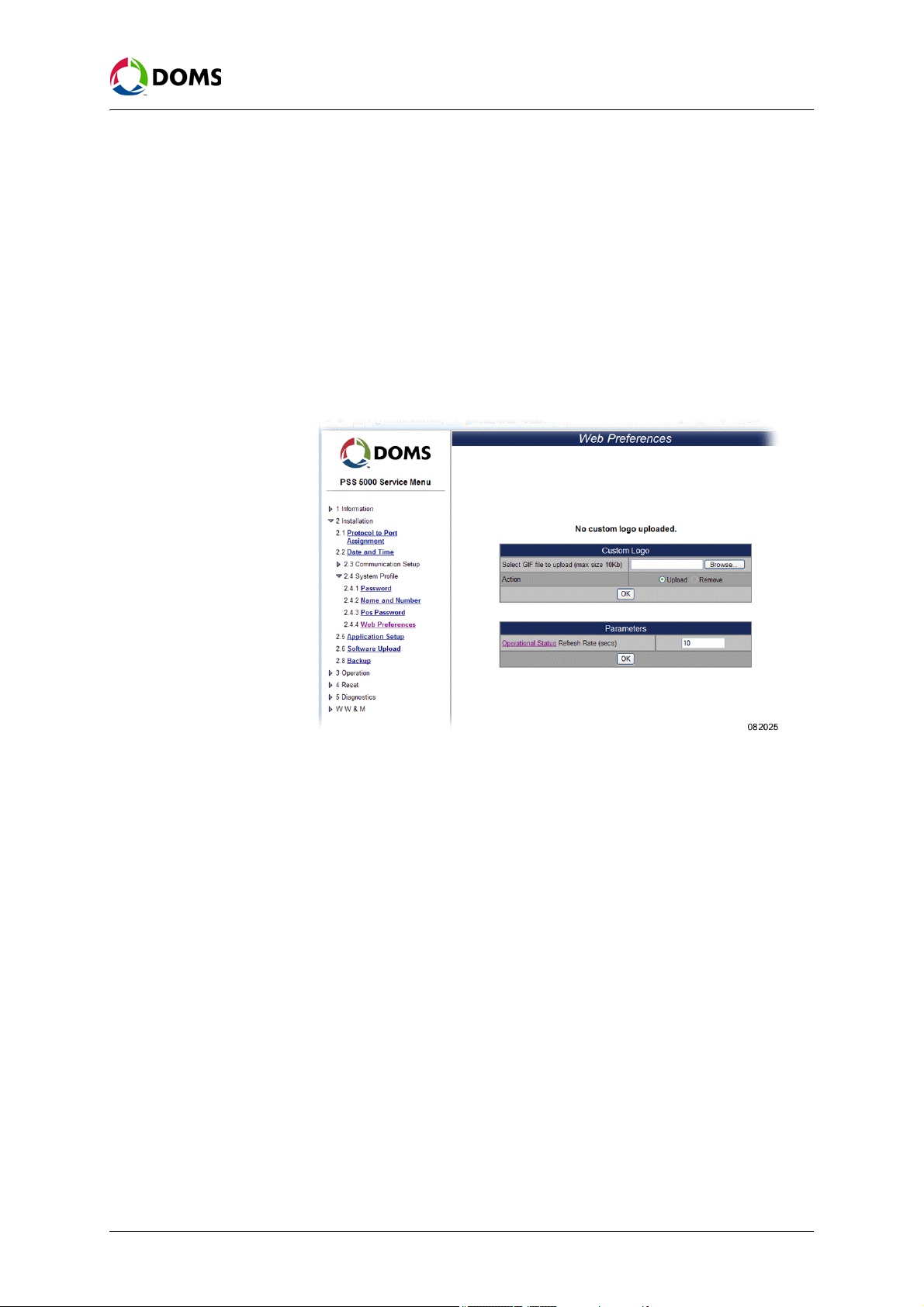

5.4.4 Web Preferences (Menu 2.4.4) . . . . . . . . . . . . . . . . . . . . . . . . 56

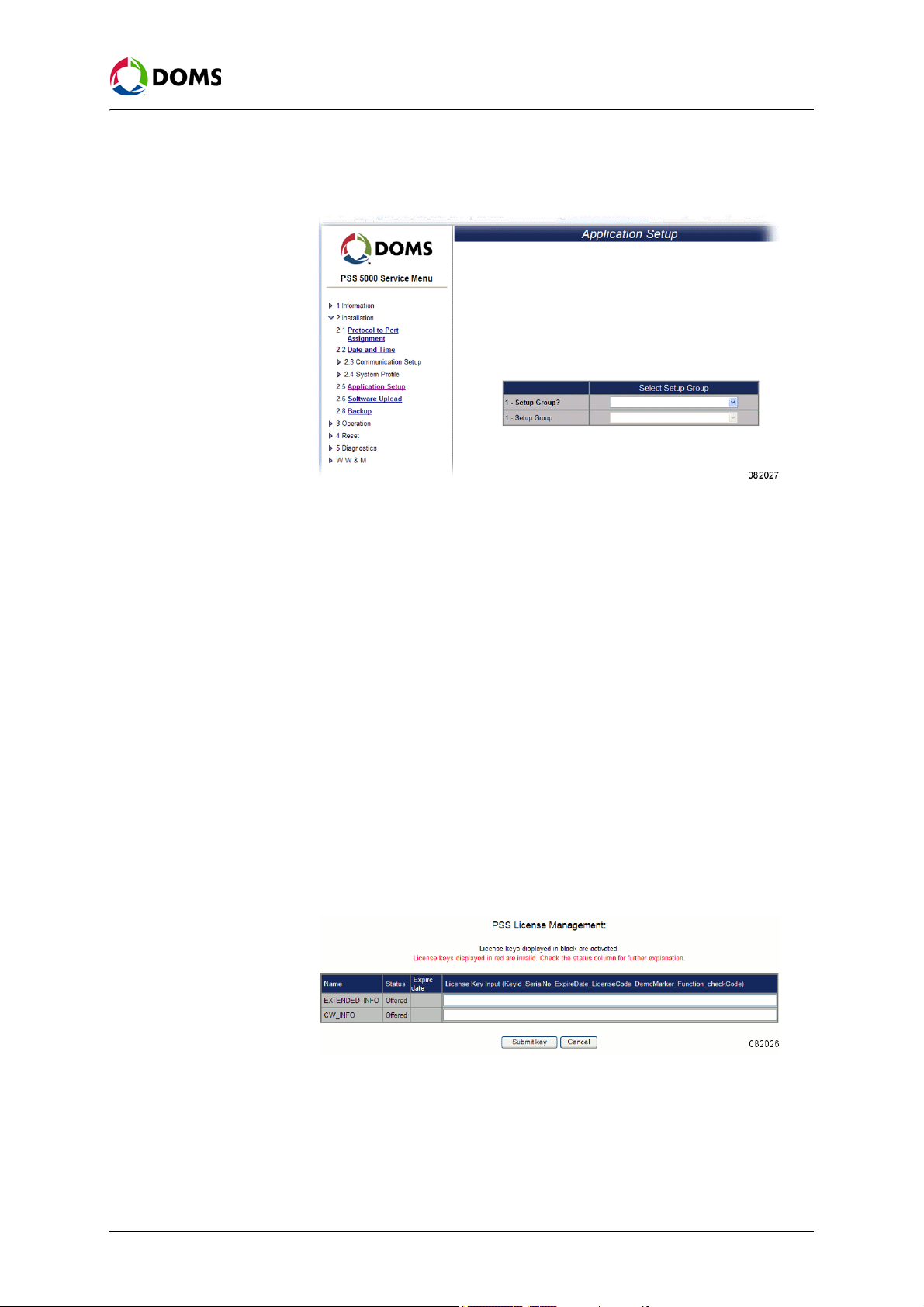

5.5 Application Setup (Menu 2.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

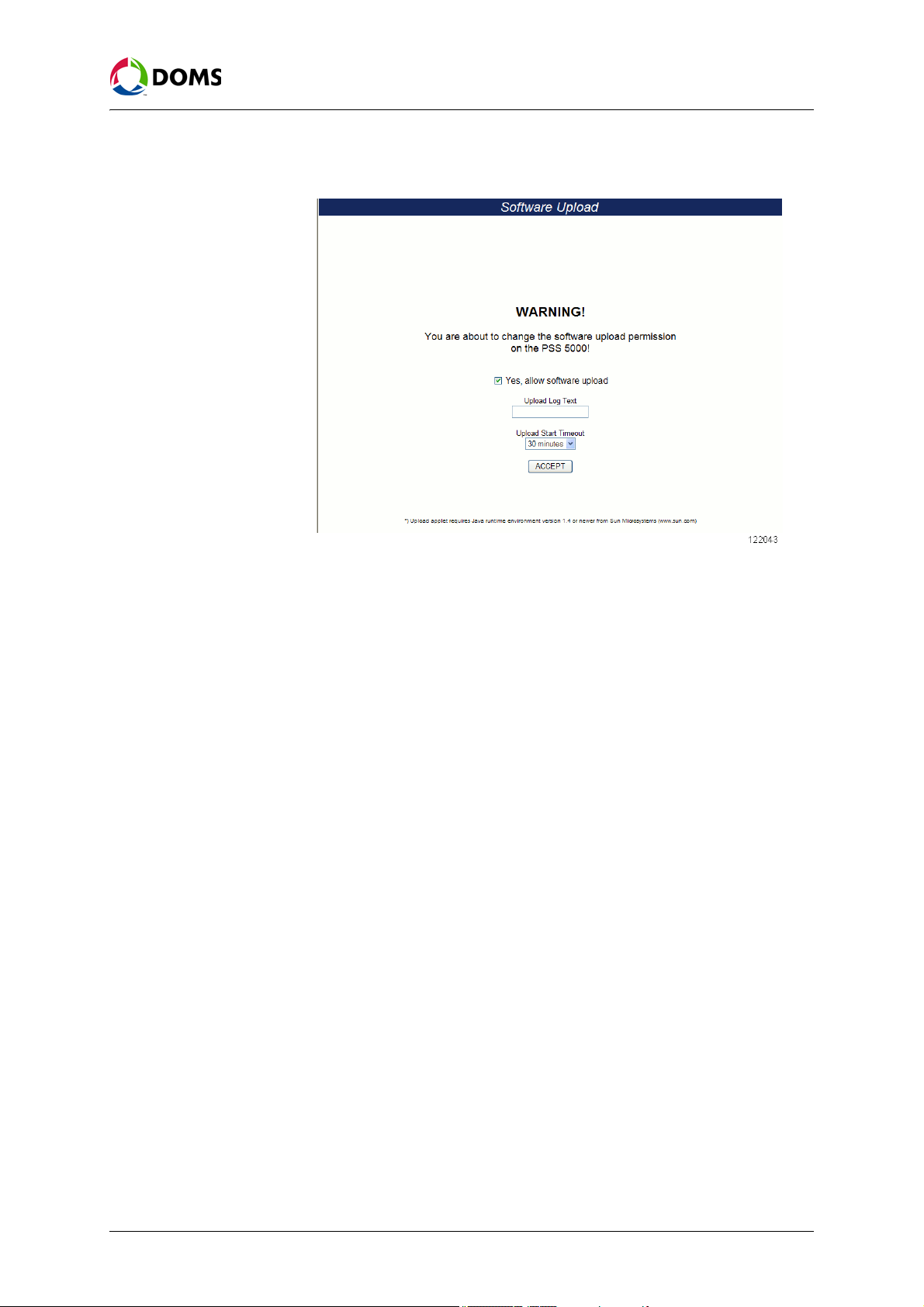

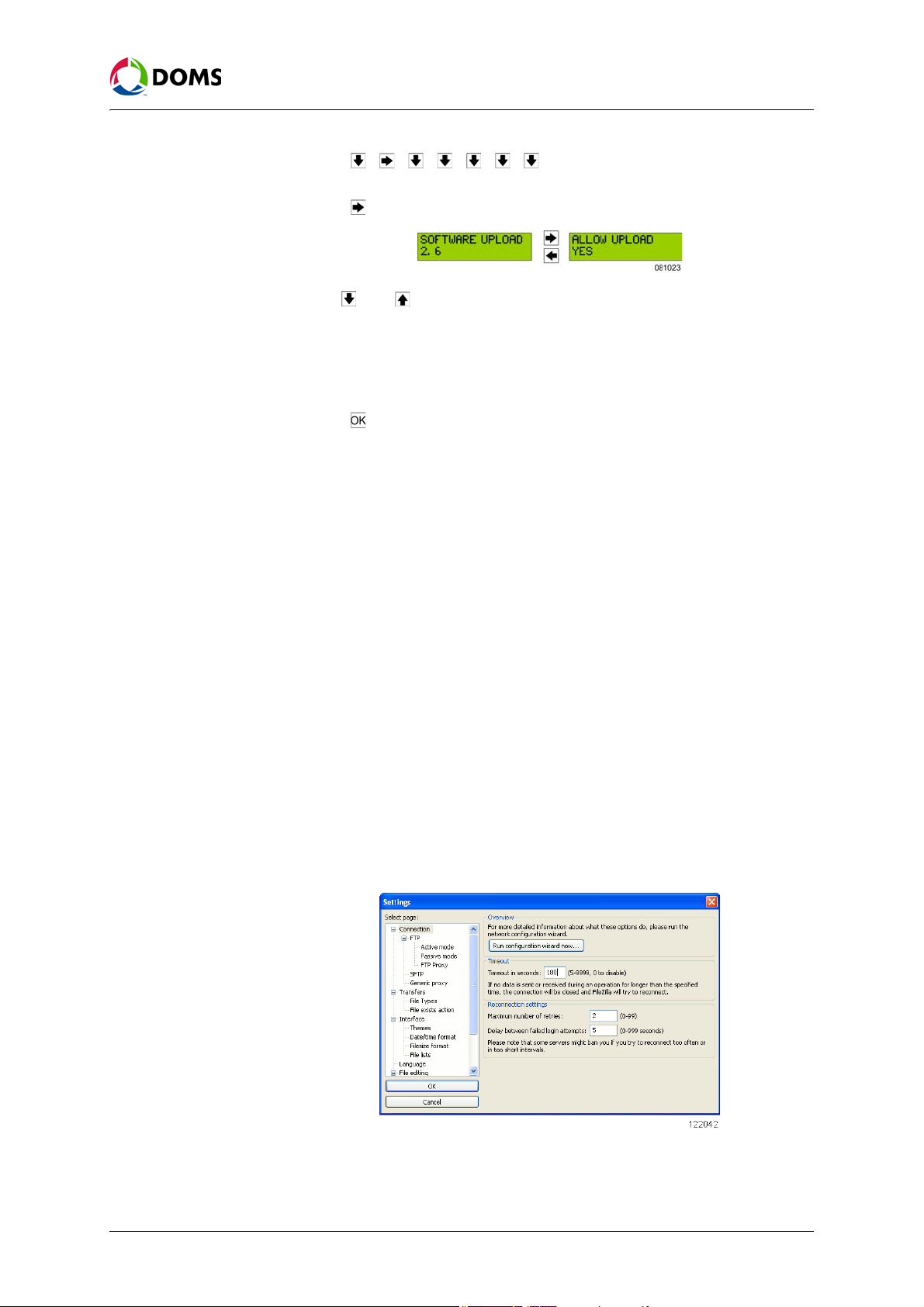

5.6 Software Upload (Menu 2.6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

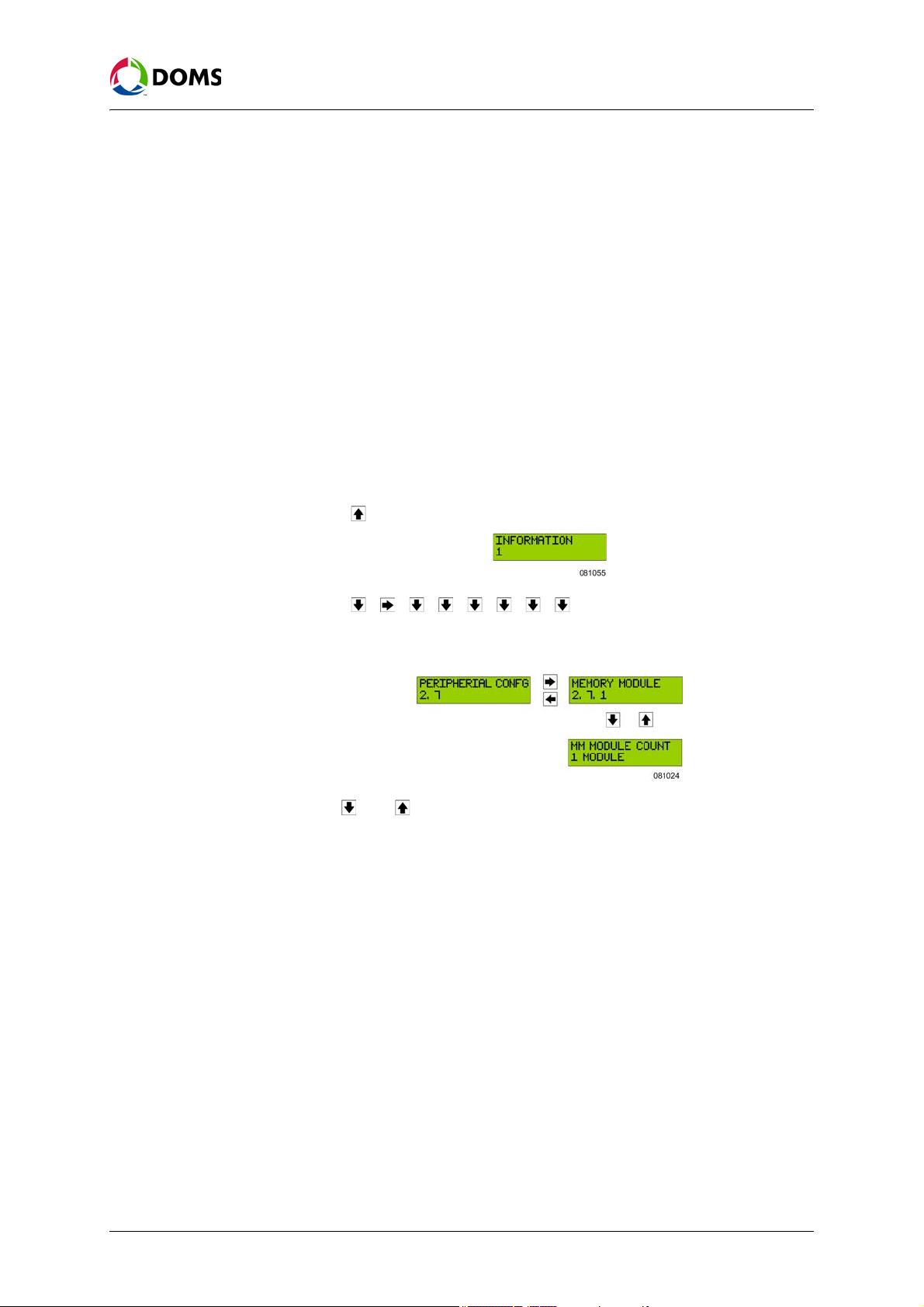

5.7 Peripheral Configuration (Menu 2.7) . . . . . . . . . . . . . . . . . . . . . . . . . . 63

5.7.1 Memory Module (Menu 2.7.1) . . . . . . . . . . . . . . . . . . . . . . . . . 64

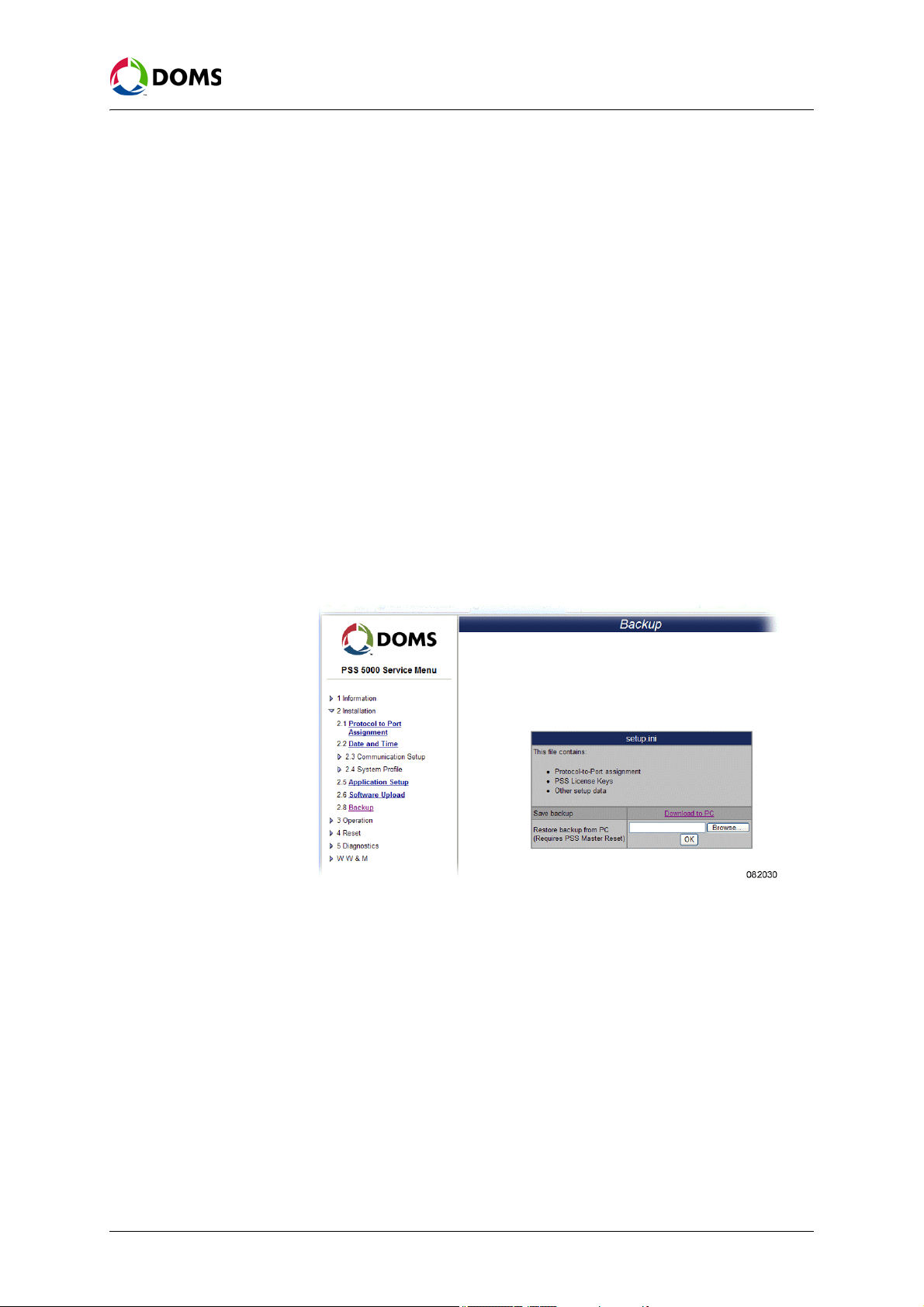

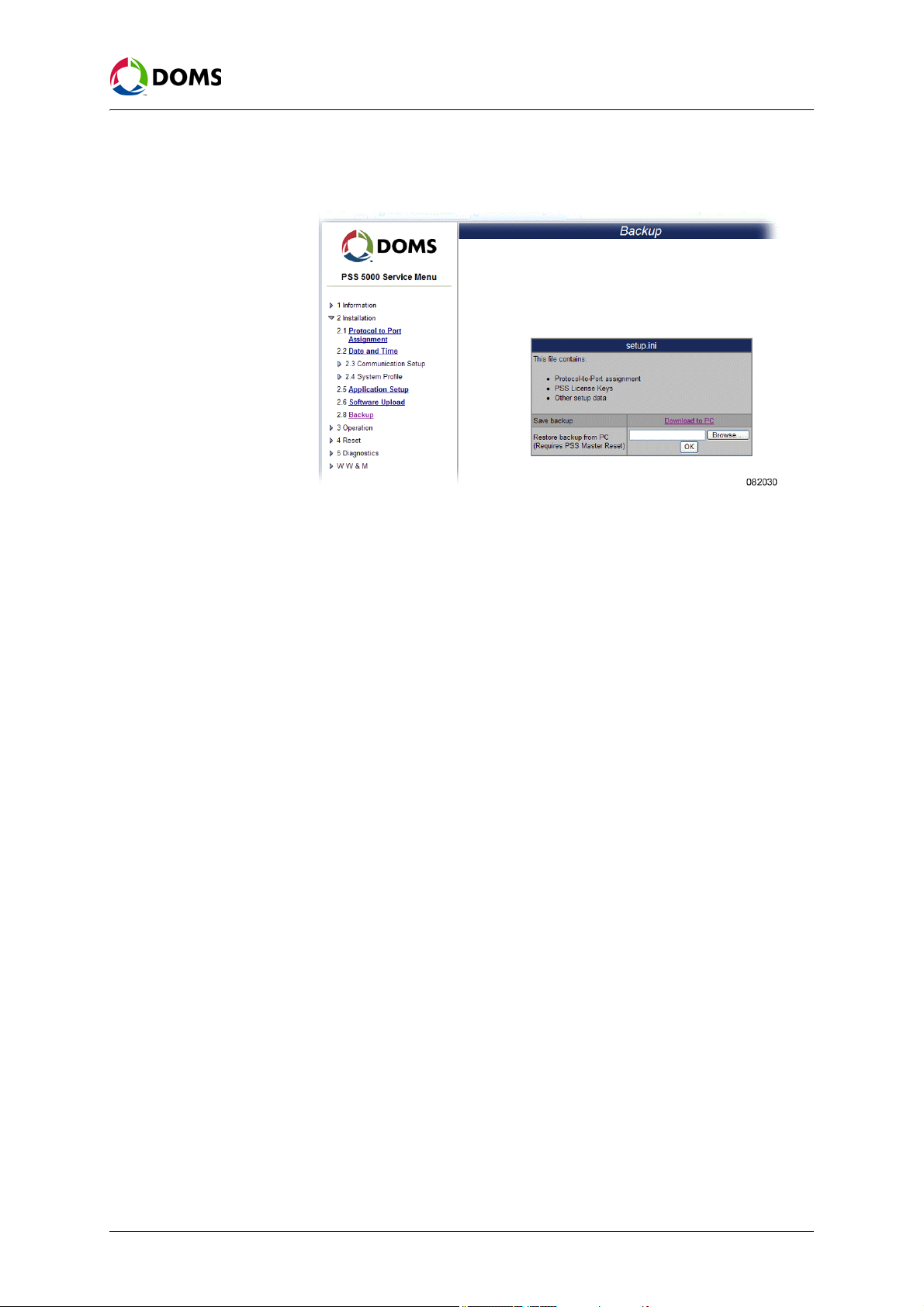

5.8 Backup (Menu 2.8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

6 Operation (Menu 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

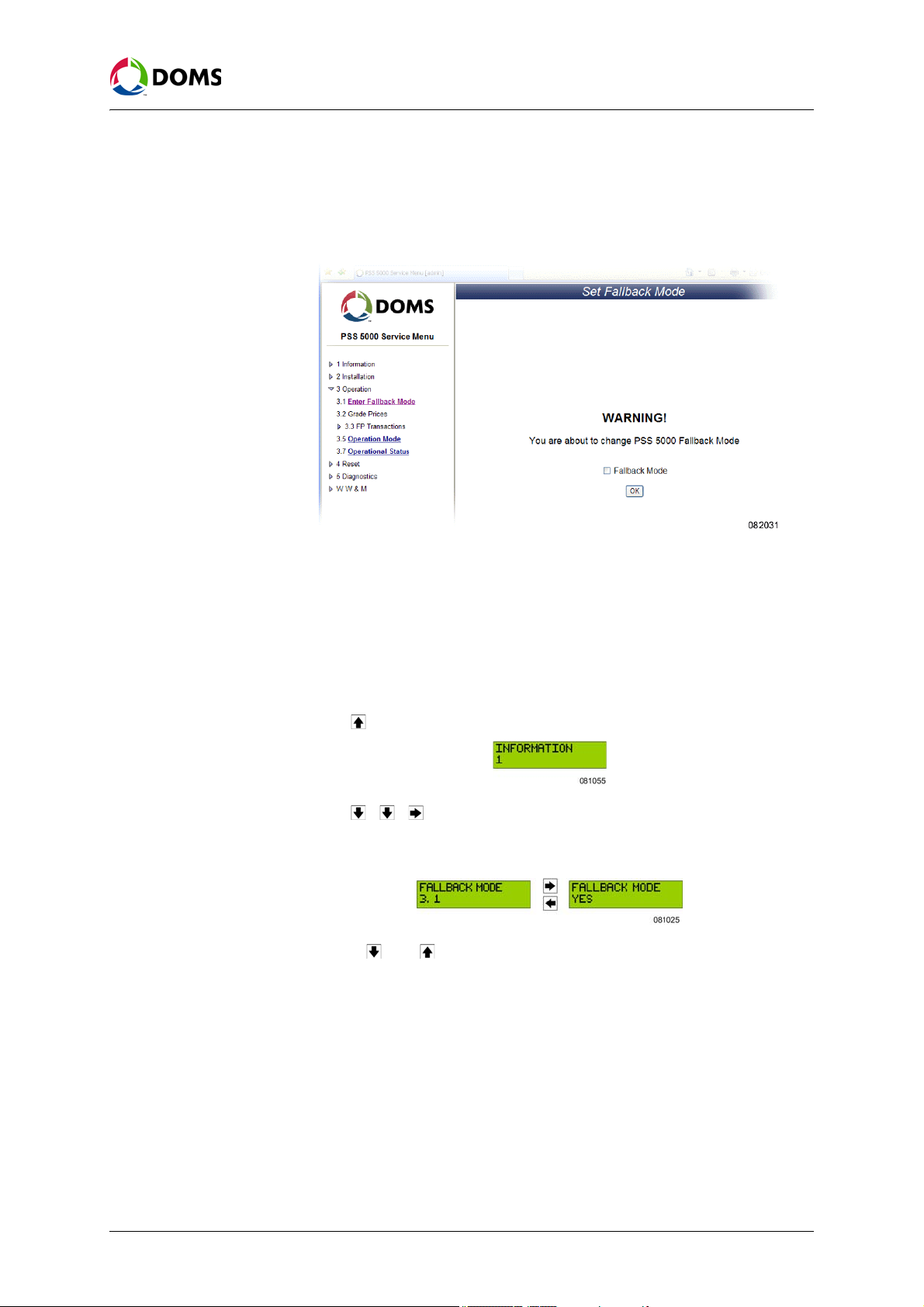

6.1 Enter Fallback Mode (Menu 3.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

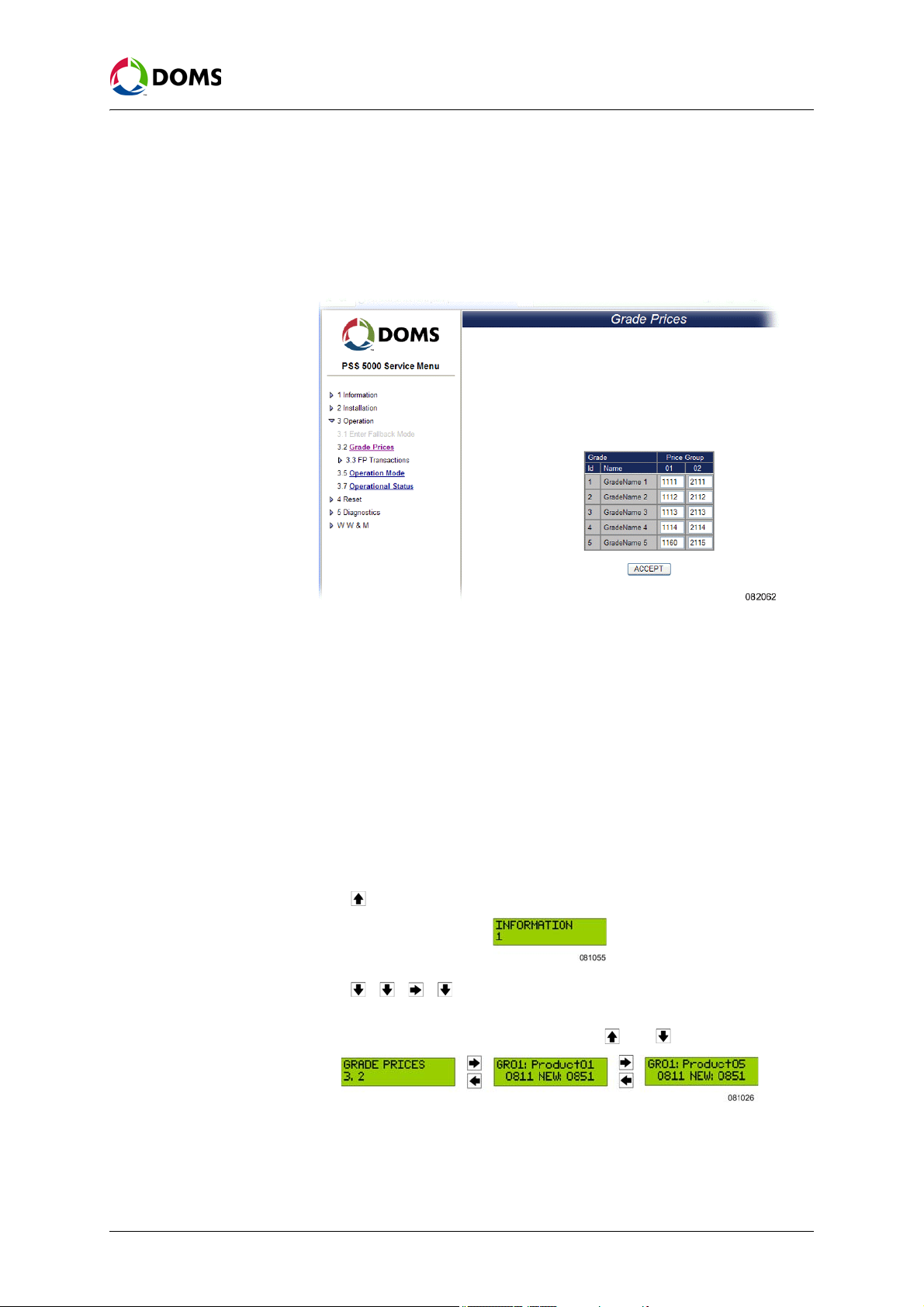

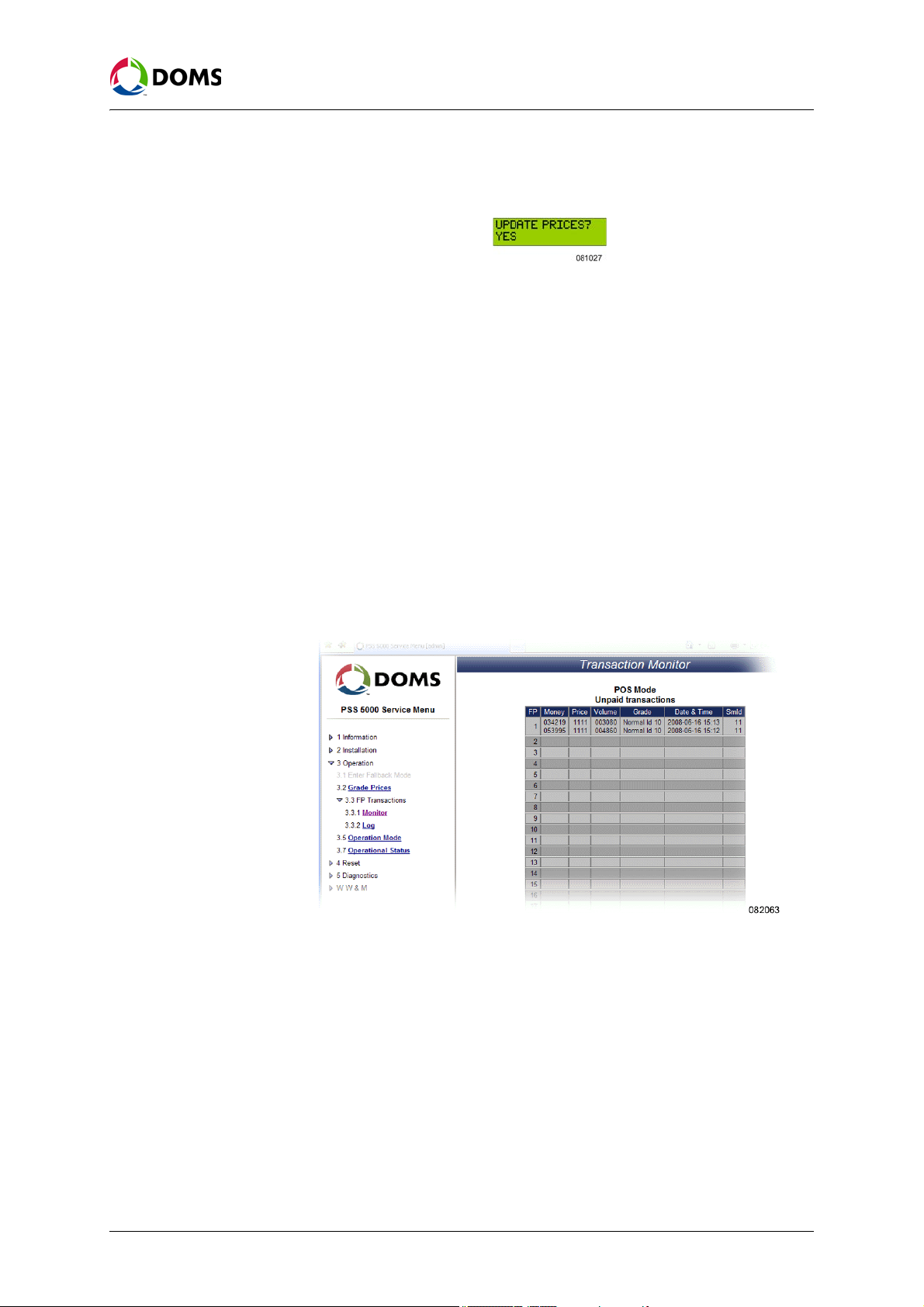

6.2 Grade Prices (Menu 3.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

6.3 FP Transactions (Menu 3.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

6.3.1 Monitor (Menu 3.3.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

6.3.2 Log (Menu 3.3.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

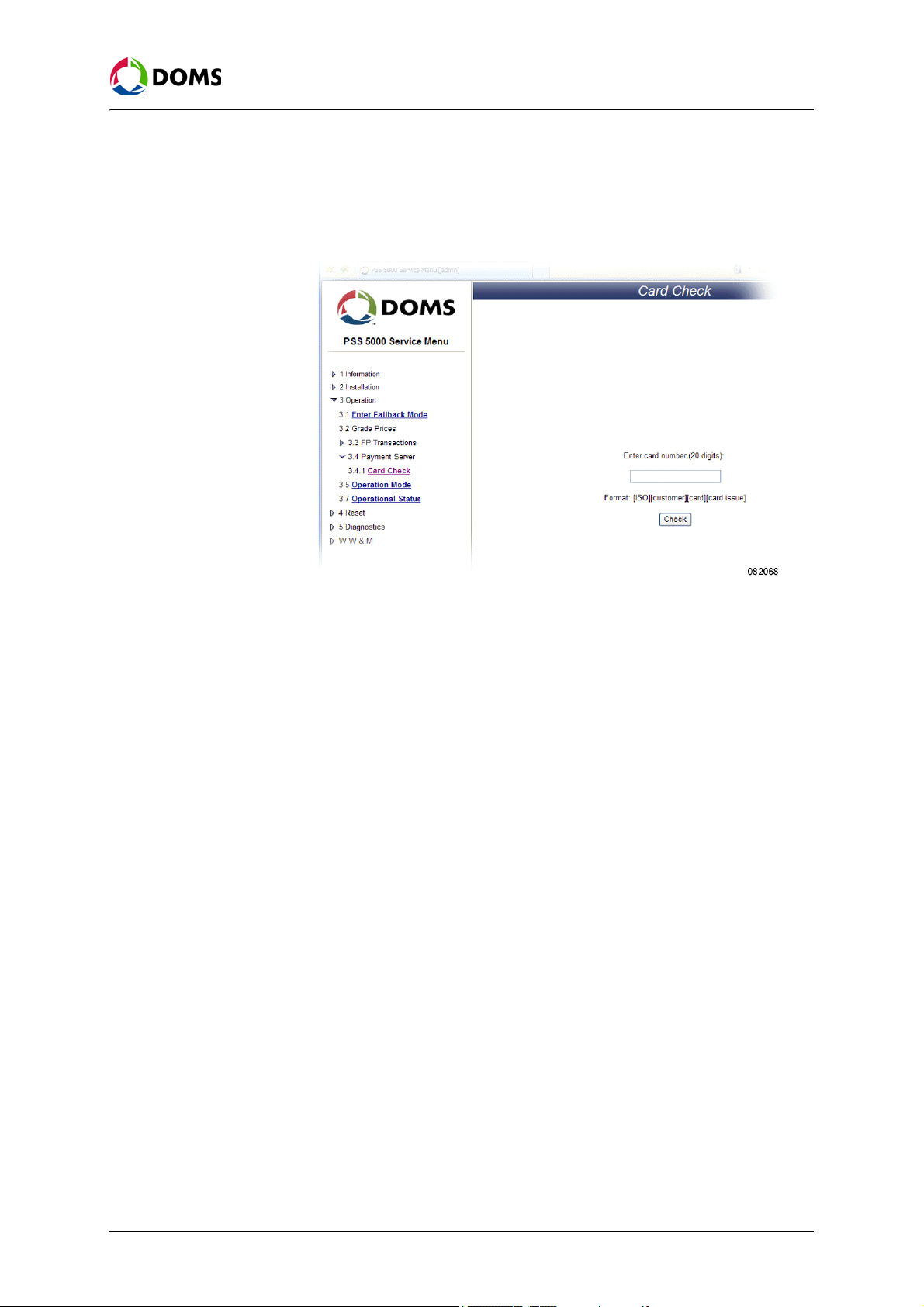

6.4 Payment Server (Menu 3.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

6.5 Operation Mode (Menu 3.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

6.6 Menu 3.6 Reserved for Future Use . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

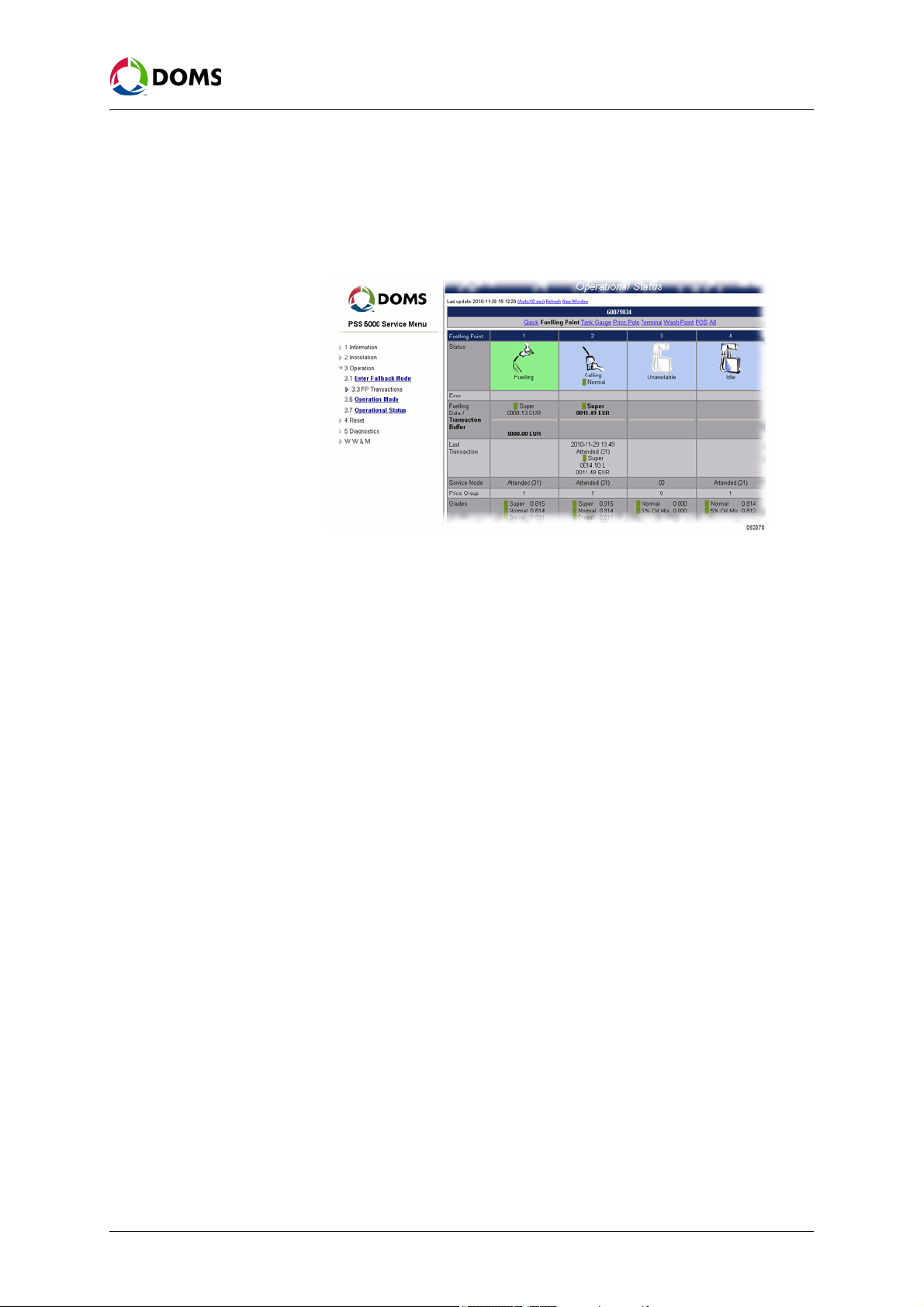

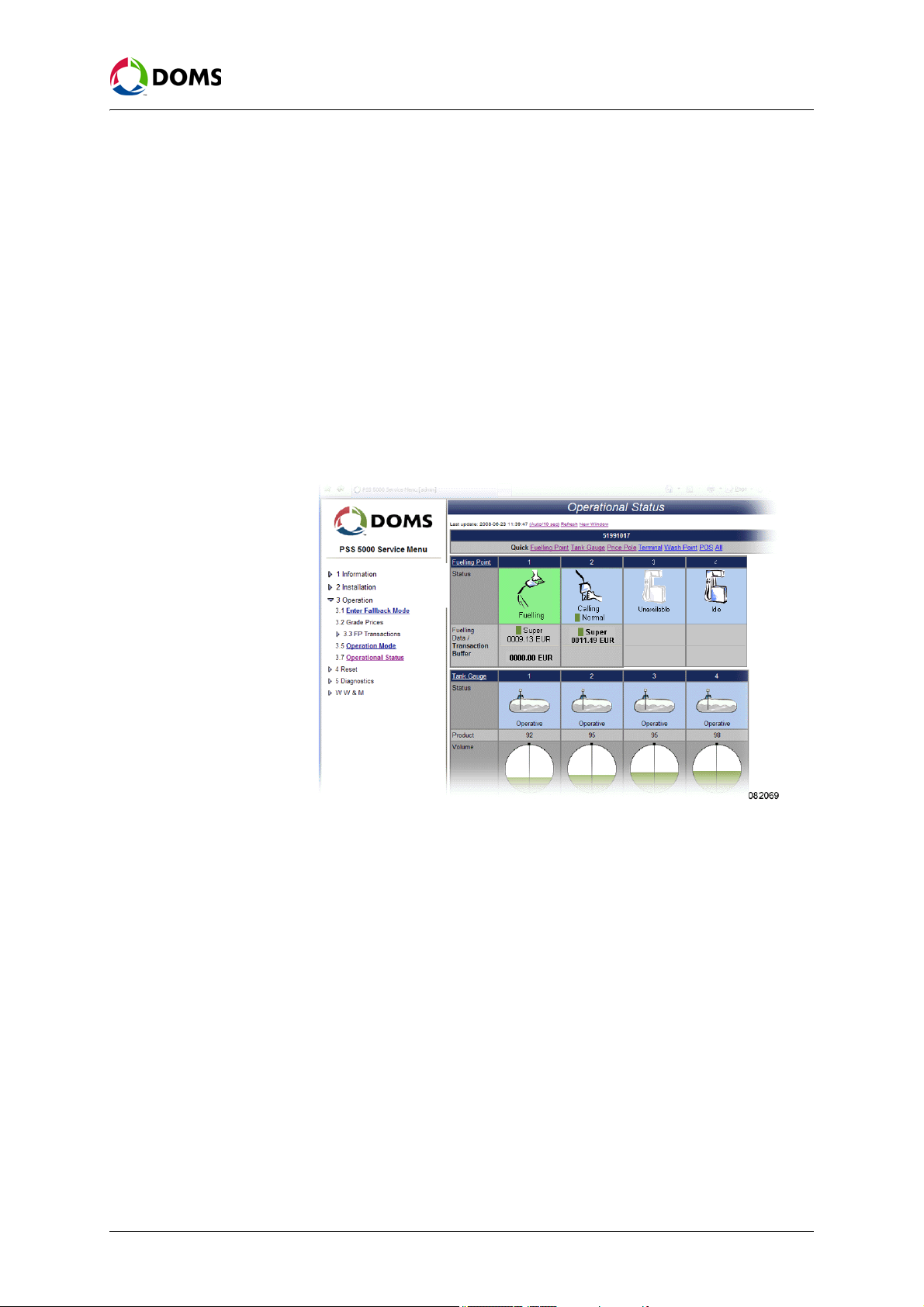

6.7 Operational Status (Menu 3.7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

6.8 TeleTerminal (Menu 3.8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

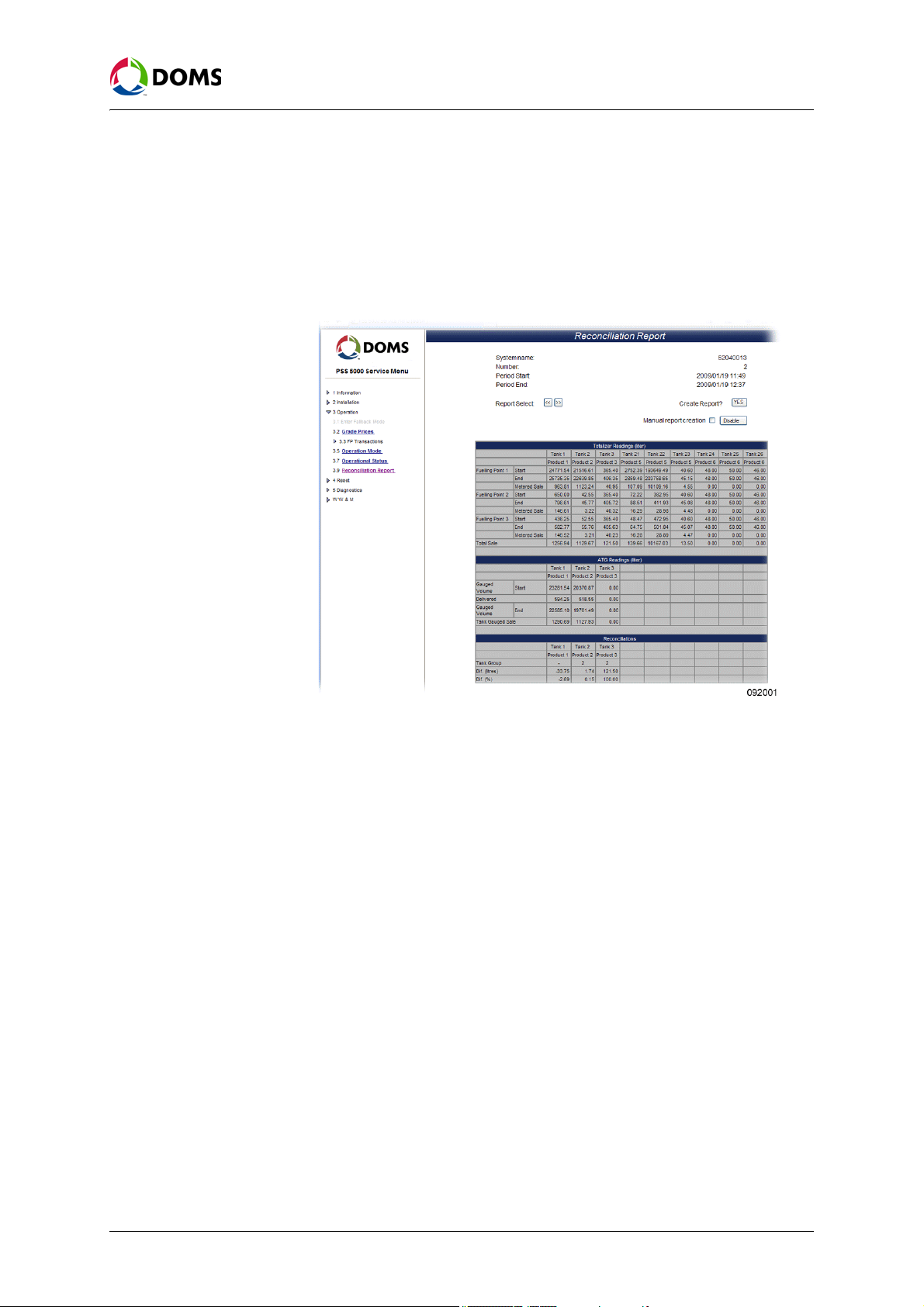

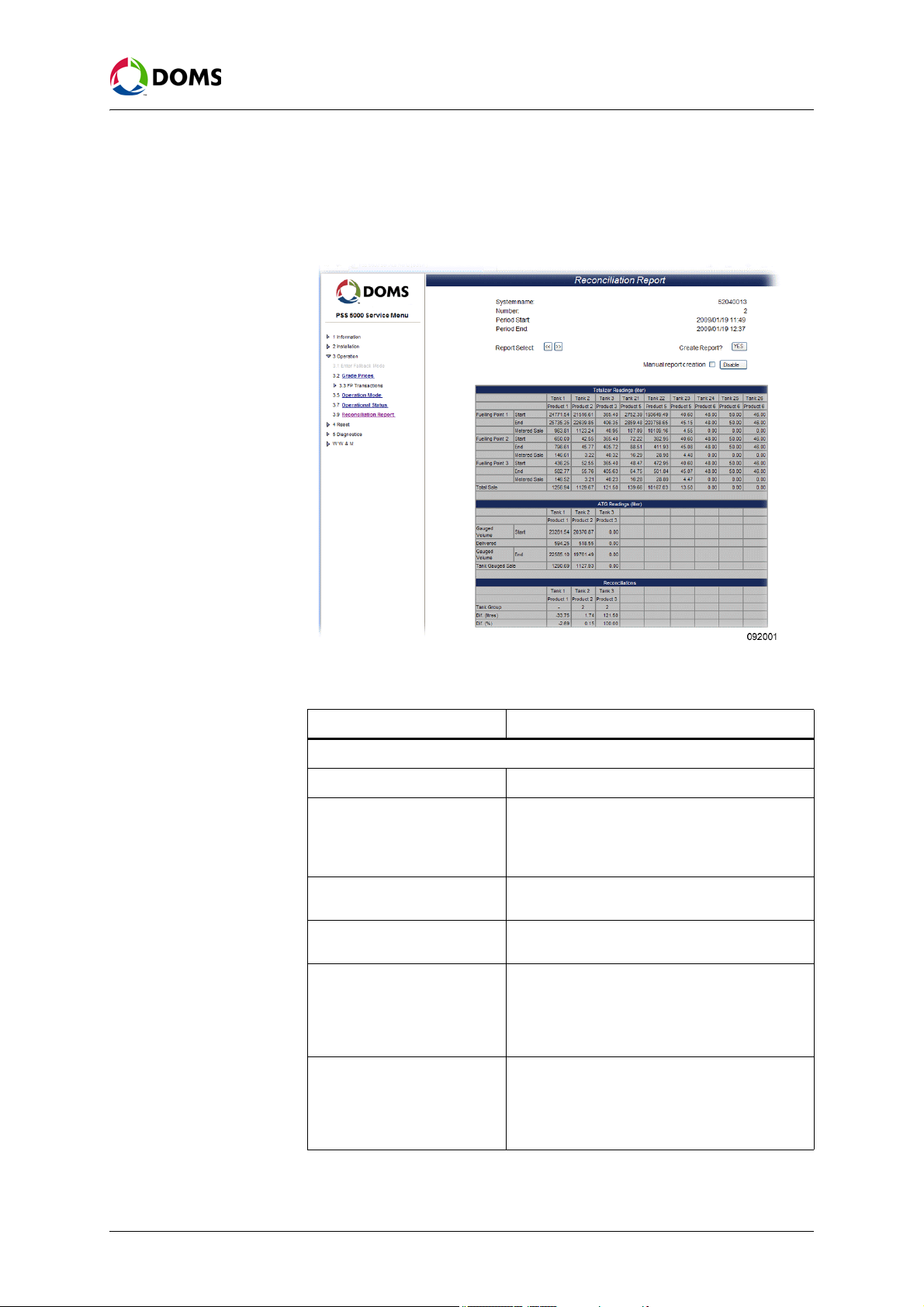

6.9 Reconciliation Report (Menu 3.9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

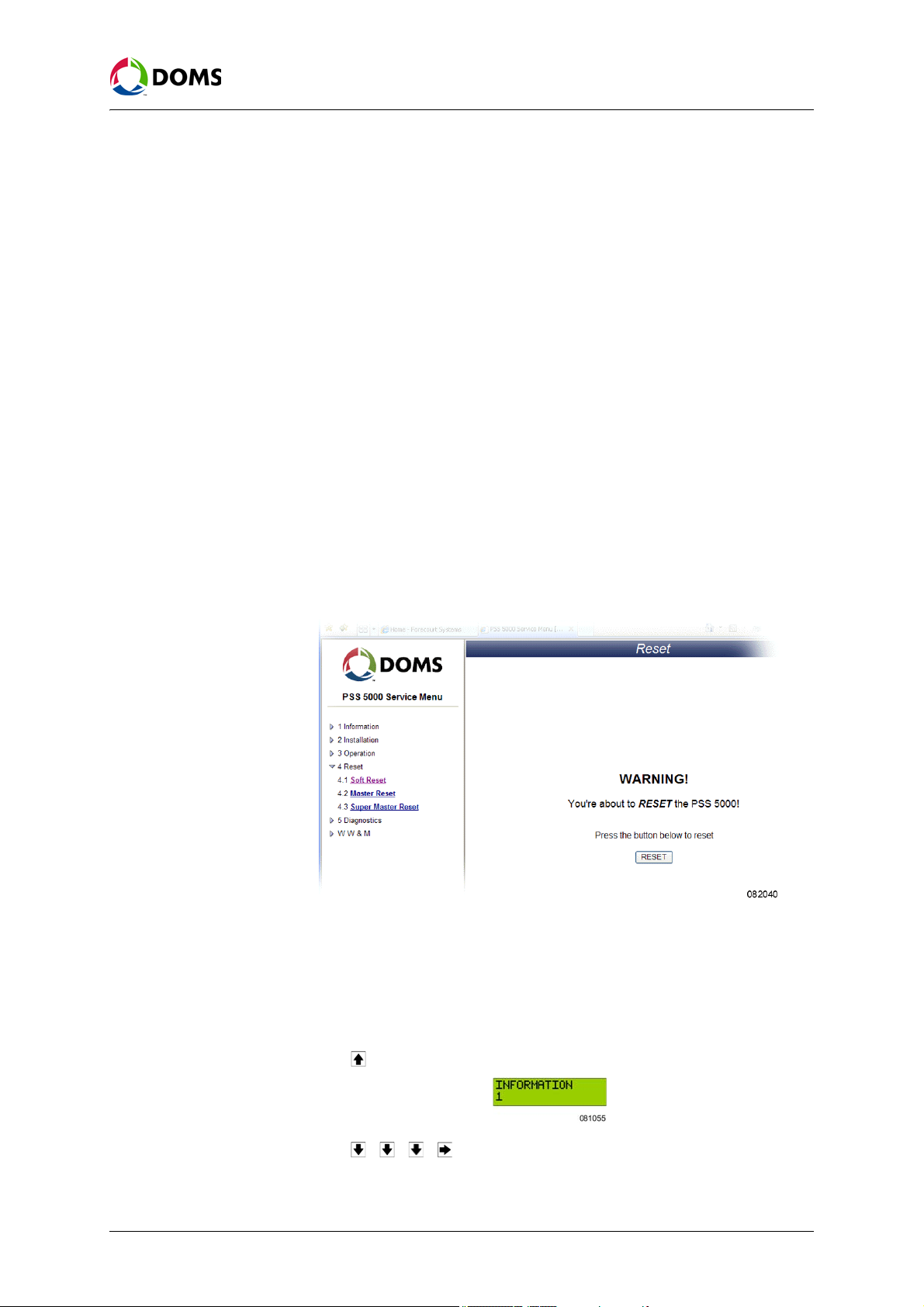

7 Reset (Menu 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

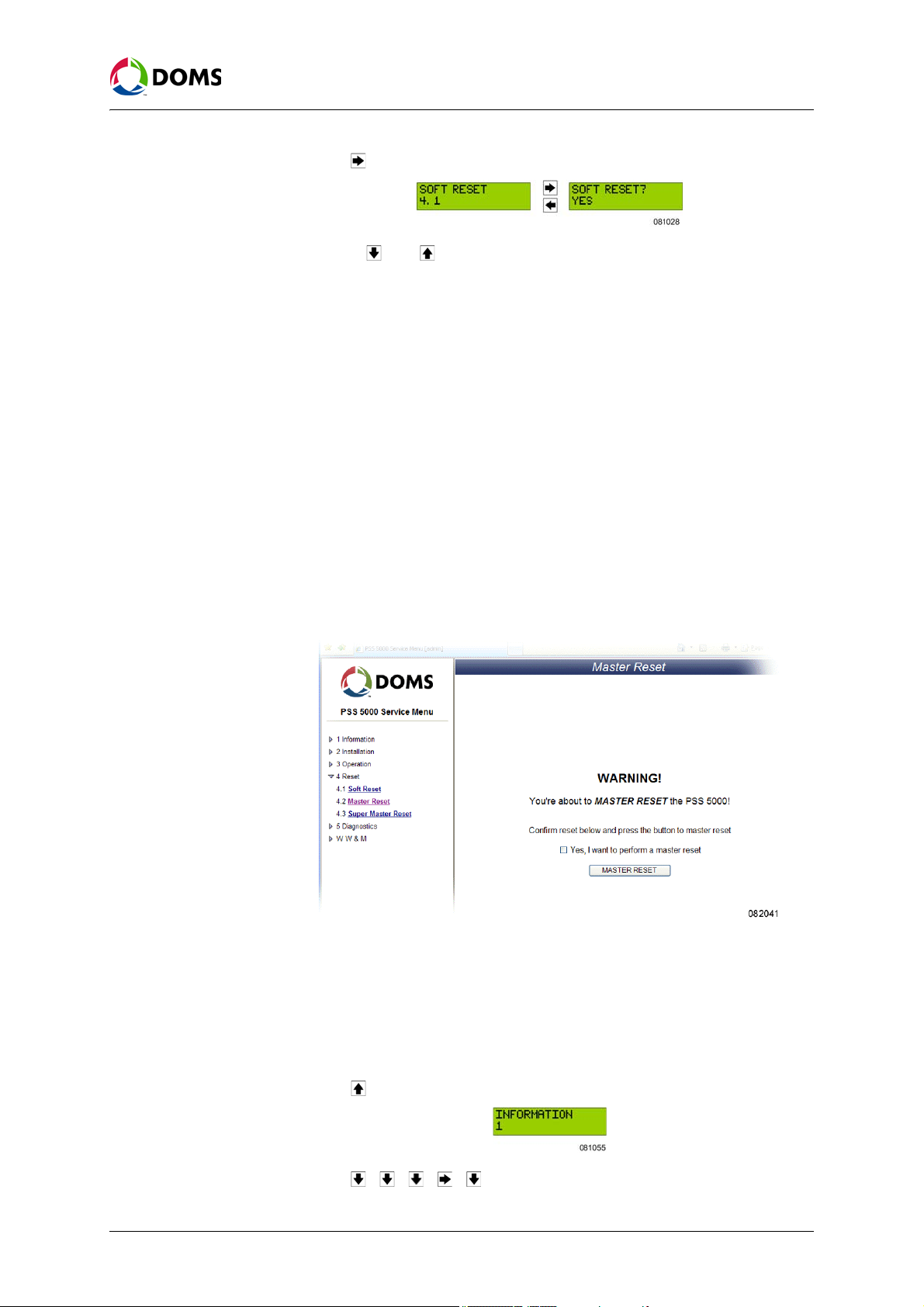

7.1 Soft Reset (Menu 4.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

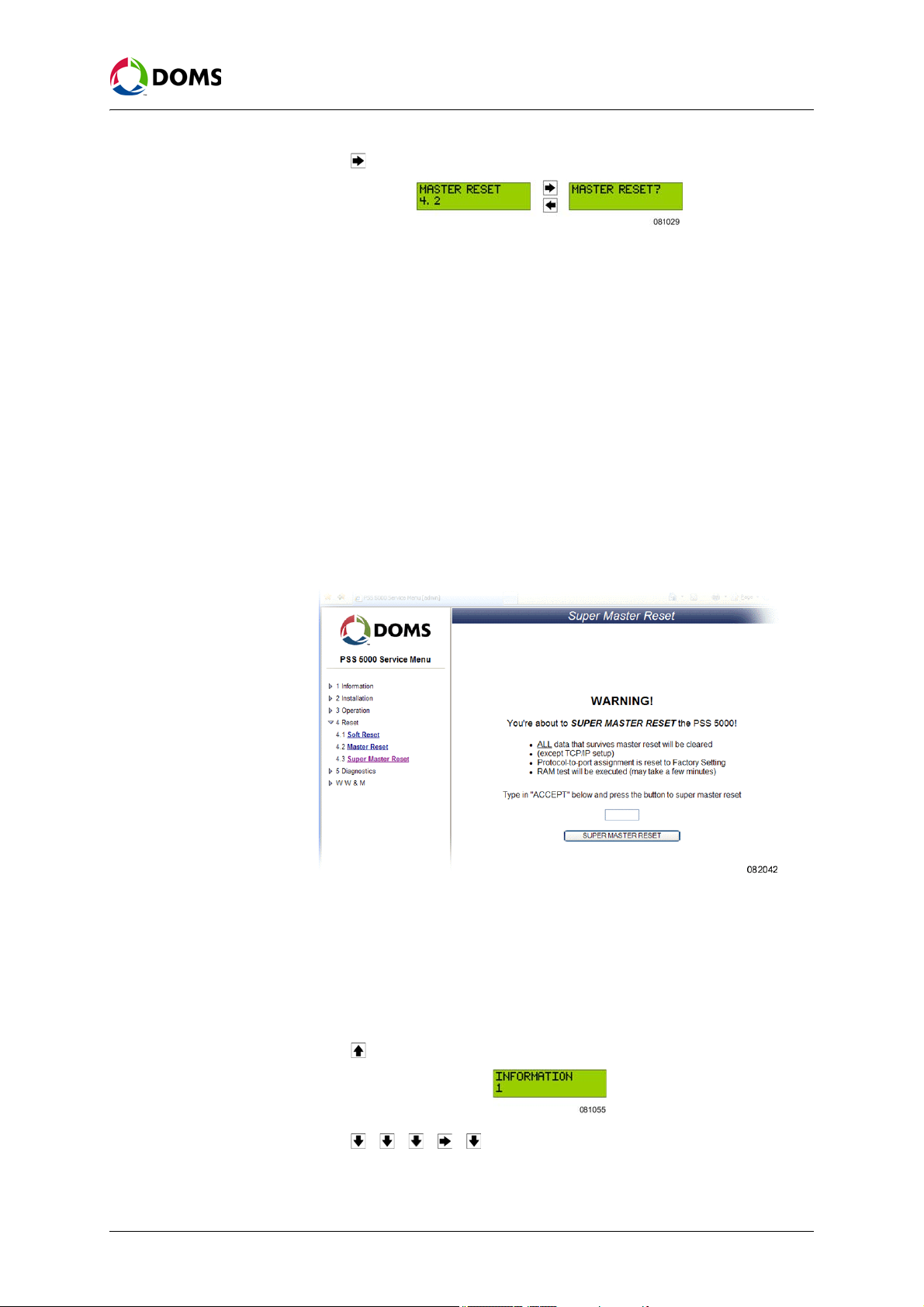

7.2 Master Reset (Menu 4.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

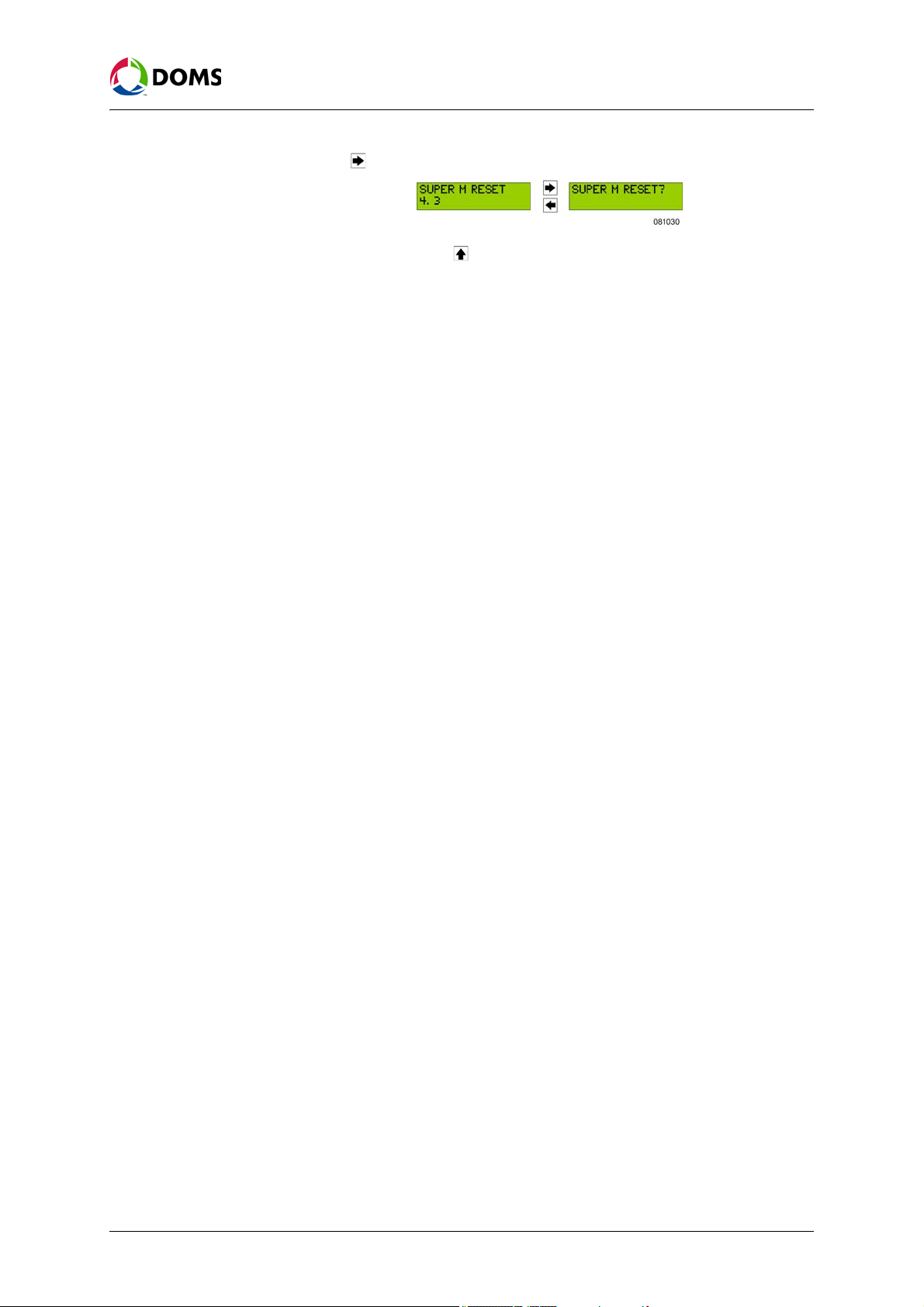

7.3 Super Master Reset (Menu 4.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

8 Diagnostics (Menu 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

8.1 Forecourt Devices (Menu 5.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

8.1.1 Online List (Menu 5.1.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

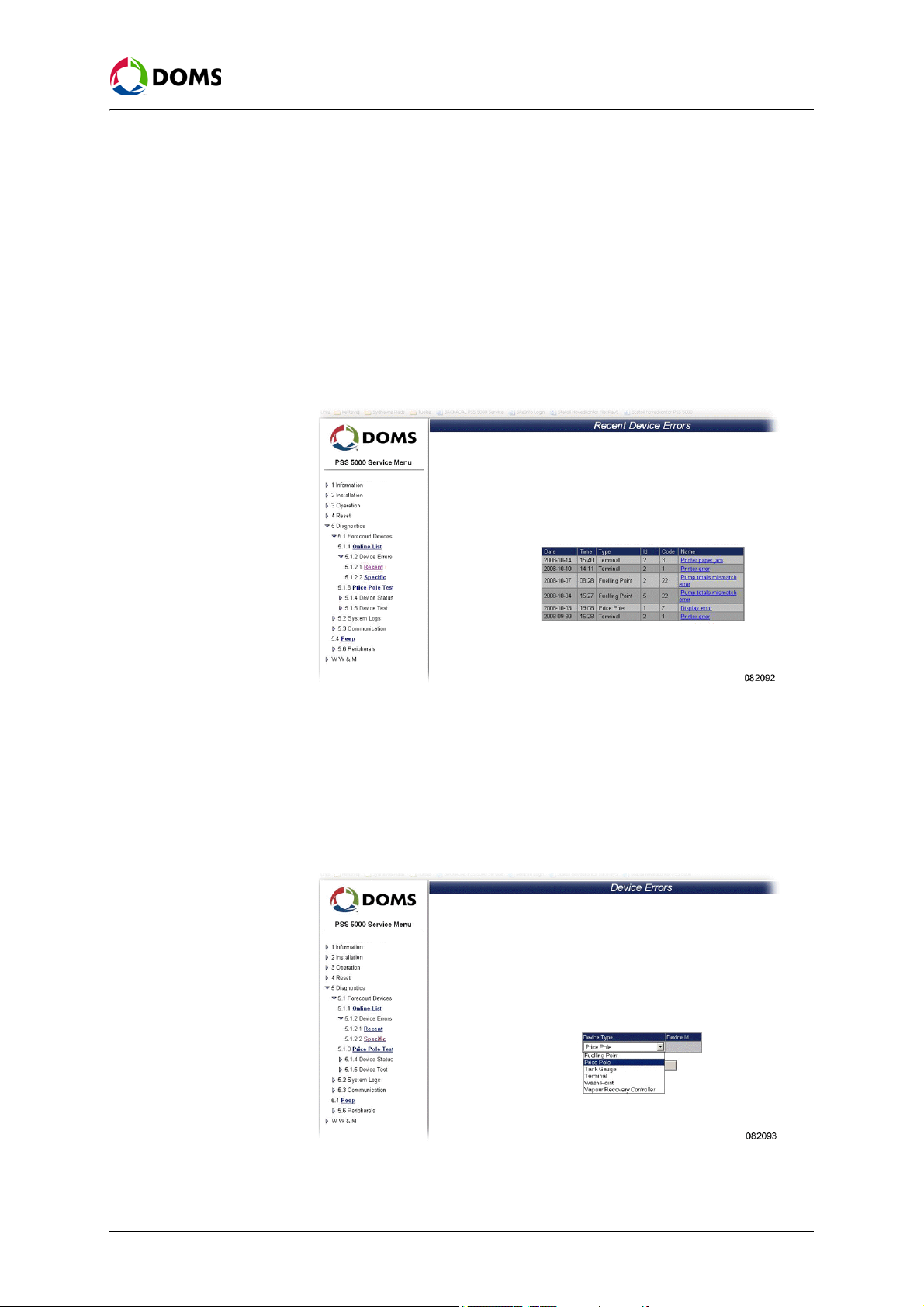

8.1.2 Device Errors (Menu 5.1.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

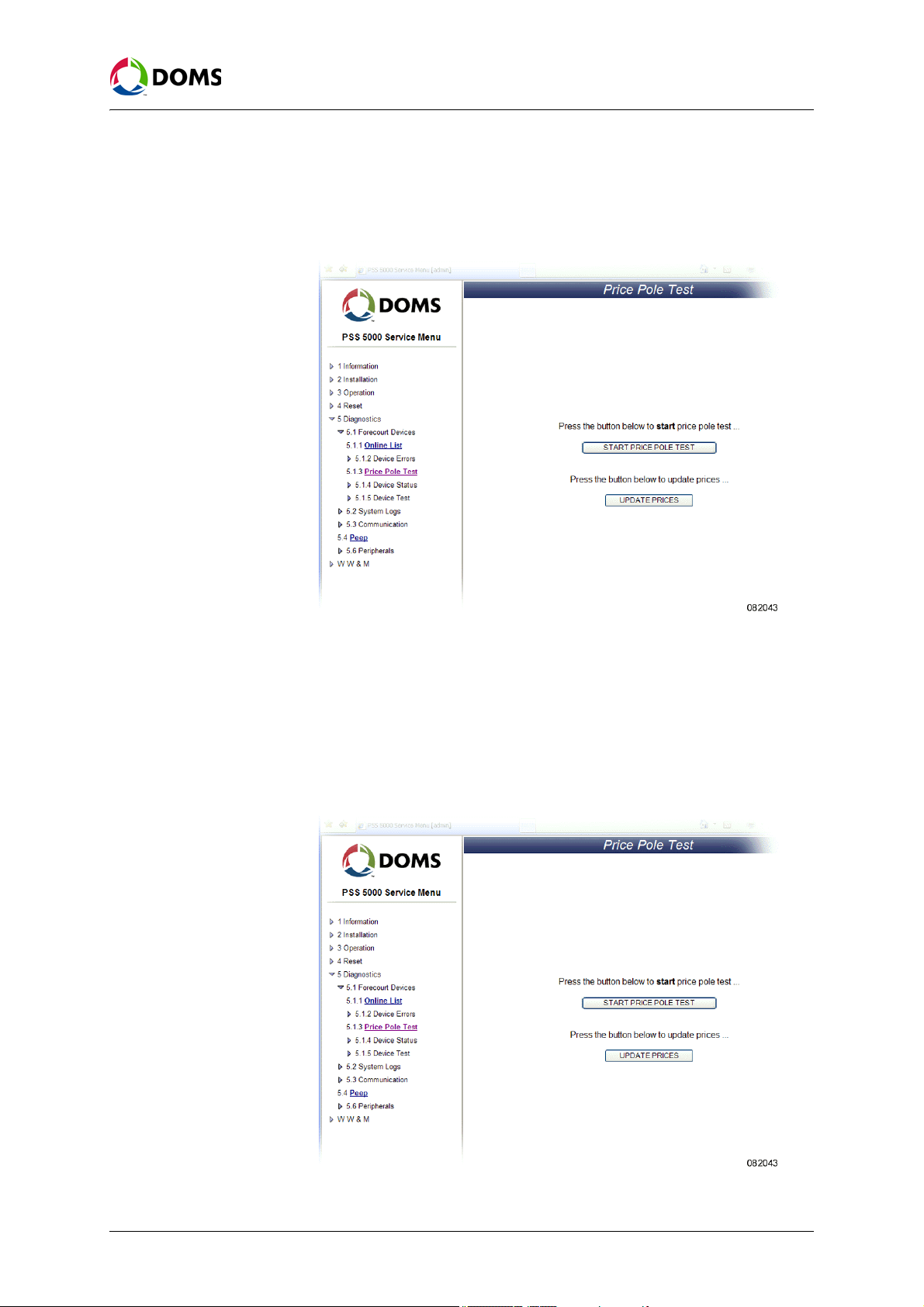

8.1.3 Price Pole Test (Menu 5.1.3) . . . . . . . . . . . . . . . . . . . . . . . . . 86

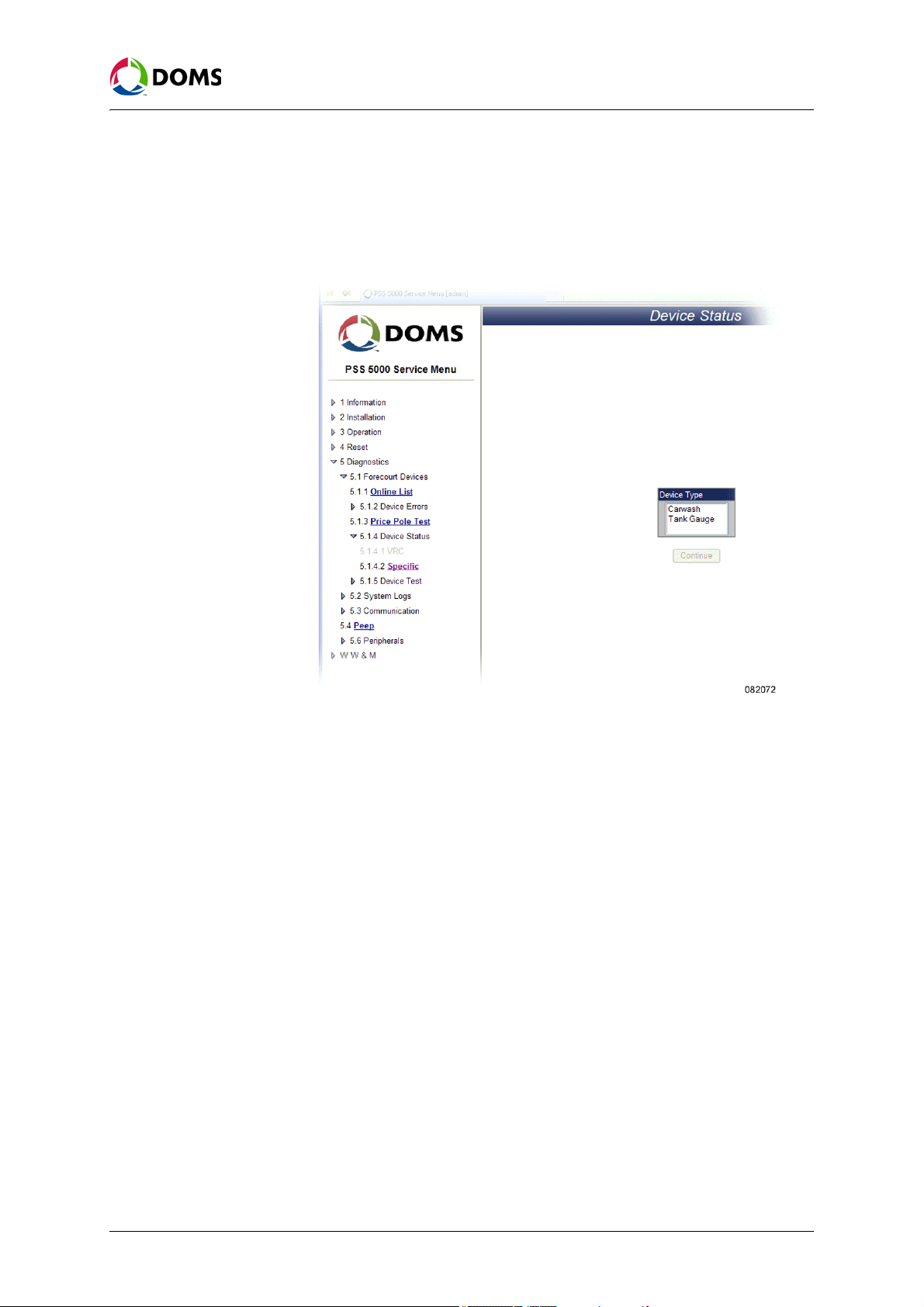

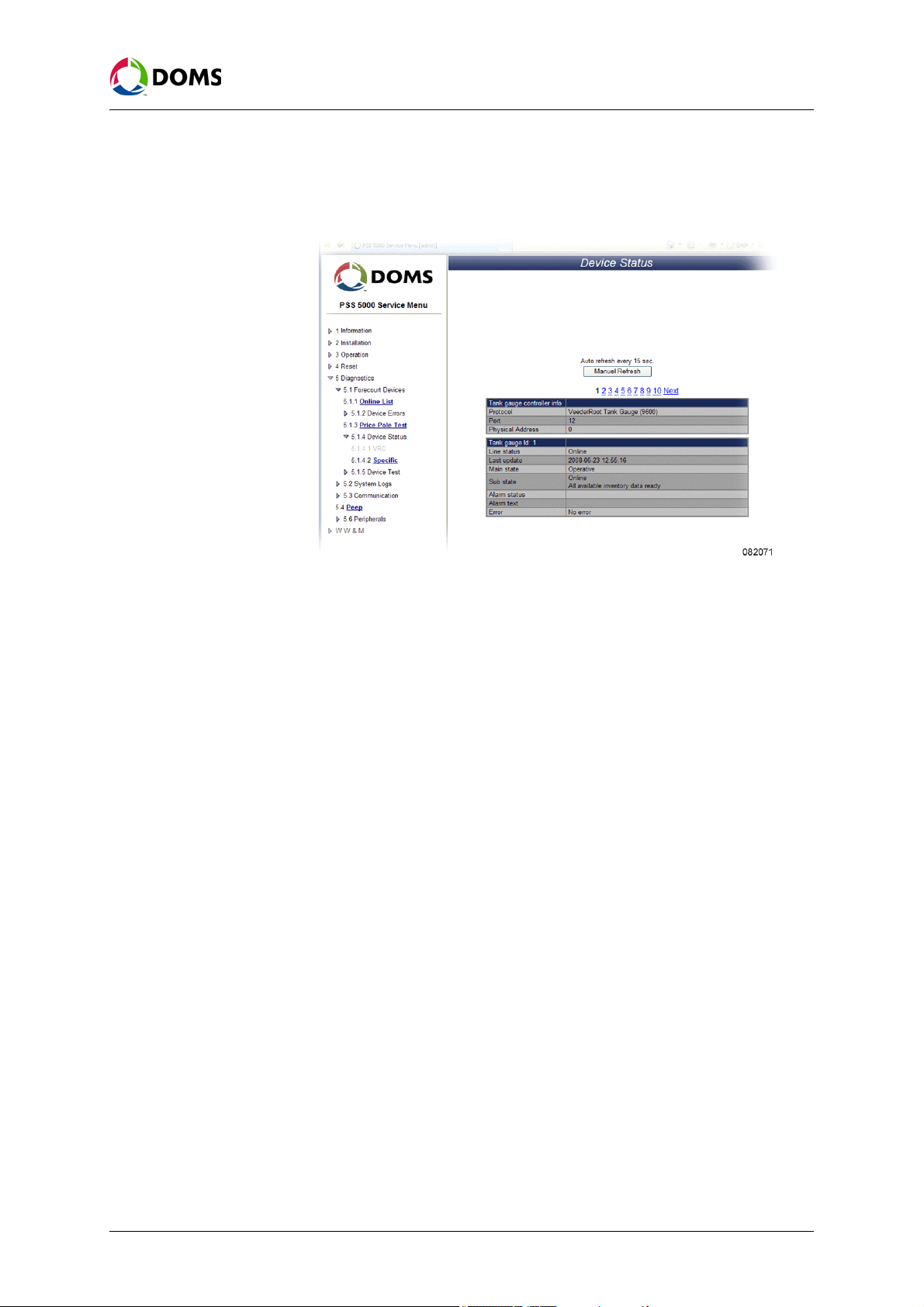

8.1.4 Device Status (Menu 5.1.4) . . . . . . . . . . . . . . . . . . . . . . . . . . 88

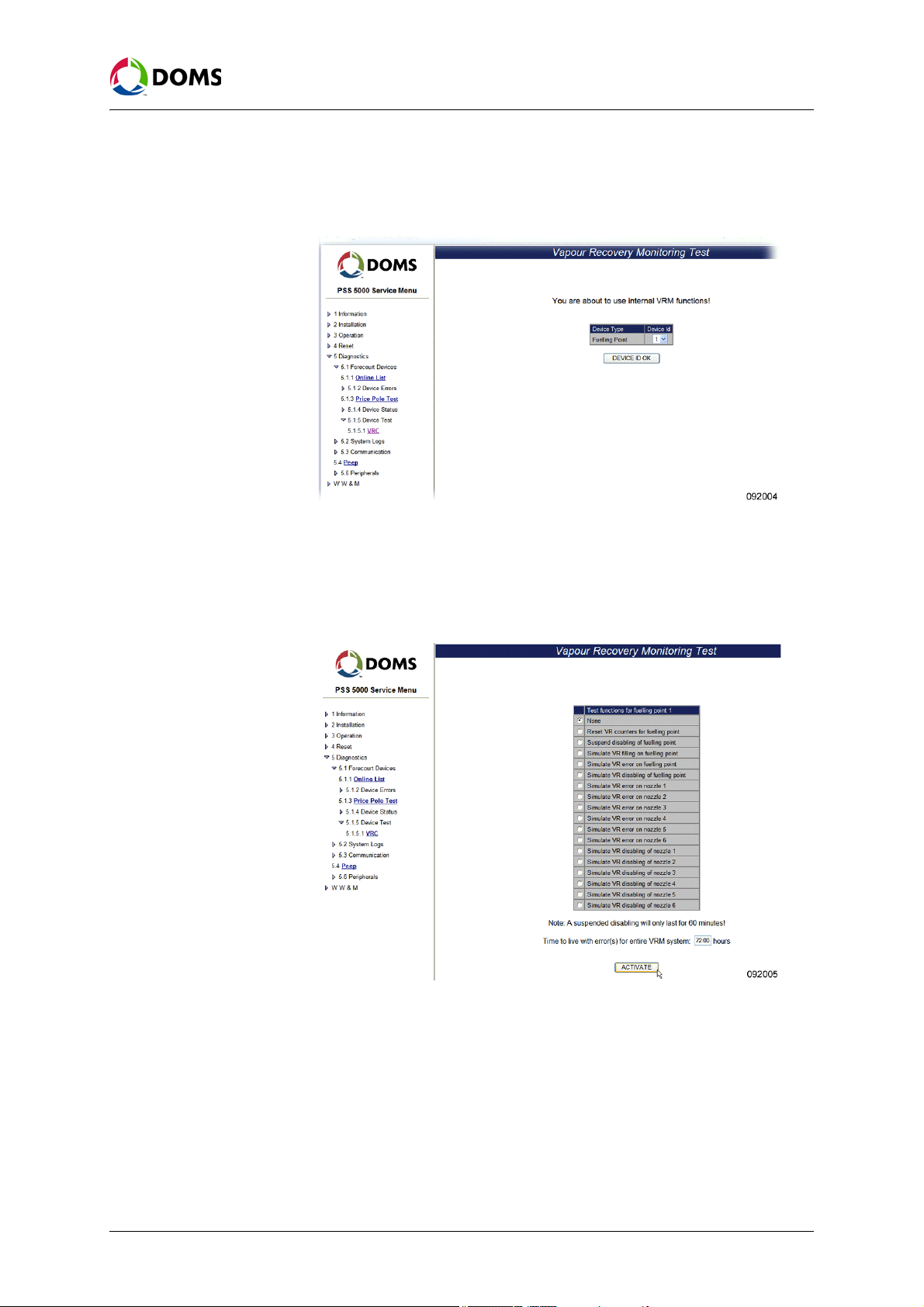

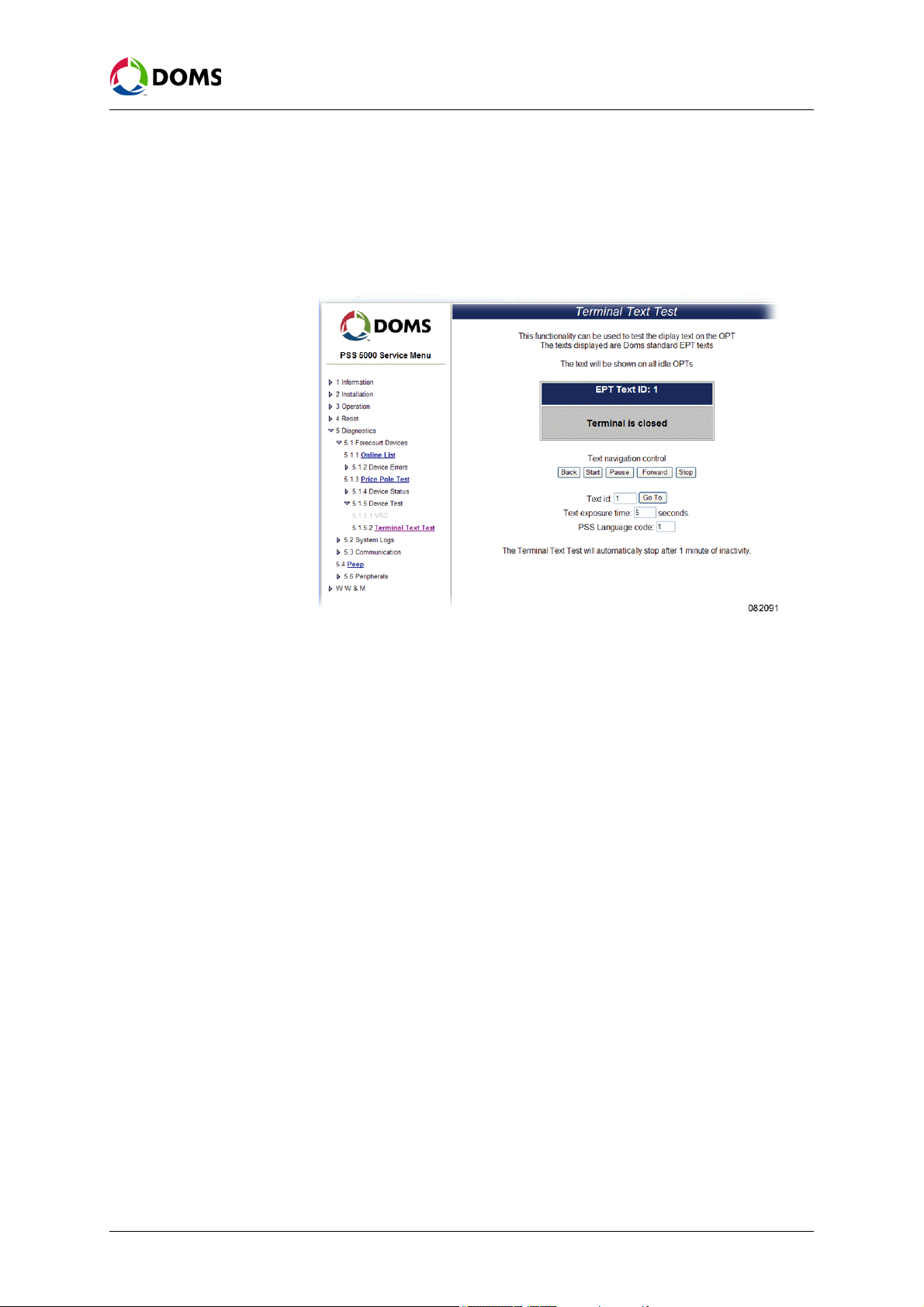

8.1.5 Device Test (Menu 5.1.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

8.2 System Logs (Menu 5.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

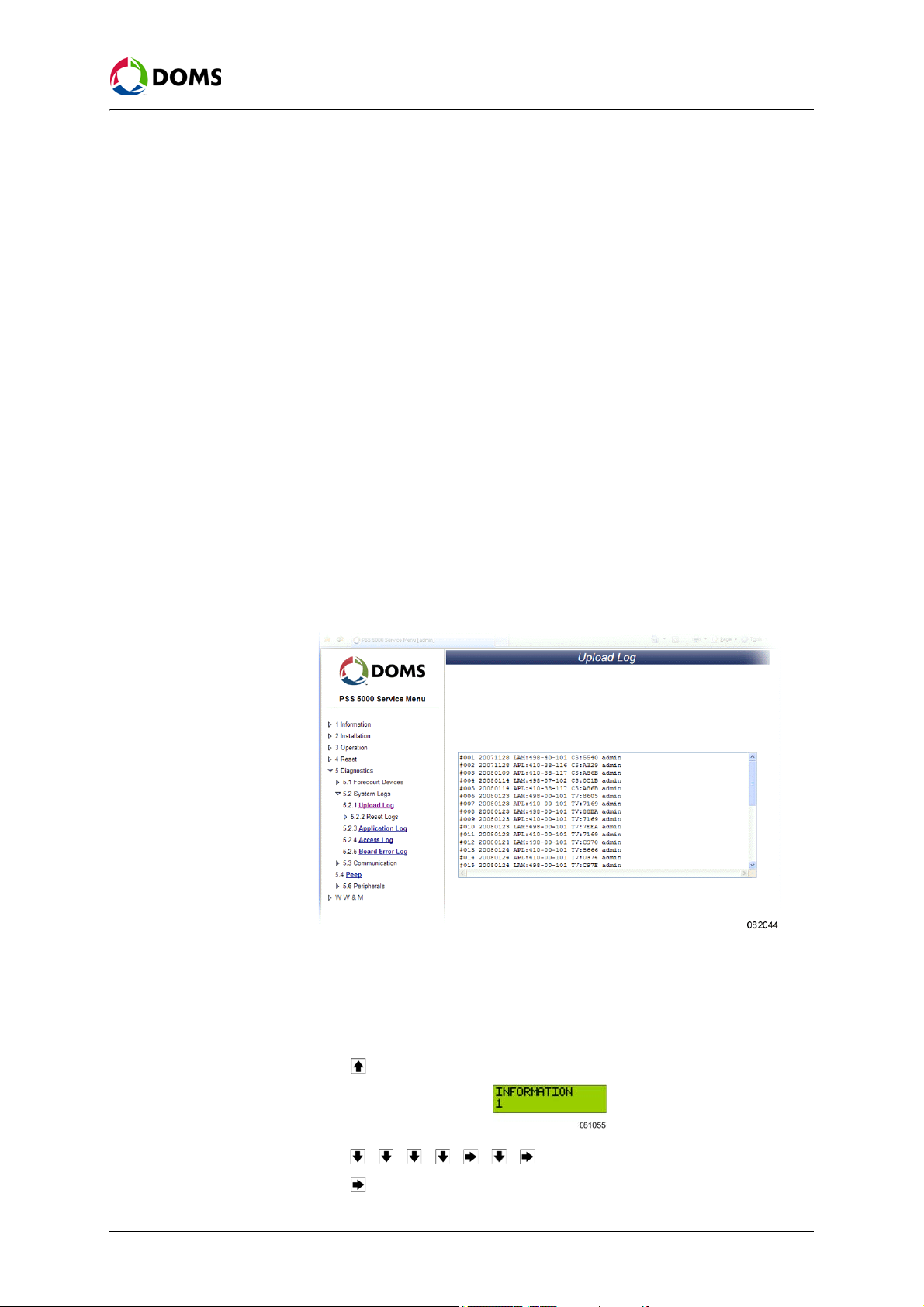

8.2.1 Upload Log (Menu 5.2.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

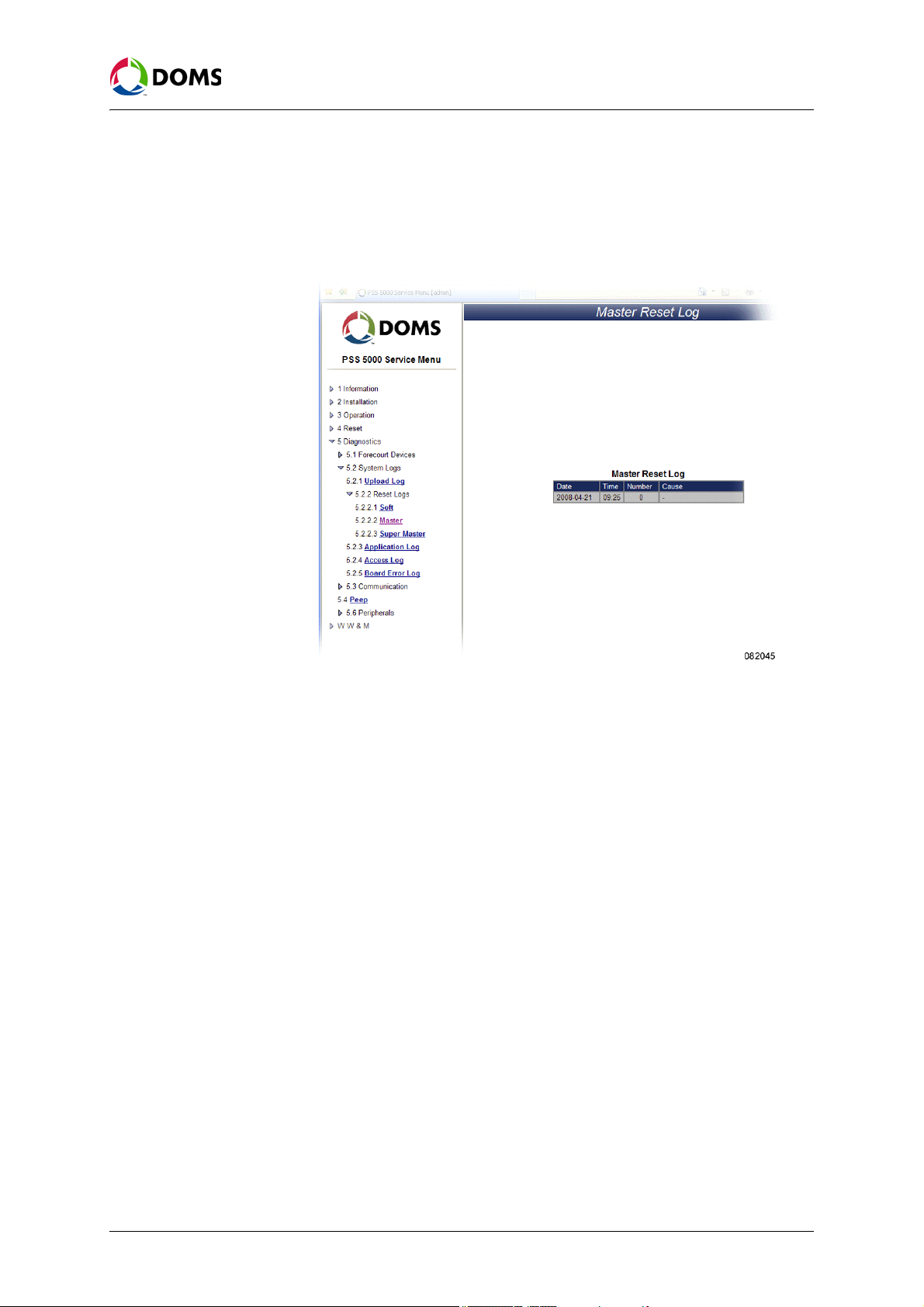

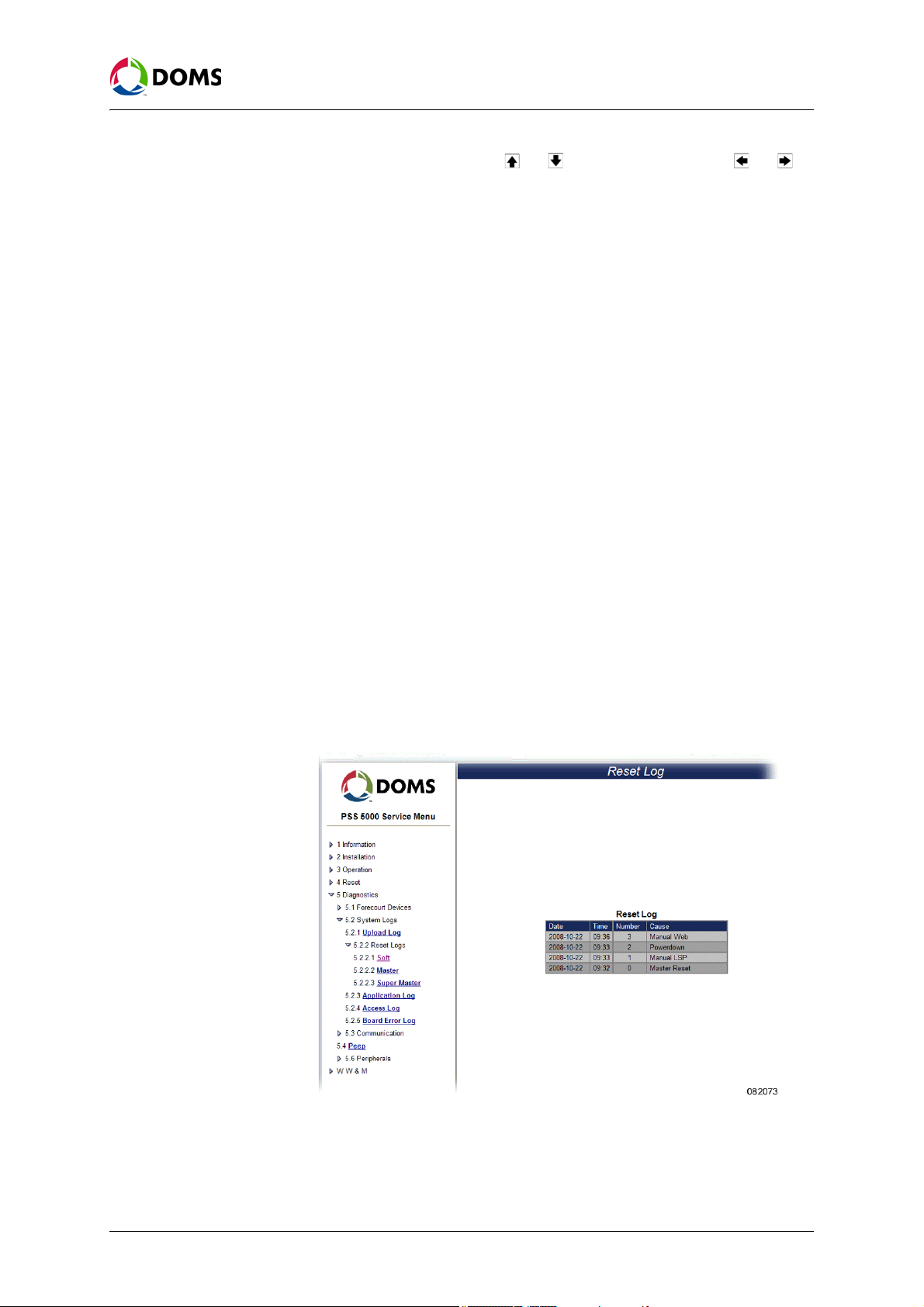

8.2.2 Reset Logs (Menu 5.2.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

8.2.3 Application Log (Menu 5.2.3) . . . . . . . . . . . . . . . . . . . . . . . . . 99

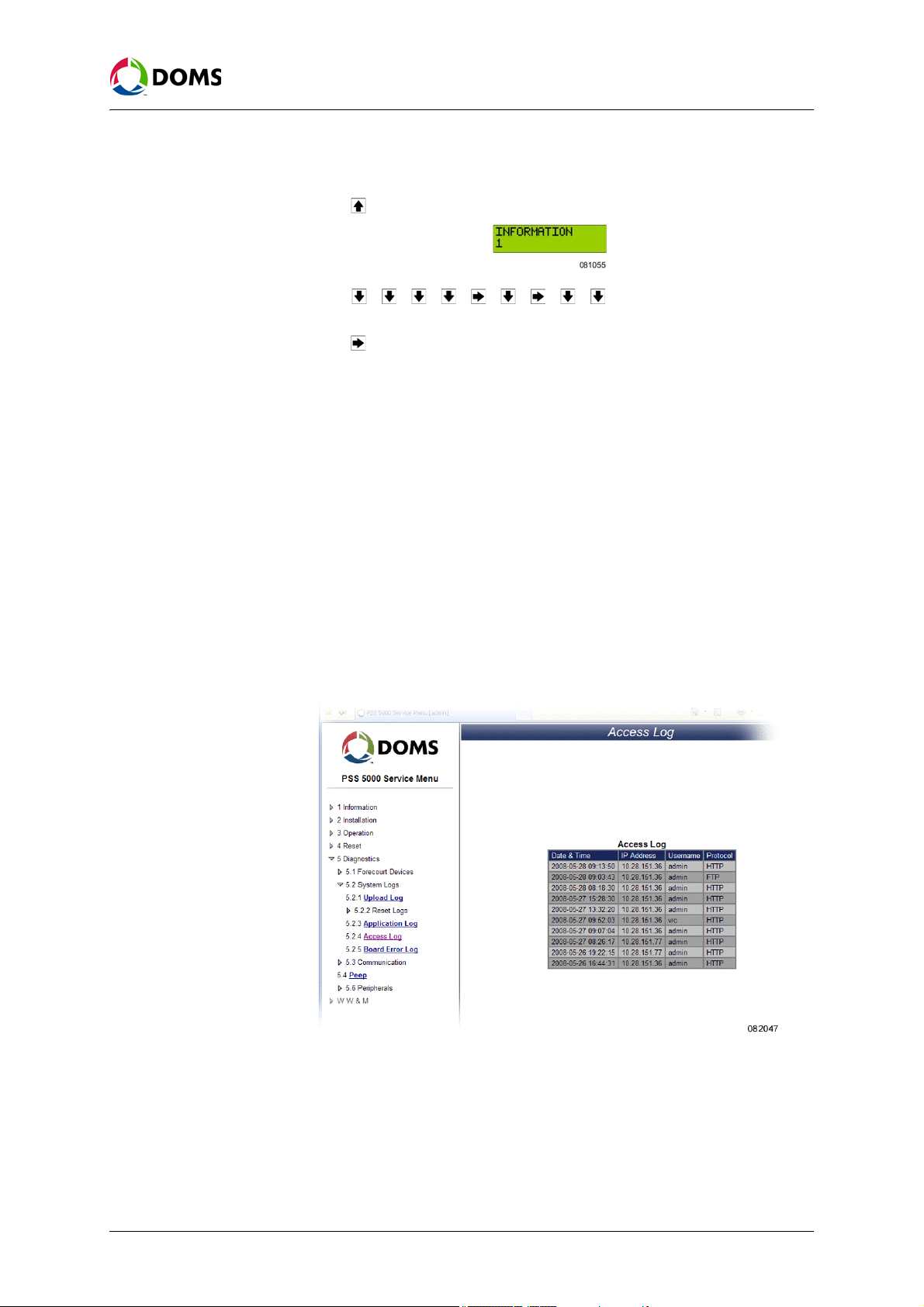

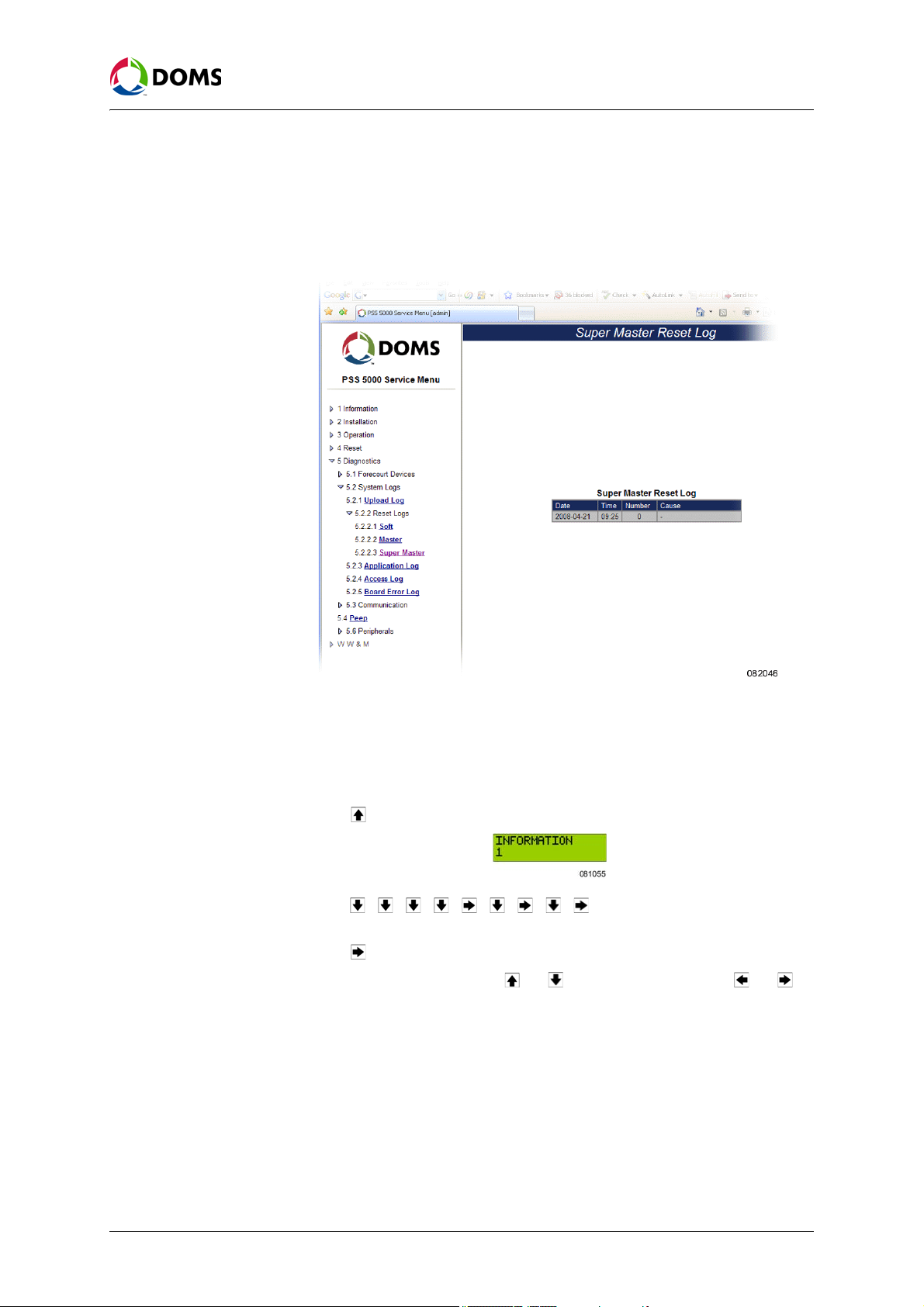

8.2.4 Access Log (Menu 5.2.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

8.2.5 Board Error Log (Menu 5.2.5) . . . . . . . . . . . . . . . . . . . . . . . . 101

8.3 Communication (Menu 5.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

8.3.1 Ethernet Statistics (Menu 5.3.1) . . . . . . . . . . . . . . . . . . . . . . 102

8.3.2 Port Statistics (Menu 5.3.2) . . . . . . . . . . . . . . . . . . . . . . . . . 102

8.3.3 Protocols (Menu 5.3.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

8.4 Peep (Menu 5.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

4 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

Contents

8.5 Test (Menu 5.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

8.5.1 Menu 5.5.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

8.5.2 Boot (Menu 5.5.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

8.5.3 GDB (Menu 5.5.3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

8.6 Peripherals (Menu 5.6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

8.6.1 Online List (Menu 5.6.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

8.6.2 Errors (Menu 5.6.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

8.6.3 Memory Module (Menu 5.6.3) . . . . . . . . . . . . . . . . . . . . . . . . 110

9 W & M (Menu W) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

9.1 LAM Version (Menu W.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

9.2 LAM Parameters (Menu W.2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

9.3 Memory Module Version (Menu W.3) . . . . . . . . . . . . . . . . . . . . . . . . . 115

9.4 Program Upload Log (Menu W.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

9.5 Recent Transactions (Menu W.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

9.6 Payment Log (Menu W.6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

9.7 Checking Devices (Menu W.7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

9.7.1 Display Error (Menu W.7.1) . . . . . . . . . . . . . . . . . . . . . . . . . 120

9.7.2 Send Error Security Telegram (Menu W.7.2) . . . . . . . . . . . . 121

9.7.3 LAM Code Error (Menu W.7.3) . . . . . . . . . . . . . . . . . . . . . . . 121

9.7.4 RTC Error (Menu W.7.4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

9.7.5 Trans Memory (Menu W.7.5) . . . . . . . . . . . . . . . . . . . . . . . . 123

Part III: Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

A File Formats in the PSS 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

A.1 Recent Transactions File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

A.2 Transaction Log File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

A.3 Upload Log File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

B Web Service Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

B.1 PC and Browser Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

B.2 Ethernet Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

B.3 Service Port Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

B.3.1 Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

B.3.2 Null Modem Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

B.3.3 Installing Null Modem Connections . . . . . . . . . . . . . . . . . . . 130

B.3.4 Dialling Up Using a Null Modem Connection . . . . . . . . . . . . 131

C Virtual File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

C.1 The Virtual File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

C.2 System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

C.3 Board Upload Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

C.4 Load Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

C.5 Hardware Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

C.6 Ok2load File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

C.7 Boot Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

C.8 LAM (Legal Authority Module) Information . . . . . . . . . . . . . . . . . . . . . 139

C.9 Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

C.10 Board Error Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

D PSS 5000 Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . 141

D.1 List of Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

D.2 List of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

D.3 Referenced Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

E PSS 5000 XML Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

E.1 Accessing the XML Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

PSS5000/TEMA/803046/14 5 of 155

PSS 5000 – Technical Manual

Contents

E.2 Config.xml File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

E.3 Site_sta.xml File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

E.4 Site_rep.xml File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

F Revision Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

6 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

Part I: Getting to Know the PSS 5000

• ‘1 Architectural Overview’ on page 8

• ‘2 System Description’ on page 11

• ‘3 Configuration and Service’ on page 21

PSS5000/TEMA/803046/14 7 of 155

PSS 5000 – Technical Manual

1 Architectural Overview

List of PSS 5000 configurations

The PSS 5000 can be used in 3 basic configurations. These are described in the following topics:

• ‘1.1 PSS 5000 Without a Network Connection’ on page 8

• ‘1.2 PSS 5000 With a Network Connection’ on page 9

• ‘1.3 PSS 5000 in a Mixed Configuration’ on page 10

1.1 PSS 5000 Without a Network Connection

Illustration of a system using serial POS driver

This illustration shows how POS terminals can be used by connecting them to the PSS 5000 using a serial POS driver.

8 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

1 Architectural Overview

1.2 PSS 5000 With a Network Connection

Illustration of a system using an Ethernet network

This illustration shows how POS terminals can be used by connecting them to the PSS 5000 using an Ethernet connection.

PSS5000/TEMA/803046/14 9 of 155

PSS 5000 – Technical Manual

1 Architectural Overview

1.3 PSS 5000 in a Mixed Configuration

Illustration of a system using both an Ethernet network and serial interface

This illustration shows how POS terminals can be used through a serial POS driver even when an Ethernet connection is present.

10 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

2 System Description

List of PSS 5000 components

The basic components of the PSS 5000 are described in the following topics:

• ‘2.1 PSS 5000 Hardware’ on page 11

• ‘2.2 PSS 5000 Software’ on page 16

2.1 PSS 5000 Hardware

List of hardware components

2.1.1 PSS 5000 Cabinets

Contents of the PSS 5000 cabinet

The PSS 5000 hardware consists of several separate components. These are described in the following topics:

• ‘2.1.1 PSS 5000 Cabinets’ on page 11

• ‘2.1.2 PSS 5000 Computer Processor Boards’ on page 13

• ‘2.1.3 Hardware Interface Modules’ on page 14

• ‘2.1.4 Service and Maintenance’ on page 15

This illustrates the contents of the PSS 5000 standard cabinet with a CPU Board CPB509, 4 Hardware Interface Modules and an Ethernet connection.

For complete details about the CPU boards available, see [4] for CPB509 and

[5] for CPB505.

PSS5000/TEMA/803046/14 11 of 155

PSS 5000 – Technical Manual

2 System Description

PSS 5000 cabinet types and specifications

The product specifications for the PSS 5000 cabinet are presented in the table below:

Note: The weights given are for the basic cabinet with a power supply and

CPU board (HIMs are not included).

Cabinet Version

Standard - cable Standard - conduit Compact

Dimensions: (HxWxD)

Max. number of singlewidth modules:

Material: Metal Metal Metal

Weight: 8kg (17.6 lbs) 8kg (17.6 lbs) 5kg (11 lbs)

CE + UL Approved: Yes Yes Yes

Hinged door: Yes Yes Yes

No. of grommets: 17 (cables) 4 (conduits) 9 (cables)

The external label On the outside of the cabinet, located above the power input socket, is a label.

600x200x 124 mm

(23.5 x 7.9 x4.9")

14 14 6

600x200 x 124 mm

(23.5 x 7.9 x 4.9")

363x200x 100 mm

(14.3 x 7.9 x 3.9")

This label provides the serial number of the PSS 5000 and informs you which power supply voltage the PSS 5000 can use.

12 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

2 System Description

2.1.2 PSS 5000 Computer Processor Boards

PSS 5000 CPU Board specifications

The product specifications for the CPU boards of the PSS 5000 are presented in the table below:

Parameters CPU Board Version

CPB505 CPB505 CPB509

CPU Specs

CPU Type ColdFire MCF5307 ColdFire MCF5307 ColdFire MCF5307

CPU Bus (bit) 16 32

Flash (MB) 8 16

SRAM (MB) 2 4

Backup Battery 14 days 14 days 14 days

Real-time Clock Yes Yes Yes

Port Types and Number

DSB 3 3

DMB 1 1

Ethernet4 (Port 41)

Service (RS232) (Port 1)

111

Ports with speed rating

Port 11 - DSB Standard Standard High-speed

Port 12 - DSB Standard Standard Standard

Port 13 - DSB Standard Standard Standard

Port 14 - DSB n/a n/a Standard

Port 15 - DSB n/a n/a Standard

Port 21 - DMB Standard Standard High-speed

Port 22 - DMB n/a n/a Standard

Port 23 - DMB n/a n/a Standard

: one of the ports is a high-speed port

: The boot program only supports PPP on the Service port. Software uploads on boards with no Service port

must take place via the Ethernet port.

: the actual baud rate of the ports are determined by the devices and the HIM modules connected to the ports

(where the maximum baud rate for a port is: Standard = 9600bit/s, High-speed = 115 200 bit/s)

: Ethernet connection is 10Base-T (half-duplex)

PSS5000/TEMA/803046/14 13 of 155

PSS 5000 – Technical Manual

2 System Description

Service Port Cable Connections

The Service Port is used to connect a PC to the PSS 5000 when access via the Ethernet port is not possible. In such circumstances, it is necessary to use a NULL modem cable that has the following cable connections:

9-pin D-Sub (male) 9-pin D-Sub (male)

Signal Pin Pin Signal

Transmit Data (TD) 3 2 Receive Data (RD)

Receive Data (RD) 2 3 Transmit Data (TD)

Request To Send (RTS) 7 8 Clear To Send (CTS)

Clear To Send (CTS) 8 7 Request To Send (RTS)

Signal Ground (GS) 5 5 Signal Ground (GS)

DataSet Ready (DSR) Carrier Detect (CD)

Data Terminal Ready (DTR) 4 6+1 DataSet Ready (DSR)

Note: The Service Port has the standard IP address: 11.0.0.90

See also For a full description of the computer processor boards, see:

6+1 4 Data Terminal Ready (DTR)

Carrier Detect (CD)

• PSS 5000 Processor Board, Description of CPB 509 – [4]

• PSS 5000 Processor Board, Description of CPB 505 – [5]

2.1.3 Hardware Interface Modules

Hardware Interface Modules

Hardware Interface Modules are interface adapters. They provide a link between the CPU Board of the PSS 5000 and the many types of forecourt devices, with their proprietary interfaces. There are 2 basic HIM types, which are used to communicate with the forecourt devices:

Module Description

DSB Doms Serial Bus modules are used for addressable

devices.

DMB Doms Multiplexed Bus modules are used for non-ad-

dressable devices.

The HIM modules provide a scalable solution. When new devices are added to the forecourt configuration, or old devices replaced with new ones that use a different protocol, new HIMs can be added, or existing ones replaced, so that they suit the new protocol.

For more information about the individual HIMs, see [1].

14 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

2 System Description

Illustration of HIMs Examples of a DSB HIM and a DMB HIM are shown below.

Note: The black serial connectors on the DMB modules are wider than those

on the DSB models. This extra width is a result of more pins, which are required for the signals used to control the onboard multiplexer.

Note:

2.1.4 Service and Maintenance

Spare part recommendations

It is recommended that service organizations carry a stock of spare parts that represents 5% of the installed systems.

Note: This quantity may vary depending on logistics and the individual re-

quirements to the repair turn-around times.

PSS5000/TEMA/803046/14 15 of 155

PSS 5000 – Technical Manual

2 System Description

2.2 PSS 5000 Software

List of software components

The PSS 5000 software consists of several separate components. These are described in the following topics:

• ‘2.2.1 Virtual File System’ on page 16

• ‘2.2.2 Memory Structure’ on page 17

• ‘2.2.3 The Software Components’ on page 18

• ‘2.2.4 Web Server’ on page 19

• ‘2.2.5 FTP Server’ on page 19

• ‘2.2.6 Serial Server’ on page 20

• ‘2.2.7 Network Connection’ on page 20

2.2.1 Virtual File System

Structure of virtual file system

The PSS 5000 has a UNIX inspired virtual file system, with the following toplevel structure:

Description of the virtual file system catalogs

16 of 155 PSS5000/TEMA/803046/14

Each of the catalogs present in the virtual file system are described in the table below:

Catalog Description

pss_dev The pss_dev catalog gives access to devices; both

physical devices (FLASH PROM) and logical (a NULL device).

pss_mem The pss_mem catalog gives access to the different lev-

els of memory in the PSS 5000; both the FLASH PROM and the static RAM.

For more information, see ‘2.2.2 Memory Structure’ on

page 17.

PSS 5000 – Technical Manual

2 System Description

Catalog Description

pss_proc The pss_proc catalog contains runtime-generated files.

2.2.2 Memory Structure

Memory areas on the CPU board

The memory on the PSS 5000 CPU board is divided in to 4 areas.

All PSS 5000 systems have, as a minimum, the following files in this catalog:

• hw_inf.txt (Hardware information)

• appl_inf.txt (Application information)

• lam_inf.txt (Legal Authority Module information)

• boot_inf.txt (BOOT information)

• bel.txt (Board Error Log)

The difference between the separate memory areas is indicated by what is required to clear or change the data.

Note: The RAM has a battery backup. If a power cut occurs, the battery pro-

vides power for more than 2 weeks and ensures that the data present in the RAM is preserved.

Data in pss_mem/4 Data in memory area 4 is held in the RAM and is a "volatile working memory"

for programs. Although this area has battery back-up, all the data in this area is cleared when a reset (software initialization) or power down takes place.

Data in pss_mem/3 Data in memory area 3 is held in RAM and is a "non-volatile working memo-

ry" for programs. This area has battery back-up, which enables data to be retained during startup (initialization) and to survive a power down for weeks. The area is cleared by a master reset. System configurations and status information are intact after a period without power.

Data in pss_mem/2 Data in memory area 2 is held in RAM and is a "data storage memory" for the

programs. This area is cleared by a super master reset, but has battery back-up

PSS5000/TEMA/803046/14 17 of 155

PSS 5000 – Technical Manual

2 System Description

to survive a power down for weeks. This data storage area is used for data that must survive system re-configurations and program changes.

Data in pss_mem/1 Data in memory area 1 is held in a Flash Programmable Read Only Memory

(PROM) and is used to hold programs and system logs as described below:

Contents of FLASH Description

APPLICATION PROGRAM The Application Program holds the main fore-

LAM The Legal Authority Module (LAM) is a parame-

BOARD UPLOAD LOG The Board Upload Log holds a log of all the soft-

BOOT PROGRAM The BOOT Program is responsible for software

2.2.3 The Software Components

List of PSS 5000 software components

The software components of the PSS 5000 comprises 3 separate binary program blocks. Each block is loaded separately and comes complete with its own check sum. The blocks are:

•Boot Program

court controller or converter application. The applications are specific for the devices connected to the PSS 5000.

ter module for the Application Program. It holds country specific parameters like decimal point settings and parameters to control functionality required by the local legal authorities. All PSS 5000 applications require a Legal Authority Module.

ware uploads that have taken place since the first LAM was installed.

upload and access to board peripheral devices, such as the local service panel, when no application is present.

• Legal Authority Module (LAM)

• Application Program To ease identification of the program blocks, each program is assigned an 8

digit ID, which has the following format: TTT-BB-VVV. Where T defines the program type, B defines the program branch (or variant) and V defines the program version.

Boot Program The Boot Program is responsible for the following functions:

• Initializing the CPU board

• Uploading software (which includes various checking functions)

• Launching the uploaded application program The Boot Program ID has the program type ID: 499-BB-VVV

Legal Authority Module (LAM)

The Legal Authority Module (LAM) provides control of parameters that are subject to control by legal authorities. By installing the correct LAM for the region, only parameters that are permitted by the authorities are available. The LAM also provides Weights and Measures functions, which ensure the integ-

18 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

2 System Description

rity of the data and make sure that the PSS 5000 is operating correctly and complies to the legal requirements.

The LAM ID has the program type ID: 498-BB-VVV The program branch number (BB) normally is associated with a country or re-

gion.

Application Program The application program contains the main forecourt contro ller functions. The

application program loaded is specific for the devices present at the users’ sites and connected to the PSS. The program works very closely with the LAM to make sure that only permitted data is obtained.

The program type ID for the application program is not limited to a single number. For example, the program type number (TTT) can be one of the following: 410, 411 or 420.

The program branch number (BB) depends on which functions that are included in the program.

2.2.4 Web Server

Description of the web server

Recommended browser versions

2.2.5 FTP Server

Description of the FTP server

The embedded web server enables you to access the PSS 5000 Service Menus using a PC with a standard web browser.

This provides a user-friendly graphics interface for the Service Menus, where you are able to perform a multitude of tasks, such as obtaining software version numbers, installation details, operational details and service diagnostics. It is also an excellent entry point to the W&M menus.

The embedded web server, which allows connection via standard browsers or specific applications, has been tested with both Firefox and Microsoft browsers. Some of the features (for example the Peeper applet) require a Microsoft Internet Explorer version 6.0 or higher, or Firefox version 1.5 or higher.

The FTP server enables you to connect to the PSS 5000, see the internal file structure and upload software applications. It also enables you to extract data logs from remote locations.

PSS5000/TEMA/803046/14 19 of 155

PSS 5000 – Technical Manual

2 System Description

Illustration of an FTP connection to file system in PSS 5000

This illustrates how to access the file system in a PSS 5000 using a web browser and an FTP connection. The FTP connection to the PSS 5000 is made by typing

Note: Other types of FTP client connections may be used. Use the same log

FTP://admin:password@<IP address >.

on information with the FTP client of your choice.

2.2.6 Serial Server

Description of the serial server

Port connection To communicate via the serial server a host must use the PSS 5000’s IP ad-

The PSS 5000 contains a serial server that enables communication over TCP/IP networks to pass-through the PSS 5000 and reach a device, such as a tank gauge console, that is connected via a serial interface.

This functionality is supported by several protocols, which are listed in the Software Release Document distributed with the PSS 5000 application.

Note: For some older versions of the PSS 5000 Applications, special Protocol-

to-Port Assignment

settings are required.

dress + the TCP port number, which has the following format: 6000 + PSS port number.

For example, if the device is connected to po rt 15, then the TC P po rt number = 6015.

2.2.7 Network Connection

Description of the network connection

For general access rights to devices on the network, please consult your network administrator. He will know which TCP/IP parameters you must use and will configure the network (DHCP server, firewalls and the like). In this respect, the PSS 5000 is no different from any other network devices.

20 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

3 Configuration and Service

Overview Information about the configuration and service functions of the PSS 5000 are

described in the following topics:

• ‘3.1 Configuration and Service Menus Access’ on page 21

• ‘3.2 Software Changes’ on page 26

3.1 Configuration and Service Menus Access

Methods to access menus

There are 2 methods to access the service menus that enable you to configure and monitor the PSS 5000. Information about the access tools are described in the following topics:

• ‘3.1.1 Local Service Panel’ on page 21

• ‘3.1.2 Web Service Pages’ on page 25

3.1.1 Local Service Panel

Purpose of the local service panel

The Local Service Panel allows you to access the PSS 5000 Service Menus.

The navigation buttons and the OK button, which allow you to navigate through the service menus, are located on the CPU Board beside the front panel. The function of each button is shown by an arrow or text label present on the panel.

PSS5000/TEMA/803046/14 21 of 155

PSS 5000 – Technical Manual

3 Configuration and Service

Functions of the navigation buttons

In general, the navigation buttons are used as follows:

Buttons Description

These buttons are used in the following ways:

• To move down and up through the structure of the service menus. For example, to move from menu 1 to 2, or from menu 1.1 to 1.2.

• To move down and up through lines of data, where each line is a separate item. For example, a line is an individual transaction.

• To change the value of the parameter shown in the display.

These buttons are used in the following ways:

• To move to a lower or higher level of the current menu. For example, to move from menu 2 to 2.1.

• To move along a single line of data, for example in a transaction log.

• Left arrow only – to return to the Idle menu from a top level menu. For example, to move directly to Idle from menu 2.

This button is used to accept the value of a parameter after it has been changed.

Functions of the CPU board LEDs

The CPU board has 2 LEDs associated with the Service Panel: BOOT and AP-

. These LEDs are used to indicate the status of the program:

BOOT LED APPL LED Description

Blink Off Boot running. Blink rate is according to

Off Blink Appl running. Blink rate according to the

On Off Super Master Reset in progress. (Status

Off Very Fast Blink Master Reset in progress (APPL).

On Off Reset in progress. (No status informa-

On On Erasing Flash (BOOT)

Alternating On Programming the Flash (APPL).

Off On APPL program stopped / Error State.

the current load rate.

current load rate.

of reset shown in display).

tion shown in display).

22 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

3 Configuration and Service

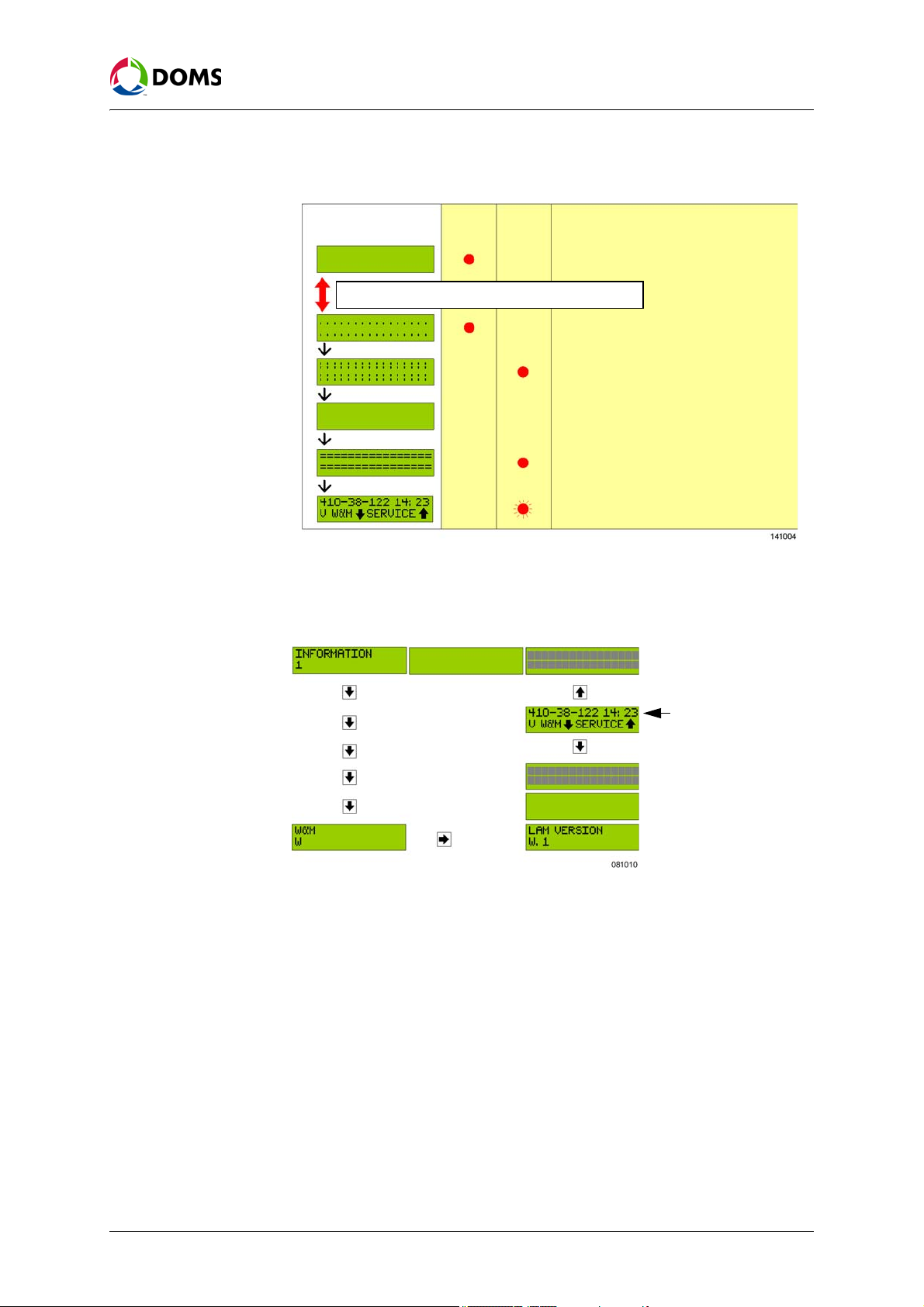

Display cycles during

BOOT

LED

APPL

LED

Status

LSP Display

(Blank) BOOT started, call LAM module, initialize LAM.

BOOT initializes the file system, checks watch-dog & power.

Search for the Application; Start the Application.

(Blank) Application start up in progress.

Application fully initialized; forecourt running / ready.

Application initialized file system & start up.

If the display toggles here, this can indicate that the file system has been corrupted & the BOOT restarts continuously.

Idle menu (APPL version and time)

startup

The illustration below shows the Local Service Panel display messages and LEDs during the start up phase.

Local Service Panel display

The display in the Local Service Panel provides you with information about where you are in the menu structure, the software identification numbers, or the current values of parameters selected in the software.

By default the Idle menu is displayed. The system returns to the Idle menu automatically if a navigation button is not pressed within the timeout period. This menu shows the following information:

• An 8 digit number, which is the ID of the Application software.

• The current time of the PSS’s internal clock.

• Arrows that inform you which button to press to enter the W&M or Service menus.

The Idle menu provides an entry point to both the W&M menus and the Service menus.

PSS5000/TEMA/803046/14 23 of 155

PSS 5000 – Technical Manual

3 Configuration and Service

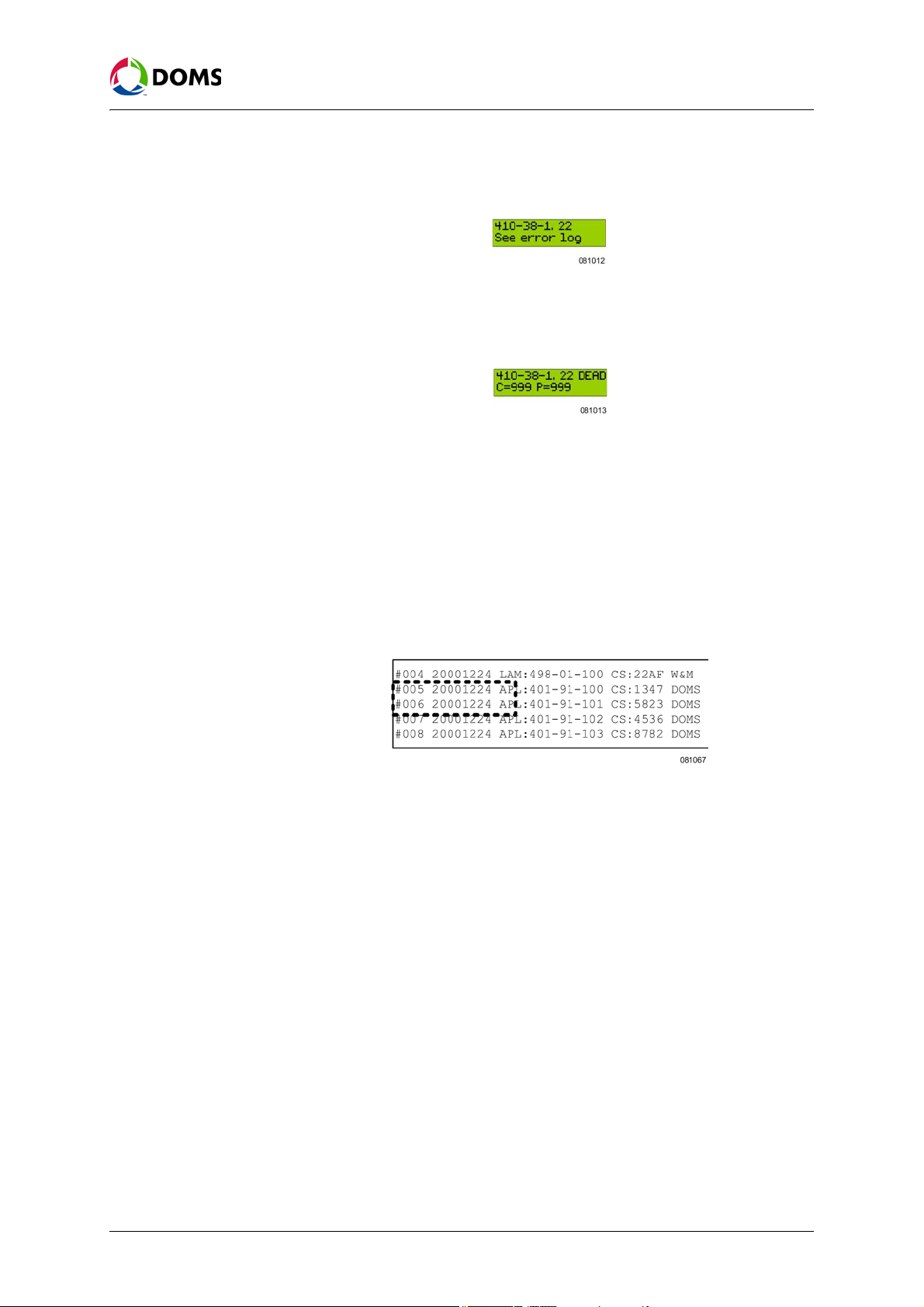

Error messages on the service panel display

The display can show error codes or refer you to the error log file. If some of the errors are unread, then the lower line on the display tells you to look at the log file.

The PSS 5000 has its own post-process, diagnostics program, which prevents the program from running when serious errors occur. When this happens the program number and the text "DEAD" are displayed together with some codes, as shown in the example below:

When this happens, write down this information and send it to Doms Support at the following e-mail address: support@doms.dk

The "DEAD" text and error codes remain in the display until a button is pressed. This causes the CPU board to reset and attempt to re-start the application, or the CPU board is powered down.

Viewing data in the Local Service Panel display

Data stored in the PSS 5000 memory, such as Recent Transactions or Transaction Log, can be viewed using the local service panel display. However, because of the size of the display, it is important to understand how the data appears and how it can be read. The figure below is an example of data in the memory and illustrates how much of it actually appears in the display.

In the figure above, you can see an example of the upload log. The rectangle with the dotted line represents what you can actually see in the local service display panel. By using the navigation buttons, you are able to move the rectangle so that other data appears in the display panel.

24 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

3 Configuration and Service

3.1.2 Web Service Pages

Web Service page startup page

When accessing the Web Service pages a user_id and password is required. For more information about user IDs and passwords, see ‘5.4.1 Password

(Menu 2.4.1)’ on page 51.

To print a copy of the service menu page

In addition to the navigation menu, the start up picture for the Web Service page displays some essential information, such as:

• Site ID (Default value is the board serial number)

• Application Software version

Note: The navigation system for the web page uses the same menu numbers

as the menu system on the local service panel.

This procedure describes how to print a copy of the current page displayed in the Web Service Menu.

Note: This procedure is for Internet Explorer.

1. Open the pop-up context menu in the frame of the page that you want to

print and select The

Print Preview window appears.

2. In the tool bar:

•Select

Print Preview....

Only the selected frame in the 2nd drop-down menu Shrink to Fit in the 3rd drop-down menu

• If necessary, use the orientation buttons to toggle between landscape

and portrait. Select the one that suits best.

3. Press Alt+P (or print symbol in tool bar).

The

Print window with your selected printer appears. If this is not the cor-

rect printer, use standard Windows procedures to select the correct printer.

PSS5000/TEMA/803046/14 25 of 155

PSS 5000 – Technical Manual

3 Configuration and Service

4. Press Print.

The selected frame prints.

3.2 Software Changes

Description of software changes

Changes to the Application Program and/or Legal Authority Module on the PSS 5000 board take place by uploading the software using the Web Service Menus (with a Java applet) or using an FTP connection. (FTP requires only a few commands).

Note: Before attempting to upload an Application Program, please consult the

Software Release Document and check the requirements of the BOOT program and LAM.

When a Legal Authority Module is uploaded, the Application Program and all data is cleared. When a new program (APPL or BOOT) is started, the PSS 5000 automatically performs a reset. As the TCP/IP connection is lost during a system reset, it is necessary to create a new connection in order to check the result of the upload.

26 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

3 Configuration and Service

To change the software

‘To upload software with the web service menus’ on page 60 or ‘To upload software using FTP’ on page 62

in the PSS 5000

This flow diagram shows the order in which software uploads must occur when changing the software in the PSS 5000.

Note: Before software can be uploaded, the PSS 5000 must be set in a state

that allows the upload.

Upload log file All attempts to upload software to the PSS 5000 are recorded in the

/pss_mem/1/sys/bul.txt file. This file cannot be erased and can be viewed using the web service pages, or downloaded using FTP and then viewed either with an FTP client or a simple text editor.

PSS5000/TEMA/803046/14 27 of 155

PSS 5000 – Technical Manual

Part II: Using the Service Menus

Note: The individual menu options available in the Service Menus depend on

the functions present in the program applications installed in the forecourt controller.

• ‘4 Information (Menu 1)’ on page 29

• ‘5 Installation (Menu 2)’ on page 35

• ‘6 Operation (Menu 3)’ on page 67

• ‘7 Reset (Menu 4)’ on page 79

• ‘8 Diagnostics (Menu 5)’ on page 83

• ‘9 W & M (Menu W)’ on page 112

28 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

4 Information (Menu 1)

Overview of Information menu

The Information menu is divided into the following sub-menus:

• ‘4.1 Program Versions (Menu 1.1)’ on page 29

• ‘4.2 Board Info (Menu 1.2)’ on page 30

• ‘4.3 SW Blocks (Menu 1.3)’ on page 33

• ‘4.4 Protocols (Menu 1.4)’ on page 34

• ‘4.5 LAM (Menu 1.5)’ on page 34

Note: For all Local Service Panel procedures, it is assumed that the Idle menu

(see ‘Local Service Panel display’ on page 23) is already shown in the display.

4.1 Program Versions (Menu 1.1)

Description of the Program Versions menu

The Program Versions menu provides information about the version and release date of the following programs:

• Application Program

•Boot Program

• LAM (Legal Authority Module)

If the program versions are not correct then it may be necessary to change them. A description of how to do this is included in ‘3.2 Software Changes’ on

page 26.

To view program versions with web service pages

This procedure describes how to use the Service Menu in the web browser to view the program version information.

1. Select 1 Information 1.1 Program Versions.

The

Program Versions page appears.

2. Use the information on this page to read the version numbers for the soft-

ware components: BOOT, LAM and APPLICATION.

PSS5000/TEMA/803046/14 29 of 155

PSS 5000 – Technical Manual

4 Information (Menu 1)

To view program versions with local service panel

This procedure describes how to use the Local Service Panel to view the program version information for the software components: BOOT, LAM and APPLICATION.

1. Press to move to the INFORMATION 1 menu.

2. Press to move to the PRG VERSION 1.1 menu.

3. Press the buttons in the sequence shown below to move to the sub-menus

and view the program versions of the software components in the PSS

5000.

View program versions using virtual file system

The program version information is also available in the following files using the PSS 5000 Virtual File System.

• /pss_proc/sys/boot_inf.txt – contains BOOT information

• /pss_proc/sys/lam_inf.txt – contains Legal Authority Module information

• /pss_proc/sys/appl_inf.txt – contains Application information

4.2 Board Info (Menu 1.2)

Overview of Board Information

4.2.1 Production (Menu 1.2.1)

Description of Production menu

From the Board Info menu you can get both production information and sealing switch status information. The menu is divided into the following sub-menus:

• ‘4.2.1 Production (Menu 1.2.1)’ on page 30

• ‘4.2.2 Sealing Switch (Menu 1.2.2)’ on page 32

The Production menu provides the following production information:

• PCB layout

• Engineering Change Status (ECS)

• Serial Number

• Production Number

30 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

4 Information (Menu 1)

To view production information with web service pages

This procedure describes how to use the Service Menu in the web browser to view the production information for the CPU board.

1. Select 1 Information 1.2 Board Info1.2.1 Production.

The

Production page appears.

2. Use the information on this page to read the version numbers for the fol-

lowing components:

To view production information with local service panel

• PCB Layout

• Engineering Change Status

• Serial Number

• Production Number

This procedure describes how to use the Local Service Panel to view the production information for the CPU board.

1. Press to move to the INFORMATION 1 menu.

2. Press , , to move to the PRODUCTION INFO 1.2.1 menu.

PSS5000/TEMA/803046/14 31 of 155

PSS 5000 – Technical Manual

4 Information (Menu 1)

3. Press the buttons in the sequence shown below to move to the sub-menus

and view the production information for the PSS 5000.

The serial number and production number shown in the display are unique for the CPU Board of the PSS 5000 you are currently viewing.

4.2.2 Sealing Switch (Menu 1.2.2)

Description of Sealing Switch menu

To view sealing switch status with web service pages

The Sealing Switch me nu provid es inform ation a bout the status of the sealing switch, which is used to hardware seal the LAM software on the CPU board.

This procedure describes how to use the Service Menu in the web browser to view the status of the hardware sealing switch, which is used to enable LAM uploads.

1. Select 1 Information 1.2 Board Info1.2.2 Sealing Switch.

The

Sealing Switch page appears.

2. Use the information on this page to see the status of the Hardware Sealing

Switch.

•

OFF - no hardware sealing present on CPB

•

ON – hardware sealing present on CPB

32 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

4 Information (Menu 1)

To view sealing switch status with local service panel

This procedure describes how to use the Local Service Panel to view the status of the hardware sealing switch.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , to move to the SEALING SWITCH 1.2.2 menu.

3. Press to view the status of the sealing switch.

4.3 SW Blocks (Menu 1.3)

To view software blocks in PSS 5000 with web service pages

Each application program in the PSS 5000 is built from several software code blocks. This procedure describes how to use the Service Menu in the web browser to view the SW blocks (names, ID, version and checksum).

1. Select 1 Information 1.3 SW Blocks.

The

SW Blocks page appears.

2. Use the information on this page to see the Name, ID, Version number and

Checksum for the individual software blocks.

PSS5000/TEMA/803046/14 33 of 155

PSS 5000 – Technical Manual

4 Information (Menu 1)

4.4 Protocols (Menu 1.4)

To view available protocols with web service pages

This procedure describes how to use the Service Menu in the web browser to view the protocols that are supported and can be assigned.

1. Select 1 Information 1.4 Protocols.

The

Protocols page appears.

2. Use the information on this page to see a list of supported protocols.

4.5 LAM (Menu 1.5)

To view all the constants for the current LAM

This procedure describes how to use the Service Menu in the web browser to view all the constants set by the current LAM.

1. Select 1 Information 1.5 LAM.

The

2. Use the scroll bar to view all the constants, and their values, set by the cur-

rent LAM.

LAM Information page appears.

34 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

Overview of Installation menu

The Installation menu is divided into the following sub-menus:

• ‘5.1 Protocol to Port Assignment (Menu 2.1)’ on page 35

• ‘5.2 Date and Time (Menu 2.2)’ on page 41

• ‘5.3 Communication Setup (Menu 2.3)’ on page 42

• ‘5.4 System Profile (Menu 2.4)’ on page 51

• ‘5.5 Application Setup (Menu 2.5)’ on page 56

• ‘5.6 Software Upload (Menu 2.6)’ on page 58

• ‘5.7 Peripheral Configuration (Menu 2.7)’ on page 63

• ‘5.8 Backup (Menu 2.8)’ on page 65

5.1 Protocol to Port Assignment (Menu 2.1)

Description of the protocol to port assignment menu

The PSS 5000 application can use a large number of protocols with which to communicate with the other system devices.

Generally, the serial interface supports only one protocol per port. However, some protocol combinations are available and some protocols have mandatory supplementary protocols. For example, when Doms POS Protocol is assigned on a serial interface port, then the Doms PSS Communication Protocol is assigned automatically. When this occurs, multiple protocols are listed next to the port number.

Protocol to port assignment overview

Some protocols have additional protocol parameters. These parameter values are displayed in the

Assignment

window. To do this, see ‘5.1.2 Setting the Protocol Parameter

Protocol column and can be set from the Protocol to Port

Values’ on page 39.

Some protocol to port assignments are restricted. For a description of these, see ‘5.1.3 Limitations’ on page 40.

Note: Port 99 is a virtual port and does not physically present. Only certain

protocols can be assigned to use this port. These protocols are used for special purposes.

The details about the Protocol to Port Assignment window are included in the following topics:

• ‘5.1.1 Changing Protocol to Port Assignments’ on page 36

• ‘5.1.2 Setting the Protocol Parameter Values’ on page 39

• ‘5.1.3 Limitations’ on page 40

PSS5000/TEMA/803046/14 35 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

5.1.1 Changing Protocol to Port Assignments

To configure protocol to port assignment with web service pages

This procedure describes how to use the Service Menu in the web browser to configure the protocol to port assignment values.

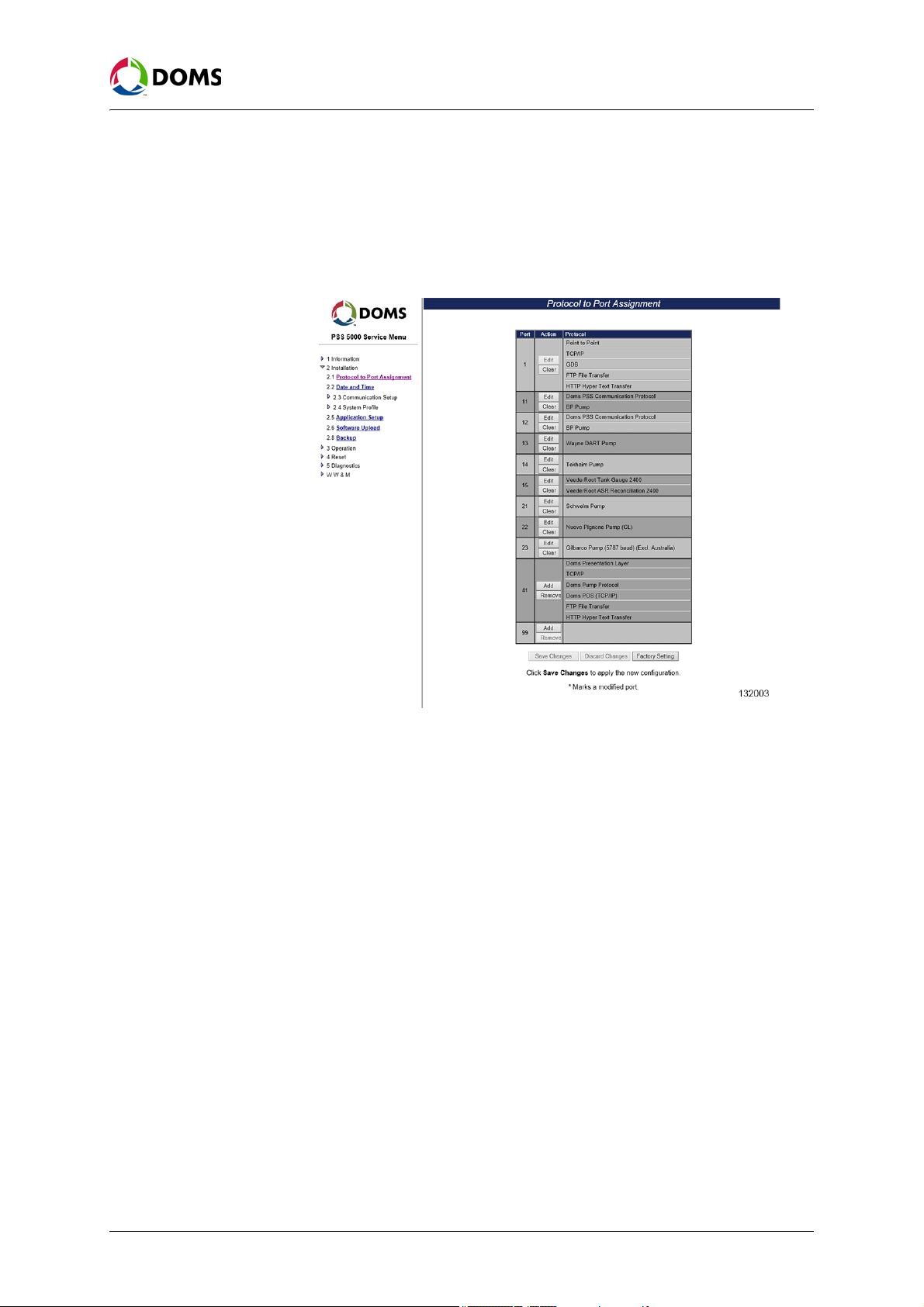

1. Select 2 Installation 2.1 Protocol to Port Assignment.

The

Protocol to Port Assignment page appears.

This page shows the protocols assigned to each of the ports on the CPU board.

Note: The Save Changes and Discard Changes buttons are only active after

changes have been made. Cha ng es are indicated by a "*" next to the port number.

Note: Port 1 is labelled SERVICE PORT on the PSS 5000 panel.

2. Do one of the following:

• View the port assignment details; no further action is required.

• Add a protocol to port assignment (not Port 41 or 99); go to ‘To edit a

protocol to port assignment with web service pages’ on page 37

• Add a new protocol to port assignment to Port 41 or 99: go to ‘To add a

protocol to Port 41 or Port 99 with web service pages’ on page 38

• Set the parameters for a protocol; go to ‘To set protocol parameter val-

ues’ on page 39

• Clear the protocols assigned to a specific port; go to ‘To remove a pro-

tocol to port assignment with web service pages’ on page 38.

• Save all changes (including parameter values) made; go to Step 3.

36 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

3. When all the changes have been made (i.e. protocols added / protocol pa-

rameters set), click one of the following buttons:

Save Changes - saves and applies all changes to all ports; go to Step 4.

•

Discard Changes - cancels all changes made since the last save.

•

Factory Setting - restores all the Protocol to Port assignments to their

original values.

4. In the confirmation window, click OK

The changes are saved and the PSS 5000 is Master Reset.

To edit a protocol to port assignment with web service pages

This procedure describes how to use the Service Menu in the web browser to edit a protocol to port assignment.

Note: Do not use this procedure for Port 41 or Port 99.

1. With the Protocol to Port Assignment window already open, go to the port

number that you want to change and click

Note: If a protocol is already assigned to this port, it will be removed

Edit.

during this procedure.

The

Edit Protocol to Port Assignment table for the selected port appears.

The example below shows the table for Port 12.

2. Open the Protocol Type drop-down list and select the correct type of device.

3. Open the Protocol drop-down list and select the correct protocol.

4. If a protocol combination is possible, open the Protocol Combination drop-

down list and select the correct option.

Note: A selection must be made here if there are 2 or more combinations.

5. Click OK.

The page returns to the

Protocol to Port Assignment list; go to ‘To co nfigure

protocol to port assignment with web service pages’ on page 36, Step 2.

Note: Changes are not activated until the Save Changes button in the Pro-

tocol to Port Assignment

PSS5000/TEMA/803046/14 37 of 155

window is used and a Master Reset occurs.

PSS 5000 – Technical Manual

5 Installation (Menu 2)

To add a protocol to Port 41 or Port 99 with web service pages

This procedure describes how to use the Service Menu in the web browser to add/change the protocol to port assignment values for Port 41 or Port 99.

1. With the Protocol to Port Assignment window already open, go to Port 41

or 99 and click The

Add a Protocol table for the port appears.The example below shows the

Add.

table for Port 41.

2. Open the Protocol Type drop-down list and select the correct type of device.

3. Open the Protocol drop-down list and select the correct protocol.

4. If a protocol combination is possible, open the Protocol Combination drop-

down list and select the correct option.

To remove a protocol to port assignment with web service pages

Note: A selection must be made here if there are 2 or more combinations.

5. Click OK.

The page returns to the

Protocol to Port Assignment list; go to ‘To co nfigure

protocol to port assignment with web service pages’ on page 36, Step 2.

When the protocol has parameters, it may be necessary to set these before the

Save Change button is used.

Note: Changes are not activated until the Save Changes button in the Protocol

to Port Assignment

window is used and a Master Reset occurs.

This procedure describes how to use the Service Menu in the web browser to remove a protocol to port assignment.

1. With the Protocol to Port Assignment window already open, go to the port

where you want to remove the protocol and click

Clear (or Remove for Port

41).

2. Do one of the following:

• If you used

Clear, the protocol is removed from the port list. Go to ‘To

configure protocol to port assignment with web service pages’ on page 36, Step 2.

• If you used

3. Open the Protocol Type drop-down list and select the correct type of device.

Remove, the Remove a Protocol table appears; go to Step 3.

4. Open the Protocol drop-down list and select the correct protocol.

5. If a protocol combination is used, open the Protocol Combination drop-

down list and select the correct option.

Note: A selection must be made here if there are 2 or more combinations.

38 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

6. Click OK.

The page returns to the

Protocol to Port Assignment list; go to ‘To co nfigure

protocol to port assignment with web service pages’ on page 36, Step 2.

Note: Changes are not activated until the changes are saved in Protocol to

Port Assignment

window and the controller is Master Reset.

5.1.2 Setting the Protocol Parameter Values

To set protocol parameter values

This procedure describes how to set the parameters for protocols that use these values.

Note: This procedure uses a TCP/IP protocol to illustrate the steps.

1. Select 2 Installation 2.1 Protocol to Port Assignment.

The

Protocol to Port Assignment page appears.

2. Go to the port and protocol that you want to set and click Change.

The

Change Protocol Parameters table appears. The example below shows

a tank gauge protocol that uses TCP/IP on Port 41.

3. Select the parameter fields and type in the correct values. Note: All values must also be aligned with the local parameters. For exam-

ple an IP address must match its local subnet.

4. When all the values are correct, click OK.

PSS5000/TEMA/803046/14 39 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

5. In the Protocol to Port Assignment window verify that all the values are cor-

6. In the Protocol to Port Assignment window click Save Changes to apply the

7. In the confirmation window, click OK

5.1.3 Limitations

Note: If you typed in a value that is outside the permitted range, a message

indicating the valid range appears. You must correct the value(s).

Protocol to Port Assignment window appears.

The

Note: The parameter changes are not applied until the next steps.

rect before you continue to the next step.

changes.

Note: If you do not wish to apply the changes, click Discard Changes.

The changes are saved and the PSS 5000 is Master Reset.

List of areas with limitations

Not all protocol to port assignments are possible. There can be a number of reasons why an assignment is not possible. The user interface, which is built to prevent the user from making illegal assignments, reduces the selectable options (reduced drop-down lists on the web service). Some of the limitations are explained in the table below:

Note: All TCP/IP protocols are fixed.

Protocols Explanation

Protocols regarding DMB Some protocols do not support addressable de-

vices. To overcome this limitation a multiplexed port must be used.

IFSF protocols Generally, IFSF protocols run on PSS 5000 Port

31 (LON). However, some variants run on Port 41 (TCP/IP).

Single instance protocols Some protocols cannot be assigned to more

than one port (for example, a log printer protocol).

Special protocols Some protocols need special UART features.

For example:

• Gilbarco pump (5787 baud)

• Satam 008 pump (900 baud)

• Scheidt & Bachmann T02 pump

• MKS ER 3/2 pump

Due to PSS 5000 hardware limitations, it is not possible to run 2 of the protocols listed above on a PSS port pair that share UART hardware. The port pairs are:

• port 13 + 21

• port 14 +22

• port 15 +23

For example, if one of the protocols listed above is assigned to port 13, you will not be able to assign any of the protocols listed to port 21.

Point to Point PPP connections are only available on the DMB

40 of 155 PSS5000/TEMA/803046/14

ports. And only one DMB port can be configured to use PPP.

PSS 5000 – Technical Manual

5 Installation (Menu 2)

5.2 Date and Time (Menu 2.2)

Description of Date and Time menu

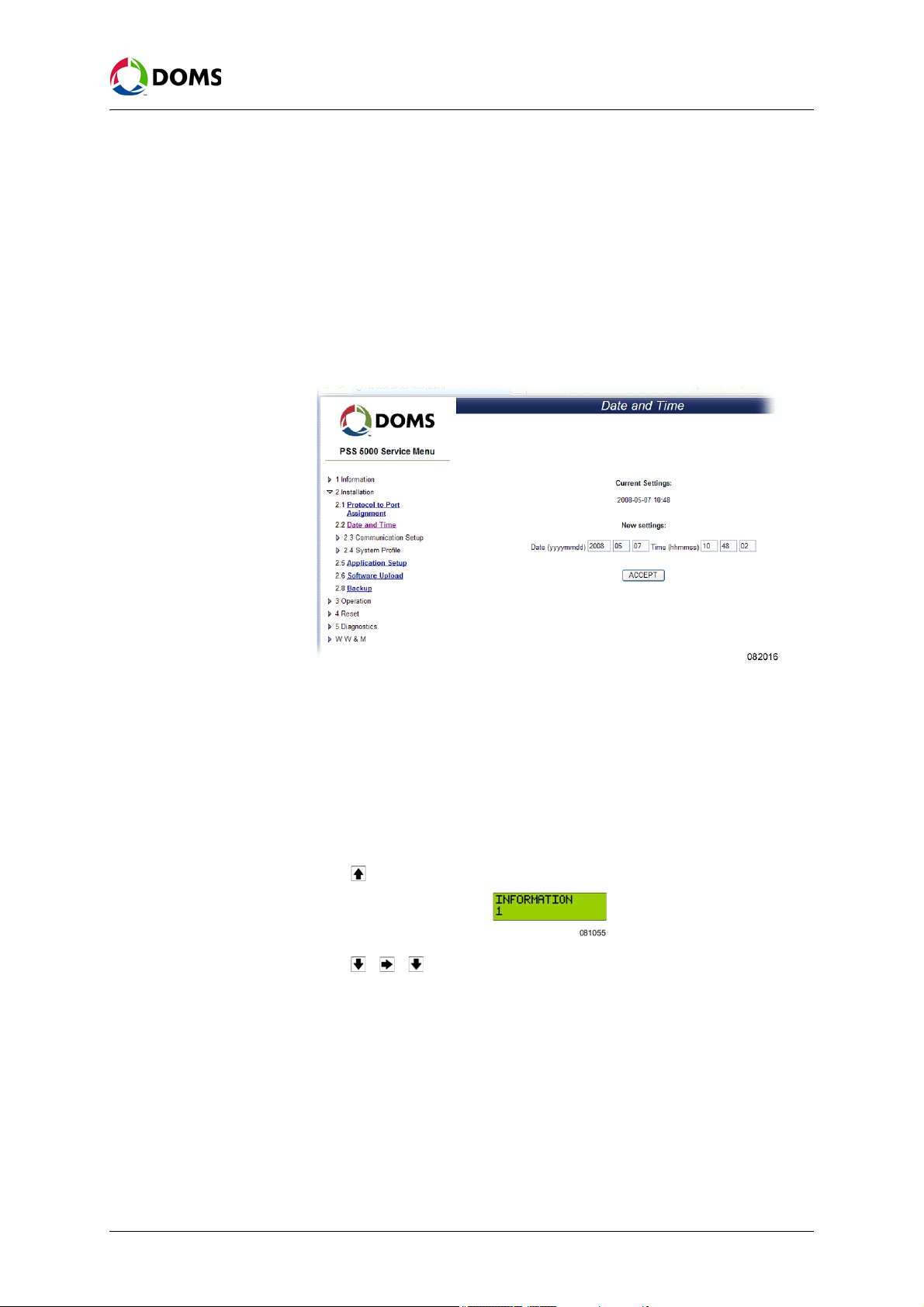

To view/change the date and time with web service pages

The PSS 5000 has it's own Real Time Clock (RTC), which is used to time stamp various events. The RTC setting can be changed via the Web, the Local Service Panel and in some applications via the POS Protocol.

This procedure describes how to use the Service Menu in the web browser to view/change the date and time values in the PSS 5000.

1. Select 2 Installation 2.2 Date and Time.

The

Date and Time page appears.

To view/change the date and time with local service panel

2. Select the Date (yyyymmdd) and/or Time (hhmmss) fields and type in the

correct values.

3. Click ACCEPT to apply the changes.

A message that confirms that the date and/or time has been changed appears.

This procedure describes how to use the Local Service Panel to view/change the date and time values in the PSS 5000.

1. Press to move to the INFORMATION 1 menu.

2. Press , , to move to the DATE & TIME 2.2 menu.

PSS5000/TEMA/803046/14 41 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

3. Press the buttons in the sequence shown below to move to the sub-menus

and view/change the date and time values in the PSS 5000.

5.3 Communication Setup (Menu 2.3)

Overview of Communication Setup menu

The Configuration Setup menu is divided in to the following sub-menus:

• ‘5.3.1 TCP/IP Setup (Menu 2.3.1)’ on page 43

• ‘5.3.2 Service Port Setup (Menu 2.3.2)’ on page 46

• ‘5.3.3 Datalink Timeout for Serial Driver (Menu 2.3.3)’ on page 47

• ‘5.3.4 Service Port Protocol (Menu 2.3.4)’ on page 48

• ‘5.3.5 Menu 2.3.5 – Reserved for Future Use’ on page 49

• ‘5.3.6 Dialup Setup/Test (Menu 2.3.6)’ on page 49

• ‘5.3.7 Online/Offline Event Time (Menu 2.3.7)’ on page 50

42 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

5.3.1 TCP/IP Setup (Menu 2.3.1)

Description of TCP/IP Setup menu

Configuration of the TCP/IP parameters must be done in accordance with the IP address plan for the location. In order to avoid conflicts with other network devices, consult your network administrator regarding this subject. The TCP/IP parameters listed in the table below must be assigned before communication is possible.

Parameters Explanation

IP address The IP address can be assigned in one of 2 ways:

• Automatically – from a DHCP server. These are not fixed IP addresses. They are leased from the server. If the lease runs out, or isn’t renewed periodically, then the IP address of the device may change.

• Manually – this is a fixed IP address assigned to a device and has a standard dot notation, for example 192.10.172.2.

If a manual IP address is not supplied, then a default IP address is given. This is 10.10.10.100. This default address is within the "private network" ranges and does not conflict with public Internet IP addresses.

Subnet mask Using a subnet mask increases the routing efficiency of

the network. A subnet keeps the information within the designated subnet mask and reduces traffic over the entire network. The subnet mask has a standard dot notation, for example: 255.255.255.0

Default Gateway This provides routing between subnets or networks.

Enter the IP address in a standard dot notation. The factory setting for the default gateway is 10.10.10.1, which is not in conflict with the factory setting for the PSS 5000 CPU boards

MAC address Is the fixed physical address for each Ethernet Module

PSS5000/TEMA/803046/14 43 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

To view/change the TCP/IP setup with web service pages

This procedure describes how to use the Service Menu in the web browser to view/change the values for the TCP/IP setup parameters in the PSS 5000.

1. Select 2 Installation 2.3 Communication Setup 2.3.1 TCP/IP Setup.

The

TCP/IP Setup page appears.

To view/change the TCP/IP setup with local service panel

2. Do one of the following:

•Select

3. Use the correct naming conventions and notation to type in the required

Obtain IP address automatically (using DHCP), go to Step 4. Specify an IP address, go to Step 3.

values for:

•

IP Address

• Subnet Mask

• Default Gateway

4. In the MAC Address: field, view the MAC address for the Ethernet module.

5. Click ACCEPT to apply the changes.

After the IP address has been changed, it is necessary to reconnect to the PSS 5000 using the new IP address.

This procedure describes how to use the Local Service Panel to view/change the values of the TCP/IP setup parameters in the PSS 5000.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , to move to the TCP/IP SETUP 2.3.1 menu.

44 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

3. Press the buttons in the sequence shown below to move to the sub-menus

and view/change the IP address in the PSS 5000.

Note: The current DHCP setting is flashing.

4. In the Use DHCP? sub-menu, use the and buttons to toggle between NO and YES.

5. Press OK to save the change.

To view the MAC address of the Ethernet module with local service panel

• If you selected

6. Press to move to the SET IP ADDRESS sub-menu.

7. Use the and buttons change the value that is flashing. Use and

USE DHCP? YES, go to Step 8. USE DHCP? NO, go to Step 6.

to move forward to the next or backwards to the previous values, re-

spectively.

8. Press OK when the NEW SETUP RESET NOW sub-menu appears.

The changes to the parameter values are implemented.

This procedure describes how to use the Local Service Panel to view the MAC address of the Ethernet module in the PSS 5000.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , to move to the TCP/IP SETUP 2.3.1 menu.

3. Press the buttons in the sequence shown below to move to the sub-menus

and view the MAC address of the Ethernet module in the PSS 5000.

PSS5000/TEMA/803046/14 45 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

5.3.2 Service Port Setup (Menu 2.3.2)

Description of service port setup

To view/change the Service Port setup with web service pages

The Service Port Setup menu enables you to set up the communication parameters for the Service Port present on the CPU board. The Service Port is a serial interface port, and the following parameters must be defined:

Parameter Values

Baud rate 900, 19200, 38400

PPP device modem, NULL modem

Note: The values underlined are the default values.

, 57600, 115200

This procedure describes how to use the Service Menu in the web browser to view/change the values for the Service Port Setup in the PSS 5000.

1. Select 2 Installation 2.3 Communication Setup 2.3.2 Service Port Setup.

The

Service Port Setup page appears.

2. Select the Baud rate value that matches your system.

3. Select the PPP device value that matches your system. Note: If Modem is selected, it is necessary to set up the external modem to

communicate with the port. In addition to this, the Service port is only able to receive calls, therefore it is not possible to dial out using this port.

4. Click ACCEPT to apply the changes.

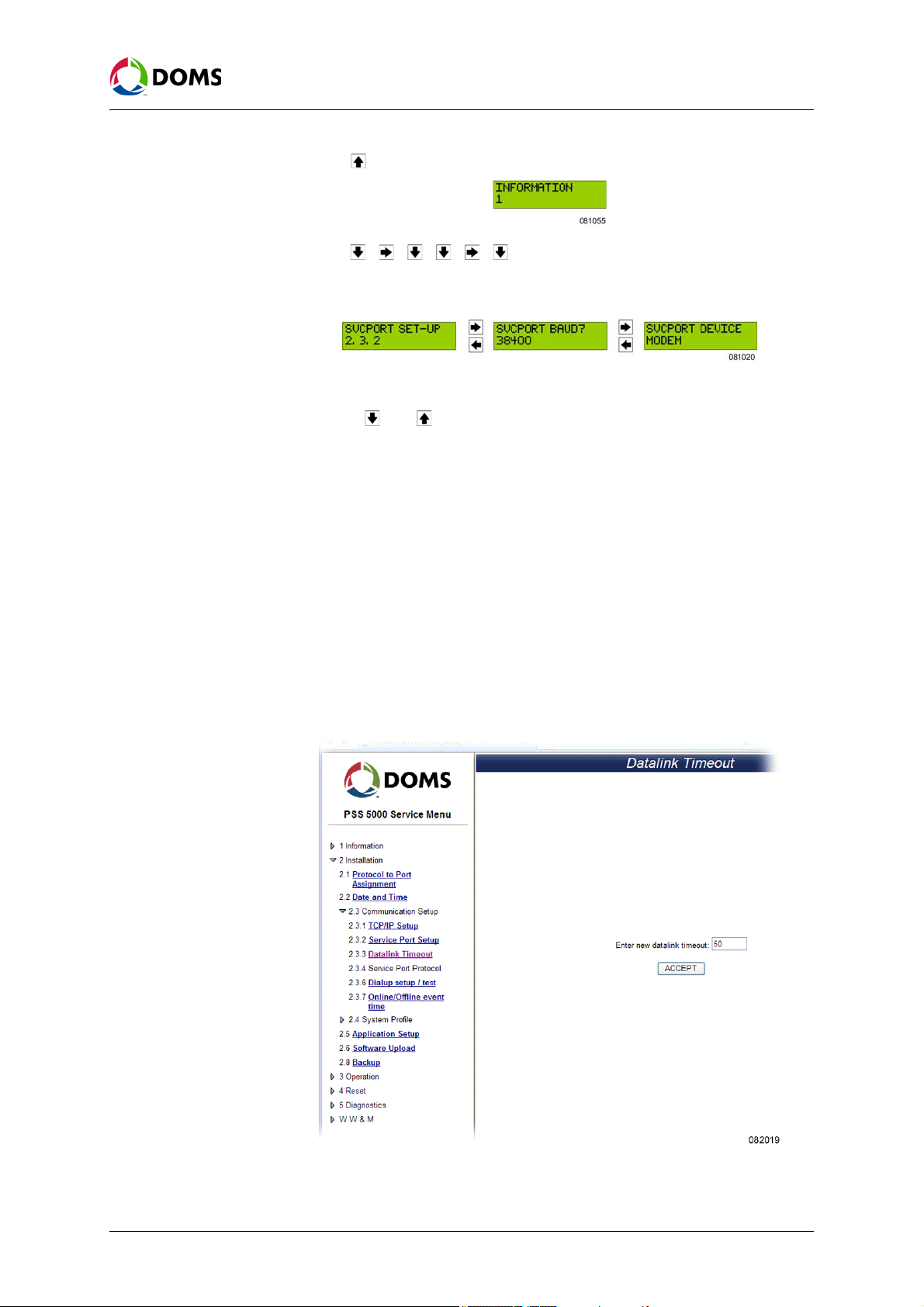

To view/change the Service Port Setup with local service panel

46 of 155 PSS5000/TEMA/803046/14

This procedure describes how to use the Local Service Panel to view/change the values of the Service Port Setup in the PSS 5000.

PSS 5000 – Technical Manual

5 Installation (Menu 2)

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , to move to the SVCPORT SETUP 2.3.2 menu.

3. Press the buttons in the sequence shown below to move to the sub-menus

and view/change the baud rate and the PPP device values in the PSS 5000.

Note: The current setting is flashing in each of the sub-menus.

4. Use the and buttons to change the value of the current setting, which

is flashing.

5. To change the settings in the other sub-menus, repeat steps 3. and 4.

6. Press OK.

The

NEW SETUP RESET NOW sub-menu appears

7. Press OK to apply the changes to the parameters.

5.3.3 Datalink Timeout for Serial Driver (Menu 2.3.3)

To view/change the Datalink Timeout with web service pages

This procedure describes how to use the Service Menu in the web browser to view/change the values for the Datalink Timeout of the serial driver in the PSS

5000.

1. Select 2 Installation 2.3 Communication Setup 2.3.3 Datalink Timeout.

The

Datalink Timeout page appears.

PSS5000/TEMA/803046/14 47 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

2. In the Enter new datalink timeout: field type in the new value (in millisec-

onds) for the timeout.

Note: The permitted range is: 0, 1, 2, ..., 50, ..., 9998, 9999

3. Click ACCEPT to save the changes.

The new value is effective after the board is reset.

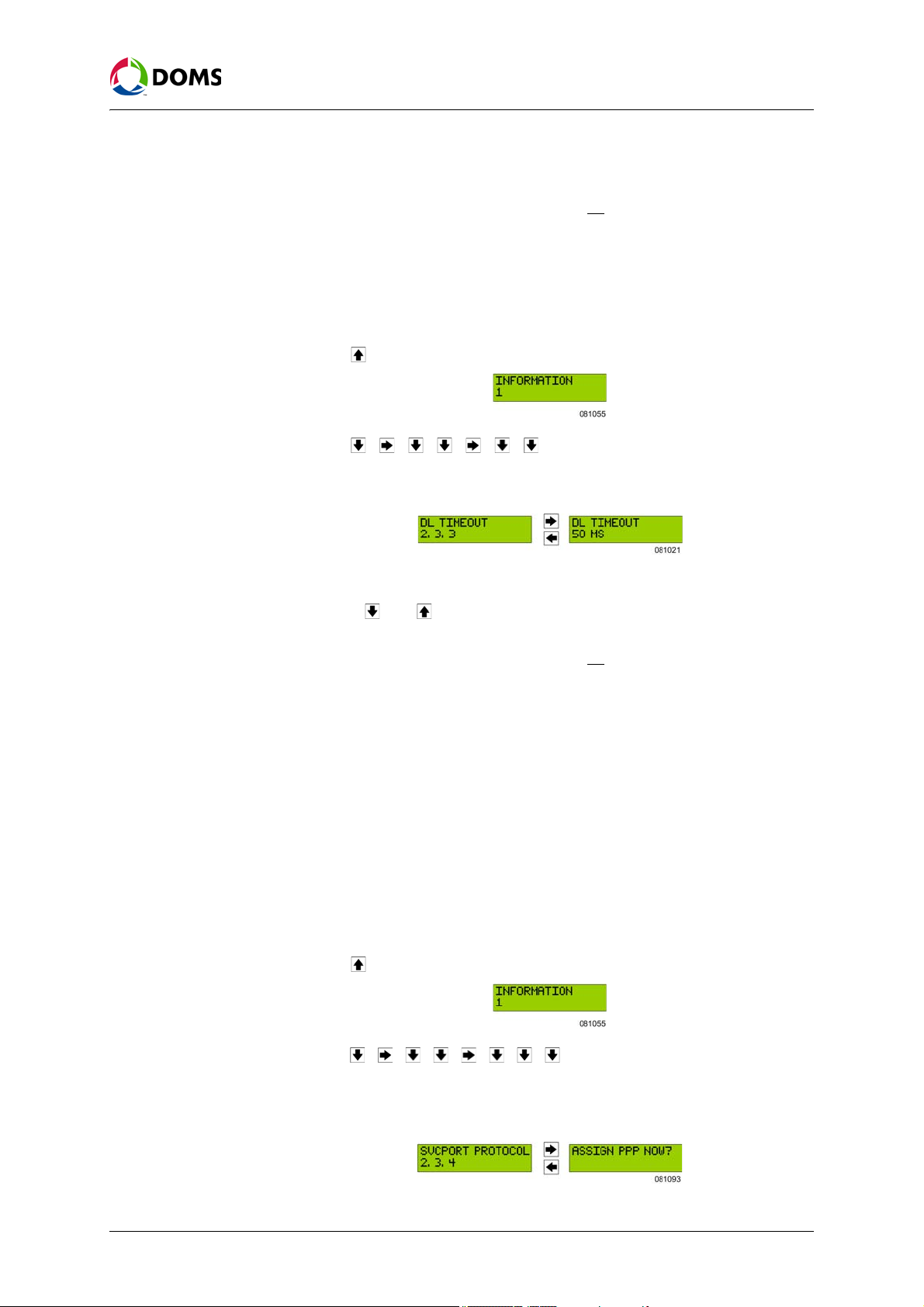

To view/change the Datalink Timeout with local service panel

This procedure describes how to use the Local Service Panel to view/change the values of the Datalink Timeout for the serial driver in the PSS 5000.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , to move to the DL TIMEOUT 2.3.3 menu.

3. Press the buttons in the sequence shown below to move to the sub-menu

and view/change the datalink timeout value in the PSS 5000.

Note: The current setting is flashing in the sub-menu.

4. Use the and buttons to change the value of the current setting, which

is flashing.

Note: The permitted range is: 0, 1, 2, ..., 50, ..., 9998, 9999

5. Press OK.

The

NEW SETUP RESET NOW sub-menu appears

6. Press OK to apply the changes to the parameters.

5.3.4 Service Port Protocol (Menu 2.3.4)

Description of service port protocol

To view/change the Service Port Protocol with local service panel

48 of 155 PSS5000/TEMA/803046/14

The Service Port Protocol menu enables you to set the protocol used on the service port of the CPU board.

Note: This menu item is only available via the local service panel.

This procedure describes how to use the Local Service Panel to view/change the value of the Service Port Protocol in the PSS 5000.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , , to move to the SVCPORT PROTOCOL

2.3.4

menu.

3. Press the buttons in the sequence shown below to move to the sub-menu

and view/change the datalink timeout value in the PSS 5000.

PSS 5000 – Technical Manual

5 Installation (Menu 2)

4. Press OK to assign the named protocol.

NEW SETUP RESET NOW sub-menu appears

The

5. Press OK to apply the changes to the parameters.

5.3.5 Menu 2.3.5 – Reserved for Future Use

Reserved This menu item is reserved for future use.

5.3.6 Dialup Setup/Test (Menu 2.3.6)

Description of Dialup Setup/Test

To view/change Dialup Setup/Test with web service pages

The Dialup Setup/Test menu enables you to set up the communication parameters for a modem connected to one of the DMB ports in the PSS 5000. Before the dialup connection can work, the following parameters must be defined:

Parameter Values

Baud rate 900, 19200, 38400

PPP device modem, NULL modem

Modem init string* Standard AT commands required to initialize modem.

String = max. 64 characters

Modem dial string* Telephone number for outgoing calls. String = max. 32

characters.

User name* Log on user name required by destination. Maximum of

20 characters allowed.

Password* Log on password required for user name at destination.

Maximum of 20 characters allowed.

*: These parameters are only required when it is necessary to dial out from the PSS

5000. They are not required when null-modem is selected.

, 57600, 115200

This procedure describes how to use the Service Menu in the web browser to view/change the values for the dialup settings in the PSS 5000.

Note: Before these settings are valid, one of the DMB ports in the PSS 5000

must be configured to use the Point to Point Protocol (PPP). See

‘5.1 Protocol to Port Assignment (Menu 2.1)’ on page 35.

PSS5000/TEMA/803046/14 49 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

1. Select 2 Installation 2.3 Communication Setup 2.3.6 Dialup Setup/Test.

Dialup Settings page appears.

The

2. Select the Baud rate value that matches your system.

3. Select the PPP device value that matches your system.

4. In the Modem init string: field, type in a string of text that initiates the mo-

dem.

5. In the Modem dial string: field, type in the telephone number that you want

to dial.

6. In the User name: field, type in the user name you want to use to access the

PSS 5000.

7. In the Password: field, type in the correct password for the given user

name.

8. Click Save and Dialup.

The new dialup settings are saved, and the modem tests them by connecting to the destination number.

5.3.7 Online/Offline Event Time (Menu 2.3.7)

Description of Online/Offline Event Timer

The online/offline event timer is a filter, which reduces the number of online/offline events displayed. Only those online/offline events that exceed the time period (specified in the

Online/Offline Event Timer page) are displayed.

50 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

To view/change the Online/Offline Event Time with web service pages

This procedure describes how to use the Service Menu in the web browser to view/change the values for the Online/Offline Event Timer in the PSS 5000.

1. Select 2 Installation  2.3 Communication Setup  2.3.7 Online/Offline

Event Time

The

Online/Offline Event Timer page appears.

2. In the Enter new online/offline event timer (minutes): field type in the new

value (in minutes) for the timeout. The permitted range is: 0, 1, 2, ..., 10

Note: 0 minutes means the timer is disabled.

3. Click ACCEPT to save the changes.

The new value will be effective after the board is reset.

5.4 System Profile (Menu 2.4)

Overview of System Profile menu

5.4.1 Password (Menu 2.4.1)

Description of user access rights

The System Profile menu is divided in to the following sub-menus:

• ‘5.4.1 Password (Menu 2.4.1)’ on page 51

• ‘5.4.2 Name and Number (Menu 2.4.2)’ on page 55

• ‘5.4.3 POS Password (Menu 2.4.3)’ on page 55

• ‘5.4.4 Web Preferences (Menu 2.4.4)’ on page 56

The PSS 5000 Service Menus web interface is protected by user/password authentication. The following table shows which access rights the users have:

, ... 99999 minutes.

PSS5000/TEMA/803046/14 51 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

Note: When a Super Master Reset takes place on the PSS 5000, all the pass-

words are reset to their default settings.

User Description

admin This is used by the PSS system administrator and has

host This is used by host applications (e.g. Doms Site Info)

service This provides the privileges needed by service techni-

manager This provides Read only access to all information and

guest This provides Read only access to all information.

vrc This is used by Vapor Recovery System administra-

all privileges:

• Read everything

• Change all settings

• Perform Reset, Master Reset and Super Master Reset

• Upload software

• Change passwords for other users

to access the PSS 5000 (read & write) via Doms Host Protocol.

cians:

• Read everything

• Start embedded peeper to create traces

• Perform Reset, Master Reset and Super Master Reset

access to change Prices.

tors. This user name is only supported in applications, where Vapor Recovery Controller functionality runs on the PSS 5000.

To change the user password with web service pages

POS This is used by POS applications via the Doms POS

Passwords can only be changed by the

Protocol. POS users are able to lock and clear transactions.

admin user, and all fixed passwords

must have 4 – 16 characters. Passwords may consist of lower case letters, upper case letters and digits only.

On a clean CPU board without any LAM, only the

admin user is accepted.

All users can also have a dynamic password of the day. This can be obtained from the system administrator.

Note: 3 incorrect password attempts will block access for one minute. Hereaf-

ter, only one attempt is accepted per minute until a successfully log on with a correct password is achieved.

This procedure describes how to use the Service Menu in the web browser to change the user password for the PSS 5000.

Note: This procedure describes what is available when an admin user is logged

on.

52 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

1. Select 2 Installation 2.4 System Profile 2.4.1 Password. Change Password page appears.

The

2. Open the Select user drop-down list and select the user that needs the pass-

word changed. When you select a user, the following fields become active:

•

Enter old password: – this field is only active when the admin user is

changing the admin password.

•

Enter new password:

• Enter new password again:

For the admin password only – in the Enter old password: field type in the current password for the selected user.

4. In the Enter new password: field type in the new password for the user.

Note: The password must have 4 – 16 characters and must not contain any

special characters.

5. In the Enter new password again: field, re-type the password given in Step

6. Click OK to save the changes.

A message appears which confirms that the password was changed and tells you to log off and reconnect to the PSS 5000.

PSS5000/TEMA/803046/14 53 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

Emergency access to the PSS 5000

In case passwords are forgotten it is possible to gain access in two different ways:

• ‘To use Doms password for a day’ on page 54

• ‘To use the default user password with local service panel’ on page 54

These methods make it possible to restore the fixed passwords to the wanted values, or to give temporary system access to a person on the site.

To use Doms password for a day

To use the default user password with local service panel

The doms user has the same privileges as the admin user but uses a special dynamic "Doms password of the day". This password has 4 HEX characters (0– 9, A–F) and can be obtained by contacting Doms Support.

The PSS 5000 has a password validation routine in the Legal Authority Module with fixed user_id/password combinations. The default password for all users is "password".

All original user default passwords (password) can be re-enabled temporarily from the Local Service Panel. This enables a technician, who has access to an open box, to always get access to the system. Protection of the physical access to the room or the box itself is outside the scope of this documentation. The box can be behind a locked door or the box can be locked. The default passwords will be active until disabled manually again from the Local Service Panel or until the end of the current day. This procedure describes how to use the Local Service Panel to select the default user password of the PSS 5000.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , to move to the DEFAULT PASSWORD 2.4.1

menu.

3. Press to move to the ENABLE D.PASSW? menu.

4. Use the and buttons to toggle between YES and NO.

5. Select YES and press OK to make the changes.

54 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

5.4.2 Name and Number (Menu 2.4.2)

To change the system name and number

This procedure describes how to use the Service Menu in the web browser to change the system name and number for the PSS 5000.

1. Select 2 Installation 2.4 System Profile 2.4.2 Name and Number.

The

Change Site Name and Number page appears.

2. In the Enter new name: field type in a name or number that makes it easy

identify the site to which you are connected. The site name can have up to 60 characters.

3. In the Enter new number: field type in a number for the site.

The site number can have up to 20 characters.

4. Click ACCEPT to save the name and/or number changes.

5.4.3 POS Password (Menu 2.4.3)

Description of POS Password menu

To change password for POS users with web service pages

Using a configurable POS password prevents any unauthorized handling of fuelling transactions. Only an authorized POS system that knows and uses the correct POS password can lock and clear transactions.

If the current POS password is different from the default password (which is

POS), only POS connections that use the configured POS password can autho-

rize fuelling points, as well as lock and clear transactions. POS connections that use the default POS password are still accepted, but cannot be used to handle transactions.

Use the procedure ‘To change the user password with web service pages’ on

page 52 and select the POS user.

PSS5000/TEMA/803046/14 55 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

5.4.4 Web Preferences (Menu 2.4.4)

Description of web preferences

To change the web preferences

This menu enables you to make some minor changes to the appearance of the web pages. You can include your own logo or graph ic in the top left-hand corner of the service menu pages, and you can change the rate by which information in the Operational Status web pages is updated from the PSS 5000.

This procedure describes how to use the Service Menu in the web browser to change the appearance of the web pages and the rate by which information is updated from the PSS 5000.

1. Select 2 Installation 2.4 System Profile 2.4.4 Web Preferences.

The

Web Preferences page appears.

2. To insert a logo/graphic in the top left-hand corner of the web page, click

Browse in the Custom Logo group.

The

Choose file window appears.

3. In the Choose file window, locate the graphic file you want to include in the

web page.

4. Click Open to include the path to the graphic file in the field next to the

Browse button.

5. Do one of the following:

• If you want to change the refresh rate parameters, go to Step 6.

• If you want to include the new logo/graphic now, go to Step 7.

6. In the Parameters group, type in the new refresh rate (in seconds).

7. Click OK to save and implement the changes.

5.5 Application Setup (Menu 2.5)

To set/change the application setup

During installation, various application dependent functions might be configurable using the

Application Setup menu – the specific applications determine

what is actually configurable.

56 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

1. Select 2 Installation 2.5 Application Software. Application Setup page appears.

The

2. In the Select Setup Group table, open the Setup Group? drop-down list.

3. Select one of the following:

•

Forecourt Control Setup. To continue go to ‘To set/change the Fore-

court Control Setup’ on page 57.

•

Protocol Specific Setup. To continue go to ‘To set/change the Protocol

Specific Setup’ on page 58.

To set/change the Forecourt Control Setup

When you have completed the steps in the procedures above you will be returned to the

PSS 5000 Service Menus.

Use this procedure when you have selected the Forecourt Control Setup option

Application Setup menu.

in the

1. In the Forecourt Application drop-down list, select one of the following:

•

PSS License Management, go to Step 2.

•

Wet Stock Setup, go to Step 4.

•

Totals Setup, go to Step 6.

2. In the PSS License Management page, type the License Key for the selected

application.

3. Click Submit key.

To continue using the

PSS5000/TEMA/803046/14 57 of 155

PSS 5000 Service Menus, select a new menu option.

PSS 5000 – Technical Manual

5 Installation (Menu 2)

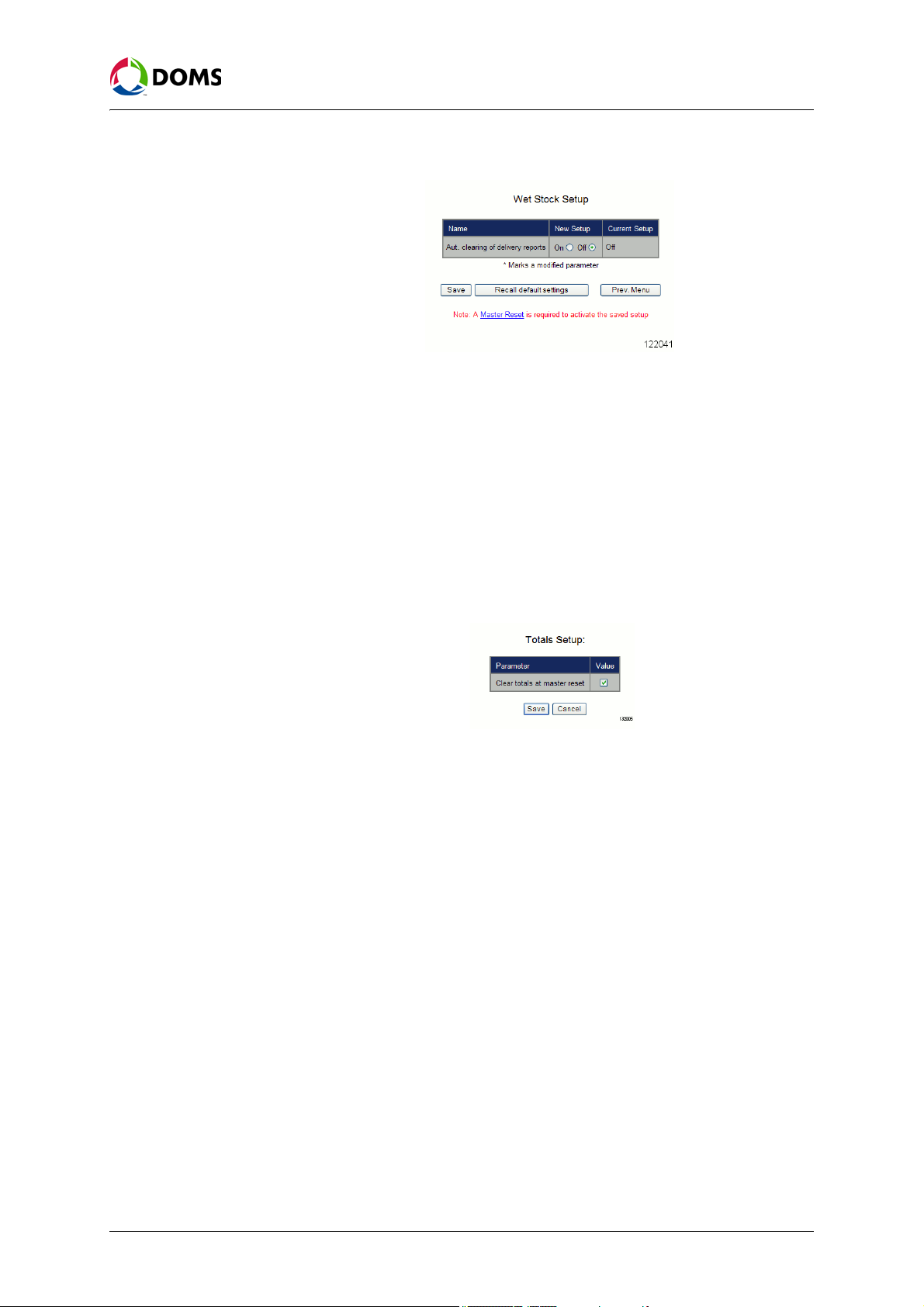

4. In the Wet Stock Setup page, select the required New Setup radio button.

Note: On should be selected if delivery information is required but the sys-

tem does not contain a POS that is capable of clearing the delivery report.

5. Click one of the following.

•

Save

• Recall default settings

• Prev. Menu To continue using the PSS 5000 Service Menus, select a new menu option.

6. In the Totals Setup page, use the Clear totals at master reset option to spec-

ify if totals must be retained or removed during a PSS Master Reset:

• Select the check box to clear totals during a PSS Master Reset (default setting).

• Clear the check box to keep totals after a PSS Master Reset.

7. Click Save.

To continue using the

To set/change the Protocol Specific Setup

Use this procedure when you have selected the Protocol Specific Setup option

Application Setup menu.

in the

1. In the Protocol? drop-down list, select the protocol that is to be configured.

2. In the page that appears, type in the specific configuration parameters and OK.

click

3. Select a menu option to continue using the PSS 5000 Service Menu.

5.6 Software Upload (Menu 2.6)

Description of the Software Upload menu

Software upload is done by uploading a file via FTP and/or by using the Web interface (PSS program dependent).

An upload will clear the old program from the system, so normal operation is interrupted during a program change. A program change automatically results in a Master Reset of the system. Software uploads can be performed from a

PSS 5000 Service Menus, select a new menu option.

58 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

remote location, but not before someone has set the system in a mode where it is permitted to load software.

Setting the PSS 5000 to accept software uploads is enabled using either the web service pages or the local service panel.

Software upload methods

Important information about BOOT and LAM software

Several methods to upload software are available:

Interface Description

Old web service menus Software upload followed by an FTP upload program

session.

New web service menus Software upload followed by an FTP upload program

session.

Software upload followed by a Web applet based upload program session.

Local service panel Software upload followed by an FTP upload program

session.

FTP Software upload by uploading file ok2load.txt followed

by an FTP program upload session.

For the PSS 5000 system, two series of program combinations exist (BOOT, LAM and Application). Combinations other than those shown in the table below are incompatible. The following conditions must be fulfilled:

Application Version Condition

All versions before 1.00 Must use:

• BOOT program from the 400-02 series

• LAM version lower than 1.00

Version 1.00 or higher Must use:

• BOOT program from the 499-03 series

• LAM version 1.00 or higher

Read the Software Release Document for the Application Program to see which BOOT and LAM versions are required.

If you are not sure which software versions are currently installed in the PSS 5000, see ‘4.1 Program Versions (Menu 1.1)’ on page 29.

If the current versions are not correct, change the software in the following order: BOOT, LAM and/or APPLICATION. Use either of the following procedures to do this:

• ‘To upload software with the web service menus’ on page 60, or

• ‘To upload software using FTP’ on page 62

Special case

If you are using Application Software 411-41, then you may require more information when upgrading or downgrading, see [7].

Warning! If the BOOT upload (which is loaded with the BOOT Exchange Program)

is interrupted before it is complete, the CPB509 is left without a boot program and cannot be used – it must be returned to Doms.

PSS5000/TEMA/803046/14 59 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

To upload software with the web service menus

This procedure describes how to use the Service Menu in the web browser to upload software to the PSS 5000.

Note: Before you start this procedure, read ‘Important information about

BOOT and LAM software’ on page 59.

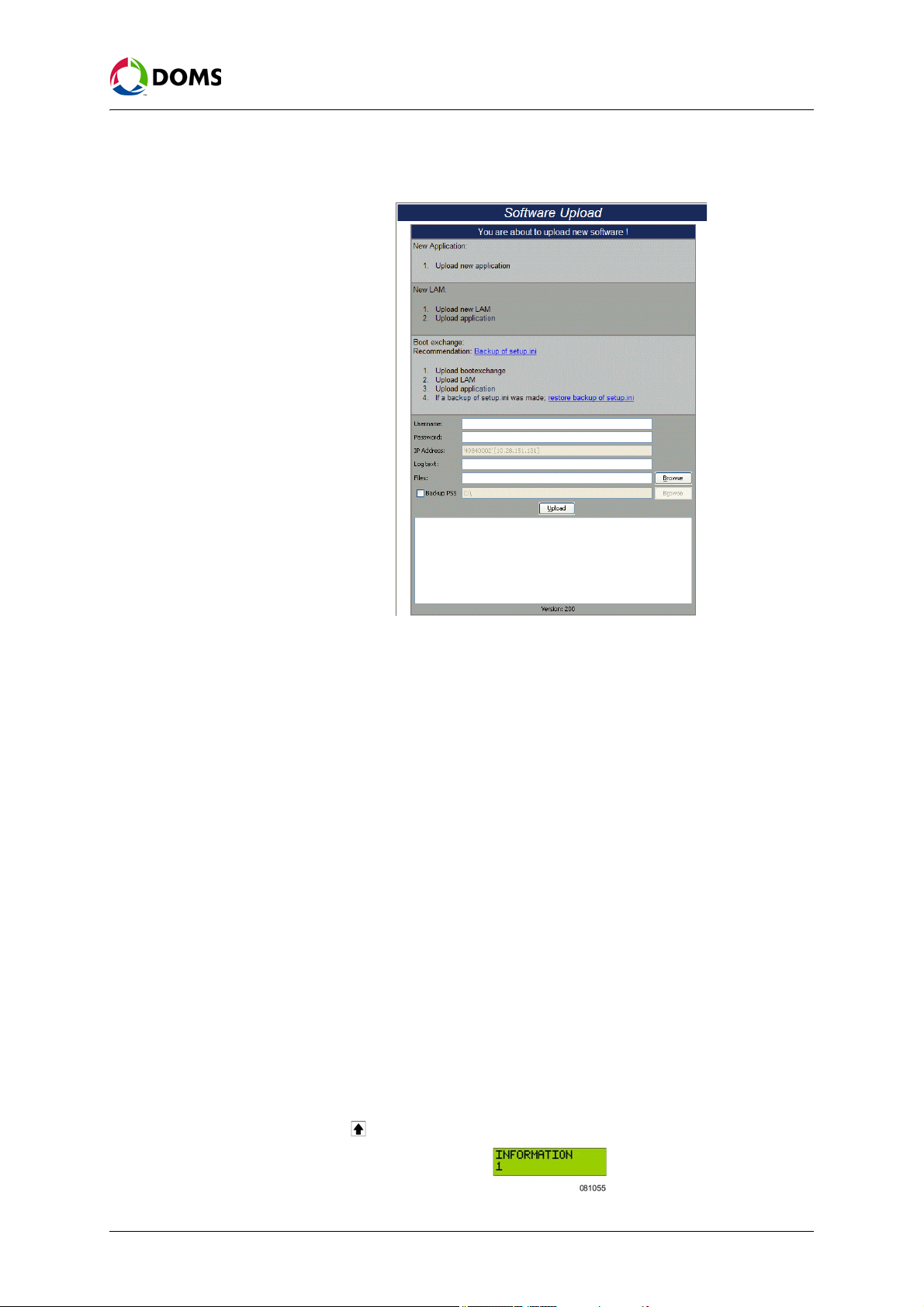

1. Select 2 Installation 2.6 Software Upload.

The

Software Upload page appears.

Note: A message warns you that you are about to change the permission to

upload software.

2. Select Yes, allow software upload, and do one of the following:

• If you are using a new web service menu, select either upload via FTP) or

Upload now (to upload via an embedded Java ap-

Upload later (to

plet) and go to Step 3.

• If you are using the old web service menu, go to Step 4.

3. Do one of the following:

• If you selected

Start Timeout

Upload later or Upload now in Step 2, open the Upload

drop-down list and select the timer value. The upload must be started within the time selected or an upload timeout occurs. Possible timeout values are:

24 hours.

3 minutes, 30 minutes, 3 hours, 8 hours and

• If you are using the old web service menu, continue to the next step.

4. Click Accept.

• If you are using an old web service menu or you selected

Upload later,

then a message appears that tells you that the upload is possible until the time shown.

Use a standard FTP procedure to upload the software file, see ‘To up-

load software using FTP’ on page 62, and go to Step 7.

• If you selected

Upload now, a new page appears that tells you that you

are about to upload software.

60 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

Note: Depending on the Java version installed, you may be required to

To allow software uploads with local service panel

5. Type in the correct information for the following fields:

•

User name – PSS 5000 user name

•

Password – password for PSS 5000 user name

•

Log text – additional text to help identify the upload

•

Files – location and file name of software you want to upload

•

Backup PSS – (optional) specify a location for the backup of the cur-

rent LAM and Application files

6. Click Upload.

Caution: Do not close the web page until after the upload is finished. If the

Java applet is closed, then it may be necessary to upload using FTP.

A status of the software upload appears in the information field. When the upload is finished, this is shown in the status information.

7. To verify that the software was uploaded correctly, use the Program Ver-

sions

menu.

This procedure describes how to allow software to be uploaded to the PSS 5000 using the local service panel.

Note: Before you start this procedure, read ‘Important information about

BOOT and LAM software’ on page 59.

1. Press to move to the INFORMATION 1 menu.

PSS5000/TEMA/803046/14 61 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

2. Press , , , , , , to move to the SOFTWARE UPLOAD 2.6

menu.

3. Press to move to the ALLOW UPLOAD? menu.

4. Use and to toggle between YES and NO.

To upload software using FTP

When the

Allow upload value is YES, then it is possible to upload software

using FTP, see ‘To upload software using FTP’ on page 62.

Note: If you change the Allow upload value to YES, then you must reset the

PSS 5000 before the software upload can start.

5. Press .

The following file is created: /pss_mem/2/sys/ok2upload.txt. This file must be present before FTP can be used to upload software. See ‘To upload soft-

ware using FTP’ on page 62.

Note: There is a time limit on the presence of the ok2upload.txt file. If too

much time passes, an upload timeout occurs and the file is deleted. It is necessary to repeat the procedure that allows the upload and creates the file.

This procedure describes how to use FTP to upload software to the PSS 5000. The commands used in this procedure use FileZilla to illustrate the commands. However, other FTP clients may be used.

Note: When Application files are uploaded, the PSS erases the existing file.

As this takes time, it is necessary to set the FTP client’s Transfer Timeout setting to  180 seconds.

Note: Before you start to upload software with FTP, you must make the PSS

5000 ready to accept the software. To do this see ‘To upload software

with the web service menus’ on page 60, or ‘To allow software uploads with local service panel’ on page 61.

1. Start the FTP client.

2. Check/change the transfer timeout settings. The timeout must be set to

 180 seconds.

Failure to verify this setting may result in the software upload not being successful.

62 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

3. Use the web Service Menu 2.6 Software Upload to verify that the PSS is

ready to accept the software. The following dialog must appear:

If this dialog does not appear, use menu now.

4. Using the FTP client, connect to the PSS 5000 using the following param-

eters: Host: <PSS IP address>

Username:

admin

Password: password

5. Copy the software *.bin file to the following location on the PSS 5000:

pss_mem/1/prg

Note: If you are uploading more than one bin file, then you must copy the

files in the following order: BOOT, LAM, Application.

When the file is in this directory, the PSS 5000 commences the installation.

6. When all the files have been copied and installed, use the Service Menu 1.1

Program Versions to verify the PSS is using the correct software.

5.7 Peripheral Configuration (Menu 2.7)

To change the setup.ini file using FTP

To overcome limitations in some POS interfaces, a set-up file (setup.ini which, for example, contains device pre-configuration) can be uploaded. The set- up.ini file can be downloaded from and/or uploaded to the PSS 5000 using any FTP client (WP_FTP, CuteFTP) or from a command line using ftp.exe.

4.1 Soft Reset to reboot the PSS

Note: If a device item is pre-configured in the setup.ini file, the specified value

is always used. The POS interface controls the remaining items. The POS still needs to send the usual configuration messages.

1. Download the file /pss_mem/2/appl/setup.ini.

2. Edit the pre-configuration for those devices that need to be pre-configured

in the setup.ini file.

3. Upload the modified setup.ini file to /pss_mem/2/appl in the PSS 5000.

PSS5000/TEMA/803046/14 63 of 155

PSS 5000 – Technical Manual

5 Installation (Menu 2)

4. Perform a Master Reset on the PSS 5000. Note: This prepares the PSS 5000 for the new setup.ini file, which is not

deleted during a Master Reset.

5. Syntax errors in the setup.ini file are reported in the file

/pss_proc/sys/bel.txt.

For more information about parameter descriptions, see the Software Release Document (SRD) for the actual Application Program.

5.7.1 Memory Module (Menu 2.7.1)

Description of Memory Module menu

To configure the number of memory modules with local service panel

From the Memory Module menu you can configure the number of memory modules installed in the PSS 5000. This menu is only available using the local service panel.

The number of memory modules, also known as peripheral devices, can be configured using the local service panel.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , , to move to the PERIPHERAL CONF

2.7

menu.

3. Press the buttons in the sequence shown to move to sub-menus.

4. Use and to select the correct number of modules present.

5. Press OK.

The

NEW SETUP RESET NOW sub-menu appears

6. Press OK to make the changes to the changed parameter values.

To configure the memory modules in the setup.ini file using FTP

This procedure describes how to use the setup.ini file to configure the number of memory modules present in the PSS 5000.

Note: The setup.ini file can be download ed from or uploaded to the PSS 5000

using any FTP client (WP_FTP, CuteFTP) or from a command line using ftp.exe.

1. Download the /pss_mem/2/appl/setup.ini file.

2. Open the file with an editor and locate the heading [Peripherals].

3. Find the PaymentMemoryModuleCount parameter and change the value to

match the actual number of memory modules present in the PSS 5000.

4. Upload the modified setup.ini file to /pss_mem/2/appl in the PSS 5000.

5. Perform a Master Reset on the PSS 5000.

64 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

5 Installation (Menu 2)

Note: This prepares the PSS 5000 for the new setup.ini file, which is not

deleted during a Master Reset.

Syntax errors in the setup.ini file are reported in the file /pss_proc/sys/bel.txt.

For more information about parameter descriptions, see the Software Release Document for the actual Application Program.

5.8 Backup (Menu 2.8)

Description of backup menu

The Backup menu enables you to safely store a file that contains protocol-toport assignment, PSS license keys and other setup data configuration information from the PSS 5000.

When the backup file is created, it can be stored on a PC. This can then be used to restore the configuration settings after a Super Master Reset, which deletes this information.

To create a backup file This procedure describes how to use the Service Menu in the web browser to

create the setup.ini backup file.

1. Select 2 Installation 2.8 Backup.

The

Backup page appears.

Note: The backup file is called setup.ini and contains the items present in

the bullet list shown on screen.

2. Click Download to PC to create the setup.ini file.

The

File Download window appears.

3. Click Save.

The

Save As window appears.

4. Use standard Windows procedures to select where you want to save the set-

up.ini file and click

Save.

The file is saved in the defined location.

To restore a backup file to the PSS 5000

PSS5000/TEMA/803046/14 65 of 155

This procedure describes how to use the Service Menu in the web browser to restore the setup.ini backup file in the PSS 5000.

PSS 5000 – Technical Manual

5 Installation (Menu 2)

1. Select 2 Installation 2.8 Backup.

Backup page appears.

The

2. Click Browse to locate the setup.ini file.

The

Choose file window appears.

3. Use standard Windows procedures to locate the setup.ini file and click Open.

The path to the selected setup.ini file appears in the

Restore backup from PC

field.

4. Click OK.

The setup.ini file is now copied to /pss_mem/2/appl/ on the PSS 5000.

5. Perform a Master Reset on the PSS 5000 to activate the parameter values

in the new setup.ini file.

66 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

6 Operation (Menu 3)

Overview of Operation menu

The Operation menu is divided into the following sub-menus:

• ‘6.1 Enter Fallback Mode (Menu 3.1)’ on page 67

• ‘6.2 Grade Prices (Menu 3.2)’ on page 69

• ‘6.3 FP Transactions (Menu 3.3)’ on page 70

• ‘6.4 Payment Server (Menu 3.4)’ on page 71

• ‘6.5 Operation Mode (Menu 3.5)’ on page 72

• ‘6.6 Menu 3.6 Reserved for Future Use’ on page 73

• ‘6.7 Operational Status (Menu 3.7)’ on page 74

• ‘6.8 TeleTerminal (Menu 3.8)’ on page 75

• ‘6.9 Reconciliation Report (Menu 3.9)’ on page 75

6.1 Enter Fallback Mode (Menu 3.1)

Description of fallback mode menu

With the PSS 5000, there is an option to operate in Attendant Fallback Mode. In this mode, the PSS system internally authorizes each pump when a nozzle is lifted and clears transactions without involving any external POS or OPT device.

This is similar to putting all the pumps in manual mode except that it’s much easier for the staff as they don’t need to re-programme each pump – and it’s safer regarding fraud. A connected Tank Gauge System (e.g. TLS-350) still gets information about fuel sales during the fallback period – the Web Operation Status is available, as well as the host interface if that is used.

When the controller is in Fallback Mode, it will calculate 'Fallback Totals', which tell how much is fuelled on each pump during the fallback period.

When the POS is operational again, it can use the Fallback Total information to create EOS / EOD reports (regarding both money and westock), which cover the Fallback period without loss of data.

Note: Only an operational POS is able to switch the PSS 5000 from Fallback

Mode to a normal operational state again.

PSS5000/TEMA/803046/14 67 of 155

PSS 5000 – Technical Manual

6 Operation (Menu 3)

To set Fallback Mode with web service pages

This procedure describes how to use the Service Menu in the web browser to select the Fallback Mode.

1. Select 3 Operation 3.1 Enter Fallback Mode.

The

Set Fallback Mode page appears.

2. Select Fallback Mode.

3. Click OK.

To set Fallback Mode with local service panel

The PSS 5000 is now in Fallback mode and will remain there until an operational POS forces it back to normal operation.

This procedure describes how to use the Local Service Panel to select the Fallback Mode in the PSS 5000.

1. Press to move to the INFORMATION 1 menu.

2. Press , , to move to the FALLBACK MODE 3.1 menu.

3. Press the buttons in the sequence shown below to move to the sub-menu

and view/change the Fallback mode value.

4. Use the and buttons to change between YES and NO.

5. Press OK.

When

YES is selected, the system is set in Attendant Fallback Mode and re-

mains in this mode until an operational POS is detected.

Note: The function will vary depending on the application. Refer to the

Software Release Document for details about the actual application.

68 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

6 Operation (Menu 3)

6.2 Grade Prices (Menu 3.2)

To set view/change grade prices with web service pages

This procedure describes how to use the Service Menu in the web browser to view/change the prices for the individual product grades.

1. Select 3 Operation 3.2 Grade Prices.

The

Grade Prices page appears.

2. Select the grade name and change the price(s) for the price group(s).

To view/change grade prices with local service panel

3. If the price of more than one grade needs to be changed, repeat Step 2.

4. Click ACCEPT.

5. Click OK when asked to accept the prices.

A confirmation that the changes grade prices are accepted appears and then the page returns to the normal

Grade Prices page, which shows a list of

product grades and prices.

This procedure describes how to use the Local Service Panel to view/change the grade prices in the PSS 5000.

Note: This function is not available for all Application Programs.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , to move to the GRADE PRICES 3.2 menu.

3. Press the buttons in the sequence shown below to move to the sub-menus,

select the products and view the prices. Use and to change the prices.

PSS5000/TEMA/803046/14 69 of 155

PSS 5000 – Technical Manual

6 Operation (Menu 3)

4. To change the prices for the remaining products, repeat Step 3. When you

have changed the price for the last product, you are ready to update the prices.

5. Press OK to set the new prices.

6.3 FP Transactions (Menu 3.3)

Overview of FP Transactions menu

The FP Transactions menu is divided in to the following sub-menus:

• ‘6.3.1 Monitor (Menu 3.3.1)’ on page 70

• ‘6.3.2 Log (Menu 3.3.2)’ on page 71

6.3.1 Monitor (Menu 3.3.1)

To monitor transactions Transactions from each fuelling point can be monitored with the Transaction

Monitor

browser to use POS Mode to monitor unpaid transactions.

1. Select 3 Operation 3.3 FP Transactions 3.3.1 Monitor.

page.This procedure describes how to use the Serv ice Menu in the web

The

Transaction Monitor page appears.

Each fuelling point is listed with the details of the latest unpaid transaction.

Note: Money, Price and Volume values are shown as a number string. Refer

to the LAM (see ‘4.5 LAM (Menu 1.5)’ on page 34) to see the correct position of the decimal point for each of the parameters.

2. Use the list to view which fuelling points have unpaid transactions. Note: Once the POS acknowledges payment the entry in the table is re-

moved.

70 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

6 Operation (Menu 3)

6.3.2 Log (Menu 3.3.2)

To view the transaction log

This procedure describes how to use the Service Menu in the web browser to show the last 10 fuel transactions.

1. Select 3 Operation 3.3 FP Transactions 3.3.2 Log.

The

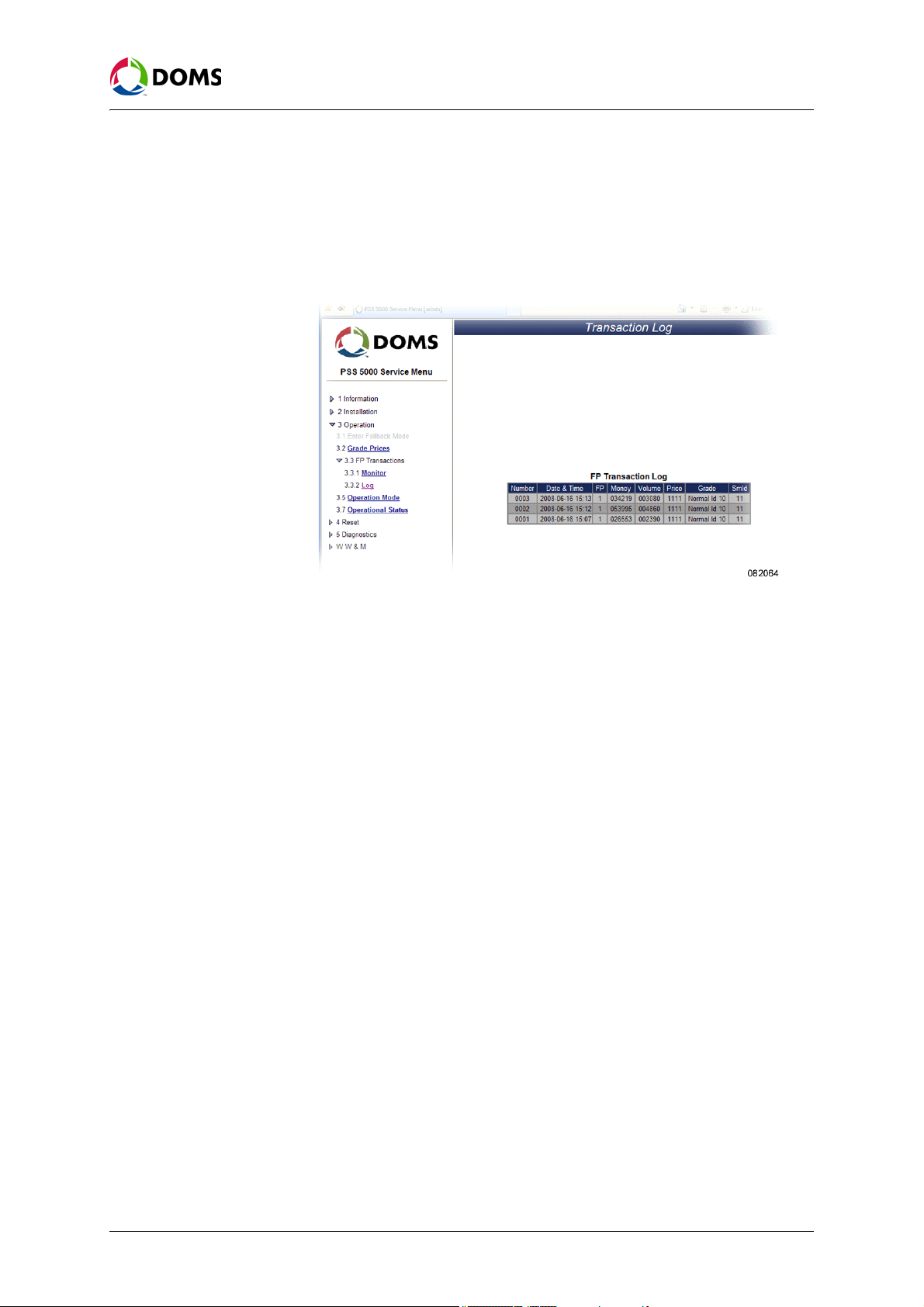

Transaction Log page appears.

2. Use the list view the last 10 transactions, both paid and unpaid. Note: Error transactions are shown in red.

6.4 Payment Server (Menu 3.4)

Description of Payment Server menu

The Payment Server menu is used to control which cards that can be used on the site.

Note: Not all versions of the PSS 5000 application software include the pay-

ment server.

PSS5000/TEMA/803046/14 71 of 155

PSS 5000 – Technical Manual

6 Operation (Menu 3)

To check the validity of a card

The Card Check menu enables you to check if a card is included in the white list loaded in the PSS 5000.

1. Select 3 Operation 3.4 Payment Server 3.4.1 Card Check.

The

Card Check page appears.

2. Type in the 20 digit number for the card and click Check.

Information about the validity of the card appears.

6.5 Operation Mode (Menu 3.5)

Description of the Operation Mode

The operation mode for specific forecourt device can be changed by using the

Operation Mode menu.

Some application dependant operation modes might be available for special purposes such as disabling intrusion detection of an OPT, or setting an OPT in maintenance mode to perform various technical tests on the OPT.

72 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

6 Operation (Menu 3)

To view/set operation mode

This procedure describes how to use the Service Menu in the web browser to set the operation mode of specific forecourt devices.

1. Select 3 Operation 3.5 Operation Mode.

The

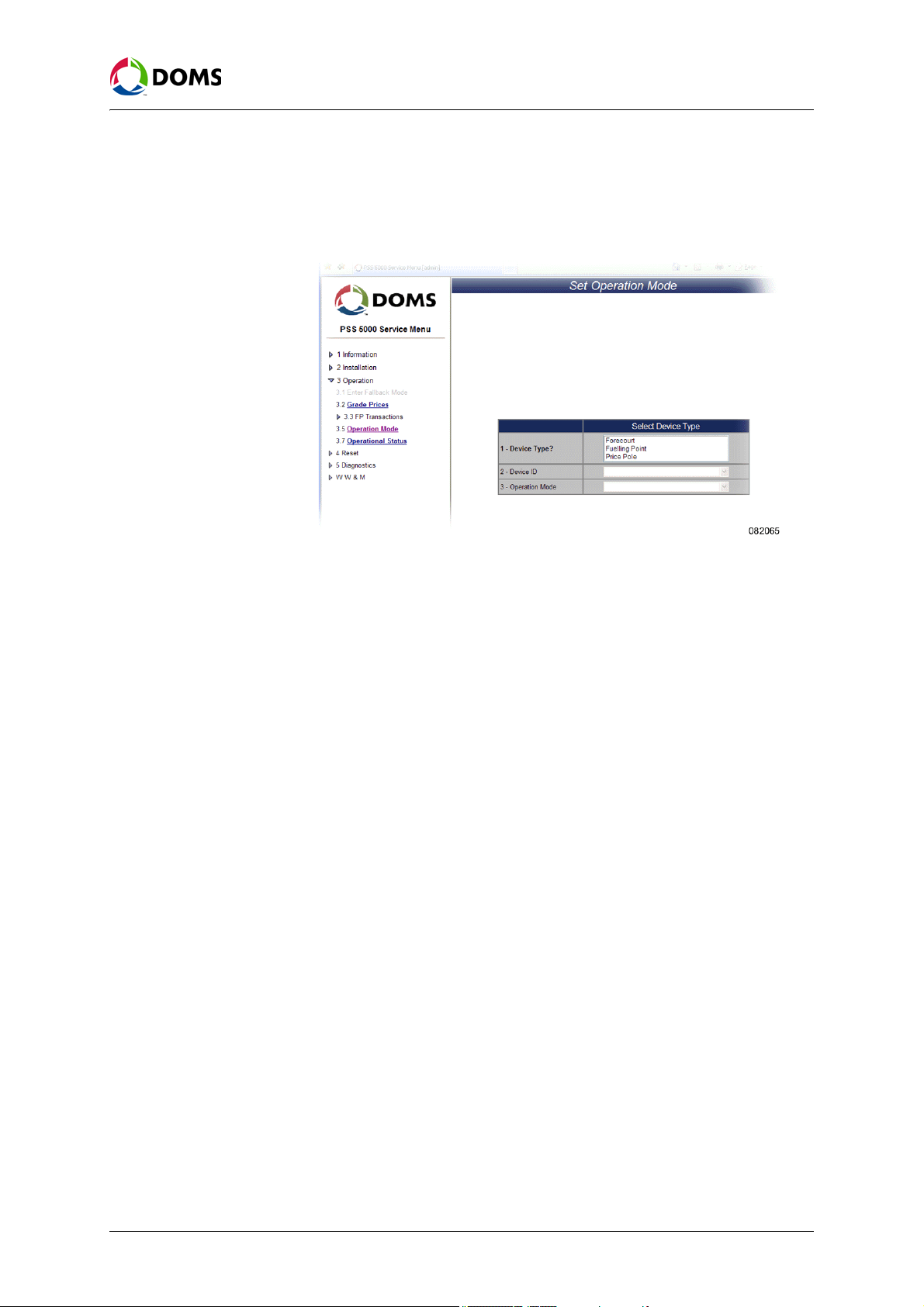

Set Operation Mode page appears.

2. In the Device Type field, select either the whole forecourt or a specific type

of device.

Note: Only devices that are configured in the controller and can use the op-

eration mode are included in the list.

Possible specific device types are:

• Fuelling Point

• Price Pole

•Terminal

3. Open the drop-down list for Device ID and select the ID for a specific device

or all IDs. When the Device ID is selected, then the current

4. Open the drop-down list for Operation Mode and select the required mode.

Operation Mode appears.

Confirmation of the selected operation mode appears briefly on screen.

5. Verify the values shown on screen are correct.

6.6 Menu 3.6 Reserved for Future Use

Reserved This menu is reserved for implementation of future features in the PSS 5000.

PSS5000/TEMA/803046/14 73 of 155

PSS 5000 – Technical Manual

6 Operation (Menu 3)

6.7 Operational Status (Menu 3.7)

Description of Operational Status menu

To view operational status of forecourt devices

The Operational Status menu provides the current status of all the forecourt de- vices connected to the PSS 5000. The status is updated automatically or, if necessary, can be updated manually.

Note: The value for the automatic update period is defined in the Web Prefer-

ences page, see ‘5.4.4 Web Preferences (Menu 2.4.4)’ on page 56.

By selecting a specific type of forecourt device, more detailed information about the individual devices appears.

This procedure describes how to use the Service Menu in the web browser to view the operational status of the forecourt devices.

1. Select 3 Operation 3.7 Operational Status.

The

Operational Status page appears.

This provides a status summary for all the forecourt devices connected to the PSS 5000.

74 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

6 Operation (Menu 3)

2. To see more details for a specific type of device, click on the hyperlink for

the device type at the top of the page. For example, click

Fuelling Point.

Now the

Operational Status page contains only tho se devices for the select-

ed type, and additional details appear. The example below is for fuelling points.

6.8 TeleTerminal (Menu 3.8)

Description of TeleTerminal

The TeleTerminal interface is used by some national bank card acquires, for example Danish PBS. It is used when the transaction amount is known when the card is read.

Note: This is currently only used for car wash sales.

6.9 Reconciliation Report (Menu 3.9)

Description of Reconciliation Report menu

Reconciliation reports provide a comparison between metered sales (measured by the pumps) and gauged sales (measured by the tank gauge system). By comparing these two sources of information, it is possible to detect leaks, theft and other types of irregular product movements.

Note: Before reconciliation reports can be created by the PSS 5000, it is im-

portant that the relationships between each of the fueling points and the associated tanks are configured in the PSS 5000.

The Reconciliation Report page presents both Totalizer Readings and ATG Readings with start and stop time stamps. The Totalizer Readings are provided by the PSS 5000 and are metered sales values for each of the tanks associated with each fueling point. The ATG Readings are gauged tank volumes provided by the tank gauge system.

The data required to create a reconciliation report is stored in the PSS 5000. Normally, this data is compiled once a day (24 hours) into a site report (site_rep.xml file). Although the PSS 5000 can store up to 3 of these reports, only the oldest report is available when requested using the xml output command.

When the reconciliation functionality is included in the forecourt application, it is possible to store up to 7 site_rep.xml files. All of these reports can be viewed on the Reconciliation Report page using the Service Menu in the PSS 5000’s embedded web server. In addition to this, the Reconciliation Report

PSS5000/TEMA/803046/14 75 of 155

PSS 5000 – Technical Manual

6 Operation (Menu 3)

page also allows you to create new reports manually. This means that you can increase or decrease the frequency of the report generation.

Reconciliation report page parameters

The Reconciliation Report page (shown below) is available using the PSS 5000 Service Menu.

The table below provides explanations for the various parameter fields present on the Reconciliation Report page:

Parameter Description

Report Identifiers

System name This is the id assigned to the PSS 5000.

Number This shows which report is displayed.

Note: If the Number value is equal to or greater than 7, then there are 7 reconciliation reports you can view.

Period Start Provides the date (yyyy/mm/dd) and time

Period End Provides the date (yyyy/mm/dd) and time

Report Select Selector buttons that enable you to display the

Create Report? This Yes button enables you to create reports

(hh:mm) for the start of the reconciliation report.

(hh:mm) for the end of the reconciliation report.

previous/next reconciliation report.

Note: Even though the Number value is greater than 7, only 7 reconciliation reports are available.

manually.

Note: When the Yes button is active, the automatic report generation (default time 00:00) is disabled.

76 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

6 Operation (Menu 3)

Parameter Description

Total Totalizer Sale Total Tank Gauge Sale–

Total Totalizer Sale Total Tank Gauge Sale–100

Total Totalizer Sale

Manual report creation A check box and Enable/Disable button that al-

low you to activate/deactivate the Create Report button.

Note: Both the check box and the button must be used to change the state of the Create Report button.

Totalizer Readings (liter)

Fuelling Point n Each fuelling point has 3 values:

• Start – this value is provided by the previous Site report.

• End – this values is provided by the current Site report.

• Metered Sale – this is a calculated value: (End value – Start value)

Note: Depending on the type of pump, the Start and End values can be either measured values from the pump or calculated values from transaction data.

Total Sale This is a summation of Metered Sale values for

all the fuelling points connected to the tank.

ATG Readings (liter)

Gauged Volume: Start This is measured value from the tank gauge

system when the previous site report was created.

Delivered This is measured value provided by tank gauge

system, which states the amount of any deliveries made after the Start and before the End values were provided.

Gauged Volume: End This is measured value from the tank gauge

system when the current site report was created.

Tank Gauge Sale This is a calculated value:

(End – Start) + Delivered

Reconciliations

Tank Group This is a tank group ID. It is only relevant when

multiple tanks are manifolded.

Dif. (liters) This is a calculated value (for each tank), which

compares the values supplied by the 2 sources:

Dif. (%) This is a calculated value (for each tank) which

compares the values supplied by the 2 sources:

PSS5000/TEMA/803046/14 77 of 155

PSS 5000 – Technical Manual

6 Operation (Menu 3)

To view reconciliation reports

This procedure describes how to use the Service Menu in the web browser to view the reconciliation reports stored in the PSS 5000.

Note: Before reconciliation reports can be created by the PSS 5000, it is im-

portant that the relationships between each of the fueling points and the associated tanks are configured in the PSS 5000.

1. Select 3 Operation  3.9 Reconciliation Report.

The

Reconciliation Report page appears.

The newest reconciliation report is displayed. It contains metered values from the pumps and gauged values from the tank gauge system. A comparision of these values is shown in the Reconciliations part of the table at the bottom of the Reconciliations Report.

2. Use the Report Select arrow buttons to view the remaining reconciliation

reports. It is possible to view multiple reconciliation reports using this page.

3. If you want to change the status of the report generation, select the Manual

report creation

If you pressed the iation reports by pressing the

Note: Automatic report generation is deactivated when manual report cre-

check box and press the Enable/Disable button.

Enable button, you are now able to create new reconcil-

Create Report? button.

ation is activated.

If you pressed the

Disable button, manual report creation is no longer pos-

sible and the automatic report function is activated.

Note: By default the automatic report generation occurs at 00:00 each day.

This time is configurable. Disabling the report auto-generation does not result in the time being reset to the default time.

78 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

7 Reset (Menu 4)

Overview of Reset menu The Reset menu is divided into the following sub-menus:

• ‘7.1 Soft Reset (Menu 4.1)’ on page 79

• ‘7.2 Master Reset (Menu 4.2)’ on page 80

• ‘7.3 Super Master Reset (Menu 4.3)’ on page 81

7.1 Soft Reset (Menu 4.1)

Description of Soft Reset Activating the Soft Reset will have the same effect as a short power off. The

system stops for a short period and the hardware and communication drivers are re-initialized, but the state of the operation starts from where it was stopped.

Note: When a Soft Reset or power down occurs, the contents of the virtual file

system pss_mem/4 is cleared.

To make a soft reset with web service pages

This procedure describes how to use the Service Menu in the web browser to make a soft reset.

1. Select 4 Reset 4.1 Soft Reset.

The

Reset page appears.

2. Click RESET.

The hardware and communication drivers are re-initialized and the software continues from where is was stopped.

To make a soft reset with local service panel

PSS5000/TEMA/803046/14 79 of 155

This procedure describes how to use the Local Service Panel to make a soft reset.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , to move to the SOFT RESET 4.1 menu.

PSS 5000 – Technical Manual

7 Reset (Menu 4)

3. Press to select the SOFT RESET? menu.

4. Use the and buttons to toggle between YES and NO.

5. Select YES and press OK.

The system performs a soft reset.

7.2 Master Reset (Menu 4.2)

Description of a master reset

To make a master reset with web service pages

A Master Reset will, in general, clear the configuration data for the Application, for example, the configuration data for Fuelling Points and Tank Gauges. Some specific parameters, such as protocol to port assignments, IP address and the like, are not cleared by a Master Reset.

Note: When a Master Reset occurs, the contents of the virtual file system

pss_mem/4 and pss_mem/3 are cleared.

This procedure describes how to use the Service Menu in the web browser to make a Master Reset.

1. Select 4 Reset 4.2 Master Reset.

The

Master Reset page appears.

2. Select Yes, I want to perform a master reset to confirm your actions.

3. Click MASTER RESET.

The application configuration data is cleared.

To make a master reset with local service panel

80 of 155 PSS5000/TEMA/803046/14

This procedure describes how to use the Local Service Panel to make a Master Reset.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , to move to the MASTER RESET 4.2 menu.

PSS 5000 – Technical Manual

7 Reset (Menu 4)

3. Press to select the MASTER RESET? menu.

4. Press and hold OK for 10 seconds.

The system performs a master reset. The display shows

SET...

7.3 Super Master Reset (Menu 4.3)

Description of a super master reset

To make a super master reset with web service pages

The Super Master Reset simply clears all the memory. All configuration data and parameters, such as Port assignments, return to their default values.

Note: When a Super Master Reset occurs, the contents of the virtual file sys-

tem pss_mem/4, pss_mem/3 and pss_mem/2 are cleared.

This procedure describes how to use the Service Menu in the web browser to make a Super Master Reset.

1. Select 4 Reset 4.3 Super Master Reset.

The

Super Master Reset page appears.

OK MASTER RE-

2. Type ACCEPT in the empty field.

3. Click SUPER MASTER RESET.

All configuration settings return to their default values.

To make a super master reset with local service panel

PSS5000/TEMA/803046/14 81 of 155

This procedure describes how to use the Local Service Panel to make a Super Master Reset.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , to move to the SUPER M RESET 4.3 menu.

PSS 5000 – Technical Manual

7 Reset (Menu 4)

3. Press to select the SUPER M RESET? menu.

4. Press and hold OK + for 10 seconds.

The system performs a Super Master Reset and the display shows

MASTER RESET

...SUPER

82 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

Overview of Diagnostics menu

The Diagnostics menu is divided into the following sub-menus:

• ‘8.1 Forecourt Devices (Menu 5.1)’ on page 83

• ‘8.2 System Logs (Menu 5.2)’ on page 95

• ‘8.3 Communication (Menu 5.3)’ on page 102

• ‘8.4 Peep (Menu 5.4)’ on page 104

• ‘8.5 Test (Menu 5.5)’ on page 107

• ‘8.6 Peripherals (Menu 5.6)’ on page 107

8.1 Forecourt Devices (Menu 5.1)

Overview of Forecourt Devices information

From the Forecourt Devices menu you can see which devices are online and receive status and error information for the forecourt devices. The menu is divided into the following sub-menus:

• ‘8.1.1 Online List (Menu 5.1.1)’ on page 83

• ‘8.1.2 Device Errors (Menu 5.1.2)’ on page 85

• ‘8.1.3 Price Pole Test (Menu 5.1.3)’ on page 86

• ‘8.1.4 Device Status (Menu 5.1.4)’ on page 88

• ‘8.1.5 Device Test (Menu 5.1.5)’ on page 91

8.1.1 Online List (Menu 5.1.1)

Description of Online List menu

To list online devices with web service pages

For each type of forecourt device there is access to a list of online devices. Even before the PSS is configured, it will start polling possible addresses on each port, so this can be used to check that the installation and cabling has been made correctly.

For protocols with large numbers of possible addresses (IP addresses or serial number), this is not possible and these will not be shown as online until they are configured.

This procedure describes how to use the Service Menu in the web browser to view a list of devices that are online.

Note: The items listed in this list are devices associated with the forecourt,

such as pumps, tank gauges and the like.

PSS5000/TEMA/803046/14 83 of 155

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

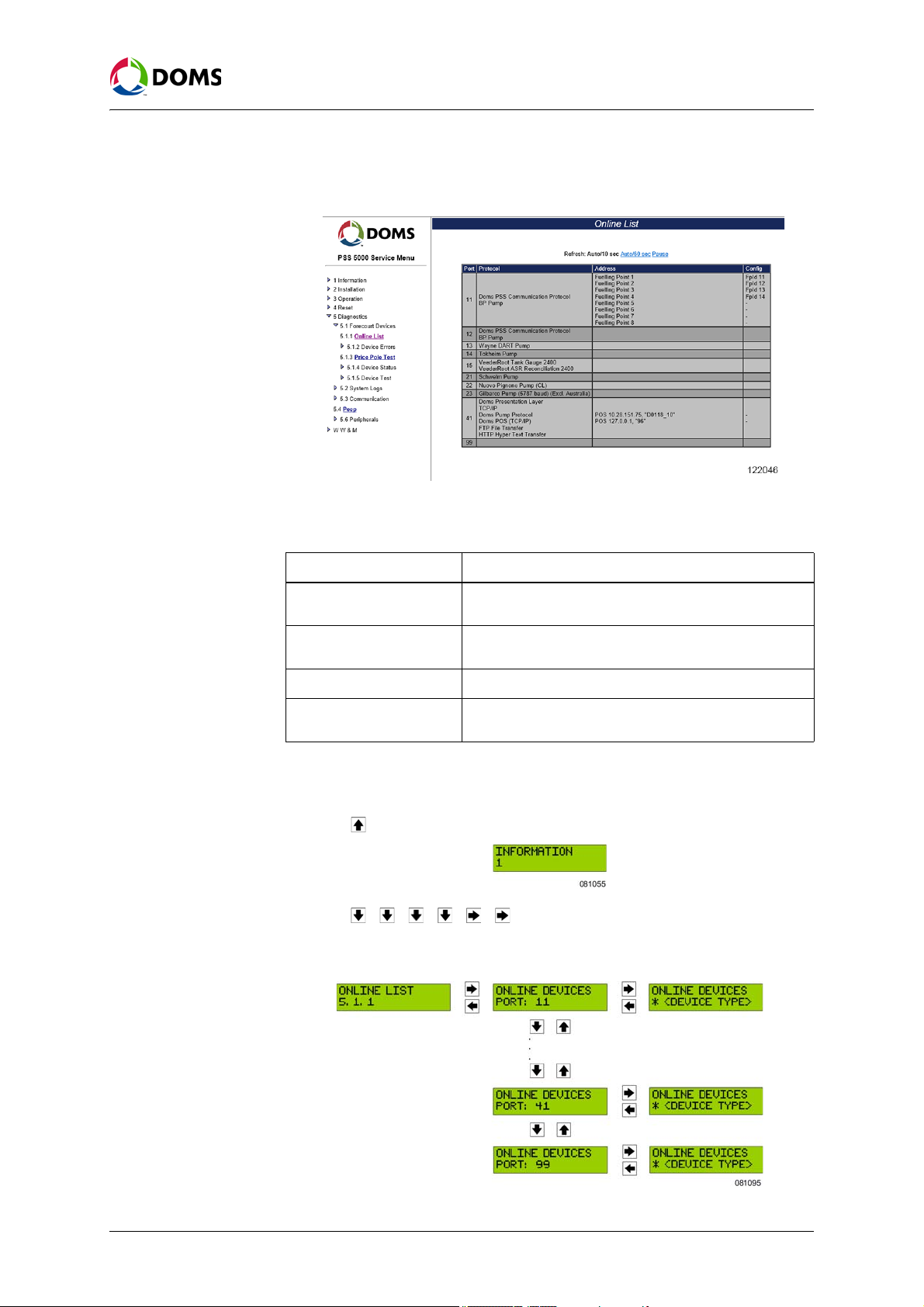

1. Select 5 Diagnostics 5.1 Forecourt Devices5.1.1 Online List. Online List page appears.

The

2. Use the list to see which devices are currently online. The columns contain

the following information:

Column Description

To list online devices with local service panel

Port The number of the port on the PSS 5000 CPB to which

the devices are connected.

Protocol List of protocols assigned to the port (see ‘5.1 Protocol

to Port Assignment (Menu 2.1)’ on page 35).

Address The communication address of the device online.

Config. The ID that is assigned to the device during configura-

tion and is used by the PSS 5000.

This procedure describes how to use the Service Menu in the local service panel to view a list of devices that are online.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , to move to the ONLINE LIST 5.1.1 menu.

3. Press the buttons in the sequence shown below to move to the sub-menus

and view which devices are connected to the individual ports.

84 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

8.1.2 Device Errors (Menu 5.1.2)

Description of Device Errors menu

To view recent errors for all devices with web service pages

From the Device Errors menu it is possible to view the latest error that has occurred on each device and/or view the last error for a specific device.

Note: At present, only fuelling points and POS online information is available.

This procedure describes how to use the Service Menu in the web browser to view the latest error for each device.

1. Select 5 Diagnostics  5.1 Forecourt Devices5.1.2 Device Errors 

5.1.2.1 Recent.

The

Recent Device Errors page appears.

To view recent errors for a specific device with web service pages

2. Use the list to see when the most recent error for each device occurred.

This procedure describes how to use the Service Menu in the web browser to view the latest error for a specific device.

1. Select 5 Diagnostics  5.1 Forecourt Devices5.1.2 Device Errors 

5.1.2.2 Specific.

The

Device Errors page appears.

2. Open the Device Type drop-down list, select the specific device type.

3. Click DEVICE TYPE OK.

PSS5000/TEMA/803046/14 85 of 155

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

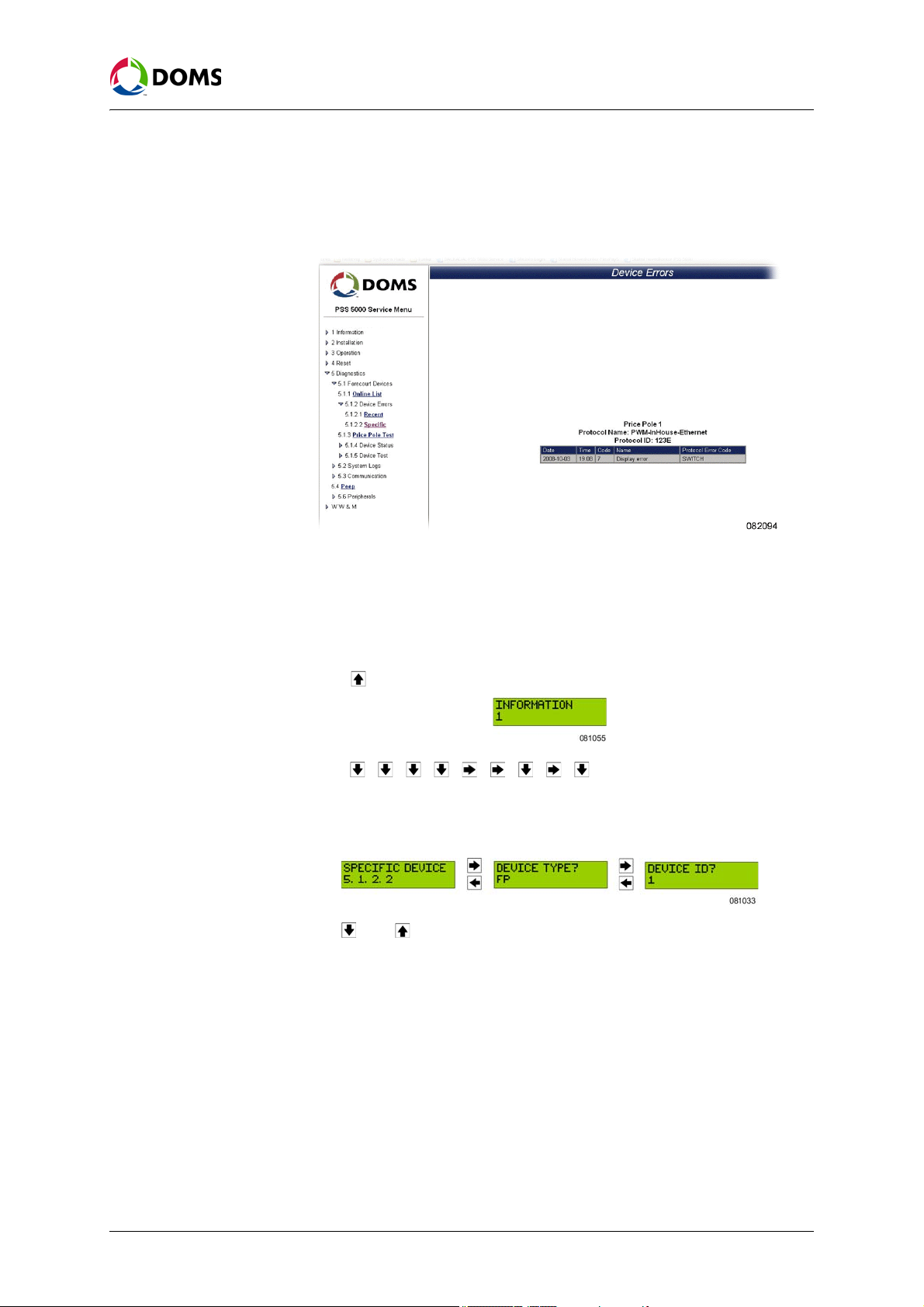

4. Open the Device Id drop-down list and select the ID for the specific device.

5. Click DEVICE ID OK.

A table with the error details for this device appears. The example below shows the error details for a price pole.

6. Use the table to view all the details.

If you want to view details for other devices, go back to Step 1.

To view recent errors for a specific device with local service panel

This procedure describes how to use the Service Menu in the local service panel to view the latest error for a specific device.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , , , to move to the SPECIFIC DEVICE

5.1.2.2

menu.

3. Press the buttons in the sequence shown below to move to the sub-menus

and view which devices are connected to the individual ports.

4. Use and to select the correct Device Type and Device ID.

The details for the error (date, time and error code) are displayed.

Note: If no errors are present, then a NO ERRORS message appears.

8.1.3 Price Pole Test (Menu 5.1.3)

Description of the price pole test

Two special features have been implemented to test Price Poles. One is a segment test for the price poles and the other is a simple command to re-send the last prices.

86 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

To start a price pole test with web service pages

This procedure describes how to use the Service Menu in the web browser to test the price pole.

1. Select 5 Diagnostics 5.1 Forecourt Devices5.1.3 Price Pole Test.

The

Price Pole Test page appears.

To start a price pole test with web service pages

2. Click START PRICE POLE TEST.

The price pole test starts.

This procedure describes how to use the Service Menu in the web browser to test the price pole by updating the prices shown on the pole.

1. Select 5 Diagnostics 5.1 Forecourt Devices5.1.3 Price Pole Test.

The

Price Pole Test page appears.

PSS5000/TEMA/803046/14 87 of 155

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

2. Click UPDATE PRICES.

The prices are sent to the price pole and the updated prices appear on the price pole.

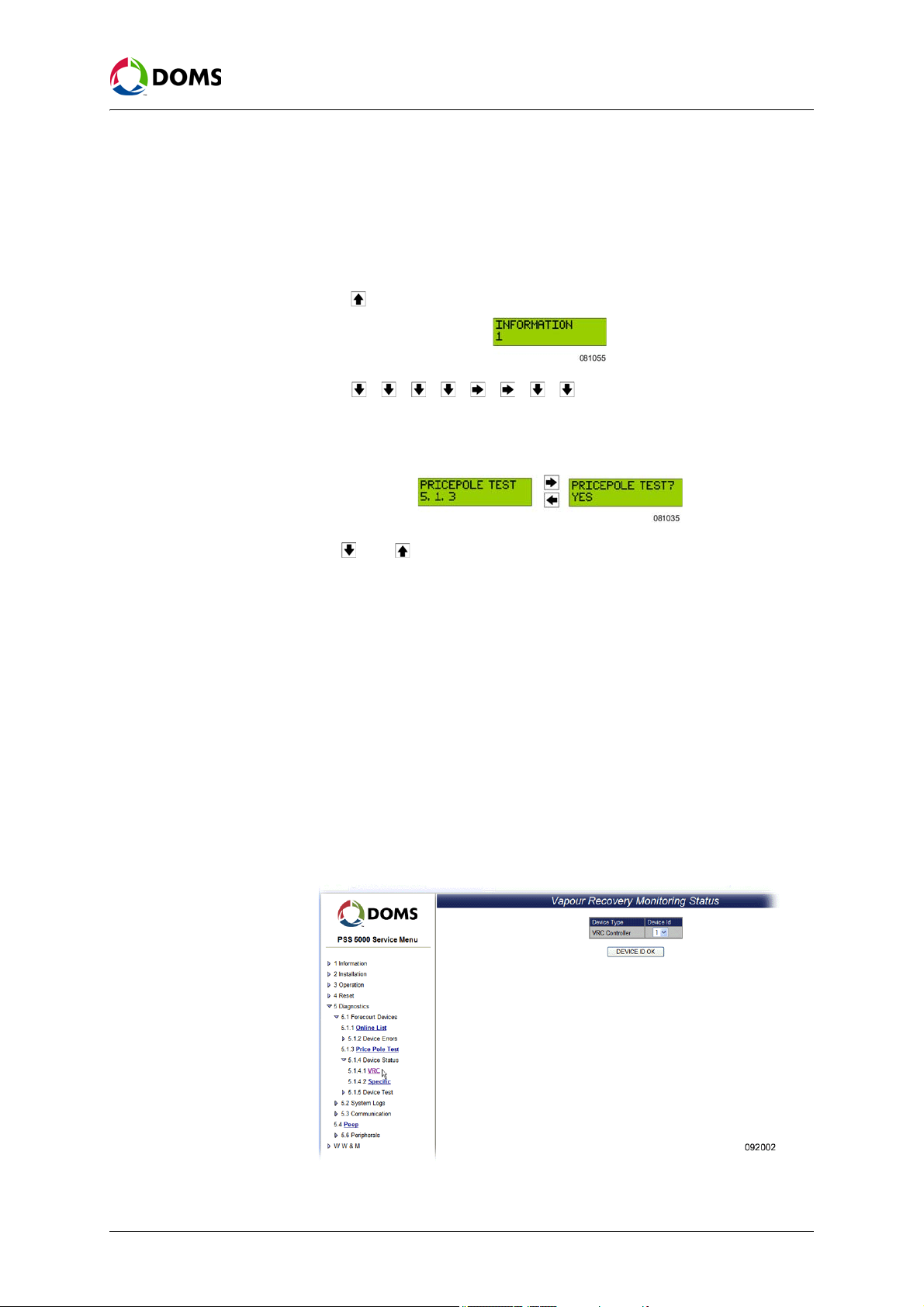

To start a price pole test with local service panel

This procedure describes how to use the Service Menu in the local service panel to start a price pole test.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , , to move to the PRICE POLE TEST

5.1.3

menu.

3. Press the buttons in the sequence shown below to move to the sub-menus.

The current test state is flashing.

4. Use and to toggle between YES and NO.

5. Select YES and press OK.

The price pole test starts.

8.1.4 Device Status (Menu 5.1.4)

Description of Device Status menu

Use this menu to view the status of the various devices connected to the PSS

5000.

To view the status of VRC devices with web service pages

This procedure describes how to use the Service Menu in the web browser to view the status of the VRC (Vapor Recovery Controller).

1. Select 5 Diagnostics  5.1 Forecourt Devices5.1.4 Device Status 

5.1.4.1 VRC.

The

Vapour Recovery Monitoring Status page appears.

88 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

2. Open the drop-down list for the VRC Controller and select a device ID for

the controller.

3. Click DEVICE ID OK.

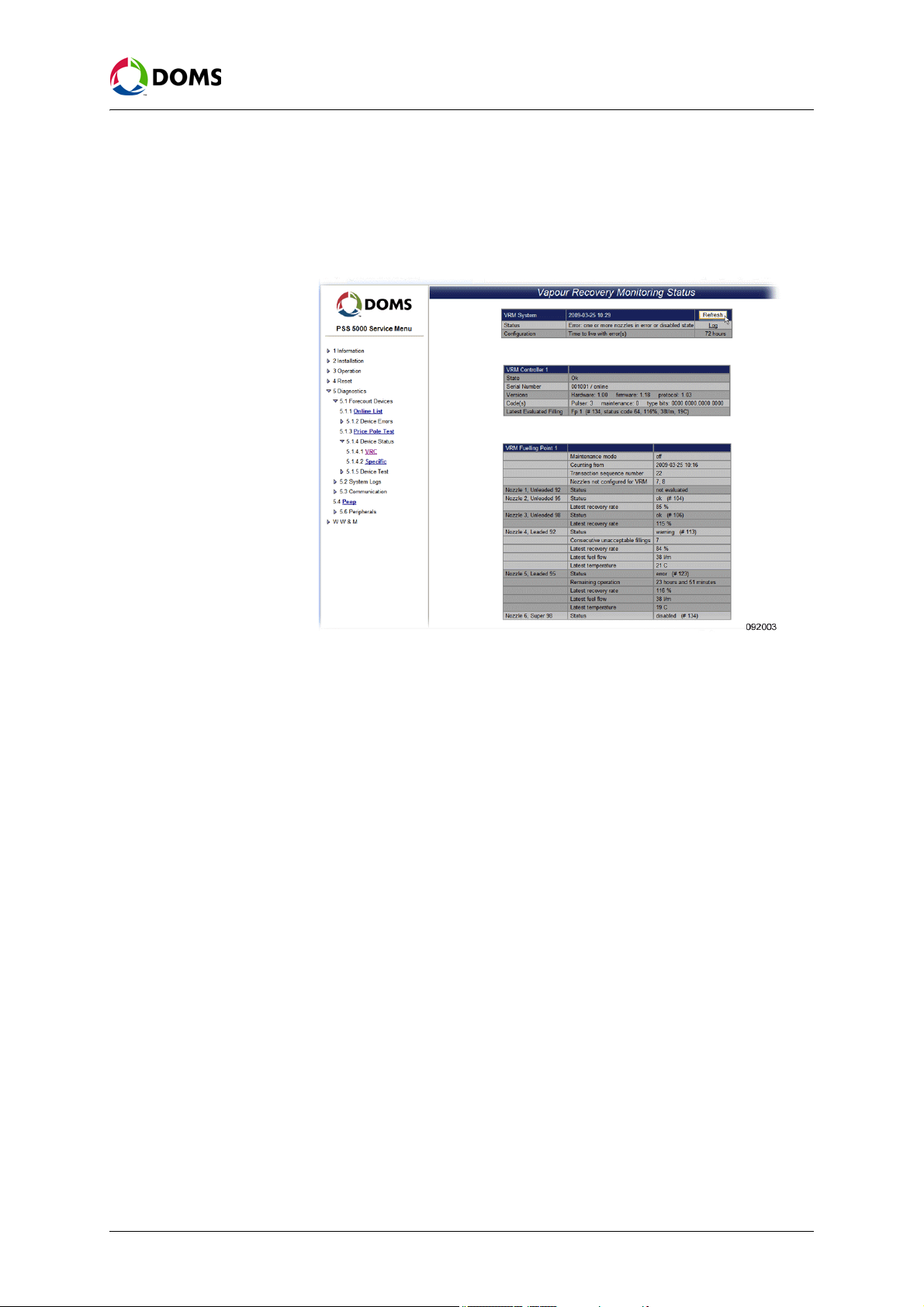

The most important Vapor Recovery Monitoring status information appears.

4. If required, click Refresh to update the data shown on this page.

PSS5000/TEMA/803046/14 89 of 155

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

To view the status of specific devices with web service pages

This procedure describes how to use the Service Menu in the web browser to view the status of specific devices.

1. Select 5 Diagnostics  5.1 Forecourt Devices5.1.4 Device Status 

5.1.4.2 Specific.

The

Device Status page appears.

Note: The Device Type list includes only those device types that are con-

nected to and available from the PSS 5000.

2. In the Device Type list select the specific device type.

90 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

3. Click Continue.

The latest status for the selected device appears. The figure below is an example of a tank gauge.

The data is refreshed automatically every 15 seconds.

4. If it is necessary to refresh the data more frequently, click Manual Refresh

to update immediately.

8.1.5 Device Test (Menu 5.1.5)

Description Device Test menu for VRC

To view the internal VRM test functions with web service pages

The Special Vapor Recovery Monitoring functions for test and service can only be accessed when you are logged on to the PSS 5000 System as a VRC user.

This procedure describes how to use the Service Menu in the web browser to view the internal VRM (Vapor Recovery Monitoring) test functions.

Note: You must be logged on with the user name: vrc.

vrc, Password: password (default)

PSS5000/TEMA/803046/14 91 of 155

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

1. Select 5 Diagnostics 5.1 Forecourt Devices5.1.5 Device Test 5.1.5.1

VRC

Vapour Recovery Monitoring Test page appears.

The

2. Open the Device Id drop-down list and select the ID for the selected device

type.

3. Click DEVICE ID OK.

A page with a list of test functions for the selected device appears.

4. In the Time to live with error(s) for entire VRM system field, type in the cor-

rect value.

Note: The format for Time to live ... values is HH:MM. The permitted range

is 00:01 to 99:59 hours, and the default value is 72 hours.

92 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

5. From the list of test functions, select the function to be activated:

Test function Description

None Returns to normal system mode.

Device Test menu description for Terminal Text Test

Reset VR counters for fuelling point All Vapor Recovery counters for all the

nozzles belonging to the selected fuelling point are reset.

Suspend disabling of fuelling point Disabling of the fuelling point is suspend-

ed temporarily.

Simulate VR error on fuelling point Simulate a vapor recovery error on the

selected fuelling point.

Simulate VR disabling on fuelling point Simulate vapor recovery disabling on the

selected fuelling point.

Simulate VR disabling on nozzle n Simulate vapor recovery disabling of a

specific nozzle on the fuelling point.

6. Click ACTIVATE to start the selected test function.

The PSS 5000 replies with a message that informs you which function is activated.

The PSS 5000 has a built-in text bank. This makes it possible to show different texts in the terminal’s display. The actual text in the text bank changes depending on which application programs are installed. The text in the text bank can be viewed in the Appendix (*.apx) file released with the application program.

The texts in the text bank are indexed. The individual texts can be sent to the terminals display either by a command from the POS or by using a device on the forecourt, which is handled automatically by the PSS 5000.

Instead of sending commands from a POS, or using the devices on the forecourt, the Terminal Text Test provides an easy method to check that the texts are shown correctly on the terminal display.

It is possible to have up to 6 different languages in the text bank. Each language is indexed. So, it is possible to replace an unwanted language with one that is required for the specific application.

PSS5000/TEMA/803046/14 93 of 155

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

To view the available terminal display texts with web service pages

This procedure describes how to use the Service Menu in the web browser to view the terminal display texts available.

1. Select 5 Diagnostics 5.1 Forecourt Devices5.1.5 Device Test 5.1.5.2

Terminal Text Test

The

Terminal Text Test page appears.

The page contains several text navigation buttons. Before you use the se buttons, read the following steps.

2. In the Text exposure time field, type in a number for the required number of

seconds you want the text to be displayed during the test sequence.

3. In the PSS Language code field, type in the code for the selected language.

There are up to 6 language versions available. But the actual languages are defined in the application program. To see which languages are available and the Language code for each language, look in the Appendix (*.apx) file released with the software.

Note: When adding text (language versions) for a terminal in the Appendix

file, you must use the same character set as that used by the terminal, for example ISO 8859-1.

4. Use the navigation buttons to navigate through the various tests.

•

Back: change the Text ID to the one prior to the ID number shown in

the

Text id field.

•

Start: Start a test sequence that shows all the texts present in the text

bank. The sequence starts at Text id 1.

•

Pause: Stops the test sequence until Start is used to continue the test se-

quence from the Text id where it was paused.

•

Forward: Change the Text ID from the ID shown in the Text id field to

the next ID number in the sequence.

•

Stop: Stops the test sequence and returns the Text id field to 1.

•

Go To: Use this button if you want to jump directly to a specific Text id.

94 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

8.2 System Logs (Menu 5.2)

Overview of System Logs information

From the System Logs menu you can see several types of log information. The menu is divided into the following sub-menus:

• ‘8.2.1 Upload Log (Menu 5.2.1)’ on page 95

• ‘8.2.2 Reset Logs (Menu 5.2.2)’ on page 96

• ‘8.2.3 Application Log (Menu 5.2.3)’ on page 99

• ‘8.2.4 Access Log (Menu 5.2.4)’ on page 100

• ‘8.2.5 Board Error Log (Menu 5.2.5)’ on page 101

8.2.1 Upload Log (Menu 5.2.1)

Description of the Upload Log menu

To view the Upload Log with web service pages

The Upload Log menu provides a record of when the LAM and application software were uploaded to the PSS 5000. Each record contains a date stamp, the software version number and an ID of the user who made the upload.

This procedure describes how to use the Service Menu in the web browser to view the upload log for the PSS 5000.

1. Select 5 Diagnostics 5.2 System Logs5.2.1 Upload Log.

The

Upload Log page appears.

2. Use the list of upload entries to see when the uploads occurred, the software

versions and who made the uploads.

To view the Upload Log with local service panel

PSS5000/TEMA/803046/14 95 of 155

This procedure describes how to use the Service Menu in the local service panel to view the upload log.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , to move to the UPLOAD LOG 5.2.1 menu.

3. Press enter the upload log.

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

4. Use the navigation buttons, & to move vertically and & to

move horizontally around the log data. For more details about viewing data, see ‘Viewing data in the Local Service

Panel display’ on page 24.

5. Press OK to exit the log data.

To view the upload log file

The upload log data is stored in: /pss_mem/1/sys/bul.txt. Use FTP to access this file and read the contents.

For information about starting an FTP session, see ‘2.2.5 FTP Server’ on page

19.

8.2.2 Reset Logs (Menu 5.2.2)

Description of Reset Logs menu

To view the Soft Reset Logs with web service pages

There are 3 types of reset. Therefore, there are 3 types of reset logs:

•

Soft

• Master

• Super Master

These logs tell when the specific reset type occurred and the cause of the reset.

Note: The Soft Reset Log is reset by a Master Reset and the Master Reset Log

is reset by a Super Master Reset.

This procedure describes how to use the Service Menu in the web browser to view the Soft Reset logs.

1. Select 5 Diagnostics 5.2 System Logs5.2.2 Reset Logs 5.2.2.1 Soft.

The

Reset Log page appears.

2. Use the list to see when the latest resets occurred and what caused the reset.

96 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

To view the Master Reset Logs with web service pages

This procedure describes how to use the Service Menu in the web browser to view the Master Reset logs.

1. Select 5 Diagnostics 5.2 System Logs5.2.2 Reset Logs 5.2.2.2 Mas-

ter

The

Master Reset Log page appears.

This log has only a single entry, which shows when the last Master Reset occurred.

PSS5000/TEMA/803046/14 97 of 155

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

To view the Super Master Reset Logs with web service pages

This procedure describes how to use the Service Menu in the web browser to view the Super Master reset logs.

1. Select 5 Diagnostics 5.2 System Logs5.2.2 Reset Logs 5.2.2.3 Super

Master

The

Super Master Reset Log page appears.

To view the Soft Reset Log with local service panel

This log has only a single entry, which shows when the last Super Master Reset occurred.

This procedure describes how to use the Service Menu in the local service panel to view the Soft reset log.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , , , to move to the SOFT RESET LOG

5.2.2.1

menu.

3. Press to display the log.

4. Use the navigation buttons, & to move vertically and & to

move horizontally around the log data. For more details about viewing data, see ‘Viewing data in the Local Service

Panel display’ on page 24.

Note: If the latest reset was a Master Reset or a Super Master Reset, then

this log displays only when this reset occurred.

98 of 155 PSS5000/TEMA/803046/14

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

To view the Master Reset Log with local service panel

This procedure describes how to use the Service Menu in the local service panel to view the Master reset log.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , , , , to move to the MASTER RE-

SET LOG 5.2.2.2

3. Press to display the log.

menu.

The log contains a single line – a date and time stamp, which tells when the last Master Reset occurred.

To view the Super Master Reset Log with local service panel

This procedure describes how to use the Service Menu in the local service panel to view the Super Master reset log.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , , , , , to move to the SUPER

MASTER RESET LOG 5.2.2.3

3. Press to display the log.

The log contains a single line – a date and time stamp, which tells when the last Master Reset or Super Master Reset occurred.

8.2.3 Application Log (Menu 5.2.3)

Description of the Application Log menu

To view the Application Log with web service pages

The application log is used for various application program issues, for example, to indicate "Initialization complete" or the status of "CRC error".

This procedure describes how to use the Service Menu in the web browser to view the Application Logs.

1. Select 5 Diagnostics 5.2 System Logs5.2.3 Application Log.

menu.

The

Application Log page appears.

PSS5000/TEMA/803046/14 99 of 155

PSS 5000 – Technical Manual

8 Diagnostics (Menu 5)

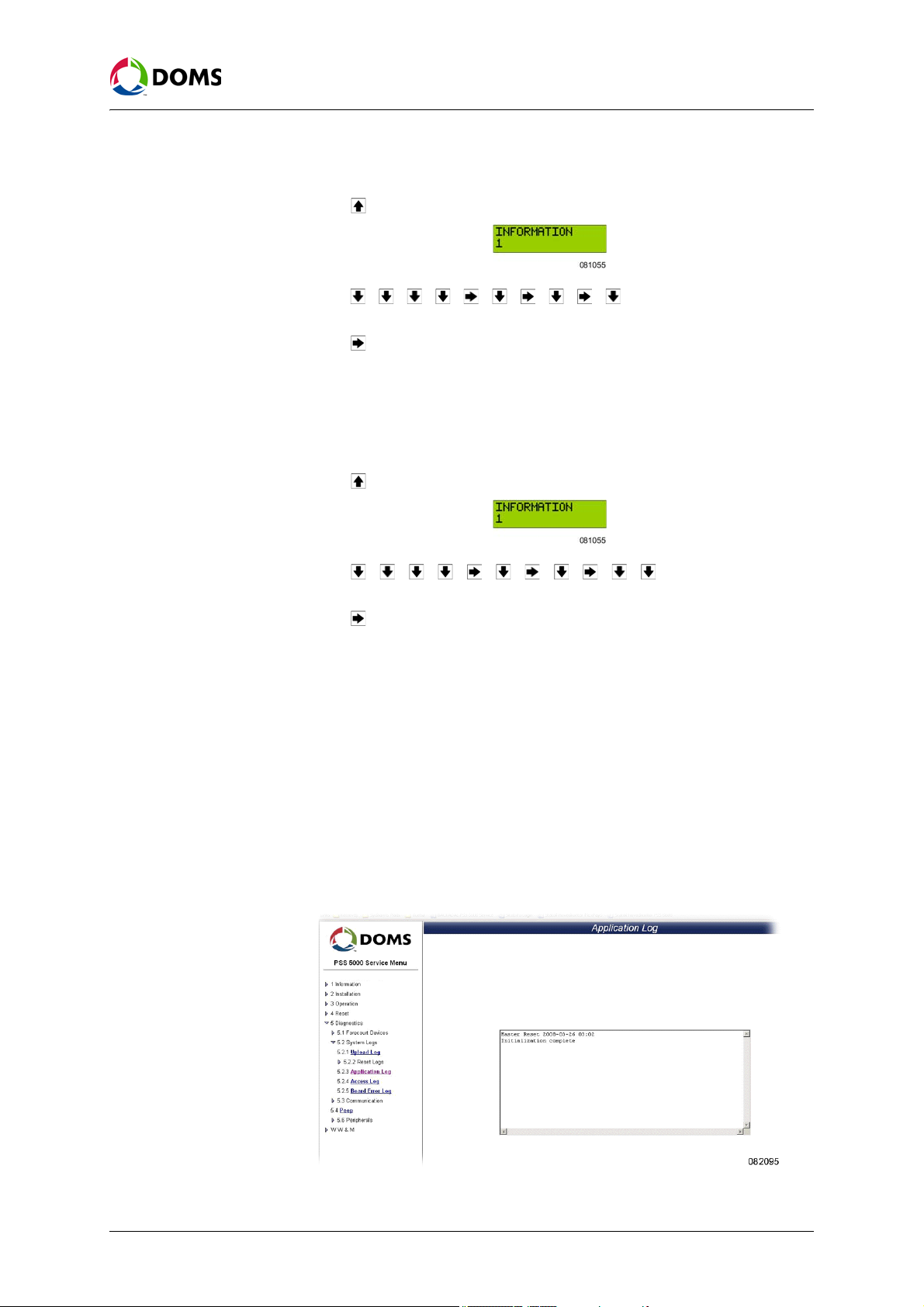

To view the Application Log with local service panel

This procedure describes how to use the Service Menu in the local service panel to view the Application Log.

1. Press to move to the INFORMATION 1 menu.

2. Press , , , , , , , , to move to the APPLICATION

LOG 5.2.3

3. Press to display the log.

menu.

To view the application log file

The application log is stored in: /pss_mem/2/appl/applog.txt. Use FTP to ac- cess this file and then view the contents.

For information about starting an FTP session, see ‘2.2.5 FTP Server’ on page

19.

8.2.4 Access Log (Menu 5.2.4)

Description of Access Log

To view the Access log with web service pages

The Access Log menu shows who has logged on and when the log on occurred.

This procedure describes how to use the Service Menu in the web browser to view the Access log.

1. Select 5 Diagnostics 5.2 System Logs5.2.4 Access Log.

The

Access Log page appears.

2. Use the details in the table to see who logged on and when.

100 of 155 PSS5000/TEMA/803046/14

Doms PSS 5000 Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Part I: Getting to Know the PSS 5000

1 Architectural Overview

1.1 PSS 5000 Without a Network Connection
