Domo Tactical Communications SOLOTX, SOLORX User Manual

SOLO2 and SOLO4 Users’ Manual
, 18th October 2004
Cobham Surveillance
Domo Products
Page 1 Specifications subject to change without notice
Version 2.8
30 October 2009
11 Manor Court, Barnes Wallis Road, Segensworth, Hampshire, PO15 5TH, England
T: +44 (0)1489 566 750 F: +44 (0)1489 880 538
2
1 Table of Contents
1 Table of Contents...................................................................................2
2 Change History.......................................................................................4
3 About this Manual ..................................................................................5
4 Introduction ............................................................................................6
5 Warranty and Support ...........................................................................7
5.1 Warranty Cover ........................................................................................7
6 Safety, Compliance and Approvals ......................................................8
6.1 Safe Operating Procedures......................................................................8
6.2 EMC / Safety and Radio Approvals..........................................................8
6.3 CE marking ..............................................................................................9
6.4 FCC Statement ........................................................................................9
7 Getting Started and Basic Operation .................................................10
7.1 Which Model do I have?.........................................................................10
7.2 Getting Started with the Transmitter ......................................................15
7.3 Getting Started with the SOLO Receiver ...............................................22
7.4 Powering on the System ........................................................................31
7.5 Domo Batteries and Battery Charging ...................................................33
7.6 Using the Clip On 1W Amplifier..............................................................35
7.7 Using the booster 5W Amp ....................................................................37
8 Advanced Operation ............................................................................41
8.1 SOLO System PC Controller Application Software................................41
8.2 Transmitter Control Application.............................................................. 43
8.3 Receiver Control Application..................................................................51
9 NETSTREAM IP Output Option ...........................................................59
9.1 General Info ...........................................................................................59
9.2 Streamer ................................................................................................59
9.3 Web Server ............................................................................................59
10 Software Decoder.................................................................................62
10.1 General Information ...............................................................................62
10.2 Decoding Multicast Streams ..................................................................63
10.3 Encrypted Streams.................................................................................65
10.4 Main Decoder Window ...........................................................................67
10.5 Decoding Locally Stored Files................................................................69
10.6 Miscellaneous application options..........................................................69
11 Fault Finding.........................................................................................71
11.1 Indicated Faults......................................................................................71
11.2 Fault Symptoms .....................................................................................72
12 LED Indicators......................................................................................73
13 Receiver On Screen Display ...............................................................74
13.1 Input Status Page...................................................................................74
13.2 RF Advanced Page ................................................................................75
13.3 Engineering Data Page..........................................................................76
13.4 GPS Overlay ..........................................................................................76
13.5 Frequency Scan Page............................................................................77
13.6 On Screen Display Control.....................................................................80
14 Connector Pin Outs .............................................................................84
3
14.1 Power - 4-pin 0B LEMO Socket (TX and RX) ........................................84
14.2 Control Data and Expansion - 16-pin Hirose 3500 series connector &
0.1” OEM header (TX Only) ...............................................................................84
14.3 Control Data and Expansion - 16-pin Hirose 3500 series connector &
0.1” OEM header (RX Only)...............................................................................84
14.4 Combined A/V - 5-pin 0B LEMO socket (TX Only) ................................85
14.5 Audio - 5-pin 0B LEMO socket (Solo4RX) .............................................85
14.6 Audio - 3-pin 1B LEMO Socket (old style RX Only) ...............................85
14.7 RS232 Control - 3-pin 0B LEMO Socket (old style RX Only).................85
15 Control Protocols.................................................................................86
15.1 RS232 Control – General Principles ......................................................86
15.2 Packet Structure Sending (from PC)......................................................86
15.3 Packet Structure Reply (from controlled device)....................................87
15.4 Transmitter Command List.....................................................................88
15.5 Receiver Command List.........................................................................94
16 Default Configurations ........................................................................98
4
2 Change History
Version
Main Changes from Previous Version
Edited By
v1.0 Initial Release MB
V1.1 Removed error stating that transmitter does not
MB
support RS232 data
V1.2 Warning added for static discharge on antennas MB
V1.3 Additional information added:
Battery Charging Clip on Amp OSD analysis Error in MPEG4 transmitter commands corrected.
V1.4 Audio levels corrected
SOL4RX Added
MB
DE
MM MB
V1.5 Updated chaining mode RS232 commands MB
V1.6 Added new Solo4RX box Audio connector
NMcS
details
V1.7 Added new TX and RX controller sections for V2
NMcS controllers, added new TX system diagram, updated Software Decoder
V1.8 Updated receiver remote control commands list MZ
V1.9 Added detail on Software decoder licensing NMcS
V2.0 Added the User name and Password required to
NMcS Browse to the IP Streamer
V2.1 Added MPEG audio and I Q trim commands NMcS
V2.2 Added missing 1.25MHz entry in receiver
MZ remote control commands list
V2.3 Added video frame lock mode in receiver
MZ commands list. Removed 625-line format mode (obsolete command)
V2.4 V2.3 converted to new Cobham template AT
V2.5 Added new down-converter details NMcS
V2.6 Added new OSD manual section and related
RL receiver remote commands Fixed section numbering and TOC
V2.7 Updated transmitter remote commands RL
V2.8 Updated transmitter remote commands TPM
V2.9 FCC Statement added RDPC
5
3 About this Manual
This manual describes the operation of domo SOLO2 and SOLO4 digital wireless systems. The manual is divided into three main sections.
Getting started and basic operation
This section describes to users how to deploy and use a domo SOLO system.
Advanced operation
This section describes the operation of the system in more detail, concentrating particularly on how to store and recall configurations, with use of the PC Controller Application.
Technical reference
This section provides technical specification and control protocol data and will be of interest to those integrating the SOLO system into larger systems.
6
4 Introduction
The domo SOLO4 and SOLO2 product range enables the user to build wireless digital microwave video systems. The domo SOLO4 and SOLO2 products have been designed to provide rugged point-to-point links for high quality full frame rate video, and audio, even in non line of sight and urban environments.
Existing analogue systems suffer from impairments such as video noise, loss of colour information and poor image quality when line of sight cannot be maintained, and solutions based on wireless internet standards and PC platforms deliver poor quality video.
The domo SOLO4 and SOLO2 system is a digital system that uses the COFDM modulation technique, which effectively eliminates the problems caused by multipath and reflections.
The SOLO product range allows law enforcement, surveillance and emergency service communities to now receive the highest quality video images, in real time, direct from personnel, buildings and vehicles.
The domo SOLO2 system employs the DVB-T 2K carrier COFDM technology.
The domo SOLO4 system employs a revolutionary narrow band
2.5MHz COFDM technology which demonstrates better propagation for longer range links, and extra bandwidth efficiency. The domo SOLO4 system can also be upgraded to include a 1.25MHz COFDM modulation and MPEG4 compression for excellent range performance.
The domo SOLO4 and SOLO2 systems employ common transmitter and receiver hardware.
The SOLO4 and SOLO2 transmitter is a lightweight, low-power
transmitter suitable for body-worn applications where size, weight and power consumption are at a premium.
For longer range applications such as vehicle transmissions, the
SOLO4 or SOLO2 transmitter can be upgraded with the use of a booster amplifier.
The SOLO4 and SOLO2 receivers are diversity input receivers with
extensive built in spectrum analysis tools. The receivers can be fitted with an optional NETSTREAM card, which then gives the option of streaming the received video onwards over IP networks.
IMPORTANT NOTE
The SOLO4 and SOLO2 product range has been specifically designed for government security and law enforcement users, the equipment will tune across frequencies that are only available to licensed government users. Non-government users should employ the equipment restricted to the license exempt bands only typically 1.389 to 1.399GHz, 2.400 to 2.483GHz and 5.725 to 5.875GHz
7
5 Warranty and Support
5.1 Warranty Cover
domo offers a 12 month standard product warranty. During this period, should the customer encounter a fault with the equipment we recommend the following course of action:
Check the support section of the website for information on that product
and any software/firmware upgrades. If fault persists;
Call our support line and report the fault. If fault persists and you are
informed to return the product please obtain an RMA number from the domo support department, and ship the equipment with the RMA number displayed and a description of the fault. Please email the support section the airway bill/consignment number for tracking purposes.
If you have extended warranty provisions then domo will send an
immediate advance replacement to you. Under most circumstances this must be returned once the fault item is repaired.
Depending on the nature of the fault domo endeavor to repair the equipment and return it to the customer within 14 days of the item arriving at our workshops.
Obviously it is impossible to cater for all types of faults and to manage 100% replacement part availability, and delays are sometimes inevitable. This is why domo recommend that its customers take out an extended warranty (which includes advanced replacement of faulty items), and/or hold a basic level of spare parts, which can be held by domo on the customer’s behalf.
Please contact domo for details of packages that can be tailored to meet your individual needs, whether they are service availability, technical training, local geographic support or dedicated spares holdings.
8
6 Safety, Compliance and Approvals
6.1 Safe Operating Procedures
Ensure that the power supply arrangements are adequate to meet the
stated requirements of each SOLO4 or SOLO2 product.
Operate within the environmental limits specified for the product.
Do not subject the indoor equipment to splashing or dripping liquids.
Only authorized, trained personnel should open the product. There are
no functions that required the User to gain access to the interior of the product.
6.2 EMC / Safety and Radio Approvals
The equipment has been designed to meet and has been tested against the following harmonized EMC and safety standards:
EN 301 489-1 & EN 301 489-5
EN 61000-3-2:2000
EN 61000-3-3:1995
EN 55022:1998, Class B
EN 61000-4-2:1995
EN 61000-4-3:1996
EN 61000-4-4:1995
EN 61000-4-5:1995
EN 61000-4-6:1996
EN 61000-4-11:1994
EN 60950:2000
The license exempt equipment (SOL2TX-138139, SOL2TX-240248,
SOL4TX-138139 and SOL4TX-240248) meets the following radio approvals.
EN 302 064-1
9
6.3 CE marking
The CE mark is affixed to all SOLO4 and SOLO2 products, and the CE Declaration of Conformity, as well as the technical file are available on request.
6.4 FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
When using this device please ensure a distance of 10mm is maintained between your device and your body while the device is transmitting.
0
7 Getting Started and Basic Operation
7.1 Which Model do I have?
Each unit in the domo SOLO4 and SOLO2 product range is marked with two panels.
Product Code Panel. Give product code and manufacturers
information.
CE and Serial Number Panel. Gives CE mark and product
serial number.
domo SOL4TX-228255
Made in the UK
S-Band
The domo product code can be referenced in the table below.
Product Code Product Accompanying items
SOL2TX-115140 (1.15 to 1.4GHz)
SOL2TX-228255 (2.28 to
2.55GHz)
SOL2TX-034047 (340 TO 470MHz)
SOL2TX-057067 (575 to 675MHz)
SOL2TX-310340 (3.1 to 3.4GHz)
SOL2TX-488515 (4.88 to 5.1GHz)
SOL2TX-560590 (5.6 to 5.9GHz)
100mW DVB-T Digital Video transmitter
Cables:
Video and audio 2m
Control 3m
DC Power 2m
SOL2TXLE-138139 (1.389 to
1.399GHz)
SOL2TXLE-240248 (2.4 to
2.483GHz)
SOL4TX-115140 (1.15 to 1.4GHz)
SOL4TX-228255 (2.28 to
2.55GHz)
SOL4TX-034047 (340 TO 470MHz)
SOL4TX-057067 (575 to 675MHz)
SOL4TX-310340 (3.1 to 3.4GHz)
SOL4TX-488515 (4.88 to 5.1GHz)
SOL4TX-560590 (5.6 to 5.9GHz)
100mW DVB-T and Narrow Band Digital Video transmitter
1
Cables:
Video and audio 2m
Control 3m
DC Power 2m
SOL4TXLE-138139 (1.389 to
1.399GHz)
SOL4TXLE-240248 (2.4 to
2.483GHz)
SOL2RX SOLO2
Receiver
SOL4RX SOLO4
Receiver
Additional Units:
Cables:
2 lengths of 3m low loss RF cable
AC/DC power supply
Video 3m
Audio 3m
Control 3m
Additional Units:
Cables:
2 lengths of 3m low loss RF cable
AC/DC power supply
Video 3m
Audio 3m
Control 3m
SOLAMP1W 1W Clip on
Amp
Note: SOLO2 / 4 Receivers are available in two box styles, referred to as Box Style 1 and Box Style 2, through the remainder of the document.
Note: Receivers are made frequency specific by the addition of the appropriate down­converters.
DC-100140 L-band to UHF
down-converter
DC-225265 S-band to UHF
down-converter
DCB-450500 C-band to UHF
down-converter
DCB-550600 5.7GHz to UHF
down-converter
AMP 1W Clip On Video TX SOL2 or SOL4 1.25 to 2.5Ghz
For use with SOLRX receiver
For use with SOLRX receiver
For use with SOLRX receiver
For use with SOLRX receiver
Note: DC-XXXXXX units are old style square down-converters. DCB-XXXXXX are new style Barrel down-converters. See section
11
2
Controls
A
Transmitter Control Panels:
SOLO2 and SOLO4 transmitters are equipped with a standard LED (Light Emitting Diode) and push button panel. The panel is as depicted below, and the buttons and LEDs have meanings as explained in the table.
RF
1 2
LARM
3 4
5 6 7 8
MODE
CONFIG RF
LED / Button Colour Meaning / Use
Alarm LED Red When lit indicates alarm or fault condition on equipment. Usually
means no lock to incoming video.
Front Panel Lock
LED
RF LED Green Transmitter: When lit indicates RF output is active.
LED 1 to 8 Green Indicates which of the 8 stored configurations is currently selected.
Range Mode
LEDs
RF Button - Transmitter:
Yellow When lit indicates the stream is encrypted (v 3 software and above)
Green SOLO2 Transmitter: These LEDs have no function
SOLO4 Transmitter: Indicates range mode
Ultra Long Range: 1.25MHz QPSK FEC1/3 (optional)
Long Range: 2.5MHz QPSK FEC1/3
Medium Range: 2.5MHz QPSK FEC2/3
Short Range: 2.5MHz 16QAM FEC2/3
Pressing the RF button toggles the units RF output between OFF
and ON.
Holding down button toggles unit into standby mode.
Config Button - The config button when pressed selects the next configuration from
memory.
Holding down button toggles front panel lock.
Mode Button - SOLO2 Transmitter – No function
SOLO4 Transmitter – Toggles between the range modes previously
described.
1
3
Receiver Control Panels:
A
SOLO4 and SOLO2 Receivers can be fitted with one of two LED (Light Emitting Diode) and push button panel styles depending on model type

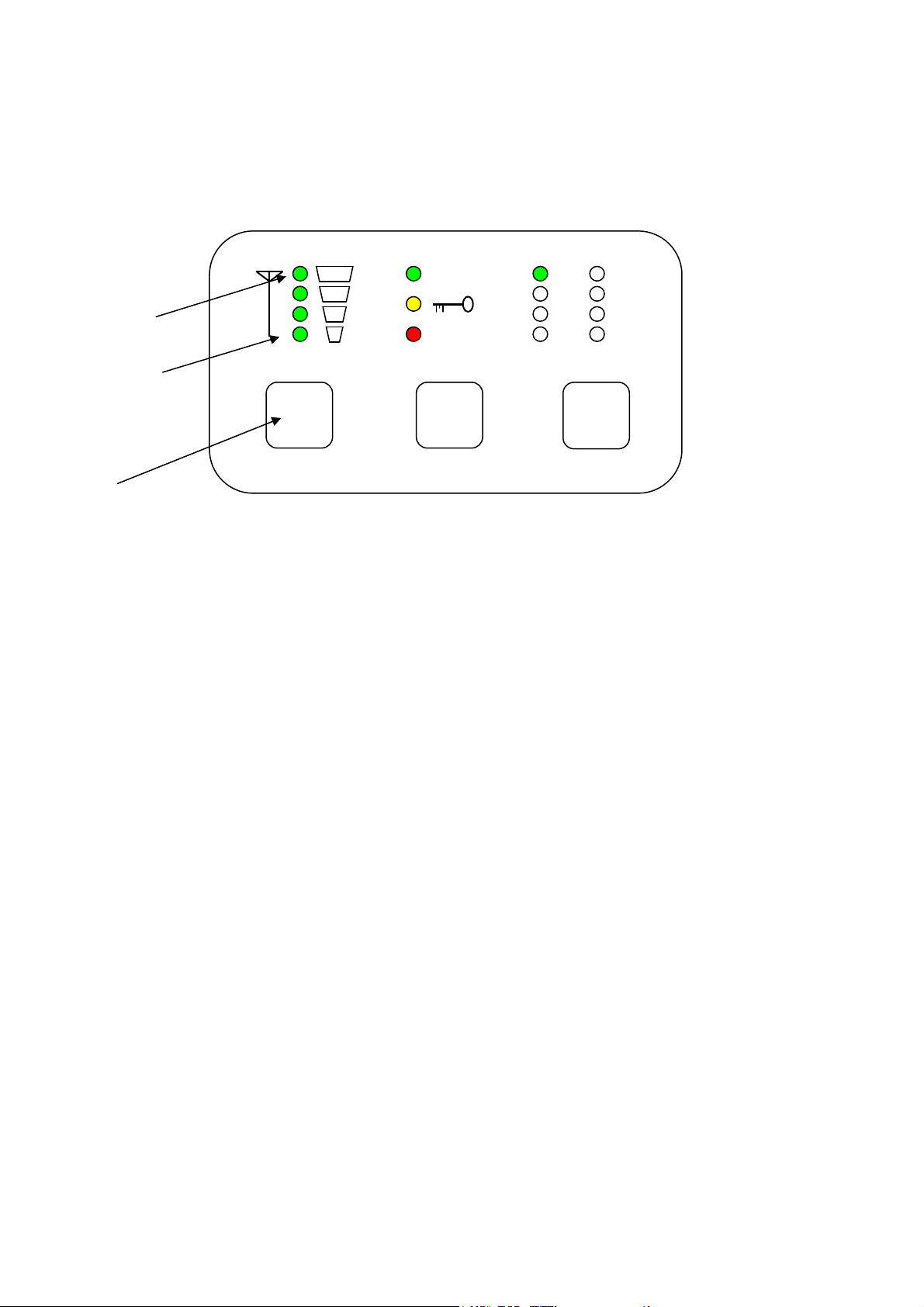

Receiver Panel Style 1, Fitted on Box Style 1.
RF
LARM
1 2 3 4
5 6 7 8
MODE
CONFIG RF
Receiver LED and Button Meaning on panel Style 1
LED / Button Colour Meaning / Use
Alarm LED Red When lit indicates alarm or fault condition on equipment. Usually
means no lock to incoming RF, or encrypted video that can not be
de-encrypted.
Front Panel Lock
LED
RF LED Green Indicates RF lock when ON.
Yellow When lit indicates the stream is encrypted.
LED 1 to 8 Green Indicates which of the eight stored configurations is currently
selected.
Range Mode
LEDs
RF Button - Pressing the RF button toggles the OSD (On Screen Display
Config Button - The config button when pressed selects the next configuration from
Mode Button - No Function
Green Indicates approximate signal strength level
1 LED On = low signal level
2 LED On = medium signal level
3 LED On = good signal level
4 LED On = very good signal level
Function) of the receiver, and cycles between pages (see section
13).
memory.
1
4
Receiver Panel Style 2, Fitted on Box Style 2.
A
1 2 3 4 5 6 7 8
LARM
RF
RF
CONFIG
Receiver LED and Button Meaning on panel Style 2
LED / Button Colour Meaning / Use
Alarm LED Red When lit indicates alarm or fault condition on equipment.
RF LED Green Receiver:
When lit indicates receiver has signal lock.
LED 1 to 8 Green When lit permanently, indicates which of the eight stored
configurations is currently selected.
RF Button - Receiver:

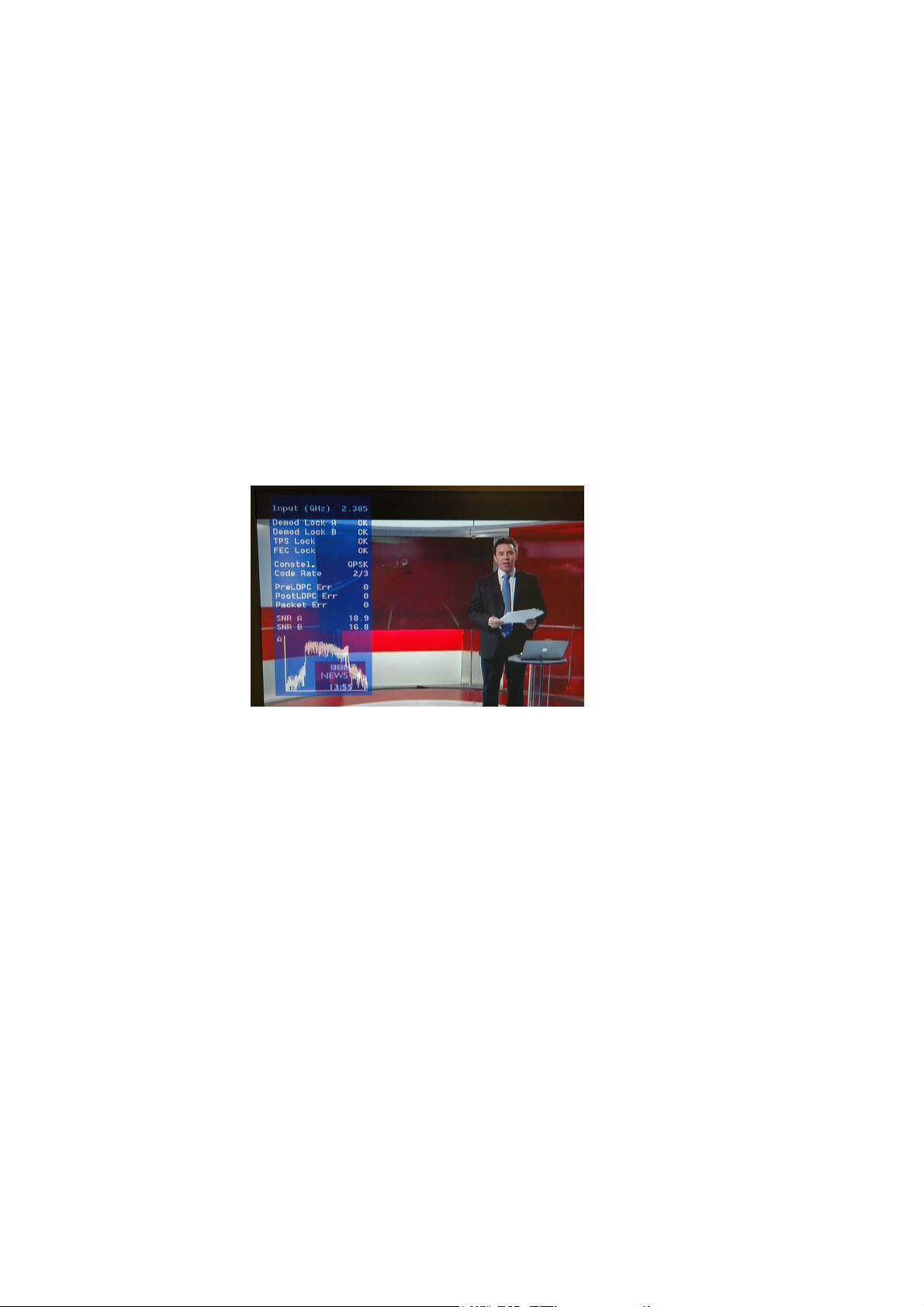

Pressing the RF button enables/disables the on screen display
diagnostic function.
Config Button - The config button when pressed selects the next configuration from
memory.
1
5
7.2 Getting Started with the Transmitter

Cables and Connections

This section describes how to connect the following domo model numbers.
SOL2TX-115140 (1.15 to 1.4GHz)
SOL2TX-228255 (2.28 to 2.55GHz)
SOL2TX-034047 (340 TO 470MHz)
SOL2TX-057067 (575 to 675MHz)
SOL2TX-488515 (4.88 to 5.1GHz)
SOL2TX-560590 (5.6 to 5.9GHz)
SOL2TX-310340 (3.1 to 3.4GHz)
SOL2TXLE-138139 (1.389 to 1.399GHz)
SOL2TXLE-240248 (2.4 to 2.483GHz)
SOL4TX-115140 (1.15 to 1.4GHz)
SOL4TX-228255 (2.28 to 2.55GHz)
SOL4TX-034047 (340 TO 470MHz)
SOL4TX-057067 (575 to 675MHz)
SOL4TX-488515 (4.88 to 5.1GHz)
SOL4TX-560590 (5.6 to 5.9GHz)
SOL4TX-310340 (3.1 to 3.4GHz)
SOL4TXLE-138139 (1.389 to 1.399GHz)
SOL4TXLE-240248 (2.4 to 2.483GHz)

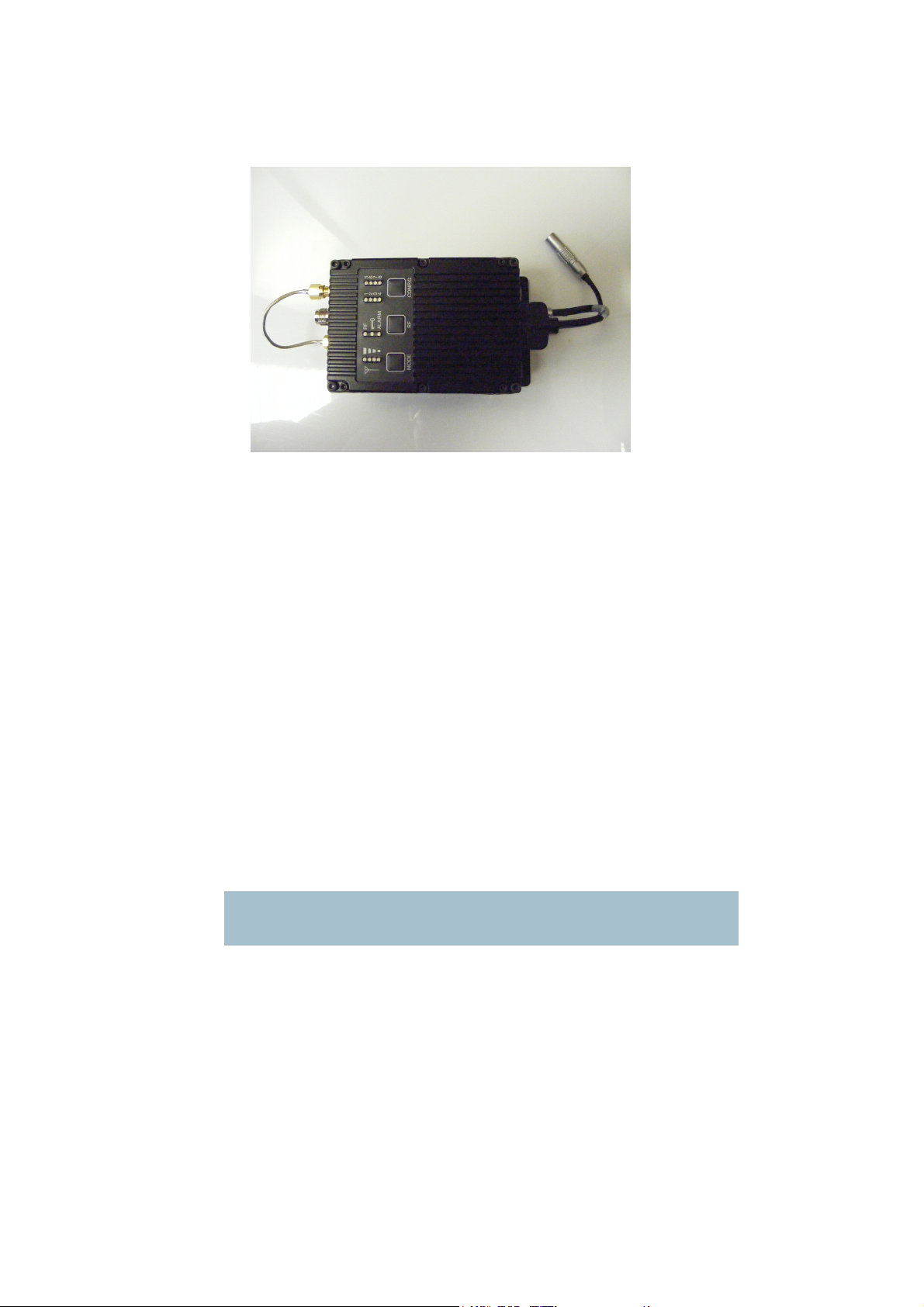

The picture below shows the domo SOLO2 and SOLO4 transmitter.
The domo transmitter is supplied with the following cables.
1
6
Combined Video and Audio 2m
Audio Cable
ata and Control Cable
A
Control 3m
DC Power 2m
The domo transmitter should be connected as shown below.
ntenna
D
DC Power Cable
As a typical example – including the control link from the PC,.
To Camera
To Computer
To Computer
1
7

Video and Audio

Push the LEMO connector into the socket labelled ‘AV’, taking care to align the connectors. Connect the video and audio sources.
Connector Signal
Video BNC 75 ohm composite video source, PAL or NTSC
software selectable
Audio Plugs Line / Microphone level audio, switchable.
Line level -2dBu clip level low impedance
source (< 600 ohm)
Microphone level 12, 24, 36 and 48dB preamp
stages software switchable
Microphone power is provided on the audio connectors at approximately 3V (suitable for Electret microphones)
Typically the video source will be a small colour or black and white CCD camera.

DC Power

Typically the audio source will be an Electret microphone.
The transmitter unit can be powered from a nominal 12V DC supply or an AC to DC adapted supply.
Push the LEMO connector on the DC power cable into the socket labelled 12V, taking care to align the connectors. Connect the banana connectors on the other end of the cable to a suitable DC source.
The 12V DC input has the following characteristics.
Input Voltage Range – 5.9V to 16V, reverse voltage protected.
Current draw - 0.48 to 0.4A at 12V (mode dependant)
domo can supply optional AC to DC converter blocks to power the transmitter unit, the domo part number is PSU12
1
8

Antennas

domo transmitters are supplied as standard without antennas. An antenna must be connected for normal operation. The transmitter unit is supplied with a panel mounted SMA connector which carries the RF output. The antenna should be connected by screwing it onto the SMA, but care should be taken to not over tighten the connector.
The transmitter has the following RF output characteristics.
RF Spec Model
Number ending ­034047
Output
Frequency
Output
Bandwidth
Output
Power
Output
Impedance
340 to
470MHz
2.5MHz 2.5MHz 2.5MHz 2.5MHz 2.5MHz 2.5MHz
100mW
(nominal)
50 ohm 50 ohm 50 ohm 50 ohm 50 ohm 50 ohm
RF Spec Model
Number ending ­310340
Output
Frequency
Output
Bandwidth
3.1 to
3.4GHz
2.5MHz 2.5MHz 2.5MHz
Model Number ending ­057067
575 to
675MHz
100mW
(nominal)
Model Number ending ­488515
4.88 to
5.15GHz
Model Number ending ­115140
1.15 to
1.40GHz
100mW
(nominal)
Model Number ending ­560590
5.6 to 5.9GHz
Model Number ending ­228255
2.28 to
2.55GHz
100mW
(nominal)
Model Number ending ­138139
1.389 to 1.399
GHz
100mW
(nominal)
Model Number ending ­240248
2.400 to 2.483
GHz
10mW
(nominal)
Output
Power
Output
Impedance
100mW
(nominal)
50 ohm 50 ohm 50 ohm
100mW
(nominal)
100mW
(nominal)
Note. It is recommended that the antennas be connected directly to the transmitter unit. The use of RF cables at this point will degrade the performance of the system.
The optimum choice of antenna will vary according to application. The following table gives some suggestions for suitable transmit antennas with the associated domo part number.
1
9
Application Antenna model number
Mobile body worn application 1.00 to 1.40GHz - ANTBCL
2.28 to 2.50GHz - ANTBCS
Mobile vehicle application 1.00 to 1.40GHz – ANT4L
2.28 to 2.50GHz - ANT4S
4.80 to 5.15GHz – ANT6C
Long range point to point link 1.00 to 1.40GHz – ANT12L
2.28 to 2.50GHz – ANT12S
Note. When using antenna types ANT4L, ANT4S, ANT6C, ANT12L and ANT12S with domo transmitters SMA to TNC adaptor connectors will be needed.
Other antennas for more specialist applications, such as aircraft use or covert surveillance use are available on request from domo.

Control Cable

The control cable is used for connecting the transmitter unit to a PC when using the domo PC control application. The PC control application is described in more detail the Advanced Operation section of this handbook.

Installation Notes

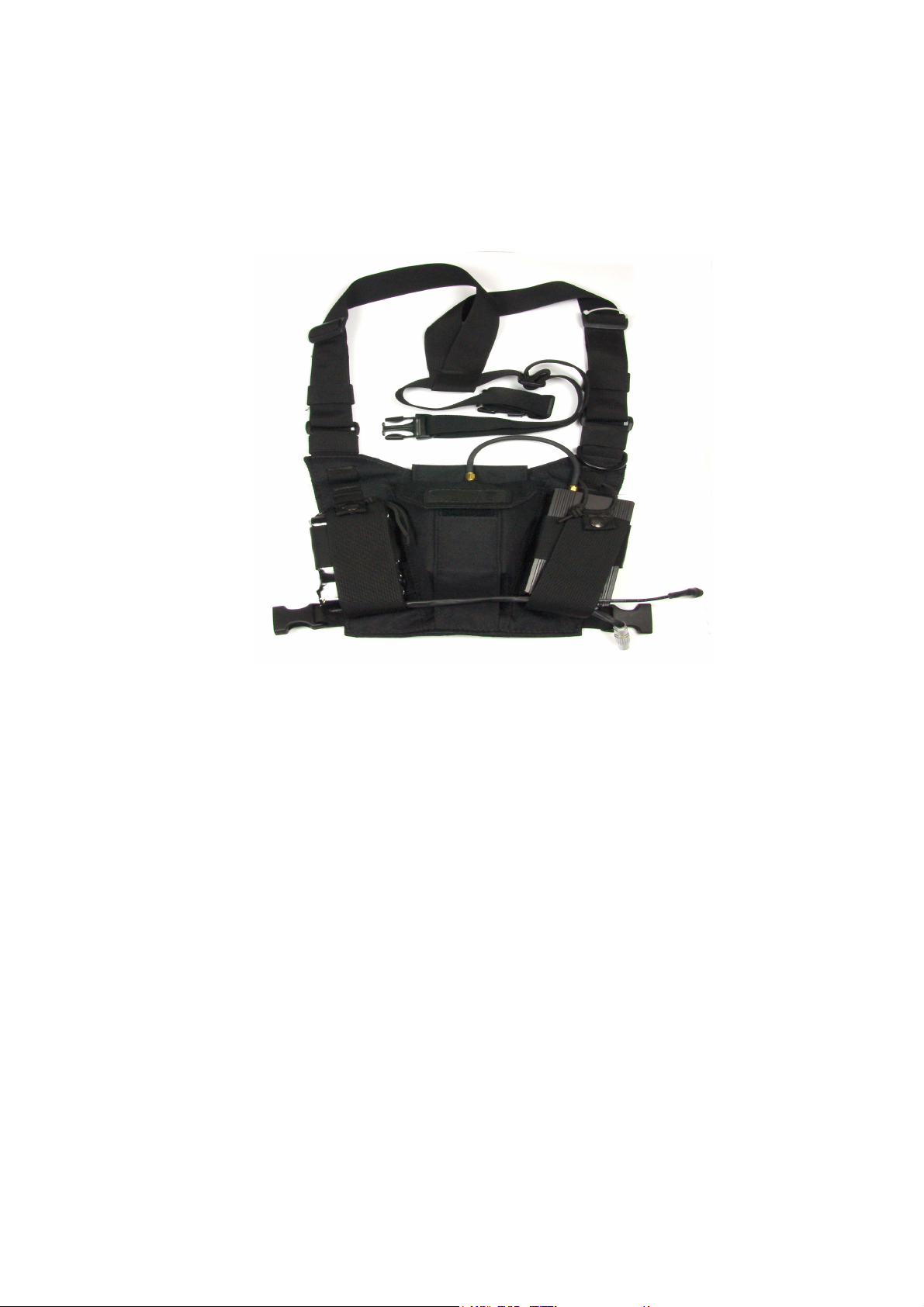

The domo transmitter has been designed specifically for body worn applications; however it is a general-purpose wireless video transmitter and can be used in many applications including the following.
Body worn portable applications
Vehicle based applications
This section gives guidelines for how to install the transmitter in the above applications.
1
0
Body Worn Applications
Body worn applications will either be covert or overt and this will dictate the style of antennas and mounting of cameras. For overt applications domo can supply a harness as shown below (domo part number ACCBCH)
With all body worn systems the antenna should be selected to transmit power away from body and domo recommends the use of the domo body worn antenna (part numbers ANTBCL and ANTBCS).
Experimentation has shown that unlike traditional analogue systems, front and rear antennas are not normally required. The nature of COFDM and its immunity to reflections will ensure that the signal normally bounces back to the receive site even when the operators body is between the transmit and receive antenna.
In covert applications, ultra slim patch antennas can be used. domo does not supply patch antennas directly, but can recommend manufacturers on request.
The SOLO4 and SOLO2 transmitter has been successfully tested with a wide variety of standard and pinhole cameras. domo does not supply cameras, but can recommend suitable cameras and suppliers on request.
The domo transmitter will become warm to the touch after prolonged operation, and so insulation between the operators’ body and the transmitter unit should be considered.
The SOLO2/SOLO4 transmitter is splash resistant, but is not waterproof, so it should not be exposed to moisture for prolonged periods.
2
Vehicle Applications
Typically, in vehicle applications, a greater range is required than with body worn applications, therefore the use of additional power amplifiers must be considered.
domo offers a range of power amplifiers. Interconnection between the transmitter and any power amplifier should be kept as short as possible, but where this is not possible, special attention should be taken to use only low loss cables. An appropriate cable might be RG213C/U. It is essential to minimise the distance between the amplifier and the antenna.
Mounting of the transmitter should use the mounting holes provided.
The transmitter is equipped with a self-regulating 5.9 to 16V input that can be connected directly to the vehicle battery. Power conversion will be required for 24V vehicles.
The video input can be connected across long video cable lengths so remotely mounted cameras should pose no problem.
The transmitter is splash resistant, but is not waterproof, so it should not be exposed to moisture for prolonged periods. The transmitter is self­cooling; however it should be mounted in a ventilated environment. Forced air cooling is not required.
21
2
7.3 Getting Started with the SOLO Receiver

Connections

This section describes how to connect the following model numbers.
SOL2RX
SOL4RX
The SOLO receiver is normally purchased with Cobham Surveillance down-converters.
There are two versions of Cobham Surveillance domo down­converters; an older square box version and a later Barrel Down-converter.
The square box variants have product codes DC-XXXXXX.
DC-100140
DC-225265
DC-310340
It is the addition of the down-converters that makes the system frequency specific.
The SOLO Receiver is supplied with the following components.
Two RF cables, 3m
Video cable 3m
Audio cable 3m
Control cable 3m
AC / DC Power adapter
2
3

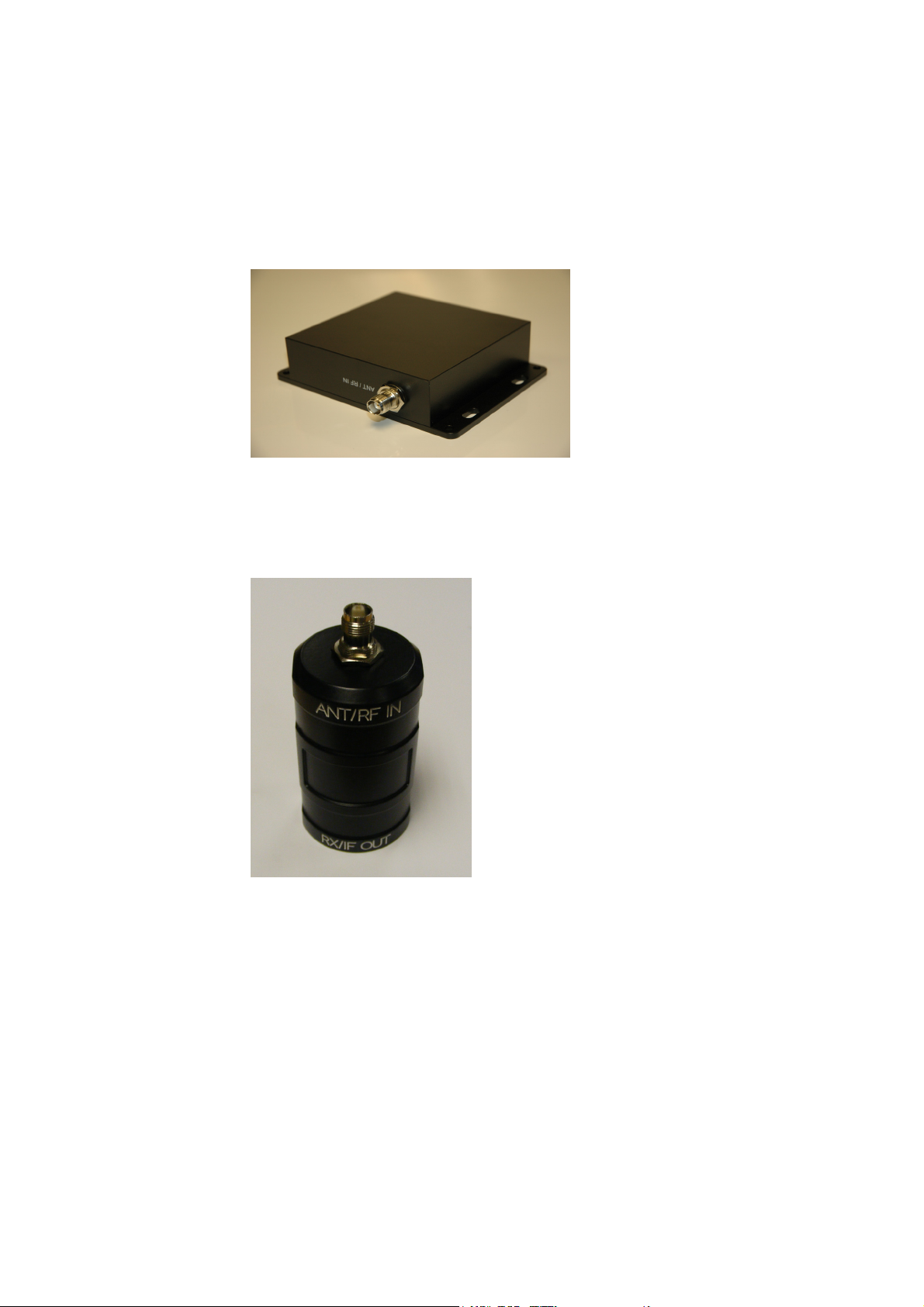

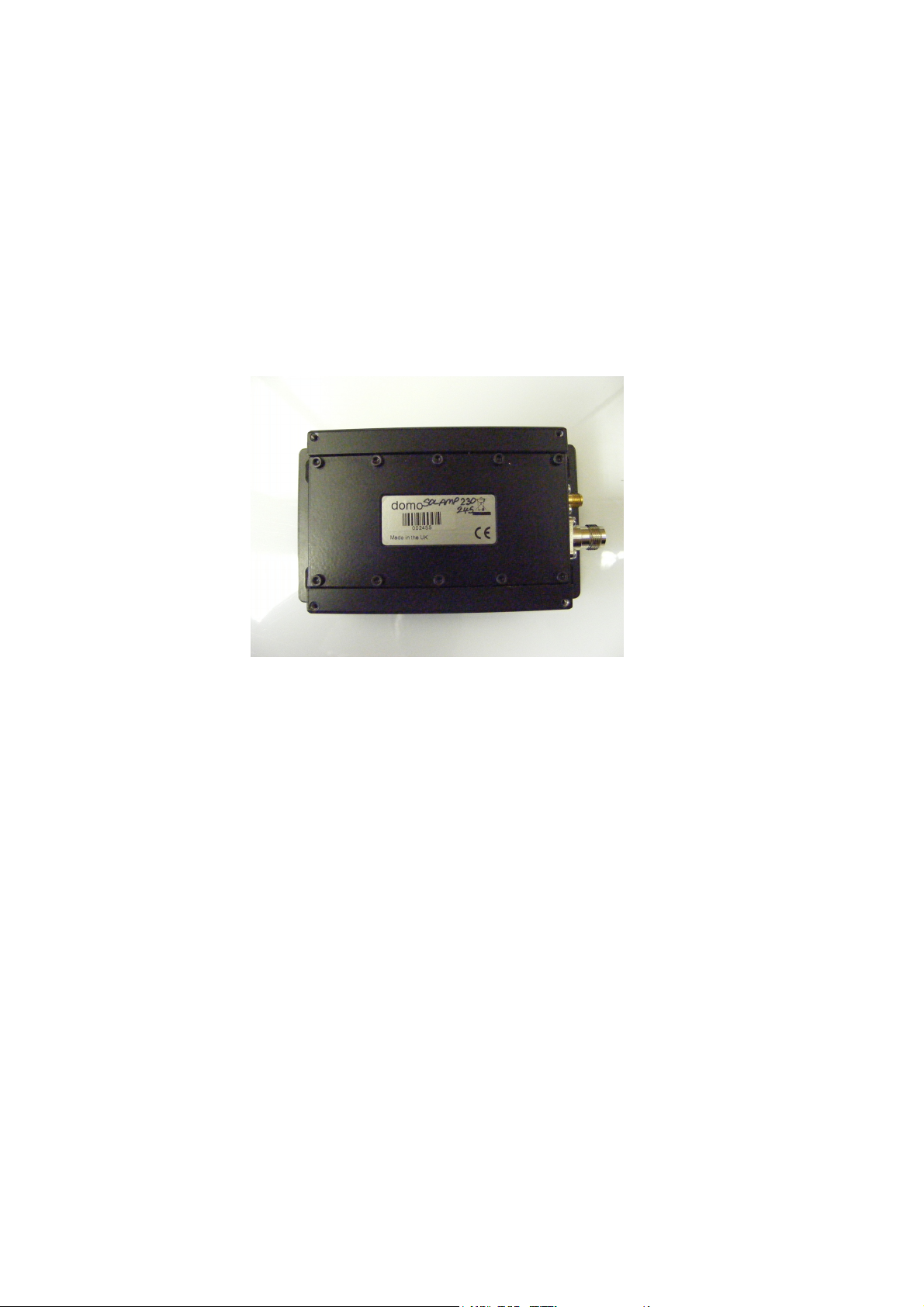

The picture below shows the two types of domo weatherproof down converter.
L-Band and S-Band
Barrel down-converter
The Solo4 Receiver must be configured with the correct down-converter Local Oscillator (LO) Frequency and down-converter LO side. These numbers are specific to the type and frequency band of the down­converter.
The SOLO4 downconverter converts the received signal from microwave frequencies to UHF frequency and applies gain allowing the signal to run down cables without loss. This down-conversion allows the domo SOLO Receiver to be mounted remotely from the receive antennas. The down-converter is available as either a standard nominal 9dB gain model (DCB) or high gain variant (DCBX) nominal 19dB gain.
2
4

Square down-converter

RF Parameters L-Band
Frequency In
Local Oscillator
High Side or Low Side Gain (DC variant)
Gain (DCX variant)
DC-100140
1000MHz to 1500MHz
1700MHz 1880MHz
High Low 9dB 9dB
19dB 19dB
S-Band
DC-225265
2250MHz to 2650MHz

New Style Barrel down-converter

RF Parameters L-Band
Frequency In
Local Oscillator
High Side or Low Side Gain (DCB variant)
Gain (DCBX variant)
DCB-100150
1000MHz to 1500MHz
1800MHz 2300MHz 1700MHz 2200MHz 2700MHz 4200MHz 5200MHz
High High Low Low Low Low Low
9dB 9dB 9dB 9dB 9dB 9dB 9dB
19dB 19dB 19dB 19dB 19dB 19dB 19dB
NOTE : The LO Frequency setting in the SOLO4 Receiver controller has changed compared to the older square L-Band (1.1 to 1.4GHz) and S-Band (2.28 to 2.55GHz) products. The LO frequency MUST be set absolutely correctly for the system to work properly. This can be set using the Solo4 Receiver controller software – see section 3.3 of this manual for details on use of the controller.
L-Band
DCB-150200
1500MHz to 2000MHz
S-Band
DCB-200250
2000MHz to 2500MHz
S-Band
DCB-250300
2500MHz to 3000MHz
3GHz
DCB-300350
3000MHz to 3500MHz
C-Band
DCB-450500
4500MHz to 5000MHz
C-Band
DCB-550600
5500MHz to 6000MHz
2
5
There are two styles of domo SOLO receiver box shown below.
domo SOLO receiver with Box style 1.
domo SOLO receiver with Box style 2.
2
6
The domo SOLO2/4 receiver system with panel style 1 should be connected as shown below.
Antenna 1
Antenna 2
100 cm
3m TNC Cable
3m TNC Cable
DC
Audio Video
IF In1
IF IN2
DC Cable
Audio Cable
Video Cable
Control, data and Chaining
2
7
The domo SOLO2/4 receiver system with panel style 2 should be connected as shown below.
Antenna 1
Antenna 2
100 cm
3m TNC Cable
3m TNC Cable
IF In1
Chain
Data
Audio
Video
Control
LAN
IF IN2
DC
Video Cable
Audio Cable
LAN Cable
DC Cable
2
8

Diversity, Antenna Positioning and Use of Down Converters

Note: Domo down converters can be damaged by static electricity discharge when connecting antennas. It is suggested that only antennas with built in DC path to ground are employed to avoid static damage. If this can not be achieved then antennas should be shorted to ground before connection to the down converter.
The domo SOLO2/SOLO4 receiver is a diversity receiver and will give optimum results only when two antennas are deployed. The down­converter boxes should be connected to the receiver, by connecting the 3m TNC cables supplied between the down converter connector labelled ‘RX / IF OUT’ and the receiver connector labeled ‘IF IN’. Care should be taken not to over tighten the TNC connectors.
The down-converters convert the RF signal down from microwave frequencies to the UHF band, which allows the signals to be run along longer cables without degradation. In the case of the standard domo SOLO receiver 3 metre long cables are provided, allowing the down­converters to be positioned remotely from the receiver.
It is important that the down-converter be positioned very close to the antenna - long cables should not be used between the antenna and the down converter because this can degrade system performance.
Typically antennas and down converters will be positioned outside, usually on the roof of a building or a vehicle. The down-converters can be located outside, because they are weather proof. However the receiver is not weather proof and the 3 metre cables should be used to allow the receiver to be positioned in an equipment room, rack or housing.
The domo SOLO2/SOLO4 receiver uses an advanced diversity technique called maximum ratio combining to construct a good spectrum from two potentially damaged received signals. To get the best results from diversity, the antennas should be physically separated by at least 100cm.
Sometimes better results can be achieved by separating the antennas further, or by positioning them of different corners of a building. The optimum antenna placement depends on the environment in which the equipment is used and the signal path, and is often limited by physical factors (accessibility for example).
The domo SOLO2/SOLO4 receiver is supplied without antennas since the optimum choice of antenna will depend on the operational scenario. For short range or mobile applications, omni directional antennas such as ANT4L, ANT6C or ANT4S will be most suitable whereas for longer range fixed links, or where mobile transmit activity is happening in a defined 120 degree arc the higher gain ANT12L or ANT12S will be more suitable.
Antennas should be screwed directly to the TNC input of the down converter labeled ‘ANT/RF IN’.

Video Output Connection

Connect the video output lead to the BNC connector labeled ‘VIDEO’ on the SOLO receiver and to the chosen video display device.
2
9
Connector Signal
Video BNC 75 ohm composite video output, PAL or NTSC
Typically the video display device will be a high quality monitor.

Audio Connection

Push the LEMO connector into the socket labeled ‘AUDIO’, taking care to align the connectors and connect the chosen audio output device.
Connector Signal
Audio Plugs Line level, +7dBu clip level, low impedance
Typically the audio output device will be monitoring speakers.
software selectable at the transmitter
source (20 ohm)

DC Power

The SOLO2/SOLO4 Receiver is powered from a nominal 12V DC supply.
As standard domo supply an AC to DC converter, terminated with a LEMO connector on the DC power output. Push the LEMO plug into the socket labelled ‘12V’, taking care to align the connectors. Connect the AC adapter block to your local mains electricity supply, noting the mains supply requirements detailed on the adapter.
The 12V DC input has the following characteristics.
For Box style 1.
Input Voltage Range – 9V to 16V, reverse voltage protected.
Current Draw – 0.9A at 12V
For Box style 2.
Input Voltage Range – 10V to 18V, reverse voltage protected.
Current Draw – 1.0A at 12V
domo can supply optional bare DC power leads, for connection or hardwiring to other DC sources. The domo part number is CABDC3
2
0

Control Cable

The control cable is used for connecting the SOLO receiver to a PC when using the domo PC control application. The PC control application is described in more detail the Advanced Operation section of this handbook.

Data Connection

The SOLO receiver features a general purpose DATA port used for outputting RS232 data transmitted from a SOLO2/4 transmitter.

Installation Notes

The domo SOLO receiver has been designed so that the down­converter units are mounted remotely from the receiver unit, and connected via the 3 metre TNC cable.
The down-converter units should be connected directly to the receive antenna, but where this is not possible a short length of low loss RF cable such RG213C/U should be used. System performance will be degraded by the introduction of RF losses at this point.
The down converter should be screwed or strapped to a flat surface or pole, using the integral mounting holes on the unit. The down converter is weather proof, and has no special cooling requirements. If the down­converter is mounted where it is exposed to the weather then the connector labelled ‘ANT / IN’ should face upwards.
The antenna itself should be separately secured, the TNC connectors should not be expected to take the strain of the antenna.
The domo SOLO2/SOLO4 receiver is designed to be mounted in an equipment rack or shelter and must not be exposed to the elements. The receiver is splash resistant, but is not waterproof, so it should not be exposed to moisture for prolonged periods.
The receiver is self-cooling; however it should be mounted in a ventilated environment. Forced air cooling is not required. Adequate clearance on either side the receiver (5cm) should be allowed for ventilation.
The receiver is supplied with a mounting plate that allows the unit to be screwed or strapped to a flat surface.
3
7.4 Powering on the System
All external connection to the SOLO2/SOLO4 products should be made, as described in the previous sections, before proceeding to power on the system.

Applying power to the Solo Receiver

On powering the SOLO2/SOLO4 receiver, one of the eight green configuration LEDs on the control panel will light (which one depends on which configuration was active when the receiver was switched off). The red Alarm LED may light if the receiver is unable to lock to a signal.

Applying power to the transmitter

When powering the transmitter directly from a 12V source, or from a connected battery, the following will be observed.
If none of the LEDs on the control panel light then the transmitter may be in standby mode. If this is the case then press, and hold the RF button for more than one second.
One of the eight green configuration LEDs on the control panel will light (which one depends on which configuration was active when the receiver was switched off).
The alarm LED may be lit, typically if there is no active video source.

Switch On RF on the transmitter

On the transmitter unit control panel, press the RF button briefly until the RF LED lights. This indicates that the RF output is active, and that the unit is transmitting.
If the receiver is able to receive the transmitted signal, the receiver RF LED will light indicating receiver lock, and the receiver ALARM LED should go out.
Video and audio signals will be presented automatically at the receiver outputs.

Changing Configuration

domo SOLO2/SOLO4 equipment features eight user selectable and programmable configurations. By default, all 8 configurations are set to the values which are listed in Section 16, Default Configurations. The
nfiguration that is currently active is indicated by which of the eight
co configuration LEDs is lit on the control panel. Pressing the ‘CONFIG button on the control panel of any domo SOLO equipment will select the next configuration in order.
On the SOLO transmitters, changing a configuration turns off the RF output to prevent accidental transmission and potential interference. The RF output must manually be re enabled once the user is confident that the correct configuration has been selected.
Modifying the default configurations is done from the PC control application, as described in the section on Advanced Operation.
31
2

Standby

Any of the SOLO2/SOLO4 transmitters can be placed in a low current consumption standby mode by pressing and holding the RF button for one second. The LEDs will go out indicating that the unit is in standby mode.
Pressing and holding the RF button for one second brings the unit back out of standby mode.

Diagnostic On Screen Display

The SOLO2/SOLO4 Receiver is equipped with a diagnostic on screen display. This facility will ‘burn’ diagnostic data onto the video output for test and set-up purposes. Pressing the RF button will enable this facility and a diagnostic screen will appear in the video as shown below.
The displayed diagnostic data includes a spectrum display, signal to noise data, input power level and frequency. The received spectrum display is useful when checking for interference signals, the SNR indicated signal quality. For more information on use of this facility a domo training course is recommended and more information is available in section 13 of this manual.

Using the OSD as a Set-up / Diagnostic Tool

The On Screen Display (OSD) is an extremely useful tool for system set-up and diagnostic.
When setting a domo system up the OSD should be used in the following way.
Check Channel is Clear
With the transmitter OFF, check that the channel is empty of interference signals, this is confirmed by ensuring that the reported power in the channel is at –99dBm and that the spectrum is shown as a rounded dome with no obvious spikes or tones.
Check Quality of Link
Switch on the transmitter and confirm that SNR is 6 or greater and that power level is at least –92dBm or greater. This represents
3
3
approximately a 5dB margin. Failure of the link will occur when the
A
power level reaches –97dBm or the SNR reaches 2dBm

Using the transmitter Range Mode Button

Ultra Long Range
Short Range
Range Mode Button
MODE
The Range Mode button and LEDs on the SOLO2/SOLO4 transmitter, has the following function.
SOLO2 transmitter: No Function
SOLO4 transmitter: Selects the range of the transmitter.
On a SOLO4 transmitter, the user can select various range characteristics, by repeatedly pressing the Range Mode Button, these can be toggled. The user should be aware that increasing the range will have the effect of reducing the image quality and increasing the video delay.
RF
LARM
1 2 3 4
CONFIG RF
5 6 7 8
Ultra Long Range: 1.25MHz QPSK FEC1/3 (optional) (Lowest
Image Quality)
Long Range: 2.5MHz QPSK FEC1/3
Medium Range: 2.5MHz QPSK FEC2/3
Short Range: 2.5MHz 16QAM FEC2/3 (Highest Image Quality)

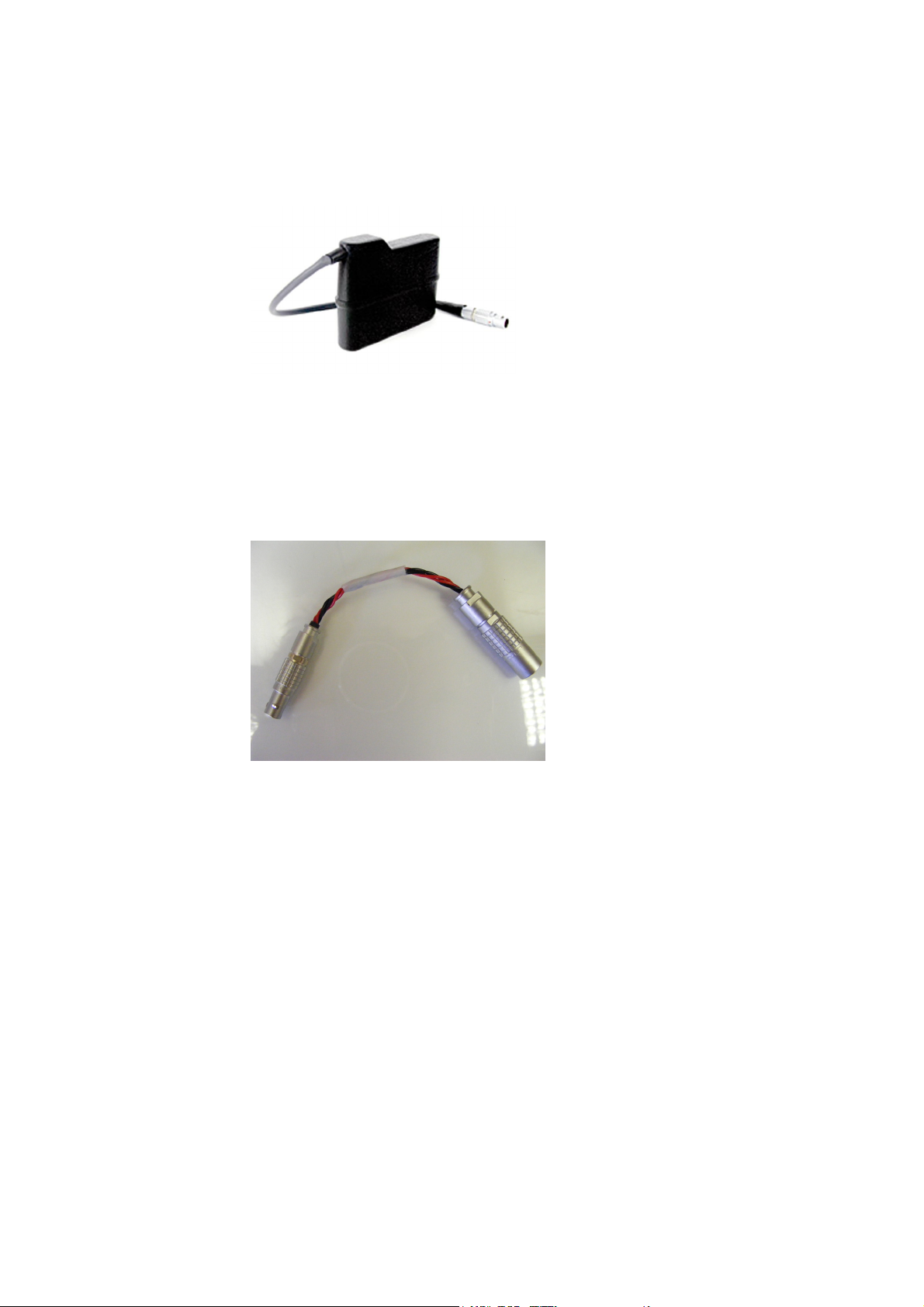

7.5 Domo Batteries and Battery Charging
Although domo equipment can be powered directly from user 12V batteries, domo also supplies a rechargeable battery pack. The following domo battery items are described in this section.
SOLBAT: 7.2V 4AH rechargeable NiMH battery pack.
SOLBCH: Battery Charger
SOLBCC: Adaptor cable that allows SOLBAT to connect to SOL2/SOL4 TX.
3
4

Using the SOLBAT

The domo SOLBAT is used for powering domo transmitters.
The domo SOLOBAT can not be connected directly to the SOL2/SOL4 Transmitter, instead it must be connected using the SOLBCC adaptor cable. The SOLBCC adaptor cable provides an interface between the 4 pin DC In Lemo on the transmitter and the 6 pin DC Out Lemo on the battery. The cable is shown below.
When connected a fully charger SOLBAT will power the transmitter for more than 4 hours.

Charging the SOLBAT

The SOLBAT can be recharged by connecting it to the SOLBCH battery charger. The SOLBAT battery can be connected directly to the SOLBCH battery charger, the interface cable is not required. When connected the SOLBAT indicator LED has the following meaning.
LED Yellow: Battery not connected.
LED Orange: Battery fast charging.
LED Green / Yellow flash: Battery ‘Top Off’ final charging
LED Green: Charging Complete / trickle charging
LED Orange / Green flash: Error
Approximately 2 hours should be allowed for a full charge of the SOLBAT battery.
3
5
7.6 Using the Clip On 1W Amplifier
Additional range can be achieved by connecting the SOLAMP1W clip on amplifier to the domo SOLO2/SOLO4 transmitter.

Connections

This section describes how to connect the following model numbers.
SOLAMP1W
The domo SOLAMP1W is supplied with the following cables:
RF Cable (SMA to SMA semi-rigid bridge cable)
DC Power Cable (with Control breakout)
Lemo to Dtype control cable

Amplifier Connection

The domo SOLAMP1W is designed to mount directly onto the SOL4/SOL2 transmitter. The following steps should be taken.
1. Screw the SOL2/SOL4 transmitter down onto the SOLAMP,
2. Connect the RF output of the transmitter (SMA) to the RF input
3. Using the double-headed 16pin Hirose cable, connect one end
using the 4 screws provided.
of the amplifier (SMA) using the short semi rigid SMA cable provided. The SOLAMP is designed to work directly with the SOL2/SOL4 transmitter.
to the transmitter Hirose socket, and the other end to the amplifier Hirose socket.
4. The 3 pin Lemo spur protruding from the double-headed Hirose cable breaks out the SOL2/SOL4 transmitter RS232 control lines. The 3 pin male Lemo to Dtype cable should be connected here when control of the transmitter from the RS232 PC application is required.
3
6
The assembled system is shown below.

DC Power and Control Cable

The SOLAMP is powered by the SOL2/SOL4 TX and no additional power is required. However the voltage range when using the SOLAMP is more limited.

Antennas

Input Voltage Range: 11-16V, reverse voltage protected.
Current Draw 1.2A (Includes SOL2/SOL4 TX) at 12V.
Domo SOLAMP is supplied without antennas as standard. It is good practice to ensure that an antenna is always connected before powering the device. Prolonged operation without an antenna is not recommended. The antenna should be connected by screwing it to the TNC Type output connector with adapters as required, but care should be taken not to over-tighten.
Note: It Is recommended that where possible antennas should be connected directly to the SOLAMP. Use of cables will degrade performance.
3
7

Installation Notes

The domo SOLAMP has been designed specifically for vehicle applications, however it is a general-purpose amplifier and can be used in many applications including the following.
Vehicle applications
Aircraft applications
Long Range fixed links
Interconnection between the SOLAMP transmitter and the antenna, or any intermediate optional power amplifier should be kept as short as possible. Special attention should be taken to use only low loss cables. An appropriate cable might be RG213C/U. It is essential to minimise the distance between any amplifier and the antenna.
The SOLAMP is equipped with a self-regulating 12V input that can be connected directly to the vehicle battery. Power conversion will be required for 24V vehicles or 28V aircraft systems.
The SOLAMP is splash resistant, but is NOT waterproof, so it should not be exposed to moisture for prolonged periods. The SOLAMP is self­cooling; however it should be mounted in a ventilated environment.
7.7 Using the booster 5W Amp
Additional range can be achieved by connecting the AMP5W-xxxxxx booster amplifier to the domo SOLO2/SOLO4 transmitter.

Connections

This section describes how to connect the following model numbers.
AMP5W-120140
AMP5W-230250
The domo AMP5W-xxxxxx is supplied with the following cables:
RF Cable
DC Power Cable
3
8

RF Connection

The domo AMP5W has the following input power requirements.
AMP5W-120140: Input Power 100mW or 20dBm
AMP5W-230250: Input Power 10mW or 10dBm
Therefore care must be taken when connecting the AMP5W-230250 product to either SOLO2 or SOLO4 transmitter. The output power of the transmitter will need to be reduced when connecting to the AMP5W­230250 amplifier, this can be done using the built in digital attenuator using the PC Software GUI, or by fitting an RF attenuator in line.
Ideally when balancing the 5W Amplifier and domo transmitter a power meter should be employed, this will give best results, because cable losses can be factored.
3
9

DC Power

The amount of attenuation required is shown bellow.
Note the SOL4TXLE-138139 (1.389 to 1.399GHz), SOL4TXLE-240248 (2.4 to 2.483GHz), SOL2TXLE-138139 (1.389 to 1.399GHz) SOL2TXLE-240248 (2.4 to 2.483GHz)must not be connected to 5W PA, because these elevated power levels are not permitted in the license exempt bands.
AMP5W-120140 AMP5W-230250
SOLO2 Transmitter 0dB Attenuation 10dB Attenuation
SOLO4 Transmitter 0dB Attenuation 10dB Attenuation
If customers are concerned about balancing the input power when connecting 5W amplifiers, then they should contact domo directly.
Push the connector on the DC power cable into the socket labelled ‘12V, taking care to align the connectors. Connect the banana connectors on the other end of the cable to a suitable DC source.

Antennas

The 12V DC input has the following characteristics.
Input Voltage Range – 12V +/- 1V, reverse voltage protected.
Current Draw 7.5A AMP5W-230250, 2.5A AMP5W-120140
domo 5W Amp is supplied without antennas as standard. It is good practice to ensure that an antenna is always connected before powering the device. Prolonged operation without an antenna is not recommended. The antenna should be connected by screwing it to the N Type output connector with adapters as required, but care should be taken not to over-tighten.
Note: It Is recommended that where possible antennas should be connected directly to the 5W Amp. Use of cables will degrade performance.
3
0

Installation Notes

The domo 5W AMP has been designed specifically for vehicle applications, however it is a general-purpose amplifier and can be used in many applications including the following.
Vehicle applications
Aircraft applications
Long Range fixed links
Interconnection between the 5W AMP transmitter and the antenna, or any intermediate optional power amplifier should be kept as short as possible. Special attention should be taken to use only low loss cables. An appropriate cable might be RG213C/U. It is essential to minimise the distance between any amplifier and the antenna.
The 5W AMP is equipped with a self-regulating 12V input that can be connected directly to the vehicle battery. Power conversion will be required for 24V vehicles or 28V aircraft systems.
The 5W AMP is NOT splash resistant, and is NOT waterproof, so it should not be exposed to moisture for prolonged periods. The 5W AMP is self-cooling; however it should be mounted in a ventilated environment. Forced air cooling is employed in the 5W AMP.
4
8 Advanced Operation
8.1 SOLO System PC Controller Application Software

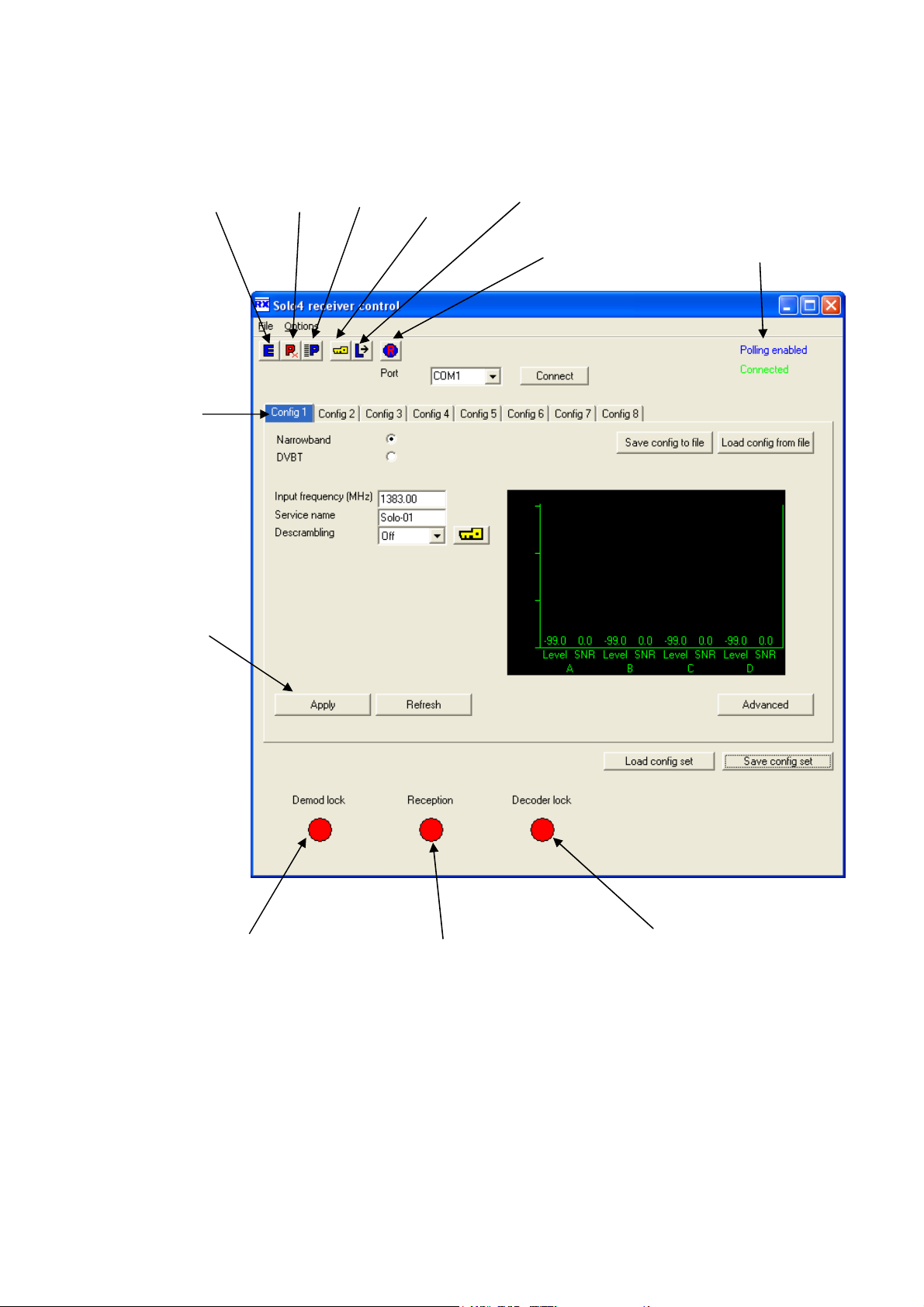

Advanced control of the SOLO2/SOLO4 system is available by using PC control applications.
Typically users may want to customize the default configurations to control settings such as frequency, scrambling keys, modulation parameters, and video resolution.
The SOLO2 and SOLO4 transmitter products are controlled by the
solo_tx_ctrl.exe application available on the CD delivered with the product.
The SOLO2 and SOLO4 receiver is controlled by the solo_rx_ctrl.exe
application available on the CD delivered with the product.
Note that exact file names may change as software version information is a part of domo file names.
A PC is required with two RS232 Serial COM ports to control both a transmitter and receiver simultaneously. Where changes are to be made to either a transmitter, or a receiver, at different times, a PC with a single RS232 Serial COM part can be used.
Installation of the two control programs is as simple as copying them from the CD to a suitable location on the PC. No install shield routine is launched. Note that the controllers generate their own log and initialisation files, so it is best to create a dedicated directory for these applications, perhaps with links to the applications from the desktop of the PC.
Use the supplied cables to connect the chosen COM port(s) of the PC to unit(s) to be configured.
Launch each application in turn by double clicking or using the run command.
Connection with a SOLO product should be automatic, but the user can force selection of the correct COM port using the drop down, followed by the “Connect” button.
Errors such as the following may appear during the connection process if the PC is unable to automatically ascertain which unit is connected to which COM port.
Error attempting to read invalid address
Error has occurred during polling, polling has been disabled
41
2
For both controllers, changes can be made to the unit configuration using the drop down and data entry fields.
Changes are only applied to the unit when the “Apply” button is clicked.
Current values, as running in the unit, can be read using the “Refresh” button.
Parameters that are status information only appear in greyed in the application.
Further engineering and configuration controls can be found within the “Options” and “File” drop down menus in the application title bars.
4
3

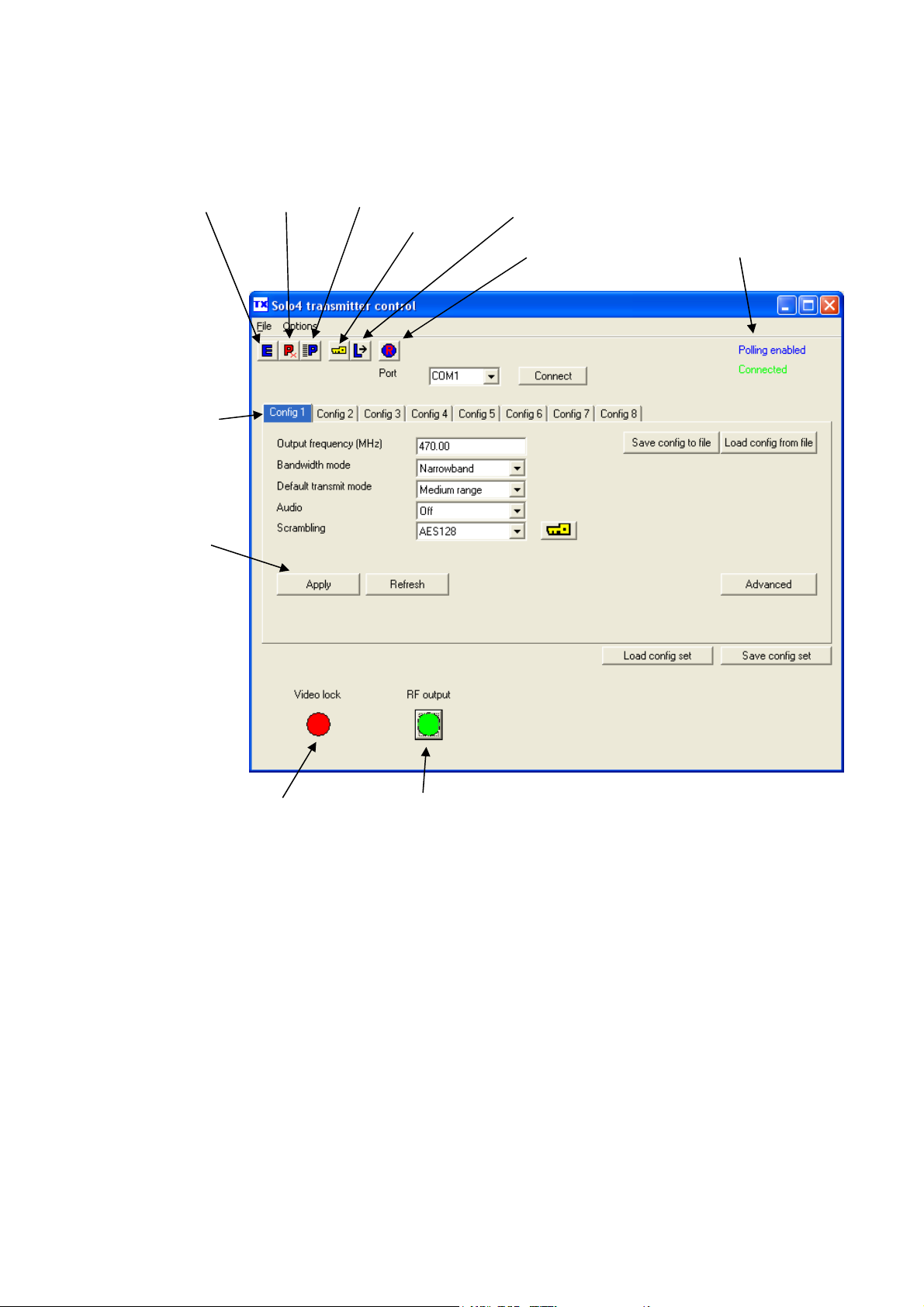

8.2 Transmitter Control Application
Engineering Menu
Current selected Config
All parameter changes must be applied
Polling Enable
Set Polling Options
Enter an Encryption Key
Enter a Licence key
Restore Factory
Connectivity
Status
Video alarm RF Output
The ‘Advanced’ button allows the user to navigate to the controller page which exposes all available Transmitter settings.

Output Frequency (MHz)

The transmit frequency can be changed by entering the new desired frequency in this field. Values outside the range supported by a particular transmitter type will be rounded to the highest of lowest supported frequency as appropriate.
The transmit frequency can be set in step sizes of 250kHz.
Toggle & status
4
4

Bandwidth Mode

The Bandwidth Mode switches the unit between either domo Narrowband (2.5MHz or 1.25MHz channel bandwidths) or DVB-T 8MHz bandwidth. To select 6MHz and 7MHx DVB-T modes the user must first click on ‘Advanced’ to enter the Advanced setting page.

Audio

Turns ‘On’ or ‘Off’ a basic audio setting – the audio settings are optimised considering the bit-rate of the selected Transmit mode. The user can set there own audio settings using the ‘Advanced’ page, if required.

Default Transmit Mode

In Narrowband the user has the following pre-defined modes available from the main window. Note that the Ultra Long Range Mode is only available to users who have purchased the SOLO4TXUP option (1.25MHz and MPEG-4 modes). The user can of course define their own specific FEC, bandwidth and modulation requirements from the ‘Advanced’ page.

Scrambling

File Options

Ultra Long Range: 1.25MHz QPSK FEC 1/3 (optional)
Long Range: 2.5MHz QPSK FEC 1/3
Medium Range: 2.5MHz QPSK FEC 2/3
Short Range: 2.5MHz 16QAM FEC 2/3
In DVB-T the available modes are
QPSK ½ FEC 8MHz 1/32 Guard Interval
QPSK ¾ FEC 8MHz 1/32 Guard Interval
16QAM ½ FEC 8MHz 1/32 Guard Interval
If the AES scrambling option has been purchased for the SOLO2 or SOLO4 system in use, then it is possible to encrypt the link. Scrambling must be enabled at the transmitter by selecting either AES128 or AES 256 in the scrambling field. The actual scrambling key can then be entered by clicking on the yellow ‘key’ icon.
Load Config – used for loading a single configuration data from text file.
Save Config - used for saving configuration data to text file.
Load Config Set – used for loading all 8 configurations from a text file
Save Config Set - used for saving all 8 configurations to a text file
4
5

Advanced TX Controller Window

Output Frequency (MHz)

The transmit frequency can be changed by entering the new desired frequency in this field. Values outside the range supported by a particular transmitter type will be rounded to the highest of lowest supported frequency as appropriate.
The transmit frequency can be set in step sizes of 250kHz.

Modulation Bandwidth

For the SOLO2 transmitter products, the modulation bandwidths 8, 7 or 6MHz can be selected.
For the SOLO4 transmitter products, the modulation bandwidths 8, 7, 6 or 2.5MHz can be selected. If the Ultra Narrow band upgrade has been purchased the 1.25MHz will also be available to select.
The normal mode of operation is 2.5MHz.

Modulation Output

This control is used to turn on and off the RF output. After a configuration change, the output always reverts to OFF.
4
6

Narrow Band FEC

This option applies to SOLO4 transmitters only. The default FEC is 2/3, however improved range operation can be achieved by selecting FEC 1/3. FEC 1/3 will improve signal range by 3dB. However FEC 1/3 reduces link capacity to 1.2Mb/s therefore reducing picture quality.
FEC Link Bitrate Sensitivity
2/3 2.4Mb/s -99dBm
1/3 1.2Mb/s -102dBm

Narrow Band Guard Interval

This option applies to SOLO4 transmitters only. The Guard Interval defaults to 1/16. Interval 1/8 is also available for very long range (aircraft downlinks) applications.

Narrow Band Modulation

This option applies to SOLO4 transmitters only. The COFDM mode can be changed between QPSK and 16QAM. QPSK is the default mode and will give the strongest most rugged RF link performance. Selecting 16QAM reduces the link performance by 5dB but improves the link data throughput, giving significantly better video quality.
Note: The terminology DVB-T refers to the 8,7,6MHz wide bandwidth modulation employed in the SOLO2 products. The SOLO4 product is also capable of DVB-T, but this mode is not recommended for normal operation

DVB-T Service Name

Applicable in DVB-T mode only, defaults to Unit 1. This should not be changed in normal operation

DVB-T FEC

Applicable in DVB-T mode only, the default FEC is ½. Other FEC rates will all reduce the range of the product, but will improve image quality and capacity of the link.
4
7

DVB-T Guard Interval

Applicable in DVB-T mode only. The Guard Interval defaults to 1/32. Other guard intervals such as 1/16 or 1/8 are available for very long range (aircraft downlinks) applications.

DVB-T Modulation

Applicable in DVB-T mode only, the COFDM mode can be changed between QPSK, 16QAM and 64QAM. QPSK is the default mode and will give the strongest most rugged RF link performance. Selecting 16QAM reduces the link performance by 5dB but improves the link data throughput, giving significantly better video quality.

Output Attenuation

This control can be used to make minor adjustments to the output power level, but in normal operation should be disregarded.

Video Input

This control is used to select the composite video input standard. Options are PAL, and NTSC both with and without 7.5 IRE pedestal.

MPEG Mode

The default encoding mode is MPEG2, however for SOLO4 products if the Ultra Narrow Band upgrade has been purchased, then MPEG4 will also be available. It is recommended that MPEG4 be employed when the unit is operating at low bitrates (2.5MHz bandwidth FEC1/3 or
1.25MHz bandwidth FEC1/3).

MPEG2 GOP Length

By default MPEG2 GOP length is set to a low delay stripe refresh mode. This option allows the user to set the GOP length for a standard GOP structure at the expensive of an additional delay.

MPEG4 Encoding Mode

This option is only available on SOLO4 products installed with the Ultra Narrow Band Upgrade. This defaults to low delay interlace. Other modes are available but advice should be sought from domo before selection.

MPEG4 Frame Rate

This option is only available on SOLO4 products installed with the Ultra Narrow Band Upgrade. This option allows the user to select lower frame rate encoding (1/2 frame rate, ¼, 1/8 etc) It is recommended that
4
8
MPEG4 reduced frame rates be employed when the unit is operating at low bitrates (1.25MHz bandwidth FEC1/3).

Video Bitrate

This control can be used to set the video bitrate within the constraints of capacity available in the channel, but only when “Chaining Input” is set to ON.
For normal SOLO transmitters, chaining CANNOT be enabled, and as such video bit rate control is automatic.
The video bit rate is automatically maximised in each configuration when “Chaining Input” is turned off.

Horizontal resolution

The video coding resolution can be selected from 704, 528, 480 and 352 pixels. Changing the horizontal resolution to lower values will make the coded picture softer.
Care should be taken to match the horizontal resolution to the resolution of the camera connected to the transmitter; this will give best image results.

Audio Encoder

The Audio can be turned on and off with this control. Audio is OFF by default, but there are several audio modes that vary from very high quality to speech grade that can be selected with this control. Enabling audio will degrade the video quality, because some of the available data capacity is diverted away from video to audio. Selecting high fidelity audio modes will degrade the video quality more than lower fidelity audio modes. The Audio encoder can also be switched to 32 kHz and 48 kHz MPEG Layer 1 modes; from software V3.3 upwards.
Note: The Solo4 receiver only supports 48 kHz sampling in MPEG Audio mode and bit-rates in the range 192 to 448kbits/s.

Audio Input Level

This control is used to define the audio gain to be applied to the audio input signal. 0dB is used for line level audio and various options up to 48dB of gain can be applied for microphone inputs.

Unit Name

This field allows the user to enter an identifier for the service that they wish to transmit. This must match that selected at the receiver for the service to be decoded. The unit name can be constructed of any eight ASCII characters.
4
9

Sleep Mode

This control allows the unit to be forced into a Sleep Mode where main functions are disabled, and the power consumption is significantly reduced.

Data

With this ON / OFF control the user can select whether the transmitter passes serial RS232 data across the RF link to the receiver.

Data Baud Rate

This field is used to select the baud rate of any RS232 serial data component to be passed from the transmitter to the receiver across the RF link.

Chaining Input

This control is not used in current SOLO products.

Chain Number

Current Config

Scrambling

This control is not used in current SOLO products.
This field reports the last loaded configuration number. Note that for the SOLO transmitter, changes applied after the configuration has been loaded are saved immediately into the current configuration.
If the AES scrambling option has been purchased for the SOLO2 or SOLO4 system in use, then it is possible to encrypt the link. Scrambling must be enabled at the transmitter by selecting either AES128 or AES 256 in the scrambling field. At this point the user will need to ensure that the correct key is in use and this is done by using Options / Write AES Key.
The key is a 128bit key for AES128 and a 256bit key for AES256 and is entered as either 32 or 64 ASCII hexadecimal characters (0..F).

Video Locked (Status Only)

This status information indicated whether the transmitter is successfully locked to the incoming composite video signal. Unlocked status may indicate cabling faults, or poor quality incoming video feeds to the unit.
4
0

Software Version (Status Only)

This status information describes the version of the software running the SOLO transmitter product.

FPGA Version (Status Only)

This information is for domo engineering use only.

Serial Number (Status Only)

This status information is the electronic serial number of the transmitter PCB. This number can be exchanged with domo to purchase extra licensable features, such as upgrades to support AES encryption.

Chaining (Status Only)

This field reports the status of the chaining input to the SOLO transmitter, and is not active in current units.

Options

Engineering – provides access to further diagnostic and calibration features. The Diagnostic and Power calibration pages must not be altered. The Advanced Options under the Engineering menu allow the user to Change RS232 address, which can be useful when connecting multiple units together via a multi drop RS485 bus for control purposes. The Serial control dialogue box allows the user to change timeouts used during the serial communications between the unit and the controller.
Enable Polling – selecting this option makes the control application automatically refresh the data presented to the user every few seconds.
Polling Options – selecting this option allows the user to define parameters to be regularly polled.
Write Encryption Key – opens a dialogue box for entering an ABS or AES scrambling key, as 32 ASCII hexadecimal characters (0…F)
Write License Code – open a further box for entering license codes for the activation of licensable features (e.g. AES scrambling) in the transmitter. Contact domo for support in applying new licenses as required.
Restore Defaults – restores factory default settings in the transmitter.

File

Set Icon Source, Set logo source, Set logo size and Set application title – allow the user to define a controller branding
Exit – exits the SOLO receiver control application
5
8.3 Receiver Control Application
Engineering Menu
Current selected Config
Polling Enable
Set Polling Options
Enter an Encryption Key
Enter a Licence key
Restore Factory
Connectivity
Status
All parameter changes must be applied
Green if the demodulator has locked (found) a signal at the frequency
Green if the received signal quality is good enough to provide an ‘error-free’ video
Green if the decoder is decoding a valid MPEG stream
The ‘Advanced’ button allows the user to navigate to the controller page which exposes all available Transmitter settings.
51
2

Bandwidth Mode (Narrowband or DVB-T)

The Narrowband and DVB-T radio selections switch the unit between either domo Narrowband (2.5MHz or 1.25MHz channel bandwidths) or DVB-T 8MHz bandwidth. To select 6MHz and 7MHx DVB-T modes the user must first click on ‘Advanced’ to enter the Advanced setting page.

Input Frequency (MHz)

The receive frequency can be changed by entering the new desired frequency in this field. Values outside the range supported by a particular transmitter type will be rounded to the highest of lowest supported frequency as appropriate.
The receive frequency can be set in step sizes of 250kHz.

Service Name

This field allows the user to enter an identifier for the service that they wish to receive. This must match that selected at the transmitter (Unit name) for the service to be decoded. The service name can be constructed of any eight ASCII characters.

Descrambling

File Options

If the AES scrambling option has been purchased for the SOLO2 or SOLO4 system in use, then it is possible to decrypt the link. Descrambling must be enabled at the receiver by selecting either AES128 or AES 256 in the descrambling field. The actual descrambling key can then be entered by clicking on the yellow ‘key’ icon.
Load Config – used for loading a single configuration data from text file.
Save Config - used for saving configuration data to text file.
Load Config Set – used for loading all 8 configurations from a text file
Save Config Set - used for saving all 8 configurations to a text file
On a receiver there are 8 separate configurations for Narrowband and 8 separate configurations for DVB-T.
5
3

Advanced RX Controller Window

Note: The terminology DVB-T refers to the 8,7,6MHz wide bandwidth modulation employed in the SOLO2 products. The SOLO4 product is also capable of DVB-T, but this mode is not recommended for normal operation

Narrowband / DVB-T

The SOLO2 is capable of receiving transmission in 6/7/8MHz wide DVB-T OFDM only. The SOLO4 receiver is capable of receiving transmissions in Narrowband and DVB-T. For receiving the transmissions from a SOLO2 transmitter the ‘DVB-T’ radio button should be selected. For receiving the transmissions from a SOLO4 transmitter the ‘Narrowband’ radio button should be selected.
When the ‘Narrowband’ radio button is selected, then the ‘Narrowband’ column of parameters will become highlighted, and can be set.
If the ‘DVB-T’ radio button is selected, then the ‘DVB-T’ column of parameters will become highlighted, and can be set.

Input Frequency

The receive frequency can be changed by entering the new desired frequency in this field.
5
4

Down converter LO

This field allows definition of the local oscillator frequency in the connected downconverters.
For domo supplied downconverters, this should be set as follows:
1880MHz for S band transmissions (2.28 to 2.55GHz)
1700MHz for L band transmissions (1.15 to 1.4GHz).

Down converter LO side

This field allows definition of the local oscillator side.
For domo supplied downconverters, this should be set as follows:
LOW for S band transmissions (2.28 to 2.55GHz)
HIGH for L band transmissions (2.28 to 2.55GHz)

OFDM Bandwidth

This field displays the width of the received OFDM signal and should be set to 2.5MHz for normal SOLO4 system operation, and should be set to 8MHz for normal SOLO2 system operation.

OFDM Guard Interval

In this field the user selects the guard interval which matches the transmitter. For SOLO4 systems typically a guard interval of 1/16 is used, however on very long range transmissions a guard interval of 1/8 may be employed. For SOLO3 systems typically a guard interval of 1/32 is used, however on very long range transmissions a guard interval of 1/8 may be employed.

OFDM Mode (Status Only)

This field displays the COFDM constellation that is being demodulated at the receiver. In normal operation this will match that selected at the transmitter.

OFDM FEC (Status Only)

This field displays the COFDM FEC (Forward Error Correction) that is being demodulated at the receiver. In normal operation this will match that selected at the transmitter.

Input SNR (Status Only)

For each IF input, the SNR (Signal to Noise Ratio) is reported. Values in the order of 18dB to 22dB represent strong received signals, whilst values in the order of 5dB represent poor received signals which will likely give rise to decoding errors.
5
5

BER Pre Viterbi (Status Only)

This figure is for engineering use and gives a representation of the error rate prior to the error correction techniques having been applied in the receiver.

BER Post Viterbi (Status Only)

This figure gives a measure of the bit error rate after error correction techniques have been applied in the receiver. Any numbers greater than 0 in this field indicate the presence of un-correctable errors in the received stream, and thus picture glitching and audio artefacts will occur.

Input Level (Status Only)

This figure indicates the received signal level at the two receiver inputs. Normal Operation will occur when the input level is between –15 and – 90 dBm. Signals greater than –15 may be too powerful and cause damage. Signal less than –90dBm may be too weak and cause picture loss (typical link failure will occur between –95 and –99dBm).

Demod Lock Status (Status Only)

This indicates whether the demodulators are successfully locked to the RF signal.

Data

With this ON / OFF control the user can select whether the receiver extracts any data component that may be in the transmitted stream. Such data components are presented at the receiver DATA output port.

Data Baud Rate (Status Only)

This field reports the baud rate of any RS232 serial data component that is present and selected in the stream.

Input Line Standard (Status Only)

This field reports the line standard that is currently being, or last was, decoded.

Power Up Line Standard

Using this field the user can select what line standard of video the receiver will output (PAL / NTSC) when the receiver is first powered on and before it has locked to an incoming RF signal.
5
6

NTSC Mode

With this control, when running in 525 line mode, the user can select whether the NTSC composite output video has a 7.5 IRE pedestal applied.

Blue Screen on Fail

When the link fails, the user can select between a blue field video output (YES), and a freeze frame (NO) with this option.

Unit Name

This field allows the user to enter an identifier for the service that they wish to receive. This must match that selected at the transmitter for the service to be decoded. The unit name can be constructed of any eight ASCII characters.

Descrambling

If the AES scrambling option has been purchased for the SOLO system in use, then it is possible to encrypt the link. Descrambling must also be enabled at the receiver by selecting AES128 or AES256 in the descrambling field. At this point the user will need to ensure that the correct key is in use at the receiver and this is done by selecting Options / Write AES Key in the receiver controller.
The key is a 128bit value for AES128 and a 256bit value for AES256, and is entered as 32 or 64 ASCII hexadecimal characters (0...F).

Decoder Lock Status (Status Only)

This field reports whether the video decoder is successfully locked to the incoming digital bit stream.

Current Config

This field allows the user to select which of the 8 memory configs the receiver is operating in. The receiver has 8 stored configurations and the user can move between them by setting the appropriate number in this field. Changes made to other settings by the user will automatically be stored in the configuration number indicated by this field.

Serial Number (Status Only)

This status information is the electronic serial number of the transmitter PCB. This number can be exchanged with domo to purchase extra licensable features, such as upgrades to support AES decryption.
5
7

Software Version (Status Only)

This status information describes the version of the software running in the SOLO transmitter product.

FPGA Version (Status Only)

This information is for domo engineering use only.

Chaining

Chaining allows multiple services to be sent via one RF link. A receiver may be connected to a transmitter to form a chaining or relay link. To allow this, the chaining interfaces provided on the first receiver must be connected to the second transmitter. Three modes of operation are supported - no chaining (default), chaining mode, and relay mode. The chaining mode allows two services (remote and local) to be combined. The relay mode allows just the remote service to be transmitted turning off the local service.
For chaining mode to operate correctly, the second unit in the chain must operate at twice the transmit data rate from the first. If the first unit is operating in QPSK rate 2/3 the second unit must operate in 16QAM rate 2/3. If the first unit is operating in QPSK rate 1/3 the second unit must operate in QPSK rate 2/3. The units must have different chaining numbers selected, and the different unit names. For the relay mode to operate correctly the second unit must have the transmit rate greater or equal to the first unit.

Options

Chaining is a licensable feature.
Engineering – provides access to further diagnostic and calibration features. The Diagnostic dialogue box must not be altered. The Advanced Options dialogue box under the Engineering menu allows the user to Change RS232 address, which can be useful when connecting multiple units together via a multi drop RS485 bus for control purposes. The Serial control dialogue box allows the user to change timeouts used during the serial communications between the unit and the controller.
Enable Polling – selecting this option makes the control application automatically refresh the data presented to the user every few seconds.
Polling Options – selecting this option allows the user to define parameters to be regularly polled.
Write Decryption Key – opens a dialogue box for entering an ABS or AES scrambling key, as 32 ASCII hexadecimal characters (0…F)
Write License Code – open a further box for entering license codes for the activation of licensable features (e.g. AES scrambling) in the transmitter. Contact domo for support in applying new licenses as required.
Restore Defaults – restores factory default settings in the transmitter.
5
8

File

Set Icon Source, Set logo source, Set logo size and Set application title – allow the user to define a controller branding
Exit – exits the SOLO receiver control application
5
9
9 NETSTREAM IP Output Option
9.1 General Info
This section is relevant only to customers that have the NETSTREAM option fitted in their SOLO2 or SOLO4 receiver.
The NETSTREAM can only be fitted in box style 2.
The NETSTREAM product features an RJ45 socket for connection to 10 Base T or 100 Base T Ethernet networks. The network interface automatically switches between 10 Base T and 100 Base T as required.
The connector is wired for straight connection to a network Hub and does not automatically compensate for Ethernet crossovers. If a direct connection to a PC is required, then an Ethernet cross over cable should be used.
9.2 Streamer
The main use for the NETSTREAM card is to allow viewing of the received video/audio signal on a standard PC (or laptop) running the domo software decoder software (part number NETSWDR).
Data is transmitted over the Ethernet network by means of “multicasting” i.e. continuous real-time streaming of packets accessible to any PC connected to the network.
It is therefore possible for more than once connected PC to view the streamed data simultaneously.
Two types of multicast IP packets are streamed.
Packets carrying video, audio and data as received by the unit;
Packets known as Session Announcement Protocol and Sessions
Description Protocol data (SAP and SDP), which contain information regarding the nature and location of the stream itself.
9.3 Web Server
The unit features a web server, which can be used to change the configuration of the streaming parameters.
The default IP address of the unit when delivered is 192.168.0.71
A standard Internet browser can be used to reach the configuration page of the unit.
The URL of the configuration page is http://192.168.0.71/index.htm
Note that the address of the index page will change in the instance that the NETSTREAM IP address is subsequently changed.
5
Loading...
