D17XX IP Mesh Transceiver Card
January 2016 Data Sheet
The most important thing we build is trust
COFDM– Video, Audio, Telemetry and IP Products
Introduction
The D17XX is a single card IP Mesh transceiver with dual receive diversity.
Several D17XX transceivers can be used to generate a fluid self forming, self healing mesh containing up
to sixteen nodes. The D17XX transceivers within the mesh exchange data on a single frequency, simplifying frequency management. The entire mesh system occupies just 2.5MHz of bandwidth (3.0, 3.5, 5.0
and 6.0MHz also available). The D17XX transceivers employ a unique COFDM modulation scheme and
therefore offer excellent RF penetration and performance in the presence of multipath.
The D17XX transceivers can provide up to 8.8Mb/s of IP data (data rate depends on mode, number of
nodes and range between nodes). This available bit-rate can be used to exchange IP data traffic between nodes.
The highly flexible mesh topology means that data can be exchanged between nodes in a point-topoint or multi-point fashion; range can be extended by using nodes as repeaters. The self-forming,
self-healing mesh architecture makes the D17XX transceiver ideal for use in mobile surveillance applications, command and control applications, or advanced robotics.
The D17XX can be connected to third party composite or PTZ cameras using the AVI option. Two
PTZ control channels are available to control PTZ cameras. Alternatively third party IP cameras can
also be directly connected to the D17XX.
Security of the entire mesh network can be ensured by the use of the optional AES128 or AES256
encryption.
Control of the deployed mesh is achieved using the inbuilt web browser or comprehensive Mission
Commander PC application.
Equipped with Ethernet and serial control interfaces, the D17XX is easy to integrate into a larger system.
The key design criteria for this solution were low power consumption, small size, and ease of integration.
www.cobham.com/tcs
January 2016 Data Sheet
Features
Single card solution, includes 2 receivers, 100mW power amplifier and T/R switching.
Low power, typically 4W when meshed to another node at 100mW. [Power consumption is
dependent on data rate, channel BW and number of nodes.]
2.5MHz / 3MHz / 3.5MHz / 5MHz and 6MHz operating bandwidth modes
Two-way diversity Maximum Ratio Combining for fade and multipath elimination
Internal AES 128 / 256bit encryption (optional)
Twin IP interfaces
Multiple Serial interfaces
SMP RF connectors for reduced size and ease of connection
Optional Encoder offering very low delay video operation for real time applications
Interfaces for optional external amplifier up to 2W
Talk-back Audio
Micro SD card for 32GB storage via flexible circuit connector
FCC approval for the D17XX as an OEM Module.
Isometric View D17XX
www.cobham.com/tcs
January 2016 Data Sheet
Specification
Frequency
Selection
D1700
D1702
D1703
D1705
D1707
D1710
D1713
D1715
Interfaces Antenna 1 [Rx]
Antenna 2 [Tx/Rx]
Transmitter Port
External PA input
Power
Ethernet 1
Ethernet 2
Control and Misc
Camera (A/V)
RF Tuning Step Size
Output Power
Bandwidth
Mesh Capacity
Modulation
Carrier Modulation
FEC Rate
Receive Diversity
Receive Sensitivity
200 – 300 MHz
300 – 470 MHz
450 – 600 MHz
1140 – 1500 MHz
1980 – 2550 MHz
3000 – 3700 MHz
4400 – 5000 MHz
5500 – 6000 MHz
SMP J19
SMP J22
SMP J24
SMP J6
JST J2
JST J14
JST J15
JST J3 (RS485) JST J12 (RS232)
Optional Card—D550
125kHz step
+20 to -10dBm, 0.25dB steps (100mW)
2.5, 3.0, 3.5, 5.0, 6.0 MHz
Up to 8.8Mb/s
COFDM 360 carrier modulation
BPSK, QPSK or 16QAM (adaptive)
FEC1/2, FEC2/3 (adaptive)
Maximum Ratio Combining
-98dBm (BW 2.5MHz / BPSK 1/2)
IP Interface Ethernet electrical
IP Address Alloc.
Video & Audio streaming format
Open Audio
comms
Audio Comms channel
Compression
100BaseT Ethernet
DHCP dynamic IP Addressing
Multicast VLC compatible UDP & RTSP
Support
Interface Microphone level/headphone
G726 32kbit audio
channel
Encryption Type AES128 or AES256 (both optional)
GPS Dedicated GPS I/F RS232/RS485
Data
Interface
Control Local Control
RS232/RS485 data 1K2 to 115K2 baud switchable, UDP &
TCP routing protocol
Bicolour LED indicates power and mesh
Remote control
status. Mission Commander PC App.
Web browser control
www.cobham.com/tcs
January 2016 Data Sheet
Physical Mass
Dimensions
Power DC Input
Power Consumption
82g
90mm x 85mm
8-16V
Typically 4W when meshed to a single node at 100mW Tx power.
[Power consumption is dependent
on data rate, channel BW and number of nodes]
A/V input
(Separate Card
Option)
Store and Forward options
Video Input
Video Format
Video Encoding
Quality
Video bit-rate
Resolution
Frame Rate
Audio Input
Audio Sampling Freq.
Audio encoding
Audio bit-rate
Storage Format
Record Options
Files Download
AV Clip Size
Composite or SDI (selectable)
525 or 625 (PAL or NTSC)
MPEG4
Low/Medium/High (selectable)
2.4Mbit/s to 50kb/s (variable)
704, 576, 480 or 352
Self-selecting 30 to 2F/s
Line level or Microphone level
48kHz
MPEG audio layer 1
384 to 64kb/s
Secure Digital (SD) Card interface—
optional
Continuous or Triggered
From web browser interface
(Milestone)
30 seconds
Environment Temperature Range -10 to +50 °C
www.cobham.com/tcs
January 2016 Data Sheet

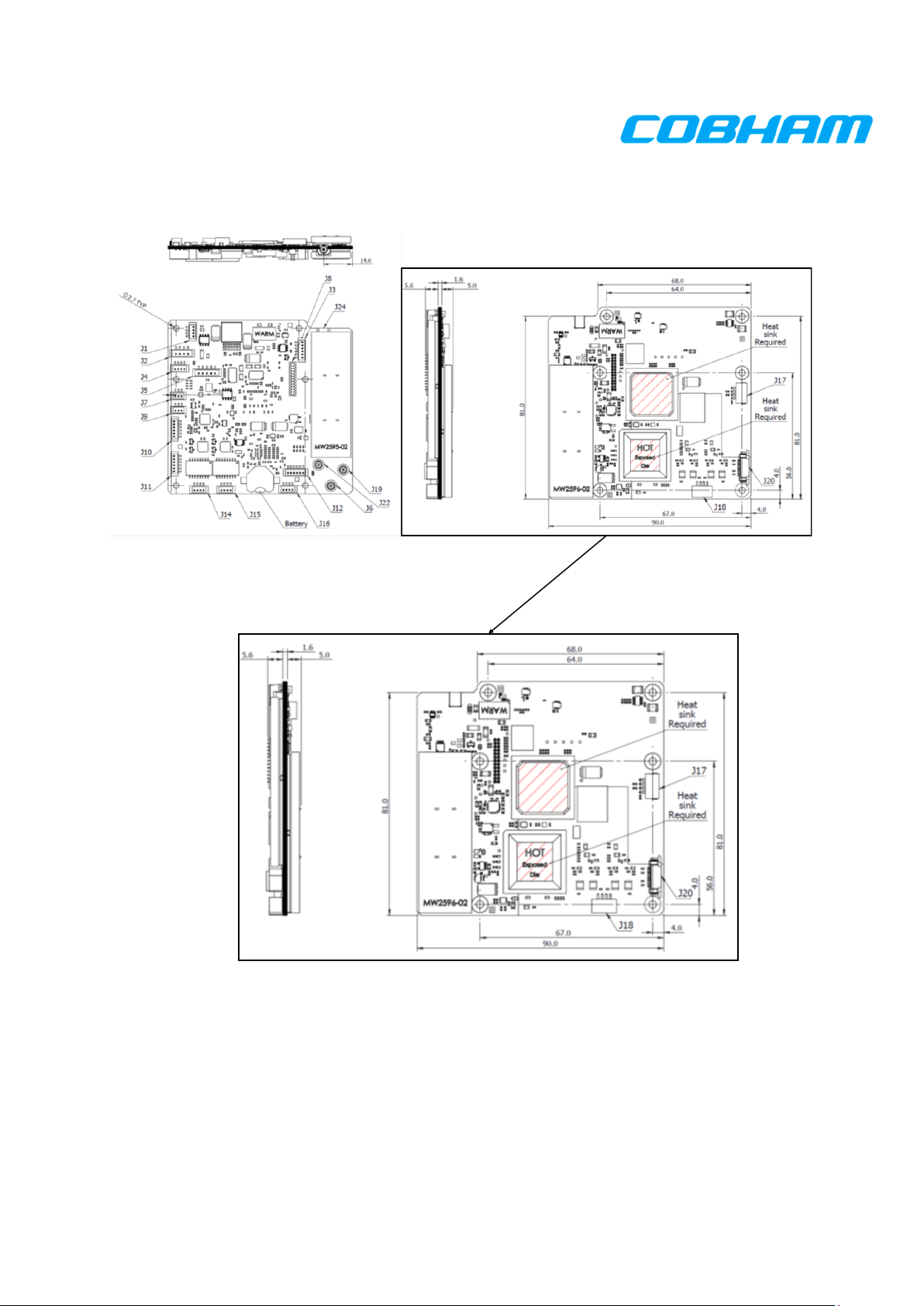

Mechanical Drawings D17XX
Cobham Tactical Communications
and Surveillance International
Fusion 2,1100 Parkway
Whiteley, Hampshire
PO15 7AB, UK
T: +44 1489 566 750
The information contained in this document is the property of Cobham Tactical Communications and Surveillance. This document and the information contained
herein is provided for evaluation purposes only and is subject to change without notice. Cobham Tactical Communications and Surveillance assumes no
responsibility for errors that might appear in this document and gives no representations or warranties as to the accuracy of the information contained herein,
including but not limited to the suitability and performances of the product or its intended application. © Copyright Cobham TCS limited 2012, All Rights Reserved
Cobham Tactical Communications
and Surveillance North America
2303 Dulles Station, Suite 200
Herndon, VA
20171, USA
Brazil Sales Office
Av. das Nações Unidas
12551- 17ºandar - Sala 1725
04578-903
São Paulo
Singapore Sales Office
42 Toh Guan Road East
Enterprise Hub 01-73
608583
Singapore
www.cobham.com/tcs
FCC compliance statements
5.4 FCC
5.4.1 FCC Subpart 15A Rule Section 15.21
CAUTION: The user of an intentional or unintentional radiator shall be aware that changes or modi-
fications not expressly approved by Cobham could void the user’s authority to operate the equip-
ment.
5.4.2 FCC Subpart 15B Rule section 15.105
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
5.4.3 FCC Subpart 15A Rule section 15.19(a)(3)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
“This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi-
tions:
(1) This device may not cause harmful interference, and (
(2) This device must accept any interference received,
(2) Including interference that may cause undesired operation.”
5.4.4 RF Exposure Guidance
The unit must be operated at least 20cm away from the body for RF exposure compliance purposes
5.4.5 Module Certification
This module Is FCC approved at 100mW, if an additional external amplifier is co located with this
approved module, then the above listed FCC approval will be invalidated under the conditions of the
approval. Compliance.
